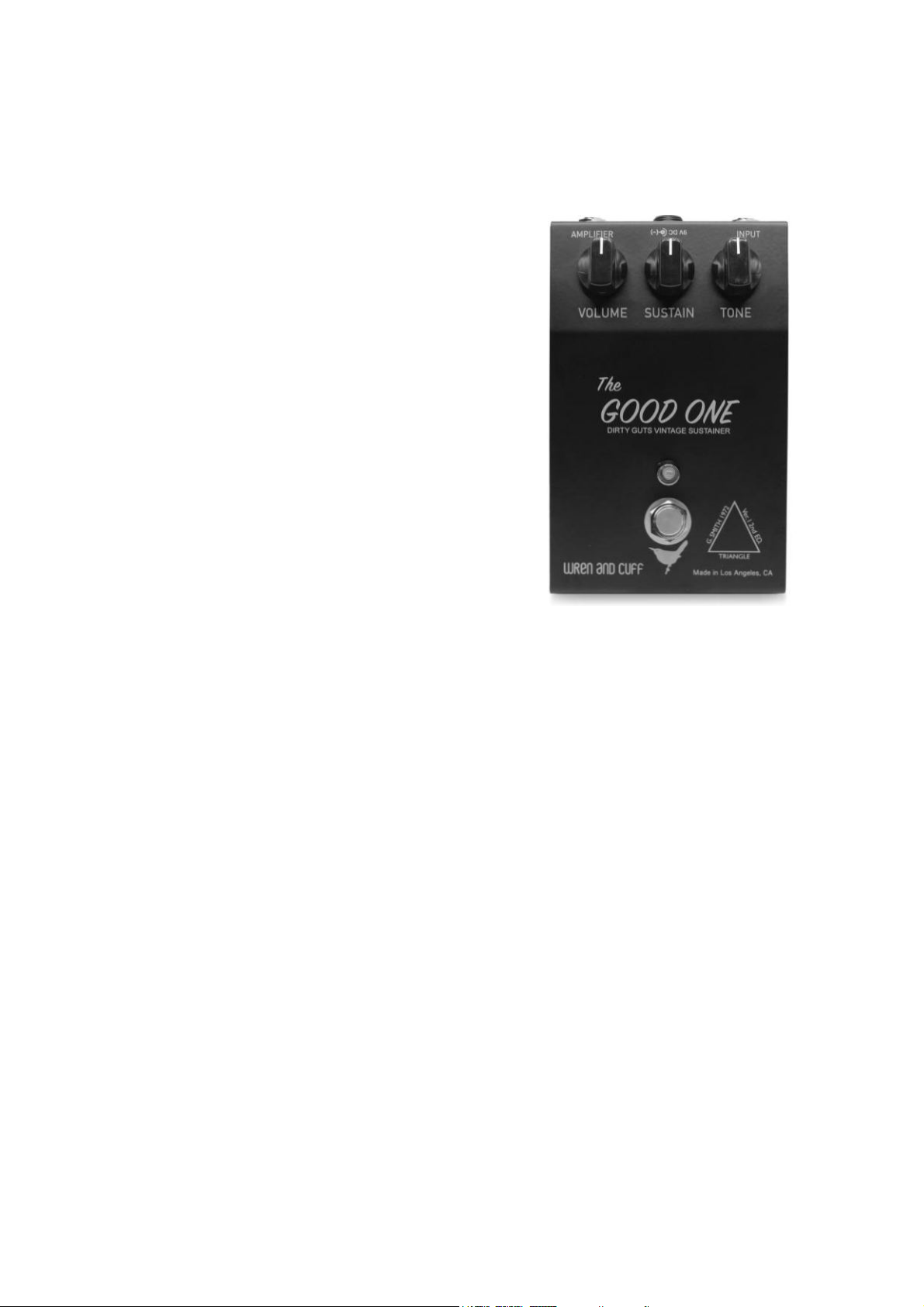

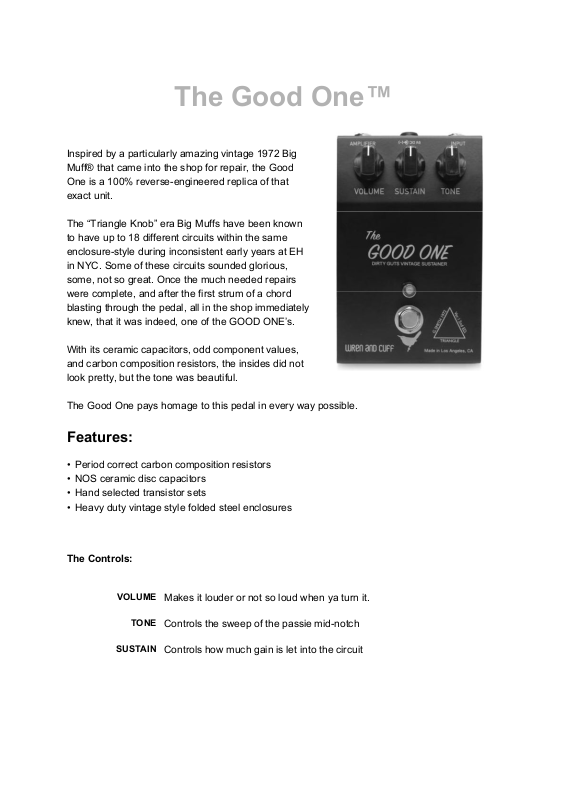

The Good One™
Inspired by a particularly amazing vintage 1972 Big
Muff® that came into the shop for repair, the Good
One is a 100% reverse-engineered replica of that
exact unit.
The “Triangle Knob” era Big Muffs have been known
to have up to 18 different circuits within the same
enclosure-style during inconsistent early years at EH
in NYC. Some of these circuits sounded glorious,
some, not so great. Once the much needed repairs
were complete, and after the first strum of a chord
blasting through the pedal, all in the shop immediately
knew, that it was indeed, one of the GOOD ONE’s.
With its ceramic capacitors, odd component values,
and carbon composition resistors, the insides did not
look pretty, but the tone was beautiful.
The Good One pays homage to this pedal in every way possible.
Features:
Period correct carbon composition resistors
•
•
NOS ceramic disc capacitors
Hand selected transistor sets
•
•
Heavy duty vintage style folded steel enclosures
The Controls:
VOLUME
TONE
SUSTAIN
Makes it louder or not so loud when ya turn it.
Controls the sweep of the passie mid-notch
Controls how much gain is let into the circuit
Page 2
CURRENT
DRAW
BYPASS
Other Info:
The Good One will draw around 5.5mA
POWER
Requires a center-negative 2.1mm barrel regulated power supply (typical
guitar pedal power unit). Please use a supply intended for effects pedals.
May also be operated with a 9V battery
Effect on/off switching is done via a 100% mechanical 3PDT foot-switch,
otherwise known as “true- bypass”
*Big Muff® is a registered trademark of Electro-harmonix®.
Wren and Cuff is not affiliated with nor endorsed by Electro-Harmonix.
Wren and Cuff
3529 Old Conejo Rd • STE 101 • Newbury Park • CA • 91320 • USA
www.wrenandcuff.com • [email protected]
