Operating Guide

Please read this entire guide before beginning

Page 2

Page 3

Always with the basic defensive measures when using the printer to reduce the risk of injury such as fire and electric shock, including the following measures

•Read all instructions before using the printer.

•Do not submerge or expose printer components to water or cleaning solutions.

Important Safety Notice

•To prevent electric shock,do not put the device,power adapter,or plug into water or other liquids.

•Do not place or store the unit where it can be easily dropped or easily pulled into the tub or basin.

•The printer shouldn't be used outdoors,for indoor use only.

•When removing the plug from the electrical outlet,do not pull on the power adapter.

•When pulling out the plug,grasp the plug,not the power cord.

•Do not use non-vendor original accessories or accessories,they may cause re,electric shoc,injury.

•Do not operate the device if the device power adapter or plug fails or is damaged.

•Do not directly touch liquid resin and the printed model of residual liquid resin on surface. Some people may be allergic to the resin and have different degrees of allergic reactions. At this time,wash with soapy water and seek medical advice promptly.

This SLA 3D printer,its photosensitive resin material,printed resin model and packaging materials

•

are not toys. Please keep away from children and pets to avoid suffocation,re,serious allergies,etc. caused by ingestion.

•Do not use this product for any other purpose.This product is only suitable for SLA 3D printing,and all equipment parts are only used for UV light curing 3D printing. This device may not be used to create

models that violate local laws and any illegal modications. Unintended use of this product may result

in violation of local laws.

：

Precautions for using the printer

•Do not eat the resin used for printing and the printed model.

•Keep the resin out of reach of children and pets.

•Try to avoid contact between the resin and the skin. Wear gloves when operating.

•Shake the resin evenly before use.

•The resin should be stored in a cool,backlit place.

•When the resin is accidentally splashed on the eyes or skin,it should be washed with soapy water in time. If you feel unwell,please consult a doctor promptly.

•The printer should be placed in a place where there is no direct sunlight.

•The UV cover should be covered when printing.

•Avoid looking directly at the UV lamp,and if need please wear goggles.

•Do not spill resin on the working panel.

•Children under the age of 18 should be operated under the supervision of an adult.

•Use printers in strict compliance with local laws and regulations.

•Do not disassemble the printer while it is powered on to avoid danger,and disassembling the printer without permission will void the warranty.

Please keep your instruction manual in a safe place

：

Important Safety Notice

Page 4

©This is a desktop-grade SLA 3D printer that delivers high-quality SLA 3D printing experience when the power supply is working properly and components are not damaged.

©Read the entire user manual and become familiar with the features of the product before

Disclaimer and Warning

proceeding. Failure to operate this product properly may result in serious injury to yourself or others,or damage to the product or property damage. This product is a little complex and requires a period of familiarity before it can be used safely and requires some expertise to operate. Without a strong sense of safety,improper practices can result in product damage and property damage,and can even cause serious harm to others. This product is not suitable for children. Do not use parts that are not provided or recommended by wow guidelines. This guidance document contains instructions for safety,operation,and maintenance. Be sure to visit the manual and read all instructions and warnings in the documentation before use.

SparkMaker

WOW

website (

and must be installed and used in strict accordance with

https://www.sparkmaker3d.com/

) to download the user

©Please read this document carefully before using the product to understand your legal rights

responsibilities and safety instructions; otherwise it may cause property damage,safety

accidents and personal safety hazards. By using this product,you are deemed to have understood,endorsed and accepted all the terms and contents of this document. The user is committed to being responsible for his or her actions and all consequences arising therefrom. The user undertakes to use the product only for legitimate purposes and agrees to all terms and content of this document and any relevant policies or guidelines that may be customized by WOW Innovations (Shenzhen) Technology Co., Ltd.

©WOW Innovation (Shenzhen) Technology Co., Ltd. reserves the right to update this Disclaimer and Warning. WOW Innovation (Shenzhen) Technology Co., Ltd. does not assume any loss caused by the user not using the product in this User Manual. In compliance with laws and regulations,WOW Innovation (Shenzhen) Technology Co., Ltd. has the final right to interpret this document. WOW Innovation (Shenzhen) Technology Co., Ltd. reserves the right to update,change or terminate these terms without prior notice.

Disclaimer and Warning

Page 5

Component

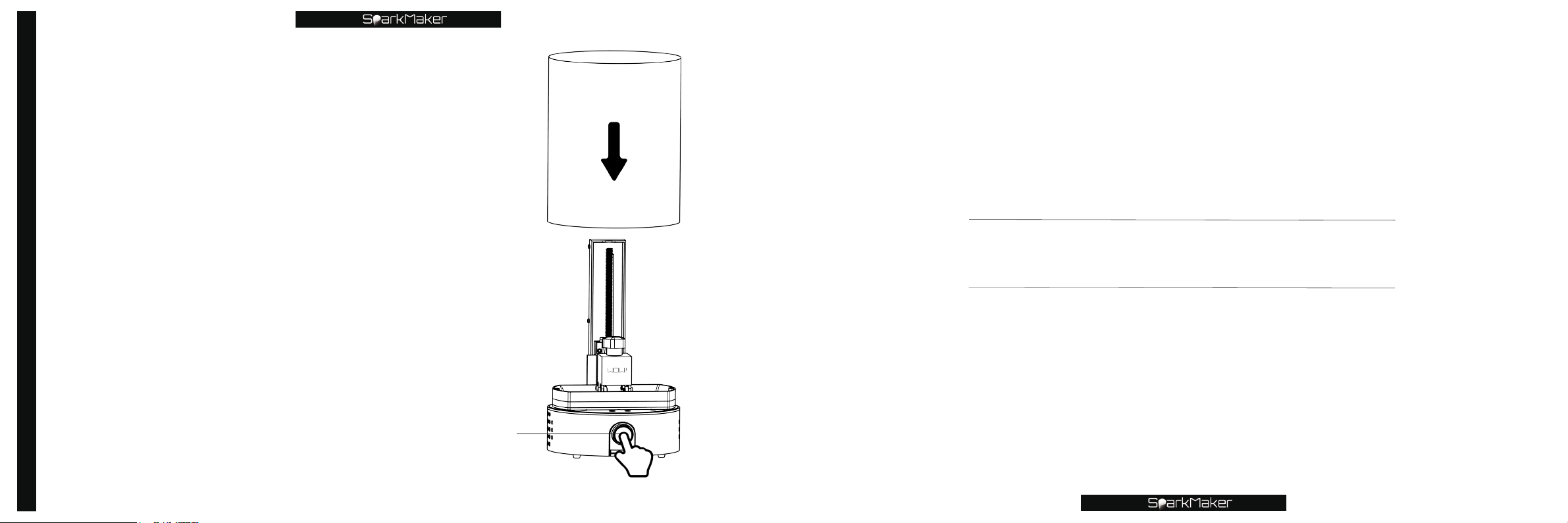

Start Printing

Cotton

Check After Unpacking

Product Working Principle

Specifications of

Components Introduction

Leveling the Printing Platform

SparkMaker Original

SparkMaker FHD

Resin

Color Paste

Important Definition

Check Before Printin

Quick Start Guide

Power Connection

End Printing

Adjustment of The Printer

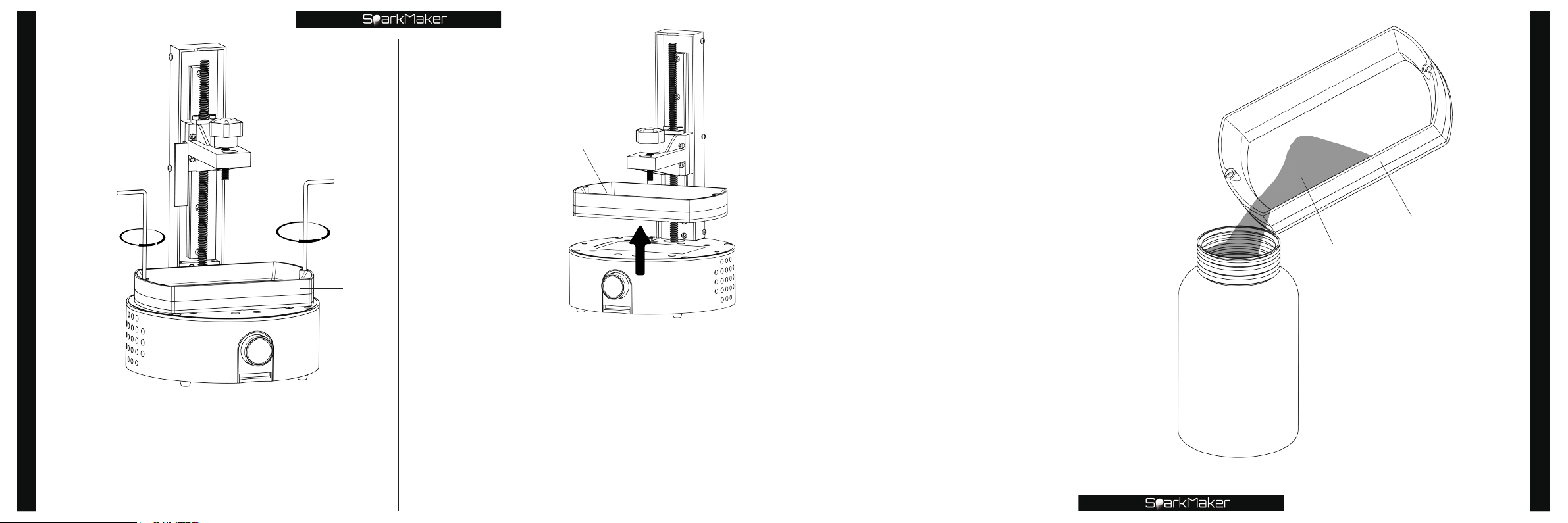

Recycling of Resin & Tank Cleaning

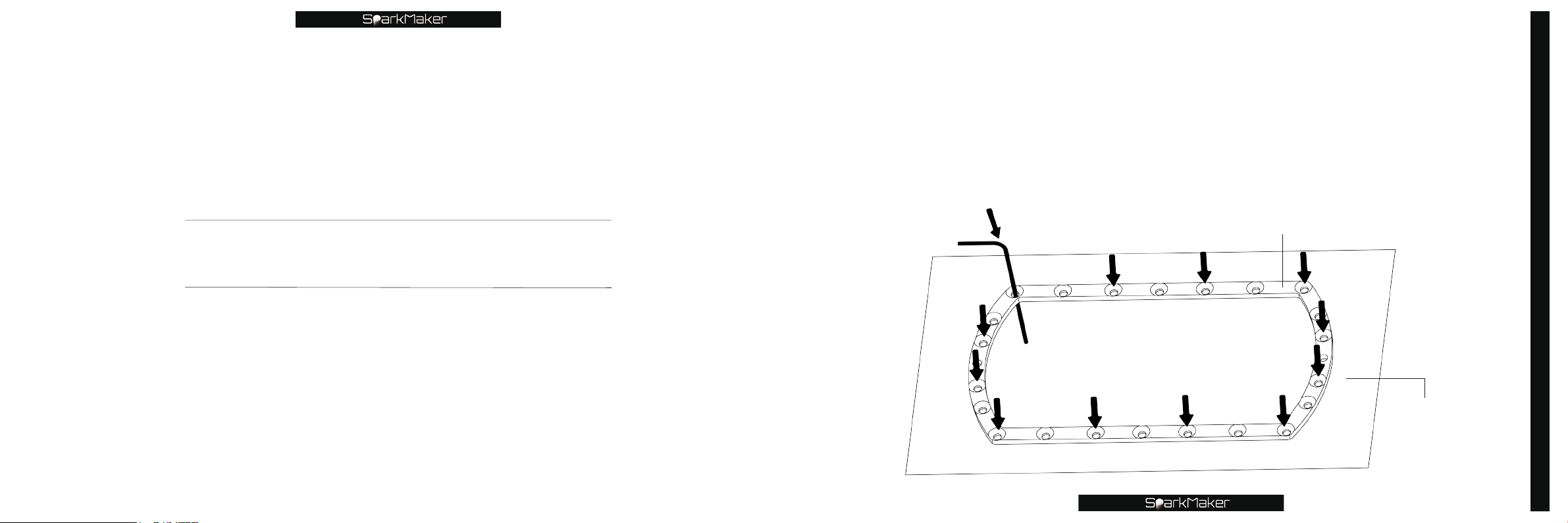

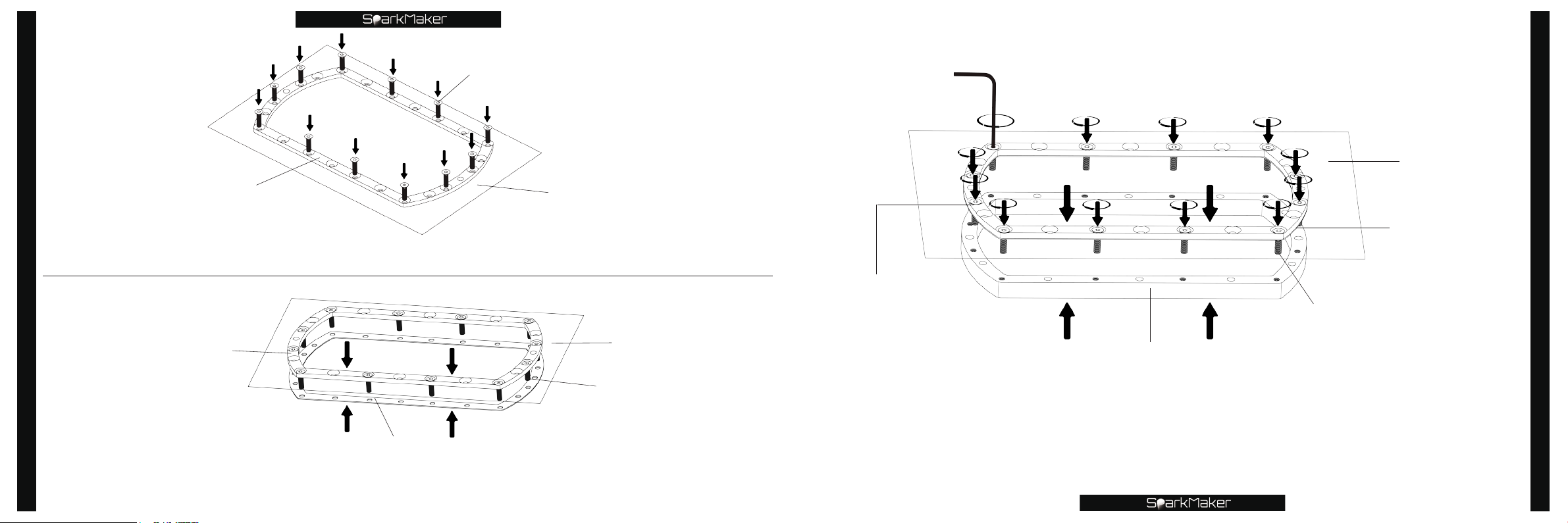

Replace the FEP Film

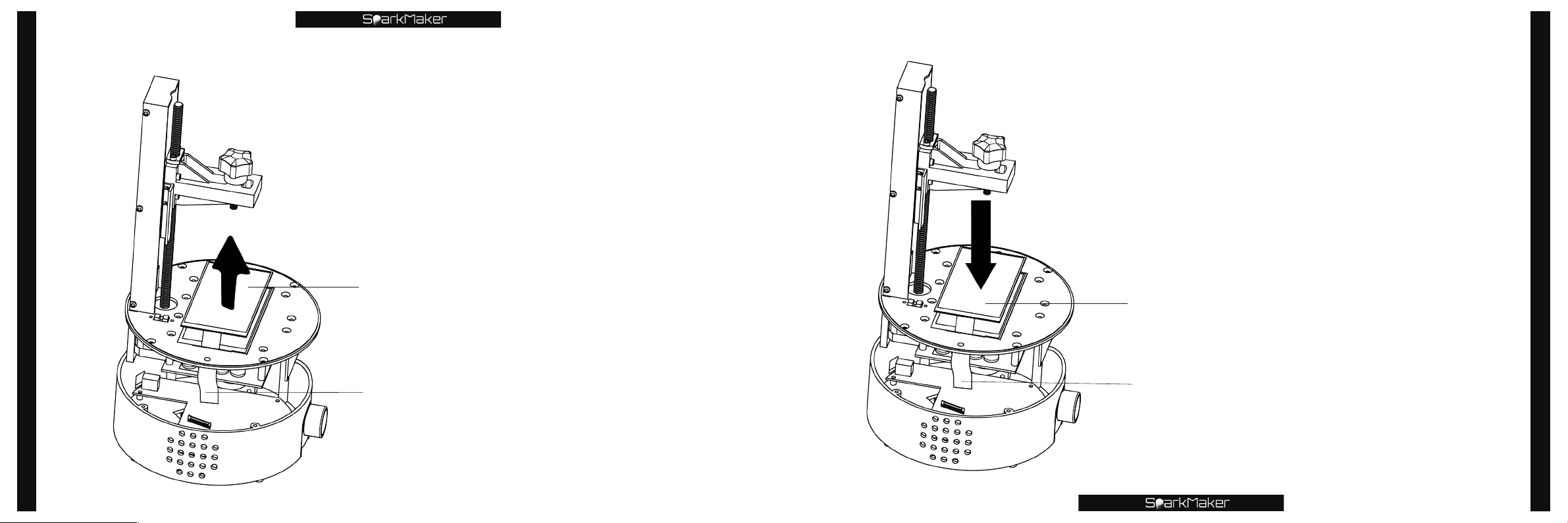

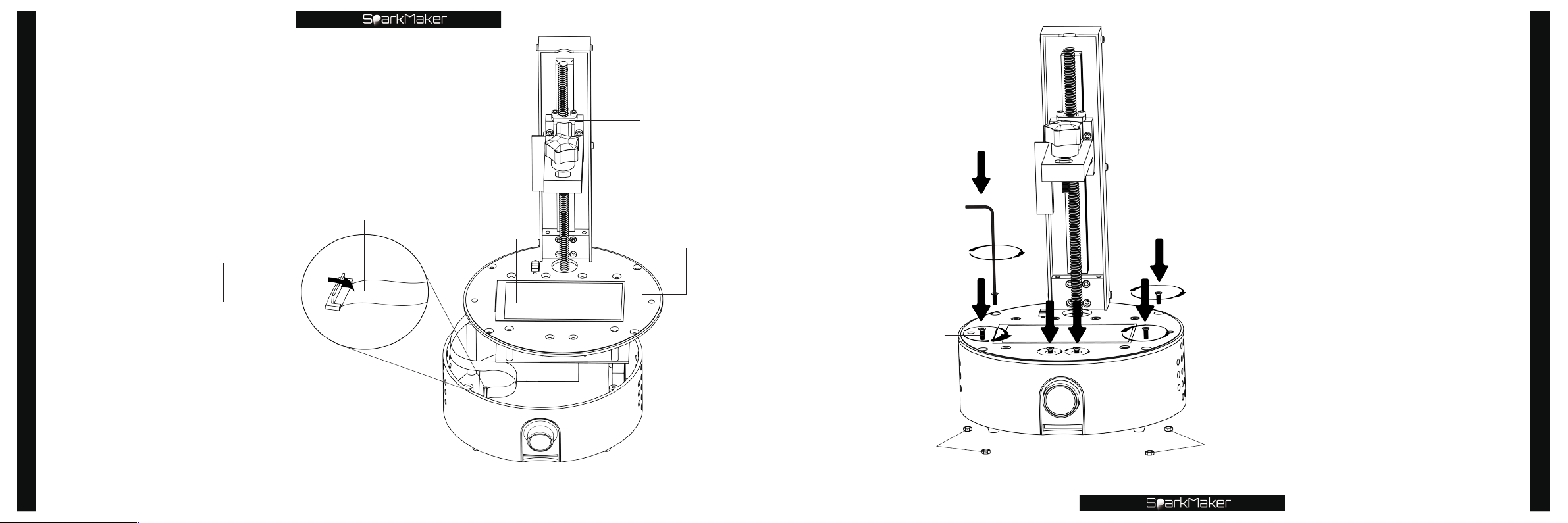

Replace the LCD Screen

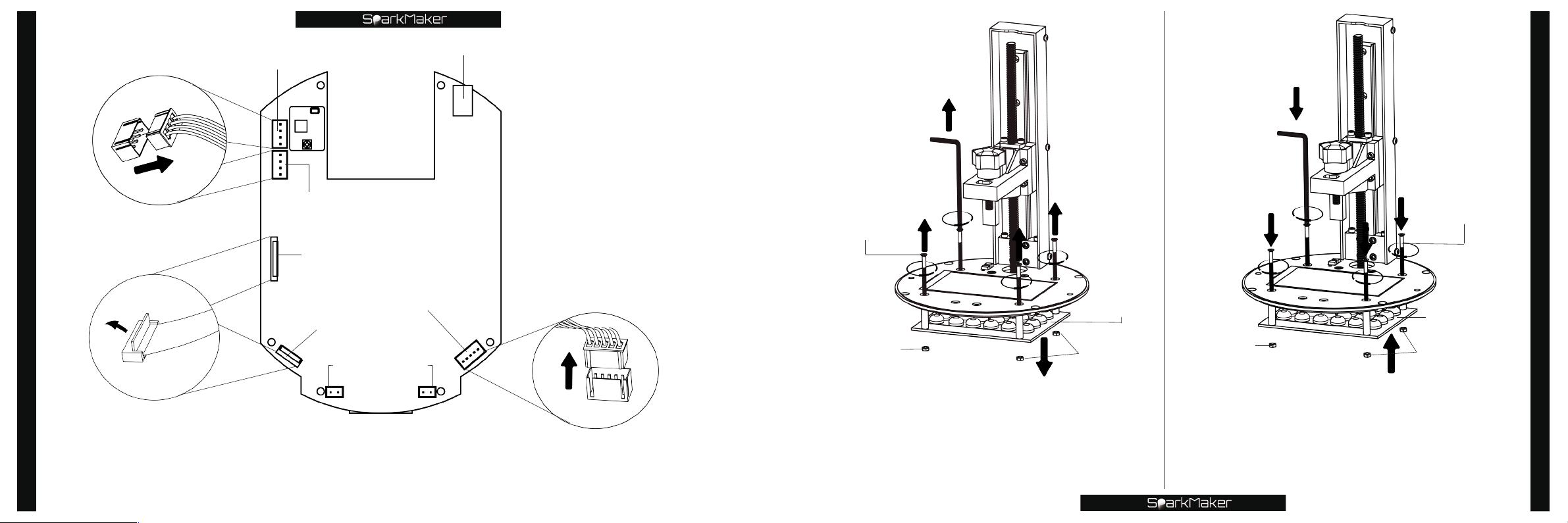

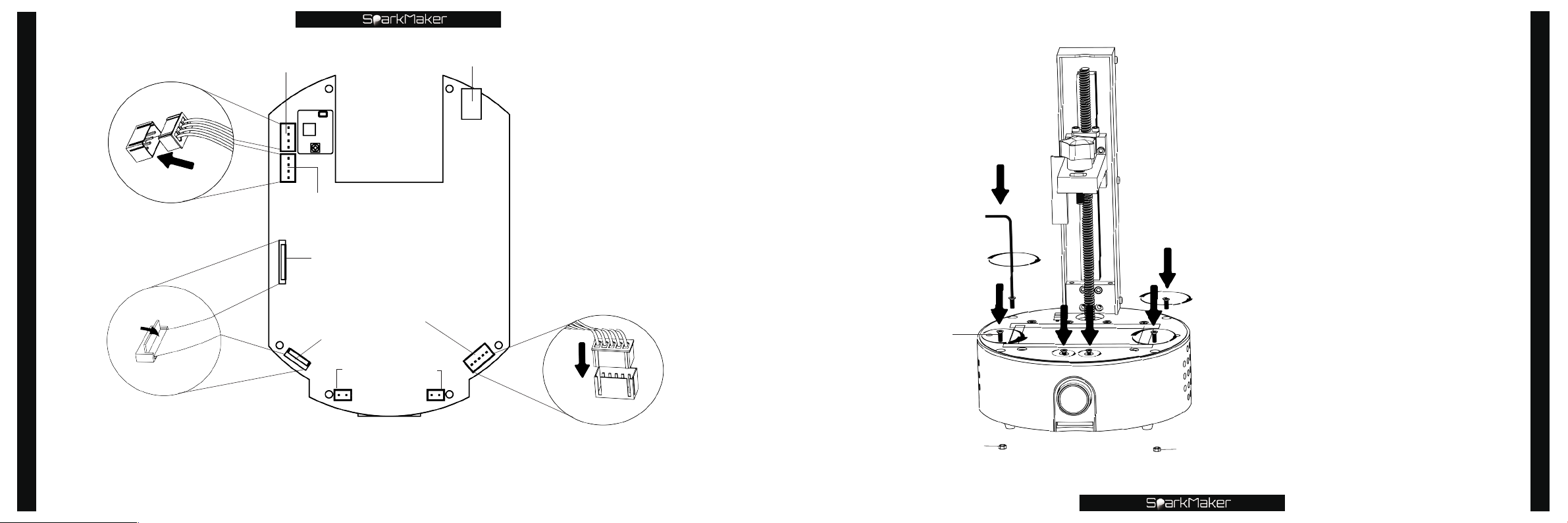

Replace the Light Board

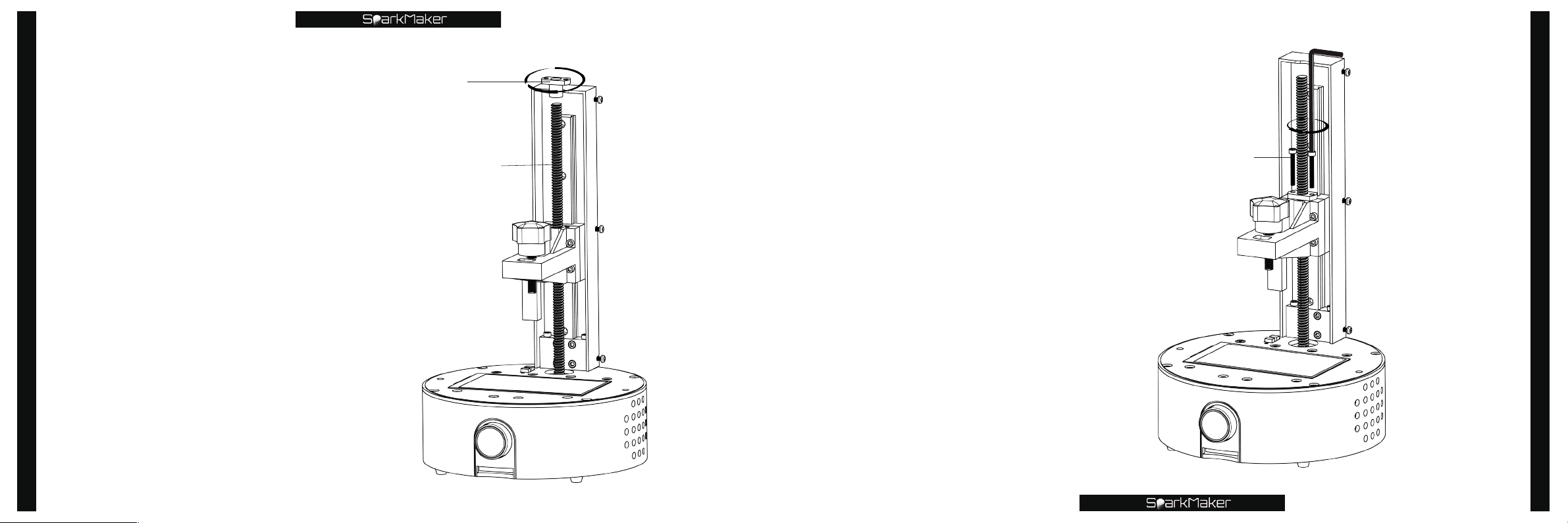

Adjustment of The Z Axis

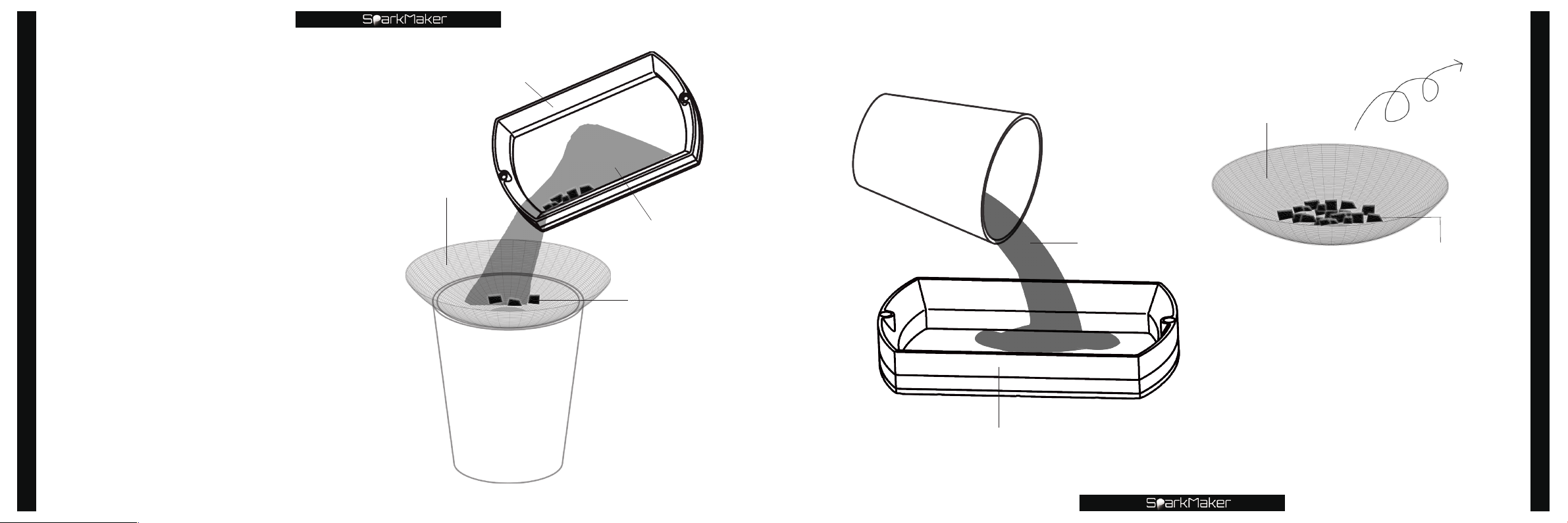

Filtration Residue

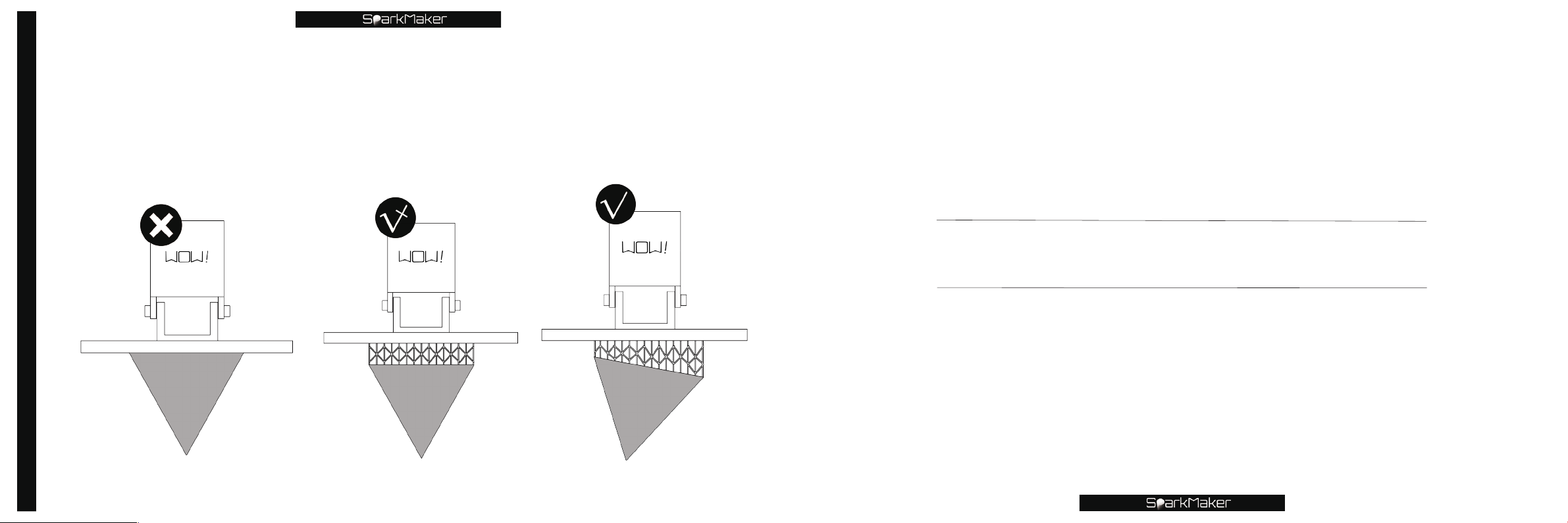

Add Support

Basic Operational Concept

FAQ

Terms & Conditions

Customer Service

Cotton

103

113

114

Page 6

Component

SparkMaker3D printer

Small Hex Wrench

Big Hex Wrench

Power Adapter

Operation Guide

Power Cable

Please take the time to familiarize yourself with the items in the package. You should receive the illustrated component.

To make your products safer to use,WOW provides users with detailed operating instructions.

Users are advised to check the documentation and components according to the

component list. If you nd any missing or item is not perfect,please contact WOW or

the merchant who sold the product. Please read this document carefully,watch the instructional video,use the quick start guide to understand the use method,before printing.

The user manual must be read carefully. Please be sure that you are familiar with the functions of the various components of this product before using this product.

And learn the basics about 3D printing. If you have any questions about using this product,please contact to WOW or WOW authorized dealer.

Component

Page 7

Check After Unpacking

Open the package to confirm that the components are integrity, then check the printer's functions to ensure that it works properly.

Test Power Function:

❶

Check After Unpacking

the indicator of the knob is working properly lightlight if it working properly .

Test Knob Function And Z-axis Motion:

❷

printing platform move up and down,and whether the knob rotates smoothly.

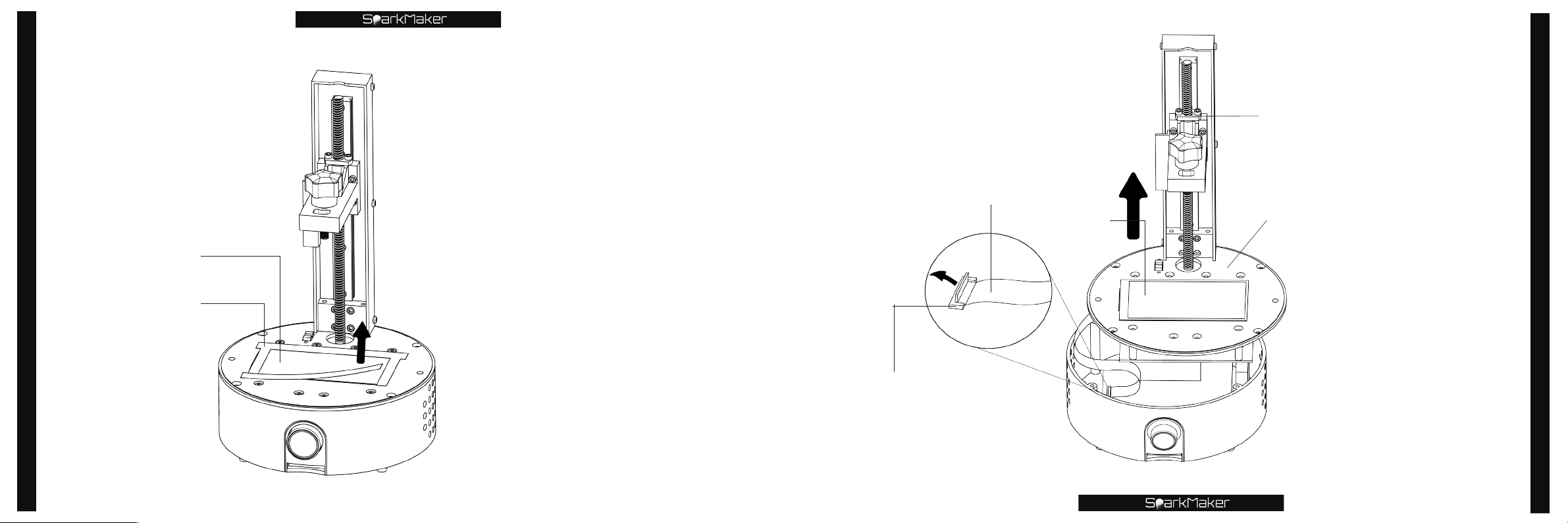

Test Photoelectric Switch:

❸

to control the lifting cantilever to descend until the trigger piece on the lifting cantilever is inserted into

the photoelectric switch groove to trigger it to conrm whether the lifting cantilever stops.

Test Print Function:

❹

SparkMaker Original

(www.sparkmaker3d.com)

printer card slot and the indicator of the knob will become the green breathing light,then press the knob to start printing. At this time,the indicator light changes from green to red and ashes,the lifting cantilever will drop to the position of the trigger photoelectric switch,then the light board will,emit ultraviolet light,the fan will start to work,the screen will display the bottom layer pattern,and wait for a bottom exposure time. After that,the light board is extinguished,the lifting cantilever will rise a certain distance,and then decline again,then the light board emit ultraviolet light,and the screen displays the next pattern... Continue this process until the end of printing.

Test Tank:

❺

Pour some water into the tank to check if it will leak.

Connect the power supply. After the printer is powered on,confirm that if

and the indicator of the knob will display the Light blue

Rotate the knob to confirm whether it can control the

Remove the printing platform and continue to rotate the knob clockwise

Remove the printing platform,download the print file

)

or "print.fhd"

and save it to the SD card. Insert the SD card with the print le into the

Check if the FEP lm at the bottom of the tank has obvious scratches or broken holes.

SparkMaker FHD

(for

SparkMaker

)

from

"print.wow"

official website

(for

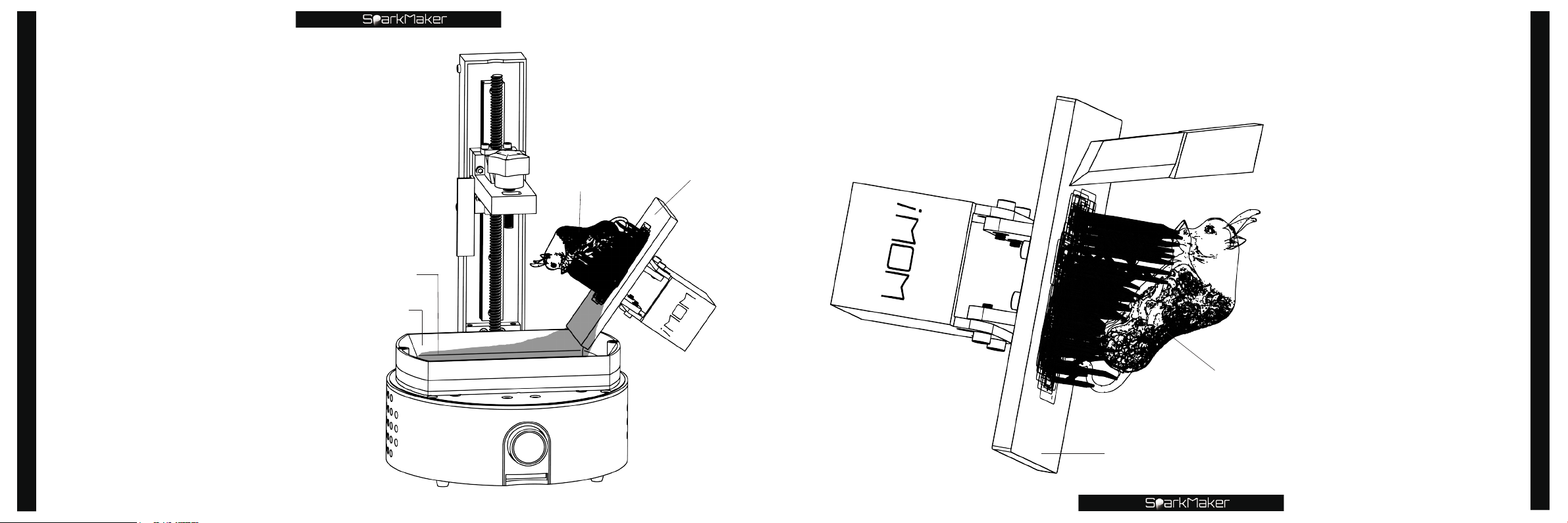

Product Working Principle

SparkMaker SLA 3D printer

Designing a 3D solid model through 3D software,slice the model with generated data will be used to accurately control the switch of the light board and the movement of the lifting platform through the main board. The light beam emitted by the light board passes through the controllable liquid crystal screen and is irradiated onto the surface of the liquid photosensitive resin according to the designed path. Curing a layer of resin in a

specic area of the surface. When this layer is processed,a section of the model is generated.

The lifting platform is raised by a certain distance,the solid layer is covered with another layer of liquid resin,and then the second layer is scanned,and the second solidified layer is firmly bonded to the previous solidified layer,so that the layers are superposed to form a threedimensional model. After the model is taken out of the resin,clean the resin on the surface of the model with alcohol,and the nal curing,and then polished,painted or colored to get the desired product.

SparkStudio

the

Product Working Principle

Page 8

Specification of

SparkMaker Original

Molding Size

XY-axis Direction Accuracy

Z-axis Direction Accuracy

Print Material

Single Layer Printing Time

Printing Method

Print File Format

Printer Control

Curing Ultraviolet Light

Operating Software

Stepper Motor Drive

Physical Dimension

Total Weight

Input Power

98mm*55mm*125mm

100μm

25-100μm

Photosensitive Resin

8-15S

SD Card Offline Printing

*.wow

Knob

400-410nm 24W UV LED

SparkStudio

128 Microsteps

170mm*284mm

2.2KG

DC 24V 2A 48W

Molding Size

XY-axis Direction Accuracy

Z-axis Direction Accuracy

Print Material

Single Layer Printing Time

Printing Method

Print File Format

Printer Control

Curing Ultraviolet Light

Operating Software

Stepper Motor Drive

Physical Dimension

Total Weight

Input Power

110mm*61.8mm*125mm

57μm

25-100μm

Photosensitive Resin

3-12S

SD Card Offline Printing

*.fhd

Knob&APP

400-405nm 84W UV LED

SparkStudio

128 Microsteps

170mm*288mm

2.2KG

DC 24V 4A 96W

Specification of

SparkMaker

FHD

Specification of

SparkMaker FHD

Page 9

Type Feature Color Hardness Elongation Description

Components Introduction

Cover

Resin Tank

Card Slot

Platform Handle

Printing Platform

LCD-T Tough Clear 60D 115% ABS Alike

LCD-W

Water

Washable

Clear 60A 150%

Water

Washable

LCD-C Casting Clear 80A 24% Casting

LCD-E Elastic Clear 26A 300% Rubber Alike

LCD-N Nylon Alike Black 75D 115% Nylon Alike

LCD-H High HDT Clear 90D 3% >300℃HDT

LCD-G Super Clear Clear 70D 5% Super Clear

LCD-Q Easy Dyeing

Light

Yellow

80D 5% Colorful Paste

LCD-MG Rigid&Tough Gray 80D 5% Rigid&Tough

LCD-BG

LCD-BW White

Hard

Gray

75D 3% Rigid

LCD-BF Flesh

Resin

Knob

Page 10

Resin

Precautions For Resin Use:

Theoretically,resins with a curing band of

❶

other third-party resins are used,the printed parameters must be adjusted by yourself.

SparkMaker'

❷

as tank bottom,and the curing band is on parameters need to be adjusted by users.

Damage to parts caused by the use of third-party resins will invalidate the warranty.

❸

The color paste addition ratio should be less than

❹

increased appropriately after adding the color paste.

The resin after adding the color paste should be evenly mixed to prevent the color paste

❺

from precipitating.

Do not mix a variety of different types of resins,and it will cause the resin properties and

❻

printing parameters change greatly,making it difcult to print.

The photosensitive resin will react with some plastics such as ABS,PC,etc. Do not drop the

❼

resin on such plastics.

Use of third-party color paste or other dyes may result in printing failure or damage to the

❽

printer.

Should choose the right resin according to different needs.

❾

For models with small features and high precision requirements,deep color and high

❿

hardness photosensitive resins should be used.

If photosensitive resin with low hardness,high toughness and softness,which may have

⓫

different degrees of deformation during printing.

s resin can also be used on other SLA 3D printer use PTFE lm or FEP lm

400-410 nm

355-420nm

can be used in

SLA 3D printer,but the actual printing

and the resin exposure time should be

SparkMaker,

but if

Color Principle

CMYK is the four-color printing mode used for color printing. Based on the principle of trichromatic mixing with black ink,a total of four colors are mixed and superimposed to form a "full-color printing".

The Four Standard Colors are

C=Cyan M=Magenta Y=Yellow K=key Here K refers to the Key,it can also represent Black,because printing is more often used in black. In addition,we also added a white color paste.

：

C+M=Purple

M+Y=Orange

C+Y=Green

Method of Operation

paste to the cup,stir evenly,nally pour the resin of the mixed color paste into the trough and print.

Notice:

Adding a white color paste will make the color soft.

Adding black paste will make the color dignied.

Users can adjust different doses and ratios to call up richer colors. The color paste addition ratio should be less than should be appropriately increased after adding the color paste. The resin after adding the color paste should be stirred evenly to prevent the color paste from being precipitated.

Pour the resin into a cup rst,then add a drop of color

：

and the resin exposure time

Color Paste

Page 11

Important Definition

Cover:

Notice:

❶ ❷

Tank:

Important Definition

FEP Film:

cure resin.

Notice:

❶ ❷ ❸

damage to the LCD screen.

❹ ❺

overow damage to the LCD screen.

Printing Platform: Plate:

Notice:

❶ ❷ ❸ ❹

Platform Handle:

Notice:

Protective cover to prevent external light and dust from affecting the resin in the tank.

Do not drop the resin on the cover. If it is accidentally dropped on it please clean it in time. Do not put heavy objects on the cover to avoid crushing the cover.

The container for storing resin during printing.

Located at the bottom of the tank for release demolding during printing,UV light can pass through it to

The FEP lm at the bottom of the tank is easily damaged. Do not scratch it with a sharp object.

After removing the tank,use a paper towel pad on the bottom of the tank to avoid damage to the FEP lm. Please clean the resin that has accidentally dropped on the outer wall of the tank and the screw hole to avoid

When installing the tank,please make sure that the FEP lm is close to the LCD screen to avoid affecting print.

Less than

Aluminum alloy plate for sticking the model on the printing platform.

Make sure the print platform is fully inserted under the platform handle. Make sure the print platform is correctly leveled before printing to avoid damage to the LCD screen. When leveling,please cross lock four screws while pressing down the aluminum plate. Do not scratch too deep under the aluminum plate,but slight scratches do not affect printing.

resin should be poured into the tank. Do not pour in too much resin,it will result in resin

240ml

Parts for leveling and xing aluminum plate.

Fix the platform on the Z axis to prevent it from moving.

Tighten the platform handle before printing to prevent it from sliding during printing.

❶

Please clean the resin residue on the handle of the platform in time.

❷

Knob: Knob Operation And Indicator Light:

Control Motor:

platform descends; when it rotates counterclockwise,the platform rises.

Printing:

printing,the indicator light turns into red and ashing,and the printer enters the printing state.

Stop:

terminate printing.

Pause:

print platform will lift

Continue:

descend and continue printing,and the indicator light will turn red and ashing.

If there is no print le in the SD card or the SD card is not recognized,after pressing the knob,it will change from

green to red and quickly turn to green again.

Notice:

Do not drop the resin on the knob.If it drops accidentally,please clean it in time.

❶

Do not over-tighten the two screws above the knob.

❷

SD Card:

In printing mode,long press the knob,the indicator will turn blue and eventually turn green,which is to

In printing mode,press the knob and the indicator will turn blue.After the current print layer is cured,the

The carrier for storing print les.

SD Card Slot:

Notice:

When inserting,the metal contact point of the SD card is facing up,please do not insert the opposite.

❶

Multiple of print files can be stored in the SD card,but when you use the knob to control the printer to

❷

print,the printer can only recognize the print file named

fhd" (for

the file to be printed as you want to change the print file,you can directly modify the file name. If you use APP to control printing,on the APP,you can directly select the file you want to print .

SparkMaker FHD

In the uninsert SD card state,the indicator light is light blue.When the knob rotates clockwise,the

Insert the SD card,the indicator light will become green breathing light,press the knob to start

and the printer will pause printing.

30mm

After the printing platform lifted by

Used to read SD card data.

and print it. Users can name the files that do not print as other names,and name

)

"print.wow"(for

SparkMaker Original

and pause printing,press the knob,the printing platform will

30mm

"print.wow"(for

)or "print.fhd" (for

SparkMaker Original

SparkMaker FHD

)or "print.

)

Important Definition

Page 12

Please use

❸

Adapter:

Used to convert

DC Socket:

adapter.

Notice:

Do not use a non-original power adapter to avoid danger.

❶

Please plug in the print DC socket before powering on the adapter. Do not plug in the DC socket after the

❷

Important Definition

adapter is powered.

Light Board:

Notice:

Do not look directly at the UV light emitting from the light board. Wear goggles if do it.

❶

Please ensure that the fan works normally when the light board is working to avoid damage to the

❷

machine caused by excessive temperature.

Shading Tape: LCD Screen:

resin.

Notice:

The LCD screen is extremely fragile,please be careful.

❶

If the tank leaks out and causes the resin to ow out and cured on the LCD screen,please carefully remove the

❷

cured resin residue before the next printing.

Make sure that there are no resin residues on the LCD screen to block UV light.

❸

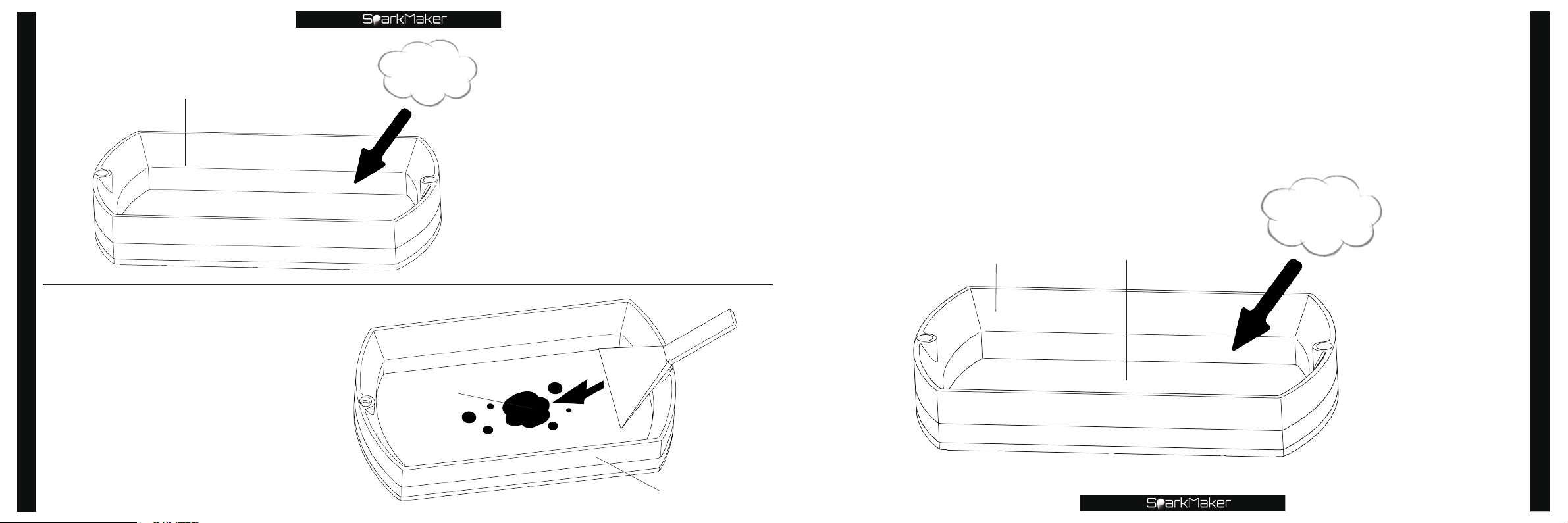

If the print failed,please clean the residual resin in the tank and aluminum plate in time to avoid crushing the

❹

LCD screen when printing next time.

Make sure the printing platform is properly leveled when printing,so as to avoid damage to the LCD screen.

❺

Please ensure that the FEP lm is close to the LCD screen to avoid affecting the print quality.

❻

Make sure that the black tape completely block the unrequired UV light around the LCD screen.

❼

SDHC (Secure Digital High Capacity)

110V-240V AC to 24V DC

Located at the right rear of the printer,is the power socket to connect the printer and the

Provide UV light to cure the liquid resin in the tank.

Used to block the unrequired UV light around the LCD screen.

Used to display the section pattern of the printed model and cooperate with the UV light to cure the

with a maximum capacity lower than to provide power to the printer.

32GB

Screw Motor: Copper Nut: Guide Rail: lifting Cantilever:

Notice:

Do not block the rotation of the screw motor.

❶

Do not over-tighten the mounting screws of the copper nut.

❷

Do not drop resin and other debris on the guide rail and the screw that interfere with its work.

❸

Please add grease to the screw,copper nut and guide rail in time to avoid excessive abrasion.

❹

Do not drop the resin on the bafe. If it is accidentally dropped,please clean it in time.

❺

Photosensitive Resin:

Notice:

Do not touch the skin directly with the resin. Wear gloves when handling. If skin contact occurs,wash

❶

it with soapy water. If you feel unwell,please consult a doctor.

The resin remaining after printing,if it would not be used for a long time,please keep it in cool and dark place.

❷

Shake the resin evenly before use.

❸

Do not eat the printed model and the resin used for printing.

❹

Keep the resin out of reach of children and pets.

❺

Do not drop the resin on any parts other than the tank and aluminum plate.If it is dropped,please clean it in time.

❻

Use of third-party color paste or other dyes may result in printing failure or damage to the printer.

❼

Working Panel: Hexagonal Wrench: Trigger Piece: Photoelectric Switch:

Notice:

Do not block the photoelectric switch,otherwise the photoelectric switch will not be triggered.

❶

Used to drive the lifting cantilever move up and down

For working with screw motors.

For linear motion guidance.

Motor and guide rail control its up and down during printing.

Liquid light curing resin for printer use.

Panel for mounting components such as LCD screens and tank.

Big hex wrench and small hex wrench for hex screws.

Used to trigger photoelectric switch.

Used to determine if the platform has reached the lowest point.

Important Definition

Page 13

When leveling,please ensure that the trigger piece is inserted into the photoelectric switch groove.

❷

Do not drop the resin on the working panel and photoelectric switch.

❸

Cooling the control system and the light board.

Fan:

Notice:

Make sure that the cooling fan is working properly and avoid system failure due to excessive temperature.

❶

Please make sure not to block the air outlet and air inlet.

❷

LCD Screen FPC Cable:

Important Definition

Alcohol:

Note:

Please use alcohol with a concentration higher than

Do not soak the model in alcohol for too long.

Please use alcohol carefully to avoid safety risks.

A cleaning agent used to clean printed models.

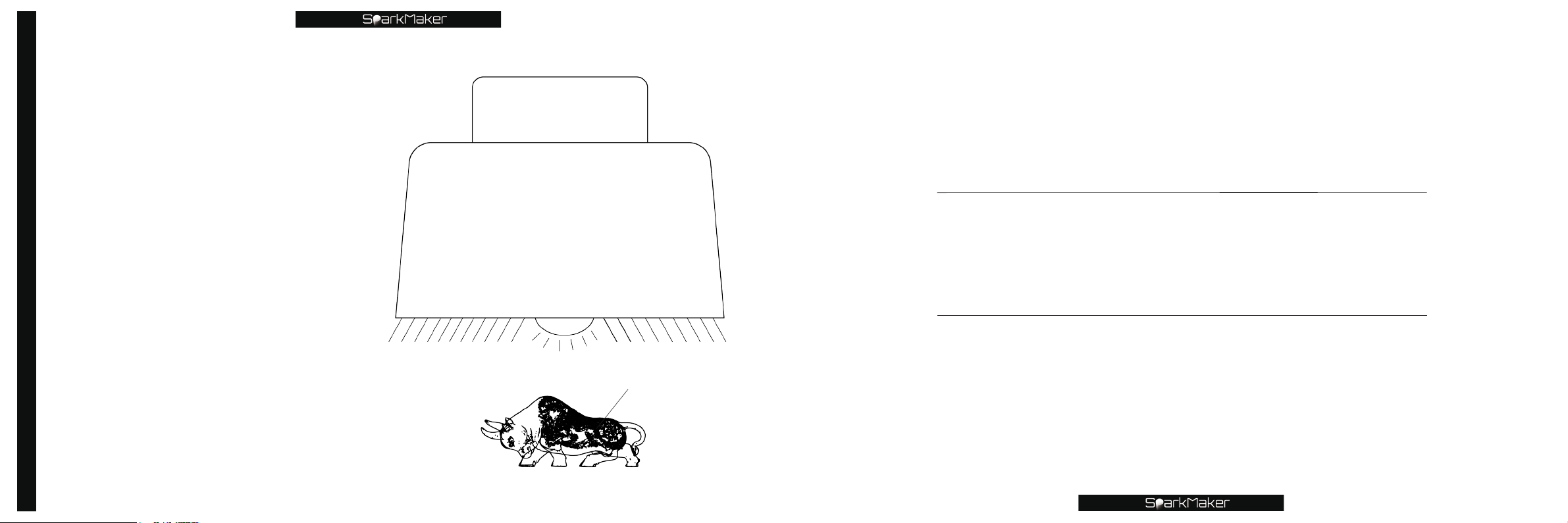

UV Curing Lamp:

Note:

Please use a curing lamp with a band of

When curing the model with curing lamp,the model can be placed in glycerin to prevent the deformation of the

model due to temperature and other factors in the curing process.

Too long post-curing time will lead to shrinkage and yellowing of the model,and too short post-curing time will

lead to the incomplete curing model of the model is soft.

Connecting the mainboard to the LCD screen.

95%

Used to solidify the newly printed model so that it is completely solidied.

395-420nm

and a power of more than

10W

Check Before Printing

Keep the power connection stable.

❶

Knob rotates smoothly and presses smoothly.

❷

Z-axis movement is smooth and unobstructed.

❸

There is no resin residue on the aluminum plate of the printing platform.

❹

The handle on the print platform has been tightened.

❺

The print platform has been correctly leveled.

❻

The tank is installed correctly,and the FEP lm at the bottom of the tank is close to the LCD screen.

❼

No resin residue in the tank and on the FEP lm.

❽

No residual resin on the outer wall of the tank,the bottom of the tank,the LCD screen and the working

❾

panel.

The resin poured into the tank is less than

❿

240ml

the printing process.

Printed model files have no fault and are not damaged.

⓫

Ensure the model's the position of the long-span cantilever,the lowest point of the layer and the position

⓬

that needs to be strengthened,add with the right size of support and the right amount of support,and the right bottom valve.

The slice parameters such as the layer thickness,exposure time,and lifting speed of the print file are set

⓭

correctly.

The slice file is completely saved in the SD card,the bottom surface of the model is completely attached

⓮

to the lowest point of the printer,and there is no fault on the print model file

If you use the knob to control the printer to print,you need to name the print file as

⓯

SparkMaker Original

The SD card is a

⓰

FAT32

⓱

The SD card is completely unlocked by hardware. The metal contacts are intact and free of stains.

When the card slot is inserted,the SD card metal contact point is inserted face up into the machine card

)

or "print.fhd"

C10 high-speed

SparkMaker FHD

(for

card with a capacity lower than

slot and is in fully contact with it.

. If the model is large,the resin can be added during

(for

)

and save it to the SD card.

32GB

The file system format is

"print.wow"

Check Before Printing

Page 14

Plug the power cord socket into the adapter interface first and plug the power cord into the socket.

Adapter

Quick Start Guide

Power Cord Connection

Plug the adapter plug into the DC input on the back of the printer

then press the switch on

the cable to start the prin.

Socket

Power cord

DC input

Switch

Power cord socket

Power Cord Connection

Page 15

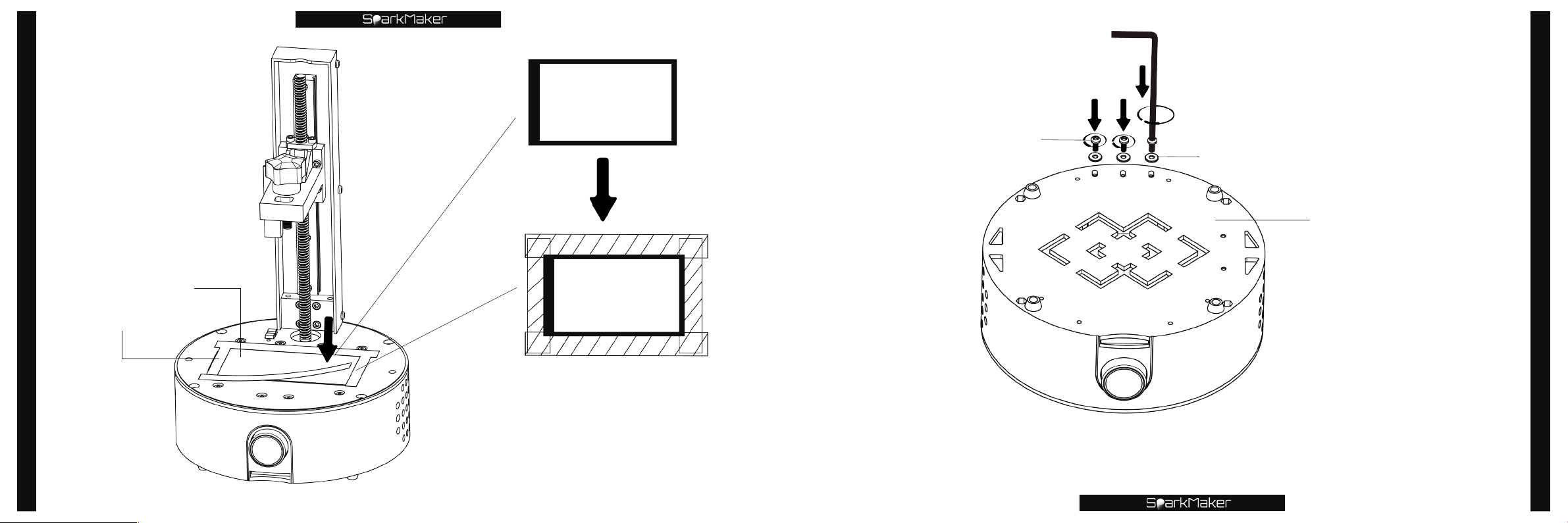

Use two fingers to press down on each side of the aluminum plate,and press it close to the FEP film,meanwhile use the big hex wrench to tighten the four screws clockwise to fix the aluminum plate.

Leveling the Printing Platform

Big hex wrench

Notice:

＊

Please stagger tighten the four screws to make the aluminum plate and the FEP film close enough,so as to prevent the aluminum plate from lifting up on one side and causing the leveling to fail.

Aluminum plate

Leveling the Printing Platform

Big hex wrench

Hand

Page 16

Use two fingers on each side attach it to the FEP film

and use the big hex wrench to tighten the four

press down on the aluminum plate and

screws clockwise to fix the aluminum plate.

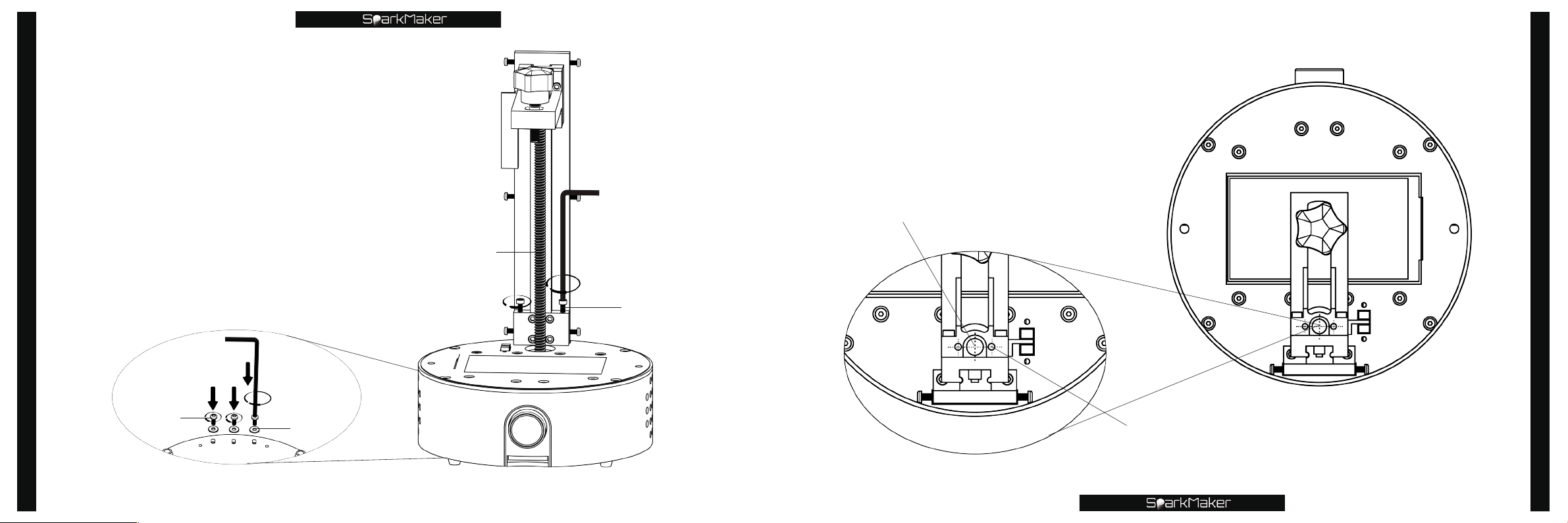

Leveling the Printing Platform

Trigger piece

Photoelectric switch

Rotate the knob clockwise to lower the platform to the lowest point of the tank,that the platform can no longer move down meanwhile trigger piece trigger the photoelectric switch.

Notice:

＊

When the photoelectric switch is triggered,the trigger piece should be inserted into the middle notch.

Big hex wrench

Notice:

＊

Please stagger tighten the four screws to make the aluminum plate and the FEP film close enough,so as to prevent the aluminum plate from lifting up on one side and causing the leveling to fail.

Aluminum plate

Leveling the Printing Platform

Big hex wrench

Hand

Page 17

Start Printing

Insert the SD card into the computer,open the the *.stl file of the model into the

SparkStudio

software,import

software,adjust the appropriate angle,add the appropriate support,set the correct print parameters,save the slice file *.wow(for

SparkMaker Original

)or *.fhd (for

SparkMaker FHD

)in the

SD card after slicing,and then remove the SD card from PC.

Notice:

＊

See below for methods and rules for

❶

adding supports and for setting print parameters.

If you use the knob to control the printer

❷

to print,the print file must be named as

"print.wow"(for "print.fhd" (for

SparkMaker Original

SparkMaker FHD

)

Start Printing

)or

Computer

SD card

Page 18

Start Printing

Card slot

SD card

Insert the SD card into the card slot under the printer.

＊

Notice:

When inserting,the metal contact point of the SD card is facing up not insert the opposite to avoid damage to the card slot.

please do

Open resin bottle and pour the appropriate resin (less than 240ml) into the tank according to the size of the model.

Notice:

＊

Please do not pour in excess

❶

resin to prevent resin from overflowing,resulting in damage to the LCD screen.

Please do not drop the resin on

❷

the screw hole of the tank,the outer wall of the tank and the working panel,resulting in damage to the LCD screen. If it accidentally flows in,please clean it in time.

Resin remaining in the resin

❸

Resin

Resin Bottle

bottle,should be sealed in a dark shade away from children and pets.

If not used for a long time,please

❹

pour the resin into the storage container. Do not place the resin in the tank for more than two weeks.

Please ensure that there are no

❺

residual resin or obstacle on the aluminum plate and the tank to avoid damage to the LCD screen.

Start Printing

Page 19

Start Printing

(As shown)Cover the printer with the cover,press the knob,the indicator will turn red and flashing,and the printer will start printing.

Notice:

＊

Do not place the printer in a location exposed to strong

❶

light,including but not limited to windows,under the table lamp,and outdoors.

Avoid looking directly at the UV lamp. If you need to see

❷

it,please wear goggles.

Knob

Cover

End of Printin

Hand

Page 20

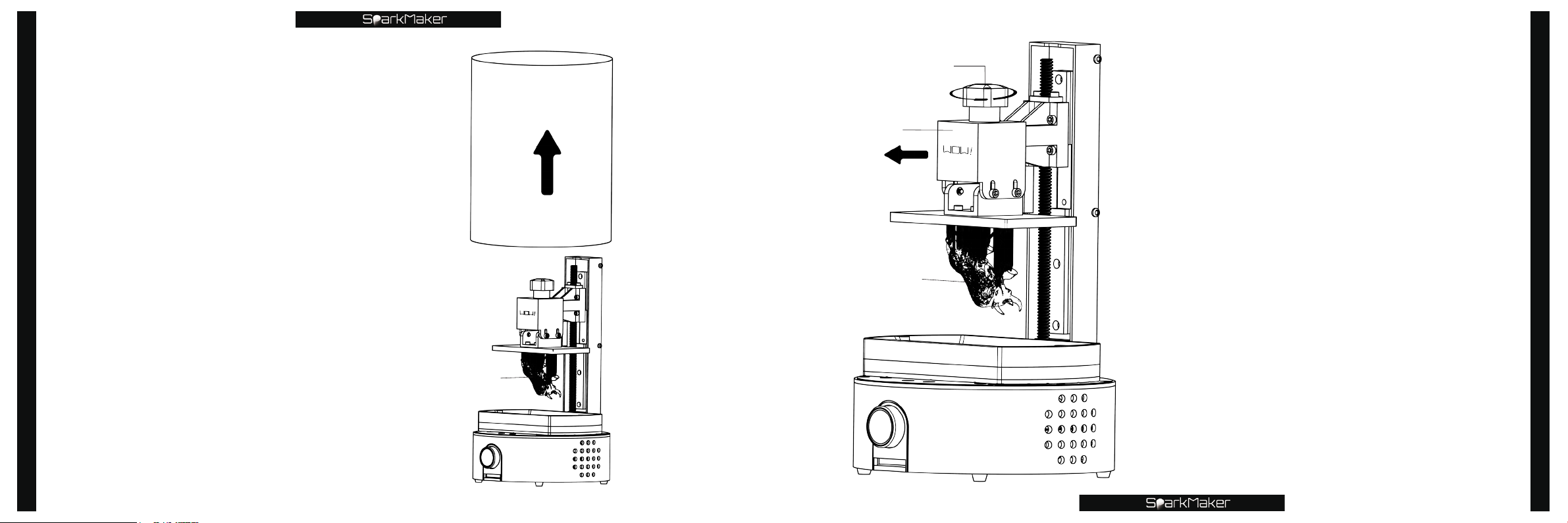

The knob indicator changes

End of Printing

from a flashing red light to a green breathing light,it means the end of printing.Remove the cover from the printer.

Model

Cover

Platform Handle

Platform

Model

After loosening the platform handle counterclockwise,pull the platform forward and remove it.

Notice:

＊

Do not completely unscrew the handle.

❶

Do not touch the printed model directly to

❷

avoid resin contact with the skin.

When removing the platform,do not

❸

drop the resin on the outer wall of the tank,the mounting screw holes,the working panel,the outer casing and the cover,and the installation clearance.

Be careful to avoid model damage when

❹

removing the platform.

End of Printing

Page 21

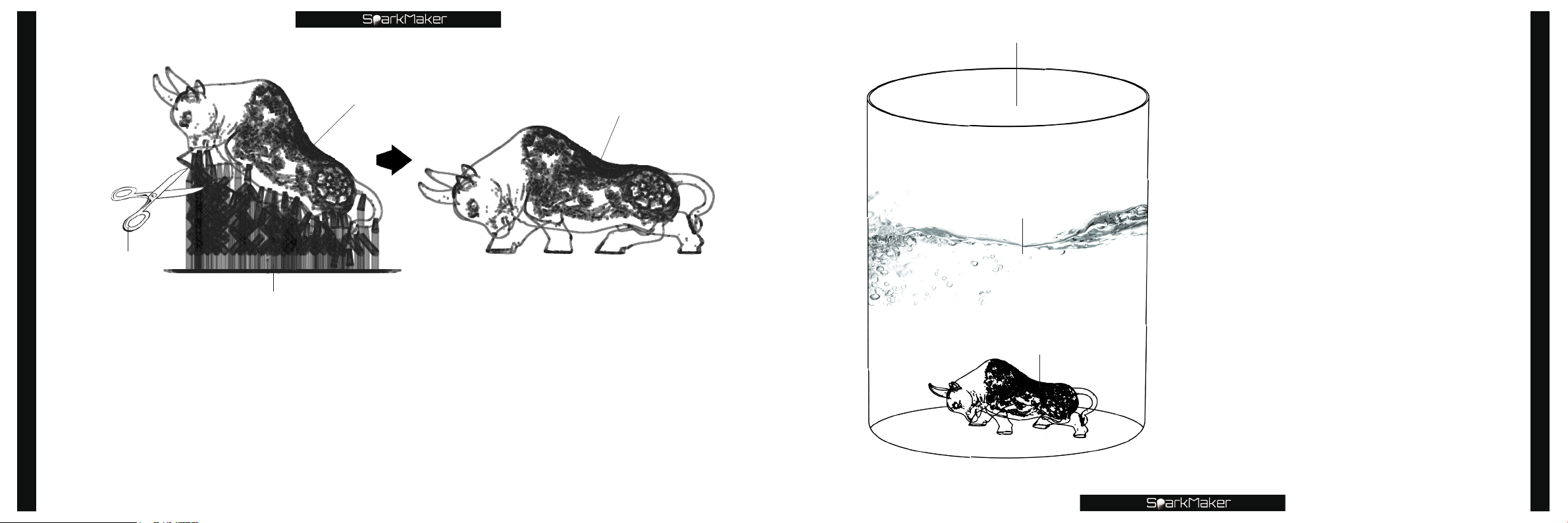

Use a knife or shovel to separate the model from the aluminum plate along the bottom of the model.

Tilt the platform so that the resin remaining on the

End of Printing

aluminum plate and the model flows back into the tank along a corner of the aluminum plate.

Notice:

＊

When tilting the platform do not drop the resin on the outer wall of the tank,the mounting screw holes,the working panel,the outer casing and the cover,and the installation clearance.

Resin

Tank

Model

Aluminum plate

Model

Aluminum plate

Knife

Notice:

＊

Please use tools and shovel

❶

carefully to avoid accidental injury.

Please lift up or cut from the

❷

bottom of the model. Do not leave too deep scratches on the bottom of the platform and avoid damage to the model.

Please clean the resin

❸

residue stick to the platform.

End of Printing

Page 22

End of Printing

Scissors

Carefully cut off the support on the model with tools such as scissors or cutting pliers.

Notice:

＊

Please use tools such as scissors carefully to avoid accidental injury and damage to the model.

❶

The support can be softened by the use of an electric blowing hot wind to soften the support,making

❷

it easier to dismantle.

Support

Model

Cleaning container

Alcohol

Model

Place the trimmed model in a cleaning container,pour the appropriate amount of alcohol that concentration above 95%

clean it with a soft brush or ultrasonic vibration for about 60 seconds,clean the uncured resin on the model surface

then take out the model,and blow dry the model with cold air.

Notice:

＊

You can use a hair dryer to speed up

❶

the evaporation of the model surface alcohol.

Do not wash for too long,avoid

❷

model damage and peeling.

Please carefully use and store

❸

alcohol to avoid safety issues.

End of Printing

Page 23

Place the air-dried model on a UV light or sunlight for about 10

End of Printing

minutes.

Notice:

＊

In order to prevent the model

❶

from being deformed by heat during illumination,the air-dried model can be completely placed in water or glycerol.

The illumination time can be adjusted

❷

according to the intensity of the light,so that the model can be completely cured.

Excessive curing time will cause the

❸

model to shrink and yellow,Insufficient curing time will result in incomplete curing of the model,and it will cause the model to be too soft.

UV light

Model

Adjustment of The Printer

Recycled Resin

Tank Cleanin

Page 24

Recycled Resin & Tank Cleaning

Big hex wrench

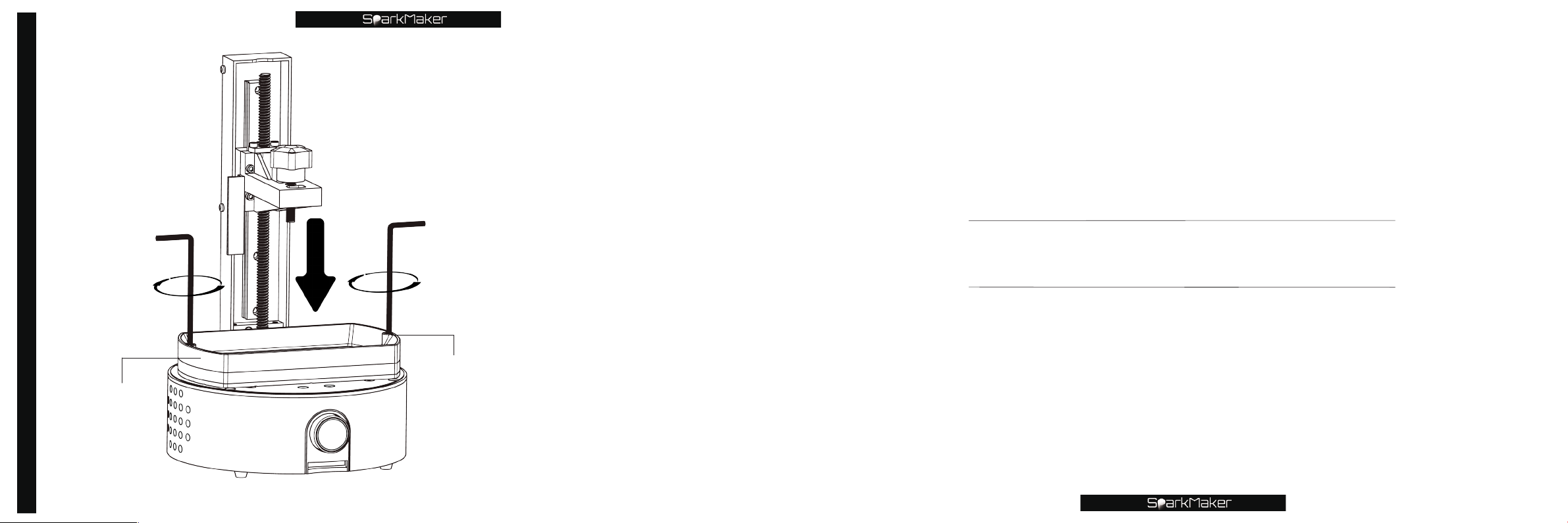

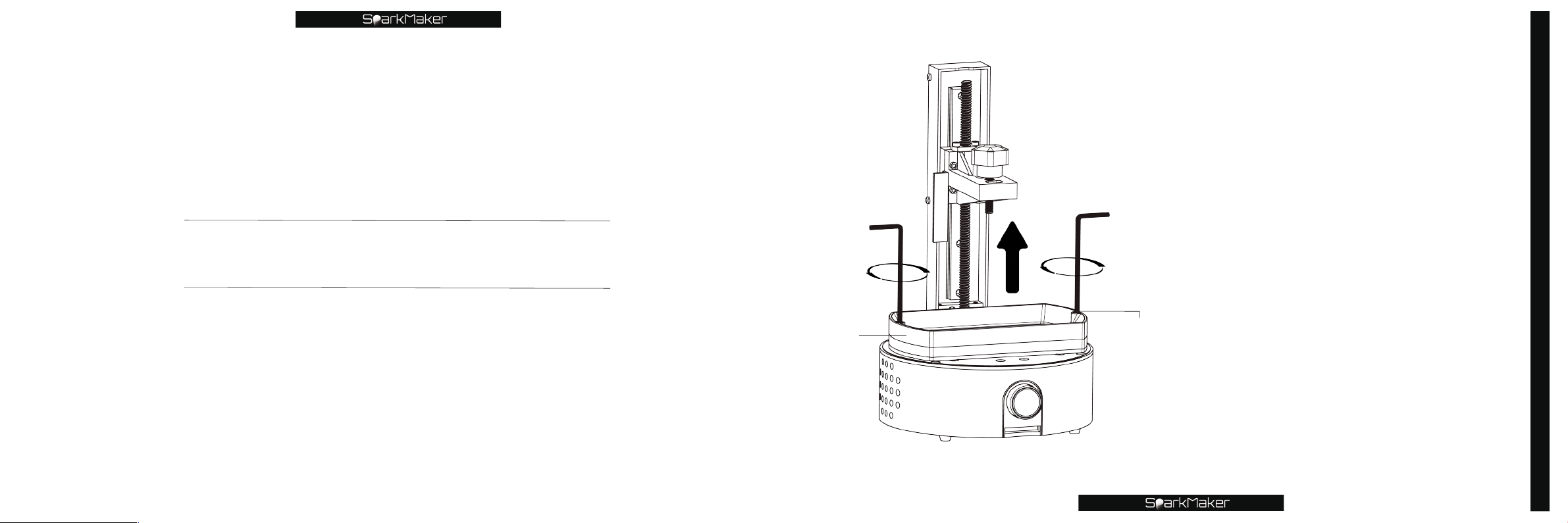

Use a big hex wrench to unscrew the screws on both sides of the tank counterclockwise.

Notice:

＊

Please remove the printing platform first.

Big hex wrench

Tank

Pour the remaining resin in the tank

Recycled Resin & Tank Cleaning

into the prepared resin storage

Remove the tank.

Notice:

＊

Please remove the printing platform first.

❶

When removing the tank,do not drop the resin

❷

on the outer wall of the tank,the mounting screw holes, the working panel,the outer casing and the cover,and the installation interspace.

Do not scratch the FEP film at the bottom of the

❸

tank when removing the tank.

Please place the removed tank properly on a

❹

clean and soft surface to avoid damage.

container along a corner of the tank.

Notice:

＊

Please seal the poured resin in a dark

❶

place.

Please clean the resin on the outer wall of

❷

the tank in time to avoid damage to the LCD screen.

Tank

Resin

Resin bottle

Page 25

Tank

Recycled Resin & Tank Cleaning

Paper towel

After pouring the resin in the tank, carefully wipe the resin remaining in the tank and the outer wall of the tank with a paper towel.

Finally, carefully wipe the inside of the tank, the outer wall of the tank and the upper and lower sides of the FEP membrane with alcohol wipes

Notice:

＊

The standard of thorough cleaning is that the FEP film is completely free of residue and no resin,and there is no resin residue inside and outside the tank.

Alcohol wipe

Recycled Resin & Tank Cleaning

Use a plastic shovel to remove the residual resin stuck on the FEP film at the bottom of the tank.

Notice:

＊

Please be careful to prevent the bottom of the tank from being scratched.

Residual resin

Shovel

Tank

FEP membrane

Page 26

Replace the FEP Film

Lay the FEP film under the tank and poke 12 holes in the position shown with a small hex wrench.

Notice:

＊

Make sure that the position of each hole that is poked matches the position of

❶

the hole in the lower layer of the tank.

Do not damage the FEP film.

❷

Clean all tank parts before replacing the new FEP film.

❸

Small hex wrench

Replace the FEP Film

Lower layer of the tank

FEP membrane

Page 27

Replace the FEP Film

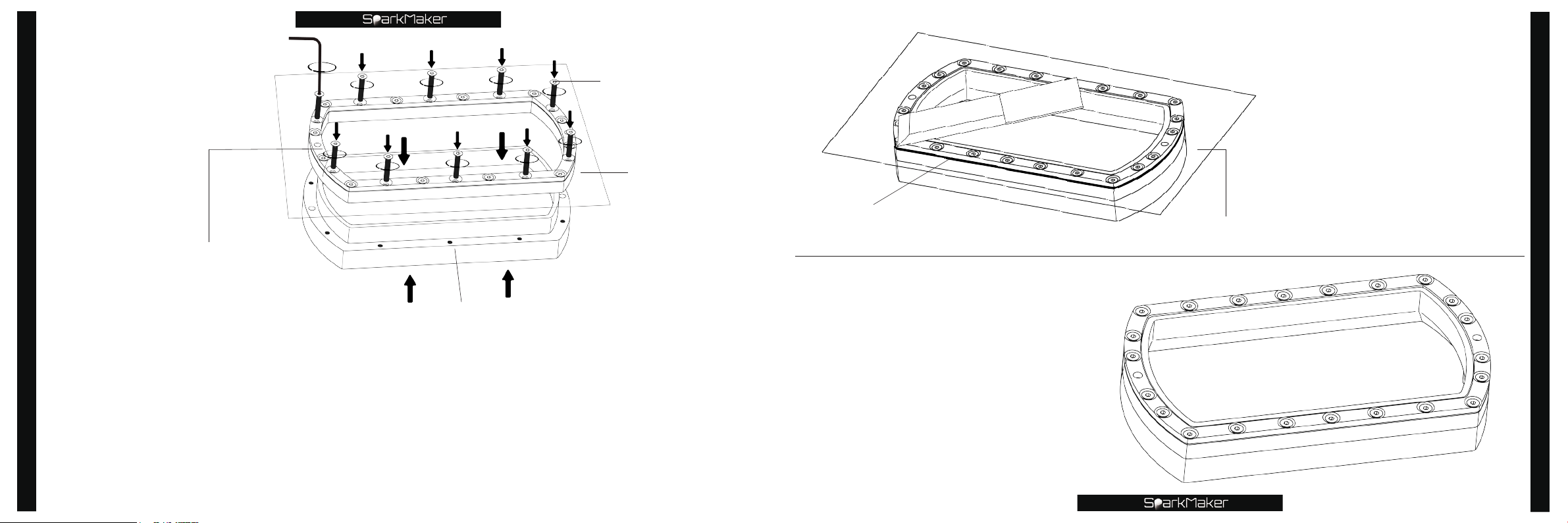

Insert 12 M3 short screws into the position where the hole was previously poked.

Lower layer of the tank

M3 short screw

FEP membrane

Small hex wrench

Lower layer of the tank

M3 short screw

FEP membrane

Rubber washer

Replace the FEP Film

Lower layer of the tank

Rubber washer

FEP membrane

M3 short screw

Align the lower layer of the tank with the rubber washer according to the screw holes position.

Middle layer of the tank

Align the lower layer of the tank and the middle layer of the tank according to the screw holes. Use a small hex wrench to tighten the screws clockwise to clamp the FEP membrane and rubber washer.

Page 28

Replace the FEP Film

Lower layer of the tank

Small hex wrench

M3 long screw

FEP membrane

Outer edge of the tank

knife

FEP membrane

Use a knife along the outer edge of the tank to remove the excess FEP membrane and rubber washer neatly.

Notice:

＊

Please use the knife carefully

❶

to avoid accidental injury.

Do not damage the FEP film in

❷

the tank.

Do not scratch the tank.

❸

Replace the FEP Film

Upper layer of the tank

Insert 10 M3 long screws into the remaining holes, use a small hex wrench to tighten the screws clockwise, so that the lower layer of the tank is tightly attached to the upper layer of the tank, and the rubber washer is pressed tightly to tighten the FEP membrane.

Notice:

＊

Do not overtighten the individual screws so that the other screws cannot be tightened. The screws

❶

should be tightened evenly.

Make sure that the lower and top layer of the tank are tightly attached so that the FEP membrane

❷

is higher than the lower plane of the tank,and all the screw heads do not protrude to hinder the tank installation.

Get a brand new tank.

Notice:

＊

Before installing and using,clean the tank with alcohol wipes to ensure that there is no obstruction on the FEP film and no resin residue on the tank.

Page 29

Replace the LCD Screen

Big hex wrench

Tank

Use a big hex wrench to unscrew the screw on both sides of the tank counterclockwise and remove the tank upward.

Notice:

＊

Big hex wrench

Round head screw

Please remove the printing platform

❶

first.

When removing the tank,do not drop

❷

the resin on the outer wall of the tank,the mounting screw holes,the working panel,the outer casing and the cover,and the installation interspace.

Do not scratch the FEP film at the

❸

bottom of the tank when removing the tank.

Please place the removed tank

❹

properly on a clean and soft surface to avoid damage.

Replace the LCD Screen

Page 30

Replace the LCD Screen

Big hex wrench

Round head screw

washer

Small hex wrench

Flat head screw

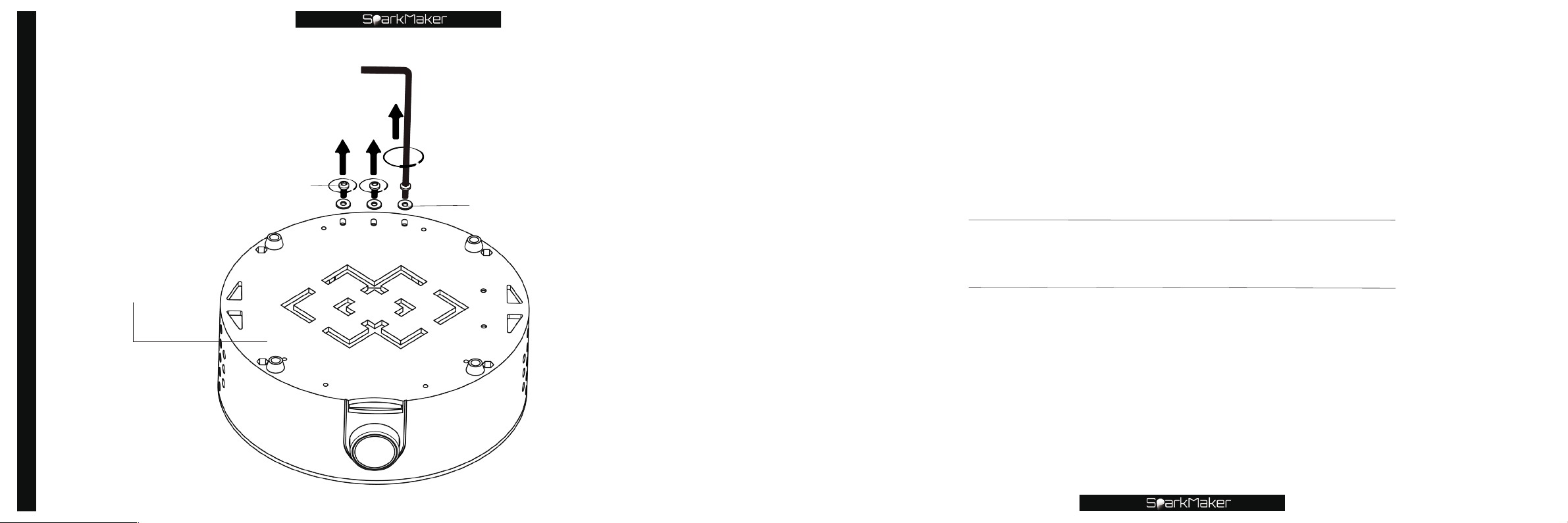

Use a small hex wrench to turn counterclockwise to unscrew the four flat head screws on the working panel and the two flat head screws above the knob.

Notice:

＊

Please take good care of the

❶

removed parts.

Please take care of the four M3

❷

nuts installed in the bottom of the printer.

Replace the LCD Screen

Use a big hex wrench to unscrew the three round head screws and three washers on the bottom of the printer counterclockwise.

Notice:

＊

Please take good care of the removed parts.

M3 nut M3 nut

Page 31

Slowly pull up the Z axis and the working panel, and open the LCD screen interface to release the LCD screen cable.

Z axis

Replace the LCD Screen

LCD screen

Shading tape

Remove the shading tape around the LCD screen.

LCD screen cable

LCD screen FPC interface

LCD screen

Working panel

Notice:

＊

Please carefully pull

❶

up the Z axis,do not pull it too high and the cable will be damaged.

Please carefully

❷

open the LCD screen interface,do not damage the LCD cable and LCD interface.

Replace the LCD Screen

Page 32

Replace the LCD Screen

Take out the LCD screen and pull out the LCD cable from the gap on the left side of the working panel.

＊

Do not damage or stain the tempered glass

❶

behind the LCD screen.

❷

the LCD screen.

LCD screen

Notice:

Do not remove the tempered glass behind

Extend the cable of the new LCD screen into the interior along the left side gap of the working panel and install the new LCD screen in the correct position.

Notice:

＊

❶

protective film on both sides of the new LCD.

Do not damage or stain the LCD screen and

❷

the tempered glass behind the LCD screen during installation.

LCD screen

Replace the LCD Screen

Before installing,please remove the

LCD screen cable

Page 33

Insert the cable into the LCD interface and press the connector down.

Replace the LCD Screen

LCD screen FPC interface

Notice:

＊

When installing the LCD cable,the metal screen of the LCD cable is facing down. When pressing the interface,please confirm that the cable is fully connected to the LCD interface.

LCD screen cable

LCD screen

Z axis

Working panel

Small hex wrench

Flat head screw

M3 nut

Slowly lower the Z-axis and working panel and close the housing. Plug the four M3 nuts on the bottom of the housing back into the bottom mounting holes, and then tighten the six flat head screws shown.

Notice:

＊

Do not damage the LCD screen.

M3 nut

Replace the LCD Screen

Page 34

Replace the LCD Screen

LCD screen

Shading tape

Big hex wrench

Round head screw

Washer

Replace the LCD Screen

Bottom of the printer

In the state of the card printing

the backlight is lit, and the LCD screen is displaying pattern, apply shading tape along the black edge around the LCD screen as shown.

Tighten the three flat head screws and three washers on the bottom of the printer clockwise with a big hex wrench.

Page 35

Use a big hex wrench to tighten the two round head screws on both sides of the tank clockwise.

Replace the LCD Screen

Big hex wrench

Tank

Big hex wrench

Round head screw

Notice:

＊

Please ensure that there is no

❶

obstruction on the LCD screen and in the FEP film in the tank.

Make sure that the tank is

❷

installed in a suitable position. The FEP film is in close contact with the LCD screen.

Replace the Light Board

Page 36

Replace the Light Board

Small hex wrench

Flat head screw

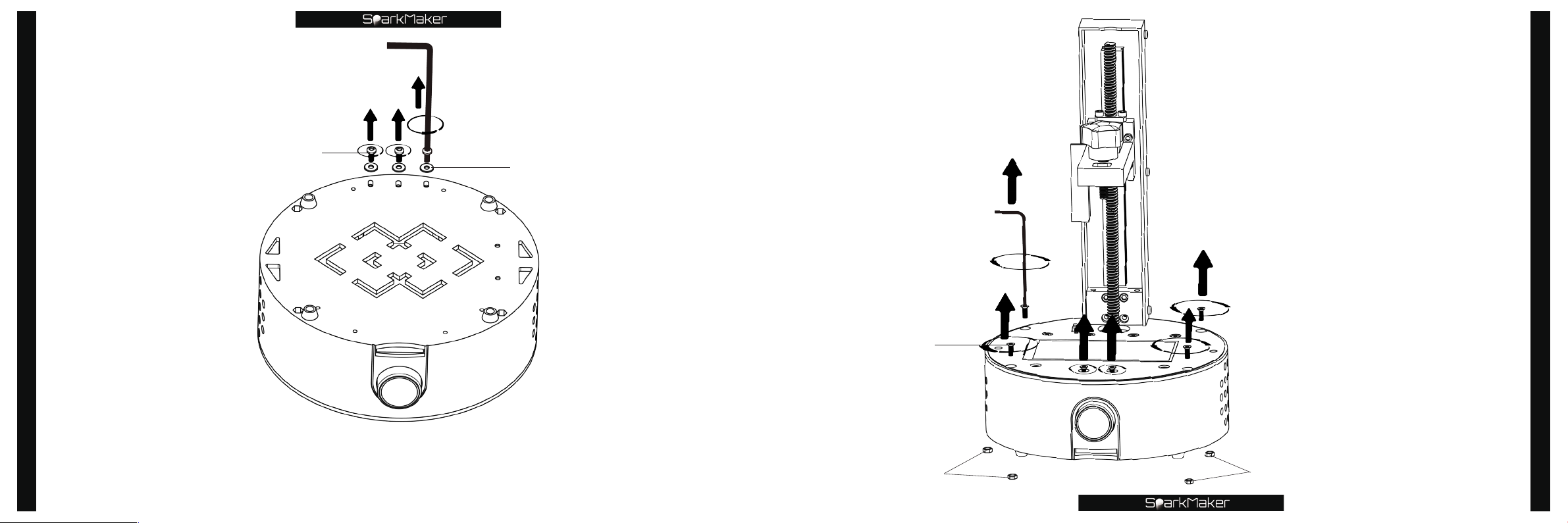

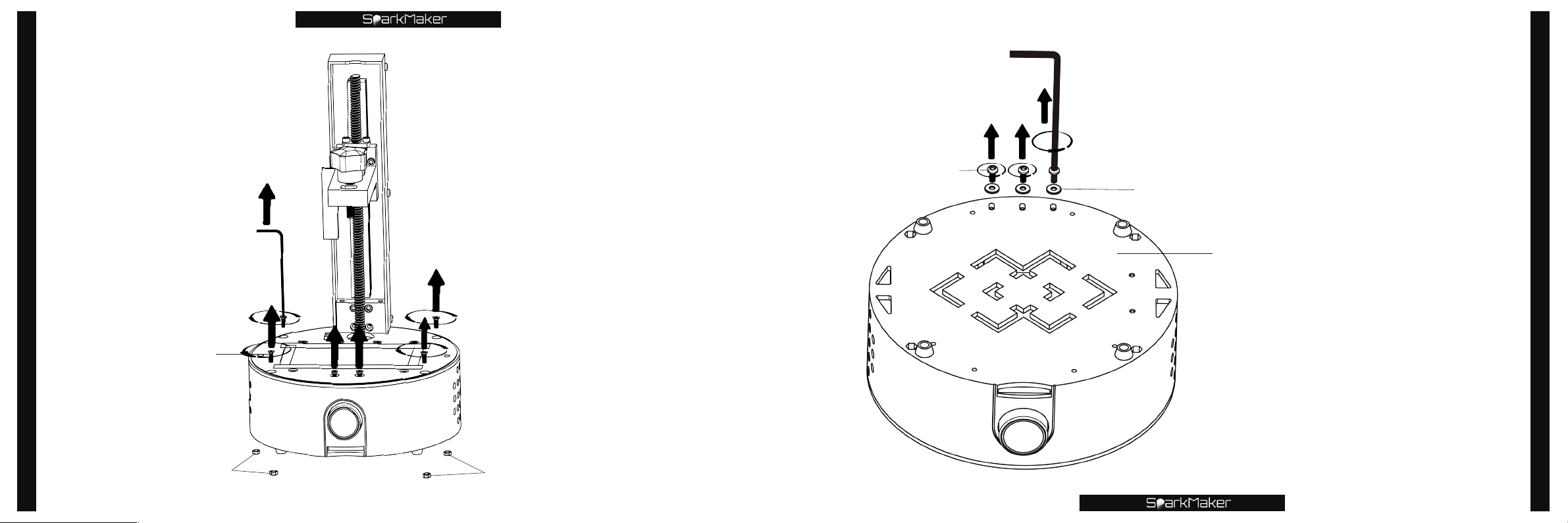

Use a small hex wrench to turn counterclockwise to unscrew the four flat head screws around the working panel.

Big hex wrench

Round head screw

Use a big hex wrench to turn counterclockwise to unscrew the three round head screws on the bottom of the printer and unscrew the two screws above the knob.

Washer

Bottom of the printer

Replace the Light Board

M3 nut

Page 37

Replace the Light Board

Four-wire plug

Motor interface

Photoelectric switch interface

LCD interface

DC input

(As shown) Slowly pull up the Z axis and the working plane, open the FPC interface upwards

release the FPC cable of the LCD and the knob

pull out the four-wire plug of the photoelectric switch and screw motor upwards, and pull out the five-wire plug of the light board upwards.

Small hex wrench

Flat head screw

Small hex wrench

Replace the Light Board

Flat head screw

FPC cable

Light board interface

Knob interface

Fan interface

Notice:

＊

Please carefully open the FPC interface and carefully pull out the plug,do not tear the cable.

Five-wire plug

Light board

M3 nut

Use a small hex wrench to turn counterclockwise to unscrew the flat head screws of the four fixed light board around the LCD screen and remove the light board from below.

Light board

M3 nut

After taking the new light board, use a small hex wrench to turn clockwise, and use the M3 nut at the lower end of the light board to screw the four flat head screws around the LCD screen.

Page 38

Motor interface

DC input

Replace the Light Board

Four-wire plug

FPC cable

Photoelectric switch interface

LCD interface

Light board interface

Knob interface

Fan interface

Notice:

＊

Please carefully open the FPC interface and carefully pull out the plug,do not tear the cable.

As shown) Press down

(

on the LCD screen and the knob FPC cable

insert the four-wire plug of the limit switch and screw motor down, and insert the five-hole plug of the light board down.

Five-wire plug

Small hex wrench

Flat head screw

M3 nut

Slowly lower the Z-axis and working panel and close the housing. Place the nut from the hole in the bottom of the printer. Hold it with a large hex wrench and use a small hex wrench to tighten the four flat-head screws around the working panel clockwise.

Replace the Light Board

Page 39

Replace the Light Board

Bottom of the printer

Big hex wrench

Round head screw

Use a big hex wrench to tighten the three round head screws and three washers on the bottom of the

printer clockwise.

Washer

Adjustment of Z Axis

Page 40

Adjustment of Z Axis

Pan head screw

Small hex wrench

Apron

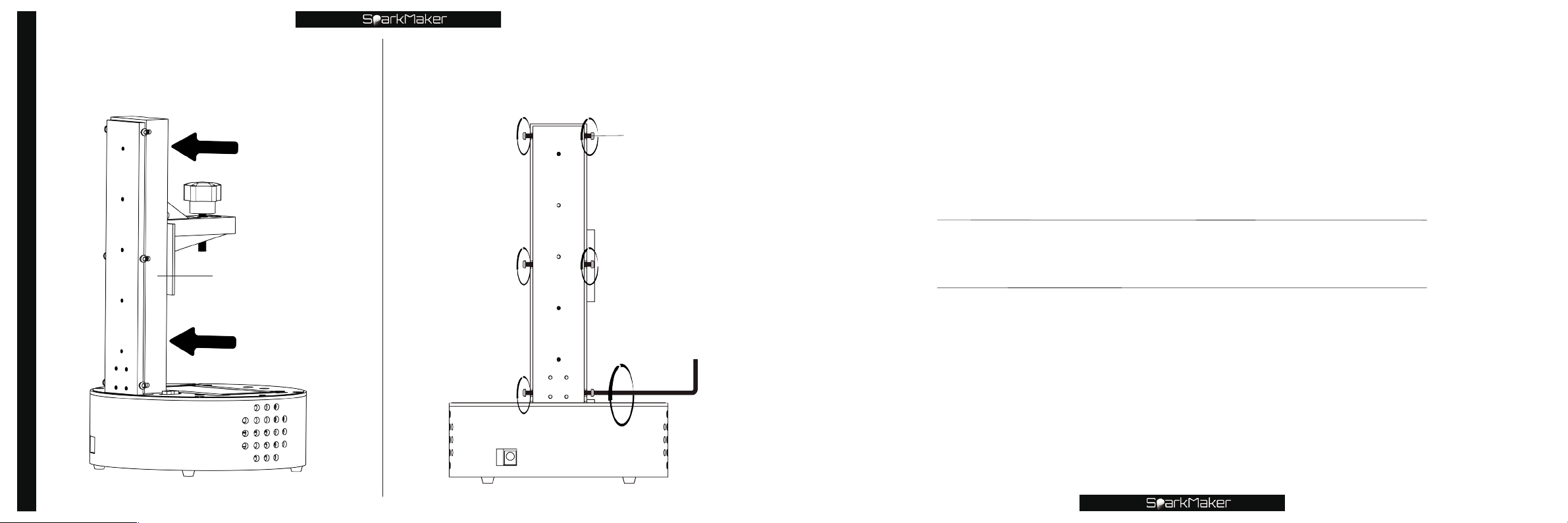

Use a big hex wrench to turn counterclockwise to unscrew the two round head screws that secure the copper nut.

Notice:

＊

Please take good care of the removed parts.

Big hex wrench

Round head screw

Adjustment of Z Axis

Copper nut

Cantilever

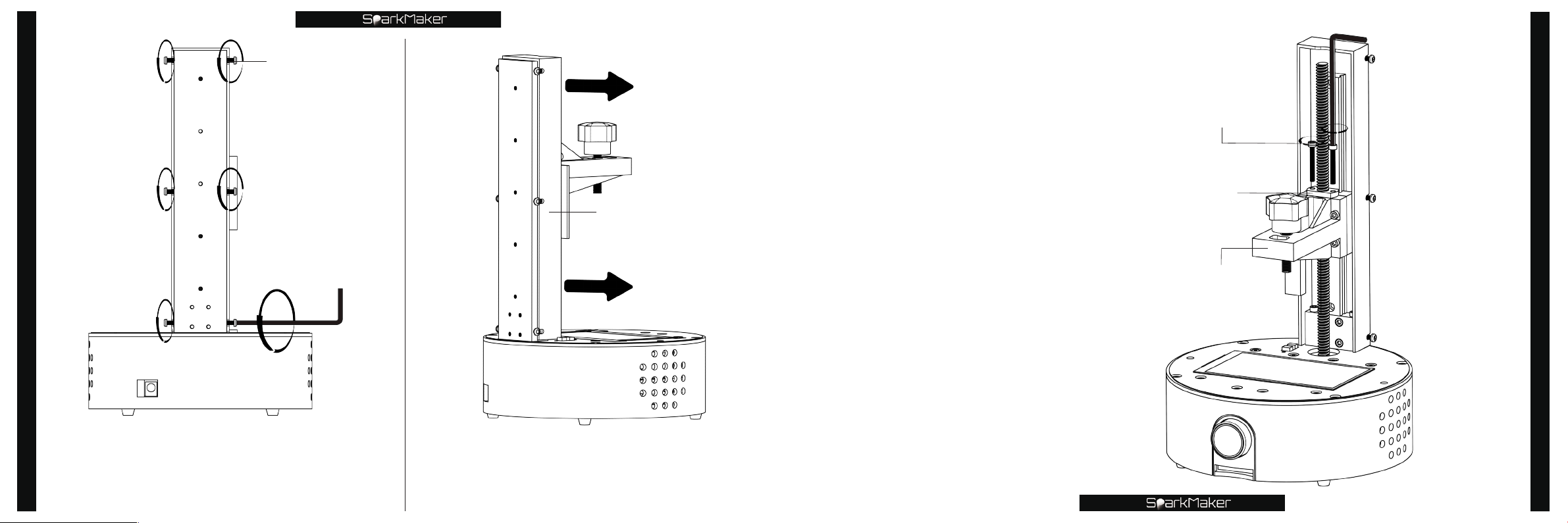

Use a small hex wrench to loosen the 6 pan head screws on both sides of the Z-axis counterclockwise.

Remove the apron along the front of the printer.

Notice:

＊

Please carefully remove the apron.

Page 41

Adjustment of Z Axis

Copper nut

Cantilever

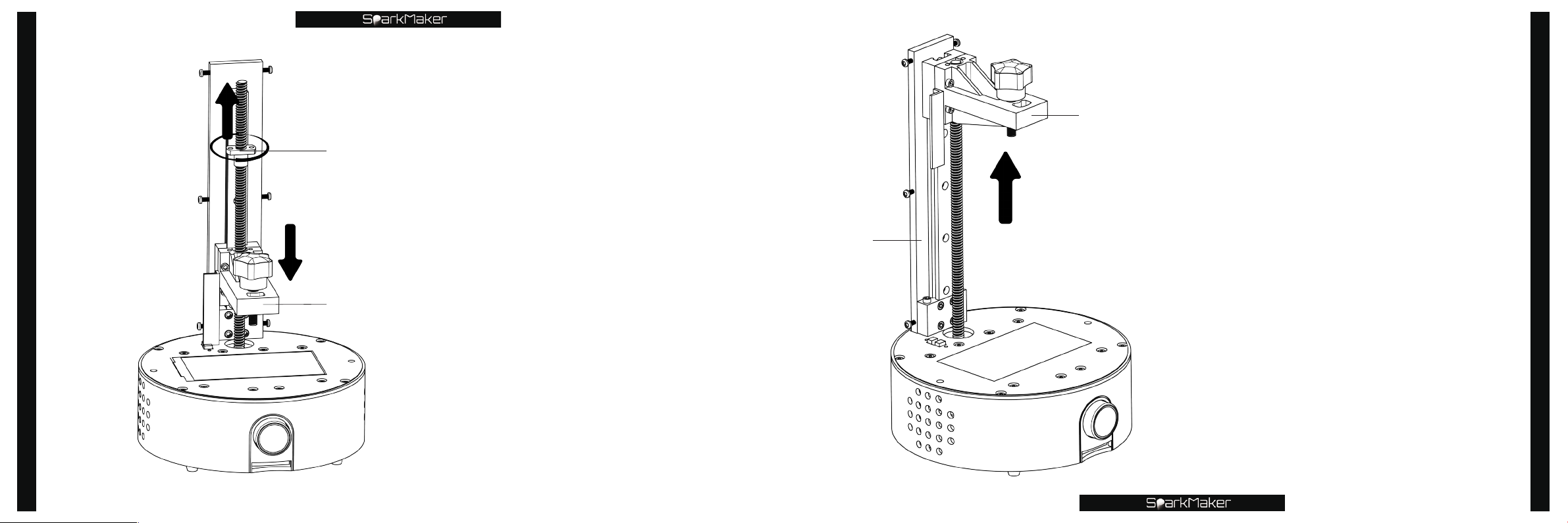

At this time, the cantilever will fall along the guide rail, and rotate the counterclockwise direction to screw the copper nut on the screw from above.

Notice:

＊

Pay attention to the balls in the slider when moving the slider to prevent it from falling.

Slide

Cantilever

Move the cantilever along the slide to the top, and the cantilever is parallel to the working panel.

Notice:

＊

When moving the slider,please be careful not to pull the cantilever out of the slide to prevent the balls in the slider from falling out.

Adjustment of Z Axis

Page 42

Use a big hex wrench to adjust the two positioning round head screws for mounting the Z axis and the three round head screws

Adjustment of Z Axis

on the bottom of the printer.

Notice:

＊

After adjusting the installation,the screws should be properly tightened.

Screw

Big hex wrench

Round head screw

Keep the two copper nut mounting holes at the top of the cantilever on the same horizontal line as the center of the screw.

Adjustment of Z Axis

Copper nut mounting hole

Big hex wrench

Round head screw

Notice:

Washer

Screw

＊

Move the cantilever to the top and adjust.

Page 43

Copper nut

Big hex wrench

Adjustment of Z Axis

Screw the copper nut clockwise from the top of the screw into the screw.

Notice:

＊

Do not reverse the position of the copper nut.

Screw

Rotate the two round head fixing screws of the copper nut clockwise with a big hex wrench.

Notice:

＊

Do not tighten the two xing screws

of the copper nut too much,otherwise it will not be able to move normally.

Round head screw

Adjustment of Z Axis

Page 44

Put the apron back on the Z axis.

Adjustment of Z Axis

Tighten the 6 screws on both sides of the Z-axis with a small hex wrench.

Pan head screw

Filtration Residue

Apron

Small hex wrench

Page 45

Tank

Filter

Plastic cup

Filtration Residue

Remove the tank and slowly pour the resin along the corner of the tank through the filter into the plastic cup prepared in advance. After all the residue has been filtered off, the residue is thrown away and the resin in the plastic cup is poured back into the tank to reprint.

Filter

Plastic cup

Resin

Residue

Tank

Resin

Filtration Residue

Residue

After all the residue has been filtered off, the residue is thrown away and the resin in the plastic cup is poured back into the tank to reprint.

Page 46

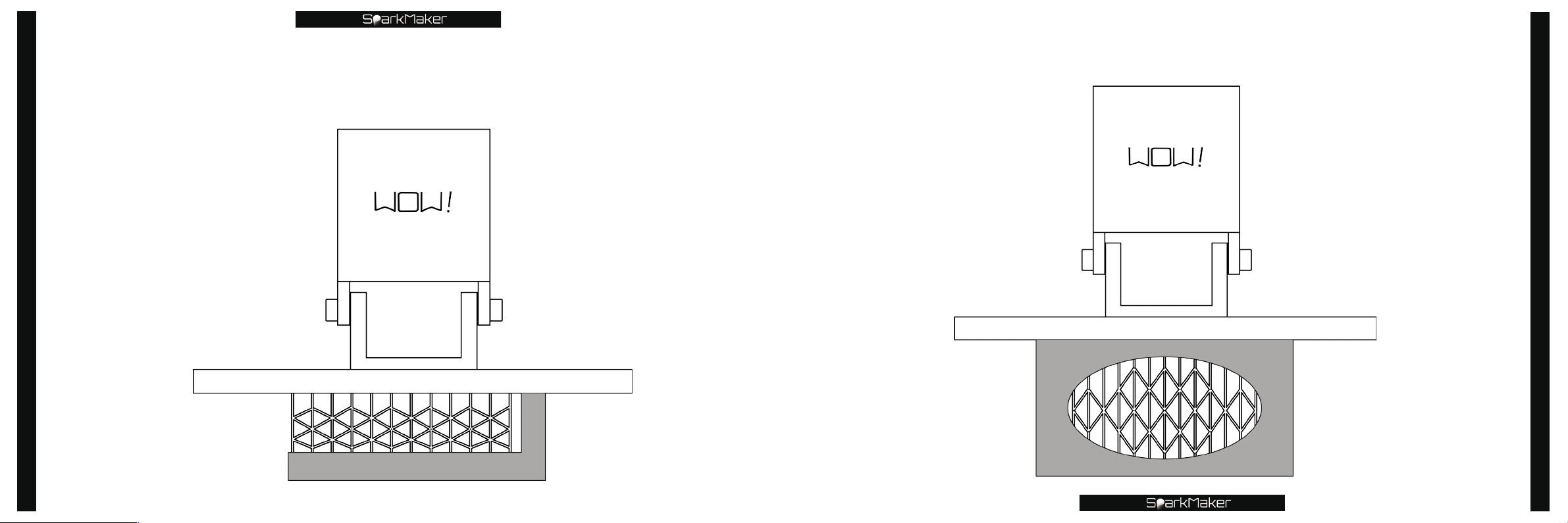

Add Support

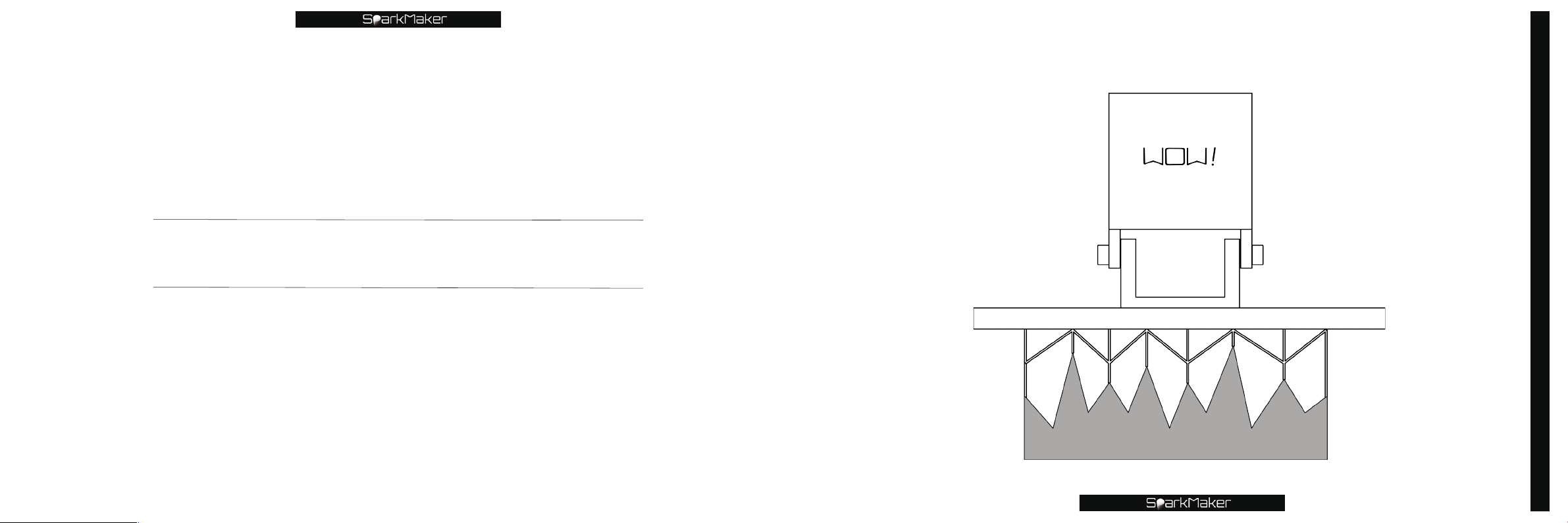

For such a model with the lowest point feature, support must be added at its lowest point, otherwise the model will fail to print.

Add Support

Page 47

For such a model with the lowest point feature, it should start from the lowest point and add support from dense to sparse.

For such a model with large spans feature,some supports should be added in the middle of the bridge appropriately.

Add Support

Page 48

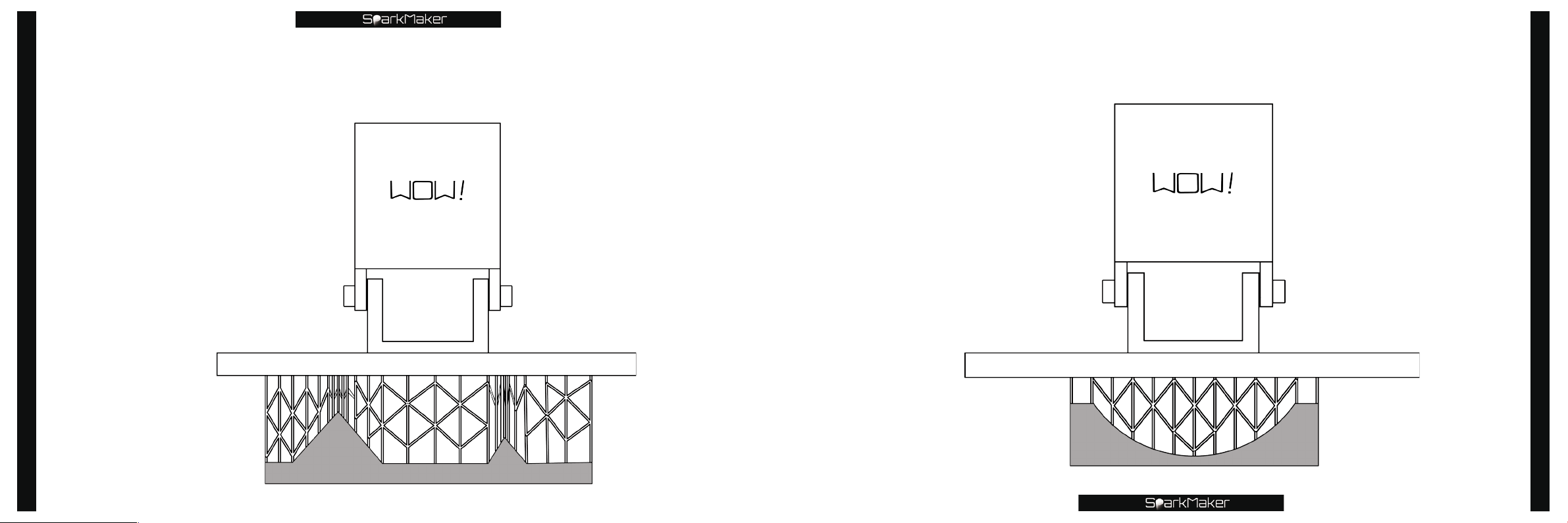

For such a model with cantilever feature,it is necessary to add support evenly in its cantilever position.

For such a model with large internal hollow and large span feature,it is necessary to add support evenly in the hollow area.

Add Support

Page 49

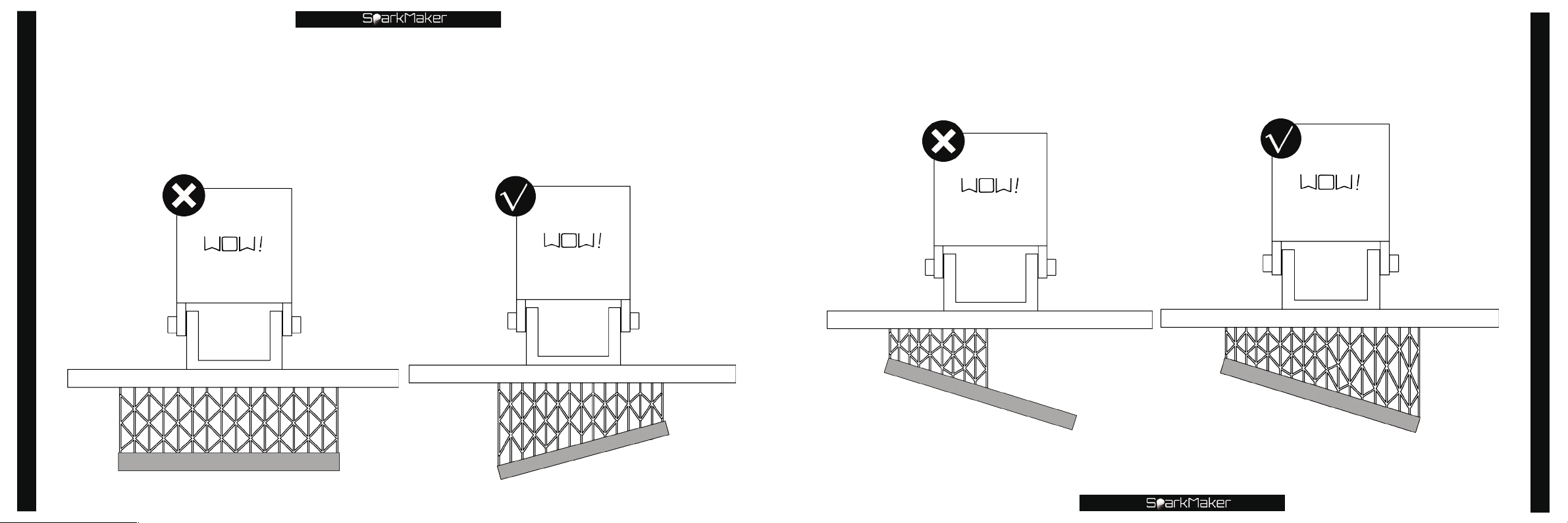

For such a model with large volume,higher height and large span feature, you can tilt an angle and then add support evenly.The printing quality will be better than flat printing,and the printing time will be greatly shortened,and the support will be added more easily.

For such a model with large volume,higher height and large span feature,all areas should be add support evenly.

Add Support

Page 50

For such models with large-area bottom feature,in order to avoid the adhesion between the bottom surface making the platform too difficult to remove,and to avoid deformation of the bottom layer due to excessive exposure,the model should be tilted at an appropriate angle and raised a distance before adding support evenly.

Add Support

Basic Operational Concept

Page 51

Resin

LCD-BGLCD-BFLCD-BWLCD-GLCD-QLCD-HLCD-MGLCD-TLCD-NLCD-CLCD-WLCD-

Resin

LCD-BGLCD-BFLCD-BWLCD-GLCD-QLCD-HLCD-MGLCD-TLCD-NLCD-CLCD-WLCD-

Layer

Exposure

Settings for

Time

Exposure

Strength

SparkMaker Original

Lift Distance

Lift Speed

Decline Speed

Layer Count

Exposure Time

Lift Distance

Lift Speed

0.1mm

0.05mm

0.025mm

Bottom

11 11 11 35 10 45 11 11 11 16 26 32

8 8 8 28 8 40 8 8 6 12 17 15

6 6 6 23 6 35 6 6 4 8 12 10

255

5 10

25 10

80 10

100

25 10

Layer

Exposure

Time

0.1mm

0.05mm

0.025mm

Exposure

Strength

Lift Distance

Lift Speed

Decline Speed

Bottom

Layer Count

Bottom

Exposure Time

Bottom

Lift Distance

Bottom

Lift Speed

8 8 8 25 10 24 7 10 10 13 14 18

6 6 6 23 8 20 5 8 6 8 8 15

4 4 4 20 6 18 3 5 4 6 5 12

255

5 10

25 10

80 10

100

25 10

Settings for

SparkMaker FHD

Bottom

DeclineSpeed

80 10

Bottom

DeclineSpeed

80 10

Page 52

The thickness of the layer printed by the printer each time

0.1mm~0.025mm

The

0.1mm

The time and precision of The

Basic Operational Concept

0.025mm

layer thickness prints faster and the printing accuracy is relatively low.

layer thickness prints more accurately and prints for a longer period of time.

In addition to the bottom layer,each layer is exposed to UV light for curing. Different resin are also have different in layer exposure time.

The time of bottom layer cured by the UV light,because the bottom layer is the base layer that supports the entire model,the exposure time is longer. Different resin are also have different in bottom layer exposure time.

Type of Resin:

Different resins are not sensitive to light,so different resins cure at different times.Generally,the gray resin bottom layer exposure time is longer.

Model Factor:

Structures such as small cylinders,thin walls,and thin supports need to increase the exposure time of

❶

the layers.

Structures such as small holes and small gaps need to reduce layer exposure time.

❷

The model with an excessively large underside requires an increase in the bottom layer exposure

❸

time

in order to adhere rmly.

100

Layer Thickness Factor

The larger the layer thickness,the longer the exposure time required,and the smaller the layer

：

the supported thickness range is

0.05mm

layer thickness printing tend to be relatively balanced.

：

thickness,the shorter the exposure time required.

The light intensity of the light board,this item is basically a xed value of need to be adjusted.

After printing each layer the cross-sectional area of the model or the more dispersed the model layout,the larger the lifting distance required;the thicker the photosensitive resin,the larger the lifting distance required.

©Lifting Speed

The rate at which the resin is lifted upwards to separate the model from the FEP lm after the resin has

cured. When the model is separated from the FEP is not broken,the lifting speed should be reduced,so the platform lifting speed should be less than the falling speed. Under normal circumstances,there are small features or models using ne support,the lifting speed should be reduced; the softer resin after printing should reduce the lifting speed; the larger the cross-sectional area of the model or the more dispersed the model layout,the lower the lifting speed.

：

©Decline Speed

After the resin is cured,the platform is lifted and the speed of the lm is lowered. In general,there are

small features or models that use ne support,and the speed of descent should be reduced; the softer

resin after printing should be reduced in speed.

：

and generally does not

255bit

：

the model is separated from the tank and lifted upwards. In general,the larger

lm

in order to ensure that the integrity of the model

：

Basic Operational Concept

101

Page 53

FAQ

Download the print le

❶

that can be printed directly from the ofcial

Download the STL le from the 3D Print Model website or convert the model le to the STL le format.

❷

Design the model using computer 3D design software and then export the model to a le in STL format.

❸

"print.wow"(for

SparkMaker Original

SparkMaker

website

)or "print.fhd" (for

(www.sparkmaker3d.com).

SparkMaker FHD

le

)

Download the latest update rmware from the ofcial

❶

Unzip the downloaded update rmware

❷

SparkMaker FHD

Turn off the power to

❸

Insert the SD card into the

❹

Power on the

❺

The indicator on the knob will turn purple(

❻

turns purple

Use your computer to delete the update rmware from the SD card.

❼

Finish updating the rmware and start printing.

❽

and save it on the SD card.

)

SparkMaker

SparkMaker.

),and then the light started ashing,nally turn green,which means the update is successful.

update.wow (for

card slot.

if it is

SparkMaker

SparkMaker FHD

website

SparkMaker Original

(www.sparkmaker3d.com)

,you need click the knob when knob

) or update-FHD.wow (for

Open the computer software and check if the pattern of each layer of the slice is normal.

*.wow(for

SparkMaker Original

)or *fhd(for

SparkMaker FHD

slice file with

)

SparkStudio

©Why does the indicator change from green to red and then quickly change back to green when the SD card is inserted and the knob is clicked?

The SD card is not recognized or has been damaged. A new SD card needs to be replaced. The SD card

❶

should be a card is completely unlocked by hardware,and the metal contacts are free of stains.

The direction or depth of the SD card insertion is incorrect. It needs to be adjusted to make the metal contacts

❷

contact.

C10 high-speed

card with a capacity lower than

32GB

The le system format is

FAT32

The SD

FAQ

103

Page 54

FAQ

104

If you use the knob to control the printer,check if the print file named in the SD card is

❸

SparkMaker Original

recognized.

Open the print le with

❹

)or "print.fhd" (for

SparkStudio

SparkMaker FHD

and check if there is a problem with print le.

If other file names are used,they will not be

)

"print.wow"(for

The platform is not leveled,so that it cannot be lowered to the lowest point. The photoelectric switch has not

❶

been triggered,and the platform should be leveled rst.

There is residue on the platform or in the tank,so that it cannot be lowered to the lowest point. The photoelectric

❷

switch has not been triggered. The residue on the platform and in the tank should be cleaned.

The trigger piece on the platform is not aligned with the lower photoelectric switch. The trigger piece should be

❸

inserted into the middle notch of the photoelectric switch.

The photoelectric switch is damaged or the photoelectric switch is not installed correctly.

❹

The Z axis is not corrected. The direction of the lead screw and the guide rail are not parallel,which creates

❶

motion resistance and needs to be corrected again.

The screw needs to add some grease.

❷

The screw is blocked by the cured resin and needs to be cleaned.

❸

The copper nut mounting screw is too tight,the screw is stuck,and the copper nut mounting screw should be

❹

adjusted to make the screw move smoothly.

The gravity and release force need to be overcome during the printing process. Therefore,the minimum point and the suspended part of each layer must be supported. In order to ensure that the model is not deformed and not broken,the model needs to add more support to strengthen the support structure to overcome the release force.

SparkMaker

SLA 3D printer?

SparkMaker

number of printed layers,regardless of the cross-sectional area. In the case of the same layer thickness,the shorter the model printing. It should be noted that the larger the layer thickness,the longer the single layer exposure time and the worse the printing quality.

SLA 3D printer is a face-to-layer printing method. The printing time is only related to the height,the

the less time is spent printing; at the same height,the larger the layer thickness is,the less time is spent

Less than damage to the LCD screen.

resin should be poured into the tank. Do not pour in too much resin,it will result in resin overow

240ml

The tank is placed on a balcony or other place with a strong light source to cause the resin to cure.

❶

The UV light emitted from the side of the machine is reected and applied to the surface of the tank to solidify it.

❷

©When the liquid photosensitive resin in the tank is printed,there are a lot of bubbles,which will affect the printing? How to remove?

The liquid resin can place for a period of time to eliminate air bubbles.

❶

Keep the liquid resin without bubbles and print out the model without bubbles.

❷

When printing,bubbles are present in the liquid resin in the tank.

❶

When printing,the falling speed is too fast,and bubbles are generated.The falling speed should be adjusted

❷

appropriately.

The printing process should be controlled within the indoor temperature range of

❶

Printing in lower temperature requires an increase in exposure time.

❷

The normal printing temperature is

❸

Excessive temperature will cause the FEP lm to deform and damaged the liquid crystal.

. The curing speed is increased by

30%

25 degrees

30%

. For every

for every

10 degrees

reduction,the curing speed is reduced

but it will eventually reach a stable value.

24-35.

FAQ

105

Page 55

FAQ

106

©Why is there nothing stuck on the aluminum plate of the printing platform after the printing is finished,and the residual resin is stuck on the FEP film at the bottom of the tank?

The printing platform is not leveled and needs to be leveled correctly.

❶

The bottom layer exposure time set is too short and you need to increase exposure time. If a third-party resin

❷

is used,the user needs to adjust the printing parameters by himself. It is recommended to adjust the bottom layer exposure parameters to

The set lifting speed is too fast and the model is broken,so it is necessary to reduce the lifting speed.

❸

The contact surface between the model and the printing platform aluminum plate is too small to cover the entire

❹

model. You need to check the position of the model or set the sinking print model.

Check the FEP lm on the top and bottom of the tank,and whether there is any obstruction or resin residue on

❺

the LCD screen.

200 seconds

SparkMaker

SLA

3D printer does not have this feature yet.

Turn off the power and remove the print platform and tank.

❶

Use a shovel to clean the residual solids on the platform and the tank and start printing again.

❷

©Why is the bottom of the model stuck to the printing platform and the residual resin is stuck on the FEP film,after the printing is finished?

The support of your model is too thin to pull the model.

❶

The support of your model is too little to hold the model.

❷

The layer exposure time is insufcient,some of the support is broken and it is difcult to pull the model

❸

The model you print is too large,the lifting distance is not enough,the model is difcult to release,and the lifting

❹

distance should be increased.

Check the FEP lm up and down,whether there is any obstruction or resin residue on the LCD screen.

❺

Check if the UV LED on the light board is fully illuminated when printed,and if the brightness is different.

❻

The lifting distance is too large,and the position is misplaced when moving up and down for a long distance.

❼

Open the print le with

❽

SparkStudio

and check for any problems with the sliced graphics.

©Why is a cuboid block that is the size of the screen printed on the printing platform after printing is finished, or not printed anything?

If the LCD screen is damaged or the contact is poor,it will be completely transparent. Check the LCD screen

❶

cable and try to connect again. If it cannot be solved,replace the new LCD screen.

Check that the lamp bead on the lamp board is lit normally when printed.

❷

Open the print le with

❸

The copper nut mounting screw is too tight,the screw is stuck,and the copper nut mounting screw should be

❹

adjusted to make the screw move smoothly.

SparkStudio

and check for any problems with the sliced graphics.

The resin drop into the LCD screen and damage the LCD screen.

❶

The residual resin residue on the tank or platform crushes the LCD screen during printing.

❷

The connection cable inside the LCD screen is loose during transportation.

❸

Check the FEP lm in the tank,and whether there is any obstruction or resin residue on the LCD screen.

❹

In order to make the model stick to the bottom layer of the platform,the bottom exposure time is longer than the normal layer,and the long under layer exposure time will cause the resin around the bottom layer expand,you can lift the model a distance and then add the bottom support.

Slight scratches have little effect on the model and it can be used continuously,and the rougher the metal plane,the stronger the adhesion.

FAQ

107

Page 56

FAQ

108

Use a resin that cures faster.

❶

Use a larger layer thickness to save printing time.

❷

Increase the speed of descent and the speed of lifting as appropriate.

❸

The layer exposure time is not enough,the layer exposure time should be increased appropriately.

❶

If the support is too thin,a thicker support should be used.

❷

The surrounding support is not dense enough,need to add more dense support.

❸

Check the FEP lm up and down,whether there is any obstruction or resin residue on the LCD screen.

❹

The lifting speed is too high and damaged the support,the lifting speed should be reduced appropriately.

❺

The Z-axis motion is not smooth. Correct the Z-axis and add some grease.

❻

If the hardness of the resin is too low,a resin with a higher hardness should be used.

❼

Because the exposure time is too long or insufcient,the exposure time should be adjusted appropriately.

❶

The resin selected is not in the specied curing band.

❷

Some points are are not adding support and the model part is sunken and deformed.

❸

The platform handle is not tightened when printing.

❹

The tank is not installed well.

❺

Check the FEP lm up and down,whether there is any obstruction or resin residue on the LCD screen.

❻

If the hardness of the resin is too low,a resin with a higher hardness should be used.

❼

The platform is not leveled.

❶

Z-axis stuck,the Z-axis should be corrected and grease added.

❷

The platform handle is not tightened when printing.

❸

The underlying exposure time is too long and the bottom layer is inated.

❹

Because the exposure time is too long or insufcient,the exposure time should be adjusted appropriately.

❺

The resin selected is not in the specied curing band.

❻

The resin that is cured on the LCD screen is usually a lm,which can be peeled off by hand or gently scraped off

with a knife.

SparkMaker

thickness,there will be a ladder stripes in the Z-axis direction of the model. This is caused by the molding principle itself,and the lower layer thickness can be selected to reduce the ladder stripes.

SLA 3D printer is a surface-curing method for layer-by-layer printing. In the case of high layer

SparkMaker

model. White or light-colored resins can be used to visually reduce pixel patterns.

SLA 3D printers use LCD screens as imaging components,so pixel patterns are inevitable on the

The model features or details are too small,and the printer resolution is difcult to meet the printing.

❶

Check that these details or features lack support or support density and thickness is incorrect.

❷

Open the slice le in the computer software and check if the image is missing.

❸

Check if the UV LED on the light board is not lit when printing.

❹

Check for obstructions or residual glue on the LCD screen.

❺

Check the top and bottom of the FEP lm of the tank for obstructions or residual resin.

❻

If the hardness of the resin is too low,a resin with a higher hardness should be used.

❼

Check if the print le is saved completely.

❶

Check if there is an unexpected power failure during printing.

❷

Check if the power socket is stable.

❸

Check if the SD card is plugged in.

❹

Check if the knob rotates smoothly and whether it a steady ashing red light during printing.

❺

FAQ

109

Page 57

FAQ

110

Check that the Z-axis motion is smooth.

❻

Check if the resin in the tank is sufcient.

❼

The normal life of the LCD screen is about

❶

The resin or other liquid on the LCD screen will damage the LCD screen.

❷

Excessive pressure will break the LCD screen.

❸

800 hours

Carefully protect the FEP lm from scratches.

❶

After a period of use,if there are a lot of obvious creases on the FEP lm,replace the new FEP lm in time.

❷

Please clean the resin residue on the upper and lower sides of the FEP lm in time to avoid printing failure.

❸

When installing the tank,the FEP lm should be in close contact with the LCD screen.

❹

The FEP lm is stretched at the bottom of the tank. This material has low adhesion,can pass ultraviolet light,and

❺

has a long service life. Its function is elastic release,and materials such as glass and ordinary plastic lm cannot be replaced.

and the LCD screen warranty period is

2 months

If the resin in the tank is not used for a long time,please pour the resin into the storage container. Don't store it

❶

in the tank for more than two weeks.

Please do not pour in excess resin to prevent the resin from overflowing and causing damage to the LCD

❷

screen.

Please do not put the resin into the screw mounting hole and the outer wall of the tank,which will cause the LCD

❸

screen to be damaged. If it accidentally ows in,please clean it in time.

When installing the tank,the FEP lm should be in close contact with the LCD screen.

❹

The slot mounting screws should be balanced and tightened to tighten the FEP lm.

❺

The model le must have no le errors such as broken faces and le corruption.

❶

The long-span cantilever position,the lowest point position of the layer,the position that needs to be

❷

strengthened and so on in the model le are all added with the right thickness,the right number of supports and

the correct bottom valve.

The slice parameters such as the layer thickness,exposure time,and lift speed of the print le are set correctly.

❸

The slice le is completely saved in the SD card,the bottom surface is completely attached to the ground,and

❹

there is no fault in the middle.

If you use the knob to control the printer

❺

Original

)or "print.fhd" (for

SparkMaker FHD

you need to name the print file as

and save it to the SD card.

)

"print.wow"(for

SparkMaker

First remove the tank and printing platform,then insert the SD card with the printed file,press the knob to start printing,then wait for the light board to light up,the LCD screen displays the image,observe whether the image is normal,the light on the light board Whether the beads are normally lit.

SparkMaker

The

backlight as the light for curing the resin. Because the LCD screen is exposed to UV light,it will be damaged under long-term use. It has a life of light transmittance is poor,the exposure time is obviously longer or the graphics or the like cannot be displayed normally,the LCD screen should be replaced in time. The UV LED board will also wear out during long-term exposure. It can be kept for intensity is obviously weakened,the exposure time is obviously longer or there are some UV LEDs don't light or weak,the light board should be replaced in time.

SLA 3D printer uses a liquid crystal screen as a graphic display component and uses a UV

2-3 months

under frequent use. When the LCD screen has black spots and the

without signicant light energy loss under frequent use. When the light

SparkMaker

The

proper leveling,if you do not adjust the Z axis,do not loosen the four screws on both sides of the platform,and do not reinstall the resin tank,normally you don't need to leveling the platform again.

SLA 3D printer uses a high-precision photoelectric switch with high repeatability,so after

FAQ

111

Page 58

What does the warranty cover?

Terms & Conditions

The 6-month warranty covers all functional aspects of

under normal use,excluding LCD screen,the resin tank,and UV LED backlight.

The 2-month warranty covers LCD screen,the resin tank,and UV LED backlight.

What does the warranty not cover?

Man-made damage or any problem caused by misoperation.

Self-retting and self-dismantling are not covered by the warranty.

Damage caused by using third-party resin or parts will void the warranty.

When does the warranty begin?

It starts from the date of receipt of the goods.

SparkMaker

SLA 3D printer

Terms

Conditions

113

Page 59

Customer Service

How to solve the problem?

Official Email

•

[email protected]

•

Official

•

https://www.sparkmaker3d.com

https://www.youtube.com/channel/UCY7od4g-hpWLqrZZlDlS8cw/

Official Facebook Group

•

https://www.facebook.com/groups/140657399943252/

SparkMaker

YouTube Channel

•

Website

•
