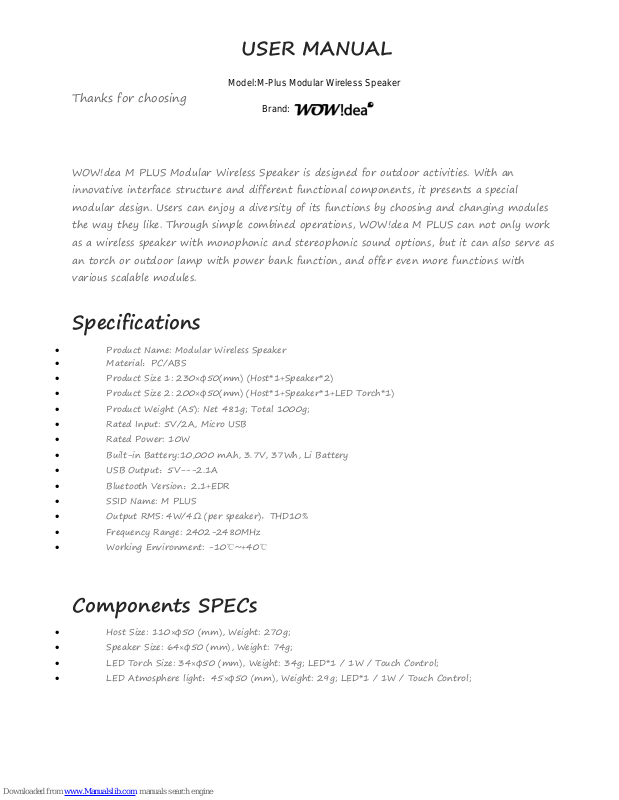

USER MANUAL
Thanks for choosing
WOW!dea M PLUS Modular Wireless Speaker is designed for outdoor activities. With an
innovative interface structure and different functional components, it presents a special
modular design. Users can enjoy a diversity of its functions by choosing and changing modules
the way they like. Through simple combined operations, WOW!dea M PLUS can not only work
as a wireless speaker with monophonic and stereophonic sound options, but it can also serve as
an torch or outdoor lamp with power bank function, and offer even more functions with
various scalable modules.
Specifications
Product Name: Modular Wireless Speaker
Material：PC/ABS
Product Size 1: 230×φ50(mm) (Host*1+Speaker*2)
Product Size 2: 200×φ50(mm) (Host*1+Speaker*1+LED Torch*1)
Product Weight (A5): Net 481g; Total 1000g;
Rated Input: 5V/2A, Micro USB
Rated Power: 10W
Built-in Battery:10,000 mAh, 3.7V, 37Wh, Li Battery
USB Output：5V---2.1A
Bluetooth Version：2.1+EDR.
SSID Name: M PLUS
Output RMS: 4W/4Ω (per speaker)，THD10%
Frequency Range: 2402-2480MHz
Working Environment: -10℃~+40℃
Components SPECs
Host Size: 110×φ50 (mm), Weight: 270g;
Speaker Size: 64×φ50 (mm), Weight: 74g;
LED Torch Size: 34×φ50 (mm), Weight: 34g; LED*1 / 1W / Touch Control;
LED Atmosphere light：45×φ50 (mm), Weight: 29g; LED*1 / 1W / Touch Control;
Model:M-Plus Modular Wireless Speaker
Brand:
Optional Accessories
USB / Micro USB Charging Cable
Case for M MPLUS (A5 Style; A2/A3 Style）
Player Stand
Outdoor Activities (Player Stand, Bike Handlebar Mount, Belt Clip)
PACKAGE SETS
M PLUS A5：
Host M4A0 ×1;
Speaker M4B0 ×2;
LED Torch M4C0×1;
LED Atmosphere light M4D0 ×1;
Accessories.
*Package contents may be changed for different model or area.
MANUAL
HOST · Turn On/Off
The host built-in Bluetooth/DSP chips and 10,000 mAh Li Battery with power management system,
which keeps all modules going for a prolonged time and serves as a large portable power bank for other devices.
Turn On：
Turn the switch to ON, the indicator light goes into white and flashing.
Turn Off：
Turn the switch to OFF
Please do not turn the switch to frequent and too fast，it may cause the device damaged
The Bluetooth speaker and power bank function will work only when the host is turned on. But the host could be
charged when it was turned off.
Indicator Light
White Led Flashing:
The Host is on, and waiting to connect to the Bluetooth device.
White Led Always Bright:
Bluetooth device connected.
White Led Off：
No Bluetooth device connected for more then 5 mins, the Host goes into Sleep Mode。
Red Led Flashing Fast:
Battery is low, should be charged in time.
