SAFETY AND OPERATING MANUAL
Reciprocating saw WX80RS WX80RS.1
A
134
12
65
2
1
A
1
2
CB
0 2600/min
D1
D3
6TPI
10TPI
D2
E
18TPI
F
D3
10TPI
E
1
2
G
1. HAND GRIP AREAS
2. ON/OFF TRIGGER SWITCH
3. TOOL-LESS BLADE CLAMP LEVER
4. PIVOTING BLADE FOOT
5. BLADE*
6. HEX KEY
*Not all the accessories illustrated or described are included in standard delivery.
TECHNICAL DATA
Voltages 220-240V~50/60Hz
Power 800W
No load speed 0-2600/min
Stroke length 28mm
Cutting capacity max
Wood (thickness) 280mm
Thin pipe (diameter PVC pipe) 150mm
Steel (thickness) 13mm
6
Protection class /II
Weight 3.8kg
ACCESSORIES
Assorted blades (1pc for metal; 1pc for wood; 1pc for aluminium/plastic) 3
Hex key 1
We recommend that you purchase your accessories from the same store that sold you the
tool. Use good quality accessories marked with a well-known brand name. Choose the type
according to the work you intend to undertake. Refer to the accessory packaging for further
details. Store personnel can assist you and offer advice.
Reciprocating saw WX80RS WX80RS.1
GENERAL POWER TOOL
SAFETY WARNINGS
WARNING! Read all safety warnings
and all instructions. Failure to follow
the warnings and instructions may result in
electric shock, fire and/or serious injury.
Save all warnings and instructions for
future reference.
The term “power tool” in the warnings refers
to your mains-operated (corded) power tool or
battery-operated (cordless) power tool.
1 WORK AREA SAFETY
a) Keep work area clean and well lit.
Cluttered or dark areas invite accidents.
b) Do not operate power tools in
explosive atmospheres, such as in the
presence of flammable liquids, gases
or dust. Power tools create sparks which
may ignite the dust or fumes.
c) Keep children and bystanders
away while operating a power tool.
Distractions can cause you to lose control.
2 ELECTRICAL SAFETY
a) Power tool plugs must match the
outlet. Never modify the plug in any
way. Do not use any adapter plugs
with earthed (grounded) power tools.
Unmodified plugs and matching outlets
will reduce risk of electric shock.
b) Avoid body contact with earthed or
grounded surfaces, such as pipes,
radiators, ranges and refrigerators.
There is an increased risk of electric shock
if your body is earthed or grounded.
c) Do not expose power tools to rain or
wet conditions. Water entering a power
tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use
the cord for carrying, pulling or
unplugging the power tool. Keep cord
away from heat, oil, sharp edges or
moving parts. Damaged or entangled
cords increase the risk of electric shock.
e) When operating a power tool
outdoors, use an extension cord
suitable for outdoor use. Use of a cord
suitable for outdoor use reduces the risk of
electric shock.
f) If operating a power tool in a damp
location is unavoidable, use a residual
current device (RCD) protected
supply. Use of an RCD reduces the risk of
electric shock.
3) PERSONAL SAFETY
a) Stay alert, watch what you are
doing and use common sense when
operating a power tool. Do not use
a power tool while you are tired or
under the influence of drugs, alcohol
or medication. A moment of inattention
while operating power tools may result in
serious personal injury.
b) Use personal protective equipment.
Always wear eye protection. Protective
equipment such as dust mask, nonskid safety shoes, hard hat, or hearing
protection used for appropriate conditions
will reduce personal injuries.
c) Prevent unintentional starting. Ensure
the switch is in the off-position
before connecting to power source
and/or battery pack, picking up or
carrying the tool. Carrying power
tools with your finger on the switch or
energising power tools that have the
switch on invites accidents.
d) Remove any adjusting key or wrench
before turning the power tool on. A
wrench or a key left attached to a rotating
part of the power tool may result in
personal injury.
e) Do not overreach. Keep proper
footing and balance at all times. This
enables better control of the power tool in
unexpected situations.
f) Dress properly. Do not wear loose
clothing or jewellery. Keep your
hair, clothing and gloves away from
moving parts. Loose clothes, jewellery or
long hair can be caught in moving parts.
g) If devices are provided for the
connection of dust extraction and
collection facilities, ensure these are
connected and properly used. Use
of these devices can reduce dust-related
hazards.
7
Reciprocating saw WX80RS WX80RS.1
4) POWER TOOL USE AND CARE
a) Do not force the power tool. Use
the correct power tool for your
application. The correct power tool will
do the job better and safer at the rate for
which it was designed.
b) Do not use the power tool if the
switch does not turn it on and off.
Any power tool that cannot be controlled
with the switch is dangerous and must be
repaired.
c) Disconnect the plug from the power
source and/or the battery pack from
the power tool before making any
adjustments, changing accessories,
or storing power tools. Such preventive
safety measures reduce the risk of starting
the power tool accidentally.
d) Store idle power tools out of the
reach of children and do not allow
persons unfamiliar with the power
tool or these instructions to operate
the power tool. Power tools are
dangerous in the hands of untrained users.
e) Maintain power tools. Check for
8
misalignment or binding of moving
parts, breakage of parts and any other
condition that may affect the power
tool’s operation. If damaged, have
the power tool repaired before use.
Many accidents are caused by poorly
maintained power tools.
f) Keep cutting tools sharp and clean.
Properly maintained cutting tools with
sharp cutting edges are less likely to bind
and are easier to control.
g) Use the power tool, accessories
and tool bits etc. in accordance
with these instructions, taking into
account the working conditions and
the work to be performed. Use of the
power tool for operations different from
those intended could result in a hazardous
situation.
ADDITIONAL SAFETY
RULES FOR YOUR
RECIPROCATING SAW
1 Always wear a dust mask.
2 Hold power tool by insulated
gripping surfaces when performing
an operation where the cutting tool
may contact hidden wiring or its own
cord. Cutting accessory contacting a ‘live”
wire may make exposed metal parts of
the power tool “live” and could give the
operator an electric shock.
WARNING: Some dust particles
created by power sawing, contain
chemicals known to cause cancer, birth
defects or other reproductive harm. Some
examples of these chemicals are:
• Leadfromlead-basedpaints.
• Crystallinesilicafrombricksandcement
and other masonry products.
• Arsenicandchromiumfromchemically
treated lumber.
Your risk from these exposures varies,
depending upon how often you do this
type of work. To reduce your exposure to
these chemicals:
• Workinawell-ventilatedarea.
• Workwithapprovedsafetyequipment,
such as those dust masks that are specially
designed to filter microscopic particles.
5) SERVICE
a) Have your power tool serviced by
a qualified repair person using only
identical replacement parts. This will
ensure that the safety of the power tool is
maintained.
Reciprocating saw WX80RS WX80RS.1
SYMBOLS
To reduce the risk of injury, user
must read instruction manual
Double insulation
Warning
Wear ear protection
Wear eye protection
Wear dust mask
RCM marking
TPI
Aluminium
Metal
Particle board
Plastic
Incorrect
Correct
Teeth per inch
9
Before any work on the machine
itself, pull the mains plug from the
socket outlet.
Wear protective gloves
Saw with moderate pressure
in order to achieve optimal and
precise cutting results
Wood
Reciprocating saw WX80RS WX80RS.1
OPERATING INSTRUCTIONS
NOTE: Before using the tool, read the
instruction book carefully.
We recommend that this tool always be
supplied via a residual current device
with a rated residual current of 30mA or
less.
ASSEMBLY AND OPERATION
Action Figure

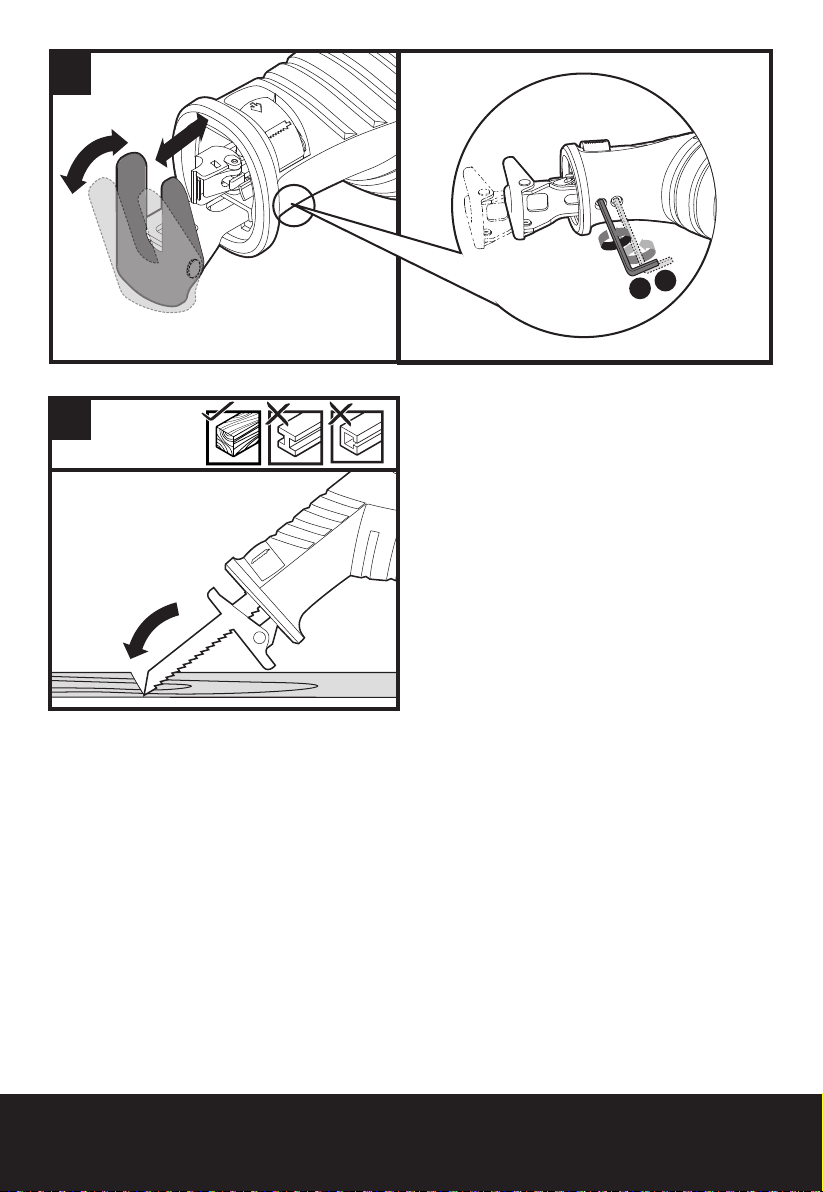

Tool-less blade fitting See Fig.A
On/Off operation See Fig.B
Variable speed control See Fig.C
Wood cutting See Fig.D1
Metal cutting See Fig.D2
Plastic / Aluminum cutting See Fig.D3
Flush cutting See Fig.E
Pivoting blade foot
10
adjustment
Pocket cutting
(soft materials only)
See Fig.F
See Fig.G
Never use water or chemical cleaners to
clean your power tool. Wipe clean with a
dry cloth. Always store your power tool in a
dry place. Keep the motor ventilation slots
clean. Keep all working controls free of dust.
Occasionally you may see sparks through the
ventilation slots. This is normal. If the supply
cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
WORK HINTS FOR YOUR
RECIPROCATING SAW
If your power tool becomes too hot, set the
speed to maximum and run a no load for 2-3
minutes to cool the motor.
Always ensure the work-piece is firmly held or
clamped to prevent movement.
The blade guard must be held firmly against
the material being cut to reduce saw vibration,
blade jumping and blade breakage.
MAINTENANCE
Remove the plug from the socket before
carrying out any adjustment, servicing or
maintenance.
Your power tool requires no additional
lubrication or maintenance. There are no
user serviceable parts in your power tool.
Reciprocating saw WX80RS WX80RS.1
