Page 1

MAX

SAFETY AND OPERATING MANUAL

WX240 WX240.X

Page 2

2 3

4 5

Page 3

C D

Page 4

Max Min

3 2 1

MAX

100 %

MAX

Page 5

ORIGINAL INSTRUCTIONS PRODUCT SAFETY GENERAL POWER TOOL SAFETY WARNINGS

WARNING Read all safety warnings, instructions, illustrations and speciﬁcations provided with this

power tool. Failure to follow all instructions listed below may

result in electric shock, ﬁre and/or serious injury.

Save all warnings and instructions for future reference.

The term “power tool” in the warnings refers to your mainsoperated (corded) power tool or battery-operated (cordless) power tool.

1) Work area safety a) Keep work area clean and well lit. Cluttered or dark

areas invite accidents.

b) Do not operate power tools in explosive

atmospheres, such as in the presence of ﬂammable liquids, gases or dust. Power tools create sparks which

may ignite the dust or fumes.

c) Keep children and bystanders away while operating

a power tool. Distractions can cause you to lose control.

2) Electrical safety a) Power tool plugs must match the outlet. Never

modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools.

Unmodiﬁed plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded

surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock

if your body is earthed or grounded.

c) Do not expose power tools to rain or wet

conditions.

risk of electric shock.

d) Do not abuse the cord. Never use the cord for

carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the

risk of electric shock.

e) When operating a power tool outdoors, use an

extension cord suitable for outdoor use. Use of a

cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is

unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of

electric shock.

3) Personal safety a) Stay alert, watch what you are doing and use

common sense when operating a power tool. Do not use a power tool while you are tired or under the inﬂuence of drugs, alcohol or medication. A

moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always

wear eye protection.

dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch

is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your ﬁnger on the

switch or energising power tools that have the switch on invites accidents.

Water entering a power tool will increase the

Protective equipment such as

Page 6

d) Remove any adjusting key or wrench before

turning the power tool on. A wrench or a key left

attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance

at all times. This enables better control of the power tool

in unexpected situations.

f) Dress properly. Do not wear loose clothing or

jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can

be caught in moving parts.

g) If devices are provided for the connection of dust

extraction and collection facilities, ensure these are connected and properly used. Use of dust

collection can reduce dust-related hazards.

h) Do not let familiarity gained from frequent use of

tools allow you to become complacent and ignore

tool safety principles. A careless action can cause

severe injury within a fraction of a second.

4) Power tool use and care a) Do not force the power tool. Use the correct power

tool for your application. The correct power tool will

do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not

turn it on and off. Any power tool that cannot be

controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/

or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such

preventive safety measures reduce the risk of starting the

power tool accidentally.

d) Store idle power tools out of the reach of children

and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained

users.

e) Maintain power tools and accessories. Check for

misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are

caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly

maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc.

in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different

from those intended could result in a hazardous situation.

h) Keep handles and grasping surfaces dry, clean

and free from oil and grease. Slippery handles and

grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5) Battery tool use and care a) Recharge only with the charger speciﬁed by the

manufacturer. A charger that is suitable for one type

of battery pack may create a risk of ﬁre when used with another battery pack.

b) Use power tools only with speciﬁcally designated

battery packs. Use of any other battery packs may

create a risk of injury and ﬁre.

c) When battery pack is not in use, keep it away from

Page 7

other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another.

Shorting the battery terminals together may cause burns or a ﬁre.

d) Under abusive conditions, liquid may be ejected

from the battery; avoid contact. If contact accidentally occurs, ﬂush with water. If liquid contacts eyes, additionally seek medical help.

Liquid ejected from the battery may cause irritation or burns.

e) Do not use a battery pack or tool that is damaged

or modiﬁed. Damaged or modiﬁed batteries may exhibit

unpredictable behaviour resulting in ﬁre, explosion or risk of injury.

f) Do not expose a battery pack or tool to ﬁre

or excessive temperature. Exposure to ﬁre or temperature above 130 °C may cause explosion.

g) Follow all charging instructions and do not charge

the battery pack or tool outside the temperature range speciﬁed in the instructions. Charging

improperly or at temperatures outside the speciﬁed range may damage the battery and increase the risk of ﬁre.

6) Service a) Have your power tool serviced by a qualiﬁed repair

person using only identical replacement parts. This

will ensure that the safety of the power tool is maintained.

b) Never service damaged battery packs. Service

of battery packs should only be performed by the manufacturer or authorized service providers.

SCREWDRIVER SAFETY WARNING

1. Hold the power tool by insulated gripping surfaces, when performing an operation where the fastener may contact hidden wiring.

“live” wire may make exposed metal parts of the power tool “live” and could give the operator an electric shock.

Fasteners contacting a

SAFETY WARNINGS FOR BATTERY CELLS INSIDE THE TOOL

a) Do not dismantle, open or shred cells. b) Do not short-circuit charging terminal. Do not store

power tool haphazardly in a box or drawer where charging terminal may short-circuit each other or be short-circuited by conductive materials. When

power tool is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one charging terminal to another.

c) Do not expose power tool to heat or ﬁre. Avoid

storage in direct sunlight.

d) Do not subject power tool to mechanical shock. e) In the event of battery leaking, do not allow the

liquid to come into contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice.

f) Seek medical advice immediately if a cell has been

swallowed.

g) Keep power tool clean and dry. h) Wipe the charging terminals with a clean dry cloth

if they become dirty.

i) Power tool needs to be charged before use.

Always refer to this instruction and use the correct

Page 8

charging procedure.

j) Do not maintain power tool on charge when not in

use.

k) After extended periods of storage, it may be

necessary to charge and discharge the power tool several times to obtain maximum performance.

l) Battery gives its best performance when it is

operated at normal room temperature (20 °C ± 5 °C).

m) When disposing of cells, keep cells of different

electrochemical systems separate from each other.

n) Recharge only with the charger speciﬁed by Worx.

Do not use any charger other than that speciﬁcally provided for use with the equipment. A charger that

is suitable for one type of battery may create a risk of ﬁre when used with another battery.

o) Keep power tool out of the reach of children.

p) Retain the original product literature for future

reference. q) Dispose of properly. r) Do not mix cells of different manufacture, capacity,

size or type within a device. s) Do not use any cell which is not designed for use

with the equipment.

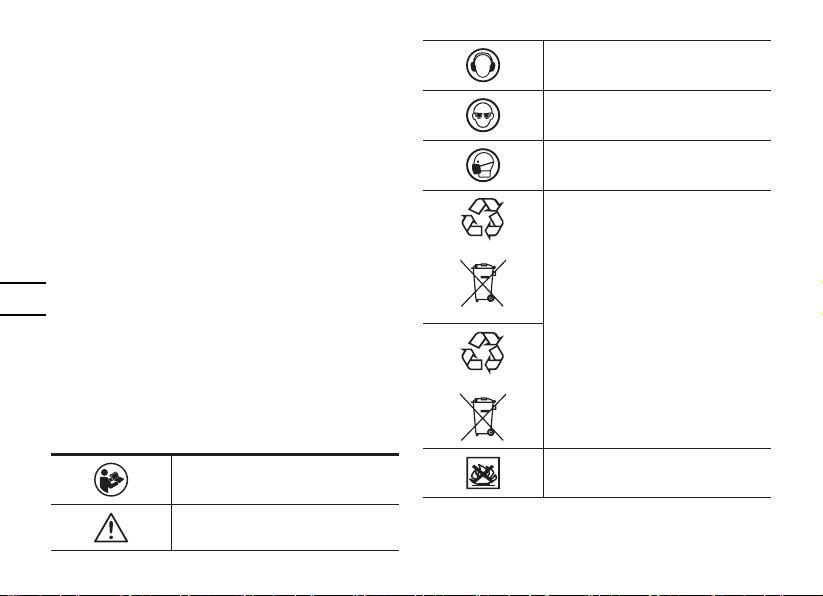

SYMBOL

Li-I on

Wear ear protection

Wear eye protection

Wear dust mask

Li-Ion battery This product has been marked with a symbol relating to ‘separate collection’ for all battery packs and battery pack. It will then be recycled or dismantled in order to reduce the impact on the environment. Battery packs can be hazardous for the environment and for human health since they contain hazardous substances.

To reduce the risk of injury, user must read instruction manual

Warning

Do not burn

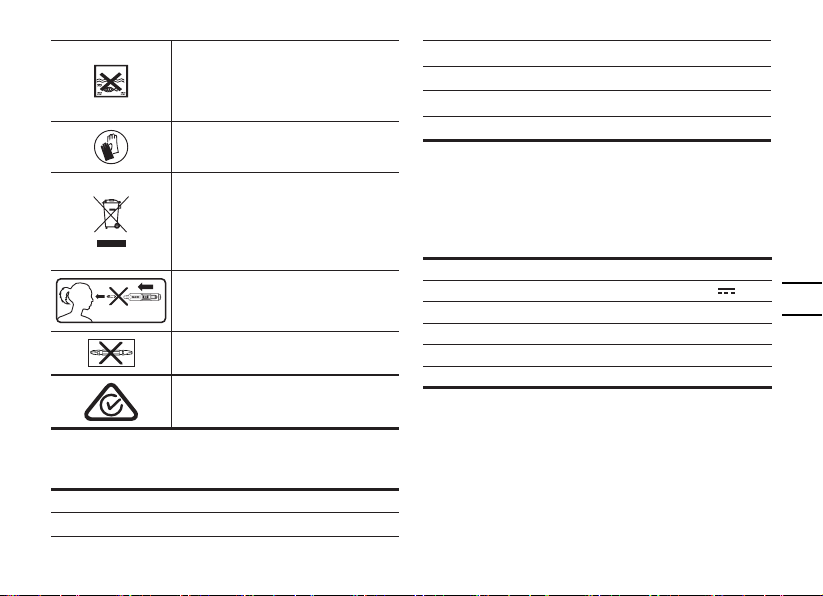

Page 9

Batteries may enter water cycle if disposed improperly, which can be hazardous for ecosystem. Do not dispose of waste batteries as unsorted municipal waste.

Wear protective gloves

Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your local authorities or retailer for recycling advice.

MAX

Don’t stare directly into the tool holder

Don’t use double end bit

RCM marking

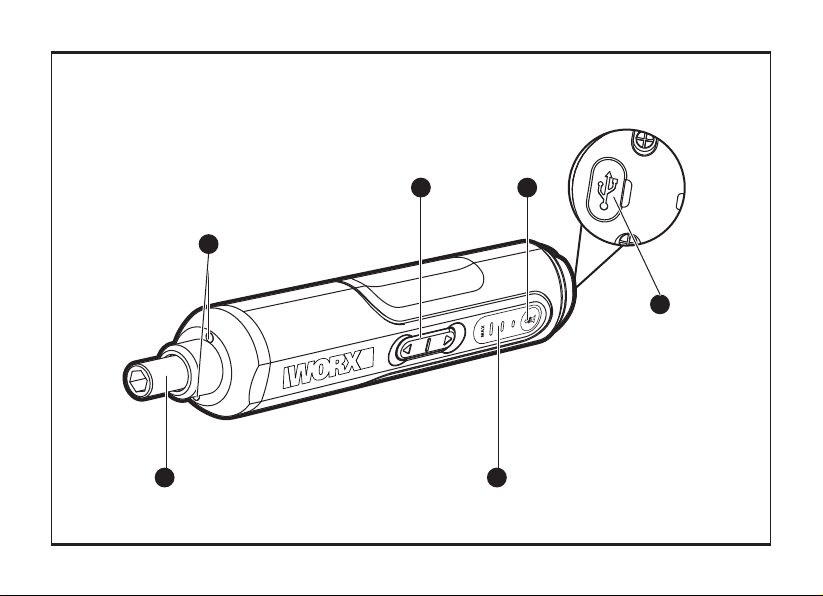

COMPONENT LIST

1. LED LIGHT

2. FORWARD / REVERSE OPERATION BUTTON

3. TORQUE CONTROL AND POWER BUTTON

4. 6.35mm HEX CHUCK

5. TORQUE AND POWER INDICATOR

6. USB-C CHARGING PORT

Not all the accessories illustrated or described are included in standard delivery.

TECHNICAL DATA

Type designation WX240 WX240.X (2-designation of machinery, representative of screwdriver )

WX240 WX240.X**

Rated voltage 4V

Max*

Battery capacity 1.5Ah li-ion

No-load speed 300r/min

Maximum torque 2.5Nm

Machine weight 0.266kg

*Voltage measured without workload. Initial battery voltage reaches maximum of 4 volts. Nominal voltage is

3.6 volts. **X=1-999, A-Z, M1-M9 there are only used for different customers, there are no safe relevant changes between these models We recommend that you purchase your accessories from the same store that sold you the tool. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice.

Page 10

Noise Information

A weighted sound pressure LpA: 60.5dB(A)

A weighted sound power LwA: 71.5dB(A)

KpA&K

Wear ear protection

VIBRATION INFORMATION

Vibration total values (triax vector sum) determined according to EN 62841:

Vibration emission value ah = 0.6m/s²

Uncertainty K = 1,5m/s²

The declared vibration total value and the declared noise emission value have been measured in accordance with a standard test method and may be used for comparing one tool with another. The declared vibration total value and the declared noise emission value may also be used in a preliminary assessment of exposure.

WARNING: The vibration and noise emissions

during actual use of the power tool can differ from the declared value depending on the ways in which the tool is used especially what kind of workpiece is processed dependant on the following examples and other variations on how the tool is used: How the tool is used and the materials being cut or drilled.

3.0dB(A)

The tool being in good condition and well maintained. The use of the correct accessory for the tool and ensuring it is sharp and in good condition. The tightness of the grip on the handles and if any anti vibration and noise accessories are used. And the tool is being used as intended by its design and these instructions.

This tool may cause hand-arm vibration syndrome if its use is not adequately managed.

WARNING: To be accurate, an estimation of

exposure level in the actual conditions of use should also take account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle but not actually doing the job. This may signiﬁcantly reduce the exposure level over the total working period.

Helping to minimise your vibration and noise exposure risk. Always use new screw driving bits. Maintain this tool in accordance with these instructions and keep well lubricated (where appropriate). If the tool is to be used regularly then invest in anti vibration and noise accessories. Plan your work schedule to spread any high vibration tool use across a number of days.

OPERATING INSTRUCTIONS

NOTE: Before using the tool, read the instruction

book carefully.

Page 11

Usage The electric tool can be used for fastening or removing screws on wood, metal, plastic and other materials.

ACTION FIGURE

BEFORE OPERATION

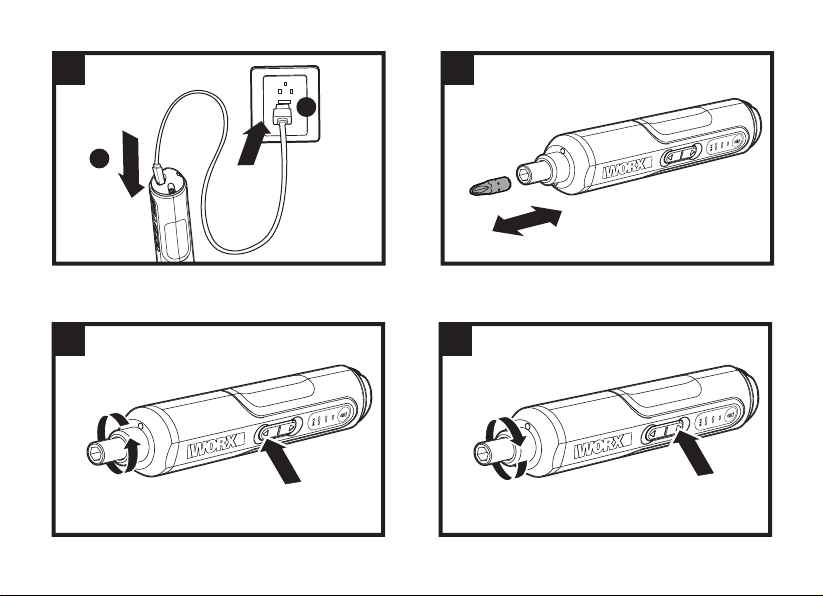

A) Charging the Battery NOTE: Prior to initial use, the battery must be charged 5 hours to fully utilize the battery capacity.

B) Charging Connect the USB-C cable to the charger, and plug the charger into the matching socket. During the charging process, the green light will ﬂash; after the charging is completed, three cells of the green light will always be on. Unplug the charger and disconnect the charging cable from the machine. The machine is ready to be used. Important notice: During the charging process, the charger and the body surface will feel hot, which is a normal phenomenon.

Note : the USB-C cable is suitable for the charger ,of which the output is 5V

1000mA

ASSEMBLY AND ADJUSTMENT

Inserting and Removing Bits See Fig B

Forward / reverse operation

See Fig A

See Fig C,D

Torsion adjustment The torque of three gears can be adjusted according to the demand by using the torque adjustment button

3. The machine has its own torque protection function, 1st gear: Suitable for screwing in or out small diameter screws 3rd gear: Suitable for screwing in or out large diameter screws

OPERATION

Torsion adjusting

Before each use, please

adjust to the appropriate torque gear, otherwise it’s easy to slip

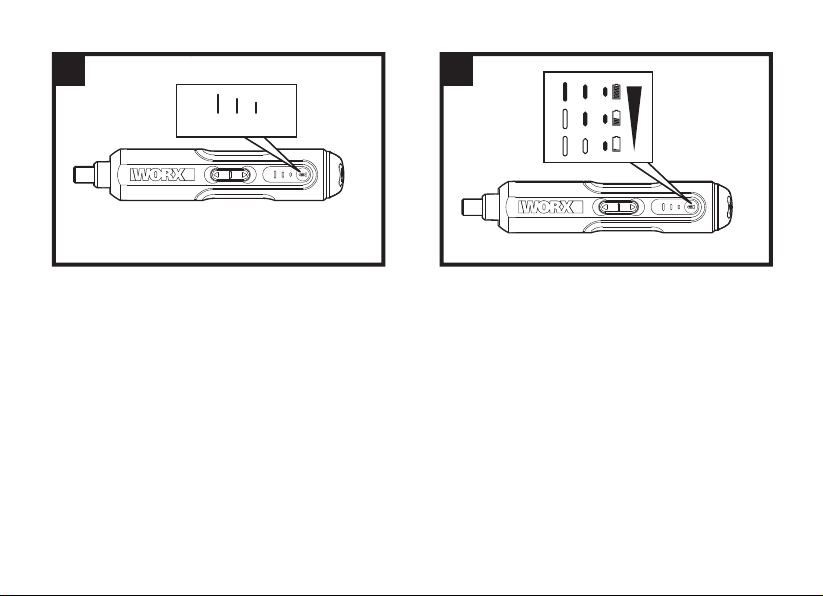

Power display operation Press and hold the power display button 3 for more than 3 seconds

MAINTENANCE

Your power tool requires no additional lubrication or maintenance. There is no user serviceable parts in your power tool. Never use water or chemical cleaners to clean your power tool. Wipe clean with a dry cloth. Always store your power tool in a dry place.

See Fig E

See Fig F

Page 12

TROUBLE SHOOTING

problem Possible cause Solution

1. Plug in the USB cable again, and

1. USB cable not plugged in

Battery will not charge

During operation, the screwdriver stops working

FOR BATTERY TOOLS

The ambient temperature range for the use and storage of tool and battery is 0oC-45oC. The recommended ambient temperature range for the charging system during charging is 0oC-40oC.

2. Surrounding air temperature is too hot or too cold

The battery of screwdriver is dead, or the torque cannot reach

check the status of the lamp and check whether the current is connected

2. Move the product to an environment with appropriate temperature for charging

Charge or increase torque

ENVIRONMENTAL PROTECTION

Waste electrical products should not be disposed

of with household waste. Please recycle where

facilities exist. Check with your Local Authority or

retailer for recycling advice.

Positec Australia Pty Limited 10 Corporate Blvd Bayswater , VIC 3153, Australia

DECLARATION OF CONFORMITY

We, Positec Germany GmbH Postfach 32 02 16, 50796 Cologne, Germany

On behalf of Positec declare that the product Description Battery operated screwdriver Type designation WX240 WX240.X (2-designation

of machinery, representative of screwdriver)

Function Tightening and loosening screws, nuts

Complies with the following Directives,

2006/42/EC, 2014/30/EU, 2011/65/EU&(EU)2015/863

Standards conform to

EN 62841-1, EN 62841-2-2, EN 55014-1, EN 55014-2

The person authorized to compile the technical ﬁle,

Name: Marcel Filz

Address: Positec Germany GmbH

Page 13

Postfach 32 02 16, 50796 Cologne, Germany

2021/12/30 Allen Ding Deputy Chief Engineer, Testing & Certiﬁcation Positec Technology (China) Co., Ltd 18, Dongwang Road, Suzhou Industrial Park, Jiangsu 215123, P. R. China

Page 14

DECLARATION OF CONFORMITY

We, Positec (UK & Ireland) Ltd. PO Box 6242, Newbury, RG14 9LT, UK

On behalf of Positec declare that the product Description Battery operated screwdriver Type designation WX240 WX240.X (2-designation

of machinery, representative of screwdriver)

Function Tightening and loosening screws, nuts

Complies with the following regulations,

Supply of Machinery (Safety) Regulations 2008 Electromagnetic Compatibility Regulations 2016 The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations

Standards conform to

BS EN 62841-1, BS EN 62841-2-2, BS EN 55014-1, BS EN 55014-2

The person authorized to compile the technical ﬁle,

Name: Jim Kirkwood Address: Positec (UK & Ireland) Ltd., PO Box 6242, Newbury, RG14 9LT, UK

2021/12/30 Allen Ding Deputy Chief Engineer, Testing & Certiﬁcation Positec Technology (China) Co., Ltd 18, Dongwang Road, Suzhou Industrial Park, Jiangsu 215123, P. R. China

Page 15

Page 16

After-sales Service and Application

At www.worx.com you can order spare parts or arrange the collection of a product in need of servicing or repair. Tel. Service: 0345 202 9679 E-Mail: [email protected]

www.worx.com
