PRODUCT SAFETY
GENERAL & ADDITIONAL SAFETY INSTRUCTION
WARNING: Read all safety warnings and all instructions. Failure to follow the
warnings and instructions may result in electric shock, fire and/or serious injury.
Carefully read the instructions for the safe operation of the machine.
Save all warnings and instructions for future reference.
-This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their safety.
-Children should be supervised to ensure that they do not play with the appliance.
-This appliance contains batteries that are only replaceable by skilled persons.
WARNING: For the purposes of recharging the battery, only use the detachable supply unit
provided with this appliance.
WARNING: To reduce the risk of injury to persons and damage to the machine, do not remove
battery pack before switching off the machine.
IMPORTANT
READ CAREFULLY BEFORE USE
KEEP FOR FUTURE REFERENCE
Safe operation practices
Training
a) Read the instructions carefully. Make sure you understand the instructions and be familiar with
the controls and the proper use of the appliance.
b) Never allow people unfamiliar with these instructions or children to use the appliance. Local
regulations can restrict the age of the operator.
c) The operator or user is responsible for accidents or hazards occurring to other people or their
property.
EN
Preparation
a) Ensure the correct installation of boundary wire as instructed.
b) Periodically inspect the area where the appliance is to be used and remove all stones, sticks,
wires, bones, and other foreign objects.
c) Periodically visually inspect to see that the blades, blade bolts and cutter assembly are not worn
or damaged. Replace worn or damaged blades and bolts in sets to preserve balance.
d) On multi-spindle appliances, take care as rotating one blade can cause other blades to rotate.
e) WARNING! The lawnmower shall not be operated without the guard in place.
Operation
1. General
a) Never operate the appliance with defective guards, or without safety devices, for example
deflectors, in place.
b) Do not put hands or feet near or under rotating parts. Keep clear of the discharge opening at all
times.
c) Never pick up or carry an appliance while the motor is running.
d) Operate the disabling device from the appliance.
- Before clearing a blockage;
- Before checking, cleaning or working on the appliance.
e) It is not permitted to modify the original design of robotic lawnmower. All modifications are made
at your own risk.
f) Start robotic lawnmower according to the instructions. When the power key is switched on,
make sure you keep your hands and feet away from the rotating blades. Never put your hands
3
Page 4
EN
and feet under the mower.
g) Never lift up robotic lawnmower or carry it when the power key is switched on.
h) Do not let persons who do not know how robotic lawnmower works and behaves use the
mower.
i) Do not put anything on top of robotic lawnmower or its charging station.
j) Do not allow robotic lawnmower to be used with a defective blade disc or body. Neither should it
be used with defective blades, screws, nuts or cables.
k) Always switch off robotic lawnmower when you do not intend to use the mower. Robotic
lawnmower can only start when the power key is switched on and the correct PIN code has been
entered.
l) Keep your hands and feet away from the rotating blades. Never place your hands or feet close to
or under the body when robotic lawnmower is in operation.
m) To avoid using the machine and its peripherals in bad weather conditions especially when there is
a risk of lightning.
n) Not to touch moving hazardous parts before these have come to a complete stop.
o) For machines used in public areas, that warning signs shall be placed around the working area of
the machine. They shall show the substance of the following text:
Warning! Automatic lawnmower! Keep away from the machine! Supervise children!
2. Additionally when the appliance is operating automatically
a) Do not leave the machine to operate unattended if you know that there are pets, children or
people in the vicinity.
Maintenance and storage
WARNING! When the mower is turned upside down the power key must always be
switched off.
The power key should be switched off during all work on the mower’s
underframe, such as cleaning or replacing the blades.
a) Keep all nuts, bolts and screws tight to be sure the appliance is in safe working condition.
b) Inspect the robotic lawnmower each week and replace worn or damaged parts for safety.
c) Check especially that the blades and blade disc are not damaged. Replace all blades and screws
at the same time if necessary so that the rotating parts are balanced.
d) Ensure that only replacement cutting means of the right type are used.
e) Ensure that batteries are charged using the correct charger recommended by the manufacturer.
Incorrect use may result in electric shock, overheating or leakage of corrosive liquid from the
battery.
f) In the event of leakage of electrolyte flush with water/neutralizing agent, seek medical help if it
comes into contact with the eyes etc.
g) Servicing of the appliance should be according to manufacturers’ instructions.
Recommendation
To connect the machine and/or its peripherals only to a supply circuit protected by a residual current
device (RCD) with a tripping current of not more than 30 mA.
Residual risks
To avoid injuries, wear protective gloves when replacing the blades.
Transport
The original packaging should be used when transporting robotic lawnmower over long distances.
To safely move form or within the working area:
a) Press the STOP button to stop the mower.
4
Page 5
EN
You select the four digit PIN code when you start the mower for the first time.
b) Always switch off robotic lawnmower if you intend to carry the mower.
c) Carry the mower by the handle at the front under the mower. Carry the mower with the blade
disc away from the body.
RF exposure requirements
To satisfy RF exposure requirements, a separation distance of 200mm or more should be
maintained between this device and persons during device operation.
To ensure compliance, operations at closer than this distance is not recommended. The antenna
used for this transmitter must not be co-located in conjunction with any other antenna or transmitter.
Safety Warnings for battery pack
a) Do not dismantle, open or shred cells or battery pack.
b) Do not short-circuit a battery pack. Do not store battery packs haphazardly in
a box or drawer where they may short-circuit each other or be short-circuited
by conductive materials. When battery pack is not in use, keep it away from other metal
objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make
a connection from one terminal to another. Shorting the battery terminals together may cause
burns or a fire.
c) Do not expose battery pack to heat or fire. Avoid storage in direct sunlight.
d) Do not subject battery pack to mechanical shock.
e) In the event of battery leaking, do not allow the liquid to come into contact
with the skin or eyes. If contact has been made, wash the affected area with
copious amounts of water and seek medical advice.
f) Keep battery pack clean and dry.
g) Wipe the battery pack terminals with a clean dry cloth if they become dirty.
h) Battery pack needs to be charged before use. Always refer to this instruction
and use the correct charging procedure.
i) Do not maintain battery pack on charge when not in use.
j) After extended periods of storage, it may be necessary to charge and
discharge the battery pack several times to obtain maximum performance.
k) Recharge only with the charger specified by Worx. Do not use any charger
other than that specifically provided for use with the equipment.
l) Do not use any battery pack which is not designed for use with the
equipment.
m)Keep battery pack out of the reach of children.
n) Retain the original product literature for future reference.
o) Remove the battery from the equipment when not in use.
p) Dispose of properly.
q) Do not mix cells of different manufacture, capacity, size or type within a
device.
r) Keep the battery away from microwaves and high pressure.
5
Page 6
EN
User manual requirements for wireless product
a) Operation of this device is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
b) Caution: Changes or modifications to this unit not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
c) NOTE: This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
6
Page 7
INFORMATION ON LANDROID
WARNING – robotic lawnmower can be dangerous if incorrectly used. Read through the Operator’s
manual carefully and understand the content before using your robotic lawnmower.
WARNING - Keep a safe distance from the machine when operating.
WARNING – Operate the disabling device before working on or lifting the machine.
WARNING - Do not ride on the machine.

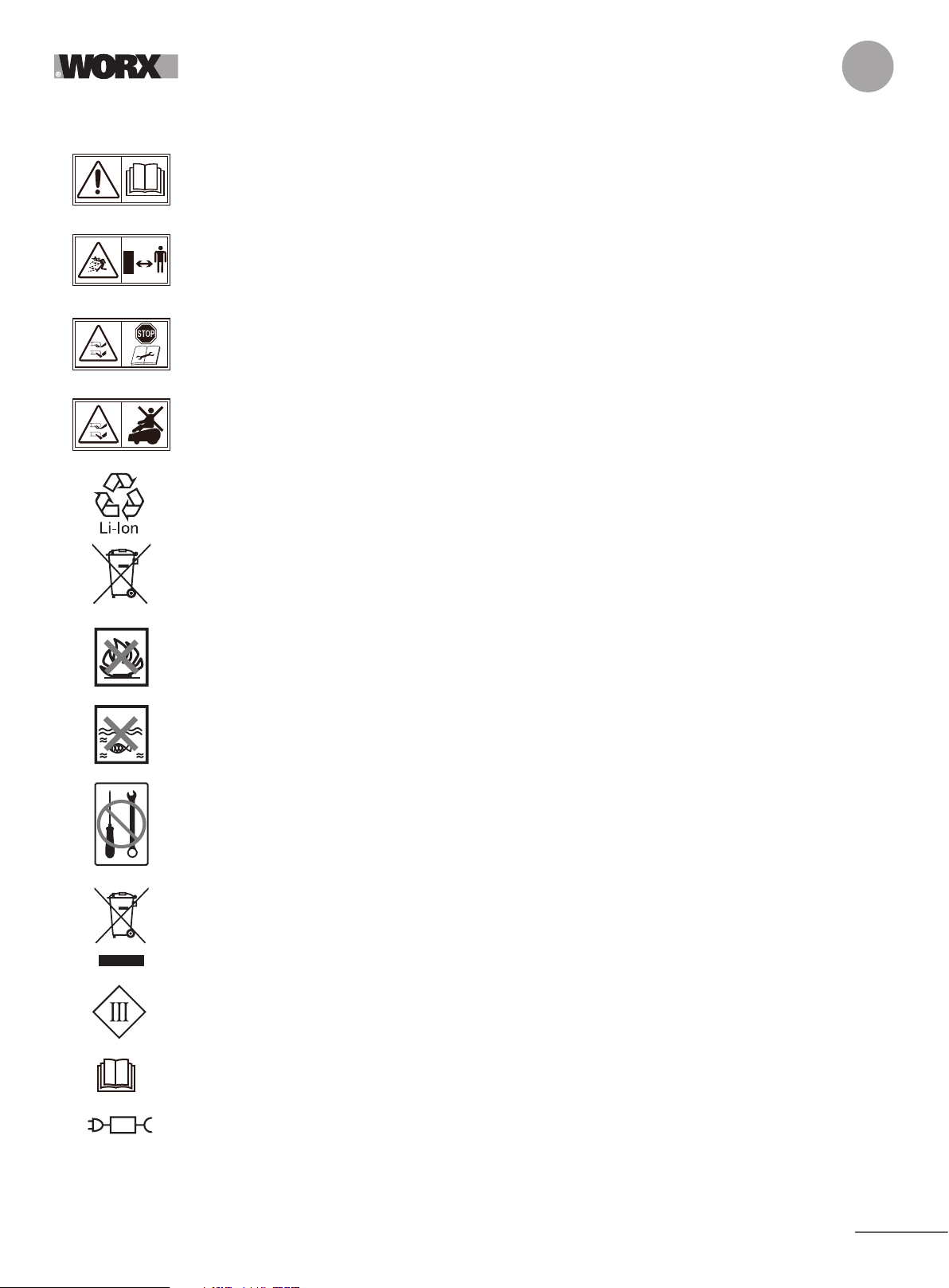

Li-Ion battery. This product has been marked with a symbol relating to ‘separate collection’ for all battery
packs and battery pack. It will then be recycled or dismantled in order to reduce the impact on the
environment. Battery packs can be hazardous for the environment and for human health since they contain
hazardous substances.
EN
Do not burn
Batteries may enter water cycle if disposed improperly, which can be hazardous for ecosystem. Do not
dispose of waste batteries as unsorted municipal waste.
Prohibit disassembling the machine without authorization
Waste electrical products must not be disposed of with household waste. Please recycle where facilities
exist. Check with your local authorities or retailer for recycling advice.
Class III appliance
Read operator's manual
Detachable supply unit
Your Landroid can be used with other Worx functional accessories. Visit www.worxlandroid.com to learn
more about these available accessory options.
7
Page 8
COMPONENT LIST

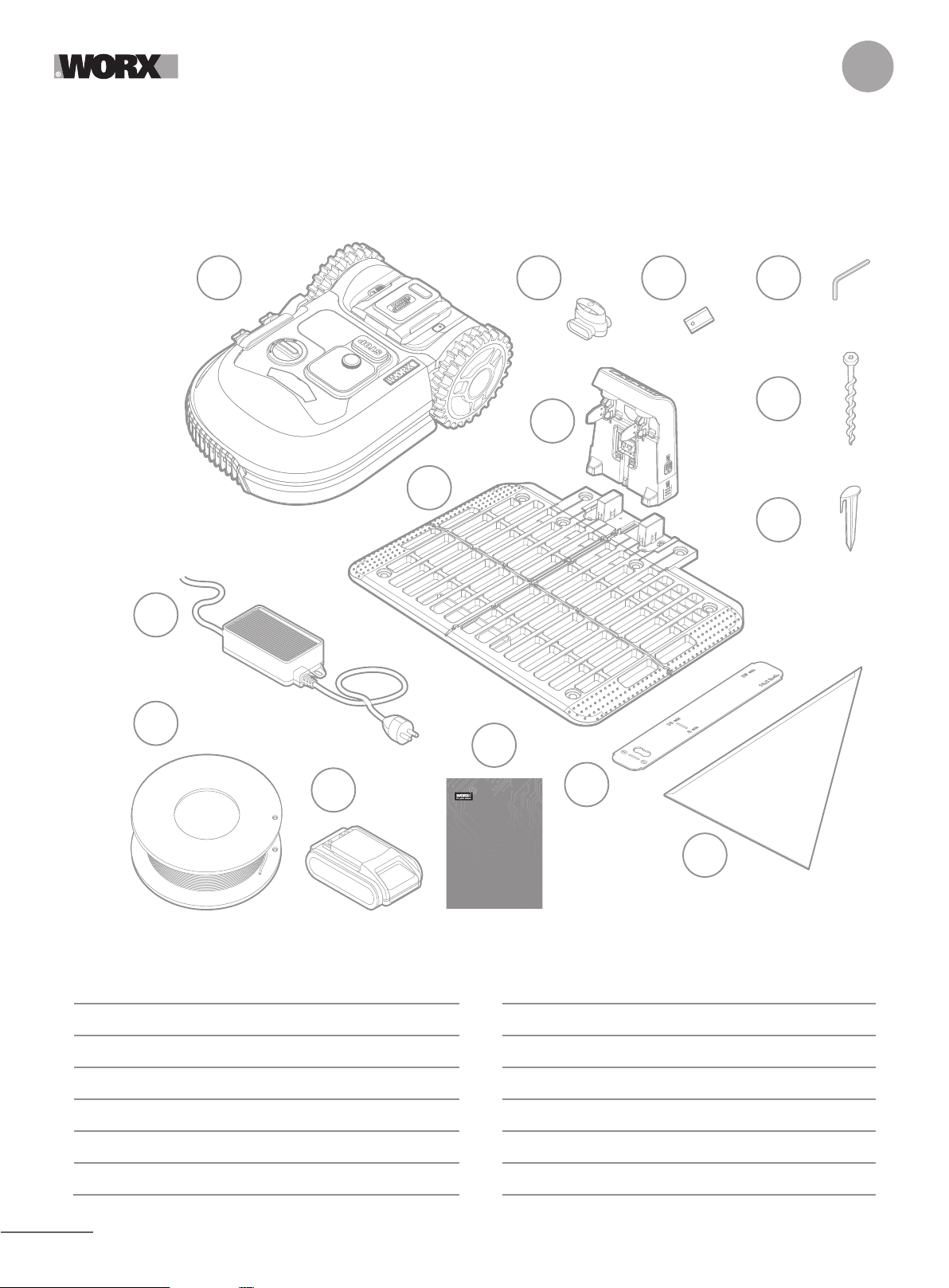

WHAT’S IN THE BOX
A B C D
EN
G
E
F
H
I
J
Worx Landroid
A
Wire repair connectors
B
Spare blades kits
C
K
N
H
Wire pegs
I
Power supply
J
Boundary wire
L
26 cm
10,2 inch.
10 cm
4 cm
M
The picture is only for reference
Hex key
D
Charging tower
E
Charging base plate
F
Screws
G
8
K
20V battery
L
Boundary wire distance gauges
M
Bertelsen ruler
N
Manuals
Page 9
EN

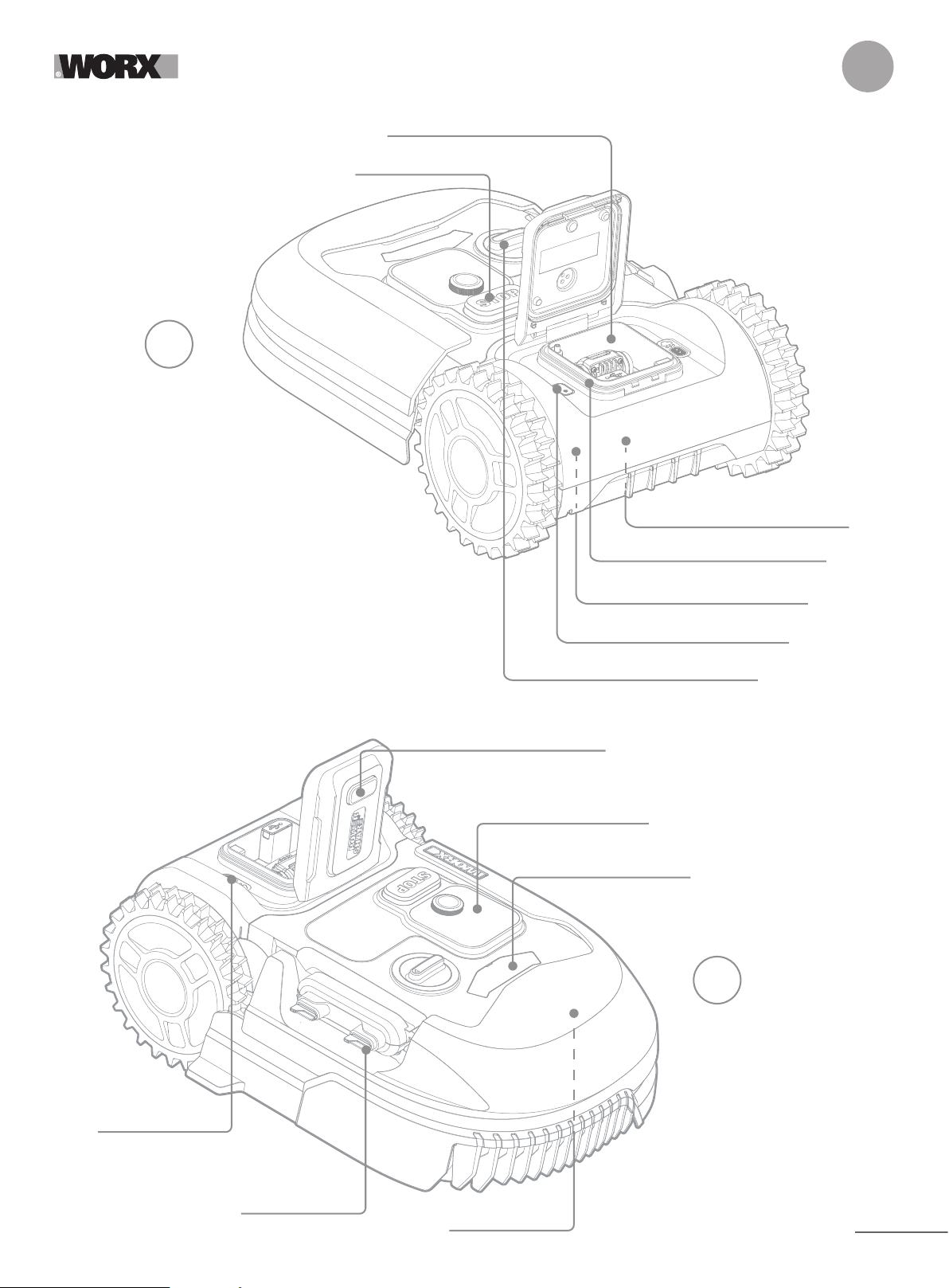

GETTING TO KNOW
LANDROID
A
Battery slot
Safety stop
Find My Landroid / Radio Link slot
USB port
Voice Control Slot / High Pitched Alarm Slot
Battery cover button
Microphone hole
Cutting height adjustment
Interface
ACS slot
B
Rain sensor
Charge contact
Off Limits slot
The picture is only for reference
9
Page 10
EN
TECHNICAL DATA
Type WR165E WR166E WR167E WR148E WR147E.1 (100-199 - designation of machinery, representative of
Robotic Lawnmower)
WR165E WR166E WR167E WR148E WR147E.1
Rated voltage 20 V Max.*
No load speed (/min) 2800 2400
Cutting area (m2) 500 600 700 800 1000
Cutting diameter (cm) 18 20
Cutting height (mm) 30-60
Cutting height positions 4
Battery type Lithium-ion
Battery model
Charging time approx. (mins) 75 75 150 75 75
Charger model WA3750.1/ WA3755.1
Charger rating
Machinery weight (kg) 9.5 9.5 9.8 11.7 12
Protection degree III
App (Wifi/Bluetooth) Y
Frequency bands for Bluetooth 2400-2483.5 MHz
Maximum Transmitted Power for Bluetooth 8 dBm
Frequency bands for WIFI 2400-2483.5 MHz
Maximum Transmitted Power for WIFI 20 dBm
WA3551.3 /
WA3551.1
WA3551.3 /
WA3551.1
Input: 100-240 V~50/60 Hz, 38 W,
Output: 20V ,1.5 A
WA3553.3 /
WA3014
WA3551.3 /
WA3551.1
WA3553.3 /
WA3014
WA3775 /
WA3776
Input:100-240
V~50/60 Hz,
90 W,
Output: 20 V
, 3.0 A
Frequency band of inductive loop
systems
Max. radio-frequency power of inductive
loop systems
*Voltage measured at no load. Initial battery voltage reaches maximum of 20 volts. Nominal voltage is 18 volts.
77 Hz
82 dBµA/m
10
Page 11
NOISE DATA
WR165E WR166E WR167E WR148E WR147E.1
L
= 50.83 dB(A) L
A weighted sound pressure
A weighted sound power
Wear ear protection when sound pressure is over 80 dB (A).
A degree of noise from the machine is not avoidable. Route noisy work is to be licensed and limits for certain periods. Keep rest
periods and they may need to restrict the working hours to a minimum. For their personal protection and protection of people
working nearby, an appropriate hearing protection shall be worn.
pA
K
= 3.17 dB(A) K
PA
L
= 61.83 dB(A) L
wA
KwA = 3.17 dB(A) KwA = 1.36 dB(A)
= 40.68 dB(A)
pA
= 1.36 dB(A)
PA
= 61.56 dB(A)
wA
ACCESSORIES
EN
WR165E WR166E WR167E WR148E WR147E.1
Screw 9 9 9 9 9
Charging base 1 1 1 1 1
Charging base fixing nails 8 8 8 8 8
Boundary wire 130m 130m 150m 150m 180m
Wire pegs 180 180 210 210 250
Hex key 1 1 1 1 1
Boundary wire distance gauge 2 2 2 2 2
Blade 9 9 9 9 9
Connector 2 2 2 2 2
Battery pack (WA3551.3 / WA3551.1) 1 1 / 1 /
Battery pack (WA3553.3 / WA3014) / / 1 / 1
Charger (WA3750.1/ WA3755.1) 1 1 1 1 /
Charger (WA3775 / WA3776) / / / / 1
We recommend that you purchase genuine accessories listed in the above list from the same store that sold you the tool. Refer to the
accessory packaging for further details. Store personnel can assist you and offer advice.
INTENDED USE
The garden product is intended for domestic lawn mowing. It is designed to mow often, maintaining a healthier and better looking
lawn than ever before. Depending on the size of your lawn, your Landroid may be programmed to operate at any time or frequency. It
is impossible for digging, sweeping or snow cleaning.
11
Page 12
EN
3
4
MAINTENANCE
Your Landroid works hard and needs to be cleaned and checked from time to time. This section of our guide helps you keep
Landroid in good shape so it can last for years without troubles. Here’s how to take care of your Landroid .Switch off the machine
before carrying out any service or maintenance.
Keep it sharp
Landroid does not cut grass like other mowers. Its cutting blades are razor sharp on 2 edges and rotate in both directions for
maximum cutting capacity.
A .The blade turning disc makes a clockwise and counterclockwise rotation at random to use both cutting edges and minimize the
frequency of replacing the blades
B. Each cutting blade will last up to 2 months when it is programmed to mow every day
C. Always check to see if the blades are chipped or damaged and replace them if they are
D. When the cutting blades are dull and worn out, they should be replaced with the spare blades provided with your Landroid. Spare
blades are also available at your nearest Landroid retailer
WARNING! Before cleaning, adjusting, or replacing the blades, turn your Landroid OFF and remove the
battery. Always wear protective gloves.

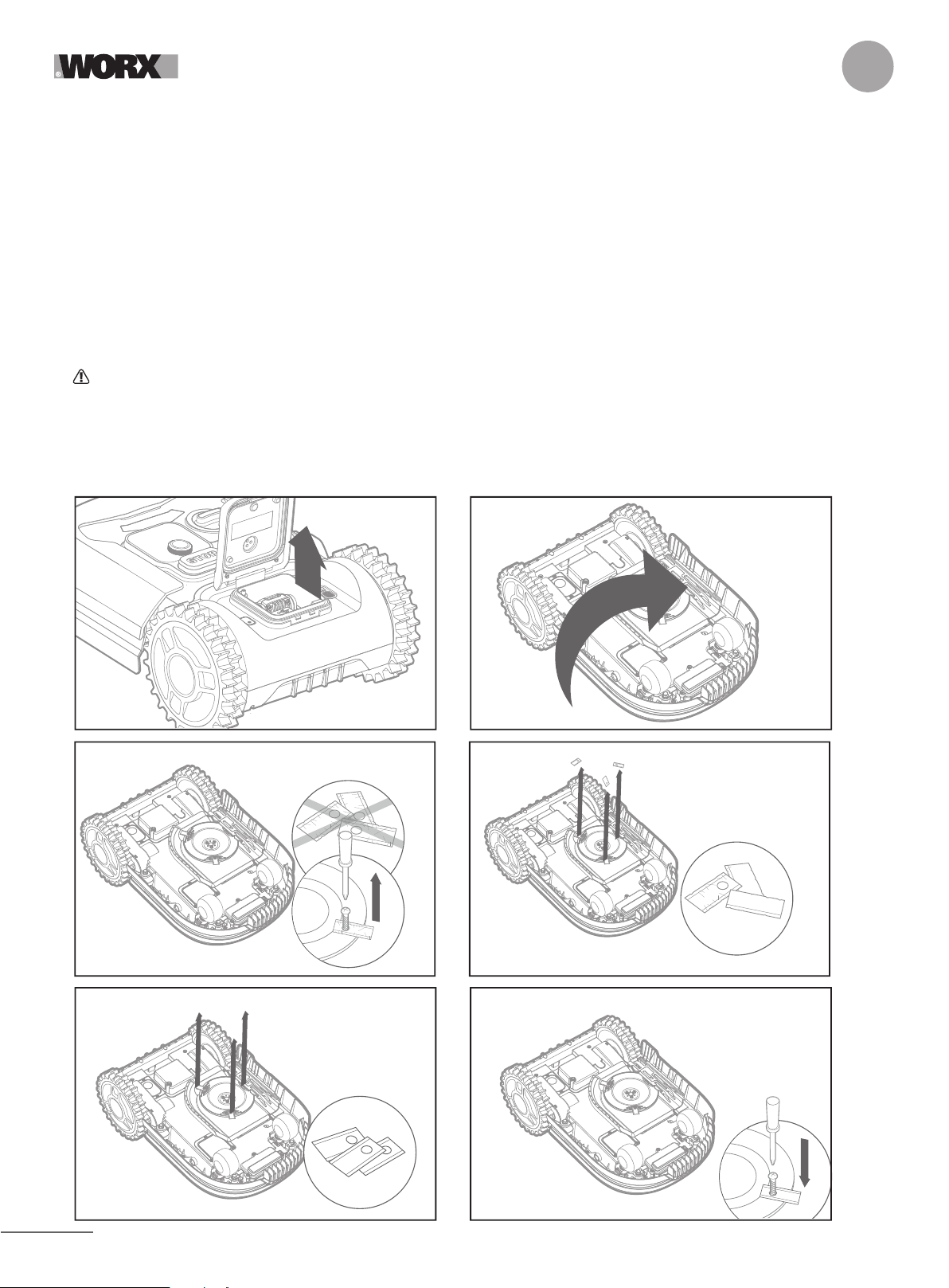

1. Replacing the Blades
Remove the battery (fig. 1) and gently flip the Landroid over (fig.2)
Take the screws off the blades with a screwdriver (fig. 3 - 4)
Firmly screw on the new blades (fig. 5 - 6)
1 2
6 5
12
Page 13
EN
Attention: When fitting new blades, make sure you replace ALL the blades.
Always use new screws when fitting blades. This is important to ensure blade retention and balance the blade turning disc. Failure
to use new screws could cause serious injury
Important: After screwing the blade to the blade disc, make sure the blade is able to spin freely
Keep it clean
Your Landroid should be cleaned regularly. This helps keep it in good condition, especially removing dirt, debris and the build-up of
grass from daily mowing. Turn Landroid off before cleaning it. For extra safety, remove the battery.
1. Cleaning the upper body
A. Clean with a spray bottle filled with water. Don’t use solvents or polishers
B. Use a brush or a clean cloth to remove built-up dirt
2. Cleaning the Bottom
A. Flip Landroid upside down
B. Remove debris and grass clippings using a brush to remove
C. Be careful not to touch the blades with your hands. Wear gloves for protection
D. Clean the blade disc, the chassis and the front wheel(s) thoroughly with a soft brush or moist rag
E. Rotate the blade disc to ensure it rotates freely. Remove any obstructions. Remove any lodged debris so that they don’t cause a
crack in the blade disk. Even the tiniest crack effects mowing performance
F. Check the blades spin freely around the fixing screws. Remove any obstructions
3. Cleaning the drive wheels
A. Remove mud from wheels with a brush in order to ensure good grip of the tread
4. Clearing the charging contacts
A. Clean the contact pins located on the charging pile and the charging strips located on the Landroid using a cloth
B. Periodically remove any build-up of grass clippings or debris around the contact pins and the charging strips to ensure Landroid
successfully charges each time
Keep it charged
The heart of Landroid is its 20V Li-Ion Worx Powershare Battery.
A. For the proper storage of the battery, make sure it is fully charged and kept in a cool dry place.
B. The recommended Landroid operation temperature is between 0-55°C
C. The life-span of Landroid’s battery depends on hours of usage and the length of use per day during the mowing season
1. Landroid can be charged manually without the boundary wire
A. Connect the charging base to a suitable power supply. The green light on the charging base will turn on
B. Manually dock Landroid into the charging base while Landroid is powered off
C. The green light on the charging base will flash and Landroid will begin to charge
Keep it stored over the winter
Although Landroid is designed and built to survive the most severe weather conditions, we recommend storing it in your shed or
garage during the winter. To prepare it for winter hibernation:
A. Clean it thoroughly
B. Fully charge the battery
C. Turn the power off
1. Getting back to work in the Spring
When it is time to re-start Landroid for the new season, please perform the following checks:
A. Update the time and date settings via the app
B. If you notice signs of oxidation on the charging contacts of Landroid and the charging station, clean these with a fine grade emery cloth
C. Full charge Landroid’s battery before operating
Keep it updated
Landroid is always improving and new software versions are made available for free. Always keep Landroid software updated to
makethe most of your machine.
1. Over-the-Air (OTA) updates
If your Landroid is connected to your Wi-Fi network, you will be notified that new software is available via the app. Once you confirm,
the update will happen automatically Over-the-Air.
13
Page 14
2. Check which software version you have
The software version number can be seen when the Landroid is power- on.
3. Manual updates
A. If your Landroid is not connected to your Wi-Fi network, you can still update it to the latest software version with a USB stick
B. Regularly visit the Worx Landroid website to check if any new version is available. If you subscribed to Landroid email list, you
will be notified when a new version is available
C. Download the latest software version at our website
D. Take a blank USB stick formatted in FAT32
E. Save the zip file and extract the content to your USB stick
F. Place Landroid on a secure and level surface
G.Turn off Landroid
H. Go to the rear of the Landroid to access the USB port.
I. Insert the USB stick in the port
J. Place the Landroid on the lawn again, inside the working area delimited by the boundary wire
K. Turn on Landroid
L. Without lifting Landroid, remove the USB stick when ‘Please remove the USB key’ is displayed
M.The update will begin automatically and may take a while. Landroid will restart automatically after the update is completed
NOTE: Make sure Landroid is within the boundary when restarting Landroid.
EN
14
Page 15
OPERATION MESSAGES
MESSAGE LANDROID ACTION
Cutting grass Cutting grass according to the mowing schedule.
Raining The rain sensor detects water. Landroid will return to the charging base and stay
there for the time you have programmed it to do so. When dry, Landroid will
automatically begin the rain delay countdown and then return to mow. If you want
Landroid to mow before this, simply turn it off then on again, but only when the rain
sensor is dry, or you can remove the rain delay completely by setting the rain delay
time to zero.
Going home Needs to recharge—during the journey to the base, the cutting blade is stopped in
order to save energy.
Charging ‘Charging’ and charge percentage are displayed.
No working time scheduled Stand-by, needs to be programmed as desired.
Not working today
Stand-by, will start according to mowing schedule.
Work done today
Zone searching According to the setting of ‘Customize work zone’, Landroid is searching a certain
area to mow.
EN
Charge complete Landroid has completed its charging.
Emergency charge Landroid is charging in a powered-off state.
ERROR MESSAGES
Sometimes things can go wrong. Fortunately Landroid is smart enough to tell you if it is enountering an issue, so you can fix it. If in
doubt, please visit our website where you will find useful videos and further support.
MESSAGE CAUSE ACTION
Battery pack cover is open Close the battery pack cover
Outside working area!
Press START to reset.
WRONG PIN! Please
retry.
Blade motor fault!
Press START to reset.
Landroid cannot find the
boundary wire signal.
PIN code is wrong. Input the correct PIN or re-set your PIN.
Blade disc is blocked by an
object, e.g. a branch.
1. If Landroid is actually outside of its working area: turn power off, take
Landroid inside the working area, turn the power on and press start.
2. If Landroid is inside its working area check if the LED on the charging
pile is solid green. If red, check if the boundary wire is properly connected
to the charging pile and that the pile is connected to a suitable power
supply. If they are properly connected, the boundary wire terminals are
clamped incorrectly and must be reversed.
Turn power off.
Turn Landroid upside down and check if there’s anything preventing the
blade disc from rotating and remove any obstruction.
Turn Landroid upright.
Turn power on. Press start
Blade is over-loaded by
thick dense grass.
Turn power off.
Take Landroid to an area with short grass or adjust the cutting height to a
higher setting.
Turn power on. Press start.
15
Page 16
MESSAGE CAUSE ACTION
EN
Wheels motor fault!
Press START to reset.
Upside down! Press
START to reset.
Mower trapped! Press
START to reset.
Mower lifted! Press
START to reset.
Battery voltage too
low! Please change
battery.
Wheel motor is blocked in
some way.
This could have happened
when Landroid came into
contact with a sloping
surface which made it
overturn.
Landroid is trapped. Turn power off.
Landroid is lifted up. Turn power off.
Battery exausted. In this case you must turn Landroid off and place it in the charging
Turn power off and take Landroid to an area free from obstacles.
Turn power on. Press start.
If the error message is still displayed, turn power off. Turn Landroid
upside-down and check if there’s anything preventing the wheels from
rotating.
Remove any obstruction, turn Landroid upright, turn power on.
Turn Landroid upright and remove any obstacle that might have caused
Landroid to overturn.
Take Landroid to an area of your lawn free of obstacles, then turn power
on. Press start.
If the error message is still displayed: turn power off, turn Landroid
upside-down. Check if there is anything preventing the wheels from
rotating.
Remove any obstruction, turn the Landroid upright, turn power on.
Take Landroid to an area clear of obstacles, turn power on. Press start.
If the error message is still displayed: turn power off, turn Landroid
upside-down and check there’s anything that can cause Landroid to be
lifted up.
Remove any possible object, turn Landroid upright, turn power on.
station, then ‘Emergency charging’ will be displayed and it will start
charging. If the battery error still persist, your battery is damaged and
need to be changed.
Wire missing! Press
START to reset.
Battery temperature
out of range!
Please wait.
Can’t find charge
station press START
to reset.
Mower locked! With the ‘Lock Function’
Machine can’t find
boundary wire signal.
Temperature is too high
(more than 550C)or too
low(less than 00C) when
charging.
Boundary wire is beyond
its maximum length (300m
or machine doesn’t have
enough power to go back
to charging station.
enabled, if your Landroid
does not receive a signal
from your Wi-Fi router for 3
days, then it gets locked as
a security measure.
This could be because
your router lost its power or
because you changed your
Wi-Fi router or network
provider.
If the LED light is red, check if the boundary wire is well connected to the
clamps on the charging pile.
If the problem persists, check that the boundary wire hasn’t been cut.
Place the charging base in a shady area or wait until it reaches the normal
temperature.
Take Landroid to the charging station.
Please reconnect Landroid to the Wi-Fi networtk it has been originally
paired with. If this is not possible, contact Cutomer Service.
16
Page 17
EN
NOTES
A. Before turning power on, always check Landroid is inside its working area. If not, the message “Outside working area! Press START to
reset” will be displayed. This message is also displayed when Landroid is partly but not completely inside its working area
B.If for any reason—i.e. a party, children playing...—you want to park your Landroid in the charging station: press home then . Landroid
will go to its base and stay there. Please note Landroid will now wait until the next scheduled mowing session. If you want to re-start it
at anytime, press start then to start your Landroid
C.If an error repeatedly occurs in the same area of your lawn, you might have a problem with the boundary wire so please refer to the
installation instructions and check your set up is correct with its help
D.If your lawn is divided in two separated areas, connected by a corridor less than 1m wide, one of which is not provided with the
charging station: when Landroid runs out of charge, take it manually to the charging station
E. If Landroid runs abnormally once in a while, please reset it by turning it off and removing the battery for 30 seconds, then restart it. If the
problem cannot be solved, please contact our Customer Service for help
7. TROUBLE SHOOTING
If your Landroid does not work correctly, follow the trouble shooting guide below. If the fault persists, contact Customer Service.
SYMPTOM CAUSE SOLUTION
The LED light on the charging
pile does not turn on.
Red light on the charging
pile.
Landroid turns on, but the
blade disc does not spin.
Landroid vibrates. The blade disc is unbalanced.
Grass is being cut
unevenly.
Your Landroid is inside
its working area and
the boundary wire is
connected, but the
display says ‘Outside
working area!
Press START to reset’
The charging time is
far more than the rated
charging time.
The mower does not
charge.
There is no power. Check the charging base is connected properly to the charger
The boundary wire isn’t
connected.
Landroid is searching for the
charging station.
Blades may be damaged.
Landroid does not work enough
hours per day to cut the grass.
Mowing area is too big for the
size of Landroid you have.
The blades are dull and not sharp.
The cutting height is set too low
for the length of the grass.
Grass or another object has
wrapped around the blade disc.
There is a build-up of grass in the
blade disc or motor frame box.
The boundary wire ends are
clamped incorrectly.
Poor connection caused by
debris on the charging strip.
The charging protection
program is activated due to high
temperature.
There is no power. Check the power cord is connected properly to the charger and
and the charger is connected to a suitable power supply.
Check that the boundary wire has been connected correctly to the
charging station. Check there are no breaks in the boundary wire.
This is normal: when Landroid needs to recharge, the blade
disc does not rotate while it is searching for the charging base
automatically.
Check the blades and replace them if damaged.
Remove debris and foreign objects from the blades and blade disc.
Try adding more hours to the mowing schedule.
Try decreasing the size of the mowing area or increasing working
time.
Change all the blades and screws in order to balance the bade disc.
Raise the cutting height and then gradually lower.
Check the blade disc and remove any grass or other objects that
might prevent it spinning.
Make sure the blade disc rotates easily. If need be, you may take
off the blade disc and then remove the debris.
Reverse the boundary wire ends and reconnect to the charging
station.
Clean the contact pins located on the charging pile and the charging strip on Landroid using a cloth.
Place the charging base in a shady area or wait until the
temperature has cooled down.
the charger is connected to a suitable power supply.
Make sure both the charging strips on the mower touch the
center of the contact strips on the charging pile.
17
Page 18
EN
Landroid is starting to have shorter
run-times between charges.
Landroid is not operating at the
correct time.
Landroid cannot correctly dock
with the charging pile.
The green light on the charging
pile turns on before charging is
complete.
Something is clogging in the blade disc
creating friction and increasing power
consumption.
Landroid is shaking heavily because the
blade disc is unbalanced.
The battery may be exhausted or old. Replace battery.
The working time is up reset the working time
The clock is not set to the correct time. Set the clock to the correct time.
Programmed cutting times for Landroid
are not correct.
the percentage of weekly operating time
set through APP has changed.
Environmental influences. Restart Landroid.
Poor connection caused by debris on
the charging strip.
the charging base is overheating or
overcooling
Take off the blade disc and clean it. Maybe the
grass is too high and too thick.
Check the blade disc and blades,
remove debris and foreign objects from the
blades and blade disc.
Replace the blades with a new set.
Change the time settings for the mower to start
and stop.
set the correct percentage through APP.
Clean the contact pins located on the charging
pile and the charging strip on Landroid using a
cloth.
Place the charging base in a shady area or wait
until it reaches the normal temperature
Landroid wheels skid or repeatedly
slip.
Landroid runs outside the boundary
wire.
Landroid does not mow an area
within a
boundary wire zone.
Landroid reverses or rotates
erratically near the boundary wire.
Landroid slips out of its working
area going down a hill.
Landroid operative system crashes
when charging or on standby.
Landroid shuts off when docking in
the charging pile.
Foreign obstacles, such as twigs and
branches may be lodged under
Landroid.
The lawn is too wet. Wait until lawn has dried.
The boundary wire of another Landroid or
robotic mower is positioned too closely.
In wet conditions, the boundary wire
electric signal may leak where the wire
has been joined or repaired incorrectly.
There is boundary wire electric signal
leakage due to broken insulation.
Low grip of Landroid drive wheels. Please check the wheels are clean and free of
Software or display fault. Restart Landroid.
Landroid fails to charge due to over
temperature protection and is powered
off.
Poor connection. Check the LED light on the charging pile. Check
Remove foreign objects from underside of
Landroid.
Ensure at least 1m clearance is provided in
between your boundary wire and that of your
neighbor.
Check boundary wire joints. Insulate to provide
a fully waterproof connection.
Repair damaged boundary wire
with the wire connectors supplied.
mud in order to have the
maximum grip possible.
Place the charging base in a shady area or wait
until the temperature has cooled down.
the connection between the
contact pins located on the charging pile and
the charging strip.
18
Page 19
Landroid stops in the working area. There is an obstacle in the working area. Remove the obstacle from Landroid’s working
area.
The cutting height is set too low for the
length of the grass or the grass is too
dense.
The extended boundary wire should not
exceed 300m or it may cause signal
problem.
Raise the cutting height and then
gradually lower.
Reduce the lenght of the boundary wire.
EN
The distance between the center of
the lawn and the boundary wire should
not exceed 25m or it may cause signal
attenuation.
Landroid flips over. There is an inclined obstacle on the
lawn.
Landroid fails to connect to the
internet.
Your Landroid beeps when you are
adjusting “month/hour /minute”
Please check your router has the correct
settings.
Please check whether the router is
disconnected or WIFI SSID is changed
It is normal
Reduce the distance between the
center of the lawn and the boundary wire
perimeter within 25m.
Exclude the obstacle from Landroid’s working
area.
Make sure your router is 2.4GHz. If your router
has two settings, please enable the 2.4GHz
band.
Make sure your router is set to 802.11 mode
and wireless setting is b/g/n mixed.
Make sure your router has the SSID Broadcast
function enabled when you connect the
machine with the app.
You can close it after you connect successfully.
Make sure DHCP function is enabled.
If you changed your Wi-Fi network, you need to
connect Landroid to the new network.
If you have a “Fritz!box” router, please make
sure activate “Allow communication between
devices in same network” in the settings.
Make sure the router is connected and WIFI
SSID is correct
Anticlockwise the to adjust.
Environmental protection
Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with
your Local Authority or retailer for recycling advice.
19
Page 20
EN
DECLARATION OF CONFORMITY
We,
Positec Germany GmbH
Postfach 32 02 16, 50796 Cologne, Germany
On behalf of Positec declare that the product
Description Robotic Lawnmower
Type WR165E WR166E WR167E WR148E WR147E.1(100-199 - designation of machinery, representative of
Robotic Lawnmower) (Serial number is placed on the back page) with battery charger WA3775 / WA3776 /
WA3750.1/ WA3755.1 and charging station WA4002.1
Function Cutting grass
Complies with the following Directives,
2006/42/EC, 2014/30/EU, 2014/35/EU, 2011/65/EU&(EU)2015/863, 2000/14/EC amended by 2005/88/EC,
2014/53/EU
WR165E WR166E WR167E
2000/14/EC amended by 2005/88/EC
- Conformity Assessment Procedure as per Annex V
- Measured Sound Power Level 61.83 dB (A)
- Declared Guaranteed Sound Power Level 67 dB (A)
WR148E WR147E.1
2000/14/EC amended by 2005/88/EC
- Conformity Assessment Procedure as per Annex V
- Measured Sound Power Level 61.56 dB (A)
- Declared Guaranteed Sound Power Level 63 dB (A)
The notified body involved
Name: Intertek, Semko AB (notified body 0413)
Address: Torshamnsgatan 43164 22 Kista Sweden
Certification No. : SE-RED-2200106
Standards conform to,
EN 60335-1:2012+A11:2014+A13:2017+A1:2019+A2:2019+A14:2019+A15:2021,
EN 50636-2-107:2015+A1:2018+A2:2020+A3:2021, EN 60335-2-29:2004+A2:2010+A11:2018,
EN 62233:2008, EN IEC 55014-1:2021, EN IEC 55014-2:2021, EN IEC 61000-3-2:2019,
EN 61000-3-3:2013+A1:2019, EN ISO 3744:2005, EN 300 328 V2.2.2, EN 301 489-1 V2.2.3,
EN 301 489-17 V3.2.4, EN IEC 62311:2020, EN 55011:2016+A11:2020, EN 303 447 V1.1.1,
EN 300 328 V2.2.2
The person authorized to compile the technical file,
Name Marcel Filz
Address Positec Germany GmbH Postfach 32 02 16, 50796 Cologne, Germany
2022/12/09
Allen Ding
Deputy Chief Engineer, Testing & Certification
Positec Technology (China) Co., Ltd
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China
20
Page 21
DECLARATION OF CONFORMITY
We,
Positec (UK & Ireland) Ltd
PO BOX 6242, Newbury, RG14 9LT, UK
On behalf of Positec declare that the product
Description Robotic Lawnmower
Type WR165E WR166E WR167E WR148E WR147E.1(100-199 - designation of machinery, representative of
Robotic Lawnmower) (Serial number is placed on the back page) with battery charger WA3775 / WA3776 /
WA3750.1/ WA3755.1 and charging station WA4002.1
Function Cutting grass
Complies with the following regulations,
Supply of Machinery (Safety) Regulations 2008
Radio Equipment Regulations 2017
Electrical Equipment (Safety) Regulations 2016
Electromagnetic Compatibility Regulations 2016
The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment
Regulations
WR165E WR166E WR167E
2000/14/EC amended by 2005/88/EC
- Conformity Assessment Procedure as per Annex V
- Measured Sound Power Level 61.83 dB (A)
- Declared Guaranteed Sound Power Level 67 dB (A)
EN
WR148E WR147E.1
2000/14/EC amended by 2005/88/EC
- Conformity Assessment Procedure as per Annex V
- Measured Sound Power Level 61.56 dB (A)
- Declared Guaranteed Sound Power Level 63 dB (A)
The notified body involved
Name: Intertek, Semko AB (notified body 0413)
Address: Torshamnsgatan 43164 22 Kista Sweden
Certification No. : SE-RED-2200106
Standards conform to,
BS EN 60335-1:2012+A11:2014+A13:2017+A1:2019+A2:2019+A14:2019+A15:2021,
BS EN 50636-2-107:2015+A1:2018+A2:2020+A3:2021, BS EN 60335-2-29:2004+A2:2010+A11:2018,
BS EN 62233:2008, BS EN IEC 55014-1:2021, BS EN IEC 55014-2:2021, BS EN IEC 61000-3-2:2019,
BS EN 61000-3-3:2013+A1:2019, BS EN ISO 3744:2005, BS EN 300 328 V2.2.2, BS EN 301 489-1 V2.2.3,
BS EN 301 489-17 V3.2.4, BS EN IEC 62311:2020, BS EN 55011:2016+A11:2020, BS EN 303 447 V1.1.1
BS EN 300 328 V2.2.2
The person authorized to compile the technical file,
Name Jim Kirkwood
Address Positec (UK & Ireland) Ltd PO BOX 6242, Newbury, RG14 9LT, UK
2022/12/09
Allen Ding
Deputy Chief Engineer, Testing & Certification
Positec Technology (China) Co., Ltd
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China
AR01583702
21
Page 22
Page 23
Page 24
Loading...
