Cordless Li-Ion Handy Saw
Пила сабельная аккумуляторная
Juhtmeta Liitium-ioon tiigersaag
Bezvadu litija jonu rokas zāģis
Belaidis ličio jonų rankinis pjūklas
EN
RU
ET
LV
LT
Original instructions EN
Оригинальное руководст-во по эксплуатации
RU
Algupärane kasutusjuhend
ET
Oriģinālā lietošanas pamācība
LV
Originali instrukcijas
LT
7
8
1
6
2
3
9
4
5
1
2
1
2
2
6
9
A B
E
C
F1D
F2
5
Cordless Li-Ion handy saw
EN

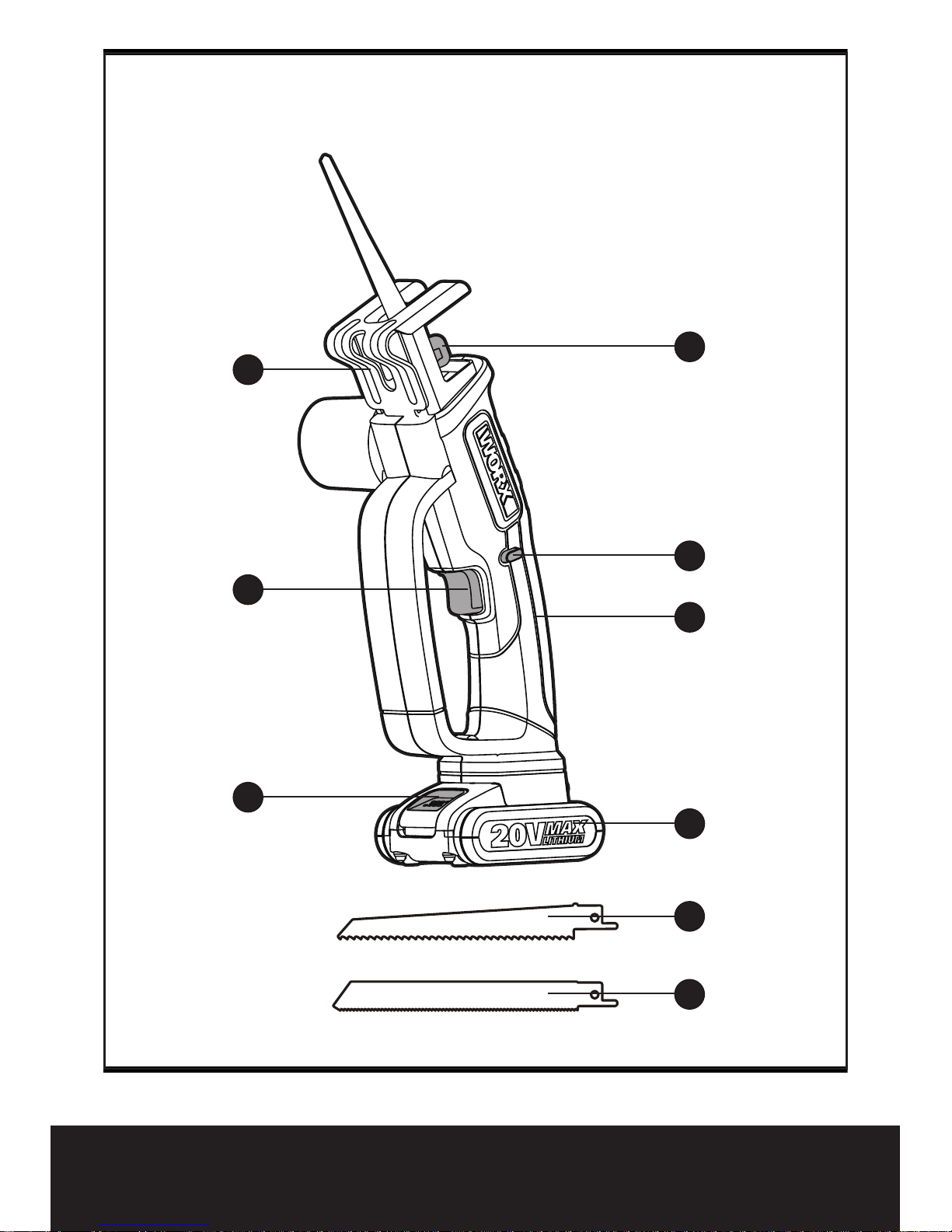

1. LOCK-OFF BUTTON
2. HANDLE
3. BATTERY PACK
4. BATTERY PACK RELEASE LATCH
5. ON/OFF SWITCH
6. TOOL-FREE BLADE CLAMP LEVER
7. PRUNING BLADE *
8. BI METAL BLADE *
9. STEEL BASE
* Not all the accessories illustrated or described are included in standard delivery.
TECHNICAL DATA
Type WG894E WG894E.5 WG894E.9 (890-894 designation of machinery,
representative of Handy Saw)
NOISE INFORMATION
A weighted sound pressure LpA: 84dB(A) KpA: 3.0dB(A)
A weighted sound power LwA: 95dB(A) KwA: 3.0dB(A)
Wear ear protection when sound pressure is over 80dB(A)
WG894E WG894E.5 WG894E.9
Voltage 20V Max** Lithium
No load speed 2200/min
Stroke length 16mm
Max. cutting capacity
Wood Ø60mm
Steel Ø10mm
Normal charging time 5hr approx. 1hr approx.
/
Machine weight 1.3kg 1kg
** Voltage measured without workload. Initial battery voltage reaches maximum of 20 Volts.
Nominal voltage is 18 Volts.
6
Cordless Li-Ion handy saw
EN
VIBRATION INFORMATION
Vibration total values (triax vector sum) determined according to EN 60745:
Cutting boards
Vibration emission value a
h,B
=10.60m/s
2
Uncertainty K=1.5m/s²
Cutting wooden beams
Vibration emission value a
h,WB
=11.76m/s
2
Uncertainty K=1.5m/s²
The declared vibration total value may be used for comparing one tool with another, and may
also be used in a preliminary assessment of exposure.
WARNING! The vibration emission value during actual use of the power tool can differ
from the declared value depending on the ways in which the tool is used dependant on the
following examples and other variations on how the tool is used:
How the tool is used and the materials being cut?
The tool being in good condition and well maintained;
The use the correct accessory for the tool and ensuring it is sharp and in good condition;
The tightness of the grip on the handle and if any anti-vibration accessories are used;
And the tool is being used as intended by its design and these instructions.
This tool may cause hand-arm vibration syndrome if its use is not adequately
managed.
WARNING! To be accurate, an estimation of exposure level in the actual conditions of use
should also take account of all parts of the operating cycle such as the times when the tool
is switched off and when it is running idle but not actually doing the job. This may significantly
reduce the exposure level over the total working period.
Helping to minimize your vibration exposure risk:
Maintain this tool in accordance with these instructions and keep well lubricated (where
appropriate);
If the tool is to be used regularly then invest in anti vibration accessories;
Avoid using tools in temperatures of 10oC or less;
Plan your work schedule to spread any high vibration tool use across a number of days.
ACCESSORIES
WG894E WG894E.5 WG894E.9
Pruning blade 2
Bi metal blade 1
Battery pack
1(WA3551.1) 1(WA3551.1) /
Charger
1(WA3760) 1(WA3860) /
We recommend that you purchase your accessories from the same store that sold you the tool.
Use good quality accessories marked with a well-known brand name. Choose the type according
to the work you intend to undertake. Refer to the accessory packaging for further details. Store
personnel can assist you and offer advice.
7
Cordless Li-Ion handy saw
EN
RECIPROCATING SAW
SAFETY WARNINGS
1. Hold reciprocating saw by insulated
gripping surfaces, when performing
an operation where the cutting
accessory may contact hidden wiring.
Cutting accessory contacting a “live”
wire may make exposed metal parts of
the power tool “live” and could give the
operator an electric shock.
ADDITIONAL
SAFETY RULES FOR
RECIPROCATING SAW
1. Always wear a dust mask.
SAFETY WARNINGS FOR
BATTERY PACK
a) Do not dismantle, open or shred cells
or battery pack.
b) Do not short-circuit a battery pack. Do
not store battery packs haphazardly
in a box or drawer where they may
short-circuit each other or be shortcircuited by conductive materials.
When battery pack is not in use, keep it
away from other metal objects, like paper
clips, coins, keys, nails, screws or other
small metal objects, that can make a
connection from one terminal to another.
Shorting the battery terminals together
may cause burns or a fire.
c) Do not expose battery pack to heat or
fire. Avoid storage in direct sunlight.
d) Do not subject battery pack to
mechanical shock.
e) In the event of battery leaking, do not
allow the liquid to come into contact
with the skin or eyes. If contact has
been made, wash the affected area
with copious amounts of water and
seek medical advice.
f) Seek medical advice immediately
if a cell or battery pack has been
swallowed.
g) Keep battery pack clean and dry.
h) Wipe the battery pack terminals with
a clean dry cloth if they become dirty.
i) Battery pack needs to be charged
before use. Always refer to this
instruction and use the correct
charging procedure.
j) Do not maintain battery pack on
charge when not in use.
k) After extended periods of storage,
it may be necessary to charge
and discharge the battery pack
several times to obtain maximum
performance.
l) Battery pack gives its best
performance when it is operated at
normal room temperature
(20°C ± 5°C).
m) When disposing of battery packs,
keep battery packs of different
electrochemical systems separate
from each other.
n) Recharge only with the charger
specified by WORX. Do not use any
charger other than that specifically
provided for use with the equipment.
A charger that is suitable for one type of
battery pack may create a risk of fire when
used with another battery pack.
o) Do not use any battery pack which
is not designed for use with the
equipment.
p) Keep battery pack out of the reach of
children.
q) Retain the original product literature
for future reference.
r) Remove the battery from the
equipment when not in use.
s) Dispose of properly.
8
Cordless Li-Ion handy saw
EN

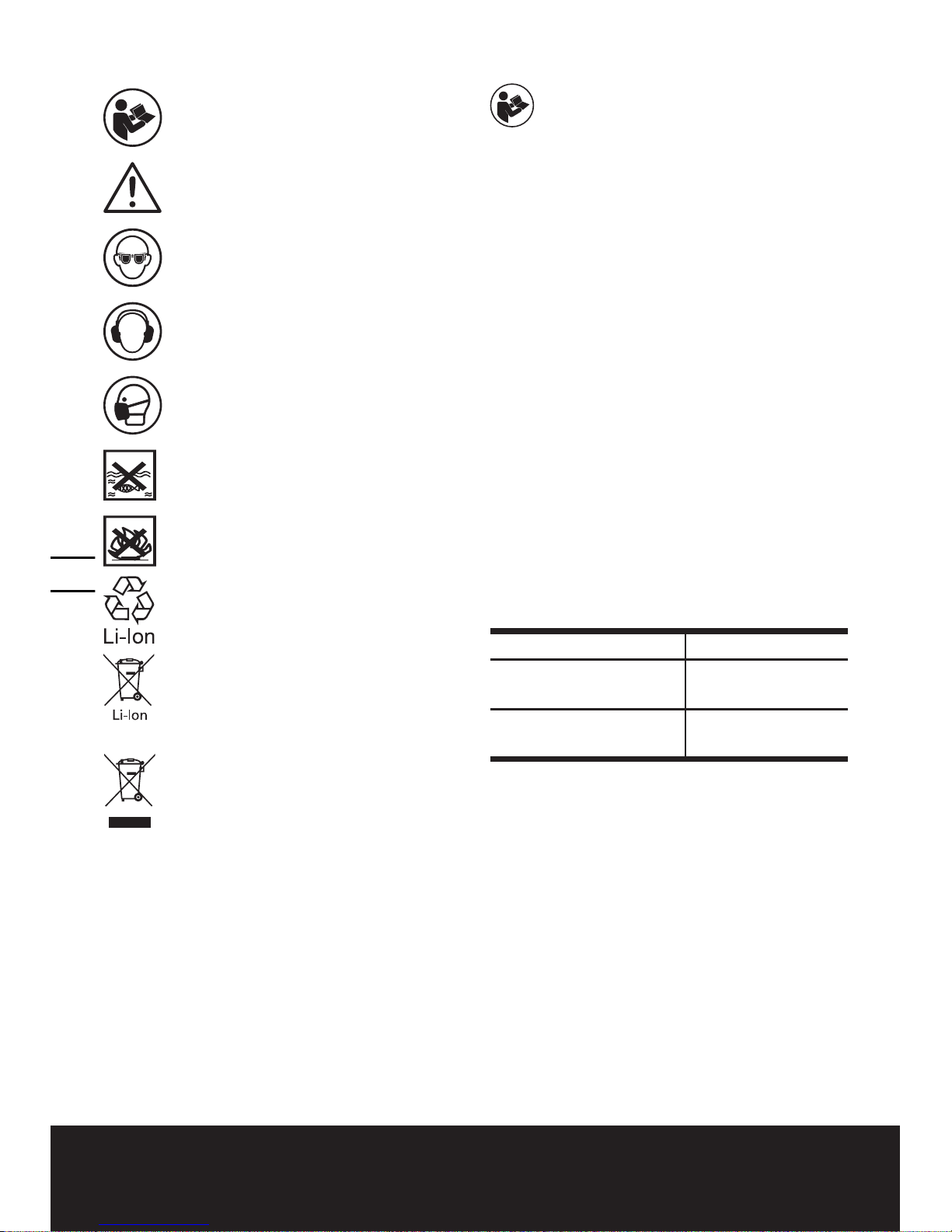

SYMBOLS OPERATING INSTRUCTIONS
NOTE: Before using the tool, read the
instruction book carefully.
INTENDED USE:
The machine is intended for sawing wood,
plastic, soft metal and building materials while
resting firmly on the workpiece.
ASSEMBLY
REPLACING/INSERTING THE SAW BLADE
Remove the battery pack from the
socket before carrying out any
adjustment, servicing or maintenance.
When mounting the saw blade, wear
protective gloves. Danger of injury when
touching the saw blade. When changing the
saw blade, take care that the saw blade holder
is free of material residue, e. g. wood or metal
shavings.

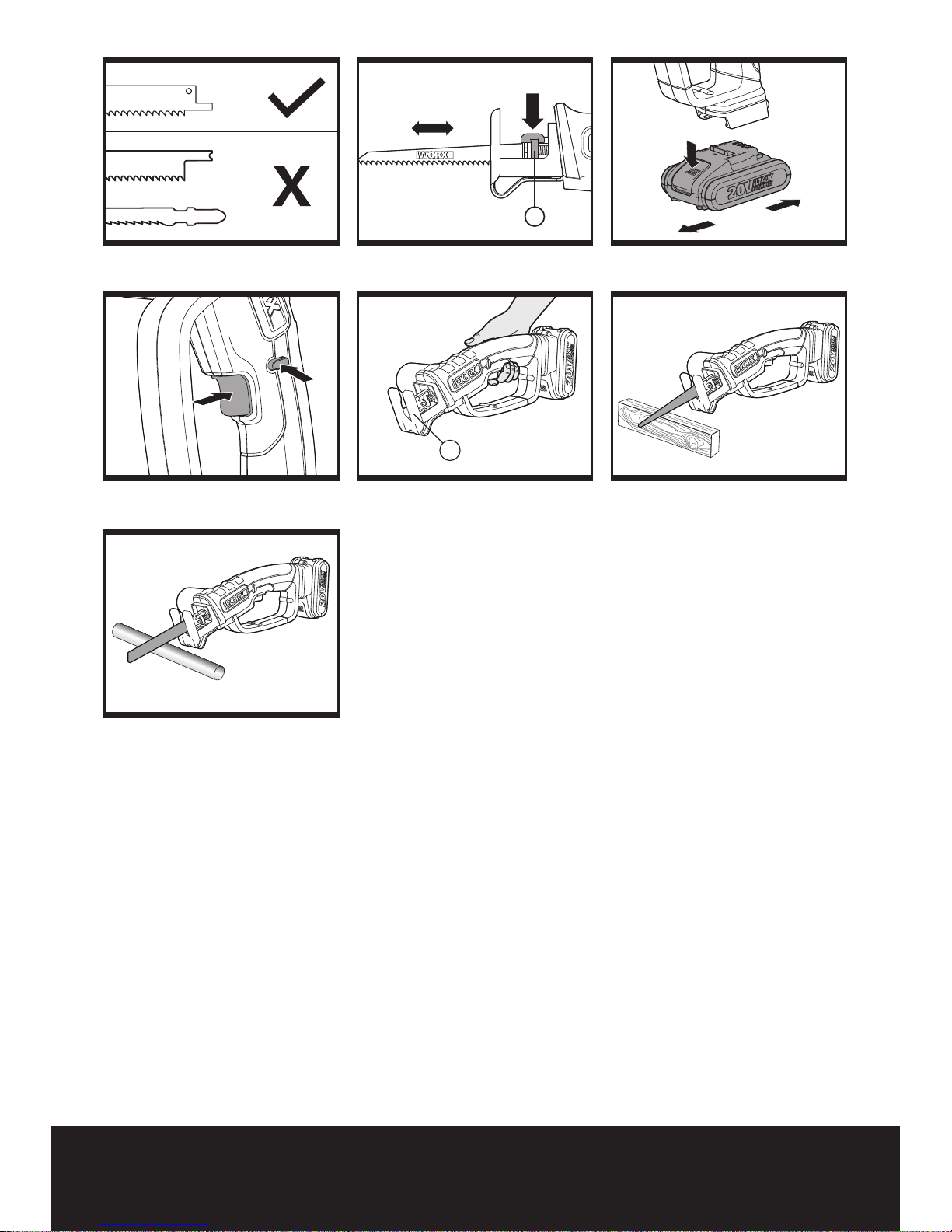

1. SELECTING A SAW BLADE (See Fig. A)
NOTE: Only use maximum blade lengths
specified in table below for the intended
purpose of application. Failure to adhere
to this advice will result in damage to the
product and void of warranty.
Typical application
Pruning blade (152mm,
6TPI, 65Mn)
Garden limbs, etc.
Bi metal blade
(152mm, 18TPI, HSS)
Metals and wood
,etc.
2. INSERTING A SAW BLADE (See Fig. B)
Remove the battery pack from the
socket before carrying out any
adjustment, servicing or maintenance.
Pull down the tool-free blade clamp lever (6),
Insert the blade shank into the blade holder
until it stops. Release the clamp lever (6) to
lock the blade (7/8) in position.
Check the tight seating of the saw blade.
A loose saw blade can fall out and lead to
injuries.
3. REMOVING A SAW BLADE (See Fig. B)
To remove a blade, depress the clamp lever,
pull out the blade.
To reduce the risk of injury, user
must read instruction manual.
Warning
Wear eye protection
Wear ear protection
Wear dust mask
Do not expose to rain or water
Do not burn
Do not dispose of batteries. Return
exhausted batteries to your local
collection or recycling point.
Waste electrical products must not
be disposed of with household
waste. Please recycle where
facilities exist. Check with your
local authorities or retailer for
recycling advice.
9
Cordless Li-Ion handy saw
EN
CHARGING
WARNING: The charger and battery
pack are specially designed to work
together so do not attempt to use any
other devices. Never insert or allow
metallic objects into your charger or
battery pack connections because of an
electrical failure and hazard will occur.
Your battery pack is UNCHARGED and you
must charge once before use
The battery charger supplied is matched to the
Li-Ion battery installed in the machine. Do not
use another battery charger.
1. CHARGING YOUR BATTERY PACK
The Li-Ion battery is protected against deep
discharging. When the battery is empty,
the machine is switched off by means of a
protective circuit. In a warm environment or
after heavy use, the battery pack may become
too hot to permit charging. Allow time for the
battery to cool down before recharging.
2. TO REMOVE OR INSTALL BATTERY
PACK (See Fig. C)
Depress the battery pack release button to
release and slide the battery pack out from
your tool. After recharge, slide it back into your
tool. A simple push and slight pressure will be
sufficient.
OPERATION
1. SAFETY ON/OFF SWITCH (See Fig. D)
Your switch is locked off to prevent accidental
starting. Depress the lock-off button (1) then
the on/off switch (5) and release lock-off button
(1). Your switch is now on. To switch off just
release the on/off switch.
2. WORKING INSTRUCTIONS
NOTE: Hold the machine away from yourself.
Stand in a secure and stable position.
WARNING: Always clamp and
support workpiece securely. Do
not touch blade to workpiece until saw
reaches full operating speed.
HOW TO GRASP YOUR WORX HANDY SAW
Grasp your WORX Handy saw as shown in Fig
E, for best control of the tool and comfortable
use as a reciprocating saw.
GENERAL CUTTING (See Fig. F1, F2)
NOTE:
1. Always use a blade suited to the material
and material thickness to be cut. The quality
of cut will improve as the number of blade
teeth increase.
2. Always ensure the workpiece is firmly held
or clamped to prevent movement. Support
large panels close to the cut line. Any
movement of the material may affect the
quality of the cut.
3. The blade cuts on the upward stroke and
may chip the uppermost surface or edges
of your work piece when cutting, ensure
your uppermost surface is a non-visible
surface when your work is finished.
OPERATION:
1. Mark the line of cut, clearly before your
cutting.
2. Do not force the tool. Place the steel base
(12) firmly on the workpiece while cutting.
Use only enough steady pressure on the
blade to keep the saw cutting.
3. Reduce the pressure as the blade comes to
the end of the cut.
4. Allow the saw to come to a complete stop
when before removing the blade from the
workpiece.
TREE TRIMMING
Use wood blade when cutting tree branches.
Hold steel base firmly against tree brance.
Cut close to the branch of the tree to decrease
movement of the branch being cut.
METAL CUTTING
Use a finer tooth blade for ferrous metals and
a coarse tooth blade for non-ferrous metals.
When cutting thin sheet metals always clamp
steel on both sides of the sheet to reduce
vibration or tearing of the sheet metal. Do not
force the cutting blade when cutting thin metal
or sheet steel as they are harder materials and
will take longer to cut. Excessive blade force
may reduce the life of the blade or damage
the motor. To reduce heat during metal cutting,
add a little lubricant along the cutting line.
10
Cordless Li-Ion handy saw
EN
DISPOSAL OF AN
EXHAUSTED BATTERY
PACK
To preserve natural resources, please
recycle or dispose of the battery pack
properly. This battery pack contains
Lithium batteries. Consult your local waste
authority for information regarding available
recycling and/or disposal options. Discharge
your battery pack by operating your drill, then
remove the battery pack from the drill housing
and cover the battery pack connections with
heavy-duty adhesive tape to prevent short
circuit and energy discharge. Do not attempt
to open or remove any of the components.
MAINTENANCE
Remove the battery pack from the tool
before carrying out any adjustment,
servicing or maintenance.
Your tool requires no additional lubrication or
maintenance.
There are no user serviceable parts in your
tool. Never use water or chemical cleaners to
clean your tool. Wipe clean with a dry cloth.
Always store your tool in a dry place. Keep the
motor ventilation slots clean. Keep all working
controls free of dust.
ENVIRONMENTAL
PROTECTION
Waste electrical products must not be
disposed of with household waste.
Please recycle where facilities exist.
Check with your local authorities or retailer for
recycling advice.
DECLARATION OF
CONFORMITY
We,
POSITEC Germany GmbH
Konrad-Adenauer-Ufer 37
50668 Köln
Declare that the product,
Description
WORX Cordless Li-Ion handy saw
Type WG894E WG894E.5 WG894E.9
(890-894 designation of machinery,
representative of Handy Saw)
Function Sawing various materials
Complies with the following Directives,
2006/42/EC, 2004/108/EC, 2011/65/EU
Standards conform to
EN 60745-1
EN 60745-2-11
EN 55014-1
EN 55014-2
The person authorized to compile the
technical file,
Name: Russell Nicholson
Address: Positec Power Tools (Europe)
Ltd, PO Box 152, Leeds, LS10 9DS, UK
Suzhou 2015/06/19
Allen Ding
Deputy Chief Engineer, Testing & Certification
11
Пила сабельная аккумуляторная
RU
1. КНОПКА БЛОКИРОВКИ ВЫКЛЮЧАТЕЛЯ
2. РУКОЯТКА
3. АККУМУЛЯТОРНАЯ БАТАРЕЯ
4. ФИКСАТОР АККУМУЛЯТОРНОЙ БАТА
5. ВЫКЛЮЧАТЕЛЬ ПИТАНИЯ
6. РУЧКА ФИКСАЦИИ ПОЛОТНА
7. ПИЛЬНОЕ ПОЛОТНО *
8. БИМЕТАЛЛИЧЕСКОЕ ПОЛОТНО *
9. СТАЛЬНОЙ УПОР
* Не все принадлежности, иллюстрированные или описанные включены в
стандартную поставку.
ТЕХНИЧЕСКИЕ ХАРАКТЕРИСТИКИ
Моделей WG894E 894E.5 894E.9 (890-894- обозначение инструмента, класс пил)
ХАРАКТЕРИСТИКИ ШУМА
Звуковое давление LpA: 84Дб(A) KpA: 3.0Дб(A)
Акустическая мощность LwA: 95Дб(A) KwA: 3.0Дб(A)
Максимально допустимое звуковое давление без использования средств защиты 80Дб(A)
WG894E WG894E.5 WG894E.9
Номинальное напряжение 20В, Макс.**, Литиевый
Скорость без нагрузки 2200/min
Длина хода 16mm
Максимальная толщина
материала
Дерево Ø60mm
Сталь Ø10mm
Время зарядки 5 час прибл 1час прибл
/
Вес машины 1.3 кг 1 кг
** Напряжение измерено без рабочей нагрузки. Первоначальное напряжение аккумулятора
достигает максимум 20 В. Номинальное напряжение составляет 18 В.
Loading...
