Page 1
SAFETY AND OPERATING MANUAL
ORIGINAL INSTRUCTIONS
Cordless Li-Ion Blower/Sweeper
WG568E
WG568E.9
Page 2
2
3
4
5
6
1
2
A B
7
8
Cordless Li-Ion Blower/Sweeper
WG568E
WG568E.9
Page 3

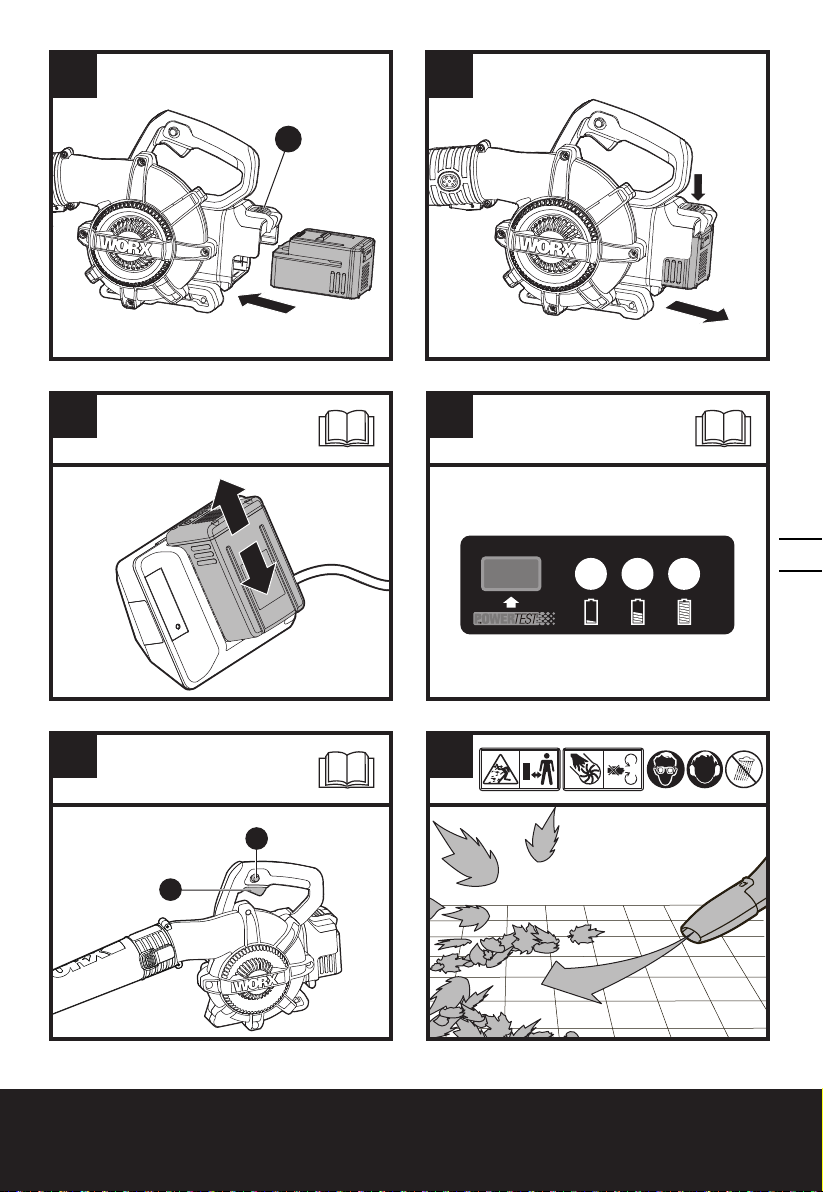

DC
9
FE
3
HG
2
3
Cordless Li-Ion Blower/Sweeper
WG568E
WG568E.9
Page 4

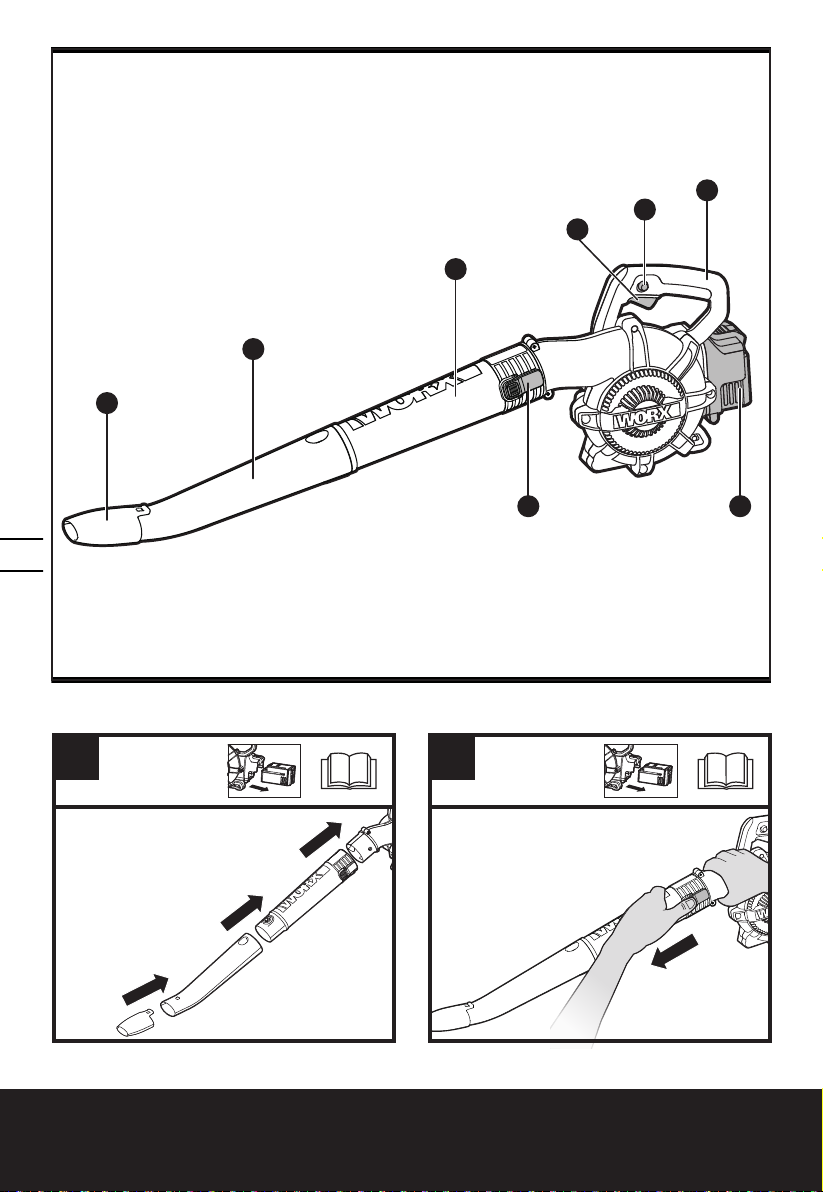

1. HANDLE
2. LOCK OFF SWITCH
3. VARIABLE SPEED TRIGGER
4. UPPER BLOWER TUBE
5. LOWER BLOWER TUBE
6. HIGH SPEED NOZZLE
7. TUBE RELEASE BUTTON
8. BATTERY PACK
9. BATTERY PACK RELEASE BUTTON (SEE FIG. C)
Not all the accessories illustrated or described are included in standard delivery.
TECHNICAL DATA
Type WG568E WG568E.9 (5-designation of machinery, representative of Cordless
Blower)
4
Voltage 40V Max* Lithium
No load speed 0-12000 /min
Blow speed 230km/h Max
Air capacity
Charging time 1hr approx.
Machine weight 2.7kg 1.9kg
*Voltage measured without workload. Initial battery voltage reaches maximum of 40 volts.
Nominal voltage is 36 volts.
WG568E WG568E.9
4m3/min Max
ACCESSORIES
WG568E WG568E.9
Battery pack 1(WA3536) /
Charger 1(WA3735) /
We recommend that you purchase your accessories from the same store that sold you the tool.
Choose the type according to the work you intend to undertake. Refer to the accessory packaging
for further details. Store personnel can assist you and offer advice.
Cordless Li-Ion Blower/Sweeper
WG568E
WG568E.9
Page 5
NOISE DATA
A weighted sound pressure
A weighted sound power L
K
pA
Wear ear protection
LpA:79dB(A)
:93dB(A)
wA.d
3.0dB(A)
VIBRATION INFORMATION
Typical weighted vibration ah <2.5 m/s² Uncertainty K=1,5m/s
The declared vibration total value may be used for comparing one tool with another, and may
also be used in a preliminary assessment of exposure.
WARNING! The vibration emission value during actual use of the power tool can differ
from the declared value depending on the ways in which the tool is used dependant on the
following examples and other variations on how the tool is used:
How the tool is used and the materials is cut or drilled.
The tool being in good condition and well maintained.
The use the correct accessory for the tool and ensuring it is sharp and in good condition.
The tightness of the grip on the handles and any anti vibration accessories are used.
And the tool is being used as intended by its design and these instructions.
This tool may cause hand-arm vibration syndrome if its use is not adequately managed
WARNING! To be accurate, an estimation of exposure level in the actual conditions of use
should also take account of all parts of the operating cycle such as the times when the tool
is switched off and when it is running idle but not actually doing the job. This may significantly
reduce the exposure level over the total working period.
2
5
Help to minimize your vibration exposure risk.
ALWAYS use sharp chisels, drills and blades.
Maintain this tool in accordance with these instructions and keep well lubricated (where
appropriate).
If the tool is to be used regularly then invest in anti vibration accessories.
Avoid using tools in temperatures of 10°C or less.
Plan your work schedule to spread any high vibration tool use across a number of days.
WG568E
Cordless Li-Ion Blower/Sweeper
WG568E.9
Page 6
ORIGINAL INSTRUCTION
PRODUCT SAFETY
PRODUCT SAFETY
WARNING Read all
safety warnings and all
instructions. Failure to follow
the warnings and instructions
may result in electric shock, fire
and/or serious injury.
Save all warnings and
instructions for future
reference.
The appliance is only to be used
with the power supply unit
provided with the appliance.
IMPORTANT
READ CAREFULLY BEFORE
USE.
KEEP FOR FUTURE
REFERENCE.
6
SAFE OPERATING PRACTICES
1) Training
a) Read the instructions carefully.
Be familiar with the controls
and the correct use of the
machine.
b) Never allow children, persons
with reduced physical, sensory
or mental capabilities or lack
of experience and knowledge
or people unfamiliar with
these instructions to use the
machine, local regulations
may restrict the age of the
operator.
c) Never operate the machine
while people, especially
children, or pets are nearby.
d) Keep in mind. that the
operator or user is responsible
for accidents or hazards
occurring to other people or
their property.
2) Preparation
a) While operating the machine,
always wear substantial
footwear and long trousers.
Do not operate the machine
when barefoot or wearing
open sandals. Avoid wearing
clothing that is loose fitting or
that has hanging cords or ties.
b) Do not wear loose clothing or
jewellery that can be drawn
into the air inlet. Keep long
hair away from the air inlets.
c) Obtain ear protection and
safety glasses. Wear them at
all times while operating the
machine.
d) Operate the machine in a
recommended position and
only on a firm, level surface.
e) Do not operate the machine
on a paved or gravel surface
where ejected material could
cause injury.
f) Before using, always visually
inspect to see, that the
fasteners are secure, the
housing is undamaged and
that guards and screens are
in place. Replace worn or
damaged components in sets
to preserve balance. Replace
damaged or unreadable
labels.
3) Operation
a) Before starting the machine,
make certain that the feeding
chamber is empty.
b) Keep your face and body away
from the feed intake opening.
c) Do not allow hands or any
Cordless Li-Ion Blower/Sweeper
WG568E
WG568E.9
Page 7
other part of the body or
clothing inside the feeding
chamber, discharge chute, or
near any moving part.
d) Keep proper balance and
footing at all times. Do not
overreach. Never stand at a
higher level than the base of
the machine when feeding
material into it.
e) Always stand clear of
the discharge zone when
operating this machine.
f) If the machine should start
making any unusual noise or
vibration, immediately shut
off the power source and
allow the machine to stop.
Remove the battery pack
from the machine and take
the following steps before
restarting and operating the
machine:
i) inspect for damage;
ii) replace or repair any
damaged parts;
iii) check for and tighten any
loose parts.
g) Do not allow processed
material to build up in the
discharge zone; this may
prevent proper discharge
and can result in kickback of
material through the intake
opening.
h) If the machine becomes
clogged, shut-off the power
source and remove the battery
pack from the machine before
cleaning debris.
i) Never operate the machine
with defective guards or
shields, or without safety
devices.
j) Keep the power source
clean of debris and other
accumulations to prevent
damage to the power source
or possible fire.
k) Do not transport this machine
while the power source is
running.
l) Always disconnect the
machine from the power
supply (e.g. remove the
battery pack from the
machine)
- whenever you leave the
machine,
- before clearing blockages or
unclogging chute,
- before checking, cleaning or
working on the machine.
m) Avoid using the machine
in bad weather conditions
especially when there is a risk
of lightning.
4) Maintenance and storage
a) keep all nuts, bolts and screws
tight to be sure the appliance
is in safe working condition.
b) Replace worn or damaged
parts.
c) Use only genuine replacement
parts and accessories.
d) Store the machine in a dry
place out of the reach of
children.
e) When the machine is stopped
for servicing, inspection,
or storage, or to change
an accessory, shut off the
power source, disconnect the
machine from the supply and
make sure that all moving
parts are come to a complete
stop. Allow the machine
to cool before making any
inspections, adjustments, etc.
7
Cordless Li-Ion Blower/Sweeper
WG568E
WG568E.9
Page 8
Maintain the machine with
care and keep it clean.
f) Store the machine in a dry
place out of the reach of
children.
g) Always allow the machine to
cool before storing.
h) Never attempt to override
the interlocked feature of the
guard.
SAFETY WARNINGS FOR
BATTERY PACK
a) Do not dismantle, open
or shred cells or battery
pack.
b) Do not short-circuit a
battery pack. Do not store
battery packs haphazardly
in a box or drawer where
they may short-circuit
8
each other or be shortcircuited by conductive
materials. When battery pack
is not in use, keep it away
from other metal objects,
like paper clips, coins, keys,
nails, screws or other small
metal objects, that can make a
connection from one terminal
to another. Shorting the
battery terminals together
may cause burns or a fire.
c) Do not expose battery
pack to heat or fire. Avoid
storage in direct sunlight.
d) Do not subject battery
pack to mechanical shock.
e) In the event of battery
leaking, do not allow the
liquid to come into contact
with the skin or eyes. If
contact has been made,
wash the affected area
with copious amounts of
water and seek medical
advice.
f) Seek medical advice
immediately if a cell or
battery pack has been
swallowed.
g) Keep battery pack clean
and dry.
h) Wipe the battery pack
terminals with a clean dry
cloth if they become dirty.
i) Battery pack needs to
be charged before use.
Always refer to this
instruction and use
the correct charging
procedure.
j) Do not maintain battery
pack on charge when not
in use.
k) After extended periods
of storage, it may be
necessary to charge and
discharge the battery pack
several times to obtain
maximum performance.
l) Battery pack gives its best
performance when it is
operated at normal room
temperature (20°C ± 5°C).
m) When disposing of
battery packs, keep
battery packs of different
electrochemical systems
separate from each other.
n) Recharge only with the
charger specified by
WORX. Do not use any
charger other than that
specifically provided for
use with the equipment.
A charger that is suitable for
one type of battery pack may
create a risk of fire when used
Cordless Li-Ion Blower/Sweeper
WG568E
WG568E.9
Page 9
with another battery pack.
o) Do not use any battery
pack which is not
designed for use with the
equipment.
p) Keep battery pack out of
the reach of children.
q) Retain the original product
literature for future
reference.
r) Remove the battery from
the equipment when not in
use.
s) Dispose of properly.

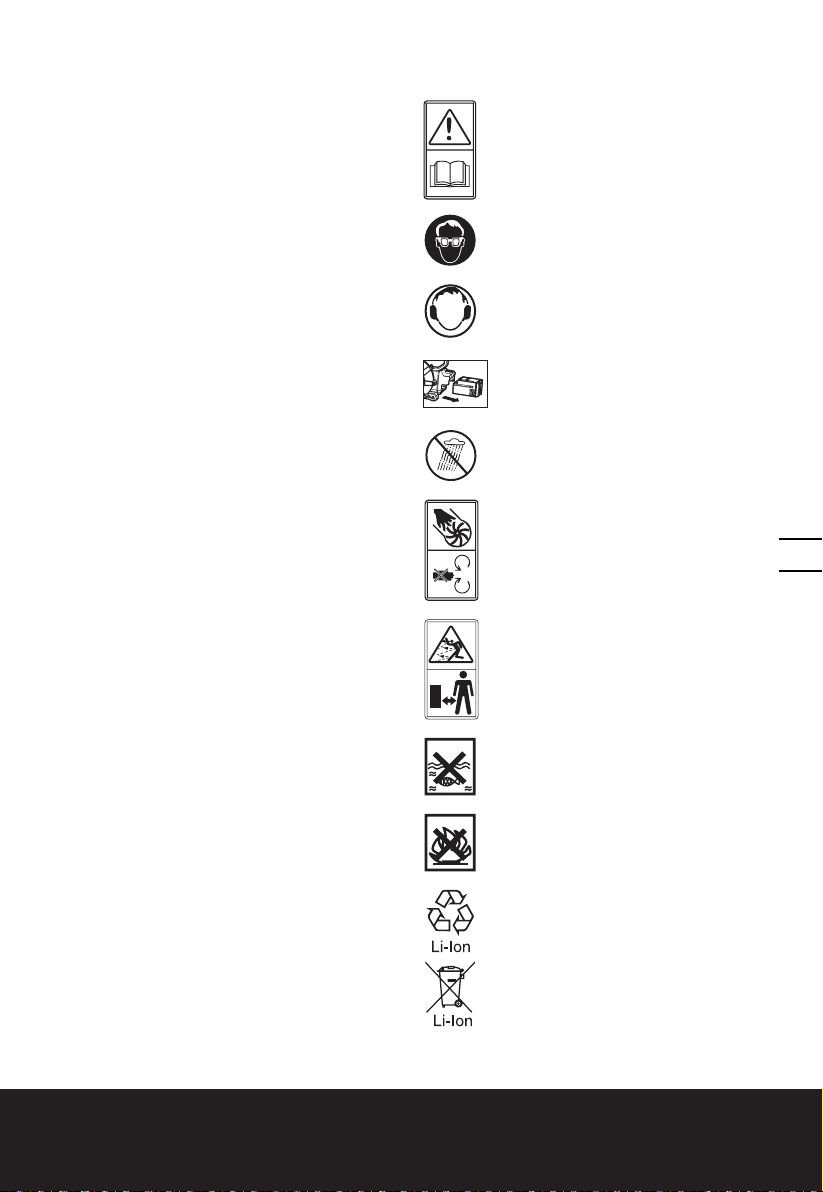

SYMBOLS
Read the operator’s manual
Wear eye protection
Wear ear protection
Make sure the battery is removed
prior to changing accessories.
Do not expose to rain
Warning of hazard
Keep bystanders away
Do not expose to rain or water
Do not burn
Do not dispose of batteries, Return
exhausted batteries to your local
collection or recycling point.
Cordless Li-Ion Blower/Sweeper
9
WG568E
WG568E.9
Page 10
10
Waste electrical products should
not be disposed of with household
waste. Please recycle where
facilities exist. Check with your Local
Authority or retailer for recycling
advice.
xINR18/65-y: Cylindrical lithium
Ion battery cells with max diameter
of 18mm and max height of 65mm;
“x” represents a number cells serial
connected, blank if 1; “-y” represents
a number of cells paralleled
connected, blank if 1.
OPERATION
INTENDED USE:
The blower is intended for blow debris. It’s not
intended for use indoors and animal grooming.
ASSEMBLY AND OPERATION
Action Figure
Assembly
Assembling & disassembling the Blower
Tube
Note:
-Before disassembling the Blower Tube,
be sure the variable speed trigger is on off
position.
-Do not try to separate the tubes by force or
by using tools.
Installing & Removing the Battery Pack
Charging the battery
More details can be found in WA3735’s
manual
WARNING! The charger and battery
pack are specially designed to work
together, so do not attempt to use any
other devices. Never insert or allow metallic
objects into your charger or battery pack
connections because of an electrical failure
and hazard will occur.
BEFORE USING YOUR CORDLESS BLOWER
Your battery pack is UNCHARGED, you must
charge before use.
Battery status LED’S
NOTE: The Status LED’s will indicate the
battery condition when the button on the
battery is pressed.
The LED’s constantly senses and displays
the battery condition as follows:
Press the button “POWERTEST”, the light
button is illuminated.
When the three green lights are illuminated,
the battery is in a highly charged condition.
When two lights ( ) are illuminated,
the battery is in a moderately charged
condition.
When only one green light ( ) is
illuminated, the battery charge is depleted.
IMPORTANT! When only one light is
illuminated, your battery is overly
discharged, even though the blower
may still be capable of blowing debris.
Continuing to operate your blower
with the battery in this discharged
condition may reduce the life and
performance of your battery.
See Fig.
A&B
See Fig.
C&D
See
Fig. E
See
Fig. F
Cordless Li-Ion Blower/Sweeper
WG568E
WG568E.9
Page 11
Operation
Starting & Stopping
Your blower is fitted with a variable speed
control through the trigger. Depress the
Lock OFF switch(2) and the variable speed
trigger(3) to start your blower. To switch off,
just release the variable speed trigger.
WARNING! The tool runs for a few
seconds after it has been switched off.
Let the motor come to a complete standstill
before setting the tool down.
Blowing
USER TIPS
-Hold the blow tube approximately 8” above
the ground when operating the tool.
Use a sweeping motion from side to side.
Advance slowly keeping the accumulated
debris/leaves in front of you.
- After blowing the debris/leaves into a pile,
it is easy to dispose of the pile.
CAUTION!
- Do not blow hard objects such
as nails, bolts, or rocks.
- Do not operate the blower near
bystanders or pets.
- Use extra care when cleaning debris
from stairs or other tight areas.
-Wear safety goggles or other suitable
eye protection, long pants, and shoes.
See Fig.
G
See
Fig. H
CLEANING THE TOOL
CLEAN THE TOOL REGULARLY.
WARNING! Keep your product dry. Under
no circumstances spray with water.
- To clean the tool, use only mild soap and a
damp cloth.
- Do not use any type of detergent, cleaner
or solvent which may contain chemicals
that could seriously damage the plastic.
- Self lubricating bearings are used in
your product, therefore lubrication is not
required.
DECLARATION OF
CONFORMITY
We,
Positec Power Tools (Europe) LtdPO Box 6242,
Newbury, RG14 9LT, UK
Declare that the product,
Description WORX Cordless Li-ion Blower/
Sweeper
Type WG568E WG568E.9 (5-designation
of machinery, representative of Cordless
Blower)
Function Blowing
Complies with the following Directives,
2006/42/EC, 2014/30/EU, 2011/65/EU,
2000/14/EC amended by 2005/88/EC
2000/14/EC amended by 2005/88/EC:
- Conformity Assessment Procedure as per
Annex V
- Measured Sound Power Level 89.6dB(A)
- Declared Guaranteed Sound Power Level
93dB(A)
Standards conform to:
EN 60335-1, EN 50636-2-100,
EN 62233, EN ISO 3744,
EN 55014-1, EN 55014-2
The person authorized to compile the
technical file,
Name: Russell Nicholson
Address: Positec Power Tools (Europe)
Ltd, PO Box 6242, Newbury, RG14 9LT,
UK
11
ENVIRONMENTAL
PROTECTION
Waste electrical products should not
be disposed of with household waste.
Please recycle where facilities exist.
Check with your Local Authority or retailer for
recycling advice.
Suzhou 2016/07/04
Allen Ding
Deputy Chief Engineer, Testing &
Certification
Cordless Li-Ion Blower/Sweeper
WG568E
WG568E.9
Page 12
LITHIUM ION BATTERY
Handle With Care. Do Not Load or
Transport Package If Damaged.
A Fire Hazard Could Exist.
For more information, call: +86-512-65152811
Copyright © 2016, Positec. All Rights Reserved.
AR01250900
www.worx.com
Loading...
