SAFETY AND OPERATING MANUAL
ORIGINAL INSTRUCTIONS
Cordless Li-Ion Blower/Sweeper
WG549E WG549E.3 WG549E.5 WG549E.9
ORIGINAL INSTRUCTION
PRODUCT SAFETY
WARNING: Read all safety
warnings and all
instructions. Failure to follow
the warnings and instructions
may result in electric shock, fire
and/or serious injury.
Save all warnings and
instructions for future
reference.
The appliance is only to be used
with the power supply unit
provided with the appliance.
IMPORTANT
READ CAREFULLY BEFORE
USE
KEEP FOR FUTURE
2
REFERENCE
Safe operating practices
1) Training
a) Read the instructions carefully.
Be familiar with the controls
and the correct use of the
machine.
b) Never allow children, persons
with reduced physical, sensory
or mental capabilities or lack
of experience and knowledge
or people unfamiliar with
these instructions to use the
machine, local regulations may
restrict the age of the operator.
c) Never operate the machine
while people, especially
children, or pets are nearby.
d) Keep in mind, that the operator
or user is responsible for
accidents or hazards occurring
to other people or their
property.
2) Preparation
a) While operating the machine,
always wear substantial
footwear and long trousers.
Do not operate the machine
when barefoot or wearing
open sandals. Avoid wearing
clothing that is loose fitting or
that has hanging cords or ties.
b) Do not wear loose clothing or
jewellery that can be drawn
into the air inlet. Keep long
hair away from the air inlets.
c) Obtain ear protection and
safety glasses. Wear them at
all times while operating the
machine.
d) Operate the machine in a
recommended position and
only on a firm, level surface.
e) Do not operate the machine
on a paved or gravel surface
where ejected material could
cause injury.
f) Before using, always visually
inspect to see, that the
fasteners are secure, the
housing is undamaged and
that guards and screens are
in place. Replace worn or
damaged components in sets
to preserve balance. Replace
damaged or unreadable labels.
3) Operation
a) Before starting the machine,
make certain that the feeding
chamber is empty.
Cordless Li-Ion Blower/Sweeper
WG549E WG549E.3 WG549E.5 WG549E.9
b) Keep your face and body away
from the feed intake opening.
c) Do not allow hands or any
other part of the body or
clothing inside the feeding
chamber, discharge chute, or
near any moving part.
d) Keep proper balance and
footing at all times. Do not
overreach. Never stand at a
higher level than the base of
the machine when feeding
material into it.
e) Always stand clear of
the discharge zone when
operating this machine.
f) If the machine should start
making any unusual noise or
vibration, immediately shut
off the power source and
allow the machine to stop.
Remove the battery pack
from the machine and take
the following steps before
restarting and operating the
machine:
i) inspect for damage;
ii) replace or repair any
damaged parts;
iii) check for and tighten any
loose parts.
g) Do not allow processed
material to build up in the
discharge zone; this may
prevent proper discharge
and can result in kickback of
material through the intake
opening.
h) If the machine becomes
clogged, shut-off the power
source and remove the battery
pack from the machine before
cleaning debris.
i) Never operate the machine
with defective guards or
shields, or without safety
devices.
j) Keep the power source
clean of debris and other
accumulations to prevent
damage to the power source
or possible fire.
k) Do not transport this machine
while the power source is
running.
l) Always disconnect the
machine from the power
supply (e.g. remove the battery
pack from the machine)
- Whenever you leave the
machine,
- Before clearing blockages or
unclogging chute,
- Before checking, cleaning or
working on the machine.
m) Avoid using the machine
in bad weather conditions
especially when there is a risk
of lightning.
4) Maintenance and storage
a) keep all nuts, bolts and screws
tight to be sure the appliance
is in safe working condition.
b) Replace worn or damaged
parts.
c) Use only genuine replacement
parts and accessories.
d) Store the machine in a dry
place out of the reach of
children.
e) When the machine is stopped
for servicing, inspection,
or storage, or to change
3
Cordless Li-Ion Blower/Sweeper
WG549E WG549E.3 WG549E.5 WG549E.9
an accessory, shut off the
power source, disconnect the
machine from the supply and
make sure that all moving
parts are come to a complete
stop. Allow the machine
to cool before making any
inspections, adjustments, etc.
Maintain the machine with
care and keep it clean.
f) Store the machine in a dry
place out of the reach of
children.
g) Always allow the machine to
cool before storing.
h) Never attempt to override
the interlocked feature of the
guard.
SAFETY WARNINGS FOR
4
BATTERY PACK
a) Do not dismantle, open or
shred cells or battery pack.
b) Do not short-circuit a
battery pack. Do not store
battery packs haphazardly
in a box or drawer where
they may short-circuit each
other or be short-circuited
by conductive materials.
When battery pack is not in
use, keep it away from other
metal objects, like paper clips,
coins, keys, nails, screws or
other small metal objects,
that can make a connection
from one terminal to another.
Shorting the battery terminals
together may cause burns or a
fire.
c) Do not expose battery
pack to heat or fire. Avoid
storage in direct sunlight.
d) Do not subject battery
pack to mechanical shock.
e) In the event of battery
leaking, do not allow the
liquid to come into contact
with the skin or eyes. If
contact has been made,
wash the affected area
with copious amounts of
water and seek medical
advice.
f) Seek medical advice
immediately if a cell or
battery pack has been
swallowed.
g) Keep battery pack clean
and dry.
h) Wipe the battery pack
terminals with a clean dry
cloth if they become dirty.
i) Battery pack needs to be
charged before use. Always
refer to this instruction and
use the correct charging
procedure.
j) Do not maintain battery
pack on charge when not
in use.
k) After extended periods
of storage, it may be
necessary to charge and
discharge the battery pack
several times to obtain
maximum performance.
l) Battery pack gives its best
performance when it is
operated at normal room
temperature (20°C ± 5°C).
m)When disposing of battery
Cordless Li-Ion Blower/Sweeper
WG549E WG549E.3 WG549E.5 WG549E.9
packs, keep battery packs
of different electrochemical
systems separate from each
other.
n) Recharge only with the
charger specified by
WORX. Do not use any
charger other than that
specifically provided for
use with the equipment.
A charger that is suitable for
one type of battery pack may
create a risk of fire when used
with another battery pack.
o) Do not use any battery
pack which is not designed
for use with the equipment.
p) Keep battery pack out of
the reach of children.
q) Retain the original product
literature for future
reference.
r) Remove the battery from
the equipment when not in
use.
s) Dispose of properly.

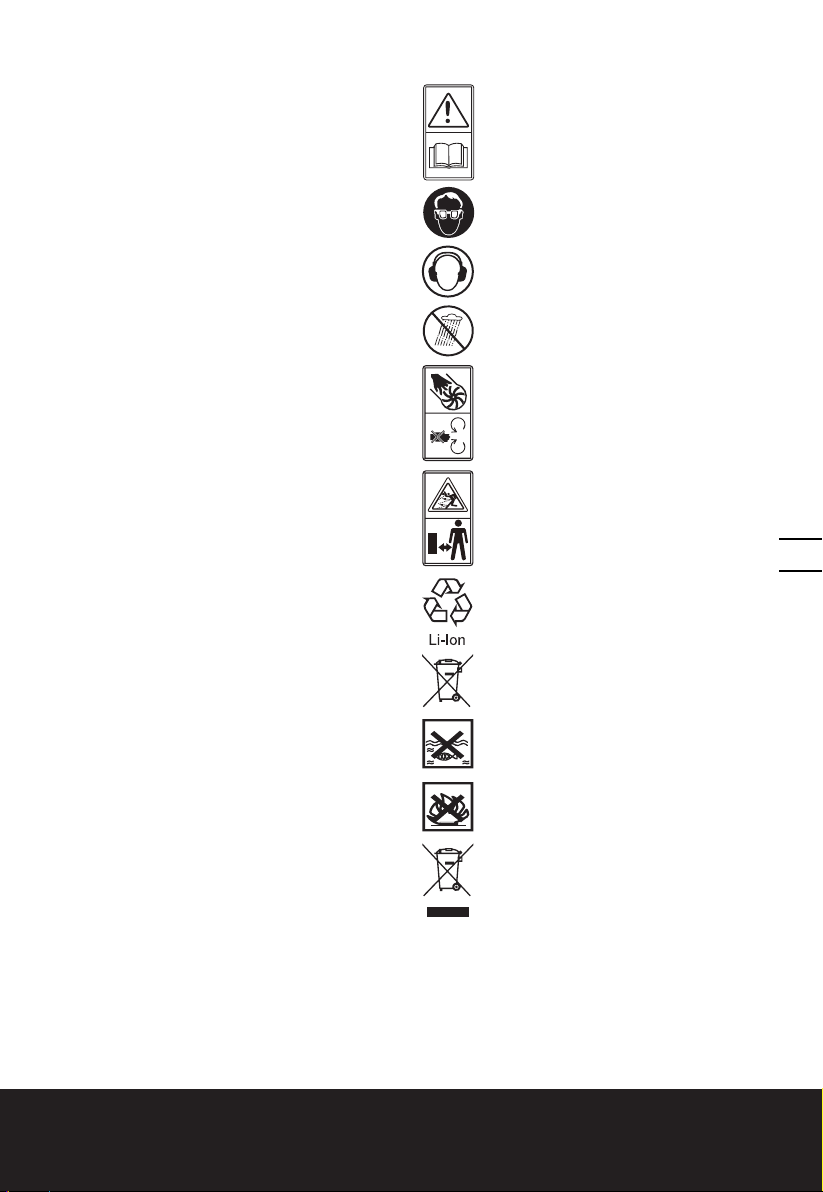

SYMBOLS
Read the operator’s manual
Wear eye protection
Wear ear protection
Do not expose to rain
Warning of hazard
Keep bystanders away
5
Do not dispose of batteries, Return
exhausted batteries to your local
collection or recycling point.
Do not expose to rain or water
Do not burn
Waste electrical products must not be
disposed of with household waste.
Please recycle where facilities exist.
Check with your local authorities or
retailer for recycling advice.
xINR18/65-y: Cylindrical lithium
Ion battery cells with max diameter
of 18mm and max height of
65mm; “x” represents a number
cells serial connected, blank if 1;
“-y” represents a number of cells
paralleled connected, blank if 1.
Cordless Li-Ion Blower/Sweeper
WG549E WG549E.3 WG549E.5 WG549E.9
1
2
3
4
6
1. HANDLE
2. ON/OFF SWITCH
3. TUBE RELEASE BUTTON
4. BLOWER TUBE
5. BATTERY PACK
6. BATTERY PACK RELEASE BUTTON (See Fig.C)
Not all the accessories illustrated or described are included in standard delivery.
5
Cordless Li-Ion Blower/Sweeper
WG549E WG549E.3 WG549E.5 WG549E.9
1. HANDLE
2. ON/OFF SWITCH
3. TUBE RELEASE BUTTON
4. BLOWER TUBE
5. BATTERY PACK
6. BATTERY PACK RELEASE BUTTON (See Fig. C)
Not all the accessories illustrated or described are included in standard delivery.
TECHNICAL DATA
Type WG549E WG549E.3 WG549E.5 WG549E.9 (520-559-designation of machinery,
representative of Cordless Blower)
WG549E WG549E.3 WG549E.5 WG549E.9
Voltage 20V
No load speed 12500/min
Blow speed 200km/h
Charging time 5hr approx. 2hr approx. 1hr approx. /
Machine weight 1.6kg 1.9kg 1.6kg 1.2kg
*Voltage measured without workload. Initial battery voltage reaches Maximum of 20volts.
Nominal voltage is 18volts.
Max* Lithium
7
NOISE DATA
A weighted sound pressure LpA:74dB(A)
A weighted sound power L
K
& KwA 3.0dB(A)
pA
Wear ear protection
:85dB(A)
wA
VIBRATION INFORMATION
Typical weighted vibration ah = 1.96m/s2 Uncertainty K = 1.5 m/s²
The declared vibration total value may be used for comparing one tool with another, and may
also be used in a preliminary assessment of exposure.
WARNING: The vibration emission value during actual use of the power tool can differ
from the declared value depending on the ways in which the tool is used dependant on the
following examples and other variations on how the tool is used:
Cordless Li-Ion Blower/Sweeper
WG549E WG549E.3 WG549E.5 WG549E.9
How the tool is used and the materials is cut or drilled.
The tool being in good condition and well maintained.
The use the correct accessory for the tool and ensuring it is sharp and in good condition.
The tightness of the grip on the handles and any anti vibration accessories are used.
And the tool is being used as intended by its design and these instructions.
This tool may cause hand-arm vibration syndrome if its use is not adequately managed.
WARNING: To be accurate, an estimation of exposure level in the actual conditions of use
should also take account of all parts of the operating cycle such as the times when the tool
is switched off and when it is running idle but not actually doing the job. This may significantly
reduce the exposure level over the total working period.
Help to minimize your vibration exposure risk.
ALWAYS use sharp chisels, drills and blades.
Maintain this tool in accordance with these instructions and keep well lubricated (where appropriate).
If the tool is to be used regularly then invest in anti vibration accessories.
Avoid using tools in temperatures of 10oC or less.
Plan your work schedule to spread any high vibration tool use across a number of days.
ACCESSORIES
WG549E WG549E.3 WG549E.5 WG549E.9
Battery pack 1(WA3551.1) 1(WA3553) 1(WA3551.1) /
8
Charger 1(WA3760) 1(WA3860) 1(WA3860) /
We recommend that you purchase your accessories from the same store that sold you the tool.
Choose the type according to the work you intend to undertake. Refer to the accessory packaging
for further details. Store personnel can assist you and offer advice.
Cordless Li-Ion Blower/Sweeper
WG549E WG549E.3 WG549E.5 WG549E.9
ASSEMBLY
ASSEMBLING THE BLOWER TUBE
(See Fig. A & Fig. B)
Before assembling the Blower Tube (4), be sure the on/
off switch (2) is in ‘’O’’ Off position.
Fit the Blower Tube to the motor housing as shown
in Fig. A. Fix the blower tube to the blower port with
the screw provided. Check the Blower Tube is firmly
secured.
WARNING! Do not attempt to operate or
disable the On/Off Switch by any means
other than the normal assembly or removal of
the tube.
NOTE: Before disassembling the Blower Tube, be sure
the on/off switch (2) is in ‘’O’’ Off position. Loosen the
screw. Press the Release Button (3), so that you can
separate the tube (See Fig. B). Do not try to separate
the tubes by force or by using tools.
OPERATION
INTENDED USE:
The blower is intended for blow debris. It’s not
intended for use indoors and animal grooming.
WARNING! The charger and battery pack
are specially designed to work together so
do not attempt to use any other devices. Never
insert or allow metallic objects into your charger
or battery pack connections because of an
electrical failure and hazard will occur.
9
A
1. BEFORE USING YOUR CORDLESS BLOWER
Your battery pack is UNCHARGED and you must charge
once before use.
The battery charger supplied is matched to the Li-Ion
battery installed in the machine. Do not use another
battery charger.
2. CHARGING YOUR BATTERY PACK
The Li-Ion battery is protected against deep
discharging. When the battery is empty, the machine is
switched off by means of a protective circuit:
In a warm environment or after heavy use, the battery
pack may become too hot to permit charging. Allow
time for the battery to cool down before recharging.
B
Cordless Li-Ion Blower/Sweeper
WG549E WG549E.3 WG549E.5 WG549E.9
3. TO REMOVE OR INSTALL BATTERY PACK (See
A
B
Fig. C)
Depress the battery release button (6) to release battery
pack from your tool. After recharging, insert the battery
6
C
D
10
E
pack into tool’s battery port. A simple push and slight
pressure will be sufficient.
4. STARTING/STOPPING (See Fig. D)
Starting
Move the On/Off switch (2) to the “I” On position.
Stopping
Move the On/Off switch (2) to the “O” Off position.
WARNING! The tool runs for a few seconds after
it has been switched off. Let the motor come to a
complete standstill before setting the tool down.
5. USING THE BLOWER (See Fig. E)
The blower is intended for residential use only. Use the
blower outdoors to move debris from hard surfaces.
This blower is not designed to clear leaves from large
grassy areas, or move wet, heavy debris.
USER TIPS
- Hold the blow tube approx 180mm above the
ground when operating the tool.
Use a sweeping motion from side to side. Advance
slowly keeping the accumulated debris/leaves in
front of you.
- After blowing the debris/leaves into a pile, it is easy
to dispose of the pile.
CAUTION!
- Do not blow hard objects such as nails, bolts,
or rocks.
- Do not operate the blower near bystanders or
pets.
- Use extra care when cleaning debris from
stairs or other tight areas.
- Wear safety goggles or other suitable eye
protection, long pants, and shoes.
Cordless Li-Ion Blower/Sweeper
WG549E WG549E.3 WG549E.5 WG549E.9
CLEANING THE TOOL
Clean the tool regularly.
WARNING: Keep your product dry.
Under no circumstances spray with
water.
- To clean the tool, use only mild soap and a
damp cloth.
WARNING: Do not use any type of
detergent, cleaner or solvent which
may contain chemicals that could seriously
damage the plastic.
- Self lubricating bearings are used in
your product, therefore lubrication is not
required.
DECLARATION OF
CONFORMITY
We,
Positec Power Tools (Europe)Ltd, PO Box 6242,
Newbury, RG14 9LT, UK
Declare that the product,
Description
WORX Cordless Li-Ion Blower/Sweeper
Type WG549E WG549E.3 WG549E.5
WG549E.9 (520-559-designation of
machinery, representative of cordless
blower)
Function Blowing debris
Complies with the following Directives,
2006/42/EC, 2014/30/EU, 2011/65/EU,
2000/14/EC amended by 2005/88/EC
2000/14/EC amended by 2005/88/EC
- Conformity Assessment Procedure as per
Annex V
- Measured Sound Power Level 85dB(A)
- Declared Guaranteed Sound Power Level
88dB(A)
Standards conform to,
EN 60335-1 EN 50636-2-100
EN 62233 EN ISO 3744
EN 55014-1 EN 55014-2
11
The person authorized to compile the technical
file,
Name Russell Nicholson
Address Positec Power Tools (Europe)
Ltd, PO Box 6242, Newbury, RG14 9LT,
UK
Suzhou 2016/07/20
Allen Ding
Deputy Chief Engineer,Testing & Certification
Cordless Li-Ion Blower/Sweeper
WG549E WG549E.3 WG549E.5 WG549E.9
LITHIUM ION BATTERY
Handle with care .
Do not load or transport package if Damaged.
A fire hazard could exist.
For more information ,call:+86-512-65152811
www.worx.com
Copyright © 2016, Positec. All Rights Reserved.
AR01255600
Loading...
