2-in-1 Cordless Lawn trimmer/Lawn edge trimmer EN
Taille-bordure/Mini-tondeuse sans fil 2 en 1 F
Recortadora de césped inalámbrica 2 en 1/Bordeadora para césped
ES
Pag 06
Pag 13
Pag 21
WG166
HELPLINE NUMBER
1-866-354-WORX (9679)
HELPLINE NUMBER
10
11
12
1
9
8
7
6
2
3
4
5
14
15
16
17
18
A
B
13

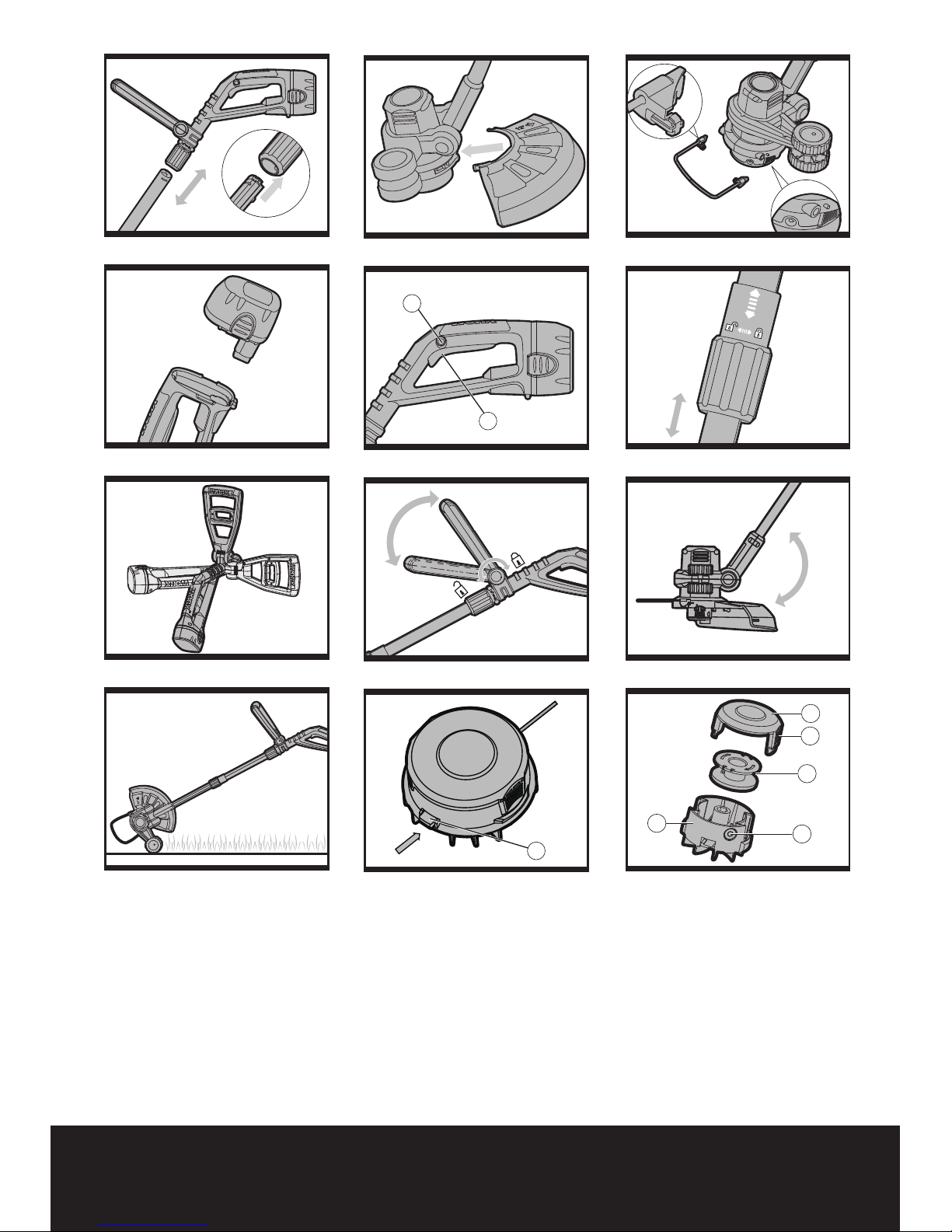

A B C
D E F
G H I
J K L
2-in-1 Cordless Lawn trimmer / Lawn edge trimmer EN
76
1. BATTERY PACK
2. BATTERY PACK RELEASE LATCH
3. UPPER LOCKING KNOB
4. LOWER LOCKING KNOB
5. SAFETY GUARD
6. SPACER GUARD
7. TELESCOPIC SHAFT
8. AUXILIARY HANDLE
9. MAIN HANDLE
10. EDGER WHEEL
11. LINE CUTTER
12. AUXILIARY HANDLE LOCKING LEVER
13. LINE FEED BUTTON (See Fig K)
14. CUTTING HEAD COVER (See Fig L)
15. CAP RELEASE LATCH (See Fig L)
16. SPOOL (See Fig L)
17. CUTTING HEAD (See Fig L)
18. EYELET (See Fig L)
* Not all the accessories illustrated or described are included in standard delivery.
76
2-in-1 Cordless Lawn trimmer / Lawn edge trimmer EN
76
TECHNICAL DATA
Rated voltage 24V
Rated no load speed 8200/min
Cutting diameter 12”(300mm)
Line diameter 0.065”(1.65mm)
Machine weight 7.3lbs(3.3kg)
ACCESSORIES
Battery pack (WA3182) 2
Auxiliary handle 1
Edger wheel 2
Charger (WA3714) 1
We recommend that you purchase your accessories from the same store that sold you the tool.
Use good quality accessories marked with a well-known brand name. Choose the type according
to the work you intend to undertake. Refer to the accessory packaging for further details. Store
personnel can assist you and offer advice.
2-in-1 Cordless Lawn trimmer / Lawn edge trimmer EN
98
IMPORTANT SAFETY
INSTRUCTIONS
WARNING! When using electric
gardening appliances, basic safety
precautions should always be followed to
reduce the risk of fire, electric shock, and
personal injury, including the following:
WARNING: Read all instructions
a) FOR ALL DOUBLE-INSULATED
APPLIANCES
1) Replacement Parts
When servicing use only identical
replacement parts.
2) Polarized Appliance Connections
To reduce the risk of electric shock, this
appliance has a polarized plug (one blade
is wider than the other} and will require
the use of a polarized extension cord.
The appliance plug will fit into a polarized
extension cord only one way. If the plug
does not fit fully into the extension cord,
reverse the plug. If the plug still does not
fit, obtain a correct polarized extension
cord. A polarized extension cord will
require the use of a polarized wall outlet.
This plug will fit into the polarized wall
outlet only one way. If the plug does not fit
fully into the wall outlet, reverse the plug. If
the plug still does not fit, contact a qualified
electrician to install the proper wall outlet.
Do not change the equipment plug,
extension cord receptacle, or extension
cord plug in any way.
b) FOR ALL APPLIANCES
1) Avoid Dangerous Environment - Don’t use
appliances in damp or wet locations.
2) Don’t Use In Rain.
3) Keep Children Away - All visitors should be
kept at a distance from work area.
4) Dress Properly - Do not wear loose clothing
or jewelry. They can be caught in moving
parts. Use of rubber gloves and substantial
footwear is recommended when working
outdoors. Wear protective hair covering to
contain long hair.
5) Use Safety Glasses - Always use face or
dust mask if operation is dusty.
6) Use Right Appliance - Do not use appliance
for any job except that for which it is
intended.
7) Avoid Unintentional Starting - Don’t carry
plugged-in appliance with finger on switch.
Be sure switch is off when plugging in.
8) Don’t grasp the exposed cutting blades or
cutting edges when picking up or holding
the appliance. (For grass shears and
similar appliances only.)
9) Don’t Force Appliance - It will do the job
better and with less likelihood of a risk of
injury at the rate for which it was designed.
10) Don’t Overreach - Keep proper footing and
balance at all times.
11) Stay Alert - Watch what you are doing.
Use common sense. Do not operate
appliance when you are tired.
12) Store Idle Appliances Indoors - When not in
use, appliances should be stored indoors
in dry, and high or locked-up place - out of
reach of children.
13) Maintain Appliance With Care - Keep
cutting edge sharp and clean for best
performance and to reduce the risk of
injury. Follow instructions for lubricating
and changing accessories. Inspect
appliance cord periodically, and if
damaged, have it repaired by an authorized
service facility. Inspect extension cords
periodically and replace if damaged. Keep
handles dry, clean, and free from oil and
grease.
14) Check Damaged Parts - Before further use
of the appliance, a guard or other part that
is damaged should be carefully checked
to determine that it will operate properly
and perform its intended function. Check
for alignment of moving parts, binding of
moving parts, breakage of parts, mounting,
and any other condition that may affect
its operation. A guard or other part that is
damaged should be properly repaired or
replaced by an authorized service center
unless indicated elsewhere in this manual.
98
2-in-1 Cordless Lawn trimmer / Lawn edge trimmer EN
98
INSTRUCTION MANUAL
FOR BATTERY – OPERATED
GARDENING APPLIANCES
Instruction Manual
1. The instruction manual for all batteryoperated gardening appliances shall
contain the following or equivalent
instructions:
a) Do not charge appliance in rain, or in wet
locations.
b) Do not use battery-operated appliance in
rain.
c) When replacing batteries, all batteries
should be replaced at the same time.
Mixing fresh and discharged batteries
could increase internal cell pressure and
rupture the discharge battery(ies). (Applies
to products employing more than one
separately replaceable primary battery.)
d) When inserting batteries into this product,
the proper polarity or direction must be
observed. Reverse insertion of batteries
can result in leakage or explosion. (Applies
to product employing more than one
separately replaceable primary battery.)
e) Remove or disconnect battery before
servicing, cleaning or removing material
from the gardening appliance.
2. The instruction manual for all batteryoperated products employing a detachable
or separable battery shall contain the
following or equivalent instructions:
a) Use only the following type and size
battery(ies): Worx 24V Ni-Cd battery
(WA3182)
b) Do not dispose of the battery(ies) in a
fire. The cell may explode. Check with
local codes for possible special disposal
instructions.
c) Do not open or mutilate the battery(ies).
Released electrolyte is corrosive and may
cause damage to the eyes or skin. It may
be toxic if swallowed.
d) Exercise care in handling batteries in order
not to short the battery with conducting
materials such as rings, bracelets, and
keys. The battery or conductor may
overheat and cause burns.
3. The instruction manual for a batteryoperated gardening appliance employing
a vented wet cell battery supply intended
to be initially or periodically filled by the
user shall include the term “CAUTION”
followed by the following or equivalent:
“The electrolyte is a dilute sulfuric acid
that is harmful to the skin and eyes. It is
electrically conductive and corrosive. The
following procedures should be observed:
a) Wear full eye protection and protective
clothing.
b) If electrolyte contacts the skin, wash it off
immediately with water.
c) If electrolyte contacts the eyes, flush
thoroughly and immediately with water.
Seek medical attention.”
SAVE THESE INSTRUCTIONS
2-in-1 Cordless Lawn trimmer / Lawn edge trimmer EN
1110
SYMBOLS ASSEMBLY INSTRUCTIONS
1. ASSEMBLY OF THE MAIN HANDLE
AND SHAFT (See Fig A)
Loosen the upper locking knob (3) clockwise.
Insert the telescopic shaft into the main
handle, until a click sound is heard (See Fig A).
Tighten the upper locking knob counterclockwise.
2. ASSEMBLY OF THE SAFETY GUARD
Fix the safety guard to the trimmer head
making sure the sides are located into the
grooves on the trimmer head (See B).
Secure the safety guard onto the trimmer
head with the screw provided (on the inside of
the guard).
3. ASSEMBLY OF THE SPACER GUARD
If the space guard is not mounted to your
trimmer model already, locate and snap fit the
pivot bracket of spacer guard into the hole of
trimmer head (See C).
When not required, rotate the spacer guard
to the underside opposite side of the safety
guard and clip into the two locations.
OPERATION INSTRUCTIONS
NOTE: Before using the tool, read
the instruction book carefully.
1. CHARGING YOUR BATTERY PACK
WARNING: The charger and battery
pack are specifically designed to work
together so do not attempt to use any other
devices. Never insert or allow metallic objects
into your charger or battery pack connections
because an electrical failure and hazard will
occur.
2. BEFORE USING YOUR CORDLESS
GRASS TRIMMER
When you charge the new battery or one which
has not been used for long periods of time, it
may not reach full charge until after you have
discharged it fully in use and recharge it several
times.
Warning
Read the manual
Do not expose to rain or water
Do not burn
Do not dispose of batteries. Return
exhausted batteries to your local
collection or recycling point.
Wear eye protection
Wear ear protection
To avoid possibility of electric
shock, do not use in damp or wet
conditions
Keep all other people, including
children, pets and bystanders
outside the 15 meters hazard zone,
stop the trimmer immediately if
you are approached.
