Worx WG112 Owner’s Manual

@__

A B C

D

G

@

J

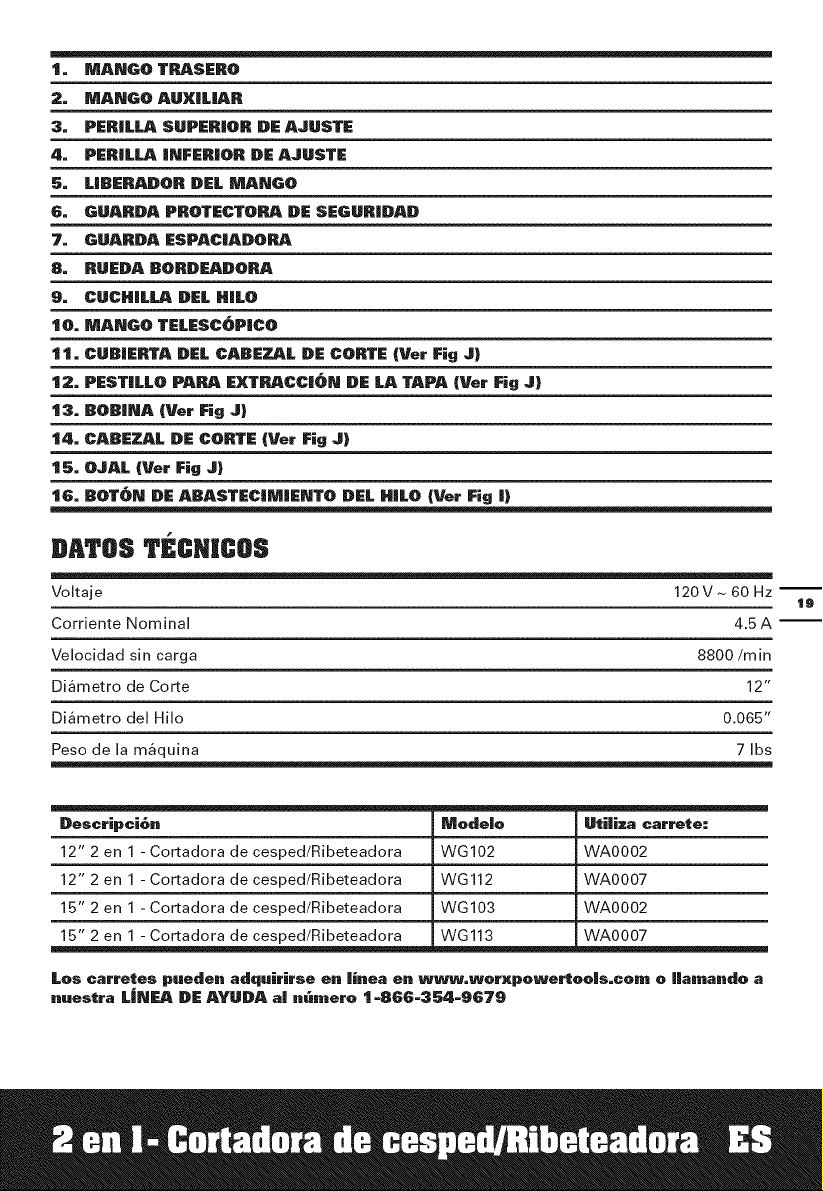

TECHNICAL DA'FA

Rated volts 120V- 60 Hz
Rated current 4.5A

Rated no load speed 8800/min

Cutting diameter 12"

Line diameter 0.065"
Machine weight 7 Ibs

Description
12" 2 in 1 Grass trimmer/Edger
12" 2 in 1 Grass trimmer/Edger
15" 2 in 1 Grass trimmer/Edger
15" 2 in 1 Grass trimmer/Edger

Spools can be purchased on4ine at www.werxpewe_eels.com or call our HELPUNE
at 1_SGG_354_GG79.

Model

WG102
WGl12

WG103
WGl13

Uses Spool:

WA0002
WA0007

WA0002
WA0007

SAFETY INSTRUCTIONS

intended.

g) Ground Fault Circuit interrupter (GFCI)

_ ARNING!When using electric

gardening appliances, basic safety
precautions must always be followed to
reduce the risk of fire, electric shock, and

serious injury, including the following:

READ ALL INSTRUCTIONS

1.

FOR ALL DOUBLE-
INSUUtTEDAPPUANCES

a)

Replacement parts.When servicing use

only identical replacement parts.

b)

Polarized appliance connections.To reduce

the risk of electric shock, this appliance

has a polarized plug (one blade is wider
than the other} and will require the use of
a polarized extension cord.The appliance

plug will fit into a polarized extension
cord only one way. Ifthe plug does not fit
fully into the extension cord, reverse the

plug. If the plug still does not fit, obtain
a correct polarized extension cord. A

polarized extension cord will require the

use of a polarized wall outlet.This plug
will fit into the polarized wall outlet only
one way. If the plug does not fit fully into
the wall outlet, reverse the plug. if the

plug still does not fit, contact a qualified
electrician to install the proper wall outlet.

Do not change the equipment plug,

protection should be provided on the
circuit(s) or outlet(s) to be used for the

gardening appliance. Receptacles are
available having built-in GFCI protection

and may be used for an added measure of
safety.

h) /_k WARNING!To reduce the risk of

extension cord intended for outdoor use,
such as an extension cord of cord type

SW-A, SOW-A, STW-A, STOW-A, SJW-A,
SJOW-A, SJTW-A. or SJTOW-A.

i) Extension cord! Make sure your extension

cord is in good condition.When using an
extension cord, be sure to use one heavy

enough to carry the current your product
will draw. An undersized extension cord

will cause a drop in line voltage resulting
in loss of power and overheating.Table 1

shows the correct size to use depending
on cord length and nameplate ampere

rating, if in doubt, use the next heavier
gage.The smaller the gage number, the
heavier the cord.To reduce the risk of

disconnection of appliance cord from the
extension cord during operating:

i) Make a knot as shown in Figure 2
ii) Use one ofthe plug-receptacle retaining

straps or connectors described in this
manual.

extension cord receptacle, or extension
cord plug in any way.

Table | Minimum

cerds

2. FOR ALL APPLIANCES

a) Avoid dangerous environment. Don't use

Volts

appliances in damp or wet locations. 120v

b) Don't use in rain. 240v

c) Keep children away. All visitors should be

kept at a distance from work area. thanNot morethan

Ampere Rating More

d) Dress properly. Do not wear loose 0-6

clothing or jewelry.They can be caught

in moving parts. Use of protective gloves

0-7

and substantial footwear is recommended 0-8
when working outdoors. Wear protective 0-g

hair covering to contain long hair.

e) Use safety glasses. Always use face or

dust mask if operation is dusty.

NOTE-Only the applicable parts of theTable need to
be included, For instance, a 120-volt product need not
include the240-volt heading,

f) Use right appliance. Do not use appliance

for any job except that for which it is

electric shock, use only with an

gauge for exte.sio.

Total length of cord in feet

150

300

AWG

18 16 16 12

18 16 14 12
16 16 16 12

14 12 Notrecommended

Figu_ 2 Method of securing e:_e.sio.
cord

CORD APPLIANCE CORD

// \',

(A) tie cord as sho_

(B)

co.nect p|ug and receptac|e

J)

Avoid unintentional starting. Don't
carry plugged-in appliance with finger

on switch. Be sure switch is offwhen

plugging in.

k) Don't abuse cord. Never carry appliance

by cord or yank it to disconnect from

receptacle. Keep cord from heat, oil, and
sharp edges.

I) Don't grasp the exposed cutting blades or

cutting edges when picking up or holding
the appliance.

m) Don't force appliance. It will do the job

better and with less risk of injury at the

rate for which it was designed.

n) Don't overreach. Keep proper footing and

balance at all times.

o) Stay alert. Watch what you are doing. Use

common sense. Do not operate appliance
when you are tired.

p) Disconnect appliance. Disconnect the

appliance from the power supply when

not in use, before servicing, when
changing accessories such as blades, and

the like.

q) Store idle appliances indoors.When not in

use, appliances should be stored indoors

in dry, and high or locked-up place, out of

reach of children.

r) Maintain appliance with care. Keep

cutting edge sharp and clean for

best performance and to reduce the
risk of injury. Follow instructions for

lubricating and changing accessories.
Inspect appliance cord periodically,

and if damaged, have it repaired by
an authorized service facility. Inspect

extension cords periodically and replace
if damaged. Keep handles dry, clean, and

free from oil and grease.

s)

Check damaged parts. Before further use
of the appliance, a guard or other part that

is damaged should be carefully checked
to determine that it will operate properly

and perform its intended function. Check
for alignment of moving parts, binding

of moving parts, breakage of parts,
mounting, and any other condition that

may affect its operation. A guard or other
part that is damaged should be properly

repaired or replaced by an authorized
service center unless indicated elsewhere

in this manual.

3. EDGIPR_TR|MMERS

a) Keep guards in place and in working

order.

b) Keep blades sharp.
c) Keep hands and feet away from cutting

area.

4, CULT|VAT@IRIS, G_$S SHEARS
a) Keep hands away from blades.

Save these instructions.

SYMBOLS

©

Ax

Read the manual

Warning

OPERATING INSTRUCTIONS

CONNECTING THE MAiN HANDLE

ANDSNAFIr (See A).
Turn the upper adjustment knob (3) clockwise
to loosen it. Insert telescopic shaft into the
main handle until it clicks into place (See
A).Retighten by turning anti-clockwise.

G

@

®

Wear eye protection

Wear ear protection

To avoid possibility of electric

shock, do not use in damp orwet
conditions.

Switch of!! Remove plug from
power supply before adjusting,
cleaning or if cable is entangled

or damaged

Keep all other people, including
children, pets and bystanders

outside the 50 feet hazard zone,
stop the trimmer immediately if

you are approached.

CONNECT|NO THE SAFETY GUARD
_ ARN|NO: NEVER USs: THE

TRIMMER WITHOUT F|TT|NG THE

GUARD.
Slide the safety guard onto the trimmer head

by using the trimmer head grooves (See B),
Secure the safety guard by using the screw
provided, located inside of the guard.

CONNECT|NO THE SPACI:R GUARD
Snap the Spacer Guard into the trimmer head

(See C), when not required, rotate the spacer
guard underneath the safety guard and clip
into place.

AD3UST|NG THE H|:|GNT (See E))
Unscrew the lower adjustment knob (4) extend
the telescopic shaft, then retighten.

ROTAT|NG THI: MA|N HANDLE (See Ip)
Unscrew the upper adjustment knob (3), rotate
the main handle 90 degrees clockwise, then
retighten.

AD3UST|NG THE AUXiL|ARY HANDLE
(See F)

Rotate the handle release lever (5)
anticlockwise, then adjust the auxiliary handle
(2) to desired position, and then tight the lever

clockwise

ADJUST|NO THE TR|MMER HF_D ANGLE
Grip the trimmer head with one hand and

the shaft with the other. Change the angle by
applying adequate force.You will hear a heavy
click for each angle adjustment, which is part
of the ratchet mechanism.The clicking sound is
normal and is not a defect of the tool (See G).

ON/OFF TRIGGER

Press and hold the trigger to operate the
trimmer. Release to stop

_ NARMNG:The cutting head continues

to rotate after the trimmer has been

switched off.Wait until it stops before laying
the trimmer down.

QPERATIQN

_ ARNING: Always wear eye protection

and heavy clothing to prevent rocks and

debris from hitting you and causing an eye

injury or other serious injuries. Use two hands

operate the trimmer and hold the unit below
waist level.To best ensure that debris is thrown

away from your body, work only from the

right to left. For optimal trimming and edging

results.While maintaining comfort, keep the
trimmer head parallel to the ground when
trimming (perpendicular, when edging).When
trimming be sure to keep sufficient distance

between the cutting line and the ground.

m

IO

_ WARN|NO: Use only 0.065"

(1 .GSmm) diameter cutting |inc.

Other line sizes _ii| not properly feed
in the trimmer head and couW cause

serious inju_. Newer use other materials
such as wires, string or rope, as this
may break off during cutting and cause
serious injuW.

TR|MMING

Hold the bottom of the trimmer head about
3 inches above the ground and at an angle.

Allow only
the tip of line to make contact. Do not force

trimmer line into work area.

cutting position at the edge of your lawn.
While edging, allow the tip of the line to make

contact. Do not force the line.The wheel helps
prevent the unit from touching the ground.

Take extra caution while edging as objects can
be thrown from the trimmer line.

AUTOMATIC LiNE FEED SYSTEM
When initially switching on the trimmer, a

small length of line is fed out. A 'clattering'
noise will be heard for a short time.This

is normal and is caused by the line being
cut bythe line cutter. Once the line is cutto

the correct length, the 'clattering' noise will
stop and the trimmer motor will run at full

speed.To feed more line, stop the trimmer
completely, then restart, allowing the motor

to reach full speed. Repeat this until you hear
the 'clattering' noise of the line cutting. (Do not

repeat this procedure more than 6 times)

REMOVING THE CAP TO MANUALLY
FEED THE LiNE (See |)

Press and release manual line feed button
(16), whilst gently pull out the lines until

the lines reaches the line cutter. When the
required amount of line is fed out, gently pull

on the second line (there is no need to press
the manual line feed button again). Ifthe line

extends past the line cutter, too much line
has been fed out. Iftoo much line is fed out,

remove the spool cap and click the spool anti-
clockwise until the line is at the desired length.

REMOVING THE CAP
Press and hold in the two latches (12)(See

J).Pull cap away from the spool holder. Keep
the cap and spool holder clean from debris.

To replace the cap, press it firmly towards
the spool holder. Ensure that it is correctly

connected by trying to remove it without
depressing the two latches.

EDG|NG (See H)

Unscrew the upper adjustment knob (3),

rotate the main and auxiliary handle 90°, and

retighten the knob. Adjust trimmer head angle
so that it is in line with the shaft (horizontal).

Put the wheel on the ground to begin edging,

using the white line guides to indicate the

CHANGING THE LiNE SPOOL:
First take off the cap and remove the old spool.

Place new spool into cutting head. Feed one
line through the eyelet, then repeat for second

line. Reattach the cap.
