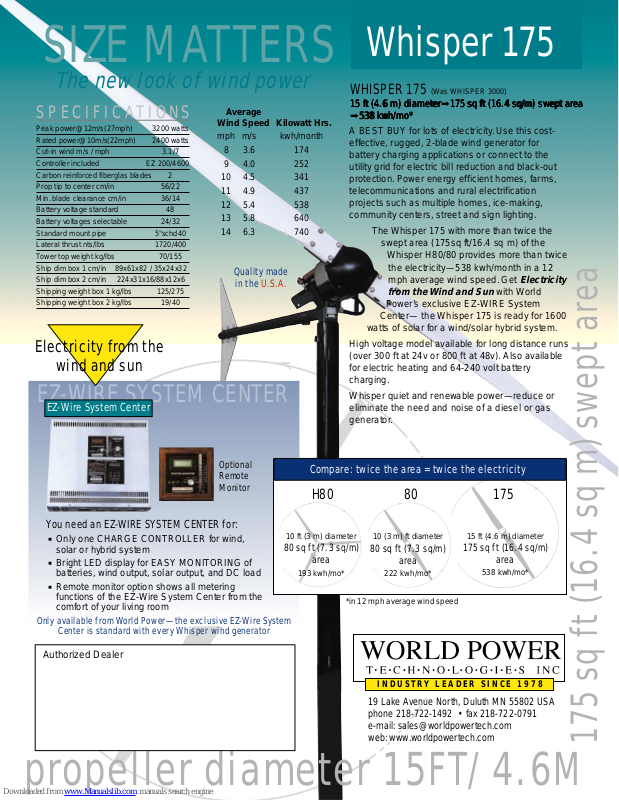

World Power Technologies WHISPER 175 Datasheet

SIZE MATTERS

Whisper 17 5

The new look of wind power

SPECIFICATIONS

Peak power@12m/s(27mph) 3200 watts
Rated power@10m/s(22mph) 2400 watts
Cut-in wind m/s / mph 3.1/7
Controller included EZ 200/4600
Carbon reinforced fiberglas blades 2
Prop tip to center cm/in 56/22
Min. blade clearance cm/in 36/14
Battery voltage standard 48
Battery voltages selectable 24/32
Standard mount pipe 5"schd40
Lateral thrust nts/lbs 1720/400
Tower top weight kg/lbs 70/155
Ship dim box 1 cm/in 89x61x82 / 35x24x32
Ship dim box 2 cm/in 224x31x16/88x12x6
Shipping weight box 1 kg/lbs 125/275
Shipping weight box 2 kg/lbs 19/40

Electricity from the

wind and sun

Average

Wind Speed Kilowatt Hrs.

mph m/s kwh/month

8 3.6 174

9 4.0 252
10 4.5 341
11 4.9 437
12 5.4 538
13 5.8 640
14 6.3 740

Quality made

in the U.S.A.

EZ-WIRE SYSTEM CENTER

EZ-Wire System Center

WHISPER 175 (Was WHISPER 3000)

15 ft (4.6 m) diamete15 ft (4.6 m) diamete

15 ft (4.6 m) diamete

15 ft (4.6 m) diamete15 ft (4.6 m) diamete

538 kwh/mo*538 kwh/mo*

➡

538 kwh/mo*

538 kwh/mo*538 kwh/mo*

A BEST BUY for lots of electricity. Use this cost­effective, rugged, 2-blade wind generator for
battery charging applications or connect to the
utility grid for electric bill reduction and black-out
protection. Power energy efficient homes, farms,
telecommunications and rural electrification
projects such as multiple homes, ice-making,
community centers, street and sign lighting.

The Whisper 175 with more than twice the

swept area (175sq ft/16.4 sq m) of the

Whisper H80/80 provides more than twice

the electricity—538 kwh/month in a 12
mph average wind speed. Get

from the Wind and Sun

Power’s exclusive EZ-WIRE System

Center— the Whisper 175 is ready for 1600

watts of solar for a wind/solar hybrid system.

High voltage model available for long distance runs
(over 300 ft at 24v or 800 ft at 48v). Also available
for electric heating and 64-240 volt battery
charging.

Whisper quiet and renewable power—reduce or
eliminate the need and noise of a diesel or gas
generator.

rr

175 sq ft (16.4 sq/m) swept area175 sq ft (16.4 sq/m) swept area

r➡

175 sq ft (16.4 sq/m) swept area

rr

175 sq ft (16.4 sq/m) swept area175 sq ft (16.4 sq/m) swept area

Electricity

with World

Optional
Remote
Monitor

You need an EZ-WIRE SYSTEM CENTER for:

• Only one CHARGE CONTROLLER for wind,
solar or hybrid system

• Bright LED display for EASY MONITORING of
batteries, wind output, solar output, and DC load

• Remote monitor option shows all metering
functions of the EZ-Wire System Center from the
comfort of your living room

Only available from World Power—the exclusive EZ-Wire System

Center is standard with every Whisper wind generator

Authorized Dealer

Compare: twice the area = twice the electricity

H80 80

10 ft (3 m) diameter

80 sq ft (7.3 sq/m)

area

193 kwh/mo*

10 (3 m) ft diameter

80 sq ft (7.3 sq/m)

area

222 kwh/mo*

*in 12 mph average wind speed

INDUSTRY LEADER SINCE 1978

19 Lake Avenue North, Duluth MN 55802 USA
phone [phone] • fax [phone]
e-mail: [e-mail]
web: www.worldpowertech.com

175 sq ft (16.4 sq/m)

175

15 ft (4.6 m) diameter

area

538 kwh/mo*

175 sq ft (16.4 sq m) swept area

propeller diameter 15FT/ 4.6M
