Product Guide

© Banksys (May 2003)

C-ZAM/SMASH PORTABLE

PRODUCT GUIDE

Table of contents

INTRODUCTION ............................................2

GENERAL DESCRIPTION .....................................3

MULTI APPLICATIONS ........................................4

ODULAR DESIGN ...........................................4

M
O

PEN ARCHITECTURE ........................................4

THE TECHNOLOGY OF SECURITY .................................5

TECHNICAL SPECIFICATIONS ................................5

KEYBOARD ................................................5

DISPLAY.................................................6

CARD READER ...................... ERROR! BOOKMARK NOT DEFINED.

PROCESSORS ..............................................6

MEMORY .................................................7

COMMUNICATION CARDS .......................................7

1. GSM Card (GPRS ready).............................7

2. Local wireless....................................7

2.1 Concept ........................................7

2.2 Access point ...................................9

2.2.1 Dial-Up (PSTN) CTR21 Modem .................9

2.2.2 ISDN adapter ...............................9

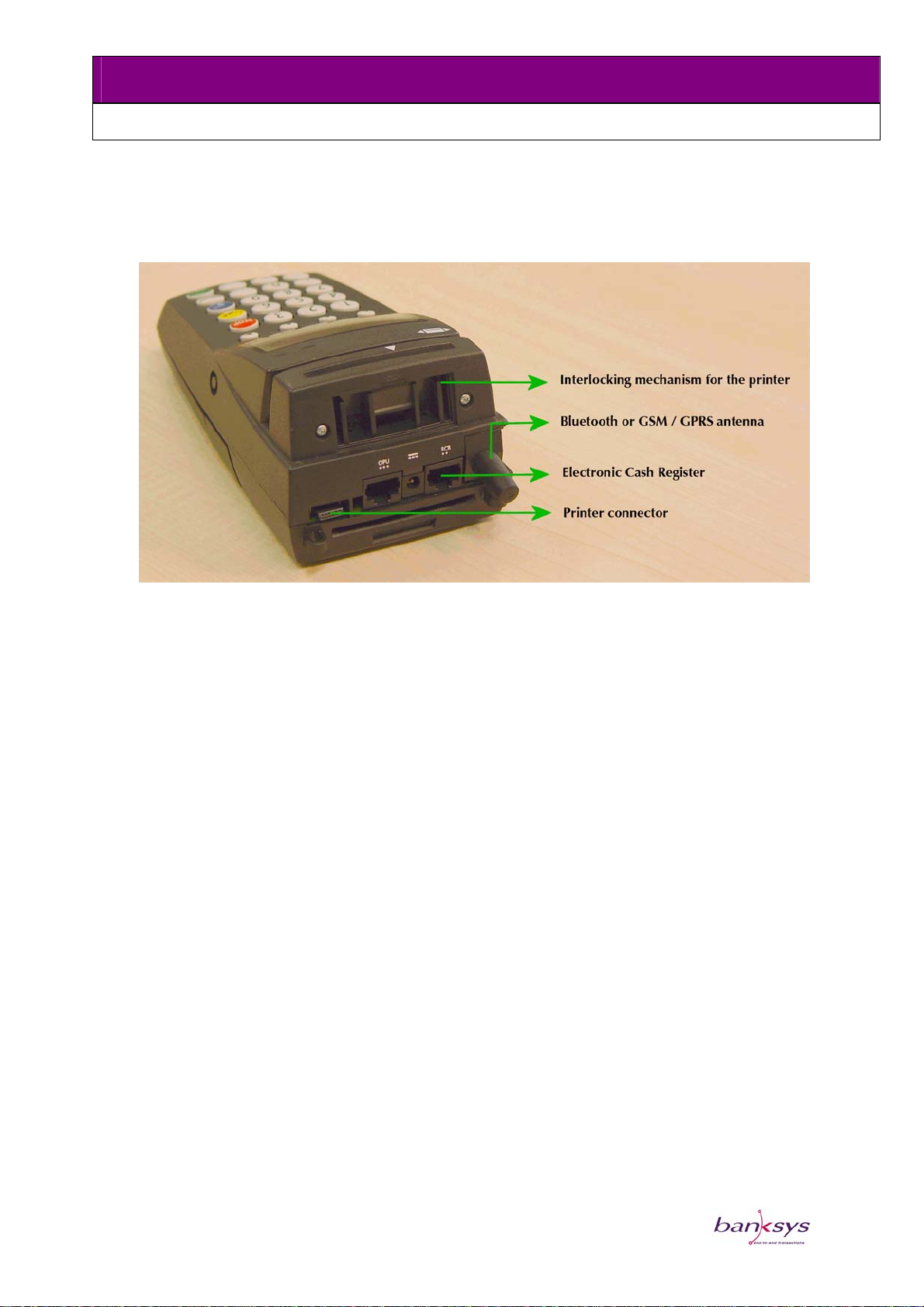

EXTERNAL INTERFACES .......................................9

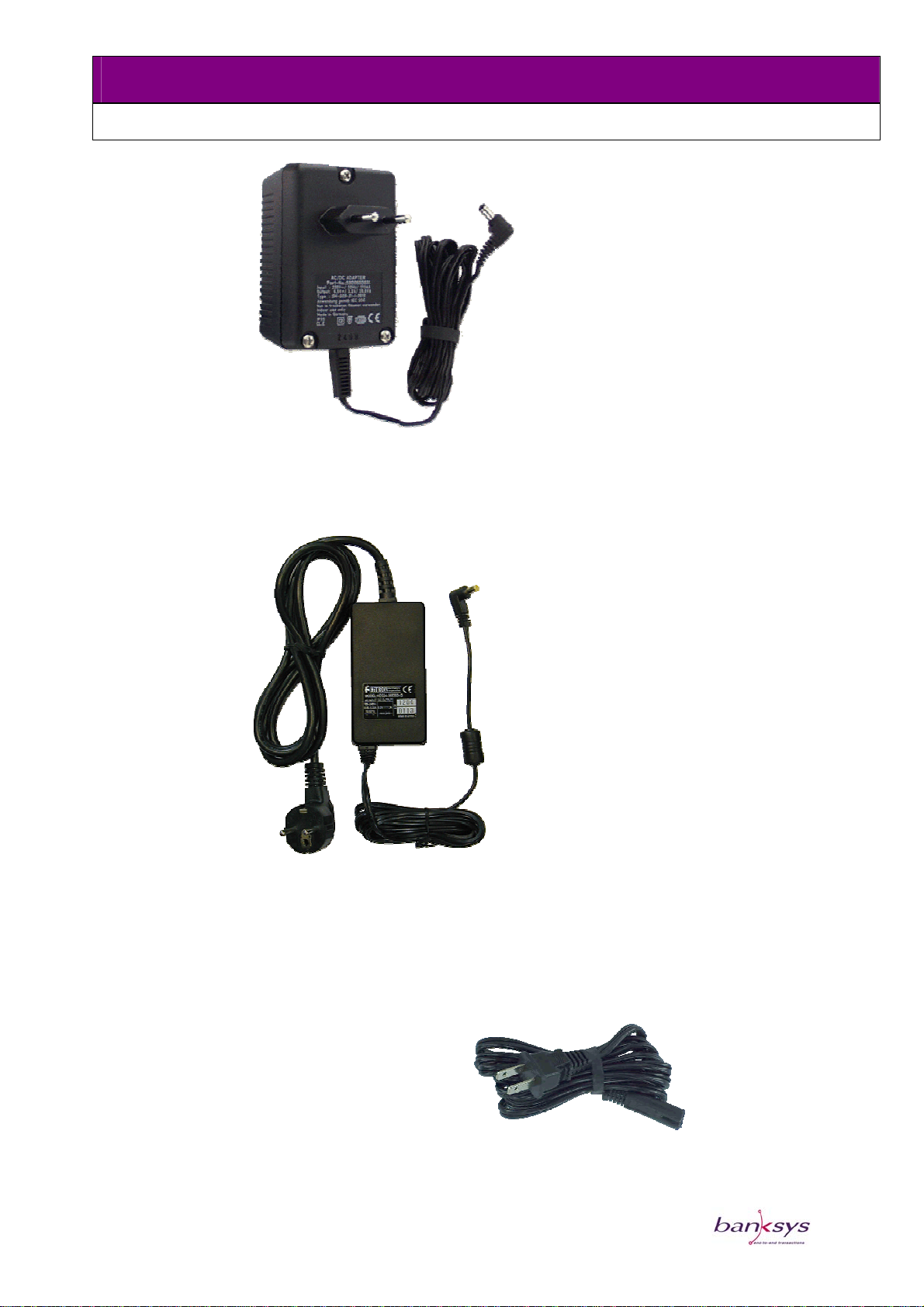

POWER .................................................10

IMENSIONS .............................................12

D

WEIGHT (WITHOUT PRINTER)..................................12

ENVIRONMENTAL SPECIFICATIONS ...............................12

C

OLOUR OF THE TERMINAL.............. ERROR! BOOKMARK NOT DEFINED.

APPROVALS ..............................................12

OPTIONS ................................................13

C-ZAM/SMASH P
C-ZAM/SMASH B

RINTER....................................13

ATTERY PACK................................14

C-ZAM-SMASH CHARGING STATION ............................15

C-ZAM/SMASH CRADLE ....................................16

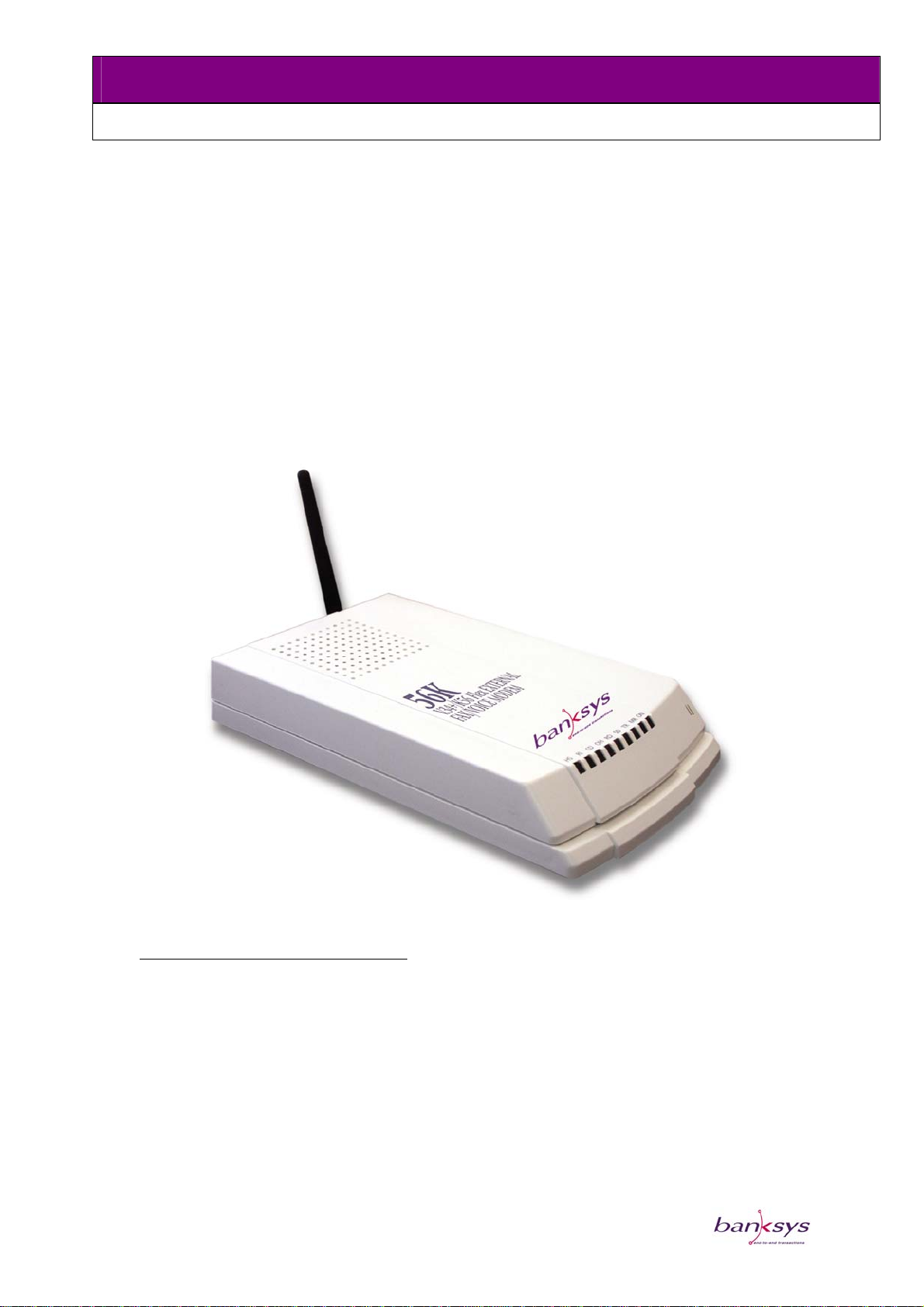

C-ZAM/SMASH ACCESS POINT .............................17

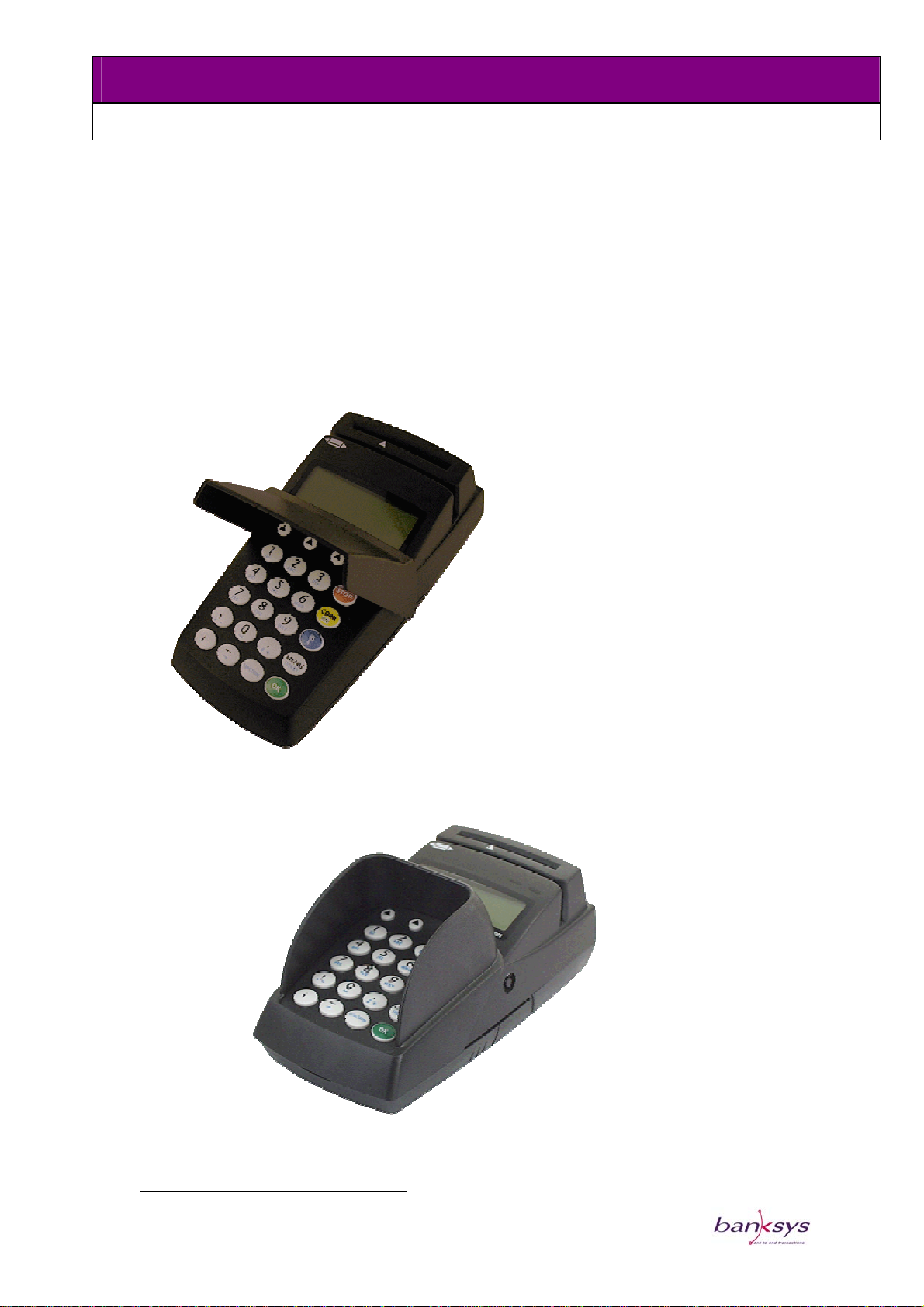

C-ZAM/SMASH PIN PROTECTION ..............................18

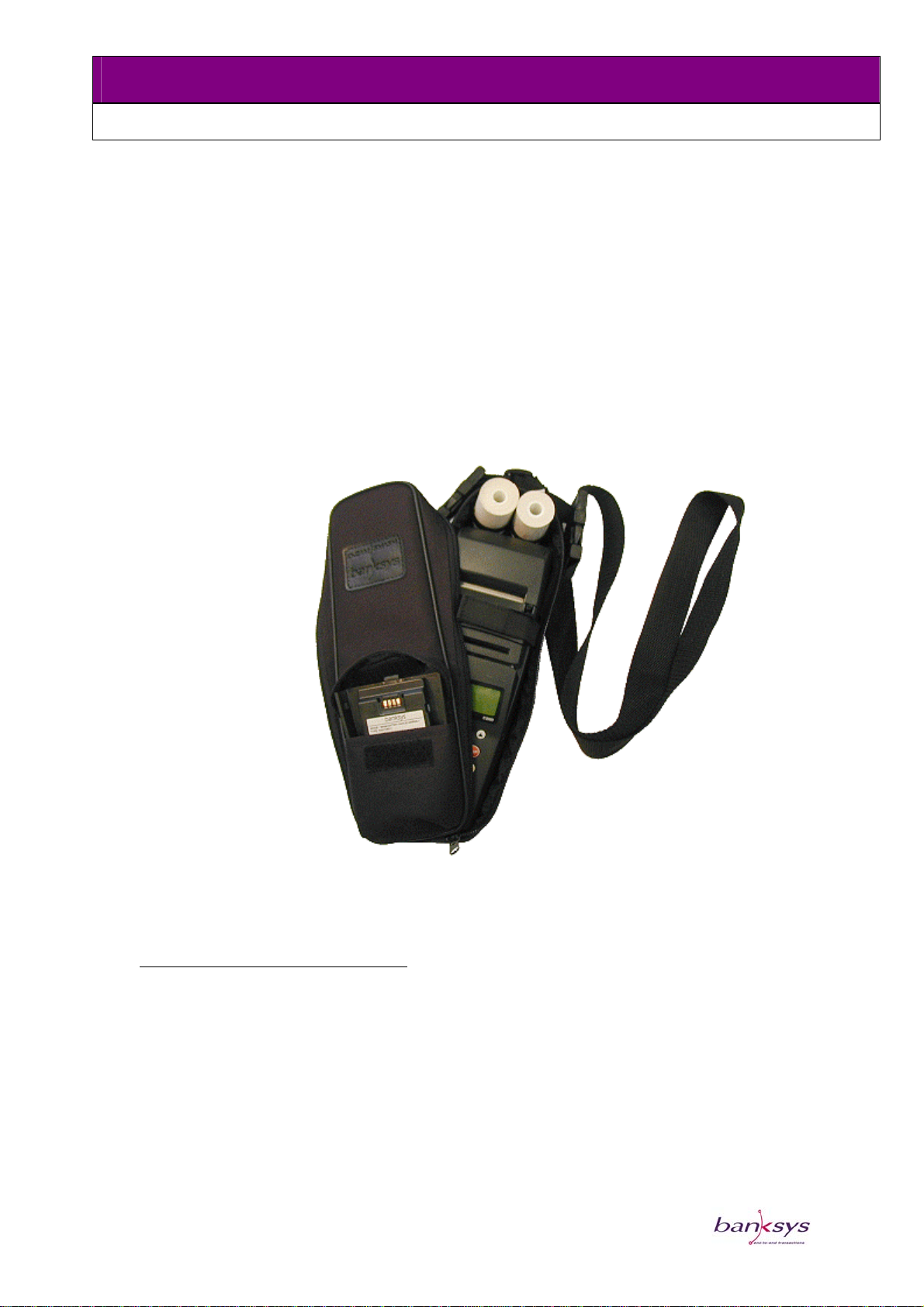

C-ZAM/SMASH PROTECTION BAG ..............................19

GLOSSARY ...............................................20

1

VERSION: DRAFT

Introduction

C-ZAM/SMASH-BASE UNIT

C-ZAM/SMASH PORTABLE

PRODUCT GUIDE

Designed with a full range of payment applications in

mind, the

C-ZAM/SMASH PORTABLE features a modular design for

ultimate versatility and

a totally open architecture for integration into any

existing payment system.

2

VERSION: DRAFT

C-ZAM/SMASH PORTABLE

PRODUCT GUIDE

General description

The C-ZAM/SMASH introduces a new generation of payment
terminals combining security, open architecture and
modularity in a single unit.

An ever increasing number of businesses require
mobility. Communicating has become absolutely vital, and
must transcend time and place. Banksys brings true
mobility to the world of card payment terminals using
proven technologies such as GSM/GPRS and Blue tooth.

The C-ZAM/SMASH PORTABLE brings a new kind of
applications which will be very useful in Express
delivery, events, field repairs and other mobile
businesses but also for other applications like
restaurants, small retail configurations, large retail
and petrol sector when you can use a portable solution
with a limited radius;

C-ZAM/SMASH PORTABLE ‘s offer include a GSM/GPRS version
and a local wireless version :

 The C-ZAM/SMASH/GSM-GPRS is an ideal payment

terminal for people constantly on the move. This
compact, lightweight, and robust device creates a
whole new level of convenience and added value for
many professionals just like :

• Door-to-door suppliers of everything from
fuel to furniture and home appliances can
offer their customers the ease of paying by
card

• Taxi drivers benefit from having to carry
less cash which improves their security

Furthermore, the additional SMS feature enables the
terminal to be used for messaging and GPRS function makes
the C-ZAM/SMASH GSM a valuable tool for transferring data
or simply because GPRS will be cheaper than GSM .

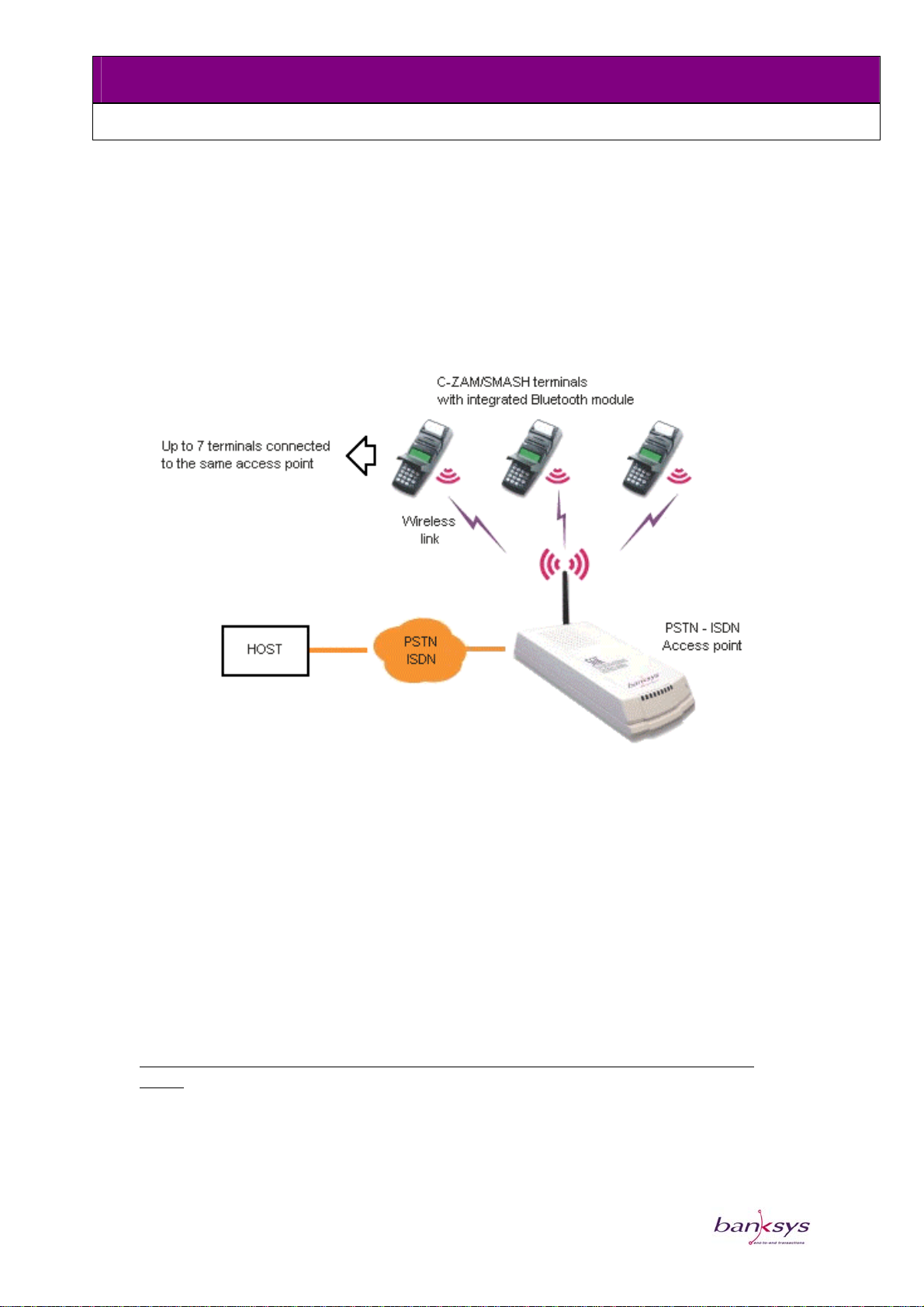

 The C-ZAM/SMASH local wireless with blue tooth

communication card provides unconstrained freedom
within a range of 328 to 492 feet (100 to 150
meters). Peripherals equipped with Bluetooth
communication card are connected to an access point
through radio waves. A frequency-hopping scheme
minimizes radio interference. As a result, Bluetooth

3

VERSION: DRAFT

C-ZAM/SMASH PORTABLE

PRODUCT GUIDE

guarantees an extremely reliable transmission of
data packets.

The Banksys C-ZAM/SMASH LOCAL WIRELESS with a Blue tooth
communication card is an important addition to the
growing range of mobile payment methods. The hassle-free
and completely secure Blue tooth technology is ideal for
restaurants or small retail outlets. With C-ZAM/SMASH
local wireles payments no longer need to be made at the
cash register.

Multi applications

The C-ZAM/SMASH and the C-ZAM/SMASH PORTABLE are designed
to perform the full range of terminal applications from
card reading to chip programming; As the potential range
of applications for smart card expands, so the C­ZAM/SMASH offers total control over the card and its
uses, allowing the easy integration of specialised
functions
C-ZAM/SMASH applications include

ELECTRONIC PAYMENT :

Credit cards (Visa, Eurocard, American

express,)

Debit cards

Stored value
Loyalty cards
Closed user group applications

Modular design

The modularity of the C-ZAM/SMASH is one of its big
assets.
From its conception different components can be
customised such as the keypad, the memory or the
communication card. Several options such as printer or
the charging station can be also added later.

Open Architecture

The C-ZAM/SMASH is equipped with a Chorus operating
system posix compliant. Any operators can therefore use
the standard programming languages Java and C to develop
and update new payment and third party applications in
different environments including the all-important TCP/IP
Internet protocol. A special toolbox provides a range of
system facilities an applications programmer required .

4

VERSION: DRAFT

C-ZAM/SMASH PORTABLE

PRODUCT GUIDE

Thanks to the Remote Teleload Server applications can be
loaded from a central server into the different payment
terminals

The Technology of Security

The C-ZAM/SMASH was designed from the ground-up with
security in mind.
Its double Processor architecture guarantees a high
security level.
The main board contains the application processor that
e.g. controls the communication with external interfaces
(authorisation network, electronic cash register, the
secure keyboard,)
The secure keyboard keeps information encrypted and
removes data when tampering is detected. The 4 Security
Application Modules (4 IDE000 ) welcome each application
in a secure environment and protect them to each other
when modifications occur to one of these applications.
The internal security processor can be adapted according
to local security requirements.
The C-ZAM/SMASH is tamper resistant, tamper responsive
and tamper evident. Different privacy shield are
available .

Technical Specifications

Keypad

Below keypad is offered as standard. Other languages and
layout can be considered depending on the volume of
terminals.
The keypad is made of Silicone and plastic. 6 X 4
alphanumeric keys, which contain: Numeric keys

Navigation keys
Predefined function keys distinguished by colour
(Stop, Corr, Menu,
OK, Ticket…)

4 programmable function keys (soft keys)
A single raised dot is present on the “5” key.
A beeper offers audible feedback to the customer.

5

VERSION: DRAFT

C-ZAM/SMASH PORTABLE

PRODUCT GUIDE

Soft Keys

STOP

?

TICKET

OK

red

yellow

blue

green

Abort Key

Correct
Key

Application
Dependant

Launch
Menu

Application
dependent
but usually
for printing

Accept Key

Numeric
Keys

Navigation
Keys

Move menu
up

Move menu
down

1 2 3

ABC

QZ

4 5 6

GHI JKL

7 8 9

PRS

TUV

0

*

DEF

CORR

MNO

WXY

MENU

# +

FUNCTION

Move cursor left
Move cursor right

Display

LCD backlit graphic display: 122 X 32 dots. Up to 20
characters on 4 lines
Viewing angle: 45 degrees
Display, backlight and contrast are controlled by
Software

Interfaces

Two card readers are available:

- A magnetic stripe card interfaces conforming to ISO 2 /
ISO 1-2 / ISO 2-3
standard.

-A vertical Chip card reader, EMV 3.1.1 and ISO7816
compliant, reading
asynchronous and synchronous protocols (T=1 or T=0)

Processors

2 X 32 bits processors
The main board: Intel processor 386EX 14.7 Mhz. Real-time
clock (RTC)
The secure keyboard (SKBD):

ARM processor 7tdmi 14.7 Mhz

Tamper responsiveness logic (detection and clearing)
Real-time clock (RTC)
