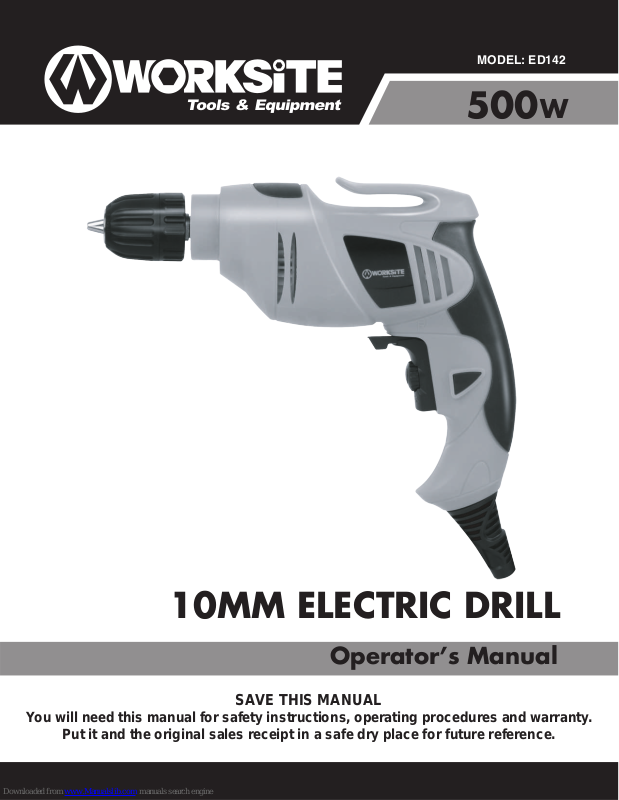

MODEL:
ED142
500W
10MM ELECTRIC DRILL
Operator’s Manual
SAVE THIS MANUAL
You will need this manual for safety instructions, operating procedures and warranty.
Put it and the original sales receipt in a safe dry place for future reference.
3
IMPORTANT SAFETY INSTRUCTIONS
!
WARNING:
precautions should always be followed to reduce the risk of fire, electric
shock, and personal injury.
When using electric tools, machines or equipment, basic safety
READ ALL INSTRUCTIONS BEFORE USING THIS TOOL
1.WARNING
Read and understand all instructions. Failure to follow all instructions listed below may result in electric shock ,
fire and/or serious personal injury.
2.WORK AREA
a. Keep your work area clean and well lit. Cluttered benches and dark areas invite accidents.
b. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases
or dust. Power tools create sparks which may ignite the dust or fumes.
c. Keep bystanders, children and visitors away while operating a power tool. Distractions can cause you to lose
control.
3.ELECTRICAL SAFETY
a. Double insulated tools are equipped with a polarized plug (one blade is wider than the other). This plug will
fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does
not fit, contact a qualified electrician to install a polarized outlet.
insulation eliminates the need for the three wire grounded power cord and grounded power supply system.
b. Avoid body contact with grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an
increased risk of electric shock if your body is grounded.
c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of
electric shock.
d. Do not abuse the cord. Never use the cord to carry the tools or pull the plug from an outlet. Keep cord away
away from heat, oil, sharp edges or moving parts. Replace damaged cords immediately. Damaged cords
increase the risk of electric shock.
e. When operating a power tool outside, use and outdoor extension cord marked “W-A”or “W”. These cords are
rated for outdoor use and reduce the risk of electric shock.
Do not change the plug in any way. Double
4.PERSONAL SAFETY
a. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use tools
while tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating
power tools may result in serious personal injury.
b. Dress properly. Do not wear loose clothing or jewelry. Contain long hair. Keep your hair, clothing and gloves
away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts.
c. Avoid accidental starting. Be sure switch is off before plugging in. Carrying tools with your finger on the switch
or plugging in tools that have the switch on invites accidents.
d. Remove adjusting keys or switches before turning the tools on. A wrench or a key that is left attached to a
rotating part of the tools may result in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. Proper footing and balance enables better
control of the tools in unexpected situation.
f. Use safety equipment. Always wear eye protection. Dust mask, on-skid safety shoes, hard hat or hearing
protection must be used for appropriate conditions.
5.TOOL USE AND CARE
a. Use clamps or other practical way to secure and support the workpiece to a stable platform. Holding the work
by hand or against your body is unstable and may lead to loss of control.
b. Do not force tool. Use the correct tools for your application. The correct tools will do the job better and safer
at the rate for which it is designed.
c. Do not use tools if switch does not turn it on or off. Any tool that can not be controlled with the switch is
dangerous and must be repaired.
d. Disconnect the plug from the power source before making any adjustments, changing accessories or storing
the tool. Such preventive safety measures reduce the risk of starting the tools accidentally.
e. Store idle tools out of reach of children and other untrained persons. Tools are dangerous in the hands of
untrained users.
f. Maintain tools with care. Keep cutting tools sharp and clean. Properly maintained tools with sharp cutting
SAFETY PRECAUTIONS FOR ELECTRIC DRILL
3
when perform-
with a “live” wire will also make the exposed metal parts of the tool “live” and
A
WARNING!
Watch what you are doing & use common sense. Don’t operate any tool when are tired.
IMPORTANT SAFETY INSTRUCTIONS
8.ENSURE THE EXTENSION CORD YOU USE IS OF SUFFICIENT GAUGE FOR ITS LENGTH.
edges are less likely to bind and are easier to control.
g. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect
the tools operation. If damaged, have the tools serviced before using. Many accidents are caused by poorly
maintained tools.
h. Use only accessories that are recommended by the manufacturer for your model. Accessories that may be
suitable for one tool, may become hazardous when used on another tool.
a. Tool service must be performed only by qualified repair personnel. Service or maintenance performed by
unqualified personnel could result in a risk of injury.
b. When servicing a tool, use only identical replacement parts. Follow instructions in the maintenance section
of the manual. Use of unauthorized parts or failure to follow. Maintenance instructions may create a risk of
electric shock or injury.
7.
Hold tool by insulated gripping surfaces when performing an operation where thecutting tool may contact
hidden wiring or its own cord. Contact with a “live” wire will make exposedmetal parts of the tool “live” and
shock the operator.
6.SERVICE
Recommended Minimum Wire Gauge for Extension Cords
Amps from Tool Nameplate 25’ length 50’ length 75’ length 100’ length 150’ length 200’ length
0-5 amps 16 ga. 16 ga. 16 ga. 14 ga. 12 ga. 12 ga.
5.1-8 amps 16 ga. 16 ga. 14 ga. 12 ga. 10 ga. Do Not Use
8.1-12 amps 14 ga. 14 ga. 12 ga. 10 ga. Do Not Use Do Not Use
12.1-15 amps 12 ga. 12 ga. 10 ga. 10 ga. Do Not Use Do Not Use
15.1-20 amps 10 ga. 10 ga. 10 ga. Do Not Use Do Not Use Do Not Use
9.STAY ALERT.
4
SPECIFICATIONS
2. Belt clip
3. Handle
4. Lock-on button
5.
6. Variable speed dial
7. Forward / reverse switch lever
FUNCTIONAL DESCRIPTION
1. 3/8 in. keyless chuck
No-load Speed: 0~3000/min
Chuck Size: 10mm
Rated Input: 500 Watt
Electric Drill
OPERATING PROCEDURES
1
2
3
4
REMOVE ALL THE PARTS FROM THE BOX
Your Drill is fully assembled in the carton.
1. Unplug the drill.
Turn far enough so that the chuck opens
ciently to accept the desired bit.
rmly and turn the front section clockwise
To remove the bit, hold the back section and turn the front section counter-
Always be sure that the tool is switched off and unplugged before
working on the tool.
WARNING!
INSTALLING OR REMOVING A DRILL BIT
A
Trigger switch
A
B
7
6
5
WARNING!
After unpacking, reading the instructions, and checking that all attachments are
OPERATING PROCEDURES
USING YOUR DRILL
WARNING!
Always hold the tool away from your face. Accessories can be damaged dur-
Always be sure that the tool switch
.
SWITCH ACTION
WARNING!
moves properly and returns to the “OFF” position when released.
for counterclockwise rotation. (reverse)
ROTATION DIRECTION
WARNING!
Always check the direction of the rotation before operation.
plete stop. Changing the direction of the rotation before the tool stops may
5
Avoid running your drill at low speeds for extended periods of time.
A
Variable speed dial
6
OPERATING PROCEDURES
Always unplug the drill when attaching or changing bits or accessories.
Always apply pressure in a straight line with the bit. Use enough pressure to
Always secure small workpieces in a vise or similar holddown devices.
Avoid drilling in material that you suspect contains hidden nails or other
A stuck bit can be removed simply by setting the reversing switch to reverse
VARIABLE SPEED
DRILL OPERATION
7
4. Use a “back-up” block of wood for work that can splinter, such as thin materi-
OPERATING PROCEDURES
DRILLING IN WOOD
with a center-punch and hammer at the point to be drilled. Place the point of
WARNING!
DRILLING IN METAL
MAINTENANCE
PARTS LIST
AND SCHEMATIC DRAWING
NO. DESCRIPTION
lebal gnitaR71
wercs M1
2 Keyless drill chuck
18 LED indicator cover
3 Output shaft
19 LED indicator
revoc gnisuoH02
niP4
wercs TS12
hsub tnorF5
6 Output gear
22 Inductance
7 Retaining ring
23 Overmold
troppus gnisuoH42
hsub raeR8
lebal dnarB52
llab leetS9
ylbmessa hctiwS62
rehsaW01
11 Ball bearing
27 Capacitor
wercS TS82
erutamrA21
13 Carbon brush
29 Wire press block
14 Carbon brush holder
30 Cord protector
15 Ball bearing
31 Cord plug
16 Field
15
31
24
25
30
27
28
29
23
28
26
16
22
9
17
11
12
13
14
21
18
20
19
7
8
10
1
2
3
4
5
6
Worksite Tool Limited.
Copyright 2013
www.worksitetool.com
