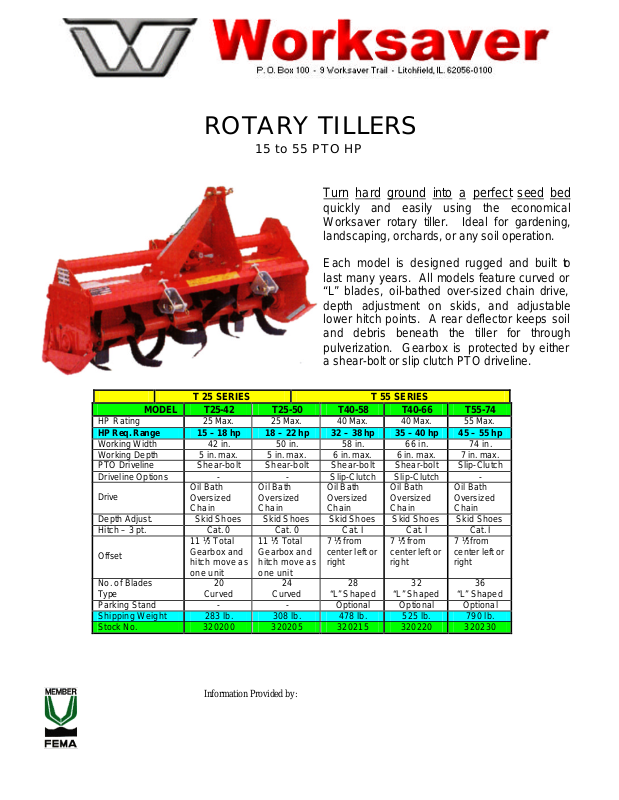

Worksaver T25-42, T55-74, T40-58, T40-66, T25-50 User Manual

quickly and easily using the economical
Worksaver rotary tiller. Ideal for gardening,

o

last many years. All models feature curved or

sized chain drive,
depth adjustment on skids, and adjustable
lower hitch points. A rear deflector keeps soil
and debris beneath the tiller for through

protected by either

ROTARY TILLERS

15 to 55 PTO HP

Turn hard ground into a perfect seed bed

landscaping, orchards, or any soil operation.
Each model is designed rugged and built t
“L” blades, oil-bathed over-

pulverization. Gearbox is
a shear-bolt or slip clutch PTO driveline.

T 25 SERIES T 55 SERIES

MODEL T25-42 T25-50 T40-58 T40-66 T55-74

HP Rating 25 Max. 25 Max. 40 Max. 40 Max. 55 Max.

HP Req. Range 15 – 18 hp 18 – 22 hp 32 – 38 hp 35 – 40 hp 45 – 55 hp

Working Width 42 in. 50 in. 58 in. 66 in. 74 in.
Working Depth 5 in. max. 5 in. max. 6 in. max. 6 in. max. 7 in. max.
PTO Driveline Shear-bolt Shear-bolt Shear-bolt Shear-bolt Slip-Clutch
Driveline Options - - Slip-Clutch Slip-Clutch -

Drive
Depth Adjust. Skid Shoes Skid Shoes Skid Shoes Skid Shoes Skid Shoes

Hitch – 3 pt. Cat. 0 Cat. 0 Cat. I Cat. I Cat. I

Offset

No. of Blades
Type
Parking Stand - - Optional Optional Optional
Shipping Weight 283 lb. 308 lb. 478 lb. 525 lb. 790 lb.
Stock No. 320200 320205 320215 320220 320230

Oil Bath
Oversized
Chain

11 ½” Total
Gearbox and
hitch move as
one unit

20

Curved

Oil Bath
Oversized
Chain

11 ½” Total
Gearbox and
hitch move as
one unit

24

Curved

Oil Bath
Oversized
Chain

7 ½” from
center left or
right

28

“L” Shaped

Oil Bath
Oversized
Chain

7 ½” from
center left or
right

32

“L” Shaped

Oil Bath
Oversized
Chain

7 ½” from
center left or
right

36

“L” Shaped
