Page 1
4 ft. Landscape Rake Shown
42” Box Scraper Shown
OWNER’S/
OPERATOR’S
MANUAL
MODEL NO.’s
PLR-48
PLR-60
PLR-72
PBX-42
CAUTION
For Safe Operation
Read Rules And
Instructions Carefully
SINO LEEINGLES, PIDA AYUDA
A AIGUIEN QUE SI LO LEA
PARA QUE LE TRADUZCA LAS
MEDIDAS DE SEGURIDAD.
Safety Instructions Assembly & Mounting
Tractor Preparation Maintenance
Operating Instructions Repair Parts
CAUTION
THE FOLLOWING SAFETY PRECAUTIONS SHOULD BE THOROUGHLY UNDERSTOOD
BEFORE ATTEMPTING TO BEGIN ASSEMBLING THIS MACHINE
1. Select an area for assembly that is clean and free of any
debris which might cause persons working on the
assembly to trip.
2. Do not lift heavy parts or assemblies. Use crane, jack,
tackle, fork trucks or other mechanical devices.
3. Preview the assembly instructions in your operator’s
manual before proceeding further.
4. If the assembly instructions call for parts or assemblies to
be blocked up, use only blocking material that is in good
condition and is capable of handling the weight of the
assembly to be blocked. Also insure that the blocking
material is on a clean, dry surface.
5. Never put hands, or any part of body, under blocked up
assemblies if at all possible.
6. After completing assembly, thoroughly inspect the
machine to be sure that all nuts, bolts, hydraulic fittings
or any other fastened assemblies have been thoroughly
tightened.
7. Before operating the machine, thoroughly read the
operation section of your operator’s manual.
8. Before operating, read the maintenance section of your
operator’s manual to be sure that any parts requiring
lubrication, such as gearboxes, are full, to avoid any
possible damage.
9. Before operating equipment – If you have any
questions regarding the proper assembly or
operation, contact your dealer or representative.
ATV or Garden Tractor
LANDSCAPE RAKE
BOX SCRAPER
Page 2
1
TABLE
OF
CONTENTS
WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
SAFETY INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
SAFETY SIGNS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
PREPARATION INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . 9
OPERATING INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . 10

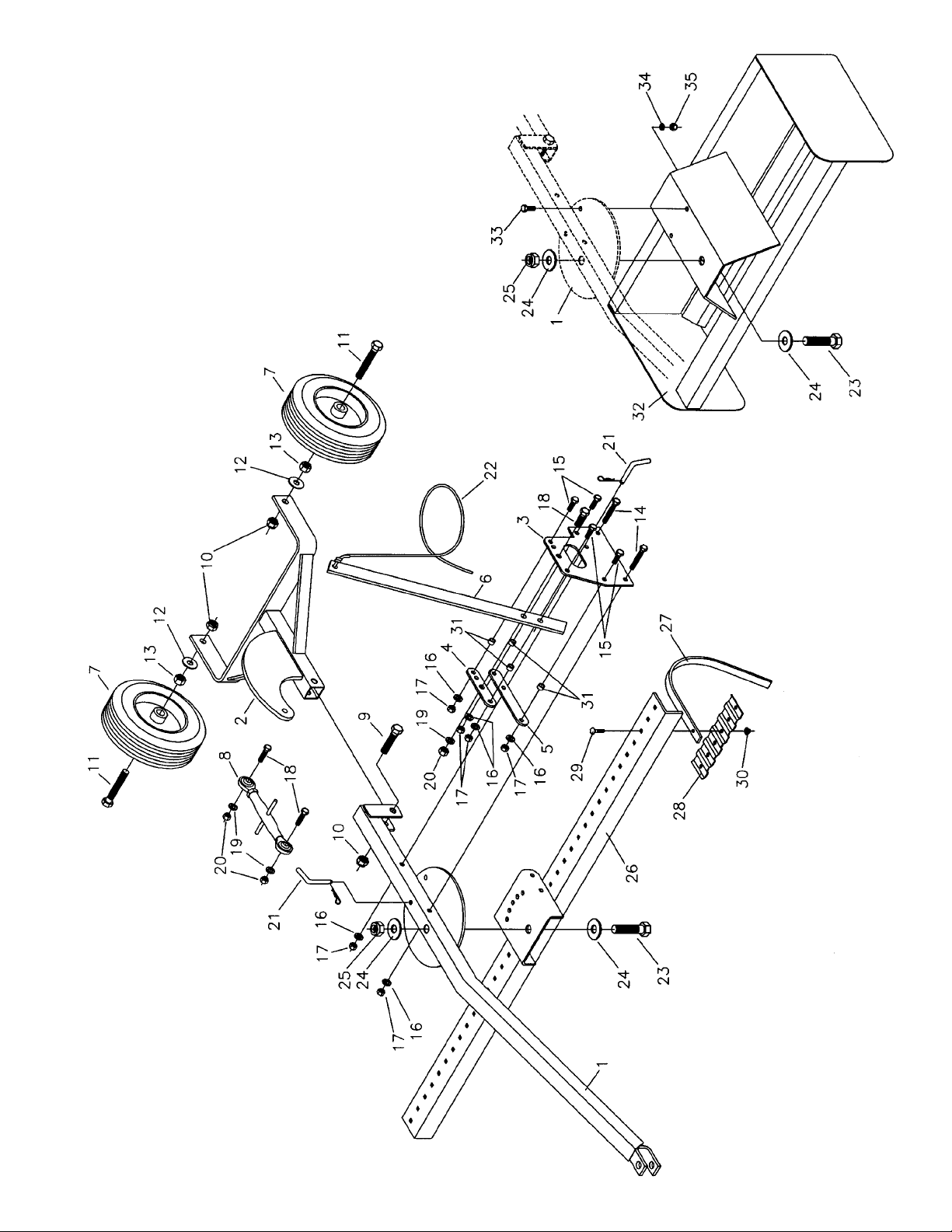

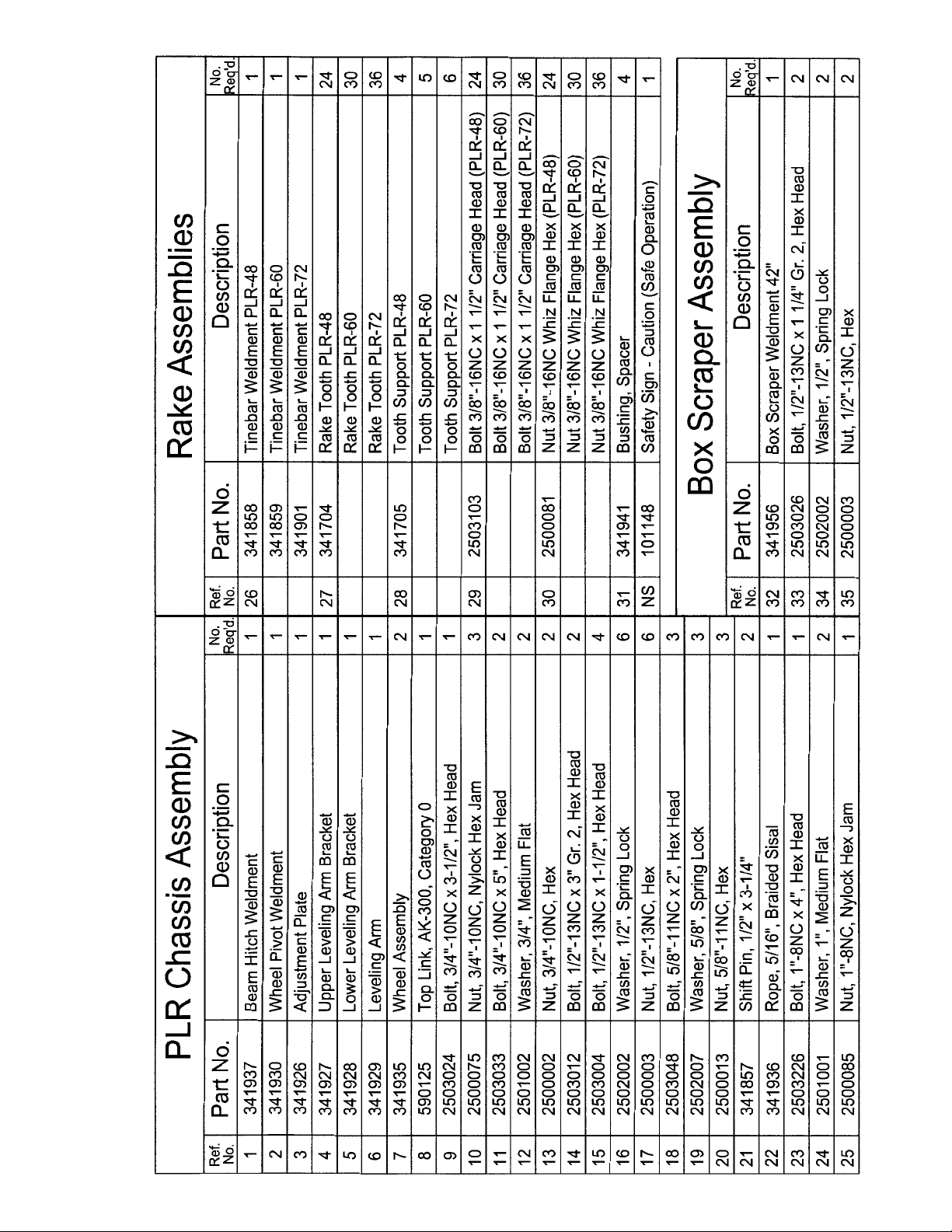

PARTS LISTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
TO THE OWNER:
Read this manual before using your Pull Type Landscape Rake or Box Scraper.This manual is provided to give
you the necessary operating and maintenance instructions for keeping your implement in top operating condition.
Please read this manual thoroughly. Understand what each control is for and how to use it. Observe all safety
signs on the machine and noted throughout the manual for safe operation of implement. Keep this manual handy
for ready reference.
Like all mechanical products, it will require cleaning and upkeep.
Use only genuine Wor ksaver, Inc.ser vice par ts. Substitute par ts will void the warranty and may not meet standards required for safe and satisfactor y operation. Record the model and serial number of your implement here:
Model:________________________________________ Serial Number:_______________________________
RETAIL CUSTOMER’S RESPONSIBILITY
It is the Retail Customer and/or Operator’s responsibility to read the Operator’s Manual, to operate,lubricate, maintain, and store the product in accordance with all instructions and safety procedures. Failure
of the operator to read the Operator’s Manual is a misuse of this equipment.
It is the Retail Customer and/or Operator’s responsibility to inspect the product and to have any part(s)
repaired or replaced when continued operation would cause damage or excessive wear to other parts or
cause a safety hazard.
It is the Retail Customer’s responsibility to deliver the product to the authorized Worksaver Dealer, from
whom he purchased it, for service or replacement of defective parts which are covered by warranty.
Repairs to be submitted for warranty consideration must be made within forty-five (45) days of failure.
It is the Retail Customer’s responsibility for any cost incurred by the Dealer for traveling to or hauling
of the product for the purpose of performing a warranty obligation or inspection.
SINO LEEINGLES, PIDA AYUDA A
AIGUIEN QUE SI LO LEA PARA QUE
LE TRADUZCA LAS MEDIDAS DE
SEGURIDAD.
STATEMENT
OF POLICY
It is the policy of Worksaver,
Inc. to improve its products
where it is possible and practical
to do so. Worksaver, Inc.
reserves the right to make
changes or improvements in
design and construction at any
time, without incurring the obligation to make these changes on
previously manufactured units.
Page 3
2
LIMITED WARRANTY
✯ ✯ ✯ ✯ ✯ ✯ ✯ ✯ ✯ ✯ ✯ ✯ ✯ ✯ ✯ ✯ ✯ ✯ ✯ ✯ ✯ ✯ ✯ ✯ ✯ ✯ ✯
Worksaver warrants to the original purchaser of any new Pull Type Landscape Rake or Box Scraper,
that the equipment be free from defects in material and workmanship for a period of six (6) months for
non-commercial, state, and municipalities.Use sixty (60) days for commercial use from date of retail sale.
Replacement or repair parts installed in the equipment covered by this warranty are warranted for ninety (90)
days from the date of purchase of such part or to the expiration of the applicable new equipment warranty
period, whichever occurs later.
Such parts shall be provided at no cost to the user during regular working hours. Worksaver reserves the right
to inspect any equipment or parts which are claimed to have been defective in material or workmanship.
DISCLAIMER OF IMPLIED WARRANTIES & CONSEQUENTIAL DAMAGES
Worksaver’s obligation under this warranty, to the extent allowed by law, is in lieu of all warranties, implied or
expressed, including implied warranties of merchantability and fitness for a particular purpose and any liability for incidental and consequential damages with respect to the sale or use of the items warranted. Such
incidental and consequential damages shall include but not be limited to: transpor tation charges other than
normal freight charges; cost of installation other than cost approved by Wor ksaver ; duty; taxes; charges for
normal service or adjustments; loss of crops or any other loss of income; rental of substitute equipment,
expenses due to loss, damage, detention or delay in the delivery of equipment or par ts resulting from acts
beyond the control of Worksaver.
THIS WARRANTY SHALL NOT APPLY:
1. To vendor items which carry their own warranties, such as hydraulic cylinders, tires, and tubes.
2. If the unit has been subjected to misapplication, abuse, misuse, negligence, fire or other accident.
3. If parts not made or supplied by Worksaver have been used in connection with the unit, if, in sole judgement of Worksaver such use affects its perfor mance, stability, or reliability.
4. If the unit has been altered or repaired outside of an authorized Worksaver dealership in a manner which,
in the sole judgement of Worksaver affects its perfor mance, stability or reliability.
5. To normal maintenance ser vice and normal replacement items such as gearbox lubricant, hydraulic fluid,
worn blades, or to normal deterioration of such things as rope and exterior finish, due to use or exposure.
6. To expendable or wear items such as teeth, chains, sprockets, belts, springs and other items that in the
company’s sole judgement is a wear item.
NO EMPLOYEE OR REPRESENTATIVE OF WORKSAVER IS AUTHORIZED TO CHANGE THIS
WARRANTY IN ANY WAY OR GRANT ANY OTHER WARRANTY UNLESS SUCH CHANGE IS MADE IN
WRITING AND SIGNED BY WORKSAVER’S SERVICE MANAGER, POST OFFICE BOX 100, LITCHFIELD,
ILLINOIS 62056-0100.
✯ ✯ ✯ ✯ ✯ ✯ ✯ ✯ ✯ ✯ ✯ ✯ ✯ ✯ ✯ ✯ ✯ ✯ ✯ ✯ ✯ ✯ ✯ ✯ ✯ ✯ ✯
Page 4
3
To the Owner/Operator/Dealer
All implements with moving parts are potentially hazardous. There is no substitute for a cautious, safe-minded operator who recognizes the potential hazards and follows reasonable safety practices.The manufacturer has designed this
implement to be used with all its safety equipment properly attached to minimize the chance of accidents.
BEFORE Y OU ST ART!!
Read the safety messages on the implement and shown in your manual.
Observe the rules of safety and common sense!
THIS SAFETY ALERT SYMBOL IDENTIFIES IMPORTANT
SAFETY WARNING MESSAGES. CAREFULLY READ EACH
WARNING MESSAGE THAT FOLLOWS. FAILURE TO
UNDERSTAND AND OBEY A SAFETY WARNING, OR
RECOGNIZE A SAFETY HAZARD, COULD RESULT IN AN
INJURY OR DEATH TO YOU OR OTHERS AROUND YOU.
THE OPERATOR IS ULTIMATELY RESPONSIBLE FOR THE
SAFETY OF HIMSELF, AS WELL AS OTHERS, IN THE
OPERATING AREA OF THE TRACTOR AND ATTACHED
EQUIPMENT.
IMPORTANT SAFETY INFORMATION!
Working with unfamiliar equipment can lead to careless injuries. Read this manual, and the manual for your tractor,
before assembly or operating, to acquaint yourself with the machines. It is the implement owner’s responsibility, if this
machine is used by any person other than yourself, is loaned or rented, to make cer tain that the operator, prior to
operating:
1. Reads and understands the operator’s manuals.
2. Is instructed in safe and proper use.
The use of this equipment is subject to certain hazards which cannot be protected against by mechanical
means or product design. All operators of this equipment must read and understand this entire manual,
paying particular attention to safety and operating instructions, prior to using. If there is something in this
manual you do not understand, ask your supervisor, or your dealer, to explain it to you.
THIS SYMBOL MEANS
– ATTENTION!
– BECOME ALERT!
– YOUR SAFETY IS INVOLVED!
UNDERSTAND SIGNAL WORDS
Note the use of the signal words DANGER,WARNING
and CAUTION with the safety messages. The
appropriate signal word for each has been selected
using the following guidelines:
DANGER: Indicates an imminently hazardous situation
that, if not avoided, will result in death or serious injury.
This signal word is to be limited to the most extreme
situations typically for machine components which, for
functional purposes, cannot be guarded.
If you have questions not answered in this manual or require additional copies or the manual is damaged, please
contact your dealer or the manufacturer directly.
WARNING: Indicates a potentially hazardous situation that, if not avoided, could result in death
or serious injury, and includes hazards that are
exposed when guards are removed. It may also
be used to alert against unsafe practices.
CAUTION: Indicates a potentially hazardous situation that, if not avoided, may result in minor or
moderate injury. It may also be used to alert
against unsafe practices.
Page 5
4
SAFETY INSTRUCTIONS (continued)
Safety of the operator is one of the main concerns in designing and developing a new piece of equipment.
Designers and manufacturers build in as many safety features as possible. However, every year many
accidents occur which could have been avoided by a few seconds of thought and a more careful approach to
handling equipment.You, the operator, can avoid man y accidents b y observing the follo wing precautions in this
section.To avoid personal injury, study the following precautions and insist those working with you, or for you,
follow them.
To prevent injury or death, use a tractor equipped with a Roll-Over Protective System (ROPS). Do not paint
over, remove or deface any safety signs or warning signs on your equipment. Observe all safety signs and
practice the instruction on them.
Never exceed the limits of a piece of machiner y. If its ability to do a job, or to do so safely, is in question –
DON’T TRY IT.
Do not modify the equipment in any way. Unauthorized modification may impair the function and/or safety and
could affect the life of the equipment.
In addition to the design and configuration of this implement, including Safety Signs and Safety Equipment,
hazard control and accident prevention are dependent upon the awareness, concern, prudence, and proper
training of personnel involved in the operation, transport, maintenance, and storage of the machine.Refer also
to Safety Messages and Operation Instructions in each of the appropriate sections of the Tractor and
Implement Manuals. Pay close attention to the Safety Signs affixed to the Tractor and the Implement.
Review the safety instr uctions with all users annually.
This equipment is dangerous to children and persons unfamiliar with its operation.The operator should be a
responsible adult familiar with far m machinery and trained in this equipment’s operations. Do not allow per-
sons to operate or assemble this unit until they have read this manual and have developed a thorough
understanding of the safety precautions and of how it works.
EQUIPMENT SAFETY GUIDELINES
Keep safety signs clean and legible at all times.
Replace safety signs that are missing or have become illegible.
Replaced parts that displayed a safety sign should also display the current sign.
Safety signs are available from your Distributor or Dealer Parts Department or the factory.
SAFETY SIGNS
Page 6
5
All equipment is potentially hazardous. There is no substitute for a cautious, safe-minded operator who
recognizes potential hazards and follows reasonable safety practices.
When the use of hand tools is required to perform any part of assembly, installation, adjustment, maintaining,
repairing, removal, or moving the implement, be sure the tools used are designed and recommended by the
tool manufacturer for that specific task.
Personal protection equipment including safety glasses, safety shoes, and gloves are recommended during
assembly, installation, operation, adjustment, maintaining, repairing, removal, or moving of the implement.
Always use two people to handle heavy, unwieldy components during assembly, installation, removal, or
moving of the implement.
Never place any part of your body where it would be in danger if movement should occur during assembly,
installation, operation, maintaining, repairing, removal, or moving the implement.
Never place yourself between the tractor or ATV and implement while implement is in operation.
Do not work under a raised implement unless it is securely blocked or held in position.
Never wrap rope around hand or any part of your body. Injury could occur.
Never use alcoholic be v erages or drugs which can hinder alertness or coordination while operating equipment.
Consult your doctor about operating tractor and implement while taking prescription medications.
Do not allow others to ride on the tractor or ATV with an operator. Riders are subject to injury such as being
struck by foreign objects or being thrown off.Riders obstr uct the operator’s view resulting in unsafe operation.
Never allow anyone to ride on the implement!
Before you operate any implement, check over all pins, bolts and connections to be sure all are securely in
place. Replace any damaged or worn par ts immediately.
Do not allow anyone who is not familiar with the safety rules and operation instructions to use this equipment.
Never allow children to operate or be around equipment.
Do not exceed capacity of the tractor or ATV.
Keep alert and watch the front as well as the rear when working with implements.
When maneuvering close to buildings or passing through narrow areas, be sure to allow sufficient clearance
for the implement and power unit.
SAFETY INSTRUCTIONS (continued)
Page 7
6
Do not operate close to ditches or creeks. Slow down when operating over rough ground.
Always be sure the implement is in the fully raised and locked position when in transport.
Pull from drawbar only.Failure to hitch properly could cause tractor or ATV to flip over, resulting in serious injury
or death.
Reduce speed on slopes and sharp turns to minimize tipping or loss of control. Be careful when changing
directions on slopes. Do not start or stop suddenly on slopes. Avoid operation on steep slopes.
Never exceed the limits of a piece of machiner y. If its ability to do a job, or to do so safely, is in question –
DON’T TRY IT.
Avoid excessive speed during operation.
Make adjustments only when the implement is attached to the tractor or ATV.
Always ease the tractor or ATV into the load. It may be necessary to reposition and take less “bite” on the
material to move it safely.
Watch for and avoid hidden obstructions, i.e., buried pipes, rocks, concrete piers, uneven concrete slabs,
stumps, etc., when operating landscape rakes, box scrapers, or other ground engaging implements.
Never operate tractor and implement under trees with low hanging limbs. Operators can be knocked off the
tractor and then run over by the implement.
Stay alert for holes, rocks and roots in the terrain and other hidden hazards. Keep away from drop-offs.
Use extreme care and maintain minimum ground speed when transporting on hillside, over rough ground and
when operating close to ditches or fences.Be careful when tur ning shar p cor ners.
Pass diagonally through sharp dips and avoid sharp drops to prevent “hanging up” tractor and implement.
Practice will improve your skills in maneuvering rough terrain.
Always angle down slopes;never across the face. Avoid operation on steep slopes. Slow down on sharp turns
and slopes to prevent tipping and/or loss of control.
Always shut off power unit and shift to “Park” or set brakes when leaving tractor or ATV. Always lower implement to ground. Remove key when leaving tractor or ATV unattended.
Before operating equipment: if you have any questions regarding the proper assembly or operation, contact
your dealer or representative.
SAFETY INSTRUCTIONS (continued) SAFETY INSTRUCTIONS (continued)
Page 8
7
Following operation, or when unhooking, stop the tractor or ATV , set the brak es, shut off the engine and remo ve
the ignition keys.
Store the unit in an area away from human activity. Do not park equipment where it will be exposed to livestock for long periods of time.Damage and livestock injury could result.
Do not permit children to play on or around the stored unit.
Make sure all parked machines are on a hard, level surface and engage all safety devices.
If blocking is used, make sure it is solid and secure before leaving area.
Always tie operator’s end of rope to towing vehicle.Do not let rope drag on ground.Trim off excess rope length.
Where replacement parts are necessary for periodic maintenance and servicing, genuine factory replacement
parts must be used to restore your equipment to original specifications.The manufacturer will not claim responsibility for use of unapproved parts and/or accessories and other damages as a result of their use.
If equipment has been altered in any way from original design, the manufacturer does not accept any liability
for injury or warranty.
Know your controls and how to stop tractor or ATV, engine, and implement quickly in an emergency. Read this
manual and the one provided with your tractor or ATV.
Keep all persons away from operator control area while performing adjustments, service, or maintenance.
Be certain the tractor or ATV is in neutral or park position before star ting engine.
Always ease the tractor or ATV into the load.
Be careful to avoid catching the implement on stumps or other immovable objects.
Use extra care when working on slopes.
Page 9
8
SAFETY SIGNS
PART NO.101170
Page 10
9
Be sure tractor or ATV is in good condition. Read
all the safety precautions and make sure all
operators are familiar with the safety rules of
operation.
CAUTION!
Always tie operator’s end of rope to towing vehicle.
Trim excess length of rope.
CAUTION!
Check the exploded view of the landscape rake or box
scraper in this manual to get an idea of the relationship
between the parts.
The two main subassemblies of the landscape rake are
heavy and awkward to handle. It is recommended that
you have one or two helpers to complete the assembly.
It is suggested that you hook the clevis hitch of the main
frame to your tractor before assembling. If this in not
possible, block the hitch off the ground 5-6 inches.
Slide the landscape rake tinebar assembly under the
main frame. Raise the front of the tinebar and block
below the angle tinebar. Insert the 1” x 4” hex head bolt
into the bottom of the center angle adjustment plate on
the tinebar and then through the 1” diameter hole in the
main frame.(Threaded end up). Place a 1”flat washer on
the bolt and then install the 1” nylock hex nut.Tighten this
nut until it is just lightly snug – you want to be able to
angle the tinebar but have a minimum amount of
looseness.
To assemble the box scraper weldment, slide the box
scraper under the main frame and install the 1” hex head
bolt as described above for the landscape rake tinebar.
Then install the two 1/2” hex head bolts into the rear of the
main frame circle plate and the mounting bracket on the
box scraper. Tighten all bolts on the box scraper
attachment.
On the landscape rake, set the desired angle of the
tinebar assembly and install the angle shift pin.
The operating height of the landscape rake and the bo x
scraper is set by the turnbuckle adjustment. If the unit is
on a flat level surface (concrete slab) you can set the
depth of operation by raising the wheels off the surface.
It is recommended that changes in operating depth be
kept small. After operating the attachment a few times,
you will get to know how much change your power unit
can handle.
Tie one end of the pull rope to the upper end of the lift
handle.The other end of the rope should be lightly tied to
your tractor or ATV.Trim off the excess length of rope (if
any). Tape or braid the end of the rope to keep it from
fraying.
INSTRUCTIONS
TRACTOR REQUIREMENTS
AND PREPARATION
——————————————————
The PLR Series landscape rakes and PBX-42 box
scraper are designed for small lawn/garden tractors and
ATV units equipped with a rear pull type hitch.
For the different width landscape rake units, we recom-
mend the following minimum size lawn/garden tractor:
Rake Min.Tractor H.P.
PLR-48 10-12 H.P.
PLR-60 12-15 H.P.
PLR-72 15-18 H.P.
For the PBX-42 box scrapers, we recommend a 12-15
hp tractor.
ATV units need to have a low gear and be of sufficient
size (see the chart above for tractors and use a conversion of 12 cc engine size equals 1 hp).
Small tractors may need wheel weights to have enough
traction.
PACKING
——————————————————
The landscape rake is usually shipped as two bundles:
1. Main Frame
2. Rake Tine Bar Assembly (teeth installed).
The box scraper is shipped as welded assembly.
ASSEMBLY
——————————————————
For instruction reference, the terms front or rear are
based on the operator facing forward on the tractor, thus
front is toward the front of the tractor and the rear is to the
rear of the tractor.
It is suggested that all the instructions be read before
beginning assembly.
Page 11
10
INSTRUCTIONS (continued)
Watch for and avoid catching the rake or box
scraper on stumps, large rocks, or other immovable
objects.
CAUTION!
As you operate the landscape rake or box scraper, you
need to pull on the rope and pull the handle forward to
dump the material or to make a sharp turn. Releasing the
rope allows the implement to return to its depth setting as
controlled by the turnbuckle.
GRADING
Adjust the turnbuckle for the amount of cut you want to
take.Set the rake angle adjustment as desired – straight
for grading or angles for a windrowing effect.
It is recommended to operate the rake at a slow speed
(max. 3 mph) to give ample time for fine material to flow
through the tines.
When angle grading with the rake, the tinebar should be
angled only enough to allow material to slide across
easily.
LEVELING
The rake tinebar should be straight across (ie:90° to the
line of travel). The gauge wheels will make the leveling
operation much easier. It will usually take several passes
over the same area to obtain the desired result.
RAKING
Light vegetative trash, dirt clods, or rocks may be raked
into piles or into windows for easier pick up. DO NOT
overload rake tines – remove large rocks, roots or limbs
before using the implement.
If you have a gravel or loose stone driveway, setting the
rake at an angle and making several passes in the grass
along each side of the drive will rake the stones out of the
grass and back into the driveway.
WARNING!
Never wrap rope around hand or any part of your
body. Injury could occur.
WARNING!
▲ Be sure power unit engine is off and key is
removed before making any adjustments.
INCORPORATING SEED: Seed is best incorpo-
rated by making two passes in diagonal directions.
Consult your seed supplier or reference book for the
recommended seed depth. Set the rake straight and
operate the rake at two times the recommended seed
depth. Grass seed, for example, should be covered
approximately 1/4”.Operate the rake at 1/2”penetration and
make two passes in diagonal directions.
SAFETY TRAINING
——————————————————
• Know your controls and how to stop tractor and engine
quickly in an emergency. READ THIS MANUAL AND
THE ONE PROVIDED WITH YOUR TRACTOR OR
ATV.
• To avoid accident or injury, do not allow anyone to
operate this equipment without proper instructions.Any
person who operates this equipment must be instructed in and be capable of the safe operation of the power
unit, implement and all controls.
• Do not allow children to operate this machine.
• Always wear relatively tight and belted clothing to avoid
entanglement in moving parts. Wear sturdy, roughsoled work shoes and protective equipment for eyes,
hands, and hearing. Never operate power unit in bare
feet, sandals, or sneakers.
• Operate only in daylight or good artificial light.
• Ensure implement is properly mounted, adjusted and in
good operating condition.
• Ensure that all safety shielding and safety signs are
properly installed and in good condition.
OPERATION
——————————————————
While standing by the landscape rake or box scraper,
pull forward on the handle and remove the transpor t lock
pin, then slowly release your pressure on the handle and
let the handle swing to the rear. Make sure your feet are
clear as the tinebar or box scraper lowers to the ground.
There is an extra set of holes at the top of the le ver quadrant to store the transport lock pin while the implement is
in use.
To place the implement into the transport position, just
reverse the above procedure.
Page 12
11
INSTRUCTIONS (continued)
MAINTENANCE
——————————————————
Straighten or replace any tines which may ha ve bent due
to hitting buried or solid objects.
Check the angle shift pin for e xcessiv e w ear and replace
if necessary.
Repaint parts where paint is worn or scratched to
prevent rust.
Check all bolts and nuts to be sure they are tight except
nylock nut pivot bolts – these should be just snug.
Periodically oil the following:
Turnbuckle threads
Pivot points
STORING SAFELY
——————————————————
At the end of the working season or when the implement
will not be used for a long period, it is good practice to
clean off any dirt that may have accumulated.
Inspect the implement for loose, damaged or worn parts
and adjust or replace if needed.
Repaint parts where paint is worn or scratched to
prevent rust.
Store in a clean, dry place away from where children
play.
READ AND OBEY ALL
SAFETY WARNINGS!!
Keep children away from danger all day, ever y day.
Equip tractors with rollover protection (ROPS) and keep all
machinery guards in place.
Please work, drive, play, and live each day with care and
concern for your safety and that of your family and fellow
citizens.
Page 13
12
PLR LANDSCAPE RAKE &
PBX-42 BOX SCRAPER
PARTS LIST
Page 14
13
Page 15
PULL TYPE LANDSCAPE RAKE
PULL TYPE BOX SCRAPER
OWNER’S/
OPERATOR’S
MANUAL
MODEL NO.’s
PLR-48
PLR-60
PLR-72
PBX-42
WHEN ORDERING REPAIR
PARTS, ALWAYS GIVE THE
FOLLOWING INFORMATION:
1. PART NUMBER
2. PART DESCRIPTION
3. MODEL NUMBER
4. NAME OF ITEM
MARCH 2006
WS-RP012-OG
WORKSAVER, INC.
P.O. BOX 100 LITCHFIELD, IL 62056-0100 (217) 324-5973
WEB: http://www.worksaver.com E-MAIL: [email protected]
SAFETY PRECAUTIONS
MOST ACCIDENTS OCCUR BECAUSE OF NEGLECT OR CARELESSNESS.
AVOID NEEDLESS ACCIDENTS BY FOLLOWING ALL OF THE SAFETY PRECAUTIONS LISTED BELOW.
• Machinery should be operated only by those who are
responsible and are authorized to do so.
• Stop the engine, lower all equipment, lock the brakes,
and remove the ignition key before dismounting from the
tractor.
• Never stand between tractor and implement while tractor
is being backed to hitch.
• Loose fitting clothing should not be worn, to avoid catch-
ing on various parts.
• Detach implement in area where children normally do not
play.
• When performing adjustments or maintenance on an
implement, first lower it to the ground or block it securely
at a workable height.
• Only a qualified operator should be permitted on tractor
when in operation; no riders allowed.
• Make certain everyone is in the clear before starting
tractor or raising or lowering equipment.
• Operate the tractor and implement only while seated in
the driver’s seat.
•
Reduce speed when transporting mounted implements
to avoid bouncing and momentary loss of steering
control.
• A heavy load can cause instability of the tractor. Use
extreme care during road travel.Slow down on turns and
watch out for bumps. Tractor may need front counterweights to counter-balance the weight of the implement.
• Reduce speed on hillsides or curves so there is no
danger of tipping.
• Avoid driving too close to the edge of ditches or creeks.
• Do not transport implement on public roads without
reflectors and slow moving vehicle emblem in daylight
and with approved warning lights at night and other
periods of poor visibility.
• Due to the width of some implements, use extra caution
on highways, far m roads, and when approaching gates.
• Always be sure the implement is in the proper position f or
transport.
• Keep alert and watch the front as well as the rear when
working with the implement.
MAKE EVERY DAY
A HOLIDAY
FROM ACCIDENTS!
Keep children away from danger all day,
every day . . .
Please work, drive, play and live each day
with care and concern for your safety and
that of your family and fellow citizens.
Loading...
