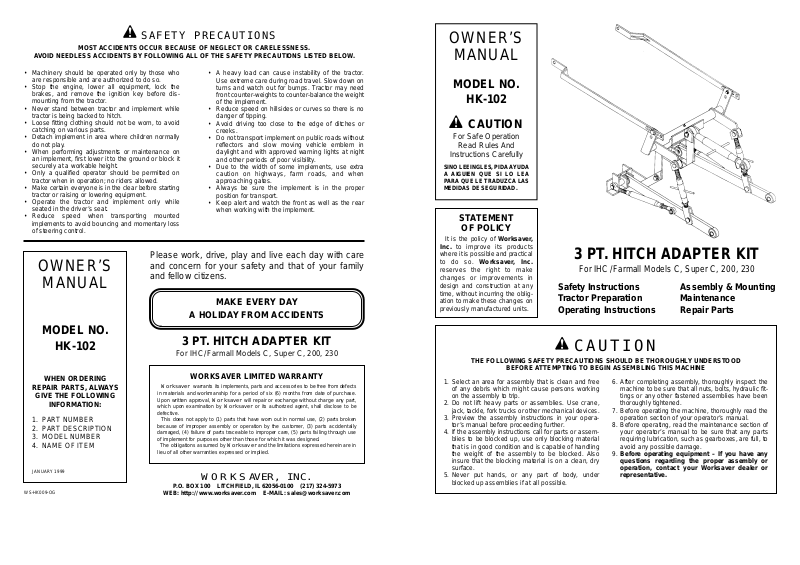

Worksaver HK-102 User Manual
STATEMENT
OF POLICY
It is the policy of Worksaver,
Inc. to improve its products
where it is possible and practical
to do so. Worksaver, Inc.
reserves the right to make
changes or improvements in
design and construction at any
time, without incurring the obligation to make these changes on
previously manufactured units.
3 PT. HITCH ADAPTER KIT
For IHC/Farmall Models C, Super C, 200, 230
Safety Instructions Assembly & Mounting
Tractor Preparation Maintenance
Operating Instructions Repair Parts
CAUTION
THE FOLLOWING SAFETY PRECAUTIONS SHOULD BE THOROUGHLY UNDERSTOOD
BEFORE ATTEMPTING TO BEGIN ASSEMBLING THIS MACHINE
1. Select an area for assembly that is clean and free
of any debris which might cause persons working
on the assembly to trip.
2. Do not lift heavy parts or assemblies. Use crane,
jack, tackle, fork trucks or other mechanical devices.
3. Preview the assembly instructions in your operator’s manual before proceeding further.
4. If the assembly instructions call for parts or assemblies to be blocked up, use only blocking material
that is in good condition and is capable of handling
the weight of the assembly to be blocked. Also
insure that the blocking material is on a clean, dry
surface.
5. Never put hands, or any part of body, under
blocked up assemblies if at all possible.
6. After completing assembly, thoroughly inspect the
machine to be sure that all nuts, bolts, hydraulic fittings or any other fastened assemblies have been
thoroughly tightened.
7. Before operating the machine, thoroughly read the
operation section of your operator’s manual.
8. Before operating, read the maintenance section of
your operator’s manual to be sure that any parts
requiring lubrication, such as gearboxes, are full, to
avoid any possible damage.
9. Before operating equipment – If you have any
questions regarding the proper assembly or
operation, contact your Worksaver dealer or
representative.
OWNER’S
MANUAL
MODEL NO.
HK-102
CAUTION
For Safe Operation
Read Rules And
Instructions Carefully
SINO LEEINGLES, PIDAAYUDA
A AIGUIEN QUE SI LO LEA
PARA QUE LE TRADUZCA LAS
MEDIDAS DE SEGURIDAD.
1
T o the Owner/Operator/Dealer
All implements with moving parts are potentially hazardous. There is no substitute for a cautious, safe-minded operator who recognizes the potential hazards and follows reasonable safety practices. The manufacturer has designed this
implement to be used with all its safety equipment properly attached to minimize the chance of accidents.
BEFORE YOU START!!
Read the safety messages on the implement and shown in your manual.
Observe the rules of safety and common sense!
THIS SAFETY ALERT SYMBOL IDENTIFIES IMPORTANT
SAFETY WARNING MESSAGES. CAREFULLY READ EACH
WARNING MESSAGE THAT FOLLOWS. FAILURE TO
UNDERSTAND AND OBEY A SAFETY WARNING, OR
RECOGNIZE A SAFETY HAZARD, COULD RESULT IN AN
INJURY OR DEATH TO YOU OR OTHERS AROUND YOU.
THE OPERATOR IS ULTIMATELY RESPONSIBLE FOR THE
SAFETY OF HIMSELF, AS WELL AS OTHERS, IN THE
OPERATING AREA OF THE TRACTOR AND EQUIPMENT.
UNDERSTAND SIGNAL WORDS
Note the use of the signal words DANGER, WARNING
and CAUTION with the safety messages. The
appropriate signal word for each has been selected
using the following guidelines:
DANGER: Indicates an imminently hazardous situation
that, if not avoided, will result in death or serious injury.
This signal word is to be limited to the most extreme
situations typically for machine components which, for
functional purposes, cannot be guarded.
WARNING: Indicates a potentially hazardous situation that, if not avoided, could result in death
or serious injury, and includes hazards that are
exposed when guards are removed. It may also
be used to alert against unsafe practices.
CAUTION: Indicates a potentially hazardous situation that, if not avoided, may result in minor or
moderate injury. It may also be used to alert
against unsafe practices.
THIS SYMBOL MEANS
– A TTENTION!
– BECOME ALERT!
– YOUR SAFETY IS INVOLVED!
IMPORTANT SAFETY INFORMATION!
Working with unfamiliar equipment can lead to careless injuries. Read this manual, and the manual for your tractor,
before assembly or operating, to acquaint yourself with the machine. It is the equipment owner’s responsibility, if this
equipment is used by any person other than yourself, is loaned or rented, to make certain that the operator, prior to
operating:
1. Reads and understands the operator’s manuals.
2. Is instructed in safe and proper use.
The use of this equipment is subject to certain hazards which cannot be protected against by mechanical
means or product design. All operators of this equipment must read and understand this entire manual, paying
particular attention to safety and operating instructions, prior to using. If there is something in this manual you
do not understand, ask your supervisor, or your dealer, to explain it to you.
Most accidents occur because of neglect or carelessness. Keep all helpers and bystanders twenty-five feet (25’)
from operating equipment. Only properly trained people should operate this tractor and attached implement. It
is recommended the tractor be equipped with a Roll-Over Protection System (ROPS) and a seat belt that is used.
Always stop the tractor, set brake, shut of f the tractor engine, remove the tractor key, and lower implement to the
ground before dismounting tractor. Never leave equipment unattended with the tractor running.
2
All equipment is potentially hazardous. There is no substitute for a cautious, safe-minded operator who
recognizes potential hazards and follows reasonable safety practices.
When the use of hand tools is required to perform any part of assembly, installation, adjustment, maintaining,
repairing, removal, or moving the implement, be sure the tools used are designed and recommended by the
tool manufacturer for that specific task.
Personal protection equipment including safety glasses, safety shoes, and gloves are recommended during
assembly, installation, operation, adjustment, maintaining, repairing, removal, or moving of the hitch kit.
Always use two people to handle heavy, unwieldy components during assembly, installation, removal, or
moving of the hitch kit.
Never place any part of your body where it would be in danger if movement should occur during assembly,
installation, operation, maintaining, repairing, removal, or moving the implement.
Never place yourself between the tractor and implement while implement is in operation.
Do not work under a raised implement unless it is securely blocked or held in position. Do not depend on the
tractor hydraulic system to hold the implement in place.
A heavy load can cause instability of the tractor. Use extreme care during travel. Slow down on turns and
watch out for bumps. The tractor may need front counter-weights to counter-balance the weight of the
implement. An unstable tractor could steer badly and possibly tip over, causing injury or death.
Never use alcoholic beverages or drugs which can hinder alertness or coordination while operating equipment.
Consult your doctor about operating tractor and implement while taking prescription medications.
Do not allow others to ride on the tractor with an operator. Riders are subject to injury such as being struck by
foreign objects or being thrown off. Riders obstruct the operator’s view resulting in unsafe operation. Never
allow anyone to ride on the implement!
Before you operate any implement, check over all pins, bolts and connections to be sure all are securely in
place. Replace any damaged or worn parts immediately.
Do not allow anyone who is not familiar with the safety rules and operation instructions to use this equipment.
Never allow children to operate or be around equipment.
Do not exceed lift capacity of the tractor hitch.
Keep alert and watch the front as well as the rear when working with the attached implements.
SAFETY INFORMATION (continued)HK-102
3
When maneuvering close to buildings or passing through narrow areas, be sure to allow sufficient clearance
for the implement.
Do not operate close to ditches or creeks. Slow down when operating over rough ground.
Always be sure the implement is in the fully raised position when in transport.
Pull from drawbar or lower 3 pt. arms only. Failure to hitch properly could cause tractor to flip over, resulting in
serious injury or death.
Use extreme caution when backfilling deep holes or trenches.
Use care when working on slopes.
Avoid excessive speed during operation.
Make adjustments only when the implement is attached to the tractor.
When using a rear blade in a reverse position, use extra care. Do not ram rear blade into piles of dirt. Tractor
lift arms and the rear blade are not built to take high impact loads in this position. Ramming backwards can
also dislodge operator from seat and/or tractor controls, resulting in possible serious injury or death.
Always ease the tractor into the load. It may be necessary to reposition and take less “bite” on the material to
move it safely.
Watch for and avoid hidden obstructions, i.e., buried pipes, rocks, concrete piers, uneven concrete slabs,
stumps, etc., when operating rear blades, box scrapers, or other ground engaging implements.
NEVER operate any PTO driven implement unless tractor PTO guard is in place and PTO driveline shielding
is in place.
Always shut off tractor and shift to “Park” or set brakes when leaving tractor. Always lower implement to
ground. Remove key when leaving tractor unattended.
Before operating equipment: if you have any questions regarding the proper assembly or operation, contact
your dealer or representative.
Safety is a primary concern in the design and
manufacture of our products. Unfortunately, our
efforts to provide safe equipment can be wiped out
by a single careless act of an operator.
In addition to the design and configuration of equipment, hazard control and accident prevention are
dependent upon the awareness, concern, prudence
and proper training of personnel involved in the
operation, transport, maintenance and storage of
equipment.
It has been said, “The best safety device is an
informed, careful operator.” We ask you to be that
kind of an operator.
ALWAYS OBEY ALL
SAFETY RULES!
ALWAYS BE CAREFUL!
SAFETY INFORMATION (continued)
