Worksaver 300 User Manual

OWNER’S/
OPERATOR’S
MANUAL
MODEL NO.
300
CAUTION
For Safe Operation
Read Rules And
SINO LEEINGLES, PIDA AYUDA A AIGUIEN QUE SI LO LEA PARA QUE LE TRADUZCA LAS MEDIDAS DE SEGURIDAD.
Safety Instructions Assembly & Mounting Tractor Preparation Maintenance Operating Instructions Repair Parts
LIGHT DUTY 3-PT. MOUNTED
POST HOLE DIGGER
For small 14 - 24 hp tractors with Cat.0 3-pt. hitch
(with 7/8” Cat. I Pins)
CAUTION
THE FOLLOWING SAFETY PRECAUTIONS SHOULD BE THOROUGHLY UNDERSTOOD
BEFORE ATTEMPTING TO BEGIN ASSEMBLING THIS MACHINE
1. Select an area for assembly that is clean and free of any debris which might cause persons working on the assembly to trip.
2. Do not lift heavy parts or assemblies. Use crane, jack, tackle, fork trucks or other mechanical devices.
3. Preview the assembly instructions in your operator’s manual before proceeding further.
4. If the assembly instructions call for parts or assemblies to be blocked up, use only blocking material that is in good condition and is capable of handling the weight of the assembly to be blocked. Also insure that the blocking material is on a clean, dry surface.
5. Never put hands, or any part of body, under blocked up assemblies if at all possible.
6. After completing assembly, thoroughly inspect the machine to be sure that all nuts, bolts, hydraulic fittings or any other fastened assemblies have been thoroughly tightened.
7. Before operating the machine, thoroughly read the operation section of your operator’s manual.
8. Before operating, read the maintenance section of your operator’s manual to be sure that any parts requiring lubrication, such as gearboxes, are full, to avoid any possible damage.
9. Before operating equipment – If you have any
questions regarding the proper assembly or operation, contact your dealer or representative.
1
TABLE OF CONTENTS
WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
SAFETY INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
SAFETY SIGNS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
PREPARATION INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . 12
OPERATING INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . 15
OWNER SERVICE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
TROUBLE-SHOOTING GUIDE . . . . . . . . . . . . . . . . . . . . . . . . 19
PARTS LISTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
DOWN FORCE KIT INSTRUCTIONS . . . . . . . . . . . . . . . . . . . 26
OPTIONAL PARKING STAND . . . . . . . . . . . . . . . . . . . . . . . . . 27
TO THE OWNER:
Read this manual before using your Post Hole Digger. This manual is provided to give you the necessary operating and maintenance instructions for keeping your Post Hole Digger in top operating condition. Please read this manual thoroughly. Understand what each control is for and how to use it. Observe all safety signs on the machine and noted throughout the manual for safe operation of implement. Keep this manual handy for ready reference.
Like all mechanical products, it will require cleaning and upkeep. Use only genuine Wor ksaver service par ts. Substitute parts will void the warranty and may not meet standards
required for safe and satisfactor y operation. Record the model and serial number of your Attachment here:
Model:________________________________________ Serial Number:_______________________________
RETAIL CUSTOMER’S RESPONSIBILITY
It is the Retail Customer and/or Operator’s responsibility to read the Operator’s Manual, to operate, lubri­cate, maintain, and store the product in accordance with all instructions and safety procedures. Failure of the operator to read the Operator’s Manual is a misuse of this equipment.
It is the Retail Customer and/or Operator’s responsibility to inspect the product and to have any part(s) repaired or replaced when continued operation would cause damage or excessive wear to other parts or cause a safety hazard.
It is the Retail Customer’s responsibility to deliver the product to the authorized Worksaver Dealer, from whom he purchased it, for service or replacement of defective parts which are covered by warranty. Repairs to be submitted for warranty consideration must be made within forty-five (45) days of failure.
It is the Retail Customer’s responsibility for any cost incurred by the Dealer for traveling to or hauling
of the product for the purpose of performing a warranty obligation or inspection.
SINO LEEINGLES, PIDA AYUDA A AIGUIEN QUE SI LO LEA PARA QUE LE TRADUZCA LAS MEDIDAS DE SEGURIDAD.
STATEMENT
OF POLICY
It is the policy of Worksaver, Inc.to improve its products where it is possible and practical to do so. Worksaver, Inc. reser ves the right to make changes or improvements in design and con­struction at any time, without incurring the obligation to make these changes on previously manufactured units.
LIMITED WARRANTY
Worksaver, Inc. warrants to the original purchaser of any new Post Hole Digger (Model 300), that the equip­ment be free from defects in material and workmanship for a period of six (6) months for non-commercial, state , and municipalities.Commercial use warranty, 90 days on unit and dr iveline, one year on gearbox from date of sale.
Replacement or repair parts installed in the equipment covered by this warranty are warranted for ninety (90) days from the date of purchase of such part or to the expiration of the applicable new equipment warranty period, whichever occurs later.
Such parts shall be provided at no cost to the user during regular working hours. Worksaver, Inc. reserves the right to inspect any equipment or parts which are claimed to have been defective in material or workmanship.
ADDITIONS TO LIMITED WARRANTY
In addition to the Standard Limited Warranty pr inted above, Worksaver, Inc. provides:
1. Five years’ (60 months) warranty on the gearbox and,
2. One year (12 months) on the driveline if: all of these components have been properly maintained and lubricated and that they have not been subjected to abuse or misuse.
NOTICE: Worksaver, Inc. is NOT responsible for damage to augers caused by hitting underground objects (rocks, roots, etc.) or for bent augers caused by moving the tractor with the auger in the ground.
DISCLAIMER OF IMPLIED WARRANTIES & CONSEQUENTIAL DAMAGES
Worksaver’s obligation under this warranty, to the extent allowed by law, is in lieu of all warranties, implied or expressed, including implied warranties of merchantability and fitness for a particular purpose and any liabili­ty for incidental and consequential damages with respect to the sale or use of the items warranted. Such incidental and consequential damages shall include but not be limited to: transportation charges other than normal freight charges; cost of installation other than cost approved by Worksaver, Inc.; duty; taxes; charges for normal service or adjustments; loss of crops or any other loss of income; rental of substitute equipment, expenses due to loss, damage, detention or delay in the delivery of equipment or par ts resulting from acts beyond the control of Worksaver, Inc.
THIS WARRANTY SHALL NOT APPLY:
1. To vendor items which carry their own warranties, such as PTO dr ivelines, gearboxes, and tires.
2. If the unit has been subjected to misapplication, abuse, misuse, negligence, fire or other accident.
3. If par ts not made or supplied by Worksaver have been used in connection with the unit, if, in sole judge-
ment of Worksaver such use affects its perfor mance, stability, or reliability.
4. If the unit has been altered or repaired outside of an authorized Wor ksaver dealership in a manner which,
in the sole judgement of Worksaver affects its perfor mance, stability or reliability.
5. To normal maintenance service and nor mal replacement items such as gearbox lubricant, hydraulic fluid,
worn blades, or to normal deterioration of such things as belts and exterior finish, due to use or exposure.
6. To expendable or wear items such as teeth, chains, center points, belts, springs and other items that in the
company’s sole judgement is a wear item.
NO EMPLOYEE OR REPRESENTATIVE OF WORKSAVER, INC. IS AUTHORIZED TO CHANGE THIS WARRANTY IN ANY WAY OR GRANT ANY OTHER WARRANTY UNLESS SUCH CHANGE IS MADE IN WRITING AND SIGNED BY WORKSAVER’S SERVICE MANAGER, POST OFFICE BOX 100, LITCHFIELD, ILLINOIS 62056-0100.
326
To the Owner/Operator/Dealer
All implements with moving parts are potentially hazardous. There is no substitute for a cautious, safe-minded opera­tor who recognizes the potential hazards and follows reasonable safety practices.The manufacturer has designed this implement to be used with all its safety equipment properly attached to minimize the chance of accidents.
BEFORE Y OU ST ART!!
Read the safety messages on the implement and shown in your manual.
Observe the rules of safety and common sense!
THIS SAFETY ALERT SYMBOL IDENTIFIES IMPORTANT SAFETY WARNING MESSAGES. CAREFULLY READ EACH WARNING MESSAGE THAT FOLLOWS. FAILURE TO UNDERSTAND AND OBEY A SAFETY WARNING, OR RECOGNIZE A SAFETY HAZARD, COULD RESULT IN AN INJURY OR DEATH TO YOU OR OTHERS AROUND YOU. THE OPERATOR IS ULTIMATELY RESPONSIBLE FOR THE SAFETY OF HIMSELF, AS WELL AS OTHERS, IN THE OPERATING AREA OF THE TRACTOR AND ATTACHED EQUIPMENT.
IMPORTANT SAFETY INFORMATION!
Working with unfamiliar equipment can lead to careless injuries. Read this manual, and the manual for your tractor, before assembly or operating, to acquaint yourself with the machines. It is the implement owner’s responsibility, if this machine is used by any person other than yourself, is loaned or rented, to make cer tain that the operator, prior to operating:
1. Reads and understands the operator’s manuals.
2. Is instructed in safe and proper use.
The use of this equipment is subject to certain hazards which cannot be protected against by mechanical means or product design. All operators of this equipment must read and understand this entire manual, pay­ing particular attention to safety and operating instructions, prior to using. If there is something in this manu­al you do not understand, ask your supervisor, or your dealer, to explain it to you.
THIS SYMBOL MEANS
– ATTENTION!
– BECOME ALERT!
– YOUR SAFETY IS INVOLVED!
UNDERSTAND SIGNAL WORDS
Note the use of the signal words DANGER,WARNING and CAUTION with the safety messages. The appropriate signal word for each has been selected using the following guidelines:
DANGER: Indicates an imminently hazardous situation that, if not avoided, will result in death or serious injury. This signal word is to be limited to the most extreme situations typically for machine components which, for functional purposes, cannot be guarded.
If you have questions not answered in this manual or require additional copies or the manual is damaged, please contact your dealer or the manufacturer directly.
WARNING: Indicates a potentially hazardous sit­uation that, if not avoided, could result in death or serious injury, and includes hazards that are exposed when guards are removed. It may also be used to alert against unsafe practices.
CAUTION: Indicates a potentially hazardous sit­uation that, if not avoided, may result in minor or moderate injury. It may also be used to alert against unsafe practices.
SAFETY INSTRUCTIONS (continued)
Safety of the operator is one of the main concerns in designing and developing a new piece of equipment. Designers and manufacturers build in as many safety features as possible. However, every year many accidents occur which could have been avoided by a few seconds of thought and a more careful approach to handling equipment.You, the operator, can avoid man y accidents b y observing the follo wing precautions in this section.To avoid personal injury, study the following precautions and insist those working with you, or for you, follow them.
In order to provide a better view , certain photographs or illustrations in this manual may show an assembly with a safety shield removed. However, equipment should never be operated in this condition. Keep all shields in place. If shield removal becomes necessary for repairs, replace the shield prior to use.
To prevent injury or death, use a tractor equipped with a Roll-Over Protective System (ROPS). Do not paint over, remove or deface any safety signs or warning signs on your equipment. Observe all safety signs and practice the instruction on them.
Never e xceed the limits of a piece of machinery.If its ability to do a job, or to do so safely, is in question - DON’T
TRY IT.
Do not modify the equipment in any way. Unauthorized modification may impair the function and/or safety and could affect the life of the equipment.
In addition to the design and configuration of this implement, including Safety Signs and Safety Equipment, hazard control and accident prevention are dependent upon the awareness, concern, prudence, and proper training of personnel involved in the operation, transport, maintenance, and storage of the machine.Refer also to Safety Messages and Operation Instructions in each of the appropriate sections of the Tractor and Implement Manuals. Pay close attention to the Safety Signs affixed to the Tractor and the Implement.
Replace any CAUTION, WARNING, DANGER or instruction safety sign that is not readable or is missing. Location of such safety signs is indicated in this booklet.
Never use alcoholic beverages or drugs which can hinder alertness or coordination while operating this equipment. Consult your doctor about operating this machine while taking prescription medications.
Review the safety instr uctions with all users annually.
This equipment is dangerous to children and persons unfamiliar with its operation.The operator should be a responsible adult familiar with far m machinery and trained in this equipment’s operations. Do not allow per-
sons to operate or assemble this unit until they have read this manual and have developed a thorough understanding of the safety precautions and of how it works.
EQUIPMENT SAFETY GUIDELINES
524
SAFETY INSTRUCTIONS (continued)
Keep safety signs clean and legible at all times.
Replace safety signs that are missing or have become illegible.
Replaced parts that displayed a safety sign should also display the current sign.

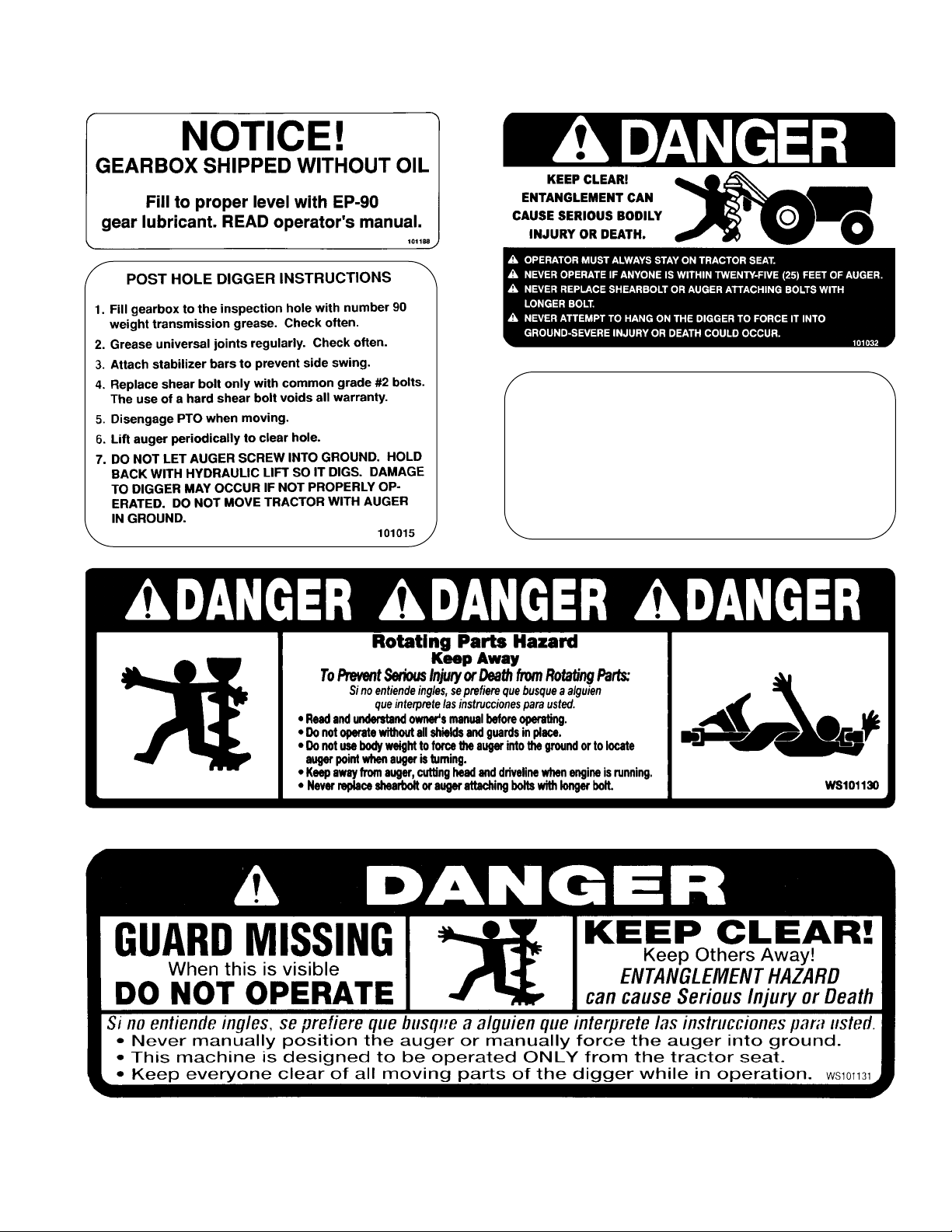

Safety signs are available from your Distributor or Dealer Parts Depar tment or the factory.
Be sure that the installation area is clean and dry. Be sure temperature is above 50ÞF (10ÞC).
Decide on the exact position before you remove the backing paper.
Remove the smallest portion of the split backing paper. Align the sign over the specified area and carefully press the small portion with the exposed sticky backing in place.
Slowly peel back the remaining paper and carefully smooth the remaining portion of the sign in place. Small air pockets can be pierced with a pin and smoothed out using the piece of sign backing paper.
How to Install Safety Signs:
SAFETY SIGNS
Safety is a primary concern in the design and manufacture of our products. Unfortunately, our efforts to pro­vide safe equipment can be wiped out by a single careless act of an operator. It is the operator’s responsibili­ty to read and understand ALL Safety and Operating instructions in the manual and to follow these. Accidents can be avoided.
Know your controls and how to stop tractor, engine, and implement quickly in an emergency. Read this manu­al and the one provided with your tractor.
In addition to the design and configuration of equipment, hazard control and accident prevention are depend­ent upon the awareness, concern, prudence and proper training of personnel involved in the operation, trans­port, maintenance and storage of equipment.
Train all new personnel and review instructions frequently with existing workers. A person who has not read and understood all operating and safety instructions is not qualified to operate the machine. An untrained operator exposes himself and bystanders to possible ser ious injur y or death.
Working with unfamiliar equipment can lead to careless injuries. Read this manual, and the manual for your tractor, before assembly or operating, to acquaint yourself with the machines. It is the implement owner’s responsibility, if this machine is used by any person other than yourself, is loaned or rented, to make certain that the operator, prior to operating:
1. Reads and understands the operator’s manuals.
2. Is instructed in safe and proper use.
SAFETY
TRAINING
Do not allow children to operate this machine.
SAFETY INSTRUCTIONS (continued)
PREPARATION
Personal protection equipment including hard hat, safety glasses, safety shoes, and gloves are recommended during assembly, installation, operation, adjustment, maintaining, repairing, removal, or moving the implement. Do not allow long hair, loose fitting clothing or jewelr y to be around moving par ts.
PROLONGED EXPOSURE TO LOUD NOISE MAY CAUSE PERMANENT HEARING LOSS!
Tractors with or without implements attached can often be noisy enough to cause permanent, par tial hearing loss.We recommend that you wear hearing protection on a full-time basis if the noise in the Operator’s posi­tion exceeds 80db. Noise over 85db on a long-term basis can cause severe hearing loss. Noise over 90db adjacent to the Operator over a long-term basis may cause permanent, total hearing loss. NOTE:Hearing loss from loud noise (from tractors, chain saws, radios, and other such sources close to the ear) is cumulative over a lifetime without hope of natural recover y.
This Post Hole Digger was designed for one-man operation from the tractor seat. It is the responsibility of the operator to see that no one is within twenty-five feet (25’) of the digger when it is started. Do not operate the digger with another person near, or in contact with, any part of the digger, PTO driveline, or auger. Serious personal injury or death may result if any attempt is made to assist digger operation by hand.
Most accidents occur because of neglect or carelessness. Keep all helpers and bystanders twenty-five feet (25’) from an operating digger.Only proper ly trained people should operate this machine. It is recommended the tractor be equipped with a Rollover Protection System (ROPS) and a seat belt that is used. Always stop the PTO, set brake, shut off the tractor engine, remove the tractor key, and allow auger to come to a complete stop before dismounting tractor. Never leave equipment unattended with the tractor running.
All things with moving parts are potentially hazardous. There is no substitute for a cautious, safe-minded operator who recognizes potential hazards and follows reasonable safety practices. The manufacturer has designed this digger to be used with all its safety equipment properly attached, to minimize the chance of accidents. Study this manual to make sure you have all safety equipment attached.
If a safety shield or guard is removed for any reason, it must be replaced before the machine is again operat­ed. Always use, and maintain in place, all power take off guards furnished with the tractor as well as the po wer take off guards and shields furnished with the digger.
Clear area of stones, branches or other debris that might be thrown or entangled, causing injury or damage.
Operate only in daylight or good artificial light.
Make sure driveline spring-activated locking pin or balls operate freely and are seated firmly in tractor PTO stub shaft groove.
Ensure that all safety shielding and safety signs are properly installed and in good condition.
OPERATIONAL SAFETY
722
SAFETY INSTRUCTIONS (continued)
OPERATIONAL SAFETY (continued)
This digger is designed for use only on tractors with 540 RPM power take off.
When the use of hand tools is required to perform any part of assembly, installation, adjustment, maintaining, repairing, removal, or moving the digger, be sure the tools used are designed and recommended by the tool manufacturer for that specific task.
Never place yourself between the tractor and digger while implement is in operation.
Do not walk or work under a raised digger or attachment unless it is securely blocked or held in position. Do not depend on the tractor hydraulic system to hold the digger or attachment in place.
A heavy load can cause instability of the tractor .Use extreme care during trav el.Slow down on turns and watch out for bumps.The tractor may need front counter-weights to counter-balance the weight of the digger.
Never use alcoholic beverages or drugs which can hinder alertness or coordination while operating this equipment. Consult your doctor about operating this machine while taking prescription medications.
Do not allow riders on the digger or tractor at any time.There is no safe place for any riders.
Before you operate the digger, check over all pins, bolts and connections to be sure all are securely in place. Replace any damaged or worn parts immediately.
Consult local utility companies to make certain there are no buried gas lines, electrical cables, etc., in the work area before beginning operation.
Never allow children to operate or be around this digger.
Do not allow anyone who is not familiar with the safety rules and operation instructions to use this Post Hole Digger.
Do not operate digger on steep hillsides.When digging on uneven or hilly terrain, position the tractor with the Post Hole Digger uphill.With the Post Hole Digger downhill, the tractor could tip when attempting to pull the auger from its hole.
Never replace the shear bolt OR auger retaining bolt with any length other than what is specified in this man­ual. A longer, or protruding fastener is more likely to grab loose clothing or gloves which can result in serious injury or death.
Use stabilizer bars, adjustable sway chains, or sway blocks on your tractor lift arms to keep the Post Hole Digger from swinging side to side. Adjust as tightly as practical for best performance.
Never position the auger point by hand or with any tool when the tractor is running.
Never position the auger point by putting your hands on the auger, gearbox, boom, or driveline.
SAFETY INSTRUCTIONS (continued)
OPERATIONAL SAFETY (continued)
Inspect the entire machine periodically as indicated in the Maintenance Section of this manual. Look for loose fasteners, worn or broken parts, pinched hydraulic hoses, and leaky or loose fittings. Make sure all pins have cotter pins and washers. Serious injury may occur from not maintaining this machine in good working order.
Take all possible precautions when leaving unit unattended: Disengage PTO, set parking brake, stop engine and remove key from ignition. Park in level area.
To prevent rapid wear of U-Joints and possible failure of drivelines, never lift auger point more than 12” off the ground with PTO operating.
To prevent possible instantaneous driveline failure, never move digger from hole-to-hole or transport while auger is rotating.This could lead to injur y from flying pieces of the failed driveline.
Keep hands, feet, hair, jewelry, and clothing, away from all moving and/or rotating parts.
To prevent entanglement and possible serious injury or death, never use body weight to try to push auger into the ground.
Worn edges or a slightly rounded point can seriously effect auger penetration.Check for wear bef ore each use, replace as necessary.
Do not shovel dirt away from a rotating auger as the shovel can be caught and thrown by the auger.
Do not operate the Post Hole Digger without all safety shields and guards in place.
Always use care when operating a Post Hole Digger.
MAINTENANCE SAFETY
Good maintenance is your responsibility. Poor maintenance is an invitation to trouble.
Follow good shop practices.
- Keep service area clean and dry.
- Be sure electrical outlets and tools are properly grounded.
- Use adequate light for the job at hand.
Before working on this machine, drive to a level area, disengage the PTO, lower implement (or if working underneath, raise and block securely), shut off the engine, set the brakes, and remove the ignition keys.
