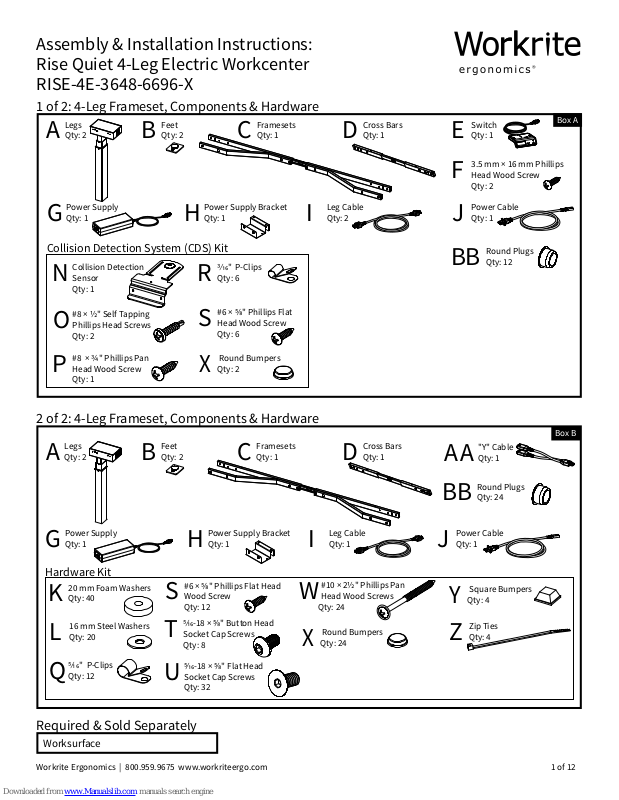

Workrite RISE-4E-3648-6696-X Installation Instructions

Assembly & Installation Instructions:
Rise Quiet 4-Leg Electric Workcenter
RISE-4E-3648-6696-X

1 of 2: 4-Leg Frameset, Components & Hardware

A

Legs

Qty: 2

B

Feet

Qty: 2

Framesets

C

Qty: 1

Cross Bars

Qty: 1

Switch

E

Qty: 1D

3.5 mm × 16 mm Phillips

F

Head Wood Screw
Qty: 2

BoxA

Power Supply

G

Qty: 1

Collision Detection System (CDS) Kit

Collision Detection

N

Sensor
Qty: 1

#8 × ½" Self Tapping

O

Phillips Head Screws
Qty: 2

#8 × ¾" Phillips Pan

P

Head Wood Screw
Qty: 1

Power Supply Bracket

H

Qty: 1

" P-Clips

R

Qty: 6

#6 × ⅝" Phillips Flat

S

Head Wood Screw
Qty: 6

Round Bumpers

X

Qty: 2

I

2 of 2: 4-Leg Frameset, Components & Hardware

A

Legs

Qty: 2

B

Feet

Qty: 2

Framesets

C

Qty: 1

Leg Cable

Qty: 2

D

Cross Bars

Qty: 1

Power Cable

J

Qty: 1

Round Plugs

B

Qty: 12B

"Y" Cable

A

Qty: 1A

Round Plugs

Qty: 24B

B

BoxB

Power Supply

G

Qty: 1

Hardware Kit

20 mm Foam Washers

K

Qty: 40

16 mm Steel Washers

L

Qty: 20

" P-Clips

Q

Qty: 12

S
T

U

Power Supply Bracket

H

Qty: 1

#6 × ⅝" Phillips Flat Head

Wood Screw
Qty: 12

-18 × " Button Head

Socket Cap Screws
Qty: 8

-18 × " Flat Head

Socket Cap Screws
Qty: 32

Required & Sold Separately

Worksurface

Workrite Ergonomics | 800.959.9675 www.workriteergo.com 1 of 12

Leg Cable

I

Qty: 1

#10 × 2½" Phillips Pan

W

Head Wood Screws

Qty: 24

Round Bumpers

X

Qty: 24

Power Cable

J

Qty: 1

Square Bumpers

Y

Qty: 4

Zip Ties

Z

Qty: 4

WARNING: Maximum load of frameset is 520 lb. (236 kg.). Maximum load includes the weight of the table top itself,

any equipment placed upon it, and any equipment suspended or hanging under it. Loading should be evenly distributed over table surfaces.

Rise 4-Leg

V = 120 VAC, 60 Hz

6.4 A maximum with standard two power supplies
Duty cycle: 1 minute on/ 9 minutes o.

IMPORTANT SAFETY INSTRUCTIONS:

When using an electrical furnishing, basic precautions should always be followed, including the following:
Read all instructions before using this Rise Quiet Frameset.

DANGER: To reduce the risk of electric shock, always unplug this Rise Quiet Frameset from the electrical outlet before cleaning.

CAUTION-RISK OF ELECTRIC SHOCK. This unit has two power cords. Unplug both cords before moving or servicing this furnishing.

WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons:

1. Unplug from outlets before putting on or taking o parts, moving or servicing.

2. Close supervision is necessary when this furnishing is used by, or near children, invalids, or disabled persons.

3. Use this furnishing only for its intended use as described in these instructions. Do not use attachments not recommended by the
manufacturer.

4. Never operate this furnishing if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into
water. Return the furnishing to a service center for examination and repair.

5. Keep all cords away from heated surfaces.

6. Do not use outdoors.

7. Do not operate where aerosol (spray) products are being used or where oxygen is being administered.

8. To disconnect, remove plugs from outlet.

9. This Rise Quiet Frameset is intended to support a maximum frameset capacity of 520 lb. (236 kg.).

SERVICING OF DOUBLE-INSULATED PRODUCTS

In a double-insulated product, two systems of insulation are provided instead of grounding. No grounding means is provided on a double­insulated product, nor is a means for grounding to be added to the product. Servicing a double-insulated product requires extreme care and
knowledge of the system, and is to be done by a qualified service personnel. Replacement parts for a double-insulated product must be identical
to the parts they replace. A double-insulated product is marked with the words “DOUBLE INSULATION” or “DOUBLE INSULATED”. The symbol
(square within a square) is also able to be marked on the product.

FOR COMMERCIAL USE ONLY

SAVE THESE INSTRUCTIONS

Verify that you have all the hardware and tools needed for the assembly

✓

Check your cartons against the list above to verify that you have all the parts needed.

You will also need the following tools:

Drill/driver with #2 Phillips head bit
" Allen bit for drill/driver
or " Allan Wrench (Z) provided

If you do not have a Workrite pre-drilled worksurface, you will also need:

⅛" drill bit
Tape measure

An electric Drill/Driver is
recommended over hand
tools for this installation.

2 of 12 Workrite Ergonomics | 800.959.9675 www.workriteergo.com

Layout Components in Assembly Area

1

Assemble near final installation location. Once the Workcenter is built it requires at least two people to li and
move into place. You'll need a large and clean area to assemble. Check your packaged contents against the parts
list on page 1 to verify that you have all the parts needed.

If you have a Workrite Pre-Drilled Worksurface, it may be easiest to assemble on the bottom of the worksurface,
using the pre-drilled holes as a guide.

Place Legs (A), Feet (B), Framesets (C) and Cross Bars (D) on the floor or bottom of your worksurface.

Set the Switch (E), Collision Detection Sensor (N) packaged separately, and Power components (G,H,I & J) within
easy reach.

Carefully unpack and arrange all hardware.

Note! You will have many pieces in common and some VERY SIMILAR parts in the Silence Kit, Collision Detection
Kit,Cable Management and Hardware Kit. Use caution!

Box1

Box2

2 of 2: 4-Leg Frameset

A

B

1 of 2: 4-Leg Frameset

J

G

D

A

B

J

G

C

AA

H

4-Leg Frameset Hardware CDSSwitch

K

L

Q

S

T

U

W

X

Y

Z

C

A

I

I

E

F

BB

H

A

I

B

D

B

N

O

P

R

S

Workrite Ergonomics | 800.959.9675 www.workriteergo.com 3 of 12

X

2

Attach Bumpers to Underside of Framesets

Apply the twenty Round Bumpers (X) at mount location on the Frameset as shown.

a

Note: Round Bumper (X)locations are approximately one inch to the side of all frame mount hole locations.

Apply the four Square Bumper (Y) at the Joining Bracket location just to the side of the center mount hole.

b

Hardware at actual size

Round Bumpers

X

b

Joining Bracket

Y

a

X

X

X

Y

Joining Bracket

Hardware at actual size

Square Bumpers

Y

Attach Framesets to Legs

3

Flip the Frameset over so the Bumpers rest on
the Worksurface. Keep frame oriented as show
with "knee saver" area towards users.

Loosen the Joining Bracket on the Frameset at

a

locations shown with the Allen head bit or wrench.

NOTE! Loosen frameset but do not disassemble!

Move the internal Joining Brackets

b

out of the way to allow attachment
of legs. Keep frameset loose.

With frameset Joining Bracket still

c

loose, attached the four legs to the
frameset using sixteen -18 × "
Flat Head Socket Cap Screws (T).

Hardware at actual size

-18 × " Flat Head

T

Socket Cap Screws

Mount hole

X

Round Bumper (X) locations

about 1" from mount holes

T

Y

Joining Bracket

Joining Bracket

To avoid stripping the threads, always insert and make
the first few turns of the screw BY HAND with the provided
Allen wrench, ensuring it is in straight.

A

A

T

X

Y

c

A

b

c

A

b

T

Joining Bracket

T

a

Make sure Frameset is oriented with
"knee saver" area towards user

4 of 12 Workrite Ergonomics | 800.959.9675 www.workriteergo.com

4

Attach Feet to Legs

T

Attach four Feet (B) To Legs (A) using eight -18 × " Button
Head Socket Cap Screws (T).

Tighten Securely.

Hardware at actual size

-18 × " Button Head

T

Socket Cap Screw

CAUTION! Be sure to use the correct
hardware for this step!

Expand Framesets to Correct Length

5

With Legs & Feet secure but the frameset

a

Joining Bracket still loose, extend the
Frameset (B) and Cross Bars (C) out towards
the edge of the worksurface.

If you have a Workrite pre-drilled
Worksurface:

Align frameset holes with pre-drilled holes in

b

the undersides of the worksurface.

B

A

Adjust Joining Brackets so middle hole

c

aligns with screw location.

a

c

a

Adjust Joining Brackets so center bracket

c

hole aligns with the center hole location.

Proceed to Step 6.

If you have a non- Workrite top:

Align frameset parallel and centered on the

b

worksurface.

Position frameset 3.25" from edge of

c

Worksurface and extend frameset until the
Cross Bars (D) are about 1.5"–2" from the
ends of the top.

Adjust Joining Brackets so center bracket

d

hole is centered between framesets.

Proceed to Step 7.

b

D

Adjust Joining Brackets so

d

middle hole is centered.

a

a

a

D

Workrite Ergonomics | 800.959.9675 www.workriteergo.com 5 of 12

3.25" Min.

3.25" Min.

Attach Frameset to Workrite Pre-Drilled Worksurface

6

If you do not have a Workrite Pre-drilled Worksurface, skip to Step 7.

With Frameset positioned correctly from Step 5, carefully li Frameset assembly to place the Power Supply

a

Bracket (H) under the Frameset at locations shown.

Carefully li the Frameset to place twenty 20 mm Foam Washers (K) at all frame mount locations UNDER the

b

frameset as shown. Be sure to keep frameset aligned with pre-drilled holes.

Attach the Frameset assembly with sixteen 16 mm Steel Washers (L), twenty Foam Washers (K) and twenty

c

×2⅛" Flat Head Phillips Wood Screws (W). NOTE: No 16 mm Steel Washers (L) and only one BOTTOM Foam
Washer (K) are used in the Joining Bracket center frame location.

With frame securely fastened to the worksurface, re-tighten the Joining Brackets loosened in Step 3a.

d

Proceed to Step 8.

C

W

W

c

K

K

K

located
between frameset
and worksurface

b

L

H

C

a

c

C

K

b

H

H

Joining Bracket
location, bottom
Foam Washer (J) only.

Retighten

d

K

located
between frameset
and worksurface

Hardware at actual size

#8 × ¾ Phillips Pan Head

L

Wood Screw

NOTE
Attaches Side Bars (D) to Worksurface.

Hardware at actual size

#10 × 2½" Phillips Pan Head Wood Screws

V

NOTE
Attaches Frameset (C) to Worksurface.

6 of 12 Workrite Ergonomics | 800.959.9675 www.workriteergo.com

Hardware at actual size

20 mm Foam Washers

K

1

2

3

5

>¾"

7

Attach Frameset to Non- Workrite Top

With Frameset positioned correctly from Step 5, use a ⅛" drill bit to drill pilot holes in the twenty frameset

a

mounting locations shown.

You may wish to mark your drill bit so you do not drill any more than ¾" deep to avoid damaging your
worksurface top. Do not drill all the way through worksurface!

Carefully li the Frameset to place twenty 20 mm Foam Washers (K) at all frame mount locations UNDER the

b

frameset as shown. Be sure to keep frameset aligned with pre-drilled holes.

Attach the Frameset assembly with sixteen 16 mm Steel Washers (L), twenty Foam Washers (K) and twenty

c

×2⅛" Flat Head Phillips Wood Screws (W). NOTE: No 16 mm Steel Washers (L) and only one BOTTOM Foam
Washer (K) are used in the Joining Bracket center frame location.

With frame securely fastened to the worksurface, re-tighten the Joining Brackets loosened in Step 3a.

d

Proceed to Step 8.

Mark

a

8

7

6

9

Mark drill bit so you do not

drill through your top

W

c

K

K

L

C

b

K

located
between frameset
and worksurface

>¾"

5

3

2

1

4

a

10

C

W

H

a

c

K

C

11

1.5" Minimum

12

16

17

18

19

20

1" Minimum

14

13

15

b

H

Joining Bracket
location, bottom Foam
Washer (K) only.

Workrite Ergonomics | 800.959.9675 www.workriteergo.com 7 of 12

H

Retighten

d

K

located
between frameset
and worksurface

8

Attach Anti-Collision Detection Sensor to Frameset
and Worksurface

Attach the two Round Bumpers (X) to the contact surface of the

a

Collision Detection Sensor (N). Place the bumpers down, contacting
the worksurface and position on Frameset (C) as shown.

Attach Collision Detection Sensor (N) to worksurface with one #8 × ¾" Phillips Head Wood Screw (P).

b

Attach the Collision Detection Sensor (N) to the Frameset (C) using the two #8×¾" Self Tapping Screws (O). You

c

will need to apply pressure with the screw in place to make the "bit" of the screw drill into the frame then catch
to attach and hold secure.

Improper installation of the Collision
Detection Sensor may result in false
collision incidents. Please follow
instructions closely.

X

a

Hardware at actual size

#8 × ½" Self Tapping

O

Phillips Head Screw

Hardware at actual size

#8 × ¾" Phillips Pan

P

Head Wood Screw

P

N

C

N

O

b

CDS mount location

Alternate location

C

N

C

9

Install Switch

Install your Switch (E) using two 3.5mm×16 mm
Pan Head Screws (F).

If you have a Workrite pre-drilled
Worksurface:

Locate the pre-drilled holes near the front edge
of the Worksurface and attach.

If you have a non-Workrite top:
Align the switch with the front edge of the top,
use a ⅛" drill bit to drill pilot holes using the
Switch holes as a guide and attach.

Do not drill all the way through worksurface!

8 of 12 Workrite Ergonomics | 800.959.9675 www.workriteergo.com

Use Self Tapping
Screws (O) to drill
into frame

F

Alternate location

E

10

Route and Connect Cables

Connect Switch (E) to closest Leg (A).

a

Connect the Y Cable (AA) into the Leg closest to the Collision Detection Sensor (N).

b

Connect Collision Detection Sensor (N) to the closest Leg (A) via the Y Cable (AA).

c

Connect both Legs with Leg Cable (I), one of the two will plug in via the Y Cable (AA) .

d

Slide in both Power Supplies (G) into the Power Supply Brackets (H).

e

Connect both Power Supplies (G) to the closest Leg.

f

Plug Power Cord (J) into the Power Supply (G).

g

Zip Ties (Z) can be used where needed to bundle cables.

A

I

d

f

To Leg (A)

d

A

I

c

N

I

AA

b

I

A

d

G

J

To Power

d

I

A

g

G

J

Plug in

J

H

E

a

E

f

Workrite Ergonomics | 800.959.9675 www.workriteergo.com 9 of 12

G

e

H

G

J

Z

11

Attach Cables to Worksurface With P-Clips

Attach the P-Clips (Q & R) with #6 × ⅝" Phillips Head Wood Screws (S) at convenient locations to keep cables
up and out of the way being sure to rout the cables through the Clips prior to attaching to the underside of the
worksurface.

Note: the larger " P-Clips (Q) are used on the Leg Cables (I) and the smaller " P-Clips (R) are used on all
other cables.

S

R

I

Q

12

Insert Round Plugs

Insert the Round Plugs
(BB) into corresponding
Frameset holes as shown.

BB

10 of 12 Workrite Ergonomics | 800.959.9675 www.workriteergo.com

13

Put Workcenter Upright and Plug in Power Cord

Turn the workcenter over into an upright position. Use at least two people to flip

a

over and position the workcenter.

Plug both Power Cords (J) into power outlets.

b

J

b

a

Flip Workcenter on
its FRONT or BACK so
you do not damage
the switch.

Adjust Leveling Guides

14

If necessary, adjust leveling guides on table feet to level the worksurface.

15

Initialize Legs

Aer all components are connected, and the power cord has been plugged
in, the Legs need to be initialized.

Press and hold the UP and DOWN arrows on the Switch for at least 8 seconds.

a

Release both buttons and immediately press the DOWN arrow. The display will show three dashes and a home

b

icon in the lower le of the display as the worksurface moves to its lowest position.

You must complete this
initialization step or your
workcenter will NOT
function properly!

Once the worksurface stops moving, release the button and the three dashes will be replaced with the height

c

reading. The Legs are initialized and the Workcenter is ready to use.

Download the Rise Programmable Control User Guide

16

To get the full ergonomic benefit of this Workcenter, download the Rise Programmable User Guide. It contains
detailed information on set up and programming of your Rise Workcenter.

http://workriteergo.com/support/rise-control

Cleaning Instructions

✓

To clean the legs, apply cleaner to a so cloth.

Suggested cleaners: Windex or Formula 409.
Do not use solvents and do not saturate or spray cleaners directly onto workcenter base.

Parts & Accessories

✓

Visit http://workriteergo.com/documentation/other/workrite_ergonomics_pricing_specification_guide.pdf for
replacement parts.

Workrite Ergonomics | 800.959.9675 www.workriteergo.com 11 of 12

12 of 12 Workrite Ergonomics | 800.959.9675 www.workriteergo.com

#1500360 - Rev A
