Assembly & Installation Instructions:
Essentia 2-Leg Workcenter ES3E30-48

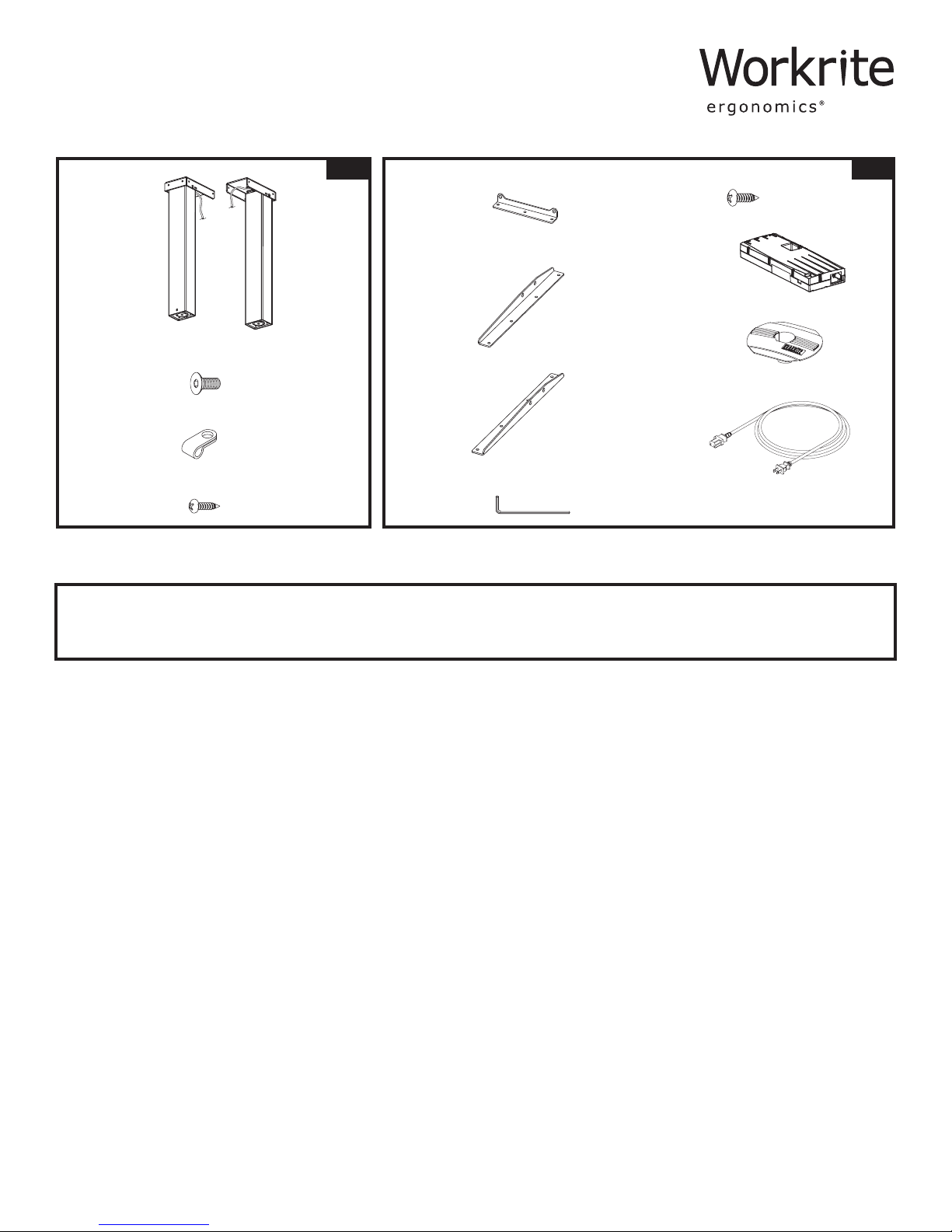

Parts Included, Frame Set
Legs
A
Qty: 2 B
Box1 Box2
Short Bracket
Qty: 4
#12 × ¾" Pan Head Laminate
G
Top Screw
Qty: 24
#M6 × 12 mm Flat Head Cap Screw
E
Qty: 16
" White Leg Cable Loops
J
Qty: 10
#8 × ⅝" Pan Head Screw
K
Qty: 10
Required & Sold Separately
Foot Kit
Basic or Programmable Switch
Top
Le End Bracket
C
Qty: 1
Right End Bracket
D
Qty: 1
4 mm Allen Wrench
F
Qty: 1
Control Box
H
Qty: 1
Cable Spool
I
Qty: 2
Power Cord
L
Qty: 1
Workrite Ergonomics | 800.959.9675 www.workriteergo.com 1 of 10
WARNING: Maximum loading of table assembly is 288 lb. (31 kg). Maximum load includes the weight of the
table top itself, any equipment placed upon it, and any equipment suspended or hanging under it. Loading should be evenly distributed
over table surfaces. “Payload Capacity” is the Workrite Ergonomics recommended Maximum Loading which includes the Workrite sourced
worksurface.
Essentia 2-Leg
V = 120VAC, 60Hz / 8A maximum
P = 300W
IMPORTANT SAFETY INSTRUCTIONS:
When using an electrical furnishing, basic precautions should always be followed, including the following:
Read all instructions before using this Essentia Workcenter.
DANGER: To reduce the risk of electric shock, always unplug this Essentia Workcenter from the electrical outlet before
cleaning.
WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons:
1. Unplug from outlet before putting on or taking o parts.
2. Close supervision is necessary when this furnishing is used by, or near children, invalids, or disabled persons.
3. Use this furnishing only for its intended use as described in these instructions. Do not use attachments not recommended by the
manufacturer.
4. Never operate this furnishing if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or
dropped into water. Return the furnishing to a service center for examination and repair.
5. Keep the cord away from heated surfaces.
6. Do not use outdoors.
7. Do not operate where aerosol (spray) products are being used or where oxygen is being administered.
8. To disconnect, remove plug from outlet.
9. Each surface intended to support a payload of 225 pounds and a maximum load of 288 pounds.
SAVE THESE INSTRUCTIONS
IMPORTANT NOTE!
You must complete initialization (Step 12) at the end of
assembly or your workcenter WILL NOT FUNCTION PROPERLY.
Verify that you have all the tools needed for the assembly
✓
You will need the following tools:
#2 tip Phillips screwdriver or drill/driver
#3 tip Phillips screwdriver or drill/driver
M4 tip bit or 4mm Wrench (F)
If you do not have a Workrite worksurface, you will also need:
⅛" pilot drill bit
3
⁄32" pilot drill bit
or
2 of 10 Workrite Ergonomics | 800.959.9675 www.workriteergo.com
Layout Legs and Brackets

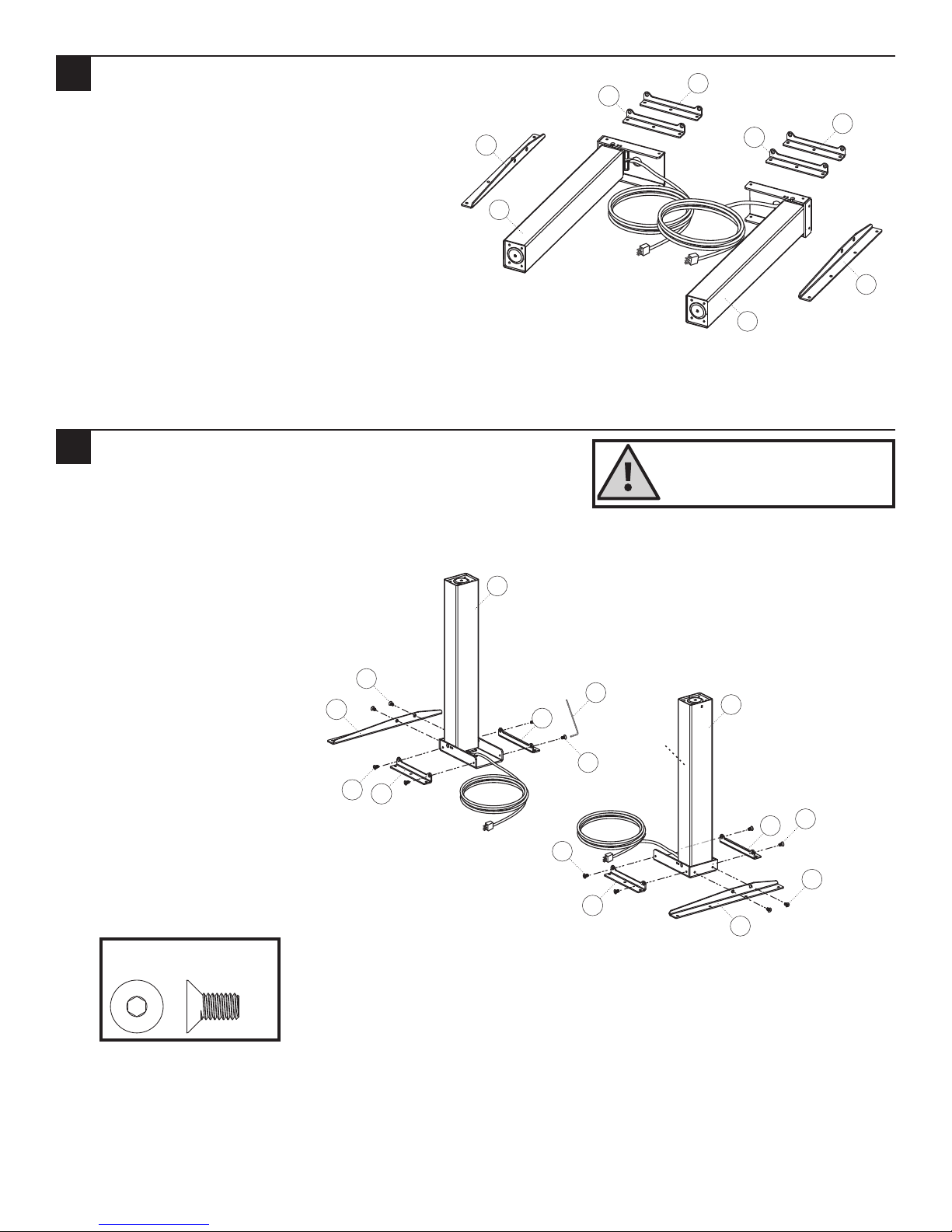

1
Check your cartons against the list on page 1 to
verify that you have all the parts needed.
Place Legs (A) and Brackets (B, C and D) on the
floor.
B
D
A
B
B
B
C
A
2
Attach Short & Medium Brackets
Attach Short Brackets (B) with
#M6×12mm Flat Head Cap Screws (E) to
both legs using 4 mm Allen Wrench (F).
Attach Right End Bracket (D) to sides of
the Leg (A) with Flat Head Cap Screws (E)
using 4 mm Allen Wrench (F). Attach Le
End Bracket (C) to sides of the other Leg
(A) with Flat Head Cap Screws (E) using 4
mm Allen Wrench (F).
Tighten securely.
Right Bracket
Note: The right bracket will be on your
le and vice versa when the assembly is
seen upside down.
Hardware at actual size
#M6 × 12 mm Flat Head
E
Cap Screw
To avoid stripping the threads, always
insert and make the first few turns
of the screw BY HAND with an Allen
wrench (F), ensuring it is in straight.
A
Right Leg
E
D
E
B
B
F
front
E
E
B
Le Bracket
A
Le Leg
C
E
B
E
Caution!
Only use the #M6 × 12 mm Flat Head
Cap Screw (E) for assembly. Use of
longer screws will damage legs.
Workrite Ergonomics | 800.959.9675 www.workriteergo.com 3 of 10

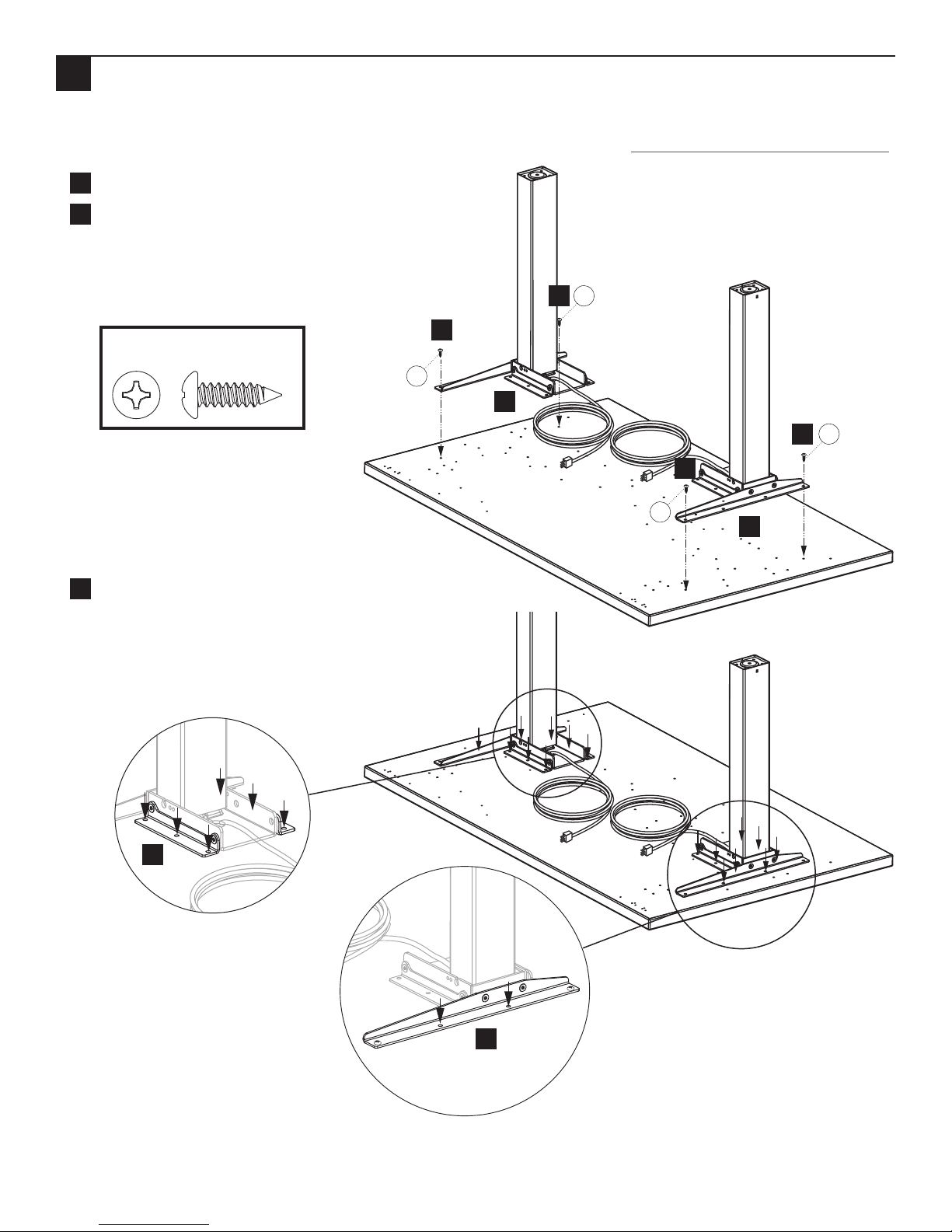

Attach Base to Pre-Drilled Workrite Worksurface
3
If you have a non-Workrite worksurface skip to Step 4.
Note: For 2-Leg Corner and 120° Worksurface Mounting Instructions, go to: www.workriteergo.com/instructions
Position leg assemblies to align mounting holes in
a
brackets to pre-drilled holes in worksurface.
b
Attach at the four corner locations using #12 × ¾" Pan
Head Laminate Top Screws (G). If you use an electric
screwdriver, be sure it is on the lowest torque setting
to avoid stripping the holes in the top.
Hardware at actual size
#12 × ¾" Pan Head
G
Laminate Top Screw
b
G
b
G
a
b
b
G
a
G
With frame set positioned and the four corner screws
c
secure, attach frame set using the remaining #12 × ¾"
Pan Head Laminate Top Screws (G).
Tighten securely.
Skip to Step 5.
c
3 screws per
Short Bracket
4 of 10 Workrite Ergonomics | 800.959.9675 www.workriteergo.com
c
2 screws per End Bracket
(2 installed in Step 3b)
4
Attach Base to Non-Workrite
Worksurface
Note: For 2-Leg Corner and 120° Worksurface
Mounting Instructions, go to: www.workriteergo.com/instructions
Position Leg Assembly 2.875" from
a
the side edges and 6.125" from the
front on 23" to 30" worksurfaces,
making sure the frame runs
parallel with the back edge of the
worksurface.
2.875"
>¾"
6.125"
b
Use a ⅛" drill bit to drill
b
pilot holes at the four
corner locations. You may
wish to mark your drill
bit so you do not drill any
more than ¾" deep and
damage your worksurface
top.
a
Note: Avoid trip or tip hazards!
For uniquely shaped, non-rectangular worksurfaces, it is the
installers responsibility to position the worksurface to minimize
extended overhangs and position feet fully under the worksurface.
b
Parallel to edge
b
b
Do not drill all the way through worksurface!
Hardware at actual size
#12 × ¾" Pan Head
G
Laminate Top Screw
Attach at the four corner locations
c
using #12 × ¾" Pan Head Laminate
Top Screws (G). If you use an
electric screwdriver, be sure it is on
the lowest torque setting to avoid
stripping the holes in the top.
With frame set positioned
d
and the four corner screws
secure, drill pilot holes first
then attach the frame set
using the remaining #12×¾"
Pan Head Laminate Top
Screws (G).
d
Tighten securely.
front
2.875"
6.125"
23"– 30"
a
c
c
G
G
c
G
c
G
Workrite Ergonomics | 800.959.9675 www.workriteergo.com 5 of 10
3 screws per
Short Bracket
d
2 screws per End Bracket
(2 installed in Step 4c)
Attach Feet (sold separately)
5
Refer to foot kit instructions for steps to install your feet.
Note!
Only use the #M6 × 16 mm Flat Head Cap
Screw from the Foot Kit for assembly.
Hardware at actual size
#M6 × 12 mm Flat Head Cap
Screw

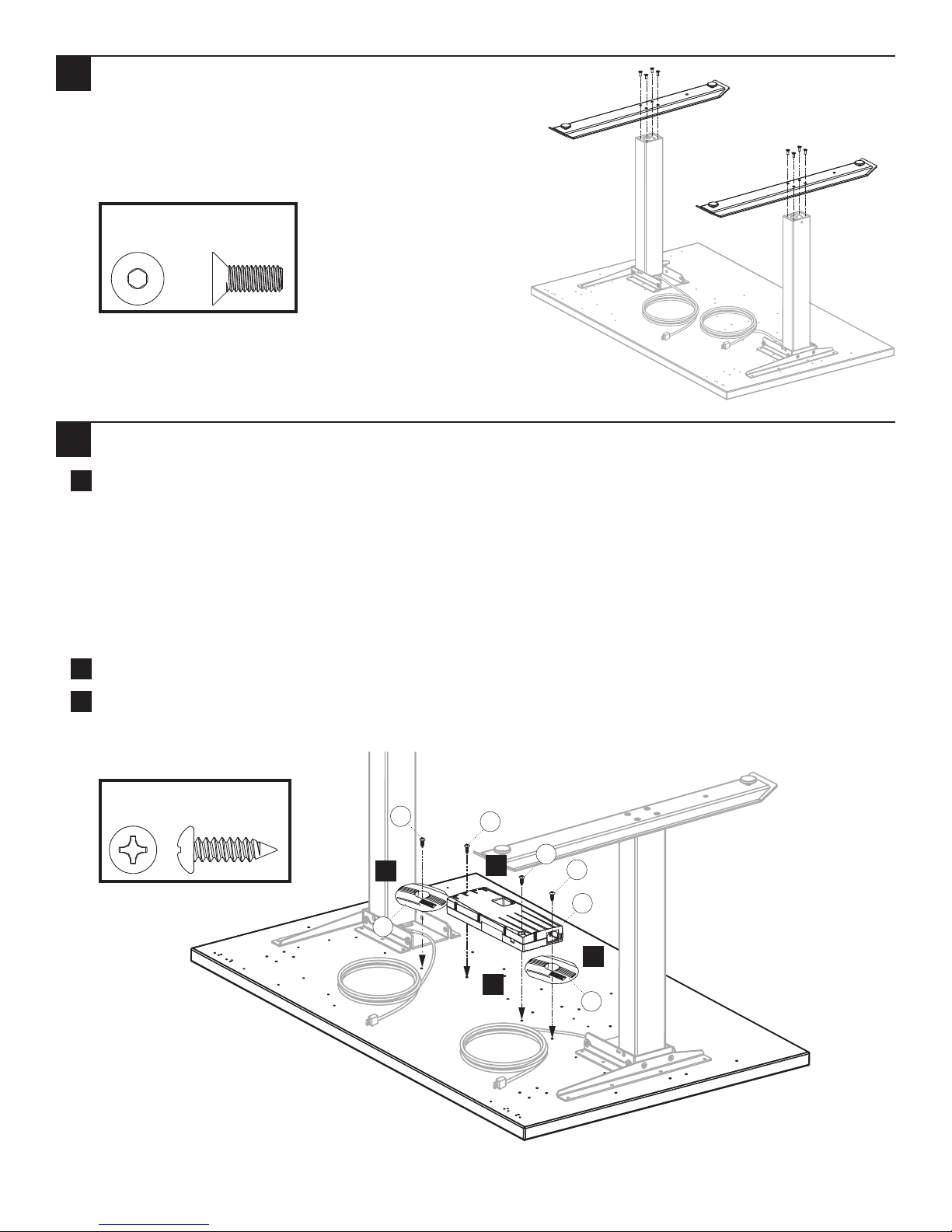

Attach Control Box & Cable Spools to Worksurface
6
Position Control Box (H).
a
If you have a Workrite worksurface:
Locate the two pilot holes for the Control Box and proceed to Step 6b.
If you do not have a Workrite worksurface:
Place Control Box (H) in position and use a pencil to mark pilot hole placement. Control Box should be placed
towards rear center of worksurface as shown. Remove Control Box and drill pilot holes where marked.
Do not drill all the way through worksurface!
With Control Box (H) positioned over pilot holes, attach with two #12 × ¾" Pan Head Screws (G).
b
Attach Cable Spool (I) with the #12 × ¾" Pan Head Screw (G) to underside of worksurface. If you do not have a
c
Workrite worksurface, mount Cable Spools (I) in a convenient location between Legs and Control Box.
Hardware at actual size
#12 × ¾" Pan Head
G
Laminate Top Screw
G
c
I
G
b
G
G
H
c
a
I
6 of 10 Workrite Ergonomics | 800.959.9675 www.workriteergo.com
Attach Switch
7
Refer to switch instructions for steps to install your switch.
Attach Cable Loops and Route Cables
8
Attach Black Switch Cable Loops to underside of worksurface using #12 × ¾" Pan Head Screws (G), making sure
to wrap the Cable Loop around the cable prior to attaching. If you do not have a Workrite worksurface, attach
cable loops in convenient locations between legs or switch and the control box. Attach White Leg Cable Loops
(J) to underside of worksurface using 12 × ¾" Pan Head Laminate Top Screw (G) as needed for your model.
⅛" Black Switch
Cable Loops and
screws from your
Workrite Switch
Hardware at actual size
#12 × ¾" Pan Head
G
Laminate Top Screw
Note: #8 × ⅝" Pan Head Screw (K) are included for fastening the P-Loops,
but the #12 × ¾" Pan Head Laminate Top Screws will work better when
mounting P-Loops in the locations shown above.
G
J
" White
Cable Loops (N)
on leg cables
Workrite Ergonomics | 800.959.9675 www.workriteergo.com 7 of 10
Connect Leg Cables, Switch Cable and Power Cord to Control Box
9
Connect the Leg Cable (A) to the six position leg ports “M1” & “M2” on the Control Box (H).
a
Insert the Switch Cable into the switch port “HS” on the Control Box (H).
b
Insert the Power Cord (L) into the power port on the Control Box (H).
c
L
H
Leg Cable (A) into Leg Ports
“M1” & “M2”
Switch Cable into Switch
Port “HS”
8 of 10 Workrite Ergonomics | 800.959.9675 www.workriteergo.com
a
b
A
A
c
L
H
Power Cord (L) in Power Port
10

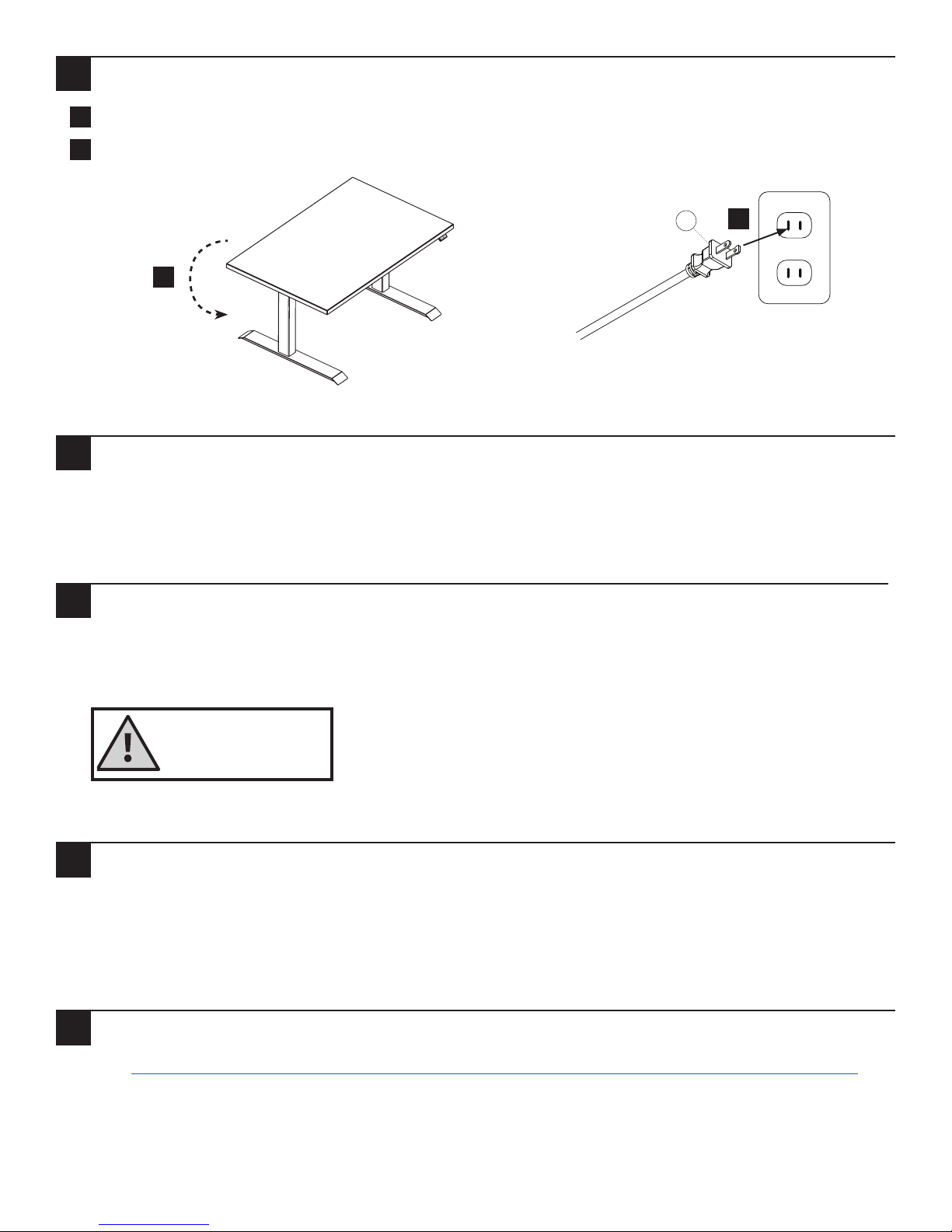

Put Workcenter Upright and Connect Power Cord to the Power Supply
Turn the workcenter over into an upright position.
a
Plug the Power Cord (L) into the power outlet.
b
L
b
a
11
Adjust Feet Glides
If necessary, adjust leveling glides on the feet to level the worksurface. Unscrew to increase height, screw in to
decrease height.
Initialize Legs
12
Aer all legs and the switch are connected, and the power cord has been plugged in, hold the down arrow on
the switch until the legs make a short motion down and then back up. This initializes and synchronizes the
workcenter legs.
You must complete this
initialization step or your
workcenter will NOT
function properly.
Cleaning instructions
✓
To clean the Essentia legs, apply cleaner to a so cloth.
Suggested cleaners: Windex or Formula 409.
Do not use solvents and do not saturate or spray cleaners directly onto workcenter base.
Parts & Accessories
✓
Visit http://workriteergo.com/documentation/other/workrite_ergonomics_pricing_specification_guide.pdf for
replacement parts.
Hold down the down arrow
until workcenter moves
slightly upwards!
Workrite Ergonomics | 800.959.9675 www.workriteergo.com 9 of 10
10 of 10 Workrite Ergonomics | 800.959.9675 www.workriteergo.com
#1500240- Rev C
