Page 1
Ver. 15.06.01
User Manual / Manual de uso
IC 5M
Page 2
Model: IC 5M
CEILING SPEAKER
Dimensions
Rated Power ............................................... 25 W
1" Tweeter
Elements .................................................. 5" Woofer
Impedance .................................................. 8 ohm
Max Power .................................................. 45 W
Sensitivity (1W/1m) ................................... 90 dB
Frequency Response ............................... 95 - 20kHz
Dimensions ............................................... Ø 165 x 75 mm
Hole for mounting .................................... Ø 122 mm
Material .................................................... Metal (enclosure) ABS (grille)
Weight ..................................................... 0.7 Kg
Specifications are subjects to be change without notice
165mm
75mm
- 1 -
User Manual / Manual de uso IC 5M
Page 3

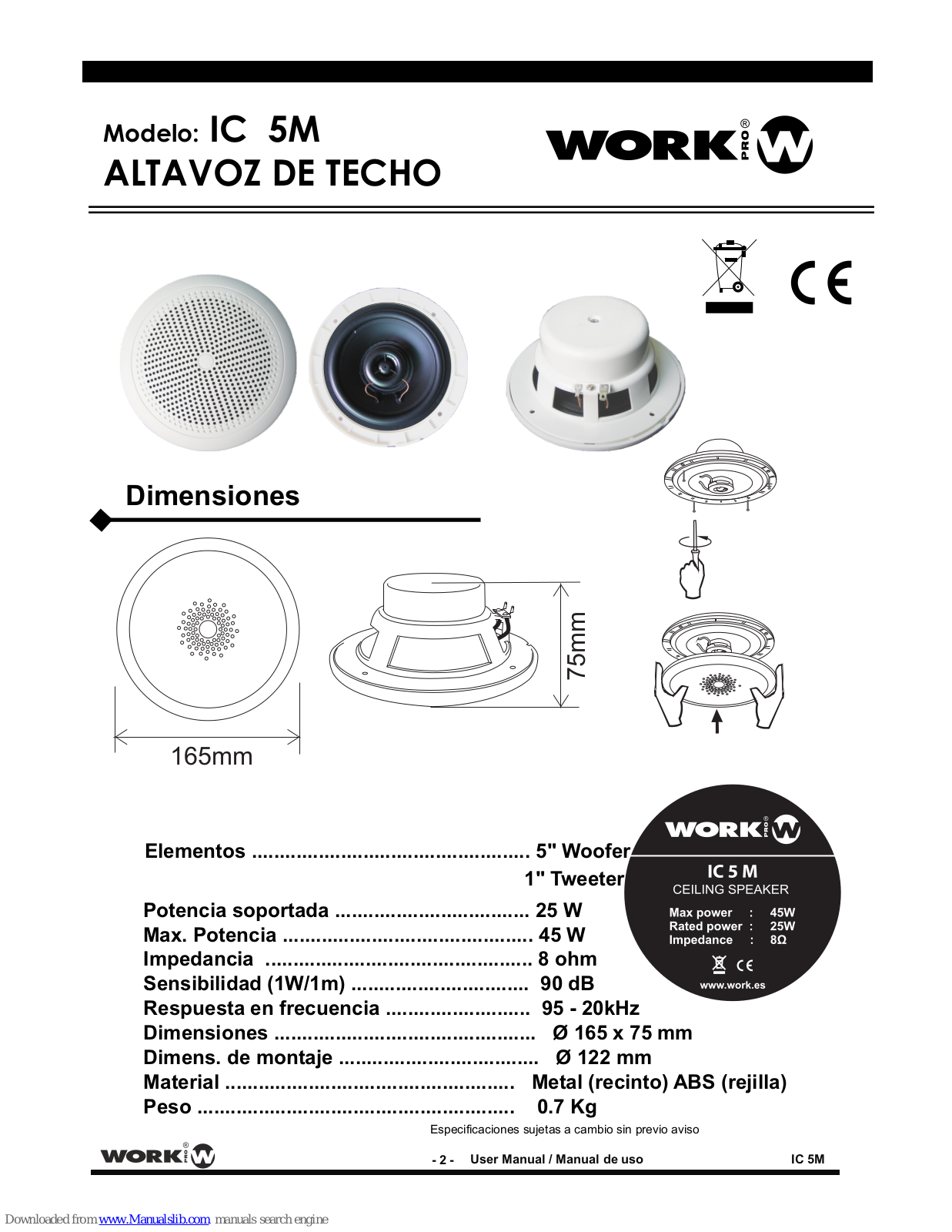

Dimensiones
Potencia soportada ................................... 25 W
Impedancia ................................................ 8 ohm
Max. Potencia ............................................. 45 W
Sensibilidad (1W/1m) ................................ 90 dB
Respuesta en frecuencia .......................... 95 - 20kHz
Dimensiones ............................................... Ø 165 x 75 mm
Dimens. de montaje .................................... Ø 122 mm
Material .................................................... Metal (recinto) ABS (rejilla)
Peso ......................................................... 0.7 Kg
Especificaciones sujetas a cambio sin previo aviso
165mm
75mm
Modelo: IC 5M
ALTAVOZ DE TECHO
- 2 -
User Manual / Manual de uso IC 5M
1" Tweeter
Elementos .................................................. 5" Woofer
Page 4

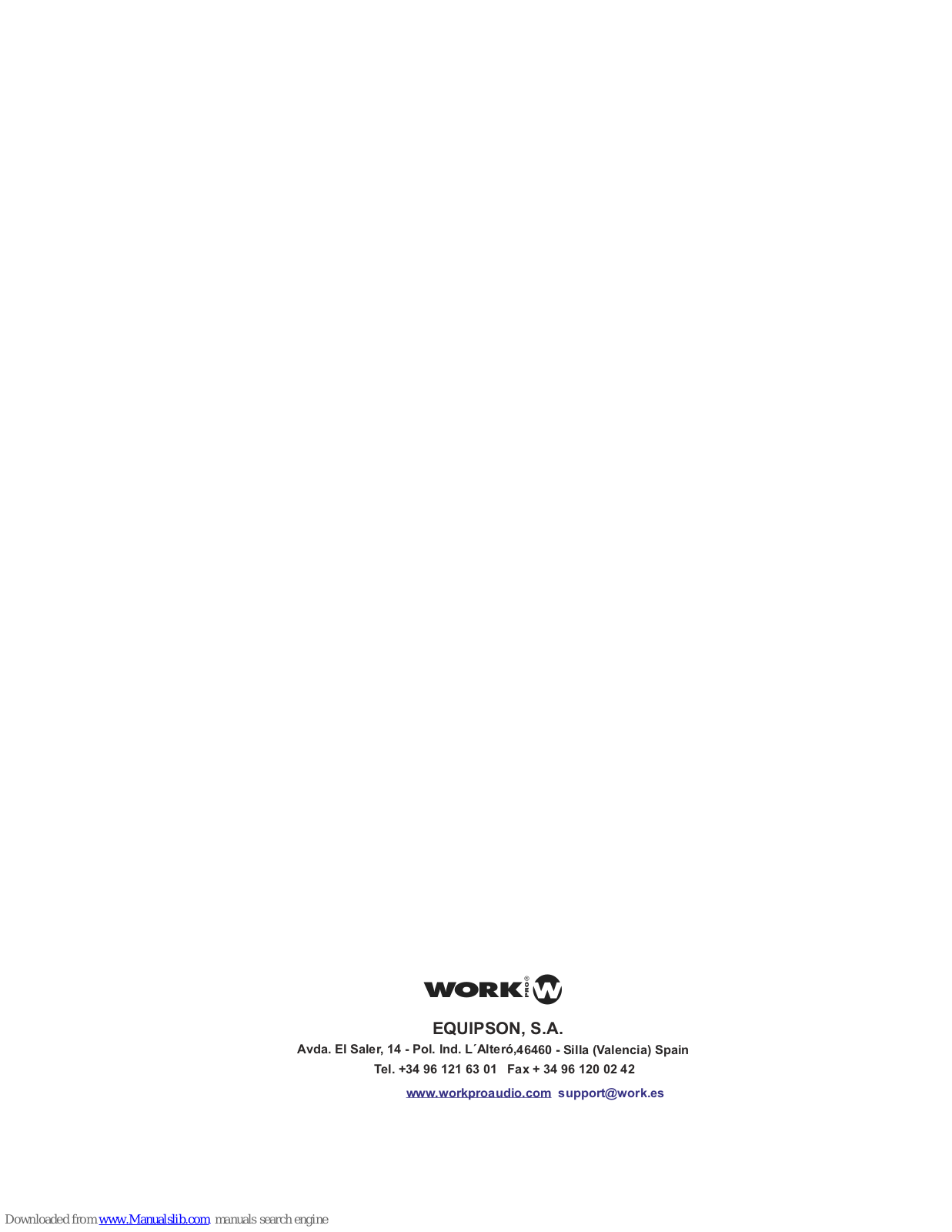

EQUIPSON, S.A.
Avda. El Saler, 14 - Pol. Ind. L´Alteró,
46460 - Silla (Valencia) Spain
Tel. +34 96 121 63 01 Fax + 34 96 120 02 42
www.workproaudio.com support@work.es
