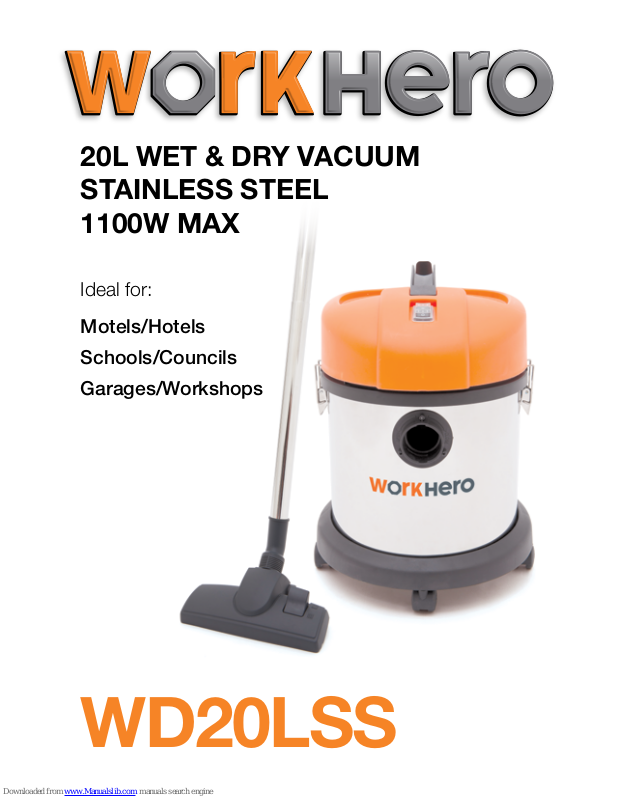

Page 1
20L WET & DRY VACUUM
STAINLESS STEEL
1100W MAX
WD20LSS
Ideal for:
Motels/Hotels
Schools/Councils
Garages/Workshops
Page 2
SAFETY PRECAUTIONS
AND WARNING:
When using your vacuum cleaner, basic
precautions should always be observed,
including the followings;
1. This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities
or lack of experience and knowledge,
unless they have been given supervision or
instruction concerning use of the appliance
by a person responsible for their safety.
2. Children should be supervised to ensure
that they do not play with the appliance.
3. To prevent electrical shock, do not immerse
the appliance, power cord or power plug
into water or other liquids.
4. To prevent electrical shock, do not use the
vacuum cleaner outdoors.
5. Always check the power cord before use,
the power cord and the plug should be in a
good condition and must not be damaged.
If the power supply cord is damaged or
defective, it must be replaced by the
manufacturer, its service agent or similarly
qualied persons in order to avoid a hazard.
6. Do not unplug by pulling on the power cord.
To unplug, grasp the plug not the power
cord. Use only Australian and New Zealand
electrical safety approved extension cords.
7. Do not pull or carry the appliance by the
power cable, use the power cable as a
handle or pull the power cable around
shaft edges or corners. Avoid running the
appliance over the power cable.
8. Ensure the appliance is switched o
before unplugging.
9. Do not handle or operate the appliance
with wet hands and follow electrical safety
precautions at all times.
10. Extreme caution should be exercised when
using the appliance on stairs.
11. Do not attempt to change the attachments
while the appliance is plugged in to mains
power supply. Switch o and remove
plug from mains power supply. Use only
manufacturer’s recommended accessories.
12. Do not operate the vacuum cleaner too
close to the heaters, radiators and other
hot surfaces.
13. Do not use the appliance to pick up
ammable items or combustible liquids
(i.e. petrol, hot ashes cigarettes, matches,
explosive materials or anything burning)
or use in areas where such substances and
items may be present.
14. Do not use the appliance to pick up toxic
materials (i.e. chlorine bleach, ammonia).
15. Ensure the appliance is disconnected from
the main power supply before connecting
the hose to the unit.
16. Do not operate or use the appliance within
dust bag and/or lters in place.
17. Before vacuuming, remove any large or
shaft objects from the oor or cleaning
surface in order to prevent damage to
the lter.
18. If the air inlet, oor head or the telescopic
tube is blocked, switch o the cleaner straight
away and remove from the main power. First
clear the blocked object before attempting to
start the cleaner vacuum again.
19. Hold the plug when rewinding onto the
cord reel. To prevent accidental injury do
not allow the plug to whip when rewinding.
20. Do not leave the appliance unat tended when
it is connected to a mains power supply
21. Before carry out any maintenance service
or cleaning the lters, always switch o the
vacuum cleaner and disconnect the plug
from power supply
22. Keep ends of the hose, telescopic tube
and other openings away from your face
and body.
IMPORTANT
Always switch o the cleaner and remove the plug from the mains power supply before cleaning
your appliance, when not in use or attempting any maintenance task. The cleaner must only be
connected to an AC power supply at the voltage shown on the rating label. This cleaner should
only be used for its intended purpose as described in this instruction manual. Never operate the
vacuum cleaner without lters.
Page 3
WORK HERO 20L WET & DRY VACUUM STAINLESS STEEL 1100W MAX – WD20LSS 01
1. Do not operate the vacuum cleaner too close to heaters, radiators, and
other hot surfaces.
2. Before inserting the plug into the wall, make sure your hand is dry.
3. Before turning on the vacuum cleaner, remove any large or sharp objec ts
from the oor or cleaning sur face in order to prevent damage to the lter.
4. When you want to pull the plug from the wall, do not unplug by pulling on
cord. To unplug, grasp the plug, not the cord.
5. If the air inlet or oor head or tube are blocked, you should switch o the
cleaner straight away and remove from mains power. First clear the blocked
substance before attempting to st art the vacuum cleaner again.
BEFORE YOU BEGIN
23. Do not use the vacuum cleaner if it
is damaged or breaks down. Check
the electrical regularly for defects. If
connection cables, electrical hoses,
electrical contacts and electric tubes are
damaged, have them replace immediately.
24. Never clean the vacuum cleaner or any of
the electrical parts, especially the electrical
connections with water or liquid cleaners.
25. Never attempt to make any modications
electrically to the vacuum cleaner.
26. Always store the appliance indoors in a
cool and dry place.
27. Damage caused by improper use or by not
observing the instructions in this manual
will void warranty.
Page 4
02 WORK HERO 20L WET & DRY VACUUM STAINLESS STEEL 1100W MAX – WD20LSS

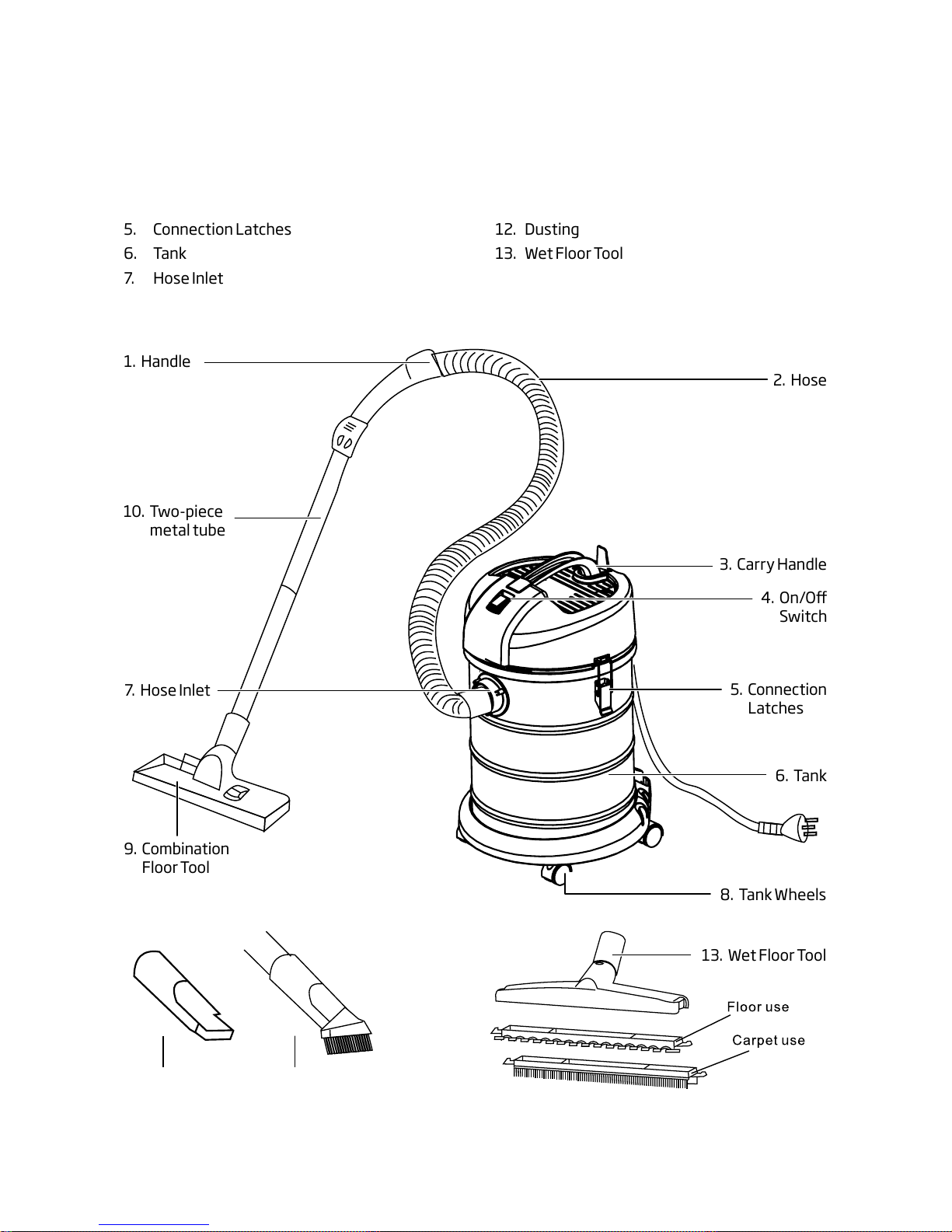

KNOW YOUR PRODUCT
1. Handle
2. Hose
3. Carr y Handle
4. On/O Switch
5. Connection Latches
6. Ta nk
7. Hose Inlet
8. Tank Wheels
9. Combination Floor Tool
10. Two-piece Metal Tube
11. Crevice Tool
12. Dusting Brush
13. Wet Floor Tool
1. Handle
2. Hose
4. On/O
Switch
5. Connection
Latches
6. Tank
7. Hose Inlet
8. Tank Wheels
13. Wet Floor Tool
11. Crevice
Tool
9. Combination
Floor Tool
10. Two-piece
metal tube
3. Carry Handle
12. Dusting
Brush
Page 5
WORK HERO 20L WET & DRY VACUUM STAINLESS STEEL 1100W MAX – WD20LSS 03
ASSEMBLY
The cleaner should be switched o and disconnected from the mains power supply before you
start to assemble.
Part 1
1. Connect the 2-piece metal tube together.
2. Connect the handle on the hose to the tube.
3. Connect the tube to the combination oor tool or the wet pick up tool.
Part 2
1. Disconnect latches on side of machine and remove the canister lid.
2. Remove all accessories from inside the tank.
3. Fit the wheels to the base of the tank.
4.
Replace the canister lid (with the power cord facing the opposite direction of the hose inlet)
and connect the latches.
Part 3
1. Insert the hose connector into the hose inlet and turn clockwise until it locks securely onto
the machine.
2. Take the cable from the storage area and connec t to the mains power supply.
3. Start the cleaner by pressing the On/O button.
Tube
Handle
Tube
Combination
Floor Tool
Tube
Page 6
04 WORK HERO 20L WET & DRY VACUUM STAINLESS STEEL 1100W MAX – WD20LSS
ACCESSORIES
The combination oor tool is ideal for cleaning on carpets and hard oors.
The wet pick up oor tool is ideal for wet applications.
Fitting the dusting brush and crevice tool
To t the accessories to the tube, gently insert the tube into the top of the dusting brush
or crevice tool.
Dusting Brush – ideal for cleaning furniture, curtains and upholstery
Crevice Tool – ideal for cleaning in tight spaces
Carpet Hard Floors
Crevice
Tool
Dusting
Brush
Page 7
WORK HERO 20L WET & DRY VACUUM STAINLESS STEEL 1100W MAX – WD20LSS 05
OPERATION
ATTENTION: DISCONNECT FROM MAINS POWER SUPPLY BEFORE DOING ANY
MAINTENANCE WORK.
Dry Vacuum Cleaning
1. Ensure the HEPA Filter and mesh is always tted before the cleaner is used.
2. This cleaner can be used with or without a dust bag.
3. If using a dust bag please ensure it is tted properly before use.
4. Once the dust bag is full we recommend a new dust bag be tted.
Wet Vacuum Cleaning
1. Ensure the HEPA Filter and mesh is tted and the dust bag is removed before the cleaner is used.
2. Clean the tank after each use. Avoid leaving dust or dirty water in the tank.
3. Wipe the machine inside and out from time to time , using only luke warm water.
Before use always examine the power cable for cuts and/or damage.
4. Wet pick up accessories should be washed periodically.
Remove the mesh
2. Twist the locking knob with an anti-clockwise
force to remove the lter.
1. Remove the mesh from around the
HE PA Fil ter.
MAINTENANCE
If proper care is taken to maintain your cleaner, motor maintenance is unnecessary.
However we recommend that your cleaner is serviced once a year.
Cleaning Filter
Page 8
06 WORK HERO 20L WET & DRY VACUUM STAINLESS STEEL 1100W MAX – WD20LSS
40°C
max
24hr
TROUBLESHOOTING
TROUBLE POSSIBLE CAUSE REMEDY
Suction weakens or
cleaner runs hot
Clogged lter Brush dirt from lter. If condition continues,
change lter.
Air Leak Check all ttings for tight t (oor tool, hoses,
etc.). Check that tank cover is sealed properly.
Obstruc tion in hose
or oor tool
Check oor tool, hose, etc. for obstructions, and
remove if present.
Misting in the exhaust air Saturated lter Replace saturated lter with a dry lter.
CUSTOMER CARE
For customer service or product enquiries please contac t 1800 815 270
PRODUCT NUMBER PRODUCT DESCRIPTION
32200828 HEPA Filter cartridge/mesh
32440320 Dust Bags 5pk (non-woven)
31220454 Hose Assembly
31300562 2-piece Metal Tube
33500382 Replacement Wheel
4. Dry by airing.3. Wash and clean the HEPA Filter and mesh
carefully using luke warm water.
5. Place the lter and mesh back into the cleaner.
MAINTENANCE CONT.
Cleaning Filter (cont.)
40°C
max
24hr
24hr
Page 9
WORK HERO 20L WET & DRY VACUUM STAINLESS STEEL 1100W MAX – WD20LSS 07
This warranty commences from the original date of
purchase and is not transferable; please retain your
original proof of purchase for any warranty claims.
This warranty is valid only in the country where the
cleaner is purchased.
The cleaner must be operated in accordance with
these instructions. This cleaner is not designed for the
collection of vitreous building material including particle
board, construction products and similar products
such as wood/fibres, cement, fillers, fibre glass etc or
excessive or frequent sand. The infrequent pick-up
of these materials in these circumstances may be
harmful to your cleaner and may void the
manufacturer’s warranty.
Accessories and consumables including dust bags
and filters, unless defective in manufacture, are not
subject to this warranty. In order to prolong the life of
accessories and consumables, regular care and
maintenance is recommended.
When properly used and cared for, your cleaner
will render excellent service; refer to the instruction
manual for further details, as misuse or failure to
follow the instructions makes this warranty void.
In the event of service or advice being needed,
please contact International Cleaning Solutions Pty
Ltd, ACN 119 462 798, Level 1, Building 2 Brandon
Business Park, 530 Springvale Rd, Glen Waverley,
VIC 3150. Customer Care: 1800 815 270.
The decision to repair or replace the cleaner is at the
sole discretion of International Cleaning Solutions Pty
Ltd. If International Cleaning Solutions Pty Ltd decide to
repair or replace the cleaner, it will do so at its own cost.
International Cleaning Solutions Pty Ltd is unable to
accept responsibility under this warranty for any repair
work not carried out by an authorised International
Cleaning Solutions Service Agent or from the use of
non-genuine parts. If any part is no longer available
or manufactured, International Cleaning Solutions will
replace it with a genuine functional replacement part.
This warranty does not apply to the cost of replacing
any parts of the product due to normal wear and tear,
alterations, improper installation, physical abuse, misuse
or accidental damage. Any transportation costs
involved in the repair of defective parts shall be borne
by the claimant.
If proof of purchase cannot be provided at the time of
a warranty claim or service, any work carried out on
the cleaner is chargeable. The repair or replacement
of the cleaner under this warranty does not extend
the original period of warranty.
The benefits conferred by this warranty are in addition to
all other rights and remedies in respect of the product
as outlined under the Competition and Consumer Act
and other State and Territory laws.
“Our goods come with guarantees that cannot be
excluded in the Australian Consumer Law. You are
entitled to a replacement or refund for a major failure
and for compensation for any other reasonably
foreseeable loss or damage. You are also entitled to
have the goods repaired or replaced if the goods fail
to be of acceptable quality and the failure does not
amount to a major failure.”
Keep this Guarantee and your receipt as proof of purchase
Purchase Date ......./......../.........
Our policy is one of continuous development and accordingly we reserve the right
to change specifications without prior knowledge.
International Cleaning Solutions Pty Ltd.
(ACN 119 462 798)
Level 1, Building 2, Brandon Business Park,
530 Springvale Road, Glen Waverley, Victoria, 3150.
This is a parts and labour warranty against product defects
and failures, when the product is used in accordance
with the terms and conditions of this warranty statement.
WARRANTY
3 Month
Page 10
Product Code: 11500123
International Cleaning
Solutions Pty Ltd
(ACN 119 462 798)
Level 1, Building 2
Brandon Business Park
530 Springvale Rd
Glen Waverley, VIC 3150
Customer Care: 1800 815 270
Made in China
V1 0213
TECHNICAL INFORMATION
Model: WD20LSS
240V ~ 50Hz
1100W MAX
Loading...
