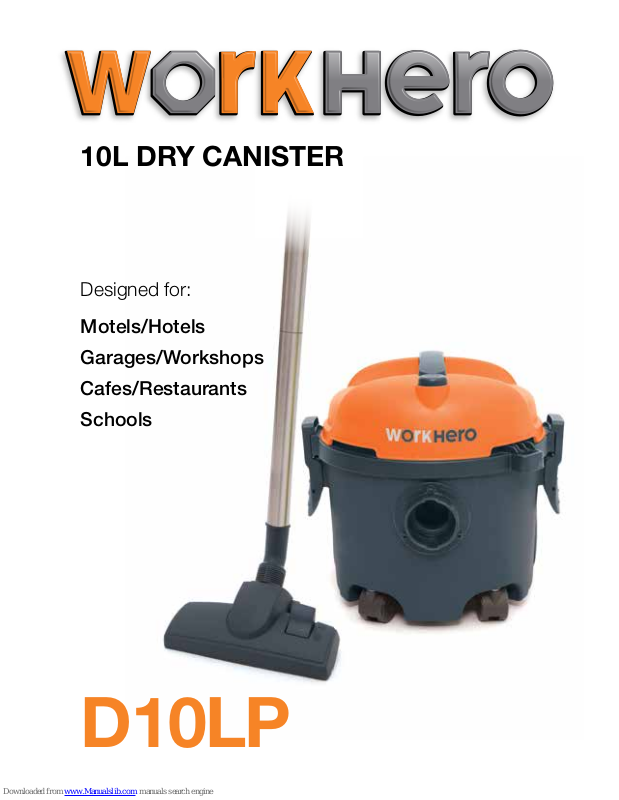

Page 1
10L DRY CANISTER
D10LP
Designed for:
Motels/Hotels
Garages/Workshops
Cafes/Restaurants
Schools
Page 2
SAFETY PRECAUTIONS
AND WARNING:
When using your vacuum cleaner, basic
precautions should always be observed,
including the followings;
1. This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities
or lack of experience and knowledge,
unless they have been given supervision or
instruction concerning use of the appliance
by a person responsible for their safety.
2. Children should be supervised to ensure
that they do not play with the appliance.
3. To prevent electrical shock, do not immerse
the appliance, power cord or power plug
into water or other liquids.
4. To prevent electrical shock, do not use the
vacuum cleaner outdoors.
5. Always check the power cord before use,
the power cord and the plug should be in a
good condition and must not be damaged.
If the power supply cord is damaged or
defective, it must be replaced by the
manufacturer, its service agent or similarly
qualied persons in order to avoid a hazard.
6. Do not unplug by pulling on the power cord.
To unplug, grasp the plug not the power
cord. Use only Australian and New Zealand
electrical safety approved extension cords.
7. Do not pull or carry the appliance by the
power cable, use the power cable as a
handle or pull the power cable around
shaft edges or corners. Avoid running the
appliance over the power cable.
8. Ensure the appliance is switched o
before unplugging.
9. Do not handle or operate the appliance
with wet hands and follow electrical safety
precautions at all times.
10. Extreme caution should be exercised when
using the appliance on stairs.
11. Do not attempt to change the attachments
while the appliance is plugged in to mains
power supply. Switch o and remove
plug from mains power supply. Use only
manufacturer’s recommended accessories.
12. Do not operate the vacuum cleaner too
close to the heaters, radiators and other
hot surfaces.
13. Do not use the appliance to pick up
ammable items or combustible liquids
(i.e. petrol, hot ashes cigarettes, matches,
explosive materials or anything burning)
or use in areas where such substances and
items may be present.
14. Do not use the appliance to pick up toxic
materials (i.e. chlorine bleach, ammonia).
15. Ensure the appliance is disconnected from
the main power supply before connecting
the hose to the unit.
16. Do not operate or use the appliance
without dust bag and/or lters in place
while dry vacuum cleaning.
17. Before vacuuming, remove any large or
shaft objects from the oor or cleaning
surface in order to prevent damage to
the lter.
18. If the air inlet, oor head or the telescopic
tube is blocked, switch o the cleaner straight
away and remove from the main power. First
clear the blocked object before attempting to
start the cleaner vacuum again.
19. Do not leave the appliance unattended when
it is connected to a mains power socket.
20. Before carry out any maintenance service
or cleaning the lters, always switch o the
vacuum cleaner and disconnect the plug
from power supply.
21. Keep ends of the hose, telescopic tube
and other openings away from your face
and body.
IMPORTANT
Always switch o the cleaner and remove the plug from the mains power supply before cleaning
your appliance, when not in use or attempting any maintenance task. The cleaner must only be
connected to an AC power supply at the voltage shown on the rating label. This cleaner should only
be used for its intended purpose as described in this instruction manual.
Page 3
WORK HERO 10L DRY CANISTER – D10LP 01
1. Do not operate the vacuum cleaner too close to heaters, radiators, and
other hot surfaces.
2. Before inserting the plug into the wall, make sure your hand is dry.
3. Before turning on the vacuum cleaner, remove any large or sharp objec ts
from the oor or cleaning sur face in order to prevent damage to the lter.
4. When you want to pull the plug from the wall, do not unplug by pulling on
cord. To unplug, grasp the plug, not the cord.
5. If the air inlet or oor head or tube are blocked, you should switch o the
cleaner straight away and remove from mains power. First clear the blocked
substance before attempting to st art the vacuum cleaner again.
BEFORE YOU BEGIN
22. Do not use the vacuum cleaner if it
is damaged or breaks down. Check
the electrical regularly for defects. If
connection cables, electrical hoses,
electrical contacts and electric tubes are
damaged, have them replace immediately.
23. Never clean the vacuum cleaner or any of
the electrical parts, especially the electrical
connections with water or liquid cleaners.
24. Never attempt to make any modications
electrically to the vacuum cleaner.
25. Always store the appliance indoors in a
cool and dry place.
26. Damage caused by improper use or by not
observing the instructions in this manual
will void warranty.
Page 4
02 WORK HERO 10L DRY CANISTER – D10LP
KNOW YOUR PRODUCT
1. Handle
2. Hose
3. Three-piece metal tube
4. Hose Inlet
5. Carry Handle
6. On/O Switch
7. Connection Latches
8. Wheels
9. Ta nk
10. Combination Floor Tool
11. Cloth Filter (not shown)
12. Power Cable/Cord Restraint
13. Crevice Tool
14. Dusting Brush
14. Dusting
Brush
1. Handle
2. Hose
3. Three-piece
metal tube
10. Combination
Floor Tool
11. Cloth Filter (not shown)
12. Power Cable/
Cord Restraint
6. On/O Switch
4. Hose Inlet
5. Carr y Handle
8. Wheels
9. Tank
7. Connection
Latches
13. Crevice
Tool
Page 5
WORK HERO 10L DRY CANISTER – D10LP 03
ASSEMBLY AND USE
The cleaner should be switched o and disconnected from the mains power supply before you
start to assemble.
Part 1
1. Connect the 3-piece metal tube together.
2. Connect the handle on the hose to the tube.
3. Connect the tube to the combination oor tool or the crevice tool/dusting brush.
Part 2
1. Disconnect latches on side of machine and remove the canister lid.
2. Remove all accessories from inside the tank.
3. Fit the wheels to the base of the tank. Install the big wheels into the relevant positions and
then x with screws included. (Note wheels are marked “R” and “L” to help installation).
4. Replace the canister lid (with the power cord facing the opposite direction of the hose inlet)
and connect the latches.
Tube
Handle
Tube
Combination
Floor Tool
Tube
Page 6
04 WORK HERO 10L DRY CANISTER – D10LP
ASSEMBLY AND USE

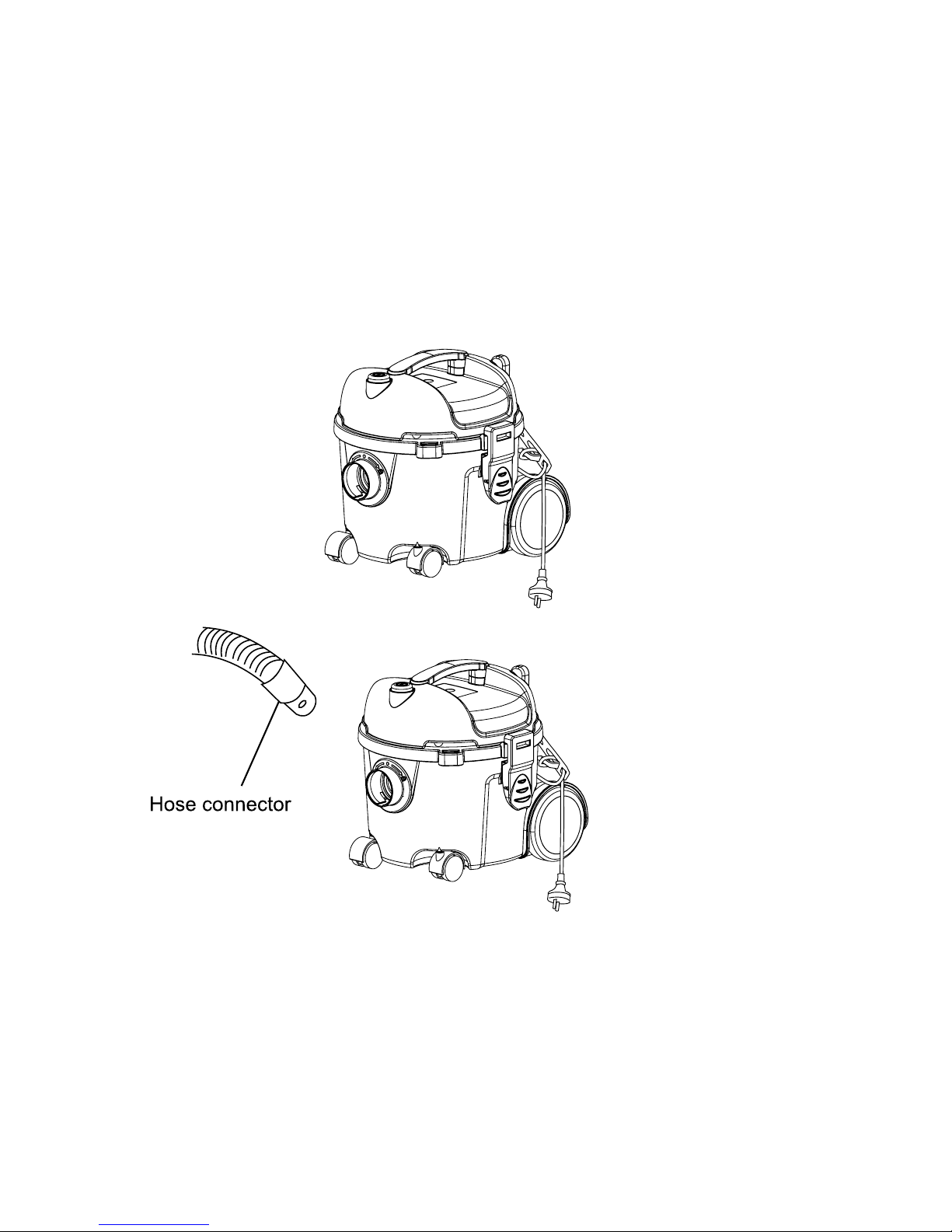

Part 3
1. Insert the hose connector into the hose inlet and turn clockwise until it locks securely onto
the machine.
2. This machine is equipped with a short cable and plug and a cord restraint. It needs to be used
with an extension cord.
3. Connect the extension cord to the mains power supply and start the cleaner by pressing the
On/O button.
NOTE: Always ensure that the cloth lter and the inlet lter are tted in the cleaner
before it is used.
Page 7
WORK HERO 10L DRY CANISTER – D10LP 05
ACCESSORIES
The combination oor tool is ideal for cleaning on carpets and hard oors.
Fitting the dusting brush and crevice tool
To t the accessories to the tube, gently insert the tube into the top of the dusting brush
or crevice tool.
Dusting Brush – ideal for cleaning furniture, curtains and upholstery
Crevice Tool – ideal for cleaning in tight spaces
Crevice
Tool
Dusting
Brush
Carpet Hard Floors
Page 8
06 WORK HERO 10L DRY CANISTER – D10LP
4. Twist the locking knob with an anti-clockwise force to remove the inlet lter.
MAINTENANCE
ATTENTION: DISCONNECT FROM MAINS POWER SUPPLY BEFORE DOING ANY
MAINTENANCE WORK.
If proper care is taken to maintain your cleaner, motor maintenance is unnecessary. However we
recommend that your cleaner is serviced once a year.
Cleaning Filter and Tank
2 Remove the cloth lter.
1. Release the connection latches to unlock the lid from the base.
Connection Latches
3. Empty the tank and clean thoroughly.
Page 9
WORK HERO 10L DRY CANISTER – D10LP 07
5. Wash and clean the cloth lter using luke warm water. Replace the inlet lter with a new one.
6. Dry by airing. 7. Ret the inlet lter and cloth lter.
40°C
max
24hr
24hr
8. Return the barrel to the tank and fasten
connection latches.
Page 10
08 WORK HERO 10L DRY CANISTER – D10LP
TROUBLESHOOTING
TROUBLE POSSIBLE CAUSE REMEDY
Suction weakens or
cleaner runs hot
Clogged lter Brush dirt from lter. If condition continues,
change lter.
Air Leak Check all ttings for tight t (oor tool, hoses,
etc.). Check that tank lid is sealed properly.
Obstruc tion in hose
or oor tool
Check oor tool, hose, etc. for obstructions, and
remove if present.
CUSTOMER CARE
For customer service or product enquiries please contac t 1800 815 270.
PRODUCT NUMBER PRODUCT DESCRIPTION
33400184 Cloth Filter
32200840 Inlet Foam Filter
31220454 Hose Assembly with Handle
31300568 Rod 3pc Stainless Steel
33500394 Rear Wheel
33701753 Latch
Page 11
WORK HERO 10L DRY CANISTER – D10LP 09
This warranty commences from the original date of
purchase and is not transferable; please retain your
original proof of purchase for any warranty claims.
This warranty is valid only in the country where the
cleaner is purchased.
The cleaner must be operated in accordance with
these instructions. This cleaner is not designed for the
collection of vitreous building material including particle
board, construction products and similar products
such as wood/fibres, cement, fillers, fibre glass etc or
excessive or frequent sand. The infrequent pick-up
of these materials in these circumstances may be
harmful to your cleaner and may void the
manufacturer’s warranty.
Accessories and consumables including dust bags
and filters, unless defective in manufacture, are not
subject to this warranty. In order to prolong the life of
accessories and consumables, regular care and
maintenance is recommended.
When properly used and cared for, your cleaner
will render excellent service; refer to the instruction
manual for further details, as misuse or failure to
follow the instructions makes this warranty void.
In the event of service or advice being needed,
please contact International Cleaning Solutions Pty
Ltd, ACN 119 462 798, Level 1, Building 2 Brandon
Business Park, 530 Springvale Rd, Glen Waverley,
VIC 3150. Customer Care: 1800 815 270.
The decision to repair or replace the cleaner is at the
sole discretion of International Cleaning Solutions Pty
Ltd. If International Cleaning Solutions Pty Ltd decide to
repair or replace the cleaner, it will do so at its own cost.
International Cleaning Solutions Pty Ltd is unable to
accept responsibility under this warranty for any repair
work not carried out by an authorised International
Cleaning Solutions Service Agent or from the use of
non-genuine parts. If any part is no longer available
or manufactured, International Cleaning Solutions will
replace it with a genuine functional replacement part.
This warranty does not apply to the cost of replacing
any parts of the product due to normal wear and tear,
alterations, improper installation, physical abuse, misuse
or accidental damage. Any transportation costs
involved in the repair of defective parts shall be borne
by the claimant.
If proof of purchase cannot be provided at the time of
a warranty claim or service, any work carried out on
the cleaner is chargeable. The repair or replacement
of the cleaner under this warranty does not extend
the original period of warranty.
The benefits conferred by this warranty are in addition to
all other rights and remedies in respect of the product
as outlined under the Competition and Consumer Act
and other State and Territory laws.
“Our goods come with guarantees that cannot be
excluded in the Australian Consumer Law. You are
entitled to a replacement or refund for a major failure
and for compensation for any other reasonably
foreseeable loss or damage. You are also entitled to
have the goods repaired or replaced if the goods fail
to be of acceptable quality and the failure does not
amount to a major failure.”
Keep this Guarantee and your receipt as proof of purchase
Purchase Date ......./......../.........
Our policy is one of continuous development and accordingly we reserve the right
to change specifications without prior knowledge.
International Cleaning Solutions Pty Ltd.
(ACN 119 462 798)
Level 1, Building 2, Brandon Business Park,
530 Springvale Road, Glen Waverley, Victoria, 3150.
This is a parts and labour warranty against product defects
and failures, when the product is used in accordance
with the terms and conditions of this warranty statement.
WARRANTY
3 Month
Page 12
Product Code: 11300106
International Cleaning
Solutions Pty Ltd
(ACN 119 462 798)
Level 1, Building 2
Brandon Business Park
530 Springvale Rd
Glen Waverley, VIC 3150
Customer Care: 1800 815 270
Made in China
V1 0613
TECHNICAL INFORMATION
Model: D10LP
240V ~ 50Hz
1200W MAX
1100W NOM
Loading...
