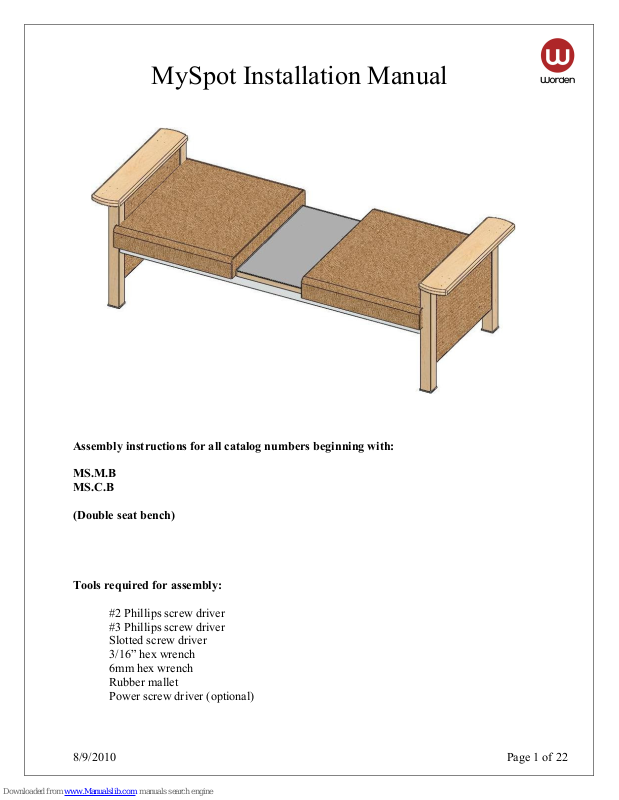

MySpot Installation Manual
Assembly instructions for all catalog numbers beginning with:
MS.M.B
MS.C.B
(Double seat bench)
Tools required for assembly:
#2 Phillips screw driver
#3 Phillips screw driver
Slotted screw driver
3/16” hex wrench
6mm hex wrench
Rubber mallet
Power screw driver (optional)
8/9/2010 Page 1 of 22
Parts required to assemble (1) unit:
(2) – Internal end panels
(17-1/16”H x 22-1/2”W)
(2) – Inner cover panels
(17-1/8”H x 22-1/2”W)
(2) – Outer cover panels
(17-1/8”H x 22-1/2”W)
(6”W x 29”L)
(2) – Arms
8/9/2010 Page 2 of 22
Parts required to assemble (1) unit (continued):
(1) – Bottom panel
(23-1/8” x 63-5/8”)
8/9/2010 Page 3 of 22
(2) – Seat support beams
(64-1/8”L)
Parts required to assemble (1) unit (continued):
(2) – Left legs
(2-1/4”SQ x 22-7/16”H)
(1) Center table
(14-5/8”W x 27”D)
(2) – Right front legs
(2-1/4”SQ x 22-7/16”H)
(2) – Seat cushions
8/9/2010 Page 4 of 22
(1) – Support keel
(7-7/8”W x 65-1/4”L)
Parts required to assemble (1) unit (continued):
(2) – Z-bars (21-3/16”L)
Hardware required to assemble (1) unit (shown actual size):
(3) – Arm plates (4” x 4”)
(8) 5/16-18 x 1” flat head socket cap screws – black (part# 26797)
(4) 5/16-18 x 3” flat head socket cap screws – black (part# 1001771)
(16) #12 x 3/4” flat head wood screws – zinc (part# 26791)
(20) #10 x 1-1/4” flat head wood screws – black (part# 1001591)
(26) #12 x 5/8” pan head wood screws – black (part# 4300-1738)
8/9/2010 Page 5 of 22
Hardware required to assemble (1) unit (shown actual size) (continued):
(16) #14 x 3/8” shoulder screws – zinc (part# 26794)
(4) 10-32 x 5/8” shoulder screws – zinc (part# 1001631)
(8) Cam pins – nickel (part# 29989)
(8) Cams – zinc (part# 29988)
(8) Figure-8 fasteners – zinc (part# 1001663)
(4) 5/16-18 barrel nuts – zinc (part# 1001741)
8/9/2010 Page 6 of 22
8/9/2010 Page 7 of 22
1 (4) 10-32 x 5/8” (8) #10 x 1-1/4” (8) Figure-8
Screw (2) shoulder screws into each internal end panel
and screw (4) Figure-8’s into the predrilled holes in
the bottom edge of each internal end panel.
1 2
1 2
8/9/2010 Page 8 of 22
2 (8) Shoulder screws
Screw (4) shoulder screws into (2) inner cover panels.
1 2
8/9/2010 Page 9 of 22
3
On the same face of the internal end panels that the shoulder
screws were installed, fasten the inner cover panels.
1 2 3
Turn the figure-8’s to hold the cover
panels in place.
8/9/2010 Page 10 of 22
4 (6) #12 x 5/8”
Attach (2) z-bars to the keel.
1 2
(Orientation of the z-bar on the keel)
8/9/2010 Page 11 of 22
5
Fasten the end panel assemblies to the keel.
8/9/2010 Page 12 of 22
6 (8) Cam pins
Screw (2) locking cam pins into (2) left and (2) right legs.
1 2
8/9/2010 Page 13 of 22
7 (4) 5/16-18 x 3” (4) Barrel nuts
Attach an arm plate to each leg as shown.
1 2
8/9/2010 Page 14 of 22
8 (8) 5/16-18 x 1”
Attach (2) legs to each seat support beam to make (2) assemblies.
1 2
8/9/2010 Page 15 of 22
9 (8) Cams
Fasten the leg assemblies to the internal end panels.
1
2
3
4
8/9/2010 Page 16 of 22
10 (20) #12 x 5/8”
Fasten the bottom panel to the support beams and the z-bars.
(BOTTOM SIDE)
8/9/2010 Page 17 of 22
11 (16) #12 X 3/4"
Fasten the arms to the arm plates.
1
2
(OUTSIDE)
(INSIDE)
8/9/2010 Page 18 of 22
12 (8) Shoulder screws
Screw (4) shoulder screws into (2) outer cover panels.
1 2
8/9/2010 Page 19 of 22
13
Fasten the end cover panels to the internal end panels.
1 2 3
Turn the figure-8’s to hold the cover
panels in place.
8/9/2010 Page 20 of 22
14 (4) #10 x 1-1/4”
Fasten the center table to the bottom panel.
8/9/2010 Page 21 of 22
15 (8) #10 x 1-1/4"
Center the seat cushions in the openings and attach
them to the bottom panel.
(BOTTOM SIDE)
8/9/2010 Page 22 of 22
16
Assembly is complete. Adjust glides as needed.
