Woosim systems PORTI-S40, PORTI-S30 User Manual

All specifications are subjected to change without notice

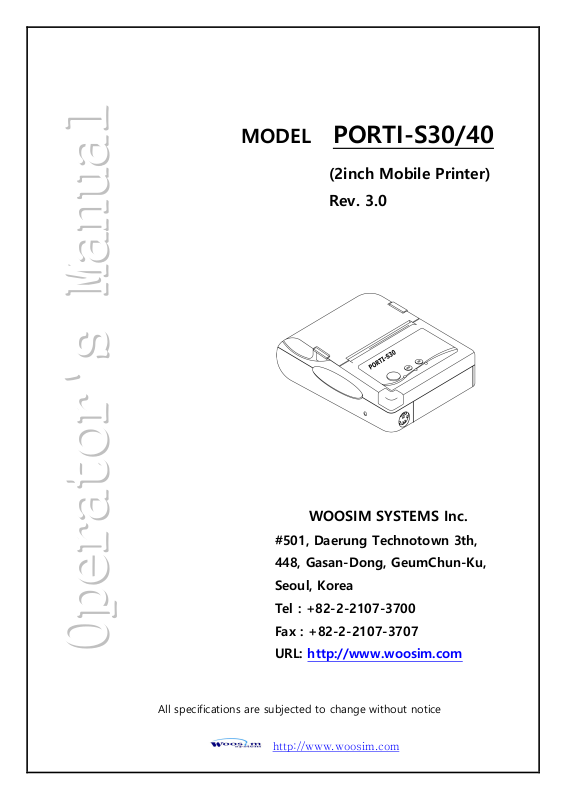

MODEL

PORTI-S30/40

(2inch Mobile Printer)

Rev. 3.0

WOOSIM SYSTEMS Inc.

#501, Daerung Technotown 3th,

448, Gasan-Dong, GeumChun-Ku,

Seoul, Korea

http://www.woosim.com

Tel : +82-2-2107-3700

Fax : +82-2-2107-3707

URL: http://www.woosim.com

 Copyright

PORTI-S30/40 2inch mobile printer operator’s manual.

The information contained in this manual is the property of Woosim

Systems Inc.

And may not be reproduced in whole or in part without the prior written

permission of Woosim Systems Inc.

 Trademark

Porti-S Rev. 3.0

All other trademark are the properties of their respective companies.

 Caution

Some semiconductor devices are easily damaged by static electricity. You

should turn the printer “OFF”, before you connect or removed the cable on

the rear side, in order to guard the printer against the static electricity.

If the printer is damaged by the static electricity, you should turn the

printer “OFF”.

 Notice

The contents of this manual are subject to change without notice

a registered trademark of Woosim Systems Inc.

http://www.woosim.com

Porti-S Rev. 3.0

 Introduction

The PORTI-S30/40 is suitable designed for use with a growing variety of mobile

devices. IrDA/Serial or Bluetooth/Serial interfaces make the PORTI-S30/40 the

perfect comrade for applications such as point of transaction warehousing,

distribution, point of sales, hospitality, gaming and healthcare.

The general features of PORTI-S30/40 printer are as follows:

 Pocket size (S30 : 75.95 x 103 x 36.15mm)

 Light weight (S30:226g, S40:264g) for true mobility.

 Very silent printing thru direct thermal printing method.

 High speed(80mm/sec, MAX)

 High resolution(203dpi : 8dots/mm).

 UART(RS-232C or TTL), Bluetooth Ver 2.1 + EDR

IrDA Ver 1.0(SIR)[option], USB [option] Interface

 Intuitive LED’s indicate Power(on/off),Error and Battery status

 Support text and graphic printing.

 Easier paper loading by CLAMSHELL design.

 Easier maintenance with self-diagnostics.

 In field programming – Update Firmware, Download Fonts and Logos

 Microsoft Windows XP / VISTA / 7 / CE / Linux / Android compatible.

 Free fall: 1.5 meter onto concrete

 Flow control : Software (XON/XOFF)

※ Hardware flow control not supported in printer.

 Agency Approvals

http://www.woosim.com

● Always use the clean thermal paper.

 Operating Precautions

Please follow the precautions below to enjoy and maintain the full performance

of the printer.

 Using the Printer

● Be careful not to drop or bump the printer on a hard surface.

● Do not install the printer in direct sunlight or such areas.

Suitable environment for the use of the printer is as follows:

Porti-S Rev. 3.0

◆ Operating temperature :-10°C to 50°C

◆ Relative humidity : 30% to 80%

● Do not install the printer near devices that generate strong

electromagnetic fields such as a copy machine.

● Do not open the platen cover during printing .

● Do not remove or reinstall the communication cable during printing

or transmission.

● Do not touch the connectors of the communication during printing.

● Switch the POWER OFF when not in use.

● Do not use alcohol or other solvent.

● The AC adapter, the battery charger and the battery pack may

become warm when in use. This is normal and is not a malfunction.

● When the battery pack is used at low temperature, the length of time

the printer can be used may be shortened.

 Thermal Paper Handling

● Store the thermal paper in a cool, dry and dark place.

● Do not rub the paper with hard object.

● Do not leave the paper with hard object.

● Do not allow plastic film, erasers, or adhesive tape to touch the paper

for long periods.

● Do not stack the thermal paper with diazo copies immediately

after copying or wet-type copies.

● Do not use chemical glue.

http://www.woosim.com

Porti-S Rev. 3.0

 Note

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 the FCC Rules.

These limits are designed to provide reasonable protection against harmful

interference in a residential installation.

These equipment generates, uses and can radiate radio frequency energy and, if

not installed and used in accordance with the instructions, may cause harmful

interference to radio communications.

However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television

reception , which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the

following measures:

--Reorient or relocate the receiving antenna.

--Increase the separation between the equipment and receiver.

--Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

--Consult the dealer or an experienced radio/TV technician for help.

http://www.woosim.com

Porti-S Rev. 3.0

CONTENTS

1. Outline...........................................................................................................................................7

1.1. Model classifications ..........................................................................................................7

1.2. Product Part Number System ...........................................................................................7

1.3. Specifications. ......................................................................................................................8

2. Setting up the printer ............................................................................................................. 10

2.1. Printer & Accessories ....................................................................................................... 10

2.2. Printer Features ................................................................................................................. 11

2.3. Replacing the paper roll .................................................................................................. 12

2.4. Power supply ..................................................................................................................... 13

2.4.1. Internal power supply............................................................................................. 13

2.4.2. Installing the Battery .............................................................................................. 13

2.4.3. Recharging the battery .......................................................................................... 14

2.5. Set operation mode ......................................................................................................... 15

3. Interface ...................................................................................................................................... 22

3.1. UART(RS-232C or TTL) or USB ....................................................................................... 22

3.2. Infrared data communication ......................................................................................... 23

3.3. Bluetooth ............................................................................................................................ 24

4. Using the printer ...................................................................................................................... 25

4.1. Control panel ..................................................................................................................... 25

4.2. The self test ....................................................................................................................... 26

5. Consumable Parts .................................................................................................................... 27

5.1. Recommended paper....................................................................................................... 27

5.2. Printing position ............................................................................................................... 27

http://www.woosim.com

Porti-S Rev. 3.0

11.. OOuuttlliinnee

11..11.. MMooddeell ccllaassssiiffiiccaattiioonnss

PORTI–S ( ) ( ) ( )

None : DC 8.4V

Model

Size of roll paper

30: 57mm wide, 30Ø

40: 57mm wide, 40Ø

Interface

A1:UART/Bluetooth

Power

11..22.. PPrroodduucctt PPaarrtt NNuummbbeerr SSyysstteemm

Example) 1. Porti-S40 UART/Bluetooth Part No. ⇒ S40/A1

2. Porti-SC30 Bluetooth Only Part No. ⇒ SC30/Z1

Note) The above table is the interface format which is supported.

But some of the interfaces are not supported according to the product

and please contact us, if you have any questions regarding the interface.

Model name / Interface Spec.

S40

SC30

W25

Wired Wireless

A RS-232C 1 Bluetooth

B TTL 2 IrDA

C USB 0 None

D RS-485

E Parallel

Z None

http://www.woosim.com

Simplified/Traditional Chinese, Arabic, Cyrillic, Russian, Tukish,

1-dimension : Code128, Code39, I2/5, Code93 UPC, EAN, KAN,

Porti-S Rev. 3.0

11..33.. SSppeecciiffiiccaattiioonnss..

Item Specification

Printing method Direct thermal line printing

Characters per line 42cpl (MAX)

Character size Eng. : 9*24dots, 12*24dots Kor. : 16*24dots, [24*24dots]

Optional Characters

Resolution 203dpi, 8dots/mm

Print width 2-inch (48mm, 384dots)

Printing speed 80mm / sec (MAX)

Dimensions

Weight S30 : 226g, S40 : 264g (Including battery & roll paper)

Greek, Japanese, Persian, Latin9 and Others upon request.

S30 : 75.95 x 103 x 36.15 mm

S40 : 75.95 x 103 x 44.75 mm

UART(RS-232C or TTL) , Bluetooth Ver2.1 + EDR

Interface

Paper supplied Thermal roll paper, Label roll (57mm wide, S30:30ø_S40:40ø)

IrDA Ver1.0(SIR) [option], USB[option]

Barcode supplied

2-dimension : PDF417, QR Code, DATA Matrix

JAN, CODABAR

Microsoft Widows XP / VISTA / 7

Driver

Windows CE, Linux, Android OS driver compatible

Black mark Support black mark detection

H/W spec. MCU : 32bits RISC, FLASH : 4Mbytes, RAM : 8Mbytes

Receive buffer size 1M bytes

Battery Rechargeable 7.4V DC , 1200mAh (Li-ion)

Battery duration 1 hour continuous printing

Battery Charger

Input (100~250V AC 50~60Hz)

Output(8.4VDC/0.8A), 4hours full charge time

(Continue…)

http://www.woosim.com

Item Specification

Environment

Conditions

MCBF (Mean Cycle

Between failure)

Temperature

Humidity

Mechanical 37,000,000 lines

Head Approximately 50 Km

Porti-S Rev. 3.0

-10°C ~ 50°C (operating)

-10°C ~ 70°C (storage)

30% - 80% (operating)

10% - 90% (storage)

< Table 1 >

http://www.woosim.com
