Woosim System WSP R242 User Manual

MODEL WSP-R242

(2inch Mobile Printer)
Rev. 1.0

WOOSIM SYSTEMS Inc.

(#501, Daerung Technotown 3th)

115, Gasan digital 2-ro, Geumcheon-gu,
Seoul, 153-772 Rep. of KOREA
Tel : [phone]
Fax : [phone]
URL: http://www.woosim.com

All specifications are subjected to change without notice

http://www.woosim.com

WSP-R242 Rev. 1.0

2

 Copyright

WSP-R242 2inch mobile printer operator’s manual.

Copyright ⓒ2015 by Woosim Systems Inc.
All rights reserved.
The information contained in this manual is the property of Woosim Systems Inc.
And may not be reproduced in whole or in part without the prior written
permission of Woosim Systems Inc.



Trademark

a registered trademark of Woosim Systems Inc.

All other trademark are the properties of their respective companies.

 Caution

Some semiconductor devices are easily damaged by static electricity. You should

turn the printer “OFF”, before you connect or removed the cable on the rear side,

in order to guard the printer against the static electricity.
If the printer is damaged by the static electricity, you should turn the printer “OFF”

 Notice

The contents of this manual are subject to change without notice.

http://www.woosim.com

3

 Introduction

The WSP-R242 is the ideal solution for Mobile banking system , Retail,

point of sales, Credit card Transaction, other traveling and mobile
computing etc.

The general features of WSP-R242 printer are as follows:

 Compact size (79.2 x 123 x 45.6mm)
 Light weight(231g) for true mobility
 Very silent printing thru direct thermal printing method
 High speed (100mm/sec, MAX)
 High resolution(203dpi : 8dots/mm).
 USB, Bluetooth Ver3.0 interface
 Support Graphic LCD(128×32dots) with Blue LED Backlight
 Support Magnetic Stripe Reader [option]
 Support Smart Card Reader [option]
 Support text and graphic printing
 Easier paper roll loading by CLAMSHELL design
 One touch paper cover
 Printer door open & Paper-out sensor
 Easier maintenance with self-diagnostic.
 In field programming – Update Firmware, Download Fonts and Logos
 Microsoft Windows XP/VISTA/7/8/CE, Linux, Android compatible.
 Flow control : Software (XON/XOFF)

※ Hardware flow control not supported in printer.

 Agency Approvals

WSP-R242 Rev. 1.0

http://www.woosim.com

WSP-R242 Rev. 1.0

4

 Operating Precautions

Please follow the precautions below to enjoy and maintain the full performance of

the printer.

 Using the Printer

● Be careful not to drop or bump the printer on a hard surface.

● Do not install the printer in direct sunlight or such areas.

Suitable environment for the use of the printer is as follows:

◆ Operating temperature :-10°C to 50°C

◆ Relative humidity : 30% to 80%

● Do not install the printer near devices that generate strong

electromagnetic fields such as a copy machine.

● Do not open the platen cover during printing .

● Do not remove or reinstall the communication cable during printing

or transmission.

● Do not touch the connectors of the communication during printing.

● Switch the POWER OFF when not in use.

● Do not use other solvent.

● The AC adapter, the battery charger and the battery pack may

become warm when in use. This is normal and is not a malfunction.

● When the battery pack is used at low temperature, the length of time

the printer can be used may be shortened.

 Thermal Paper Handling

● Store the thermal paper in a cool, dry and dark place.

● Do not rub the paper with hard object.

● Do not leave the paper with hard object.

● Do not allow plastic film, erasers, or adhesive tape to touch the paper

for long periods.

● Do not stack the thermal paper with diazo copies immediately

after copying or wet-type copies.

● Do not use chemical glue.

● Always use the clean thermal paper.

http://www.woosim.com

WSP-R242 Rev. 1.0

5

Federal Communications Commission

Radio Frequency Interference Statement

FCC ID : QDDWSP-R242

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.

CAUTION: Changes or modifications not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:

ㆍReorient or relocate the receiving antenna.
ㆍIncrease the separation between the equipment and receiver.
ㆍConnect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

ㆍConsult the dealer or an experienced radio/TV technician for help.

Modifications not expressly approved by the manufacturer could void the user's authority to operated
the equipment under FCC rules.

This Device has been evaluated to comply with RF exposure requirement for general use limit in portable
condition. It is safe to be used in sold condition.

CE WARNING

ㆍChanges and modifications not expressly approved by the party responsible for compliance could void

the user’s authority to operate the equipment.

ㆍIt is desirable that it be installed and operated with at least 20cm or more between the radiator and

person’s body(excluding extremities hand, wrists, feet, and ankles)

http://www.woosim.com

WSP-R242 Rev. 1.0

6

CONTENTS

1. Outline. .........................................................................................................................................8

1.1. Model classifications. .......................................................................................................8

1.2 Product Part Number System ..........................................................................................8

1.3. Specifications. ....................................................................................................................9

2. Setting up the printer. ............................................................................................................ 11

2.1. Printer & Accessories ..................................................................................................... 11

2.2. Printer Features ............................................................................................................... 12

2.3. Dimensions ....................................................................................................................... 13

2.4. Replacing paper roll. ....................................................................................................... 14

2.5. Power supply .................................................................................................................... 15

2.5.1. Specified power supply ....................................................................................... 15

2.5.2. Installing the battery ........................................................................................... 15

2.5.3. Recharging the battery pack .............................................................................. 16

2.6. Set operation mode ....................................................................................................... 17

2.6.1. GAP/HOLE SENSOR SETTING ............................................................................ 19

2.7. Memory switch table ...................................................................................................... 20

3. Interface ...................................................................................................................................... 21

3.1. USB .................................................................................................................................... 21

3.2. Bluetooth .......................................................................................................................... 21

3.3. Magnetic Card Reading ................................................................................................. 22

4. Smart Card Reader Module ................................................................................................ ... 23

4.1. General Spec. ................................ ................................................................ ................... 23

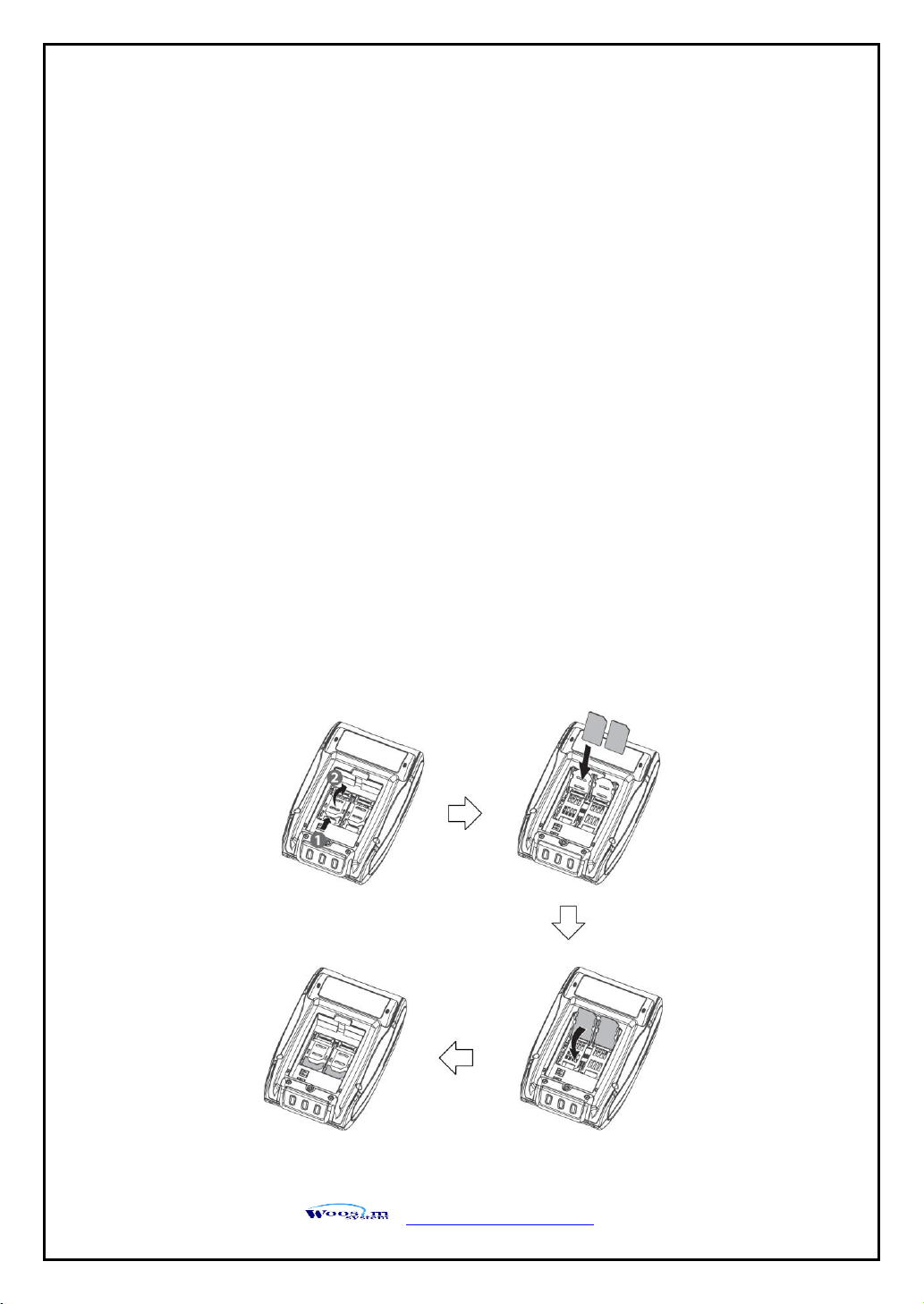

4.2. Inserting the SAM card .................................................................................................. 23

4.3. Inserting the IC card ....................................................................................................... 24

4.4. Communication Protocol Sequence ............................................................................ 25

4.4.1. Regular Operation ................................................................................................ 25

4.4.2. Irregular Operation (Communication Error) ................................ .................... 25

5. Using the printer ...................................................................................................................... 26

5.1. Control panel. .................................................................................................................. 26

http://www.woosim.com

WSP-R242 Rev. 1.0

7

5.2. The self test ...................................................................................................................... 27

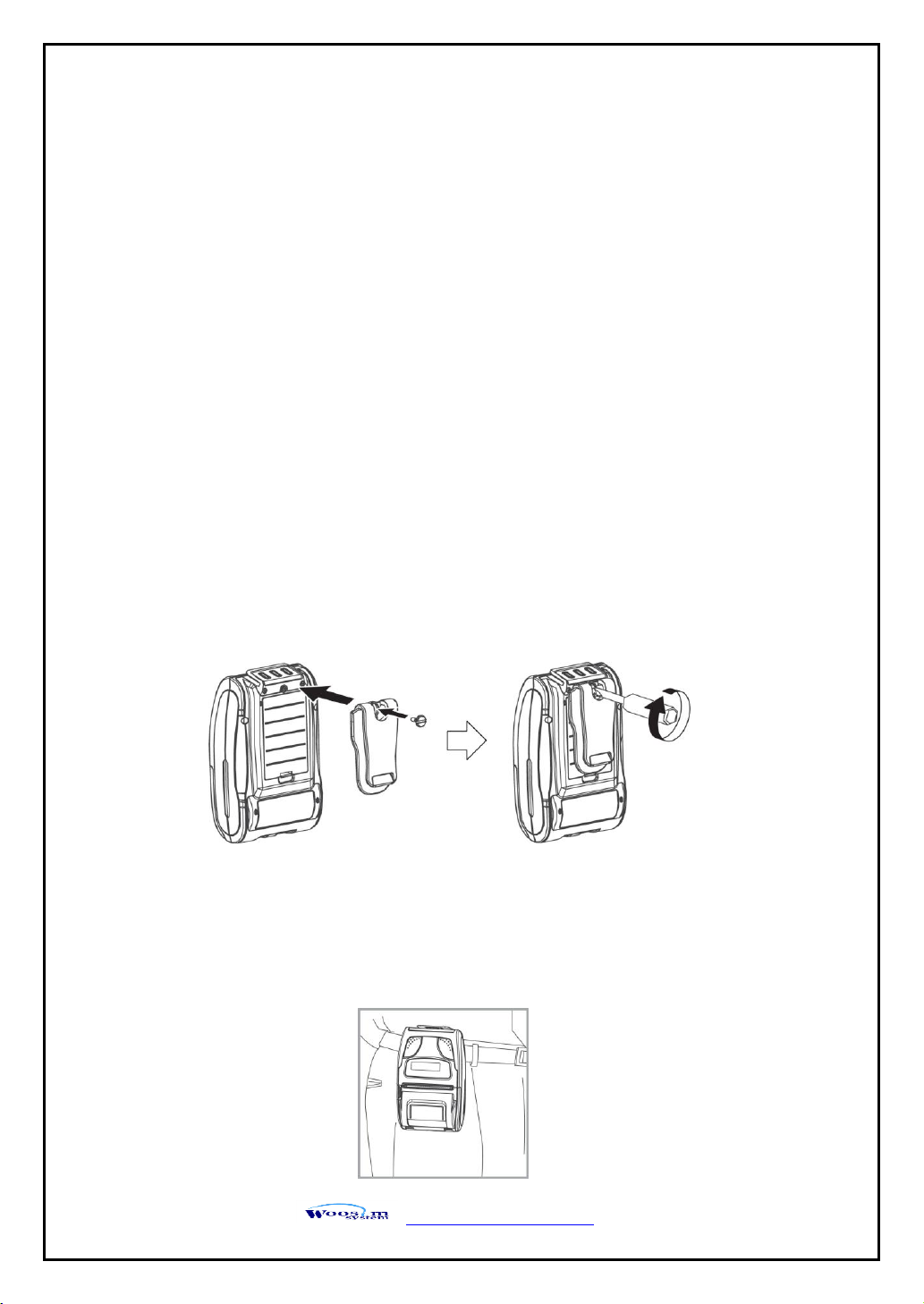

5.3. Using the Belt clip .......................................................................................................... 27

6. Consumable Parts. ................................................................................................................... 28

6.1. Recommended paper. .................................................................................................... 28

6.2. Printing position. ............................................................................................................. 28

7. Revision History ....................................................................................................................... 29

http://www.woosim.com

WSP-R242 Rev. 1.0

8

11.. OOuuttlliinnee..

11..11.. MMooddeell ccllaassssiiffiiccaattiioonnss..

11..22 PPrroodduucctt PPaarrtt NNuummbbeerr SSyysstteem

m

WSP-R242 ( ) ( )

Model

Interface

C1 : USB/Bluetooth

(Standard)

Power

None : DC 8.4V

Model name / Interface Spec.

Example) 1. Porti-S40 Serial/Bluetooth Part No. ⇒ S40/A1

2. Porti-SC30 Bluetooth Only Part No. ⇒ SC30/Z1

Note) The above table is the interface format which is supported.

But some of the interfaces are not supported according to the product
and please contact us, if you have any questions regarding the interface.

S40

SC30

W25

.
.
.

Wired

Wireless

A

RS-232C

1

Bluetooth

B

TTL 2 IrDA

C

USB

3

Wireless LAN

D

RS-485

0

None

E

Parallel

Z

None

http://www.woosim.com

WSP-R242 Rev. 1.0

9

11..33.. SSppeecciiffiiccaattiioonnss..

Item

Specifications

Print method

Direct thermal line printing

Character size

- Font Size A: 12X24 / Font Size B : 9X24 / Font Size C : 8X16

- KOR : 24X24(16X24) / CHN, JPN : 24X24

Characters per line

- Font A : 32cpl / Font B : 42cpl / Font C : 48cpl

- KOR : 16cpl(24) / CHN, JPN : 16cpl

Optional Characters

Alphanumeric:95, Extended Graphics:128X50 pages, International:10,

Simplified/Traditional Chinese, Japanese, Korean

Resolution

203dpi, 8dots/mm

Print width

2-inch (48mm, 384dots)

Print speed

100mm / sec (MAX)

Dimension

79.2 x 123 x 45.6mm

Weight (w/o paper)

231g

Interface

USB, Bluetooth Ver3.0

Paper roll

Thermal roll paper (58mm wide, 40ø)

Barcodes

1-dimension : UPC-A, UPC-E, EAN-8, EAN-13, CODE-39, CODE-93,

CODE-128, ITF, CODABAR

2-dimension : PDF417, Micro PDF417, Truncated PDF417, QR-CODE,

DATA Matrix, Maxicode

Etc :GS1 databar

Driver

Microsoft Windows XP/VISTA/7/8/CE, Linux, Android compatible

H/W Spec

MCU : RX-32bit, RAM : 128M bit, FLASH : 64M bit

Receive buffer size

1M bytes

Sensor

Support Cover open, Paper, Label

LCD

128×32 Dots FSTN (Blue LED Backlight)

MSR

Triple tracks (1&2&3 Tracks Reading)

*Supports 3DES & AES encryption

Smart Card Reader

[option]

ISO 7816 Compliant [EMV level 1 Certified] /

T=0, T=1 support / 2 SAM (Security Application Module)

(Continue… )
