Woosim System WSP R240X User Manual

MODEL WSP-R240

WOOSIM SYSTEMS Inc.

(#501, Daerung Technotown 3th)

115, Gasan digital 2-ro, Geumcheon-gu,

Seoul, 153-772 Rep. of KOREA

Tel : +82-2-2107-3700

Fax : +82-2-2107-3707

URL:

http://www.woosim.com

(2inch Mobile Printer)

Rev. 6.1

All specifications are subjected to change without notice

http://www.woosim.com

 Copyright

WSP-R240 2inch mobile printer operator’s manual.

The information contained in this manual is the property of

Woosim Systems Inc.

And may not be reproduced in whole or in part without the prior written permission

of Woosim Systems Inc.

 Trademark

a registered trademark of Woosim Systems Inc.

All other trademark are the properties of their respective companies.

 Caution

Some semiconductor devices are easily damaged by static electricity. You should

turn the printer OFF, before you connect or removed the cable on the rear side, in

order to guard the printer against the static electricity.

If the printer is damaged by the static electricity, you should turn the printer OFF.

 Notice

The contents of this manual are subject to change without notice.

WSP-R240 Rev. 6.1

http://www.woosim.com

 Introduction

The WSP-R240 is suitable designed for use with a growing variety of mobile

devices. Bluetooth/Serial interfaces make the WSP-R240 the perfect comrade for

applications such as point of transaction warehousing, distribution, point of sales,

hospitality, gaming and healthcare.

The general features of WSP-R240 printer are as follows:

 Pocket size (79.5 X 114.3 X 43.5mm)

 Light weight (201g) for true mobility.

 Very silent printing thru direct thermal printing method.

 High speed(100mm/sec, MAX)

 High resolution(203dpi : 8dots/mm)

 UART, Bluetooth Ver 3.0

 Intuitive LED’s indicate Power(on/off),Error, Bluetooth status, Battery status

 Support Magnetic Stripe Reader [option].

 Support text and graphic printing.

 Easier paper loading by CLAMSHELL design.

 One touch paper cover

 Printer door open & Paper-out sensor

 Easier maintenance with self-diagnostics.

 In field programming – Update Firmware, Download Fonts and Logos

 Microsoft Windows XP/VISTA/7-32bit/7-64bit/CE/Linux/Android compatible.

 Free fall: 1.5M

 Flow control : Software (XON/XOFF)

※ Hardware flow control not supported in printer.

 Agency Approvals

WSP-R240 Rev. 6.1

http://www.woosim.com

 Operating Precautions

Please follow the precautions below to enjoy and maintain the full performance

of the printer.

 Using the Printer

● Be careful not to drop or bump the printer on a hard surface.

●

Do not install the printer in direct sunlight or such areas.

Suitable environment for the use of the printer is as follows:

◆ Operating temperature :-10°C to 50°C

◆ Relative humidity : 30% to 80%

●

Do not install the printer near devices that generate strong

electromagnetic fields such as a copy machine.

●

Do not open the platen cover during printing .

●

Do not remove or reinstall the communication cable during printing

or transmission.

●

Do not touch the connectors of the communication during printing.

●

Switch the POWER OFF when not in use.

● Do not use other solvent.

● The AC adapter, the battery charger and the battery pack may

become warm when in use. This is normal and is not a malfunction.

● When the battery pack is used at low temperature, the length of time

the printer can be used may be shortened.

 Thermal Paper Handling

● Store the thermal paper in a cool, dry and dark place.

● Do not rub the paper with hard object.

● Do not leave the paper with hard object.

● Do not allow plastic film, erasers, or adhesive tape to touch the paper

for long periods.

● Do not stack the thermal paper with diazo copies immediately

after copying or wet-type copies.

● Do not use chemical glue.

● Always use the clean thermal paper.

WSP-R240 Rev. 6.1

http://www.woosim.com

Federal Communications Commission

Radio Frequency Interference Statement

FCC ID : QDDWSP-R240X

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

CAUTION: Changes or modifications not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

ㆍReorient or relocate the receiving antenna. ㆍIncrease the separation between the equipment and receiver. ㆍConnect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

ㆍConsult the dealer or an experienced radio/TV technician for help.

Modifications not expressly approved by the manufacturer could void the user's authority to operated the equipment under FCC rules.

This Device has been evaluated to comply with RF exposure requirement for general use limit in portable condition. It is safe to be used in sold condition.

CE WARNING

ㆍChanges and modifications not expressly approved by the party responsible for compliance

could void the user’s authority to operate the equipment.

ㆍIt is desirable that it be installed and operated with at least 20cm or more between the radiator

and person’s body(excluding extremities hand, wrists, feet, and ankles)

WSP-R240 Rev. 6.1

http://www.woosim.com

WSP-R240 Rev. 6.1

CONTENTS

1. Outline ................................................................................................................................... 7

1.1. Model classifications .................................................................................................... 7

1.2 Symbol ............................................................................................................................ 7

1.2. Product Part Number System ...................................................................................... 8

1.3. Specifications. ................................................................................................................ 9

2. Setting up the printer ....................................................................................................... 11

2.1. Printer & Accessories .................................................................................................. 11

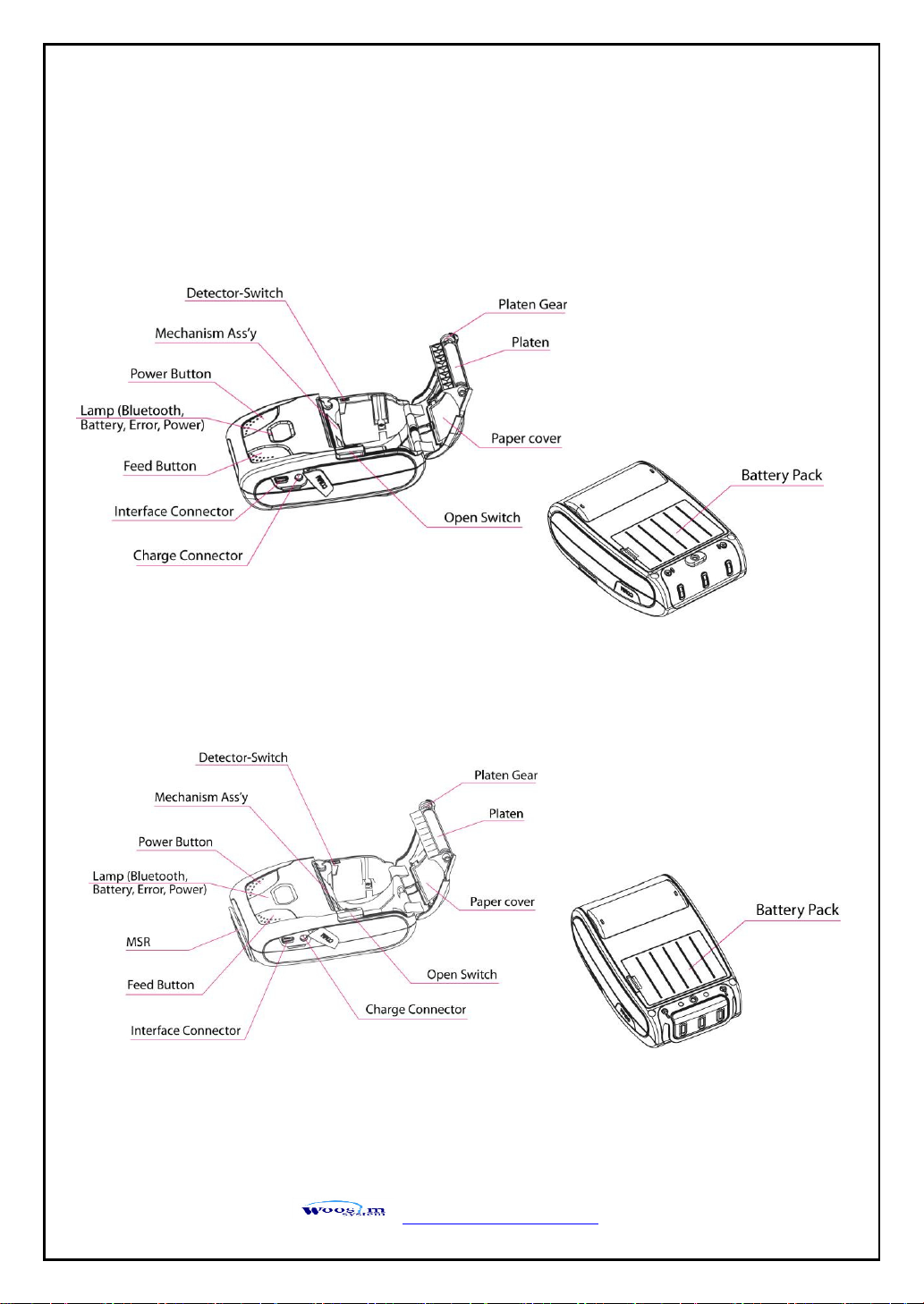

2.2. Printer Features ........................................................................................................... 12

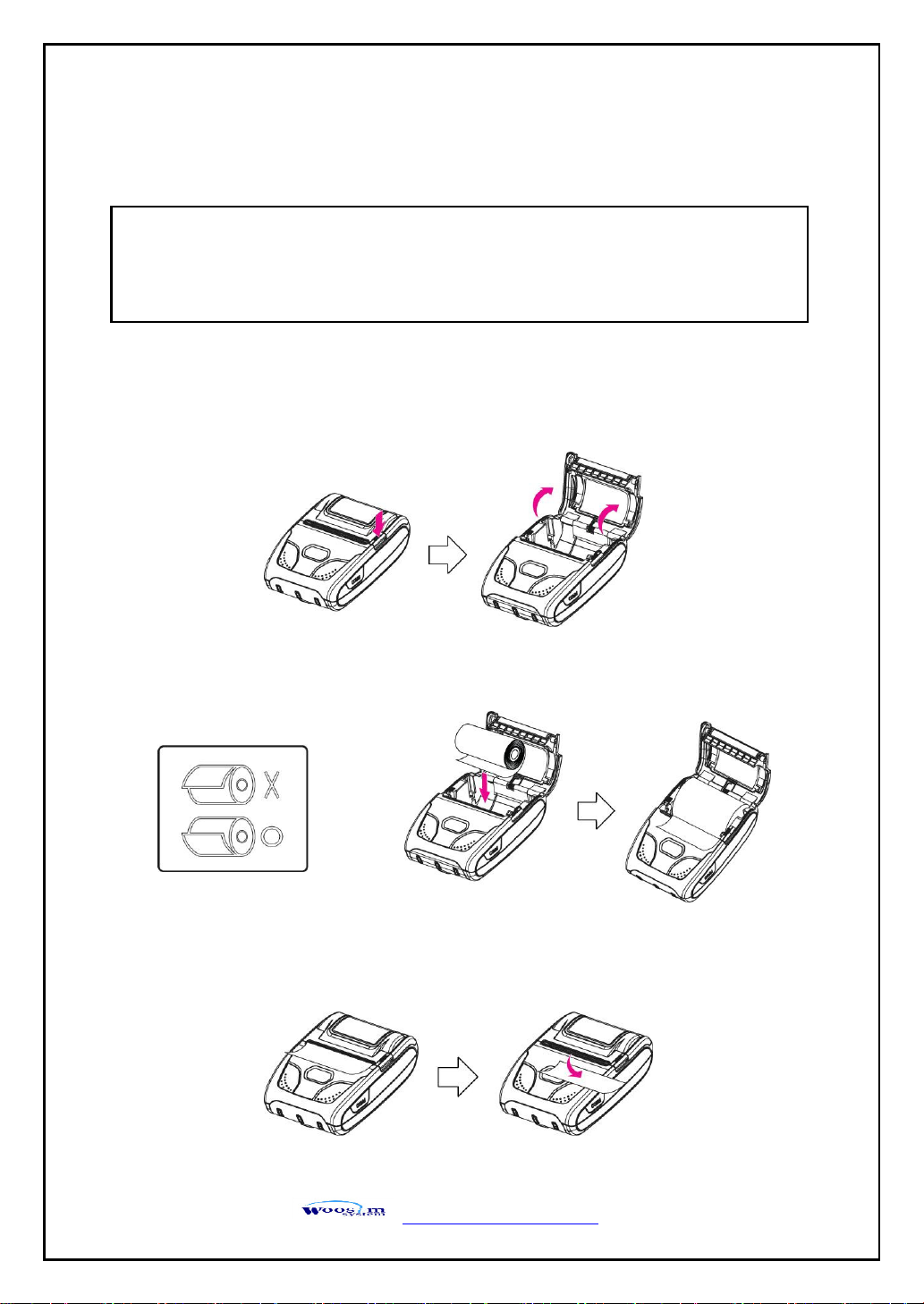

2.3. Replacing the paper roll ............................................................................................ 14

2.4. Power supply ............................................................................................................... 15

2.4.1. Internal power supply ....................................................................................... 15

2.4.2. Installing the Battery ......................................................................................... 15

2.4.3. Recharging the battery ..................................................................................... 16

2.5. Set operation mode ................................................................................................... 17

3. Interface ............................................................................................................................... 22

3.1. UART............................................................................................................................. 22

3.2. Bluetooth ..................................................................................................................... 23

3.3. Card Reading ............................................................................................................... 23

4. Using the printer ................................................................................................................ 24

4.1. Control panel............................................................................................................... 24

4.2. The self test ................................................................................................................. 25

4.3. Using the Belt clip ...................................................................................................... 26

5. Consumable Parts .............................................................................................................. 27

5.1. Recommended paper ................................................................................................. 27

5.2. Printing position ......................................................................................................... 27

http://www.woosim.com

WSP-R240 ( ) ( )

Model

Interface

A1:UART/Bluetooth

Power

None : DC 8.4V

Standby symbol

IEC 5009, the standby symbol(line partially within a broken circle),

Indicates a sleep mode or low power state.

Direct current symbol

This symbol is found on many electronic devices that either require or produce direct

current.

WSP-R240 Rev. 6.1

11.. OOuuttlliinnee

11..11.. MMooddeell ccllaassssiiffiiccaattiioonnss

11..22 SSyymmbbooll

http://www.woosim.com

Model name / Interface Spec.

Example) 1. Porti-S40 UART/Bluetooth Part No. ⇒ S40/A1

2. Porti-SC30 Bluetooth Only Part No. ⇒ SC30/Z1

Note) The above table is the interface format which is supported.

But some of the interfaces are not supported according to the product

and please contact us, if you have any questions regarding the interface.

S40

SC30

W25

Wired

Wireless

RS-232C

Bluetooth

TTL 2 IrDA

USB

None

RS-485

Parallel Z None

WSP-R240 Rev. 6.1

11..22.. PPrroodduucctt PPaarrtt NNuummbbeerr SSyysstteemm

http://www.woosim.com

Item

Specification

Printing method

Direct thermal line printing

Character size

- Font Size A: 12X24 / Font Size B : 9X24 / Font Size C : 8X16

- KOR : 24X24(16X24) / CHN, JPN : 24X24

Characters per line

- Font A : 32cpl / Font B : 42cpl / Font C : 48cpl

- KOR, CHN, JPN : 16cpl

Optional Characters

Alphanumeric:95, Extended Graphics:128X50 pages, International:10,

Simplified/Traditional Chinese, Japanese, Korean(optional)

Resolution

203dpi, 8dots/mm

Print width

2-inch (48mm, 384dots)

Printing speed

100mm / sec (MAX)

Dimensions

79.5 X 114.3 X 43.5mm

79.5 X 118.2 X 43.5mm (MSR Model)

Weight

(Including battery)

201g / 217g (MSR model)

Interface

RS-232 , Bluetooth Ver3.0

Paper supplied

Thermal roll paper, Label roll (58mm wide, 40ø)

Barcode supplied

1-dimension : UPC-A, UPC-E, EAN-8, EAN-13, CODE-39, CODE-93,

CODE-128, ITF, CODABAR

2-dimension : PDF417, Micro PDF417, Truncated PDF417, QR-CODE,

DATA Matrix, Maxicode

Etc :GS1 databar

Driver

Microsoft Widows XP / VISTA / 7-32bit / 7-64bit

Windows CE, Linux, Android OS driver compatible

H/W spec.

MCU : RX-32bit, RAM : 128M bit, FLASH : 64M bit

Receive buffer size

1M bytes

Sensor

Support Cover open, Paper, Label

(Continue…)

WSP-R240 Rev. 6.1

11..33.. SSppeecciiffiiccaattiioonnss..

http://www.woosim.com
