Woosim System WSP I350X User Manual

MODEL WSP-i350

(3inch Rugged Mobile Printer) Rev. 4.1

WOOSIM SYSTEMS Inc.

(#501, Daerung Technotown 3th)

115, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-772 Rep. of KOREA Tel : +82-2-2107-3700 Fax : +82-2-2107-3707 URL: http://www.woosim.com

All specifications are subjected to change without notice

http://www.woosim.com

WSP-i350 Rev. 4.1

 Copyright

WSP-i350 3inch Rugged Mobile printer operator’s manual.

Copyright ⓒ2016 by Woosim Systems Inc. All rights reserved. The information contained in this manual is the property of Woosim Systems Inc. And may not be reproduced in whole or in part without the prior written permission of Woosim Systems Inc.



Trademark

a registered trademark of Woosim Systems Inc.

All other trademark are the properties of their respective companies.

 Caution

Some semiconductor devices are easily damaged by static electricity. You should turn the printer “OFF”, before you connect or removed the cable on the rear side, in order to guard the printer against the static electricity. If the printer is damaged by the static electricity, you should turn the printer “OFF”

 Notice

The contents of this manual are subject to change without notice.

http://www.woosim.com

 Introduction

The WSP-i350 is the ideal solution for Mobile banking system , Retail, point of sales, Credit card Transaction, other traveling and mobile computing etc.

The general features of WSP-i350 printer are as follows:

 Compact size (120×130.5×58.4mm)

 Light weight(395g) for true mobility [standard]

 Very silent printing thru direct thermal printing method

 High speed (120mm/sec, MAX)

 High resolution(203dpi : 8dots/mm).

 UART, Bluetooth Ver3.0,

Wireless LAN(IEEE802.11b/g/n) [option] interface

 Support Magnetic Stripe Reader[option]

 Support Graphic LCD(128×32dots) with Blue LED Backlight

 Support text and graphic printing

 Intuitive LED’s indicate Power(on/off), Error

 Easier paper roll loading by CLAMSHELL design

 One touch paper cover

 Printer door open & Paper-out sensor

 Easier maintenance with self-diagnostic.

 In field programming – Update Firmware, Download Fonts and Logos

 Water-resistant construction.( IP54 – Certified )

 Microsoft Windows XP/VISTA/7/8/CE, Linux, Android compatible.

 Flow control : Software (XON/XOFF)

※ Hardware flow control not supported in printer.

 Free fall: 1.5 meter

 Agency Approvals

WSP-i350 Rev. 4.1

http://www.woosim.com

 Operating Precautions

Please follow the precautions below to enjoy and maintain the full performance of the printer.

 Using the Printer

● Be careful not to drop or bump the printer on a hard surface.

● Do not install the printer in direct sunlight or such areas.

Suitable environment for the use of the printer is as follows:

◆ Operating temperature :-10°C to 50°C

◆ Relative humidity : 30% to 80%

● Do not install the printer near devices that generate strong

electromagnetic fields such as a copy machine.

● Do not open the platen cover during printing .

● Do not remove or reinstall the communication cable during printing

or transmission.

● Do not touch the connectors of the communication during printing.

● Switch the POWER OFF when not in use.

● Do not use other solvent.

● The AC adapter, the battery charger and the battery pack may

become warm when in use. This is normal and is not a malfunction.

● When the battery pack is used at low temperature, the length of time

the printer can be used may be shortened.

 Thermal Paper Handling

● Store the thermal paper in a cool, dry and dark place.

● Do not rub the paper with hard object.

● Do not leave the paper with hard object.

● Do not allow plastic film, erasers, or adhesive tape to touch the paper

for long periods.

● Do not stack the thermal paper with diazo copies immediately

after copying or wet-type copies.

● Do not use chemical glue.

● Always use the clean thermal paper.

http://www.woosim.com

WSP-i350 Rev. 4.1

Federal Communications Commission

Radio Frequency Interference Statement

FCC ID : QDDWSP-I350X

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

CAUTION: Changes or modifications not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

ㆍReorient or relocate the receiving antenna. ㆍIncrease the separation between the equipment and receiver. ㆍConnect the equipment into an outlet on a circuit different from that to which the receiver

connected.

ㆍConsult the dealer or an experienced radio/TV technician for help.

Modifications not expressly approved by the manufacturer could void the user's authority to operated the equipment under FCC rules.

This Device has been evaluated to comply with RF exposure requirement for general use limit in portable condition. It is safe to be used in sold condition.

CE WARNING

ㆍChanges and modifications not expressly approved by the party responsible for compliance

could void the user’s authority to operate the equipment.

ㆍIt is desirable that it be installed and operated with at least 20cm or more between the

radiator and person’s body(excluding extremities hand, wrists, feet, and ankles)

http://www.woosim.com

WSP-i350 Rev. 4.1

CONTENTS

1. Outline. .................................................................................................................................. 8

1.1. Model classifications. .................................................................................................. 8

1.2 Product Part Number System ..................................................................................... 9

1.3. Specifications. ............................................................................................................ 10

2. Setting up the printer. ...................................................................................................... 12

2.1. Printer & Accessories ................................................................................................ 12

2.2. Printer Features ......................................................................................................... 13

2.3. Dimensions................................................................................................................. 14

2.4. Replacing paper roll. ................................................................................................. 16

2.5. Power supply ............................................................................................................. 17

2.5.1. Specified power supply .................................................................................. 17

2.5.2. Installing the battery ...................................................................................... 17

2.5.3. Recharging the battery pack ......................................................................... 18

2.6. Set operation mode .................................................................................................. 19

2.7. Confirmation of the Wireless-LAN information ..................................................... 24

2.7.1. MAC Address printing .................................................................................... 24

2.7.2. Confirmation of the Wireless-LAN setting information ............................. 24

3. Interface ............................................................................................................................... 25

3.1. UART(RS-232C or TTL) or USB ................................................................................. 25

3.2. Bluetooth .................................................................................................................... 26

3.3. Wireless LAN .............................................................................................................. 26

3.4. Card Reading ............................................................................................................. 26

4. Using the printer ................................................................................................................ 27

4.1. Control panel. ............................................................................................................ 27

4.2. The self test ............................................................................................................... 28

4.3. Using the Accessory ................................................................................................. 28

4.3.1. Using the Shoulder strap ............................................................................... 28

4.3.2. Using the Belt clip ................................................................ .......................... 29

5. Consumable Parts. ............................................................................................................. 30

http://www.woosim.com

WSP-i350 Rev. 4.1

5.1. Recommended paper. ............................................................................................... 30

5.2. Printing position. ....................................................................................................... 30

6. Revision History ............................................... 오류! 책갈피가 정의되어 있지 않습니다.

http://www.woosim.com

WSP-i350 Rev. 4.1

11.. OOuuttlliinnee..

11..11.. MMooddeell ccllaassssiiffiiccaattiioonnss..

11..22 SSyymmbbooll

WSP-i350 ( ) ( )

Model

Interface

A1 : UART/Bluetooth

(Standard)

Power

None : DC 8.4V

Standby symbol

IEC 5009, the standby symbol(line partially within a broken circle),

Indicates a sleep mode or low power state.

Direct current symbol

This symbol is found on many electronic devices that either require

or produce direct current.

http://www.woosim.com

11..33 PPrroodduucctt PPaarrtt NNuummbbeerr SSyysstteem

Model name / Interface Spec.

Example) 1. Porti-S40 Serial/Bluetooth Part No. ⇒ S40/A1

2. Porti-SC30 Bluetooth Only Part No. ⇒ SC30/Z1

Note) The above table is the interface format which is supported.

But some of the interfaces are not supported according to the product and please contact us, if you have any questions regarding the interface.

S40

SC30

W25

. . .

Wired

Wireless

RS-232C

Bluetooth

TTL 2 IrDA

USB

Wireless LAN

RS-485

None

Parallel

None

WSP-i350 Rev. 4.1

http://www.woosim.com

WSP-i350 Rev. 4.1

11..44.. SSppeecciiffiiccaattiioonnss..

Item

Specifications

Print method

Direct thermal line printing

Character size

- Font Size A: 12X24 / Font Size B : 9X24 / Font Size C : 8X16

- KOR : 24X24(16X24) / CHN, JPN : 24X24

Characters per line

- Font A : 48cpl / Font B : 64cpl / Font C : 72cpl

- KOR, CHN, JPN : 24cpl

Optional Characters

Alphanumeric:95, Extended Graphics:128X50 pages, International:10,

Simplified/Traditional Chinese, Japanese, Korean(optional)

Resolution

203dpi, 8dots/mm

Print width

3-inch (72mm, 576dots)

Print speed

120mm / sec (MAX)

Dimension

120×130.5×58.4mm

120×132.5×58.4mm (MSR model)

Weight

(Including battery)

395g / 407g (MSR model)

Interface

UART, Bluetooth Ver 3.0,

Wireless LAN(IEEE802.11b/g/n) [option]

Paper roll

Thermal roll paper (80mm wide, 50ø)

Barcodes

1-dimension : UPC-A, UPC-E, EAN-8, EAN-13, CODE-39, CODE-93,

CODE-128, ITF, CODABAR

2-dimension : PDF417, Micro PDF417, Truncated PDF417, QR-CODE,

DATA Matrix, Maxicode

Etc :GS1 databar

Driver

Microsoft Windows XP/VISTA/7/8/CE, Linux, Android compatible.

H/W Spec

MCU : RX-32bit, RAM : 128M bit, FLASH : 64M bit

Receive buffer size

1M bytes

Sensor

Support Cover open, Paper, Label

( Continue… )

http://www.woosim.com

WSP-i350 Rev. 4.1

Item

Specifications

MSR [option]

1&2 or 2&3 Track Reading

LCD

128×32 Dots FSTN (Blue LED Backlight)

Battery

Rechargeable 7.4V DC, 1,800mAh /2200mAh (Li-ion)

Battery duration

1 hour continuous printing

Battery charger

Input (100~250V AC, 50~60Hz)

Output(8.4VDC/0.8A), 4hours full charge time

Environment

conditions

Temperature

-10°C ~ 50°C (operating)

-10°C ~ 70°C (storage)

Humidity

30% - 80% (operating)

10% - 90% (storage)

MCBF(Mean Cycle

Between Failure)

Mechanical

37,000,000 lines

Head

Approximately 50Km

< Table 1 >

http://www.woosim.com

WSP-i350 Rev. 4.1

22.. SSeettttiinngg uupp tthhee pprriinntteerr..

22..11.. PPrriinntteerr && AAcccceessssoorriieess

Your printer box should include these items. If any items are damaged or missing, please contact your dealer for assistance.

WSP-i350

Battery Pack

▼ OPTIONAL

Communication cable

Shoulder strap

MSR

Thermal roll paper

Battery charger adaptor

Belt clip

http://www.woosim.com

WSP-i350 Rev. 4.1

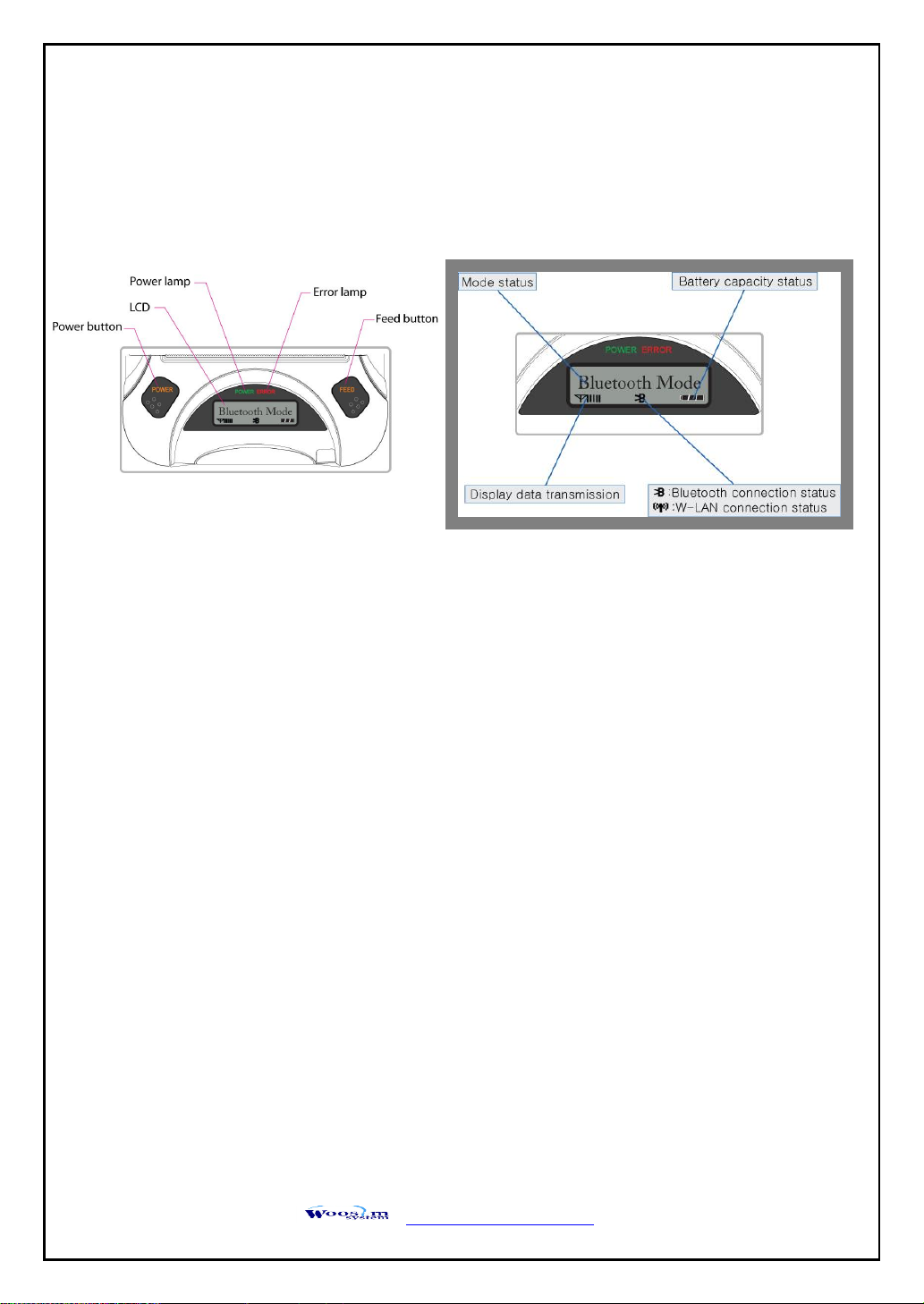

22..22.. PPrriinntteerr FFeeaattuurreess

MSR model

Standard model

http://www.woosim.com

WSP-i350 Rev. 4.1

22..33.. DDiimmeennssiioonnss

120

130.5

58.4

▶ Standard model

http://www.woosim.com

120

132.5

58.4

▶ MSR model

WSP-i350 Rev. 4.1

http://www.woosim.com

WSP-i350 Rev. 4.1

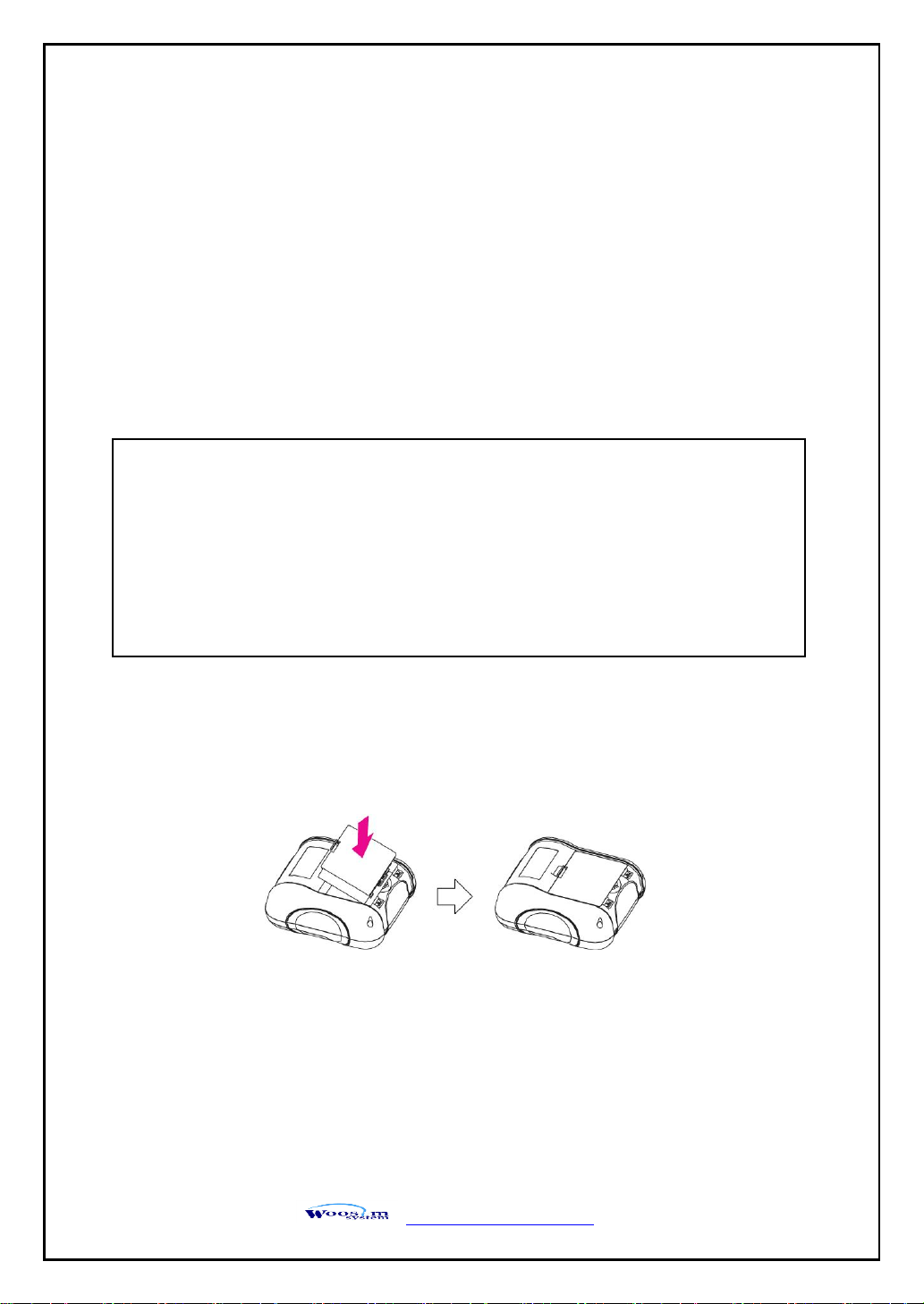

22..44.. RReeppllaacciinngg ppaappeerr rroollll..

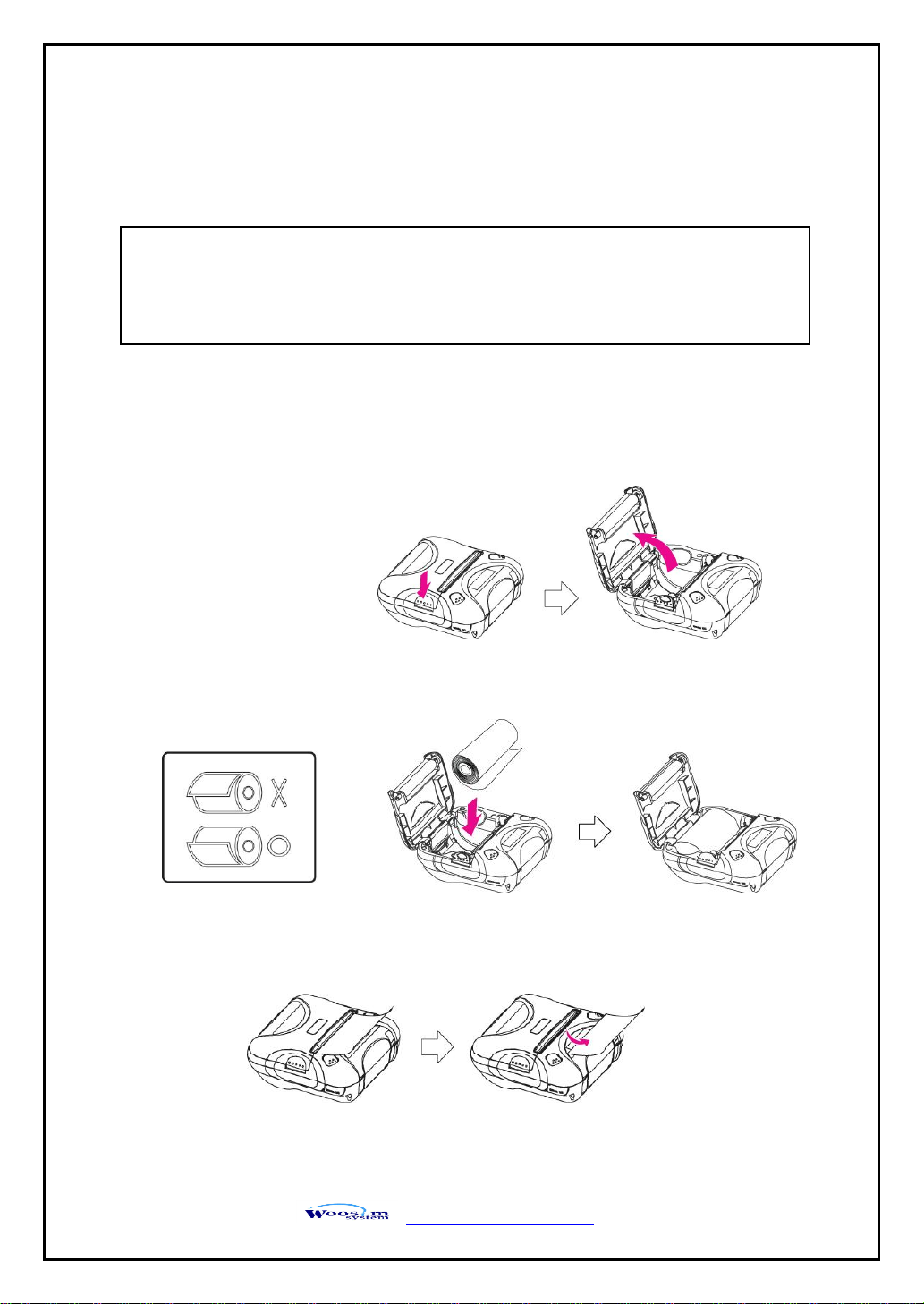

1. Make sure that the printer is not receiving data; otherwise, data may be lost.

2. Open the paper cover as the “One-Touch” way by pressing the button in the arrow

direction like the picture.

3. Insert a new paper roll as shown.

4. Tear the excess paper off using the edge of paper door as a tear bar.

Note : Be sure to use paper rolls that meet the specifications.

Do not use paper rolls that have the paper glued to the core because the

printer can not detect the paper end correctly.

http://www.woosim.com

WSP-i350 Rev. 4.1

22..55.. PPoowweerr ssuuppppllyy

22..55..11.. SSppeecciiffiieedd ppoowweerr ssuuppppllyy

22..55..22.. IInnssttaalllliinngg tthhee bbaatttteerryy

① To install battery pack, proceed as follows:

Insert the battery in the arrow direction and make sure the lock completed

② Reverse the order to remove the battery pack.

The following specification is requested for Power supply.

Battery Charger : DC 8.4V/0.8A

Avoid using power supply which its power capacity of power current is extremely high.

NOTE : ● Before installing or removing the battery pack, ensure the

printer is OFF.

● If the printer is not used for long period of time, remove the battery

pack from the printer.

● Risk of explosion if battery is replaced by an incorrect type.

Dispose of used batteries according to the instructions.

http://www.woosim.com

WSP-i350 Rev. 4.1

22..55..33.. RReecchhaarrggiinngg tthhee bbaatttteerryy ppaacckk

For recharging the battery pack, install the battery pack in the printer.

Insert the Battery Charger to the charge connector of the printer.

NOTE : ● While charging the printer, turn off the printer power.

● Do not remove the battery during charging.

● The battery is consumable parts and when purchasing, compared to

the use hour is gradually decreases. (Warranty 6 month)

● If the printer is not used for a long time, unplug the power cord

from the printer and outlet.

● The recharging time depends on the voltage level and ambient

temperature of the battery. Normally, if takes about 4 to 5 hours to recharge a battery pack.

● You must use only the supplied adapter.

● Red Lamp : charging the battery.

Green Lamp: charging is finished.

http://www.woosim.com

WSP-i350 Rev. 4.1

22..66.. SSeett ooppeerraattiioonn mmooddee

In keeping on pressing the Feed and Power button simultaneously until after the ERROR

lamp blinks 5 times, the printer comes out at the circumstance to change the printer mode.

(refer Table 2)

** If you want to change the Bluetooth Mode of printer, you need to disconnect the Bluetooth

function of the current paired Smartphone.

** Methods :

1. Turn off the Bluetooth function of the current paired Smartphone.

(Bluetooth ICON in LCD is disappeared.)

2. Change the printer mode.

(Additionally, we want to recommend you to rest(OFF→ON) the printer and change mode.)

Printer LCD status

Android status iOS status

*Note

No additional mode settings are required to connect Android or iOS devices.

http://www.woosim.com

 FEED button : changing Printer MODE status. (Power Lamp)  POWER button : changing OPTION status. (Error Lamp)

[Example] The defaults of the printer are :

UART / 9600 bps / 8 data bit / No parity /1 stop bit / Density low / Quality low / Mark use / Sensor High / 5 min Off

If a user wants to modify the defaults with

Bluetooth / 57,600 bps / 7 data bit / Odd parity /2 stop bit / Density high / Quality high / Mark no use / Sensor Low / No use

 Press FEED & POWER Button during the Error Lamp flickers 5 times.

 You will see present COMMUNICATION mode in the LCD. (UART)

 Press the POWER Button twice. And then, interface mode has set to

Bluetooth mode.

 When you press FEED button once.

 You will see present BAUD RATE mode in the LCD. (9600 bps)

 Press POWER Button 3 times. And then, BAUD RATE has set to 57,600 bps.

 When you press FEED button once.

 You will see present DATA BIT mode in the LCD. (8 Data bit)

 Press POWER Button once. And then Data Bit has set to 7 DATA BIT.

 When you press FEED button once.

 You will see present PARITY mode in the LCD. (No parity)

 Press POWER Button once. And then the Parity bit has set to ODD Parity Bit..

 When you press FEED button once.

 You will see present STOP BIT mode in the LCD. (1 stop bit)

 Press POWER Button once. And then the density has set to 2 Stop bit.

 When you press FEED button once.

 You will see present DENSITY mode in the LCD. (Density low)

 Press POWER Button twice. And then the density has set to Density high.

WSP-i350 Rev. 4.1

http://www.woosim.com

WSP-i350 Rev. 4.1

 When you press FEED button once.

 You will see present Quality mode in the LCD. (Low)

 Press POWER Button once. And then the quality has set to Quality high.

 When you press FEED button once.

 You will see present MARK mode in the LCD. (Use)

 Press POWER Button once. And then the mark has set to Mark no use.

 When you press FEED button once.

 You will see present SENSOR mode in the LCD. (High)

 Press POWER Button once. And then the sensor has set to

Sensor Low.

 When you press FEED button once.

 You will see present POWER DOWN mode in the LCD. (5 min Off)

 Press POWER Button once. And then the Power down has set to

Power down no use.

If all the mode have set, press the POWER Button and the FEED Button at the same time. After then release the buttons at the same time.

Bluetooth / 57600bps / 7 data bit / Odd parity / 2 stop bit / Density high /

Quality High / Mark No use / Sensor Low / no use

http://www.woosim.com

WSP-i350 Rev. 4.1

MODE

OPTION

Bluetooth

WLAN

Communication

Port

UART

Protocol UART

Bluetooth

WLAN

Protocol Bluetooth

Protocol WLAN

Bluetooth(iAP)

Baud Rate

9600 bps

19200 bps

38400 bps

57600 bps

115200 bps

Data Bit

7 Data bit

8 Data bit

Parity Bit

No Parity

Odd Parity

Even Parity

Stop Bit

1 Stop bit

2 Stop bit

Density

Density Low

Density Medium

Density High

Density High+1

Density High+2

Quality

Low

High

Mark

No use

Use

Continue…

http://www.woosim.com

WSP-i350 Rev. 4.1

MODE

OPTION

Sensor

Low

Medium1

Medium2

High

Power Down

No use

1min Sleep

2min Sleep

3min Sleep

4min Sleep

5min Sleep

1min Off

2min Off

3min Off

4min Off

5min Off

Notice : Bluetooth(iAP) is the mode which is used in iPod, iPhone and iPad

Whole aspect.

< Table 2 >

http://www.woosim.com

22..77.. CCoonnffiirrmmaattiioonn ooff tthhee WWiirreelleessss--LLAANN iinnffoorrmmaattiioonn

22..77..11.. MMAACC AAddddrreessss pprriinnttiinngg

 MAC address which is set to the printer can be printed out in pressing the Power

and Feed button simultaneously and taking off them shortly after the ERROR

lamp blinks

22..77..22.. CCoonnffiirrmmaattiioonn ooff tthhee WWiirreelleessss--LLAANN sseettttiinngg iinnffoorrmmaattiioonn

 Press the Power button in the printer turning on

As the LCD backlight turns on, MAC Address is indicated.

 IP Address on LCD is indicated in pressing the Power button once again

 Subnet mask on LCD is indicated in pressing the Power button once again

 Gateway IP on LCD is indicated in pressing the Power button once again

 DNS sever IP on LCD is indicated in pressing the Power button once again

※ Since the configuration of Wireless LAN can not be done with the printer in

person, you are required to use the Wireless LAN-setting program which

WOOSIM offers

WSP-i350 Rev. 4.1

http://www.woosim.com

WSP-i350 Rev. 4.1

33.. IInntteerrffaaccee

33..11.. UUAARRTT

The WSP-i350 printer has a UART interface and is connected by means of a 5 pin mini USB socket. In the following table, the signals present on the Mini- USB socket are listed:

① UART

Pin No.

Name

Direction

Function

TxD

Output

Transmit Data

RxD

Input

Receive Data

GND - Ground

NC. - -

GND - Ground

NOTE :

● If you connect the printer interface cable is converted to UART mode.

● When data receiving, when it removes the communication cable, it loses a data.

http://www.woosim.com

WSP-i350 Rev. 4.1

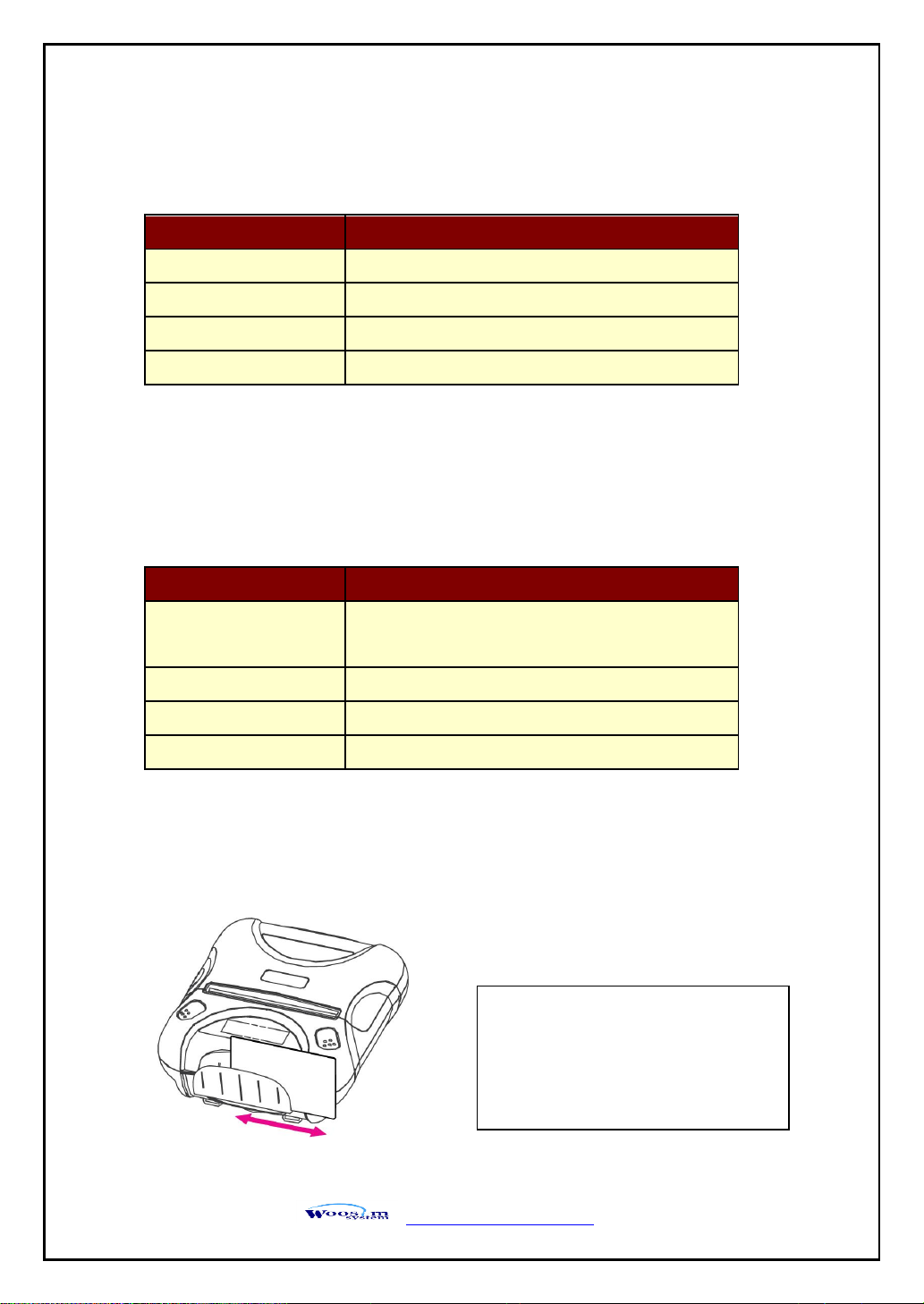

33..22.. BBlluueettooootthh

33..33.. WWiirreelleessss LLAANN

33..44.. CCaarrdd RReeaaddiinngg

Woosim System WSP I350X User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
