MODEL PORTI-SWC40
(3inch Mobile Printer)
All specifications are subjected to change without notice
WOOSIM SYSTEMS Inc.
Add : #501, Daerung Technotown 3th,
448, Gasan-Dong, GeumChun-Ku,
Seoul, Korea
Tel : +82-2-2107-3700
Fax : +82-2-2107-3707
URL: http://www.woosim.com
http://www.woosim.com
Copyright 200ⓒ 8 by Woosim System Inc.
All rights reserved.
The information contained in this manual is the property of Woosim Systems Inc. and
may not be reproduced in whole or in part without the prior written permission of
Woosim Systems Inc.
Trademark
CCooppyyrriigghhtt
PORTI-SWC40 portable mobile printer operator’s manual.
All other trademark are the properties of their respective companies.
Caution
Some semiconductor devices are easily damaged by static electricity. You should turn
the printer “OFF”, before you connect or removed the cable on the rear side, in order to
guard the printer against the static electricity.
If the printer is damaged by the static electricity, you should turn the printer “OFF”.
Notice
The contents of this manual are subject to change without notice.
a registered trademark of Woosim Systems Inc.
http://www.woosim.com
2
Introduction
The PORTI-SWC40 is suitable designed for use with a growing variety of mobile
devices Bluetooth/Serial interfaces make the PORTI-SWC40 the perfect comrade for
applications such as point of transaction warehousing, distribution, point of sales,
hospitality, gaming and healthcare.
The general features of PORTI-SWC40 printer are as follows:
X Pocket size (107.4mm x 88.5mm x 45mm).
X Light weight(341g) for true mobility.
X Very silent printing thru direct thermal printing method.
X High speed (60mm/sec)
X High resolution (203dpi, 8dot/mm)
X UART (RS-232C or TTL), Bluetooth Ver2.1 + EDR Interface
X Intuitive LED’s indicate Power(on/off),Error and Battery status
X Smart battery management
X Printer door open & Paper-out sensor
X Support Magnetic Stripe Reader.
X Measure system for thermal print head temperature
X Easier paper roll loading by CLAMSHELL design.
X Easier maintenance with self-diagnostic.
X Microsoft Windows 98/ME/XP/2000/VISTA compatible.
X In field programming – Update Firmware, Download Fonts and Logos
X Support bit-image(logo) download.
X Flow control : Software (XON/XOFF)
Hardware flow control not supported in printer.※
http://www.woosim.com
3
Operating Precaution
Please follow the precautions below to enjoy and maintain the full performance of
the printer.
X Using the Printer
● Be careful not to drop or bump the printer on a hard surface.
● Do not install the printer in direct sunlight or such areas.
Suitable environment for the use of the printer is as follows :
Operating temperature◆ :-20°C to 55°C
Relative humidity : 0% to ◆ 95% (No condensation)
● Do not install the printer near devices that generate strong
electromagnetic fields such as a copy machine.
● Do not open the platen cover during printing .
● Do not remove or reinstall the communication cable during printing
or transmission.
● Do not touch the connectors of the communication cable and
to close up the Infrared transmitter /receiver during printing.
● Switch the POWER OFF when not in use.
● Do not use alcohol or other solvent.
● The AC adapter, the battery charger and the battery pack may
become warm when in use. This is normal and is not a malfunction.
● When the battery pack is used at low temperature, the length of time
the printer can be used may be shortened.
http://www.woosim.com
4
X Thermal Paper Handling
● Store the thermal paper in a cool, dry and dark place.
● Do not rub the paper with hard object.
● Do not leave the paper with hard object.
● Do not allow plastic film, erasers, or adhesive tape to touch the paper
for long periods.
● Do not stack the thermal paper with diazo copies immediately
after copying or wet-type copies.
● Do not use chemical glue.
● Always use the clean thermal paper.
.
http://www.woosim.com
5
CONTENTS
Copyright ...............................................................................................................................
Trademark ............................ ....................... ....................... ......................... ...........................
Caution ........................ .... ..... .... .... .... ....... .... .... .... .... ..... .... .... .... .... ..... .... .... ...... ..... .... ..............
1. Outline ............................................................................................................................. ...... ...... .... 7
1.1. Model classifications ............................................................................................................ 7
1.2. Product Part Number System ................................................................................................ 7
1.3. Specifications ........................................................................................................................ 8
2. Setting up the printer ........................................................................................................... ...... ...... 9
2.1. Printer & Accessories ........................................................................................................... 9
2.2. Printer Features ............................................................................................................... .... 10
2.2.1. Part name ................................................................................................................. 10
2.2.2. Dimensions .............................................................................................................. 11
2.3. Replacing paper roll ............................................................................................................ 12
2.4. Power supply ...................................................................................................................... 13
2.4.1. Internal power supply .............................................................................................. 13
2.4.2. Installing the Battery ................................................................................................ 13
2.4.3. Recharging the battery pack ..................................................................................... 14
2.5. Set operation mode ............................................................................................................. 15
3. Interface ..................................................................................................................................... .... 19

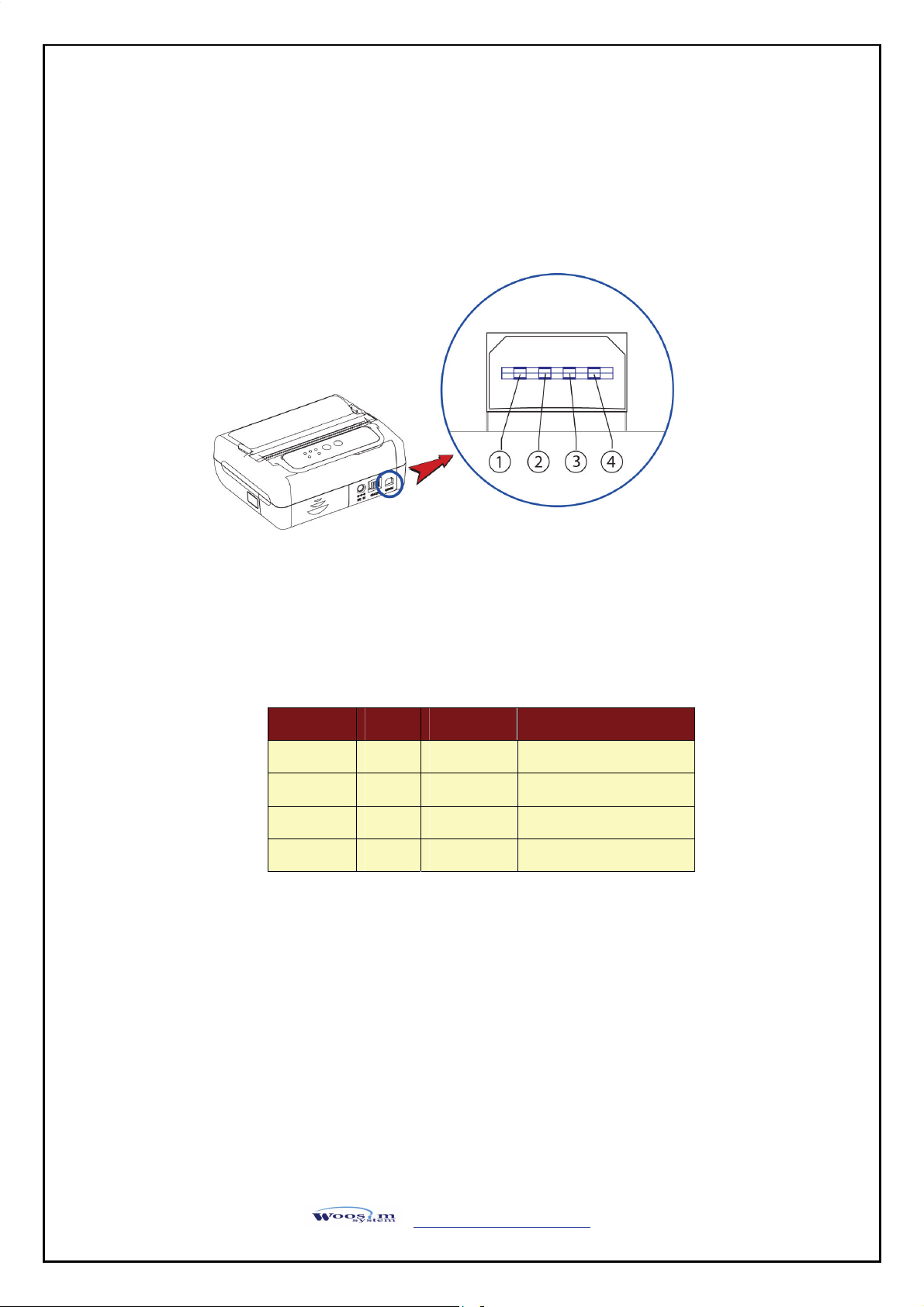

3.1. UART(RS-232C or TTL) ................................................................................................... 19
3.2. Bluetooth ............................................................................................................................ 20
4. Using the printer ........................................................................................................... ....... ...... .... 21
4.1. Control panel ...................................................................................................................... 21
4.2. Self test ............................................................................................................................... 22
5. Consumable parts .......................................................................................................................... 23
5.1. Recommended paper ........................................................................................................... 23
5.2. Printing position .................................................................................................................. 23
6. Channel organized table ................................................................................................................ 24
6.1. Bluetooth channel organized table ...................................................................................... 24
http://www.woosim.com
6
11.. OOuuttlliinnee
11..11.. MMooddeell ccllaassssiiffiiccaattiioonnss
PORTI-SWC40 ( ) ( )
11..22.. PPrroodduucctt PPaarrtt NNuummbbeerr SSyysstteemm
Example) 1. Porti-S40 UART/Bluetooth Part No. ⇒ S40/A1
2. Porti-SC30 Bluetooth Only Part No. ⇒ SC30/Z1
Note) The above table is the interface format which is supported.
But some of the interfaces are not supported according to the product
and please contact us, if you have any questions regarding the interface.
SC30
Model name / Interface Spec.
Wired Wireless
S40
A UART 1 Bluetooth
B TTL 2 IrDA
W25
C USB 0 None
.
D RS-485
.
E Parallel
.
Z None
Model Name
Interface
None : Bluetooth/UART
Power
None : DC 8.4V
http://www.woosim.com
7
11..33.. SSppeecciiffiiccaattiioonnss
Item Specification
Printing method
Characters per line
Character size
Optional Characters
Resolution
Print width
Printing speed
Dimensions
Weight
Direct thermal line printing
64cpl (9 x 24), 48cpl(12 x 24), 24cpl(24 x 24)
Eng. : 9*24dots, 12*24dots Kor. : 16*24dots, [24*24dots]
Simplified/Traditional Chinese, Arabic, Cyrillic, Russian, Tukish, Greek,
Japanese, Persian, Latin9 and Others upon request.
203dpi, 8dots/mm
3-inch (72mm, 576dots)
60mm /sec
107.4 x 88.5 x 46.1mm
341g (Including battery & roll paper)
Interface
Paper supplied
Barcode supplied
Black mark
H/W Spec. MCU : 32bit RISC, FLASH : 4 Mbytes, RAM : 8 Mbytes
Receive buffer size
Battery
Battery duration
Battery Charger
Environment
Conditions
MCBF (Mean Cycle
Between failure)
UART(RS-232C or TTL), Bluetooth Ver2.0
Thermal roll paper (80mm wide, 38ø)
1-dimension : Code128, EAN 128, Code39, I2/5, Code93 UPC, EAN, KAN,
JAN, CODABAR
2-dimension : PDF417, QR Code, DATA Matrix
Support black mark detection
1M bytes
Rechargeable 7.4V DC, 1800mAh (Li-ion)
1 hour continuous printing
Input (100~250VAC, 50~60Hz)
Output(8.4VDC/0.8A), 4hours full charge time
Temperature -20°C ~ 55°C
Humidity 0% ~ 95%
Mechanical 37,000,000 lines
Head Approximately 50 Km
http://www.woosim.com
8
22.. SSeettttiinngg uupp tthhee pprriinntteerr
22..11.. PPrriinntteerr && AAcccceessssoorriieess
Your printer box should include these items. If any items are damaged or missing,
please contact your dealer for assistance.
▼ OPTIONAL
PORTI-SWC40
Battery Pack Roll Paper
Battery Charger
Extra Charger
Communication Cable
http://www.woosim.com
9
22..22.. PPrriinntteerr FFeeaattuurreess

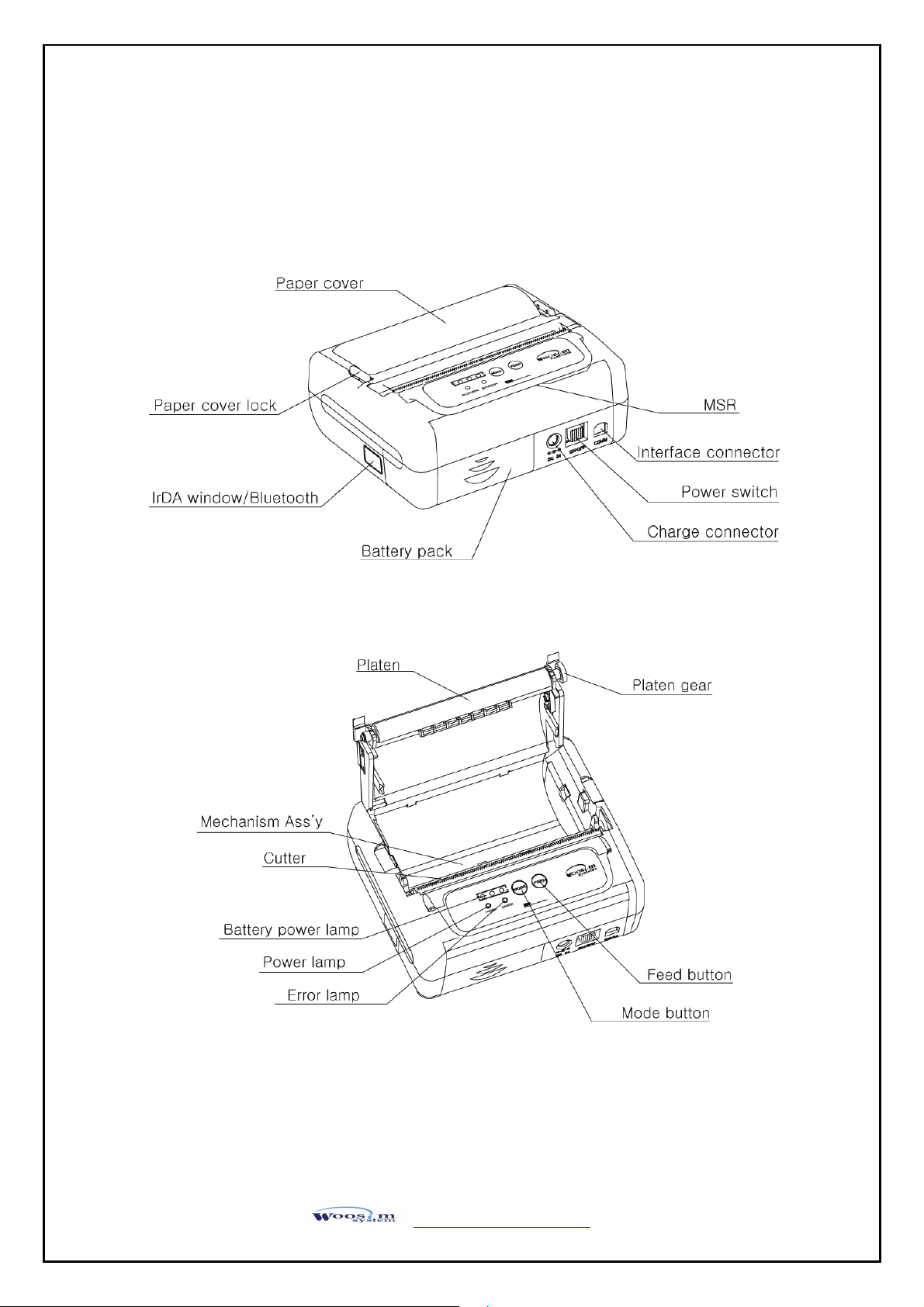

22..22..11.. PPaarrtt nnaammee
http://www.woosim.com
10
22..22..22.. DDiimmeennssiioonnss
http://www.woosim.com
11

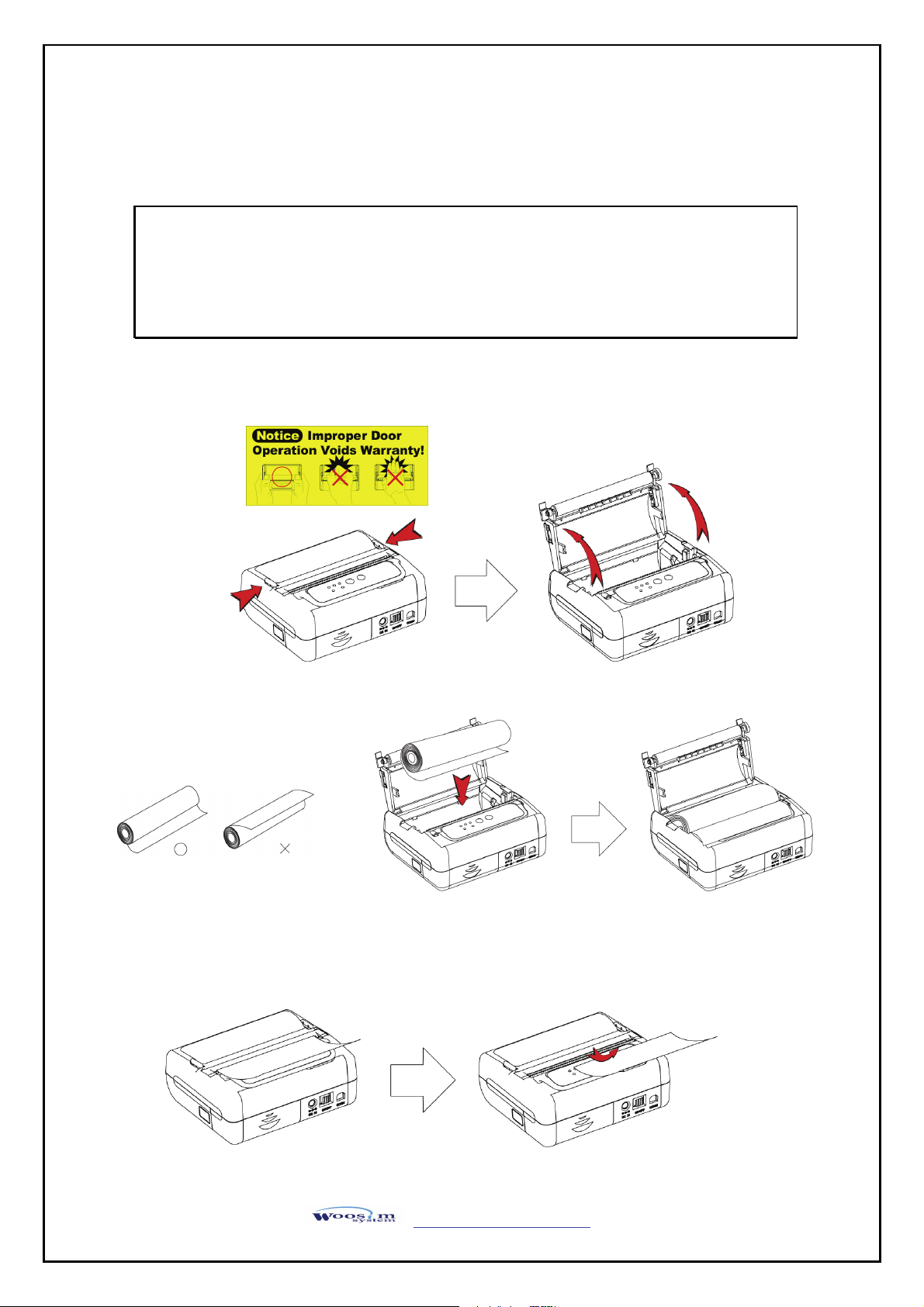

22..33.. RReeppllaacciinngg ppaappeerr rroollll
Note :
1. Make sure that the printer is not receiving data; otherwise, data may be lost.
2. Open the paper cover using finger on both side of printer, and remove the remaining
paper.
3. Insert the paper roll as shown.
4.
Tear the excess paper off using the edge of paper door as a tear bar.
Be sure to use paper rolls that meet the specifications.
Do not use paper rolls that have the paper g lued to the
core becaus e the printer cannot detect the paper end
correctly.
http://www.woosim.com
12
22..44.. PPoowweerr ssuuppppllyy
22..44..11.. IInntteerrnnaall ppoowweerr ssuuppppllyy
The following specification is requested for Power supply.
Battery Charger : DC 8.4V/0.8A
Avoid using power supply which its power capacity of power current is extremely high.

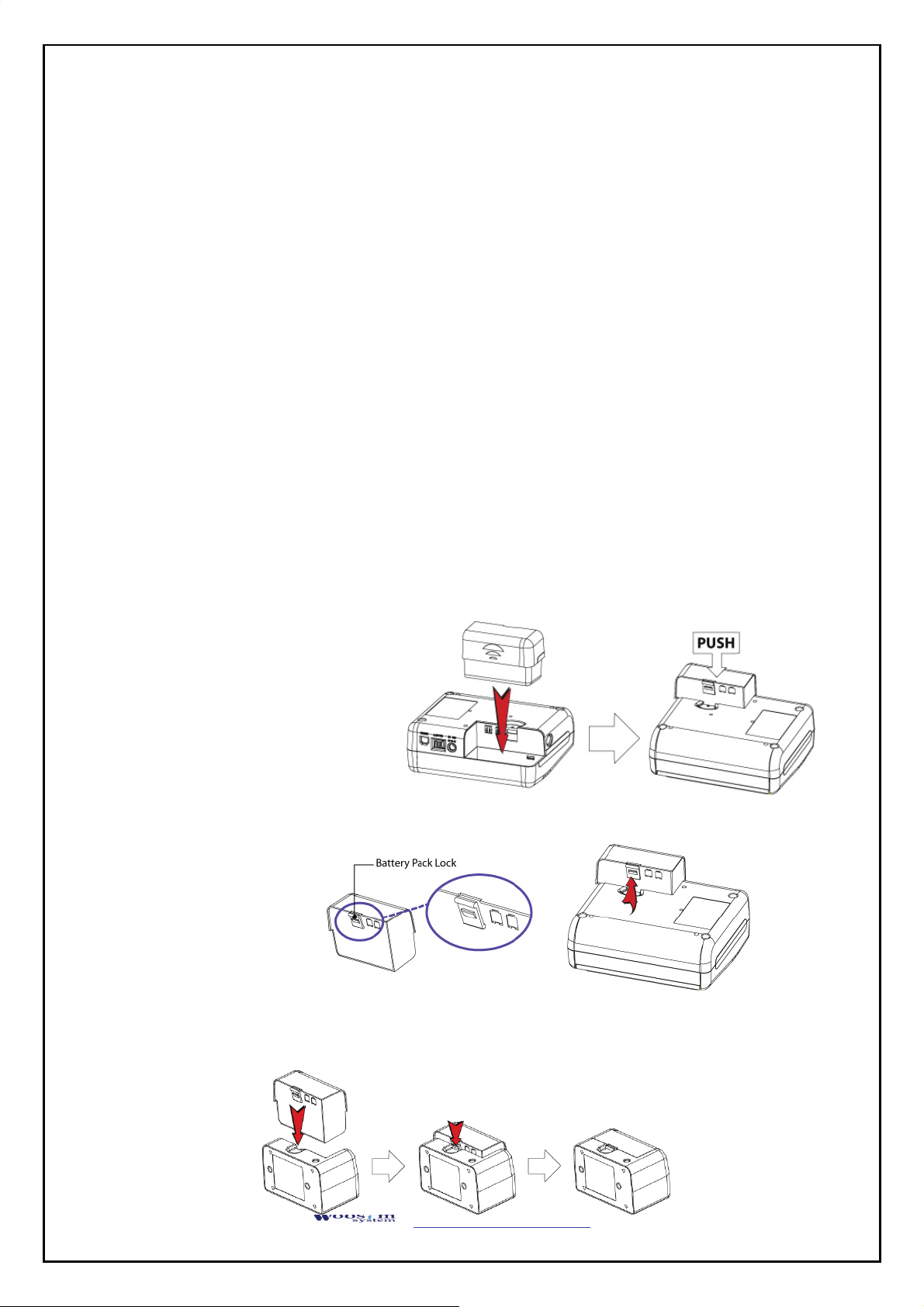

22..44..22.. IInnssttaalllliinngg tthhee BBaatttteerryy
NOTE : ● Before installing or removing the battery pack, ensure the printer is OFF.
CAUTION : Risk of explosion if battery is replaced by an incorrect type.
● If the printer is not used for long period of time, remove the battery pack
from the printer.
Dispose of used batteries according to the instructions.
① To install battery pack, proceed as follows:
- Insert the Battery pack in the direction of the arrow.
② Removing the battery pack
- Turn the printer power off and push the battery pack lock and to lift up the direction of
the arrow.
③ The battery pack install into extra charger.
- Insert the Battery pack in the direction of the arrow.
http://www.woosim.com
13
22..44..33.. RReecchhaarrggiinngg tthhee bbaatttteerryy ppaacckk
For recharging the battery pack, install the battery pack in the printer or the extra charger.
Insert the Battery Charger to the charge connector of the printer or the extra charger.
NOTE : ● While charging the printer, turn off the printer power.
● Do not remove the battery during charging.
● The battery is consumable parts and when purchasing, compared to
the use hour is gradually decreases. (Warranty 6 month)
● If the printer is not used for a long time, unplug the power cord
from the printer and outlet.
● The recharging time depends on the voltage level and ambient
temperature of the battery. Normally, if takes about 4 to 5 hours to
recharge a battery pack.
● You must use only the supplied adapter.
● Red Lamp : charging the battery.
Green Lamp: charging is finished.
http://www.woosim.com
14
22..55.. SSeett ooppeerraattiioonn mmooddee
1. Press the MODE Button until the Error Lamp twinkles 5 times.
2. Change the mode and option using the MODE Button according to the MODE
z MODE button : use for changing OPTION status. (Error Lamp)
z FEED button : use for changing MODE status. (Power Lamp)
Ex) The defaults of the printer are : UART/ 9600 bps/ 8 data bit / No parity
/ 1 Stop bit / Density Low
If a user wants to modify the defaults with Bluetooth / 57600 bps / 7 data
bit / Odd parity / 2 Stop bit / density high
X Press MODE Button until Error Lamp twinkles 5 times and release the
button.
→ You will see the Power Lamp twinkles one time and the Error Lamp
twinkles 1 time.
→ Press the MODE Button 2 time and the Error Lamp twinkles 3 times.
(The interface mode has set to Bluetooth mode)
X Press FEED button one time, Power Lamp twinkles twice and Error Lamp
twinkles 1 time.
→ Press the MODE Button 3 times and the Error Lamp twinkles 4 times.
(The baud rate has set to 57,600 bps)
X Press FEED Button one time, Power Lamp twinkles 3 times and Error Lamp
twinkles 2 times.
→ Press MODE Button one time,
(The Data Bit has set to 7 data bit)
Error Lamp tw
inkles one
time.
http://www.woosim.com
15
If all the mode have set, press the MODE Button and the FEED Button at the same time
after then release the buttons at the same time.
The printer will print out the mode status which has modified.
(Bluetooth / 57600 bps / 7 data bit / Odd parity / 2 Stop bit / density high )
If the status is not correct, please try it again according to the procedure.
X Press FEED Button one time, Power Lamp twinkles 4 times and Error Lamp
twinkles 1 time.
→ Press MODE Button one time, Error Lamp twinkles 1 times.
(The Parity bit has set to Odd parity bit)
X Press FEED Button one time, Power Lamp twinkles 5 times and Error Lamp
twinkles 1 times.
→ Press MODE Button one time, Error Lamp twinkles 2 times.
(The Stop bit has set to 2 Stop bit)
X Press FEED Button one time, Power Lamp twinkles 6 times and
Error Lamp twinkles 1 time.
→ Press MODE Button one time, Error Lamp twinkles 2 times after then
press MODE Button again, the Error Lamp will twinkle 3 times.
( The density has set to High)
http://www.woosim.com
16
Communication
Port
POWER Lamp
(Green)
1
ERROR Lamp
Option
(Red)
1 UART(RS-232C)
2 Protocol UART(RS-232C)
3 Bluetooth
Baud Rate
Data Bit
Parity Bit
Stop Bit
Density
Mark
Sensor
2
3
4
5
6
7
8
4 Protocol Bluetooth
1 9600 bps
2 19200 bps
3 38400 bps
4 57600 bps
5 115200 bps
1 7 Data bit
2 8 Data bit
1 No Parity
2 Odd Parity
3 Even Parity
1 1 Stop bit
2 2 Stop bit
1 Density Low
2 Density Medium
3 Density High
1 No use
2 Use
1 Low
2 Medium1
3 Medium2
4 High
http://www.woosim.com
17
POWER Lamp
(Green)
ERROR Lamp
Option
(Red)
1 No use
2 1 minute
3 2 minute
Power Down
9
4 3 minute
5 4 minute
6 5 minute
http://www.woosim.com
18
33.. IInntteerrffaaccee
33..11.. UUAARRTT((RRSS--223322CC oorr TTTTLL))
The PORTI-SWC40 printer has an UART interface and is connected by means of a
4 pin mini USB socket. In the following table, the signals present on the Mini USB
socket are listed:
Pin No. Name Direction Function
1
2
3
4
* Applicable connector : SUNG KYUNG (CM-720)
TxD
RxD Input Receive Data
CTS - -
GND - Ground
Output Transmit Data
NOTE : ● When data receiving, when it removes the communication
cable, it loses a data.
http://www.woosim.com
19
33..22.. BBlluueettooootthh
Category Specification
Bluetooth Spec.
Frequency Range
Data Transmission Rate
Data bit
Parity bit
Stop bit
Output
Modulation type/rash way
Notice
If the quantity of data what printed at once is more than 10,000byte on Bluetooth
communication, it would cause the buffer to overflow and the data to get damaged.
Bluetooth V2.1 / Class2 (10m)
2.4GHz ISM BAND
57600bps Fixed.
8 Data bit Fixed.
No parity Fixed.
1 Stop bit Fixed.
Below 3mWMHZ
GFSK SYSTEM / PLL
http://www.woosim.com
20
44.. UUssiinngg tthhee pprriinntteerr
44..11.. CCoonnttrrooll ppaanneell
X Button
- FEED :
When the printer is on, paper can be feed manually by pressing and holding the
FEED button for more than one second.
- MODE :
MODE Button is for use to change communication mode.
Do not operate the mode button without instructions.
X Panel lamp
- Power : Printer is ON and ready to receive data.
- Error : Indicates a fault condition or a printer error.
(i.e : no paper, paper cover opened. etc.)
- Battery Power : These lamps(Green) indicated the battery power remaining.
The battery gain in quantity and these lamps are on the decrease.
If so, you must recharge the battery by using the battery charger.
http://www.woosim.com
21
44..22.. SSeellff tteesstt
The Self-Test checks whether the printer has any problems. If the printer does not
function properly, contact your dealer. For Self-Test, turn on the power while holding
down the FEED Button. The Self-Test checks the following :
1) Make sure paper roll has been installed properly.
2) The Self-Test prints the current printer status, which provides the control
3) After printing the current printer status, Self-Test will print a pattern using
4) The Self-Test automatically ends.
The printer is ready to receive data as soon as it complete the Self-Test.
ROM version and the communication method setting.
the built-in character set.
http://www.woosim.com
22
55.. CCoonnssuummaabbllee ppaarrttss
55..11.. RReeccoommmmeennddeedd ppaappeerr
Type : Thermal Paper
Paper width : 80mm
Paper thickness : 60±5㎛
Outer diameter : Ø38mm or less
Recording side : Outside of roll
1. Do not paste the paper to the core, and the roll paper which has near end mark printing
2. Chemicals or oil may change the color of paper, or printed characters may fade.
3. Change of paper color starts from approx. 70 ℃.
Pay attention to heat, humidity and sun light.
4. Color of paper may be changed by being scratched by nail or hard metal, etc.
Cautions
on its near end is recommended.
55..22.. PPrriinnttiinngg ppoossiittiioonn
http://www.woosim.com
23
66.. CChhaannnneell oorrggaanniizzeedd ttaabbllee
66..11.. BBlluueettooootthh cchhaannnneell oorrggaanniizzeedd ttaabbllee
CH MHZ CH MHZ CH MHZ CH MHZ CH MHZ CH MHZ CH MHZ CH MHZ
1 2402 11 2412 21 2422 31 2432 41 2442 51 2452 61 2462 71 2472
2 2403 12 2413 22 2423 32 2433 42 2443 52 2453 62 2463 72 2473
3 2404 13 2414 23 2424 33 2434 43 2444 53 2454 63 2464 73 2474
4 2405 14 2415 24 2425 34 2435 44 2445 54 2455 64 2465 74 2475
5 2406 15 2416 25 2426 35 2436 45 2446 55 2456 65 2466 75 2476
6 2407 16 2417 26 2427 36 2437 46 2447 56 2457 66 2467 76 2477
7 2408 17 2418 27 2428 37 2438 47 2448 57 2458 67 2468 77 2478
8 2409 18 2419 28 2429 38 2439 48 2449 58 2459 68 2469 78 2479
9 2410 19 2420 29 2430 39 2440 49 2450 59 2460 69 2470 79 2480
10 2411 20 2421 30 2431 40 2441 50 2451 60 2461 70 2471
http://www.woosim.com
24
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.
Operation is subject to the following two conditions; (1)
This device may not cause harmful interference, and (2) this device must accept any interference
received,
including interference that may cause undesired operation.
CAUTION : Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
FCC ID : QDDPORTI-SWC40
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
ㆍReorient or relocate the receiving antenna.
ㆍIncrease the separation between the equipment and receiver.
ㆍConnect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
ㆍConsult the dealer or an experienced radio/TV technician for help.
Modifications not expressly approved by the manufacturer could void the user's authority to
operated the equipment under FCC rules.
http://www.woosim.com
25
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum 20 cm between the
radiator and your body. This transmitter must not be collocated or operating in conjunction with
any other antenna or transmitter unless authorized to do so by the FCC
http://www.woosim.com
26
Loading...
