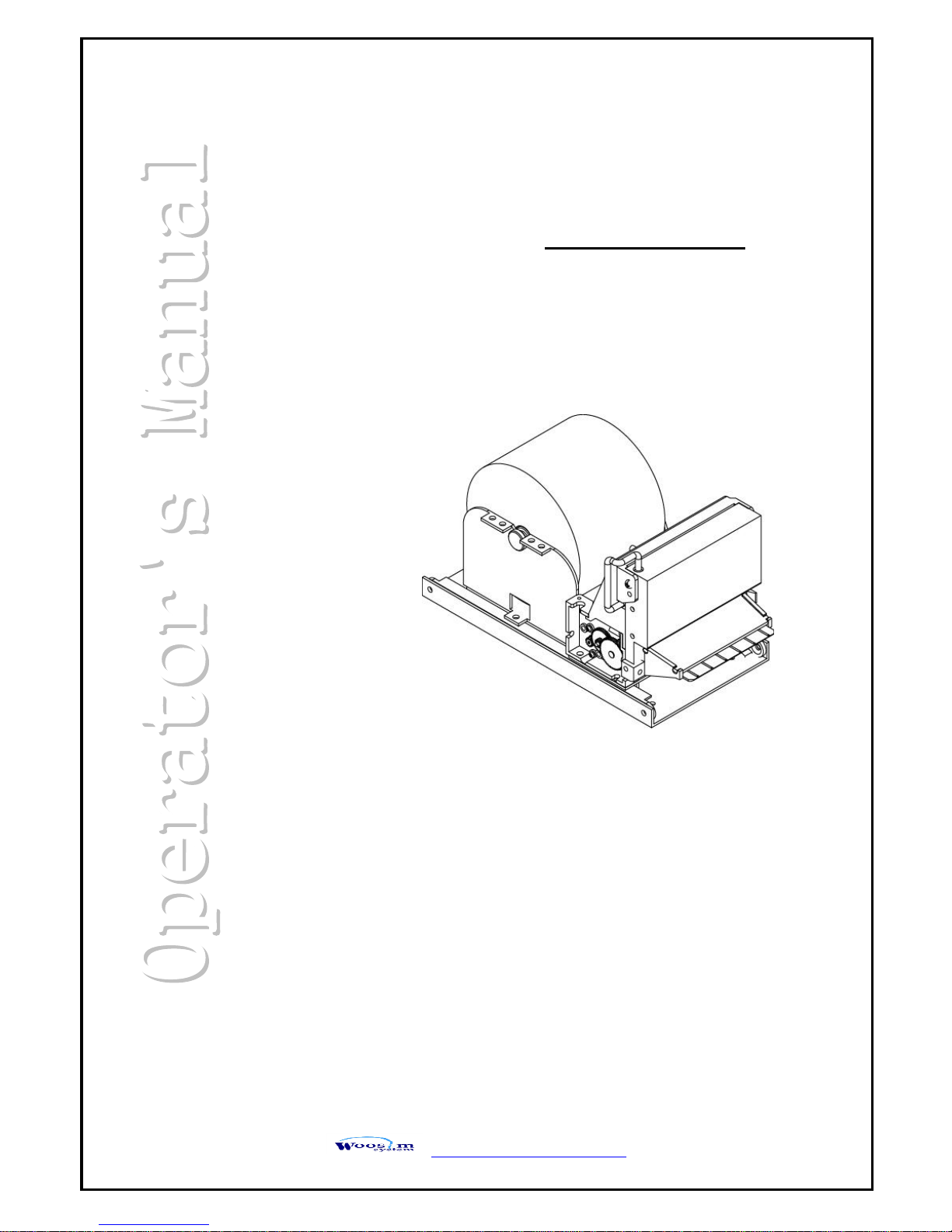

MODEL WSP-T280
WOOSIM SYSTEMS Inc.
(#501, Daerung Technotown 3th)
115, Gasan digital 2-ro, Geumcheon-gu,
Seoul, 153-772 Rep. of KOREA
Tel : +82-2-2107-3700
Fax : +82-2-2107-3707
URL: http://www.woosim.com
(Kiosk&Ticket Printer)
Rev. 1.2
All specifications are subjected to change without notice
Page 2
T280 Rev. 1.2
http://www.woosim.com
2
Copyright
WSP-T280 2inch Kiosk/Ticket printer operator’s manual.
Copyright ⓒ2015 by Woosim Systems Inc.
All rights reserved.
The information contained in this manual is the property of Woosim Systems Inc.
And may not be reproduced in whole or in part without the prior written
permission of Woosim Systems Inc.
Trademark
a registered trademark of Woosim Systems Inc.
All other trademark are the properties of their respective companies.
Caution
Some semiconductor devices are easily damaged by static electricity. You should
turn the printer “OFF”, before you connect or removed the cable on the rear side,
in order to guard the printer against the static electricity.
If the printer is damaged by the static electricity, you should turn the printer “OFF”.
Notice
The contents of this manual are subject to change without notice.
Page 3
T280 Rev. 1.2
http://www.woosim.com
3
Introduction
The WSP-T280 printer is the ideal solution for kiosk, Ticket vending machines
and receipt output for vending machines, ATM, etc.
The general features of WSP-T280 printer are as follows:
Very silent printing thru direct thermal printing method.
High speed(200mm/sec, MAX)
High resolution(203dpi : 8dots/mm).
UART(RS-232C or TTL), USB(option) Interface
Low power consumption.
Auto cutting.
Supports text and graphic printing.
Easier maintenance with self-diagnostics.
In field programming – Update Firmware, Download Fonts and Logos
Microsoft Windows XP/VISTA/7/8/CE, Linux, Android compatible compatible.
Flow control : Software (XON/XOFF)
※ Hardware flow control not supported in printer.
Agency Approvals
Page 4
T280 Rev. 1.2
http://www.woosim.com
4
Operating Precautions
Please follow the precautions below to enjoy and maintain the full performance of
the printer.
Using the Printer
● Be careful not to drop or bump the printer on a hard surface.
● Do not install the printer in direct sunlight or such areas.
Suitable environment for the use of the printer is as follows:
◆ Operating temperature : -10°C to 50°C
◆ Relative humidity : 30% to 80%
● Do not install the printer near devices that generate strong
electromagnetic fields such as a copy machine.
● Do not open the platen cover during printing .
● Do not remove or reinstall the communication cable during printing
or transmission.
● Do not touch the connectors of the communication during printing.
● POWER OFF when not in use.
● Do not use other solvent.
Thermal Paper Handling
● Store the thermal paper in a cool, dry and dark place.
● Do not rub the paper with hard object.
● Do not leave the paper with hard object.
● Do not allow plastic film, erasers, or adhesive tape to touch the paper
for long periods.
● Do not stack the thermal paper with diazo copies immediately
after copying or wet-type copies.
● Do not use chemical glue.
● Always use the clean thermal paper.
Page 5
T280 Rev. 1.2
http://www.woosim.com
5
CONTENTS
1. Outline ................................................................................................................................... 6
1.1. Model classifications ................................................................................................... 6
1.2. Product Part Number System .................................................................................... 6
1.3. Specifications ................................ ............................................................................... 7
2. Setting up the printer ......................................................................................................... 8
2.1. Printer & Accessories .................................................................................................. 8
2.2. Printer Features ........................................................................................................... 9
2.3. Dimensions................................................................................................................. 11
2.4. Replacing the paper roll ........................................................................................... 12
2.5. Power Supply ............................................................................................................. 14
2.5.1. Specified Power supply .................................................................................. 14
2.5.2. Power connector ............................................................................................. 14
2.6. Sensor ......................................................................................................................... 15
2.6.1. Sensor connector ............................................................................................ 15
3. Interface ............................................................................................................................... 16
3.1. UART (RS-232C or TTL) & USB ................................................................................ 16
4. Using the printer ................................................................................................................ 17
4.1. Control panel ................................................................................................ ............. 17
4.2. The self test ............................................................................................................... 17
5. Consumable Parts .............................................................................................................. 18
5.1. Recommended paper ............................................................................................... 18
5.2. Printing position ........................................................................................................ 18
6. Revision History ................................................................................................................. 19
Page 6
T280 Rev. 1.2
http://www.woosim.com
6
11.. OOuuttlliinnee
11..11.. MMooddeell ccllaassssiiffiiccaattiioonnss
11..22.. PPrroodduucctt PPaarrtt NNuummbbeerr SSyysstteemm
WSP-T280 ( ) ( )
Model name
Interface
A0 : UART
Power
None : DC 24V
Model name / Interface Spec.
Example) 1. Porti-S40 Serial/Bluetooth Part No. ⇒ S40/A1
2. Porti-SC30 Bluetooth Only Part No. ⇒ SC30/Z1
Note) The above table is the interface format which is supported.
But some of the interfaces are not supported according to the product
and please contact us, if you have any questions regarding the interface.
S40
SC30
W25
.
.
.
Wired
Wireless
A
RS-232C
1
Bluetooth
B
TTL
2
IrDA
C
USB
0
None
D
RS-485
E
Parallel
Z
None
Page 7
T280 Rev. 1.2
http://www.woosim.com
7
11..33.. SSppeecciiffiiccaattiioonnss
Item
Specification
Print method
Direct thermal line printing
Character size
- Font Size A: 12X24 / Font Size B : 9X24 / Font Size C : 8X16
- KOR : 24X24(16X24) / CHN, JPN : 24X24
Characters per line
- Font A : 32cpl / Font B : 42cpl / Font C : 48cpl
- KOR, CHN, JPN : 16cpl
Optional Characters
Alphanumeric:95, Extended Graphics:128X31 pages, International:10,
Simplified/Traditional Chinese, Japanese, Korean
Resolution
203dpi, 8dots/mm
Print width
2-inch (48mm, 384dots)
Printing speed
200mm/sec (MAX)
Dimensions
169 X 87.5 X 103mm
Weight (except roll paper)
784g
Interface
UART(RS-232C or TTL), USB(option)

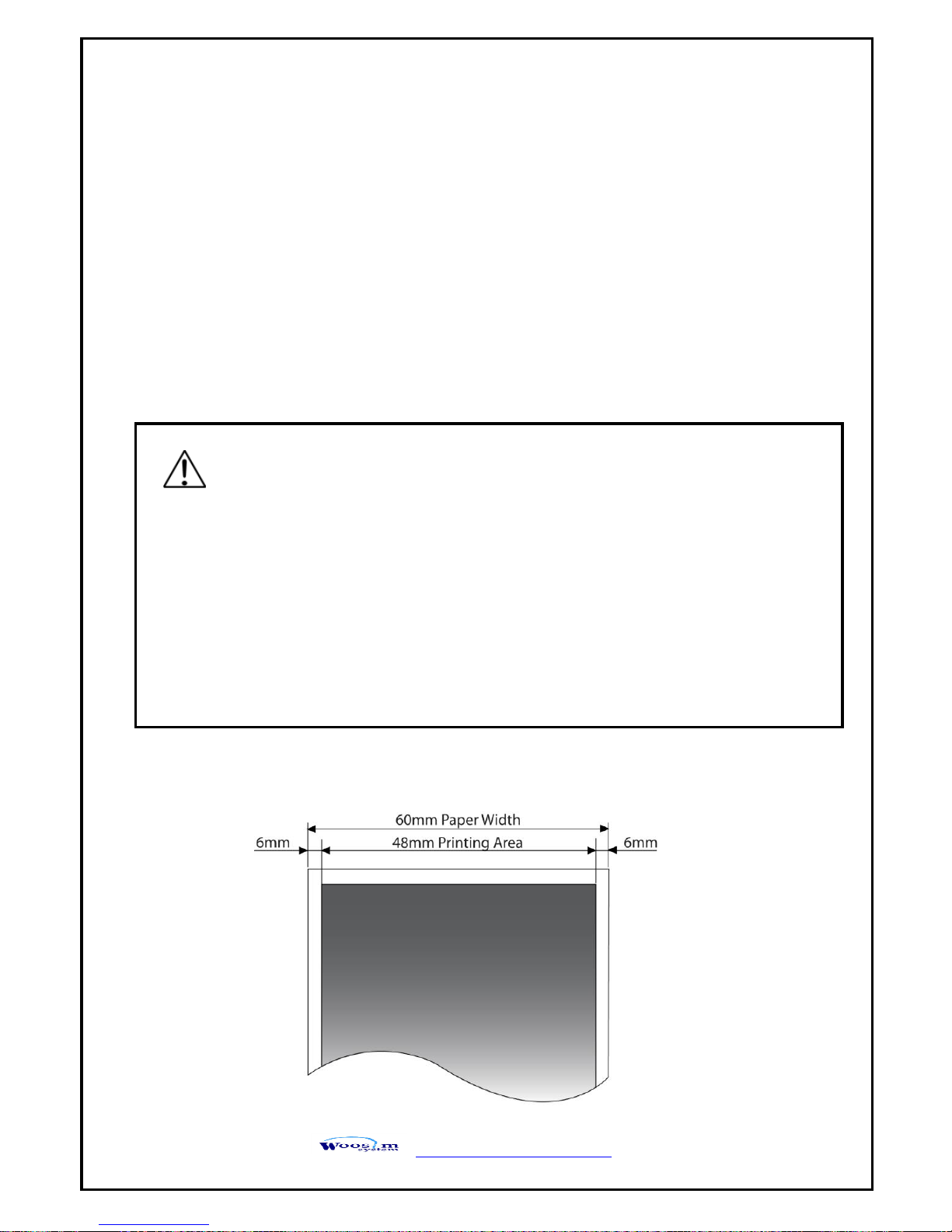

Paper supplied
Thermal roll paper (60mm wide/ 80ø, 200ø-option)
Barcodes
1-dimension : UPC-A, UPC-E, EAN-8, EAN-13, CODE-39, CODE-93,
CODE-128, ITF, CODABAR
2-dimension : PDF417, Micro PDF417, Truncated PDF417, QR-CODE,
DATA Matrix, Maxicode
Etc :GS1 databar
Driver
Microsoft Windows XP/VISTA/7/8/CE, Linux, Android compatible
H/W spec
MCU : RX-32bit, RAM : 128M bit, FLASH : 64M bit
Receive buffer size
1M bytes
Input Power
24VDC, 3A OVER
Option
Sliding mount assembly
Environment conditions
Temperature
-10 °C ~ 50°C (operating)
-10°C ~ 70°C (storage)
Humidity
30% - 80% (operating)
10% - 90% (storage)
MCBF (Mean Cycle
Between failure)
Mechanical
37,000,000 lines
Head
Approximately 50 Km
<Table 1 >
Page 8
T280 Rev. 1.2
http://www.woosim.com
8
22.. SSeettttiinngg uupp tthhee pprriinntteerr
22..11.. PPrriinntteerr && AAcccceessssoorriieess

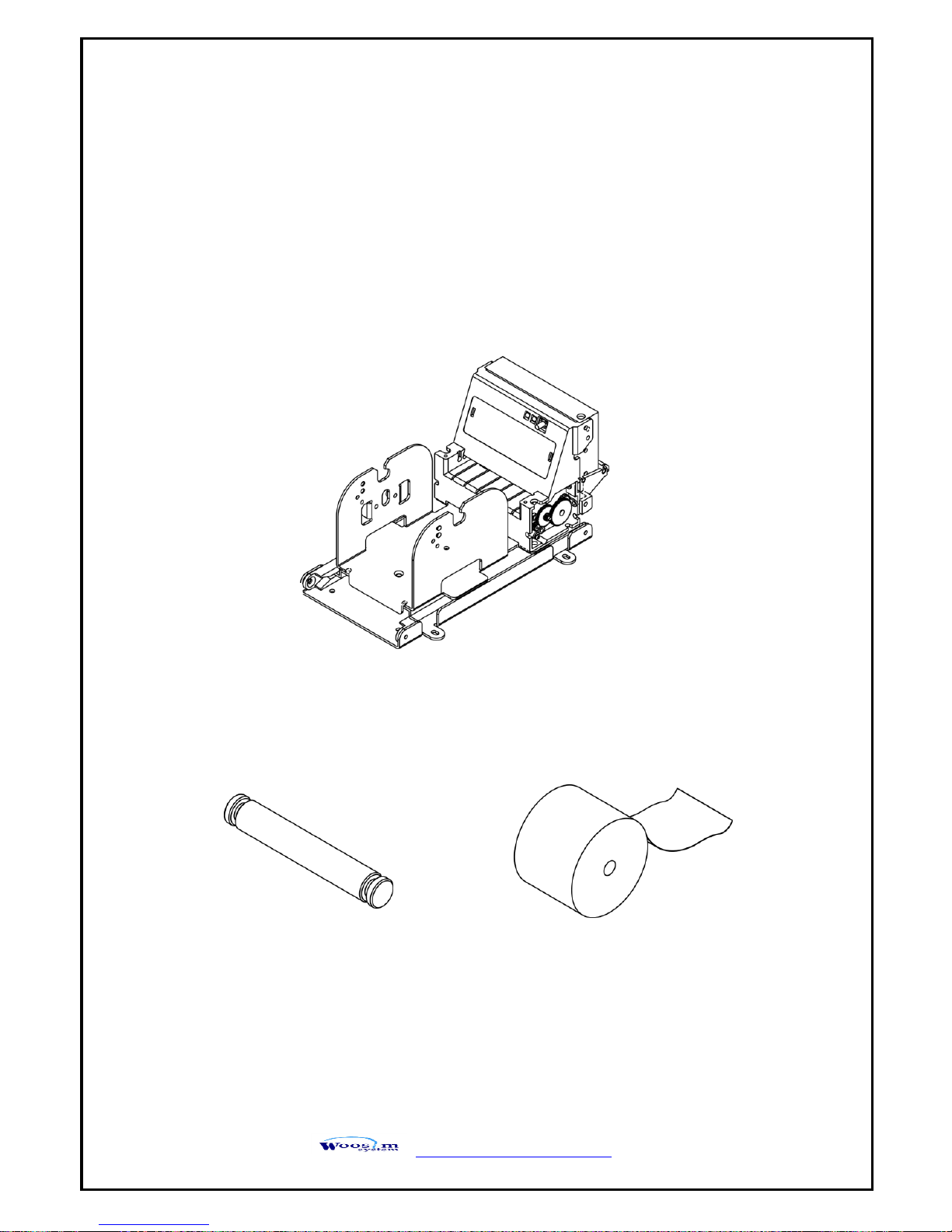

When unpacking your printer box make sure it contains the printer and all
accessories.
If any accessories are missing or damage, please contact your dealer for assistance.
WSP-T280
Thermal roll paper
SHAFT
Page 9
T280 Rev. 1.2
http://www.woosim.com
9

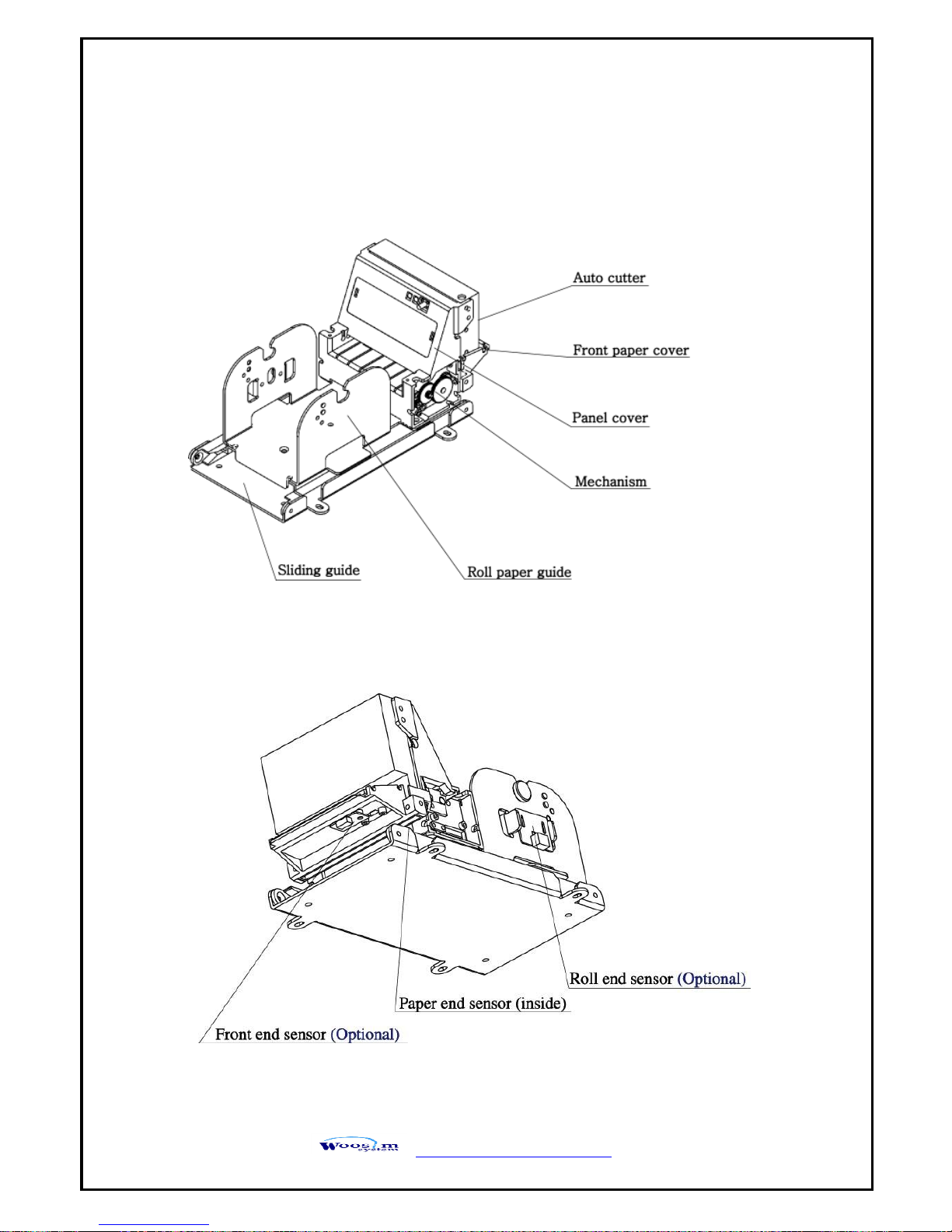

22..22.. PPrriinntteerr FFeeaattuurreess
Page 10
T280 Rev. 1.2
http://www.woosim.com
10

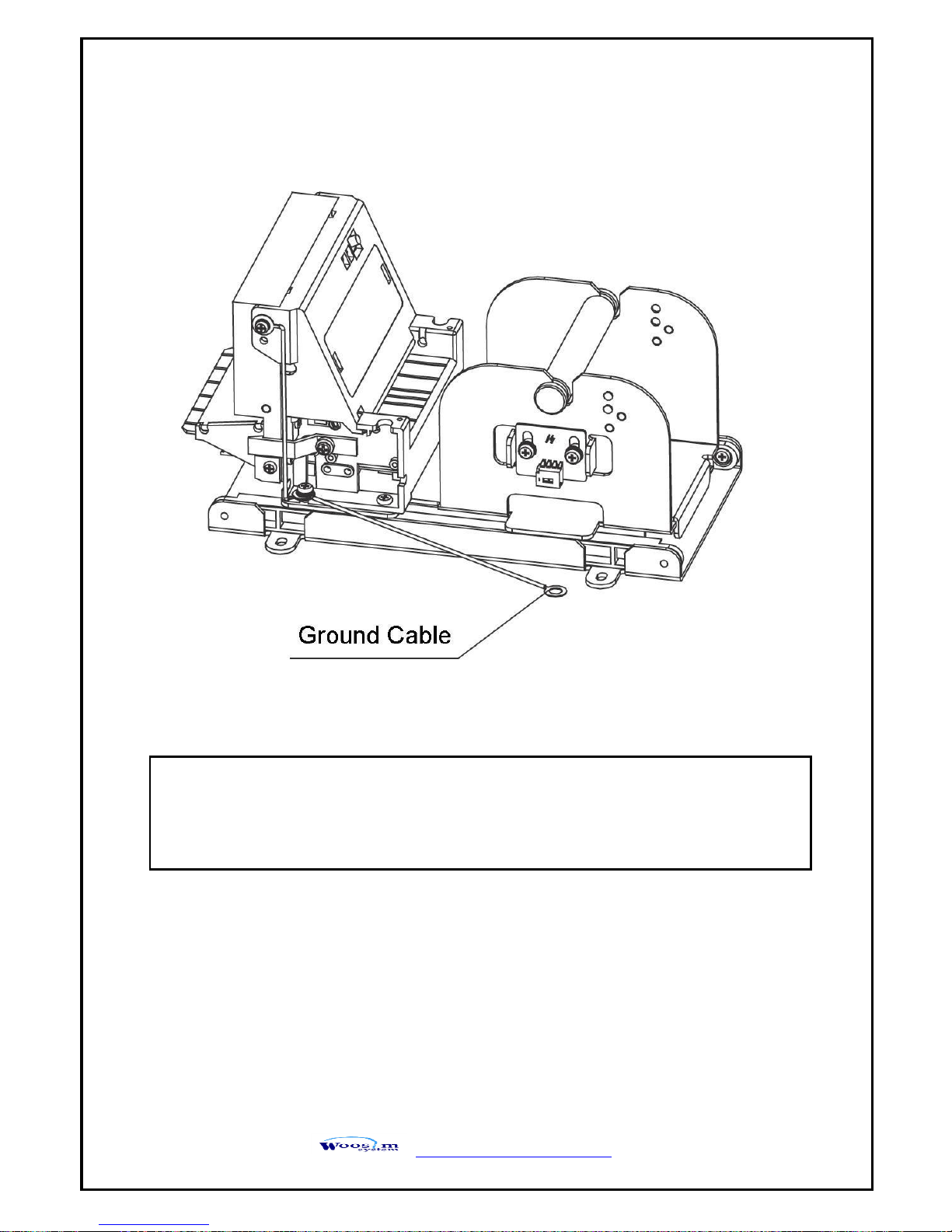

Connecting Ground Cable to Ground(0V) or to the land,
if Ground Cable is not correctly connected, it will cause malfunctioning or
the printer will be damaged.
Page 11
T280 Rev. 1.2
http://www.woosim.com
11

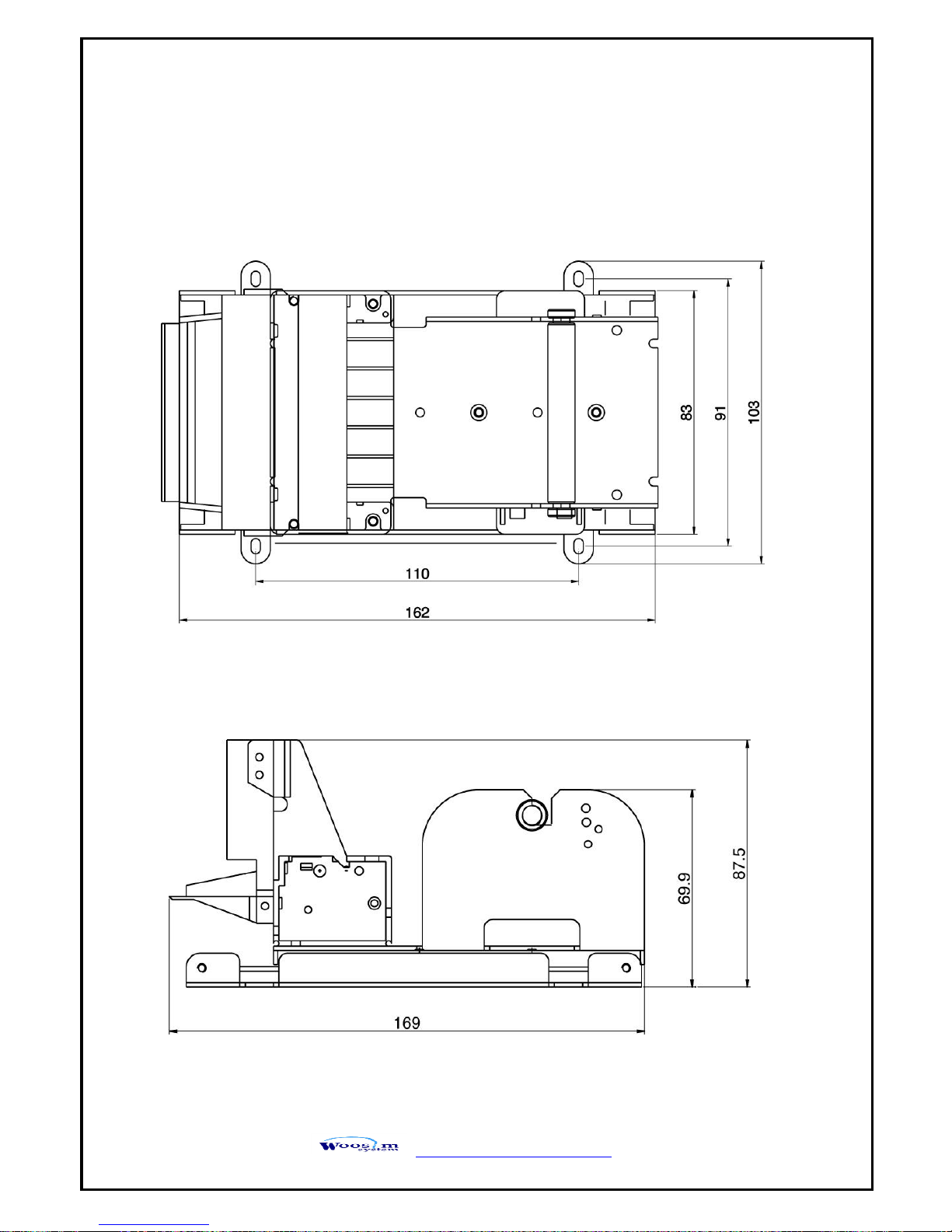

22..33.. DDiimmeennssiioonnss
- Top view
- Side view
Page 12
T280 Rev. 1.2
http://www.woosim.com
12
22..44.. RReeppllaacciinngg tthhee ppaappeerr rroollll

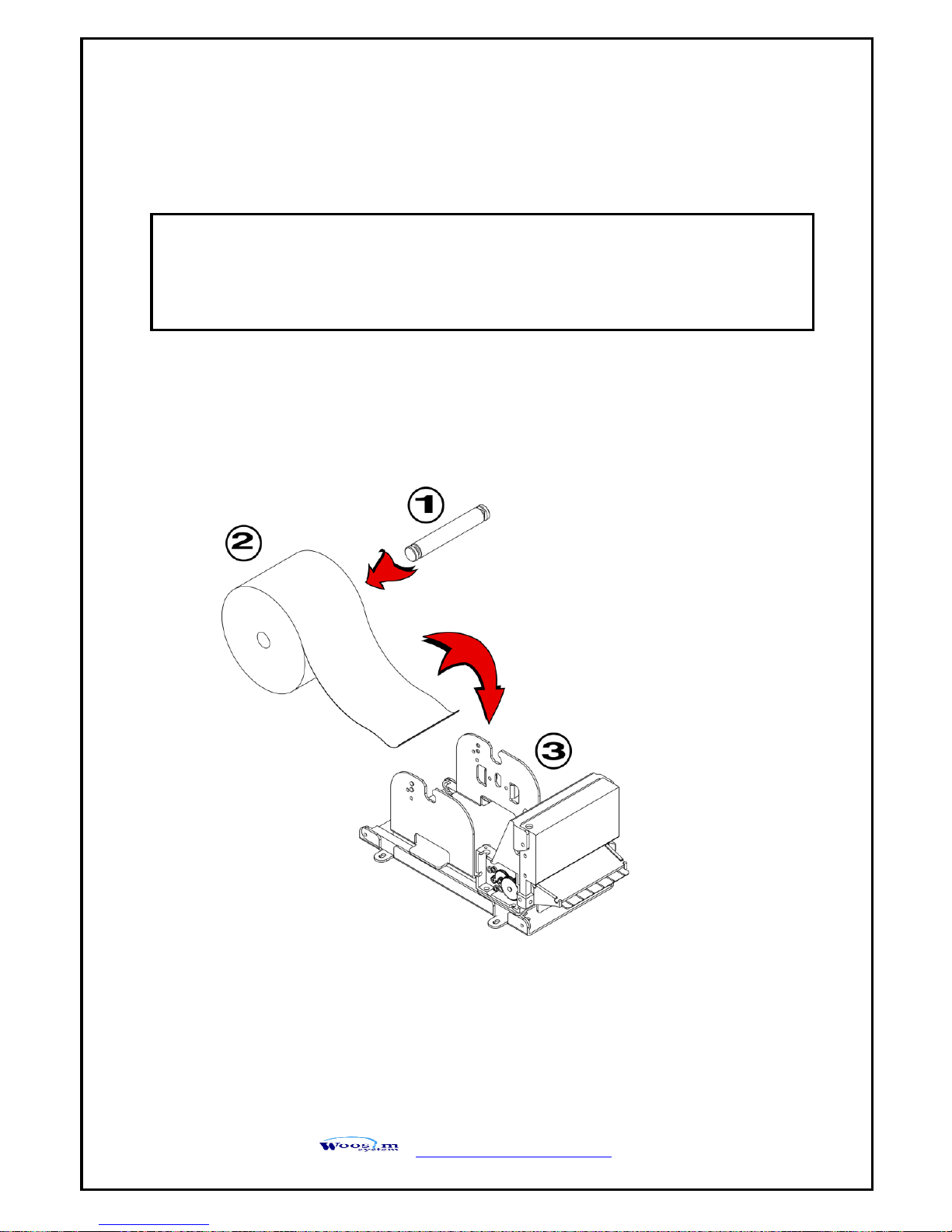

1. Make sure that the printer is not receiving data; otherwise, data may be lost.
2. Remove the used paper roll core if there is one.

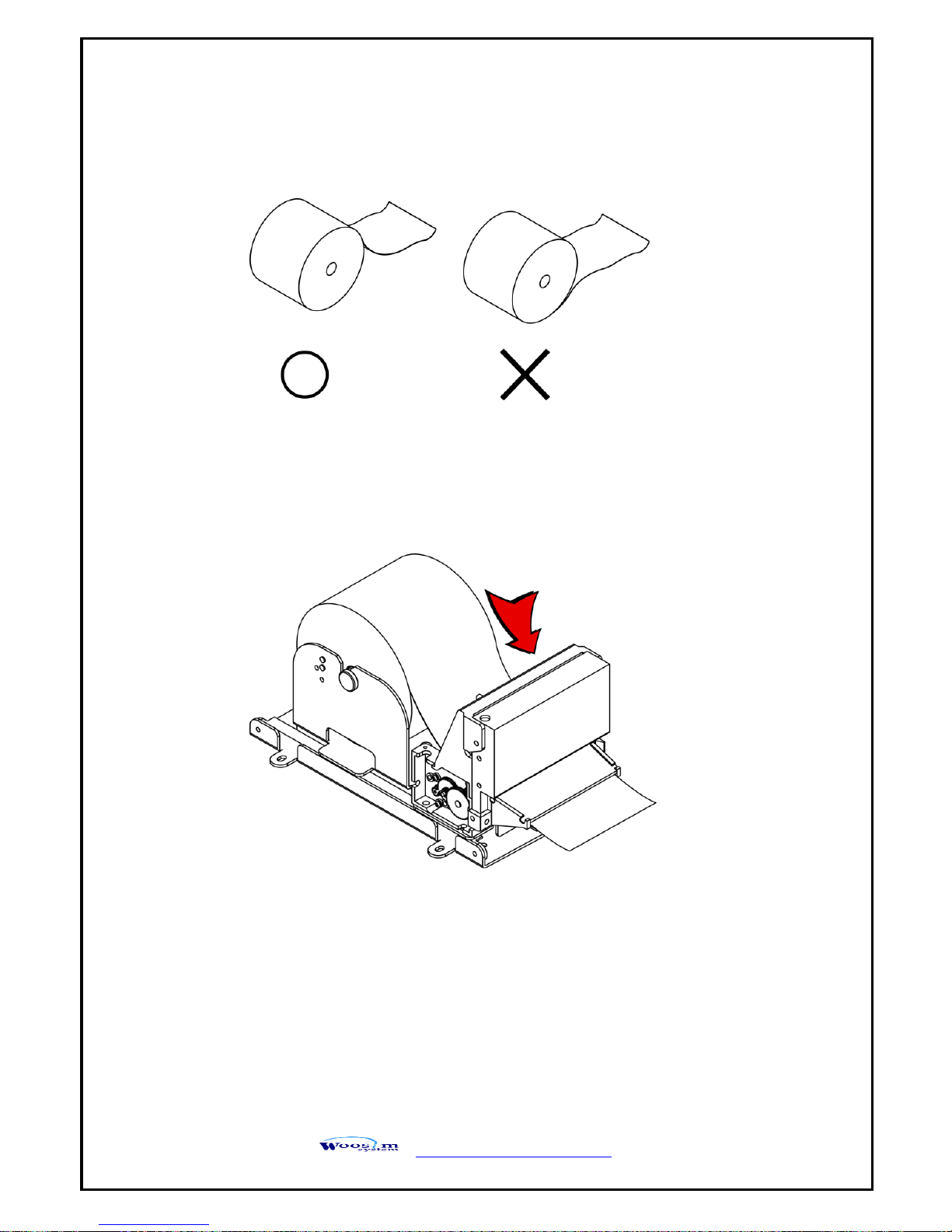

3. Insert the paper roll as shown.
Note : Be sure to use paper rolls that meet the specifications.
Do not use paper rolls that have the paper glued to the core because
the printer can not detect the paper end correctly.
Page 13
T280 Rev. 1.2
http://www.woosim.com
13
4. Be sure to not the correct direction that the paper comes off the roll.
5. Push in the paper, as shown.
The paper will be loaded automatically.
Page 14
T280 Rev. 1.2
http://www.woosim.com
14
22..55.. PPoowweerr SSuuppppllyy
22..55..11.. SSppeecciiffiieedd PPoowweerr ssuuppppllyy
22..55..22.. PPoowweerr ccoonnnneeccttoorr

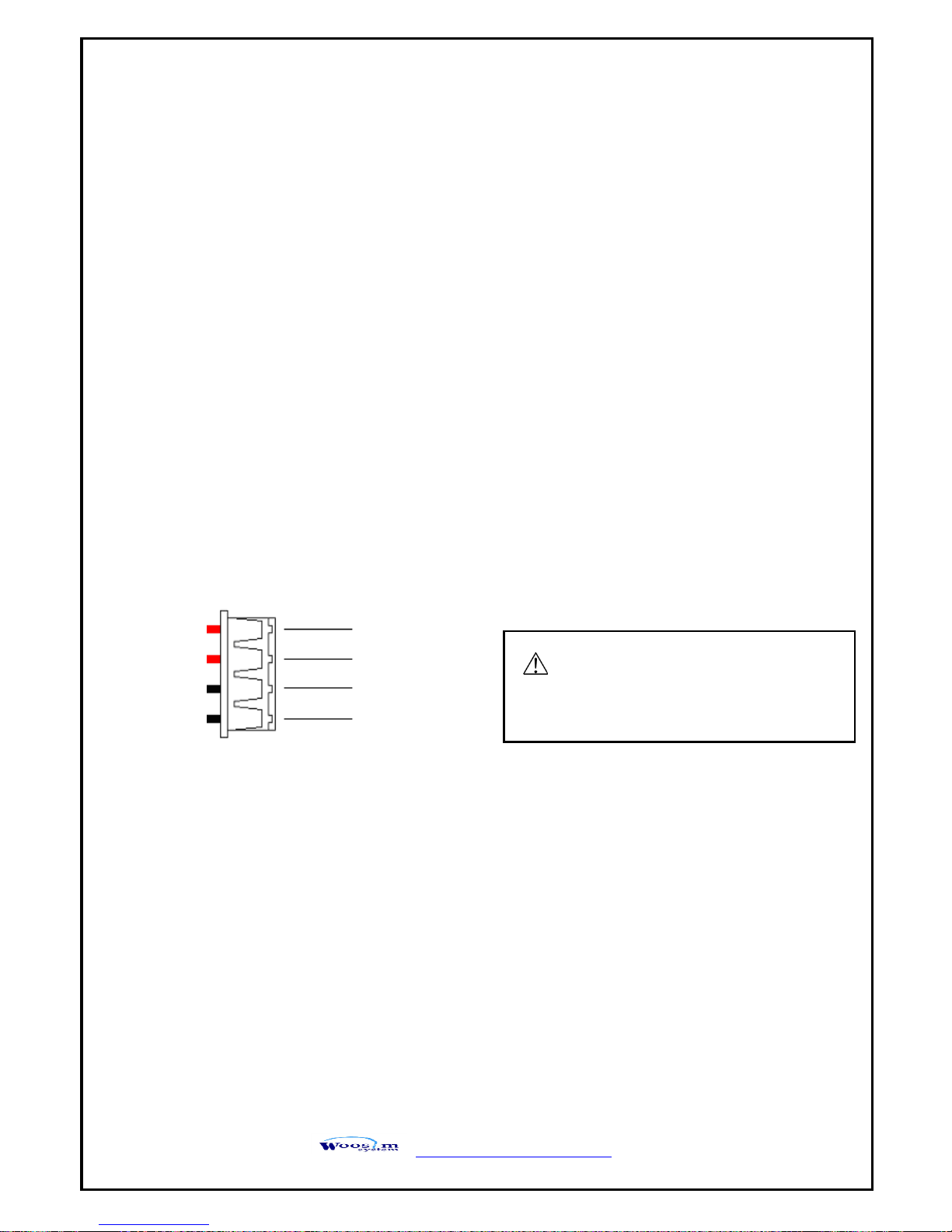

The WSP-T280 printer is equipped to an external supply electrical power.
The functions assigned to the pins in the connector are as follows:
Applicable connector : MOLEX 53014-0410 or equivalent.
The following specifications are requested for Power supply.
Input : DC 24V / 3A OVER
Avoid using power supply which its power capacity of power current is extremely high.
51004-0400 (MOLEX)
WARNING
A wrong connection of power supply
connector could be damage the
+24V DC
+24V DC
GND
GND
#4
#3
#2
#1
Page 15
T280 Rev. 1.2
http://www.woosim.com
15

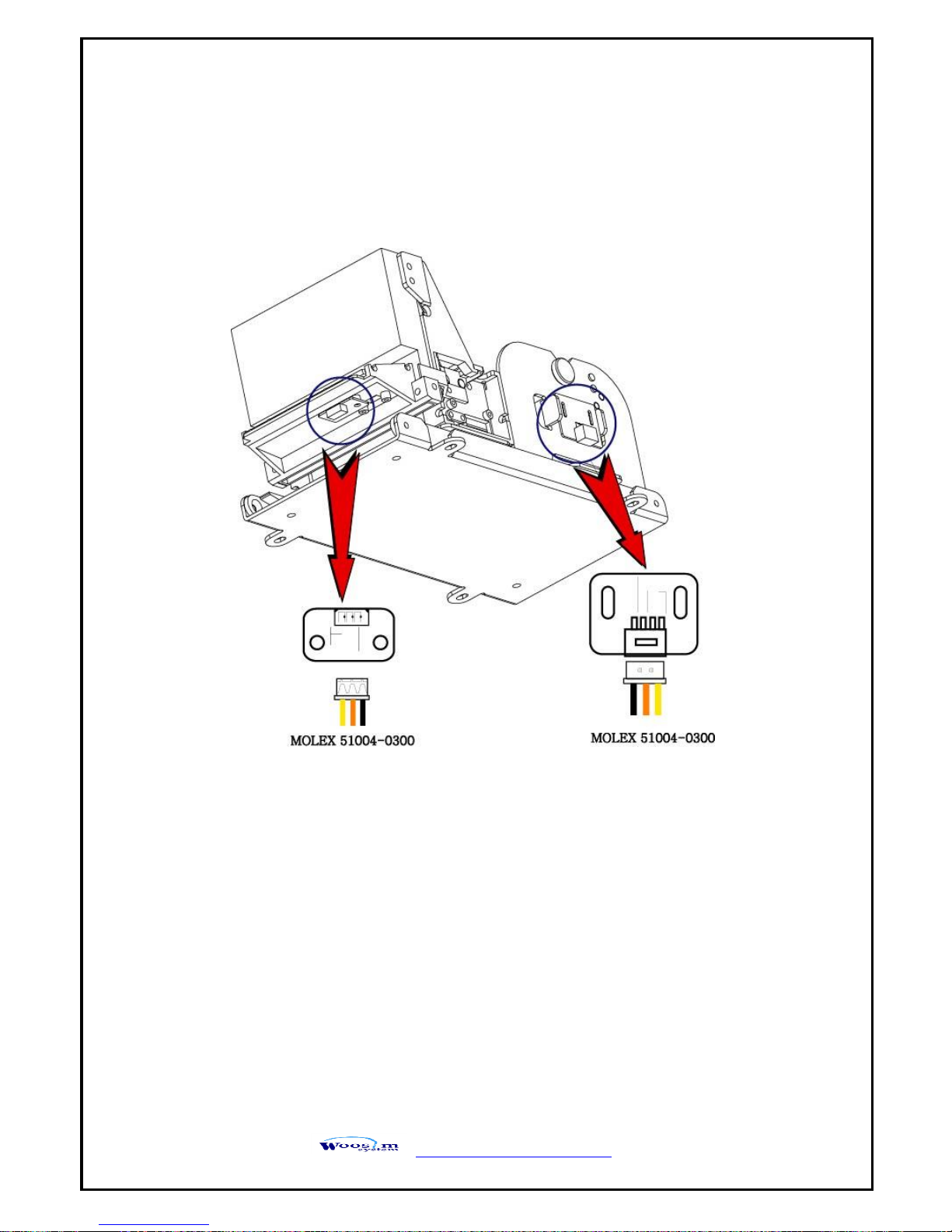

22..66.. SSeennssoorr
22..66..11.. SSeennssoorr ccoonnnneeccttoorr
Front End Sensor Roll End Sensor
Applicable connector : MOLEX 53014-0310 or equivalent.
Page 16
T280 Rev. 1.2
http://www.woosim.com
16
33.. IInntteerrffaaccee
33..11.. UUAARRTT ((RRSS--223322CC oorr TTTTLL)) && UUSSBB

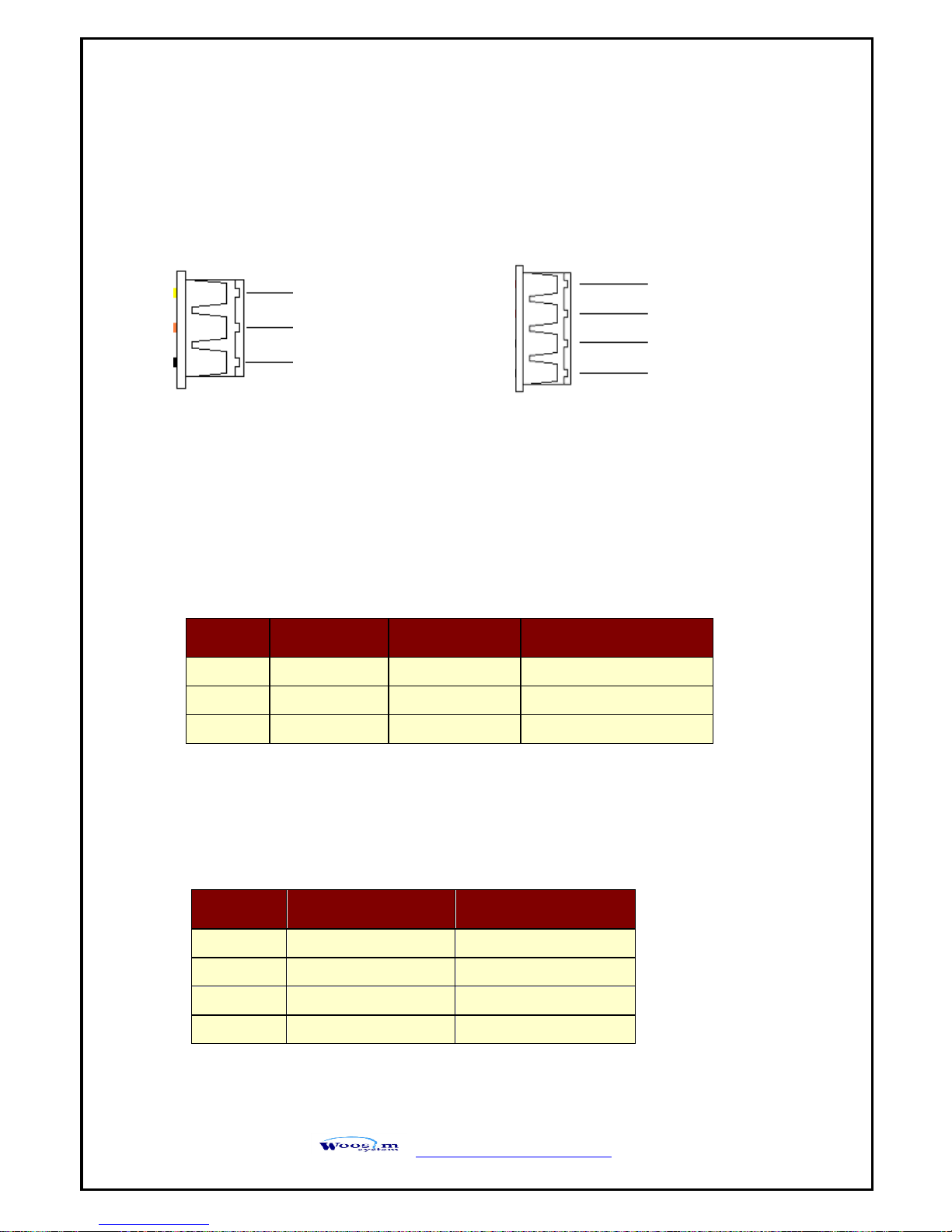

The WSP-T280 printer has a UART(RS-232C or TTL) interface and is connected by
means of a 3pin & 4pin male connector.
In the following table, the signals present on the connector are listed:
Pin No
Name
Direction
Function
3
TxD
Output
Transmit Data
2
RxD
Input
Receive Data
1
GND - Ground
<Molex : 51004-03P>
Applicable connector : MOLEX 53014-03P or equivalent.
#3
#2
#1
UART
USB
① UART
Pin No
Name
Function
1
USB_VCC
5VDC
2
DM
Data “-”
3
DP
Data “+”
4
GND
Ground
<Molex : 51004-04P>
Applicable connector : MOLEX 53014-04P or equivalent.
② USB
#4
#3
#2
#1
Page 17
T280 Rev. 1.2
http://www.woosim.com
17
44.. UUssiinngg tthhee pprriinntteerr
44..11.. CCoonnttrrooll ppaanneell
44..22.. TThhee sseellff tteesstt

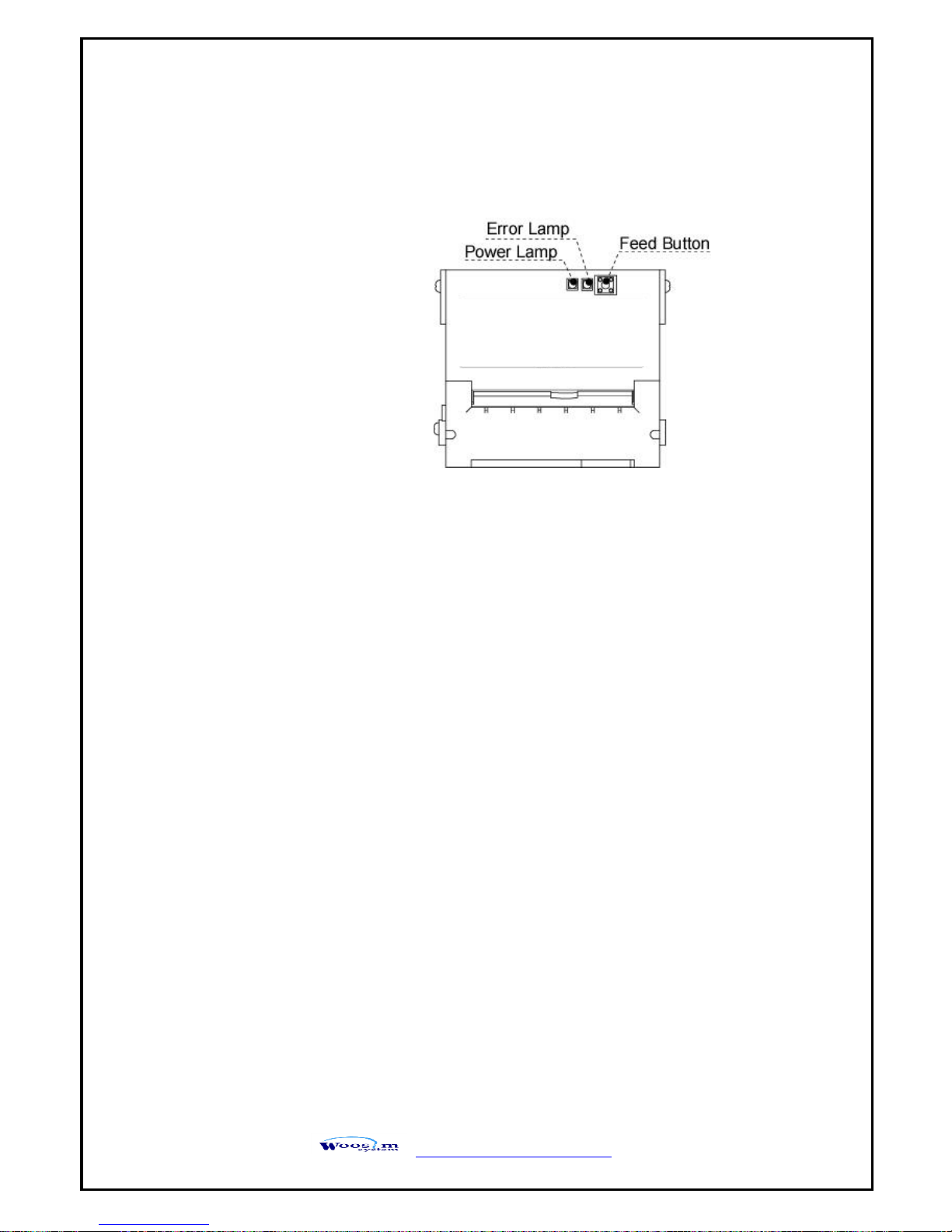

Button
- FEED Button :
When the printer is on, paper can be feed manually by pressing and
holding the FEED button for more than one second.
LAMP
- POWER lamp(GREEN) : Printer is ON and ready to receive data.
- ERROR lamp(RED) : Indicated a fault condition or a printer error.
(details: no paper, paper cover opened. etc.)
Self-Test prints out the current setting value of printer. The way of self-test is as
follows.
1. Insert proper paper into the printer.
2. Power on while pressing feed button to start self-test.
3. Printer will print out the current status.
(ROM version and communication mode)
4. And then pattern of characters will be printed out.
5. Self-test will be finished automatically and turned to the standby status.
※ In case printer does not work properly, please contact Woosim customer service center.
Page 18
T280 Rev. 1.2
http://www.woosim.com
18
55.. CCoonnssuummaabbllee PPaarrttss
55..11.. RReeccoommmmeennddeedd ppaappeerr
55..22.. PPrriinnttiinngg ppoossiittiioonn
Type : Thermal Paper
Paper width : 60mm
Paper thickness : 60±5㎛
External diameter : Ø 80mm or less, Ø200mm (option)
Inside diameter : Ø 12mm
Recording side : Outside of roll
Cautions
1. Do not paste the paper to the core. And the roll paper which has near
end mark
printing on its near end is recommended.
2. Chemicals or oil may change the color of paper, or printed characters may
fade.
3. Change of paper color starts from approx . 70 °C.
Pay attention to heat, humidity and sun light.
4. Color of paper may be changed by being scratched by nail or hard metal,
etc.
Page 19
T280 Rev. 1.2
http://www.woosim.com
19
66.. RReevviissiioonn HHiissttoorryy
Date
Version
Comments
Apr. 16. 2015
1.0
Initialize
Apr. 20. 2015
1.1
P3,7 : Printing speed modify : 145->200mm/sec
Jul. 17. 2015
1.2
p3 Agency Approvals update
p3,7,16 USB spec. add
p7,11 Dimension modify (slide dimension add)
p7,18 paper 200ø-option add
Loading...
