Page 1

http://www.woosim.com

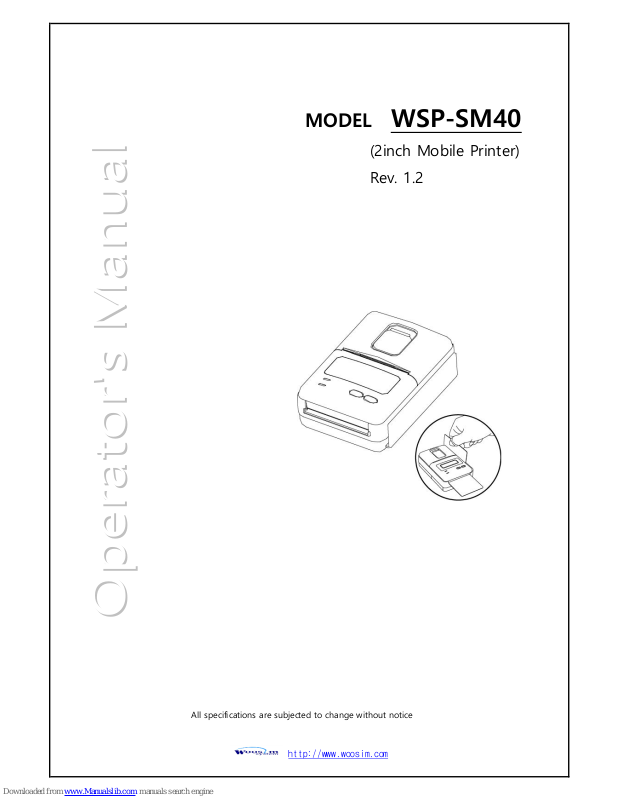

MODEL WSP-SM40

(2inch Mobile Printer) Rev. 1.2

All specifications are subjected to change without notice

Page 2

WSP-SM40 Rev. 1.2

http://www.woosim.com

 Copyright

WSP-SM40 2inch Mobile printer operator’s manual.

Copyright ⓒ2017 by Woosim Systems Inc. All rights reserved. The information contained in this manual is the property of Woosim Systems Inc. And may not be reproduced in whole or in part without the prior written permission of Woosim Systems Inc.



Trademark

a registered trademark of Woosim Systems Inc.

All other trademark are the properties of their respective companies.

 Caution

Some semiconductor devices are easily damaged by static electricity. You should turn the printer “OFF”, before you connect or removed the cable on the rear side, in order to guard the printer against the static electricity. If the printer is damaged by the static electricity, you should turn the printer “OFF”

 Notice

The contents of this manual are subject to change without notice.

Page 3

WSP-SM40 Rev. 1.2

http://www.woosim.com

 Introduction

The WSP-SM40 is the ideal solution for Mobile banking system , Retail, point of sales, Credit card Transaction, other traveling and mobile computing etc.

The general features of WSP-SM40 printer are as follows:

 Pocket size (80.9×113.5×47.1mm)

 Light weight(247g) for true mobility

 Very silent printing thru direct thermal printing method

 High speed (85mm/sec, MAX)

 High resolution(203dpi : 8dots/mm).

 UART(RS-232C or TTL), Bluetooth Ver3.0 interface

 Support Graphic LCD(128×32dots) with Blue LED Backlight

 Support Magnetic Stripe Reader & Smart Card Module

 Support text and graphic printing

 Intutive LED’s indicate Power(on/off), Error and Battery status

 Easier paper roll loading by CLAMSHELL design

 One touch paper cover

 Printer door open & Paper-out sensor

 Easier maintenance with self-diagnostic.

 In field programming – Update Firmware, Download Fonts and Logos

 Microsoft Windows/Windows CE, Linux, Android, iOS compatible

 Flow control : Software (XON/XOFF)

※ Hardware flow control not supported in printer.

 Free fall: 1.5 meter onto concrete

 Agency Approvals

Page 4

WSP-SM40 Rev. 1.2

http://www.woosim.com

 Operating Precautions

Please follow the precautions below to enjoy and maintain the full performance of the printer.

 Using the Printer

● Be careful not to drop or bump the printer on a hard surface.

● Do not install the printer in direct sunlight or such areas.

Suitable environment for the use of the printer is as follows:

◆ Operating temperature :-10°C to 50°C

◆ Relative humidity : 30% to 80%

● Do not install the printer near devices that generate strong electromagnetic fields

such as a copy machine.

● Do not open the platen cover during printing .

● Do not remove or reinstall the communication cable during printing or transmission.

● Do not touch the connectors of the communication during printing.

● Switch the POWER OFF when not in use.

● Do not use alcohol or other solvent.

● The AC adapter, the battery charger and the battery pack may become warm when in use.

This is normal and is not a malfunction.

● When the battery pack is used at low temperature, the length of time the printer can be used

may be shortened.

 Thermal Paper Handling

● Store the thermal paper in a cool, dry and dark place.

● Do not rub the paper with hard object.

● Do not leave the paper with hard object.

● Do not allow plastic film, erasers, or adhesive tape to touch the paper for long periods.

● Do not stack the thermal paper with diazo copies immediately after copying or wet-type copies.

● Do not use chemical glue.

● Always use the clean thermal paper.

Page 5

WSP-SM40 Rev. 1.2

http://www.woosim.com

CONTENTS

1. Outline. ................................................................................................................................................................ 6

1.1. Model classifications. ................................................................................................................................ 6

1.2 Product Part Number System ................................................................................................................... 6

1.3. Specifications. ................................................................................................ ............................................ 7

2. Setting up the printer. ...................................................................................................................................... 9

2.1. Printer & Accessories ................................................................................................................................ 9

2.2. Printer Features ........................................................................................................................................10

2.3. Dimensions................................................................................................................................................ 11

2.4. Replacing paper roll. ................................ ................................................................................................ 12

2.5. Power supply ............................................................................................................................................13

2.5.1. Specified power supply .................................................................................................................13

2.5.2. Installing the battery .....................................................................................................................13

2.5.3. Recharging the battery pack ................................ ........................................................................14

2.6. Set operation mode .................................................................................................................................15

3. Interface ..............................................................................................................................................................19

3.1. UART(RS-232C or TTL) .............................................................................................................................19

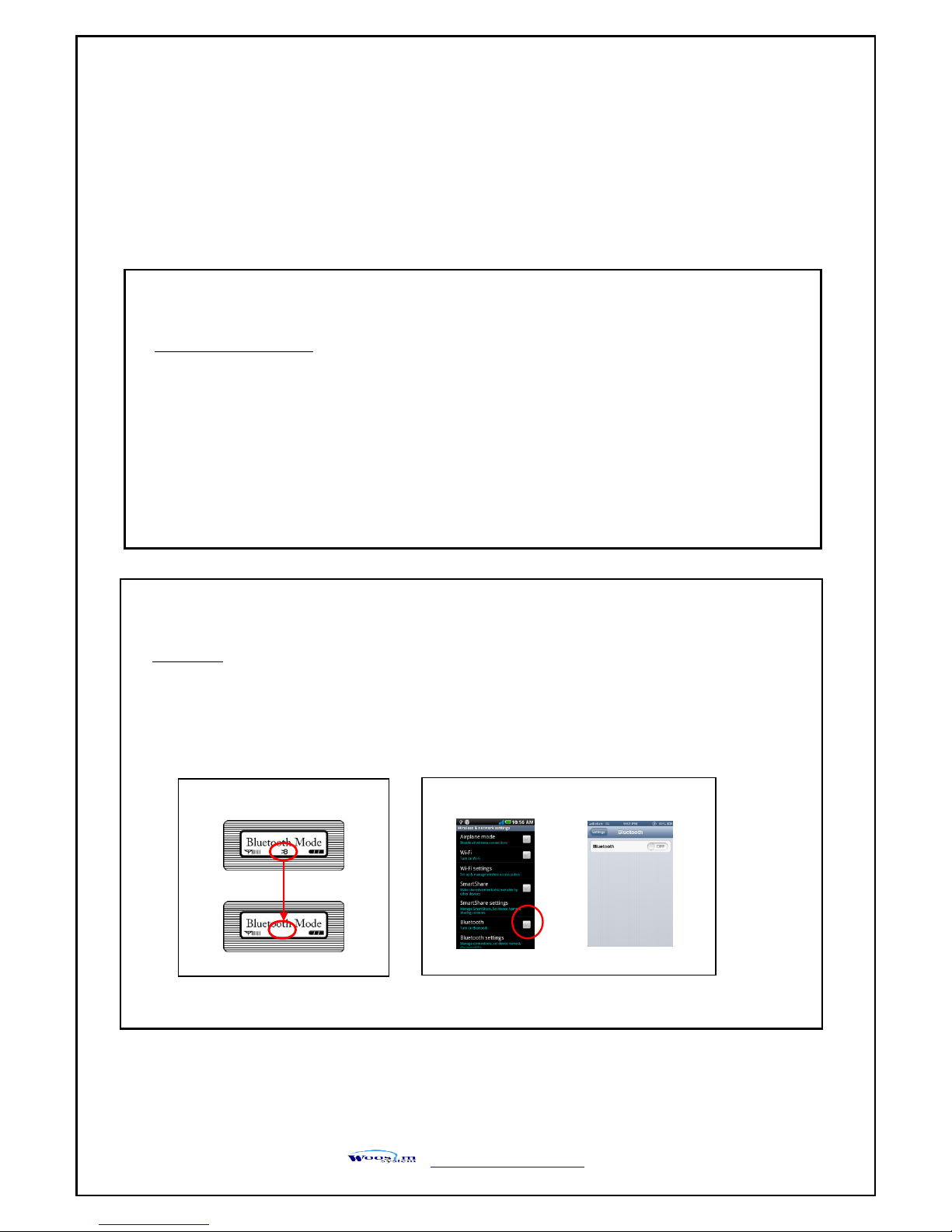

3.2. Bluetooth ...................................................................................................................................................20

3.3. Magnetic stripe card Reading & IC Card insert ...................................................................................20

4. Smart Card Module ..........................................................................................................................................21

4.1. General Spec. ............................................................................................................................................21

4.2. Inserting the SAM card ...........................................................................................................................21

4.3. Communication Protocol Sequence .......................................................................................................22

4.3.1. Regular Operation .........................................................................................................................22

4.3.2. Irregular Operation (Communication Error) ................................................................................22

5. Using the printer ...............................................................................................................................................23

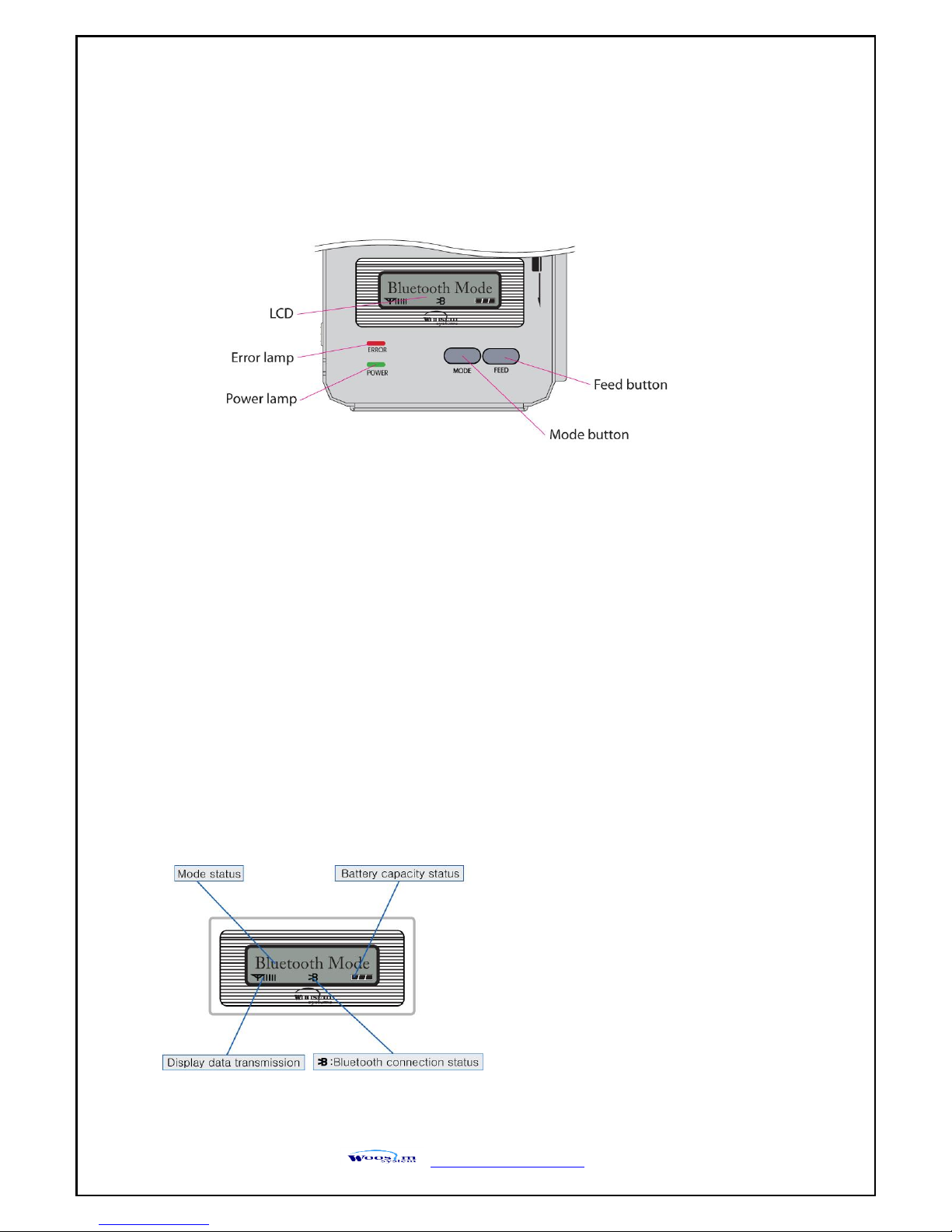

5.1. Control panel. ...........................................................................................................................................23

5.2. The self test ..............................................................................................................................................24

6. Consumable Parts. ............................................................................................................................................25

6.1. Recommended paper. ..............................................................................................................................25

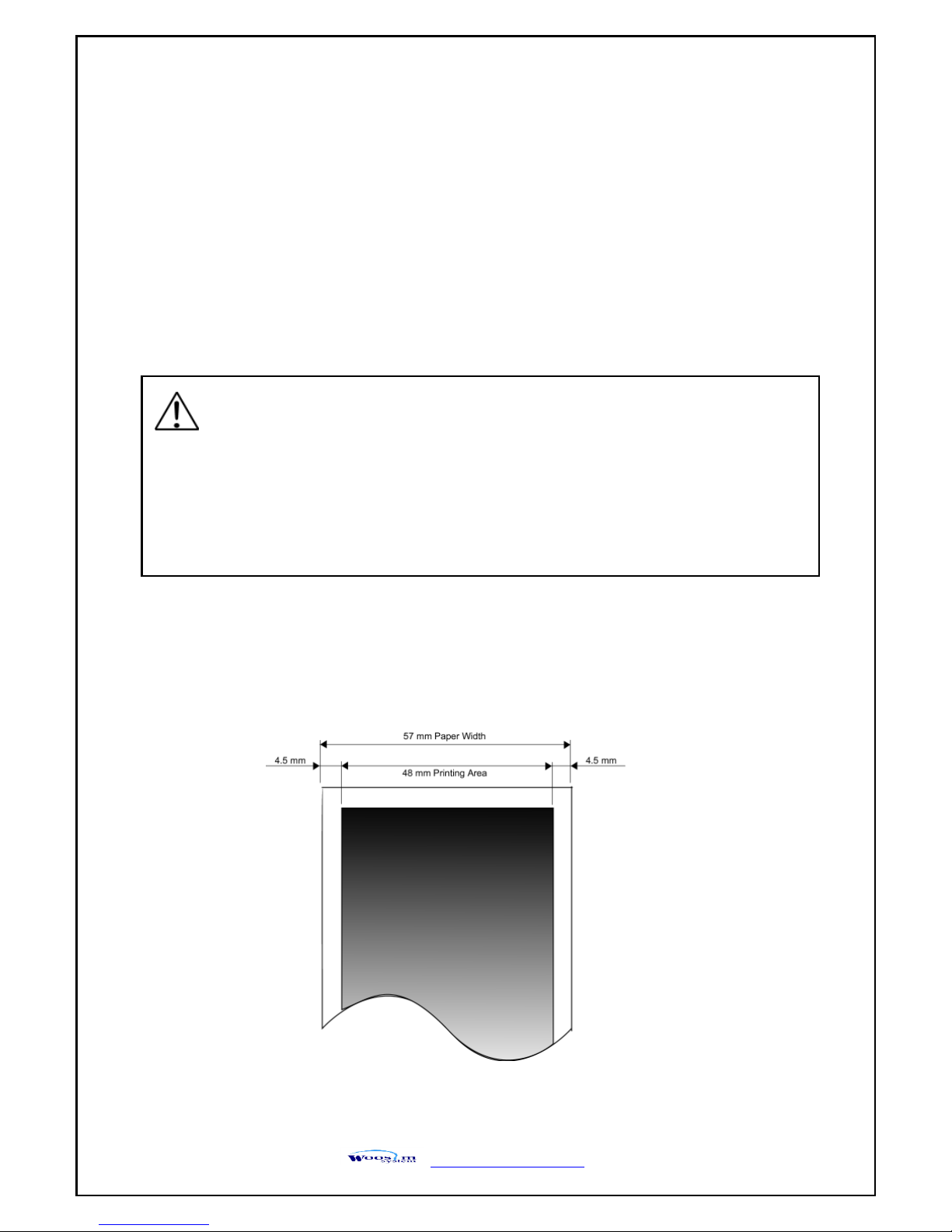

6.2. Printing position. ......................................................................................................................................25

7. Revision History ................................................................................................................................................26

Page 6

WSP-SM40 Rev. 1.2

http://www.woosim.com

11.. OOuuttlliinnee..

11..11.. MMooddeell ccllaassssiiffiiccaattiioonnss..

11..22 PPrroodduucctt PPaarrtt NNuummbbeerr SSyysstteem

WSP-SM40 ( ) ( )

Model

Interface

A1 : UART/Bluetooth

Power

None : DC 8.4V

Model name / Interface Spec.

Example) 1. Porti-S40 Serial/Bluetooth Part No. ⇒ S40/A1

2. Porti-SC30 Bluetooth Only Part No. ⇒ SC30/Z1

Note) The above table is the interface format which is supported.

But some of the interfaces are not supported according to the product

and please contact us, if you have any questions regarding the interface.

S40

SC30

W25

. . .

Wired

Wireless

RS-232C

Bluetooth

TTL 2 IrDA

USB

Wireless LAN

RS-485

None

Parallel

None

Page 7

WSP-SM40 Rev. 1.2

http://www.woosim.com

11..33.. SSppeecciiffiiccaattiioonnss..

Item

Specifications

Print method

Direct thermal line printing

Characters per line

42cpl (MAX)

Character size

Eng: 9*24dots, 12*24dots Kor: 16*24dots, [24*24dots]

Optional Characters

Simplified/Traditional Chinese, Arabic, Cyrillic, Russian,

Tukish, Greek, Japanese, Persian, Latin9 and Others upon request.

Resolution

203dpi, 8dots/mm

Print width

2-inch (48mm, 384dots)

Print speed

85mm / sec (MAX)

Dimension

80.9×113.5×47.1mm

Weight (w/o paper)

247g

Interface

UART(RS-232C or TTL), Bluetooth Ver3.0

Paper roll

Thermal roll paper (57mm wide, 40ø)

Barcodes

1-dimension : UPC-A, UPC-E, EAN-8, EAN-13, CODE-39, CODE-93,

CODE-128, ITF, CODABAR

2-dimension : PDF417, Micro PDF417, Truncated PDF417, QR-CODE,

DATA Matrix, Maxicode

Etc :GS1 databar

Driver

Microsoft Windows, Linux

H/W Spec

MCU : RX-32bit, RAM : 128M bit, FLASH : 64M bit

Receive buffer size

1M bytes

Sensor

Support Paper, Label

MSR

ISO 7810 / 7811 / 7812 1&2 or 2&3 Track Reading

Smart Card Module

ISO 7816 Compliant (EMV level 1/2 Certified) /

T=0, T=1 support / 2 SAM (Security Application Module)

LCD

128×32 Dots FSTN (Blue LED Backlight)

Battery

Rechargeable 7.4V DC, 1100mAh (Li-ion)

Battery duration

1 hour continuous printing

Battery charger

Input (100~250V AC, 50~60Hz)

Output(8.4VDC/0.8A), 4hours full charge time

( Continue… )

Page 8

WSP-SM40 Rev. 1.2

http://www.woosim.com

Item

Specifications

Environment

conditions

Temperature

-10°C ~ 50°C (operating)

-10°C ~ 70°C (storage)

Humidity

30% - 80% (operating)

10% - 90% (storage)

MCBF(Mean Cycle

Between Failure)

Mechanical

37,000,000 lines

Head

Approximately 50 Km

< Table 1 >

Page 9

WSP-SM40 Rev. 1.2

http://www.woosim.com

22.. SSeettttiinngg uupp tthhee pprriinntteerr..

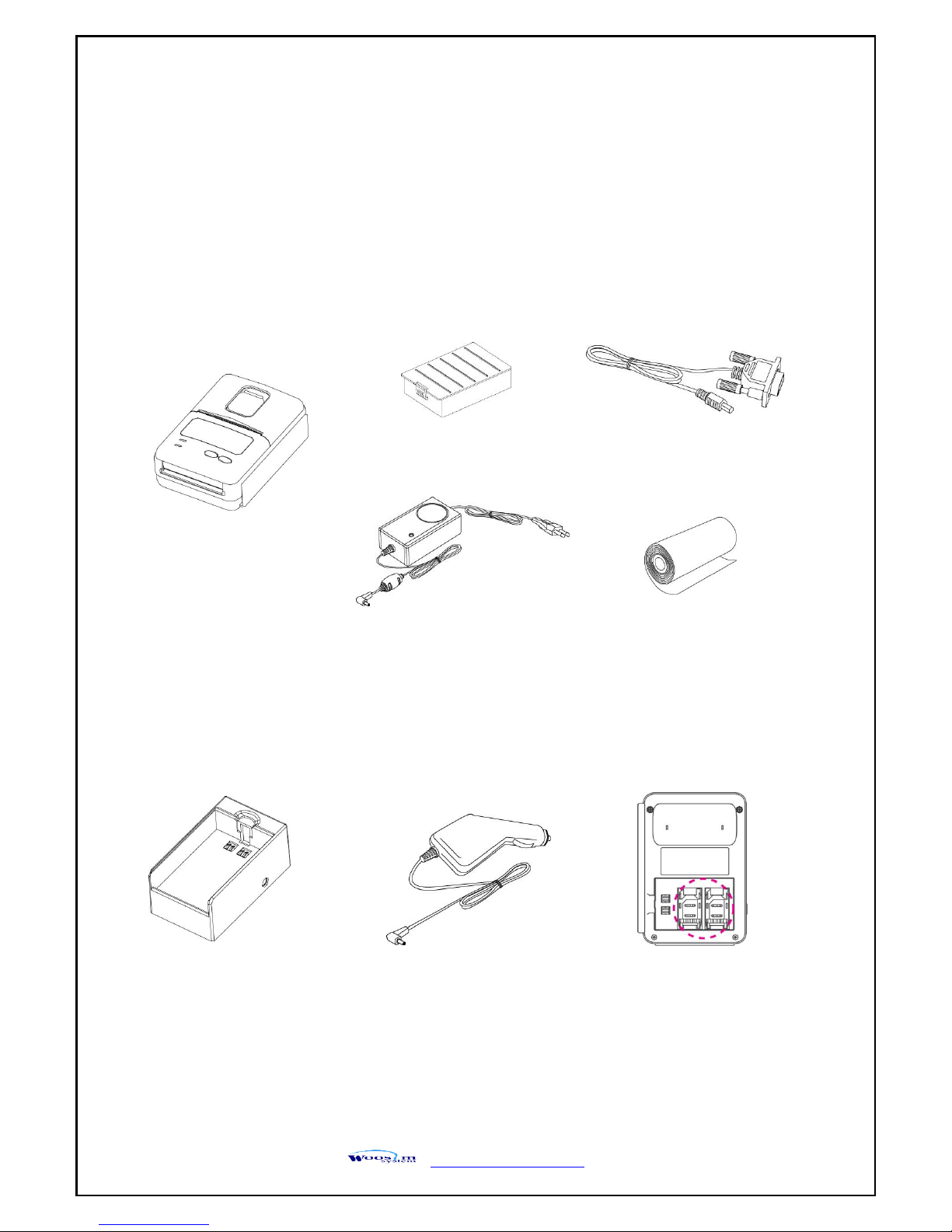

22..11.. PPrriinntteerr && AAcccceessssoorriieess

Your printer box should include these items. If any items are damaged or missing, please contact your dealer for assistance.

WSP-SM40

Battery Pack

▼ OPTIONAL

Communication cable

External Battery Cradle

Car Charger

Thermal roll paper

Battery charger adaptor

2 SAM

Page 10

WSP-SM40 Rev. 1.2

http://www.woosim.com

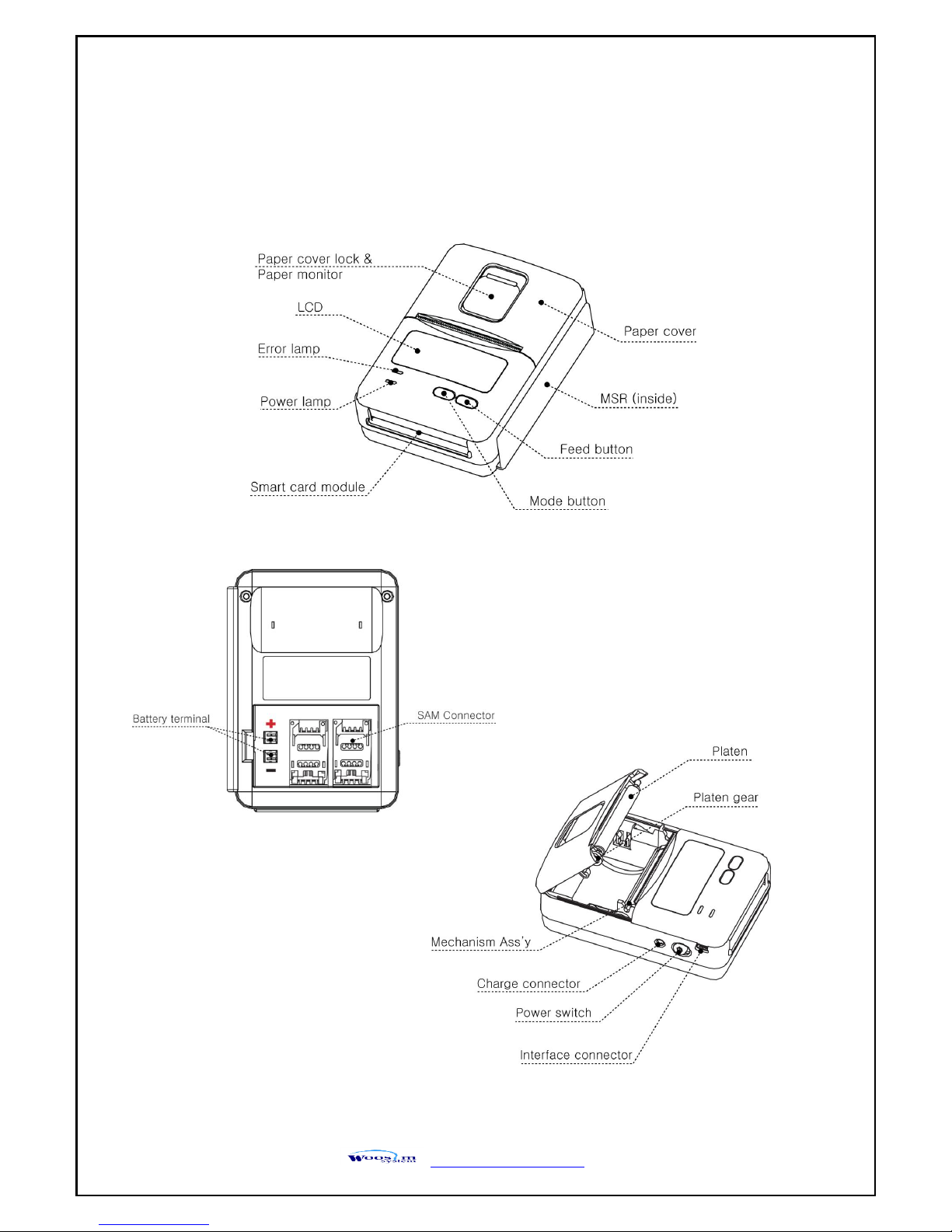

22..22.. PPrriinntteerr FFeeaattuurreess

▶ Part Name

Page 11

WSP-SM40 Rev. 1.2

http://www.woosim.com

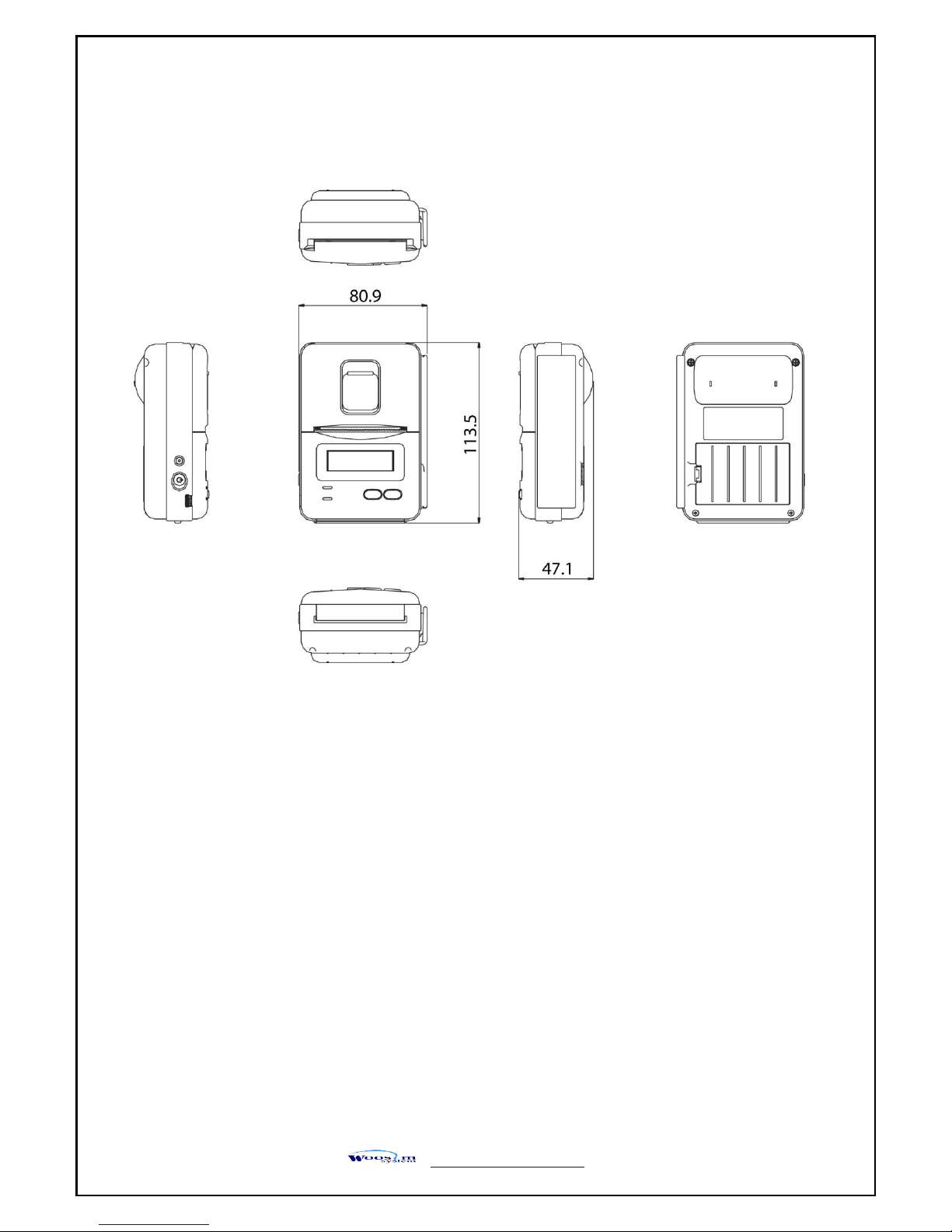

22..33.. DDiimmeennssiioonnss

Page 12

WSP-SM40 Rev. 1.2

http://www.woosim.com

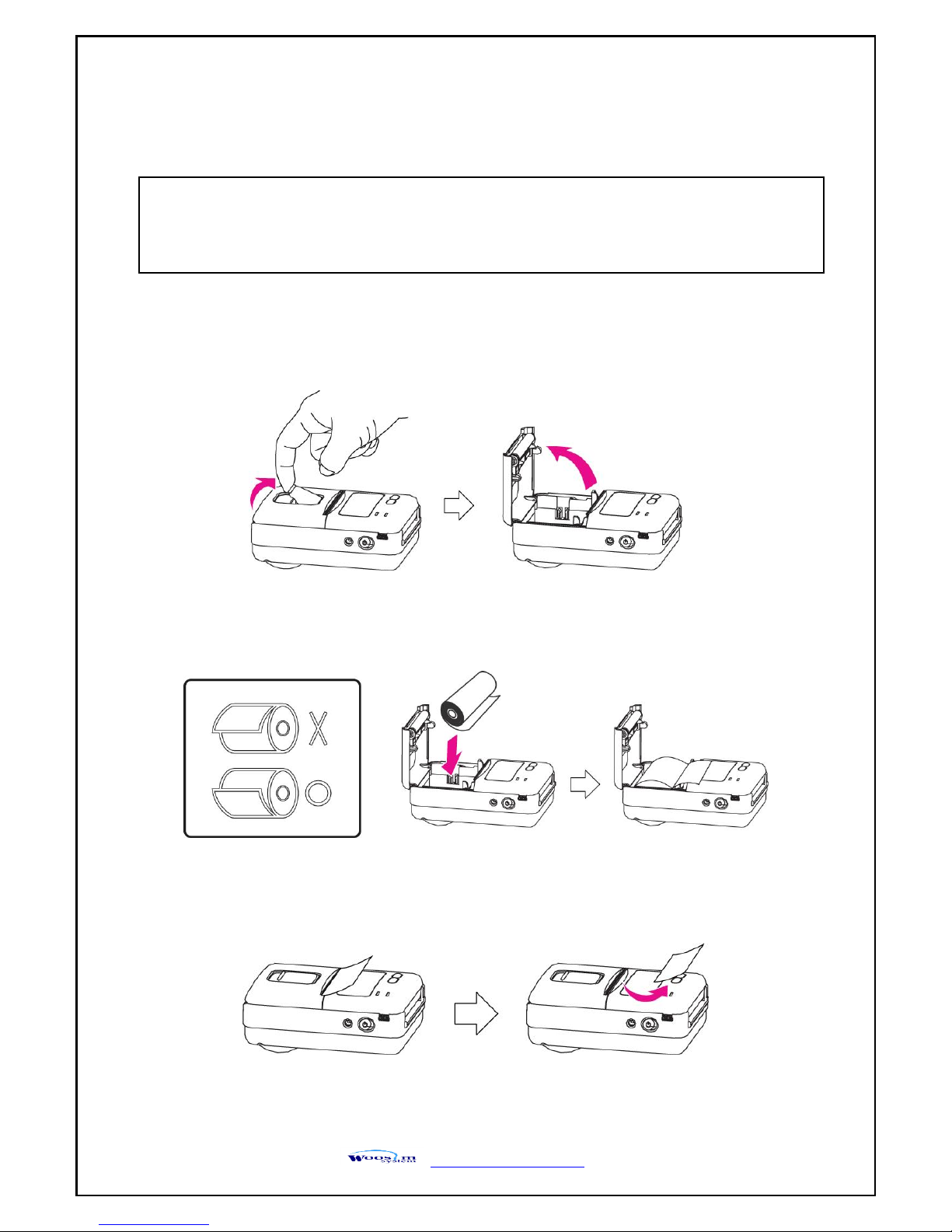

22..44.. RReeppllaacciinngg ppaappeerr rroollll..

1. Make sure that the printer is not receiving data; otherwise, data may be lost.

2. Open the paper cover by placing your fingers under the paper cover lock and pull a paper cover

lock open

3. Insert a new paper roll as shown.

4. Tear the excess paper off using the edge of paper door as a tear bar.

Note : Be sure to use paper rolls that meet the specifications.

Do not use paper rolls that have the paper glued to the core because the printer can not

detect the paper end correctly.

Page 13

WSP-SM40 Rev. 1.2

http://www.woosim.com

22..55.. PPoowweerr ssuuppppllyy

22..55..11.. SSppeecciiffiieedd ppoowweerr ssuuppppllyy

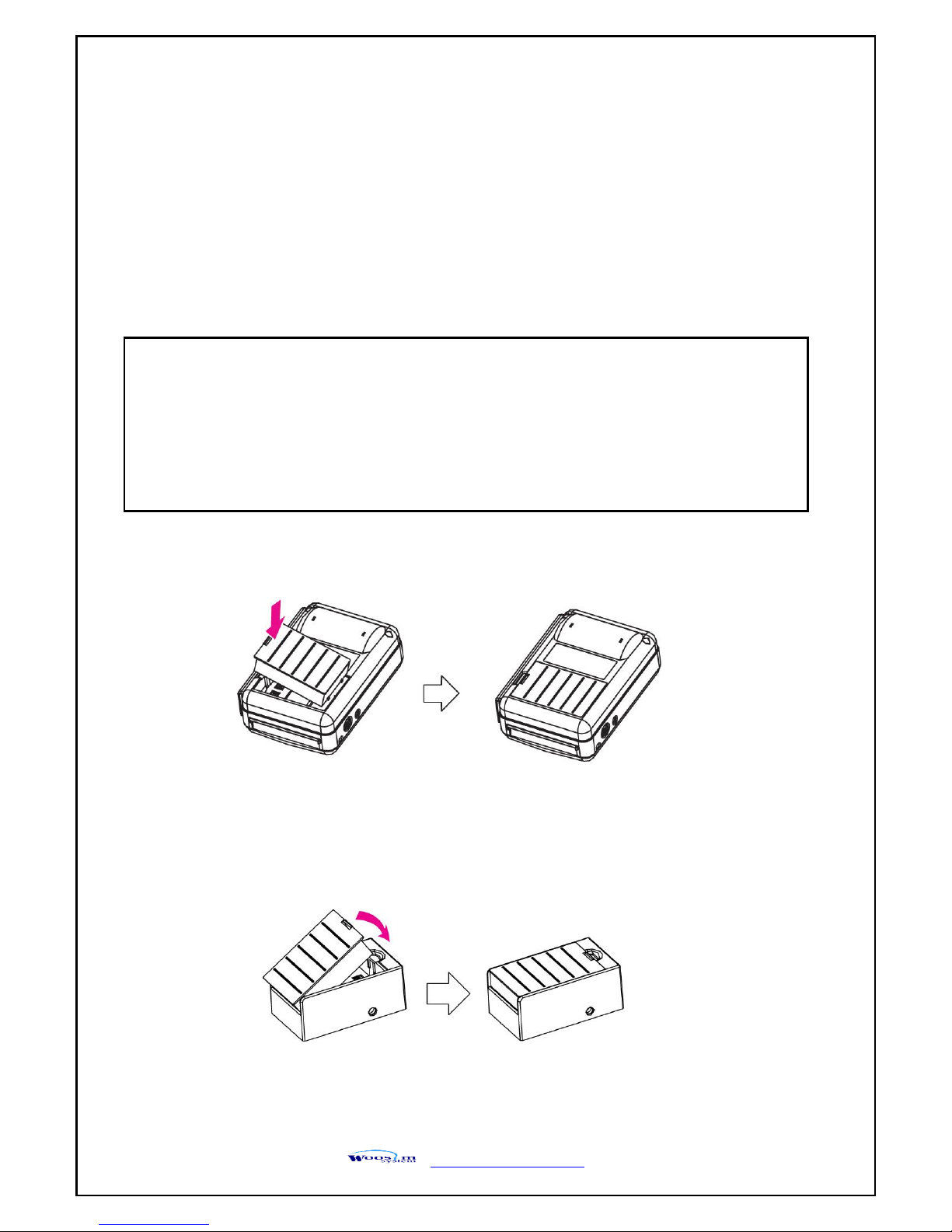

22..55..22.. IInnssttaalllliinngg tthhee bbaatttteerryy

① To install battery pack, proceed as follows:

- Insert the Battery pack in the direction of the arrow.

② Reverse the order to remove the battery pack.

③ The battery pack install into External Battery Cradle.

- Insert the battery pack in the direction of the arrow.

The following specification is requested for Power supply.

Battery Charger : DC 8.4V/0.8A

Avoid using power supply which its power capacity of power current is extremely high.

Warning :

● Before installing or removing the battery pack, ensure the printer is OFF.

● If the printer is not used for long period of time, remove the battery pack from the printer.

● Risk of explosion if battery is replaced by an incorrect type.

Dispose of used batteries according to the instructions.

● Batteries are provided not being charged. Please charge the battery before use.

Page 14

WSP-SM40 Rev. 1.2

http://www.woosim.com

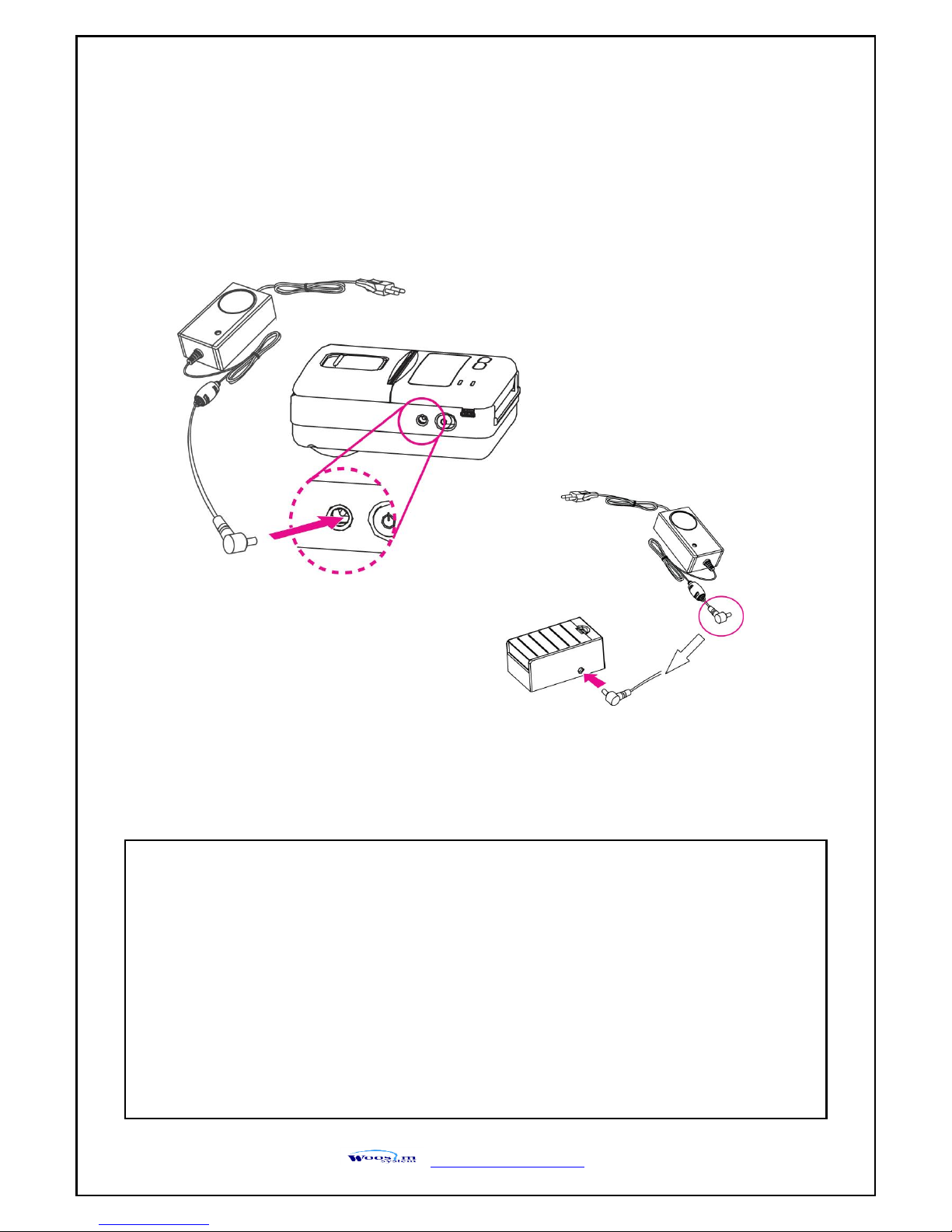

22..55..33.. RReecchhaarrggiinngg tthhee bbaatttteerryy ppaacckk

For recharging the battery pack, install the battery pack in the printer. Insert the Battery Charger or External Battery Cradle to the charge connector of the printer.

NOTE : ● While charging the printer, turn off the printer power.

● Do not remove the battery during charging.

● The battery is consumable parts and when purchasing, compared to the use hour is gradually

decreases. (Warranty 6 month)

● If the printer is not used for a long time, unplug the power cord from the printer and outlet.

● The recharging time depends on the voltage level and ambient temperature of the battery.

Normally, if takes about 4 hours to recharge a battery pack.

● You must use only the supplied adapter.

● Red Lamp : charging the battery.

Green Lamp : charging is finished.

Page 15

WSP-SM40 Rev. 1.2

http://www.woosim.com

22..66.. SSeett ooppeerraattiioonn mmooddee

In keeping on pressing the Feed and Mode button simultaneously until after the ERROR lamp blinks

5 times, the printer comes out at the circumstance to change the printer mode.

(refer Table 2)

** Only the printer which support iOS Bluetooth interface comes out at the circumstance to change

the printer mode. (Bluetooth Mode or Boluetooth(iAP) Mode).

** Manipulation methods :

1. Press Feed and Mode buttons simultaneously until the ERROR lamp blinks 5 times and

then keep pressing two buttons for 2 Seconds.

2. After the printer beeps twice, the Bluetooth mode is changed and it will print the result

of change.

3. The changed mode can be checked in the printout.

Example ) If the printer is in Bluetooth Mode → Bluetooth(iAP) Mode

If the printer is in Bluetooth(iAP) Mode → Bluetooth Mode

** If you want to change the Bluetooth Mode of printer, you need to disconnect the Bluetooth

function of the current paired Smartphone.

** Methods :

1. Turn off the Bluetooth function of the current paired Smartphone.

(Bluetooth ICON in LCD is disappeared.)

2. Change the printer mode.

(Additionally, we want to recommend you to rest(OFF→ON) the printer and change mode.)

Printer LCD status

Android status iOS status

Page 16

WSP-SM40 Rev. 1.2

http://www.woosim.com

Change the mode and option using the mode Code.

 MODE button : changing Printer OPTION status. (Error Lamp)  FEED button : changing MODE status.

[Example] The defaults of the printer are :

UART / 9600 bps / 8 data bit / No parity /1 stop bit / Density low /

Quality low / Mark use / Sensor low

If a user wants to modify the defaults with

Bluetooth / 57,600 bps / 7 data bit / Odd parity /2 stop bit / Density high /

Quality high/ Mark no use / Sensor medium1

 Press MODE Button during the Error Lamp flickers 5 times.

 You will see present COMMUNICATION mode in the LCD. (UART)

 Press the MODE Button twice. And then, interface mode has set to Bluetooth mode.

 When you press FEED button once.

 You will see present BAUD RATE mode in the LCD. (9600 bps)

 Press MODE Button 3 times. And then, BAUD RATE has set to 57,600 bps.

 When you press FEED button once.

 You will see present DATA BIT mode in the LCD. (8 Data bit)

 Press MODE Button once. And then Data Bit has set to 7 DATA BIT.

 When you press FEED button once.

 You will see present PARITY mode in the LCD. (No parity)

 Press MODE Button once. And then the Parity bit has set to ODD Parity Bit..

 When you press FEED button once.

 You will see present STOP BIT mode in the LCD. (1 stop bit)

 Press MODE Button once. And then the density has set to 2 Stop bit.

 When you press FEED button once.

 You will see present DENSITY mode in the LCD. (Density low)

 Press MODE Button twice. And then the density has set to Density high.

Page 17

WSP-SM40 Rev. 1.2

http://www.woosim.com

 When you press FEED button once.

 You will see present Quality mode in the LCD. (Low)

 Press MODE Button once. And then the quality has set to Quality high.

 When you press FEED button once.

 You will see present MARK mode in the LCD. (Use)

 Press MODE Button once. And then the mark has set to Mark no use.

 When you press FEED button once.

 You will see present SENSOR mode in the LCD. (Low)

 Press MODE Button once. And then the sensor has set to

Sensor medium1.

If all the mode have set, press the MODE Button and the FEED Button at the same time. After then release the buttons at the same time.

Bluetooth / 57600bps / 7 data bit / Odd parity / 2 stop bit / Density high / High/No

use / Medium 1

If the status is not correct, please try it again according to the procedure.

Page 18

WSP-SM40 Rev. 1.2

http://www.woosim.com

Mode No.

Mode

(Feed Button)

Option No.

Option

(Mode Button)

Communication

Port

UART

Protocol UART

Bluetooth

Protocol Bluetooth

Bluetooth(iAP)

Baud Rate

9600 bps

19200 bps

34800 bps

57600 bps

115200 bps

Data Bit

7 Data bit

8 Data bit

Parity Bit

No Parity

Odd Parity

Even Parity

Stop Bit

1 Stop Bit

2 Stop Bit

Density

Low Density

Medium Density

High Density

Mark

No use

Use

Sensor

Sensor Low

Sensor Medium 1

Sensor Medium 2

Sensor High

Power Down

No use

1 minute

2 minute

3 minute

4 minute

5 minute

Notice : Bluetooth(iAP) is the mode which is used in iPod, iPhone and iPad Whole aspect.

< Table 2 >

Page 19

WSP-SM40 Rev. 1.2

http://www.woosim.com

33..

IInntteerrffaaccee

33..11.. UUAARRTT((RRSS--223322CC oorr TTTTLL))

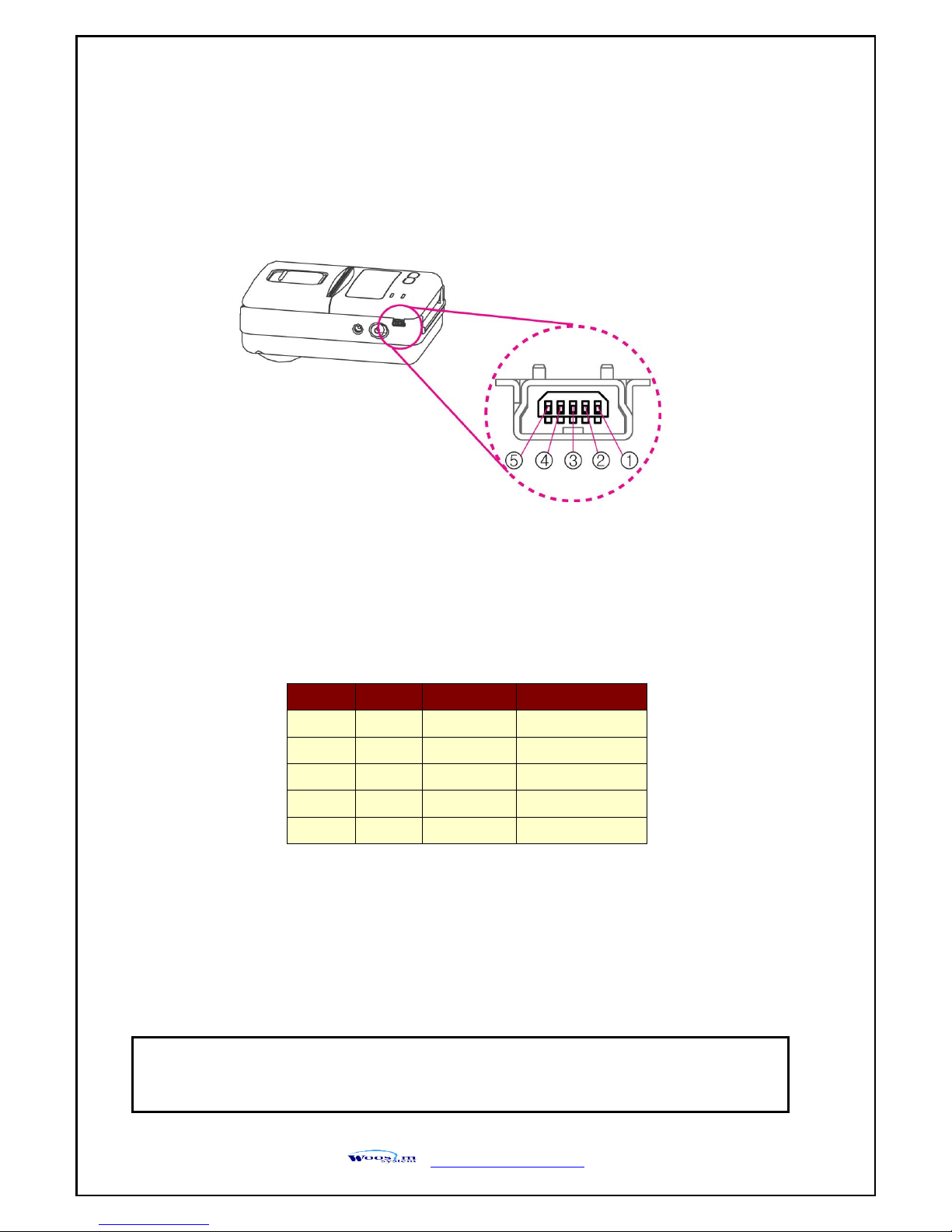

The WSP-SM40 printer has a UART(RS-232C or TTL) interface and is connected by means of a 5

pin mini USB socket.

In the following table, the signals present on the Mini- USB socket are listed:

Pin No.

Name

Direction

Function

TxD

Output

Transmit Data

RxD

Input

Receive Data

CD - Cable Detect

NC. - -

GND - Ground

NOTE : ● If you connect the printer interface cable is converted to UART mode.

● When data receiving, when it removes the communication cable, it loses a data.

Page 20

WSP-SM40 Rev. 1.2

http://www.woosim.com

33..22.. BBlluueettooootthh

33..33.. MMaaggnneettiicc ssttrriippee ccaarrdd RReeaaddiinngg && IICC CCaarrdd iinnsseerrtt

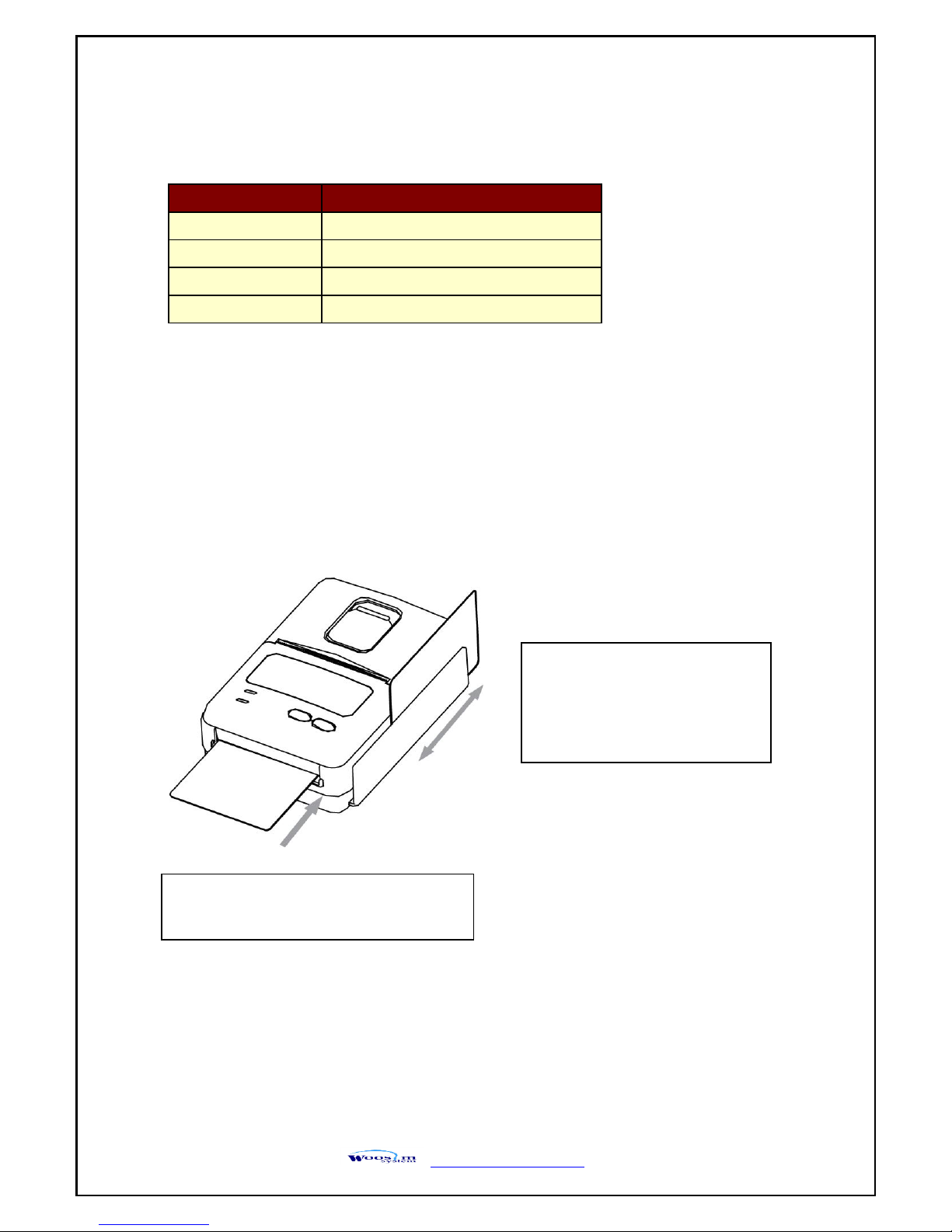

▶Please take notice that Magnetic

Stripe Card should be swapped in

direction of arrow.

Card can be read in both.

▶ Check the contact IC chip and the card

in the direction of the arrow insert.
