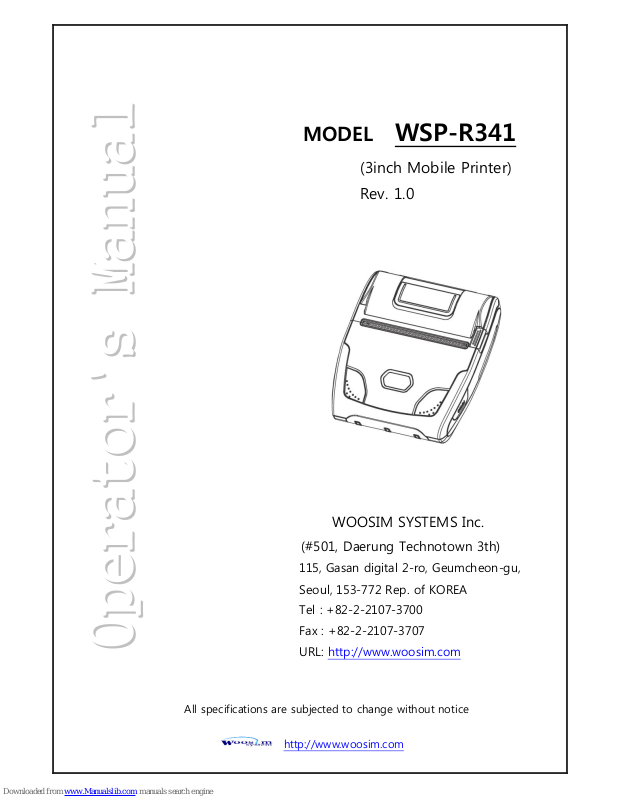

WOOSIM WSP-R341 Operator's Manual

Download

Page 1

http://www.woosim.com

MODEL WSP-R341

WOOSIM SYSTEMS Inc.

(#501, Daerung Technotown 3th)

115, Gasan digital 2-ro, Geumcheon-gu,

Seoul, 153-772 Rep. of KOREA

Tel : +82-2-2107-3700

Fax : +82-2-2107-3707

URL:

http://www.woosim.com

(3inch Mobile Printer)

Rev. 1.0

All specifications are subjected to change without notice

Page 2

WSP-R341 Rev. 1.0

http://www.woosim.com

 Copyright

WSP-R341 3inch mobile printer operator’s manual.

The information contained in this manual is the property of Woosim Systems Inc.

And may not be reproduced in whole or in part without the prior written

permission of Woosim Systems Inc.

 Trademark

a registered trademark of Woosim Systems Inc.

All other trademark are the properties of their respective companies.

 Caution

Some semiconductor devices are easily damaged by static electricity. You should

turn the printer OFF, before you connect or removed the cable on the rear side, in

order to guard the printer against the static electricity.

If the printer is damaged by the static electricity, you should turn the printer OFF.

 Notice

The contents of this manual are subject to change without notice.

Page 3

WSP-R341 Rev. 1.0

http://www.woosim.com

 Introduction

The WSP-R341 is suitable designed for use with a growing variety of mobile

devices. Bluetooth/USB interfaces make the WSP-R341 the perfect comrade for

applications such as point of transaction warehousing, distribution, point of sales,

hospitality, gaming and healthcare.

The general features of WSP-R341 printer are as follows:

 Pocket size (104.5 x 126.8 x 45.1mm)

 Light weight (297.5g) for true mobility.

 Very silent printing thru direct thermal printing method.

 High speed(100mm/sec, MAX)

 High resolution(203dpi : 8dots/mm)

 USB, Bluetooth Ver3.0 interface

 Intuitive LED’s indicate Power(on/off),Error, Bluetooth status, Battery status

 Support Magnetic Stripe Reader [option].

 Support text and graphic printing.

 Easier paper loading by CLAMSHELL design.

 One touch paper cover

 Printer door open & Paper-out sensor

 Easier maintenance with self-diagnostics.

 In field programming – Update Firmware, Download Fonts and Logos

 Microsoft Windows XP/VISTA/7/8/CE, Linux, Android compatible.

 Flow control : Software (XON/XOFF)

※ Hardware flow control not supported in printer.

 Agency Approvals

Page 4

WSP-R341 Rev. 1.0

http://www.woosim.com

 Operating Precautions

Please follow the precautions below to enjoy and maintain the full performance

of the printer.

 Using the Printer

● Be careful not to drop or bump the printer on a hard surface.

●

Do not install the printer in direct sunlight or such areas.

Suitable environment for the use of the printer is as follows:

◆ Operating temperature :-10°C to 50°C

◆ Relative humidity : 30% to 80%

●

Do not install the printer near devices that generate strong

electromagnetic fields such as a copy machine.

●

Do not open the platen cover during printing .

●

Do not remove or reinstall the communication cable during printing

or transmission.

●

Do not touch the connectors of the communication during printing.

●

Switch the POWER OFF when not in use.

● Do not use other solvent.

● The AC adapter, the battery charger and the battery pack may

become warm when in use. This is normal and is not a malfunction.

● When the battery pack is used at low temperature, the length of time

the printer can be used may be shortened.

 Thermal Paper Handling

● Store the thermal paper in a cool, dry and dark place.

● Do not rub the paper with hard object.

● Do not leave the paper with hard object.

● Do not allow plastic film, erasers, or adhesive tape to touch the paper

for long periods.

● Do not stack the thermal paper with diazo copies immediately

after copying or wet-type copies.

● Do not use chemical glue.

● Always use the clean thermal paper.

Page 5

WSP-R341 Rev. 1.0

http://www.woosim.com

Federal Communications Commission

Radio Frequency Interference Statement

FCC ID : QDDWSP-R341

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

CAUTION: Changes or modifications not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

ㆍReorient or relocate the receiving antenna. ㆍIncrease the separation between the equipment and receiver. ㆍConnect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

ㆍConsult the dealer or an experienced radio/TV technician for help.

Modifications not expressly approved by the manufacturer could void the user's authority to operated the equipment under FCC rules.

This Device has been evaluated to comply with RF exposure requirement for general use limit in portable condition. It is safe to be used in sold condition.

CE WARNING

ㆍChanges and modifications not expressly approved by the party responsible for compliance could void

the user’s authority to operate the equipment.

ㆍIt is desirable that it be installed and operated with at least 20cm or more between the radiator and

person’s body(excluding extremities hand, wrists, feet, and ankles)

Page 6

WSP-R341 Rev. 1.0

http://www.woosim.com

CONTENTS

1. Outline ................................................................................................................................... 7

1.1. Model classifications .................................................................................................... 7

1.2 Symbol ............................................................................................................................ 7

1.3. Product Part Number System ...................................................................................... 8

1.4. Specifications. ................................................................................................................ 9

2. Setting up the printer ....................................................................................................... 11

2.1. Printer & Accessories .................................................................................................. 11

2.2. Printer Features ........................................................................................................... 12

2.3. Dimensions .................................................................................................................. 13

2.4. Replacing the paper roll ............................................................................................ 14

2.5. Power supply ............................................................................................................... 15

2.5.1. Internal power supply ....................................................................................... 15

2.5.2. Installing the Battery ......................................................................................... 15

2.5.3. Recharging the battery ..................................................................................... 16

2.6. Set operation mode ................................................................................................... 17

2.6.1. GAP/HOLE SENSOR SETTING ........................................................................... 19

2.7. Memory switch table .................................................................................................. 20

3. Interface ............................................................................................................................... 21

3.1. USB ............................................................................................................................... 21

3.2. Bluetooth ..................................................................................................................... 22

3.3. Read a magnetic stripe card ..................................................................................... 22

4. Using the printer ................................................................................................................ 23

4.1. Control panel............................................................................................................... 23

4.2. The self test ................................................................................................................. 24

4.3. Using the Belt clip ...................................................................................................... 25

5. Consumable Parts .............................................................................................................. 26

5.1. Recommended paper ................................................................................................. 26

5.2. Printing position ......................................................................................................... 26

6. Revision History ................................................................................................................. 27

Page 7

WSP-R341 Rev. 1.0

http://www.woosim.com

11.. OOuuttlliinnee

11..11.. MMooddeell ccllaassssiiffiiccaattiioonnss

11..22 SSyymmbbooll

WSP-R341 ( ) ( )

Model

Interface

C1 : USB/Bluetooth

Power

None : DC 8.4V

Standby symbol

IEC 5009, the standby symbol(line partially within a broken circle),

Indicates a sleep mode or low power state.

Direct current symbol

This symbol is found on many electronic devices that either require or produce direct

current.

Page 8

WSP-R341 Rev. 1.0

http://www.woosim.com

11..33.. PPrroodduucctt PPaarrtt NNuummbbeerr SSyysstteemm

Model name / Interface Spec.

Example) 1. Porti-S40 UART/Bluetooth Part No. ⇒ S40/A1

2. Porti-SC30 Bluetooth Only Part No. ⇒ SC30/Z1

Note) The above table is the interface format which is supported.

But some of the interfaces are not supported according to the product

and please contact us, if you have any questions regarding the interface.

S40

SC30

W25

Wired

Wireless

RS-232C

Bluetooth

TTL

IrDA

USB

None

RS-485

Parallel

None

Page 9

WSP-R341 Rev. 1.0

http://www.woosim.com

11..44.. SSppeecciiffiiccaattiioonnss..

Item

Specification

Printing method

Direct thermal line printing

Character size

- Font Size A: 12X24 / Font Size B : 9X24 / Font Size C : 8X16

- KOR : 24X24(16X24) / CHN, JPN : 24X24

Characters per line

- Font A : 48cpl / Font B : 64cpl / Font C : 72cpl

- KOR, CHN, JPN : 24cpl

Character set

Alphanumeric:95, Extended Graphics:128X50 pages, International:10,

Simplified/Traditional Chinese, Japanese, Korean

Resolution

203dpi, 8dots/mm

Print width

3-inch (72mm, 576dots)

Printing speed

100mm / sec (MAX)

Dimensions

104.5 x 126.8 x 45.1mm

104.5 x 130.5 x 45.1mm (MSR model)

Weight (w/o paper)

297.5g / 302.5g (MSR model)

Interface

USB, Bluetooth Ver3.0

Paper supplied

Thermal roll paper, Label roll (80mm wide, 40ø)

Barcode supplied

1-dimension : UPC-A, UPC-E, EAN-8, EAN-13, CODE-39, CODE-93,

CODE-128, ITF, CODABAR

2-dimension : PDF417, Micro PDF417, Truncated PDF417, QR-CODE,

DATA Matrix, Maxicode

Etc :GS1 databar

Driver

Microsoft Windows XP/VISTA/7/8/CE, Linux, Android compatible

H/W spec.

MCU : RX-32bit, RAM : 128M bit, FLASH : 64M bit

Receive buffer size

1M bytes

Sensor

Support Cover open, Paper, Label

MSR (option)

Triple tracks (1&2&3 Tracks Reading)

*Supports 3DES & AES encryption

(Continue…)

Page 10

WSP-R341 Rev. 1.0

http://www.woosim.com

Item

Specification

Battery

Rechargeable 7.4V DC , 1800mAh (Li-ion)

Battery duration

1 hour continuous printing

Battery Charger

Input (100~240V AC 50~60Hz)

Output(8.4VDC/0.8A), 4hours full charge time

Environment

Conditions

Temperature

-10°C ~ 50°C (operating)

-10°C ~ ”0°C (storage)

Humidity

30% - 80% (operating)

10% - 90% (storage)

Limited Warranty of

Life

Head

50Km

< Table 1 >

Page 11

WSP-R341 Rev. 1.0

http://www.woosim.com

22.. SSeettttiinngg uupp tthhee pprriinntteerr

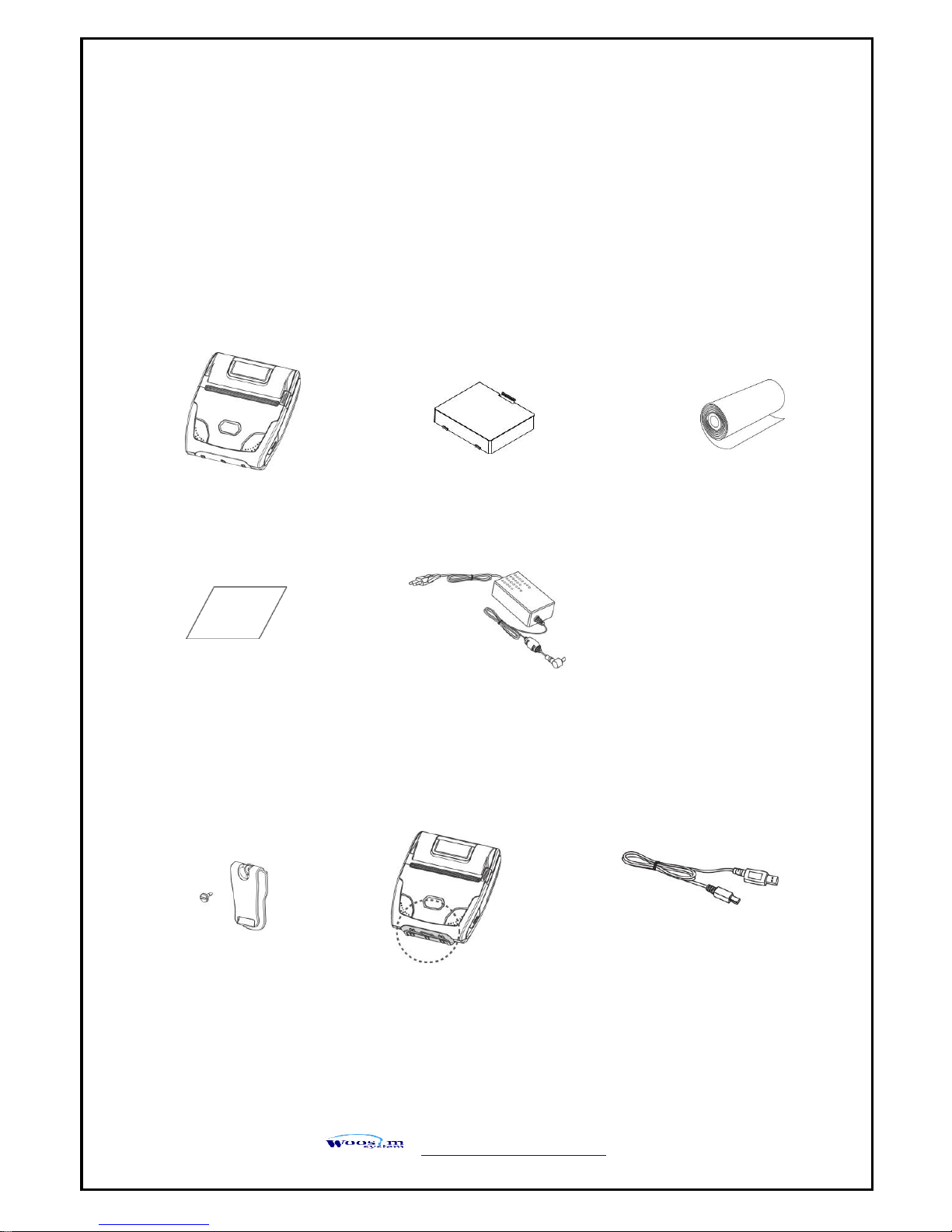

22..11.. PPrriinntteerr && AAcccceessssoorriieess

Your printer box should include these items. If any items are damaged or missing,

please contact your dealer for assistance.

Battery charger adaptor

▼ OPTIONAL

Thermal roll paper

WSP-R341

Communication cable

Battery Pack

A800-018

MSR

Belt Clip

User’s Manual

Page 12

WSP-R341 Rev. 1.0

http://www.woosim.com

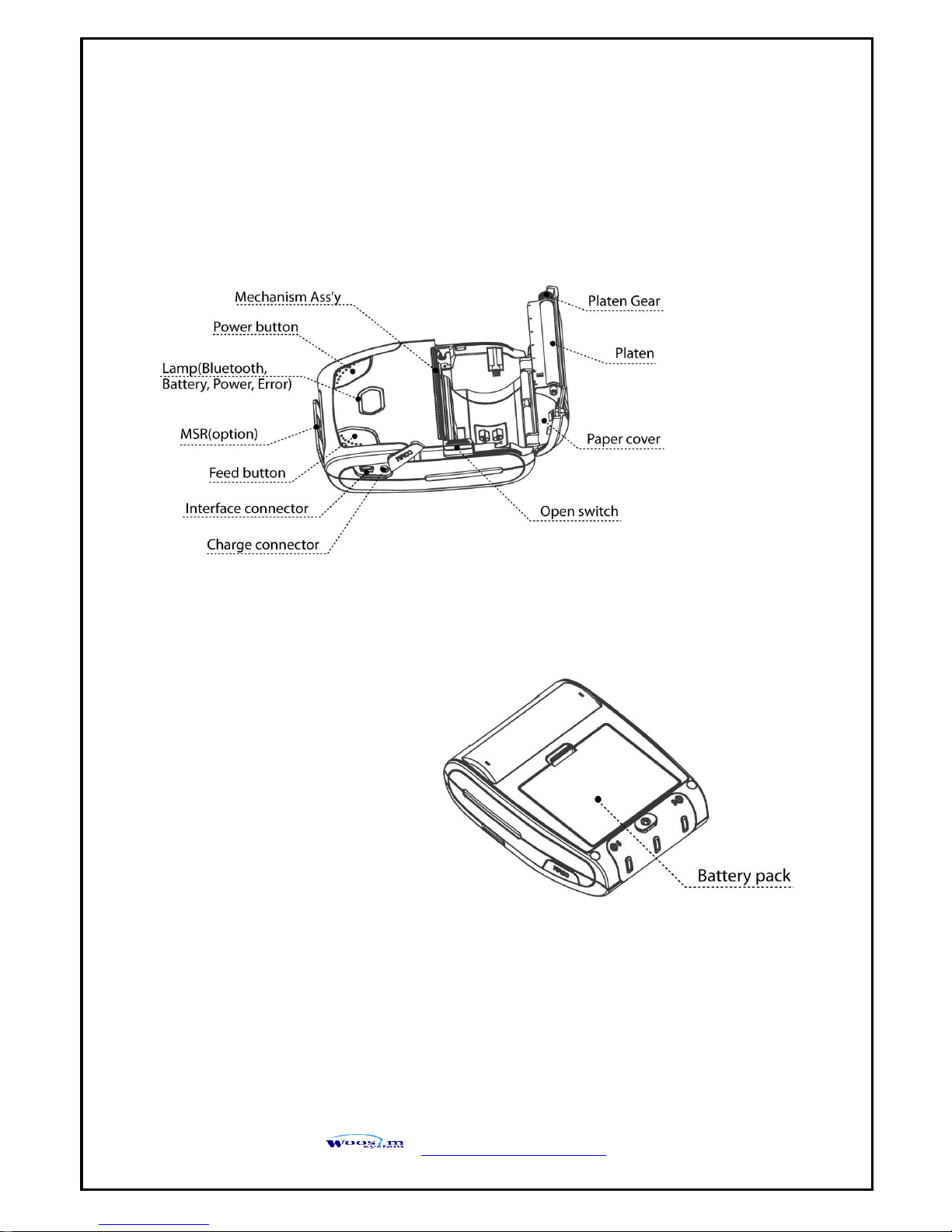

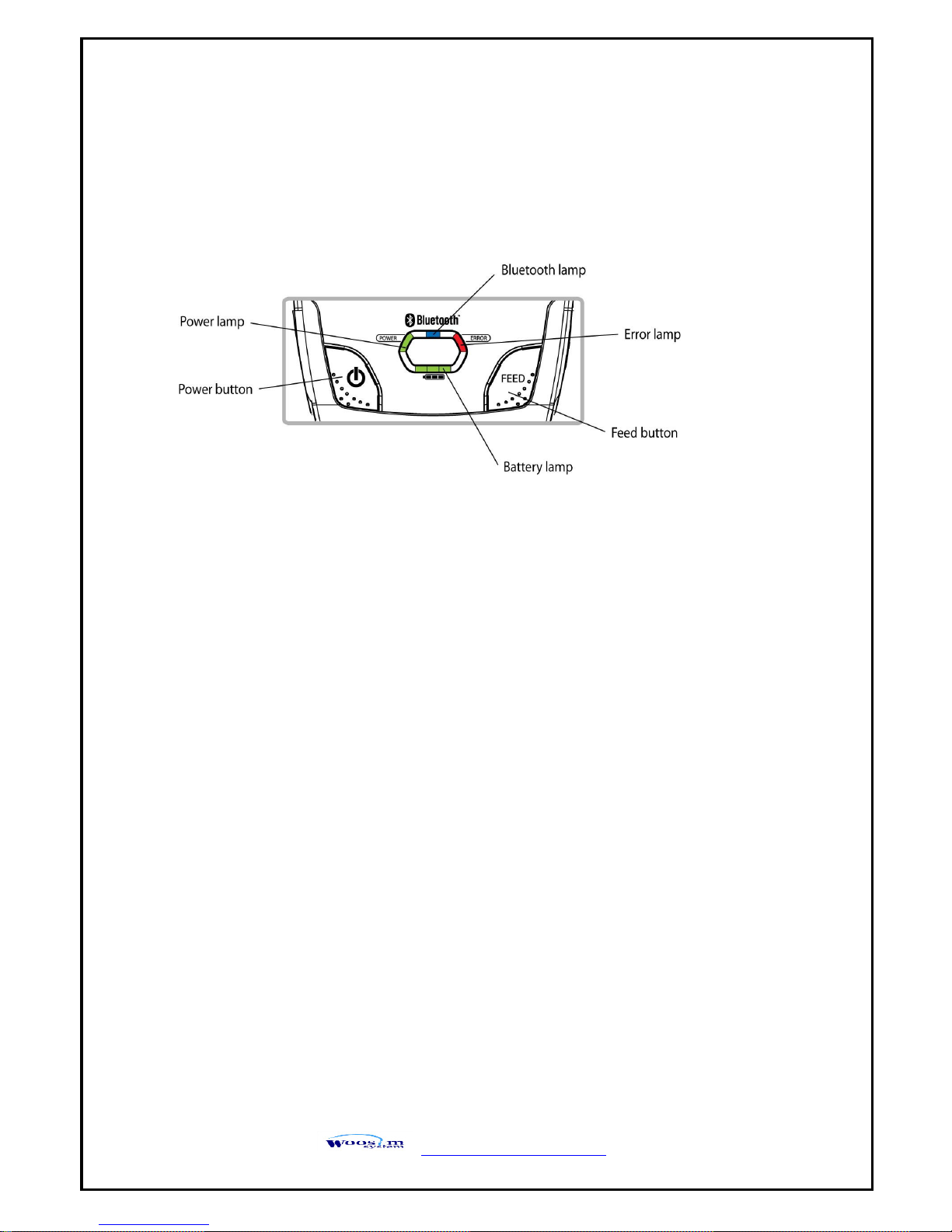

22..22.. PPrriinntteerr FFeeaattuurreess

▶ Part Name

Page 13

WSP-R341 Rev. 1.0

http://www.woosim.com

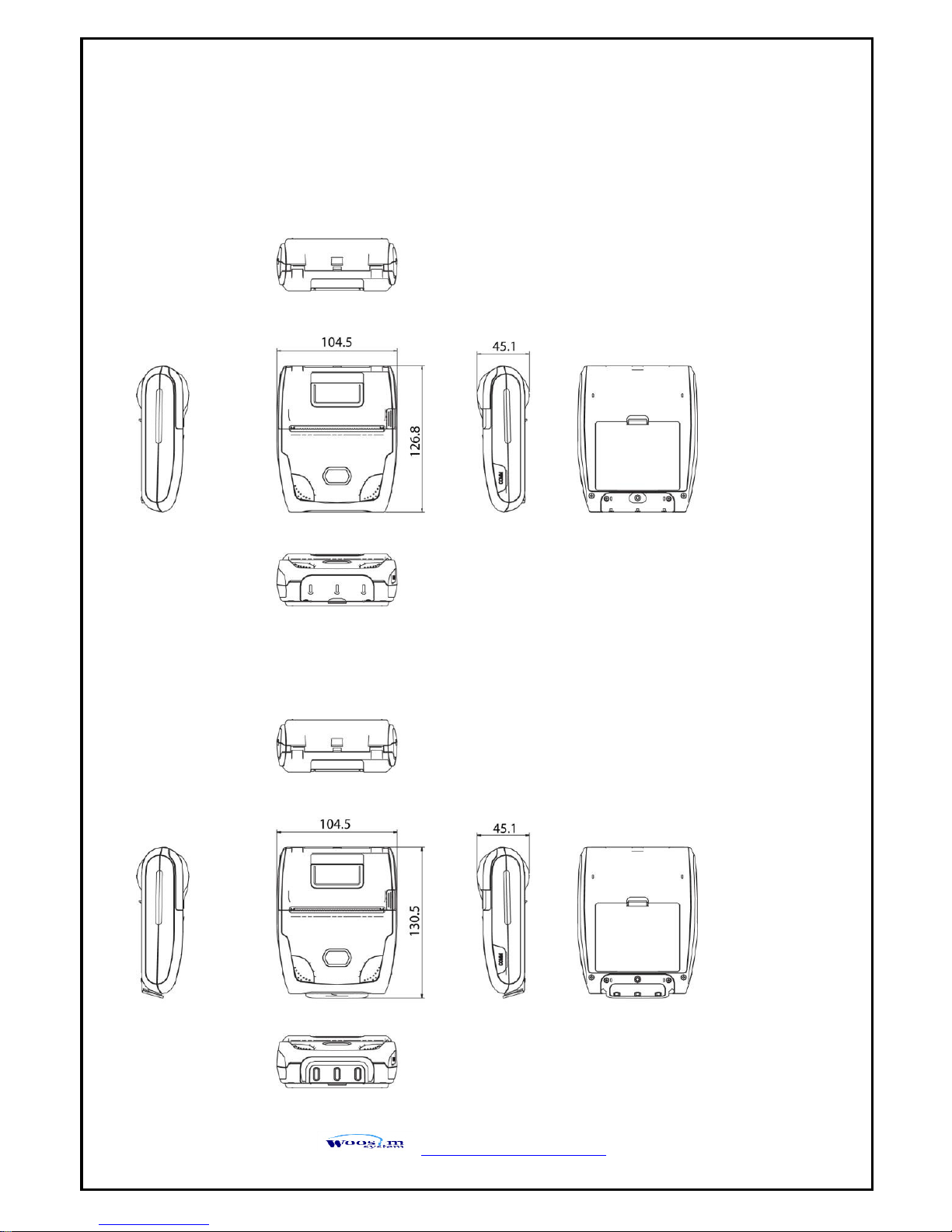

22..33.. DDiimmeennssiioonnss

None MSR

MSR

Page 14

WSP-R341 Rev. 1.0

http://www.woosim.com

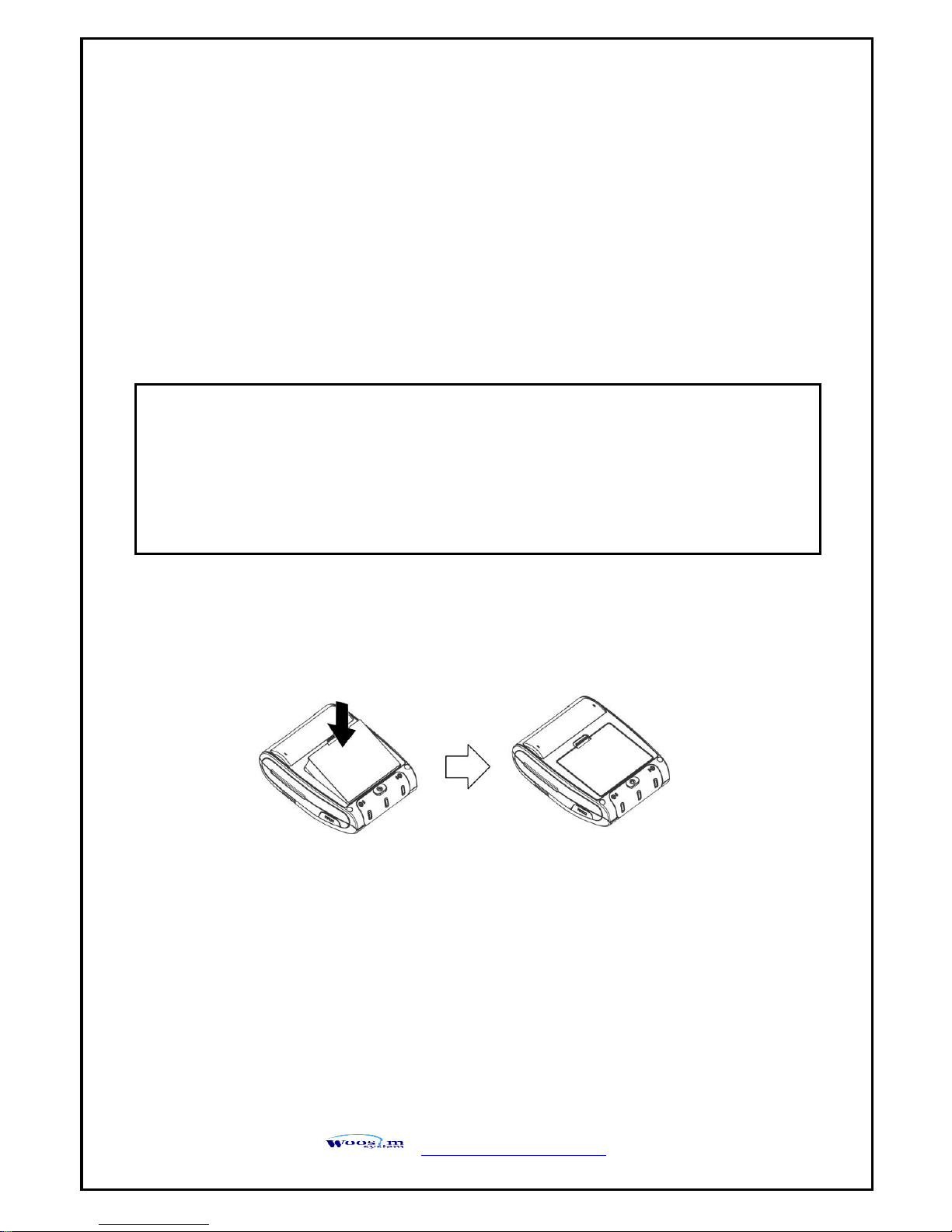

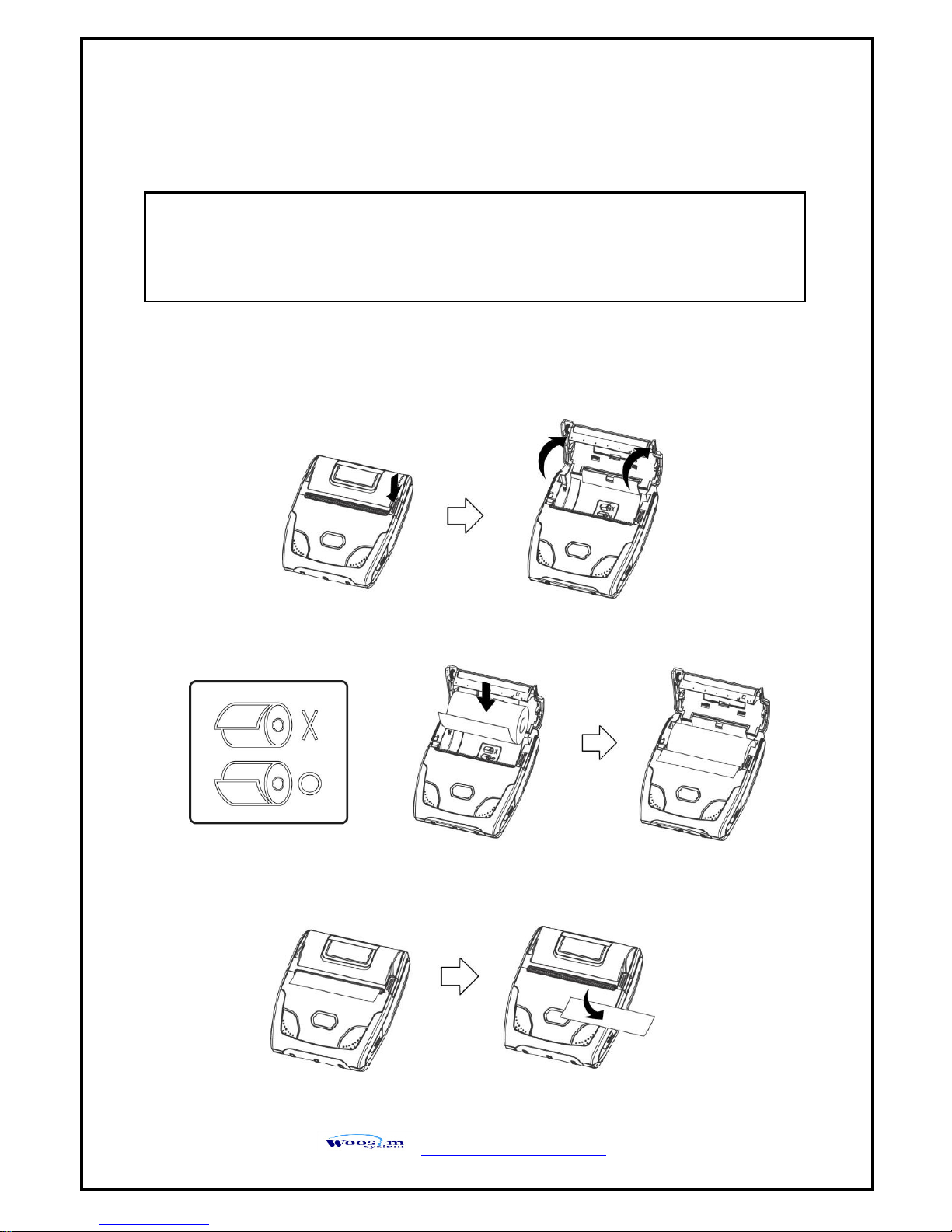

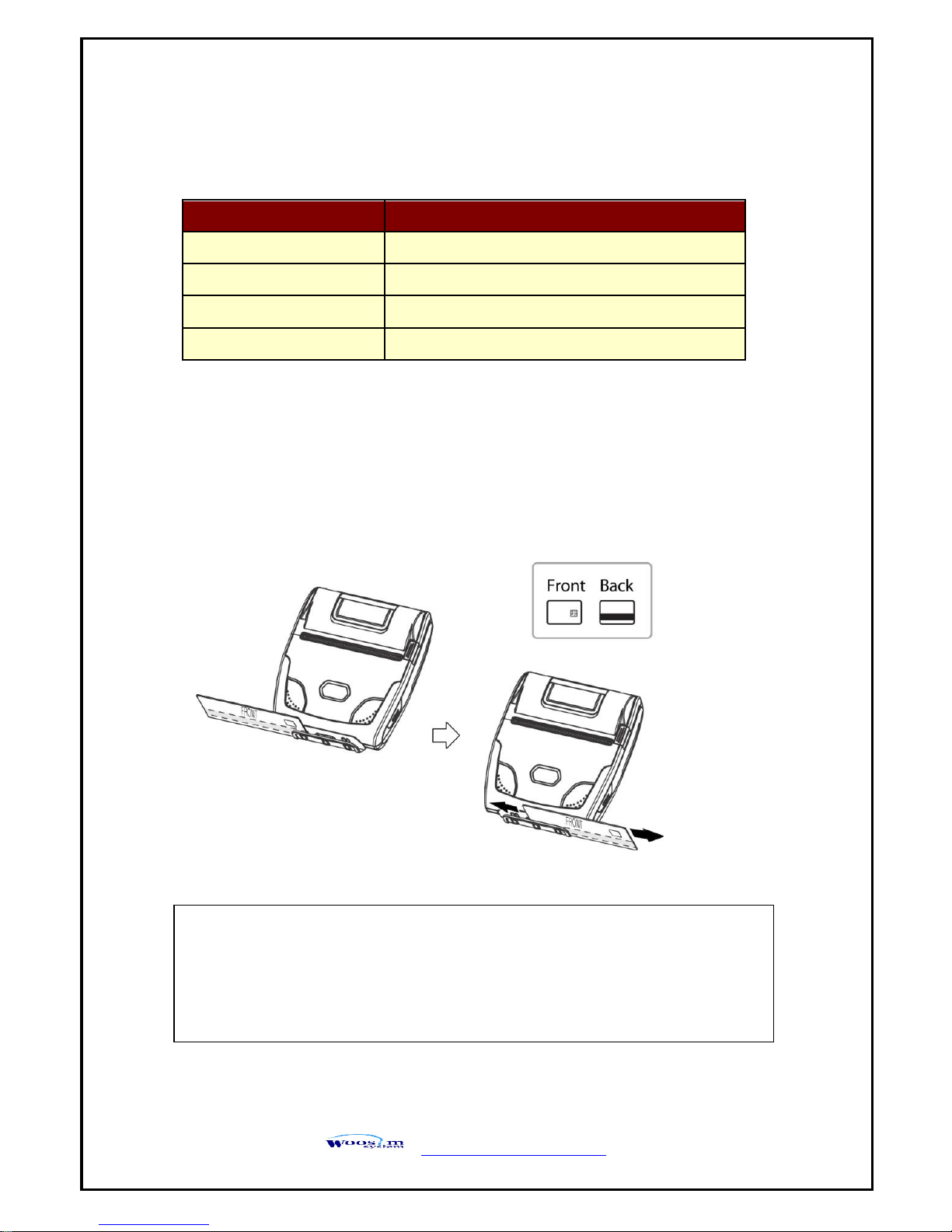

22..44.. RReeppllaacciinngg tthhee ppaappeerr rroollll

1. Make sure that the printer is not receiving data; otherwise, data may be lost.

2. Open the paper cover as the One-Touch way by pressing the button in the

arrow direction like the picture.

3. Insert the paper roll as shown.

4. Tear the excess paper off using the edge of paper door as a tear bar.

Note : Be sure to use paper rolls that meet the specifications.

Do not use paper rolls that have the paper glued to the core because the

printer can not detect the paper end correctly.

Page 15

WSP-R341 Rev. 1.0

http://www.woosim.com

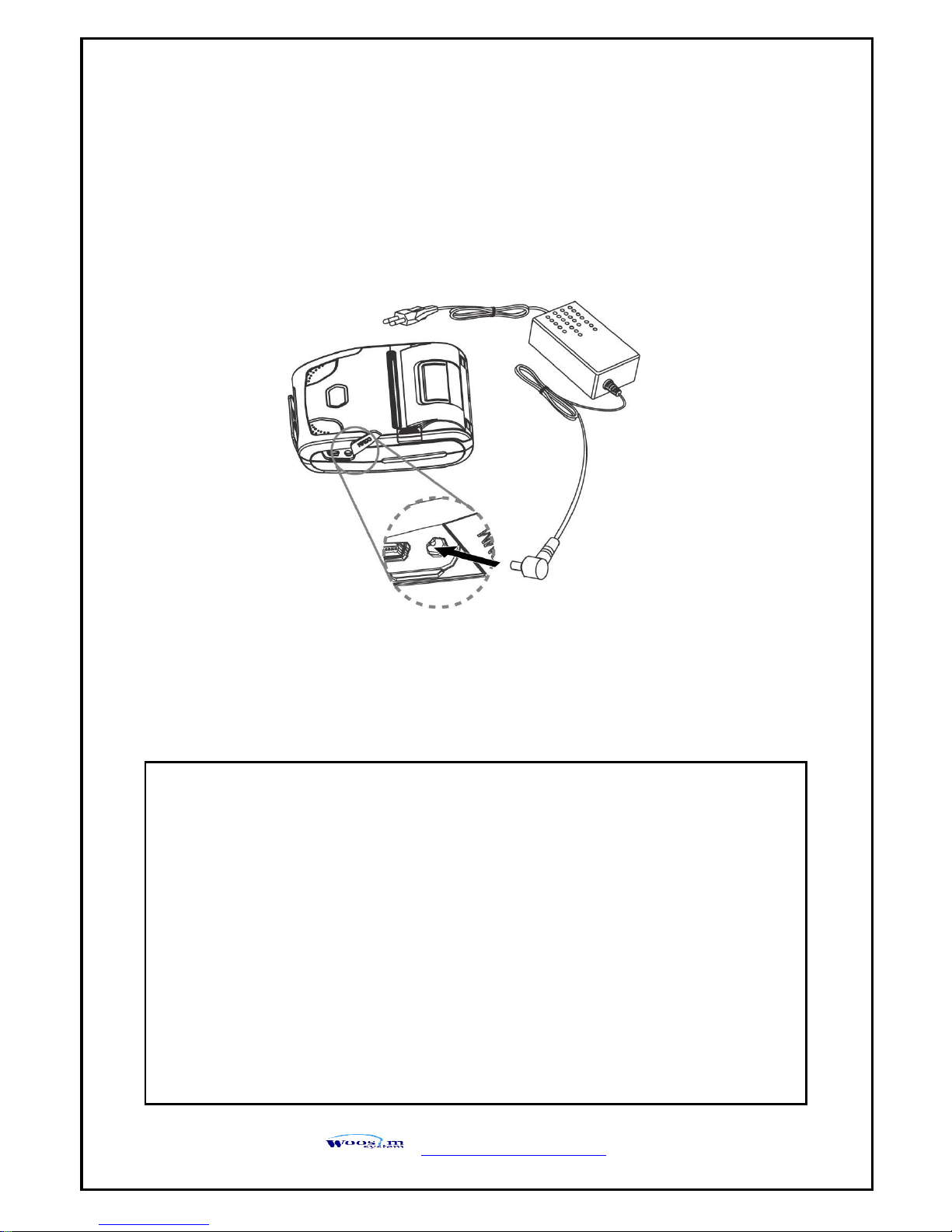

22..55.. PPoowweerr ssuuppppllyy

22..55..11.. IInntteerrnnaall ppoowweerr ssuuppppllyy

The following specification is requested for Power supply.

Battery Charger : DC 8.4V/0.8A

Avoid using power supply which its power capacity of power current is extremely high.

22..55..22.. IInnssttaalllliinngg tthhee BBaatttteerryy

① To install battery pack, proceed as follows:

-Insert the Battery Connector in the direction of the arrow.

② To remove battery pack, proceed the above order reverse.

Warning : ● Before installing or removing the battery pack, ensure the printer is OFF.

● If the printer is not used for long period of time, remove the battery pack

from the printer.

● Risk of explosion if battery is replaced by an incorrect type.

Dispose of used batteries according to the instructions.

Page 16

WSP-R341 Rev. 1.0

http://www.woosim.com

22..55..33.. RReecchhaarrggiinngg tthhee bbaatttteerryy

For recharging the battery pack, install the battery pack in the printer.

Insert the Battery Charger to the charge connector of the printer.

NOTE : ● While charging the printer, turn off the printer power.

● Do not remove the battery during charging.

● The battery is consumable parts and when purchasing, compared to the

use hour is gradually decreases. (Warranty 6 month)

● If the printer is not used for a long time, unplug the power cord

from the printer and outlet.

● The recharging time depends on the voltage level and ambient

temperature of the battery. Normally, if takes about 4 to 5 hours to

recharge a battery pack.

● You must use only the supplied adapter.

● Red Lamp : charging the battery.

Green Lamp : charging is finished.

Page 17

WSP-R341 Rev. 1.0

http://www.woosim.com

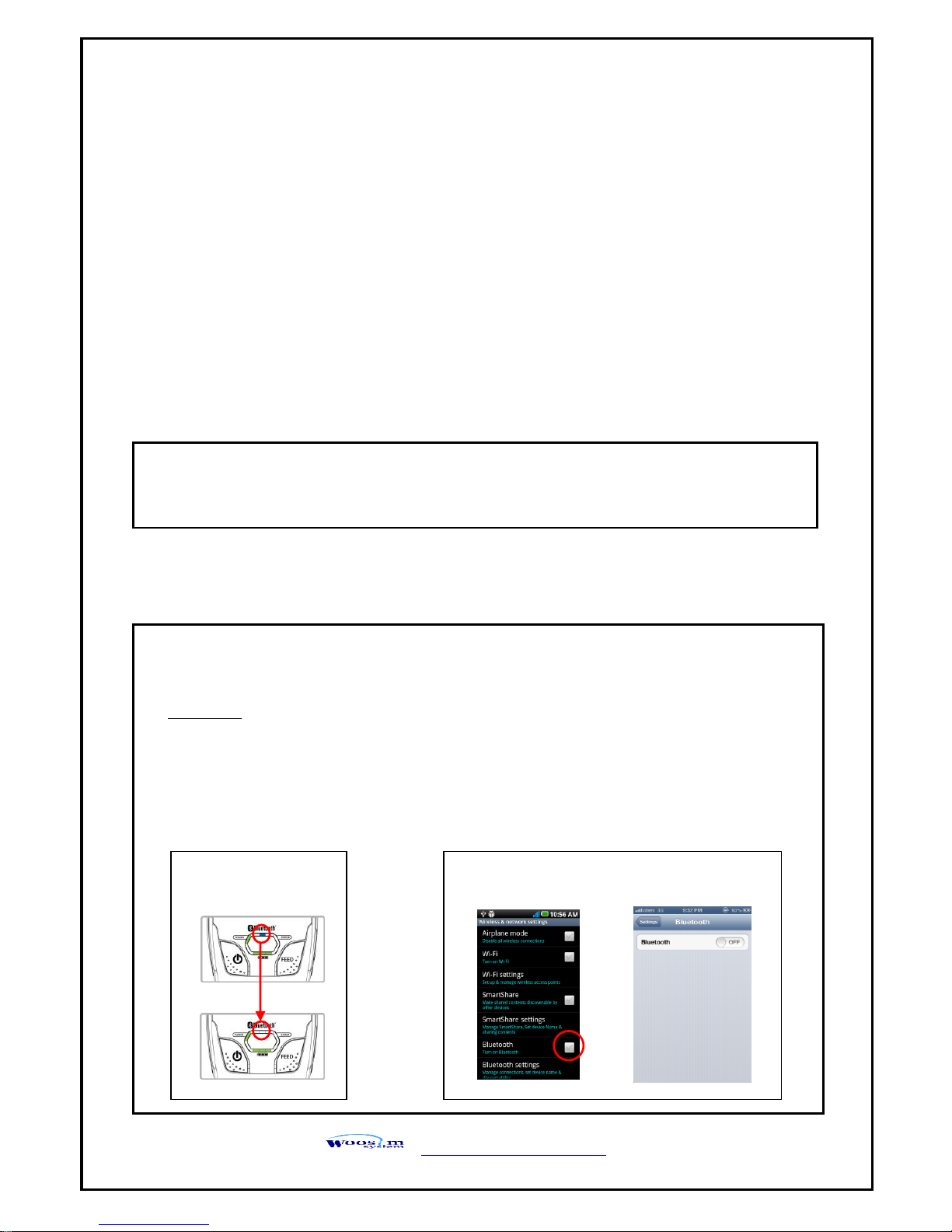

22..66.. SSeett ooppeerraattiioonn mmooddee

In keeping on pressing the Feed and Power button simultaneously until after

the ERROR lamp blinks 5 times, the printer comes out at the circumstance to

change the printer mode. (refer to Table 2)

 POWER button : use for changing OPTION status. (Error Lamp)

 FEED button : use for changing MODE status. (

Power Lamp)

*Note

No additional mode settings are required to connect Android or iOS devices.

** If you want to change the Bluetooth Mode of printer, you need to disconnect the Bluetooth

function of the current paired Smartphone.

** Methods :

1. Turn off the Bluetooth function of the current paired Smartphone.

(Blue LED is off.)

2. Change the printer mode.

(Additionally, we want to recommend you to rest(OFF→ON) the printer and change mode.)

Printer LED status

Android status iOS status

Page 18

WSP-R341 Rev. 1.0

http://www.woosim.com

[Example] The defaults of the printer are :

USB / Density Low / Mark No Use / Sensor High / PWDN 5 min slp

If a user wants to modify the defaults with

Bluetooth / Density High / Mark Use / Sensor Low / PWDN No Use



Press FEED & POWER Button during the Error Lamp flickers 5 times.

 You will see the Power Lamp and the Error Lamp flickers once.

 Press the POWER Button twice and the Error Lamp flickers 3 times.

And then, interface mode has set to Bluetooth mode.

 When you press FEED Button once again, Power Lamp flickers 2 times

and Error Lamp flickers once.

 Press POWER Button twice, Error Lamp flickers 3 times.

And then the density has set to Density high.

 When you press FEED Button once again, Power Lamp flickers 3 times

and Error Lamp flickers once.

 Press POWER Button once, Error Lamp flickers twice.

And then the mark has set to Mark use.

 When you press FEED Button once again, Power Lamp flickers 4 times

and Error Lamp flickers 4 times.

 Press POWER Button once, Error Lamp flickers once.

And then the sensor has set to Sensor Low.

 When you press FEED Button once again, Power Lamp flickers 5 times

and Error Lamp flickers 6 times.

 Press POWER Button 6 times, Error Lamp flickers once

And then the power down has set to Power down no use.

If all the mode have set, press the POWER Button and the FEED Button

at the same time. After then release the buttons at the same time.

Bluetooth / Density High / Mark Use / Sensor Low / PWDN No Use

Page 19

WSP-R341 Rev. 1.0

http://www.woosim.com

22..66..11.. GGAAPP//HHOOLLEE SSEENNSSOORR SSEETTTTIINNGG

1. Set Mark as GAP / HOLE on mode setting.

2. If feed button keeps being pressed during self SENSOR SETTING appears on LCD

window and paper keeps coming out SENSOR SETTING.

3. If feed button is not pressed after printing more than 3 pages of label

4. Setting is completed as Green and Red LED flash and COMPLETE appears on

LCD window.

** Caution : Sensor setting stops if the feed button is not pressed during self test.

Page 20

WSP-R341 Rev. 1.0

http://www.woosim.com

22..77.. MMeemmoorryy sswwiittcchh ttaabbllee

< Table 2 >

Mode

Option

Etc.

Mode

Option

Etc.

Communi-

cation

Port

USB

Power

Down

No use

USB(Pro)

1min Sleep

Bluetooth

2min Sleep

Bluetooth(Pro)

3min Sleep

Bluetooth(iAP)

4min Sleep

Density

Low

5min Sleep

Medium

1min Off

High

2min Off

Mark

No use

3min Off

2 Use 10

4min Off

3 Gap / Hole

5min Off

4 Back

Sensor

sensitivity

Low

Medium1

Medium2

High

Notice : Bluetooth(iAP) is the mode which is used in iPod, iPhone and iPad Whole aspect.

Etc. (V): no function due to the specification of the product.

Page 21

WSP-R341 Rev. 1.0

http://www.woosim.com

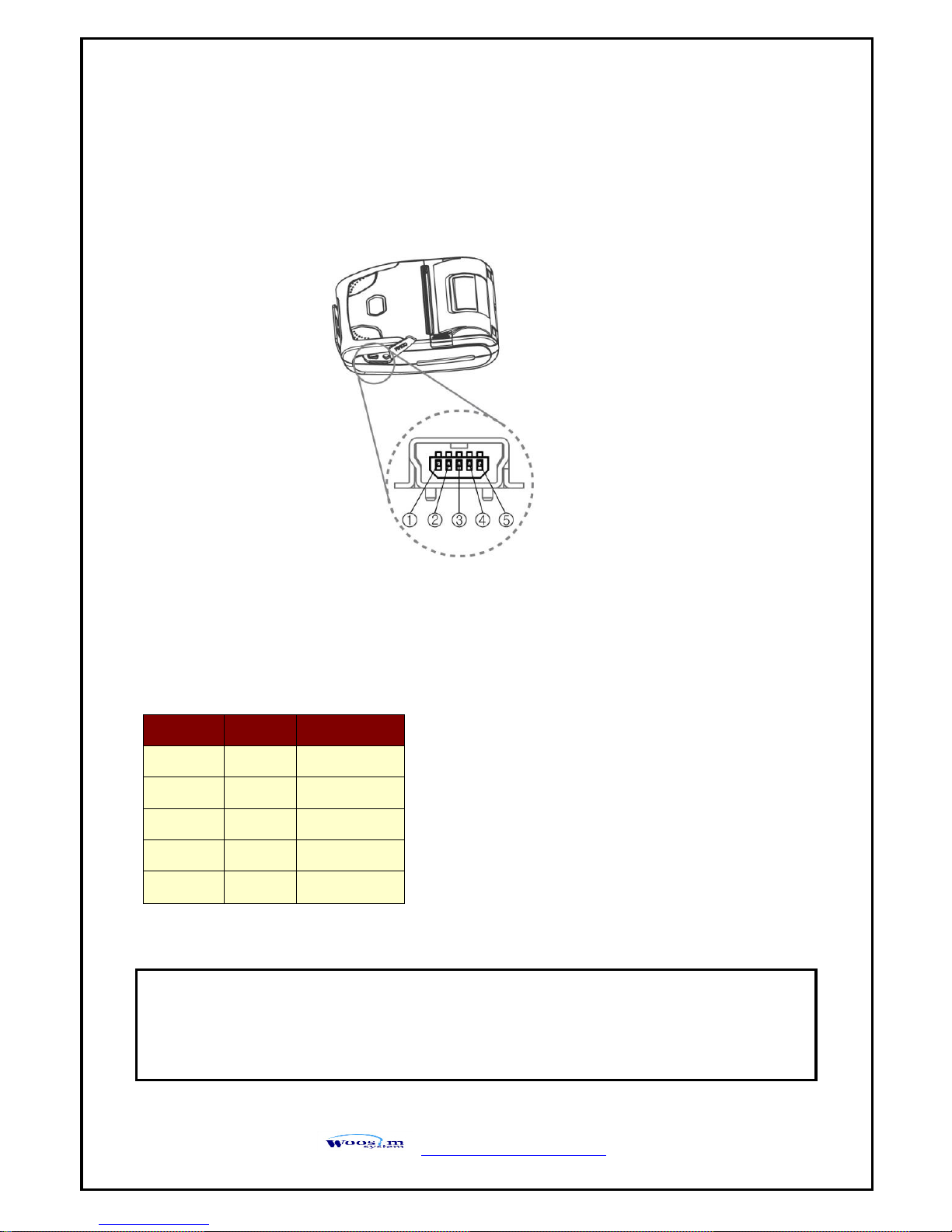

33.. IInntteerrffaaccee

33..11.. UUSSBB

The WSP-R341 printer has a USB interface and is connected by means of a 5 pin mini

USB socket. In the following table, the signals present on the Mini- USB socket are listed:

NOTE :

● If you connect the printer interface cable is converted to USB mode.

● When data receiving, when it removes the communication cable, it loses a data.

(Fig.3.1)

① USB

Pin No.

Name

Function

VCC

+5V

DATA -

DATA +

NC.

GND

Ground

Page 22

WSP-R341 Rev. 1.0

http://www.woosim.com

33..22.. BBlluueettooootthh

33..33.. RReeaadd aa mmaaggnneettiicc ssttrriippee ccaarrdd
