Owner's Manual
12 pgs889.4 Kb0

Woom 3, 2, 4, 1, 5 Owner's Manual

...
Download
Page 1
1
Page 2
2
Table of Contents
2.1 Basic Safety Information ................................................................................................... 4
2.2 Information for Parents and Guardians ............................................................................ 4
2.3 Safety in Road Traffic ....................................................................................................... 4
2.4 Proper Use ...................................................................................................................... 5
4.1 The Woombike and its components ................................................................................. 6
4.2 Frame .............................................................................................................................. 6
4.3 Steering System - Handlebar ............................................................................................ 7
4.4 Fork ................................................................................................................................. 7
4.5 Seat and Sitting Position .................................................................................................. 7
4.6 Using the Quick-Release Lever ......................................................................................... 7
4.7 Pedals ............................................................................................................................. 8
4.8 Pedal Cranks and Bearings ............................................................................................... 8
4.9 Derailleur ........................................................................................................................ 8
4.10 Bicycle Chain ................................................................................................................. 8
4.11 Brakes and Brake Lever .................................................................................................. 9
4.12 Wheels .......................................................................................................................... 9
4.13 Woom Citybike ............................................................................................................ 10
6.1 Tire Change ................................................................................................................... 10
6.2 Brake is rubbing ............................................................................................................. 11
6.3 Other Common Problems ............................................................................................... 11
8.1 Weights and Geometry Data .......................................................................................... 12
8.2 Tightening Torque.......................................................................................................... 12
Page 3
3
Woombikes Manual 03.2017
Rights for Content and Images:
WOOM BIKES USA
5555 N Lamar STE D101
Austin TX 78751
USA
855-WOOM-USA (855-966-6872)
[email protected]
The English instruction manual can be found at:
http://us.woombikes.com/pages/assembly-instructions
1 Preface
Welcome to our woom family! Thank you for purchasing a woom bike and join the woom family.
We build the lightest and most refined bikes for kids of all ages. Every detail is purposefully crafted to design the best and most enjoyable bike experience for your child. Our ultimate goal is to help kids safely discover the magic of childhood on two wheels.
Page 4
4
2 Safety Information
2.1 Basic Safety Information
Your Woombike is shipped in a partially assembled state. Before the first ride, some settings need to be made to put your bike in working condition. Follow the included assembly instructions included, as well as the section "Before Your First Ride" in section 3.
Bicycling is meant to be fun and is good for your health, if it is done properly and responsibly. This manual will help you use your Woombike correctly and safely. Read the manual completely through, and particularly pay attention to all of the warnings and maintenance instructions before using the bike. If someone borrows the bike or guardians supervise your child, make sure that they are also familiar with the content of the manual.
2.2 Information for Parents and Guardians
As a parent, or supervising legal guardian of a child, you are responsible for the activities and safety of the child. Right from the start, we would like to help you to correctly teach your child how to ride a bike by directing your attention particularly to the following aspects:
Helmet and Clothing. Always wear a helmet when riding. Get your child a suitable helmet and ensure that it used at any time when riding a
bicycle, and that it is fixed tightly. The child should wear appropriate, closely fitting, bright and preferably reflective clothing so other road users can see it in a timely manner. Use sturdy and non-slip footwear and other appropriate protective clothing for bicycling.
Teach your child how to woom correctly.
Make sure you explain to your child the function of the brakes in a comprehensible way, and that the kid has become familiar with the brakes before the first ride. Teach your child the safe and responsible handling of the bike, in the environment in which it will ride.
Check on Your Child.
You know the skills and the competences of your child best. Pay attention to what can be expected from him/her when bicycling so that she/he is safe at all times. Pay attention to the surroundings of your child, including external distracting stimuli, and not let the child ride in direct proximity to other small children.
The bicycle and its components include pointed and hard metal objects that may cause injuries. After the child fell down, and the child is unhurt, also check the bicycle and components for damages before you allow your child to get back on the bike.
2.3 Safety in Road Traffic
Make yourself knowledgeable about the applicable national regulations and explain to your child the basic rules of the Road Traffic Act
Avoid riding a bike during slippery and wet weather conditions. If unavoidable, you should ride more slowly and carefully, and use the brakes in time. Make sure that the light is turned on when it is dark.
Note that only the Citybike version of the Woombikes is officially permitted within the framework of the road traffic regulations for road traffic.
Warning
Maintenance
Page 5
5
2.4 Proper Use
For what and for whom is your Woombike suitable?
The Woombike is designed for common bicycling in a safe environment. The Woombike is a children's bicycle that is
tailored to the child’s weight of the intended specific age (depending on the model). In case of carrying luggage on the
luggage carrier, the permissible weight limits (section 4.13) must be observed.
Also, note that in case of intensive use of the bicycle, it will show wear faster. Take care and maintain your Woombike regularly according to the instructions in section 5, and follow the proposed inspection plan in section
7.
For what and for whom not?
Jumps, stunts, downhill and other extreme sports are not intended for the Woombike. The frame as well as other components of the bicycle can fail during the use of the bicycle by an adult.
The intended use also includes the observance of the operating, maintenance and servicing conditions, which are described in this manual and in the installation instructions. Woombikes and distributors are not liable for using the bike beyond its intended use.
3 Before the First and Every Ride
Before the first ride it is mandatory to put the bike in ready-to-use condition. Follow the supplied assembly instructions and the torques needed for tightening the components in section 8.2. Here you can find a detailed support for assembling the Woombikes in English:
https://www.youtube.com/watch?v=orWfMSsvtME.
Before the first and every ride, make sure that:
✓ saddle, handlebars and pedals have been fixed with the required strength. ✓ the positioning of saddle and handlebar is appropriate for the height of your child, and he/she can
start and stop safely.
✓ brakes are working and the brake levers are easy and comfortable for your child to reach. ✓ wheels are firmly located in the forks of the frame and turn easily. ✓ screws and other components are fastened tightly and the quick-release levers are tightened. ✓ tires, rims and frame are free of damage and foreign objects. ✓ tires have adequate tread depth and there is sufficient air pressure in the tire
Questions ?
855-966-6872
[email protected]
Page 6
6
4 Components: Function and Handling

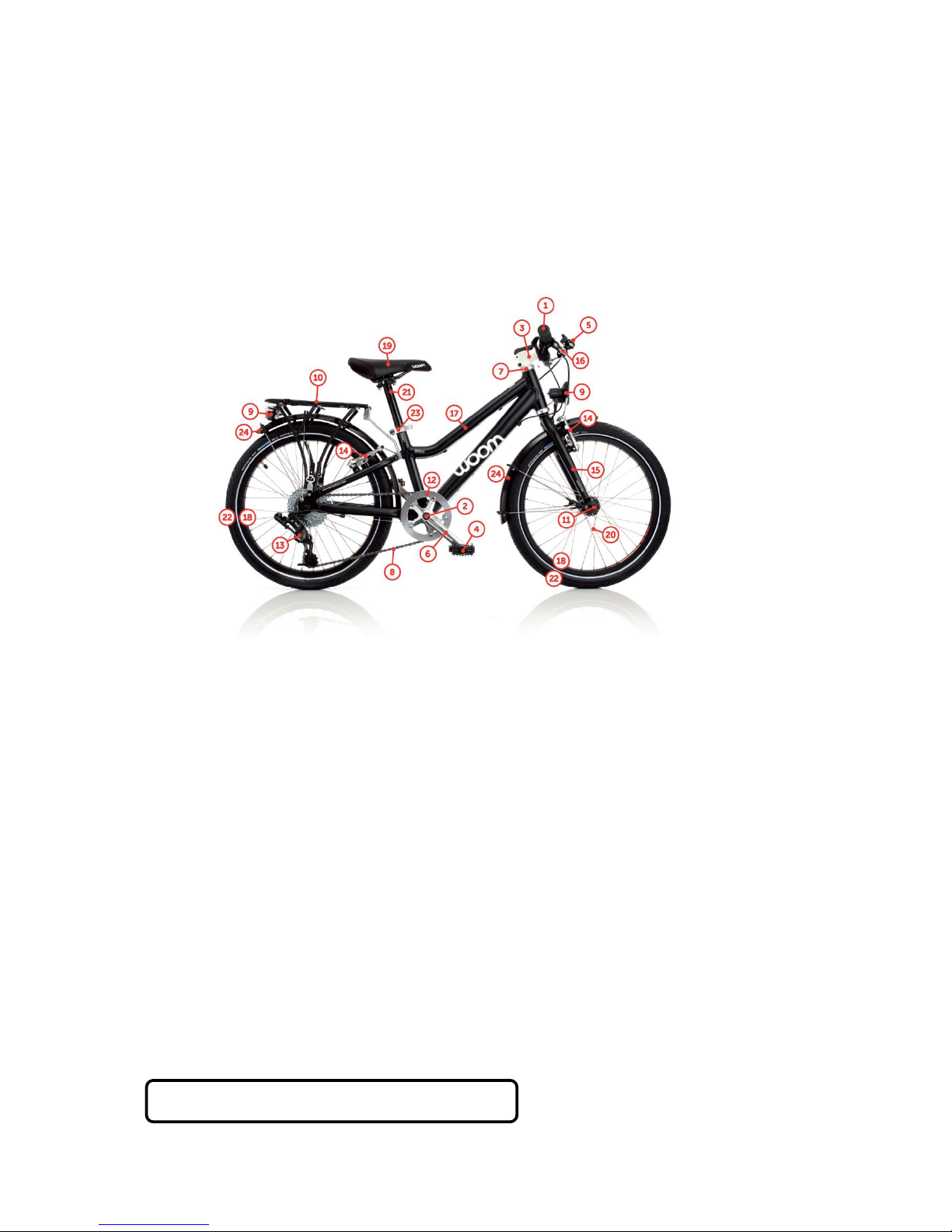

4.1 The Woombike and its components
1 handlebar 2 inner bearing 3 handlebar stem 4 pedal 5 bell 6 pedal crank 7 steering/control set 8 chain 9 lighting system
10 luggage carrier 11 hub and hub generator 12 chain protector ring 13 derailleur 14 brake lever 15 fork 16 brake lever 17 frame 18 wheels
19 seat 20 spokes 21 seat post 22 tires 23 seat support clamp (quick-
release lever) 24 fender guard
4.2 Frame
Woom-frame are made of high quality aluminum tubes that are optimized for keep balance easily. This is made possible by the frame structure allowing for an upright sitting position and the standard built-in steering limiter of the Woom 1, 2, 3.
In the event that your bike is stolen, and for insurance matters, you should make a note of the frame number. The frame
number clearly identifies your bicycle. You can find this number at the lower end of the seat tube (see picture).
Frame number:
Page 7
7
4.3 Steering System - Handlebar
The steering system consists of the handlebar, the handlebar stem, and the steering/control set. The steering set holds the fork in the frame, and allows for easy turning of the handlebars. It is exposed to heavy loads
during the ride, and therefore needs to fit properly. It must not have any play and must be able to turn easily.
The ahead-stem used for the Woombike is the connecting piece between the steering set and the handlebar. By loosening the Allen screw at the lower end of the stem of the handlebar you can adjust the handlebar at a right angle to the front wheel set. Make sure that the wheel is not installed the wrong way around, the brakes have to be located in front of the fork. The two Allen screws on the front
part of the stem allow the handlebar to turn on its own axis.
Make sure that the Allen screws are not stripped or tightened too much. Tighten screw by screw carefully and slowly at
first, then tighten them with the correct torque (see section 8.2).
4.4 Fork
The bicycle fork holds the front wheel and thus has an important function, which is important for the safety of your child. The elaborately crafted Unicrown-fork made of chrome-molybdenum steel ensures the required degree of shock absorbing for your Woombike, thanks to the material properties.
If you see any damage, bending or cracks on the frame or the fork, never let your child continue riding, and do not repair any of these components yourself.

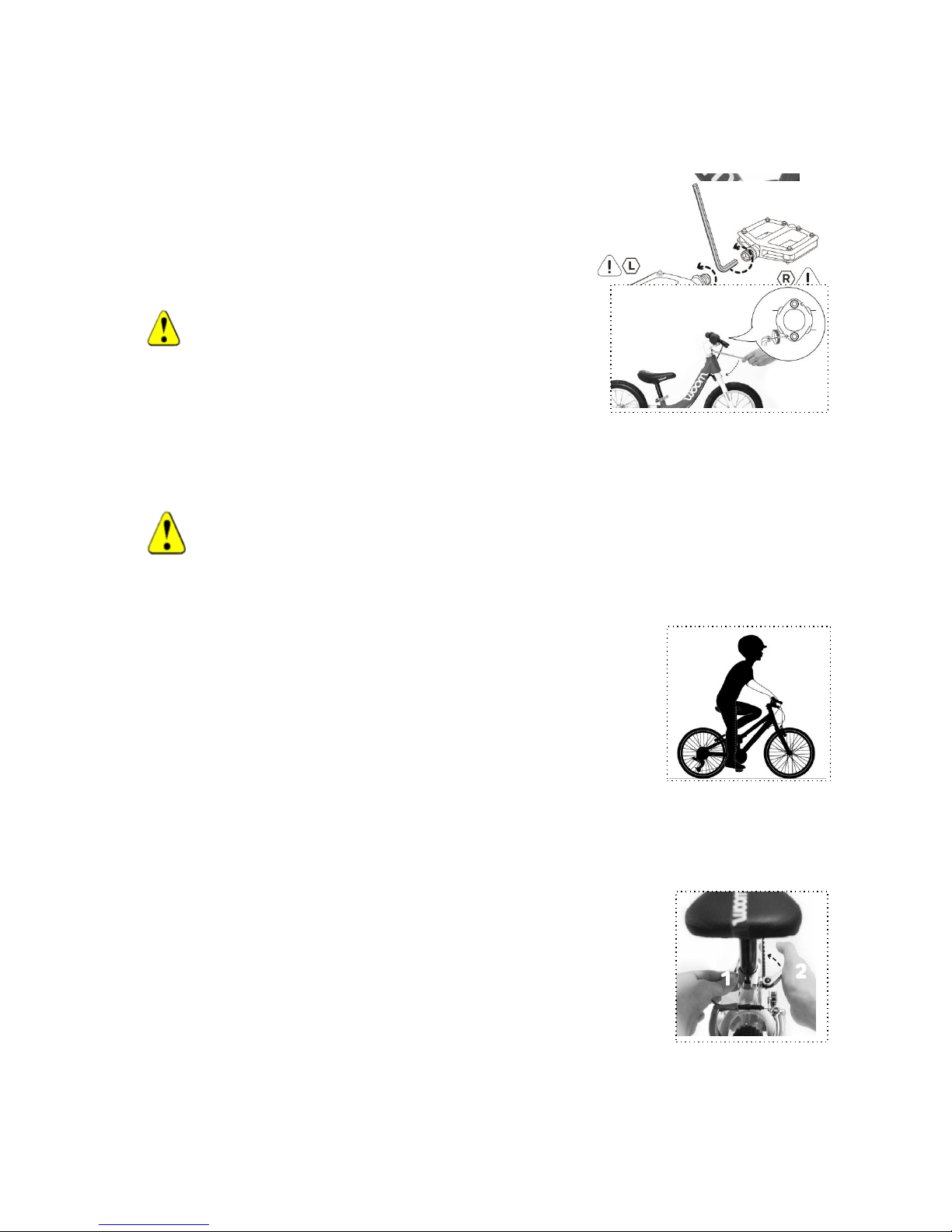

4.5 Seat and Sitting Position
When the child is sitting on the seat, she/he should be able to touch the ground with both feet and stand in a stable position.
The picture shows the seating position of a more advanced cyclist. In this bicycling position, the seat is set so high that the leg is almost stretched when the foot touches the pedal in the lowest position.
In this seat position, the child should have already learned how to get on and off the seat. There are two seat settings or adjustments:
Height: To set the height, use the quick-release lever. Note the minimum insertion depth of the seat into the frame tube. Horizontal change: By loosening the two screws, you can move the seat along the rails to the rear and to the front. (Woom
4, 5, 6)
4.6 Using the Quick-Release Lever
The quick release consists of two parts, the adjusting nut (1) and the clamping lever (2). Opening: Turn the clamping lever to the limit stop, so that you can see the inner side of the lever.
To loosen the quick-release device even more, turn the adjustment nut counter-clockwise. Closing: With open clamping lever in one hand, turn the adjusting nut in a clockwise direction
while holding the clamping lever with the other hand. Now tighten the nut. Then turn the clamping lever using the palm of your hand in a manner that you can see the outer side of the lever.
Page 8
8

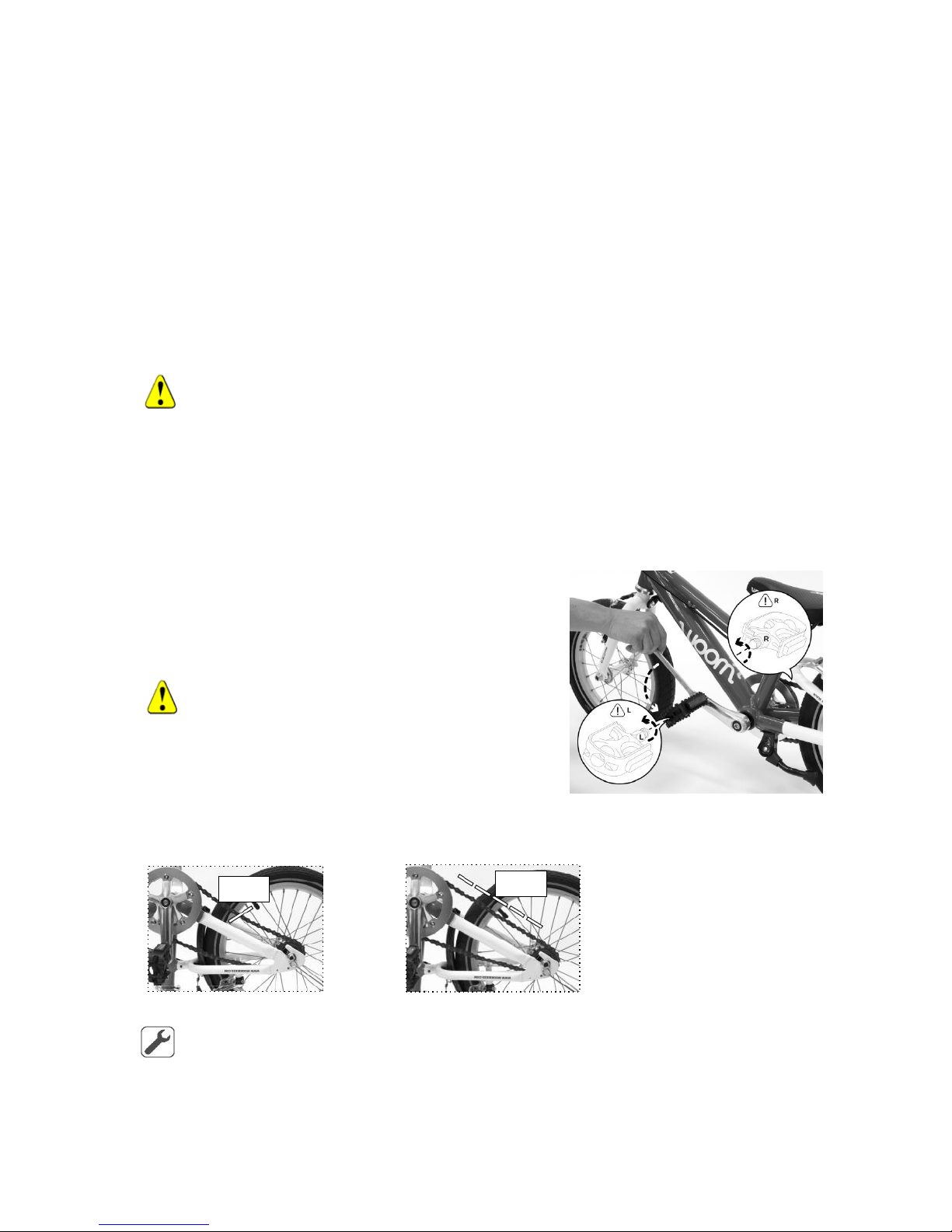

4.7 Pedals
The two pedals are marked with an L or an R at the screw retained end. The pedal marked with R needs to be screwed into the right crank, and then tightened clockwise. The same needs to be done with the other pedal on the opposite side of the crank, which has to be tightened counter-clockwise.
In the case of a Supra, assembling is accomplished with the help of an Allen key (see picture). Make sure that the right pedal is mounted on the right side.
4.8 Pedal Cranks and Bearings
Cranks connect the pedals to the bottom bracket, and enable the drive through the interaction of these components when you ride a bicycle.
Pedal cranks may become loose, therefore the correct positioning of the crank should be checked on a regular
basis. Hold both crank arms with both hands and move the crank back and forth. If you find out that they wobble, this is means there is some damage. Even bottom brackets may wear out after a certain period of time. If you hear a cracking noise in the bottom bracket, have the bottom bracket repaired by a specialist, and have the ball bearings
replaced as well.
4.9 Derailleur
For the Woombikes 4,5,6, we use a high-quality 8-speed micro-shift rotational handle as the gear shift. You can change gears with it. After some time of using it, an adjustment might be necessary.
Derailleur
The Woombikes 4, 5, 6 use a high-quality derailleur, the Microshift RD­M45S. Normally, the setting of the derailleur has already been done before
delivery.
If there are any problems with the gears due to an accident or
another occurrence, we’ll ask you to take the wheel either to a
specialist, or to repair it yourself in case you are skilled enough to do some repairs using the SRAM product manual.
4.10 Bicycle Chain
The bike chain is subject to heavy strain, and therefore has to have a certain tension. If the chain is hanging loose or there is a creaking in the bottom bracket bearing due to too much tension, tension can be optimized by means of horizontal moving of the rear wheel. (see image on the following page)
The chain must be regularly cleaned and greased. Clean the chain first by using an oily piece of cloth, and then oil the clean chain with a suitable lubricant.
No
Yes
Page 9
9

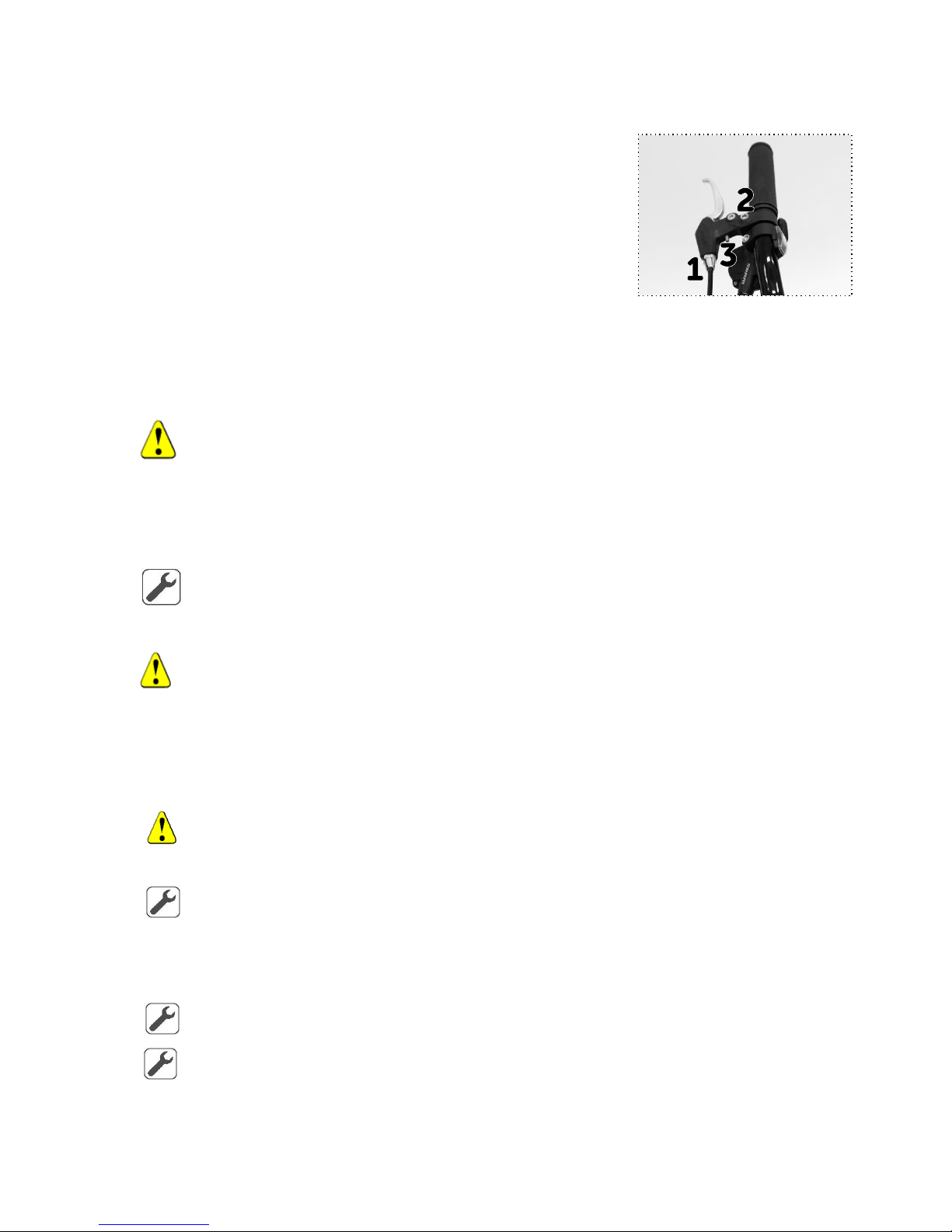

4.11 Brakes and Brake Lever
With the Woombike, the front brake is controlled by the left brake, the rear brake by the right brake.
1. Adjustment screw brake cable
2. Mounting screw
3. Adjusting screw handle width Some time after starting to use the brake and its regular use, you will notice some
stretching of the brake cable. The adjustment screw serves the purpose of minimal adjustment.
Setting the range of the brake handle
With the help of the adjusting screw that goes into the brake lever, the handle range can be adjusted. If required, the distance between the brake lever and the grip tap can be adjusted by using a Philips screwdriver.
Your Woombike is delivered with an suitable default spacing for the appropriate model. In the case of self­initiated changes make sure that there is enough space between the brake levers and the handlebar. The brake lever must not touch the handlebar grip, not even when used heavily. The brake lever should be adjusted in a way that your child can use the brake safely, without getting tired.
Set the correct angle of the brake lever by using the fixing screw. Turn the lever until the hand forms a straight line with the forearm.
Brakes
Check the brake pads regularly for their quality. Brake pads need to be replaced by new ones before reaching the wear mark. Both brake pads must be replaced at the same time.
Brake pads must not get in contact with oil or fat. Well working brake pads touch the outside of the rim, not the tires.
4.12 Wheels
The wheel has to sit firmly and centered in the frame or fork, and needs to rotate easily. Use the quick-release (Woom 4, 5 and 6) or a 5 mm Allen wrench + 17 mm spanner (Woom 1, 2 and 3) for fittings, to achieve the appropriate stability.
Rims are wear parts that are exposed to large loads. Deformed, cracked, or broken wheels must be replaced immediately.
Rims wear embossed markings for wear of rims. After a certain period of use, these will be visible. As soon as the markings show wear and tear, don't allow your child to ride the bike with this rim or wheel and have it replaced.
Spokes connect hubs with rims. They need to show a certain tension and have an influence on the straightness of a wheel. Check the tension of the spokes regularly.
On the side of the tire, You will find the minimum or maximum allowed air pressure for the tire. In addition, the dimension of the tire is marked. 50-403 means, for example, 50 mm tire width and 403 mm rim diameter.
Check the profile, the air pressure and the condition of the tires regularly. Replace worn-out tires immediately.
Woom exclusively uses car valves. If you should decide to use different kinds of valves during an inner tube
exchange, familiarize yourself with the right way handle those.
Page 10
10
4.13 Woom Citybike
The Woom Citybike is equipped with a high-quality hub generator. The road code compliant lighting at the front and rear has a side light for full visibility at traffic light stops. The light is also on at a standstill for a few minutes more. The front halogen headlight is corrosion-proof, impact-proof and provides the sophisticated reflector with an excellent light output. On the back of the front lamp, the On/Off switch is located. The LED back light provides improved rear and side visibility and is maintenance-free. The cables are installed in a weather-proof technique, in the fork, frame, as well as in the carrier.
Carrier
The carrier made of aluminum tube is compatible with conventional saddlebags, and also has a built-in clamping device and grommets for secure fastening of the straps.
Make sure that saddle bags are not attached in a way that straps and other parts get into the spokes. Note also that the maximum weight is 10 kg for the carrier load.
5 Care and Maintenance
Note maintenance information marked with the maintenance symbol maintenance in section 4, as well as the suggested inspection plan in section 7.
For cleaning the bike, we recommend warm water and a sponge. If you use protection and care products suitable for bicycles, pay attention to using them correctly, according to the manufacturer’s instructions.
Never clean the bike using acids, grease, hot oil, brake cleaner, or solvent-containing liquids. When riding in the
rain, clean and lubricate the gearshift, chain and brakes (except the brake surfaces!)
6 Quick Fixes
6.1 Tire Change
Front wheel:
✓ First, unfasten the brake of the front wheel. ✓ Pull off the cable connector of the hub Dynamo (if it exists). ✓ Then loosen the Allen screws located on both sides of the fork and take the front wheel off the fork. ✓ Installation is done in reverse steps.
Back wheel:
✓ Set the chain of the bike on the smallest sprocket. ✓ Loosen the brake cable from its guidance to be able to take the wheel off more easily. ✓ Loosen the Allen screws on the shaft and take the wheel out of the dropout.
Installation is as follows:
✓ Strain the chain on the sprocket and put the wheel in the dropout. ✓ Make sure that the wheel sits in the socket, and fasten the wheel with the Allen screws.

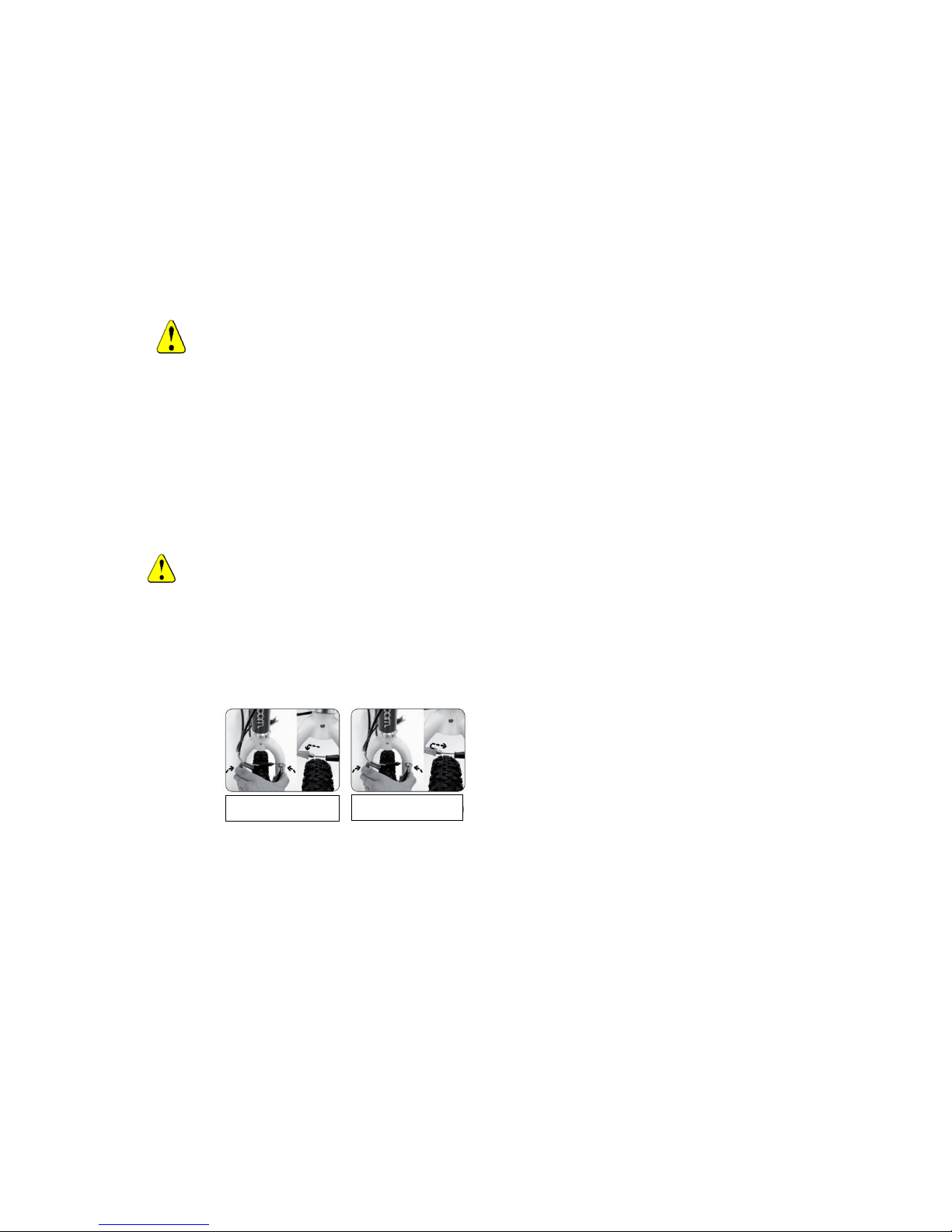

Attach Break
Detach Break
Page 11
11

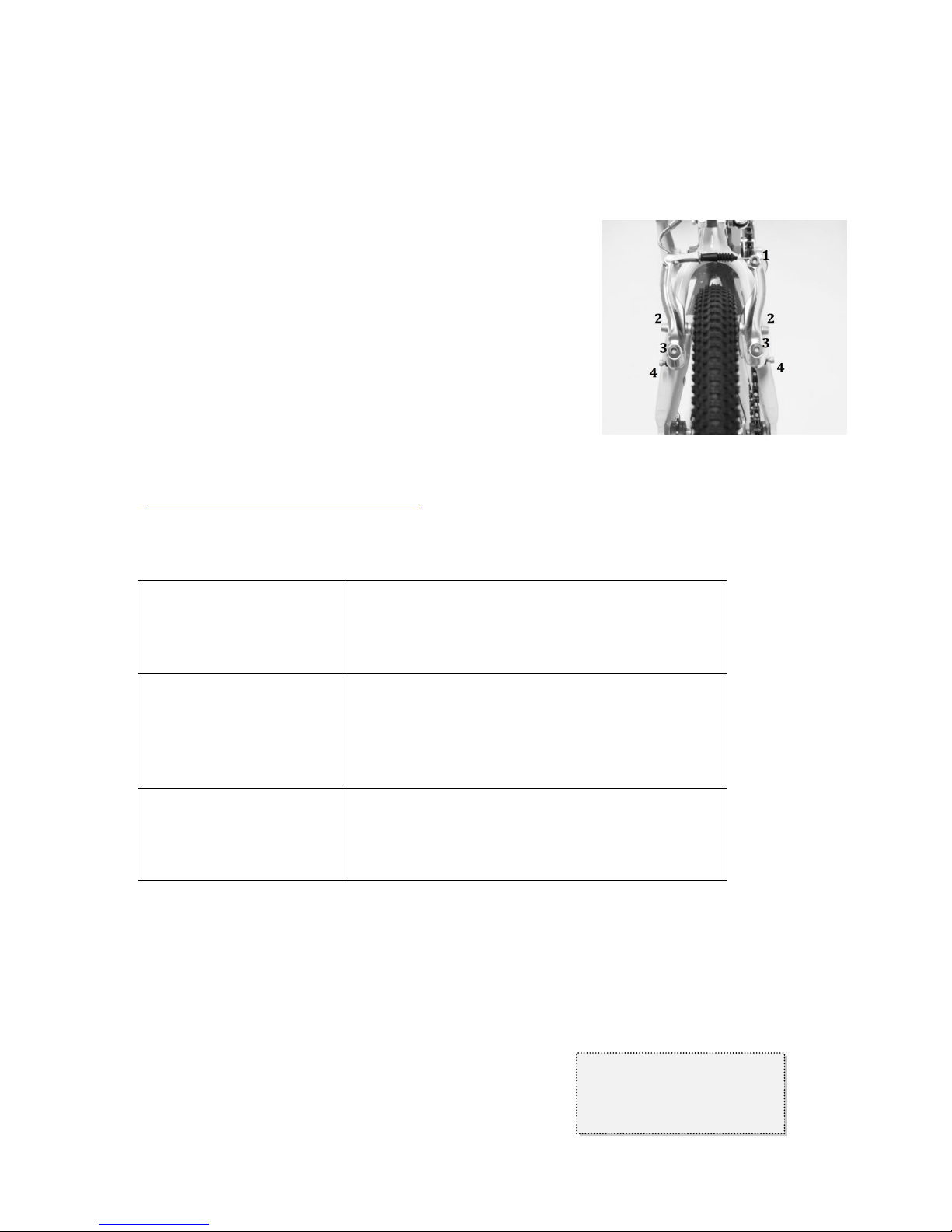

6.2 Brake is rubbing
The brakes are set and tested prior to shipping. If the brake shoes still rub on the rim loops, this can be easily fixed. In order to adjust the brakes, there are four different options as follows (see image). Due to the presetting of the brake, we recommend to carry out fine adjustments using the spring adjustment screw only (4):
1. Cable retainer screw: serves for the attachment of the cable. By loosening the screw the brake cable can
be shortened or lengthened.
2. Screw for adjusting the brake pads: With this screw, the brake
pads and the 3 positioning to the rim can be moved and set.
3. Screws for anchoring with the fork: to secure the brake arms to
the fork.
4. Spring adjustment screw: fine adjustment of the distance of the
brake pads and the rim. The smaller the distance, the better the brake performance and response time.
When adjusting the brake, we recommend turning the wheel after each modification and checking the braking effect and performance.
In addition to the four bolts on the brake itself, there is still the possibility of changing the tension of the brake cable with the help of the adjustment screw for brake cable (also see 4.11). If you would like to know more to set the brake, have a look at the following:
https://www.youtube.com/watch?v=kQT7OLkB5VI
6.3 Other Common Problems
The chain is rubbing
First, try to lubricate the chain; should the problem continue, adjust the chain-thrower and the derailleur correctly, or take it to a specialist.
The wheel is “wobbling”
A light "wobbling" is common for new bicycles, this is just the sidewall, and after a few km of riding, it disappears automatically.
If the wobbling is too much and the brakes are touched, you should take the wheel in for repair.
Unusual sounds while riding
Make sure the chain is sufficiently lubricated, and is not stretched too tightly.
Again, tighten the screw at the bottom bracket bearing, at the handlebar stem, and the steering screws.
7 Inspection Plan
Regular thorough inspections of the Woombikes by a skilled expert are extremely important for the safety of your child. For this reason, we urgently recommend the following inspection schedule:
✔ After riding 200 km (140miles), and at least once in a year, have the tires and wheels checked for being undamaged and being in proper condition. Adjust the tension of the brake cable, because it can expand after riding the new bike. Have the gearshift adjusted, as well as the tightening torques on handlebars, steering system, cranks, pedals, seat, seat post, and all mounting screws.
Note the information "Before the First and Before Every Ride" in section 3 on the tasks to be performed before each ride.
Page 12
12
✔ After 300 to 500 km (200 to 300 miles) have the brake pads, bicycle chain, pinion, sprocket and rims checked for wear, and also check the tightness of all fittings.
✔ Every 1000 km (700 miles) an expert should disassemble, inspect, clean, lubricate and, if necessary, replace the following components: hubs, pedals, steering system, brakes, gear shift.
8 Technical Data
8.1 Weights and Geometry Data
You can find the net weight and the geometry data for all bikes on our website www.woombikes.com by clicking on the desired bike and then scrolling down.
8.2 Tightening Torque
Whenever possible, meet the following recommended maximum tightening torque values when adjusting the bike components:
screw connection
tightening
torque
screw connection
tightening torque
Pedal
30 Nm
stem on handlebar
5 Nm
For
Carbon:
5 Nm
wheel nuts, front
25 Nm
seat post on frame
10 Nm
For Carbon:
5 Nm
wheel nuts, back
40 Nm
clamp of brake cable
10 Nm
stem on fork
10 Nm
clamp of brake pad
10 Nm
pedal crank
40 Nm
Caution! If these specifications are extremely exceeded, some bike components might be damaged!
9 Environment and Disposal
While cleaning and taking care of your Woombikes be vigilant about the environment. Whenever possible, use biodegradable cleaning products. Be aware of not allowing cleansing products to get into the sewer system. Dispose of old chain lubricants properly in the appropriate waste disposal location. Tires and tubes are no residual or municipal waste and
must be disposed of at a recycling center. If you have no more use for your Woombike, or if you want to dispose of it, we’ll
take it back and offer free shipping.
10 Liability and Warranty, Guarantee
Satisfaction Guarantee
You buy a product from us, and if it's not what you expected, e.g. too big, too small, or you simply don't like it, send it back to us within 30 days - even if the bike has been used or ridden.
If you need a different size, you can get it from us free of charge. If you want to cancel the purchase, you’ll get a refund of the purchase price into your account.
Shipping and handling is on us. We grant a 60 months warranty on the entire bike including the frame and all mounting parts, needless to say, except wear
parts and crash damage. Send us the photo of the damage and we’ll help you quickly and hassle-free. If a part should break, due to a fall or similar actions, you’ll get the replacement part from us at cost price.
30 Days
Money Back
Guarantee
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
