Woodway PPS 43 Med-i, PPS 70 Plus, PPS 43 Med, PPS 55 Med-i, PPS 70 Med-i Operating Manual
...Page 1
Treadmill Ergometer
PPS Medical Series
PPS 43 Plus
PPS 55 Plus
PPS 70 Plus
PPS 43 Med
PPS 55 Med
PPS 70 Med
PPS 43 Med-i
PPS 55 Med-i
PPS 70 Med-i
PPS 43 Ortho
PPS 55 Ortho
PPS 70 Ortho
Translation of the original German Operating Manual
Edition: 10/2017-v1.3en
Page 2
0843
European Representative: Manufacturer:
WOODWAY GmbH
Steinackerstr. 20
79576 Weil am Rhein
Germany
WOODWAY USA, Inc.
W229 N591 Foster Ct.
Waukesha, WI 53186
USA
Tel.: +49 (0) 7621 - 940 999 - 0
Fax.: +49 (0) 7621 - 940 999 - 40
E-Mail: [email protected]
Web: www.woodway.de
Tel.: +1 262 - 548 - 6235
Sales:
Tel. +49 (0) 7621 - 940 999 - 10
E-Mail: [email protected]
Customer Service:
Tel. +49 (0) 7621 - 940 999 - 14
E-Mail: [email protected]
Page 3
Table of Contents
10/2017-v1.3en
3
1 Table of Contents
1
Table of Contents ..................................................................................... 3
2
Introduction ............................................................................................. 5
2.1
Operating Instructions Information ................................................ 5
2.2
Limitation of Liability .................................................................... 5
2.3
Copyright .................................................................................... 6
2.4
Replacement Parts ....................................................................... 6
2.5
Customer Service ......................................................................... 7
2.6
EC Declaration of Conformity ........................................................ 8
3
Safety ...................................................................................................... 9
3.1
General ....................................................................................... 9
3.2
Description of Warning Notices ..................................................... 9
3.3
Markings on Device .................................................................... 10
3.4
Personnel Qualifications and Responsibilities ................................ 12
3.5
Intended Use ............................................................................. 12
3.6
Unauthorized Modes of Operation ............................................... 14
3.7
Electromagnetic Compatibility (EMC) ........................................... 15
4
Technical Data ....................................................................................... 16
4.1
Name Plate ................................................................................ 16
4.2
RS-232 Interface ........................................................................ 16
4.3
Technical Specifications .............................................................. 17
5
Transportation and Storage ..................................................................... 18
5.1
Safety Notices for Transportation ................................................ 18
5.2
Flat Transportation ..................................................................... 18
5.3
Upright Transportation ............................................................... 18
5.4
Transportation with Carrying Poles .............................................. 19
5.5
Removing / Mounting Side Handrails ........................................... 20
5.6
Storing ...................................................................................... 24
6
Product Description ................................................................................ 25
6.1
Overview of Models .................................................................... 25
6.2
Equipment and Options .............................................................. 26
6.3
Main Components ...................................................................... 27
6.4
Description of Components ......................................................... 27
6.5
Control and Display Elements ...................................................... 29
6.6
Safety Equipment ....................................................................... 31
7
Commissioning ....................................................................................... 35
7.1
General ..................................................................................... 35
7.2
Installation ................................................................................ 35
7.3
Electrical Connection .................................................................. 38
7.4
Completion of Commissioning ..................................................... 39
8
Operation .............................................................................................. 40
8.1
Area of Application for Endurance Training ................................... 40
8.2
Application Possibilities for Children ............................................. 41
8.3
Before Each Use......................................................................... 41
8.4
Switching Device On/Off ............................................................. 42
8.5
Using the Keypad ....................................................................... 44
8.6
Operating the Data Monitor (DaMo) ............................................. 45
8.7
Operation with Woodway User System (WUS) .............................. 47
8.7.1 Manual Operation ............................................................ 48
8.7.2 Start Program .................................................................. 49
8.7.3 Edit Program ................................................................... 50
8.7.4 Create Program ............................................................... 52
8.7.5 Pulse Control ................................................................... 52
8.7.6 Edit/Show Parameters ...................................................... 54
Page 4
Table of Contents
4
10/2017-v1.3en
8.8
Adjustment of Bar Rails .............................................................. 55
8.9
Reversing the Direction .............................................................. 56
8.10 Body Weight Support Systems .................................................... 57
9
Options and Accessories ......................................................................... 58
9.1
Order Numbers .......................................................................... 58
9.2
Video Railing for PPS Ortho ......................................................... 59
9.3
Mounting Aid ............................................................................. 60
9.4
POLAR Heart Rate Measurement ................................................. 61
9.5
USB to Serial Converter .............................................................. 62
9.6
Interface Wire ........................................................................... 63
10 Maintenance and Cleaning ...................................................................... 64
10.1 Cleaning .................................................................................... 64
10.2 Maintenance Intervals ................................................................ 65
10.3 Technical Safety Checks (TSC) .................................................... 68
10.4 Disabling the Treadmill ............................................................... 71
10.5 Device Fuses ............................................................................. 73
11 Troubleshooting ..................................................................................... 74
11.1 Unusual Noises .......................................................................... 74
11.2 No Display ................................................................................. 75
11.3 Belt does not move .................................................................... 75
11.4 Free Moving Running Surface Belt ............................................... 75
11.5 Faulty or Flashing Display ........................................................... 75
11.6 Serial RS-232 Interface ............................................................... 76
11.7 Electrostatic Discharge ............................................................... 76
11.8 Sources of Electromagnetic Interference ...................................... 76
11.9 Interference of the POLAR Heart Rate Monitor ............................. 76
12 Disposal ................................................................................................. 77
13 Instruction Record .................................................................................. 78
14 Table of Figures ..................................................................................... 81
Page 5
Introduction
10/2017-v1.3en
5
2 Introduction
2.1 Operating Instructions Information
This manual provides information on the safe operation of the WOODWAY slat-belt
treadmill.
One condition for safe operation is compliance with all safety and operating instructions.
CAUTION
Improper operation can cause accidents!
Not using the slat-belt treadmill as intended according to the manufacturer's
instructions can cause accidents and equipment damage.
► These operating instructions must be completely read and understood
before using the treadmill.
► Keep these instructions close at hand for all users of the device.
Read and observe the operating instructions!
Read these instructions carefully before beginning any work on
the treadmill! It is a part of the device and must be kept
accessible at all times and in the immediate vicinity of the
treadmill for operating and maintenance personnel.
WOODWAY GmbH accepts no liability for accidents, equipment damage and
consequences of equipment failure that are a result of failure to follow the
operating instructions. In addition, the local accident prevention regulations and
general safety conditions for intended use of the treadmill apply.
The manufacturer reserves the right to make technical changes in the context of
improving the performance properties and further development without prior notice.
Illustrations are for basic understanding and may differ from the actual design of
the device.
Accessories from other suppliers have further safety regulations and guidelines.
These must also be observed.
2.2 Limitation of Liability
All information and instructions in this manual have been compiled in accordance
with applicable standards and regulations, the current state of technology and our
knowledge and experience.
WOODWAY GmbH accepts no responsibility for damages resulting from:
• disregarding the operating instructions
• improper use
• use by non-authorized persons
• use of replacement parts which were not approved by WOODWAY GmbH.
• unauthorized modifications to the device or accessories.
The WOODWAY GmbH general terms and conditions and delivery conditions apply,
as well as the legal regulations valid at the time of contract conclusion.
Observe the
instructions!
Page 6
Introduction
6
10/2017-v1.3en
2.3 Copyright
The release of the operating instructions to third parties without the written permission of WOODWAY GmbH is prohibited.
NOTE
All contents, text, drawings, images or other illustrations are copyright
protected and are subject to intellectual property rights.
Any misuse is punishable by law!
Duplication in any manner and form - including excerpts - as well as use and/or
communication of the content are not permitted without written permission from
WOODWAY GmbH.
2.4 Replacement Parts
WOODWAY GmbH recommends the use original replacement parts. Original replacement parts have particular qualities and ensure reliable and safe operation;
• development for specific use with the device,
• manufacture in high quality and excellence,
• ensuring the legal warranty period
(excluding wear parts) or other reached agreements.
NOTE
The use of NON-original replacement parts may change the characteristics of
the device and interfere with the safe use!
WOODWAY GmbH does not accept liability for damages resulting from this.
Wear parts are considered hazardous waste!
After being replaced wear parts must be disposed of according to country-specific
waste laws.
For further information on disposal, see section 12 page 77.
Disposal!
Page 7
Introduction
10/2017-v1.3en
7
2.5 Customer Service
For service questions, please contact as follows:
WOODWAY GmbH
Steinackerstr. 20
79576 Weil am Rhein
GERMANY
Tel. +49 (0) 7621 - 940 999 - 14
Fax. +49 (0) 7621 - 940 999 - 40
Email: [email protected]
For faster processing of your request please have the following data and information available:
• Information on the nameplate (specific model/serial number)
• An accurate description of the circumstances
• What action has already been taken
When servicing on site the device must be disconnected from the power supply by a
qualified electrician so that the device cannot switch on accidentally.
The address of your local service center can be obtained from the manufacturer. After repair or re-commissioning, the actions listed under "Installation" and "Commissioning" are to be performed as during commissioning.
Contact:
Servicing:
Page 8
Introduction
8
10/2017-v1.3en

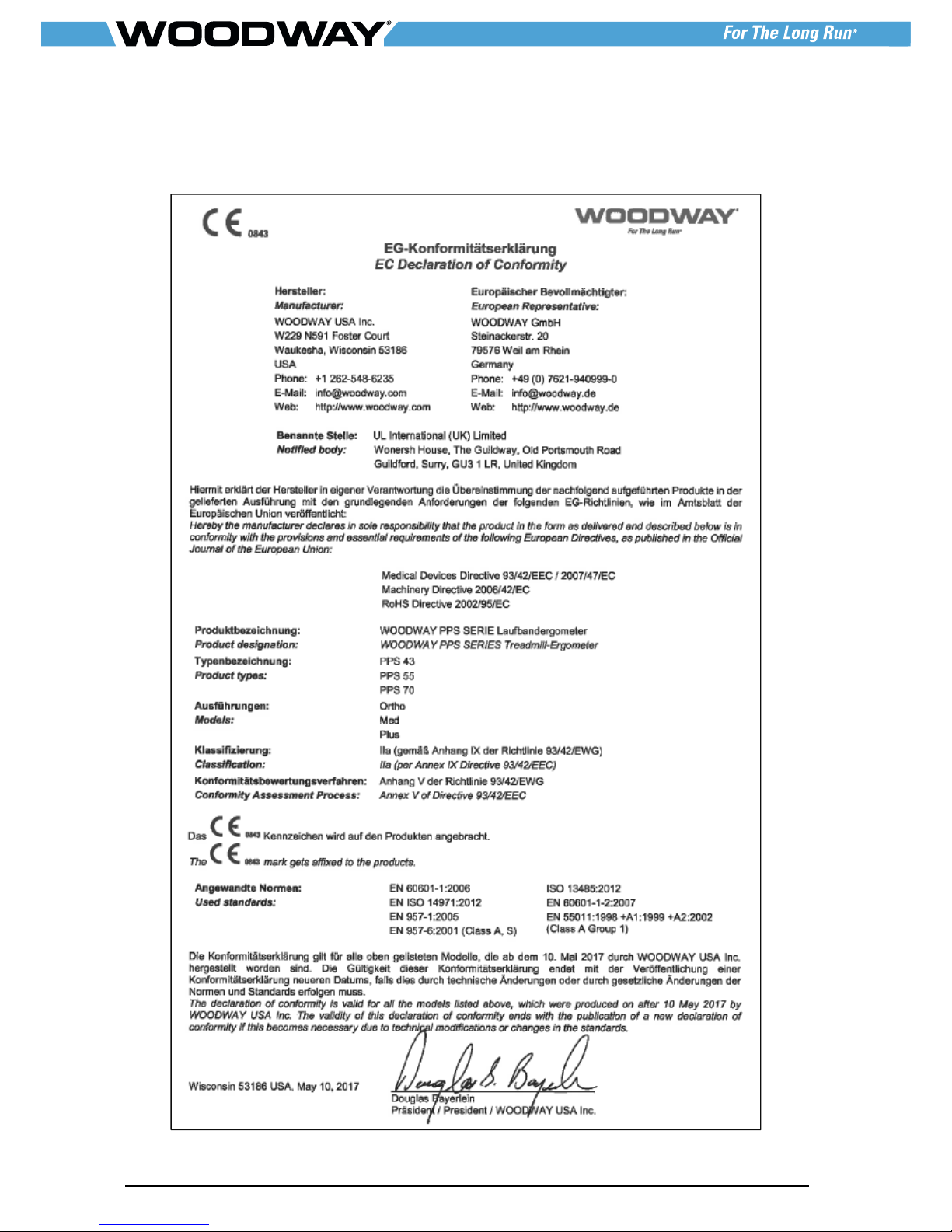

2.6 EC Declaration of Conformity
Fig. 1 CE Declaration of Conformity
Page 9
Safety
10/2017-v1.3en
9
3 Safety
3.1 General
PPS series treadmills have been reliably designed, manufactured and tested according to the latest state of technology and are in a safe and technically perfect condition. Nevertheless, the device can cause risk to persons and property if it is
operated improperly.
For this reason the operating instructions should be read completely and safety instructions must be observed.
Warnings attached directly to the device must be observed and kept in a legible
condition.
Inappropriate use will result in the rejection of any liability or guarantee by
WOODWAY GmbH.
3.2 Description of Warning Notices
Warning notices indicate potential hazards or safety risks. They are indicated in this
manual by a color-coded signal word panel (symbol with the appropriate signal
word).
All warning notices have the same design and the same standardized content design.
Sample of a Warning Notice:
SIGNAL WORD
Warning Text, Type and Source of Danger
Description of the consequences of ignoring the danger.
► Measures, instructions and forbidden actions to avoid the hazard.
Classification:
NOTE
NOTE or WARNING (no danger symbol)
No risk of injury, pertinent information and warning
against material damage.
CAUTION
CAUTION (with danger symbol)
Slight possibility of injury.
WARNING
WARNING (with danger symbol)
In a dangerous situation a serious accident is possible
with the possibility of injury or death.
DANGER
DANGER (with danger symbol)
In the event of an accident immediate danger of
death or serious injury.
Page 10
Safety
10
10/2017-v1.3en
3.3 Markings on Device
Safety relevant information is identified on the device using the following symbols:
Refer to instruction manual
0843
CE label according to Directive 93/42/EEC of the
Council for Medical Products
Manufacturer
WOODWAY USA, Inc.
European Representative
WOODWAY GmbH
Year of construction
Serial number
Used part of type B
O l
Mains switch (OFF/ON)
Protective Ground Wire Connection
PPS series devices are electrical devices with protection
class I.
Danger Due to Electric Voltage
This symbol warns the user of dangerous voltage inside
the device.
Danger of Being Crushed
This symbol warns the user of potentially being crushed.
Page 11
Safety
10/2017-v1.3en
11
CAUTION!
- To reduce the risk of fire, replace only with same type
and rating of fuse. Disconnect power before replacing
fuse.
WARNING!
- Disconnect from supply circuit before opening.
WARNING!
- Remove E-STOP lanyard when not in use and store out
of reach of children.
CAUTION!
- Risk of injuries to persons. To avoid injury, stand on
side rails before starting treadmill. Read instructions
before using.
Emergency stop
Indicates emergency stop button (mushroom type)
Grounding
Indicates operational ground connections inside the
device.
Potential Equalization
For the connection of a potential equalization cable
This symbol is used to label electrical and electronic devices
that must not be disposed of together with normal,
unseparated household waste but must be treated
separately.
The disposal must aim to avoid problems caused by heavy
metals, flame retardants and with the respective waste
management.
Please contact an authorised representative of the
manufacturer for information about the disposal of your
device.
Page 12
Safety
12
10/2017-v1.3en
3.4 Personnel Qualifications and Responsibilities
WARNING
Danger Due to Improper Use!
Improper handling of the device can lead to serious personal injury and
property damage.
► The device may only be operated by persons who have received
instructions from qualified service personnel.
► WOODWAY GmbH recommends the use of a training record
(see appendix) for proof of instructions.
The representative is the person or company that is responsible for setting up, use
and maintenance of the device.
The representative of the treadmill is responsible for the regular maintenance and
testing as required by law. They are also obligated to provide adequate training/instruction to the operating personnel. WOODWAY GmbH recommends the
training be carried out by trained and authorized WOODWAY dealer or service partner.
Operators of treadmills for medical applications are persons who use the device and
have the "power of control" over the device. This can be e.g. therapists, sports
physicians or any other supervisor. The operator of a medical device is any person
who - regardless of their qualifications - independently uses a medical product in
the commercial sector.
The operator is personally responsible for the safety of the user (e.g. patient, test
subject, athlete). Due to the high degree of responsibility these persons have a special obligation to provide information on all aspects of safety of the device and its
intended use is required.
3.5 Intended Use
WARNING
Danger from Improper Use!
Any improper use and/or other use of the device can lead to dangerous
situations with significant personal injury and/or property damage.
► Only use treadmill for its intended use.
► Read and strictly adhere to all information in the operating instructions.
PPS series treadmills for use in medicine are approved for the following applications:
• Endurance Training
• Diagnostics and Performance Testing of Patients in the Laboratory
(e.g. Ergospirometry)
• Performance Diagnostics of Endurance
• Stress Testing (e.g. Exercise ECG)
• Gait Training and Gait Analysis
• Exercise Therapy/Rehabilitation Training in Rehabilitation
(Locomotion Therapy)
Representative:
Operator:
Page 13
Safety
10/2017-v1.3en
13
In all fields of use the treatment of patients with a variety of physical and/or mental
limitations is carried out (for example, gait impairments, limited reflexes, etc.).
Special attention must apply to these user groups. Compared to treadmill exercise
with healthy people the risk of injury is considerably higher with these users. Strict
adherence to and compliance with all safety instructions and operating information
is the highest priority.
The patient may only use the treadmill under the supervision of a physician and/or
therapist! The training program must be medically prescribed and monitored.
For patients with an increased risk of falling, partial or complete body weight
support through a weight support system is to be considered.
WARNING
Risk of Injury Through Increased Risk of Falling!
Because of their illness or their physical/mental condition, certain people have
of an increased risk of falling.
► Use of a fall protection system, support belt, body weight support system
(partial or complete).
► The manufacturer is not liable for personal injury and/or property damage,
which could have been prevented through the use of a fall protection
system, support belt or body weight support system.
In rehabilitation, exercise therapy must be medically prescribed. The attending
physician and/or physiotherapist must have a sufficient knowledge of the indications
and contraindications.
The indications for treadmill therapy are to be reevaluated prior to each use. The
physician/physical therapist responsible for the patient must always perform a benefit/risk assessment, thus ensuring that the chosen form of treatment is medically
appropriate and reasonable considering the possible risks.
There are a number of contraindications in the context of the relevant fields of the
treadmill use. In rehabilitation only the medical staff can determine the form and
extent of therapy. Medications can have an influence on the rehabilitation
(e.g. neuroleptics, benzodiazepines, barbiturates, antiepileptics, etc.).
For applications in "endurance training", "diagnostics and performance testing of
patients", "performance diagnostics" and "stress tests" the same contraindications
apply (among others) as with all physical stress. If there is doubt, it is important
that a physician be consulted before using the treadmill.
Possible contraindications are:
• acute myocardial infarction or unstable angina pectoris (stress test)
• cardiovascular diseases such as severe high blood pressure at rest, carditis,
congestive heart failure, severe valvular heart disease, dangerous heart arrhythmias at rest or aortic aneurysm
Acute illnesses, febrile conditions and newly occurring pain represent an absolute
contraindication for physical stress. The feasibility of a training program for patients
with chronic illnesses cannot be decided a priori and requires an accurate assessment of the risks and potential benefits.
In some situations (especially in patients with coronary heart disease or lung disease) overstraining can lead to an acute intensification of the patient's symptoms,
so that an exercise ECG is essential and training is only possible under medical supervision.
Special User Groups!
Body Weight
Support!
Locomotion
Therapy:
Contraindications!
Page 14
Safety
14
10/2017-v1.3en
In the following cases treadmill training may only be carried out after consultation
with a doctor:
• Pregnancy
• acute thrombosis
• fresh wounds (e.g. after surgery)
• artificial joints or prosthetics
• bone fractures
• spinal disc damage
• traumatic injury to the spine
• diabetes
• epilepsy
• inflammation
• acute migraine headache
• cancer
The use of the automated operation (pulse automatic, preset programs, external
control via computer or other device) is prohibited, unless the strain was authorized
by a physician in accordance with the patient's capacity/health.
NOTE
Claims to the manufacturer of any kind due to damage from improper use are
excluded.
The representative alone is liable for all damages resulting from improper use!
3.6 Unauthorized Modes of Operation
PPS series treadmills may only be used for the aforementioned purpose. Any additional uses may result in serious personal injury and/or property damage.
The following restrictions and prohibitions must be strictly adhered to:
• The treadmill may not be used without prior instruction by qualified personnel.
• Animals and children may not use or be in the vicinity of the device (exception:
see "Application Options for Children").
• The use of the treadmill under the influence of alcohol or drugs and/or narcot-
ics is prohibited.
• The transportation of objects on the treadmill is not allowed.
• The walking surface is not suited for the use of running shoes with spikes or
studs.
• It is forbidden to use the treadmill without its side rails or with walking poles.
• The operation of WOODWAY slat-belt treadmills outside of the named ambient
conditions in the section "Commissioning" (temperature, humidity, air pressure) as well as outdoors, i.e. outside of closed rooms is not allowed.
• For people with health limitations or contraindications (see previous section)
the use of a treadmill without prior consultation by a health care professional is
prohibited.
• When stepping onto the treadmill, during walking exercises and when stepping
off of the treadmill the safety instructions in this manual must be observed.
Here, the following restrictions apply:
- Never jump on the moving belt!
- Never jump off while the device is moving!
- Never jump off of the front!
- Never stop walking when the belt is moving!
- Never turn around when the belt is moving!
- Never walk sideways or backwards (even if authorized by a physician)!
- Never set the stress level (speed) too high!
Page 15
Safety
10/2017-v1.3en
15
3.7 Electromagnetic Compatibility (EMC)
It is expressly noted that ELECTRICAL MEDICAL EQUIPMENT is subject to special
precautions regarding electromagnetic compatibility (EMC). They must be installed
and operated accordingly.
The PPS series treadmills meet the requirements of EN 60601-1-2:2001
(Group 1, CISPR 11 Class A), EN 61000-3-2 and EN 61000-3-3.
It should be noted that portable and mobile RF communications equipment and
other devices with interference beyond the permissible values can affect the electronics of the treadmill. This can influence the measurement functions and the displays cause treadmill malfunctions.
ATTENTION
The device is intended solely for use by medical professionals. The treadmill is
a Class A device according to CISPR 11.
When located in living areas, the device can cause radio interference or
disrupt the operation of equipment in the vicinity. It may be necessary to take
appropriate remedial measures, such as changing the direction, realigning or
shielding the treadmill or filtering the connection to the location.
Detailed information and proof relating to electromagnetic compatibility can be
viewed at the manufacturer on request.
Page 16
Technical Data
16
10/2017-v1.3en
4 Technical Data
4.1 Name Plate
The nameplate contains the device's main technical details.
For service questions, the technical information on the nameplate must be kept
handy.
Fig. 2 Nameplate, sample
1. Manufacturer name and address
2. European Representative
3. Indication of the maximum person weight load
4. This symbol is used to label electrical and electronic devices that must not
be disposed of together with normal, unseparated household waste.
5. Information on the electrical connection
6. Treadmill serial number; for WOODWAY Customer Service inquiries keep
the device serial number handy.
7. Model no. and product code
8. CE marking of the device (with number of the named position)
9. Note to read and observe the operating instructions!
10. Electric device with type B application part, degree of protection against
electric shock
11. Year manufactured
4.2 RS-232 Interface
The treadmill's RS-232 interface may only be used for approved medical devices!
Keep handy for
questions!
11
6
3
4
2
1
5
10
9
8
7
Page 17
Technical Data
10/2017-v1.3en
17
4.3 Technical Specifications
Device designation:
Model: PPS 43 Model: PPS 55 Model: PPS 70
Walking surface (L x W): 172 x 43 cm 172 x 55 cm 172 x 70 cm
Usable walking surface (L x W): 157 x 43 cm 157 x 55 cm 157 x 70 cm
Walking surface / Technology:
Walking surface hardness / Lateral play:
60 slats (replaceable) / Rubber on aluminum T-sections
43-47 Shore A / +/- 2 mm
Dimensions PPS frames (L x W x H): 172 x 78 x 31 cm 172 x 90 x 31 cm 172 x 105 x 31 cm
Overall dimensions (L x W x H): 184 x 94 x 150 cm 184 x 106 x 150 cm 184 x 121 x 150 cm
Weight *: 210 kg 230 kg 260 kg
Max. user weight (at max. 5 km/h): 180 kg (360 kg) 180 kg (360 kg) 180 kg (360 kg)
Walking surface above floor: 32 cm 32 cm 32 cm
Ambient conditions for storage and transport: Temperature: -10°C to +70°C
Relative humidity: 15 - 85% (not condensed)
Air pressure: 400 - 1060hPa
Ambient conditions for operation: Temperature: +10°C to +40°C
Relative humidity: 15 - 85% (not condensed)
Air pressure: 700 - 1060hPa
RS-232-interface: Yes, standard Yes, standard Yes, standard
Interface cable: Shielded null modem cable, maximum length 5m
Pulse measurement: 1-channel ECG accurate, chest strap Polar T34 included in scope of delivery
PC-Software: WOODWAY treadmill control software Vers. 3.0 in scope of delivery
Fall protection with emergency stop **: optional
Modifications for pit/platform installation: on request
Power connection: Earthed plug in accordance with CEE 7/7 ("Schuko plug" Type E + F) with
earth (PE conductor), rated voltage 230 V AC,
Rated current 16 A, 50/60 Hz Cord length: 2m
Fuse:
Supply: 16A type C („slow“), Device: 10A, 250V~, 20 x 5 mm, type C
(„slow“)
Classification***: Safety class I device, type B application part
Degree of protection against ingress of water: IP2X
Mode of operation: This device is designed for continuous operation.
Product life: 7 years
Drive motor: brushless DC motor, power 1500 W (maximum 4000 W)
Lift motor: DC motor, power 150 W
Power consumption: 1.1kVA 1.1kVA 1.1kVA
Speed ****:
Accuracy/ Resolution:
-10 ..+ 24 km/h
+/- 0.1 km/h
-10 ..+ 24 km/h
+/- 0.1 km/h
-10 .. +24 km/h
+/- 0.1 km/h
Tolerance: less than +/- 1%
Lift ****:
Accuracy/ Resolution:
reverse direction:
0 .. 25 %
+/- 0.1 %
0 .. 10 %
0 .. 25 %
+/- 0.1 %
0 .. 10 %
0 .. 25 %
+/- 0.1 %
0 .. 10 %
*
The total equipment weight can increase by adding more options (e.g. fall protection, railing variations depending on model etc.).
**
For performance tests, intense intervals or sprint training the runner's additional safety measures must be provided. In this case
WOODWAY strongly recommends the use of the all protection option with chest strap and emergency stop function to minimize the risk
of injury.
***
Classification according to EN 60601-1.
****
Up to 20 km / h and 20% available depending on the model. We reserve the right to make technical changes.
Page 18
Transportation and Storage
18
10/2017-v1.3en
5 Transportation and Storage
5.1 Safety Notices for Transportation
Check the treadmill for damage upon arrival. Also check and compare supplied accessories with the corresponding delivery note.
The manufacturer is not liable for damages and missing parts if this information was
not recorded in writing on the delivery note upon delivery of the unit. Damage or
defects must be reported to the carrier and to the responsible WOODWAY dealer
immediately.
WARNING
Risk of Injury by Machine Falling Over!
Improper transportation of the device may lead to it falling over and causing
injury or equipment damage.
► Only transport in compliance with the safety regulations.
► Carry the device with at least four persons.
► Ensure stable center of gravity and steadiness in all described modes of
transportation.
If necessary, treadmill transport or relocation can be carried out by authorized
WOODWAY service partners.
For further information please contact WOODWAY customer service.
5.2 Flat Transportation
The treadmill can be easily transported on a flat surface using of four flat transport
dollies (commercial transport dollies with 4 steerable wheels). In this situation the
high PPS series device weight must be considered.
It is important to ensure that the device frame near the treadmill feet rests on the
dollies. Otherwise there is a risk of damage to the walking surface or the lifting system.
5.3 Upright Transportation
For narrow transport routes it is possible to transport the treadmill vertically (for example, narrow door width or for climbing stairs).
For this handrails and side panels must be removed beforehand. If a transport dolly
is used, the device must not rest on the electronics side! The electronics are located
in the right side when facing in the walking direction!
When transporting in an upright position, the device must be additionally secured
against accidental tipping or rolling since the center gravity is not in the middle of
the device.
WOODWAY Service:
Page 19
Transportation and Storage
10/2017-v1.3en
19
5.4 Transportation with Carrying Poles
Four carrying poles (square steel pipes) are included as treadmill accessories. The
carrying poles can be inserted into the front and back openings provided in the
treadmill frame (Fig. 3 and Fig. 4).
Fig. 3 Carrying poles
1. Use of carrying poles, PPS Plus model
2. Use of carrying poles, PPS Med / PPS Ortho
The treadmill may only are lifted at the indicated points.
Fig. 4 Treadmill transportation with carrying poles
The side panels and railings can be removed to facilitate transport,
see Sec. 5.5 Page 20.
2
1
Page 20
Transportation and Storage
20
10/2017-v1.3en
5.5 Removing / Mounting Side Handrails
In most cases the WOODWAY is delivered completely assembled. In some cases
the conditions at the intended location do not allow for assembly free delivery
(doors, stairs, elevators, etc.) and the treadmill needs to be partially disassembled.
DANGER
Danger of Death by Electric Shock!
Fatal electrical shock may occur if the unit is not disconnected from the power
supply before assembly or disassembly.
► The device must be stopped, switched off and unplugged before being
worked on.
► Ensure the device cannot be switched back on.
► After the power is disconnected wait 10 minutes to ensure that live
electrical components (e.g. capacitors) have discharged.
Remove handrail:
Loosen the screws on both side panels (3 per side) with a Phillips screwdriver, Fig.
5.
On "plus" models the cutout for the railing is covered with an additional panel.
Loosen the fixing screws on the panels (2 per side).
Fig. 5 Side panel fixing screws (markings for only one side)
1. PPS Plus side panel fixing screws
2. PPS Med / Ortho side panel fixing screws
The drive and control electronics are located on the right side of the device as seen
from walking direction, Fig. 6.
To remove the metal cover (shield) loosen the four fixing screws.
Side panels:
Electronics
covering:
1
2
Page 21
Transportation and Storage
10/2017-v1.3en
21
Fig. 6 Remove electronics shielding panel
Disconnect cables from display cable, emergency stop cable and the earth. First
remove the cable ties that secure the wiring harness to the frame, Fig. 7.
Fig. 7 Fixing of the wiring harness to the frame
Ensure that the wires are not damaged!
Then loosen the nut of the grounded star point, and then remove the two
25-pin D-SUB plugs, each fixed with two small Phillips screws, Fig. 8.
Disconnect cables:
Page 22
Transportation and Storage
22
10/2017-v1.3en
Fig. 8 Treadmill controls (WLS)
Now carefully pull the harness through the hole below the toroidal transformer,
Fig. 9.
Fig. 9 Wiring harness layout
Remove the railing mount and the railing.
PPS Med or PPS Ortho: Loosen the upper fixing screw (M18) in the front and rear
with a 5 mm Allen wrench, Fig. 10.
Remove the (M18) fixing screw at the bottom with a 13 mm box wrench. The
screws engage small metal plates which are inserted into the railing stabilizer. After
the mounts are released on both sides of the railing, it can be removed from the
treadmill by spreading the railing slightly.
Removing the
railing mount:
Page 23
Transportation and Storage
10/2017-v1.3en
23
Fig. 10 Fixing bolts in railing mount PPS Ortho / PPS Med
PPS Plus: Loosen the base frame mount using a 17 mm box wrench (one bolt per
rail). The inner nut is secured by an additional counter nut. Pull the bar railings vertically out of the guide, Fig. 11.
Fig. 11 Fixing bolts in railing mount PPS Plus
Page 24
Transportation and Storage
24
10/2017-v1.3en
Mounting the railing
1. Mounting of the railing is carried in the opposite order.
2. The following points must be checked during mounting:
o Are all cables in good condition?
o Are all bolts tight?
o No other plugs have been accidentally pulled out.
o Are all plugs properly inserted and screwed tight?
o Are the wires fixed to the treadmill frame with wire ties?
3. Mount the side panels. Check the distance (gap) between the panel and the
walking surface belt. The panel must not come into contact with the walking
surface. Permissible gap size is 3 to 5 mm. Sizes > 5 mm are not allowed for
safety reasons. Let the treadmill run at about 0.5 km/h and check the clearances for at least one full revolution.
The walking surface belt play must not exceed 2mm.
4. Perform a function test. Special attention must be paid to the safety equipment.
The railing can be further disassembled using an Allen wrench. For this loosen the
individual railing mounting brackets. Ensure that the wires inside the device are not
damaged when working!
When transporting the railings the cables must be adequately protected!
Now the treadmill can be transported vertically. Always follow the safety instructions in the "Transportation and delivery!" section exactly.
5.6 Storing
The device may only be stored in closed, dry rooms. Direct contact with moisture
(rain, fog, etc.) can cause serious damage to the electronics of the treadmill and
must be strictly avoided.
The following environmental conditions are prescribed for transportation and storage:
• Temperature: -10°C to +70°C
• Relative humidity: 15 - 85% (not condensed)
• Air pressure: 400 - 1060hPa
Transportation
notes:
Page 25
Product Description
10/2017-v1.3en
25
6 Product Description
6.1 Overview of Models
WOODWAY slat-belt treadmills are available in the following walking surface
widths:
• 43 cm
• 55 cm
• 70 cm
Due to the fact that several options are available the devices can be individually
adapted.
Figure Description of models
The WOODWAY PPS Med / PPS Med-i series is the first choice
for use in hospitals around the world due to their long-standing and
proven use in the fields of medical diagnostics and therapy, therapy
clinics and rehabilitation centers.
Continuous development and optimization of product features, such
as continuous medical railings, offer the patient maximum support
and maximum safety in every situation.
The WOODWAY PPS Plus treadmill is the ideal device for patients
who require a higher level of assistance during therapy. The heightand width-adjustable wooden parallel rails are variably adjustable to
meet the individual needs of your patients. By reversing the
direction of travel and the using associated possibility of therapy at
an incline, the treadmill is suited for many specific training
methods. With your extensive functionality, PPS Plus range provides
maximum comfort and flexibility for use in therapy and diagnostics
The WOODWAY treadmill PPS Ortho was specifically developed
for the application of video-based analysis in orthopedics and
rehabilitation. Due to its open railing version, it offers ideal
conditions for gait and running analysis. By reversing the direction it
is possible to use two cameras to capture views from four
perspectives without having to change the position of the cameras.
The absence of a display (optionally available as an external option)
allows the patient to focus on the essentials and helps to reduce
external distractions during therapy or diagnosis to a minimum. The
control system functions via a serial interface and PC connection or
magnetic keyboard.
Page 26
Product Description
26
10/2017-v1.3en
6.2 Equipment and Options
WOODWAY slat-belt treadmills are available in the following walking surface
widths:
• 43 cm
• 55 cm
• 70 cm
Due to the fact that several options are available the devices can be individually
adapted.
Options: PPS 43/55/70 Med *) PPS 43/55/70 Ortho PPS 43/55/70 Plus
Speed 0-20 km/h
■
■
□
Speed 0-24 km/h
□ □
■
Incline 0-20%
■
□ x
Incline 0-25%
□ □
■
Display data monitor
■
□ x
Display WUS
□ □
■
Display as ext. version
□ □ □
Both sides. Standard railing
■
x x
Ortho railing
x
■
x
Parallel gas-assist bars
□ □
■
Reverse
x
■
■
Wheel chair ramp
□ □ □
Special color
□ □ □
Special design
□ □ □
Polar chest strap set
□ □ □
Protective floor mat
□ □ □
■
standard / □ option / x not available
*) the PPS Med model is structurally identical to the PPS Med-i model
(The PPS Med-i comes standard with WUS)
Page 27
Product Description
10/2017-v1.3en
27
6.3 Main Components
The main components are shown using the PPS Plus model:
Fig. 12 Device components, PPS Plus model
1. Parallel gas-assist bars, adjustable
2. Emergency stop button with magnetic mount (PPS Med, mounted to railing)
3. Display (WUS or DaMo)
4. Emergency stop magnet
5. Remote control (keypad with magnetic mount)
6. Lanyard (cord) with clip
7. Mains connection box: Fuses, power switch, RS-232 interface (depending on
model)
8. Walking surface belt
6.4 Description of Components
The patented walking surface consists of 60 slats which are mounted on a set of
endless combination wedged-toothed belts. These are connected with the drive via
a gear wheel. The teeth prevent slippage and allow for exact reproduction of the
distance.
The individual slats consist of two components. The base is a solid aluminum profile
and the tread rubber comprises a rubber-caoutchouc compound. The combination
provides for an exceptionally pleasant feel when walking.
The rubber surface significantly reduces the impact energy. Thus WOODWAY
treadmills are much easier on the joints than conventional treadmills.
Walking surface
belt:
7 6
5
2
3 4
8
1
Page 28
Product Description
28
10/2017-v1.3en
The support system consists of two supporting rails (secondary carrier), which are
equipped with high-performance bearings. Six V-belt guides on each carrier ensure
lateral stability.
The system which consists of a total of 112 ball bearings supports the running surface and distributes the load evenly over the entire treadmill. The running surface
belt (slats and steel wire reinforced toothed V-belt) is guided by a form-fitted drive
pulley on the front and back. The combination of running surface / secondary carrier / drive pulleys makes this slat system unique:
• Low friction (energy saving) and low wear
(approx. 240,000 km functional service life)
• 100% power transfer through the form-fitted toothed V-belt system
(Reproducible measurements)
• High service life (one running surface belt for one treadmill life)
The PPS series treadmills have lifting scissors with casters. This makes a maximum
incline of 25% possible (depends on model). The lifting system is driven by a linear
DC motor, which changes the angle of the scissors. This changes the incline of the
running belt.
The incline system is characterized by a very quiet operation. The system accuracy
is 0.1% and +/- 0.4 degrees.
The main power switch (power), the fuses and the terminals for optional controls
(manual keyboard and display) are located on the power console.
Fig. 13 Power console
1. Power cord
2. 2 x fuses, change see section 10.5 Page 73
3. Power switch
Support system
Lifting system:
(incline)
Power console:
2
3 1
Page 29
Product Description
10/2017-v1.3en
29
6.5 Control and Display Elements
The WOODWAY user system (WUS) is equipped with an LCD touch panel, which
provides convenient operation of all treadmill and program functions.
Creating your own training programs is also possible.
The 5'' Screen (diagonal 125mm) provides a clear display of current training information.
Fig. 14 WOODWAY User-System (WUS)
The WOODWAY data monitor (DaMo) display offers an alternative with reduced
functionality.
The following information is displayed with LEDs:
• current speed (in m/s or km/h) and the training time
• current incline in %
• pulse rate (heart rate)
• Distance (distance run since the last time the treadmill was switched on)
• Runner's energy consumption in calories
• Control mode (Remote control / manual control / stop mode)
Fig. 15 WOODWAY Data monitor (DaMo)
WOODWAY
User-System
WOODWAY Data
monitor
Page 30
Product Description
30
10/2017-v1.3en
The external WOODWAY user system (WUS), with emergency stop switch, is an
optional WUS display as a desktop unit for the supervisor (therapists, sports
physicians, or other supervisor).
The external WOODWAY user system is also available as a supplement to the PPS
Ortho.
Fig. 16 WOODWAY User-System (WUS) external with emergency stop switch
Keypad for PPS Ortho, or with spiral wire for PPS or PPS Med Plus.
The hand keyboard enables use of the treadmill's elementary functions:
• speed (+ / -)
• incline (↑ or ↓ )
• stop the treadmill
Fig. 17 WOODWAY keypad
WOODWAY
User system,
external
Keypad
Page 31
Product Description
10/2017-v1.3en
31
6.6 Safety Equipment
The medical PPC series treadmills are equipped with different safety equipment depending on model and design. When needed, they serve to prevent dangerous situations and to reduce the risk of injury to a minimum. The following safety
equipment is available:
• Emergency stop button(s) on the railing, or emergency stop button on display
• Emergency stop pull cord with magnetic switch (emergency stop rip cord with
magnetic switch) on the display or on the emergency stop button on the railing
• Fall protection (safety bow with fall-stop, optional)
• Non-slip coating on the side panels
(allows emergency dismount by "straddling")
WARNING
Dangerous Situations During Operation Which Can Cause Injury!
Conditions during use of the device that do not correspond to the normal
function and require an immediate stop. Each actuation of the Emergency
stop switch causes a power disconnection to the drive system which in turn
causes the running surface to emergency stop, which presents an additional
risk of falling!
► Immediate stopping of the device/drive caused by an installed safety
device.
► Switching off the device (Power button) and the pulling the power cord
from the socket.
► Clarification and elimination of causes of the dangerous situations only by
the WOODWAY Customer Service.
► Only restart the device after approval by WOODWAY customer service.
The emergency stop button (mushroom type) is mounted on the right hand railing
of all PPS series devices. Activating the emergency stop system causes immediate
power disconnection to the drive system. The running surface is stopped so that it
comes to a stop in a reasonably short time, but without causing further danger to
the runner by braking too suddenly (emergency stop). It is recommended that one
familiarize themselves with the treadmill's braking performance (emergency stop) at
various speeds.
Fig. 18 Emergency stop button, functions
1. Triggering the emergency stop function by pressing down the red mushroom
2. Releasing by firmly pulling the red mushroom up
Emergency stop
switch
2
1
Page 32
Product Description
32
10/2017-v1.3en
On treadmills with a reverse direction function, the emergency stop button has a
magnetic mount and can be freely positioned on the railing. Before starting a
workout ensure that the emergency stop button can always be reached by the runner or the treadmill operator.
Device users must always be positioned so that they can reach the emergency stop
switch in any situation.
Releasing:
After pressing the emergency stop button it initially remains locked. For further use
of the treadmill the button or mushroom must be released again. For this, pull the
red mushroom sharply upwards until the release can be heard and felt.
NOTE
Emergency stop release functions!
After releasing the emergency stop, the electronics are locked and the
treadmill cannot be used for 10 to 15 seconds.
It is only possible to restart after this time.
The emergency stop switch is a magnetic contact switch (open), which is attached
in the running direction on the display (WUS or DaMo) or on the railing ("Ortho"
model).
WARNING
Danger of Injury due to Improperly Installed Pull Cord!
If the pull cord is not installed properly before a workout, the emergency stop
magnetic switch will not be triggered and there is a risk of injury in the event
of a dangerous situation.
► The use of the pull cord is mandatory!
► Securely attached clip to tight clothing before starting the workout.
► Adjust the length of the pull cord with rope stopper to the shortest
possible setting, so that movement is still unrestricted.
It is attached by a magnet, and triggers at the release of the magnet. The magnet
is secured to the runner's clothing by a clip on a "rip line" or "pull cord". It should
be fixed to a piece of clothing with as little play as possible (e.g. waistband).
Pull cord with
Emergency stop
Page 33
Product Description
10/2017-v1.3en
33
Fig. 19 Emergency stop magnetic switch on the display
1. Clothing clip
2. Pull cord, adjustable length
3. Magnet
Fig. 20 Emergency stop magnetic switch on emergency stop button on railing
Depending on the model, the magnetic is either fixed in the position indicated on
the display (red box with yellow ring, see Fig. 19), or on the emergency stop button
on the railing (see Fig. 20).
WARNING
Danger of Injury due to Incorrectly Placed Emergency Stop Button!
For treadmills with reversible direction the position of the emergency stop
button should always be in running direction. Otherwise the magnet cannot
release correctly and the function of the safety device is only limited.
► Always position the emergency stop button in the patient's running
direction.
► If the running direction is reversed, the emergency stop button must be
repositioned (in front of the patient).
The pull cord is no fall protection and cannot prevent a person from falling on the
treadmill. It only serves as an emergency stop in dangerous situations. When the
magnet is released, the drive system is disconnection from the power and an emergency stop is initiated.
2
1
3
Page 34
Product Description
34
10/2017-v1.3en
Provided the device is equipped with fall protection with emergency stop and the
runner is secured by chest harness or waist strap, the clip must not be connected to
the runner. The magnet must still be attached to the indicated point so that the
treadmill is operational.
The optional fall protection system for the treadmill serves to prevent accidents. It
must be used if:
• there is an increased risk of falling
• falls are associated with a potentially increased risk of injury.
It also increases safety when running on the wide running surface (≥ 70 cm). For
most users a controlled dismount by a straddling and standing securely on the side
panels is not possible on these running surfaces.
There is an increased risk of falling for example during performance diagnostics as
well as intense sprinting and long runs. There is an increased risk of injury from falling, especially in rehabilitation where patients with various physical limitations use
the treadmill.
WOODWAY PPS Series treadmills have slip-resistant surface alongside the running
surface. This offers additional grip when dismounting and prevents the feet from
slipping off of the side panels.
The slip resistant surface should be checked periodically for wear or lack of grip and
replaced if necessary.
In emergencies dismount the treadmill as follows:
• jump and straddle the onto the side panels,
• now the running surface can run between the legs,
• then stop the treadmill using the normal stop button or the emergency stop
button.
When a safety waist strap/chest harness is worn, the user can also drop in an
emergency, if it is not possible to straddle the running surface.
An alternative is to stand on the side panel with both feet on one side of the running surface, right or left and to hold on to the railing. This will trigger the emergency stop mechanism via the pull cord and the running surface will come to a
controlled stop.
Chest harness or
waist strap
Fall protection with
emergency stop
Dismounting in
emergency
situations
Page 35
Commissioning
10/2017-v1.3en
35
7 Commissioning
7.1 General
Commissioning is the initial intended use of the device, see sec. 3.5 Page 12. Ensure that the conditions applicable to basic safety and health requirements are met.
Read these operating instructions completely before commissioning.
Before commissioning the device, operating and functional safety is to be tested.
This includes correct installation, electrical connection, and operator training.
ATTENTION
Commissioning after Storage or Transport
The formation of condensation on the cooled electronic parts may cause the
treadmill to malfunction and damage the electronics.
► Before commissioning after storage or transport the treadmill must stand
at room temperature for approx. 3 hours to become acclimatized.
7.2 Installation
It is recommended that transport, installation and assembly of the treadmill to be
carried out by WOODWAY or by an authorized dealer or service provider. Otherwise
shipping damage or improper installation and assembly of the treadmill could cause
a hazard when using the device.
ATTENTION
Prepare a Stable Surface
Before the device is installed the surface must be prepared. The total weight
of the device with all the accessories and options is to be considered.
► Prepare a stable and sturdy surface.
► Only install the device on a level, stable and sufficiently sturdy surface.
► If necessary install a stable surface / floor plate under the adjustable feet.
Page 36
Commissioning
36
10/2017-v1.3en
The following further instructions for installation are to be observed:
• When installed on upper floors, the device must be placed as far as possible in
a corner of the room so that sufficient stability is guaranteed, even at max.
speed. The structure of the building must be checked in advance.
• The treadmill should not be installed close to a radiator or other heat source.
This could cause technical defects.
• Due to the moving parts on the underside, the device must not be placed di-
rectly on thick carpeting. A mat must be placed under the device. This will prevent lint from entering into the treadmill and at the same time reduce carpet
wear. A floor protection mat can be obtained from your WOODWAY dealer
(see "Options and accessories)
• With larger PPS series devices particular attention must be paid to the ceil-
ing/floor load capacity at the installation site. This must be higher than the total weight (weight of the device plus the dynamic weight of a running person)
and approved by an authorized authority with the treadmill representative.
The total weight is calculated as follows
(for example the PPS 70 Med):
Frame 172 x 121 cm = 2.081 m2 floor space. Treadmill net weight: 260 kg,
weight of runner (static): 150 kg, weight of runner when running (dynamic):
600 kg (up to four times the body weight) Total weight on the floor space: 860
kg .The required capacity of the floor space in this case is 413.26 kilograms
(approx. 415 kg) per m2.
When using the treadmill, especially fast movements (fast running, etc.) there is an
increased risk of falling. For this reason an area behind the treadmill, a "safe fall
area" of at least 2.00 x 1.00 m must be kept free, see Fig. 21 Page 36.
No obstacles may be located in this area! Objects, such as Furniture, plants, training
materials, ladders or other objects may not be placed in this area.
Pay attention to the full room height in the safety area, sloping ceilings may not extend into the safety area.
For treadmills with the direction reverse, the safety area must also be provided in
front of the treadmill!
Failure to follow this basic safety rule may result in serious accidents!
Fig. 21 Safety area (safe fall area) behind the treadmill
Planning the
safe fall area:
Page 37
Commissioning
10/2017-v1.3en
37
After positioning the device at the installation site, adjust the horizontal height using
a level. The height of the four leveling feet can be adjusted.
Fig. 22 Adjusting leveling feet
• Loosen the counter nut with a 19 mm open-end wrench
• Turn the foot up or down until the desired height has been reached
• Retighten the counter nut
When making these adjustments it is important to ensure that the frame of the
treadmill does not twist. Lift frame of the treadmill to check for approximate equal
weight load.
The treadmill frame can deform slightly during transportation. This can be seen on
an even and level surface when the treadmill rocks slightly, or when one of the leveling feet does not touch the floor completely. In this case the treadmill can be realigned by applying the proper pressure on the railing.
Adjust leveling feet:
Page 38
Commissioning
38
10/2017-v1.3en
7.3 Electrical Connection
DANGER
Danger of Death by Electric Shock!
Improper handling of electrical equipment by unqualified persons can cause
fatal electrical shock.
► If necessary, allow only qualified personnel to perform electrical
installation.
► The power cord must not come into contact with hot surfaces or sharp
edges.
► Electrical parts such as motor, power cord and power switch must not
come in contact with water.
The WOODWAY treadmill comes standard with a grounded plug in accordance with
CEE 7/7 (grounded "Schuko" plug). An appropriate "Schuko" socket is to be used on
site.
Fig. 23 Power connection
1. Safety plug in accordance with CEE 7/7
2. „Schuko“ socket on site
A 16 amp safeguard (circuit breaker) with tripping characteristic C (slow) is to be
installed on site. No other devices may be connected to this supply line. Each
treadmill must be operated on its own circuit breaker. The treadmill must be
grounded.
Before connecting the treadmill to the power supply, the information on mains voltage and frequency on the nameplate are to be compared with the on-site connection values. Only connect the device if the values coincide! Power surges or voltage
drops can cause malfunctions or defects in the device!
WARNING
Danger of Injury by Falling when Switching the Device Off!
A complete shutdown of the unit caused by power surges or voltage dips can
cause abrupt deceleration of the running surface belt.
► In order to avoid malfunctions, all data on the nameplate must correspond
with the actual terminal values!
2
1
Page 39
Commissioning
10/2017-v1.3en
39
Ungrounded outlets may NOT be used! The use of power strips is not permitted!
WARNING
Danger of Injury by Tripping Over Wires!
Improperly installed wires represent a tripping hazard and danger of injury.
► Safe laying of power cords, interface cable, etc. outside of walking areas.
► The use of wiring channels.
7.4 Completion of Commissioning
Prior to starting operation, commissioning is to be completed with a trial run. During
the trial run all device functions are to be carried out and checked.
ATTENTION
Check Device!
After the trial run has been carried out, all bolted connections, couplings and
other connections are to be checked for tightness
Checklist for before starting operation:
• Check the sturdiness of the device,
• Check electrical connections,
• Protect all live components against touch,
• Safety equipment is intact and functional,
• Check emergency stop switch function,
• Check all control functions,
• Trial run without malfunctions
• Instructed operators.
Page 40
Operation
40
10/2017-v1.3en
8 Operation
WARNING
Danger Through Uncontrolled Running Surface Movement!
By stepping on the rear most part of the running surface where it is
rounded, the force of gravity can set the running surface in motion. There
is a danger of falling!
► The user must not step on the rounded part of the running surface
when mounting and dismounting!
8.1 Area of Application for Endurance Training
Medical PPS series slat-belt treadmills allow speeds of up to 24 km/h. It allows users
to reach their personal limits.
For intense sprints of about 20 km/h and prolonged high stress runs where the
runner is subject to increased fatigue/exhaustion, WOODWAY strongly recommends
the use of fall protection with fall stop.
For these and similar applications the risk of injury is very high without the use of
fall protection. The treadmill is used at one's own risk. The manufacturer is not liable for personal injury and/or property damage, which could have been prevented
through the use of a fall protection system.
The following points must be observed before starting a training program:
Approval from a medical professional is required before starting an intensive
training program. This applies especially if heart disease or overweight exists or the
user has not been active for some time. Excessive exercise and overload are to be
avoided!
Warm up sufficiently before each training session to avoid injury. Carry out
stretching exercises for the legs as necessary before and after exercise. Personal
injury or soreness can be prevented through moderate stretching after training.
For selecting the individual training intensity, it is important to determine one's own
heart or pulse rate. For this the use of a heart rate monitor is recommended. The
pulse can also be determined by placing the middle and index fingers together on
one side of the neck (a few centimeters outward from the larynx). Count the number of beats within a 15 second period and multiply by four to determine the beats
per Minute (BPM).
The maximum heart rate depends on internal and external factors. The rate can be
determined mathematically. To determine your maximum heart rate subtract your
age from the number 220.
[Approximate value, formula from the American Heart Association (AHA) and the American College of Sports Medicine (ACSM)]
The actual maximum heart rate is exactly determined by medical personnel carrying
out stress test.
During training it is recommended not to exceed a value of 85% of maximum heart
rate. The preinstalled training programs are designed so that the heart rate remains
within a desired range. The target heart rate should be between 60 and 75% of
maximum heart rate.
Using fall
protection!
Consult a doctor!
Warm-up and cool-
down
Determine heart
rate
Maximum heart rate
Page 41
Operation
10/2017-v1.3en
41
8.2 Application Possibilities for Children
Due to their design and operation, PPS series slat-belt treadmills are only for limited
use by children.
WARNING
Special Hazards Associated with Treadmill use by Children!
There is an increased risk of accidents through the use of treadmills by
children. The following special instructions apply for children:
► Children may only be near the treadmill under supervision.
► The treadmill must be equipped with the "child railing".
► Children should only mount and dismount the treadmill under
supervision. The tread may not be running then.
► Children are forbidden from operating the treadmill! Adults are
responsible for supervising children!
► The treadmill should only be used with an appropriate fall protection
system (chest strap or waist belt) or an appropriate body weight
support system.
► The running workout must be conducted under the supervision of a
physician or a qualified therapist.
An exception can be made using special accessories and in compliance with strict
safety regulations, especially within the scope of "movement therapy in rehabilitation."
8.3 Before Each Use
Before the unit is put into operation, the following checks are to be done:
• Visual inspection of the running surface belt, check for dirt and damage to
slats
• Visual inspection and check of the mechanical function of the bar railing,
clamping screw must be hand tight.
• Visually inspect of the emergency stop magnet with pull cord and clip attach-
ment for damage
• Visual inspection of fall protection equipment (ropes, carabiners, waist belt,
etc., as applicable) for wear and functionality
WARNING
Danger of Being Pulled into Moving Parts!
In the event of a fall, people with long hair, loose clothing or jewelry can
be pulled into running surface entry points.
► Remove jewelry before using the device.
► Tie up long hair.
Page 42
Operation
42
10/2017-v1.3en
8.4 Switching Device On/Off
NOTE
Ensure that NO emergency stop button or emergency stop mushroom is
engaged. The emergency stop magnet with pull cord must be attached to the
field marked for this purpose.
The device cannot be operated without releasing the emergency stop function
and attaching the magnet to the magnetic switch!
WARNING
Danger of Device Moving Down when Switched On!
If the treadmill was in the inclined position prior to being switched off
during previous use, the device will automatically move back to the neutral
position (incline = 0%). There is a danger of injury!
► No one may be located in the area in front of the treadmill.
► No objects may be located under the treadmill.
► Check the position of the treadmill before switching it on!
1. To turn on, switch the power switch on the side of device frame (on the right)
from position "0" to "I". The treadmill is in
„Stand-By“ mode.
a. Switching the data monitor (DaMo) on:
Press the green on (Symbol: ) switch, after 5-6 seconds the display will
switch on.
b. Switching the WOODWAY User System (WUS) on:
Press the green on button on the right side of the WUS housing, after 5-6
seconds the display will switch on.
c. Switching PPS Ortho on:
Press the green on button on the emergence stop mushroom
2. After this the treadmill will run through a short initializing phase. As soon as the
display indicator lights green (DaMo) or the „START“ button appears in the display (WUS), the treadmill is ready to be used.
3. Training can begin.
4. When training is finished switch the treadmill off again via the switch on the
display or via the switch on the emergency stop mushroom on PPS Ortho. The
device is in Stand-By mode again.
WARNING
Danger Through Speeding Up of the Running Surface!
If the drive motor is stopped when set at an incline, the weight of the user
(gravity) may cause the running surface to accelerate (e.g. by pressing the
stop button, emergency stop, or by power failure)!
► Use special caution when stopping the drive motor when set at an
incline!
► Users must be made aware of dangers before use!
Page 43
Operation
10/2017-v1.3en
43
5. Switch the device off via the main switch on the power supply console when it
will not be used for a long time.
Fig. 24 On switch PPS Ortho
1. Emergency stop switch with magnet and pull line in place
2. On switch
ATTENTION
Do not move the running surface belt during th4e initialization phase (approx.
3-4 seconds)! The movement can be interpreted as a device malfunction by
the control electronics and switch off the device.
► Never step on the running surface during the initialization phase!
► Do not leave the running surface until it switches back into stand-by
mode.
► Never leave the treadmill unattended while it is switched on!
2
1
Page 44
Operation
44
10/2017-v1.3en
8.5 Using the Keypad
The keypad can be attached to a suitable point on the handrail so that the controls
are easily accessible to the runner.
The magnetic mount makes it possible to remove the keypad from the railing. In
this way the runner's supervisor can use the keypad as a remote control.
Fig. 25 Keypad with magnetic mount
Switch device on as Page 42 as described in sec. Make sure that the emergency
stop magnet is mounted on the magnetic switch with its pull cord, the clip is fixed
to the runner's clothes and that all emergency stop buttons are released.
The buttons on the keypad are used for setting the speed and incline. The
corresponding speed or incline indicators are used for control. When the desired
speed or incline has been reached, release the button.
With these buttons the user can raise or lower the running surface speed. The
running speed increases or decreases continually as long as the button is pressed.
Watch the speed indicator on the display during the adjustment. Release the button
at the desired speed.
With these buttons the user can adjust the incline of the device. The incline
increases or decreases continually as long as the button is pressed. Watch the
incline indicator on the display. Release the button at the desired incline.
The treadmill can be stopped with the stop button. The delay in braking the running
surface speed is comfortable, so the user still travels a few meters before the unit
stops depending on the previous speed. If the running surface belt is stopped, the
treadmill goes to the stop mode (indicated by the second mode LED from the top).
The set incline is maintained.
Pressing the stop button a second time causes the treadmill - should it still be at an
incline - to move back to its starting position (0% incline). The treadmill remains in
stop mode.
Button functions:
[+] and [-]
BUTTONS:
[↑] and [↓] BUTTON:
„STOP“BUTTON:
Page 45
Operation
10/2017-v1.3en
45
8.6 Operating the Data Monitor (DaMo)
The data monitor has 4 multi-digit displays to indicate the current training parameters as well as several LEDs to indicate the control mode.
On the data panel the following values are shown:
• Treadmill speed in meters per second (m/s) or kilometers per hour (km/h)
• Set incline of the treadmill in percent (%)
• Distance run in meters since the last start of the treadmill
• Energy consumption in calories
• Training time
• Current pulse
(only when using a measuring device with compatible transmitter unit)
• Treadmill control mode (remote control / manual mode / stop mode)
Fig. 26 Data monitor (DaMo) control panel
1. Indicator light "manual control via railing keypad"
2. Indicator light "treadmill in stop mode"
3. Indicator light "external operation active"
4. Emergency stop pull cord magnetic switch
5. Reset button
6. Stand-by button
7. Display incline/pulse (alternating)
8. Display training time
9. Display distance/calories (alternating)
10. Display speed
11. Button to change the unit of measurement
With the LEDs to the right of the screen displays (Pos. 7 to 10), the unit of the displayed value is marked. It is also possible to choose between parameters that are
displayed on the same screen. The data monitor is a display device with no possibility of controlling the treadmill.
The three-digit display (item 10), displays the current speed of the treadmill. The
displayed speed in kilometers per hour (km/h) is adjusted using a button next to
the display.
Speed:
2
1
3
4
6 5
11
10
9
8
7
Page 46
Operation
46
10/2017-v1.3en
In the display (Pos. 9) the distance in kilometers and calorie consumption of the
runner since the last time the treadmill was switched on are alternately shown at
intervals of 10 seconds. The upper value shows the distance and the lower value
the calorie consumption. The distance and calorie values are maintained after the
treadmill is stopped. They are deleted after restarting the treadmill using the keypad on the railing or the remote control.
The training duration (Pos. 8) is reset with each restart of the treadmill. The display
shows the time elapsed since the start of the treadmill in minutes and seconds. The
two values are separated by two dots that blink to indicate the seconds. The display
changes to indicate the hours and minutes, when the training takes longer than an
hour. Then the upper LED switches off and the lower starts flashing in its place to
show the new status.
These two values (Pos. 7) are also indicated with the same display. A symbol
indicates the incline value as well as the speed value. A minus sign can only be
displayed if the treadmill features such a function. The direction of the incline can
only be changed via PC with a remote control or the keypad on the railing. After a
change the incline the new value will appear in the display for 5 seconds. The upper
of the two LEDs next to the display is active for this purpose. The current pulse frequency of the runner is shown after this period of 5 seconds, if the slope remains
unchanged; this status is indicated with the lower LED. If the incline is not changed,
the incline value is only shown in the display again when the wireless connection to
the pulse sensor on the runner's body is interrupted. The incline value is displayed
in the monitor if the treadmill does not have a pulse sensor.
The control mode is indicated by three LEDs on the right side of the monitor
(Pos. 1 to 3).
The LEDs have the following meanings:
• The manual control via the keypad on the railing is active (Pos. 1).
• The treadmill is being used in the so-called "stop mode". In this mode the di-
rection can only be changed with a PC, and running or pulse programs can only be started with the PC (Pos. 2).
• The remote control (running/pulse program) is started via a PC or other pe-
ripheral device (Pos. 3).
The data monitor has three buttons (Pos. 5, 6, 11) and an emergency stop
magnetic switch (Pos. 4).
The button Pos. 11 is used to select the unit of speed.
With the button Pos. 5 all indicators are reset after pressing the stop function (Reset).
With the button Pos. 6 (Symbol: ) the treadmill is switched off. If pressed during
training, the treadmill will stop, i.e. the speed will reduce slowly until the treadmill
has stopped. If the treadmill is still at an incline, it will return to its original position
(0% slope). Then the treadmill switches to stand-by mode.
When the red emergency stop button is pressed or when the magnetic switch is
triggered (Pos. 4) the electronic control system is bypassed and the treadmill performs an emergency stop immediately (Emergency stop function). The emergency
stop stops the treadmill immediately in contrast to the normal stop.
This safety feature is only to be used in case of emergency!
Distance and calorie
consumption:
Training duration:
Incline and pulse:
Treadmill control
modes:
Data monitor
control unit:
Page 47
Operation
10/2017-v1.3en
47
8.7 Operation with Woodway User System (WUS)
The WOODWAY user system (WUS) is used to display the current parameters, the
control modes and to operate the treadmill. In addition, in the WUS housing contains the stand-by button (on the right side of the housing), the contact surface for
the emergency stop magnet with integrated pull cord and clip or an emergency stop
button (external display), which the operator can trigger.
Fig. 27 WUS control panel
1. Emergency stop pull cord magnetic switch
2. Wire
3. Touch screen
4. On/Standby button
5. Contrast control for touch screen
6. Quick start guide
The touch screen (Pos. 3) is used as an input keypad, information can be read and
at the same time, the treadmill will be operated.
It is operated with a light finger touch on the framed fields ("button"). After switching it on, the display goes through a short initialization phase.
Fig. 28 WUS initialization phase
2
1
4
6
5
3
Page 48
Operation
48
10/2017-v1.3en
By pressing the green button on the right side of the display (Pos. 4), the treadmill
is turned on. After the initialization the „START“ button appears in the display.
The device is now ready for operation. By pressing the „START“ button the main
menu is opened.
Fig. 29 WUS main menu
8.7.1 Manual Operation
For manual input of speed and incline press the MANUAL button at the top left. The
following display appears:
Fig. 30 WUS manual
1. Speed control and display
2. Incline control and display
3. „Stop“ field with information about the current training
Start the device by pressing the [+] button. The belt starts to run slowly. To
increase the speed, press the [+] button repeatedly or hold it down until the
desired speed has been reached.
To stop press and hold the [-] button. The speed will reduce slowly. To reduce the
speed, press the [-] button repeatedly or hold it down until the desired speed has
been reached.
The incline adjustment is carried out analog to the speed adjustment. The
adjustment is made with the „↑ button“ uphill and the „↓ button“ to lower the
device again.
To stop the device, press the lower part of the Touch screen. How quickly it stops
depends on how fast the treadmill was running. The faster the treadmill is running,
the longer it takes to stop.
Speed:
(Pos. 1)
Incline:
(Pos. 2)
Stop:
(Pos. 3)
1
2
3
Page 49
Operation
10/2017-v1.3en
49
In manual mode the following values appear in the display.
• Speed, in either km/h or miles/h or m/s
• Current incline in %
• Distance, either in kilometers (km) or miles
• Training duration in hh:mm:ss
• Heart rate in bpm (beats per minute), indicated with a heart symbol
• Power in watts or energy in kcal
• Current treadmill speed, either in km/h or miles/h or m/s or an indication of
the power in watts vs. energy value in kcal can be adjusted in the start menu
by selecting the unit (see CHANGE PARAMETERS).
8.7.2 Start Program
With this function the treadmill programs can be called up.
Treadmill programs can be permanently installed WOODWAY fixed programs or customized programs. A program is called up directly from the main menu via the
"START PROGRAM" (Fig. 29 Page 48) button:
Fig. 31 WUS program selection
Moves the cursor up and down, until the desired program is marked. Behind the
program name an indication of whether it is a fixed program or a customized
program appears.
Loads the desired / indicated program, a new screen appears with the program
structure.
Returns to the main menu.
After the program start you see the following information on the screen:
Fig. 32 WUS program information
Arrow button:
Select:
Cancel:
Page 50
Operation
50
10/2017-v1.3en
A vertical line moves from left to right and shows you your position in the program.
In addition, you see the following information:
• Current speed of the treadmill, either in km/h or miles/h or m/s, select the unit
• Current incline in %
• Distance, in either km/h or miles/h or m/s
• Training duration in hh.mm.ss
• Heart rate in bpm (beats per minute)
If the Polar chest strap is used, the pulse rate is displayed in beats per minute
(bpm). While the program is running control adjustments can be made to the program at any time. After the manually changed part of the program has run, the
program continues again as programmed.
By pressing the stop button on the railing, by touching the touch screen or exceeding a predetermined pulse limit the treadmill is stopped and the program is interrupted. The following information is displayed:
Fig. 33 WUS program interruption
Program continues exactly where it was interrupted.
Return to main menu.
Enter new limit via touch screen.
Program continues.
8.7.3 Edit Program
With this program point customized programs can be edited and saved and entered
programs can be deleted. The storage capacity is approximately 2,000 steps, for
example, 200 programs with 10 program steps or 20 programs with 100 program
steps. The respective free storage capacity is displayed.
The "Edit program" in the main menu must be selected. On the screen that appears
shows the following options:
Go to the treadmill programs menu.
Deletes the program that was selected as described above. A pop-up automatically
appears asking whether the program should be deleted.
Continue program:
Cancel program:
Low./Inc. pulse
limit:
Ignore pulse limit:
Select program:
DELETE PROGRAM:
Page 51
Operation
10/2017-v1.3en
51
The selected program can be edited here:
Fig. 34 WUS edit program
Changes the respective program steps
The parameter to be changed is selected. Then the new values are entered as
shown below:
Fig. 35 WUS change program parameters
Accept the entered values.
Return to previous menu.
After confirmation the edit program menu appears, Fig. 34. Here program editing is
continued or ended:
Saves the edited program.
Deletes the displayed program.
Inserts a new program step.
Return to previous menu.
EDIT PROGRAM:
- and + BUTTON:
SPEED etc.:
Confirm:
Cancel:
Save:
Delete:
Insert:
Cancel:
Page 52
Operation
52
10/2017-v1.3en
8.7.4 Create Program
The process for creating a new program corresponds to the process for editing an
existing program.
Select the EDIT PROGRAM button in the main menu (Fig. 29). Then select the
CREATE PROGRAM button.
Now proceed exactly as when editing a program by changing the individual parameters. The program name can be freely defined by pressing the NAME button. Enter
the program name by entering it into the following screen:
Fig. 36 WUS enter program
After entering all data, press the SAVE button.
In the following screen you will be asked if you really want to save the program..
Saves the program in the list of workout programs. The new program can then - as
described above - to be selected from the list of treadmill programs and started.
You can edit the program name.
You can enter a pulse limit for the program. See the following menu button: "PULSE
CONTROL“.
Return to previous menu.
8.7.5 Pulse Control
The treadmill is equipped with a pulse control function. This function enables the
treadmill operation to be pulse controlled.
WARNING
Danger of Injury Through Improper Application!
The POLAR pulse measurement provides exact data. However, the heart rate
monitor is only a rough orientation and is not intended for diagnosis or
medicinal purposes.
► Diagnostics and medical applications must only be carried out with
approved ECG devices.
Save:
EDIT NAME:
PULSE LIMIT:
Cancel:
Page 53
Operation
10/2017-v1.3en
53
After selecting a program, the following screen appears:
Fig. 37 WUS pulse control
Here, you must first enter the age using the "Age" button and the physical condition
using the "physical condition" button. Enter the information in the following screen:
Fig. 38 WUS enter program parameters
Suggests a pulse limit for a fat burning workout based on the entered age and
physical condition.
Suggests a pulse limit for a cardiovascular workout based on the entered age and
physical condition.
Can be specified.
Here the speed and incline limits can be entered. Usually the treadmill selects a
combination of speed and incline. With limit control e.g. the incline can be switched
off or the speed can be limited.
Parameters are loaded; treadmill with pulse control can be started.
Return to main menu.
FAT BURNING:
CARDIOVASCULAR
TRAINING:
EDIT TARGET
PULSE:
LIMIT CONTROL:
END:
Cancel:
Page 54
Operation
54
10/2017-v1.3en
8.7.6 Edit/Show Parameters
To change parameters select the "EDIT PARAMETERS" option in the start menu.
Fields with adjustable parameters will be displayed:
Fig. 39 WUS edit parameters
The desired values can be set by pressing the respective buttons. The set values
appear on the screen, for example, Language: German, speed in km/h. By pressing
the END button the set values are accepted and the main menu is displayed again.
In some cases, a virtual keypad will appear to input parameters. Enter the desired
value and press the CONFIRM button.
Fig. 40 WUS virtual keypad
By selecting the "SHOW PARAMETERS" option in the overview, the treadmill
performance parameters appear. The display is for information only; the specified
parameters cannot be changed at this point.
Fig. 41 WUS show parameters
By pressing the "arrow" button further technical information can be retrieved. With
the CANCEL button, the main menu appears again.
Edit parameters:
Show parameters:
Page 55
Operation
10/2017-v1.3en
55
8.8 Adjustment of Bar Rails
PPS Plus type treadmills are equipped with bar railing. The PPS and PPS Med Ortho
models are optionally available with a bar railing.
Depending on the design, the flexible handrail allows it to be adapted to the height
and width of the individual user. The adjustment ranges are:
74 - 104 cm (all models)
28 - 88 cm (PPS 43) / 40 - 100 cm (PPS 55) / 55 – 115 cm (PPS 70)
The gas springs integrated into the parallel rails, combined with an easy-to-use
device for locking the bar rails allow for easy adjustment.
Fig. 42 Adjustment of gas spring parallel bar rails
1. Bar rail
2. Press knob
3. Clamping screw
The height and width of the bar railings are adjusted is as follows:
• Loosen clamping screw on one or both sides (Pos. 3),
• Set the railing width by moving the rail (Pos. 1) horizontally (rotation) to the
desired position,
• Adjust the height by pressing the press knob (Pos. 2) and positioning of the
railing at the desired height,
• Then re-tighten clamping screws.
WARNING
Danger of Being Pinched
In the entry area of the gas spring and the gap between moving parts
fingers and hands can be pinched.
► Danger zone is marked with warning label,
► Do not touch the danger zones when making adjustments.
Height:
Width:
Adjustment:
3
2
1
Page 56
Operation
56
10/2017-v1.3en
8.9 Reversing the Direction
Depending on the model, the treadmill has a reversing direction function, or can be
retrofitted if necessary. Information available at WOODWAY dealer WOODWAY Customer Service.
If the treadmill is equipped with the reverse mode, it can be activated in two different ways. Either the WOODWAY user system (WUS) is required or a PC / laptop
with installed WOODWAY treadmill control software, with which the PPS treadmill
via the serial communication interface (RS-232, COM port) is connected.
ATTENTION
Provide for a Safety Area IN FRONT OF and BEHIND the Device!
When using the reverse direction function the necessary safety area of at
least 200 x 100 cm (length x width) is to be observed IN FRONT OF and
BEHIND the treadmill.
For set-up details see sec. 7.2 Page 35.
When using reverse direction with the WOODWAY user system, position the
emergency stop switch as described in section 6.6 Page 31 and fix the clip with
magnet with pull cord. Switch the device on using the standby button. In the event
that a workout is already running, stop the treadmill using the stop button. Then
press the [-] button on the touch panel.
When the treadmill is operated in manual operation mode with the software, a
"Manual operation" rider appears in the main window. Below the speed control is
the key for "reverse direction", and the status indicator for the selected direction,
see Fig. 43 Page 56. Before activating the reverse direction ensure that the
emergency stop switch magnet has been positioned and that the runner has fixed
clip with pull cord correctly.
In manual operation there is a [+/-] button on the start screen, the reverse direction must be activated there. Subsequently forward or reverse appears in the display. After that the treadmill speed can be increased using the [+] button and
decreased using the [-] button.
Fig. 43 Manual operation with the WOODWAY treadmill control software
For more information, see the separate operating instructions for the WOODWAY
treadmill control software.
WOODWAY
User-System:
WOODWAY
treadmill control
software:
Page 57
Operation
10/2017-v1.3en
57
8.10 Body Weight Support Systems
Depending on the illness may be necessary to use a body weight support system for
the treadmill therapy in motor rehabilitation.
NOTE
A separate manual is supplied with the body weight support system!
For information on the use of body weight support systems please contact your
WOODWAY local dealer or service center.
ATTENTION
When using the body weight support system, PPS series treadmills must be
equipped with an additional brake (retrofitting possible).
It should be noted that the braking behavior changes due to the additional
brake, i.e. the braking performance is slightly "harder". One must become
accustomed to the changed braking behavior!
Page 58
Options and Accessories
58
10/2017-v1.3en
9 Options and Accessories
9.1 Order Numbers
The following accessories and options can be obtained from a WOODWAY dealer or
WOODWAY service center.
Depending on year and equipment, it should be checked in advance whether the
particular unit is suitable for the selected accessories/options. For this contact the
WOODWAY dealer or WOODWAY service center before ordering.
Description Order no.
Video railing for PPS Ortho
Railings, front cross brace removable with quick disconnect
is supplied as standard (PPS
Ortho only)
Reverse (direction reverse)
Option for PPS and PPS Med Med-i. Only in connection with a conversion of
railing (PPS Ortho or railing bars). WUS display or software control of the
treadmill is required.
2026
Mounting aid
Simplifies the mounting of WOODWAY slat-belt treadmills.
4026
POLAR chest strap for heart rate measurement (consisting of Polar T34 chest
strap + transmitter)
2112
USB-to-Serial Converter (RS-232) 3083
Serial interface wire RS-232 3722
Display WOODWAY User System (WUS)
(designed for mounting on railings)
3400
Display WOODWAY Data monitor (DaMo)
(designed for mounting on railings)
2037
Option external display (WUS or DaMo) 2031
Fall protection system with harness and emergency stop
Order no. according to the
PPS model, please enquire
Emergency stop magnet with pull cord 3124
Additional brake (recommended for use / treatment of obese patients,
required in connection with "LokoStation" and "LokoBasic")
3848
Incline (0-25%, only PPS 43/55 Ortho / Med) 2021
Incline, only PPS Ortho) 2020
Gas spring bar railing (height and width adjustable) 2029
Special design (e.g. child design) 2111
Will the accessories
fit?
Page 59
Options and Accessories
10/2017-v1.3en
59
9.2 Video Railing for PPS Ortho
The cross member on the front part of the PPS Ortho handrail can be removed if
required using two quick releases. The unblocked view or video analysis of patients
is possible from the front and from behind.
WARNING
Danger of Injury by Falling!
In the event of a fall in reverse mode when the crossbar is mounted
serious injury can occur.
► Remove the crossbar BEFORE use in reverse direction!
Release the quick disconnect on the cross bar on both sides - DO NOT fully
unscrew! Only unscrew the clamp to the extent that the opening is slightly larger
than the diameter of the railing tube, but that the screw does not fall out.
Grasp the tube with both hands and move back and forth slightly to the release
clamps from the rubberized surface. Remove the crossbar.
Fig. 44 PPS Ortho video railing
1. Quick disconnect right/left
2. Video railing
The quick disconnects must be open before installation. Only unscrew the clamp to
the extent that the opening is slightly larger than the diameter of the railing tube,
but that the screw does not fall out. Place the crossbar diagonally between both
handrails so that both clamps grip the railing. The quick disconnects must face outwards. Then align the crossbar horizontally and hand tighten the quick disconnects.
NOTE
Ensure that the handles of the quick disconnects are positioned parallel to the
crossbar.
The levers are equipped with a spring mechanism, which allows the handle to
be unlatched and to move it into the right position without having to loosen
the screw.
Disassembly:
Installation:
2
1
1
Page 60
Options and Accessories
60
10/2017-v1.3en
Fig. 45 PPS Ortho video railing
1. Incorrect lever position of the quick disconnect, danger of injury!
→
Pull out the lever, turn it 90° and release it again
2. Correct lever position for the quick disconnect, the lever rests on the crossbar!
9.3 Mounting Aid
To ensure safe mounting on the treadmill, patients with physical limitations may
have to depend on expert personnel for support. Mounting the device may be further facilitated using a commercial climbing aid.
Fig. 46 Mounting aid
WARNING
Danger of Injury from Using Mounting Aid!
When mounting aids are not removed from the device before training, it
can lead to serious injury.
► After mounting remove mounting aid from the device!
► Store mounting aid in a safe place.
1
2
Page 61
Options and Accessories
10/2017-v1.3en
61
Following further safety measures must be considered:
1. Before using the treadmill, the mounting aid must be removed from behind the
treadmill, so that the requirements on the safety area (clear "fall area") of at
least 2.00 x 1.00 m (length x width) behind the treadmill are met.
2. To prevent damage to the treadmill and the mounting aid, this must never
come in contact with the running surface. Observe the mounting aid manufacturer's instructions!
3. The climbing aid may only be used when the treadmill is not running.
4. In order to prevent patients from falling when mounting the treadmill, the supervising person (physician, therapist, qualified supervisor) must provide help
during mounting in the application areas of "movement therapy / rehabilitation
training in rehabilitation." The supervisor must be capable of stopping of the patient from possibly falling when mounting the treadmill.
9.4 POLAR Heart Rate Measurement
WOODWAY treadmills are equipped with a Polar heart rate measurement system.
This can be used with numerous POLAR transmitters.
Fig. 47 Chest strap with POLAR transmitter
The transfer of data transmission between transmitter and receiver is always "uncoded" (a coded transmission is not supported). If the supplied POLAR heart rate
chest strap used, the pulse rate is displayed in beats per minute (bpm). The chest
strap is only active when it is applied directly to the body (see figure). The strap
length can be adjusted via the flexible band on the chest strap. Adjust the belt
length so that it fits snugly but does not constrict. If the chest strap becomes loose
during training, a reliable heart rate can no longer be measured.
The transmitter should be positioned so that it is below the pectoralis (chest
muscle) at the height of the sternum (breastbone), logo to the outside. Moisten the
contact surface of the transmitter in order to transmit the best signal possible from
the body to the measuring device.
The chest strap can be washed. Remove belt from the transmitter, the electrodes
must not be bent. Wash the strap and the electrodes with warm water and mild
soap. Do not machine wash the electrodes and do not use alcohol.
The transmitter has a reach of about 80 cm. Depending on the model the receiver is
located in the display of the device or below the emergency-off switch on the
railing. When positioning several treadmills next to each other ensure that a minimum distance between the devices is kept in order to avoid the interference of the
transmission signals between the runners.
ATTENTION
The treadmill-pulse measurement is not intended for diagnosis or medical
purposes, it is only used as an orientation value!
Positioning:
Cleaning:
Transmission signal:
Page 62
Options and Accessories
62
10/2017-v1.3en
9.5 USB to Serial Converter
A "USB to Serial" adapter allows the connection of devices with serial interface (RS-
232), e.g. modem, mouse etc. to a free USB port on your PC or notebook.
Depending on the manufacturer, in rare cases there can be communication problems between the PC / notebook and the treadmill.
The industrial USB-to-serial adapter of the brand ATEN (Model UC-232A), which can
be obtained from the WOODWAY customer service can be recommended as a
proven model.
Fig. 48 USB to serial adapter, manufacturer: ATEN, Model: UC-232A
Technical data (USB-to-Serial Converter, brand ATEN, model UC-232A):
• USB specification v1.1
• RS-232 connection with one DB9 plug (male)
• Plug with nuts
• Wire length 31cm
• Data rate up to 230 Kbps
• No own IRQ required
System requirements:
• XP/Vista/Windows 7 (32/64-bit)
• Windows 98SE/ME/2000
• Mac OS 9 (or higher)
• Notebook with a free USB port
For trouble-free operation always use the latest driver for the adapter download at
www.woodway.de/support.html.
The drivers for the most common operating systems are included on CD-ROM or
can be downloaded at www.aten.com.
NOTE
For the initial installation of the adapter in the operating system administrator
rights are required. Installation under a limited user account will be
terminated with an error message!
Page 63
Options and Accessories
10/2017-v1.3en
63
9.6 Interface Wire
To control the treadmill via PC or laptop the serial interface of the treadmill must be
connected with the computer via a so-called null-modem cable with two D-SUB
connectors (9-pin, female). This interface wire must be shielded and must not exceed a length of 5 meters. The cable is commercially available or can be obtained
from the WOODWAY customer service.
Fig. 49 USB Interface wire RS-232 (2 × D-SUB 9-pin), configuration "minimum"
null-modem wire
There are null-modem cables with different configurations (depending on whether a
"hardware handshake" and/or "hardware flow control" is desired). A typical configuration is shown in the following table. For controlling a WOODWAY treadmill usually
only the signals GND, TxD and RxD are required. If a "minimal" null-modem cable is
used, within the respective connector the pins 1, 4 and 6 as well as 7 and 8 should
be connected (see illustration).
Plug 1
(D-SUB, 9 pin) Pin (Function)
Plug 2
(D-SUB, 9 pin) Pin
1 (DCD) 7 + 8
2 (RxD) 3
3 (TxD) 2
4 (DTR) 6
5 (GND) 5
6 (DSR) 4
7 + 8 (RTS + CTS) 1
The WOODWAY standard software uses the following interface parameters:
• 9600 Bd (baud) / 8 bits / no parity / 1 stop bit
Parameters:
Page 64
Maintenance and Cleaning
64
10/2017-v1.3en
10 Maintenance and Cleaning
WARNING
Danger of Injury due to Lack of Qualifications!
If maintenance or repairs are not carried out by professionally qualified
personnel, this may cause material damage and serious injury.
► Maintenance and repair work may only be performed by qualified
personnel!
► It is the sole responsibility of the representative to assign qualified
personnel for maintenance and repair work.
► In case of doubt or questions, always contact the WOODWAY customer
service or dealer!
► The manufacturer is not liable for personal injury and material damage
caused by a lack of qualifications!
For maintenance (servicing, inspection, repairs) of medical products only to persons, companies or entities who have the expertise prerequisites and the resources
necessary for proper execution of this task may be assigned by the representative.
The requirements for persons, firms or entities are considered fulfilled if because of
their training and practical work on the required area, in the maintenance of medical devices and the installation areas necessary, including their characteristics, size,
equipment and facilities and the required equipment other working assets and are
capable to carrying the work out properly and comprehensibly.
After maintenance or repair of medical devices structural and functional features
that are essential for the safety and functionality must be checked, insofar as they
may have been affected by the maintenance measures.
10.1 Cleaning
DANGER
Danger of Death by Electric Shock!
The use of water and liquid detergents as part of cleaning work can cause
serious or fatal electrical shock.
► No liquids may come in contact with electrical parts such as motor, power
cord and power switch, control monitors.
► Do not spray the device with a water jet.
► Pull power plug before cleaning, equipment must not be connected to
power! Ensure the device cannot be switched back on.
The slat-belt treadmill should be thoroughly cleaned at regular intervals, depending
on the intensity of use.
Page 65
Maintenance and Cleaning
10/2017-v1.3en
65
For cleaning and disinfection of parts that are touched (handrail, display,
controls, etc.) a formaldehyde-free rapid disinfectant such as "Bacillol plus" or
"Descosept" is recommended. For cleaning, never use sharp brushes or abrasive
cleaning agents, paint and plastic surfaces can be damaged.
10.2 Maintenance Intervals
DANGER
Danger of Death by Electric Shock!
Maintenance and inspection work on the unit may cause serious or fatal
electrical shock.
► Pull the power plug prior to any maintenance and inspection work on the
equipment. The device must not be connected to the power!
► Ensure the device cannot be switched back on.
Weekly maintenance
• Clean handrails, display and side panels with a damp cloth.
• Disinfect railings and controls
• Clean the running surface with a damp, lint-free cloth
• Visual check the power cord for damage
• Check the wires to the controls.
• Inspection of the treadmill for mechanical damage (incline scissor rollers, feet,
side panels, display, control elements)
• Checking mounting of all controls (display, emergency stop mushroom, keypad
with magnetic mount, side panels)
• Clean the area under the treadmill (vacuum and mop). For this the treadmill
can be lifted to the maximum incline.
ATTENTION
Worn or damaged components must be replaced immediately. If the observed
deficiency can cause danger to the user or operator of the treadmill, it needs
to be taken out of service until repaired.
Cleaning agent
Page 66
Maintenance and Cleaning
66
10/2017-v1.3en
A complete function test the treadmill must be carried out every 2-4 weeks
depending on the duration and intensity of use.
The function test includes the following:
1. Using the treadmill for a short time at speeds between 6 and 10 km/h. Do
unusual noises occur?
2.
Stand next to the treadmill and turn it up to maximum speed for a short
time. Does the treadmill reach the specified maximum speed? Do unusual
noises occur?
3. Does the display show the traveled distance at top speed correctly?
4. Stop the treadmill and move it to maximum incline. Does the treadmill
reach the desired incline?
5. Do unusual noises occur while the treadmill is running at maximum incline?
6. Check the emergency stop magnetic switch function. Is an emergency stop
is initiated?
7. Check the function of the emergency stop mushroom (or the button on the
external display).
8.
Set the treadmill in the "standby" mode. The running surface must be very
difficult to move. (However, slight movement of the belt in "standby" mode
is normal). Is the sunning surface stopped correctly?
ATTENTION
If there are deficiencies or deviations in the control function, notify the
WOODWAY customer service immediately.
The device must be taken out of service and disabled until repaired. Repairs
may only be carried out by trained and authorized personnel.
Before starting any maintenance, the side panels are to be removed (NOT the
electronics covers).
Preventive maintenance consists of the following measures:
• Clean the inside of the treadmill with a vacuum cleaner. Do not touch the elec-
trical components (cables, transformers, connectors, etc.).
• Check the drive unit toothed belt (drive belt) for cracks and other wear and
missing or broken teeth (visual inspection).
• Check the aluminum profiles of the slats with a flashlight for damage (visual
inspection).
• Check all mechanical components for damage (lifting mechanism, welded
frame, side panels, treadmill feet, rollers on the lifting scissors, railings, display, emergency stop mushroom emergency stop magnetic switch) (visual inspection).
• In rare cases there may be bearing damage. Under certain circumstances this
can be detected through excessive grease leakage from the bearing housing.
• Have the time limits prescribed by the manufacturer for the maintenance and
safety checks been complied with?
Maintenance every
2-4 weeks
Maintenance every
6-10 months
Page 67
Maintenance and Cleaning
10/2017-v1.3en
67
A repair must take place:
• if liquid has gotten into the device,
• with damaged power cord (cable, plug)
• if the drive system toothed belt of the shows deficiencies
• in case of suspected bearing damage,
• if a defect on the device is suspected or has already been established,
• in case of bucking, sudden stopping or accelerating of the running surface,
• if buttons fail to function,
• in case of burning smell, smoke, or unusual noises,
• in case of malfunction (failure) of the emergency stop button,
• in case of malfunction (failure) of the emergency stop magnet,
• in case of damage to the running surface belt and
• for all other defects which may affect the safety of the device.
The proper maintenance of the treadmill must take place annually in conjunction
with the technical safety checks (TSC).
In exceptional cases the maintenance interval may be adapted to the extended inspection intervals in accordance with "Technical safety checks (TSC)" Maintenance
and repairs may only be carried out by trained and authorized personnel.
NOTE
It is recommended to enter maintenance and repairs in the maintenance and
repair log, see Appendix.
Significant measures for inspection of the treadmill:
• Inspection of the treadmill installation
• Inspection of the running surface belt
• Inspection of the drive unit and the lifting system
• Inspection of nuts and bolts
• Inspection of secondary carrier and guide rollers
• Inspection of electronics
• Technical safety checks (TSC)
For further information on maintenance procedures, refer to separate the service
manual.
Annual inspection
Page 68
Maintenance and Cleaning
68
10/2017-v1.3en
10.3 Technical Safety Checks (TSC)
Medical PPS series treadmills are devices in protection class I and have an application part in type B (railing). The power cord is normally not removable.
PPS Series devices are usually not intended for permanent connection. The
installation of a permanent connection must be performed by suitably trained
personnel. For the safety checks on permanently connected equipment, the
applicable regulations in the country of use are to be observed.
Tests and measurements shall be carried out in a properly functional device. Any
repairs must be performed by qualified personnel before the technical safety
inspection.
When carrying out the prescribed measurements and checks, country-specific
regulations, instructions and test steps are to be observed.
Prior to the tests, manufacturer's recommendations for the maintenance of the
treadmill are to be considered in accordance with EN 62353. For this reason these
instructions are to be read completely and carefully. If accessories are used, the
manufacturer of the product’s recommendations is to be observed accordingly.
Measurement technology checks are not intended for PPS series treadmills.
If the treadmill is used along with other medical electrical equipment (e.g. for the
ergospirometry or with PC control software), the requirements set out on the
Medical Electrical system ("ME-System") in accordance with EN 62353 apply.
Data lines (RS-232) and functional grounds are to be separated (potential equalization) for the duration of the measurements, along with other connections to other
devices.
ATTENTION
For safety reasons, the use of power strips and the simultaneous operation of
other equipment on the same supply line are prohibited.
An exception can be made for the use of spirometry systems. In this case, the
requirements for technical safety inspection of ME systems according to EN
62353 need to be considered.
Technical Safety Check (TSC) must be performed annually by qualified personnel
(electricians). These are "repeated safety checks" in accordance with EN 62353.
If the treadmill rarely used, under certain conditions, the test interval of 18 months
may be increased to a maximum of 24 months (see EN 62353). These conditions
are:
1. The device may not be older than 10 years,
2. the representative must confirm the estimated average weekly use of the
treadmill in writing,
3. the representative must be informed in writing that the inspection interval for
the next TSC must be re-evaluated when the intensity of use of the treadmill increases, and
4. The qualified inspector must consider the environmental conditions and the frequency of device malfunctions in the past.
Permanent
connection
Checks and
measurements
Country-specific
requirements
Manufacturer's
recommendations
Multiple devices
Inspection intervals
Page 69
Maintenance and Cleaning
10/2017-v1.3en
69
According to the standard EN 62353, an inspection is carried out visually prior to
the measurements. The following points must be checked on PPS series devices:
1. Treadmill operating manual. Is the operating manual for the device
immediately available for the user, and it is valid for the tested treadmill
model?
2. Accessory operating manuals. Are the operating manuals for accessories and
options available?
3. Labels and nameplate. Are all labels on the device legible and complete
(nameplate, fuse identification, interfaces labels, labels on the operating and
display elements)?
4. Fuses. Do the rated values and meltdown characteristics of the inserted fuses
match with the following values: Fuse, operational voltage 250VAC, size
5x20mm (diameter x length), 10A, time-lag (10 AT)?
5.
Visual condition of the treadmill: Is the device undamaged and properly
cleaned? Are slats possibly broken / cracked? Visual inspection of mechanism
according to the section "Treadmill maintenance".
6.
Use of the emergency stop magnetic switch: Is the emergency stop magnet
available with pull cord and clip, and is this always is used every time the
treadmill is used in accordance with the manufacturer (Determined by asking
the operating personnel)?
7.
Condition of pull cord, clip and cord stopper: Are the ripcord ("pull cord") of
the emergency stop magnet, the fixing clip and the cord stopper for adjusting
the length of the cord undamaged and fully functional?
8.
2 meter safety area: Is the safety area of 2.00 x 1.00 meters behind the
treadmill provided?
9.
Power strips: Are power strips used? For safety reasons the use of power
strips is forbidden.
10. Room circuit breaker: Is a line circuit breaker with the following properties
used to protection the line: Rated voltage 250V, rated current 16A and
tripping characteristic "C" (slow)?
11.
Power supply: Are other devices on the same supply line? For safety reasons
the treadmill must be used on a room connection with a separate line circuit
breaker.
The values determined in these tests are to be documented together with the
measurement method and evaluated (as basis for comparison for future standards).
Measurements are to be carried out in the standard. The protective conductor
resistance, and the device leakage current are to be measured. A measurement of
the leakage current from the applied part according to the standard is not necessary. For the measurement of the device leakage current, the direct measurement
methods or the difference current measurement can be used.
The replacement measuring method may not be used for measuring the device
leakage current.
For the measurement of protective conductor resistance, the side panels of the
treadmill must be removed. During the measurement the power cable must be
moved over the entire length. If changes in resistance are observed during movement, it must be assumed that the ground wire is damaged or has a bad connection.
Visual inspection
Measurements i.a.
EN 62353
Page 70
Maintenance and Cleaning
70
10/2017-v1.3en
A measurement of the insulation resistance in accordance with the standard may
NOT be performed.
If the measured values are between 90% and 100% of the allowable limit, the previously measured values (reference values) for the evaluation of the electrical safety
of the appliance shall be considered. Note that the measured values of the factory
test may differ slightly from the measured values at each treadmill location due to
different test conditions.
The measured values must not exceed the permissible limits specified in the following table:
Measurement
Limit
value
Protective conductor resistance - non-removable power cord
Resistance between the protective conductor of the power cord and
the protective conductor connected, exposed conductive parts of the
unit (treadmill frame + railing):
300 mΩ
Protective conductor resistance - removable power cord
Resistance between the protective conductor of the power cord and
the protective conductor connected, exposed conductive parts of the
unit (treadmill frame + railing):
200 mΩ
Resistance between the protective conductor contacts at each end of
the detachable power cord itself:
100 mΩ
Device leakage current - direct measurement or differential current
measurement
Measuring procedure defined in the standard EN 62353:
0.5 mA
After the examination (inspection and measurement) a functional test must be
performed in accordance with paragraph "Function test"; this is to ensure that the
treadmill has been restored to its necessary Condition for "Intended use", i.e. that it
is operational and safe.
The results report (test report) must meet the requirements the standard EN 62353.
A final safety evaluation of the appliance must be carried out and the deadline for
the next TSC set. In accordance with the standard this review can only be carried
out by one or more qualified electricians, who have adequate training on the inspected device.
The tested treadmill must be marked with the test date (inspection sticker).
The examiner and the person responsible for maintenance of the treadmill (usually
the representative or a person appointed by the representative) sign the test report.
This document is prepared in three versions, wherein a copy remains with the representative of the treadmill and one for the tester's records. The third copy should
be sent to WOODWAY customer service (WOODWAY maintains a file on each
treadmill). In this way, they can provide efficient and reliable support.
If technical safety inspections are required by the manufacturer, the operator must
carry these out or have these carried out according to the generally recognized
rules of technology and within the time specified by the manufacturer.
The reason for the safety checks is to determine if a medical device is operational at
the time of the audit, if it is in good condition and it is also expected to correspond
to safety inspection requirements until the next safety inspection.
For other medical devices, accessories, software and other items used for the
aforementioned medical devices, connected by the representative, the safety checks
apply accordingly.
Technical safety checks (after repeat tests or testing after maintenance and repair)
may only be performed by, one who has the responsibility for the proper implemen-
Function test
Test report
Page 71
Maintenance and Cleaning
10/2017-v1.3en
71
tation of safety controls due to their training, knowledge and experience gained by
practical activities, is not subject to instructions with reference to the inspection activities (i.e. is not subject to directives with his professional judgment during the
implementation and evaluation of the tests) and has the appropriate measuring and
testing equipment.
The operator may only appoint persons that meet the above conditions for the
implementation of safety-related controls. The fulfillment of the prerequisites must
be presented at the request of the competent authority.
A report must be filled about the entire safety inspection, which is kept at least until
the next TSC. The following information should be contained therein:
• Date the technical safety checks were carried out
• Results of the technical safety checks
• Indication of the measured values
• Measuring procedure
• other test results
The representative shall keep the report at least until the next safety inspection.
10.4 Disabling the Treadmill
Disabling is required if the safety of the treadmill is not guaranteed, or if is suggested that this could be the case.
A device must be disabled if e.g. the following symptoms occur: unusual noises, appearance of smoke, uncontrolled stopping or accelerating of the treadmill, rocking
of the running surface belt, damage to slats or other mechanical damage, spilling of
liquid on the treadmill, etc.
Disabling can also be to the WOODWAY Customer Service by telephone. In this
case, the treadmill representative is obliged to carry out the disabling and to confirm with WOODWAY customer service in writing.
Exceeding the test periods by several months (see previous chapter) also makes
temporary disabling of the treadmill necessary.
ATTENTION
The representative is responsible for property damage or personal damages
caused by incorrectly disabling or not disabling the treadmill!
The disabling of the treadmill must be such that (i) an unintentional and/or unauthorized restart can be ruled out and (ii) that the name of person who is authorized
to put the treadmill back into operation can be seen.
Personnel
requirements
Page 72
Maintenance and Cleaning
72
10/2017-v1.3en
The removal of the power plug from the outlet alone is not sufficient for the disabling of the treadmill, since third persons who have not been informed about the
disabling can plug the treadmill back into the power supply and use it.
The following measures must therefore be taken to disable a PPS series treadmill:
1. The unit must be turned off and the power plug must be unplugged from the
wall socket (disconnection).
2. The treadmill must be marked "disabled" in a clear manner such as: "CAUTION
DANGER OF INJURY" the notice must be clearly displayed. In addition, the date
of disabling, reason for disabling and name of the person/organization that disabled must be specified.
3. It must be determined which (authorized) person the treadmill - possibly after
maintenance and repairs - may start up the treadmill again.
4. The fuses must be removed from the power supply box and kept in a safe
place. Attach the label below to the treadmill power supply box so that the fuse
box is covered.
5. Apply the safety label below to the plug of the power cord.
Sample Label for Disabling a Treadmill:
ATTE NTI ON
DANG ER OF I NJU RY!
This device has been disabled due to safety defects.
The use of this device is strictly forbidden.
Device was disabled on: ____________________
by: ____________________________________
Only the following person may put this device back
into operation:
___________________________________________
The representative is to disable medical treadmills when:
• reasonable suspicion of danger to the health and safety of patients, employees
or third parties,
• defects that could endanger patients, employees or third parties exist.
Page 73
Maintenance and Cleaning
10/2017-v1.3en
73
10.5 Device Fuses
The fuses must comply with the published technical specifications, see sec. 4.3
Page 17. Bridging the fuses is prohibited (risk of electric shock, fire risk).
When replacing a fuse, turn off the power using the main power switch and unplug
the power cord from the outlet. Using a screwdriver, unscrew the fuse holder out of
the power junction box. Change the fuse and screw the fuse holder into terminal
box.
Fig. 50 Device fuses
Page 74
Troubleshooting
74
10/2017-v1.3en
11 Troubleshooting
ATTENTION
With the exception of the maintenance work described in this chapter, the
treadmill can only be checked and repaired by qualified personnel.
If necessary the WOODWAY dealer or service center is to be contacted!
For inquiries have the following information handy:
• Device designation, model and serial number of the relevant treadmill
• What happened just before the defect?
• Did the fault occur at once or gradually?
• For unusual noises – where do the noises come from?
• Was someone training on the treadmill at the time of the defect?
• Describe any other relevant symptoms
• Have any accidents occurred on the treadmill?
• Was anyone injured?
11.1 Unusual Noises
Perform a visual inspection of the running surface belt and verify that the running
surface is not obstructed by an object under/in front of/near the device. Remove
any obstacles that could obstruct or damage the running surface.
Check whether the running surface inadvertently brushes against the side panel and
leads to excessive wear. In this case correct the gaps between running surface and
side panel.
The teeth on the bottom of the tread belt are sufficiently lubricated in the factory to
minimize the noise. In certain cases it may occur that the combination toothed Vbelt (also see "running surface belt") rubs against the pulley guides, thus producing
whistling sounds. In this case, the use of a small amount of lubricant (Molykote or
similar product) applied to the edges of the endless belt can contribute to noise reduction. Do not use too much grease, as this only leads to unnecessary accumulation of dust and dirt.
As with the running surface belt, the use of a small amount of lubricant on the edge
of the belt is only necessary to reduce a "whistling" of the belt. Lubricant should
always be used sparingly.
When noises come from the bearings, bearing damage is to be expected In this
case the bearing must be replaced by a trained and authorized technician.
Visual inspection
Toothed V-belt
running surface belt
Toothed belt drive
system
Bearings
Page 75
Troubleshooting
10/2017-v1.3en
75
11.2 No Display
If the display is not lit when you turn the treadmill, check the following points:
• Is the emergency stop mushroom released
(or emergency stop button on the external display)?
• Is the treadmill connected to the power source?
• If the main switch on the power connector box switched on?
• Fuse (s) blown? (Replace fuse)
• Can the fan is to cool the servo controller (on the right) be heard?
• Does the socket to which the treadmill is connected supply power
(e.g. could the circuit breaker for the supply line have been triggered)?
• Has one of the device fuses melted?
• Is the emergency stop magnet placed on the magnetic switch?
11.3 Belt does not move
If the display and/or lifting mechanism works but the treadmill does not accelerate
when the [+] button is pressed, do the following:
• Turn off the power at the main switch and unplug the power cord.
• Check if the running surface belt is be blocked by an object and if so, remove.
Wait about 60 seconds and put the unit back into operation.
11.4 Free Moving Running Surface Belt
It is always possible to rotate the running surface belt slowly when the drive is not
engaged. The more energy you expend to move the running surface, the greater
the motor's braking effect ("short circuit brake"). This behavior is normal.
When the drive is not engaged ("Stand-by" mode) the running surface belt is
slowed down by short circuit of the three motor phases. A totally free moving running surface belt in this case, however, might be defective short circuit relay or a
broken wire.
If the treadmill is turned on with the switch on the display and the indicator in the
display is active, this is a sign that the motor is defective or it is a failure of the servo controller.
In both cases the treadmill must be disabled immediately according to the instructions in this manual.
11.5 Faulty or Flashing Display
Probable causes: Power supply too low
An excessive load or excessive consumption on the same line may be causing problems. Connect the device to a specially fused power supply line or remove the other
power consuming devices from the mains.
Page 76
Troubleshooting
76
10/2017-v1.3en
11.6 Serial RS-232 Interface
Possible causes of a serial interface malfunction are:
• Defective wire connection in adequate pin allocation for the components
• Incorrectly set component protocols (Treadmill, PC, EKG, Spiroergometry)
• Improperly configured connection settings between the components
(COM Port)
11.7 Electrostatic Discharge
By running on the device the runner can become electrostatically charged. If they
touch a metal part of the device in this state, it can cause an electrostatic discharge
from the user. Under certain circumstances an electrostatic discharge may cause a
malfunction of the device. However, such discharges are normally harmless for the
user and the device. The most common cause of static electricity lies in the choice
of clothing, the condition of the shoe soles and very dry air.
Try other clothing and other footwear and moisten the room with commercial humidifier if you measured very dry air.
11.8 Sources of Electromagnetic Interference
Close proximity to, for example, X-ray equipment, powerful motors or isolating
transformers must be avoided because of possible electromagnetic interference.
Electromagnetic interference can affect the operation of your treadmill.
11.9 Interference of the POLAR Heart Rate Monitor
During the transfer of data from the transmitter to the receiver the POLAR heart
rate monitoring may receive interference, which is triggered by other devices in the
proximity of the treadmill. The most common causes for this are:
• PC screens, computers, radio systems of all kinds
• High tension power lines
• Intense light exposure
• Strong magnetic fields
Page 77
Disposal
10/2017-v1.3en
77
12 Disposal
The disposal of the equipment must be in accordance with the respective national
regulations.
Electrical and electronic devices must be disposed of separately from normal household waste.
An appropriate waste disposal company should be contacted. Properly dispose of
the device at the end of its service life
(e.g. the local collection point for waste separation):
• The device packaging is disposed of through resource recycling.
• The metal parts of the machine go to scrap metal disposal.
• Plastic parts are given to plastic recycling.
• Electric components and printed circuit boards are disposed of as electronic
scrap.
• Rubber parts are disposed of as hazardous waste.
This symbol indicates electrical and electronic equipment that
cannot be disposed of with as standard waste, but must be
handled separately.
Disposal must be carried out to prevent problems with heavy
metals and flame retardants in accordance with relevant waste
management.
Please contact the manufacturer's authorized representative in
order to obtain information concerning disposal of your
equipment.
The disposal of the equipment must be in accordance with the
respective national regulations.
Wear parts are considered hazardous waste! After being
replaced wear parts must be disposed of according to countryspecific waste laws.
Page 78
Instruction Record
78
10/2017-v1.3en
13 Instruction Record
Once the introduction, installation and functional check of the slat belt treadmill has
been completed, the competent WOODWAY employee or the authorized WOODWAY
dealer carries out the instruction for the device. All persons who will be working
with the unit in the future (user) must receive the instructions. After successful
commissioning and instructions the instruction record is signed by the instructor all
persons trained and a copy must be sent to WOODWAY GmbH.
Step Description Conducted
1 Transfer of operating and maintenance instructions.
Important notice:
The manual is always to be kept within easy reach of users! The availability of
the manual is required and will be checked at each inspection.
2 Reference to the general hazard statements and safety requirements according
to the manual. Thereby indication of specific treadmill hazard statements
according to area of application (benefit/risk assessment by the therapist, etc.).
Assistance in mounting the treadmill for frail/disabled persons.
3 Special note on the prescribed clear area/safety distance to objects and walls of
at least 200 cm x 100 cm (L x W).
Note on using the safety strap with harness and fall protection in case of
increased risk.
4 Switching the unit on and off with the power switch.
Explanation of the different functional states of the device (off, standby, ready).
5 Important safety notices: After turning on the treadmill with the WOODWAY
user system (WUS) or data monitor the device goes through an initialization
phase, which lasts about 3-4 seconds.
The user / patient should not get on the treadmill during initialization!
6 Explanation and demonstration of the various safety devices on the machine
(emergency stop magnet with rip cord, emergency stop mushroom).
Note on using of safety devices to stop the machine in an emergency.
Correct attachment of the safety clip on the waistband.
7
Explanation of the Keys on the keypad on the railing. Notice on function for
short button push and long pressing for speed or incline setting.
Notice on double pressing the stop button to return the treadmill to the zero
position after use.
8 Demonstrate operation of the treadmill in manual mode.
Special notes for devices with the "reverse" function.
9 Explanation of the indicators in the display.
10
Operation of the treadmill via customized programs possible
(only with WUS).
11 Operation of the treadmill with pulse control (only with WUS).
12 Instructions for correct heart rate measurement and limitations:
Correct wearing of the chest strap, behavior in case of problems, malfunctions,
possible causes and sources
(computers, quartz watches, monitors, power lines, etc.).
Page 79
Instruction Record
10/2017-v1.3en
79
Step Description Conducted
13
Notice to the RS232 port and CD with treadmill control software, as well as the
accompanying user guide.
14 Instructions on cleaning the treadmill with reference to the manual.
Important notices:
• When cleaning the unit always pull the power plug before the start.
• Maintenance and repair of medical devices and electrical equipment only
by authorized personnel (WOODWAY service technicians, authorized
WOODWAY service partner or medical technician).
15
Notice on regular and recurring maintenance intervals with regard to safety
checks (TSC).
Maintenance contract offer.
16 Final photographs of the device from two different perspectives.
(Documentation WOODWAY GmbH)
17
Explanation of possible malfunctions that must lead to a disabling of the
treadmill:
• Bucking, sudden stopping or sudden acceleration of the treadmill
• Failure of buttons
• Burning smell, smoke, or unusual noises,
• Damage / loss of the emergency stop magnet with pull cord
• Malfunction (defect) of the emergency stop magnet,
• Damage to the running surface belt
Page 80
Instruction Record
80
10/2017-v1.3en
Confirmation of commissioning and training record
With the signing of the instruction record, the instructor and the customer confirm the carrying out of qualified instruction and
commissioning. Disregarding of warnings, safety requirements, intended and the prohibited use, as well as unauthorized or
improper maintenance and/or repair and/or technical safety inspection can cause injury or even death, and/or may damage the
device and/or lead to loss of all material defect liability claims and any other liability claims. Please fill out the instruction protocol
completely and return it to WOODWAY.
WOODWAY slat-belt treadmill
Serial no.: ____________________________
Model:
____________________________
The above treadmill was properly set up / installed on: __________________________
(Date)
Technical instruction was completed on:
__________________________
(Date)
Place of transfer / instruction: __________________________________________________________
__________________________________________________________
__________________________________________________________
The following persons received instructions:
_______________________________________
_______________________________________
(Name and function)
(Signature)
_______________________________________
_______________________________________
(Name and function)
(Signature)
_______________________________________
_______________________________________
(Name and function)
(Signature)
_______________________________________
_______________________________________
(Name and function)
(Signature)
Remarks:
_______________________________________________________________________
_______________________________________________________________________
_______________________________________________________________________
_______________________________________________________________________
_______________________________________
_______________________________________
(Location, Date)
Name (printed capital letters) and signature
Instructor (Medical device consultant)
Page 81
Table of Figures
10/2017-v1.3en
81
14 Table of Figures
Fig. 1
CE Declaration of Conformity ............................................................... 8
Fig. 2
Nameplate, sample ........................................................................... 16
Fig. 3
Carrying poles .................................................................................. 19
Fig. 4
Treadmill transportation with carrying poles ........................................ 19
Fig. 5
Side panel fixing screws (markings for only one side) .......................... 20
Fig. 6
Remove electronics shielding panel .................................................... 21
Fig. 7
Fixing of the wiring harness to the frame ............................................ 21
Fig. 8
Treadmill controls (WLS) ................................................................... 22
Fig. 9
Wiring harness layout ........................................................................ 22
Fig. 10 Fixing bolts in railing mount PPS Ortho / PPS Med ............................... 23
Fig. 11 Fixing bolts in railing mount PPS Plus ................................................. 23
Fig. 12 Device components, PPS Plus model................................................... 27
Fig. 13 Power console .................................................................................. 28
Fig. 14 WOODWAY User-System (WUS) ......................................................... 29
Fig. 15 WOODWAY Data monitor (DaMo) ...................................................... 29
Fig. 16 WOODWAY User-System (WUS) external with emergency stop
switch .............................................................................................. 30
Fig. 17 WOODWAY keypad ........................................................................... 30
Fig. 18 Emergency stop button, functions ...................................................... 31
Fig. 19 Emergency stop magnetic switch on the display .................................. 33
Fig. 20 Emergency stop magnetic switch on emergency stop button on
railing .............................................................................................. 33
Fig. 21 Safety area (safe fall area) behind the treadmill .................................. 36
Fig. 22 Adjusting leveling feet ....................................................................... 37
Fig. 23 Power connection ............................................................................. 38
Fig. 24 On switch PPS Ortho ......................................................................... 43
Fig. 25 Keypad with magnetic mount ............................................................. 44
Fig. 26 Data monitor (DaMo) control panel .................................................... 45
Fig. 27 WUS control panel ............................................................................ 47
Fig. 28 WUS initialization phase .................................................................... 47
Fig. 29 WUS main menu ............................................................................... 48
Fig. 30 WUS manual..................................................................................... 48
Fig. 31 WUS program selection ..................................................................... 49
Fig. 32 WUS program information ................................................................. 49
Fig. 33 WUS program interruption ................................................................. 50
Fig. 34 WUS edit program ............................................................................ 51
Fig. 35 WUS change program parameters ...................................................... 51
Fig. 36 WUS enter program .......................................................................... 52
Fig. 37 WUS pulse control............................................................................. 53
Fig. 38 WUS enter program parameters ......................................................... 53
Fig. 39 WUS edit parameters ........................................................................ 54
Fig. 40 WUS virtual keypad ........................................................................... 54
Fig. 41 WUS show parameters ...................................................................... 54
Fig. 42 Adjustment of gas spring parallel bar rails........................................... 55
Fig. 43 Manual operation with the WOODWAY treadmill control software ......... 56
Fig. 44 PPS Ortho video railing ...................................................................... 59
Fig. 45 PPS Ortho video railing ...................................................................... 60
Fig. 46 Mounting aid .................................................................................... 60
Fig. 47 Chest strap with POLAR transmitter .................................................... 61
Fig. 48 USB to serial adapter, manufacturer: ATEN, Model: UC-232A ............... 62
Page 82
Table of Figures
82
10/2017-v1.3en
Fig. 49 USB Interface wire RS-232 (2 × D-SUB 9-pin), configuration
"minimum" null-modem wire.............................................................. 63
Fig. 50 Device fuses ..................................................................................... 73
Loading...
