Woods RD6000, RD8400, RD7200 Operator's Manual

REARMOUNT

RD6000
RD7200
RD8400

OPERATOR’S MANUAL

PN-52886 (Rev. 8/23/01)

TO THE DEALER:

Assembly and proper installation of this product is the responsibility of the WOODS dealer. Read manual
instructions and safety rules. Make sure all items on the Dealer’s Pre-Delivery and Delivery Check Lists in
the Operator’s Manual are completed before releasing equipment to the owner.

The dealermust complete the WarrantyRegistration includedin this manual. Both dealerand customermust
sign the registration which certifies that all Dealer Check List items have been completed. The dealer is to
return the prepaid postage portion to Woods, give one copy to the customer, and retain one copy. Note:

Warranty credit is subject to this form being completed and returned.

TO THE OWNER:

Read this manual before operating your WOODS equipment. The information presented will prepare you to
do a better and safer job. Keep this manual handy for ready reference. Require all operators to read this
manualcarefully andbecomeacquainted withallthe adjustmentand operatingprocedures before attempting
to operate.Replacement manuals can be obtained from your dealer or,in the United States and Canada, by
calling 1-800-319-6637.

Theequipment youhave purchasedhasbeen carefullyengineeredand manufacturedtoprovide dependable
and satisfactory use. Like all mechanical products, it will require cleaning and upkeep. Lubricate the unit as
specified. Observe all safety information in this manual and safety decals on the equipment.

For service, your authorizedWOODS dealerhas trainedmechanics, genuineWOODS service parts, andthe
necessary tools and equipment to handle all your needs.

Use onlygenuine WOODS service parts.Substitute parts will void the warranty andmay notmeet standards
required forsafe and satisfactory operation. Record the model number andserial number of your equipment
in the spaces provided:

Model: Date of Purchase

Serial Number: (see Safety Decal section for location)

Provide this information to your dealer to obtain correct repair parts.
Throughout thismanual, theterm IMPORTANTis usedto indicate that failure toobserve can cause damage

to equipment. The terms CAUTION, WARNING and DANGER are used in conjunctionwith the Safety-Alert
Symbol, (a triangle with an exclamation mark), to indicatethe degree of hazard for items of personal safety.

This Safety-Alert Symbol indicates a hazard and means
ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!

DANGER

W ARNING

CAUTION

IMPORTANT

NOTE

Indicates an imminently hazardous situation that, if not avoided,
will result in death or serious injury.

Indicates a potentially hazardous situation that, if not avoided,
couldresult indeathor seriousinjury,and includes hazardsthat are
exposed when guards are removed

Indicates apotentially hazardous situationthat, ifnot avoided,may
result in minor or moderate injury.

Indicates that failure to observe can cause damage to equipment.

Indicates helpful information.

ii

(Rev. 4/12/01)

TABLE OF CONTENTS

INTRODUCTION ii...............................................

SPECIFICATIONS 1..............................................

GENERAL INFORMATION 2......................................

BOLT SIZE CHART 2.............................................

BOLT TORQUE CHART 3.........................................

SAFETY RULES 4--6............................................

SAFETY DECALS 7--8...........................................

OPERA TION 9...................................................

OWNER SERVICE 14...........................................

DEALER SERVICE 18...........................................

TROUBLE SHOOTING 26--27.....................................

ASSEMBLY INSTRUCTIONS 28..................................

INDEX TO PARTS LISTS 33......................................

INDEX 41......................................................

WARRANTY Inside Back Cover....................................

RD6000, RD7200 & RD8400

SPECIFICATIONS

RD6000 RD7200 RD8400

3-Point Hitch Category 1 Category 1 Category 1.......................

Cutting Width 60” 72” 84”.........................

Cutting Height Range 1” -- 5-1/2” 1” -- 5-1/2” 1” -- 4-1/2”...............

Operating Weight with

Chain Shielding 605 lbs. 671 lbs. 770 lbs......................

Blade Speed (feet per minute) 16,950 16,800 16,700..........

Blade Speed (RPM) 3,083 2,570 2,179..................

Blades Spindles 3 3 3........................

Number of Blades 3 3 3......................

Universal Drive Series ASAE Cat. 3 ASAE Cat. 3 ASAE Cat. 3.............

Caster Wheels 3.25 x 10 3.25 x 10 3.25 x 10......................

Tractor PTO Speed RPM 540 540 540...............

Recommended Maximum

Tractor Horsepower 40 40 40....................

Mower Frame Thickness 8 GA 8 GA 8 GA..............

(Rev. 6/28/01)

1PN-52886 (4/97)

GENERAL INFORMATION

The purpose of this manual is to assist you in
operating and maintaining your mower. Read it
carefully. It furnishes information and instructions that
will help you achieve years of dependable perform­ance. These instructions have been compiled from
extensive field experience and engineering data.
Some information may be general in nature due to
unknown and varying operating conditions. However,
through experience and these instructions, you
should be ableto develop procedures suitable toyour
particular situation.

The illustrations and data used in this manual were
current at the time of printing, but due to possible
inline production changes, your machine may vary
slightly in detail. We reserve the right to redesign and

change the machines as may be necessary without
notification.

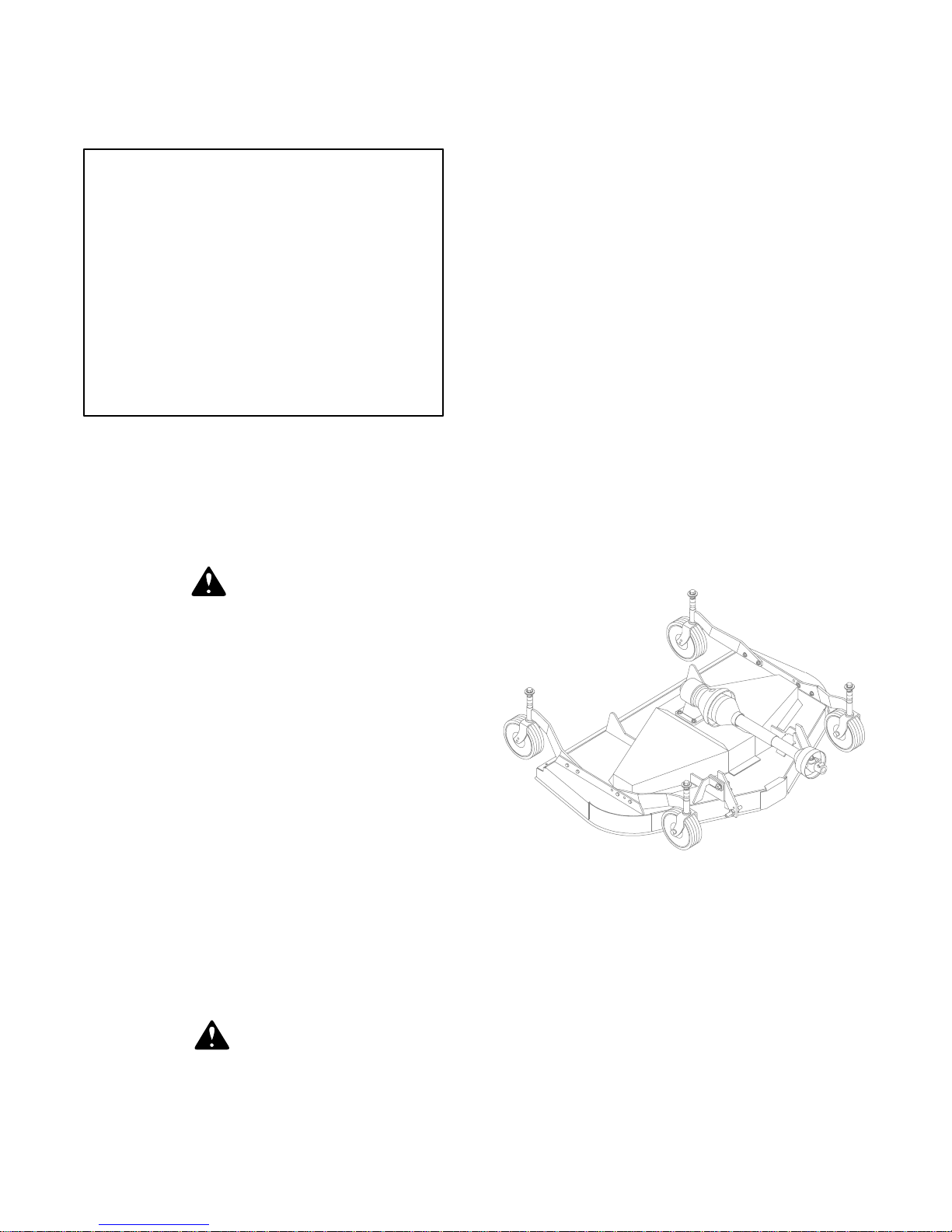

W ARNING

! Some illustrations inthis manual show
the mower with safety shields removed to
provide a better view. The mower should
never be operated with any safety shield­ing removed.

Throughout this manual, references are made toright
and left direction. These are determined by standing
behind the equipment facing the direction of forward
travel. Blade rotation is clockwise as viewed from the
top of the mower.

BOLT SIZE CHART

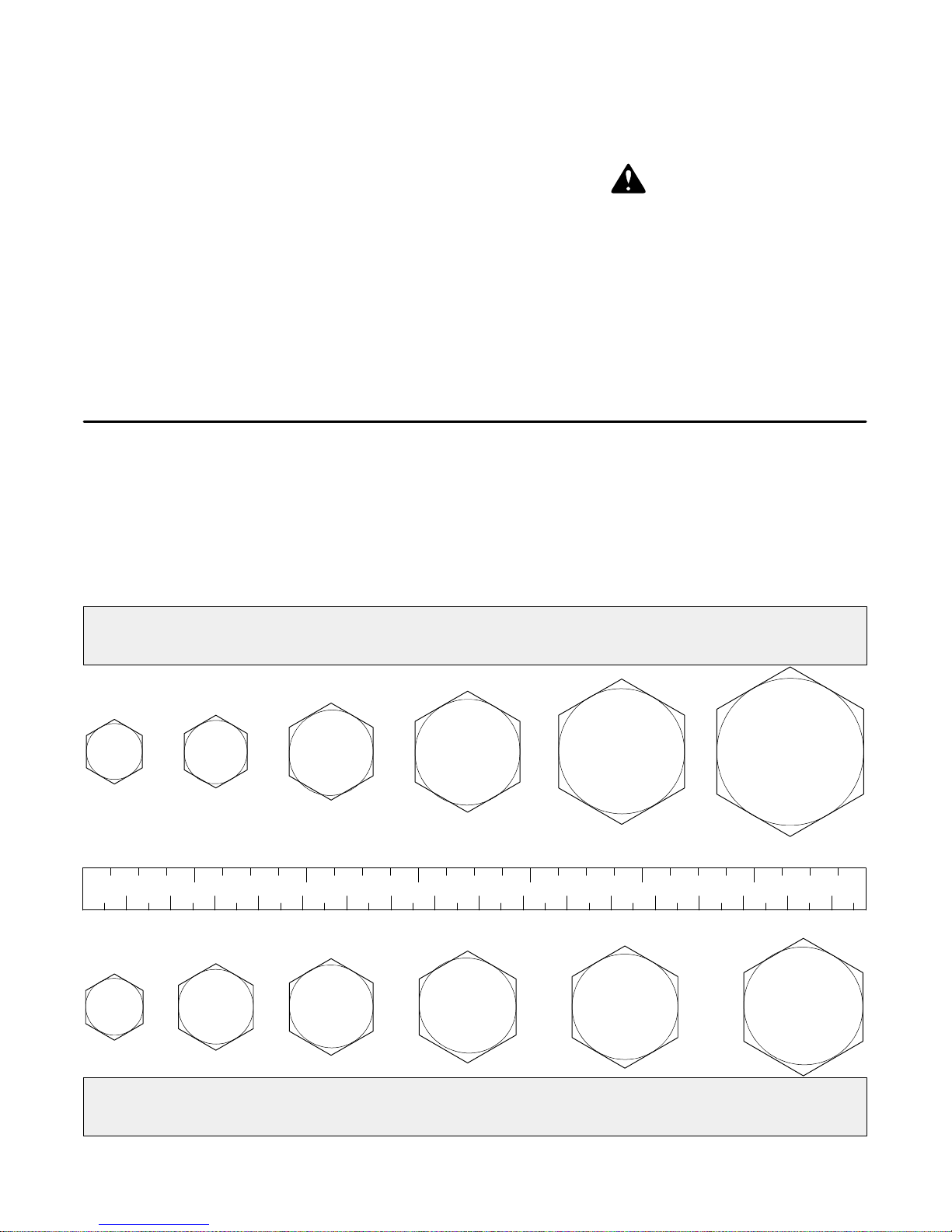

NOTE: Chart shows bolt thread sizes and corresponding head (wrench) sizes for standard SAE and Metric Bolts.

SAE Bolt Thread Sizes

IN

1

MM

7/83/45/81/23/85/16

65432

7

175150125100755025

Metric Bolt Thread Sizes

8MM 10MM 12MM 14MM 16MM 18MM

PN-52886 (4/97)2

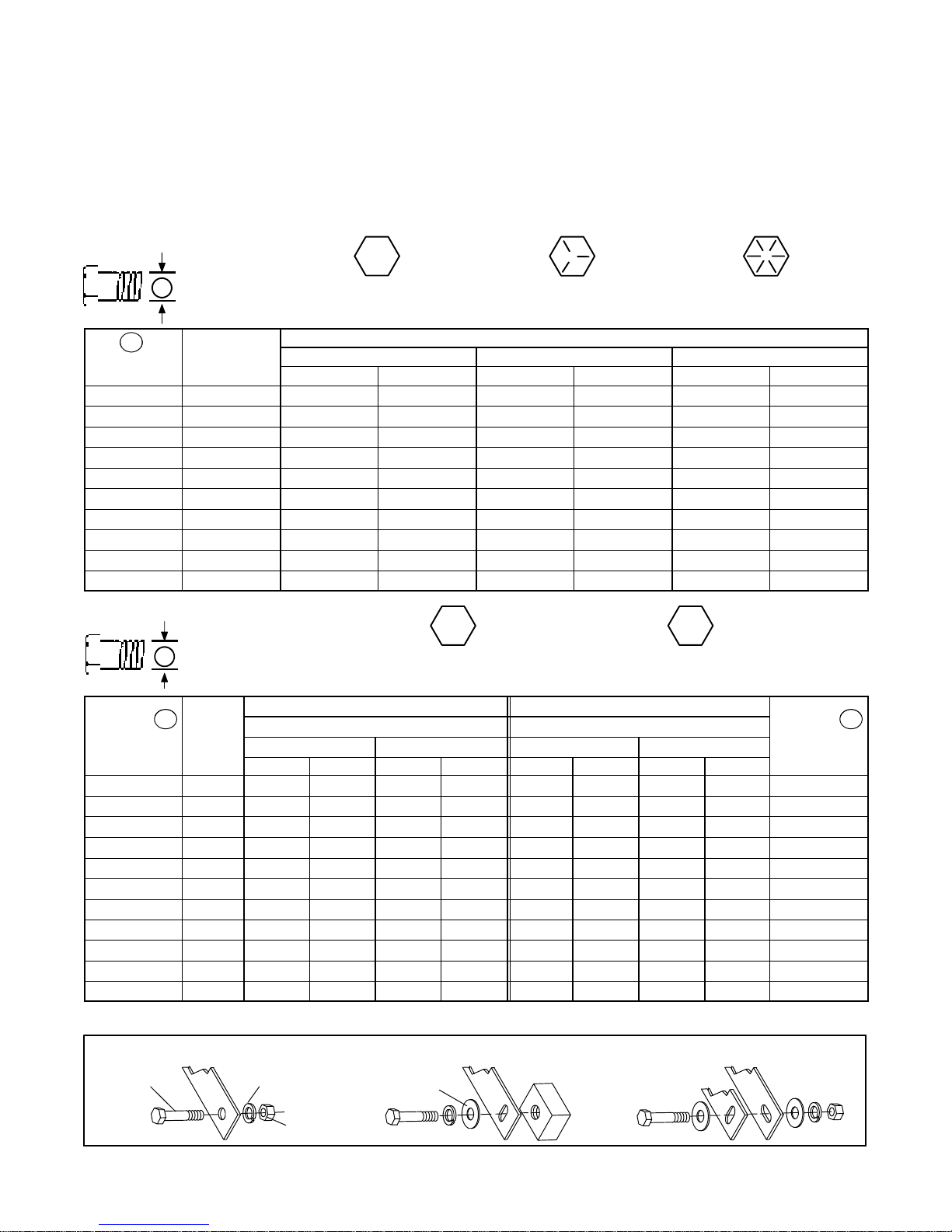

BOLT TORQUE CHART

A

Diamete

r

(

)

Wrenc

h

D

i

A

D

i

A

&

&

Wrenc

h

Always tightenhardware to these values unlessa differenttorque value or tightening procedure is listed fora specific
application.

Fasteners must always be replaced with the same grade as specified in the manual parts list.
Always use the proper tool for tightening hardware: SAE for SAE hardware and Metric for metric hardware.
Make sure fastener threads are clean and you start thread engagement properly.

All torque values are given to specifications used on hardware defined by SAE J1701 & J1701M JUL96.

SAE SERIES
TORQUE

A

CHART

SAE Grade 2

(No Dashes)

Wrench

Inches

1/4 7/16” 6 8 10 13 14 18

5/16 1/2” 12 17 19 26 27 37

3/8 9/16” 23 31 35 47 49 67

7/16 5/8” 36 48 55 75 78 106

1/2 3/4” 55 75 85 115 120 163

9/16 13/16” 78 106 121 164 171 232

5/8 15/16” 110 149 170 230 240 325
3/4 1-1/8” 192 261 297 403 420 569
7/8 1-5/16” 306 416 474 642 669 907

1 1-1/2” 467 634 722 979 1020 1383

Size

Lbs.-Ft. N-m Lbs.-Ft. N-m Lbs.-Ft. N-m

SAE 2 SAE 5 SAE 8

METRIC SERIES
TORQUE

A

CHART

SAE Bolt Head

Identification

SAE Grade 5

(3 Radial Dashes)

MARKING ON HEAD

8.8 10.9

Metric

Metric Bolt Head

Identification

Grade 8.8

SAE Grade 8

(6 Radial Dashes)

Metric

Grade 10.9

ameter

&
Thread Pitch
(Millimeters)

6x1.0 10 mm 8 6 11 8 8 6 11 8 6x1.0

8 x 1.25 13 mm 20 15 27 20 21 16 29 22 8x1.0
10 x 1.5 16 mm 39 29 54 40 41 30 57 42 10x 1.25

12 x 1.75 18 mm 68 50 94 70 75 55 103 76 12 x 1.25

14 x 2.0 21 mm 109 80 151 111 118 87 163 120 14 x 1.5
16 x 2.0 24 mm 169 125 234 173 181 133 250 184 16 x 1.5
18 x 2.5 27 mm 234 172 323 239 263 194 363 268 18 x 1.5
20 x 2.5 30 mm 330 244 457 337 367 270 507 374 20 x 1.5
22 x 2.5 34 mm 451 332 623 460 495 365 684 505 22 x 1.5
24 x 3.0 36 mm 571 421 790 583 623 459 861 635 24 x 2.0
30 x 3.0 46 mm 1175 867 1626 1199 1258 928 1740 1283 30 x 2.0

Wrench

Size

N-m Lbs.-Ft. N-m Lbs.-Ft. N-m Lbs.-Ft. N-m Lbs.-Ft.

COARSE THREAD FINE THREAD

MARKING ON HEAD MARKING ON HEAD

Metric 8.8 Metric 10.9 Metric 8.8 Metric 10.9

ameter

&
Thread Pitch
(Millimeters)

T ypical Washer Installations

Bolt

Lockwasher

Flat

Washer

Nut

3PN-52886 (4/97)

SAFETY RULES

ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOL VED!

Safety is a primary concern in the design and
manufacture of our products. Unfortunately, our
efforts to provide safe equipment can be wiped
out by an operator’s single careless act.

In addition to the design and configuration of
equipment, hazard control and accident preven­tion are dependent upon the awareness, con­cern,judgement,and propertrainingofpersonnel
involved inthe operation,transport, maintenance
and storage of equipment.

It has been said “The best safety device is an
informed,careful operator.” We ask you tobethat
kind of operator.

TRAINING

! Safety instructions are important! Read all at­tachment and power unit manuals; follow all safety
rules and safety decal information. (Replacement
manuals are available from dealer or, in the United
States and Canada, call 1-800-319-6637.) Failure to
follow instructions or safety rules can result in
serious injury or death.

! Know your controls and how to stop engine
and attachment quickly in an emergency.

! If you donot understand any partofthis manu ­al and need assistance, see your dealer.

! Operators must be instructed in and be capa­ble of the safe operation of the equipment, its
attachmentsand allcontrols. Do not allow anyone
to operate this equipment without proper instruc­tions.

! Never allow children or untrained persons to
operate equipment.

PREPARATION

! Check that all hardware is properly installed.
Always tighten to torque chart specifications
unless instructed otherwise in this manual.

! Always wear relatively tight and belted cloth­ing to avoid entanglement in moving parts. Wear
sturdy, rough-soled work shoes and protective
equipment for eyes,hair,hands, hearing and head.

! Make sure implement is properly attached, ad­justed and in good operating condition.

! Make sure spring-activated locking pin or
collar slides freely and is seated firmly in tractor
PTO spline groove.

! Make sure driveline shield tether chains are
attached to the tractor and equipment as
instructed. Replace if damaged or broken and
check that driveline guards rotate freely on drive­line before operating equipment.

! Before starting tractor, check all equipment
driveline guards for damage and make sure they ro­tate freely on all drivelines. Replace any damaged
guards. If guards do not rotate freely on drivelines,
repair and replace bearings before operating.

! Power unit must be equipped with ROPS or
ROPS CAB and seat belt. Keep seat belt securely
fastened. Falling off power unit can result in death
from being run over or crushed. Keep foldable
ROPSsystems in “lockedup” positionat all times.

! Inspect chain, rubber or curtain shielding
before each use. Replace if damaged.

! Remove accumulated debris from this equip­ment, tractor and engine to avoid fire hazard.

! Make sure all safety decals are installed.
Replaceifdamaged. (See SafetyDecalssection for
location.)

! Make sure shields and guards are properly
installed and in good condition. Replace if dam­aged.

! A minimum20%of tractorand equipmentweight
must be on tractor front wheels with attachments in
transportposition. Without thisweight,tractor could
tip over causing personalinjuryor death. Theweight
may be attained with a loader, front wheel weights,
ballast in tires or front tractor weights. Weigh the
tractor and equipment. Do not estimate.

! Inspect and clear area of stones, branches or
other hard objects that might be thrown, causing
injury or damage.

OPERATIONAL SAFETY

! When this equipment is operated in populated
areas or other areas where thrown objects could
injure persons or property, full chain or rubber
shielding (which is designed to reduce the possi­bility of thrown objects) must be installed. If this
machine is not equipped with full chain or rubber
shielding, operation must be stopped when any­one comes within several hundred feet.

! Never directdischarge towardpeople, animals
or property.

! Keep bystanders away from equipment.
! Never go underneath equipment lowered tothe

ground or raised, unless it is properly blocked and
secured. Never place any part of the body under­neath equipment or between moveable parts even
when the engine has been turned off. Hydraulic
system leak down, hydraulic system failures, me­chanical failures or movement ofcontrol leverscan
cause equipment to drop or rotate unexpectedly
and cause severeinjuryor death. FollowOperator’s
Manual instructions for working underneath and
blocking requirements, or have work done by a
qualified dealer.

(Rev. 4/12/01)

PN-52886 (4/97)4

SAFETY RULES

ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOL VED!

! Do not operate equipment while under the
influence of alcohol or drugs.

! Operate only indaylight orgood artificial light.
! Keep hands, feet, hair and clothing away from

equipmentwhileengineisrunning.Stayclearof all
moving parts.

! Always comply with all state and local lighting
and marking requirements.

! Never allow riders on power unit or attach­ment.

! Power unit must be equipped with ROPS or
ROPS CAB and seat belt. Keep seat belt securely
fastened. Falling off power unit can result in death
from being run over or crushed. Keep foldable
ROPSsystems in “lockedup” positionat all times.

! Always sit in tractor seat when operating con­trols or starting engine. Securely fasten seat belt,
place transmission in neutral, engage brake and
ensure all other controls are disengaged before
starting tractor engine.

! Operate tractor PTO at RPM speed stated in
“Specifications” section.

! Do not operate tractor PTO during transport.
! Look down and to the rear and make sure area is

clear before operating in reverse.

! Do not operate on steep slopes.
! Do not stop, start or change directions sud-

denly on slopes.
! Use extreme care andreduceground speed on

slopes and rough terrain.
! Watchfor hidden hazardson the terrainduring

operation.
! Stop tractor and implement immediately upon

striking an obstruction. Turn off engine, remove
key, inspect and repair any damage before resum­ing operation.

! Before dismounting tractor or performing any
serviceor maintenance,disengage power toimple­ment, lower the 3-point hitch and all raised
components to the ground, operate valve levers to
release any hydraulic pressure, set parking brake,
stop engine, remove key, and unfasten seat belt.

! Before working underneath, carefully read op­erator manual instructions, disconnect driveline,
raise mower, securely block up all corners with
jackstands and check stability. Secure blocking
prevents equipment dropping from hydraulic leak
down, hydraulic system failures, or mechanical
component failures.

MAINTENANCE SAFETY

! Before dismounting tractor or performing any
serviceor maintenance,disengage power toimple­ment, lower the 3-point hitch and all raised

components to the ground, operate valve levers to
release any hydraulic pressure, set parking brake,
stop engine, remove key, and unfasten seat belt.

! Before working underneath, carefully read op­erator manual instructions, disconnect driveline,
raise mower, securely block up all corners with
jackstands and check stability. Secure blocking
prevents equipment dropping from hydraulic leak
down, hydraulic system failures, or mechanical
component failures.

! Before working underneath, carefully read op­erator manual instructions, disconnect driveline,
raise mower, securely block up all corners with
jackstands and check stability. Secure blocking
prevents equipment dropping from hydraulic leak
down, hydraulic system failures, or mechanical
component failures.

! Do notmodify oralter orpermit anyone elseto
modify or alter the equipment o r any of its
components in any way.

! Always wear relatively tight and belted cloth­ing to avoid entanglement in moving parts. Wear
sturdy, rough-soled work shoes and protective
equipment for eyes,hair,hands, hearing and head.

! Never go underneath equipment lowered tothe
ground or raised, unless it is properly blocked and
secured. Never place any part of the body under­neath equipment or between moveable parts even
when the engine has been turned off. Hydraulic
system leak down, hydraulic system failures, me­chanical failures or movement ofcontrol leverscan
cause equipment to drop or rotate unexpectedly
and cause severeinjuryor death. FollowOperator’s
Manual instructions for working underneath and
blocking requirements, or have work done by a
qualified dealer.

! Make sure implement is properly attached, ad­justed and in good operating condition.

! Keep all persons away from operator control
area while performing adjustments, service or
maintenance.

! Make certain all movement of implement com­ponents has stopped before approaching for
service.

! Frequently check blades. They should be
sharp, free of nicks and cracks and securely
fastened.

! Do not handle blades with bare hands. Care­less or improper handling may result in serious
injury.

! Your dealer can supply genuine replacement
blades. Substitute blades may not meet original
equipment specifications and may be dangerous.

(Safety Rules continued on next page)

(Rev. 4/12/01)

5PN-52886 (4/97)

SAFETY RULES

ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOL VED!

(Safety Rules continued from previous page)

! Tighten all bolts, nuts and screws to torque
chart specifications. Check that all cotter pins are
installed securelyto ensure equipment isin asafe
condition before operating.

! Make sure all safety decals are installed.
Replaceifdamaged. (See SafetyDecalssection for
location.)

! Make sure shields and guards are properly
installed and in good condition. Replace if dam­aged.

NOTES

! Wear gloveswhen installing belt. Be careful to
prevent fingers from being caught between belt
and pulley.

! Use care when installing or removing belt from
spring-loaded idler . Springs store energy when
extended and, if released suddenly, can cause
personal injury.

STORAGE

! Block equipment securely for storage.
! Keep children and bystanders away from

storage area.

(Rev. 4/12/01)

PN-52886 (4/97)6

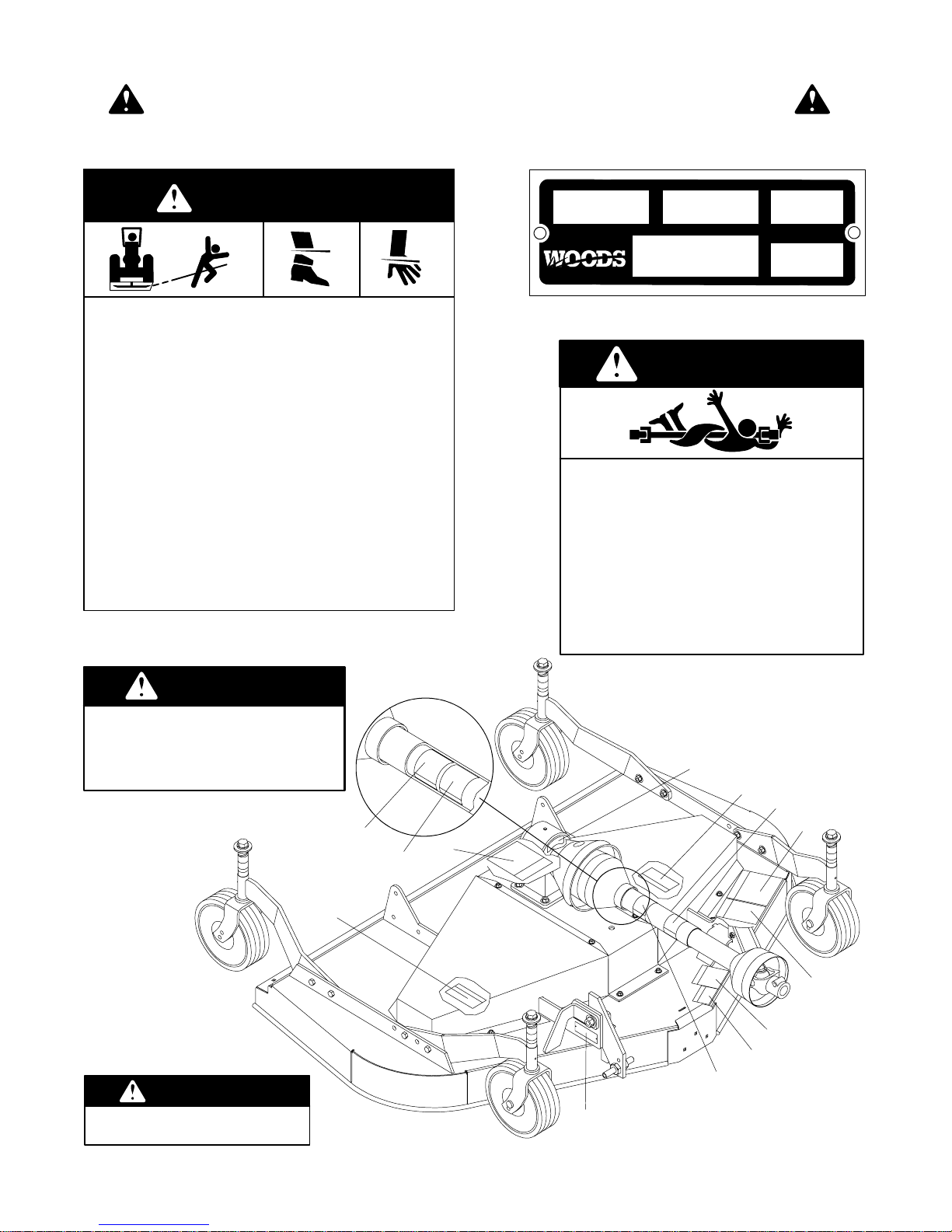

SAFETY DECALS

ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOL VED!

Replace Immediately If Damaged!

DANGER

ROTATING BLADES AND

THROWN OBJECTS

" Keep away.
" Do not operate in vicinity of other persons.
" Clear mowing area of debris.
" Full chain or rubber shielding must be used to

comply with OSHA agricultural standard 1928.57,
SAE J232 and ANSI B71.4 unless it interferes
substantially with mowerfunction during
agricultural use. If not fully shielded, stop
operation when anyone comes within several
hundred feet.

BLADE CONTACT OR THROWN OBJECTS CAN

CAUSE SERIOUS INJURY OR DEATH.

1 -- Part #15503

15503--B

MODEL NO. SERIAL NO. YR OF MFG.

ID NO.

OREGON, IL U.S.A.

MASS (KG)

3 -- Serial Number Plate

DANGER

ROTATING DRIVELINE

CONTACT CAN CAUSE DEATH

KEEP AWAY!

DO NOT OPERATE WITHOUT--

# All driveline guards, tractor and

equipment shields in place

# Drivelines securely attached at both

ends

# Driveline guards that turn freely on

driveline

18864--C

DANGER

SHIELD MISSING

Do not operate.

Put shield on.

2 -- Part #18867

9 -- Part #18869

DANGER

SHIELD MISSING

DO NOT OPERATE - PUT SHIELD ON

18867-A

18869-B

6 -- Part #18864

9

2

6

10

11

2

1

CD4984

5

4

3

8

7

6

(Rev. 2/9/99)

7PN-52886 (4/97)

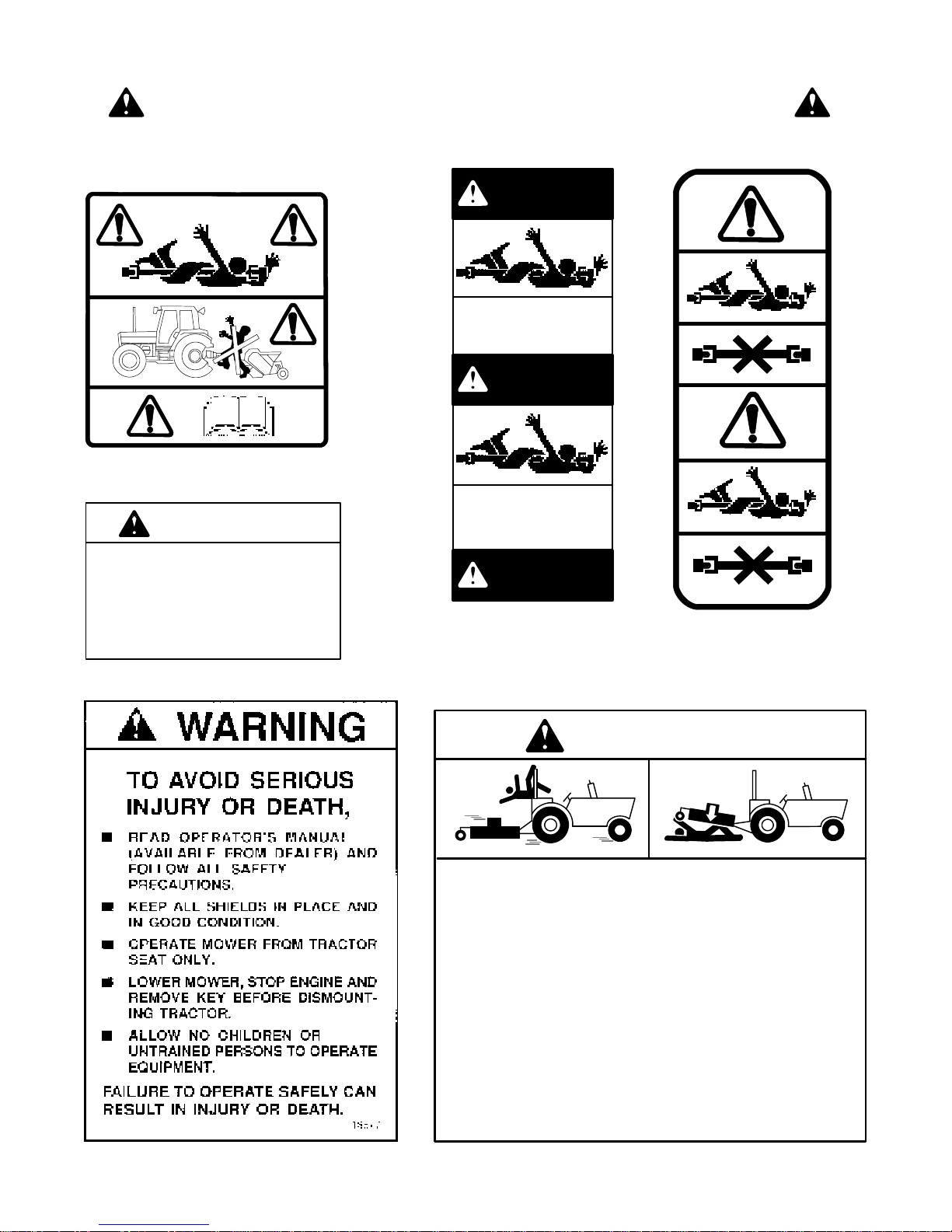

SAFETY DECALS

ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOL VED!

Replace Immediately If Damaged!

(Safety Decals continued from previous page)

4 -- Part #53597

5 -- Part #18866

WARNING

PTO speeds higher than 540 RPM can cause

equipment failure and personal injury.

DANGER

GUARD MISSING.

DO NOT OPERATE.

DANGER

GUARD MISSING.

DO NOT OPERATE.

33347E

DANGER

OPERATE PTO AT

540 RPM.

7 -- Part #18877

18866--C

10 -­Part #33347

11 -- Part #53596

8 -- Part #18865

WARNING

FALLING OFF CAN RESULT IN BEING RUN OVER.

" Tractor must be equipped with ROPS (or ROPS CAB) and seat belt.

Keep foldable ROPS systems in “locked up” positi on at all times.

" Buckle Up! Keep seat belt securely fastened.
" Allow no riders.

RAISED EQUIPMENT CAN DROP AND CRUSH.

" Before working underneath, follow all instructions and safety rules in

operator’s manual and securely block up all corners of equipment
with jack stands.

" Securely blocking prevents equipment dropping from hydraulic leak-

down, hydraulic system failures or mechanical component failures.

FALLING OFF OR FAILING TO BLOCK SECURELY CAN
RESUL T IN SERIOUS INJURY OR DEATH.

PN-52886 (4/97)8

18865--C

(Rev. 2/9/99)

OPERATION

Safety is a primary concern in the design and
manufacture of our products. Unfortunately, our
efforts to provide safe equipment can be wiped
out by an operator’s single careless act.

In addition to the design and configuration of
equipment, hazard control and accident preven­tion are dependent upon the awareness, con­cern,judgement,and propertrainingofpersonnel
involved inthe operation,transport, maintenance
and storage of equipment.

It has been said “The best safety device is an
informed,careful operator.” We ask you tobethat
kind of operator.

The operator is responsible for the safe operation of
this mower. The operator mustbe properly trained. Op­erators should be familiar with the mower and tractor
and all safety practices before starting operation. Read
the safety information on pages 4 through 8.

This mower is designed for lawn and grass mowing.
It is not designed for rough conditions or heavy weed
mowing. It is equipped with suction type blades for
best results in lawn mowing.

CAUTION

! Stoptractorandimplementimmediate­ly upon striking an obstruction. Turn off
engine, remove key, inspect and repairany
damage before resuming operation.

! Always wear relatively tight and belted
clothing to avoid entanglement in moving
parts. Wear sturdy, rough-soled work
shoes and protective equipment for eyes,
hair, hands, hearing and head.

DANGER

! When this equipment is operated in
populated areas or other areas where
thrown objects could injure persons or
property, full chain or rubber shielding
(which is designed to reduce the possibil­ity of thrown objects) must be installed. If
this machine is not equipped with full
chain or rubber shielding, operation must
be stopped when anyone comes within
several hundred feet.

Recommended mowing speed for most conditions is
fromtwotofivemph.

W ARNING

! Never allow children or untrained per­sons to operate equipment.

! Keep bystanders away from equip­ment.

! Before working underneath, carefully
read operator manual instructions, discon­nect driveline, raise mower, securely block
up all corners with jackstands and check
stability. Secure blocking prevents equip­ment dropping from hydraulic leak down,
hydraulic system failures, or mechanical
component failures.

! Keep all persons away from operator
control area while performing adjust­ments, service or maintenance.

! Make sure spring-activated locking
pin or collar slides freely and is seated
firmly in tractor PTO spline groove.

! Operate tractor PTO at RPM speed
stated in “Specifications” section.

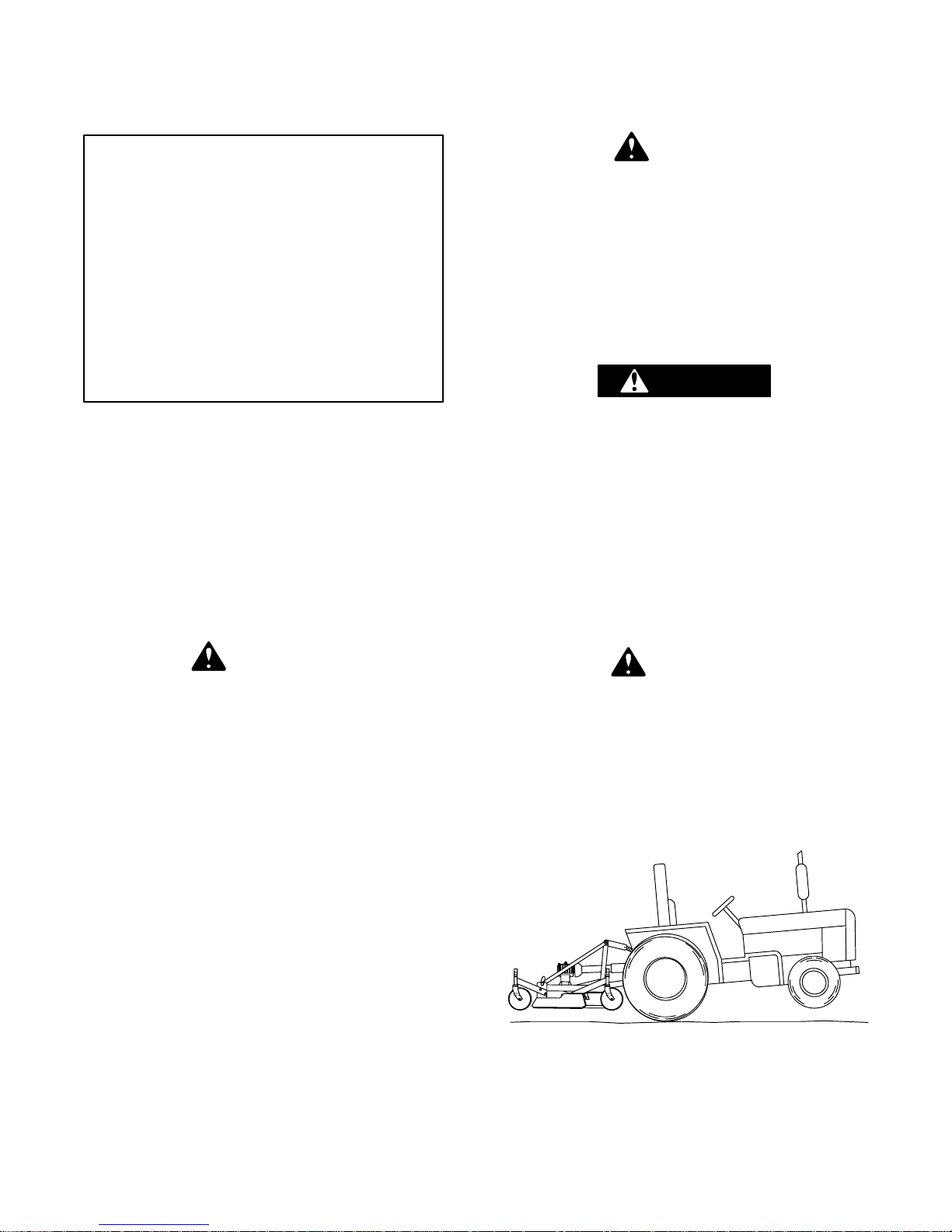

Tractor Stability (Figure 1)

W ARNING

! A minimum 20% of tractor and equip­ment weight must be ontractor frontwheels
with attachments in transport position.
Without this weight, tractor could tip over
causingpersonalinjury or death. Theweight
may be attained with a loader, front wheel
weights, ballast in tires or front tractor
weights. Weigh the tractor and equipment.
Do not estimate.

CD3550B

Figure 1. Tractor Stability

(Rev. 4/12/01)

9PN-52886 (4/97)

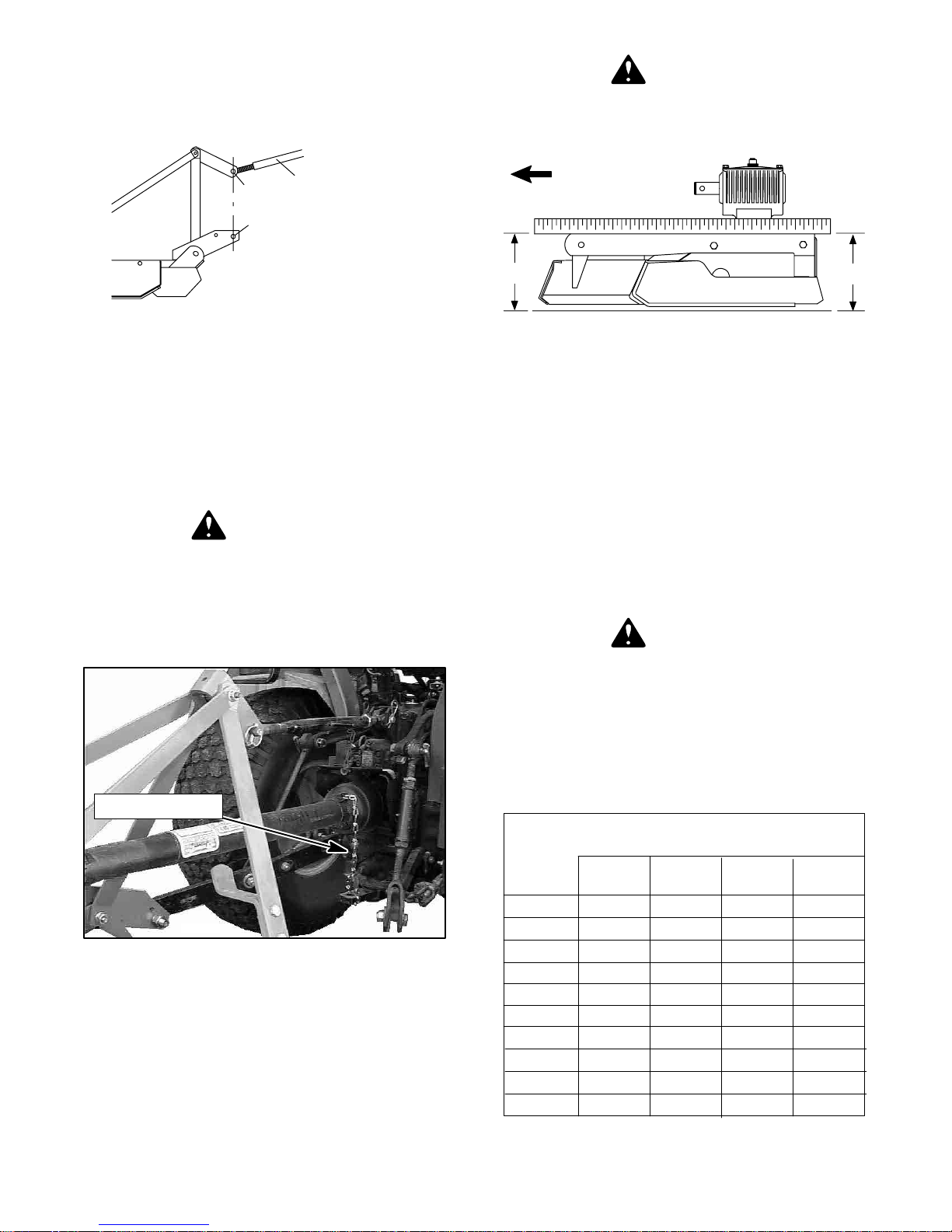

Top Link Attachment (Figure 2)

When the cutting height is adjusted, adjust tractor top
link until mower top link attachment point “A” is
aligned vertically with mower hitch pin “B.”

W ARNING

! Keep all persons away from operator
control area while performing adjust­ments, service or maintenance.

A

CD3944

Figure 2. Top Link Adjustment

1

B

1. Tractor top link

A. Mower top link

attachment point

B. Mower hitch pin

Attaching Mower to Tractor

The standard 1-3/8” 6B spline driveline with a QD
yoke is used to connect mower to tractor.

Attach the mower hitch pins to lower tractor lift arms
and secure. Attach tractor top link (1), Figure 2, to
mower top link bracket attachment point “A.” Connect
the drivelineto the tractor PTO shaft and attachtether
chain to tractor drawbar, Figure 3.

W ARNING

! Make sure spring-activated locking
pin or collar slides freely and is seated
firmly in tractor PTO spline groove.

Adjust thetractor lower 3-point arm anti-sway devices
to prevent mower from swinging side to side during
transport.

TETHER CHAIN

CM906

Figure 3. Attaching Mower to T ractor

Cutting Height Adjustment (Figure 4)

IMPORTANT

! Avoid low cutting heights. Striking the
ground with blades produces one of the
most damaging shock loads a mower can
encounter. Allowing blades to contact
ground repeatedly will cause damage to
mower and drive.

FORWARD

B

CD3551B

Figure 4. Cutting Height Adjustment

Level mower from side to side. Check by measuring
from mower frame to the ground at each deck rail.
Verify that the same amount of spacers are under all
caster arms. Loosen cap screws that attach caster
arm assembly to deck. Set mower on the ground.
Retighten cap screws.This equalizes theclearance in
the bolt holes.

Best mowing results will be obtained with front of
mower level with, or slightly lower than, the rear.

Cutting height is controlled with front and rear caster
wheel adjustment.

A

W ARNING

! Before working underneath, carefully
read operator manual instructions, discon­nect driveline, raise mower, securely block
up all corners with jackstands and check
stability. Secure blocking prevents equip­ment dropping from hydraulic leak down,
hydraulic system failures, or mechanical
component failures.

Spacers Required

Approx.

Cutting 1/2” 3/4” 1” 1-1/4”

Height Spacer Spacer Spacer Spring

1”

1-1/2” 1

2” 1

2-1/2” 11

3” 2

3-1/2” 12

4” 111

4-1/2” 1111

5” 121

5-1/2” 1121

Under Caster Arm Pivot Tube

CUTTING HEIGHT CHART

(Rev. 2/9/99)

PN-52886 (4/97)10

To raise rear of mower, move caster adjustment
spacers under caster arms.

To raise front of mower, move spacers under front
caster wheel arms.

Remember, measurement at location “A” Figure 4
should not be less than location “B” and should not be
over 1/2” greater than location “B.”

Tractor Top Link Adjustment (Figure 6)

Adjust tractor top link so mower is level at 16” between
caster wheel and ground (dimension “C” Figure 6).
This will allow the mower to follow ground contour.

Front Caster Arm Configuration

for RD6000 & RD7200 Only (Figure 5)

The RD6000 and RD7200 front casters can be set in
two positions. This is accomplished using right and
left offset caster arms. The figure shows a right offset
assembly. The direction of the offset is defined by
looking from the mounting hole “A” towards the pivot
tube “B.” The pivot tube should be higher than the
mounting holes. When viewing the arm in this way, the
direction of the offset can be determined.

A

RIGHT
OFFSET

R

R -- RIGHT OFFSET

B

L -- LEFT OFFSET
A -- MOUNTING

HOLES

B--PIVOTTUBE

L

L

L

R

R

Figure 5 shows thetwo possibleconfigurations for the
RD6000 and RD7200 front caster arms. The inner
position allows the outside edge of the mower to be
used for trimming under items such as shrubs or
fences. The outer position provides the most clear­ance for rear tractor tire interference. To change
configurations, remove the cap screws and nuts and
move the arms from one side of the machine to the
other. Secure with hardware.

The rear caster arms should be mounted as shown.
The RD8400 front caster arms are fixed and cannot

be changed.

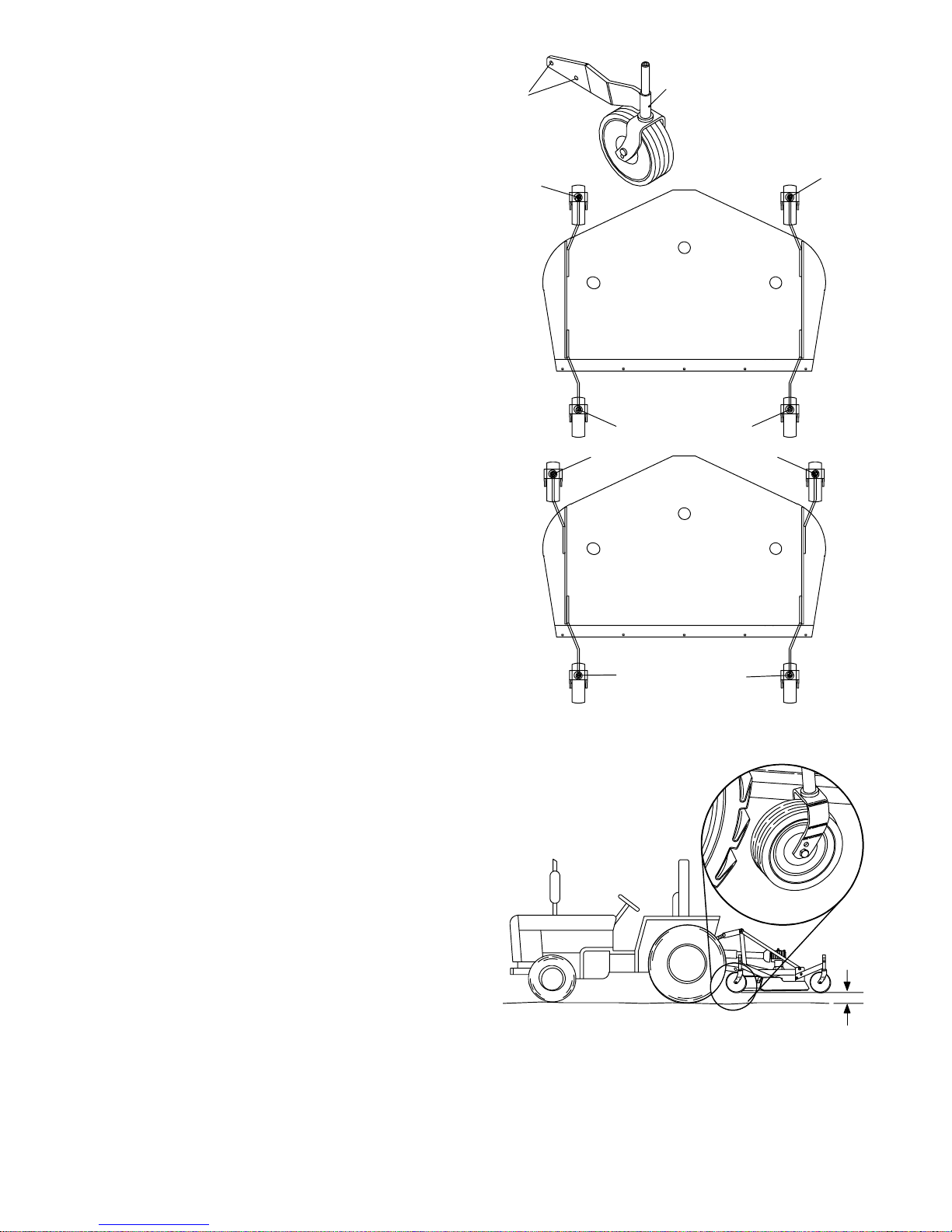

Front Caster Wheel Interference Check

(Figure 6)

IMPORTANT

! Do notoperate tractorand mower until
this interference check has been per­formed. If you change tractors, you must
perform the check for that mounting.

Perform this check with all of the spacers and springs
above the caster wheel arm. This will place the caster
wheels intheir highest position and provide the lowest
cutting height for the mower.

Raise mower with tractor hydraulics to 16” at
dimension “C” or maximum height of tractor lift,
whichever is less.

Pivot both front caster wheels forward and check that
there is clearance between caster wheels and tractor
tires.

CD4990

L

R

Figure 5. Front Caster Arm Configuration

for RD6000 & RD7200 Only

“C”

CD3528C

Figure 6. Front Gauge Wheel Interference Check

If there is interference, on models RD6000 and
RD7200, mount front casters in theouter position. On
model RD8400, caster wheel width is not adjustable;
see tractor operator’s manual and adjust tractor
wheels to narrower spacing.

(Rev. 2/9/99)

11PN-52886 (4/97)

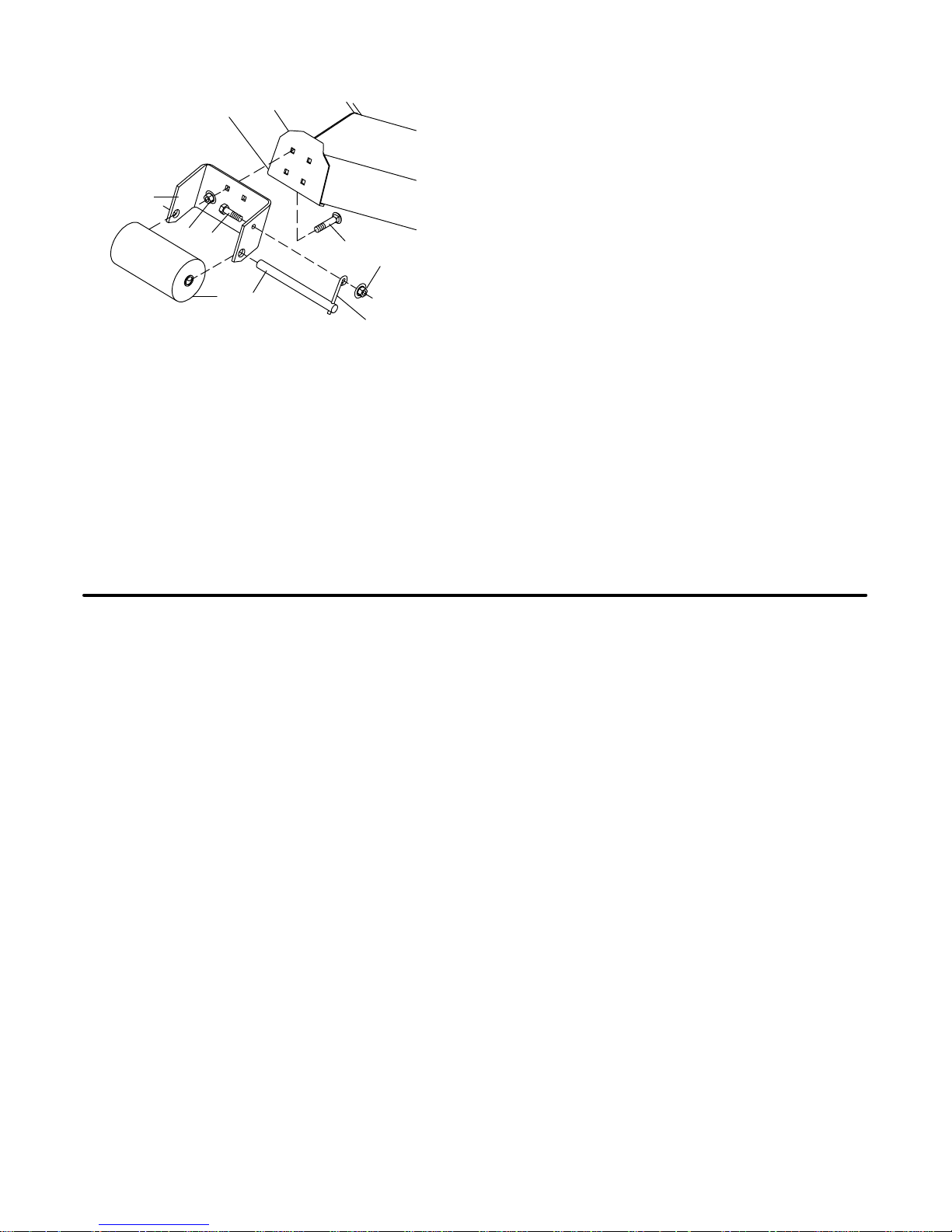

Front Roller (Optional)

The caster wheels and side skids effectively reduce
scalping in most cases. However ,you may encounter
areas where the caster wheels and/orside skids drop
into depressions and allow center of mower tocontact
ground and scalp. An optional front roller may be
installed to minimize scalping.

Pre-Operation Check List

(OWNER RESPONSIBILITY)
___Review and follow all safety rules and safety

decal instructions on pages 4 through 8.

___Check that all safety decals are installed and in

good condition. Replace if damaged.

___ Check that all shields and guards are properly

installed and in good condition. Replace if damaged.

__ Check that chain shielding is in good condition

and replace any damaged chain links.

___Check that all hardware and cotter pins are

properly installed and secured.

___ Check to ensure blades are sharp, in good condi-

tion, and installed correctly. Replace if damaged.

___Check that equipment is properly and securely

attached to tractor.

___Make sure driveline spring-activated locking pin

or collarslides freely andis seatedfirmly intractor
PTO spline groove.

___Make sure the driveline guards and tether chains

are in good condition. Guards must rotate freely
on driveline. Fasten tether chains as instructed to
the tractor and the equipment.

___Inspect area and remove stones, branches or

other hard objects that might be thrown, causing

injury or damage.
___Do not allow riders.
___Check all lubrication points and grease as

instructed in “Service, lubrication information.”

Make sure the PTO slip joint is lubricated andthat

the gearbox fluid levels are correct.
___Set tractor PTO at correct rpm for your equip-

ment.
___Make sure tractor ROPS or ROPS CAB and seat

belt are ingood condition.Keep seat belt securely

fastened during operation.
___Before starting engine, operator mustbe intractor

seat with seat belt fastened. Place transmission

in neutral or park, engage brake and disengage

tractor PTO.

Operating Technique

Should mower become plugged, causing belt to slip
for over two seconds, maneuver equipment into a
previously cut area and allow mower to clear
accumulated material. Continue running at least two
minutes, allowing pulleys to cool. Stopping the mower
in contact witha very hot pulley willbake and ruin belt.

CAUTION

! Stoptractorandimplementimmediate­ly upon striking an obstruction. Turn off
engine, remove key, inspect and repairany
damage before resuming operation.

Proper groundspeed will depend upon theterrain, the
height, type and density of material to be cut.

Normally, ground speed will range from two to five
mph. Talldense material should be cut at alow speed;
thin medium-height material can be cut at a faster
ground speed.

Always operate tractor PTO at 540 rpm. This is
necessary to maintain proper blade speed and
produce a clean cut.

Under certain conditions, tractor tires may roll some
grass down and prevent it from being cut at the same
height as the surrounding area. When this occurs, re­duce your ground speed, but maintain PTO at 540
rpm. The lower ground speed will permit grass to at
least partially rebound.

In general, lower cutting heights give a more even cut
with less tendency to leave tire tracks. However, it is
better to cut grass frequently rather than too short.
Short grass deteriorates rapidly in hot weather andin­vites weed growth during growing seasons. Follow
local recommendations for the suitable cutting height
in your area.

Tips

W ARNING

! Inspect and clear area of stones,
branches or other hard objects that might
be thrown, causing injury or damage.

Extremely tallmaterial should be cut twice. Setmower
at a higher cutting height for the first pass. Then cut
at desired height, at 90° to the first pass.

Remember, sharp blades produce cleaner cuts and
require less power.

Analyze area to be cut to determine the best
procedure. Consider height and type of grass and
terrain type: hilly, level or rough.

Power for operating mower is supplied by tractor
PTO. Operate PTO at 540 rpm. Know how to stop
tractor and mower quickly in case of an emergency.

Plan your mowing pattern to travel straight forward
whenever possible. Mow with uncut grass to theright.
This will distribute the clippings over the cut area.

(Rev. 2/9/99)

PN-52886 (4/97)12

Uneven Terrain

W ARNING

! Do not operate on steep slopes.

! Do not stop, start or change directions

suddenly on slopes.

! Use extreme care and reduce ground

speed on slopes and rough terrain.

! Watch for hidden hazards on the ter-

rain during operation.

Pass diagonally through sharp dips and avoid sharp
drops to prevent “hanging up” tractor and mower.

Practice will improve your skills in maneuvering rough
terrain.

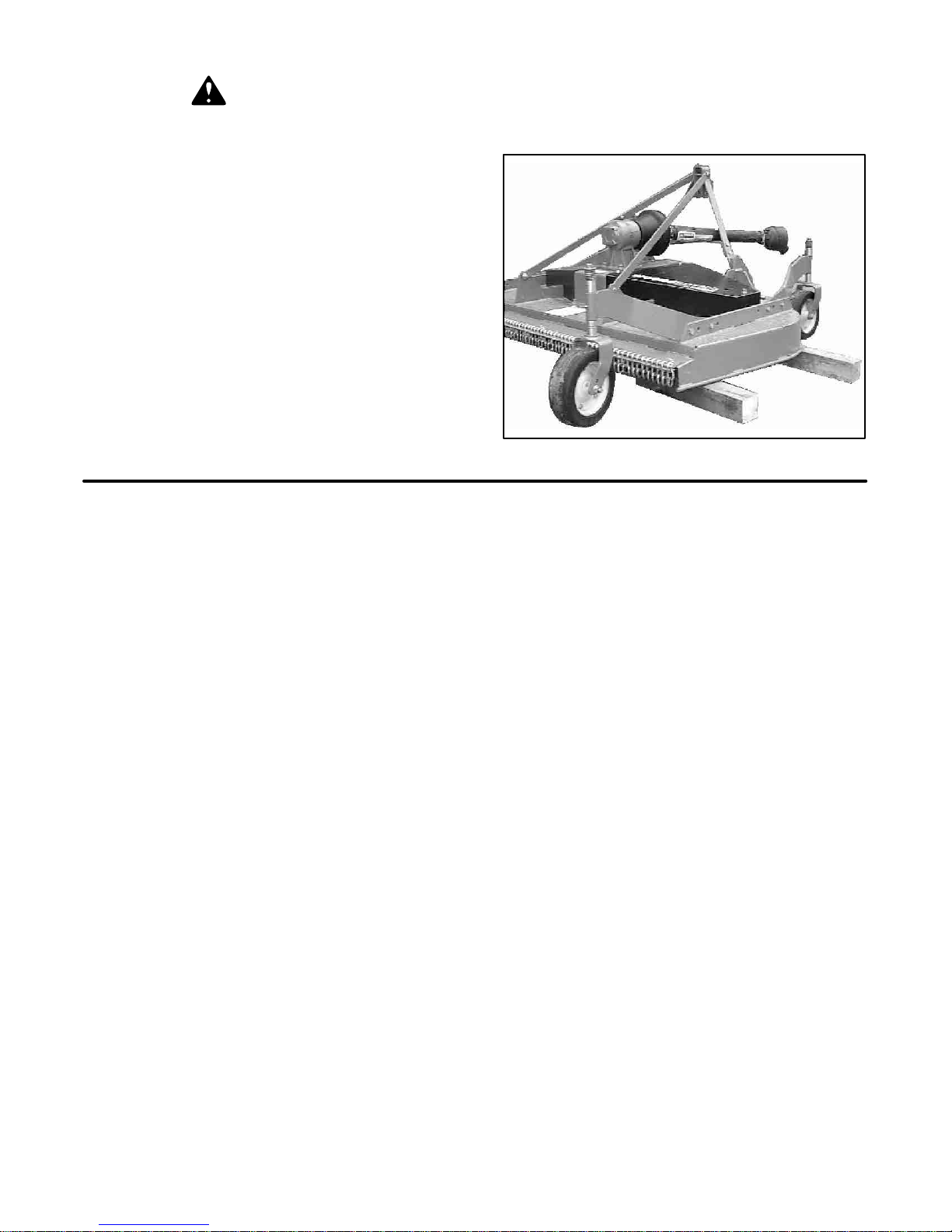

Removing Mower from Tractor

(Figure 7)

Disengage tractor PTO, raise mower with 3-point hitch.

Collapse driveshaft as far as possible and store it in
PTO hanger bracket to prevent ground contact. Place
blocks under mower side skids. Lower mower onto
blocks, disconnect mower from tractor 3-point hitch,
and carefully drive tractor away from mower.

CM905A

Disconnect mower driveshaft from tractor PTO.

Figure 7. Mower Storage Position

NOTES

(Rev. 2/9/99)

13PN-52886 (4/97)

OWNER SERVICE

Safety is a primary concern in the design and
manufacture of our products. Unfortunately, our
efforts to provide safe equipment can be wiped
out by an operator’s single careless act.

In addition to the design and configuration of
equipment, hazard control and accident preven­tion are dependent upon the awareness, con­cern,judgement,and propertrainingofpersonnel
involved inthe operation,transport, maintenance
and storage of equipment.

It has been said “The best safety device is an
informed,careful operator.” We ask you tobethat
kind of operator.

The information in this section is written for operators
who possess basic mechanical skills. Should you
need help, your dealerhas trainedservice technicians
available. For your protection, read and follow all
safety information in this manual.

W ARNING

! Never allow children or untrained per-

sons to operate equipment.

BLOCKING METHOD

(Figure 8)

Do not work underneath mower unless it is properly
attached to the tractor and blocked securely. When
properly attached, the unit will be anchored to
minimize front to rear movement.

Raise mower completely, set tractor brakes, turn
engine off, remove key, block tractor wheels front and
rear, and disconnect mower driveline from tractor.

The only approved blocking device for this mower is
a jackstand with a load rating of1000 pounds or more.
One jackstand under each corner of the mower (four
total) must be installed before working underneath
this unit.

Install jackstands under each corner of the mower.
When blocking, you must consider overall stability of

the unit. Just blocking under the unit will not ensure
your safety. The working surface must be level and
solid to support the loaded weight of the jackstands.
Test jackstands stability before working under any
portion of the mower.

! Keep bystanders away from equip-

ment.

! Before working underneath, carefully

read operator manual instructions, discon-

nect driveline, raise mower, securely block

up all corners with jackstands and check

stability. Secure blocking prevents equip-

ment dropping from hydraulic leak down,

hydraulic system failures, or mechanical

component failures.

! Keep all persons away from operator

control area while performing adjust-

ments, service or maintenance.

! Make sure spring-activated locking

pin or collar slides freely and is seated

firmly in tractor PTO spline groove.

! Operate tractor PTO at RPM speed

stated in “Specifications” section.

CAUTION

! Always wear relatively tight and belted

clothing to avoid entanglement in moving

parts. Wear sturdy, rough-soled work

shoes and protective equipment for eyes,

hair, hands, hearing and head.

X

X

X

X

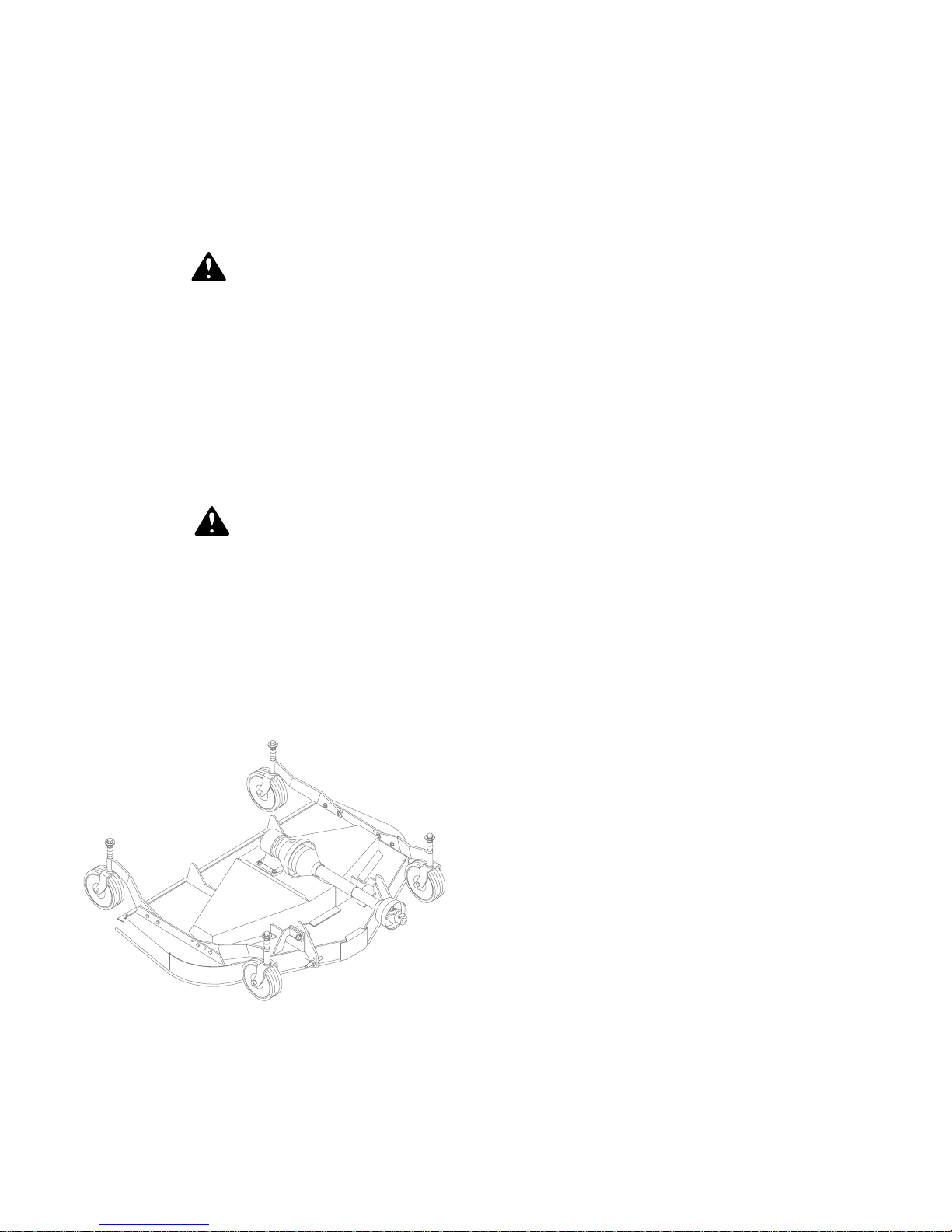

Figure 8. Blocking Method

LUBRICATION INFORMATION

(Figure 9)

Do not let excess grease collect on or around parts,
particularly when operating in sandy areas.

Figure 9 shows the lubrication points. The accompany­ing chart gives the frequency of lubrication in operating
hours, based on normal operating conditions. Severe or
unusual conditions may require more frequent lubrica­tion. Some reference numbers have more than one
location; be sure you lubricate all locations.

CD4985VAR

PN-52886 (4/97)14

Use a lithium grease of #2 consistency with a MOLY
(molybdenum disulfide) additive for all locations. Be
sure to clean fittings thoroughly before attaching
grease gun.When appliedaccording to the lubrication
chart, one good pump of most guns is sufficient.

Overfilling the gearbox will cause the excess gear
lube to blow out vent plug. The gear lube could then
ruin the belt.

Driveshaft Lubrication

Use SAE 90W gear lube in the gearbox. Oil level is to
be up to plug on side of gearbox. See Figure 9.

Check gearbox daily for evidence of leakage at both
seals and the gasket between the housing and cover.
If leakage is noted, repair immediately. There may be
a small amount of lubeemitted from thevent plug; this
is not considered leakage.

7

8

Lubricate the driveshaft slip joint every 8 operating
hours. Failure to maintain proper lubrication could
result in damage to U-joints, gearbox and driveshaft.

Lower mower to ground.
Apply grease at three locations as shown in Figure 9.
Raise and lower mower several times to distribute

grease.

6

5

4

3

9

Ref

No

Description Frequency

1 Front U-Joint 8 hours
2 Caster Wheel (Four wheels) 8 hours
3 Caster Pivot (Four wheels) 8 hours
4 Left Spindle (Access through hole) 24 hours
5 Shield Bearings 8 hours
6 Rear U-Joint 8 hours
7 Gearbox (Fill to center of horizontal Check

shaft with SAE 90W gear lube) Daily
8 Right Spindle (Access through hole) 24 hours
9 Center Spindle (Access through hole) 24 hours

10 Slip Joints (Three sides) 8 hours
11 Belt Idler Arm Pivot (Three drops oil) Monthly

(see location on Figure 10.)

2

1

5

CD4985

10

(Rev. 6/28/01)

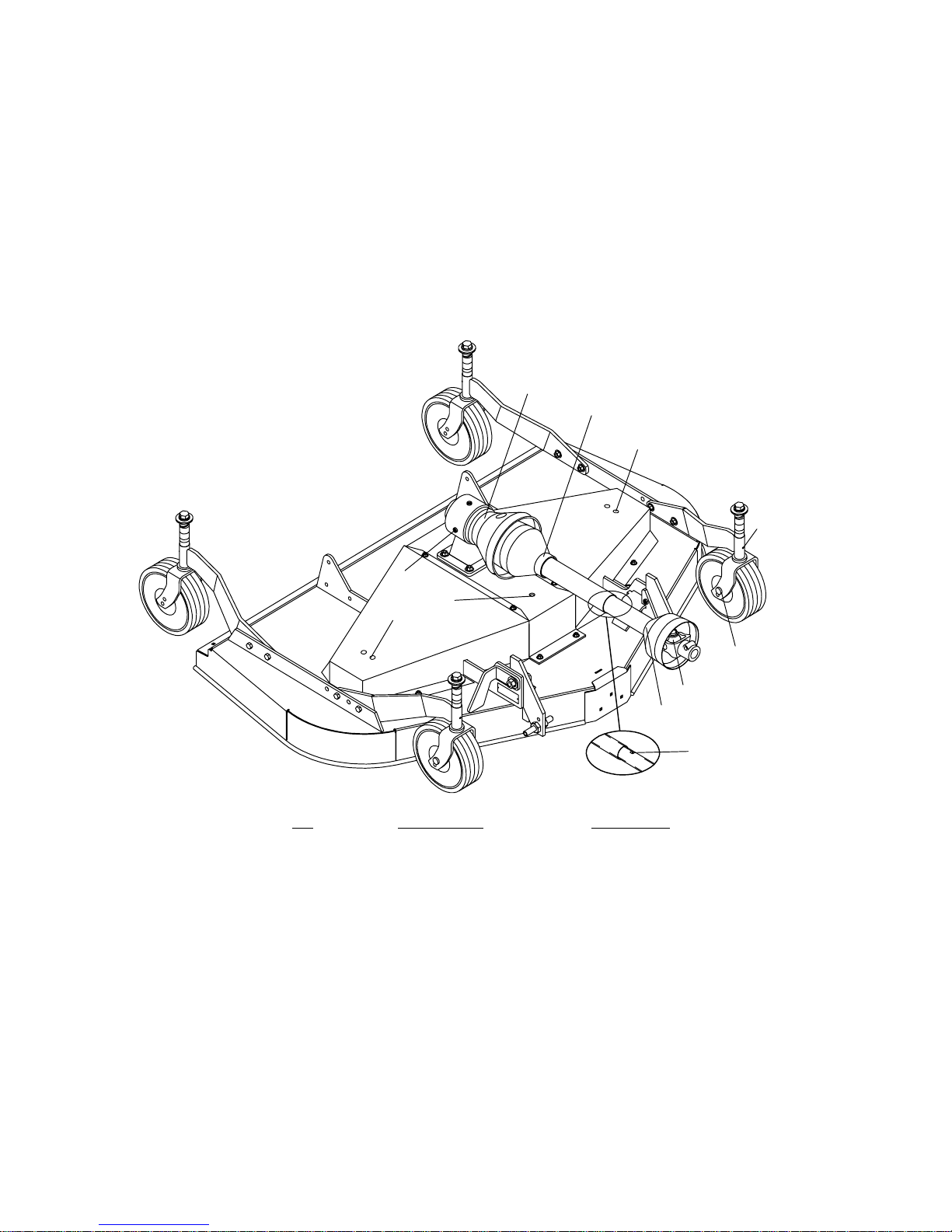

Figure 9. Lubrication Points

15PN-52886 (4/97)

BELT REPLACEMENT (Figure 10)

D

C

A

B

E

CD4989VAR

F

I

H

IDLER ARM PIVOT

G

1/8″

W ARNING

! Before dismounting tractor or perform­ing any service or maintenance,disengage
powerto implement,lowerthe 3-pointhitch
and all raised components to the ground,
operate valve levers to release any hydrau­licpressure, set parkingbrake,stop engine,
remove key, and unfasten seat belt.

! Keep all persons away from operator
control area while performing adjust­ments, service or maintenance.

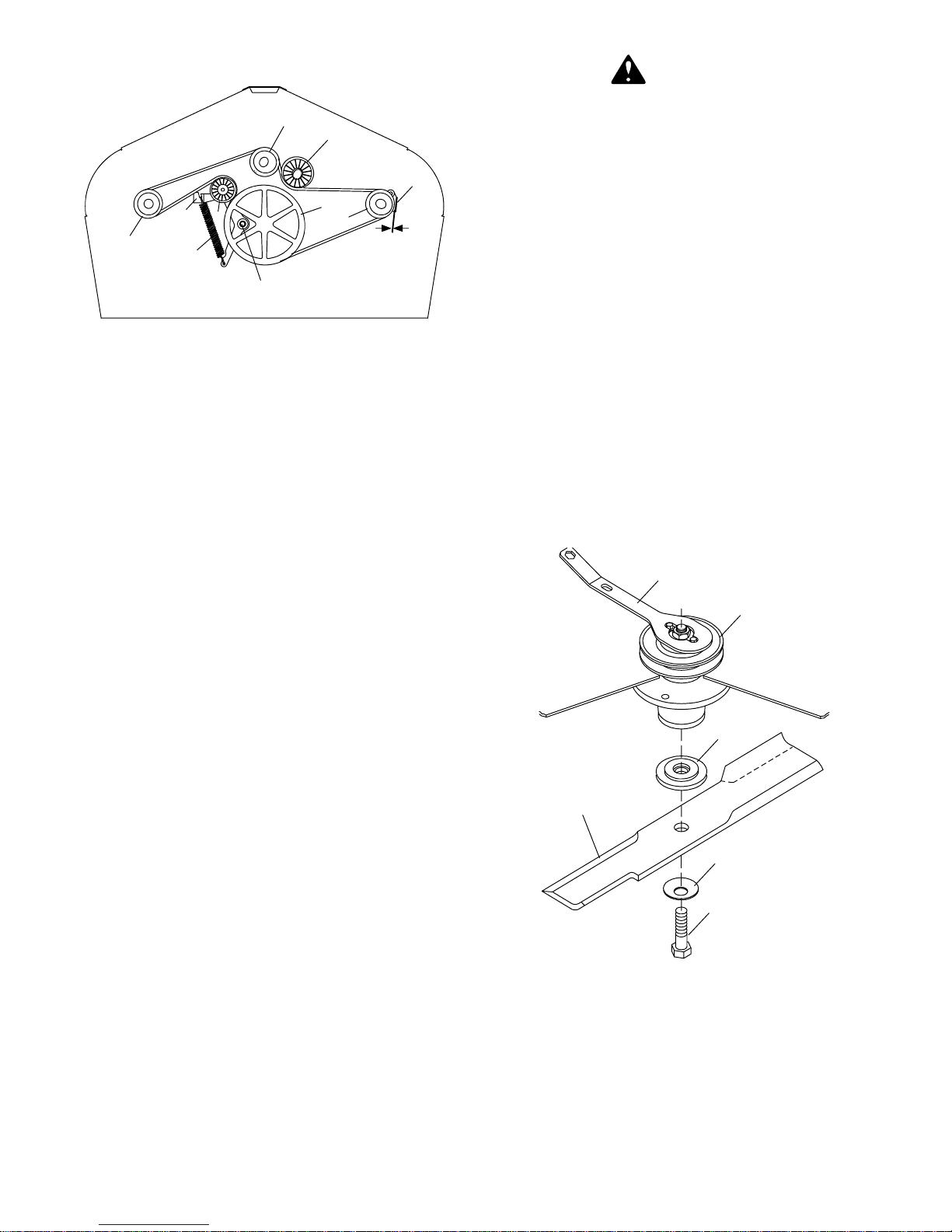

Figure 10. Belt Routing

One of the major causes of belt failure is improper
installation. Before a new belt is installed, check
pulley shafts and bearings for wear. Check pulley
grooves for cleanliness. Make sure spindles turn
freely andwithout wobble.If grooves require cleaning,
moisten a cloth with a non-flammable, non-toxic
degreasing agent or commercial detergent and water.

Avoid excessive force during installation. Do not use
tools topry belt into pulley groove. Do not roll belt over
pulleys to install. This can cause hidden damage and
premature belt failure.

IMPORTANT

! Use care when installing or removing
belt from spring-loaded idler at step 5.
Springs store energy when extended and,
if released suddenly, can cause personal
injury.

1. Disconnect idler spring from deck lug “I”.

2. Slide beltunderdrive pulley “A”and overidler arm.

Position belt around drive pulley “A”.

3. Loosen bolt holding belt guide “G” and swing it
awayfrom pulley“B”.Route beltaroundpulley “B”,
idler “C” and pulley “D” as shown.

Blade Removal

RD6000 (Figure 11)

Remove belt shields.
Install spindle lock wrench (1) onto spindle pulley as

shown. Remove cap screw (6) which has RIGHT HAND
THREADS. Remove cup washer (5) and blade (4).

Shoulder washer (3) will not normally come off unless
intentionally removed.

1

2

3

4

CD4988A

4. Make sure beltis ondrive pulley “A”, route around
idler“F”, and connectidlerspring to lug“I”on deck.

5. Grasp belt between spindle pulley “E”, spring
loaded idler “F” and spindle pulley “D”. Pull spring
loaded idler with belt to obtain enough belt length
torouteit over pulley“C”.Makesurespring-loaded
idler pivots freely with belt installed.

6. Adjust belt guide “G” to provide 1/16” to 1/8”
clearance from belt. Tighten bolt to 85 lbs.-ft.

BLADE SERVICING

Inspect blades for condition and proper installation each
time before operation. Replace any blade that is bent,
excessively nicked, worn or has any other damage.
Small nicks can be ground out when sharpening.

5

6

1. Spindle wrench

2. Pulley

3. Shoulder washer

4. Blade

5. 5/8 x 3 Cup washer

6. 5/8 NC x 3-1/2” Hex head cap screw GR5
(RD6000)

Figure 11. Blade Installation for

RD6000 SN 793923 and prior

(Rev. 6/28/01)

PN-52886 (4/97)16

RD6000 (SN 793924 and after)
RD7200 and RD8400 (Figure 12)

Remove cap screws (3) and nuts (4).

4

RD7200 and RD8400 (Figure 12)

Place capscrews (3) through outer holes in blade and
spindle shaft. Make sure blade cutting edge is
positioned to lead in clockwise rotation, as viewed

1

from top of mower. Place locknuts (4) on screws and
torque to 85 lbs.-ft.

Blade Sharpening (Figure 13)

Remove blades.
Always sharpen both ends at the same time to

maintain balance. Follow original sharpening pattern.
Do not sharpen blade to a razor edge. Leave from

2

1/32” to 1/16” blunt edge. Do not sharpen back side.

3

1. Spindle assembly

2. Blade

3. 1/2 NC x 1-1/2” Hex head cap screw GR5

4. 1/2 NC Hex flange locknut

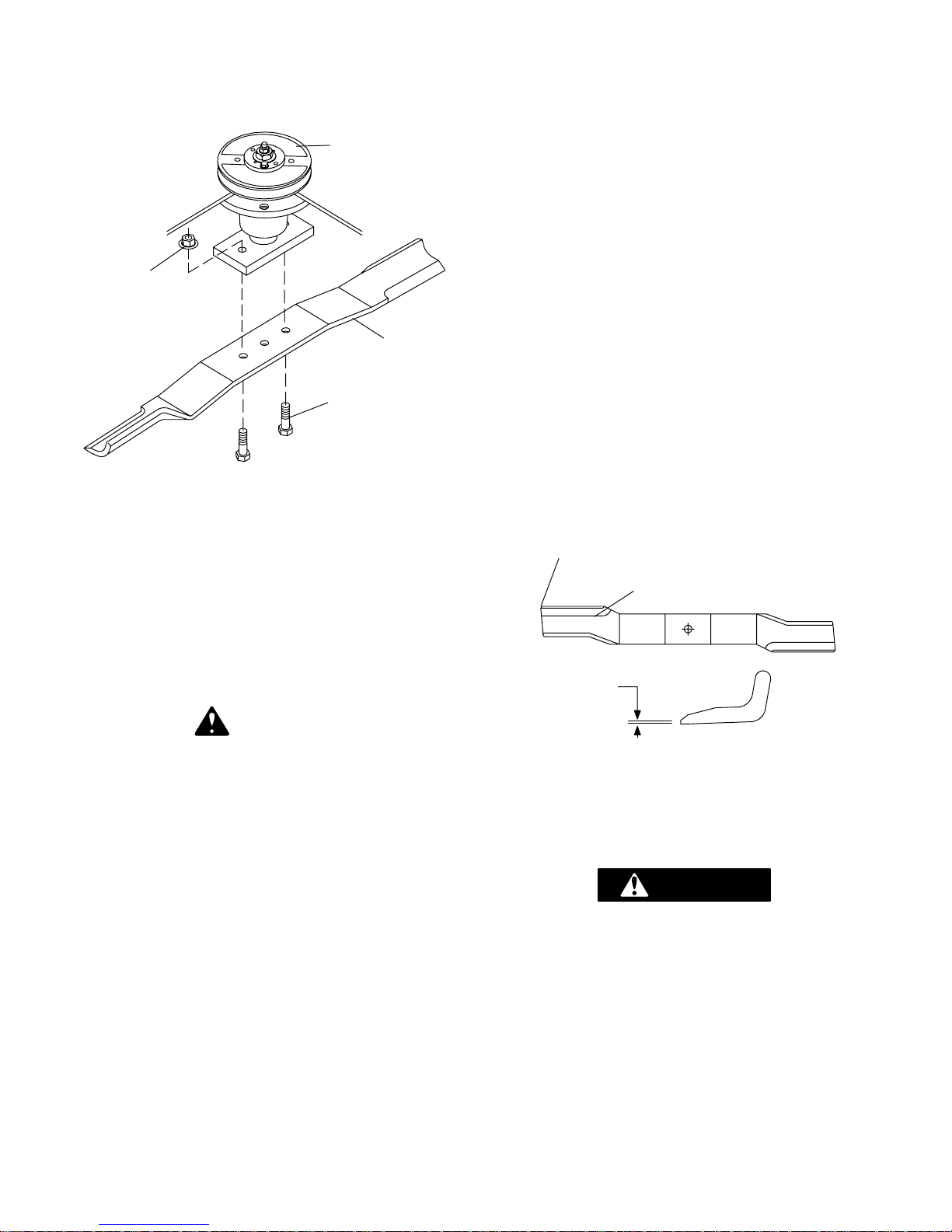

Figure 12. Blade Installation for
RD6000 (SN 793924 and after),

RD7200, and RD8400

Blade Installation

CAUTION

! Your dealer can supply genuine re­placement blades. Substitute blades may
not meet original equipment specifica­tions and may be dangerous.

CD5060

IMPORTANT

! When sharpening blades, be sure to
balance them. Unbalanced blades will
cause excessivevibration which can dam­age blade spindle bearings. Vibration may
also cause structural cracks in mower
components.

MAINTAIN CORNER

FOLLOW ORIGINAL
PATTERN

1/32″

Figure 13. Blade Sharpening

CD3627

RD6000 Only
(Figure 11)

Install spindle lock wrench (1) onto spindle pulley as
shown. Install shoulder washer (3) (if removed), small
end up. Make sure blade cutting edge is positioned to
lead in clockwise rotation, as viewed from top of mower .

Excessive blade slipping can cause cup washer to
burn and lose its clamping force. Inspect cup washer
to determine if it is burned or has lost its clamping
force. Replace as necessary.

Install cup washer on cap screw with crown next to
cap screw head, then place blade on cap screw.
Install cap screw and blade assembly into spindle.
Torque cap screw to 125 lbs.-ft. Remove blade
wrench from pulley. Replace belt shields.

(Rev. 8/23/01)

CHAIN SHIELDING

DANGER

! When this equipment is operated in
populated areas or other areas where
thrown objects could injure persons or
property, full chain or rubber shielding
(which is designed to reduce the possibil­ity of thrown objects) must be installed. If
this machine is not equipped with full
chain or rubber shielding, operation must
be stopped when anyone comes within
several hundred feet.

Check that chain shielding is in good condition and
replace any damaged chain links.

17PN-52886 (4/97)

DEALER SERVICE

The information in this section is written for dealer
service personnel. The repair described herein
requires special skills and tools. If your shop is not
properly equipped or your mechanics are notproperly
trained in this type of repair, you may be time and
money ahead to replace complete assemblies.

W ARNING

! Before working underneath, carefully
read operator manual instructions, discon­nect driveline, raise mower, securely block
up all corners with jackstands and check
stability. Secure blocking prevents equip­ment dropping from hydraulic leak down,
hydraulic system failures, or mechanical
component failures.

! Keep all persons away from operator
control area while performing adjust­ments, service or maintenance.

CAUTION

! Always wear relatively tight and belted
clothing to avoid entanglement in moving
parts. Wear sturdy, rough-soled work
shoes and protective equipment for eyes,
hair, hands, hearing and head.

Raise mower completely, set tractor brakes, turn
engine off, remove key, block tractor wheels front and
rear, and disconnect mower driveline from tractor.

The only approved blocking device for this mower is
a jackstand with a load rating of1000 pounds or more.
Install one jackstand under each corner of the mower
(four total), before working underneath this unit.

When blocking, you must consider overall stability of
the unit. Just blocking under the unit will not ensure
your safety. The working surface must be level and
solid to support the loaded weight of the jackstands.
Test jackstands stability before working under any
portion of the mower.

BLADE SPINDLE REPAIR

Spindle repair requires special skills and tools. If your
shop is not properly equipped or your mechanics are
not trained in this type of repair, you may be time and
money ahead to use a new spindle assembly.

For reference, the grease fitting is in the top of the
spindle shaft.

Permatex 3D Aviation Form-A-Gasket
is recommended as a sealant.



or equivalent

Spindle Removal

Remove blade from spindle.

BLOCKING METHOD

(Figure 14)

X

X

X

X

Figure 14. Blocking Method

Do not work underneath mower unless it is properly
attached to the tractor and blocked securely. When
properly attached, the unit will be anchored to
minimize front to rear movement.

CD4985VAR

Remove belt from pulleys.
Remove jam nut and washers from top of spindle

shaft.
Disassemble split taper bushing (located on top of

pulley) by removing the two bolts and inserting them
into the threaded holes of bushing flange. Tighten
them alternately to remove split taper bushing.
Remove pulley.

Spindle Disassembly (Figure 15)

Remove bolts attaching spindle to mower frame and
remove spindle.

Remove grease fitting.
Place spindle assembly in press and press shaft

down through housing.
Remove seals from housing.
Remove bearing cups from housing by placing a

punch in slots provided and driving out. Alternate
punch positions from side to side. Take care to
prevent housing damage.

Permatex 3D Aviation Form-A-Gasket is a registered
trademark of the Permatex Corporation.

PN-52886 (4/97)18

1

1

2

2

SEAL LIP

3

3

4

CD4107

4

5

5

4

7

RD6000
SN 793923 and prior

2

5

6

6

5

1. Grease fitting

2. Seal

4

3. Sleeve

4. Bearing cone

2

5. Bearing cup

6. Spindle housing

SEAL LIP

7. Spindle shaft
7

RD6000 after SN 793923
RD7200 & RD8400

CD5061

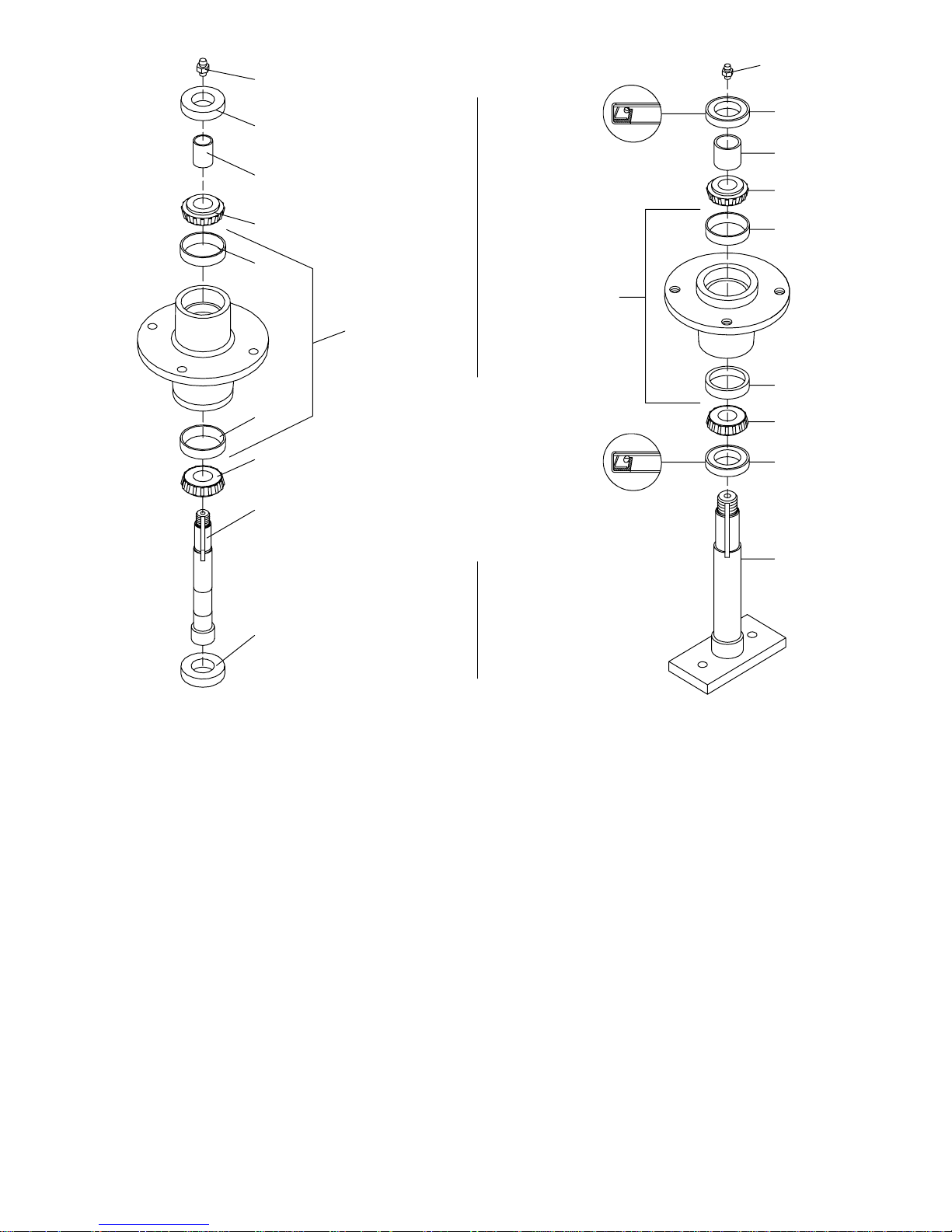

Figure 15. Blade Spindle Assemblies

Spindle Assembly (Figure 15)

Bearing cones and cups are designed to work
together. It is important to position them so bearing
cone taper mates with cup taper.

Lubricate new cups with a light oil. Place them in
spindle housing so they will mate with bearing cones.
Cups and cones are a press fit to minimize wear.

Seat cups securely with a press or place a large drift
in the flat lip and drive them into housing until cup
seats against machined shoulder of housing.

RD6000 Spindles Only

Place bottom bearing cone onto spindle shaft with
taper positioned to mate with cup. Press onto shaft
and seat on bottom shoulder of shaft.

Insert shaft and bearing through bottom of housing.
Fill housing cavity with a medium grade grease.

(Rev. 4/12/01)

Install top bearing on shaft to mate with top cone.
Apply a thin coat of Permatex to shaft area where

sleeve will seat.
Install sleeve on shaft and press sleeve and bearing

into housing until all free play is removed and there is
a very light drag on bearings (similar toadjusting front
wheel bearings onan automobile). Check byspinning
spindle. It should turn freely.

Be carefulnot to overtighten bearings. Properbearing
adjustment is essential to good bearing life.

Should you overtighten bearings, hold spindle hous­ing and rap spindle shaft with a lead hammer.

IMPORTANT

! Improper positioning of seals can
cause seal damage.

Proper seal installation is important. An improperly
installed seal will leak and could cause bearing
failure.

19PN-52886 (4/97)

Identify the open side of the seal containing the
spring.

Lightly coat, with Permatex, the area of housing
where seals seat.

Install bottom seal with spring up toward center of
housing.

Place seal squarely on housing and select a piece of
pipe or tubing with an OD that will set on outside edge
of seal. A tubing with an OD that is too small will bow
seal cage.

Carefully press seal into housing, preventing distor­tion tometal seal cage.Bottom seal should seatfirmly
and squarely against machined shoulder in housing.

Make sure seal lip did not roll under.Distortion to seal
cage or damage to seal lip will cause seal to leak.
Damaged seals must be replaced.

Carefully press top seal in with spring up. Top seal
should be flush with, to 1/16” above, housing.

Rotate housing on spindle shaft, checking for free
movement.

Install grease fitting in spindle shaft.

Install top bearing on shaft to mate with top cone.
Apply a thin coat of Permatex to shaft area where

sleeve will seat.
Install sleeve on shaft and press sleeve and bearing

into housing until all free play is removed and there is
a very light drag on bearings (similar toadjusting front
wheel bearings onan automobile). Check byspinning
spindle. It should turn freely.

Be carefulnot to overtighten bearings. Properbearing
adjustment is essential to good bearing life.

Should you overtighten bearings, hold spindle hous­ing and rap spindle shaft with a lead hammer.

Carefully press top seal in with spring up. Top seal
should be flush with, to 1/16” above, housing.

Rotate housing on spindle shaft, checking for free
movement.

Install grease fitting in spindle shaft.

Spindle Installation

Install spindle through bottom of mower and install
four mounting bolts.

RD7200 and RD8400 Spindle

Place bottom bearing cone into spindle with taper
positioned to mate with cup.

IMPORTANT

! Improper positioning of seals can
cause seal damage.

Proper seal installation is important. An improperly
installed seal will leak and could cause bearing
failure.

Identify the open side of the seal containing the
spring.

Lightly coat, with Permatex, the area of housing
where seals seat.

Install bottom seal with spring up toward center of
housing.

Place seal squarely on housing and select a piece of
pipe or tubing with an OD that will set on outside edge
of seal. A tubing with an OD that is too small will bow
seal cage.

Carefully press seal into housing, preventing distor­tion tometal seal cage.Bottom seal should seatfirmly
and squarely against machined shoulder in housing.

Make sure seal lip did not roll under.Distortion to seal
cage or damage to seal lip will cause seal to leak.
Damaged seals must be replaced.

Insert shaft and bearing through bottom of housing.
Fill housing cavity with a medium grade grease.

IMPORTANT

! Pulley installation sequence is very
important for bearing life. Follow the se­quence exactly.

Install pulley and split taper bushing with integral key
on spindle shaft. Make certain bushing is in contact
with sleeve on spindle shaft. Alternately tighten split
taper bushing cap screws to 12 lbs.-ft.

Install toothed lockwasher and nut on spindle shaft.
Tighten nut until snug. Bend up edge of lockwasher
against a flat on nut.

GEARBOX MAINTENANCE

(Figure 18)

Read this entire section before starting any repair.
Many steps are dependent on each other.

Fill gearbox with SAE 80W or 90W gear lube until it
runs out the side level plug (18).

Repair to this gearbox is limited to replacing bearings,
seals and gaskets. Replacing gears, shafts and a
housing is not cost effective. It is more economical to
purchase a complete gearbox if repair other than
replacing bearings, seals or gaskets is required.

Inspect gearbox for leakage and bad bearings.
Leakage is a very serious problem and must be

corrected immediately.
Bearing failure is indicated by excessive noise and

side to side or end play in gear shafts.

(Rev. 2/9/99)

PN-52886 (4/97)20

Leakage Repair

Recommended sealant for gearbox repair is Perma­tex Aviation 3D Form-A-Gasket



or equivalent.

Leakage can occur at the vertical or horizontal
gaskets and shaft seals. Leakage at the horizontal
gasket or seal can be repaired without removing the
gearbox from the cutter.

Horizontal Shaft Leak Repair
(Figure 18)

Disconnect and remove driveline from gearbox.
Remove drive shield.

Remove vent plug (25) and siphon gear lube from
housing through this opening.

If leak occurred at the horizontal O-ring, remove cap
(6) and snap ring (17). Replace O-ring with new one,
install cap (6) and install snap ring (17).

If leak occurred at the horizontal seal (20), remove
and replace the old seal. Refer to seal installation.

Fill gearbox with SAE 80W or 90W gear lube until it
runs out the level plug (18).

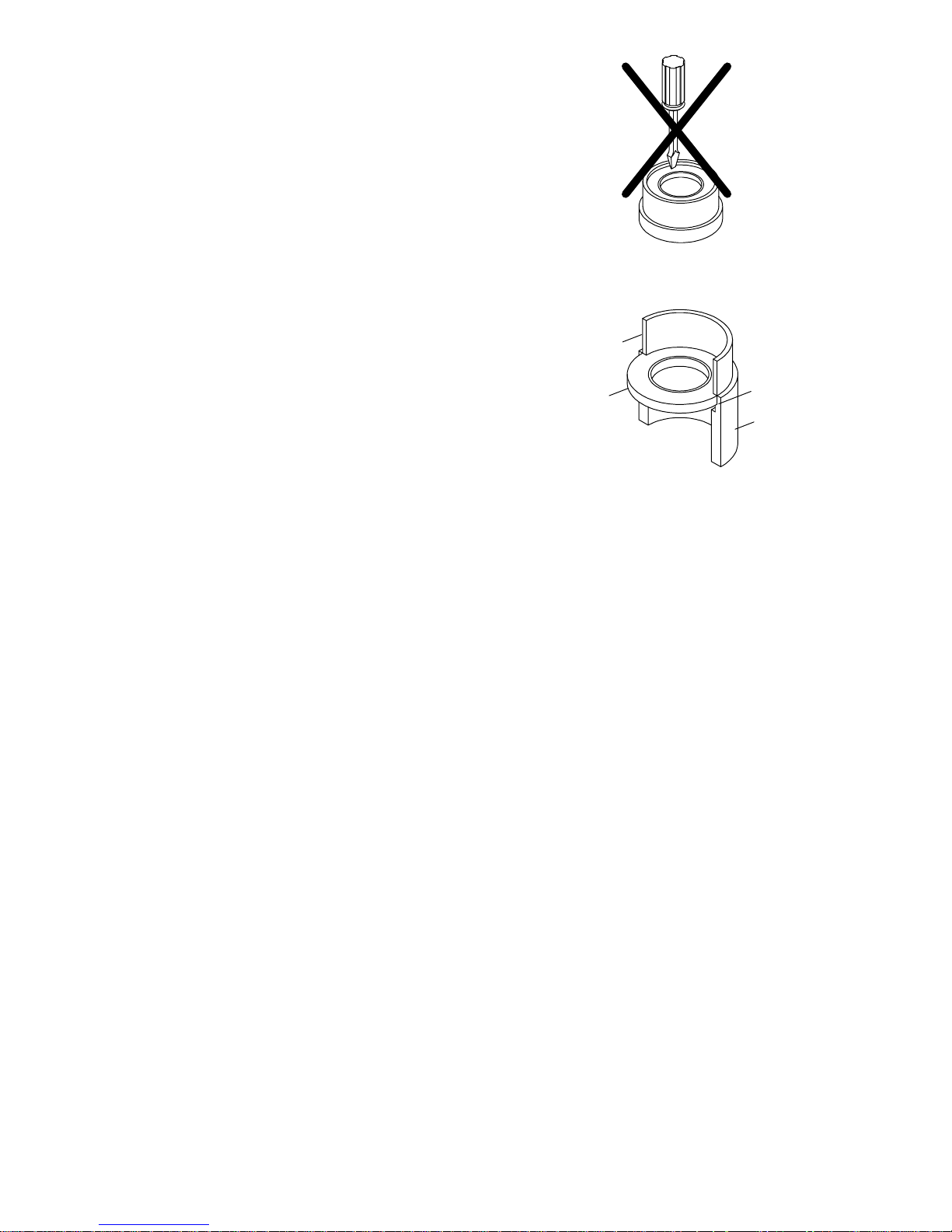

Figure 16. Incorrect Seal Installation

2

1

1. Seal

2. Pipe or tube

3. Seal seat

4. Casting

Pipe or tube must press
at outer edge of seal

CD1092

3

4

CD1094

Install drive shield and driveline and place unit in
service.

Seal Installation
(Figure 16 & Figure 17)

Proper seal installation is important. An improperly
installed seal will leak.

Clean area in housing where seal outer diameter
seats and apply a thin coat of Permatex.

Inspect area of shaft where seal seats and remove
any burrs or nicks with emery cloth.

Place seal (spring-loaded lip toward housing) square­ly on cap. Select a piece of pipe or tubing with an OD
that will set on outside edge of seal but will clear the
housing. Tubing with an OD that is too small will bow
seal cage and ruin seal.

Lubricate gear shaft and seal lips.
Carefully press seal into housing, preventing distor-

tion to the metal seal cage. Vertical seal should be
recessed 0.275” inhousing. Horizontal sealshould be
pressed flush with outside of housing.

Distortion toseal cage or damage to seal lip will cause
seal to leak.

Remove and replace any seal damaged in installa­tion.

Figure 17. Seal Installation

Removing Gearbox from Mower

(Figure 18)

Remove belt shields.
Remove driveline from gearbox input shaft. Remove

drive shield.
Remove belt from gearbox sheave.
Remove gearstand from mower.
Remove gearbox sheave from gearbox by removing

cotter pin and castle nut.
Remove gearbox from gearbox stand.

Gearbox Disassembly

(Figure 18)

Remove gearbox from mower.
Remove 3/8” plug (18) from side of gearbox and pour

out gear oil.
Remove internal snapring (17) holding front cover (6)

using two screwdrivers. Remove cap (25).
Support gearbox in hand press and push on input

shaft (3) to remove front cover (6), and bearing (8).
Remove O-ring (21) from housing. Remove gear (1)

and rectangular key (13) from horizontal input shaft
(3).

21PN-52886 (4/97)

Remove input shaft (3) with bearing (8) from front
cover (6). Remove bearing (8) from input shaft (3).

Insert input bearing (9) in the housing using a round
tube of correct diameter using a hand press.

Remove input bearing (9) by using a punch and
hammer from outside the housing.

Remove the input oil seal (20) by using a punch and
hammer from outside the housing.

Support housing in vise in horizontal position.
Remove snap ring (16) on vertical housing using two

screwdrivers.
Stand gearbox vertically to remove shield washer (7).
Support housing in vise in horizontal position.
Remove dual lip seal (19) by drivingscrewdriver inthe

middle of oil seal and extract by prying on the housing
shoulder.

Remove the internal retaining ring (15) using snap
ring pliers.

Support housing in vise in vertical position.
Remove oil vent plug (25). Remove vertical shaft (4),

bearings (10) and bearing spacer (5) assembly by
using a punch and hammer to tap vertical shaft (4)
through the oil vent plug hole.

Remove snap ring (14) from vertical shaft (4) using
snap ring pliers.

Remove the bearings (10) and bearing spacer (5)
from the vertical shaft (4).

Inspect gears for broken teeth and wear. Some wear
is normal and will show on loaded side. Forged gear
surfaces are rough when new . Check that wear
pattern is smooth.

Inspect vertical and horizontal shafts for grooves,
nicks, or bumps in the areas where the seals seat.
Resurface any damage with emery cloth.

Inspect housingand caps for cracks or otherdamage.

Gearbox Assembly

(Figure 18)

Press gear (1) on input shaft (3) making sure
rectangular key (13) is aligned.

Press input shaft assembly (1, 3, 13) into input
bearing (9).

Secure O-ring (21) with grease in the housing.
Press front bearing (8) in the front cover (6).
Press front cover assembly (6, 8) on input shaft (3).

Install snap ring (17) into housing. Verify that snap
ring (17) is seated correctly by measuring its internal
diameter in two positions. Dimensions should be

4.70” or greater.
Check input shaft end float by moving the input shaft

(3) by hand. If end float is higher than 0.012,” insert
shim between input shaft (3) and rear bearing (8).
Repeat until end float is less than 0.012”. Check
rotational torque by hand. The torque should be less
than 2.2 lbs.-inch.

Install the following parts on the vertical shaft (4):
bearing (10) and snap ring (14). Check end float, if it
is greater than 0.012”, install shim (22a) between
bearing (10) and snap ring (14). Check that the
vertical shaft rotates freely. The torque should be less
than 2.2 lbs.-inch.

Press the vertical shaft assembly (4, 10, 14), spacer
(5), and bearing (10) into the housing (2). Install the
snap ring (15) and make sure it fits securely.

Check that the gear backlash is between 0.006” to

0.016”. You should not have to adjust the backlash.
Apply grease to lower seal lips (19) and insert in

vertical housingusing tubeof correct diameter, paying
attention not to damage the seal lip. Press in housing
so seal is recessed 0.275 to 0.314 inch. Insert
protective washer (7) by hand. Install snap ring (16)
and position it together with dual lip seal (19) by
pressing it into position.

Repair to this gearbox is limited to replacing bearings,
seals and gaskets. Replacing gears, shafts and a
housing is not cost effective. It is more economical to
purchase a complete gearbox if repairs other than
replacing bearings, seals or gaskets are required.

Clean housing, paying specific attention to areas
where gaskets will be installed.

Wash housing and all components thoroughly. Select
a clean area to do assembly. Replace all seals,
bearings, and gaskets. All parts must be clean and
lightly oiled before reassembling.

Press input shaft oil seal (20) in, using tube of correct
diameter. Be careful not to damage seal lip.

Apply Permatex to horizontal shaft back bore and
insert cap (25).

Check gearboxhousing for leaksby plugging all holes
except one. Apply 4 PSI compressed airand immerse
the gearbox in water to verify there are no leaks.
Remove gearbox from water and dry off with
compressed air. Add 0.85 quart (800 ml) SAE 80W or
90W EP oil and tighten all plugs.

(Rev. 2/9/99)

PN-52886 (4/97)22

25

6

17

1. Bevel gear

2. Gearbox housing

3. Keyed gear shaft

4. 12T Pinion shaft

5. Spacer

6. Gearbox cover

7. Washer, 1.58 x 3.13 x .04

8. Ball bearing 6007

9. Ball bearing 6207

10. Ball bearing 6208

11. Castle nut

12. Washer, 25mm x 44mm x 4mm

13. Key

14. Internal retaining ring 45mm

15. Internal retaining ring 2.9mm x
80mm

16. Internal retaining ring 81mm

13

21

3

8

22C

20

17. Internal retaining ring 125mm

18. 3/8 NPT Square head pipe plug

19. Metric seal 40 x 80 x 12

20. Metric seal 35 x 52 x 7

21. O-Ring seal .13 x 4.88 OD
22A. Shim, 40.3mm x 51.5mm
22B. Shim, 69.0mm x 79.9mm
22C. Shim, 35.3mm x 48.0mm

23. 3/16 x 2” Cotter pin

25. 3/8 NPT Vent plug

26. Cap

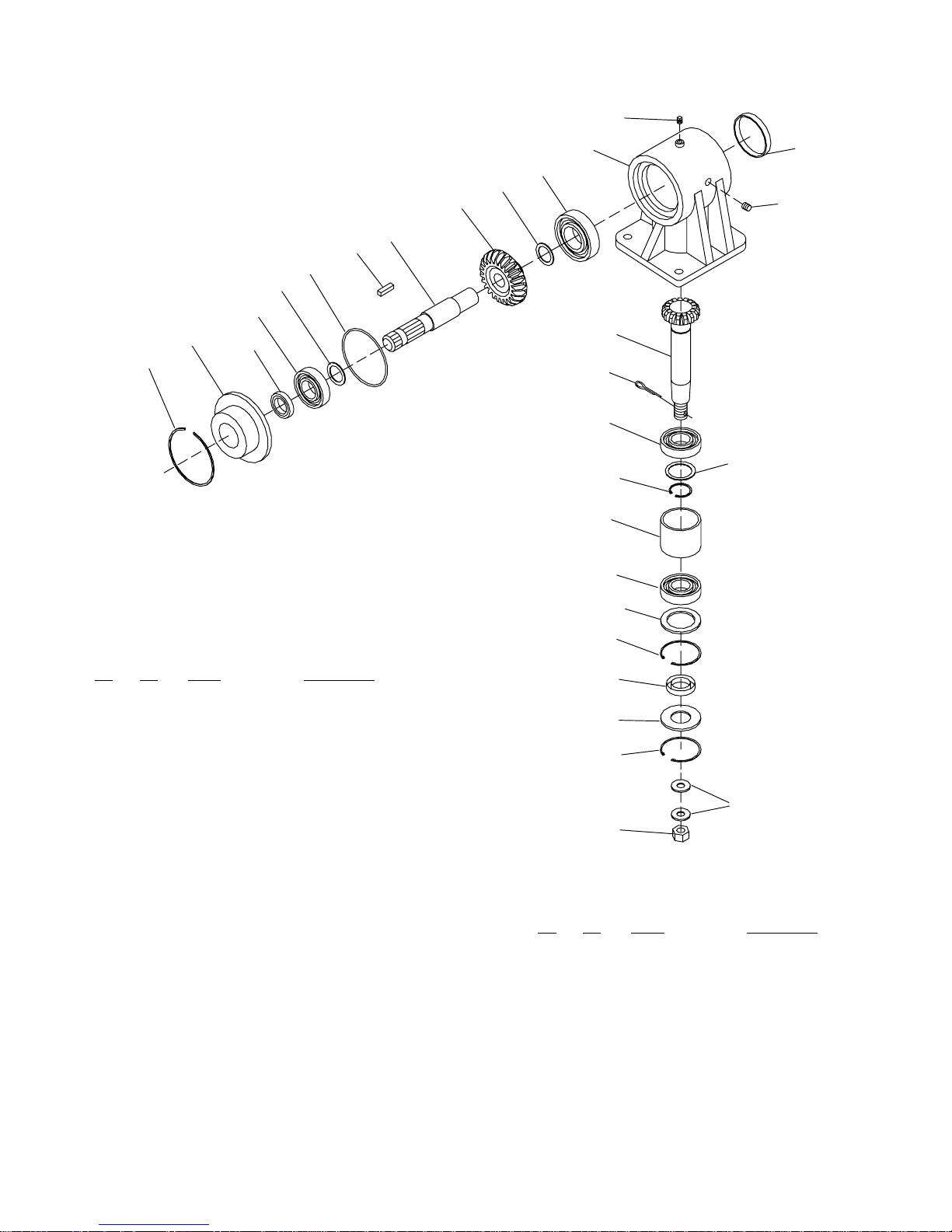

Figure 18. Gearbox Exploded View

1

22C

2

26

9

18

4

23

10

22A

14

5

10

22B

15

19

7

16

CD4837C

12

11

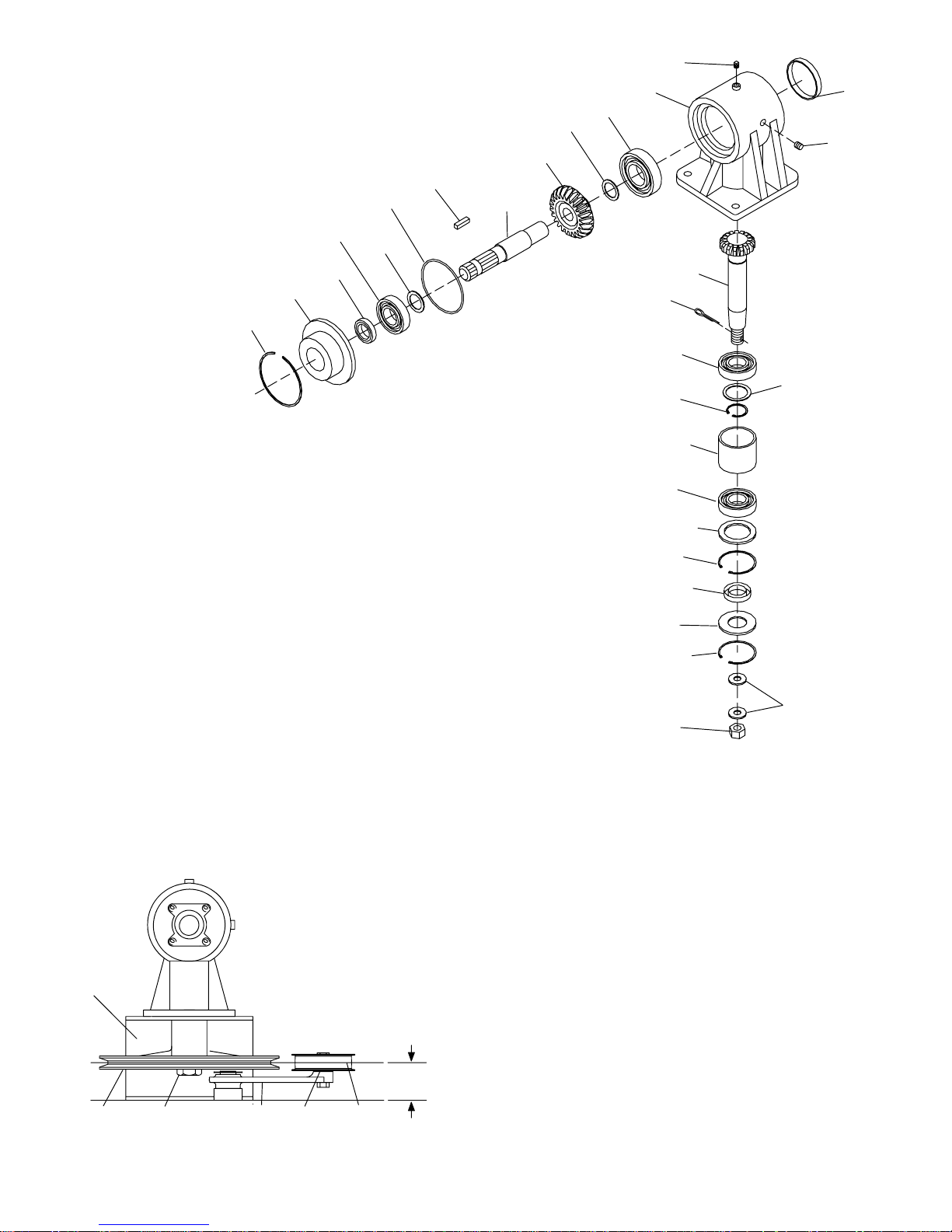

Drive Pulley Installation

(Figure 19)

1. Shim

2. Idler arm

3. Idler pulley

4. Drive pulley

6

CD4991

42

5

Figure 19. Pulley Alignment

5. Nut and cotter key

6. Gearbox stand

1

3

DIM “A”

Invert gear stand.
When gear stand is installed onmower, dimension “A”

(from the top of the mower deck to the centerline of
the drive pulley) must be 2-7/16” (plus or minus
1/32”). This is a critical dimension and must be
carefully adjusted for proper belt life. Add or subtract
shim washers under idler pulley to align with drive
pulley.

Tighten gear stand hardware.
Fill gearbox half full of SAE 90W gear lube. Check

level after waiting five minutes to permit lube to work
through bearings and add lube, if necessary, until it is
half full.

Replace driveline shield. Attach driveline to gearbox.

23PN-52886 (4/97)

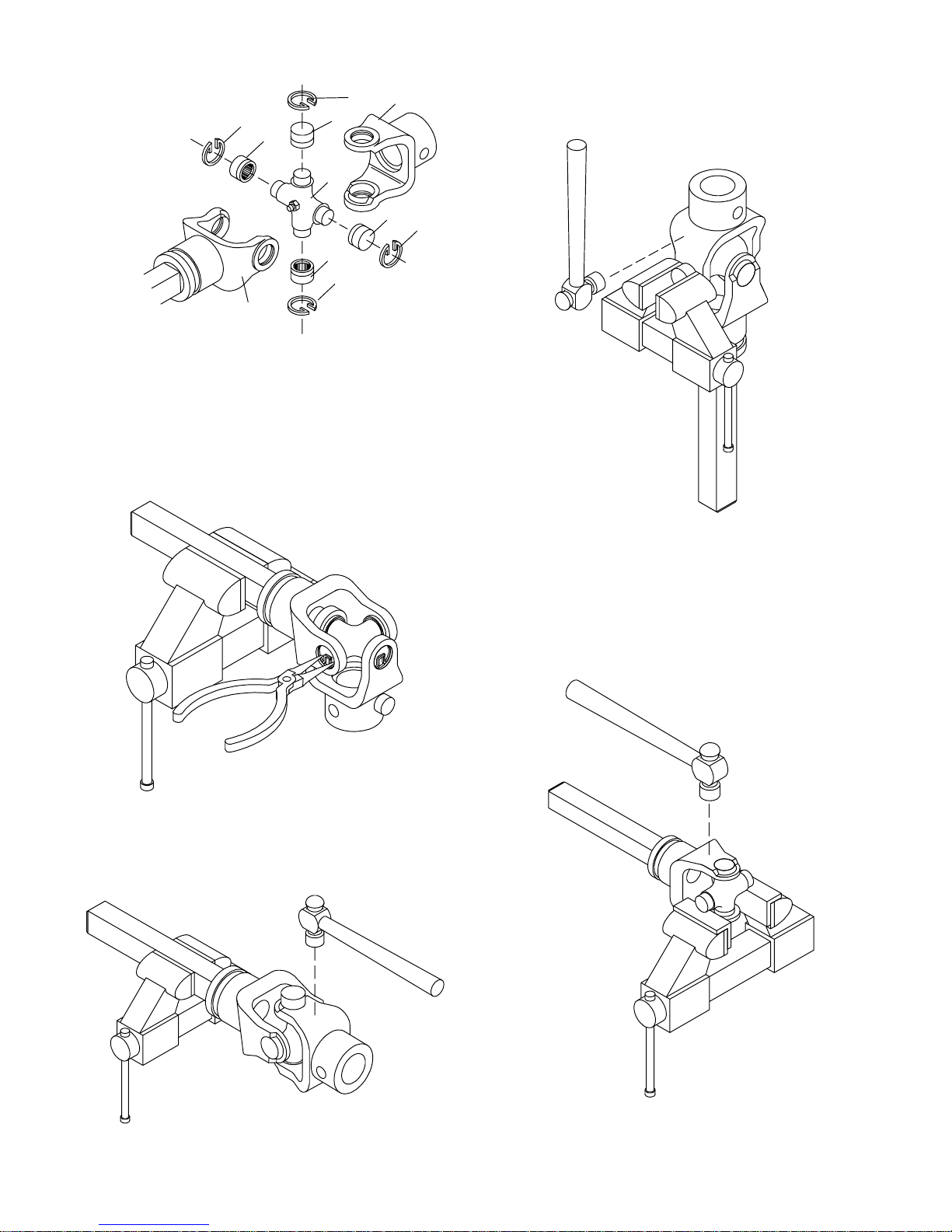

UNIVERSAL JOINT REPAIR

1. Yoke

2. Cup and
bearings

3. Snap ring

4. Journal cross

Figure 20. U-Joint Exploded View

3

3

2

2

4

2

3

1

1

2

CD1645A

3

U-Joint Disassembly

1. Remove snaprings fromyokesin four locationsas

shown in Figure 21.

3. Clamp cup in vise as shown in Figure 23 and tap

on yoke to completely remove cup from yoke.
Repeat steps two and three for opposite cup.

CD1387

CD1385A

Figure 21

2. With snap rings removed, support drive in vise,

hold yoke in hand and tap on yoke todrive cup up
out of yoke. See Figure 22.

Figure 23

4. Place universal cross in vise as shown in

Figure 24 andtap on yoketo remove cup.Repeat
step three for final removal. Drive remaining cup
out with drift and hammer.

Figure 22

CD1388

CD1386

Figure 24

PN-52886 (4/97)24

U-Joint Assembly

1. Place seals securely on bearing cups. Insert cup

into yoke from outside and press in with hand
pressure as far as possible. Insert journal cross
into bearing cup with grease fitting away from
shaft. Be careful not to disturb needle bearings.
Insert another bearing cup directly across from
first cup and press in as far as possible with hand
pressure.

Trap cups in vise and apply pressure. Be sure
journal cross is started intobearings and continue
pressurewith vise, squeezinginasfaraspossible.
Tap yoke to aid in process.

2. Seat cups by placing a drift or socket (slightly

smaller than the cup) on cup and rapping with
hammer. See Figure 25. Install snap ring and
repeat on opposite cup.

3. Repeat steps one and two to install remaining

cups in remaining yoke.
Move both yokes in all directions to check for free

movement. Should movement be restricted, rap
on yokes sharply with hammer to relieve any

tension. Repeat until both yokes move in all
directions without restriction.

CD1389

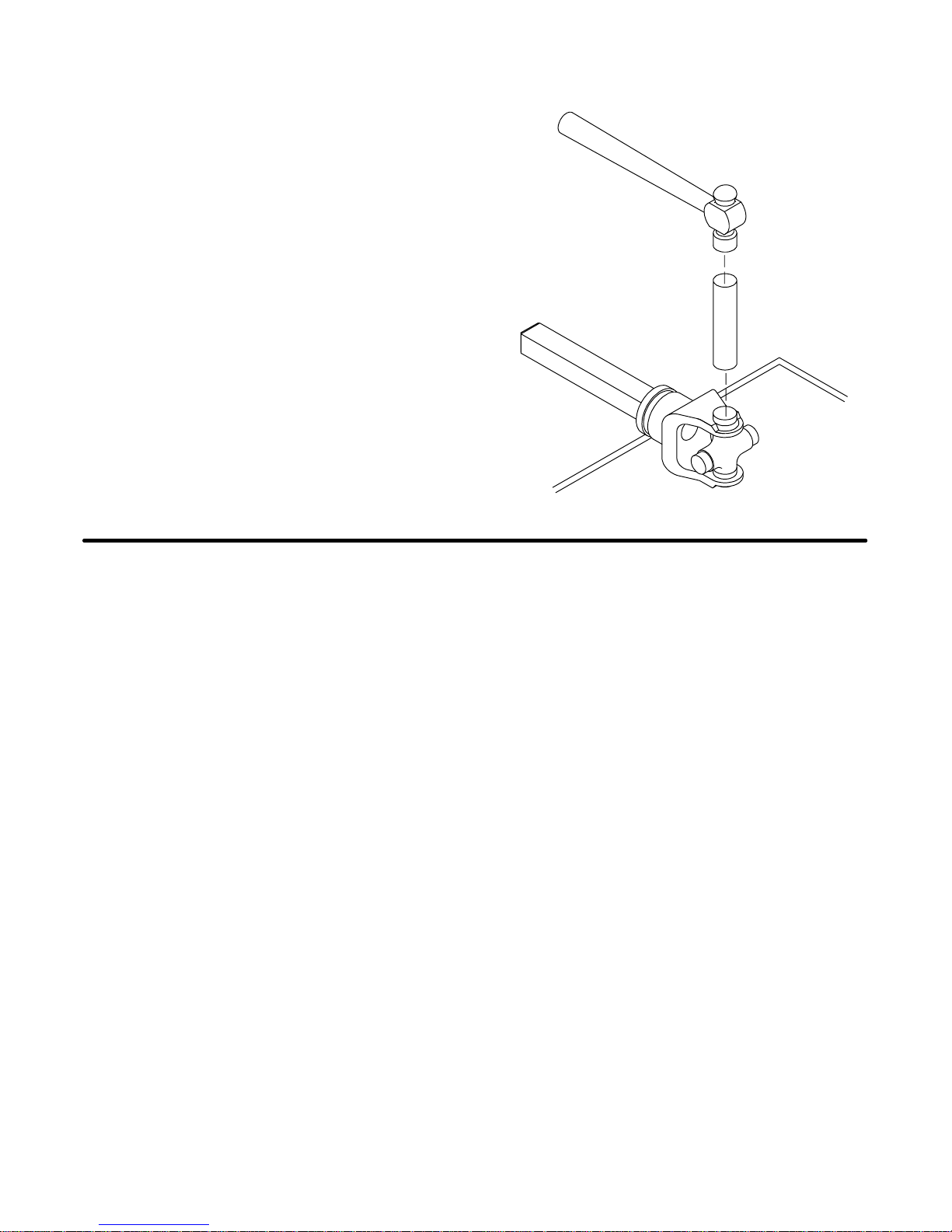

Figure 25

NOTES

25PN-52886 (4/97)

TROUBLE SHOOTING

MOWING CONDITIONS

PROBLEM POSSIBLE CAUSE SOLUTION

Grass cut higher in center of Height of mower higher at front Adjust mower height and atti­swath than at edge than at rear tude so that mower rear and

front are within 1/2” of same
height. See instructions.

Loose blade Check clamping cup washers.

Replace if flat or not holding.

Grass cut lower in center of Height of mower lower at front Adjust mower height and atti­swath than at edge than at rear tude so that mower rear and

front are within 1/2” of same
height. See instructions.

Loose blade Check clamping cup washers.

Replace if flat or not holding.

Streaking conditions in swath Conditions too wet for mowing Allow grass to dry before

mowing.

Blades unable to cut that part Slow ground speed of tractor
of grass pressed down by path but keep engine running at full
of tractor tires PTO rpm. Cutting lower will

help. Adjust tractor tire spacing
if possible.

Dull blades Sharpen or replace blades.

Loose blade Check clamping cup washers.

Replace if flat or not holding.

Material discharges from Material too high and too much Reduce ground speed but
mower unevenly; bunches of material maintain 540 rpm at tractor
material along swath PTO, or make two passes over

material. Raise mower for the
first pass and lower to desired
height for the second and cut at
90° to first pass. Raise rear of
mower high enough to permit
material to discharge, but not so
high that conditions listed above
occur.

Grass wet Allow grass to dry before mow-

ing. Slow ground speed of trac­tor but keep engine running at
full PTO rpm.

PN-52886 (4/97)26

TROUBLE SHOOTING

BELT CONDITIONS

PROBLEM POSSIBLE CAUSE SOLUTION

Belt slippage Mower overloading; material too Reduce tractor ground speed but

tall or heavy maintain full PTO rpm. Cut material

twice, one high pass and then mow
at desired height. Cut a partial
swath.

Oil on belt from overlubrication Be careful not to overlubricate.

Clean lubricant from belt and pulleys
with clean rag. Replace oil-soaked
belt.

Belt hung up or rubbing Check belt position in pulleys and

idlers. Check belt for free travel in
pulleys. Check under mower and
around blade spindle shafts for wire,
rags, or other foreign material.
Clean all material from under
mower.

Frayed edges on belt Belt misaligned Re-align belt. Be sure belt does not
cover rub any other part while running.

Pulley misalignment Inspect to ensure belt is running in

center of backside idler. Shim idler
as necessary to align.

Belt rollover Pulley misalignment Re-align.

Damaged belt Replace belt.*

Foreign object in pulley grooves Inspect all pulley grooves for rust,

paint or weld spots and remove.

Worn pulley groove Replace pulley.

Damaged belt Rollover, high shock loads or Replace belt.*

installation damage

Belt breakage High shock loads Avoid abusive mowing. Avoid hitting

the ground or large obstructions.

* Check belt for damage bylaying it flat on floor. Ifbelt doesnot lie flat (has humpsor twists), whichindicates broken

or stretched cords, it must be replaced.

Belt came off drive Check pulleys for foreign material in

grooves. Avoid hitting solid objects
or ground.

27PN-52886 (4/97)

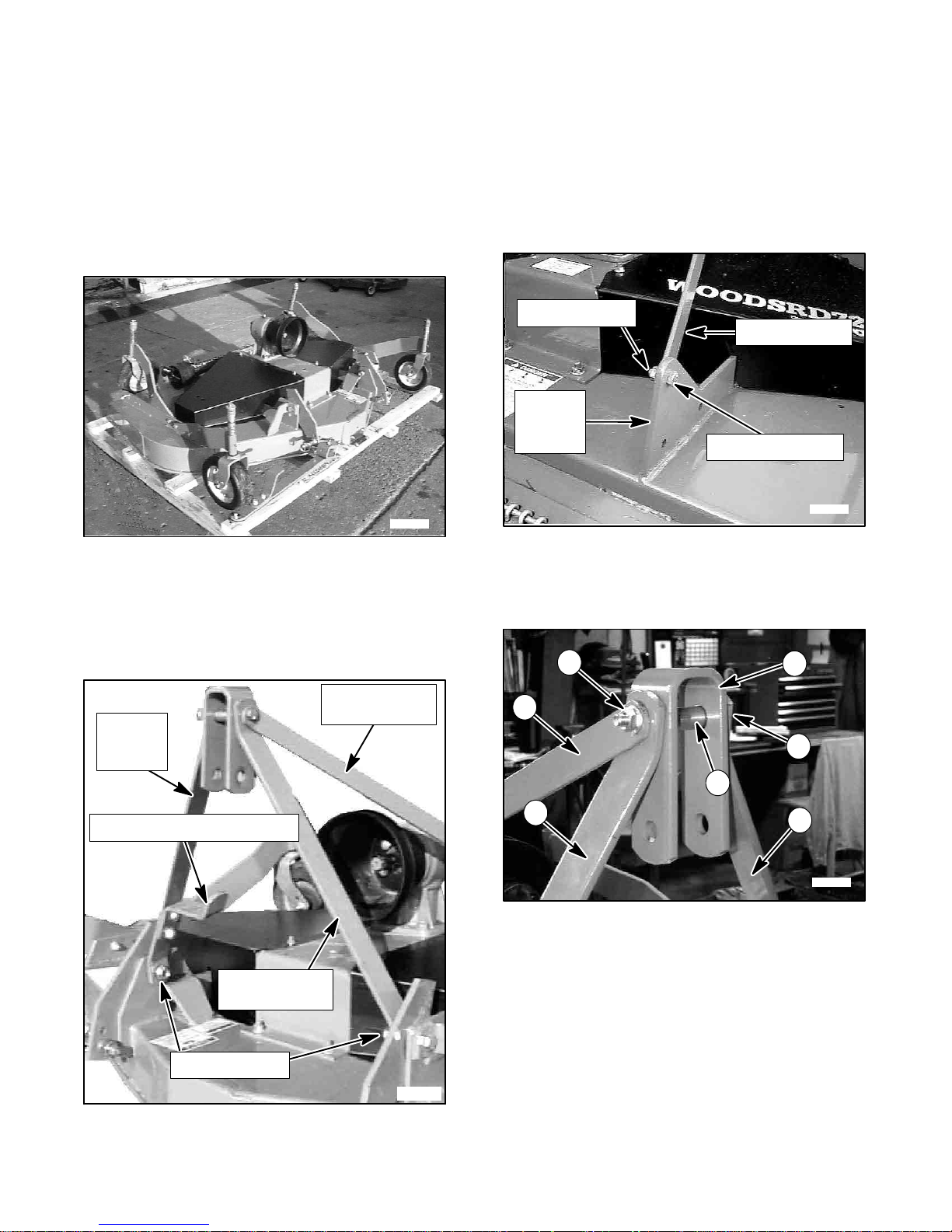

ASSEMBLY INSTRUCTIONS

CAUTION

! Always wear relatively tight and belted
clothing to avoid entanglement in moving
parts. Wear sturdy, rough-soled work
shoes and protective equipment for eyes,
hair, hands, hearing and head.

W ARNING

! Before working underneath, carefully
read operator manual instructions, discon­nect driveline, raise mower, securely block
up all corners with jackstands and check
stability. Secure blocking prevents equip­ment dropping from hydraulic leak down,
hydraulic system failures, or mechanical
component failures.

Assembly of the mower is the responsibility of the
WOODS dealer. It should be delivered to the owner
completely assembled, lubricated and adjusted for
normal conditions. Complete the following check lists
when assembly is complete.

The mower is shipped partially assembled. Assembly
will be easier if components are aligned and loosely
assembled before tightening hardware. Recom­mended torque values for hardware are located on
page 3. All bolts are grade 5 unless specified otherwise.

Select a suitableworking area. Open parts boxes and
lay out parts and hardware to make location easy.
Refer to illustrations, accompanying text, parts lists
and exploded view drawings.

Pre-Delivery Check List

(DEALER RESPONSIBILITY)
Inspect the equipment thoroughly after assembly to

ensure it is set up properly before delivering it to the
customer.

The following check lists are a reminder of points to
inspect. Check offeach item as it is found satisfactory
or after proper adjustment is made.

___Check that all safety decals are installed and in

good condition. Replace if damaged.

___Check that shields and guards are properly

installed and in good condition. Replace if
damaged.

___Check all bolts to be sure they are properly

torqued.

___Check that all cotter pins and safety pins are

properly installed. Replace if damaged.

___Check and grease all lubrication points as

identified in “Service, lubrication information.”

___ Gearboxes are not filled at the factory. Prior to

delivery, fill as specified in the “Service, lubrica­tion information” and check to see that there are
no leaking seals.

___Check that blades have been properly installed.

Delivery Check List

(DEALER RESPONSIBILITY)
___Show customer how to make adjustments and

select proper PTO speed.

___Instruct customer how to lubricate and explain

importance of lubrication.

___Point outthe safety decals. Explain their meaning

and the need to keep them in place and in good
condition. Emphasize the increased safety haz­ards when instructions are not followed.

___Present Operator’s Manual and request that

customer and all operators read it before operat­ing equipment. Point out the manual safety rules,
explain their meanings and emphasize the in­creased safety hazards that exist when safety
rules are not followed.

___Show customer how to make sure driveline is

properly installed and that spring-activated locking
pin or collar slides freely and is seated in groove
on tractor PTO shaft.

___Explain to customer the potential crushing haz-

ards of going underneath raised equipment.
Instruct that before going underneath to discon­nect the driveline, securely block up all corners
with jack stands and to follow all instructions in
the “Service, blocking methods” section of the
operators manual. Explain that blocking up pre­vents equipment dropping from hydraulic leak
down, hydraulic system failures or mechanical
component failures.

___Show customer thesafe, proper procedures tobe

used when mounting, dismounting, and storing
equipment.

___For mounted units, add wheel weights, ballast in

front tires, and/or front tractor weight to enhance
front end stability. A minimum 20% of tractor and
equipment gross weight must be on front tractor
wheels. When adding weight to attain 20% of
tractor and equipment weight on front tractor
wheels, you must not exceed the ROPS weight
certification. Weigh the tractor and equipment.Do
not estimate!

___Make customer aware of optional equipment

available so that customer can make proper
choices as required.

___Point out all guards and shields. Explain their

importance and the safety hazards that exist
when not kept in place and in good condition.

PN-52886 (4/97)28

ASSEMBLY PROCEDURE
Uncrating Mower

(Figure 26)

Remove sides and top of mower shipping crate.
Remove lag screws and brackets that secure mower

to crate base.
Remove driveshaft wired to mower deck.

Loosen 5/8” nut at lower hitch point and install offset
link as shown. Tighten nut securely. Repeat for
opposite side. Note that front link with the PTO storage
bracket should be installed on right side of mower as
shown in Figure 27.

Rear Offset Link Installation (Figure 28)

Loosen hardware at rear frame lug and attach offset
link as shown in Figure 28. Repeat for opposite side.
Do not tighten at this time.

1/2” LOCKNUT

OFFSET LINK

REAR
FRAME
LUG

1/2 x 1-3/4” BOLT

CM824

Figure 26. Uncrating Mower

Front Offset Link Installation (Figure 27)

REAR
OFFSET LINK

FRONT
OFFSET
LINK

PTO STORAGE BRACKET

FRONT
OFFSET LINK

Figure 28. Rear Offset Link Installation

Top Link Assembly (Figure 28)

6

5

4

3

1. 1/2 x 4-3/4” Cap screw

2. U-Bracket

3. Front offset links

4. Pipe

5. Rear offset links

6. 1/2” Locknut

CM905

2

1

3

CM757

5/8” LOCKNUT

Figure 27. Front Offset Link Installation

CM832

Figure 29. Top Link Assembly

Insert capscrew (1) through rear offset links (5), pipe
(4), U-bracket (2) and front offset links (3) as shown
and tightensecurely with nut(6). Tightenhardware on
rear frame lug and offset link.

29PN-52886 (4/97)

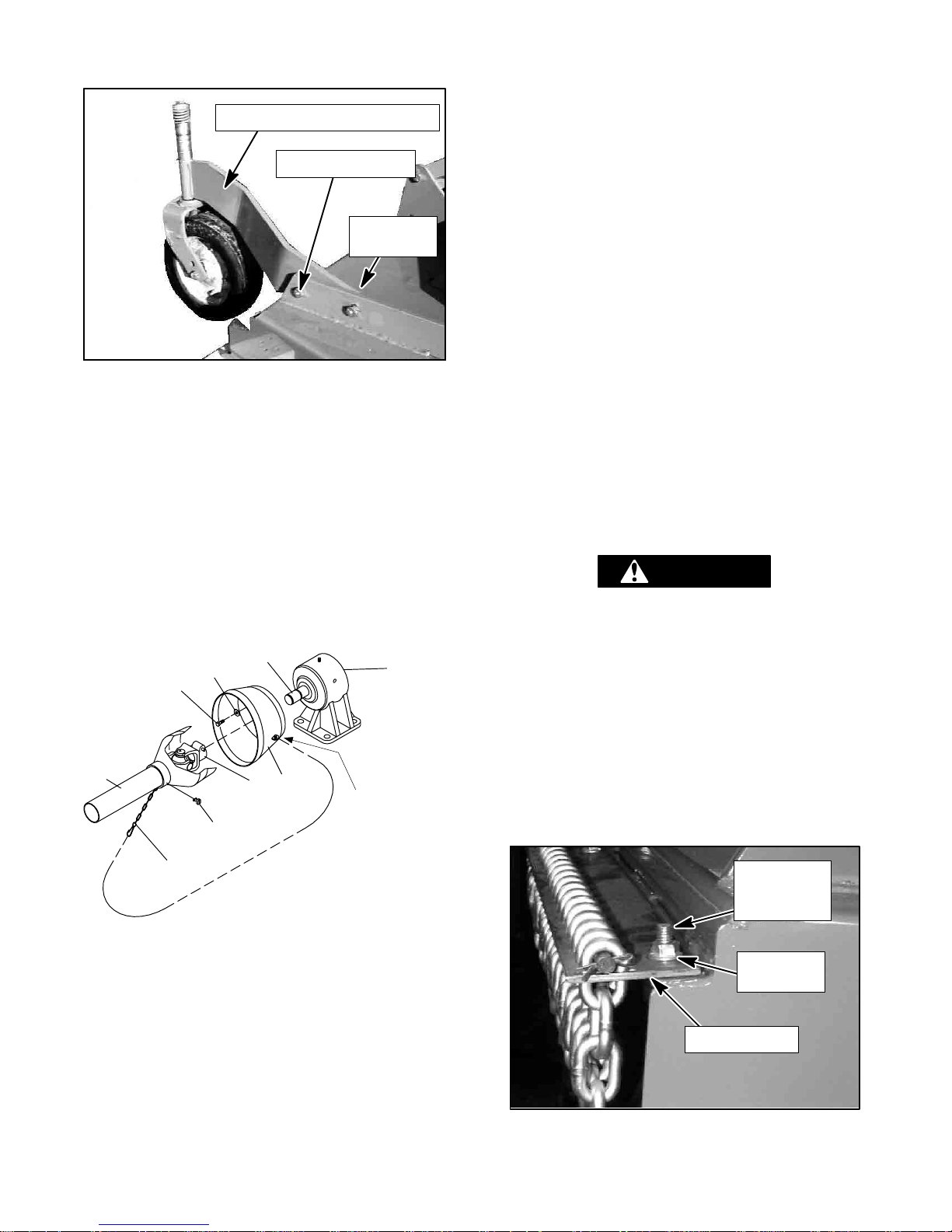

Rear Caster Wheel Installation (Figure 30)

The counter-cone drive shield is factory installed on
models RD6000 and RD7200.

CASTER WHEEL ASSEMBL Y

1/2 x 1-3/4” BOLT

1/2”
LOCKNUT

CM850

Figure 30. Rear Caster Wheel Assembly

Remove rear caster wheel assembly from shipping
position and install as shown in Figure 30 using the
same bolts and nuts. Repeat for opposite side.
Tighten bolts so that caster arm is snug against deck
bracket, but not fully torqued.

Refer to Figure 5 on page 11 for possible front caster
arm positions. Attach front caster arm in desired
position and tighten snug against deck bracket.

On the RD8400 model, attach counter-cone shield (5)
to gearbox (9) with cap screws (3) and flat washers
(4). Orient chain attachment lug as shown.

Driveshaft Installation (Figure 31)

Slide QD yoke (2) of driveshaft assembly onto
gearbox shaft (6). Make sure QD yoke pin is seated
securely in groove of gearbox shaft.

Attach shield anti-rotation chain (7) to drive shield (5)
as shown.

Lift mower off shipping pallet and set on a hard level
surface. This allows clearance in the caster wheel
assemblies to be equalized. Tighten all capscrews
and nuts on all four caster wheel arms.

Tightenall capscrews andnuts tospecifications found
in Bolt Torque Chart, page 3.

Chain Shielding Installation (Figure 32)

DANGER

Driveline Shield Installation

(Figure 31)

4

3

1

8

7

1. Driveline

2. QD Yoke

3. 8mm x 1.25P x 16mm Hex head cap screw
GR8.8

4. 5/16” Standard flat washer

5. Counter cone shield

6. Gearbox input shaft

7. Anti-rotation chain

8. Shield retainer

9. Gearbox

6

2

5

Chain
Attachment Lug

CD5064

! When thisequipment is operatedin pop­ulated areas or other areas where thrown
objectscould injure personsor property,full

9

chainor rubber shielding (whichisdesigned
to reduce the possibility of thrown objects)
must be installed. If this machine is not
equipped with full chainor rubber shielding,
operation must be stopped when anyone
comes within several hundred feet.

Install chain shielding plate to rear mower frame as
shown with carriage bolts inserted from bottom
upward and secured with locknuts.

3/8 x 1”
CARRIAGE
BOLT

3/8”
LOCKNUT

CHAIN PLATE

CM768

Figure 31. Rear Driveshaft Installation

Figure 32. Chain Shielding Installation

PN-52886 (4/97)30

Optional Front Roller Installation

(Figure 33)

2

Put roller bracket (2) over bolts then install flange
locknuts (5) on bolts and tighten.

Put front roller (1) in roller bracket and insert roller pin
(4) through bracket and roller.

Install retainer pin (3) in roller pin. Put cap screw (6)
through bracket and retainer pin, install flange locknut
(5) and tighten.

5

6

1

4

1. Front roller

2. Roller bracket

3. Retainer pin

4. Roller pin

5. 3/8 NC Flange locknut

6. 3/8 NC x 1” Hex head cap screw GR5

7. 3/8 NC x 1” Carriage bolt

Figure 33. Optional Front Roller Installation

Insert four carriage bolts (7) through the front mower
frame from inside out as shown.

7

5

3

CD3552

NOTES

Initial Filling of Gearbox

IMPORTANT

! Gearbox wasnot filled with oil at facto­ry. It must be serviced before operating.
Failure to service will result in damage to
gearbox.

The gearbox was not filled at the factory. The initial fill
will take .85 quart (800 ml) of SAE 90W gear lube.

Remove the breather plug and side hole plug. Pour in
one pint of gear lube, wait five minutes and add
additional gear lube untilit just comesout of sidehole.

Allow an additional five minutes for the lube to flow
through bearings, then check to make sure oil level is
at bottom of side hole. Replace both plugs.

Complete the Safety Check Lists on page 28 before
delivering equipment to customer.

31PN-52886 (4/97)

NOTES

PN-52886 (4/97)32

RD6000, RD7200 & RD8400

INDEX TO PARTS LISTS

MAIN FRAME ASSEMBLY 34--35.........................................

GEARBOX ASSEMBLY 36...............................................

DRIVESHAFT -- MALE HALF (COMER TRI-LOBE) 37.......................

DRIVELINE WITH INTRA-LUBE (COMER TRI-LOBE) 37.....................

DRIVESHAFT (WALTERSCHEID TWO-LOBE) 40...........................

BLADE & SPINDLE ASSEMBLY

RD6000 (SN 793932 and prior) & RD7200 (SN--688690 and prior) 38...

(Rev. 8/23/01)

RD6000 (SN 793924 and after),

RD7200 (SN 688691 and after), RD8400 (All) 39.....................

FRONT ROLLER ASSEMBLY (OPTIONAL) 38..............................

REAR CHAIN SHIELDING ASSEMBLY 39.................................

33PN-52886 (4/97)

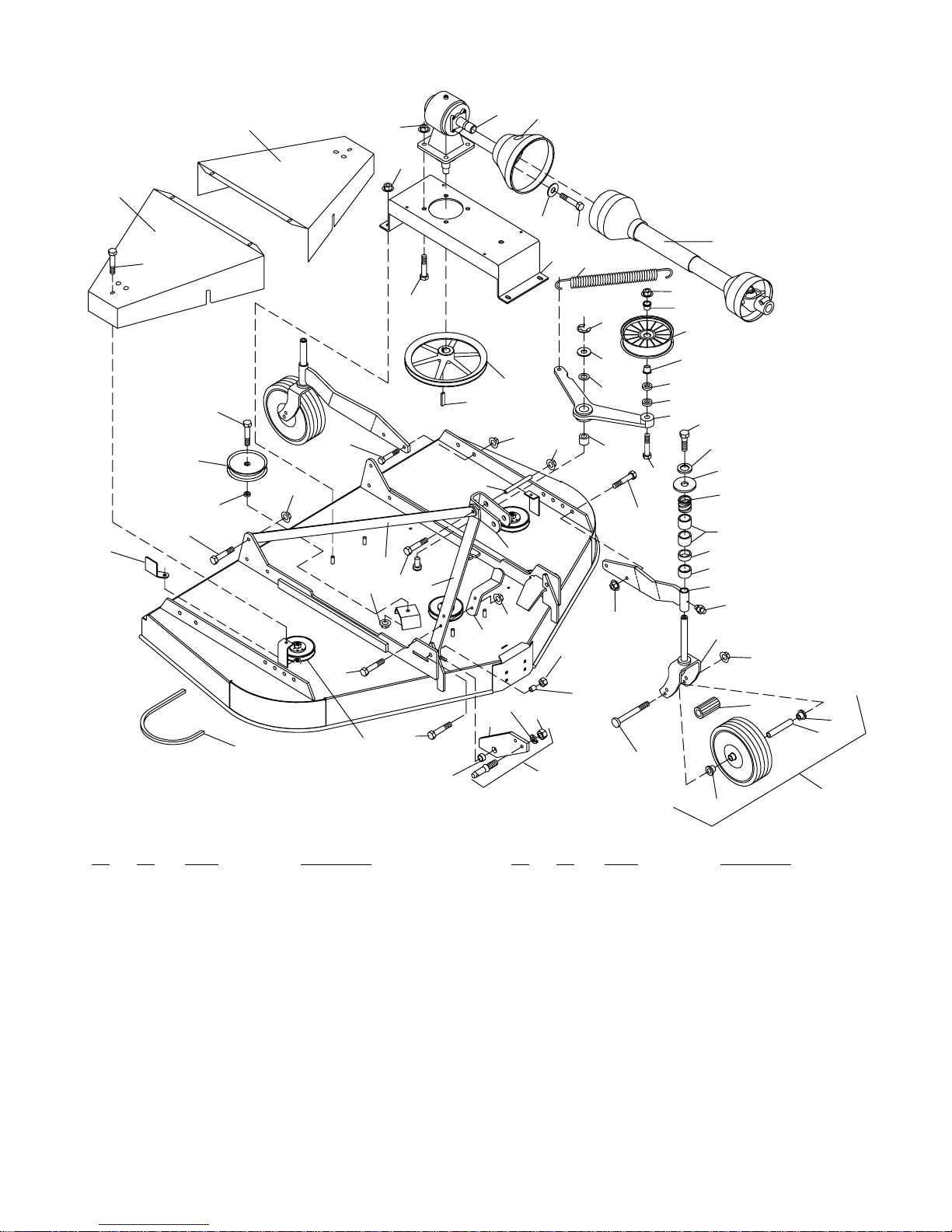

T

17A

44

RD6000, RD7200 & RD8400 MAIN FRAME ASSEMBLY

21

17B

59

22

56

42

63

27 -- COMPLETE DECAL SET
28 -- FRENCH SAFETY DECAL SET
29 -- ENGLISH SAFETY DECAL SE

43

20

24

56
58

40

25

23

11

51

12

63

52

10

56

CD4986A

51

51

59

9

13

54

64

14

62

18

49

16

30

19

56

68

15

56

67

53

48
46

26

58

50

45

47

56

66

60

65

2

51

71

69
70

3

41

56

4

59

56

61

5

6

57

55

8

7

6

Ref Part No

No Used Description

No

1 ---------- 1 Main frame (not sold separately)
2 67407 4 Compression spring 1.40 x .19 x

3 53562 2 Caster arm assembly -- Right

3 53563 2 Caster arm assembly -- Left

3 52883 4 Caster arm assembly -- RD8400
4 67318 4 RD6000 & RD7200Caster shaft

4 19747 4 RD6000 & RD7200Caster shaft

2.1, 257

RD6000 & RD7200 (see Figure 5,
page 11, for identification) -- o r --

RD6000 & RD7200 (see Figure 5,
page 11, for identification) -- o r --

and yoke assembly (for solid tire
only) -- o r --

and yoke assembly (for pneumatic
tire only) -- o r --

Ref Part No

No Used Description

No

4 52860 4 RD8400 Caster shaft and yoke

assembly (for solid tire only) -- o r --

4 52859 4 RD8400 Caster shaft and yoke

assembly (for pneumatic tire only)

5 34466 4 Roller bearing .75 x 1.38 x 1.5 (for

5 19756 4 Roller bearing .75 x 1.38 x 2.5 (for

6 65577 8 3/4 x 1.415 Flanged wheel bearing

7 18989 4 10” Heavy-duty wheel w/bearing &

-- o r -- -- o r --

7 19754 4 10” Pneumatic wheel w/bearing &

7a 57772 4 Tube -- 410/350 x 4 (not shown)

heavy-duty wheel) -- o r --

pneumatic wheel)

with groove

sleeve (includes items 5, 6 & 57)

sleeve (includes items 5, 6, 7a & 57)

(Rev. 9/1/99)

PN-52886 (4/97)34

RD6000, RD7200 & RD8400 MAIN FRAME ASSEMBLY

Ref Part No

No Used Description

No

8 33661 2 Category 1 mounting pin with nut

and lockwasher

9 ---------- -- CW Spindle assembly (see pages

10 31615 1 V-Belt (used on RD6000 only) -- o r --
10 18879 1 V-Belt (used on RD7200 only) -- o r --
10 53418 1 V-Belt (used on RD8400 only)
11 53567 1 Belt guide, 8 GA formed
12 64555 1 Flat idler, 5.5” Dia.
13 55331 2 Offset link (for RD6000 only) -- o r --
13 19578 2 Offset link (for RD7200 only) -- o r --
13 52873 2 Offset link (for RD8400 only)
14 19579 2 Offset link, .38 x 2.00 x 25.88
15 19605 1 U-Link, .38 x 2.5 x 7.13
16 52893 1 PTO Hanger bracket

17A 55340 1 Right belt shield, RD6000 (if

17A 53539 1 Right belt shield, RD7200 (if

17A 52874 1 Right belt shield, RD8400 (if

17B 55340 1 Left belt shield, RD6000 -- o r --
17B 53539 1 Left belt shield, RD7200 -- o r --
17B 52875 1 Left belt shield, RD8400

18 29792 1 1/4 x 1/4 x 1-1/4 HT Key
19 65197 1 12.4 PD Sheave, Offset 1, B 1.25
20 53534 1 Gearbox stand
21 53593 1 1:1.92 Gearbox (see page 36)
22 51849 1 Counter cone shield
23 40551 1 Drive assembly, two-lobe,complete

23 ---------- 1 Drive assembly, Tri-lobe (see page

24 67131 1 Extension s pring .177 x 1.22 x 9.88
25 53595 1 RD6000 & RD7200 Idler and

25 64555 1 RD8400 Flat idler, 5.5” Dia.
26 67288 1 Idler arm assembly (includes

27 55344 1 RD6000 Complete decal set -- or --
27 53589 1 RD7200 Complete decal set -- or --
27 52889 1 RD8400 Complete decal set
28 53590 1 French safety decal set
29 53591 1 English s afety decal set
30 18824 2 Hitch plate

38 & 39)

RD6000 model decal is required,
also order #55338) -- o r --

RD7200 model decal is required,
also order #53553) -- o r --

RD8400 model decal is required,
also order #52876) -- o r --

1240, 29.9 x 41.8 (see page 40 for
detail) -- o r --

37 for repair parts only)

bearing 5.0 OD x .51 ID

bushing, item #66)

HARDWARE

Ref Part

No Description

No

40 35139 .050 x .75 External retainer ring

Ref Part

No Description

No

41 12296 * 1/4--28 Straight grease fitting 15/32 long
42 4378 * 5/16 Standard flat washer
43 39254 8mm x 1.25P x 16mm Hex head cap

44 62153 Whiz bolt, .375--16 x 1 flanged
45 855 * 1/2 Lockwasher
46 24537 1/2 x 1 -3/8 x 3/8 Flat washer (used on

46 22166 1/2 x 1 x 1/4 Flat washer (used on

47 33677 1/2 x 1 -9/16 x 10GA Washer
48 31983 .50 x .88 x 18GA Shim washer
49 64814 1/2 Schedule 40 x 2.75 pipe
50 6100 * 1/2 NC x 1-1/4 Hex head cap screw

51 24576 1/2 NC x 1-3/4 Hex head cap screw

52 1517 5/8 x 1-3/8 x 7 GA Flat washer
53 639 * 1/2 NC x 2-1/2 Hex head cap screw

54 29561 1/2 NC x 4-3/4 Hex head cap screw

55 23479 1/2 x 5 Hex head cap screw GR5
56 11900 * 1/2 NC Flanged hex locknut
57 29368 1/2 x 3/4 x 3-3/8 Sleeve (for HD tire)

-- o r -- -- o r --

57 19749 1/2 x 3/4 x 4-1/16 Sleeve (for pneumatic

58 53598 .51 x .67 x .36 Flanged sleeve (RD8400

59 19025 5/8 NC Flanged head locknut
60 22060 5/8 x 1 x 1/4 Felt seal
61 484 5/8 x 1 x 7/16 HT Sleeve
62 1791 5/8 x 1 x 9/16 HT Sleeve
63 19024 5/8 x 1-3/4 Flanged hex head cap screw
64 34473 5/8 NC x 3 Hex head cap screw GR5
65 35145 3/4 x 1 x 1 Oilite bushing
66 24741 3/4 x 2 x 16GA Flat washer
67 30007 * 7/8 NF Hex nut
68 30008 * 7/8 Lockwasher
69 33647 1” Schedule 40 x .75 pipe (used on

69 52854 1-1/4” Schedule 40 x .75 pipe (used on

70 65129 1” Schedule 40 x .50 pipe (used on

70 52853 1-1/4” Schedule 40 x .50 pipe (used on

71 65130 1” Schedule 40 x 1.00 pipe (used on

71 52855 1-1/4” Schedule 40 x 1.00 pipe (used on

* Obtain Locally

screw GR8.8

RD6000 & RD7200) -- o r --

RD8400)

GR5

GR5

GR5

GR5

tire)

only)

RD6000 & RD7200) -- o r --

RD8400)

RD6000 & RD7200) -- o r --

RD8400)

RD6000 & RD7200) -- o r --

RD8400)

(Rev. 9/1/99)

35PN-52886 (4/97)

RD6000, RD7200 & RD8400 GEARBOX ASSEMBLY

25

17

2

26

9

22C

13

1

3

18

21

22C

8

6

20

4

23

10

22A

14

5

10

Ref Part No

No Used Description

No

-- 53593 1 1:1.92 Gearbox with decal
1 51949 1 1.38 x 4.5 x 23T Bevel gear
2 ---------- -- Gearbox housing (not sold sepa-

3 51945 1 .887 Input shaft
4 51944 1 3.0 x 12T Pinion shaft
5 20886 1 2.76 x 3.00 x 3.3 Spacer
6 53594 1 Gearbox cover with decal
7 20888 1 1.58 x 3.13 x .04 Washer
8 51850 1 Ball bearing 6007
9 20890 1 Ball bearing 6207

10 20891 2 Ball bearing 6208

11 51946 1 M24 x 2 Castle nut, metric
12 20893 1 25mm x 44mm x 4mm Washer
13 20894 1 8mm x 10mm x 30mmKey
14 20895 1 45mm Retaining ring
15 39251 1 2.9mm x 80mm Internal retaining

16 20897 1 81mm Internal retaining ring
17 20898 1 125mm Internal retaining ring
18 65294 * 2 3/8 NPT Square head pipe plug
19 20900 1 40 x 80 x 12 Metric seal
20 20901 1 35 x 52 x 7 Metric seal

rately)

ring

22B

15

19

7

16

12

11

Ref Part No

No

No Used Description
21 20902 1 .13 x 4.88 OD O-Ring seal
22 20896 1 Shim kit (includes items A--C)

22A ------ ---- A/R 40.3mm x 51.5mmShim
22B ------ ---- A/R 69.0mm x 79.9mmShim
22C ---------- A/R 35.3mm x 48.0mm Shim

23 64803 * 1 3/16 x 2 Cotter pin
25 39325 1 3/8 NPT Vent p lug
26 53592 1 Cap, 52mm dia. x 7mm

* Obtain Locally

CD4837C

(Rev. 7/97)

PN-52886 (4/97)36

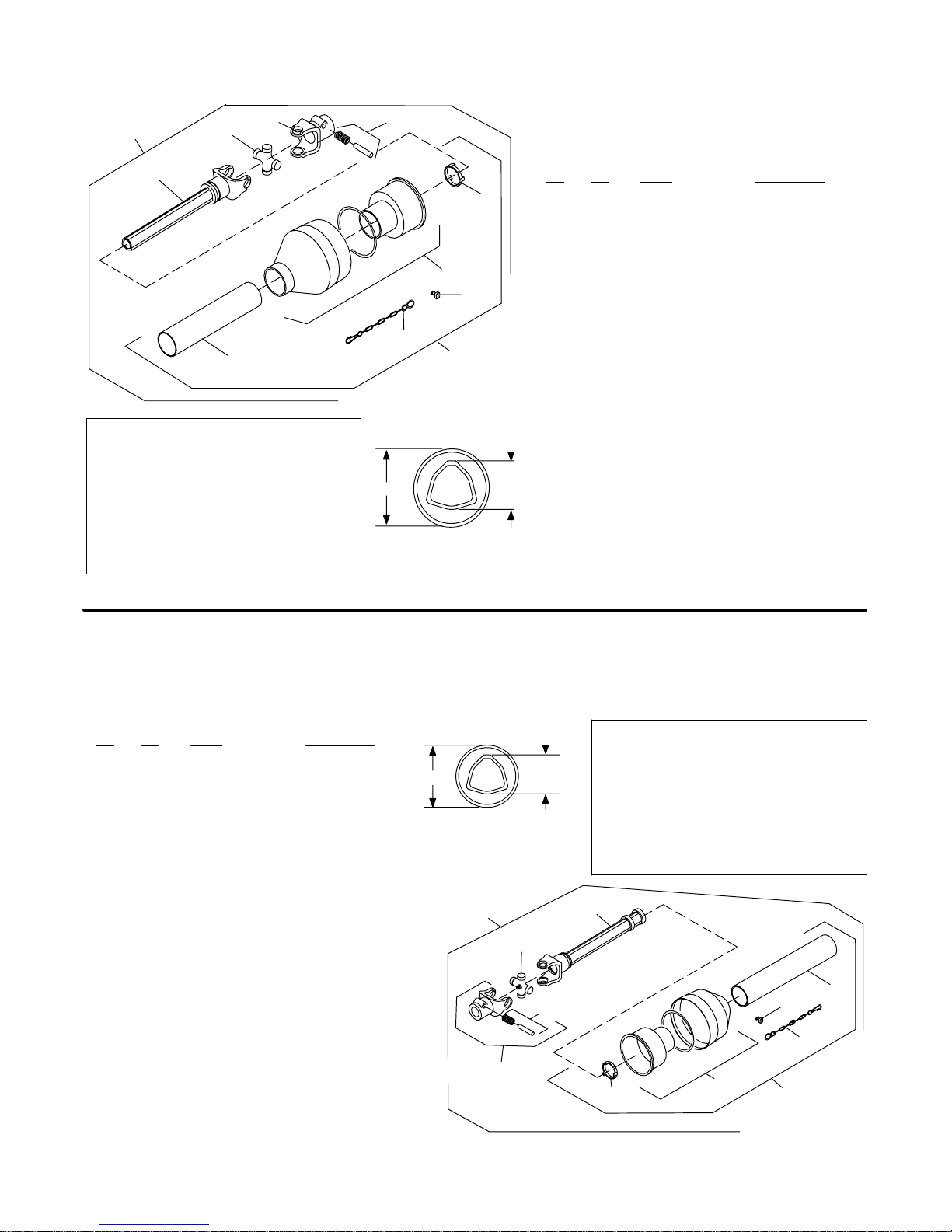

RD6000, RD7200 & RD8400 DRIVE SHAFT -- MALE HALF

COMER (TRI--LOBE SHAFT)

2

1

3

4

9

TWO TYPES OF DRIVESHAFTS HAVE
BEEN USED FOR RD MOWERS ---­TRI-LOBE AND TWO-LOBE. CHECK
YOUR DRIVESHAFT AND ORDER
REPAIR PARTS FROM THE
CORRESPONDING PARTS LIST.

WHEN REPLACING A COMPLETE
DRIVESHAFT, ORDER THE TWO-LOBE
DRIVESHAFT ON PAGE 40.

11

5

6

7

8

10

CD4993

2.4 1.42

END VIEW OF
DRIVE SHAFT

Ref Part No

No Used Description

No

1 51848 1 Drive, Profile shield 40, 26.2,

2 30912 1 Yoke40, 1.38 QD (includes

3 30916 1 U-Joint repair kit 40
4 30928 1 Yokeand tube, Profile 40 x

5 30923 1 Shield bearing kit 40
6 ---------- 1 Shieldbell kit 40(not sold

7 30922 3 Shield retainer 40
8 30917 1 Shield tether chain
9 ---------- 1 Tubeshield, 2.40 x 2.23 x

10 30828 1 Inner shield assembly, com-

11 30913 1 1-3/8 Push pin set

1.38 SP

item #11)

26.2

separately -- included in item
#10)

22.2 (not sold separately -­included in item #10)

plete, non-rotating 2.40 x 2.23
x2.69

RD6000, RD7200 & RD8400 DRIVELINE WITH INTRA-LUBE

COMER (TRI--LOBE SHAFT)

Ref Part No

No Used Description

No

1 53438 1 Drive, Profile shield 40,

2 30912 1 Yoke40, 1-3/8 QD (includes

-- o r -- -- or --

2 30829 1 Yoke40, 4.37 x 3.04 x 1-1/8

3 30916 1 U-Joint repair kit 40
4 53439 1 Yokeand tube, Profile 40,

5 30923 1 Shield bearing kit 40
6 ---------- 1 Shieldbell kit 40(not sold

7 ---------- 1 Tubeshield, 2.62 x 2.44 x

8 30922 3 Shield retainer

9 30917 1 Shield tether chain
10 30913 1 1-3/8 Push pin set
11 30827 1 Shield assembly, non-rotat-

25.1, 1.38

item #10)

(includes item #10)

25.1

separately -- included in
item #11)

15.2 (not sold separately -­included in item #11)

ing 2.62 x 2.44 x 26.9

2.6

END VIEW OF
DRIVE SHAFT

1

TWO TYPES OF DRIVESHAFTS HAVE
BEEN USED FOR RD MOWERS ----

1.71

TRI-LOBE AND TWO-LOBE. CHECK
YOUR DRIVESHAFT AND ORDER
REPAIR PARTS FROM THE
CORRESPONDING PARTS LIST.

WHEN REPLACING A COMPLETE
DRIVESHAFT, ORDER THE TWO-LOBE
DRIVESHAFT ON PAGE 40.

4

3

10

8

7

9

2

5

6

CD4992

11

(Rev. 9/1/99)

37PN-52886 (4/97)

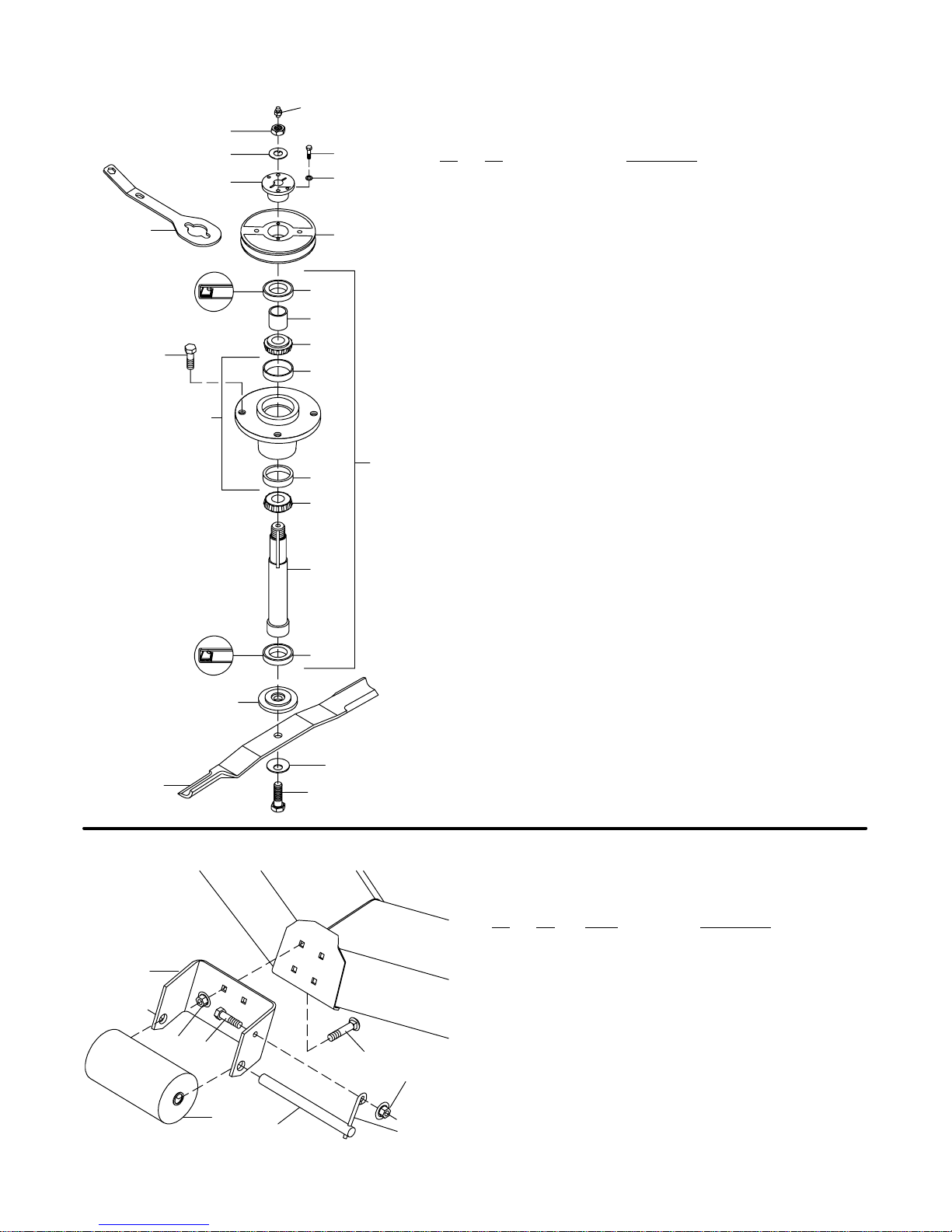

20

CD4987A

BLADE & SPINDLE ASSEMBLY: RD6000 (SN--793932 AND PRIOR)

& RD7200 (SN --688690 AND PRIOR)

21

19

16

1
3

5

SEAL LIP

11

SEAL LIP

15

2

4

6

8
9

10

12

7

12
10

14

8

17

18

Ref Part

No Description

No

1 38042 5/8--18 UNF Hex jam nut
2 10378 1/4 NC x 1 Hex head cap screw GR5
3 38020 .679 x 1.41 Lockwasher
4 1985 1/4 Standard lockwasher
5 34425 H 3/4 Straight bore bushing with key P.I.
6 66694 1 BK 4.17 H Sheave (RD6000)

-or- -or-

6 12622* 1 BK 5.0 H Sheave (RD7200)
7 53551 Spindle assembly
8 5089 1.06 x 2.0 x .44 Seal

9 24135 27/32 x 1-1/16 x 5/8 Sleeve
10 4107 Bearing cone #M12649
11 38106 Blade spindle housing with cups
12 4106 Bearing cup #M12610
14 53525 Spindle shaft with drilled keyway
15 55333 Shoulder washer (RD6000) -- o r --
15 53580* .641 x 3.0 x .92 Shoulder washer (RD7200 with

16 55319KT CW 21” Medium-suction blade (set of 3) (RD6000)

16 55343KT CW 21” High-suction blade, standard (set of 3)

16 53555KT* CW 25” High-suction blade, standard (set of 3)

17 53584 .641 x 3 Bellville washer
18 986* 5/8 NC x 2-3/4 Hex head cap screw HT (RD7200)

18 23141 5/8 NC x 3-1/2 Hex head cap scrrew HT (RD6000)
19 4358 1/2 NF x 1-1/4 Hex head cap screw GR5
20 51760 Spindle wrench
21 1972 1/4--28 Tapered thread grease fitting

* Used for RD7200 mowers SN--688690 and prior. These mowers
use a single capscrew and Bellville washer to attach the blade.

single--bolt blades)

-- o r --

(RD6000) -- or --

(RD7200 with single--bolt blades)

-- o r --

RD6000, RD7200 & RD8400 FRONT ROLLER ASSEMBLY (Optional)

2

5

6

CD3552

1

4

Ref Part No

No Used Description

No

---- 53585 1 Front roller and bracket complete
1 63294 1 Front roller
2 53586 1 Roller bracket
3 20668 1 .25 x 3.1 Retainer pin
4 20666 1 Roller pin, drilled .75 x 8.6 x 9
5 70069 5 3/8 NC Whiz nut

7

5

6 839 * 1 3/8 NC x 1 Hex head cap screw GR5
7 6697 * 4 3/8 NC x 1 Carriage bolt GR5, plated

* Obtain Locally

3

(Rev. 4/12/01)

PN-52886 (4/97)38

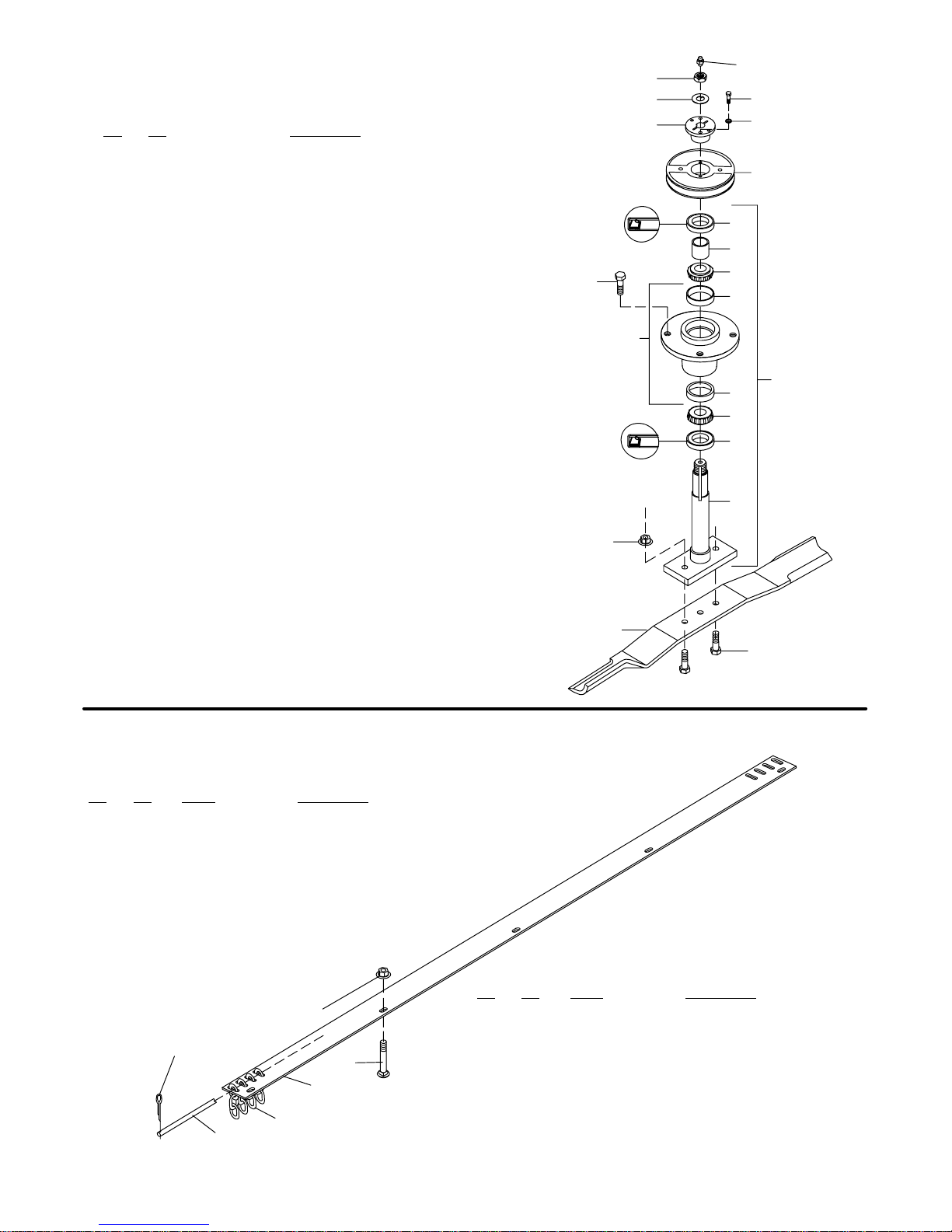

BLADE & SPINDLE ASSEMBLY: RD6000 (SN--793924 AND

AFTER) RD7200 (SN--688691 AND AFTER) & RD8400 (ALL)

Ref Part

No No Description

1 37009 7/8--18 UNF Hex jam nut
2 10378 1/4 NC x 1 Hex head cap screw GR5
3 52898 .929 x 1.41 Lockwasher
4 1985 1/4 Standard lockwasher
5 34440 H 1” Straight bore bushing with key P.I.
6 66694 Sheave (RD6000) -- or --

6* 12622 Sheave (RD7200) -- o r --

6 53419 Sheave (RD8400)
7 52881 Spindle assembly
8 52949 Seal
9 52872 Sleeve

10 29899 Bearing cone

11 52882 Blade spindle housing with cups
12 29898 Bearing cup
14 52852 Spindle shaft with keyway
16 1001513KT CW High-suction blade, standard (set of 3)

(RD60000 with double--bolt blades) -- o r --

16* 58731KT CW High-suction blade, standard (set of 3)

(RD7200 with double--bolt blades) -- o r --

16 53417KT CW High-suction blade, standard (set of 3)

(RD8400)
19 4358 1/2 NF x 1-1/4 Hex head cap screw GR5
21 1972 1/4--28 Tapered thread grease fitting
22 3379 1/2 NC x 1-1/2 Hex head cap screw GR5
23 11900 1/2 NC Hex flange locknut

* Used for RD7200 mowers SN--688691 and after. These
mowers use two capscrews and locknuts to attach the
blade.

19

23

1
3

5

SEAL LIP

11

SEAL LIP

16

21

2

4

6

8

9

10

12

7

12

10

8

CD5055

14

22

RD6000, RD7200 & RD8400

REAR CHAIN SHIELDING ASSEMBLY

Ref Part No

No

No Used Description

-- 55348 -- Chain shield assembly (RD6000)

-- 53566 -- Chain shield assembly (RD7200)

-- 52856 -- Chain shield assembly (RD8400)
1 55346 1 Headless pin (for RD6000 only) -or-
1 53556 1 Headless pin (for RD7200 only) -or-
1 52857 2 Headless pin (for RD8400 only)
2 4763 -- 3-Link chain, 1/4 Proof (use 54 for

13

(Rev. 7/24/01)

RD6000; 66 for RD7200;
78 for RD8400)

15

14

3

2

1

CD4987

Ref Part No

No Used Description

No

3 55345 1 Chain shield plate (for RD6000 only) -or-
3 53554 1 Chain shield plate (for RD7200 only) -or-

3 52885 2 Chain shield plate (for RD8400 only)
13 1256 * -- 3/16 x 1 Cotter pin
14 6697 * -- 3/8 NC x 1 Carriage bolt GR5, plated
15 14350 -- 3/8 NC Flanged hex locknut

* Obtain Locally

39PN-52886 (4/97)

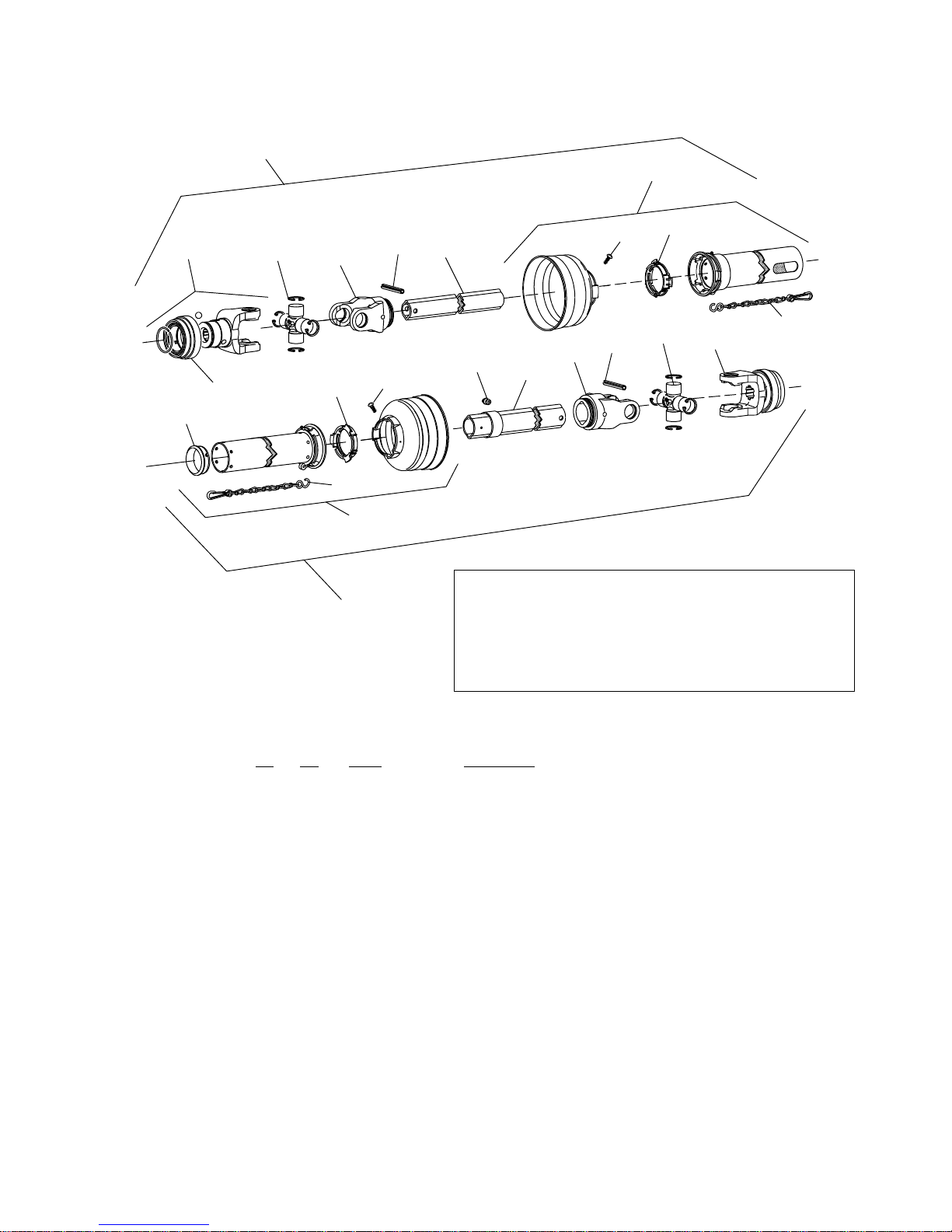

RD6000--RD7200--RD8400 DRIVESHAFT

f

WALTERSCHEID (TWO-LOBE SHAFT)

(SN--718454 AND AFTER)

23

21

18

3

1

20

2

12

4

14

13

22

24

5

17

TWO TYPES OF DRIVESHAFTS HAVE BEEN USED FOR
RD MOWERS ---- TRI-LOBE AND TWO-LOBE. CHECK
YOUR DRIVESHAFT AND ORDER REPAIR PARTS FROM
THE CORRESPONDING PARTS LIST.

WHEN REPLACING A COMPLETE DRIVESHAFT, ORDER
THIS TWO-LOBE DRIVESHAFT, PART NO. 40551.

6

7

14

3

12

2

1

13

CD5556

Ref Part No

No Used Description

No

1 40571 2 Yoke,1-- 3/8--6SP (complete with lock collar)
2 154 2 Cross and bearing kit
3 40775 2 Spring pin 10mm x 65mm
4 40572 1 Inboard yoke (male drive tube)
5 40583 1 Male drive tube (oval)
6 40584 1 Female drive tube (oval)

7 40573 1 Inboard yoke (female drive tube)
12 40776 2 Bearing ring
13 40777 2 Anti-rotation chain
14 40778 2 Screw
17 40779 1 Grease zerk
18 40780 1 Guard s upport bearing
20 40589 2 Lock collar repair kit (without yoke)
21 40585 1 Guard, outer half (also includes items 12, 13 and 14)
22 40586 1 Guard, inner half (also includes items 12, 13, 14 and 18)
23 40581 1 Shaft assembly, male half (complete with guard)
24 40582 1 Sha

t assembly,female half(complete with guard)

(Rev. 9/1/99)

PN-52886 (4/97)40

INDEX

ADJUSTMENTS

Cutting Height, 10
Front Caster Arm Adjustment, 11
Tractor Top Link, 11

ASSEMBLY INSTRUCTIONS,

Assembly Procedure, 29–31
Check Lists

Delivery (Dealer Responsibility), 28
Pre-Delivery (Dealer Responsibility), 28

DEALER SERVICE

Blade Spindle

Assembly

RD6000 & RD7200, 19

RD8400, 20
Disassembly, 18
Installation, 20
Removal, 18
Repair, 18

Blocking Method, 18
Gearbox

Assembly, 22
Disassembly, 21
Drive Pulley Installation, 23
Leakage Repair, 21

Horizontal Shaft, 21

Seal Installation, 21
Maintenance, 20
Removal, 21

Universal Joint Repair, 24

U-Joint Assembly, 25
U-Joint Disassembly, 24

GENERAL

Bolt Size Chart, 2
Bolt Torque Chart, 3
General Information, 2
Introduction, ii
Specifications, 1
Table of Contents, 1
Product Warranty, Inside back cover
Replacement Parts Warranty, Back cover

OPERATION

Attaching Mower to Tractor, 10
Cutting Height Adjustment, 10
Front Caster Arm Adjustment, 11
Front Caster Wheel Interference Check, 11
Front Roller (Optional), 12
Operating Technique, 12

Tips, 12
Uneven Terrain, 13

Pre-Operation Check List (Owner Responsibility),
12

Removing Mower from Tractor, 13
Top Link Attachment, 10
Tractor Stability, 9
Tractor Top Link Adjustment, 11

OWNER SERVICE

Belt Replacement, 16
Blade Servicing, 16

Installation

RD6000, 17
RD7200 & RD8400, 17

Removal

RD6000, 16
RD7200 & RD8400, 17

Sharpening, 17
Blocking Method, 14
Chain Shielding, 17
Lubrication Information, 14

Driveshaft Lubrication, 15

PARTS

Index to Parts Lists, 33

SAFETY

Blocking Method, 14, 18
Check Lists

Delivery (Dealer Responsibility), 28

Pre-Delivery (Dealer Responsibility), 28

Pre-Operation (Owner Responsibility), 12
Safety Decals, 7--8
Safety Rules, 4–6
Safety Symbol (explanation), ii
Uneven Terrain, 13

TROUBLE SHOOTING

Belt Conditions, 27
Mowing Conditions, 26

(Rev. 4/12/01)

41PN-52886 (4/97)

:$55$17<

3OHDVH HQWHU LQIRUPDWLRQ EHORZ DQG 6$9( )25 )8785( 5()(5(1&(

'DWH 3XUFKDVHG )URP 'HDOHU

0RGHO 1XPEHU 6HULDO 1XPEHU

:22'6 ZDUUDQWV HDFK QHZ :22'6 SURGXFW WR EH IUHH IURP GHIHFWV LQ PDWHULDO DQG ZRUNPDQVKLS
7KLV ZDUUDQW\ LV DSSOLFDEOH RQO\ IRU WKH QRUPDO VHUYLFH OLIH H[SHFWDQF\ RI WKH PDFKLQH RU FRPSRQHQWV
QRW WR H[FHHG WZHOYH FRQVHFXWLYH PRQWKV IURP WKH GDWH RI GHOLYHU\ RI WKH QHZ :22'6 SURGXFW WR WKH
RULJLQDO SXUFKDVHU

*HQXLQH :22'6 UHSODFHPHQW SDUWV DQG FRPSRQHQWV ZLOO EH ZDUUDQWHG IRU  GD\V IURP GDWH RI
SXUFKDVH RU WKH UHPDLQGHU RI WKH RULJLQDO HTXLSPHQW ZDUUDQW\ SHULRG ZKLFKHYHU LV ORQJHU

8QGHU QR FLUFXPVWDQFHV ZLOO LW FRYHU DQ\ PHUFKDQGLVH RU FRPSRQHQWV WKHUHRI ZKLFK LQ WKH RSLQLRQ
RI WKH FRPSDQ\ KDV EHHQ VXEMHFWHG WR QHJOLJHQW KDQGOLQJ PLVXVH DOWHUDWLRQ DQ DFFLGHQW RU LI UHSDLUV
KDYH EHHQ PDGH ZLWK SDUWV RWKHU WKDQ WKRVH REWDLQDEOH WKURXJK :22'6

7KH FRPSDQ\ LQ QR ZD\ ZDUUDQWV HQJLQHV EDWWHULHV WLUHV RU RWKHU WUDGH DFFHVVRULHV VLQFH WKHVH LWHPV
DUH ZDUUDQWHG VHSDUDWHO\ E\ WKHLU UHVSHFWLYH PDQXIDFWXUHUV

2XU REOLJDWLRQ XQGHU WKLV ZDUUDQW\ VKDOO EH OLPLWHG WR UHSDLULQJ RU UHSODFLQJ IUHH RI FKDUJH WR WKH
RULJLQDO SXUFKDVHU DQ\ SDUW WKDW LQ RXU MXGJHPHQW VKDOO VKRZ HYLGHQFH RI VXFK GHIHFW SURYLGHG IXUWKHU
WKDW VXFK SDUW VKDOO EH UHWXUQHG ZLWKLQ WKLUW\  GD\V IURP GDWH RI IDLOXUH WR :22'6 URXWHG WKURXJK
WKH GHDOHU DQG GLVWULEXWRU IURP ZKRP WKH SXUFKDVH ZDV PDGH WUDQVSRUWDWLRQ FKDUJHV SUHSDLG

7KLV ZDUUDQW\ VKDOO QRW EH LQWHUSUHWHG WR UHQGHU XV OLDEOH IRU LQMXU\ RU GDPDJHV RI DQ\ NLQG RU QDWXUH
WR SHUVRQ RU SURSHUW\ 7KLV ZDUUDQW\ GRHV QRW H[WHQG WR ORVV RI FURSV ORVV EHFDXVH RI GHOD\ LQ
KDUYHVWLQJ RU DQ\ H[SHQVH RU ORVV LQFXUUHG IRU ODERU VXSSOLHV VXEVWLWXWH PDFKLQHU\ UHQWDO RU IRU DQ\
RWKHU UHDVRQ

([FHSW DV VHW IRUWK DERYH :22'6 6+$// +$9( 12 2%/,*$7,21 25 /,$%,/,7< 2) $1< .,1'
21 $&&2817 2) $1< 2) ,76 (48,30(17 $1' 6+$// 127 %( /,$%/( )25 63(&,$/ 25
&216(48(17,$/ '$0$*(6 : 22'6 0$.(6 12 27+(5 :$55$17< (;35(66 25
,03/,(' $1' 63(&,),&$//< :22'6 ',6&/$,06 $1< ,03/,(' :$55$17< 2)
0(5&+$17$%,/,7< 25 ),71(66 )25 $ 3$57,&8/$5 385326( 620( 67$7(6 25
3529,1&(6 '2 127 3(50,7 /,0,7$7,216 25 (;&/86,216 2) ,03/,(' :$55$17,(6 25
,1&,'(17$/ 25 &216(48(17,$/ '$0$*(6 62 7+( /,0,7$7,216 25 (;&/86,216 ,1 7+,6
:$55$17< 0$< 127 $33/<

7KLV ZDUUDQW\ LV VXEMHFW WR DQ\ H[LVWLQJ FRQGLWLRQV RI VXSSO\ ZKLFK PD\ GLUHFWO\ DIIHFW RXU DELOLW\ WR
REWDLQ PDWHULDOV RU PDQXIDFWXUH UHSODFHPHQW SDUWV

:22'6 UHVHUYHV WKH ULJKW WR PDNH LPSURYHPHQWV LQ GHVLJQ RU FKDQJHV LQ VSHFLILFDWLRQV DW DQ\ WLPH
ZLWKRXW LQFXUULQJ DQ\ REOLJDWLRQV WR RZQHUV RI XQLWV SUHYLRXVO\ VROG

1R RQH LV DXWKRUL]HG WR DOWHU PRGLI\ RU HQODUJH WKLV ZDUUDQW\ QRU WKH H[FOXVLRQV OLPLWDWLRQV DQG
UHVHUYDWLRQV

:RRGV (TXLSPHQW
&RPSDQ\

 ,OOLQRLV 5RXWH  6RXWK
3RVW 2IILFH %R[ 
2UHJRQ ,OOLQRLV 

 WHO
 ID[

) 5HY 

PART NUMBER

52886

Woods Equipment
Company

2606 Illinois Route 2 South
Post Office Box 1000
Oregon, Illinois 61061

815-732-2141 tel
815-732-7580 fax

$ 1997 Woods Equipment Company. All rights reserved.
