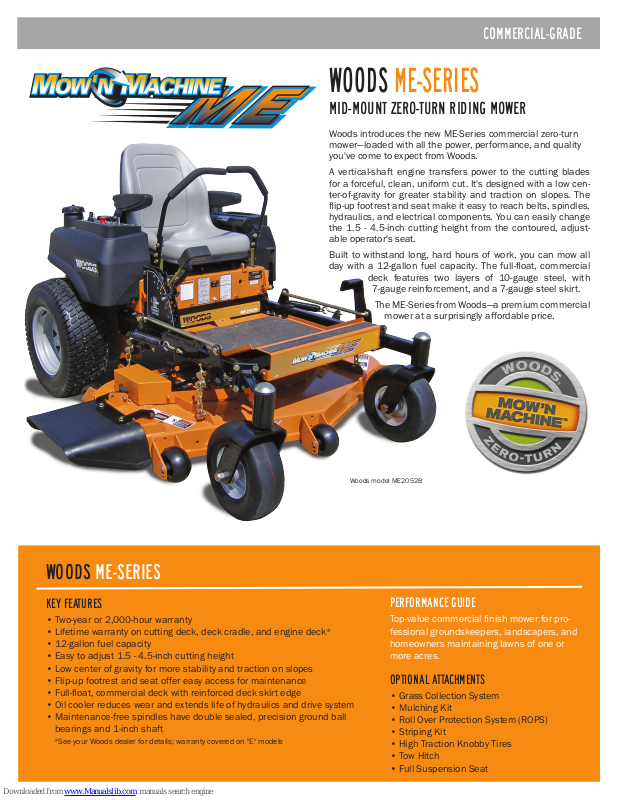

Page 1
commercial-grade
Woods me-series
mid-mount Zero-turn riding moWer
Woods introduces the new ME-Series commercial zero-turn
mower—loaded with all the power, performance, and quality
you've come to expect from Woods.
A vertical-shaft engine transfers power to the cutting blades
for a forceful, clean, uniform cut. It's designed with a low center-of-gravity for greater stability and traction on slopes. The
flip-up footrest and seat make it easy to reach belts, spindles,
hydraulics, and electrical components. You can easily change
the 1.5 - 4.5-inch cutting height from the contoured, adjustable operator's seat.
Built to withstand long, hard hours of work, you can mow all
day with a 12-gallon fuel capacity. The full-float, commercial
deck features two layers of 10-gauge steel, with
7-gauge reinforcement, and a 7-gauge steel skirt.
The ME-Series from Woods—a premium commercial
mower at a surprisingly affordable price.
Woods me-series
Key features
• Two-year or 2,000-hour warranty
• Lifetime warranty on cutting deck, deck cradle, and engine deck*
• 12-gallon fuel capacity
• Easy to adjust 1.5 - 4.5-inch cutting height
• Low center of gravity for more stability and traction on slopes
• Flip-up footrest and seat offer easy access for maintenance
• Full-float, commercial deck with reinforced deck skirt edge
• Oil cooler reduces wear and extends life of hydraulics and drive system
• Maintenance-free spindles have double sealed, precision ground ball
bearings and 1-inch shaft
*See your Woods dealer for details; warranty covered on "E" models
Woods model ME2052B
performance guide
Top-value commercial finish mower for professional groundskeepers, landscapers, and
homeowners maintaining lawns of one or
more acres.
optional attachments
• Grass Collection System
• Mulching Kit
• Roll Over Protection System (ROPS)
• Striping Kit
• High Traction Knobby Tires
• Tow Hitch
• Full Suspension Seat
Page 2
Woods Me-SERIES
Briggs & stratton
®
poWer
Powerful air-cooled Briggs & Stratton Intek
engine provides industry leading reliability
and performance.
Other model Mow'n Machines available
include Kawasaki®, Kohler®, or Generac®
engines. See your dealer for details.
specifications me2052B
®
Engine Make Briggs & Stratton
Type / Fuel Air-cooled, OHV, gas
HP/Cooling/Fuel 20 (Horsepower shown is based on rating by the engine manufacturer)
Lubrications Full pressure - spin on filter
Air Filter System Premium air cleaner
Deck Size 52”
Design Fabricated -27 layers of 10-gauge, plus 7-gauge reinforcements
Skirts and Anti-Scalp
Rollers
Spindle Type Maintenance free w/1" shaft
Bearings Double sealed, precision ground ball bearings
Cutting Height 1.5” - 4.5”
Lift Type Manual lever with easy-touch spring assist; quick-lift foot pedal; electric lift optional
Drive Transmission Twin Hydro-Gear® pumps w/oil cooler and Parker-Ross® wheel motors
Pump Size 10cc
Deck Drive Warner Mag Stop® electric clutch
Ground Speed 8.5 mph
Tires Front Tires 13 x 5.00 - 6, 4-ply
Rear Tires 23 x 8.50 - 12, 4-ply
Parking Brake Posi-lock drum
Fuel Capacity 12-gallon (dual 6-gallon tanks)
Size Length 80"
Height 46.5"
Shipping Weight 1,357 lbs.
Other Features Hour meter, cup holder, 12-volt accessory plug, rubber discharge chute
Options Grass collection system, mulch kits, ROPS, striping kits, electric deck lift, knobby tires, tow hitch, widetrack kit,
Seat High-back w/armrests, adjustable
Warranty 2 years or 2,000 hours; lifetime on cutting deck, deck cradle, and engine deck (on "E" units)
7-gauge skirts with adjustable anti-scalp rollers front and rear; welded bumper on
deck skirt
suspension seat
Intek V-twin, OHV
contact your local Woods dealer to discover the “tested. proven. unBeataBle.”™ advantage of
our me-series commercial Zero-turn moWer.
Woods Equipment Company
tel 800-319-6637 www.WoodsEquipment.com
WARNING! Some images may show safety equipment removed to provide a better view. Equipment should never be operated
without required safety equipment. Always operate machines in accordance with supplied operator’s manuals. Some machines in
Insist on genuine
WoodsCare™ parts for
genuine Woods performance.
this brochure may be shown with optional equipment. Specifications subject to change without notice. © 2007 WEC Company.
All rights reserved. WOODS, the Woods logo, Mow'n Machine, “Tested. Proven. Unbeatable.”, and WoodsCare are trademarks of
Woods Equipment Company. All other trademarks, trade names, or service marks not owned by Woods Equipment Company that
appear in this brochure are the property of their respective companies or mark holders. B-01053C
2606 South Illinois Route 2, PO Box 1000, Oregon, Illinois 61061
