Woods D80-2, MD80-2 Operator's Manual

ROTARY CUTTER

D80-2

MD80-2

15914

(Rev. 1/30/2015)

TO THE DEALER:

®

Assembly and prop er installation o f this product is the responsi bility of the Woods
and safety rules. Make sure all items on the Dealer’s Pr e-Delivery and Del ivery Check Lists in the Op erator’s Manual
are completed before releasing equipment to the owner.

The dealer must complete the online Pr oduc t Registr ation for m at t he Woods Dealer Website wh ic h ce rt ifi es t h at
all Dealer Check List items have been completed. Dealers can register all Woods product at
dealer.WoodsEquipment.com under Product Registration.

Failure to register the product does not diminish customer’s warranty rights.
TO THE OWNER:

Read this manual before operating your W oods equipment. The information presented w ill prepare you to do a bette r and
safer job. Keep this manual handy for ready reference. Require all operators to read this manual carefully and become
acquainted with all adjustment and operating procedures before attempting to operate. Replacement manuals can be
obtained from your dealer. To locate your nearest dealer, check the Dealer Lo cator at w ww.Woo dsEqu ipment .com, or in
the United States and Canada call 1-800-319-6637.

The equipment you have purchased has been carefully engineered and manufactured to provide dependable and
satisfactory use. Like all mechanical products, it will require cleaning and upkeep. Lubricate the unit as specified.
Observe all safety information in this manual and safety decals on the equipment.

For service, your authorized Woods dealer has train ed mechanics , genuine Woods s ervice parts, and the necessa ry
tools and equipment to handle all your needs.

Use only genuine Woods service parts. Substitute parts will void the warranty and may not meet standards required for
safe and satisfactory operation. Record the model number and serial number of your equipment in the spaces
provided:

dealer. Read manual instructions

Model:
Serial Number:

Provide this information to your dealer to obtain correct repair parts.

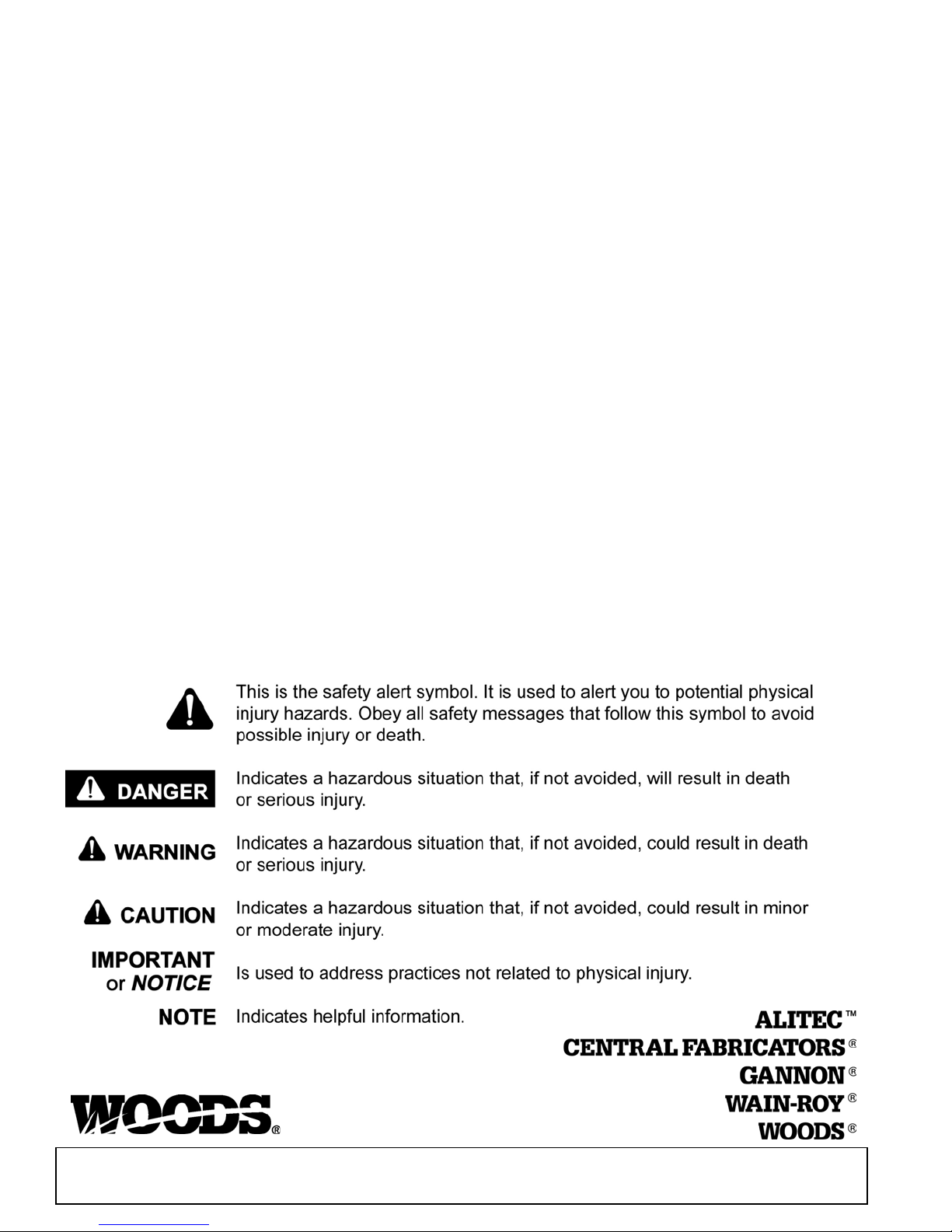

Throughout this manual, the ter m NOTICE is used to indicate that failure to observe can cause damage to equipment.

The terms CAUTION, WARNING, and DANGER are used in conjunction with the Safety-A lert Symbol ( a triangle with
an exclamation mark) to indicate the degree of hazard for items of personal safety.

_______________________________

(see Safety Decal section for location) ____________________________________

Date of Purchase:

_____________________

2 Introduction

Gen’l (Rev. 2/25/2016)

TABLE OF CONTENTS

Si no lee Ingles, pida ayuda a

alguien que si lo lee para que le

traduzca las medidas de seguridad.

LEA EL INSTRUCTIVO!

!

INTRODUCTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

SPECIFICATIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

GENERAL INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

ONLINE SAFETY VIDEO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

SAFETY RULES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

SAFETY DECALS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

OWNER SERVICE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

DEALER SERVICE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

DEALER CHECK LISTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

INDEX TO PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

BOLT TORQUE CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

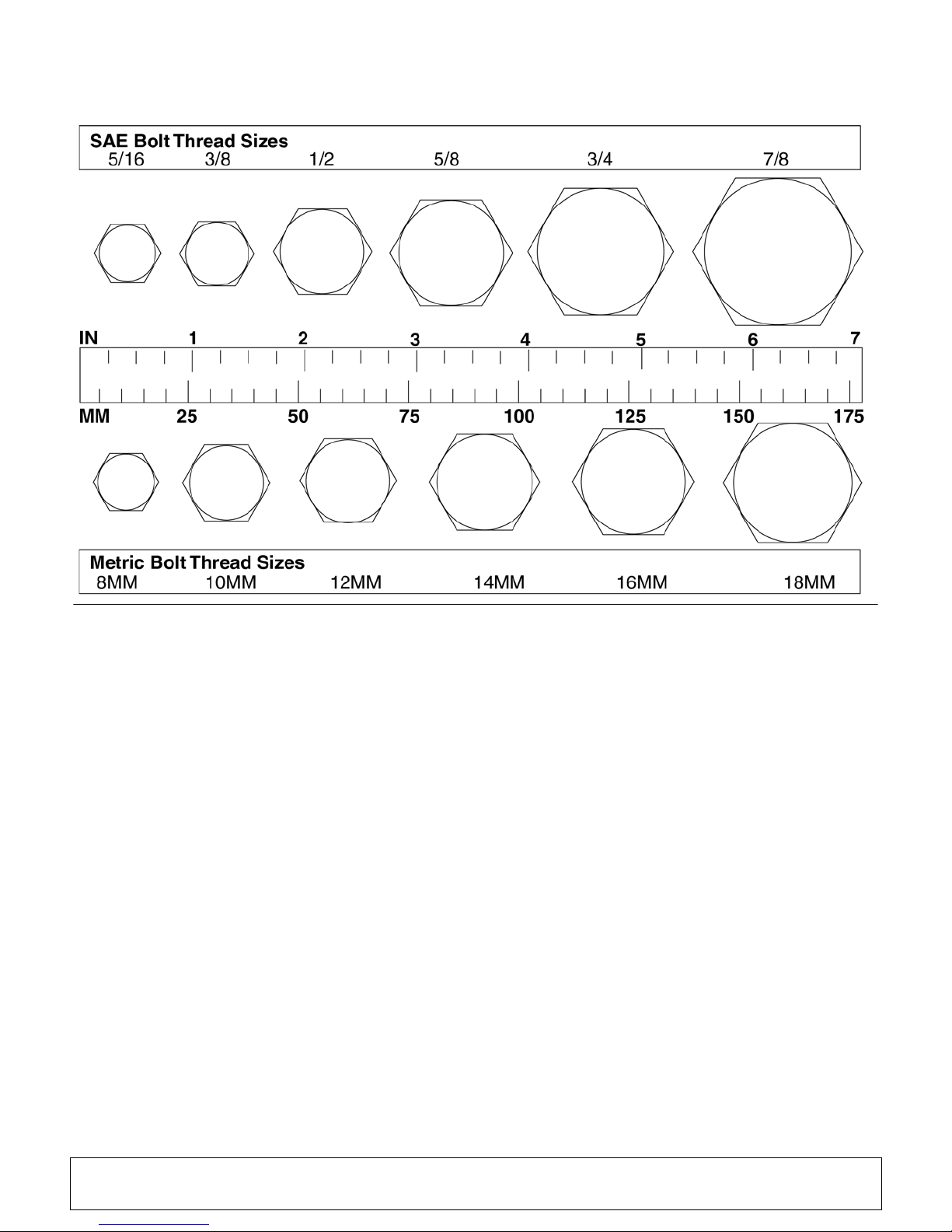

BOLT SIZE CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

INDEX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

PRODUCT WARRANTY . . . . . . . . . . . . . . . . . . . . . . . INSIDE BACK COVER

REPLACEMENT PARTS WARRANTY. . . . . . . . . . . . . . . . . . .BACK COVER

(Rev. 8/28/2013)

15914 (Rev. 3/23/2007)

Introduction 3

SPECIFICATIONS

WARNING

D80-2 (Towed) MD80-2 (Mounted)
Cutting Width 80" 80"
Cutting Height 2" - 14" 2" (Limited by tractor lift)
Overall Width 83" 83"
Cutter Blade Spindles 2 2
Blade Tip Speed 14,400 14,400
V-Belts 3 3
Framework Channel 5/16" 5/16"
Spindle Shafts 1-3/8" 1-3/8"
Gearbox 60 HP 60 HP

TRACTOR REQUIREMENTS

D80-2 (Towed) MD80-2 (Mounted)
Tractor PTO 540 rpm 540 rpm
3-Point Hitch N/A Category 1

GENERAL INFORMATION

The purpose of this manual is to assist you in operating
and maintaining your cutter. Read it carefully. It fur­nishes information and instructions that will help you
achieve years of dependable performance. These
instructions have been compiled from extensive field
experience and engineering data. Some information
may be general in nature due to unknown and vary ing
operating conditions. However, through experience
and these instruction s, you should be able to deve lop
procedures suitable to your particular situation.

The illustrations and data used in this manual were cur­rent at the time of printing, but due to possible inline
production change s, your mach ine may vary sl ightly in

(Category 2 Optional)

detail. We reserve the right to redesign and change the
machines as may be necessary without notification.

■

Some illustrations in this manual show the
equipment with safety shields removed to provide
a better view. The equipment should never be op er­ated with any safety shielding removed.

4 Introduction

15914 (Rev. 3/23/2007)

Watch a Mower Safety Video Online

The AEM (Association of Equipment Manufacturers) offers a safety
training video, Industrial and Agricultural Mower Safety Practices. The
22-minute video can be viewed online for free at TheAEMStore,

https://youtu.be/uEWXsDqhDq0

It reinforces the proper procedures to follow while operating your mowing
equipment. The video does not replace the information contain ed in the
Operator’s Manual, so please review this manual thoroughly before
operating your new mowing equipment.

Safety Training
Does Make a Difference.

BE SAFE!
BE ALERT!
BE ALIVE!
BE TRAINED

Before Operating Mowers!

ASSOCIATION OF
EQUIPMENT
MANUFACTURERS

Safety Video Order Form

Safety Video Online Form (Rev. 1/09/2018)

Safety 5

Also, available from the Association of Equipment Manufacturers:

A large variety of training materials (ideal for groups) are available for a nominal
charge from AEM. Following is a partial list:

●

Training Package for Rotary Mowers/Cutters-English
Contains: DVD & VHS (English)

Guidebook for Rotary Mowers/Cutters (English)
AEM Industrial/Agricultural Mower Safety Manual (English)
AEM Agricultural Tractor Safety Manual (English)

●

Training Package for Rotary Mowers/Cutters-English/Spanish
Contains: DVD & VHS (English/Spanish)

Guidebook for Rotary Mowers/Cutters (English/Spanish)
AEM Industrial/Agricultural Mower Safety Manual (English/Spanish)
AEM Agricultural Tractor Safety Manual (English/Spanish)

AEM training packages are available through:

AEM at: www.aem.org
or
Universal Lithographers, Inc.
Email: [email protected]

800-369-2310 tel
866-541-1668 fax

6 Safety

Safety Video Online Form (Rev. 1/09/2018)

 Never allow children or untrained persons to

Safety is a primary concern in the design and
manufacture of our products. Unfortunately, our
efforts to provide safe equipment can be wiped
out by an operator’s single careless act.

In addition to the design and configuration of
equipment, hazard control and accident preven­tion are dependent upon the awareness, concern,
judgement, and proper training of personnel
involved in the operatio n, transport, maintena nce
and storage of equipment.

It has been said “The best safety device is an
informed, careful operator.” We ask you to be that
kind of operator.

SAFETY RULES

ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!

operate equipment.

PREPARATION

 Check that all hardware is properly installed.
Always tigh ten to torque ch art specificat ions
unless instructed otherwise in this manual.

 Always wear relatively tight and belted clothing
to avoid entanglement in moving parts. Wear
sturdy, rough-soled work shoes and protective
equipment for eyes, hair, hands, hearing, and head;
and respirator or filter mask where appropriate.

 Make sure attachment is properly secured,
adjusted, and in good operating condition.

TRAINING

 Safety instructions are important! Read all
attachment and power unit manuals; follow all
safety rules and safety decal information. (Replace­ment manuals and safe ty decals are a vailable from
your dealer. To locate your nearest dealer, check
the Dealer Locator at www.WoodsEquipment.com,
or in the United States and Canada call 1-800-319-

6637.) Failure to follow instructions or sa fety rules
can result in serious injury or death.

 If you do not understand any part of this manual
and need assistance, see your dealer.

 Know your controls and how to stop engine and
attachment quickly in an emergency.

 Operators must be instructed in an d be capable
of the safe operation of the equipment, its attach­ments, and all controls. Do not allow anyone to
operate this equipment without proper instruc­tions.

 Keep hands and body away from pressurized
lines. Use paper or cardboard, not hands or other
body parts to check for leaks. Wear safety goggle s.

Hydraulic fluid under pressure can easily penetrate
skin and will cause serious injury or death.

 Make sure that all operating and service person­nel know that if hyd raulic fluid pe netrates sk in, it
must be surgically removed as soon as possible by
a doctor familiar with this form of injury or gan­grene, serious injury, or death w ill result. CON­TACT A PHYSICIAN IMMEDIATELY IF FLUID
ENTERS SKIN OR EYES. DO NOT DELAY.

D80 Safety Rules (Rev. 3/23/2007)

 Make sure spring-activat ed locking p in or collar
slides freely and is seated firmly in tractor PTO
spline groove.

 Make sure driveline guard tether chains are
attached to the tractor and equipment as shown in
the pamphlet that accompanies the driveline.
Replace if damaged or broken. Check that driveline
guards rotate freely on driveline before putting
equipment into service.

 Power unit must be equipped with ROPS or
ROPS cab and seat bel t. Keep seat belt se curely
fastened. Falling off power unit can result in death
from being run over or crushed. Keep foldable
ROPS systems in “locked up” position at all times.

 Remove accumulated debris from this equip­ment, power unit, and engine to avoid fire hazard.

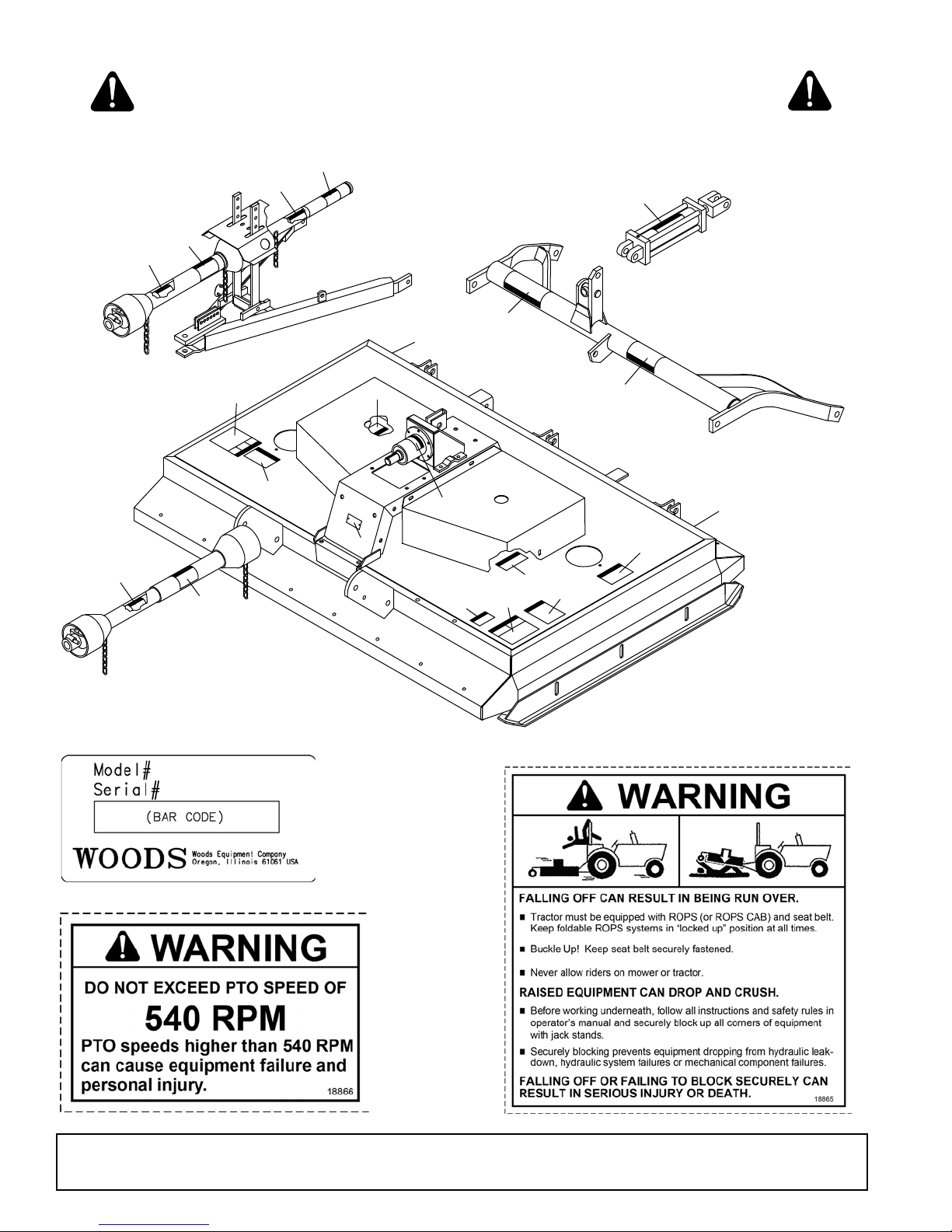

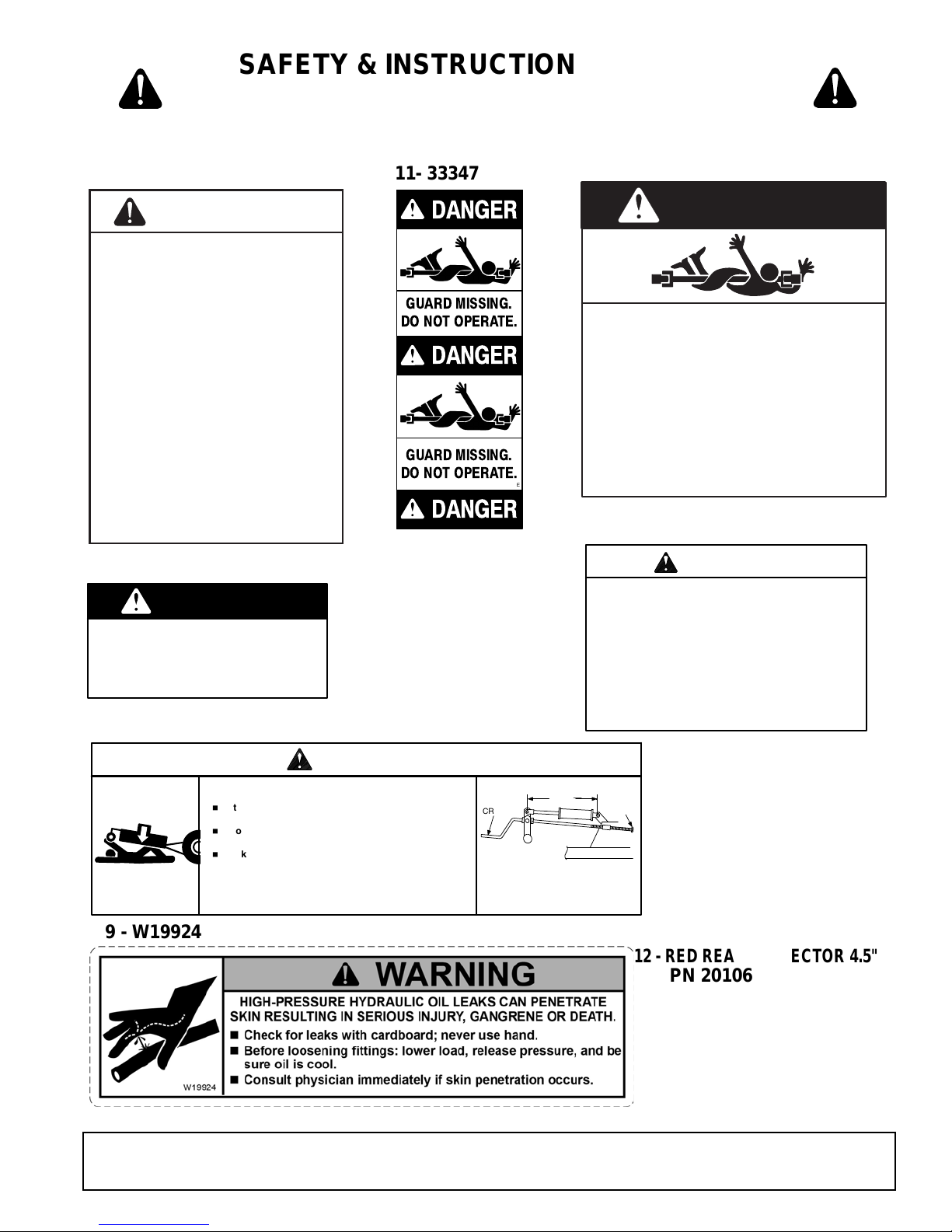

 Make sure all safety decals are installed.
Replace if damaged. (See S afet y Deca ls se ctio n fo r
location.)

 Make sure shields and guards are properly
installed and in good condition. Replace if dam­aged.

 A minimum 20% of tractor and equipment
weight must be on the tractor front wheels when
attachments are in transport position. Without this
weight, front tractor wheels could raise up result­ing in loss of steering. The weight may be attained
with front wheel weights, ballast in tires, front trac­tor weights or front loader. Weigh the tractor and
equipment. Do not estimate.

 Inspect and clear area of stones, branches, or
other hard objects that might be thrown, causing
injury or damage.

(Safety Rules continued on next page)

Safety 7

(Safety Rules continued from previous page)

SAFETY RULES

ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!

 Air in hydraulic systems can cau se er ratic o per­ation and allows loads or equipment components
to drop unexpectedly. When connecting equipment
or hoses or performing any hydraulic maintenanc e,
purge any air in hydraulic s ystem by oper ating all
hydraulic functions several times. Do this before
putting into service or allowing anyone to
approach the equipment.

 Connect PTO driveline directly to power unit
PTO shaft. Never u se adapter sleeves or adapter
shafts. Adapters can cause driveline failures due to
incorrect spline or incorrect operating length and
can result in personal injury or death.

OPERATION

 Keep bystanders away from equipment.
 Operate only in daylight or good artificial light.
 Never direct discharge toward people, animals,

or property.

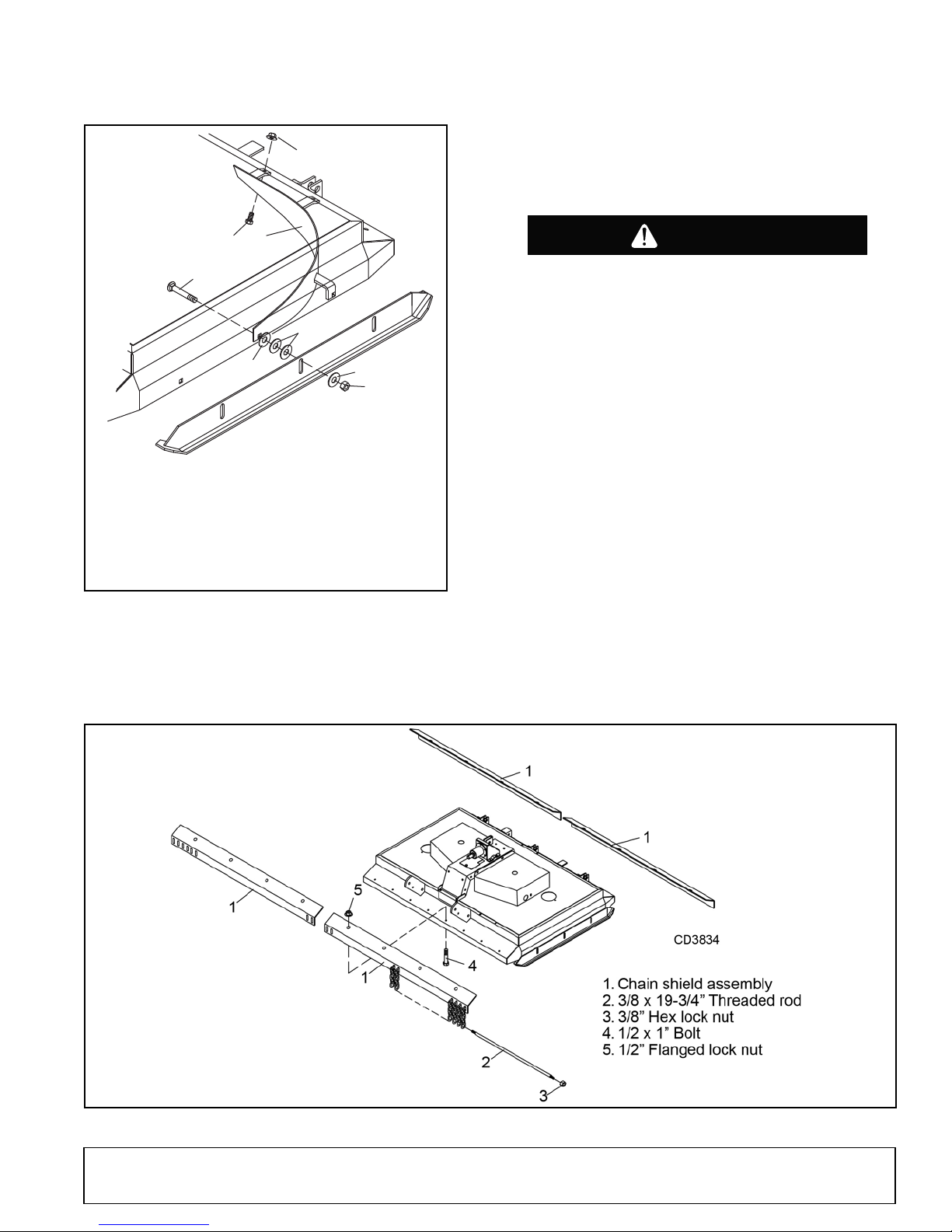

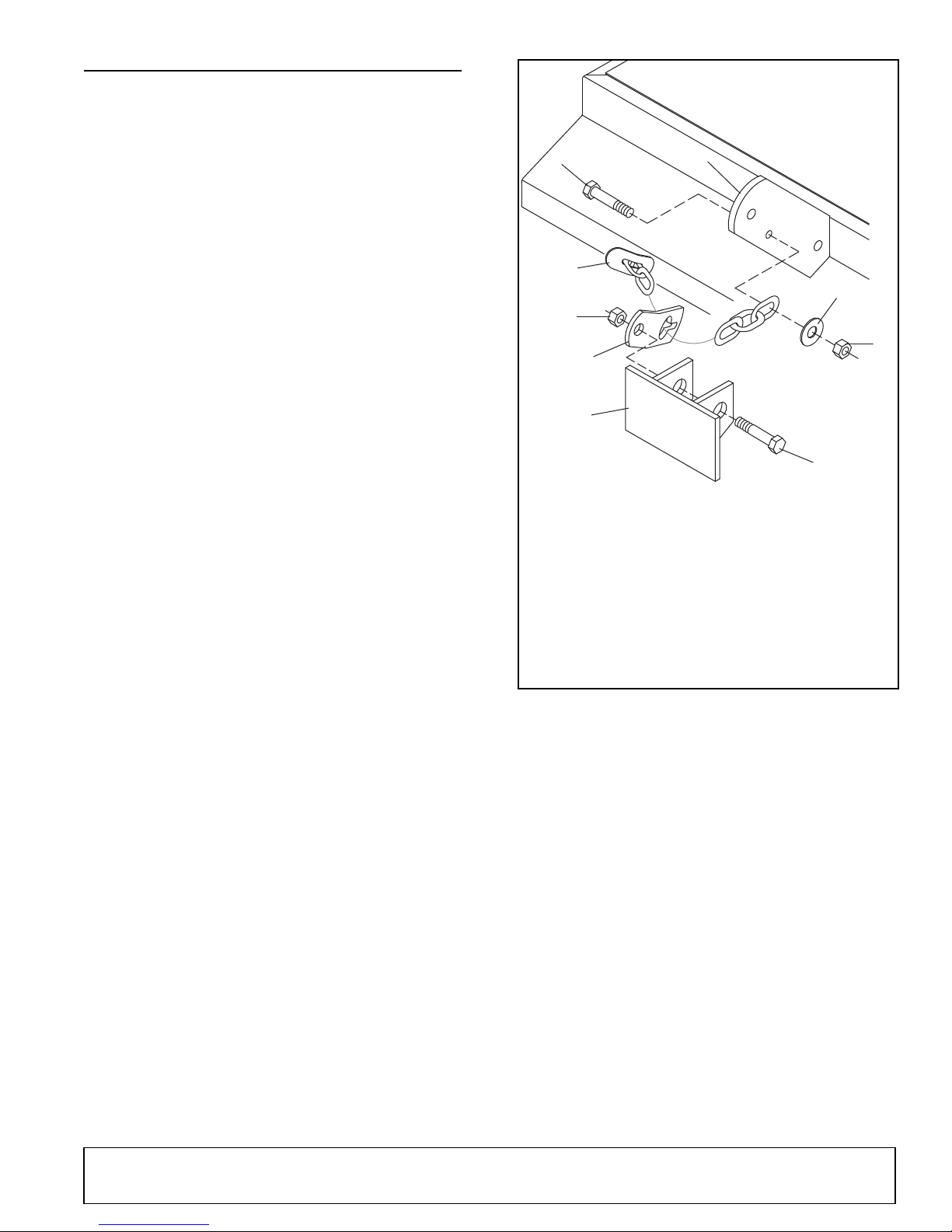

 Full chain shielding must be installed when
operating in populated areas or other areas where
thrown objects could injure people or damage
property.

• If this machine is not equipped with full chain
shielding, operation must be stopped when any­one comes within 300 feet (92 m).

• This shielding is designed to reduce the risk
of thrown objects. The mower deck a nd protec­tive devices cannot prevent all objects from
escaping the blad e enclosur e in every mo wing
condition.
and escape, traveling as much as 300 feet (92 m).

 Do not operate or transport equipment while
under the influence of alcohol or drugs.

 Keep hands, feet, hair, and clothing away from
equipment while engine is running. Stay clear of all
moving parts.

 Always comply with all state and local lighting
and marking requirements.

 Never allow riders on power unit or attachment.
 Power unit must be equipped with ROPS or

ROPS cab and seat belt. Keep seat belt securely
fastened. Fallin g off power unit can re sult in death
from being run over or crushed. Keep foldable
ROPS systems in “locked up” position at all times.

 Always sit in power unit seat when operating
controls or starting engine. Securely fasten seat
belt, place transmission in neutral, engage brake,

It is possible f or object s to ricoc het

and ensure all other controls a re disengaged
before starting power unit engine.

 Operate tractor PTO at 540 RPM. Do not exceed.
 Look down and to the rear and make sure area

is clear before operating in reverse.

 Do not operate or transport on steep slopes.
 Do not stop, start, or change directions sud-

denly on slopes.
 Use extreme care and reduce ground speed on

slopes and rough terrain.
 Watch for hidden hazards on the terrain during

operation.
 Stop power unit and equipment immediately

upon striking an obstruction. Turn off engine,
remove key, inspect, and repair any damage before
resuming operation.

TRANSPORTATION

 Power unit must be equipped with ROPS or
ROPS cab and seat bel t. Keep seat belt se curely
fastened. Falling off power unit can result in death
from being run over or crushed. Keep foldable
ROPS system in “locked up” position at all times.

 The maximum transport speed for towed and
semi-mounted machines is 20 mph (32 km/h).
Regardless of the maximum speed capability of the
towing tractor, do not exceed the implement’s max­imum transport speed. Doing so could result in:

• Loss of control of the implement and tractor

• Reduced or no ability to stop during braking

• Implement tire failure

• Damage to the implement or its components.

 Always comply with all state a nd local lighting
and marking requirements.

 Never allow riders on power unit or attachment.
 Do not operate PTO during transport.

 Do not operate or transport on steep slopes.

 Do not operate or transport equipment while

under the influence of alcohol or drugs.
 Never tow this implement with a motor vehicle.

MAINTENANCE

 Before performing any service or maintenance,
lower equipment to ground or block se curely, turn
off engine, remove key, and disconnect driveline
from tractor PTO.

(Safety Rules continued on next page)

8 Safety

(Rev. 8/29/2013)

D80 Safety Rules (Rev. 3/23/2007)

SAFETY RULES

ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!

(Safety Rules continued from previous page)

 Do not modify or alter or permit anyone else to
modify or alter the equipment or any of its compo­nents in any way.

 Always wear relatively tight and belted clothing
to avoid entanglement in moving parts. Wear
sturdy, rough-soled work shoes and protective
equipment for eyes, hair, hands, hearing, and head;
and respirator or filter mask where appropriate.

 Never go underneath equipment (lowered to the
ground or raised) unless it is properly blocked and
secured. Never place any part of the body under­neath equipment or between moveable parts even
when the engine has been turned off. Hydraulic
system leak down, hydraulic system failures,
mechanical failures, or mov ement of control le vers
can cause equipment to drop or rotate unexpect­edly and cause severe injury or death. Follow Oper­ator's Manual instructions for working underneath
and blocking requirements or have work done by a
qualified dealer.

 Make sure attachment is properly secured,
adjusted, and in good operating condition.

 Keep all persons away from operator control
area while performing adjustments, service , or
maintenance.

 Make certain all movement of equipm ent com­ponents has stopped before approaching fo r ser­vice.

 Frequently check blades. They should be sharp,
free of nicks and cracks, and securely fastened.

 Your dealer can supply genuine replacement
blades. Substitute blades may not meet original
equipment specifications and may be dangerous.

 Make sure shields and guards are properly
installed and i n good condit ion. Replace if dam­aged.

 Tighten all bolts, nuts and screws to torque
chart specifications. Check that all cotter pins ar e
installed securely to ensure equipment is in a safe
condition before putting unit into service.

 Make sure all safety decals are installed.
Replace if damaged. (See S afet y Deca ls se ctio n fo r
location.)

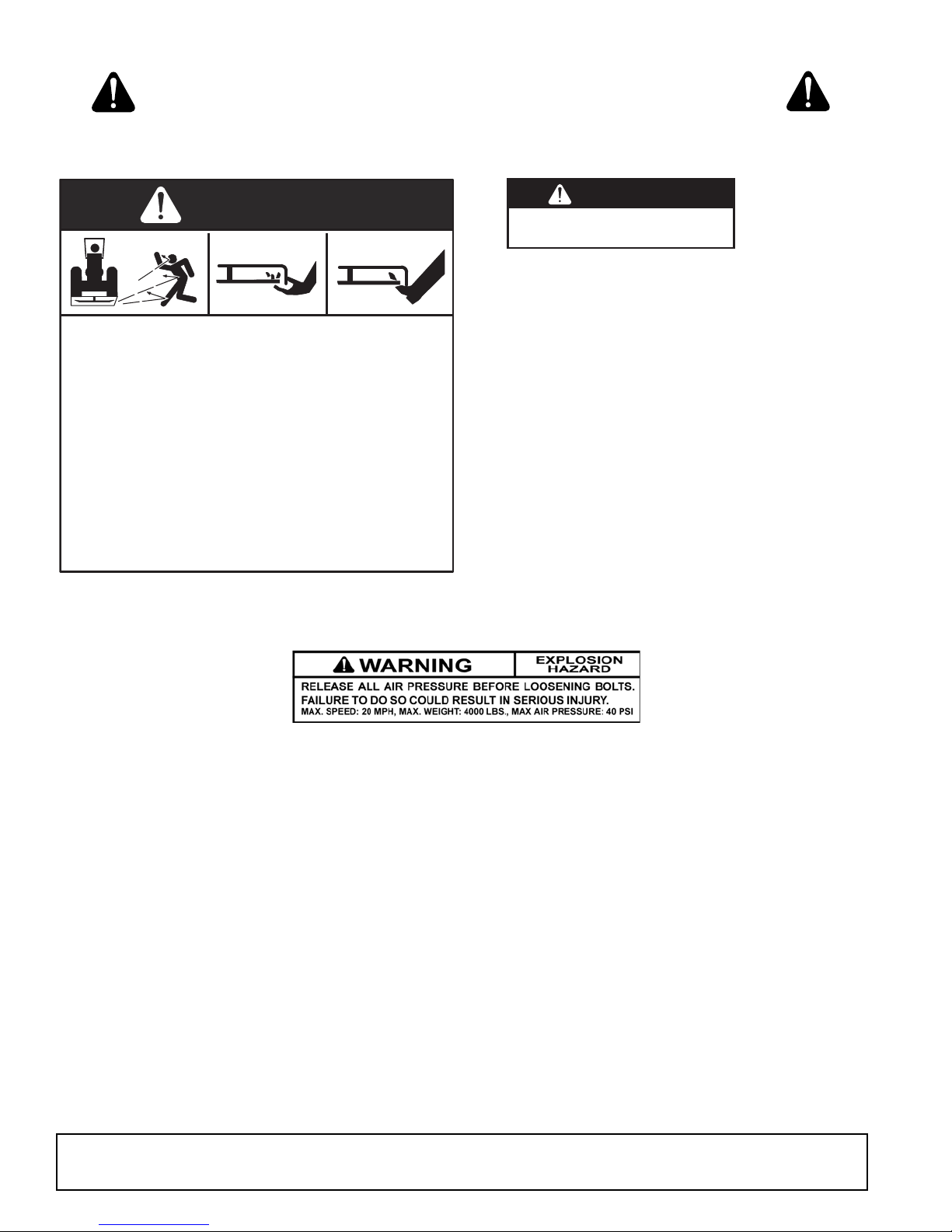

 Do not handle blades with bare hands. Careless
or improper handling may result in serious injury.

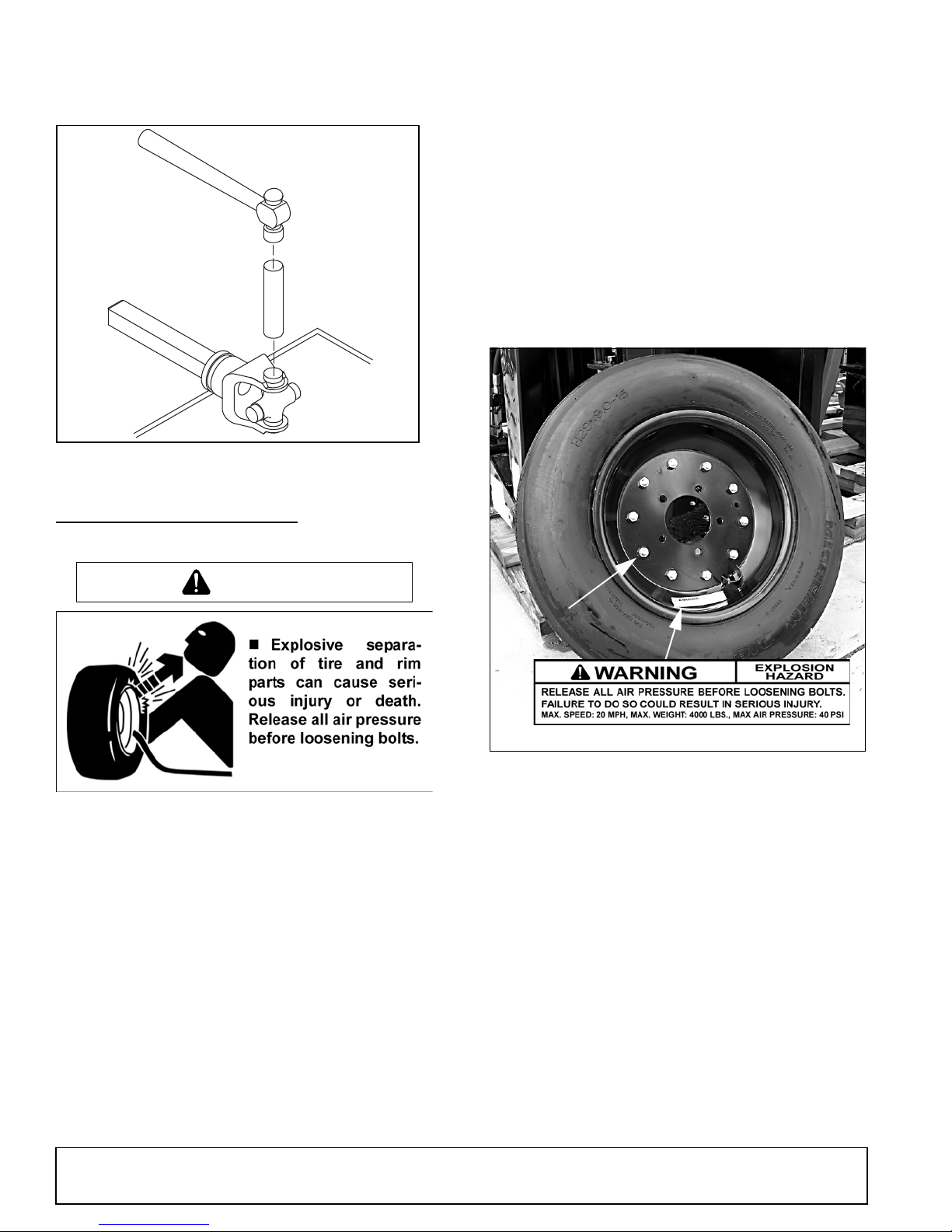

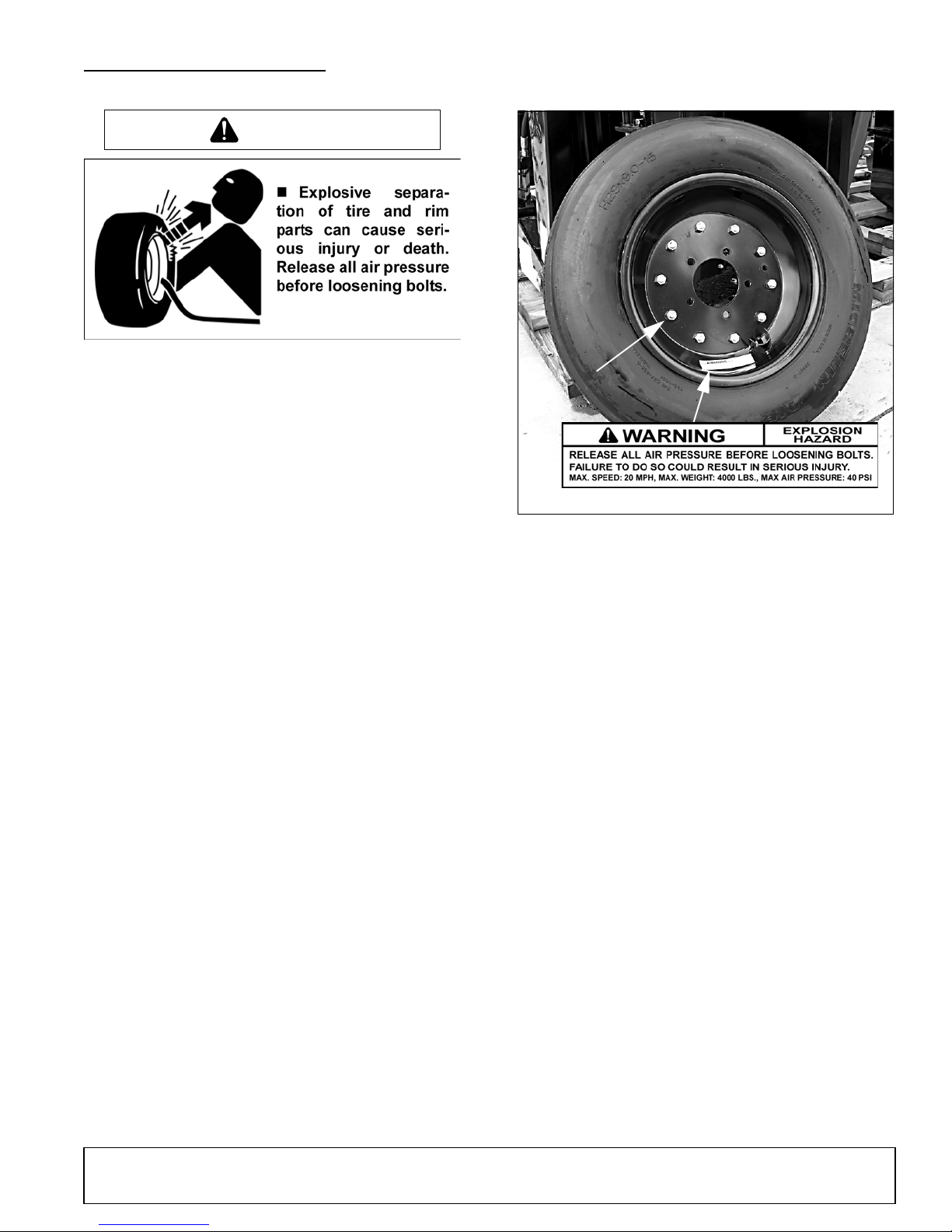

 Explosive separation of tire and rim parts can
cause serious injury or death. Release all air pres­sure before loosening bolts on wheel.

STORAGE

 Raise cutter and block securely. Block wheels
and raise tongue with jack. Disconnect hydraulic
lines to optional cylinder. Disconnect driveline and
secure up off the ground.

 Keep children and bystanders away from stor­age area.

 Store on level, solid ground.
 Follow manual instructions for storage.

(Rev. 5/11/2007)

D80 Safety Rules (Rev. 3/23/2007)

Safety 9

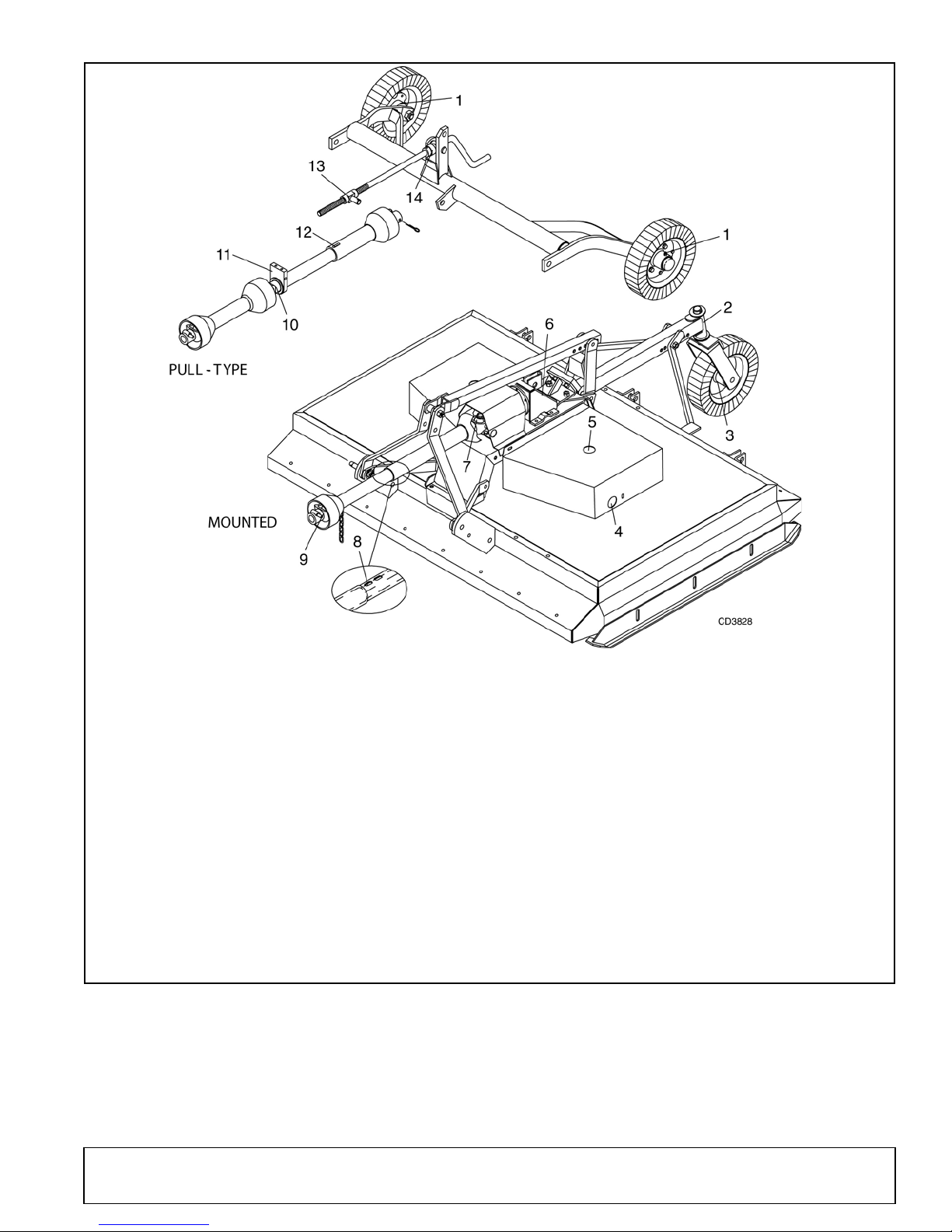

13

7

11

7

11

9

8

9

12

11

7

10

5

6

12

6

5

3

2

4

1

CD3817A

MOUNTED
DRIVE

PULL-TYPE
ONLY

PULL-TYPE
ONLY

FRAME FOR
MOUNTED &
PULL-TYPE

PULL-TYPE
ONLY

1 - SERIAL NUMBER PLATE

4 - 18866

2 - 18865

SAFETY & INSTRUCTIONAL DECALS

ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!

Replace Immediately If Damaged!

10 Safety Decals

15914 (Rev. 3/23/2007)

WARNING

TO AVOID SERIOUS

INJURY OR DEATH:

 Read Operator's Manual (available

from dealer) and follow all safety
precautions.

 Keep all shields in place and in good

condition.

 Operate mower from tractor seat only.

 Lower mower, stop engine and remove

key before dismounting tractor.

 Allow no children or untrained persons

to operate equipment.

 Do not transport towed or

semi-mounted units over 20 mph.

FAILURE TO OPERATE SAFELY

CAN RESULT IN

INJURY OR DEATH.

18877-C

3 - 18877

SHIELD MISSING

DO NOT OPERATE

PUT SHIELD ON

DANGER

18867--B

6 - 18867

7 - 18864

CONTACT WITH ROTATING PARTS

CAN CAUSE SERIOUS INJURY.

WARNING

15502--B

ROTATING COMPONENTS

Do not operate without cover in place.
Look and listen for rotation. Do not

open cover until all components have
stopped.

5 - 15502

WARNING

15951-B

CYLINDER AND CRANK

REQUIREMENTS

28-1/4

—

CRANK

PIN

A RAISED CUTTER CAN DROP AND CRUSH

n

Cutter must have crank with pin installed to prevent
crank detachment.

n

Before working underneath, rotate crank to highest
position and block up cutter.

n

Blocking up prevents cutter dropping from hydraulic
leak down, hydraulic system failures, or mechanical
component failures.

FAILURE TO FOLLOW INSTRUCTIONS CAN

RESULT IN SERIOUS INJURY OR DEATH.

8 - 15951

GUARD MISSING.

DO NOT OPERATE.

DANGER

33347E

DANGER

DANGER

GUARD MISSING.

DO NOT OPERATE.

11- 33347

9 - W19924

12 - RED REAR REFLECTOR 4.5"

PN 20106

SAFETY & INSTRUCTIONAL DECALS

ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!

Replace Immediately If Damaged!

DANGER

ROTATING DRIVELINE

CONTACT CAN CAUSE DEATH

KEEP AWAY!

DO NOT OPERATE WITHOUT -

 All driveline guards, tractor and

equipment shields in place

 Drivelines securely attached at both ends

 Driveline guards that turn freely on

driveline

18864-C

15914 (Rev. 3/23/2007)

Safety Decals 11

SAFETY & INSTRUCTIONAL DECALS

10 - 15503

BE CAREFUL!

Use a clean, damp cloth to clean safety decals.
Avoid spraying too close to decals whe n using a

pressure washer; high-pressur e water can enter
through very s m all scratches or unde r edges of
decals causing them to peel or come off.

Replacement safety deca ls can be ordered free
from your Woods dealer. To locate your nearest
dealer, check the Dealer Locator at
www.WoodsEquipment.com, or in the Unite d
States and Canada call 1-800-319-6637.

SHIELD MISSING

DO NOT OPERATE - PUT SHIELD ON

18869-B

DANGER

13 - 18869

PN - 1006348

ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!

Replace Immediately If Damaged!

DANGER

ROTATING BLADES AND

THROWN OBJECTS



Do not put hands or feet under or into mower when

engine is running.



Before mowing, clear area of objects that may be

thrown by blade.



Keep bystanders away.



Keep guards in place and in good condition.

BLADE CONTACT OR THROWN OBJECTS CAN

CAUSE SERIOUS INJURY OR DEATH.

15503-C

12 Safety Decals

(Rev. 5/11/2007)

15914 (Rev. 3/23/2007)

OPERATION

DANGER

WARNING

CAUTION

WARNING

WARNING

The designed and tested safety of this machine
depends on it being operate d within the limitations as
explained in this manu al. Be fami liar wit h and follow all
safety rules in the manual, on the cutter and on the
tractor.

The safe operation of th is cutter is th e responsibi lity of
the operator, who must be properly trained . The opera­tor should be familiar with th e equipm ent and a ll sa fety
practices before starting operation. Read the Safety
Rules on page 7 through page 12.

Information specific to attaching or operating the
mounted or towed unit will be identified in the text.
Information applicable to ei ther unit will not be segre­gated.

This cutter is designed for shredding heavy brush, such
as prunings in orchards, grov es and vineyards. Other
applications include topping onion sets and potatoes
before harvesting. It may also be used to shre d green
manure crops, straw and stubble, asparagus residue
etc. prior to plowing. Recommended tractor ground
speed for most mow ing conditions is from 1 to 5 mph.
Always operate tractor PTO at 540 rpm.

 On pull-type units, a pin is installed to prevent
the height adjustment crank from detaching. Do
not operate or service unit unless pin is installed.
 Keep all persons away from operator control
area while performing adjustments, service, o r
maintenance.

 Always wear relatively tight and belted clothing
to avoid getting caught in moving parts. Wear
sturdy, rough-soled work shoes and protective
equipment for eyes, hair, hands, hearing, and head;
and respirator or filter mask where appropriate.

 Make sure spring-activat ed locking p in or collar
slides freely and is seated firmly in tractor PTO
spline groove.

 Stop power unit and equipment immediately
upon striking an obstruction. Turn off engine, set
parking brake, remove key, inspect, and repair any
damage before resuming operation.

TRACTOR STABILITY

 Full chain shielding must be installed when
operating in populated areas or other areas where
thrown objects could injure people or damage
property.

• If this machine is not equipped with full chain
shielding, operation must be stopped when any­one comes within 300 feet (92 m).

• This shielding is designed to reduce the risk
of thrown objects. The mower deck a nd protec­tive devices cannot prevent all objects from
escaping the blad e enclosur e in every mo wing
condition.
and escape, traveling as much as 300 feet (92 m).

 Never allow children or untrained persons to
operate equipment.

 Keep bystanders away from equipment.
 Before performing any service or maintenance,

lower equipment to ground or block securel y, turn
off engine, remove key, and disconnect driveline
from tractor PTO.

It is possible f or object s to ricoc het

 A minimum 20% of tractor and equipment
weight must be on the tractor front wheels when
attachments are in transport position. Without this
weight, front tractor wheels could raise up result­ing in loss of steering. The weight may be attained
with front wheel weights, ballast in tires, front trac­tor weights or front loader. Weigh the tractor and
equipment. Do not estimate.

ATTACHING MOUNTED CUTTER TO
TRACTOR

 Make sure spring-activat ed locking p in or collar
slides freely and is seated firmly in tractor PTO
spline groove.

MD80 Mounting

Standard Category 1 mounting pins are used when
attaching cutter to tractor. Also available for mounting
are optional Category 2 pins and a bushing kit.

Check to be sure mo unting pi ns are prop erly to rqued ­Category 1: 300 lbs-ft.; Category 2: 450 lbs-ft.

15914 (Rev. 3/30/2007)

Operation 13

Install tractor lower lift arms over the cutter mounting

1-9/16"

A

pins. Attach tractor top link in top hole of cutter A­frame. Use bushing over top link clevis pin when
mounting on a Category 2 tractor.

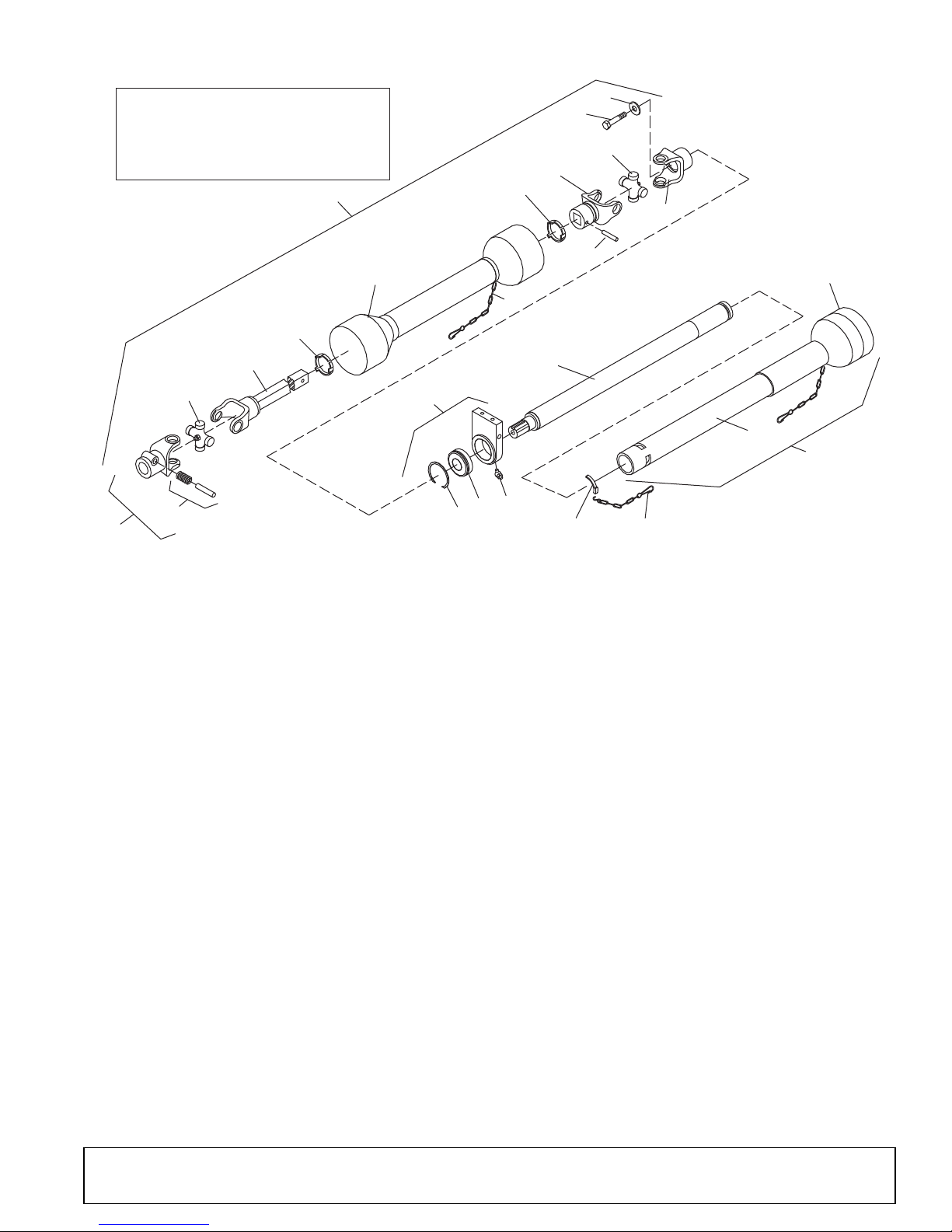

Driveline Attachment

Attach the cutter to the tractor 3-point hitch (or quick
hitch if available). Do not attach driveline. Raise and
lower cutter to de termine maximum and m inimum dis­tance between the tractor PT O shaft and the gearbox
input shaft. If the d is tance is too large, the drivel in e wi ll
be too short for proper engagement. If dista nce is too
small, the driveline may bottom out in operation and
damage the cutter or tractor.

Driveline length must be sufficient to provide at least
1/3 driveline length of engagement during operation.
There must be at least 4 inches of engage ment at the
cutters lowest possi ble point of operation. The drive­line must not bottom out when raise d to the maximum
height possible.

If driveline is to o short please cal l your Woods dealer
for a longer driveline.

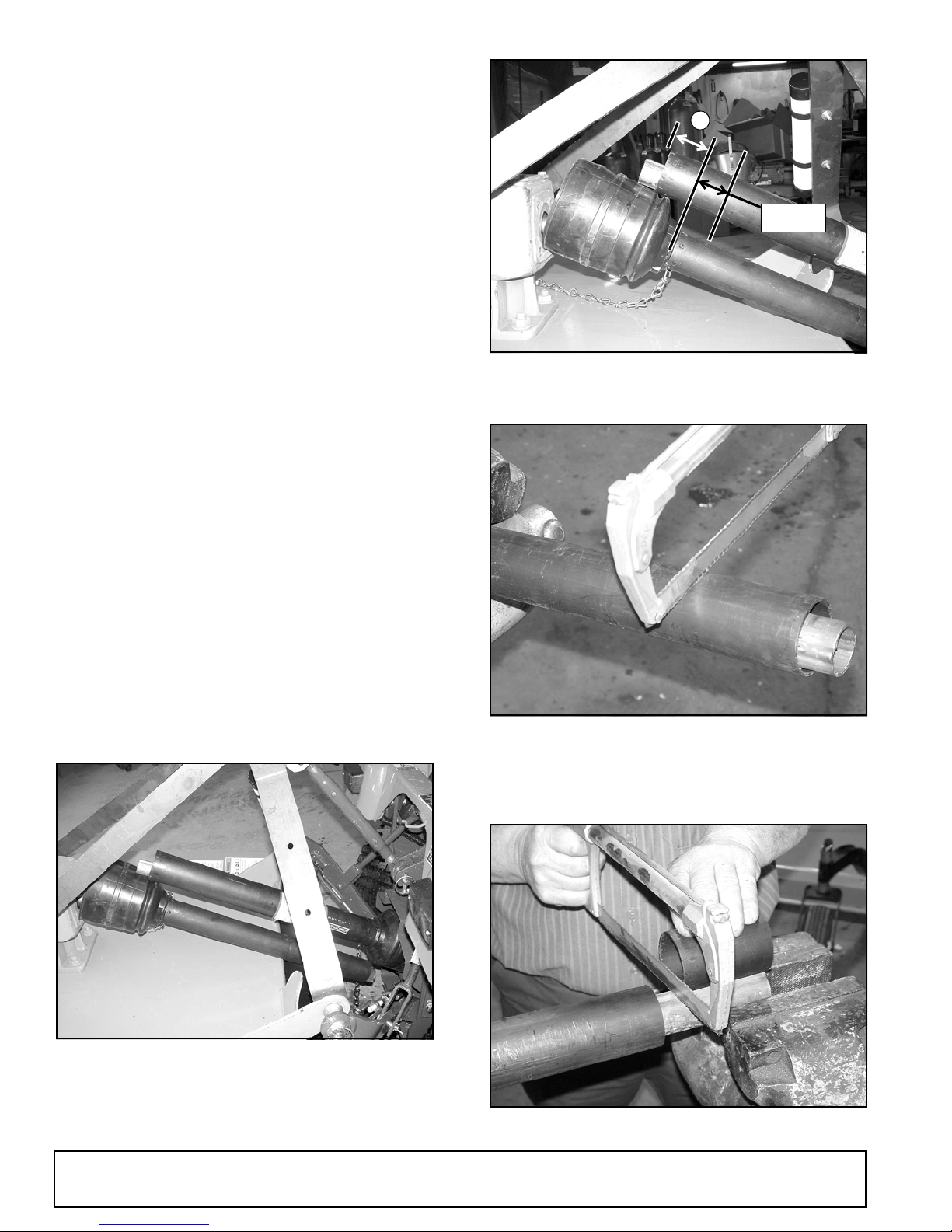

Figure 2. Determine Shield Length

5. Cut the shield to the overall dimension.

If driveline is too long ple ase follow the ins tructions for
shortening the driveline.

Shorten Driveline

1. Move cutter up and down to get the shortest

possible distance between tractor PTO shaft and
gearbox input shaft.

2. Separate driveline into two halves and connect
them to the tractor PTO and gearbox.

3. Place driveline halves parallel to one another to
determine how much to shorten the driveline.

Figure 3. Cut Shield

6. Place the cutoff portion of the shield against the

end of the shaft and use a s a gui de. Mark and cu t
the shaft.

Figure 1. Drive Halves Placed Parallel

4. Measure from end o f the upper shield t o the base

of the bell on the lower shi eld (A). Add 1-9/16" to
dimension (A). See Figure 2.

14 Operation

Figure 4. Cut Shaft to Length

15914 (Rev. 3/30/2007)

7. Repeat step 6 for the other half of the drive.

WARNING

2

3

4

1

M3838

8. File and clean cut ends of both drive halves.

Do not use tractor if proper dr iveline engage ment can­not be obtained through these methods.

When using optional c heck chains, i nstall them in key­hole brackets. Count the li nks between the cutter and
brackets to be sure you have the same num ber of lin ks
on each side. You may twist check chain for fine adjust­ment side to side.

Connect driveline to tractor PTO shaft, making sure the
spring-activated locking collar slides freely and locks
driveline to PTO shaft.

NOTICE

■

If attaching with quick hitch the distance
between the tractor PTO and gearbox input shaft
will increase. Please follow the steps as you would
for a 3-point hitch to insure proper engagement.

Cutting Height Adjustment for MD80
Mounted Cutter

Place tractor and cutter on a level surface.
The adjustments giv en here are to provide you with a

starting point. Adjustments are approximate and may
vary due to slight differences in blade shimming and
machine wear. You may desire to fine tune them for
your situation.

 Keep all persons away from operator control
area while performing adjustments, service , or
maintenance.

■

Avoid very low cutting heights. Striking the
ground with blades produces one of the most dam­aging shock loads a cutter can encounter. Allowing
blades to contact ground repeatedly, will cause
damage to cutter and drive.

Cutting Height Adjustment Without
Tailwheel or Check Chains

The blade is appr oximately 9- 1/4" below th e top of the
cutter deck.

Select a cutting height, EXAMPLE 3".
Use tractor 3-point lift to set fro nt blade 3" above level

surface (measure 12-1/4" from top of dec k to ground).
At the rear, measure from top of deck to ground; adjust
top link until this dist ance is from 12-3/4" to 13" . Adjus t
lower stop of the tractor 3-point lift control. When
adjustment is set, th is will enable you to return to th e
preset cutting height.

Maintain distance from blade tip to level surface from
1/2" to 3/4" higher at rear for best cutting results and
lowest power consumption.

When using cutter for shredding, it is better to set blade
tip lower at the rear. How much lower depends on the
material to be shredded. You will need to experiment to
determine the best setting for your situation.

Cutting Height Adjustment With Tailwheel
or Check Chains

The blade is appr oximately 9- 1/4" below th e top of the
cutter deck.

Select a cutting height, EXAMPLE 3".
Use check chains and t ractor 3-point lift and ra ise top

front of cutter deck 12- 1/4" above the level s urface. At
the rear, measure from top of deck to ground; adjust
tailwheel until this distance is from 12-3/4" to 13".

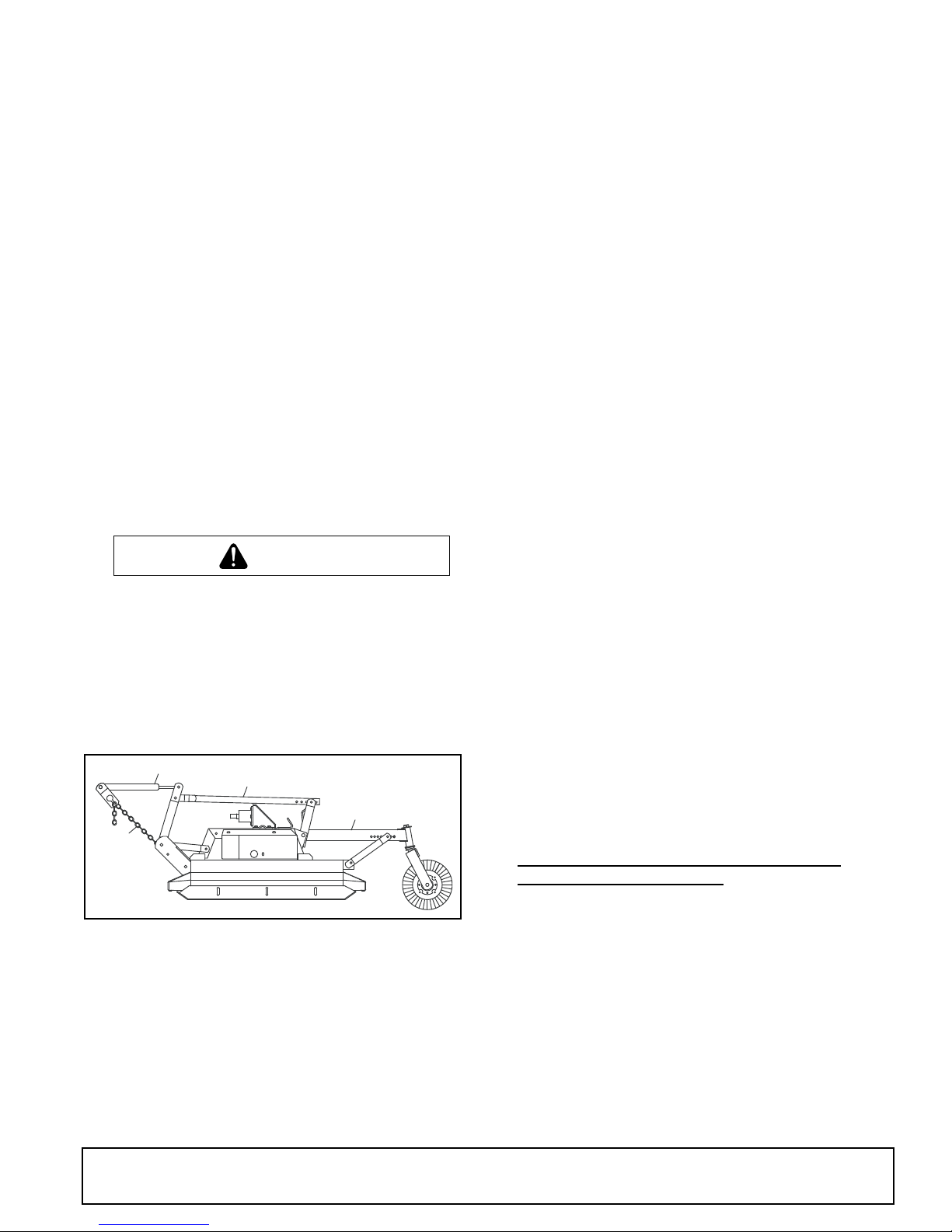

Figure 5.. Cutting Height Adjustment - MD80

(Mounted Model)

Cutting height may be controlled by several metho ds.
Without the optional check chains and tailwheel it is
controlled with the tractor 3-point lift and top link adjust­ment.

Measure from front edge of cutter frame (on each side)
to ground to be sure cutter is level. Use adjustment on
3-point arms, if neces sary, for fine adjustment si de to
side.

15914 (Rev. 3/30/2007)

Shorten the check chains to raise front of cutter. Move
tailwheel adjustment to the rear to raise rear of cutter.

ATTACHING CUTTER TO TRACTOR
(PULL-TYPE MODELS)

The cutter is shipped with a 1-3/8" PTO spline. The
horizontal distance be twee n the end of the tr actor PTO
shaft and the drawbar hitch point should be 14". This
distance must not vary more than plus or minus one
inch (±1") or the drive may be damaged when tu rning.
Adjust tractor dr awbar to o btain th e desi red dr awbar t o
hitch point distance. On some tractors, a drawbar kit
must be used to obtain the r equired dimens ion. Check
with your tractor dealer if you encounter problems.

Raise cutter tongue to tractor dr awbar height wi th jack
provided and attac h with a 3/4" or larger high-strengt h
drawbar pin. Retain pin to keep it in place.

Operation 15

Connect cutter driveline to tractor PTO shaft, making

M3866

1. Compression member

2. Carrier bearing

3. Adjustment crank

sure the spring-activated locking pin slides freely and is
seated firmly in tractor PTO spline groove.

Adjust H-frame bearing he ight to ensu re front drivelin e
is parallel to ground.

Remove parking jack fro m tongue. Attach to frame rail
storage with top for ward. Always attach jack to tongue
to hold it up when disconnecting it from tractor.

Adjust drive shaft carrier bearing (2), Figure 6, verti­cally in H-frame unti l dri veli ne i s as st rai ght as p os sibl e
between tractor PTO and cutter gearbox.

Cutting Height Adjustment for D80
Pull-Type Cutter

Place tractor and cutter on a level surface.
Cutting height is raised a nd l owe re d with he igh t ad jus t-

ment crank (3) or optio nal hydraulic cylinder. Front to
rear attitude is set wi th the compression link (1). See
Figure 6.

PRE-OPERATION CHECK LIST

(Owner’s Responsibility)

___ Check that cutter is properly and securely

attached to tractor.

___ Make sure driveline spring-activated locking pin

slides freely and is seated firmly in tractor PTO
spline groove.

___ On pull-type cutter , make sure the pin to pre vent

crank detachment is installed.
___ Set tractor PTO at 540 rpm.
___ Make sure gearbox is full to fill plug with SAE

90W gear lube.
___ Lubricate all grease fitting locations.
___ Check that all hardware is properly installe d and

secured.
___ Check to ensure blades are sharp and secure

and cutting edge is positioned to lead in a

counter-clockwise rotation.

The blade is approximately 9-1/4" below cutter deck.
Select a cutting height, EXAMPLE 3".
Raise front end of deck with a jack to take the compres-

sion member (1) ou t of compression and remove th e
bolt connecting it to the tongue.

Raise front end of deck until both sides are 12-1/4"
above the ground and block underneath to maintain
this distance.

Raise rear end of deck until it is from 13-3/4" to 14"
above the ground.

Connect compressio n me mbe r (1 ) to tong ue. It may be
necessary to raise or lower rear of deck to align hole.

Remove the blocks f rom under the deck and position
each side skid 1/2" above the ground.

This complete pr ocedure must be fo llowed to properly
set a new cutting height. Raising rear of deck with
crank without changing the compression link position
will result in an incorrect front-to-rear attitude setting.

___ Check that all shields and guards are properly

installed and in good condition.
___ Check cutting height and attitude adjustment.
___ Place tractor PTO and transmission in neutral

before attempting to start engine.
___ Inspect area to be cut and remove stones,

branches or other hard objects that might be

thrown, causing injury or damage.
___ Inspect chain shielding and replace any damaged

or missing links.

STARTING AND STOPPING CUTTER

Cutter operating power is supplied from tractor PTO.
Refer to your tractor manual for PTO engagemen t and
disengagement instructions. Always operate PTO at
540 rpm. Know how to stop tractor and cutter quickly in
case of an emergency.

When engaging PTO, the engine rpm should always be
low. Once engaged and ready to start cutting, raise
PTO speed to 540 rpm and maintain throughout cutting
operation.

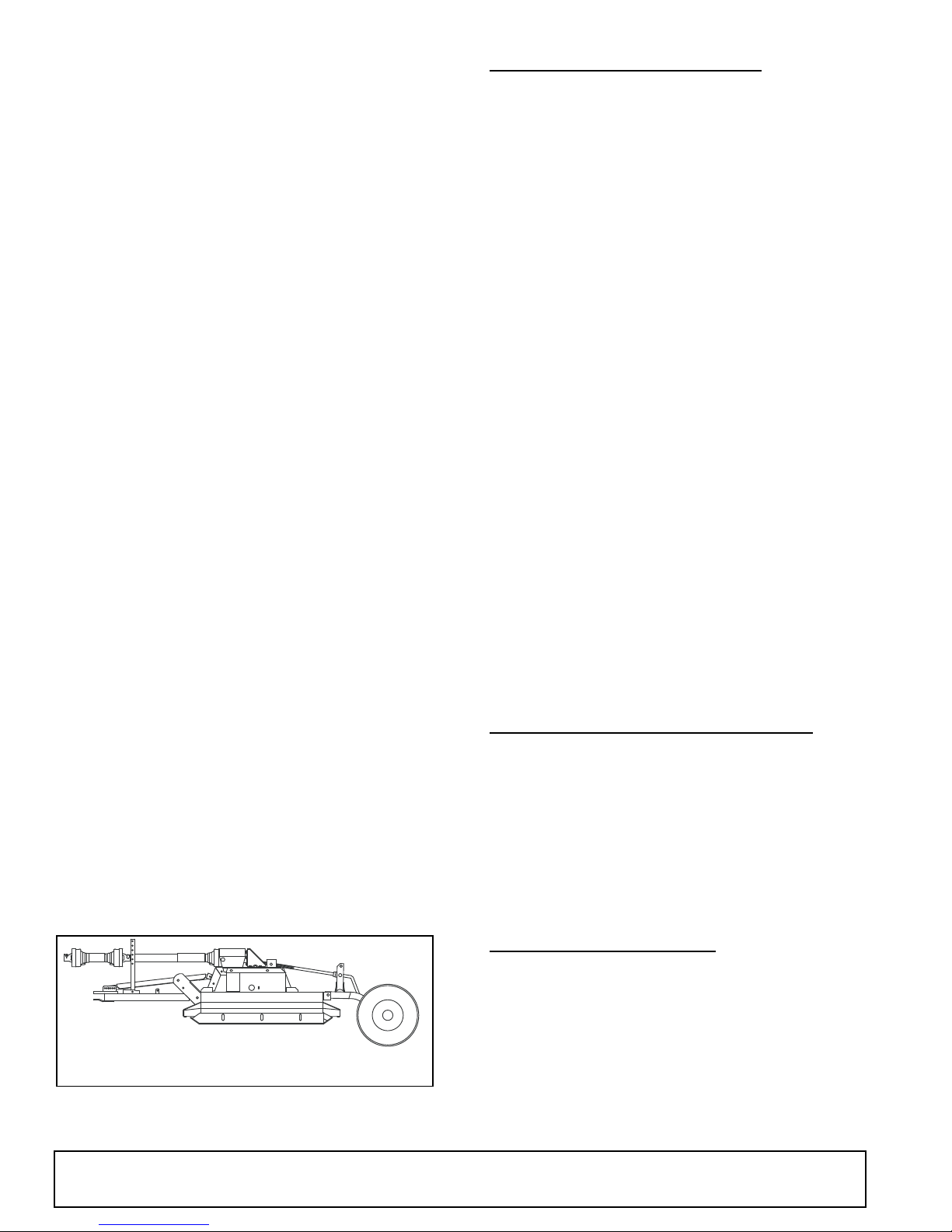

Figure 6. Cutting Height Adjustment - D80

(Pull-Type Model)

16 Operation

OPERATING TECHNIQUE

Proper ground speed will depend upon the height, type
and density of material to be cut.

Normally, ground speed will range from 2 to 5 mph. Tall
dense material shoul d be cut at a low spe ed, wh il e thi n
medium-height mater ial can be cut at a hi gher ground
speed.

Always operate P TO at 540 rpm; this is necessary to
maintain proper blade spe ed and produ ce a clean cut .

15914 (Rev. 3/30/2007)

Under certain conditions, tractor tires may roll some

WARNING

WARNING

material down and prevent it from being cut at the
same height as the surrounding area. When this
occurs, reduce tractor ground speed but maintai n 540
rpm PTO speed. The lo wer speed will permit material
to at least partially rebound.

Under some conditions, material will not rebound
enough to be cut evenly, resulting in an uneven
appearance. In general, lower cutting heights give a
more even cut with less tendency to leave tire tracks.

The cutter is equipped with general purpose suction
blades as standard equipment. These blades are
intended for most conditions.

Optional flat blades f or light brush cu tting and optional
high fin blades for stalk shredding are available from
your dealer.

Tips

Extremely tall materi al should be cut twice. Cut mate­rial higher the first pas s. Then cut at de sired height, a t
90° to first pass.

Remember, sharp blades produce cleaner cuts and
require less power.

Analyze area to be cut to determine best procedure.
Consider height and typ e of material and terrain type:
hilly, level or rough.

Plan your pattern to travel straight forward whenever
possible.

Uneven Terrain

 Do not operate or transport on steep slopes.
 Do not stop, start, or change directions sud-

denly on slopes.
 Use extreme care and reduce ground speed on

slopes and rough terrain.
 Watch for hidden hazards on the terrain during

operation.

Pass diagonally through sharp dips and avoid sharp
drops to prevent hanging up tractor and cutter.

Practice will imp rove your skills in mane uvering rough
terrain.

STORAGE

Follow these steps when storing your cutter:

1. Store on level, solid ground.

2. Disconnect driveline and secure up off the ground.

3. On pull-type model , attach parking jack and raise

tongue weight off tractor drawbar.

4. Securely block all four corners of deck with jack
stands.

5. Remove hydraulic h oses after tractor is turn ed off
and all system pressure is released by operating
valve levers several times.

 Inspect and clear area of stones, branches, or
other hard objects that might be thrown, caus ing
injury or damage.

6. Remove retainer pin and high strength drawbar

pin.

7. Keep children and by standers away from storage
area.

15914 (Rev. 3/30/2007)

Operation 17

OWNERS SERVICE

WARNING

CAUTION

WARNING

6. 20 GA Spacer

7. Crossbar

8. Blade

9. Blade pin

1. Bolt

2. Blade pin clip

3. Keyhole plate

4. Spacer

5. 18 GA Spacer

9

8

7

6

5

4

3

2

1

CD3818

to U-joints, gearbox, tractor PTO and/or cutter drive­line.

 On pull-type units, a pin is installed to prevent
the height adjustment crank from detaching. Do
not operate or service unit unless pin is installed.

 Before performing any service or maintenance,
lower equipment to ground or block securel y, turn
off engine, remove key, and disconnect driveline
from tractor PTO.
 Keep all persons away from operator control
area while performing adjustments, service , or
maintenance.

 Always wear relatively tight and belted clothing
to avoid getting ca ught in moving parts. We ar
sturdy, rough-soled work shoes and protective
equipment for eyes, hair, hands, hearing, and head;
and respirator or filter mask where appropriate.

The information in this section is written for operators
who possess basic mechanical skills. Should you need
help, your dealer has trained s ervice te chnicians avail­able. For your protection, read and follow all safety
information in this manual.

BLADE SERVICING

 On pull-type units, a pin is installed to prevent
the height adjustment crank from detaching. Do
not operate or service unit unless pin is installed.

Blocking the cutter before working underneath provides
additional safety. If a mechanical or hydraulic failure
occurs, the blocks wil l support the cutter and pre vent
anyone under it from being crushed.

Inspect blades, each time before operating cutter, for
condition and proper installation. Check to be sure
blades are snug but still swivel on blade pin (see Blade
Installation, page 2 0). Replace any blade that is bent,
excessively nicked, worn or has any other damage.
Small nicks can be ground out when sharpening.

LUBRICATION INFORMATION

The accompanying ch art gives the frequency of lubri­cation in oper ating h ours, b ased on normal conditio ns.
Severe or unusual conditions may require more fre­quent lubrication. See Figure 8.

Do not let excess grease collect on or around parts,
particularly when operating in sandy areas.

Use an SAE 90W gear lube in gearbox.
Use a lithium grease of No. 2 consistency with a MOLY

(molybdenum disulfide) additive for all locations. Be
sure to clean fittings thoroughly before attaching
grease gun. When a pplied accordin g to the lubricatio n
chart, one good pump of most guns is sufficient. Do not
overgrease.

Daily lubricat i o n of t he PTO sl i p joi nt is necessary. Fail­ure to maintain proper lubrica tion can result in da mage

18 Owner Service

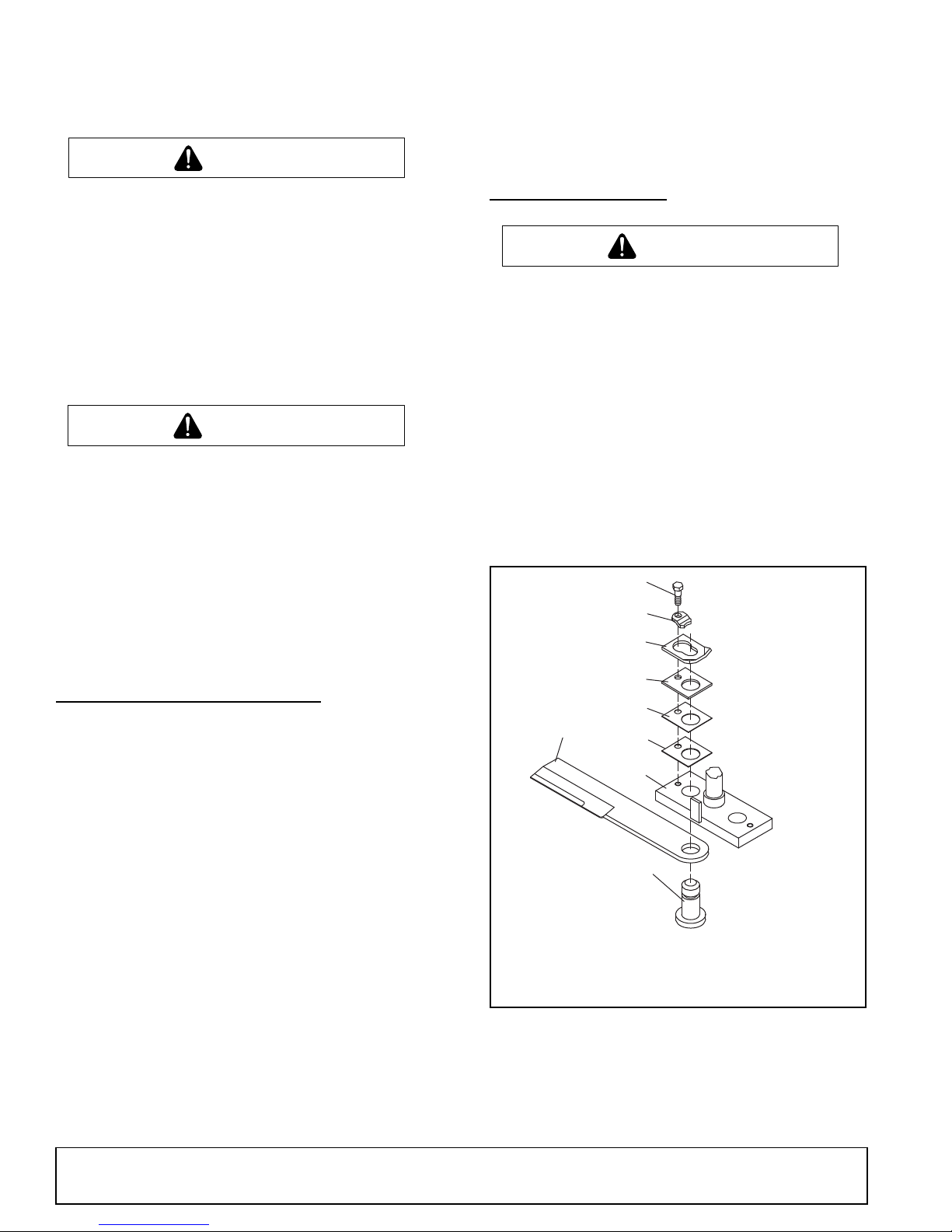

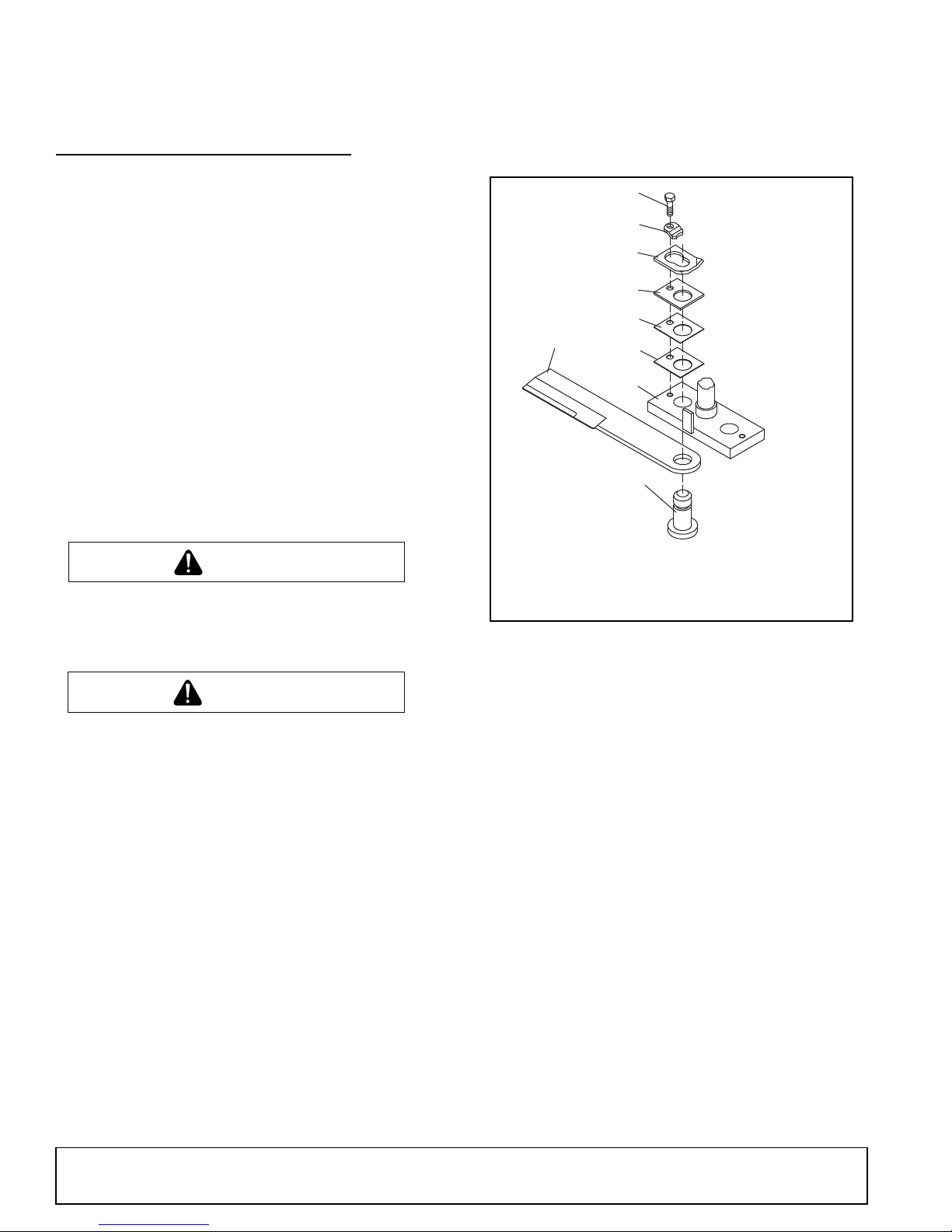

Figure 7. Blade Removal & Installation

15914 (Rev. 3/23/2007)

Ref
No Description Frequency

1 Tailwheel Hub (Towed Model) 10 hrs
2 Tailwheel Pivot Arm 8 hrs
3 Tailwheel (Mounted Model) 8 hrs
4 Blade Spindle - Access through

hole in end of belt shield (right);
Remove left belt shield (left) 10 hrs

5 Belt Idler - Access through hole

in top of belt shield (right);
Remove left belt shield (left) 50 hrs

6 Gearbox: Fill with EP90 gear

lube Check Daily

7 Rear U-Joint 8 hrs
8 Slip Joint (Mounted Model) -

Apply grease to all four sides

of shaft 8 hrs
9 Front U-Joint 8 hrs
10 Center U-Joint (Towed Model) 10 hrs
11 Driveline Carrier Bearing

(Towed Model) 10 hrs
12 Slip Joint (Towed Model) -

Apply grease to all four sides

of shaft 10 hrs
13 Height Adjustment Pivot Block Occasionally
14 Height Adjustment Crank Occasionally

Blade Removal

Rotate crossbar until blade pin assembly is directly
below access hole i n rear of cutter frame. Remov e bol t

Figure 8. Lubrication Points

(1) and blade pin cli p (2). Slid e ke yhole plate (3) o ut o f
blade pin groove and remove. Remove spacers and
drive pin out of crossbar. See Figure 7.

15914 (Rev. 3/23/2007)

Owner Service 19

NOTICE

CAUTION

DANGER

WARNING

■

If blade pin is seiz ed in cros sbar and e xtreme
force will be required to remove it, support cross­bar from below to prevent damage to spindle.

 Your dealer can supply genuine replacement
blades. Substitute blades may not meet original
equipment specifications and may be dangerous.

DB967

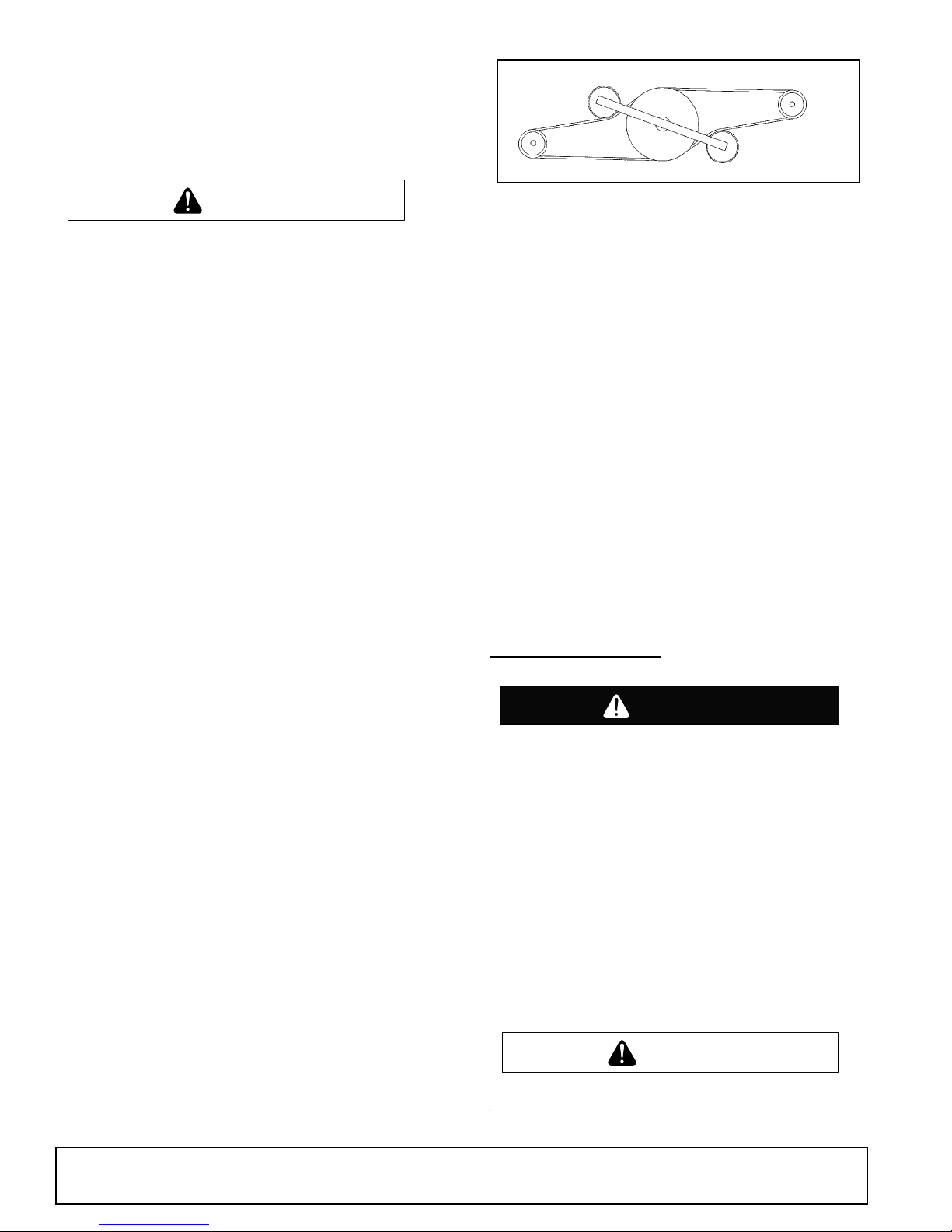

Figure 9. Belt Routing

Avoid excessive force during installation. Do not use
tools to pry belt into pulley groove. Do no t roll belt ov er
pulleys to insta ll. This can cause hidden damag e and
premature belt failure. Always loosen idlers when
installing belts.

Blade Install ation

Always replace both blades at th e same time to main­tain balance.

Liberally coat bla de pin and c rossbar hole with Never­Seez® or equivalent. Ma ke sure blade is offset away
from deck and cuttin g edge is positioned for counter­clockwise rotation.

Install blade pin (9) up through blad e (8) then throug h
hole in crossbar and push fir mly against crossbar (7).
Install as many s pace rs (4, 5 or 6) as poss ible and still
be able to slide keyhole plate (3), with ears up as
shown, into blad e pin groove. Place b lade pin clip (2)
over keyhole plate an d into blade pin groove. Secu re
with bolt (1). Repeat for opposite blade. See Figure 7.

Blade should be s nug but s wivel on pin witho ut exces ­sive force. Retain any spacers not used in installa tion
for use when blade wears or on future installations.

Blade Sharpening

Always sharpen both blades at the sa me time to main­tain balance. Follow original sharpening pattern. Do not
sharpen blade to a razor edge. Leave from a 1/16" to
1/8" blunt edge. Do not sharpen back side of blade.

Belt Installation

One of the major causes of belt failure is improper
installation.

The drive on this cutter uses three belts. They are a
matched set and must be replaced as such.

Remove belt shields.
Loosen nut on idler adjustment rod (located on right

side of gearbox stand) as loose as possible.
Remove old belts and ins tall new ones . Tighten nut o n

idler adjustment rod. Belts should be very tight.

NOTICE

■

Check tension on new belts every half hour
the first four hours of operation and then every
eight hours.

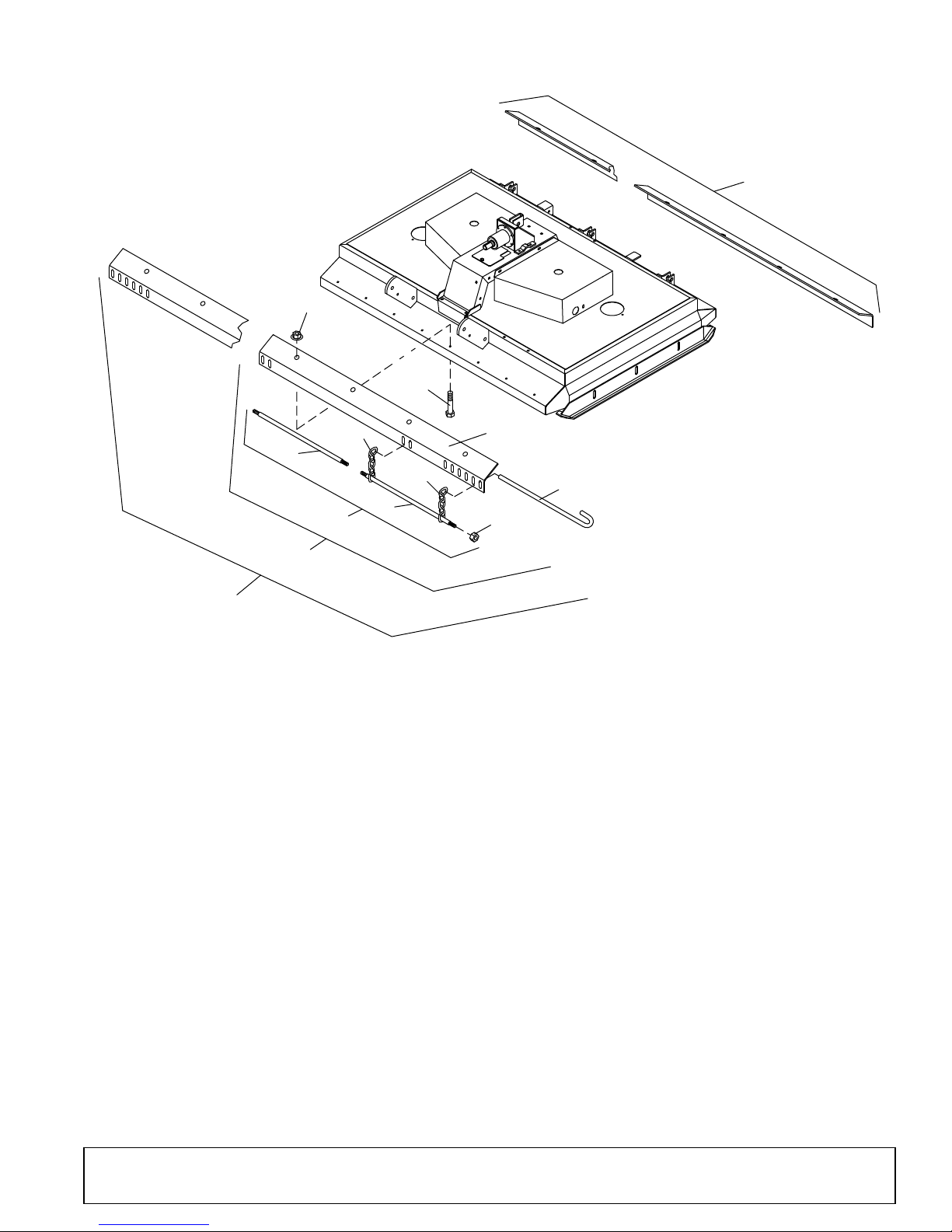

CHAIN SHIELDING

 Full chain shielding must be installed when
operating in populated areas or other areas where
thrown objects could injure people or damage
property.

• If this machine is not equipped with full chain
shielding, operation must be stopped when any­one comes within 300 feet (92 m).

• This shielding is designed to reduce the risk
of thrown objects. The mower deck and protec­tive devices cannot prevent all objects from
escaping the blade enclosure in ev ery mowing
condition.
and escape, traveling as much as 300 feet (92 m).

It is possible for objects to ricochet

Before new belts are i nstalled , check pul ley shaft s and
bearings for wear. Check pulley grooves for cleanliness
and wear. Be sure they tur n freely and with onl y slight
wobble. If grooves require cleaning, moisten a cloth
with a non-flammable, non-toxic degreasing agent or
commercial detergent and water.

20 Owner Service

 Inspect chain, rubber, or steel band shielding
before each use. Replace if damaged.

15914 (Rev. 3/23/2007)

SERVICING TIRES SAFELY

WARNING

A

DECAL PN 1006348

Used Aircraft Tires (Figure 10)

Do not attempt to mount a tire unless you have the
proper equipment and experience to perform the job.

Always maintain the correct tire pressure. Do not inflate
tires above the recommended pres sure. Never weld or
heat a wheel and tire assembly. The heat can cause an
increase in air pres sure and result in a tire explosion .
Welding can structurally weaken or deform the wheel.

When inflating tires, use a c lip-on chuck and an exten ­sion hose long enough to allow you to stand to the side
— not in front of or over the tire assembly. Use a safety
cage if available.

Check wheels for low pressure, cuts, bubbles, dam­aged rims, or missing lug bolts and nuts.

Never remove split rim assembly hardware (A) with the
tire inflated.

Figure 10. Split Rim Tire Servicing

(Rev. 5/11/2007)

15914 (Rev. 3/23/2007)

Owner Service 21

DEALER SERVICE

WARNING

CAUTION

 On pull-type units, a pin is installed to prevent
the height adjustment crank from detaching. Do
not operate or service unit unless pin is installed.

 Before performing any service or maintenance,
lower equipment to ground or block securel y, turn
off engine, remove key, and disconnect driveline
from tractor PTO.
 Keep all persons away from operator control
area while performing adjustments, service , or
maintenance.

Check housing for visible signs of leakage.
Check for leaks at vertical and horizontal seals and

gaskets.
Take necessary corrective action and clean area where

leakage was eviden t. Pla ce cu tter in se rvi ce a nd c he ck
to ensure leakage has stopped.

Leakage Repair

Permatex Aviation 3D Form-A-Gasket® or equivalent
is the recommended sealant for gearbox repair.

Leakage at the horizontal seal or gasket can be cor­rected without removing gearbox from cutter.

Remove fill plug and siphon gear lube from gearbox.
Remove and replace leaki ng seal or gasket. Refer to
Seal Installation section, page 23.

 Always wear relatively tight and belted clothing
to avoid getting ca ught in moving parts. We ar
sturdy, rough-soled work shoes and protective
equipment for eyes, hair, hands, hearing, and head;
and respirator or filter mask where appropriate.

The information in this section is written for deale r ser­vice personnel. The repair described herein requires
special skills and tools. If your shop is not properly
equipped or your mec han ic s a r e not prope rl y t ra ined i n
this type of repair, you may be time a nd money ahea d
to replace complete assemblies.

GEARBOX MAINTENANCE

Before beginning any gearbox repa ir, please read th is
entire section. Many steps are dependent on each
other.

Always make sure proper vent plug is installed in top of
gearbox. Proper gear l ube level for gearbox is half full .
Never operate cutter unl ess gearbox is half full of SAE
90W gear lube.

Troubleshooting is an important part of gearbox main ­tenance. Check for leakage and bad bearings.

Bearing Check

Bearing maladju stm ent or fai lu re is in di ca ted b y ex ces ­sive noise and noticeable side or end play in gear
shafts.

Removing Gearbox from Cutter

Remove nut from belt tension idler adjustment rod.
Remove belt shields. Remove belts.
The front gear stand bolts are tack welded in place.

Loosen the nuts to pr otect bolt threads and break ta ck
welds by rapping them with a ha mmer. Remove nuts
and bolts.

Remove nuts from the rear gear stand bolts. Tip rear of
gear stand up over bolts and slide the stand rearward.

Cut the safety wire and remove bolt from drive pulley
under gearbox.

Disassemble split t aper bushing (locate d on bottom of
drive pulley) by r emoving the three bo lts and inserting
two of them into the threaded holes. Tighten alternately
to press bushing off.

Remove the four gearbox at tac hin g bo lts from the g ear
stand and remove gearbox from stand.

Gearbox Disassembly

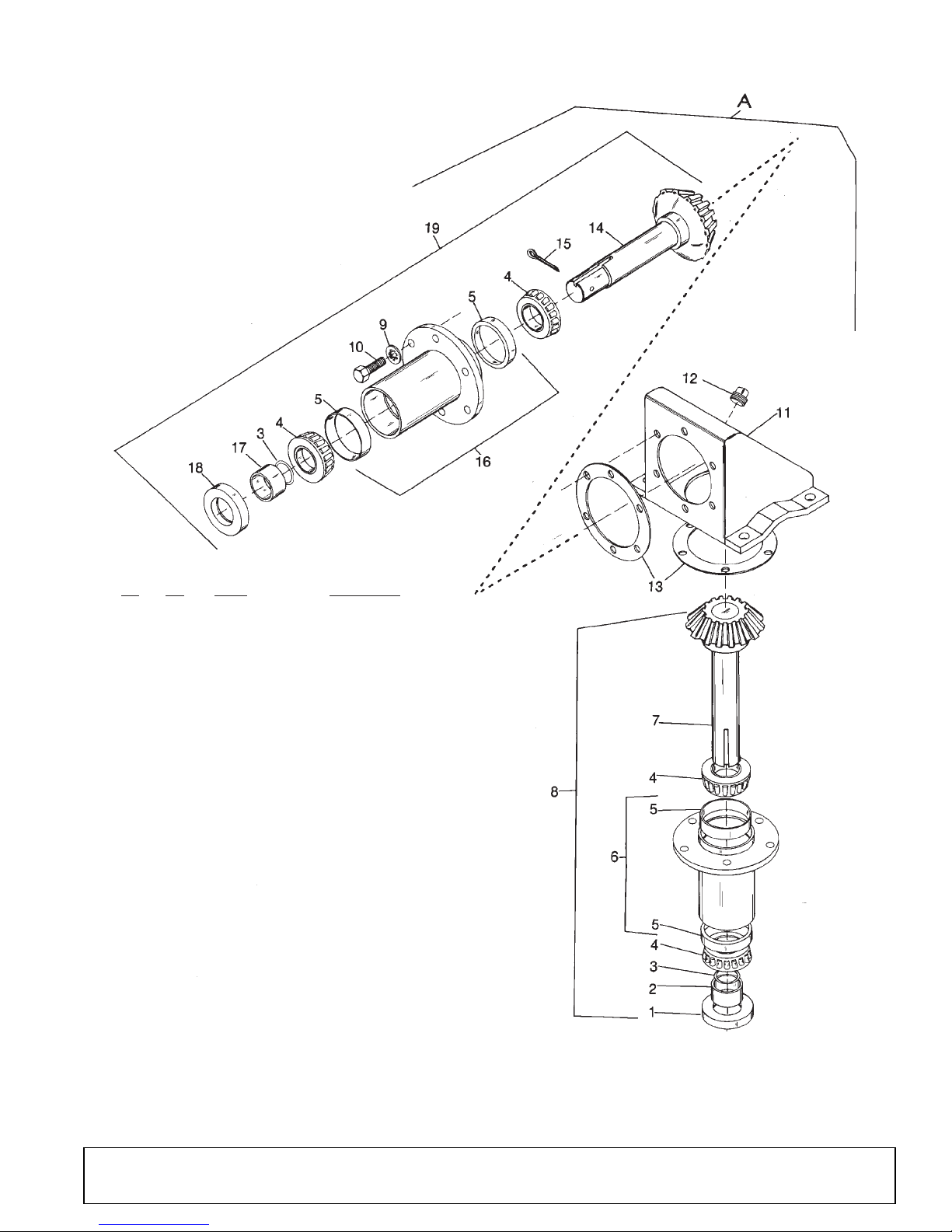

(Refer to illustration on page 45.)
Remove the horizontal and vertical gear shaft housings

from gearbox housing. Remove seals. Remove tack
weld, holding sleeve to sh aft, by grinding. Press gear
and shaft from housing. Remove cups from housing.

Possible Leakage Causes

Leakage may be caused by an improperly operating
vent plug. The plug has a check valve in it; remove and
apply very low pres sure air to the bottom to check for
proper venting.

22 Dealer Service

Damage Inspection

Inspect gears for exc essive wear. Some wear is nor­mal. Gears will show more wear on lo aded side. They
are forged and surfaces wi ll appear rough, e ven when
new. The wear pattern should be smooth.

15914 (Rev. 5/11/2007)

Do not replace gears unless deep gou ges, chi ps, dee p
pitting or deep wear grooves are present.

Inspect gear shafts a nd sleeves . Pay speci fic atten tion
to areas where seals seat. Check for cracks, grooves,
nicks or bumps. If damage cannot be repaired by resur­facing with emery cloth, replace damaged part.

Inspect housings for dam age, paying spec ific attentio n
where seals seat. Replace housing if damaged area
cannot be resurfaced with emery cloth.

Gearbox Assembly

(Refer to illustration on page 45.)
Bearing cups, cones and sleeves are a press fit.
Press new bearing cups into vertical and horizontal

housings.
Press bearing cones onto vertical and horizontal shafts

until they seat against machined surface next to gears.

Gearbox Adjustment

Place a 1/32" thick gasket between the vertical and
horizontal housing and gearbox housing. Horizontal
housing must be po sitioned so breather hole i s at top
when gearbox is on cutter . Snug bol ts and che ck gear
mesh by shining a flashlight into the oil fill hole. The
small ends of the te eth on both gears sho uld be flush
with each other and there should be some backlash.

If the gear teeth are not aligned, add gaskets under
one of the gear housings until they do.

Use a feeler gauge to check for .020 backlash between
the teeth. Adjust by adding or subtracting even num­bers of gaskets of the same thi ck ness from ea ch hous­ing and the gearbox.

When all of the bolts are tightened, check the backlash
again to ensure it did not c hange. If i t is chang ed, add
or subtract gaskets as necessary to obtain .020 back­lash between the teeth.

Insert shafts into their respective housings and press
bearing cones onto shaft unti l all free play is removed
(similar to adjust ing front wheel bearings on an au to­mobile).

Check adjustment by spinning housing. It should tu rn
freely. If bearings ar e too tight, hold housing and rap
gear shaft with lead or brass hammer. Readj ust bear­ings. Proper bearing adjustment is essential to good
bearing life. Do not l eave bearings adjusted too tight.
Bearings should turn fre ely without any notice able end
play.

Place O-ring seal ove r shaft and seat agai nst bearing.
Press sleeve on s haft and down against bearing, bu t
do not move bearing. Check bearing adjustm ent again
by spinning housing. Readjust if necessary. Protect
surfaces where seal seats and tack weld sleeve to
shaft.

Seal Installation

An improperly installed seal will leak and could result in
gearbox failure.

Clean area in housing where outer diameter of seal
seats and apply a thin coat of Permatex.

Lubricate seal lip, posit ion spring toward housing, and
carefully guide over sleeve and shaft, using a blunt tool
such as a letter opener. Use care to prevent seal lip
from rolling under. Do not use a knife blade as it will
nick and ruin seal.

Select a piece of pipe or tubing with an OD that will set
on outside edge o f seal cage but will c lear housing. A
driver that is too small will bow cage and ruin seal.

Carefully press seal in to housing, preventing distortion
to metal seal cage. Seat seal firmly against housing.

BLADE SPINDLE REPAIR

Remove blades from crossbar and belts from pulley.
Remove split taper bushing from pulley and remove
pulley from spindle. Remove spindle from cutter.
Remove set screw and flanged nut (1) from spindle,
see Figure 11. Block under washer (9) and housing and
press blade carrier and spindle shaft out of housing.

Assembly

Press new cups (6) in to spindle hou sing, seatin g them
against housing bore shoulder, see Figure 11.

Place bottom end of sp ind le hous i ng (18) up . Se t bear ­ing cone and sleeve (5) on cup.

Coat area of spindle housing where seal seats with
Permatex. Press seal (4) (with spring-loaded lip toward
the center) into housing, using care to prevent seal
cage distortion.

Place washer (9) on spindle crossbar and shaft.
Remove bearing cones from housing.
Lubricate bottom seal, turn housing right side up and

press down onto spindle shaft.
Fill housing cavit y with a lithium grease of #2 consis-

tency with a MOLY (molybdenum disulfide) additive.
Place washer (7) over shaft and seat. Seat bearing

cone and sleeve (5) on bearing cup, see Figure 11.
Adjust bearings by pre ssing on shaft until all free play

is removed (similar to adjusting front wheel bearings on
an automobile).

Check adjustment by spi nning housing; it should turn
freely. If bearings ar e too tight, hold housing and rap
spindle shaft with a lea d hammer. Readjust bearings.

15914 (Rev. 5/11/2007)

Dealer Service 23

Proper bearing adjus tme nt i s e ssen tia l to good bearing

4

3

2

1

CD3939

1. Shield bearing

2. Tether chain

3. Plastic shield

4. Tubular drive shaft

CD1645A

3

3

3

3

2

2

2

2

4

1

1

1.Yoke

2.Snap ring

3.Cup and bearings

4.Cross

5.Yoke

life. Do not leave bearing adjuste d too tightl y. Beari ngs
should turn freely without any noticeable end play.

When the bearings are adjusted, coat area of spin dle
housing where seal seats with Permatex and press
seal (4) (with spring-loaded lip up) i nto housing using
care to prevent seal cage distortion.

When the bearings are adjusted, tighten nut against
sleeve and bearing (5). Insert brass plug (2) into hole in
nut then tighten set screw (3) against brass plug (2).

SHIELD BEARING SERVICE

Grease spindle throu gh grease fitting (8) until a sm all
amount of grease escapes seal.

Install spindle on unit.

2

3

1

8

17

16

15

14

4

5

6

7

18

6

5

4

Figure 12. Shield Bearing Service

Remove shield bearings (1) by lifting up and pulling
them out of the driveline groove.

When installing them, smear grease in the driveline
groove and install all four bearings into the groove
clockwise as shown in Figure 12.

UNIVERSAL JOINT REPAIR

13

12

11

1. Flanged nut

2. Brass plug

3. Set screw

4. Oil seal

5. Bearing cone and
sleeve

6. Bearing cup

7. Washer

8. Grease fitting

9. Washer

24 Dealer Service

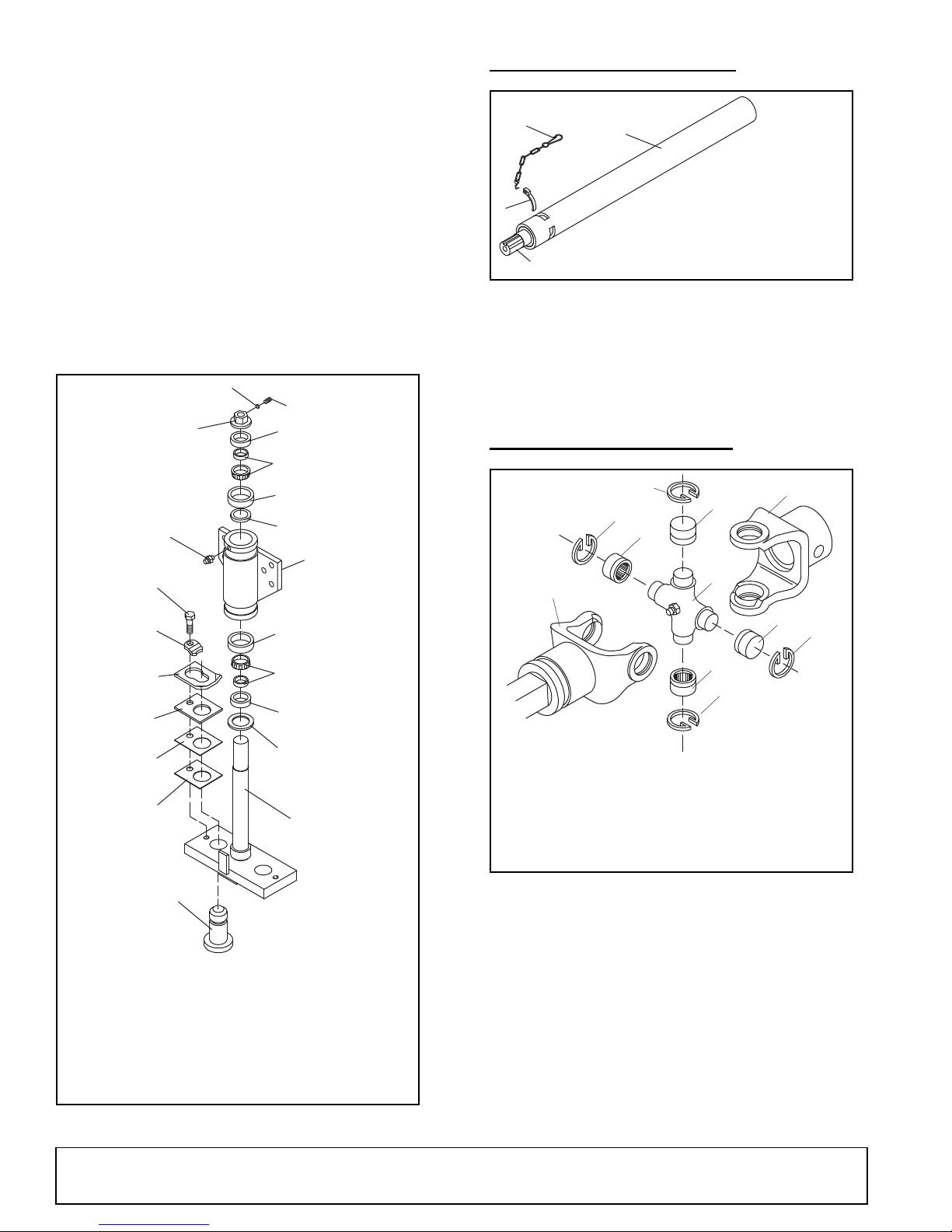

Figure 11. Blade Spindle Assembly

9

10

10. Crossbar

11. Blade pin

12. 18 Gauge shim

13. 20 Gauge shim

14. Spacer

15. Keyhole plate

16. Blade pin clip

17. Bolt

18. Spindle housing

CD3829

Figure 13. U-Joint Exploded View

U-Joint Disassembly

1. Remove snap rings from inside of yokes in four

locations as shown in Figure 14.

15914 (Rev. 5/11/2007)

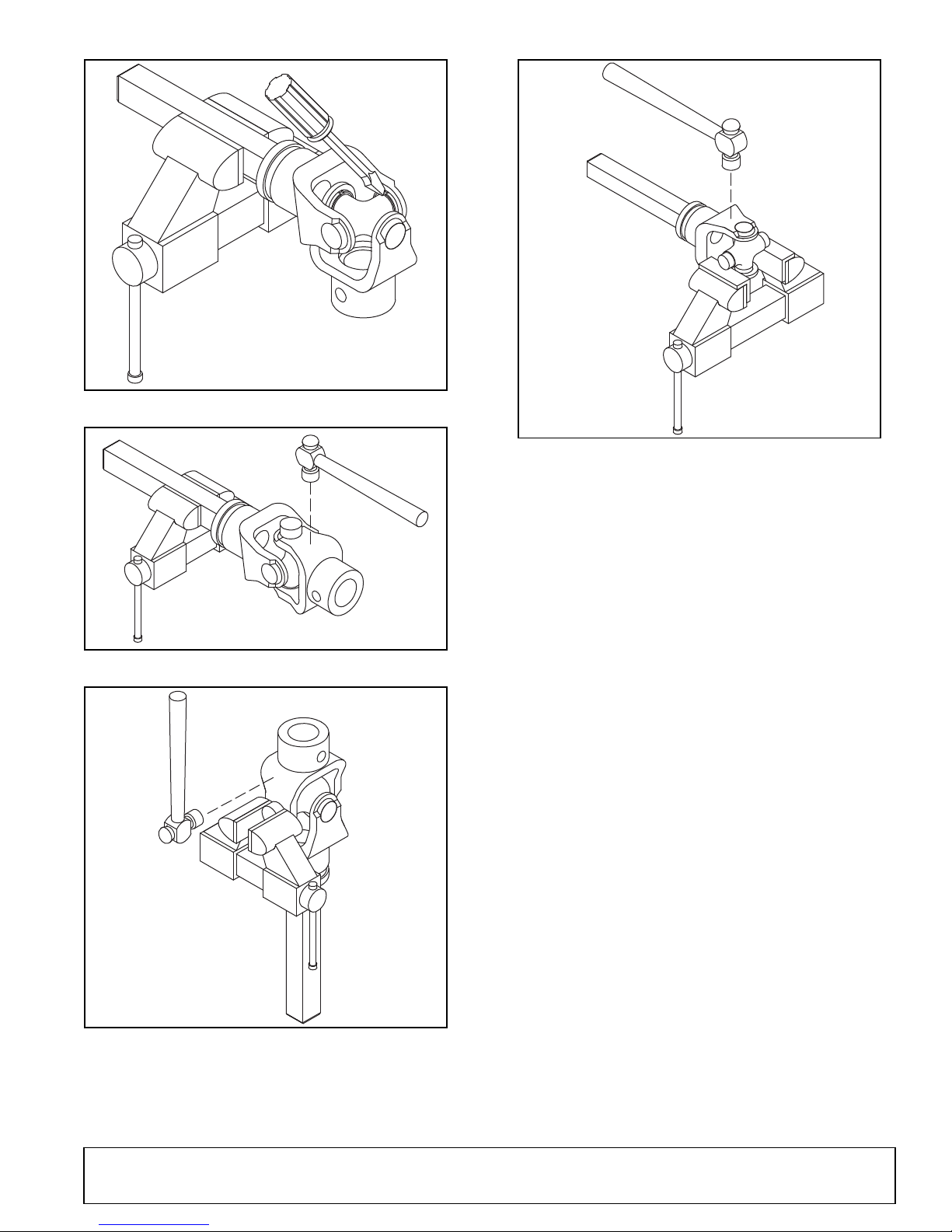

Figure 14

CD1386

CD1387

Figure 15

CD1384

CD1388

Figure 17

2. With snap rings removed, support drive in vise,

hold yoke in hand and tap on yok e to drive cup up
out of yoke. See Figure 15.

3. Clamp cup in vise as shown in Figure 16 and ta p
on yoke to completely remove cup from yoke.
Repeat steps two and three for opposite cup.

4. Place universa l c ro ss i n vise a s sh own in Fi gu re 17
and tap on yoke to remove cup. Repe at step thre e
for final removal. Drive remaining cup out with a
drift and hammer.

U-Joint Assembly

1. Place seals securely on bearing cups. Insert cup

into yoke from outside and press in with hand
pressure as far as possible. Insert journal cross
into bearing cup with grease fitting away from
shaft. Be careful not to disturb needle bearings.
Insert another bearing cup directly across from first
cup and press in as far as possible with hand
pressure.

Figure 16

15914 (Rev. 5/11/2007)

Trap cups in vise and apply pressure. Be sure jour­nal cross is started into bearings and continue
pressure with vise, squeezing in as far as possible.
Tap yoke to aid in process.

2. Seat cups by placing a drift or socket (slightly
smaller than the cup) on cup and rapping with a
hammer. See Figure 18. Install snap ring and
repeat on opposite cup.

3. Repeat steps one and two to install remaining cups
in remaining yoke.

Move both yokes in all directions to check for free
movement. Should mo ve men t be r estr icte d, r ap o n

Dealer Service 25

yokes sharply with a hammer to relieve any ten-

CD1389

WARNING

A

DECAL PN 1006348

sion. Repeat until bo th yok es mov e in all direc ti ons
without restriction.

Figure 18

Always maintain the correct tire pressure. Do not inflate
tires above the r ecom mended press ure. Nev er we ld or
heat a wheel and tire assembly. The heat can cause an
increase in air pres sure and result in a tire explosion.
Welding can structurally weaken or deform the wheel.

When inflating tires, us e a clip-on chu ck and an exten­sion hose long enough to allow you to stand to the side
— not in front of or over the tire assembly. Use a safety
cage if available.

Check wheels for low pressure, cuts, bubbles, dam­aged rims, or missing lug bolts and nuts.

Never remove split rim assembly hardware (A) with the
tire inflated.

SERVICING TIRES SAFELY

Used Aircraft Tires (Figure 19)

Do not attempt to mount a tire unless you have the
proper equipment and experience to perform the job.

Figure 19. Split Rim Tire Servicing

26 Dealer Service

15914 (Rev. 5/11/2007)

TROUBLE SHOOTING

PROBLEM POSSIBLE CAUSE SOLUTION

Does not cut Dull blades Sharpen blades.

Worn or broken blades Replace blades. (Replace in pairs

only.)

Ground speed too fast Reduce ground speed.

Drive not functioning (blades do
not turn when PTO is running

Belt off pulleys Replace belts. Belts are supplied

Broken belt; belts not in groove Replace belts. Check belts for

Belts will not stay in groove Check belt tension. Check belt

Belt tension too loose Tighten idlers. Belts must be very

Gearbox malfunction Repair gearbox.

Check drive shaft connection.
Check belts. Check gearbox.

in matched sets only.

uneven stretch.*

alignment. Ensure idler bear in gs
and spindle bearings are in good
condition and turn freely. Make
sure spindles are tight and sitting
straight and secure.
Shock loading could cause a worn
belt to jump off grooves. Eliminate
shock loading my raising cutting
height.

tight.

Streaks or gives ragged cut Broken or worn blades Replace or sharpen blades.

Thrown objects No shielding Use chain shielding.

Excessive side skid wear Running with skids continuously

* Check belt for d amage by laying it flat o n floor. If b elt does not lie fl at (has hum ps or twists) this indicat es broken or
stretched cords. Replace belt.

15914 (Rev. 5/11/2007)

Ground speed too fast Reduce ground speed.

Excessive cutting height Lower cutting height. (Note: Set

height so unit does not frequently
hit ground.)

Excessive lush and tall vegetation Recut at 90-degree to first pass.

Use check chains and tail wheels.

on ground

Set skids above ground.

Dealer Service 27

ASSEMBLY

WARNING

CAUTION

6. 20 GA Spacer

7. Crossbar

8. Blade

9. Blade pin

1. Bolt

2. Blade pin clip

3. Keyhole plate

4. Spacer

5. 18 GA Spacer

9

8

7

6

5

4

3

2

1

CD3818

DEALER SET-UP INSTRUCTIONS

These instructions are for the assembly of the MD80
and D80. Many of the procedures apply to both units.
When an instru ction appli es to a s pecific unit , the sec ­tion heading will indicate which unit.

Assembly of this cutter is the responsibility of the
WOODS dealer. It should be delivered to the owner
completely assembled, lubricated and adjusted for nor­mal cutting conditions.

Complete check lists when assembly is complete.
The cutter is shipped partially assembled. Assembly

will be easier if components are aligned and loosely
assembled before tightening hardware. Recommended
torque values for hardware are located on page 58.

Select a suitabl e working area. Ope n parts boxes and
lay out parts and hardware to make location easy.
Refer to illustrations, accompanying text, parts lists and
exploded view drawings.

Blade Installation

 Make sure spring-acti vated lockin g pin or collar
slides freely and is seated firmly in tractor PTO
spline groove.

 Always wear relatively tight and belted clothing
to avoid getting ca ught in moving parts. We ar
sturdy, rough-soled work shoes and protective
equipment for eyes, hair, hands, hearing, and head;
and respirator or filter mask where appropriate.

Figure 20. Blade Installation

Either place cutter on s tands or han g to permit acce ss
to both top and bottom. M ake sure c utter is s ecured to
prevent it from falling.

Liberally coat blade pi n and crossbar hole with Never ­Seez® or equivalent. Ma ke sure blade is offset away
from deck and cutting ed ge is positioned for counter­clockwise rotation as viewed from top of deck.

Install blade pin (9) up through blad e (8) then throug h
hole in crossbar and push fir mly against crossbar (7).
Install as many s pacers (4, 5 or 6 ) as p ossibl e and still
be able to slide keyhole plate (3), with ears up as
shown, into blade pin groov e. Place blade pin clip (2)
over keyhole plate an d into blade pin groove. Secure
with bolt (1). Repeat for opposite blade.

Blade should be snug but s wivel on pin witho ut exce s­sive force. Retain any spac ers not used in installation
for use when blade wears or on future installations.

Distribution Baffle Installation

28 Assembly

A distribution baffle is supplied. It is recommended
when mowing grass and w eeds. It should not be u sed
when operating cutter in heavy brush.

15914 (Rev. 5/11/2007)

Remove the two rear car riage bolts from the left side

1. Distribution baffle

2. 1/2 x 1" Bolt

3. 1/2" Flanged hex lock nut

4. 5/8 x 2" Carriage bolt

5. 3/4" Flat washer

6. 5/8" Flat washer

7. 5/8" Nut

DANGER

skid. Place baffle (1) und er cutter frame an d attach as
shown in Figure 21.

3

1

2

Gearbox Lubrication

NOTICE

■

The gearbox was not filled at the factory. It
must be serviced before operating cutter. Failure to
service will result in damage to the gearbox.

Chain Shielding Installation

4

6

5

Figure 21. Distribution Baffle Installation

6

7

CD3819

 Full chain shielding must be installed when
operating in populated areas or other areas where
thrown objects could injure people or damage
property.

• If this machine is not equipped with full chain
shielding, operation must be stopped when any­one comes within 300 feet (92 m).

• This shielding is designed to reduce the risk
of thrown objects. The mower deck and protec­tive devices cannot prevent all objects from
escaping the blade enclosure in ev ery mowing
condition.
and escape, traveling as much as 300 feet (92 m).

All four chain assemblies (1) are interchangeable.
Place each assembly on the cutter and attach by
inserting bolt (4) up throu gh the cutter and chain shiel d
assembly, then install flange lock nut (5) on each bolt.

The threaded rods ( 2) are sold separately. To insta ll,
place a lock nut (3) on one end and thread rod (2)
through bottom of 16 chain links, then secure with
another lock nut (3). Two rods (2) are used on each
chain shield assembly (1).

It is possible for objects to ricochet

15914 (Rev. 5/11/2007)

Figure 22. Chain Shielding Assembly

Assembly 29

Wheel Yoke Installation f or D80-2 Pull-Type

1. Pivot lug

2. Pivot nut

3. 1/4 x 1-1/2" Cotter pin

4. 1/4 x 1" Spirol pin

5. Grease fitting

6. Wheel yoke

7. Sleeve

8. 5/16 x 1-3/4" Spirol pin

9. Thrust bearing

10. Pivot block

11. Crank

12. Rim (tire not supplied)

13. 1" Standard lock washer

14. 1" Nut

15. 1 x 2-1/2" Clevis pin

Cutter

spirol pin (4) into crank (11) to prevent crank detac h­ment.

The wheel yoke for use with pneumatic tires is illus­trated. The spring-loaded wheel yoke installs the same.

Attach wheel yoke (6) to rear of cutter frame with clevis
pins (15) and cotter pins (3) at two points.

Insert crank (11) throug h pivot block ( 10). Slide sleev e
(7) onto crank, align hole in sleeve and hole in crank,
and drive the spirol pin (8) into the assembly to attach.

Thread pivot nut (2 ) onto crank (11) until it will in stall
into pivot lug (1), the n attach with cotte r pin (3). Install

Attach axle with rim (12) and tire (not supplied) to
wheel yoke using lock washer (13) and nut (14).

NOTICE

■

You must use the pneumatic tire with this
wheel yoke. The solid tire may be used with the
spring-loaded wheel yoke.

30 Assembly

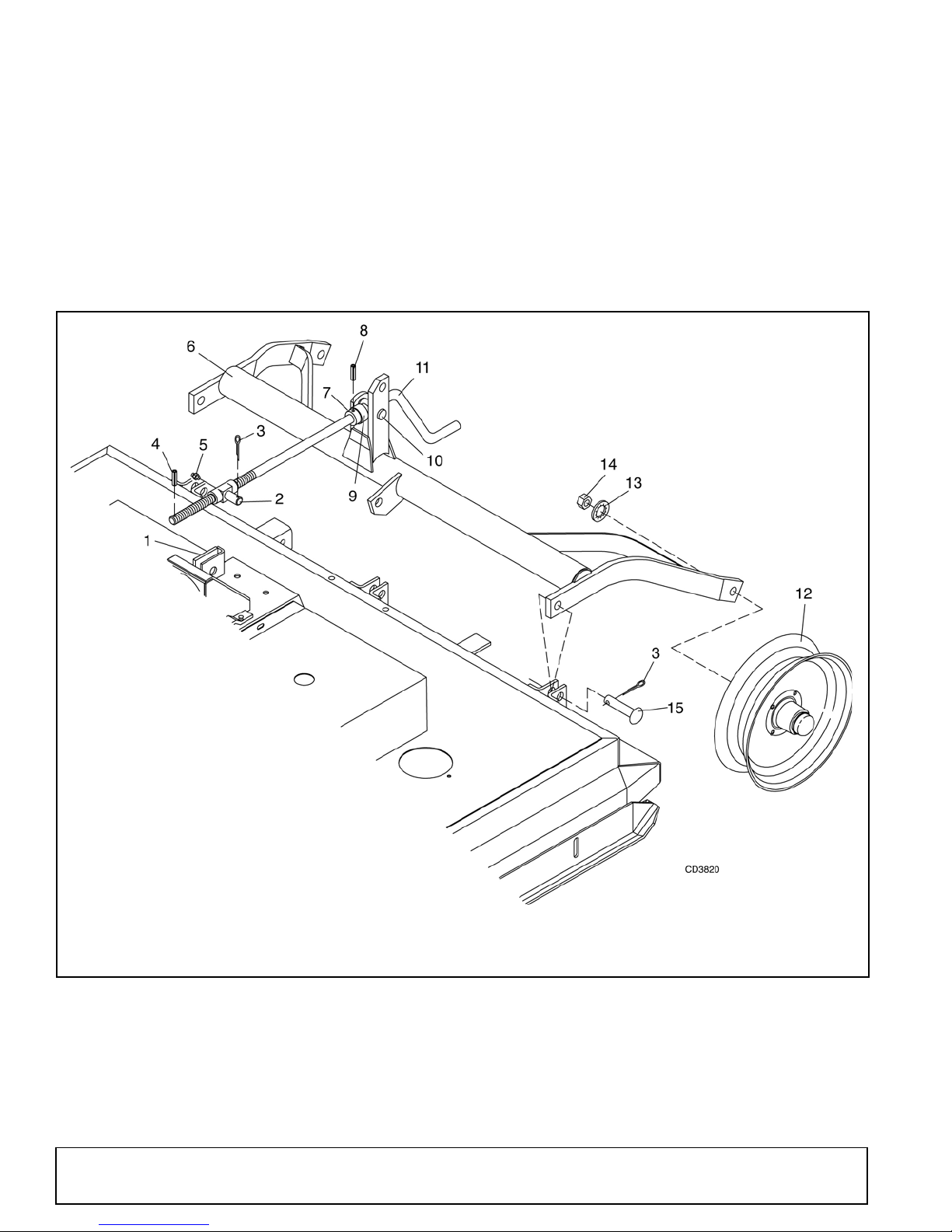

Figure 23. Wheel Yoke Installation

15914 (Rev. 5/11/2007)

30

32

32

31

28

29

28

10

9

11

8

12

13

14

26

20

21

7

17

25

6

21

20

24

23

27

17

22

5

4

20

21

15

16

19

18

17

3

2

1

CD3823A

1. Tongue

2. Tongue lug

3. Tongue adjustment bracket

4. Compression member

5. H-Frame

6. Mast plate

7. Compression bracket

8. Rear U-joint shield

9. Carrier bearing housing

10. Drive shaft shield

11. Clamp bolt

12. 5/8 x 2-1/4" Bolt

13. 5/8" Flat washer

14. 5/8 x 7/8 x 11/16" Bushing

15. 5/8" Lock washer

16. 5/8" Hex nut

17. 3/16 x 1" Cotter pin

18. 5/8 x 6-3/4" Clevis pin

19. 1/2 x 1-3/4" Bolt

20. 1/2" Heavy lock washer

21. 1/2" Heavy hex nut

22. 1/2 x 5-1/2" Clevis pin

23. 1/2 x 5-1/2" Bolt

24. 1/2" Schedule 40 x 3-9/16"
pipe

25. 1/2 x 2" Clevis pin

26. 1/2 x 1-1/4" Bolt

27. Parking jack

28. 3/8 x 1" Bolt

29. 3/8" Lock washer

30. 1/4 x 3" Cotter pin

31. 3/8" Flanged lock nut

32. Tether chain

Tongue Installation for D80-2 Pull-Type
Cutter

Attach compression bracket (7) to front of gearbox
stand with lock washe rs (2 0) and nuts (21 ), s ee Figu re

24.
Align holes in tongue (1) to bottom hole of mast plate

(6) and insert bushing (14) through the holes, then
place washer (13) on bolt ( 12) an d ins ert thr ough m ast
plate, bushing and tongue. Install lock washer (15) over
bolt and attach with nut (16).

Support tongue by attaching jack (27).

15914 (Rev. 5/11/2007)

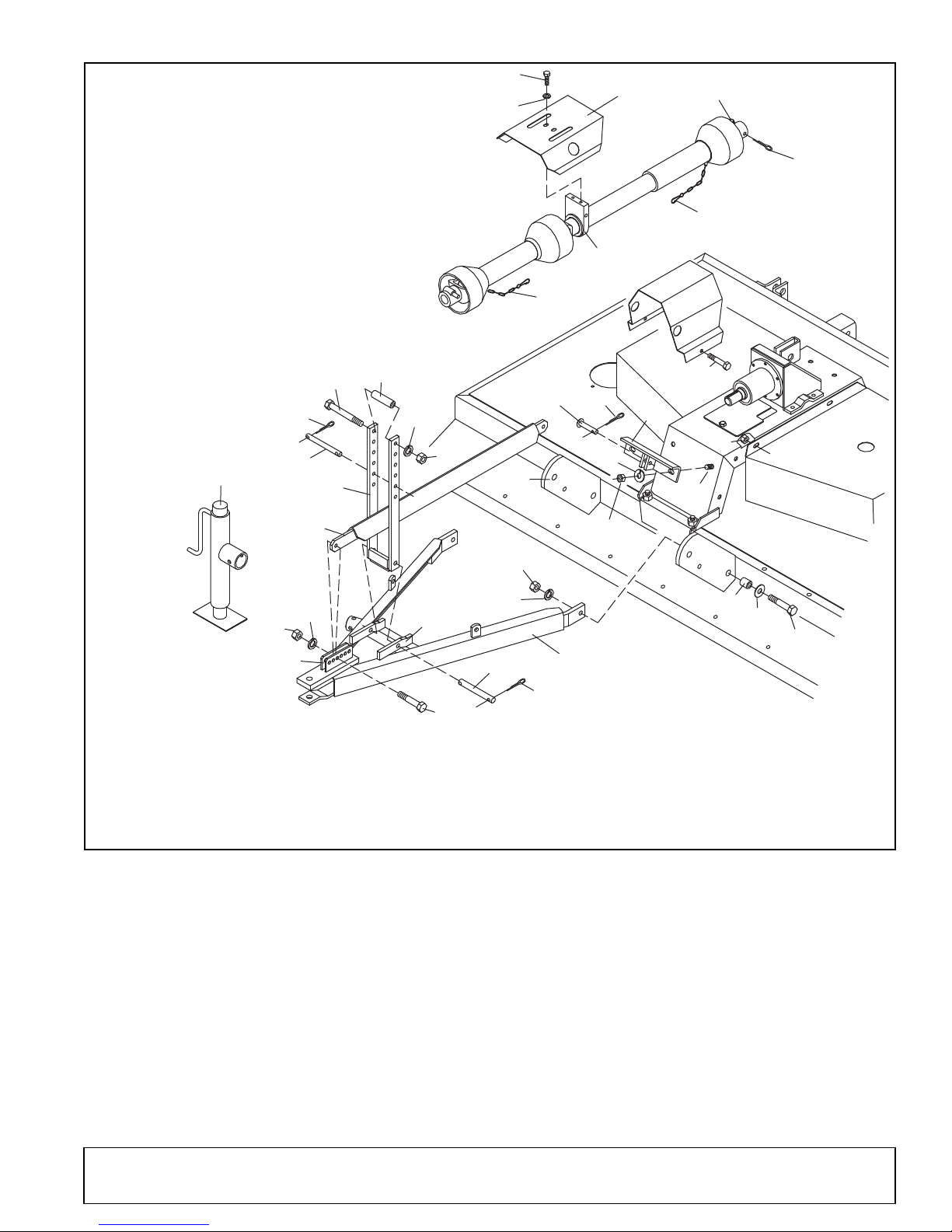

Figure 24. Tongue and H-Frame Assembly

Attach compression member (4) to compression
bracket (7) with clev is p in (2 5) an d c ott er pin ( 17 ), the n
attach front end to t ongue with bolt (19), lock washer
(20) and nut (21). The compression member setting
must be adjusted when the cutting height is set.

Align H-frame (5) to tongue (1) and attach with clevis
pin (18) and two cotter pins (17).

Place key in gearbox input shaft, loosen clamp bolt (11)
on rear of driveline, and slide driveline onto gearbox
input shaft. Tighten clamp bolt and install cotter pin (30)
through driveline and input shaft. Snap rear tether

Assembly 31

chain (32) around the compression link to prevent

1. Pivot link kit

2. 1/2 x 5-1/2" Bolt

3. Hose holder

4. 1/2" Hex nut

5. Pivot link

6. Pivot link holder

7. Crank

8. 1/4 x 1-1/2" Cotter pin

9. Cylinder

10. H-Frame

11. Clevis pin

12. Pivot nut

driveline shield rotation.

Optional Hydraulic Installation for D80-2
Pull-Type Cutter

Align driveline in H-frame and insert clevis pin (22)
through H-frame and carrier bearing (9). Attach by
inserting two cotter pins (17) in clevis pin (22). Snap
middle tether chain (32) around H-frame to prevent
driveline shield rotation.

Attach rear univer sal joint shield (8) to gear s tand as
shown with bolts (28) and nuts (31). Place forward
driveline shield (10) over H-frame and attach with lo ck
washer (29) and bolt (28).

Attach pipe (24) to H-frame using bolt (23), lock washer
(20) and nut (21). Attach front tether chain (32)
securely to tractor.

Remove the crank (7) from pivot link holder (6), insert
pivot link (5) into pivot link holder (6), then install the
crank and cotter pin (8), see Figure 25.

Remove bolt (2) from H-frame, install hydraulic hose
holder (3), and install bolt.

Install hydraulic cy lind er (9 ) usi ng cl ev is pins (1 1), then
route hose through hose holder (3).

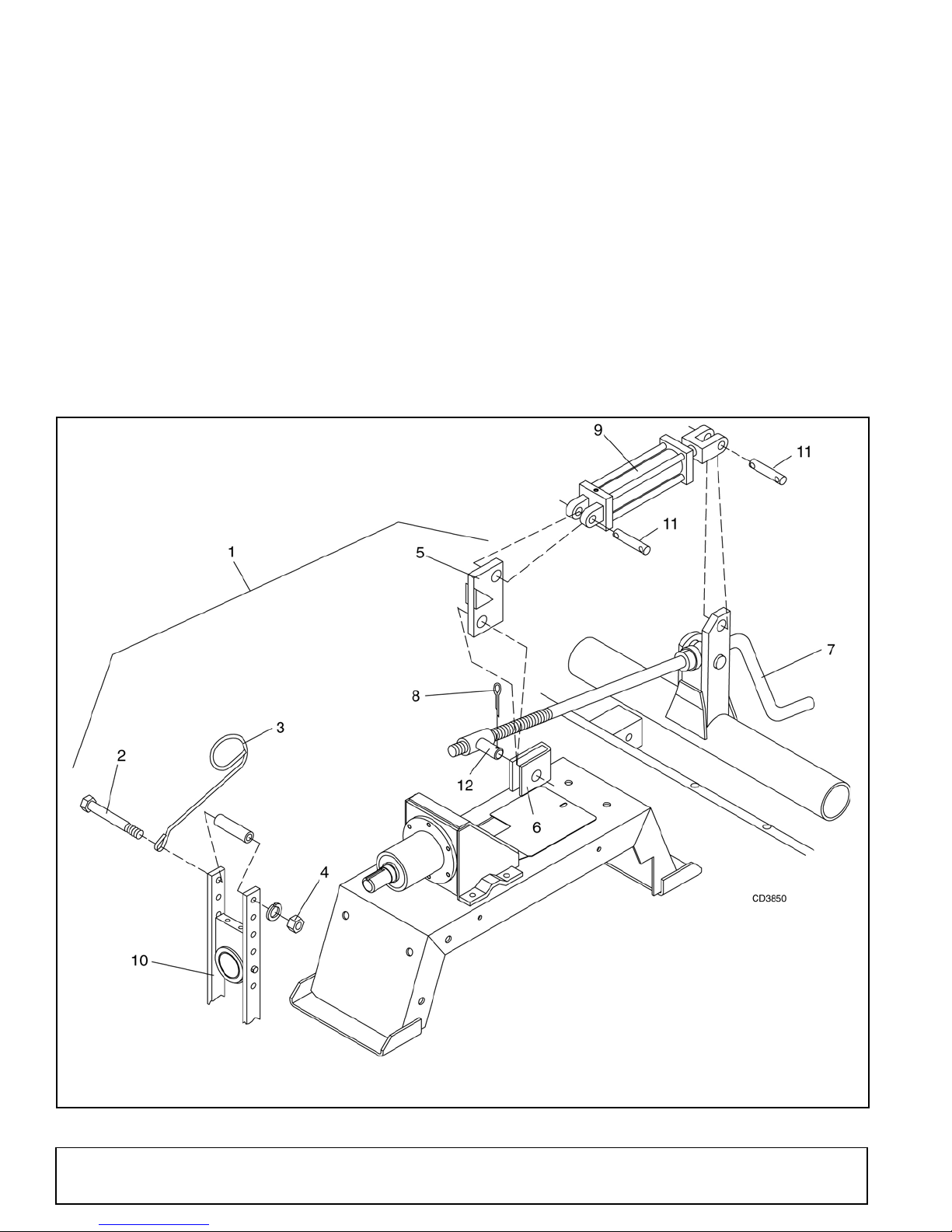

Figure 25. Optional Hydraulic Lift Assembly

32 Assembly

15914 (Rev. 5/11/2007)

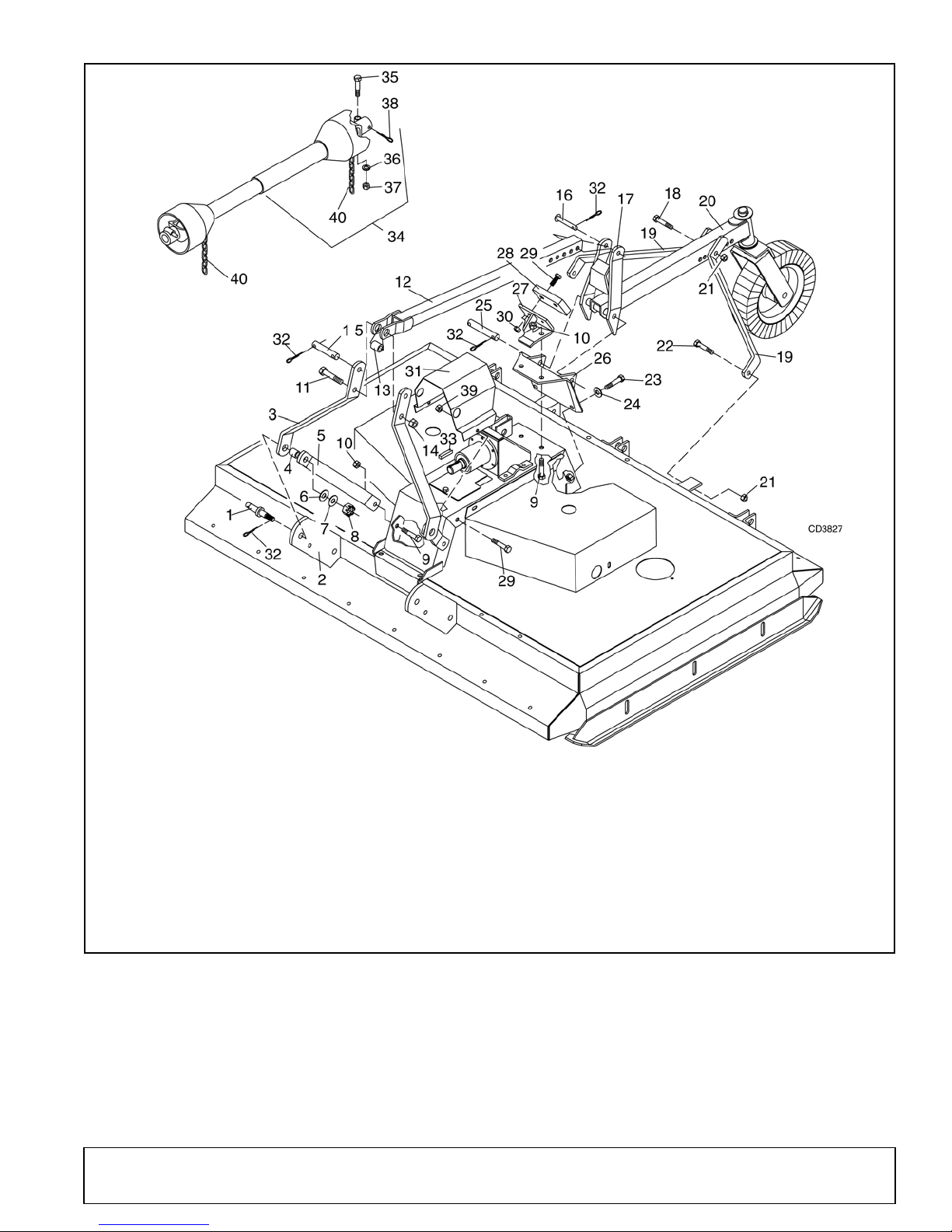

1. Hitch pin

2. Mast plate

3. A-Frame half

4. 7/8 x 1-1/8" Sleeve

5. Support brace

6. 3/4" Flat washer

7. 13/16 x 1-9/16 Washer

8. 3/4" Slotted hex nut

9. 5/8 x 1-1/2" Bolt

10. 5/8" Hex lock nut

11. 3/4 x 4-1/2" Bolt

12. Lift channel

13. Spacer bushing

14. 3/4" Hex lock nut

15. Top link pin

16. 5/8 x 3-3/4" Clevis pin

17. Hitch stop

18. 5/8 x 4-1/2" Bolt

19. Tailwheel arm bracket

20. Tailwheel

21. 5/8" Elastic stop nut

22. 5/8 x 2" Bolt

23. 5/8 x 1-3/4" Bolt

24. 5/8" Flat washer

25. 3/4 x 8" Clevis pin

26. Tailwheel mounting bracket

27. Rebound pad support

28. Rebound pad

29. 3/8 x 1" Bolt

30. 3/8" Flange hex nut

31. Rear U-joint shield

32. 3/16 x 1-1/2" Cotter

33. 3/8 x 3/8 x 2" Key

34. Rear drive half

35. Clamp bolt

36. 1/2" Lock washer

37. 1/2" Hex nut

38. 1/4 x 3" Cotter pin

39. 3/8" Flange lock nut

40. Tether chain

MD80 Assembly

Driveline Installation

Loosen clamp bolt (35) on rear half of drive, see Figure

26. Install key (33) in gearbox keyway and slide d rive
onto gearbox input shaft. Install cotter key (38) and

15914 (Rev. 5/11/2007)

Figure 26. Assembly of MD80 (Mounted Model)

tighten clamp bolt. Snap tether chain (40) to gear stand
to prevent driveline shield rotation.

A-Frame Lift Installation & Tailwheel Installation

Place washers (24) on bolts (23), insert through tail­wheel mounting bracket (26), and tighten bolts into
nuts welded to gearstand.

Assembly 33

Bolt rebound pad (28) to rebound pad support (27).

7

6

7

6

7

6

7

6

7

6

4

5

3

2

1

CD3837

1. Rear mulcher section

2. Left side frame

3. Front shield

4. Adapter

5. Right side frame

6. 1/2 x 1" Bolt

7. 1/2" Lock nut

Insert bolt (9) through gearstand and bracket (26), then
place rebound pad assembly on top and secure with
lock nuts (10).

Attach tailwheel a rm brackets (19) to brac kets on rear
of cutter frame with bolts (22) and elastic stop nuts
(21).

Attach tailwheel assembly (20) and hitch stop (17) to
tailwheel mounting bracket (26) with clevis pin (25) and
secure with two cotter pin s (32). Attach tailwheel arm
brackets (19) to tailwhe el assembly (20) with bolt (1 8)
and elastic stop nuts (21).

Attach one end of each support brace (5) to the gear ­stand with bolts ( 9) a nd loc k nu ts (1 0). In se rt hi tch pi ns
(1) through mast plates (2). Place A-frame arms (3)
over hitch pins, then install sleeve (4) and brace (5)
over pin and secure with slotted hex nut (8).

Place spacer (13) between brackets on lift channel (12)
and mount between lower hole of A-frame halves with
bolt (11) and lock nut (14). Attach lift channe l to hitch
stop (17) with clevis pin (16) and cotter pin (32).

OPTIONAL LEAF MULCHER
INSTALLATION

Loosely assemble the l eaf mulche r to the cutter before
tightening any hardware.

The mulcher uses the chain shielding attachment
holes. It is your option to remove or leave the chain
shielding in place.

Place adapter (4) un derneath the front edge of cutter
and attach with bolts (6) and flange lock nuts (7).

Bolt front shield (3) to adapter using bolts (6) and
flange lock nuts (7).

Place rear mulcher section (1) underneath the rear
edge of cutter and attach with bolts (6) and flange lo ck
nuts (7).

Attach right and left side frames (2 & 5) to the front and
rear mulcher sections with bolts (6) and flange lock
nuts (7). The slots are to the front and the U-section
points outward as shown in Figure 27.

Attach rear univer sal jo int sh ield ( 31) to gears tand wit h
bolts (29) and nuts (39).

When all hardware is installed, you may tighten it.

34 Assembly

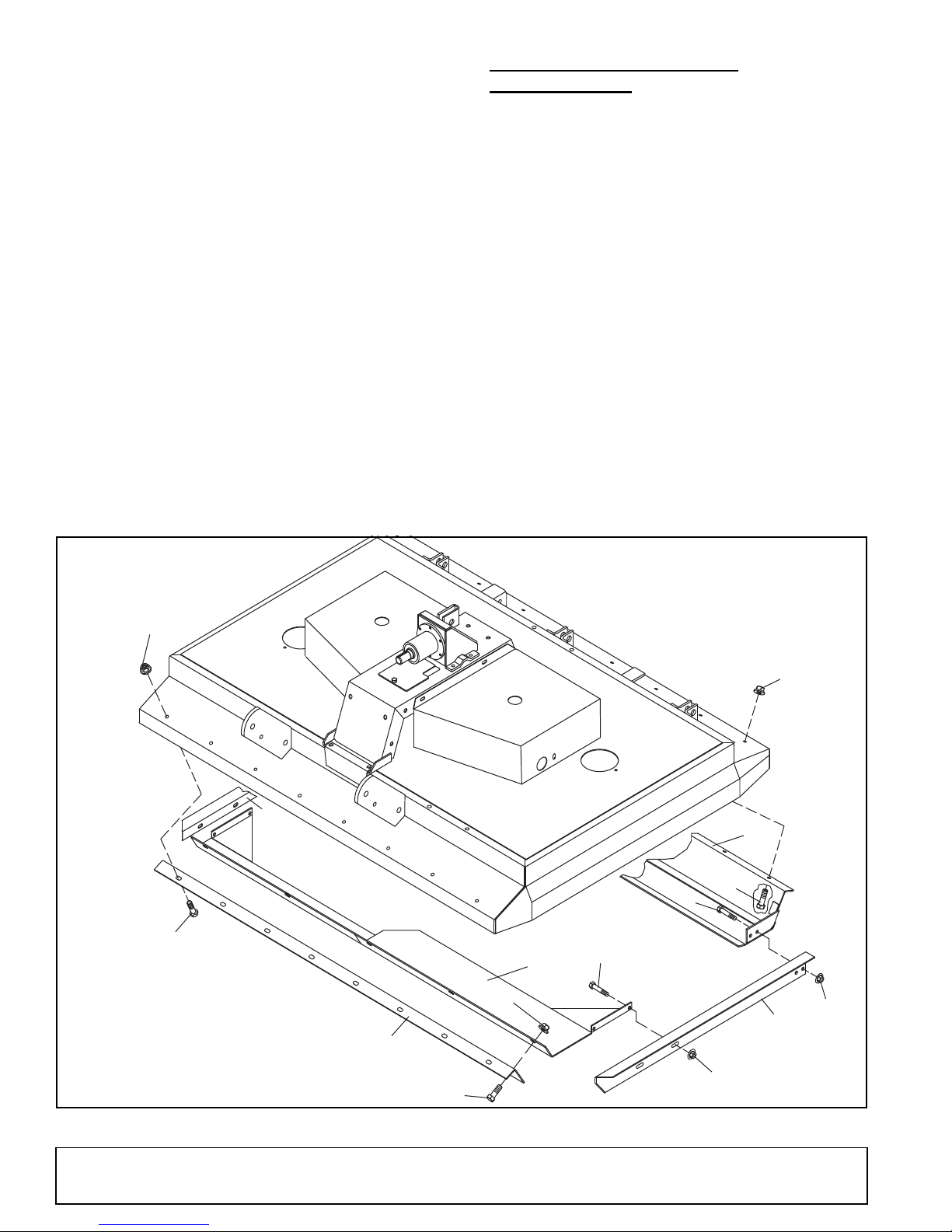

Figure 27. Optional Leaf Mulcher Installation

15914 (Rev. 5/11/2007)

OPTIONAL CHECK CHAIN INSTALLATION

9

8

7

6

5

4

3

2

1

CD3826

0" 5/8 x 2- 1/ 4" B o l t
5/ Cu t t er mast pl at e
Cu 5/ 8" Flat washer
5/ 5/8" He x l o c k n u t
5 / 3/ 4 x 6" B o l t
3/ Tr a c t o r top link b racket

brCheck chai n b racket
br 3/4" He x l o ck n u t
3/ 3/8" Chain, 32-l i nk

Attach chain (9) to cutt er mast plate (2) with bolt (1),
washer (3) and nut (4) as shown. Repea t for opposite
mast plate.

Attach one check chain bracke t (7) to each si de of the
tractor top link brac ket (6) with bolt (5) and nut (8) as
shown.

The check chains may be adjus ted to set the front c ut­ting height of the cutter.

15914 (Rev. 5/11/2007)

Figure 28. Optional Check Chain Installation

Assembly 35

INDEX TO PARTS LIST

D80-2 (Pull-Type)

Main Frame Assembly (Pull-Type) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 37

Main Frame Assembly - Common Parts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 39

Front 2/3 of 3-Joint Drive (Square Shaft) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 41

Front 2/3 of 3-Joint Drive (Two Lobe Shaft). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 42

Rear Section o f U n iv e rs a l Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 4 3

Gearbox Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 45

Blade Spindle Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 46

Blades. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 46

Chain Shielding Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 47

Idler Pulley Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 48

Parking Jack. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 48

Height Adjustment Crank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 49

Spring-Loaded Wheel Yoke . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 49

Laminated Tire with Hub & Axle. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 50

Rim & Axle Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 50

Aircraft Tire & Hub . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 52

Pivot Link Kit (Optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 53

Hydraulic Hose Kit & Fittings (Opti onal). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 53

3-1/2 x 8" Hydraulic Cylinder #10475 (Opti onal) . . . . . . . . . . . . . . . . . . . . . . . . . . .page 54

Leaf Mulcher Assembly (Optional). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 55

MD80-2 (Mounted)

Main Frame Assembly (Mounted Model) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 38

Main Frame Assembly - Common Parts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 40

Front 1/2 of Universal Drive (Square Shaft). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 43

Rear Section of Universal Drive (Square Shaft). . . . . . . . . . . . . . . . . . . . . . . . . . . .page 43

Complete Universal Drive (Two-Lobe Shaft ) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 45

Gearbox Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 45

Blade Spindle Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 46

Blades. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 46

Chain Shielding Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 47

Idler Pulley Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 48

Tailwheel Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 52

Leaf Mulcher Assembly (Optional). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 55

Check Chain Assembly (Optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 55

Category 2 Hitch Pin Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 56

Category 2 Bushing Kit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 56

(Rev. 1/30/2015)

36 Parts

15914 (Rev. 3/23/2007)

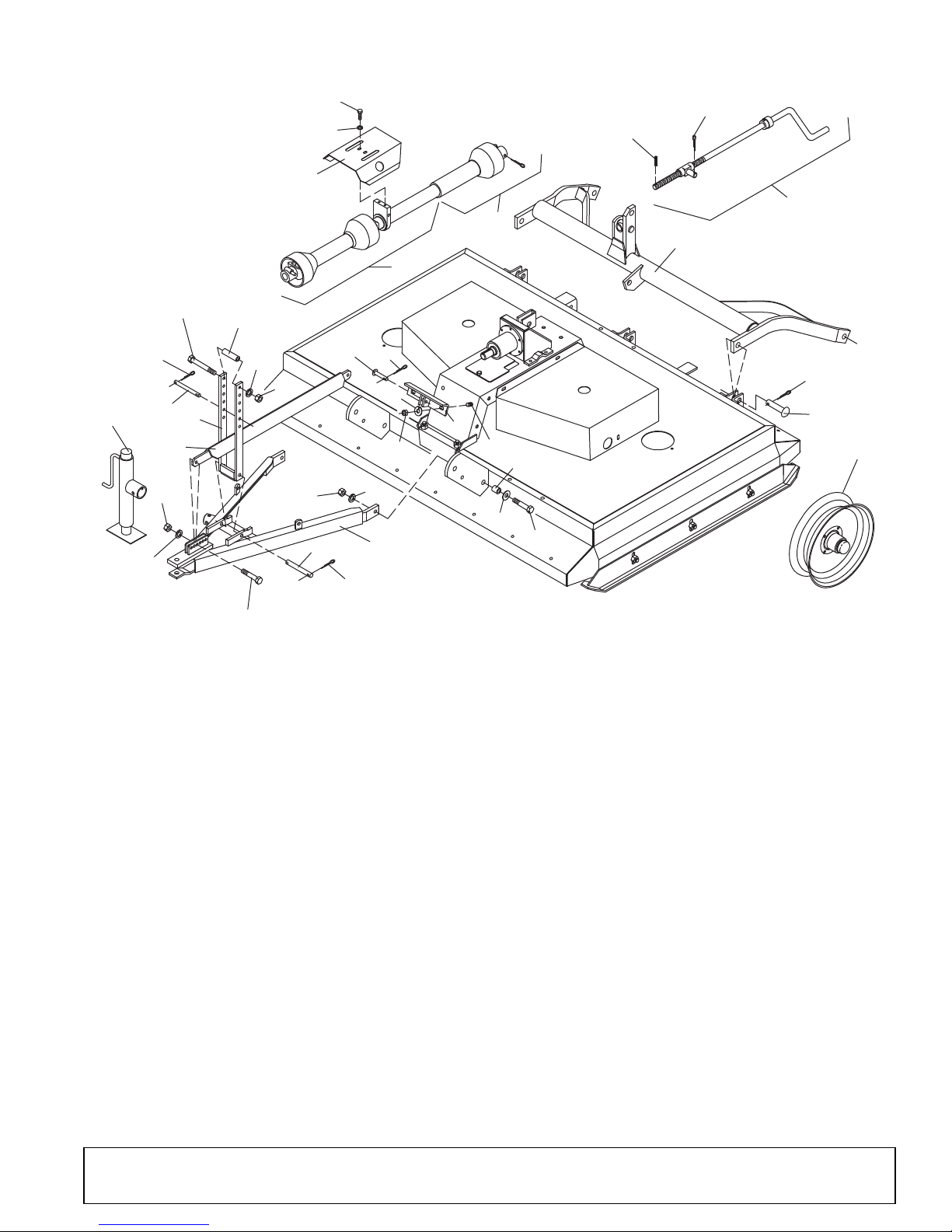

D80-2 MAIN FRAME ASSEMBLY (PULL- TYPE )

24

25

40

23

8

7

10

9

6

28

22

30

4

3

2

5

29

31

32

22

23

31

39

12

32

26

11

38

32

37

36

35

34

1

33

31

22

CD3824A

27

REF PART QTY DESCRIPTION

1 7023 1 Tongue
2 406 1 Compression member
370301H-Frame
4 ----- 1 Parking jack
5 7035 1 1/2 Schedule 40 x 3-9/16 pipe
6 ----- 1 Front 2/3 of 3-joint drive
7 ----- 1 Rear section of universal drive
8 190 12 1 Drive shaft shield

9 7388 1 Wheel yoke
10 ----- 1 Manual height adjustment crank
11 ----- 2 15" Wheel
12 7033 1 Compression member bracket

HARDWARE

22 1256 * 3/16 x 1 Cotter pin
23 1285 * 1/4 x 1-1/2 Cotter pin
24 839 * 3/8 NC x 1 HHCS GR5

REF PART QTY DESCRIPTION

25 838 * 3/8 Standard lock washer
26 6100 * 1/2 NC x 1-1/4 HHCS GR5
27 24576 1/2 NC x 1-3/4 HHCS GR5
28 12305 * 1/2 NC x 5-1/2 HHCS GR5
29 409 1/2 x 2 Clevis pin
30 404 1/2 x 5-3/4 Clevis pin HT
31 855 * 1/2 Extra-heavy lock washer
32 1093 1/2 NC Heavy hex nut
33 12274 * 5/8 NC x 2-1/4 HHCS GR5
34 405 5/8 x 6-3/4 Clevis pin
35 692 * 5/8 Standard flat washer
36 1286 * 5/8 Heavy lock washer
37 230 * 5/8 NC Hex nut
38 11081 5/8 x 7/8 x 11/16 Bushing HT
39 445 1 x 2-1/2 Clevis pin
40 15134 1/4 x 1 Spirol pin

* Obtain Locally - Standard Hardware

15914 (Rev. 3/23/2007)

Parts 37

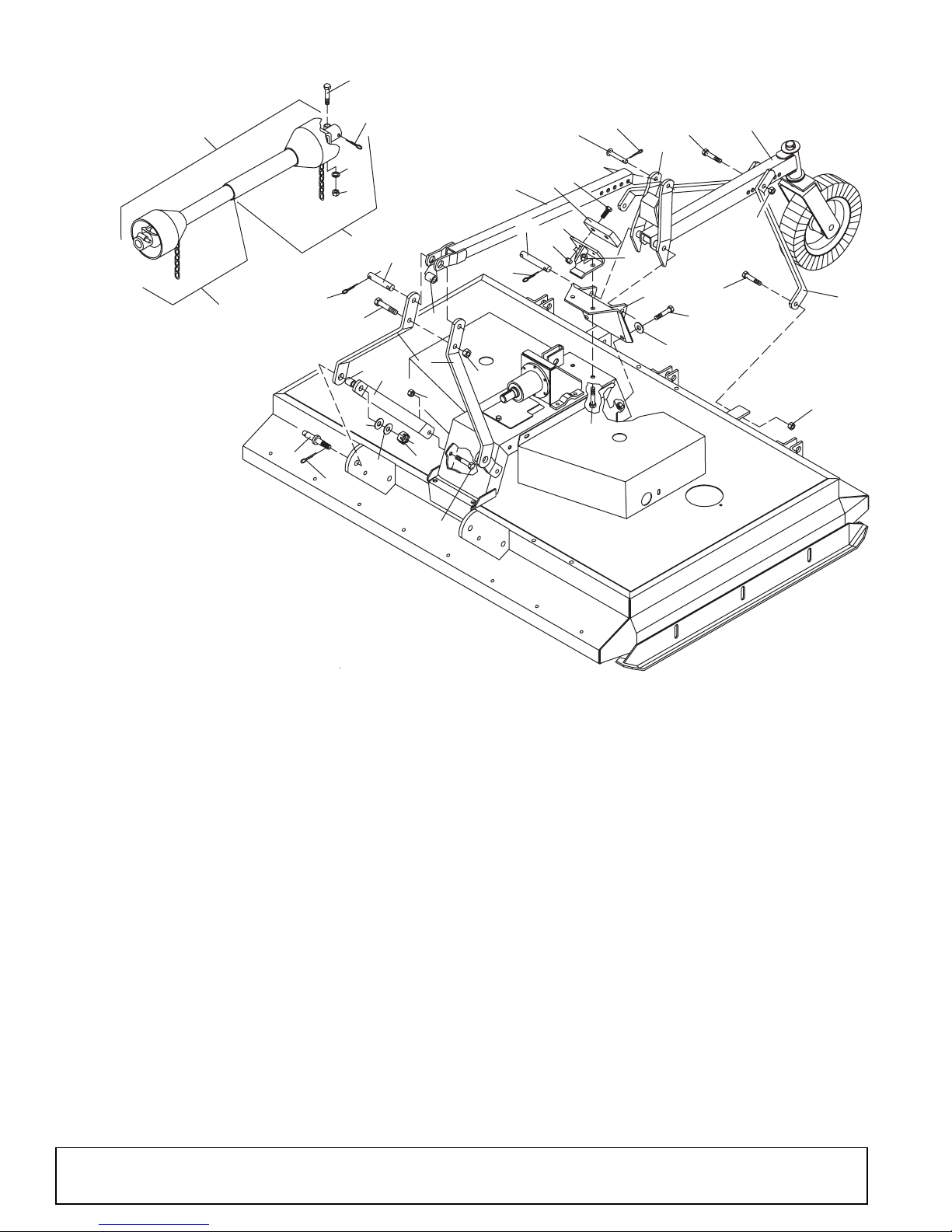

MD80-2 MAIN FRAME ASSEMBLY (MOUNTED MODE L)

45

22

32

39

37

42

40

38

43

44

41

36

29

36

29

35

35

34

33

31

30

28

27

26

25

24

23

22

22

22

12

11

10

9

8

7

6

5

4

3

2

1

C D 3825

13

REF PART QTY DESCRIPTION

1 31581 2 Inside hitch brace
2 27938 2 A-Frame half
3 28236 1 Lift arm channel assembly
4 29071 1 Hitch stop assembly
5 ----- 1 Tailwheel
6 29 080 2 Tailwheel adjustment bracket
7 29070 1 Rebound bumper pad
8 28241 1 Rebound bumper support

9 28 238 1 Tailwheel attachment plate
10 7049 2 Cat. 1 mounting, 5-3/4L
11 ----- 1 Front 1/2 universal drive (Sq Shaft)
12 ----- 1 Rear section universal drive (Sq Shaft)
13 1037791 1 Complete drive asy (Two-Lobe)

HARDWARE

22 1266 * 3/16 x 1-1/2 Cotter pin
23 1426 * 1/4 x 3 Cotter pin
24 839 * 3/8 NC x 1 HHCS GR5
25 14350 3/8 NC Flanged hex lock nut
26 1637 * 1/2 NC x 3-1/2 HHCS GR5
27 855 * 1/2 Extra-heavy lock washer
28 1093 * 1/2 NC Heavy hex nut
29 7832 * 5/8 NC x 1-1/2 HHCS GR5

REF PART QTY DESCRIPTION

30 4548 * 5/8 NC x 1-3/4 HHCS GR5
31 902 5/8 NC x 2 HHCS GR5
32 8099 5/8 x 3-3/4 Clevis pin HT
33 3097 5/8 NC x 4-1/2 HHCS HT
34 692 * 5/8 Standard flat washer
35 12006 5/8 NC Elastic stop nut
36 6239 * 5/8 NC Hex lock nut
37 12587 3/4 x 1-1/4 x 2-1/4 Sleeve
38 1591 3/4 x 4-3/8 Clevis pin
39 29075 3/4 x 8 Clevis pin
40 12558 3/4 NC x 4-1/2 HHCS GR5
41 2864 * 3/4 SAE Flat washer
42 2371 * 3/4 NC Hex lock nut
43 5849 3/4 NF Slotted hex nut
44 31392 13/16 x 1-9/16 x 10 GA Flat washer
45 29281 7/8 x 1-1/8 x 19/32 Sleeve HT

* Obtain Locally - Standard Hardware

(Rev. 1/30/2015)

38 Parts

15914 (Rev. 3/23/2007)

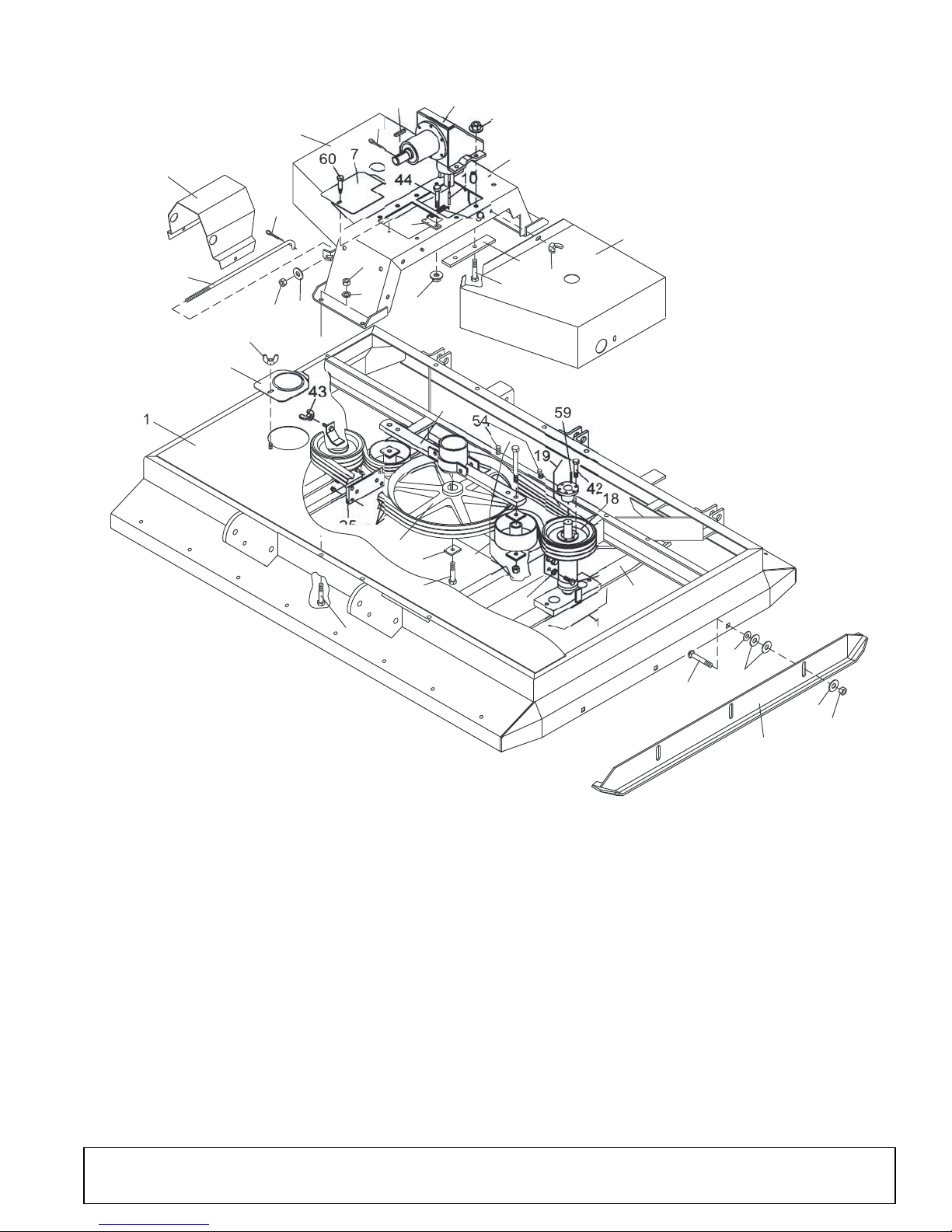

D80-2 & MD80-2 MAIN FRAME ASSEMBLY - COMMON PARTS

3

0

51

8

57

55

50

6

3

3

6

6

50

49

45

3

1

24

25

52

57

56

56

58

53

3

5

8

0

27 - Complete English Decal Set
28 - French Safety Decal Set
29 - English Safety Decal Set
30 - Spanish Safety Decal Set

CD3855

11

4

4

4

2

1

1

2

4

4

2

2

1

15914 (Rev. 3/23/2007)

1

(Rev. 8/28/2013)

Parts 39

D80-2 & MD80-2 MAIN FRAME ASSEMBLY - COMMON PARTS

REF PART QTY DESCRIPTION

1 ----- 1 Deck (not sold separately)
2 28219 1 Rear drive shield
3 158 18 1 Right v-belt shield
4 28230 1 Take-up rod idler
5 3444 2 Access hole cover
6 28225 1 Gearbox stand
7 28203 1 Tower acce ss cover
8 1942 1 Gearbox angle bracket

9 419 1 Extension spring, 4-1/8 L
10 607 1 3/8 x 3/8 x 2-3/8 Key
11 608* 1 3/8 x 3/8 x 2 Key
12 ----- 1 Gearbox
13 15819 1 Left V-belt shield
14 15779 2 Skid shoe 56.2
15 15817 1 Left rear baffle
16 ----- 2 Spindle
17 ----- 4 Blades
18 10578 2 3TB 7.5 Sheave
19 1482 2 P1 1-1/4 Straight bore bushing
20 10617 1 Idler arm assembly
21 10575 1 3 SB 18.5 Sheave
22 ----- 2 Idler assembly
23 606 1 1/4 x 1-1/2 x 2 Lug
24 222 1 Set of 3 matched v-belts
25 29038 2 Spindle support plate
26 29280 2 3/8 x 1-1/2 x 9-1/4 support plate
27 15828 1 Complete english decal set

REF PART QTY DESCRIPTION

28 55827 1 French safety decal set
29 15827 1 English safety decal set
30 1036797 1 Spanish safety decal set

HARDWARE

40 1266* 3/16 x 1-1/2 Cotter pin
41 1426* 1/4 x 3 Cotter pin
42 14562* 5/16 NC x 1 HHCS GR5
43 1287* 3/8 NC Wing nut
44 6100* 1/2 NC x 1-1/4 HHCS GR5
45 1262 1/2 NC x 1-1/4 HHCS drilled head
46 24576 1/2 NC x 1-3/4 HHCS GR5
47 3452 1/2 NF x 1-1/2 HHCS GR5
48 854* 1/2 Standard flat washer
49 855* 1/2 Extra-heavy lock washer
50 11900* 1/2 NC Flaged hex lock nut
51 6241 1/2 NC Elastic stop nut
52 4548* 5/8 NC x 1-3/4 HHCS GR5
53 2855* 5/8 NC x 2 Carriage bolt
54 12274* 5/8 NC x 2- 1/4 HHCS GR5
55 1286* 5/8 Heavy lock washer
56 692* 5/8 Standard flat washer
57 230* 5/8 NC Hex nut
58 2864* 3/4 SAE Flat washer
59 7142 1/4 x 1/4 x 2 Key
60 27610 5/16 x 3/4 Sheet metal screw

* Obtain Locally - Standard Hardware

(Rev. 8/28/2013)

40 Parts

15914 (Rev. 3/23/2007)

D80-2 FRONT 2/3 OF 3-JOINT DRIVE (SQUARE SHAFT)

22

23

2

21

21

14

1 -- COMPLETE DRIVE

20

20

12

3

19

18

17

16

10

15

13

11

9

8

7

6

3

4

5

CD3873B

NOTE: Two styles of driveshafts have
been used on the D80 series cutters.
Check your driveshaft for square or
two--lobe shaft and order repair parts
from the correct parts list.

REF PART QTY DESCRIPTION

1 190 54 1 Front 2/3 of 3-joint drive 35N
2 44919 1 Front 2 joints shielded 35N
3 110 2 U-Joint repair kit 35N
4 117 1 Lock pin and spring
5 115 1 1-3/8 Quick disconnect yoke 35N
6 1251 1 Bearing holder with bearing (includes

7, 8 & 9)
7 12128 1 .062 x 72 mm ID Snap ring
8 3502 1 1.37 ID x 2.83 OD Ball bearin g
9 2985* - 1/4 - 28 Threaded 90-degree grease

fitting

10 19036 1 Decaled tube, sleeve & stub, 24.38
11 15952 1 Plastic shield 2.75 x 17.69 (includes

items 12 & 21)

12 15141 4 Bearing for tubular shaft

REF PART QTY DESCRIPTION

13 1311 1 1/2 NF x 1 HHCS, drilled head
14 -----* 1 1/2 x 1-1/2 x 1/8 Flat washer
15 105 1 1-5/16 Bore universal joint yoke 35N
16 19043 1 Yoke
17 4674 1 3/8 x 2 Spirol pin
18 19045 1 Shield, decaled 2-joint 21.94

(includes items 20 & 21)
19 4663 1 Square shaft & yoke 35N
20 15740 2 World shield bearing
21 15739 3 World shield tether chain 27.5
22 19609 1 Plastic shield kit (includes items 11 &

23 19038 1 Shield, decaled

23)

* Obtain Locally - Standard Hardware

15914 (Rev. 3/23/2007)

Parts 41

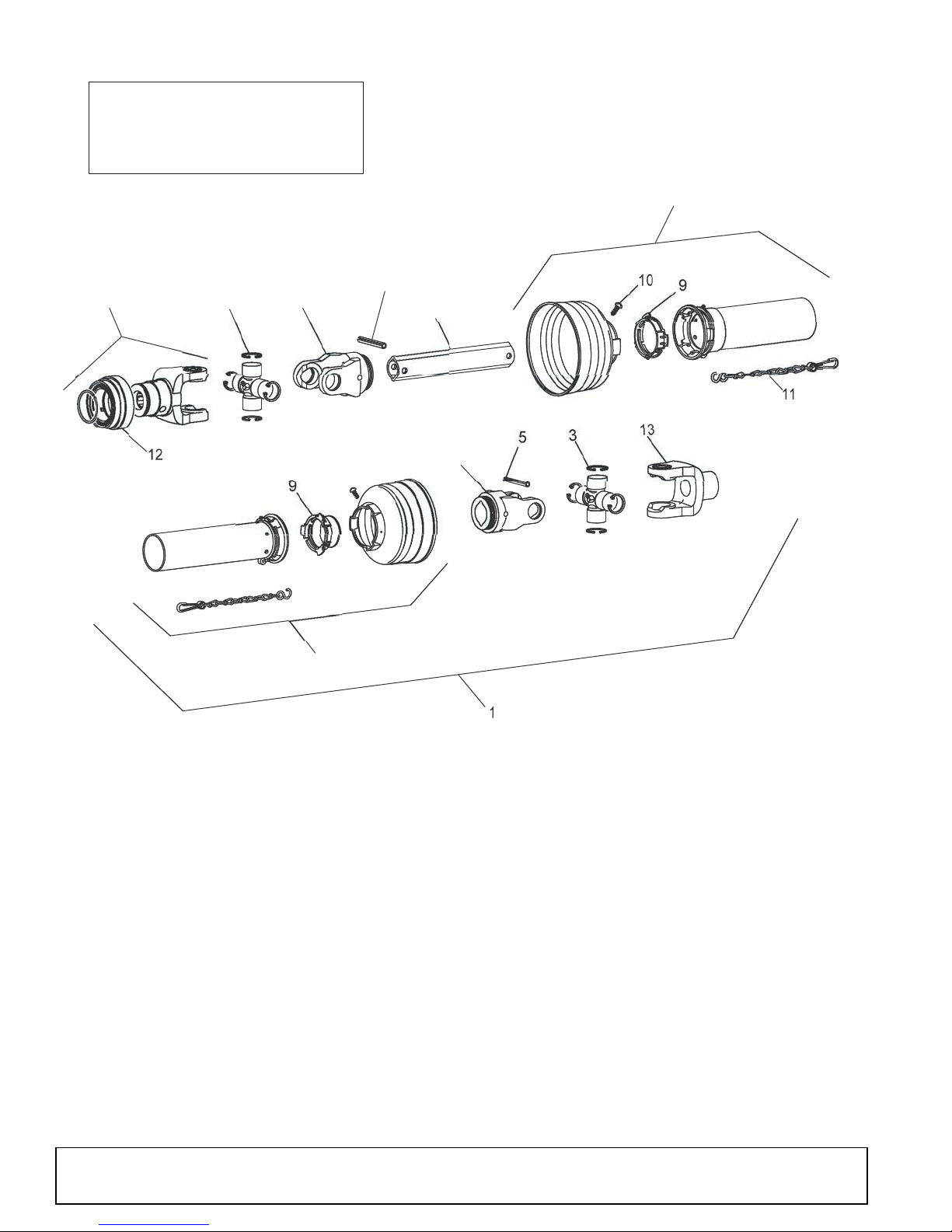

D80-2 FRONT 2/3 OF 3-JOINT DRIVE (TWO-LOBE SHAFT)

3

5

6

8

CD5963

NOTE: Two styles of driveshafts have
been used on the D80 series cutters.
Check your driveshaft for square or
two--lobe shaft and order repair parts
from the correct parts list.

REF PART QTY DESCRIPTION

1 449 19 1 Front 2 joints shielded 1340
2 40574 1 Yoke, 1-3/8 -6SP (complete with lock

collar)
3 110 2 Cross & bearing kit
4 40576 2 Inboard yoke
5 407 64 2 Spring pin 10 mm x 80 mm (packet of

10)

6 40588 1 Outer profile (cut to length)

REF PART QTY DESCRIPTION

7 40590 1 Guard, outer half (includes items 9,

10 & 11) (cut to length)

8 40591 1 Guard, inner half (includes items 9,

10, & 11) (cut to length)

9 4076 6 2 Bearing ring (package of 2)
10 40778 2 Screw (package of 10)
11 40777 2 Anti-rotation chain
12 40589 1 Lock collar repair kit (without yoke)
13 105 1 Yoke, 1.31 Bore

42 Parts

15914 (Rev. 3/23/2007)

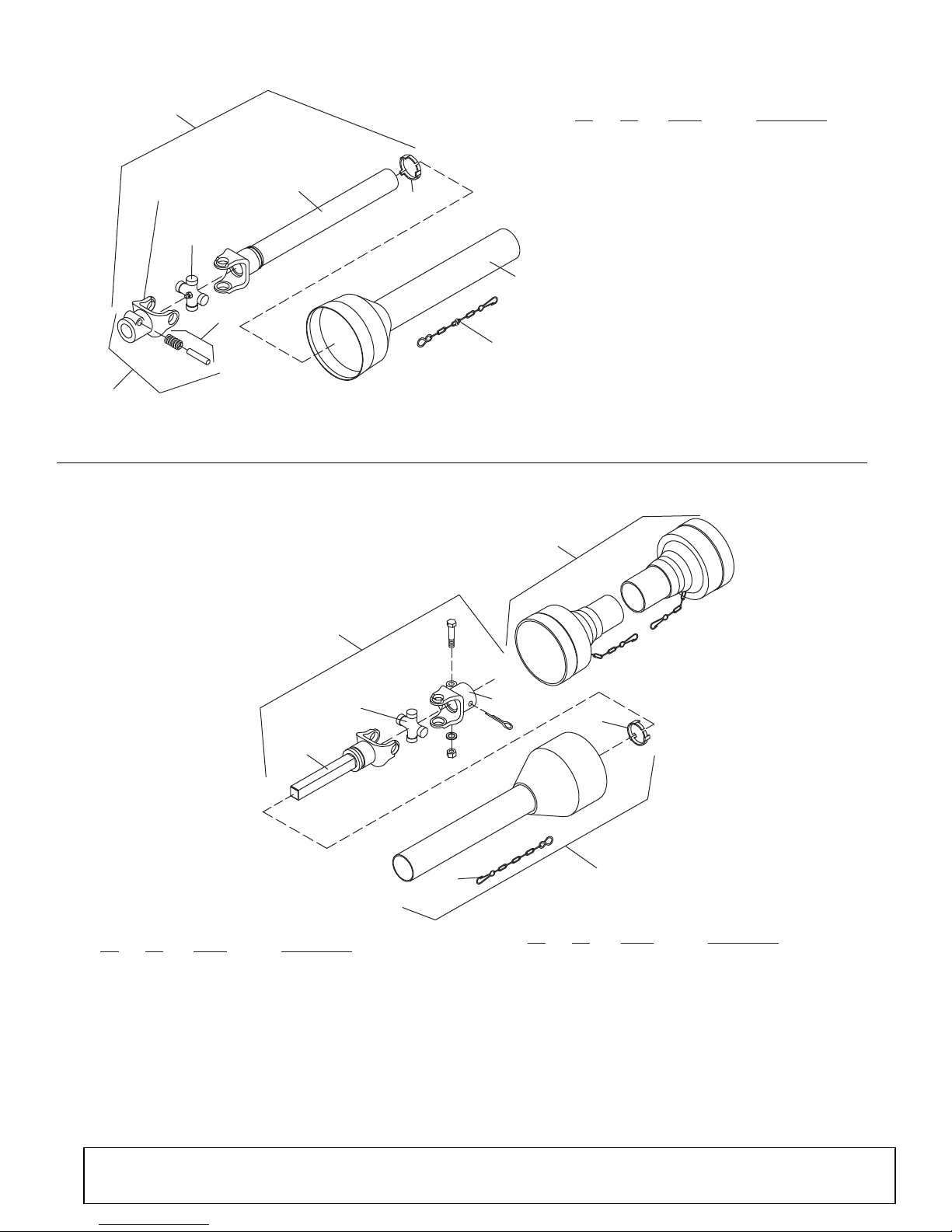

MD80-2 FRONT 1/2 OF UNIVERSAL DRIVE

5

8

1

1-3/8 SPLINE

7

6

4

3

2

CD3872

Ref Part No

No No Used Description

1 19064 1 Front half of 2-joint drive,

complete

2 115 1 1-3/8, 6-Tooth spline, quick

disconnect U-joint yoke

3 110 1 Universal joint repair kit 35

N

4 7406 1 Yoke and tubular shaft 35N

-- o r -- -- o r --

4 7360 1 Yoke and tubular shaft 27.5

long

5 15907 1 Plastic shield 2.75 x 22.8

(includes 6 & 8)

-- o r -- -- o r --

5 15890 1 Plastic shield 2.75 x 29.0

(includes 6 & 8)
6 15740 1 World shield outer bearing
7 117 1 Lock pin and spring
8 15739 1 World shield tether chain,

27.5

8

5

1

7

6

4

3

2

CD3871A

Ref Part No

No No Used Description

1 19039 1 Universal joint yoke & square shaft

23-7/8 L with shield

2 19038 1 Decaled shield 3 x 22 long (includes

6&7)

3 7368 1 Square shaft & yoke, 35N

Ref Part No

No No Used Description

4 110 1 Universal joint repair kit 35N
5 6216 1 Clamp yoke
6 15740 1 Shield bearing
7 15739 1 Shield tether chain 27-1/2”
8 19604 1 Shield kit (contains 15890 & 19038

)

D80-2 & MD80-2 REAR SECTION OF UNIVERSAL DRIVE

15914 (Rev. 3/23/2007)

Parts 43

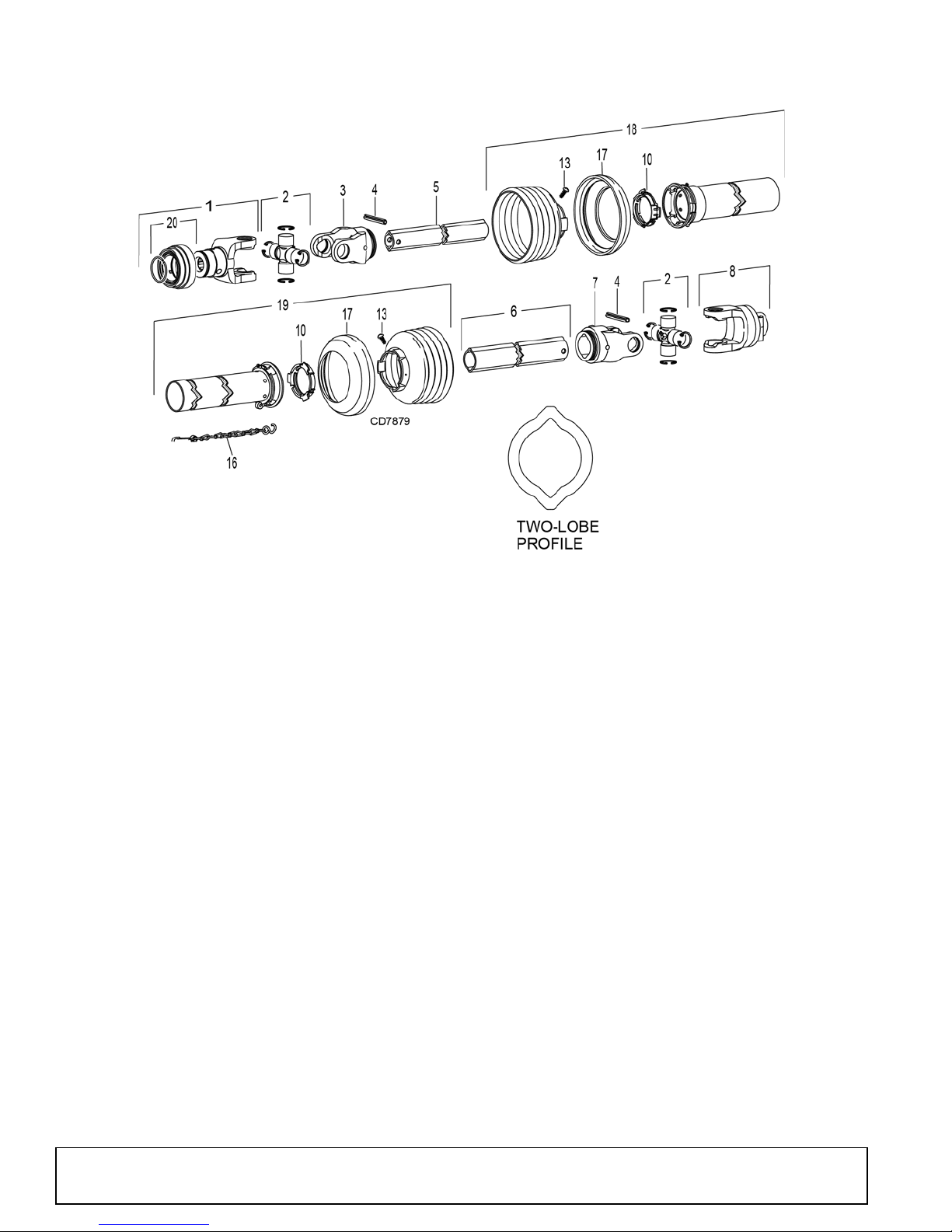

MD80-2 COMPLETE DRIVE ASSEMBLY (TWO-LOBE SHAFT)

REF PART QTY DESCRIPTION

A 1037791 1 Complete 540, 1-3/8 6-Spline Driveline Assembly
1 38351 1 Yoke Assembly 1-3/8 6-Spline
2 38352 2 Cross Bearing Kit
3 90317916 1 Yoke, Inner Profile, Two-Lobe
4 40764 2 Spring Pin
5 40587 1 Inner Profile Tube, Heat Treated, Two-Lobe
6 40588 1 Outer Profile Tube, Two-Lobe
7 38353 1 Yoke, Outer Profile, Two-Lobe

8 1029969 1 Yoke, Implement
10 40766 2 Bearing Ring
13 40778 2 Screw, M3.5 x 10 mm
16 40777 1 Chain
17 1029932 2 Collar
18 1029947 1 Kit - Outer Guard Complete (includes items 10, 13 & 17)
19 1029948 1 Kit - Inner Guard Complete (includes items 10, 13, 16 & 17)
20 40589 1 Collar Repair Kit (1-3/8 Yokes)

(Rev. 1/30/2015)

44 Parts

15914 (Rev. 3/23/2007)

Ref Part No

No

No Used Description
A 6222 1 1:1 Gearbox assembly complete
1 213 1 Seal for 1-3/4 shaft
2 209 1 1-1/2 x 1-3/4 x 1-3/8 Sleeve
3 255 1 Ring seal
4 211 4 Bearing cone 2788A
5 210 4 Bearing cup 2720
6 6226 1 Vertical gear shaft housing with cups
7 207 1 Vertical gear and shaft
8 202 1 Vertical gear and housing assembly (includes

items 1 thru 4, 6 & 7)

9 3093 * 12 3/8 Shakeproof lockwasher

10 839 * 12 3/8 NC x 1 Hex head cap screw GR5

11 6224 1 Gearbox housing
12 1284 * 1 1” Pipe plug, recessed head
13 1998 1 Gasket set (includes installation instructions)
14 206 1 Horizontal gear and shaft
15 1426 * 1 1/4 x 3 Cotter pin
16 6225 1 Horizontal gear shaft housing with cups
17 208 1 1-1/2 x 1-3/4 x 1 Sleeve
18 212 1 Seal for 1-3/4 shaft
19 201 1 Horizontal gear and housing assembly (in-

cludes items 3, 4, 14 and 16 thru 18)

20 53411 1 Gearbox repair kit (Includes all bearings,

sleeves and seals)

* Obtain Locally

20 -- Gearbox Repair Kit

D80-2 & MD80-2 GEARBOX ASSEMBLY

15914 (Rev. 3/23/2007)

Parts 45

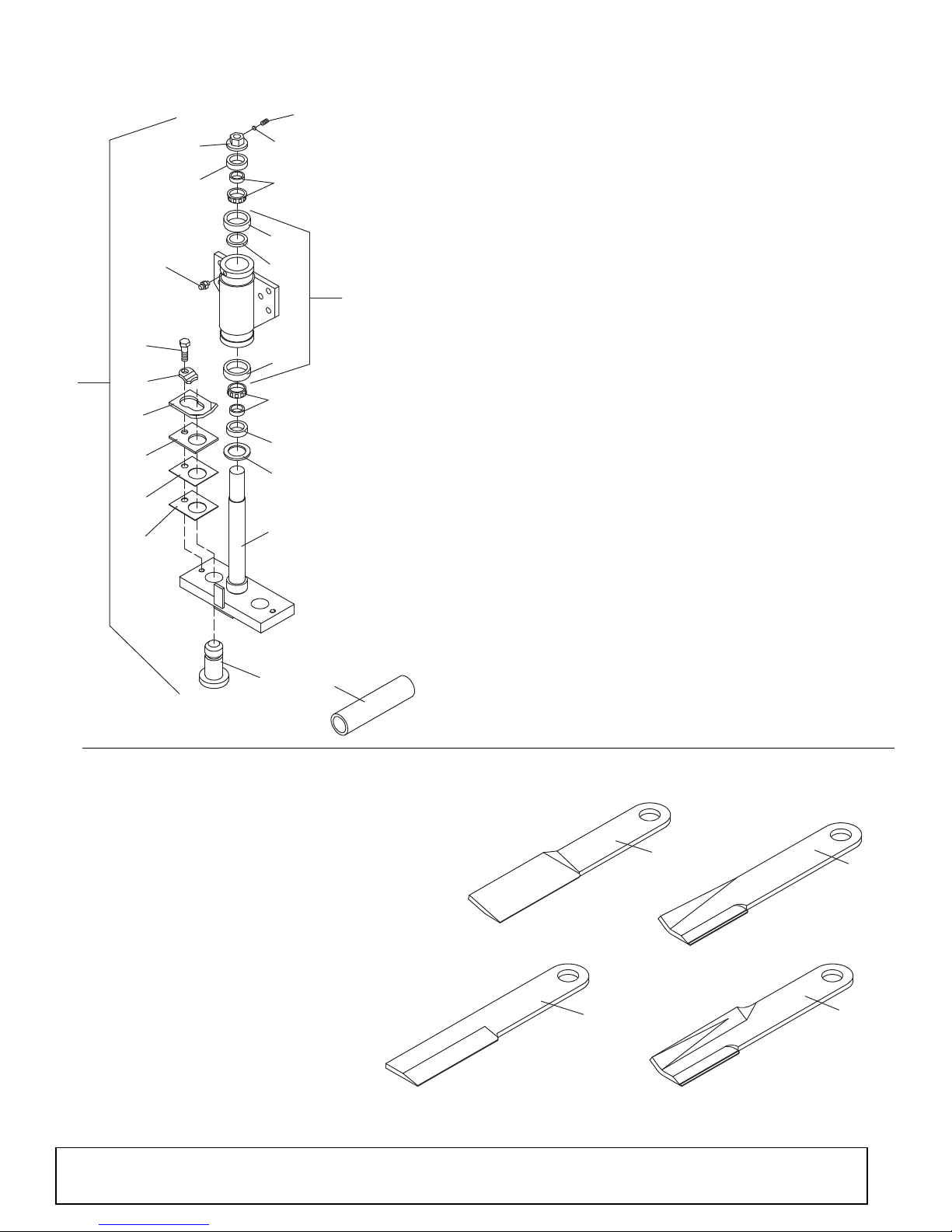

D80-2 & MD80-2 BLADE SP INDLE ASSEMBLY

REF PART QTY DESCRIPTION

1 15789KT 4 General purpose CCW blade
2 15790KT 4 Flat CCW blade
3 15791KT 4 High fin CCW formed blade
4 1003413KT 4 SHL Fin CCW formed blade

3

54

6

7

8

10

9

2

19

8

1

18

7

17

6

16

11

15

12

14

CD3831

REF PART QTY DESCRIPTION

1 1580 5 1 Spindle assembly
2 7143 1 Spindle housing with bearing cups

and grease fitting
3 7269 1 3/8 NF x 3/8 Set screw
4 7127 1 5/16 x 5/32 Dowel plug
5 7115 1 1-3/8 Flanged spindle nut
6 5298 2 Seal for 1-3/4 shaft
7 7068 2 Bearing cone and sleeve
8 7069 2 Bearing cup
9 7129 1 1-3/8 x 2-1/8 x 18 GA Shim

10 195 1 Grease fitting
11 7138 1 1-3/8 x 2-3/4 x 1/4 Flat washer
12 15785 1 Crossbar
13 15803 2 1-1/2 Blade pin x 3.32 L
14 10520 2 18 GA Shim
15 13946 2 20 GA Shim
16 5523 2 Spacer
17 32603 2 Keyhole plate - special
18 32604 2 Blade lock clip - special
19 6100* 2 1/2 NC x 1-1/4 HHCS
20 7571 1 7/64 Wall x 1-5/8 x 11 Tube (Optional)

13

20

D80-2 & MD80-2 BLADES

CD3833B

1

3

2

4

46 Parts

15914 (Rev. 3/23/2007)

D80-2 & MD80-2 CHAIN SHIELDING ASSEMBLY

20

19

1

18

6

18

6

5

2

1

REF PART QTY DESCRIPTION

1 29085 2 Chain shielding complete (does not

include items 6 & 17)

2 29086 4 Chain plate assembly (does not

include items 6 & 17)
3 29087 4 Chain shield plate
4 1007850 4 Pin, 31 to 33 chains
5 8731 2 Drag-rod kit - Optional (i ncludes item s

6 & 17)

3

CD3836A

4

17

REF PART QTY DESCRIPTION

6 12136 8 3/8 & 19-3/4 Threaded rod, 16-chain

HARDWARE

17 6698 * 3/8 NC Hex lock nut
18 3994 5/16 Chain, 5-link
19 25475 1/2 x 1 HHCS GR5
20 11900 * 1/2 NC Flanged hex lock nut

* Obtain locally, standard hardware

15914 (Rev. 3/23/2007)

Parts 47

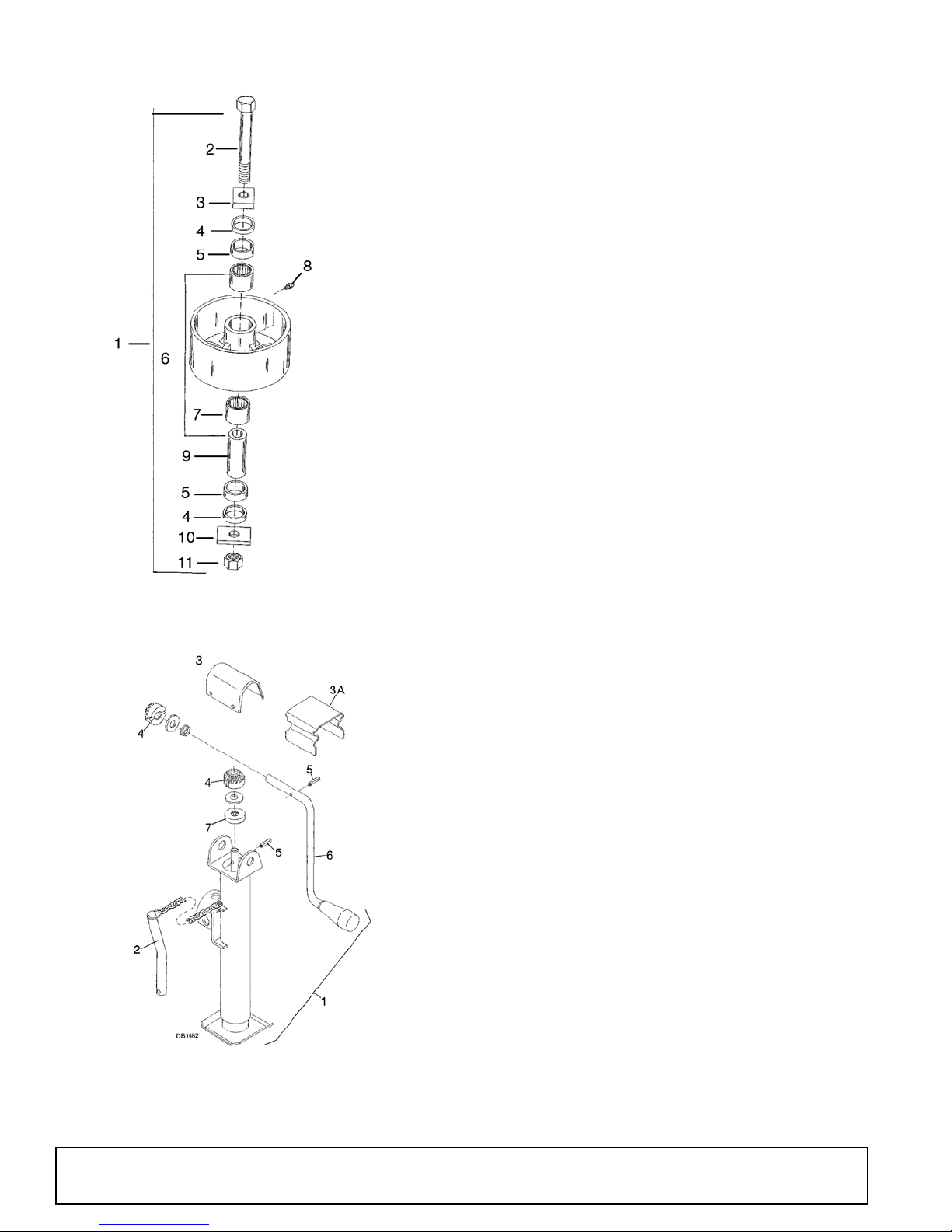

D80-2 & MD80-2 IDLER PULLEY ASSEMBLY

REF PART QTY DESCRIPTION

1 5586 1 Idler assembly complete
2 378 1 5/8 NC x 5 HHCS GR2
3 843 1 1/2 x 2 x 2 Square washer
4 844 2 Seal retainer
5 845 2 Felt seal
6 7016 1 Idler with bearings
7 232 2 Needle bearing
8 ----- * 1 G rease fitting

9 377 1 Needle bearing sleeve
10 691 1 1/4 x 2 x 2 Square washer
11 230 1 5/8 NC Hex nut

* Standard hardware, obtain locally

REF PART QTY DESCRIPTION

1 23790 1 Swivel parking jack
2 25857 1 Jack hitch pin assembly
3 N/S 1 Jack gearbox cover
4 25859 2 15-Tooth bevel gear
5 25860 2 5/32 x 1-1/4 Drive pin
6 N/S 1 Jack crank handle
7 25862 1 Thrust bearing

N/S Not serviced

* Standard hardware, obtain locally

D80-2 PARKING JACK

48 Parts

15914 (Rev. 3/23/2007)

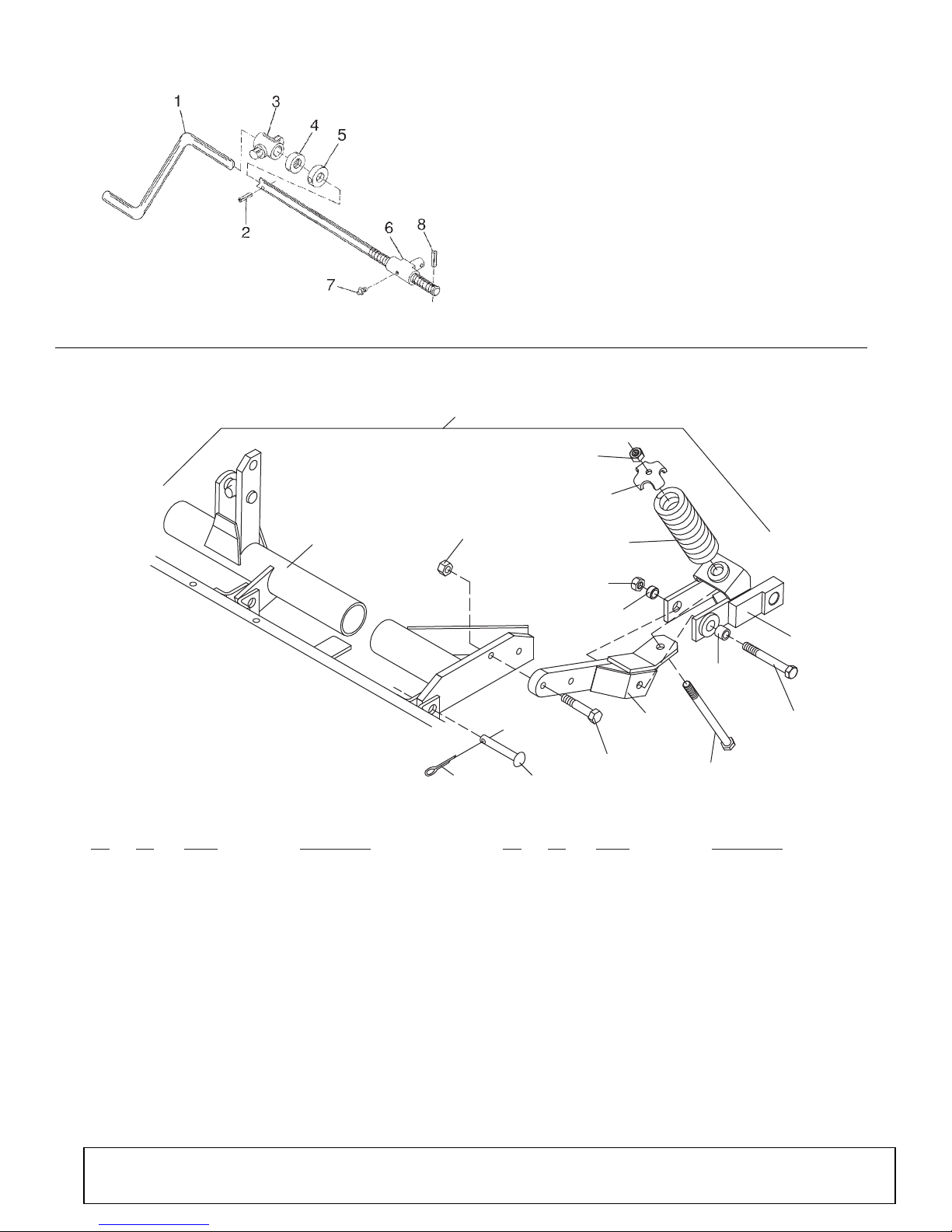

D80-2 HEIGHT ADJUSTMENT CRANK

DB956A

REF PART QTY DESCRIPTION

1 15804 1 Height adjustment crank
2 11880 1 5/16 x 1-3/4 Spirol pin
3 10417 1 Height adjustment pivot block
4 1893 1 Thrust bearing
5 1863 2 1" SAE Flat washer
6 5895 1 Height adjustment pivot nut
7 195* 1 Straight 1/8 pipe thread grease fitting
8 15134 1 1/4 x 1 Spirol pin

* Obtain Locally - Standard Hardware

1

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

CD3839A

Ref Part No

No No Used Description

1 9310 1 Spring-loaded wheel yoke complete
2 445 2 1 x 2-1/2 Clevis pin
3 1285 * 2 1/4 x 1-1/2 Cotter pin
4 13906 1 Spring wheel yoke pipe assembly
5 2371 * 2 3/4 NC Hex locknut
6 39097 2 .781 x .38 x 4.12 Square washer
7 13316 2 1/2 x 6 Compression spring
8 16302 1 Right outer arm assembly

-- o r -- -- o r --

8 16303 1 Left outer arm assembly
9 5560 2 3/4 x 1-1/8 x 31/32 HT Sleeve

Ref Part No
No

No Used Description

10 2377 2 3/4 NC x 6 Hex head cap screw GR5

11 39160 2 3/4 NC x 8.00 Hex head cap screw

GR5

12 20086 1 Right spring yoke inner arm assembly

-- o r -- -- o r --

12 20087 1 Left inner arm assembly
13 986 * 4 5/8 NC x 2-3/4 Hex head cap screw

GR5
14 6239 * 4 5/8 NC Hex locknut
15 10083 2 3/4 x 1-1/8 x 5/8 HT Bushing
16 2371 * 1 3/4 NC Hex locknut

* Obtain Locally

D80-2 SPRING-LOADED WHEEL YOKE

15914 (Rev. 3/23/2007)

Parts 49

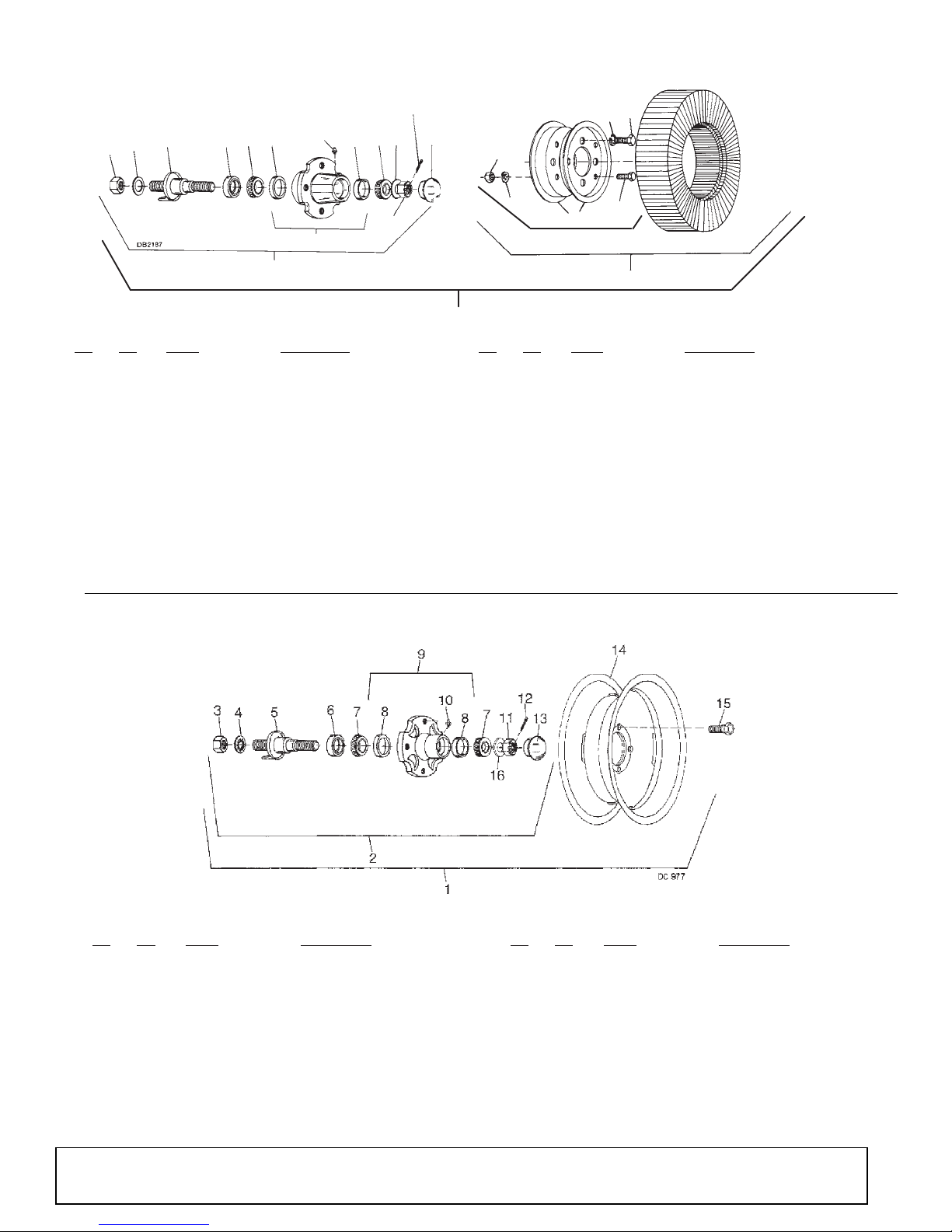

D80-2 LAMINATED TIRE WITH HUB & AXLE

23

19

15

16

17

18

21

22

14

13

11

7

8

10

2

8

7

6

5

4

3

1

Ref Part No

No

No Used Description

1 9373 1 6.00 x 9 Laminated tire w/hub &

axle
2 4984 1 Heavy hub with long axle
3 3626 1 1--14 UNS Hex nut
4 3689 * 1 1” Standard lockwasher
5 6271 1 Long axle assembly for heavy hub
6 314 1 Seal for 1-1/2 shaft
7 310 2 Bearing cone #15126
8 309 2 Bearing cup #15245
9 530 1 Heavy wheel hub with bearing cups

10 1972 * 1 1/4--28 Tapered thread grease fitting
11 1257 * 2 3/4 Standard flat washer

Ref Part No

No

No Used Description
12 5849 1 3/4 NF Slotted hex nut
13 1256 * 1 3/16 x 1 Cotter pin
14 531 1 Hub cap, heavy-duty
15 7431 1 Wheel rim w/hardware, 6.00 x 9
16 7430 2 Rim half for 6.00 x 9 tire
17 835 * 4 3/8 NC Hex nut, plated
18 838 * 4 3/8 Standard lockwasher
19 19887 * 4 3/8 NC x 1 Hex head cap screw GR

8

21 855 * 4 1/2 Extra-heavy lockwasher
22 4119 4 1/2 NF x 1 Hex head cap screw GR

5

23 7428 1 6.00 x 9 Solid tire and rim

* Obtain Locally

Ref Part No

No

No Used Description
1 2315 1 15” Wheel rim, cast hub & axle
2 2302 1 Standard wheel hub & axle
3 3626 1 1--14 UNS Hex nut
4 3689 * 1 1” Standard lockwasher
5 2301 1 Axle for standard hub
6 6273 1 Seal for 1-1/2 shaft
7 2303 1 Bearing cone #LM67048
8 2305 1 Bearing cup #LM67010

Ref Part No

No

No Used Description

9 2307 1 Cast hub with cups

10 1972 * 1 1/4--28 Tapered thread grease fitti

n

11 5849 1 3/4 NF Slotted hex nut
12 1256 * 1 3/16 x 1 Cotter pin
13 6248 1 Hub cap, standard
14 529 1 15” 4-Hole rim
15 1258 4 1/2 NF x 1-1/8 Wheel bolt
16 2864 * 1 3/4 SAE Flat washer

* Obtain Locally

D80-2 RIM & AXLE ASSEMBLY

50 Parts

15914 (Rev. 3/23/2007)

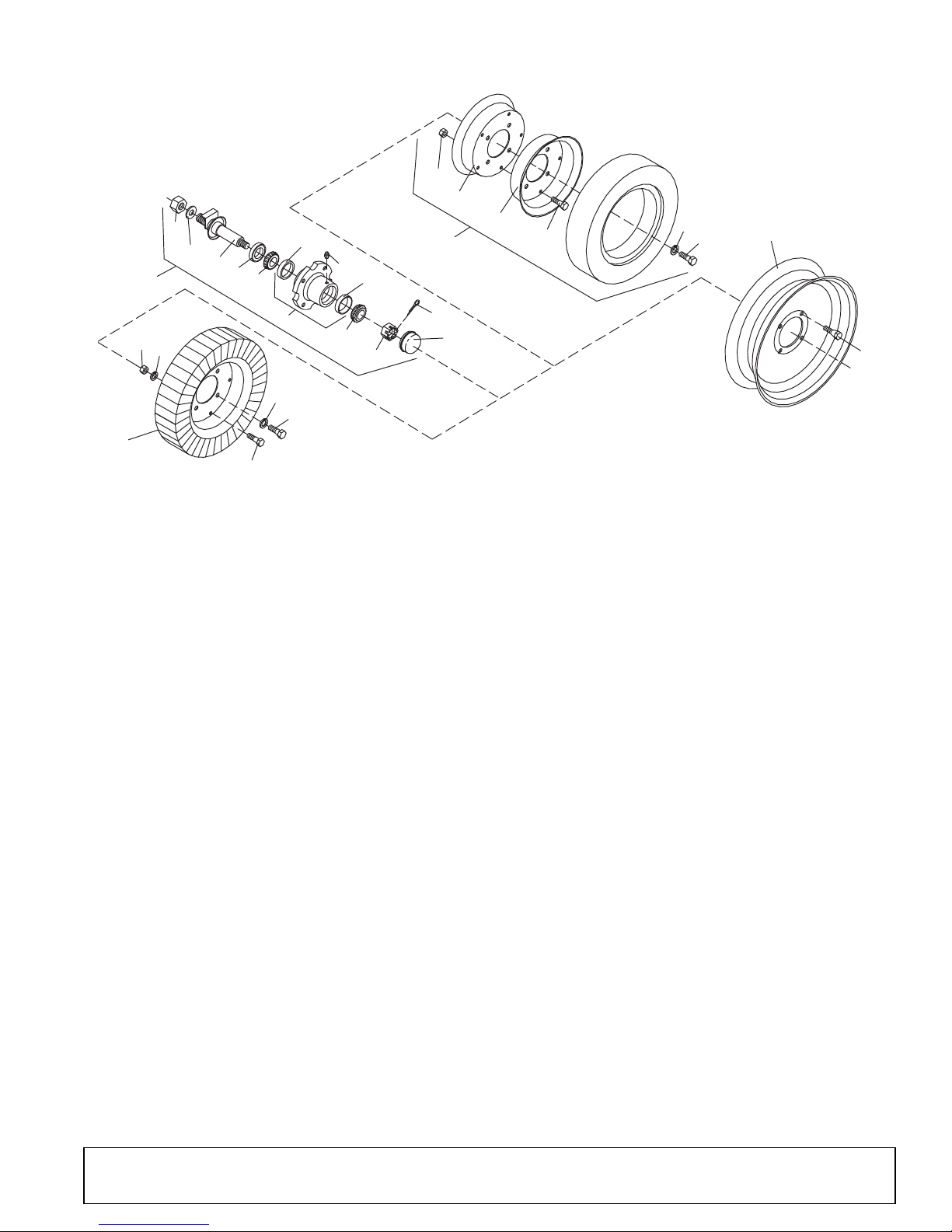

D80-2 AIRCRAFT TIRE & HUB

10

9

19

17

18

20

21

10

SOL ID T IRE
&RIM

27

10

26

20

21

22

10

1

25

24

23

16

15

9

8

7

6

5

4

3

2

RIM F OR
PNEUMAT IC
TIRE

AIRCRAFT
TIRE & R IM

CD4574

REF PART QTY DESCRIPTION

1 12080 1 Standard hub with long axle
2 2307 1 Hub with cups
3 12081 1 Wing axle assembly
4 6273 1 Seal for 1-1/2 shaft
5 2303 1 Bearing cone
6 2305 1 Bearing cup
7 2306 1 Bearing cup
8 2304 1 Bearing cone

962481Hub cap
10 529 1 15" 4-Hole rim for pneumatic tire -or-
10 7428 1 6.00 x 9 Solid tire, rim & hardware

-or-

10 1003695 1 Wheel assembly 22 x 6.6 x 10.0

10A 1015834 1 Inner tube for #1003695 wheel

11 1003694 1 Rim half, aircraft wheel
12 1003693 1 Rim half with valve hole, aircraft

wheel
15 1256 * 3/16 x 1 Cotter pin
16 1972 * 1/4 - 28 Tapered thread grease fitting

HARDWARE

REF PART DESCRIPTION

17 838 *† 3/8 Standard lock washer
18 835 *† 3/8 NC Hex nut, plated
19 19887 † 3/8 NC x 1 HHCS GR8
20 855 *‡ 1/2 Extra-heavy lock washer
21 4358 ‡ 1/2 NF x 1-1/4 HHCS GR5 (solid tire

only)

22 1258 1/2 NF x 1-1/8 Whe el b olt (pneumatic

rim only)
23 5849 3/4 NF Slotted hex nut
24 3689 1" Standard lock washer
25 3626 1-14 UNS Hex nut
26 ----- * 9/16 NC x 1-1/4 HHCS (for aircraft

wheel)
27 ----- * 9/16 NC Hex lock nut (for aircraft

wheel)

* Obtain Locally - Standard Hardware
† Used on Solid Wheel Only
‡ Used on Solid and Aircraft Wheels

only

15914 (Rev. 3/23/2007)

Parts 51

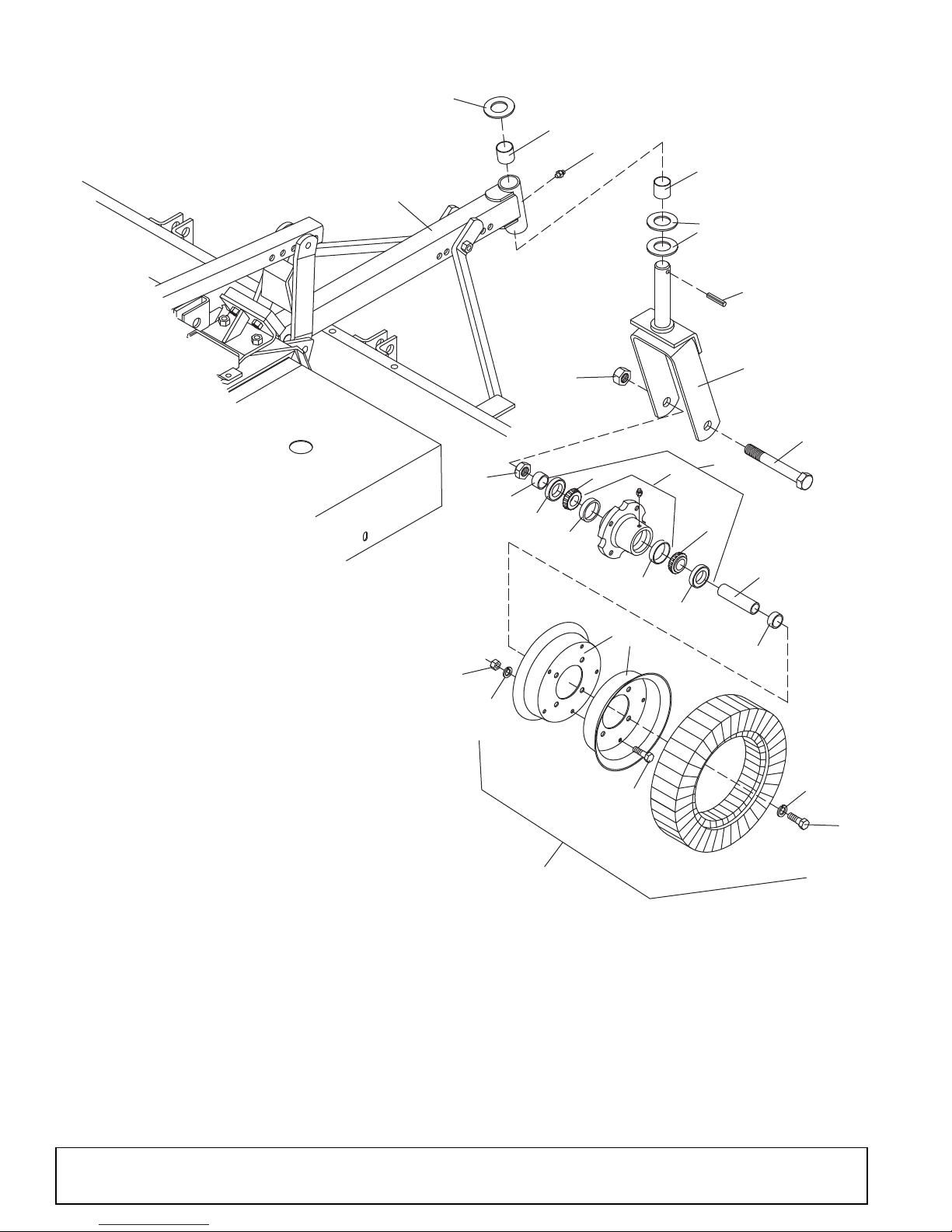

MD80-2 TAILWHEEL ASSEMBLY

REF PART QTY DESCRIPTION

1 15783 1 Tailwheel arm assembly (includes

items 5 & 13)
2 15270 1 Tailwheel clevis
3 15 591 1 Wheel hub with cups includes item s 9

& 13)
4 4676 1 4.00 x 8 Rim and laminated tire
5 11011 2 1.5 x 1. 00 x 1.5 Bronze bushing
6 15279 1 1.25 x 1.50 x .63 Sleeve
7 314 2 Seal for 1-1/2 Shaft
8 310 2 Bearing cone
9 309 2 Bearing cup

10 15281 1 1.0 x 1.25 x 4.53 Sleeve
11 15280 1 1.25 x 1.50 x .821 Sleeve
12 4679 2 Rim half
13 1972* - 1/4-28 Tapered thread greas e fitting
14 4674 - 3/8 x 2 Spirol pin
15 838* - 3/8 Standard lockwasher
16 835* - 3/8 Hex nut, plated
17 839* - 3/8 NC x 1 HHCS GR5
18 855* - 1/2 Heavy lockwasher
19 4119 - 1/2 NF x 1 HHCS GR5
20 1386 - 1" N C Hex jam nut

REF PART QTY DESCRIPTION

21 34279 - 1" NC Hex locknut
22 15278 - 1" NC x 7-1/2 HHCS GR5
23 2370 - .18 x 1.62 ID x 3 OD Washer
24 15277 1 Wheel hub assembly (includes items

7, 8, 9 & 13)

* Obtain Locally - Standard Hardware

23

5

1

13

5

23

14

CD3832

52 Parts

21

24

3

20

8

6

7

8

9

9

7

12

16

15

17

4

15914 (Rev. 3/23/2007)

2

22

10

11

18

19

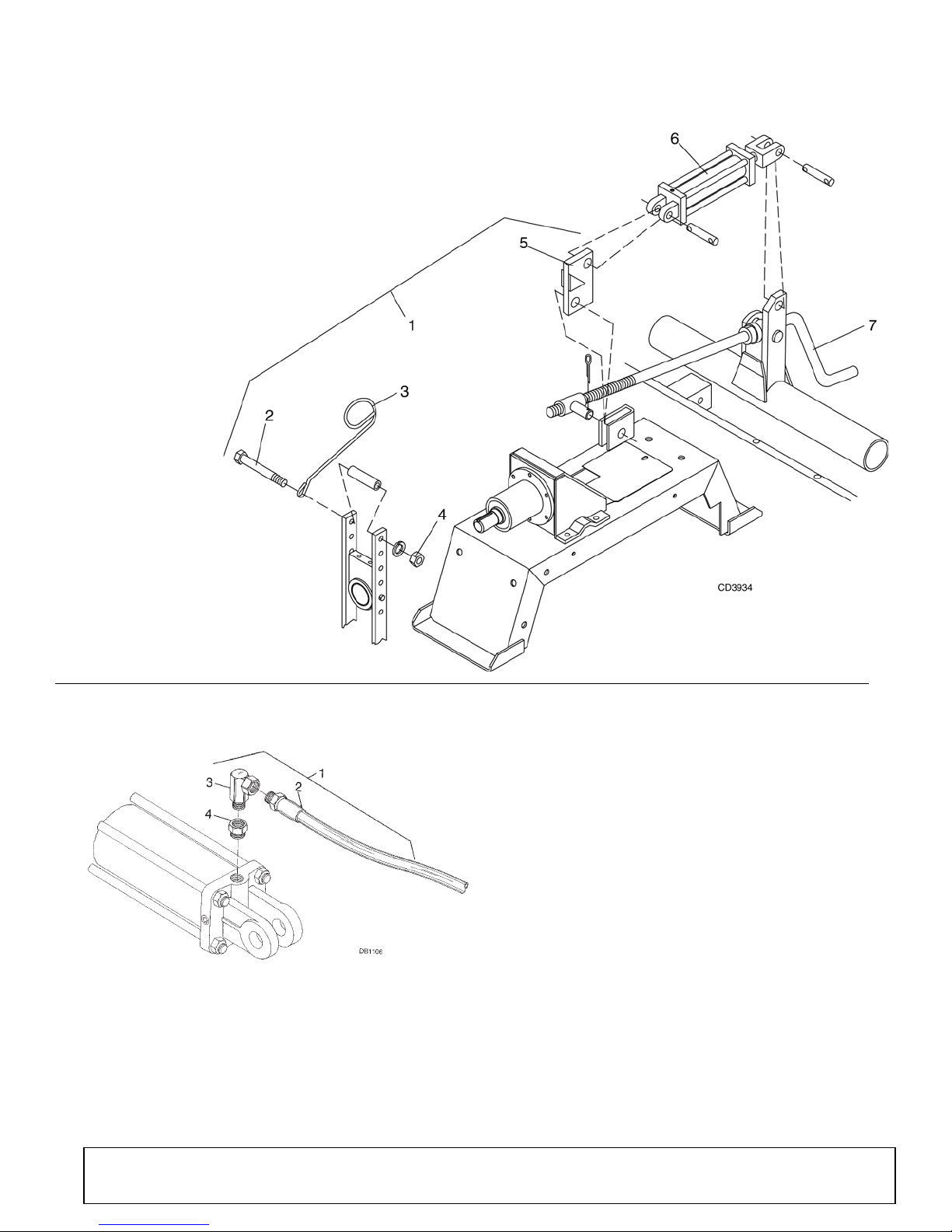

D80-2 PIVOT LINK KIT (OPTIONAL)

REF PART QTY DESCRIPTION

1 8751 1 Pivot link kit
2 12305 * 1 1/2 x 5-1/2 HHCS GR5
3 3443 1 Hydraulic hose holder
4 1093 1 1/2 NC Hex nut
5 15792 1 Pivot link
6 ----- 1 Cylinder (see page 54
7 ----- 1 Crank (see page 49)

* Obtain locally

REF PART QTY DESCRIPTION

1 17601 1 1/4 x 108 Hydraulic hose kit and fittings
2 17628 1 1/4 NPT x 108 Hydraulic hose assembly
3 10290 1 1/4 x 1/4 x 90-degree E lbox with 1/16

restrictor

4 11893* 1 1/4 x 1/2 Pipe reducer bushing

* Obtain Locally - Standard Hardware

15914 (Rev. 3/23/2007)

D80-2 HYDRAULIC HOSE KIT & FITTINGS (OPTIONAL)

Parts 53

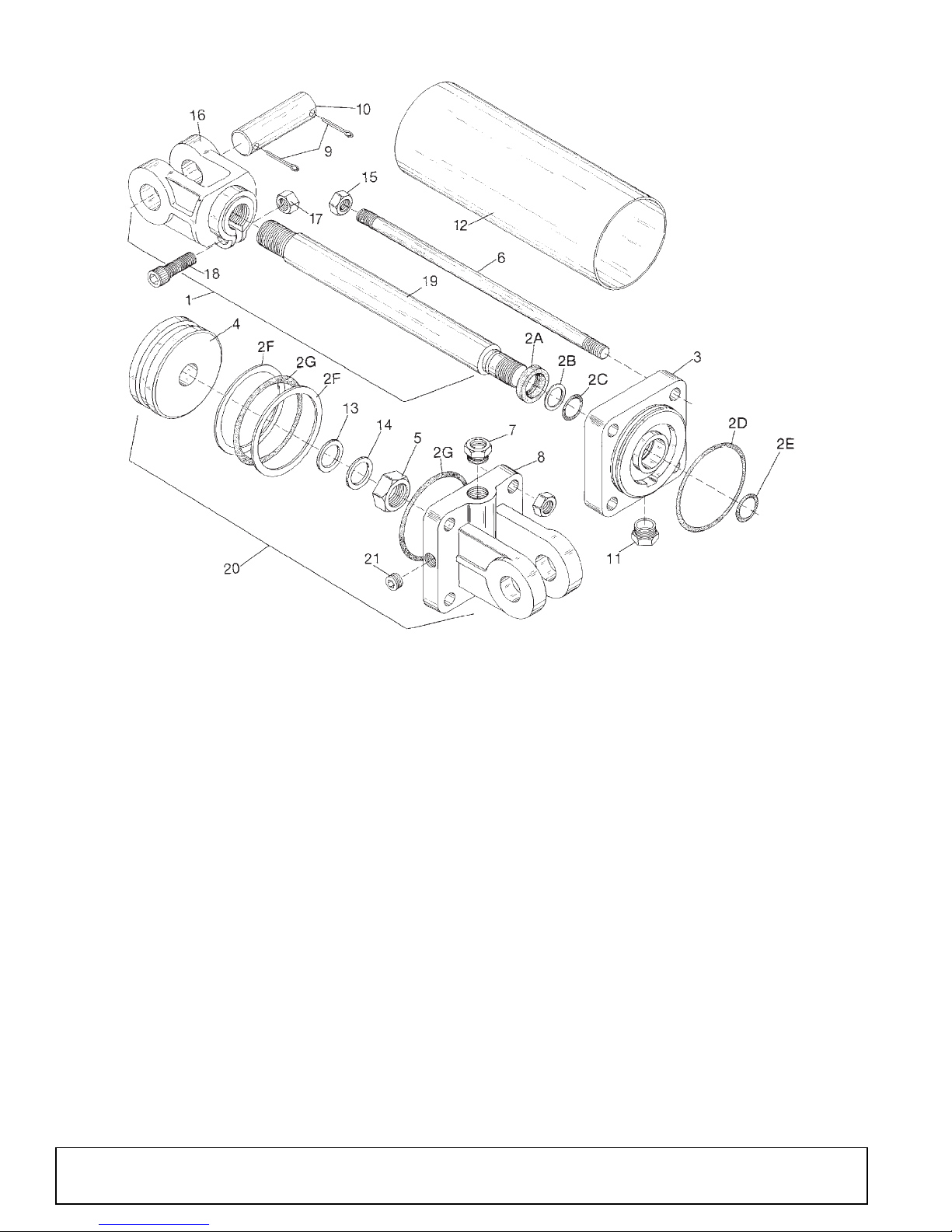

D80-2 3-1/2 X 8" HYDRAULIC CYLINDER #10475 (OPTIONAL)

DC1105

REF PART QTY DESCRIPTION

1 ----- - Not available

2 26340 1 Seal kit (includes 2A thru 2G)
2A † 1 1-1/4 ID Wiper seal
2B † 1 Rod back-up ring
2C † 2 1-1/4 ID O-ring
2D † 2 3/16 x 3-1/2 OD O-ring
2E † 1 3/32 x 3/4 OD O-ring
2F † 2 3-1/2 OD Ba ck-up washer
2G † 1 Piston seal o-ring

3 26338 1 Rod end housing

4 25497 1 Piston

5 254 96 1 1-14 UNS Jam nut

6 26341 4 Tie rod

7 11893* 1 1/2 x 1/4 Pipe reducer bushing

8 25494 1 Cylinder butt end

9 923* 4 1/4 x 1-3/4 Cotter pin

REF PART QTY DESCRIPTION

10 1631 2 1 x 3-5/8 Clevis pin
11 11975 1 1/2 NPT Vent plug -or-
11 23547 1 1/4 NPT Vent plug
12 26342 1 Cylinder barrel
13 ----- - Not required
14 ----- - Not required
15 4391 8 1/2 NF Hex jam nut
16 25661 1 Cylinder rod clevis
17 6698* 1 3/8 NC Hex locknut
18 23550* 1 3/8 NC x 1-1/2 Socket head cap

screw
19 26343 1 Cylinder rod
20 10475 1 Hydraulic cylinder complete (single-

acting)
21 4510* 1 1/2 Pipe plug

* Obtain Locally - Standard Hardware

† Included in Seal Kit

54 Parts

15914 (Rev. 3/23/2007)

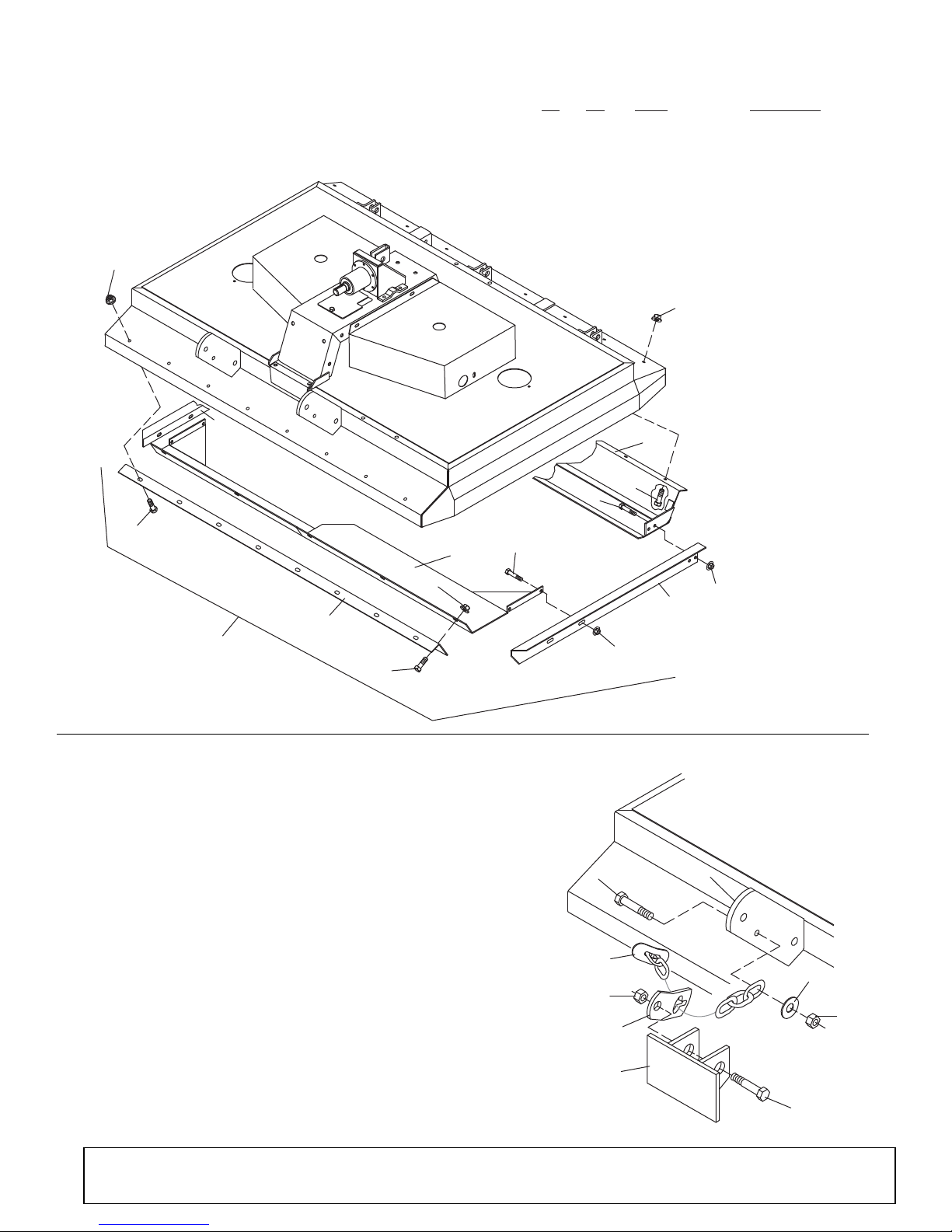

D80-2 & MD80-2 LEAF MULCHER ASSEMBLY (OPTIONAL)

Ref Part No

No

No Used Description
1 8757 1 Leaf mulcher complete
2 29089 1 Leaf mulcher adapter
3 1298 1 Front shield
4 15798 1 Right angle leaf mulcher
5 15797 1 Rear leaf mulcher
6 15799 1 Left side angle leaf mulcher
7 25475 -- 1/2 x 1 Hex head cap screw GR5
8 11900 * -- 1/2 NC Flanged hex locknut

* Obtain Locally

1

8

7

8

7

8

7

8

7

8

7

2

4

3

6

5

CD3853

REF PART QTY DESCRIPTION

- 10521 - Check chain kit complete
1 12274 - 5/8 x 2-1/4 Bolt
2 ----- - Cutter mast plate
3 3632 - 5/8 Flat washer
4 6239 - 5/8 Hex locknut
5 2377 - 3/4 x 6 Bolt
6 ----- - Tractor top link bracket
7 7906 2 Check chain bracket
8 2371 - 3/4 Hex locknut
9 18048 2 3/8 Chain, 32-link

* Obtain Locally - Standard Hardware

15914 (Rev. 3/23/2007)

MD80-2 CHECK CHAIN ASSEMBLY (OPTIONAL)

1

9

2

3

8

4

7

6

CD3826

5

Parts 55

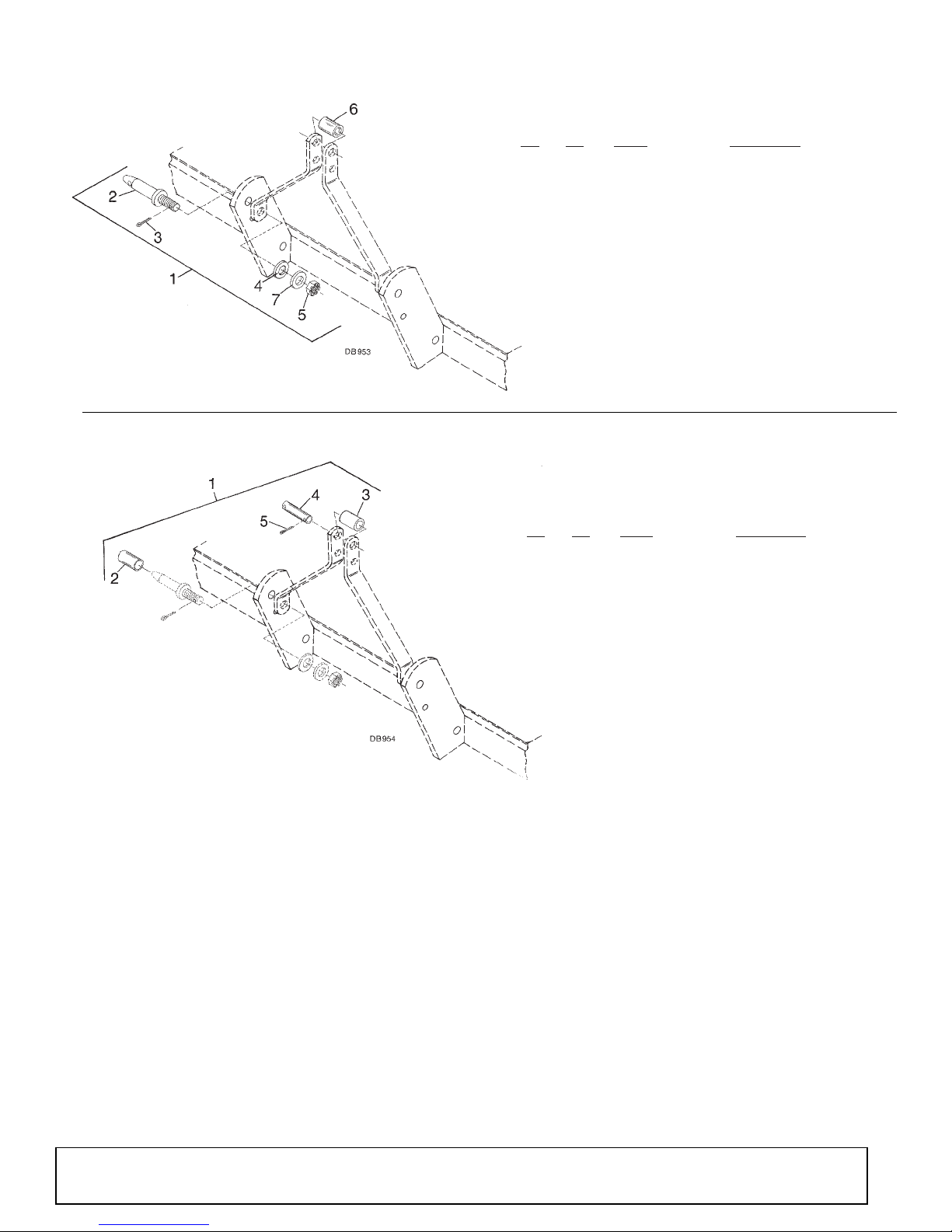

MD80-2 CATEGORY 2 HITCH PIN OPTIONS

Ref Part No

No

No Used Description

1 7112 1 Category 2 hitch bushing

adapter kit
2 3253 2 7/8 x 1-1/8 x 1-3/4 Sleeve
3 7372 1 25/32 x 1 x 2 Sleeve
4 1591 1 3/4 x 4-3/8 Clevis pin
5 1266 * 2 3/16 x 1-1/2 Cotter pin

* Obtain Locally

Ref Part No

No

No Used Description

1 13010 1 Category 2 hitch pin mounting

2 12275 2 Category 2 mounting pin, 6”

3 1266 * 2 3/16 x 1-1/2 Cotter pin
4 13011 2 7/8 x 2-3/8 x 3/16 Flat washer
5 13012 2 7/8 NF Castle hex nut
6 7372 1 25/32 x 1 x 2 Sleeve

* Obtain Locally

MD80-2 CATEGORY 2 BUSHING KIT

kit

long

56 Parts

15914 (Rev. 3/23/2007)

DEALER CHECK LISTS

PRE-DELIVERY CH ECK LIST

(DEALER’S RESPONSIBILITY)

Inspect cutter thoroughly after assembly to be certain it
is set up proper ly before de livering it to cust omer. The
following check list is a reminder of points to in spect.
Check off each item as it is found sa tisfactory, correc­tions made or services performed.

___ Check all bolts to be sure they are tight.
___ Check that all cotter pins are properly installed

and secured.

___ On pull-type cutter, make sure pin to prevent

crank detachment is installed.

___ Check that PTO shaft is properly installed.

NOTICE

■

Gearbox was not filled at factory. It must be
serviced before operating cutter. (See page 18.)
Failure to service will result in damage to gearbox.

___ Check that gearbox is properly serviced and

seals are not leaking.
___ Lub ric ate cut ter.
___ Check that blades have been properly installed.

DELIVERY CHECK LIST

(DEALER’S RESPONSIBILITY)

___ Show customer how to make adjustments.
___ Explain importance of lubrication to customer and

point out lubrication points on cut ter .
___ Point out safety features and options.
___ For mounted units, add wheel weight s, ballast in

front tires, and/or front tractor weig ht to enhance

front end stabilit y. A mini mum 2 0% of t racto r and

equipment gross weight mus t be on front tractor

wheels. When adding weight to attain 20% of

tractor and equipment weight on front tractor

wheels, you must not exceed the ROPS weight

certification. Weigh the tractor and equipment. Do

not estimate!
___ Giv e Operator's Manual to c ustomer and recom-

mend that custom er b ec ome fa mil iar wi th all se c-

tions, especially the safety information.
___ Expl ai n to cus tom er tha t whe n tr anspo rt ing cu tter

on road or highway, day or night, sa fety devices

should be used to provide adequate warning to

operators of other vehicles.

15914 (Rev.5/11/2007)

Dealer Check Lists 57

BOLT TORQUE CHART

A

SAE SERIES
TORQUE
CHART

SAE Bolt Head

Identification

SAE Grade 2

(No Dashes)

SAE Grade 5

(3 Radial Dashes)

SAE Grade 8

(6 Radial Dashes)

A

METRIC SERIES
TORQUE
CHART

Metric Bolt Head

Identification

8.8

Metric

Grade 10.9

10.9

Metric

Grade 8.8

A

A

Typical Washer
Installations

Lock Washer

Flat Washer

8/9/00

Bolt

Always tighten hardware to these values unless a different torque value or tightening procedure is listed for a specific
application.

Fasteners must always be replaced with the same grade as specified in the manual parts list.
Always use the proper tool for tightening hardware: SAE for SAE hardware and Metric for metric hardware.
Make sure fastener threads are clean and you start thread engagement properly.
All torque values are given to specifications used on hardware defined by SAE J1701 MAR 99 & J1701M JUL 96.

MARKING ON HEAD

Diameter

(Inches)

1/4" 7/16" 6 8 10 13 14 18

5/16"1/2"121719262737

3/8"9/16"233135474967

7/16"5/8"3648557578106

1/2" 3/4" 55 75 85 115 120 163

9/16" 13/16" 78 106 121 164 171 232

5/8" 15/16" 110 149 170 230 240 325
3/4" 1-1/8" 192 261 297 403 420 569
7/8" 1-5/16" 306 416 474 642 669 907

1" 1-1/2" 467 634 722 979 1020 1383

Wrench

Size

lbs-ft N-m lbs-ft N-m lbs-ft N-m

SAE 2 SAE 5 SAE 8

Marking on Head Marking on Head

Diameter &
Thread Pitch
(Millimeters)

6 x 1.0 10 mm 8 6 11 8 8 6 11 8 6 x 1.0
8 x 1.25 13 mm 20 15 27 20 21 16 29 22 8 x 1.0
10 x 1.5 16 mm 39 29 54 40 41 30 57 42 10 x 1.25

12 x 1.75 18 mm 68 50 94 70 75 55 103 76 12 x 1.25

14 x 2.0 21 mm 109 80 151 111 118 87 163 120 14 x 1.5
16 x 2.0 24 mm 169 125 234 173 181 133 250 184 16 x 1.5
18 x 2.5 27 mm 234 172 323 239 263 194 363 268 18 x 1.5
20 x 2.5 30 mm 330 244 457 337 367 270 507 374 20 x 1.5
22 x 2.5 34 mm 451 332 623 460 495 365 684 505 22 x 1.5
24 x 3.0 36 mm 571 421 790 583 623 459 861 635 24 x 2.0
30 x 3.0 46 mm 1175 867 1626 1199 1258 928 1740 1283 30 x 2.0

Bolt Torque & Size Charts (Rev. 3/28/2007)

Wrench

Size

Metric 8.8 Metric 10.9 Metric 8.8 Metric 10.9

N-m lbs-ft N-m lbs-ft N-m lbs-ft N-m lbs-ft

Coarse Thread Fine Thread

Appendix 58

A

Diameter &
Thread Pitch
(Millimeters)

BOLT SIZE CHART

5/16 3/8 1/2 5/8 3/4 7/8

SAE Bolt Thread Sizes

MM 25 50 75 100 125 150 175

IN 1 7

Metric Bolt Thread Sizes

8MM 18MM14MM12MM10MM 16MM

2

34

5

6

NOTE: Chart shows bolt thread sizes and corresponding head (wrench) sizes for standard SAE and metric bolts.

ABBREVIATIONS

AG...............................................................Agriculture

ASABE....................American Society of Agricultural &

Biological Engineers (formerly ASAE)

ASAE .......American Society of Agric ultural Engineers

ATF...............................Automatic Transmission Fluid

BSPP ............................British Standard Pipe Parallel

BSPTM................British Standard Pipe Tapered Male

CV....................................................Constant Velocity

CCW ..............................................Counter-Clockwise

CW...............................................................Clockwise

F .......................................................................Female

FT........................................... ....................Full Thread

GA.....................................................................Gauge

GR (5, etc.) ...........................................Grade (5, etc.)

HHCS........................................ Hex Head Cap Screw

HT........................................................... Heat-Treated

JIC..............................Joint Industry Council 37° Flare

LH ................................................................Left Hand

LT ...........................................................................Left

m.........................................................................Meter

mm................................................................Millimeter

M..........................................................................Male

MPa.........................................................Mega Pascal

N......................................................................Newton

NC ......................................................National Coarse

NF...........................................................National Fine

NPSM.................... National Pipe Straight Mechanical

NPT ..........................................National Pipe Tapered

NPT SWF ........ National Pipe Tapered Swivel Female

ORBM...........................................O-Ring Boss - Male

P.......................................................................... Pitch

PBY ......................................................Power-Beyond

psi..........................................Pounds per Square Inch

PTO....................................................Power Take Off

QD...................................................Quick Disconnect

RH ............................................................. Right Hand

ROPS ...........................Roll-Over Protective Structure

RPM........................................Revolutions Per Minute

RT........................................................................Right

SAE .........................Society of Automotive Engineers

UNC......................................................Unified Coarse

UNF..........................................................Unified Fine

UNS..................................................... Unified Special

59 Appendix

Bolt Torque & Size Charts (Rev. 3/28/2007)

INDEX

A

ASSEMBLY

Dealer Set-Up Instructions

28

Blade Installation
Chain Shielding Installation
Distribution Baffle Installation
Gearbox Lubrication
MD80 Assembly
Optional Hydraulic Installation for D80-2 Pull-Type

Cutter
Tongue Installation for D80-2 Pull-Type Cutter
Wheel Yoke Installation for D80-2 Pull-Type Cutter

28

33

32

30

Optional Check Chain Installation
Optional Leaf Mulcher Installation

C

CATION

29

D

DEALER CHECK LISTS

Delivery
Pre-Delivery

DEALER SERVICE

Blade Spindle Repair
Gearbox Maintenance

Servicing Tires Safely
Shield Bearing Service
Troubleshooting
Universal Joint Repair

57

57

22

23

Assembly

23

22

Bearing Check
Damage Inspection
Gearbox Adjustment
Gearbox Assembly
Gearbox Disassembly
Leakage Repair
Possible Leakage Causes
Removing Gearbox from Cutter
Seal Installation

22

22

23

26

27

24

U-Joint Assembly
U-Joint Disassembly

25

G

57

22

23

24

28

29

23

22

24

29

22

28

35
34

22

31

Introduction
Obtaining Replacement Manuals
Product Registration
Warranty

2

2

Product
Replacement Parts

61

62

O

OPERATION

Attaching Mounted Cutter to Tractor

13

Cutting Height Adjustment

For MD80 Mounted Cutter 15
With Tailwheel or Check Chains 15
Without Tail-wheel or Check Chains 15

MD80 Mounting

Attaching Pull-Type Cutter to Tractor

Cutting Height Adjustment

13

For D80 Pull-Type Cutter 16

Operating technique

Tips

17

Uneven Terrain
Pre-Operation Check List
Starting and stopping Cutter
Storage
Tractor Stability

OWNER SERVICE

Blade Servicing

Chain Shielding
Lubrication Information
Servicing Tires Safely

OWNERS SERVICE

17

Blade Installation

Blade Removal

Blade Sharpening

16

17

16

13

18

20

19

20

20

18

21

18

S

SAFETY

Check Lists

Delivery

Pre-Delivery

Pre-Operation
Safety & Instructional Decals
Safety Rules
Safety Symbols Explained

57

57

16

7

2

15

16

10

2

GENERAL

Abbreviations
Bolt Size Chart
Bolt Torque Chart

15914 (Rev. 3/23/2007)

59

59

58

T

TROUBLE

27

Index 60

WARRANTY

All Models Except Mow’n MachineTM Zero-Turn Mowers

Please Enter Information Below and Save for Future Reference.

Date Purchased: ____________________________ From (Dealer): __________________________________________

Model Number: ____________________________ Serial Number: __________________________________________

Woods Equipment Company (“WOODS”) warrants this product to be free from defect in material and workmanship. Except as otherwise set forth
below, the duration of this Warranty shall be for TWELVE (12) MONTHS COMMENCING ON THE DATE OF DELIVERY OF THE
PRODUCT TO THE ORIGINAL PURCHASER.



All current model backhoes, loaders and mounts (except 3-pt. SAF-T-LOK
the original purchaser. The limited warranty covers any defects in the material and/or workmanship. Following the proper, recommended
installation by an authorized Woods Dealer and normal use of a Woods mounting and backhoe or loader, if a tractor incurs damage resulting from
the attachment, Woods will cover the existing tractor warranty in the event the manufacturer voids its tractor warranty because of the attachment.
Warranty does not cover any misuse or abusive conditions that could cause premature wear or damage to attachment or tractor.

The warranty periods for specific parts or conditions are listed below:

Part or

Condition

Warranted

All units invoiced after 4/30/2012

BB48X, BB60X, BB72X, BB84X, BB600X, BB720X, BB840X, BB6000X, BB7200X, BB8400X,
DS12.50, TS14.60, DS1440, TS1680, DS8.30, DS10.40, DS8.50, DSO8.50, DS10.50, DSO10.50,
DBH5.30, DBH6.30

BW12, BW15, BW126X, BW180X, BW126XHD, BW180XHD, BW1260X, BW1800X
BW10.50, BW10.50Q, BW15.50, BW15.50Q, BW10.60, BW10.60Q, BW15.60, BW15.60Q,

Gearbox

components

Blade

spindles

Under no circumstances will this Warranty apply in the event that the product, in the good faith opinion of WOODS, has been subjected to
improper operation, improper maintenance, misuse, or an accident. This Warranty does not apply in the event that the product has been materially
modified or repaired by someone other than WOODS, a WOODS authorized dealer or distributor, and/or a WOODS authorized service center.
This Warranty does not cover normal wear or tear, or normal maintenance items. This Warranty also does not cover repairs made with parts other
than those obtainable through WOODS.

This Warranty is extended solely to the original purchaser of the product. Should the original purchaser sell or otherwise transfer this product to a
third party, this Warranty does not transfer to the third party purchaser in any way. There are no third party beneficiaries of this Warranty.

WOODS makes no warranty, express or implied, with respect to engines, batteries, tires or other parts or accessories not manufactured by
WOODS. Warranties for these items, if any, are provided separately by their respective manufacturers.

WOODS’ obligation under this Warranty is limited to, at WOODS’ option, the repair or replacement, free of charge, of the product if WOODS, in
its sole discretion, deems it to be defective or in noncompliance with this Warranty. The product must be returned to WOODS with proof of

purchase within thirty (30) days after such defect or noncompliance is discovered or should have been discovered, routed through the
dealer and distributor from whom the purchase was made, transportation charges prepaid. WOODS shall complete such repair or

replacement within a reasonable time after WOODS receives the product. THERE ARE NO OTHER REMEDIES UNDER THIS WARRANTY.
THE REMEDY OF REPAIR OR REPLACEMENT IS THE SOLE AND EXCLUSIVE REMEDY UNDER THIS WARRANTY.

THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE OF THIS WARRANTY. WOODS
MAKES NO OTHER WARRANTY, EXPRESS OR IMPLIED, AND WOODS SPECIFICALLY DISCLAIMS ANY IMPLIED WARRANTY
OF MERCHANTABILITY AND/OR ANY IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE.

WOODS shall not be liable for any incidental or consequential losses, damages or expenses, arising directly or indirectly from the
product, whether such claim is based upon breach of contract, breach of warranty, negligence, strict liability in tort or any other legal
theory. Without limiting the generality of the foregoing, Woods specifically disclaims any damages relating to (i) lost profits, business, revenues

or goodwill; (ii) loss of crops; (iii) loss because of delay in harvesting; (iv) any expense or loss incurred for labor, supplies, substitute machinery or
rental; or (v) any other type of damage to property or economic loss.

This Warranty is subject to any existing conditions of supply which may directly affect WOODS’ ability to obtain materials or manufacture
replacement parts.

WOODS

BW10.70, BW10.70Q, BW15.70, BW15.70Q

BW240X, BW240XHD, BW1620X, BW2400X

RD990X, PRD6000, PRD7200, PRD8400, S15CD, S20CD, S22CD, S25CD, S27CD, S30CD, TC/
R74, TC/R68, TC/R60, TBW144, TBW180, TBW204, TSG50, S12ED, S15ED, S18ED, S20ED,
TPD25, TPD35, TPD65, TPD95

RDC54, RD60, RD72, TBW150C, TS/R60, TS/R52, TS/R44, RC3.5, RC4, RC5, RC6

RD990X, PRD6000, PRD7200, PRD8400, TBW144, TBW180, TBW204 3 years

®|

A Blount International Brand

Model Number

No agent, representative, dealer, distributor, serviceperson, salesperson, or employee of

2606 South Illinois Route 2
Post Office Box 1000
Oregon, Illinois 61061 USA

800-319-6637 tel
800-399-6637 fax
woodsequipment.com

mounts) are warranted for two (2) years from the date of delivery to

Duration (from date of
delivery to the original

purchaser)

6 years

3 years (1 year if used in rental or
commercial applications)

F-3079 (Rev. 7/31/2017)

WARRANTY

(Replacement Parts For All Models Except Mow’n Machine

Zero-Turn Mowers and Woods BoundaryTM Utility Vehicles)

Woods Equipment Company (“WOODS”) warrants this product to be free from defect in material and
workmanship for a period of ninety (90) days from the date of delivery of the product to the original purchaser
with the exception of V-belts, which will be free of defect in material and workmanship for a period of 12 months.

Under no circumstances will this Warranty apply in the event that the product, in the good faith opinion of
WOODS, has been subjected to improper operation, improper maintenance, misuse, or an accident. This Warranty
does not cover normal wear or tear, or normal maintenance items.

This Warranty is extended solely to the original purchaser of the product. Should the original purchaser sell or
otherwise transfer this product to a third party, this Warranty does not transfer to the third party purchaser in any
way. There are no third party beneficiaries of this Warranty.

WOODS’ obligation under this Warranty is limited to, at WOODS’ option, the repair or replacement, free of
charge, of the product if WOODS, in its sole discretion, deems it to be defective or in noncompliance with this
Warranty. The product must be returned to WOODS with proof of purchase within thirty (30) days after

such defect or noncompliance is discovered or should have been discovered, routed through the dealer and
distributor from whom the purchase was made, transportation charges prepaid. WOODS shall complete

such repair or replacement within a reasonable time after WOODS receives the product. THERE ARE NO
OTHER REMEDIES UNDER THIS WARRANTY. THE REMEDY OF REPAIR OR REPLACEMENT IS THE
SOLE AND EXCLUSIVE REMEDY UNDER THIS WARRANTY.

THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE OF THIS
WARRANTY. WOODS MAKES NO OTHER WARRANTY, EXPRESS OR IMPLIED, AND WOODS
SPECIFICALLY DISCLAIMS ANY IMPLIED WARRANTY OF MERCHANTABILITY AND/OR ANY
IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE.

TM

WOODS shall not be liable for any incidental or consequential losses, damages or expenses, arising directly
or indirectly from the product, whether such claim is based upon breach of contract, breach of warranty,
negligence, strict liability in tort or any other legal theory. Without limiting the generality of the foregoing,

Woods specifically disclaims any damages relating to (i) lost profits, business, revenues or goodwill; (ii) loss of
crops; (iii) loss because of delay in harvesting; (iv) any expense or loss incurred for labor, supplies, substitute
machinery or rental; or (v) any other type of damage to property or economic loss.

This Warranty is subject to any existing conditions of supply which may directly affect WOODS’ ability to obtain
materials or manufacture replacement parts.

No agent, representative, dealer, distributor, service person, salesperson, or employee of any company, including
without limitation, WOODS, its authorized dealers, distributors, and service centers, is authorized to alter, modify,
or enlarge this Warranty.

Answers to any questions regarding warranty service and locations may be obtained by contacting:

WOODS

2606 South Illinois Route 2
Post Office Box 1000
Oregon, Illinois 61061 USA

800-319-6637 tel
800-399-6637 fax
woodsequipment.com

®|

A Blount International Brand

©2017 Woods Equipment Company. All rights reserved. Woods
trademarks, trade names, or service marks not owned by Woods Equipment Company that appear in this manual are the property of their respective
companies or mark holders. Specifications subject to change without notice.

F-8494 (Rev. 1/3/2017)

®

and the Woods logo are trademarks of Woods Equipment Company. All other
