Page 1
For more information contact…
WOODFORD MANUFACTURING COMPANY
A Division of WCM Industries, Inc.
(Step 5)
Drain Hole
1. Water leaks from the diverter nozzle when the hydrant is off.
5. Water leaks from the diverter while the hydrant is on and the
diverter is pulled down.
6. Hydrant will not flow water through the backflow preventer when
the hydrant is on.
Valve Body
Handle “Snap”
Packing Nut
Diverter
Backflow
Pipe
Rev 06/15 Form No.TMYH-1.104
2121 Waynoka Road, Colorado Springs, Colorado 80915 • Phone: (800) 621-6032 • Fax: (800) 765-4115
To view our complete product line visit: www.woodfordmfg.com or email: [email protected]

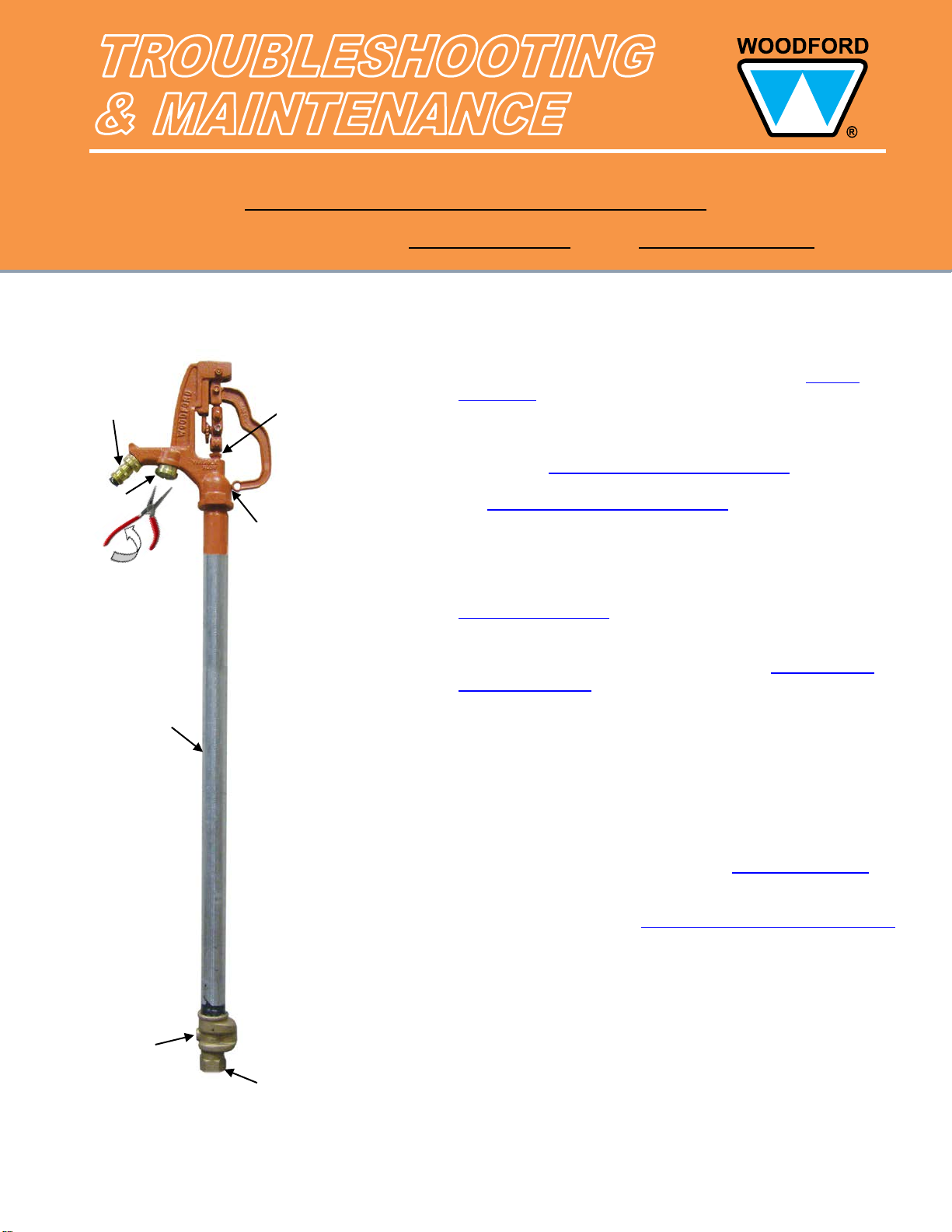

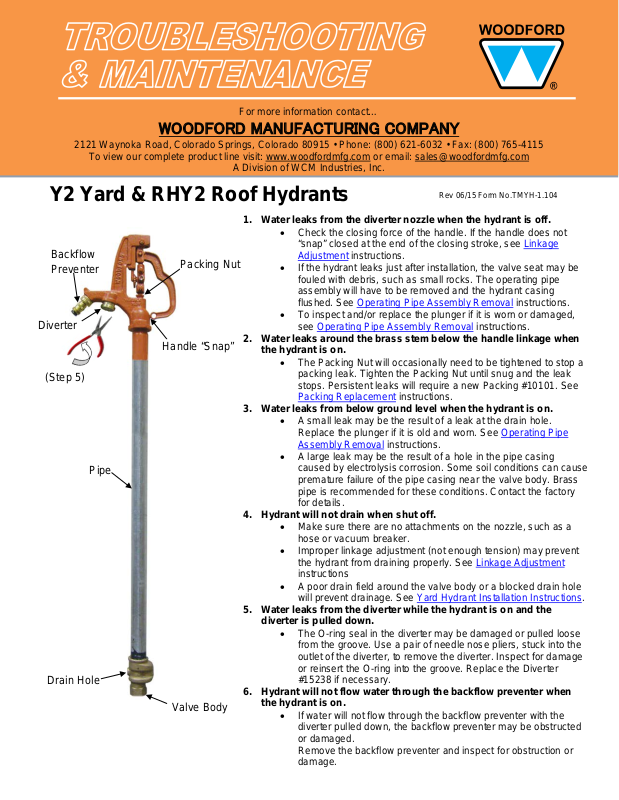

Y2 Yard & RHY2 Roof Hydrants
• Check the closing force of the handle. If the handle does not
2. Water leaks around the brass stem below the handle linkage when
the hydrant is on.
3. Water leaks from below ground level when the hydrant is on.
4. Hydrant will not drain when shut off.
“snap” closed at the end of the closing stroke, see
Adjustment instructions.
• If the hydrant leaks just after installation, the valve seat may be
fouled with debris, such as small rocks. The operating pipe
assembly will have to be removed and the hydrant casing
flushed. See Operating Pipe Assembly Removal
• To inspect and/or replace the plunger if it is worn or damaged,
see Operating Pipe Assembly Removal
• The Packing Nut will occasionally need to be tightened to stop a
packing leak. Tighten the Packing Nut until snug and the leak
stops. Persistent leaks will require a new Packing #10101. See
Packing Replacement
• A small leak may be the result of a leak at the drain hole.
Replace the plunger if it is old and worn. See
Assembly Removal instructions.
• A large leak may be the result of a hole in the pipe casing
caused by electrolysis corrosion. Some soil conditions can cause
premature failure of the pipe casing near the valve body. Brass
pipe is recommended for these conditions. Contact the factory
for details.
• Make sure there are no attachments on the nozzle, such as a
hose or vacuum breaker.
• Improper linkage adjustment (not enough tension) may prevent
the hydrant from draining properly. See Linkage Adjustment
instructions
• A poor drain field around the valve body or a blocked drain hole
will prevent drainage. See Yard Hydrant Installation Instructions
Linkage
instructions.
instructions.
instructions.
Operating Pipe
.
• The O-ring seal in the diverter may be damaged or pulled loose
from the groove. Use a pair of needle nose pliers, stuck into the
outlet of the diverter, to remove the diverter. Inspect for damage
or reinsert the O-ring into the groove. Replace the Diverter
#15238 if necessary.
• If water will not flow through the backflow preventer with the
diverter pulled down, the backflow preventer may be obstructed
or damaged.
Remove the backflow preventer and inspect for obstruction or
damage.
