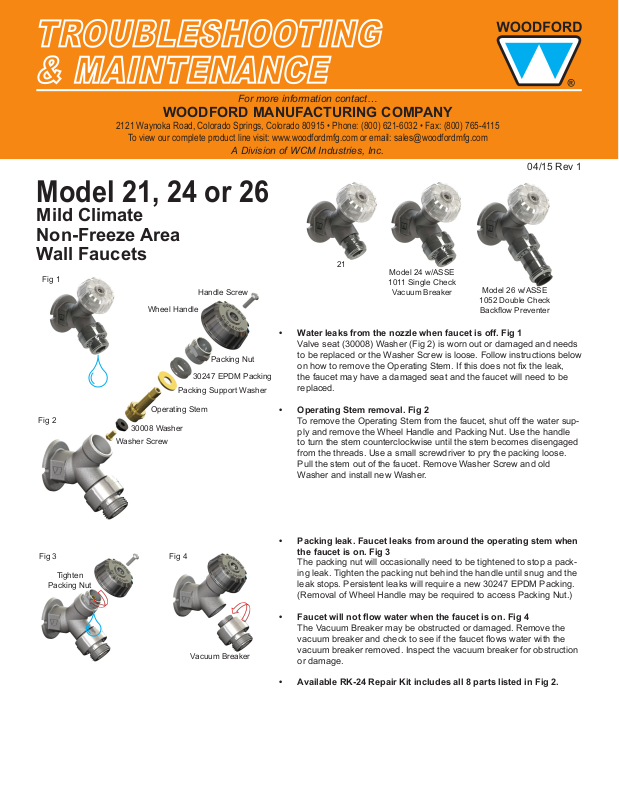

Woodford 24P1/2-PC User Guide

For more information contact…

WOODFORD MANUFACTURING COMPANY

2121 Waynoka Road, Colorado Springs, Colorado 80915 • Phone: [phone] • Fax: [phone]

To view our complete product line visit: www.woodfordmfg.com or email: [email protected]

A Division of WCM Industries, Inc.

Model 21, 24 or 26

Mild Climate
Non-Freeze Area

04/15 Rev 1

Wall Faucets

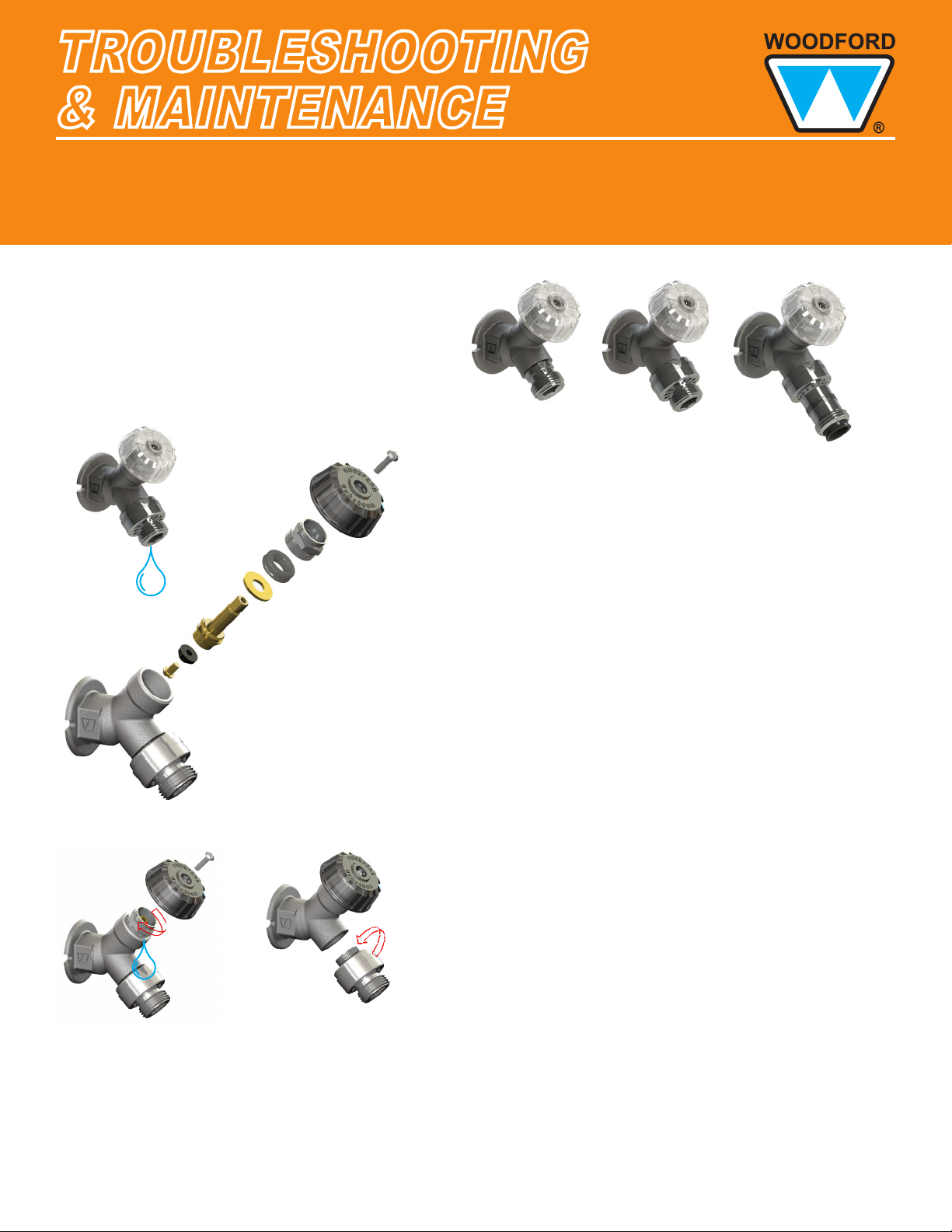

Fig 1

Fig 2

Fig 3

Tighten

Packing Nut

30008 Washer

Washer Screw

Handle Screw

Wheel Handle

30247 EPDM Packing

Packing Support Washer

Operating Stem

Fig 4

Packing Nut

21

• Water leaks from the nozzle when faucet is off. Fig 1

Valve seat (30008) Washer (Fig 2) is worn out or damaged and needs
to be replaced or the Washer Screw is loose. Follow instructions below

on how to remove the Operating Stem. If this does not x the leak,

the faucet may have a damaged seat and the faucet will need to be
replaced.

• Operating Stem removal. Fig 2

To remove the Operating Stem from the faucet, shut off the water sup­ply and remove the Wheel Handle and Packing Nut. Use the handle
to turn the stem counterclockwise until the stem becomes disengaged
from the threads. Use a small screwdriver to pry the packing loose.

Pull the stem out of the faucet. Remove Washer Screw and old
Washer and install new Washer.

• Packing leak. Faucet leaks from around the operating stem when
the faucet is on. Fig 3

The packing nut will occasionally need to be tightened to stop a pack­ing leak. Tighten the packing nut behind the handle until snug and the
leak stops. Persistent leaks will require a new 30247 EPDM Packing.
(Removal of Wheel Handle may be required to access Packing Nut.)

Model 24 w/ASSE

1011 Single Check

Vacuum Breaker

Model 26 w/ASSE

1052 Double Check

Backow Preventer

Vacuum Breaker

• Faucet will not ow water when the faucet is on. Fig 4

The Vacuum Breaker may be obstructed or damaged. Remove the
vacuum breaker and check to see if the faucet ows water with the
vacuum breaker removed. Inspect the vacuum breaker for obstruction

or damage.

• Available RK-24 Repair Kit includes all 8 parts listed in Fig 2.
