WOODCO Nova 2 Technical Manual

2

TECHNICAL
MANUAL

NOVA 2

VACUUM UNIT

1/04/17 Rev:1.0.0

3

• Type: automatic feed system for biomass boilers

• Model: Nova 2

• Version 1.0.0

Line

NOVA 2

INSTRUCTION MANUAL

1 GENERAL INFORMATION 5

1.1 How to use the manual 5

1.2 Description of the vacuum unit 5
2 TECHNICAL DATA 6
3 CONSTRUCTION FEATURES 8

3.1 Set 9
4 SAFETY FEATURES 10

4.1 IP protection degree 11

4.2 Electrical insulation degree 11

4.3 Declaration of absence of dangerous substances 11

4.4 Fixed closure guards safety 11

4.5 Movable closure guards safety 12

4.6 Identifi cation plate 12

5 AUTHORIZED USE OF THE VACUUM CLEANER 13
6 UNAUTHORIZED USE OF THE VACUUM CLEANER 13
7 EQUIPMENT AND ACCESSORIES 14
8 INSTALLATION 15

8.1 Preliminary operations 15

8.2 Place of installation 15

8.3 Positioning of the vacuum cleaning unit 16

8.4 Fixing the system to the wall 16

8.5 Connection to pipes (see appendix A) 17

8.6 Instructions to install Woodco systems 18
9 STARTING THE VACUUM UNIT 19

9.1 Electrical connection 19

10 USE OF THE VACUUM UNIT 20
11 MAINTENANCE 21

11.1 Programmed routine maintenance 21

11.2 Emptying the dust bin 22

11.3 Dust collection, transfer and disposal 23

11.4 Filter cartridge maintenance 23
12 REPAIRS AND SPARE PARTS 24

12.1 Intervention criteria 24

12.2 Recommended spare parts 24

INDEX

1/04/17 Rev:1.0.0

In order to reach the best results, we recommend to use only WOODCO original spare parts.

• Type: automatic feed system for biomass boilers

• Model: Nova 2

• Version 1.0.0

INSTRUCTION MANUAL

Line

NOVA 2

4

INTRODUCTION

Dear Customer,

We would like to thank you for having
chosen Nova 2 vacuum unit, the new vacuum cleaner that will meet your requirements.
Nova unit has been designed and produced in strict compliance with the Machinery Directive
2006/42/CE (transposed into Italian Legislation by Decree Law 17/10), Low Tension Directive 2006/95/
CE, and Electromagnetic Compatibility Directive 2004/108/CE. The system has been manufactured
with top quality materials and with particular care paid to reduction of injury risk as much as possible.

Therefore we have written this manual in order to provide adequate instructions for the correct use and
maintenance of the system which are crucial to ensure the user’s safety, the correct functioning and the
long working life of the vacuum cleaning unit.

Please read the entire manual carefully , follow the instructions precisely, and above all, for safe­ty reasons, do not intervene in any way if not specifi cally indicated.

12.3 Putting the suction unit out of service 24

13 Sound emission 25
14 IDEAL LOCATION OF THE UNIT TO REDUCE SOUND EMISSION 25
15 VIBRATIONS 25
16 TROUBLE SHOOTING 26
17 WARRANTY 27

APPENDIX A Installation examples with Nova 2 vacuum unit 29

INDEX

OUT

C

C

A-P

A-P

A

C

A

A

C

1

2

6

7

3

4

5

8

OUT

C

C

A-P

A-P

A

C

A

A

C

1

2

3

4

5

1/04/17 Rev:1.0.0

5

English

1 - GENERAL INFORMATION

1.1 How to use the manual

The instruction manual has been written by the manufacturer and is an integral part of the
product, it doesn’t substitute but it completes the application fi eld specifi c rules and the general
safety rules for people, animals and objects. (EN 60204-1)
If the system is resold, given or hired out to others, the manual must be handed over to the
new user or owner.
We recommend to use and store it carefully for the entire working life of the vacuum cleaner.
This manual explains how to use the equipment correctly in order to obtain the best performan­ce with optimal working and safety conditions.
It is strictly forbidden to reproduce, copy or disclose any part of this document by any means
without prior written consent of the Producer.
The Producer reserves the right to upgrade or modify this manual or the vacuum cleaner itself
at anytime without giving any prior notice to third parties.

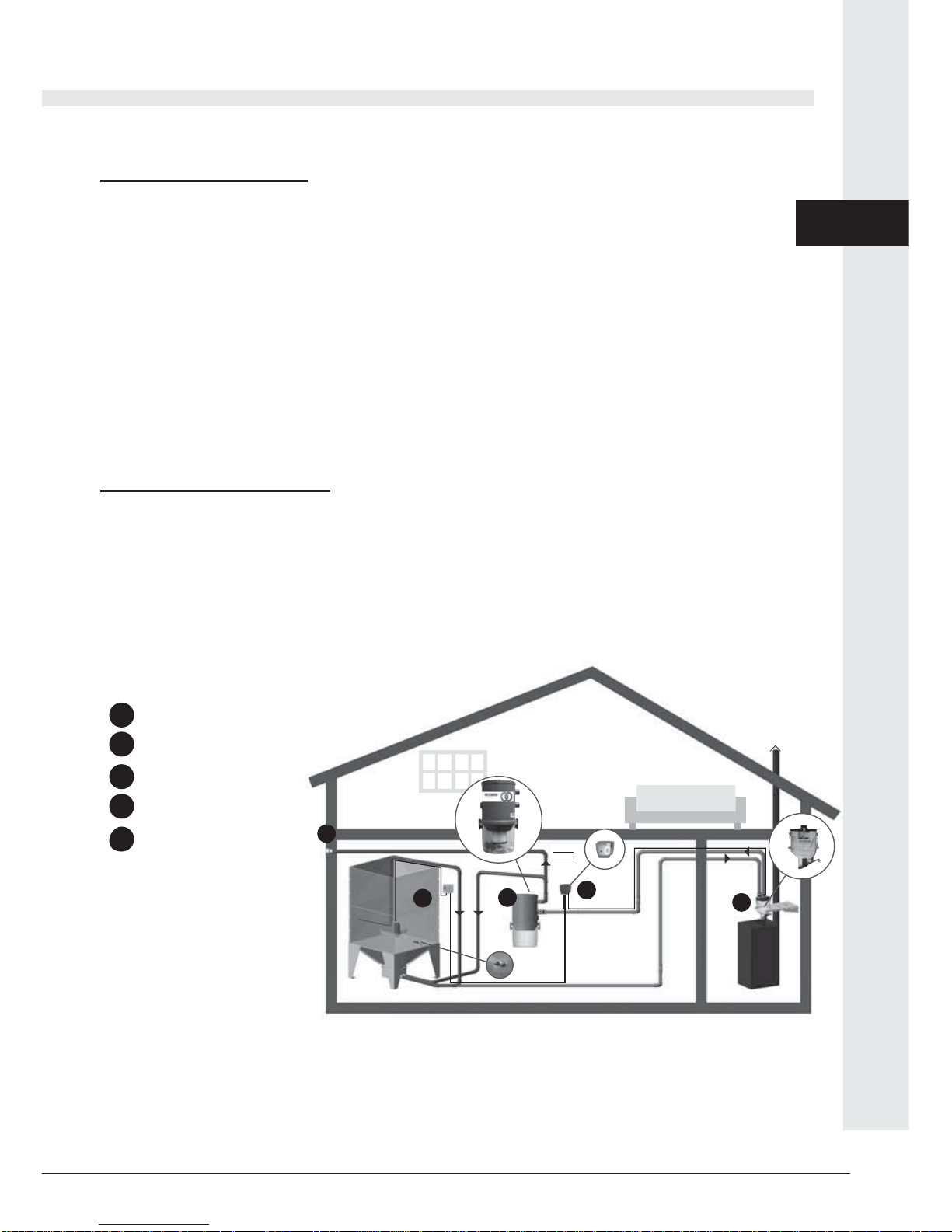

1.2 Description of the system

Nova vacuum units have been produced after constant research, applied to automatic systems
for pellet transport.

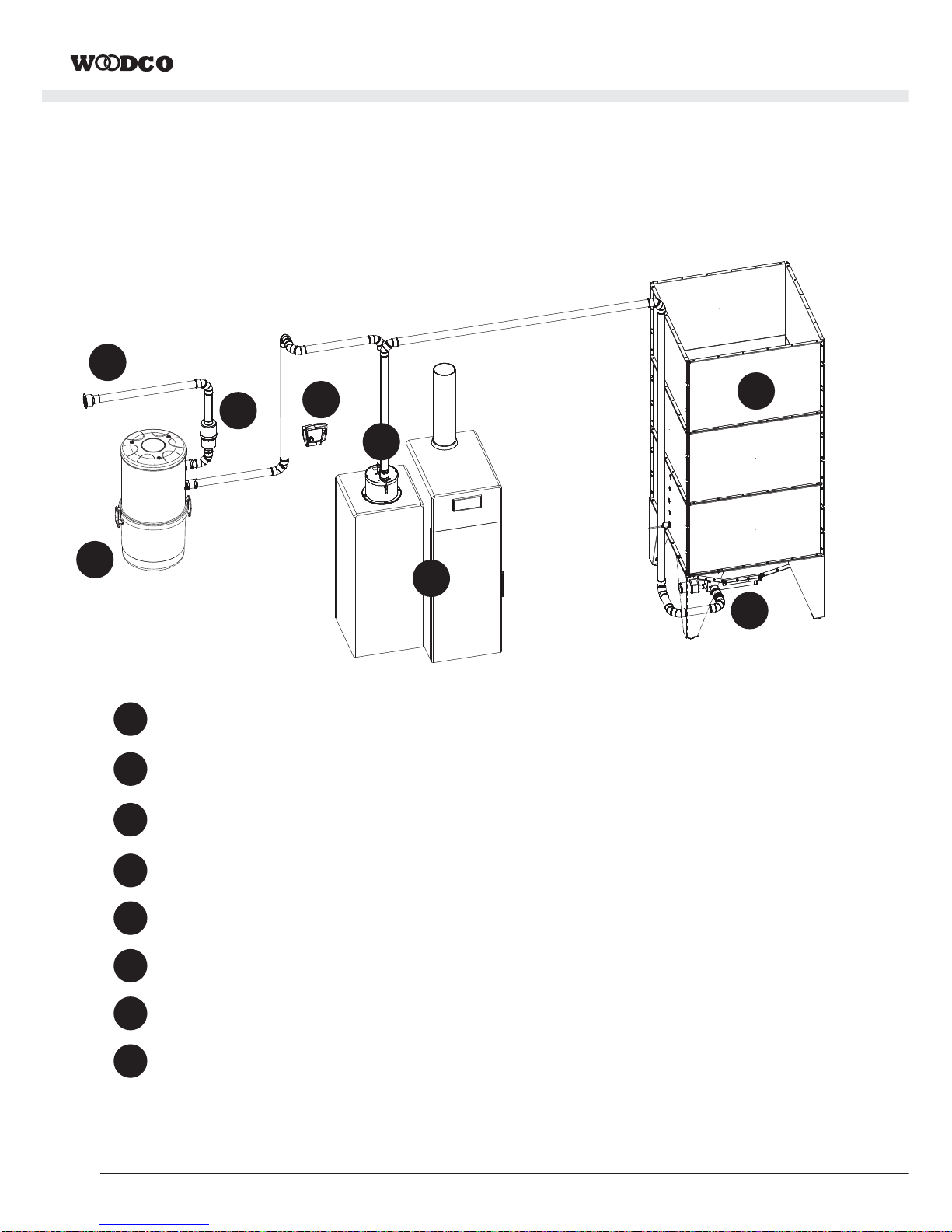

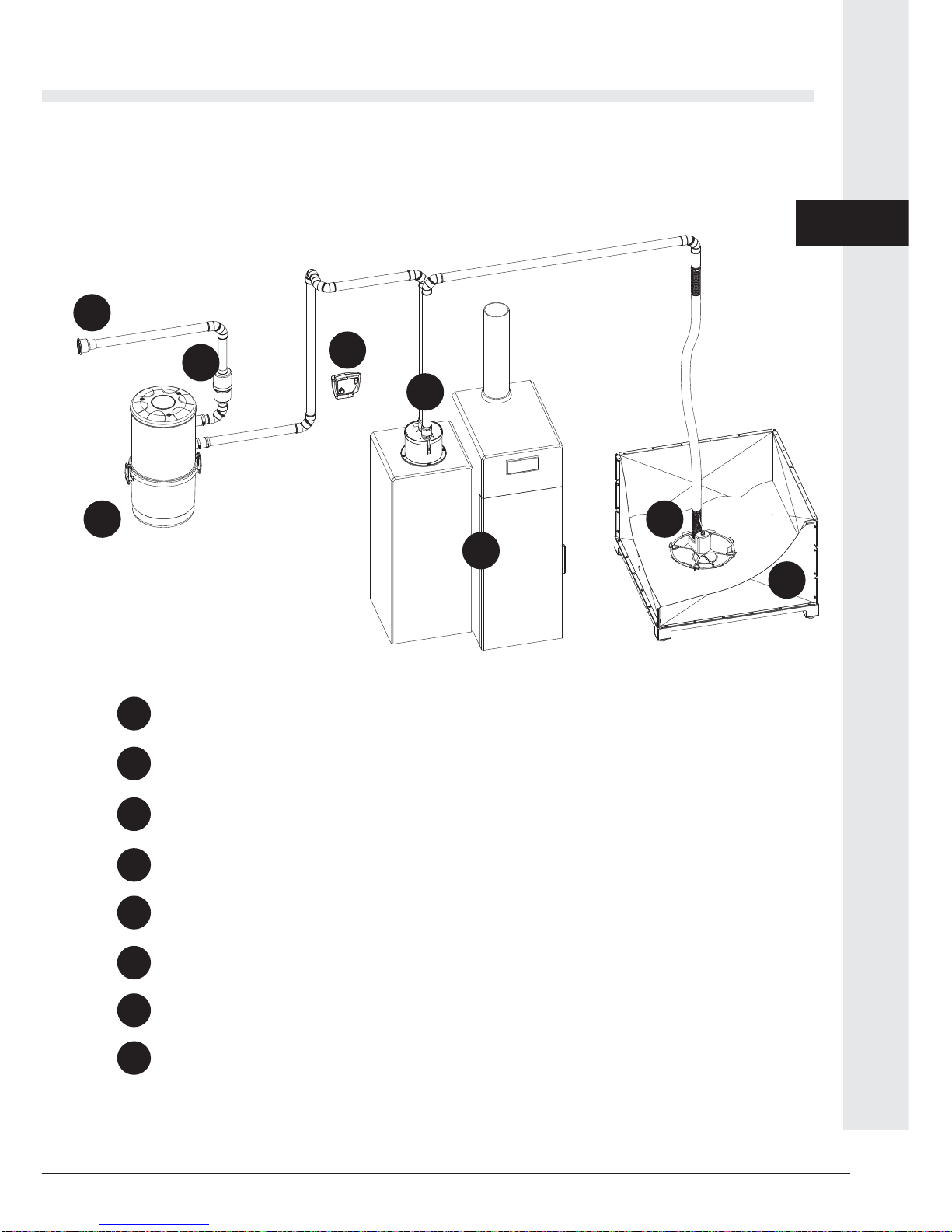

Woodco system consists of a network of pipes with three main elements: the vacuum unit, the
Dispenser and the stock container.
It is easy to install, universal, it is a complete system that makes more convenient and cheaper
the use of biomass boilers.

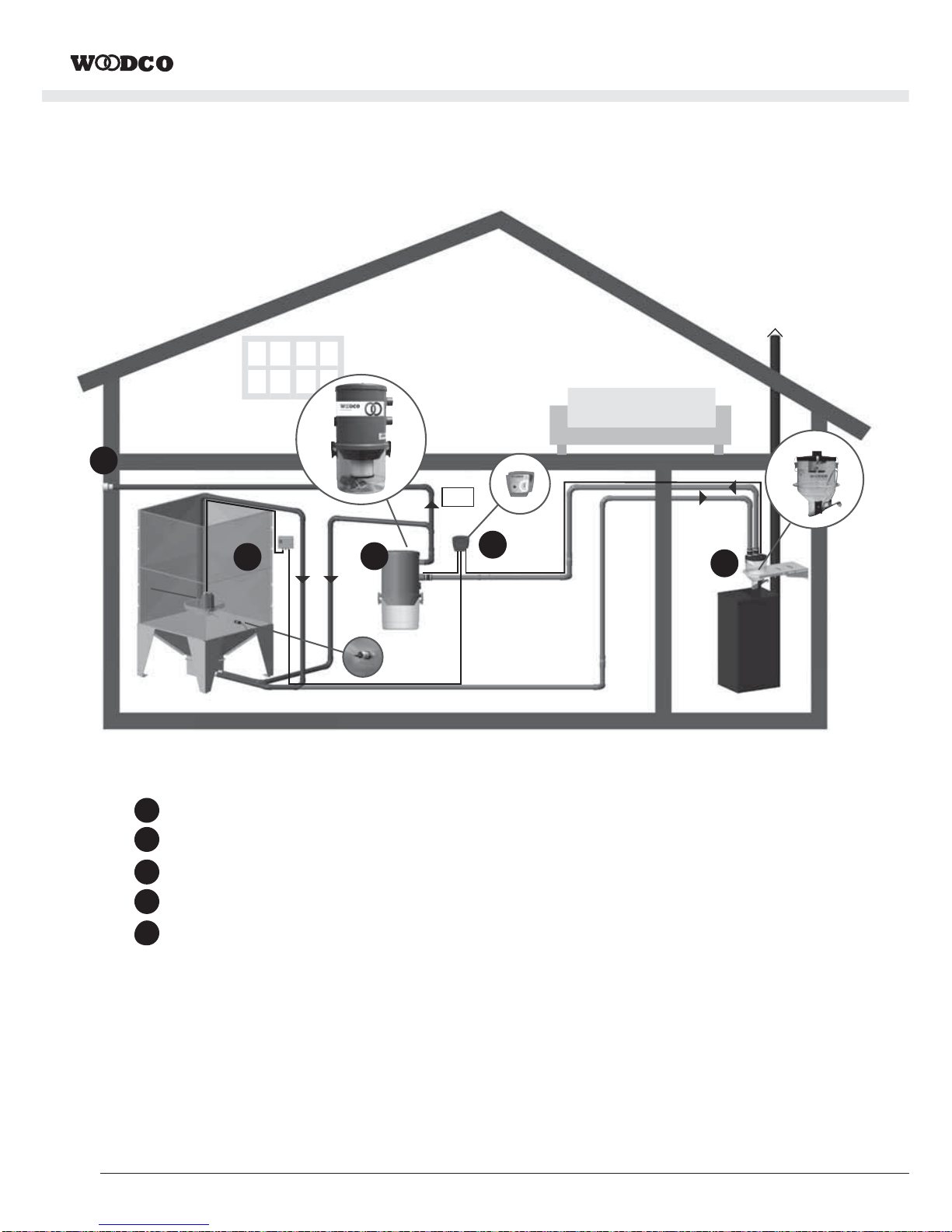

1 vacuum unit

2 control panel

3

Dispenser

4 stock tank

5 air vent

Instructions manual NOVA 2 vacuum unit

1/04/17 Rev:1.0.0

6

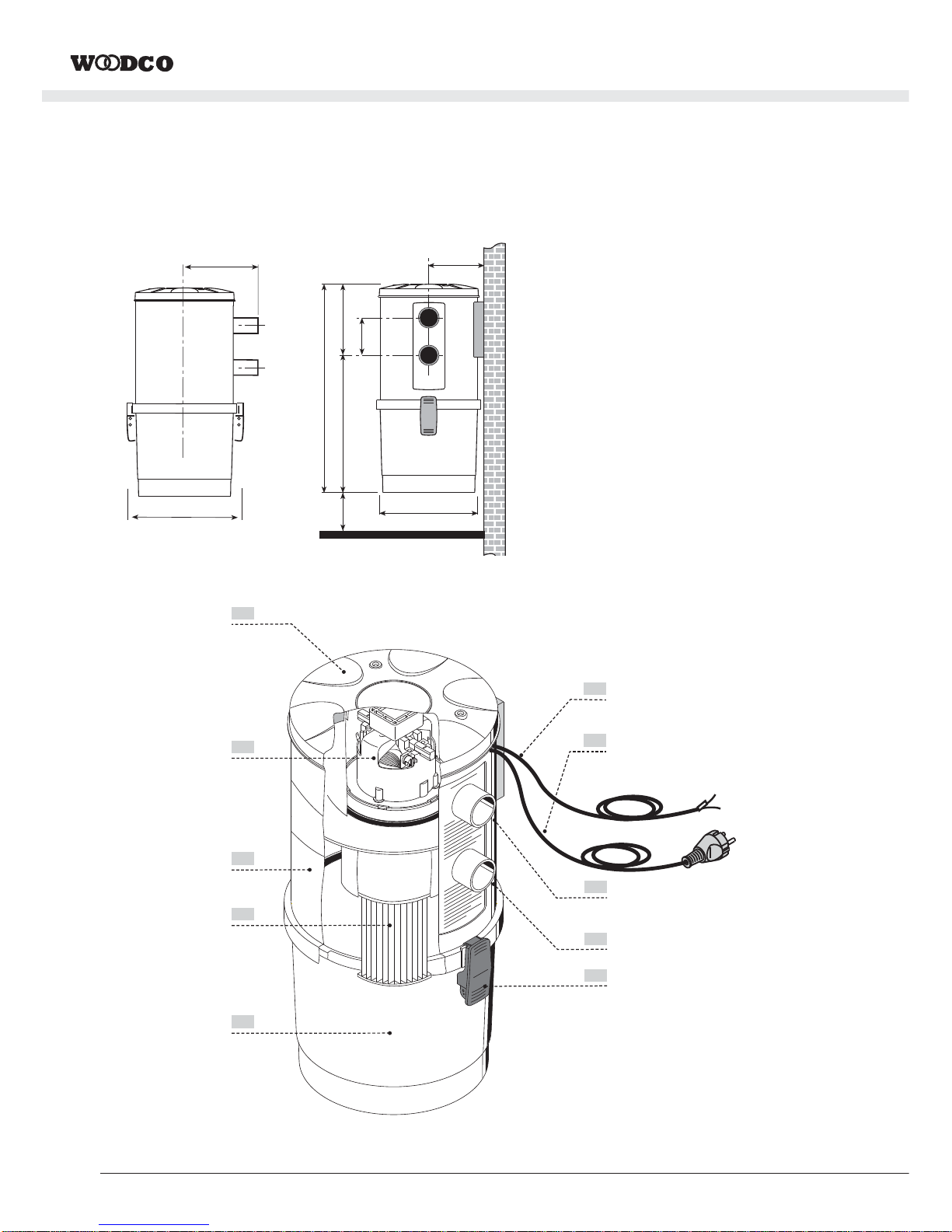

2- TECHNICAL DATA

Nova 2

G

H

F

A

B

CLD

E

Sound-absorbing dome

Motor group

Body

Filter cartridge

Bin (dust container)

1

2

3

4

5

Power supply cable

Switch-on signal cable (Micro line)

6

7

Air venting

Dust inlet

9

8

Handle and closing hook

10

7

English

1/04/17 Rev:1.0.0

Nova

Model

Article

Nova 2

770305

Dust inlet

Ø mm 50

Air exhaust

Ø mm 50

Protection Degree

IP 44

Power supply V ac 230

Frequency Hz 50/60

Motor power kW 1,35

Absorption A 5,6

Inlets power

V dc 12

Maximum air  ow m

3

/h 234

Filtering surface cm

2

6700

Dust bin capacity l 18

Air exhaust YES

Silencer (Ø 50 mm) YES

Weight kg

7

Size A mm 160

Size B mm 110

Size C mm 210

Size D mm 395

Size E mm 605

Size F mm 270

Size G mm 175

Size H mm 310

Size L (min) mm

180

Size M mm 100

Sound level below dB(A)

< 70

N. B: nominal sound levels. They can vary according to environment and installation

Instructions manual NOVA 2 vacuum unit

1/04/17 Rev:1.0.0

8

3 - CONSTRUCTION CHARACTERISTICS

Nova 2 is made in plastic materials, polypropylene and ABS, in order to resist atmospheric agents. They
have been designed and manufactured in compliance with all the criteria imposed by the current regula­tions and the European directives while carefully paying attention to crucial elements like performance,
power and operating capacity.

The main technical characteristics are as follows:

• Plastic material cylindrical body.

• Large capacity dust container (18 l).

• Soundproofed motor compartment (max. sound level below 70 dBA).

• Motor-rotor group, equipped with direct-cooling single-phase electric brush motors.

• Overcurrent and overvoltage double protection printed circuit board.

• 12 V dc power supply of the vacuum inlets.

• Polyester M-Class fi lter cartridge, water washable.

• IP44 Protection Degree.
The vacuum cleaner features a Class 2 insulation level.

Model

Article Dust bin capacity

(l)

Filtering surface

(cm2)

Power supply

(V ac)

Motor power

(kW)

Maximum air  ow

(m

3

/h)

Nova 2 770305 18 6700 120 1,35 234

9

English

1/04/17 Rev:1.0.0

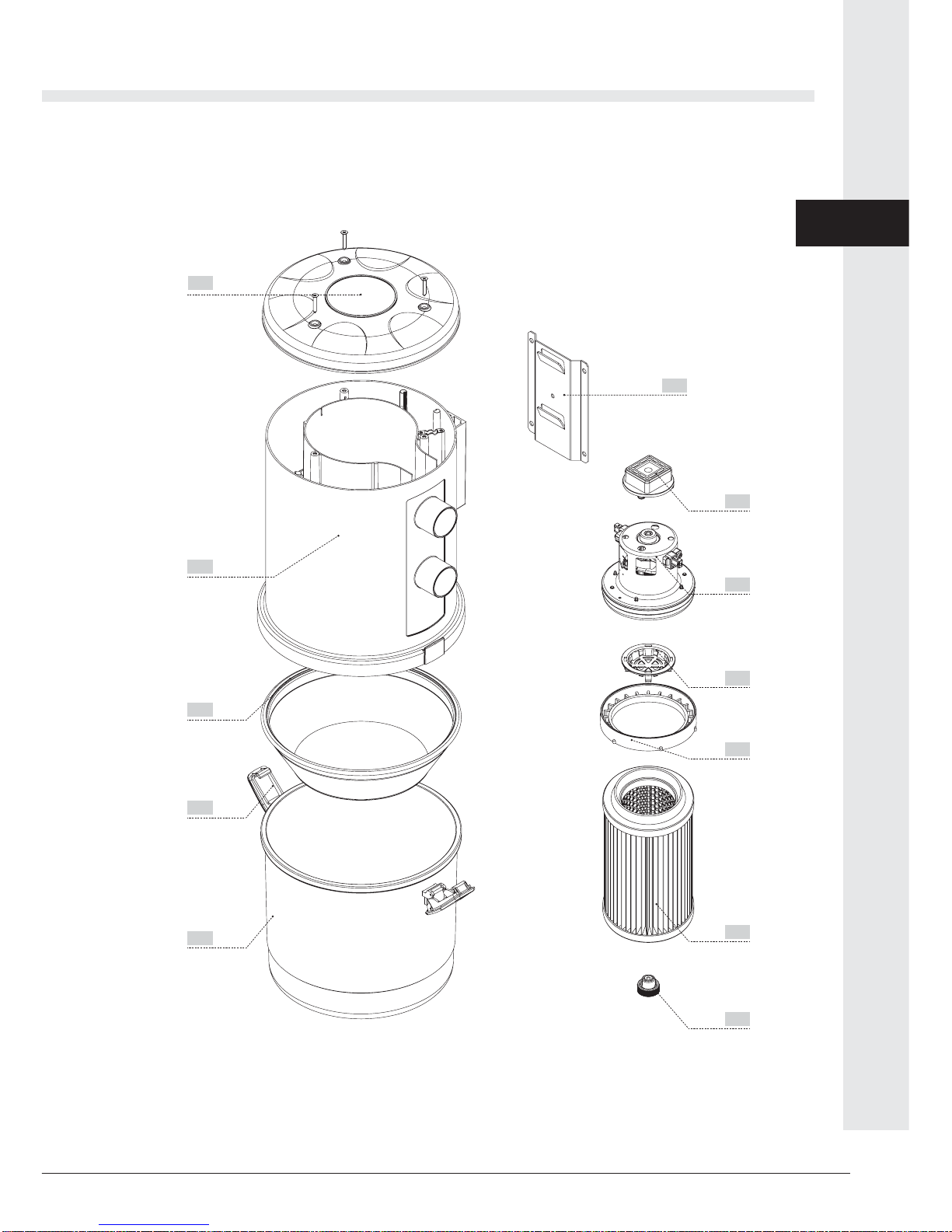

3.1 Set Nova 2

Filter knob

Filter
cartridge

Motor

Protection
grid

Lower motor
gasket

Upper motor
gasket

Fixing plate

2

3

4

5

Body

Bin gasket

support

Handle and

closing hook

Dust

container

12

11

8

9

10

7

6

1

Cover

Instructions manual NOVA 2 vacuum unit

1/04/17 Rev:1.0.0

10

4 SAFETY FEATURES

In compliance with safety regulations detailed in the Machinery Directive 2006/42/CE (transposed into
the Italian Legislation by Decree Law 17/10), in the Low Voltage Directive 2006/95/CE, and in the
Electromagnetic Compatibility Directive 2004/108/CE, Nova 1 vacuum unit complies with the standard
established for electrical appliances for household and similar purposes EN 60335-1 (2008) and with
the Regulation C EN 60335-2-2 (2011), specially conceived for vacuum cleaners for household and
similar purposes with rated voltage not exceeding 250 V.

It is recommended to read carefully all the installation, use and maintenance instructions
detailed in this manual.

Furthermore, the following WARNINGS should always be observed:

• Never use the machine for unauthorized purposes.

• Keep children away from the vacuum cleaner while in function. Children should not play with the ma­chine nor with the suction sockets.

• This equipment should not be used by persons (including children) with reduced psychic, sensory
or mental capacities or by persons with no experience nor knowledge of the system, unless they are
under the guidance or instructed in the use of the machine by persons responsible for their safety.

• Children must always be supervised to ensure they do not play with the machine.

• Switch off the power supply immediately if:

- the electric cable is damaged or worn.

- the vacuum cleaner has been exposed to rain or excessive humidity.

- the vacuum cleaner has been knocked or the outer cover has been damaged in any way.

- you think the system requires maintenance or repair.

• Wear protective gloves and mask to carry out maintenance, to empty the dust bin or replace and clean
the fi lter.

• Only use original spare parts and accessories.

• Do not use the system without a fi lter cartridge.

• Do not block the exhaust air pipes or the motor cooling intakes.

• Do not leave the system switched on when not using it and disconnect it from power supply when the
system is not to be used for a long period of time.

Finally, remind that pictograms or danger and warning signals can be found on those parts of the
equipment where, if not strictly followed, potential risky situations may occur.

11

English

1/04/17 Rev:1.0.0

WARNING: Manufacturer declines any form of responsibility or guarantee if the purchaser,

or anyone in his stead, makes even the slightest modifi cation or adjustment to the purchased
product. The unit has been designed to satisfy at best the present needs both in terms of quality
and operating capacity.
All materials and components used to manufacture this product comply with CE safety regula­tions. All relevant certifi cations are held at the offi ces of the Manufacturer.

The realization of the system and Woodco components installation must satisfy security
rules according the type of rooms they are installed in.

4.1 Protection Degree

IP 44: The appliance features a protection against solid objects having a size exceeding 1
mm and it is protected against water spray.

4.2 Electrical insulation degree

CLASSE II: the appliance features double electrical insulation. It doesn’t need a connection to
the ground circuit through the main electric circuit.

4.3 Declaration of absence of dangerous substances

The Manufacturer declares that its products and appliances have been manufactured with
materials
which comply with the restrictions established by the health and environment protection re­gulations in force and do not contain SVHC-classifi ed substances (Substance of Very High
Concern) in compliance with CE regulation 1907/2006 (REACH: i.e. Registration, Evaluation,
Authorization and Restriction of Chemical Substances).
Although these substances have not been used during the processing cycles of raw materials
and during the manufacturing cycles of our products, their presence in p.p.m. (parts per million)
cannot be completely excluded due to micro-pollution of raw materials.

4.4 Fixed closure guards safety

The vacuum cleaner is delivered to the Customer with its main body completely assembled.
Moving
parts (suction motor turbine blades) are protected by a protection grid directly assembled on
the inlet of the suction motor compartment. This protection grid cannot be accessed by the ope­rator. The operator also does not have access to the electrically-operated parts of the appliance
which are protected by a cover which can only be removed by unscrewing the Torsen screws
used to fi x the soundproofi ng dome of the housing where the suction motors are assembled.
Every intervention on the control board and on the motors must be carried out by qualifi ed
personnel
only after disconnecting the electrical power supply.

IP44

Instructions manual NOVA 2 vacuum unit

1/04/17 Rev:1.0.0

12

....................................

.........................................................................

IP44

Model:

P/N: S/N:

4.5 Movable closure guards safety

There are no movable closure guards assembled on the appliance. Every guard assembled is consi­dered a fi xed guard and is fastened with special screws. The Manufacturer reminds that it is absolutely
forbidden to replace the screws used for the design and manufacture the appliances with screws with
feature different characteristics.
The Manufacturer will immediately suspend the product guarantee in case of machine tampering
carried out by the Customer.

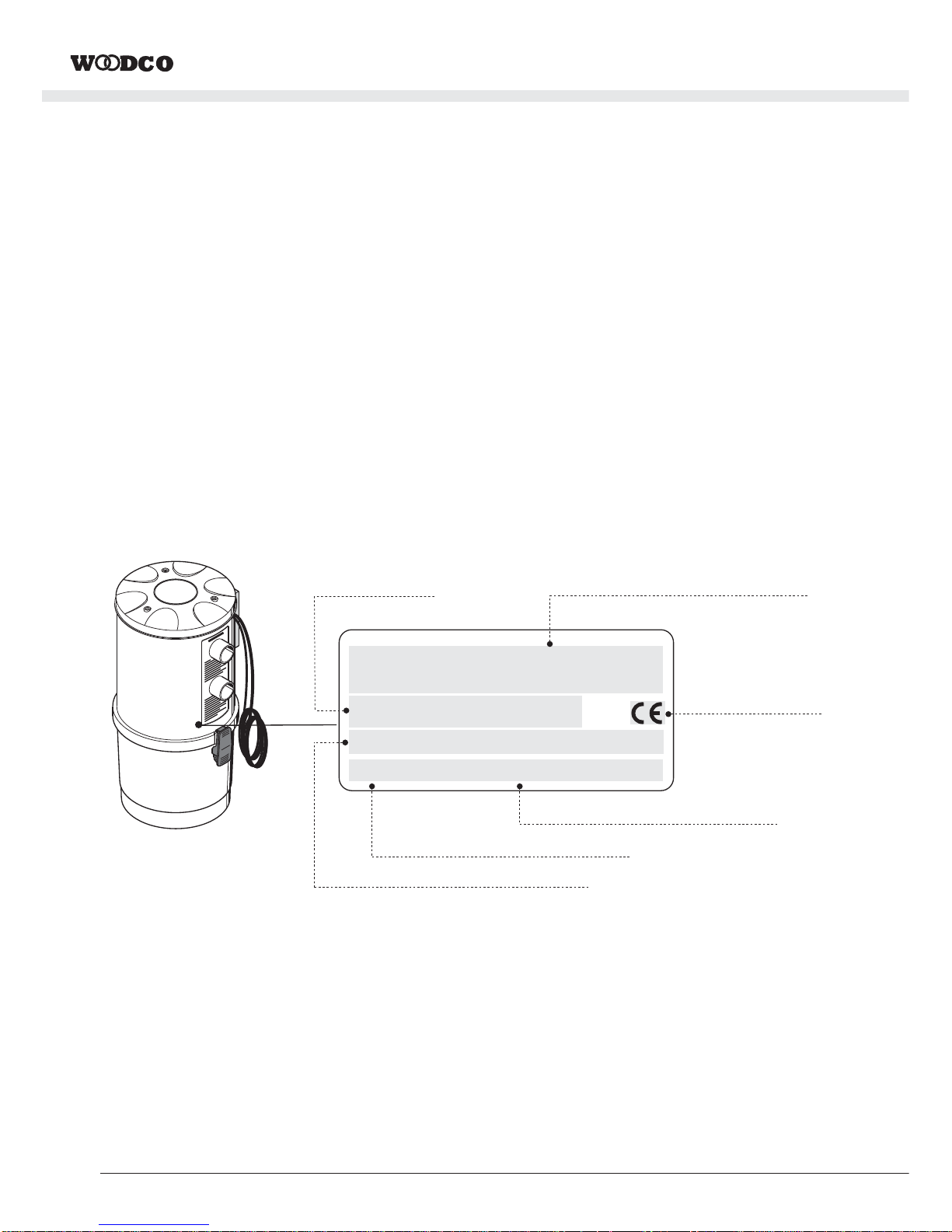

4.6 Identifi cation plate

The CE identifi cation plate is assembled on the side of the connection to the piping network. This should
not be removed or damaged.

Model

Manufacturer Identifi cation

CE Conformity
marking

Technical data of the electrical motor

Serial number

Article number

13

English

1/04/17 Rev:1.0.0

5 - AUTHORIZED USE OF THE VACUUM CLEANER

Nova 2 vacuum cleaner has been designed for Woodco installations.

It can be used for installations with these features:

• Piping network realized with Ø 50 mm pipe

• 200/240 V ac power supply

• Suitable for installation in domestic spaces such as store rooms, boiler rooms, garages and balco­nies (protected from the elements).

6 - UNAUTHORIZED USE OF THE VACUUM CLEANER

It is very important DO NOT USE the unit in these circumstances, because they are dangerous
and improper.

Furthermore the system has not been designed to be used in environments with risk of explo­sion, and therefore:

• it is forbidden to vacuum clean materials with high explosion risk (gunpowder) or materials which are
individually inert but that, once collected and mixed in the dust bin, could provoke dangerous chemi­cal reactions.

• It is absolutely forbidden to use the vacuum cleaner in explosive atmosphere or outside the standard
temperature, pressure and humidity levels.

Any use of the appliance other than those specifi ed above is forbidden.
Any change or modifi cation made to the system in order to vacuum clean a particular type of
material must obtain the prior written approval of the manufacturer.
The use of the system for purposes other than those for which it was manufactured, represents
an irregular condition which can cause damage to the product and seriously compromise the
operator’s safety.

Instructions manual NOVA 2 vacuum unit

1/04/17 Rev:1.0.0

14

Manua

l

e Te

cn

ico

p

e

r

ce

n

t

r

a

li

a

sp

ir

a

nti

c

ivi

l

i

7- EQUIPMENT AND ACCESSORIES

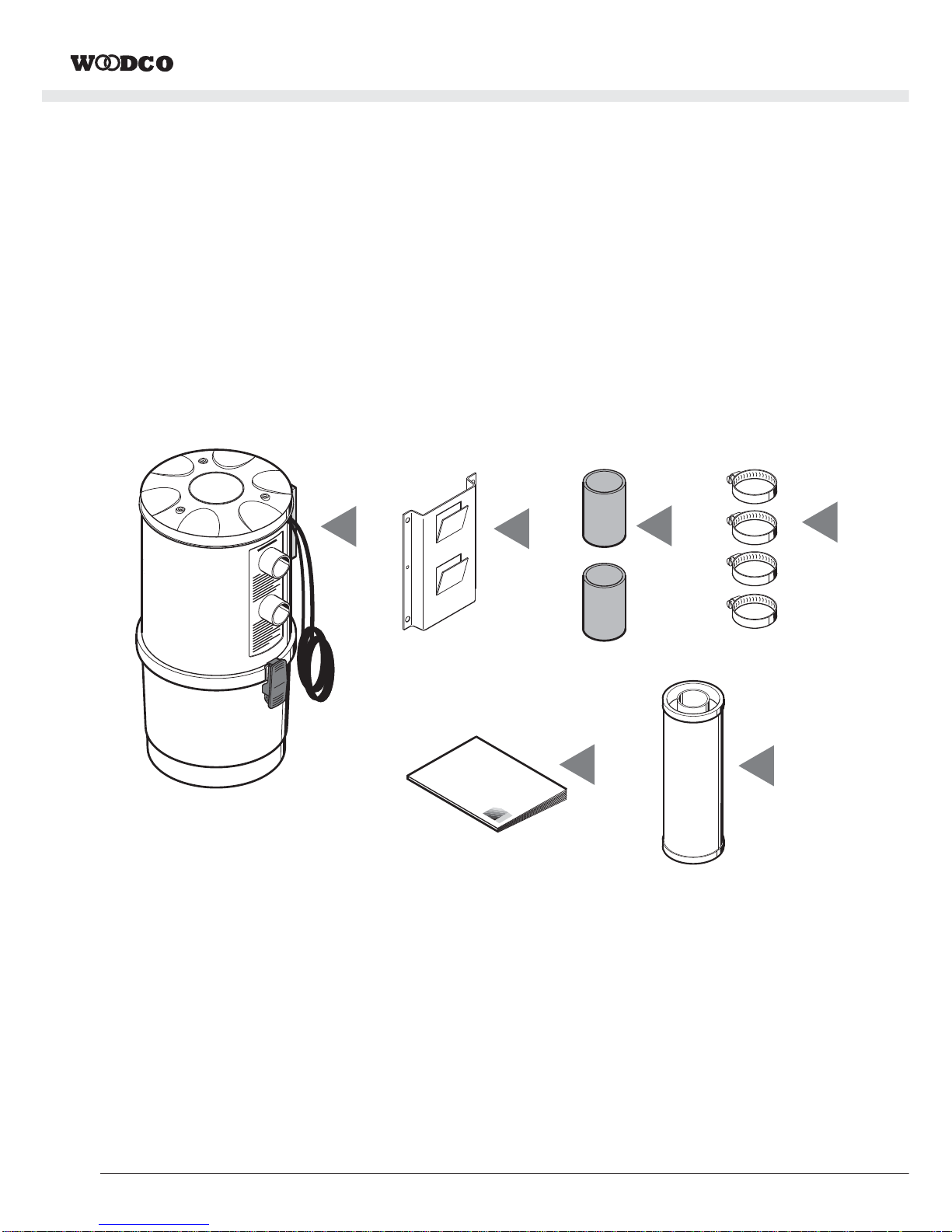

Together with the unit, delivered with this instruction manual, the following accessories are supplied in
the packaging as follows:

1) N° 1 vacuum unit

2) N°1 metal bracket to fi x the unit to the wall

3) N°2 rubber sleeves for the connection to the vacuum pipe network

4) N°4 metal clamps to fi x the sleeves

5) N°1 installation, use and maintenance manual

6) N°1 plastic silencer for air discharge.

Check that the system, the accessories and the kit correspond to the products ordered and that they
have not been evidently damaged during transport.
In case of problems contact your Retailer immediately.

1

2

3

4

5

6

15

English

1/04/17 Rev:1.0.0

8 - INSTALLATION

- WARNING -

THESE PROCEDURES MUST BE CARRIED

OUT BY QUALIFIED PERSONNEL

8.1 Preliminary operations

The suction system is shipped to the customer completely assembled and packed.
Before switching the machine on, the following checks are advisable:

• Check that the packaging is intact.

• Check that the appliance has not been damaged in any way and in particular check that all the

protruding parts are intact.

• Check that the fi lter cartridge is correctly installed.

• Using the equipment list and the kit and accessories list, check that the equipment and the kit

have been exactly and completely delivered.

If any damage or irregularity is found or if any accessory is missing, do not install the appliance and
contact your Retailer..

8.2 Place of installation

The use of the vacuum cleaner requires a suction piping network installed by qualifi ed personnel
who has already selected the most suitable location.
Below you will fi nd the main indications to be followed for a correct installation:

• Install the system in service rooms away from bad weather, dampness and excessive temperatu-

re variations.

• Choose a place far from heat sources

• Make sure that there is suffi cient space around the system and that the surrounding area is well lit

to facilitate the interventions for maintenance and repairs.

Instructions manual NOVA 2 vacuum unit

1/04/17 Rev:1.0.0

16

8.3 Positioning of the vacuum cleaning unit

For a correct use and to facilitate maintenance it is advisable to keep a minimum distance of 60 cm on
three sides around the appliance (excluding the side on which it is fi xed to the wall).

2

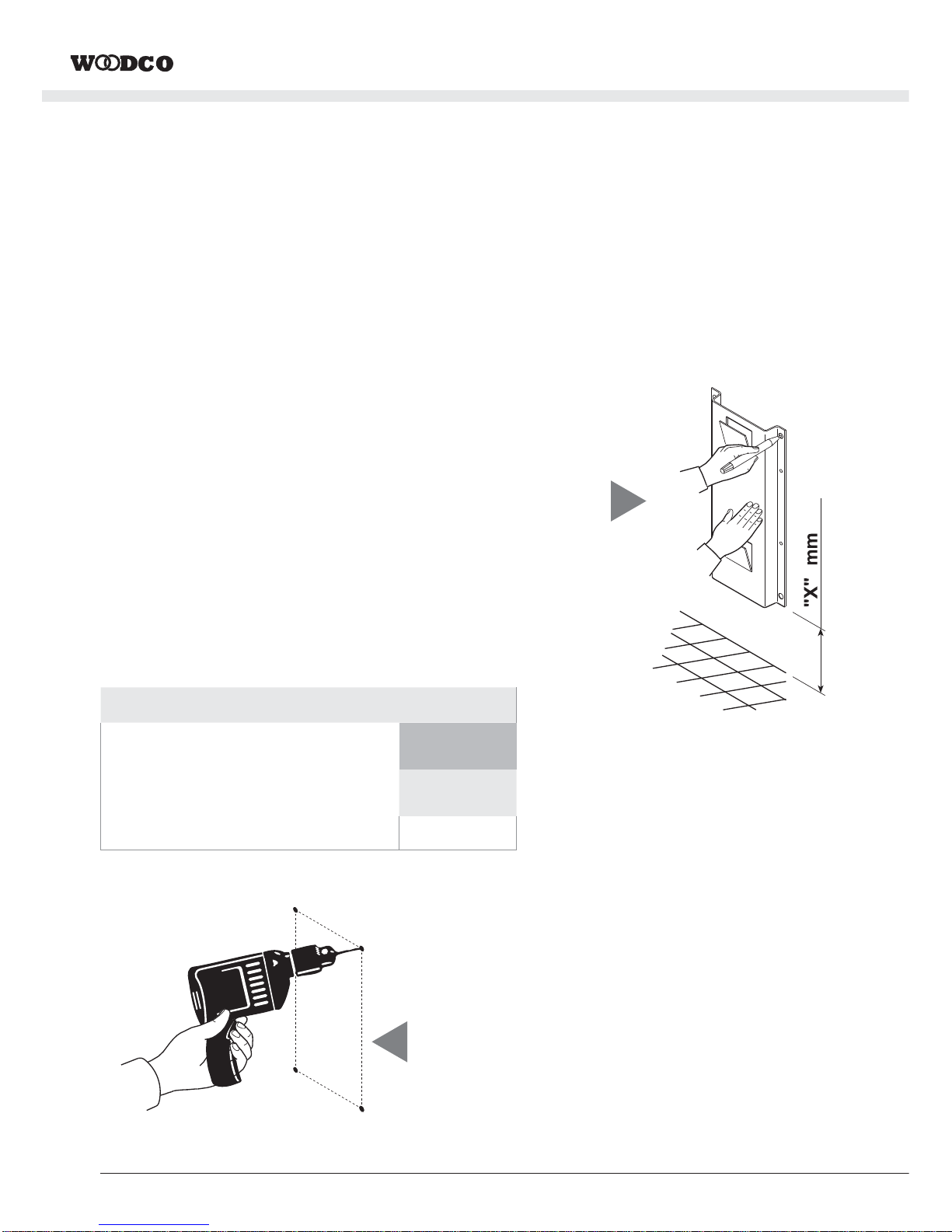

Trace the drilling position using the template provided

(drilling template); if this has already been done, proceed to

the next step.

Drill the holes

8.4 Fixing the vacuum cleaner to the wall

The vacuum cleaner must be securely and permanently fi xed to a solid wall using the bracket provided
and the suitable wall anchors or plugs taking into account that the total weight to be supported can be
seven/eight times that of the system itself.
The system should be positioned high enough off the ground to allow the dust collection bin to be
emptied and the fi lter to be replaced in a simple way.
To do this follow the instructions detailed below:

Height from the ground is detailed in the table below:

500

1

Nova

Model

Article

Nova 2

770305

Measurement X (min.) mm 500

17

English

1/04/17 Rev:1.0.0

Tighten the screws in the wall plugs
and check that the bracket is well
anchored to the wall.

3

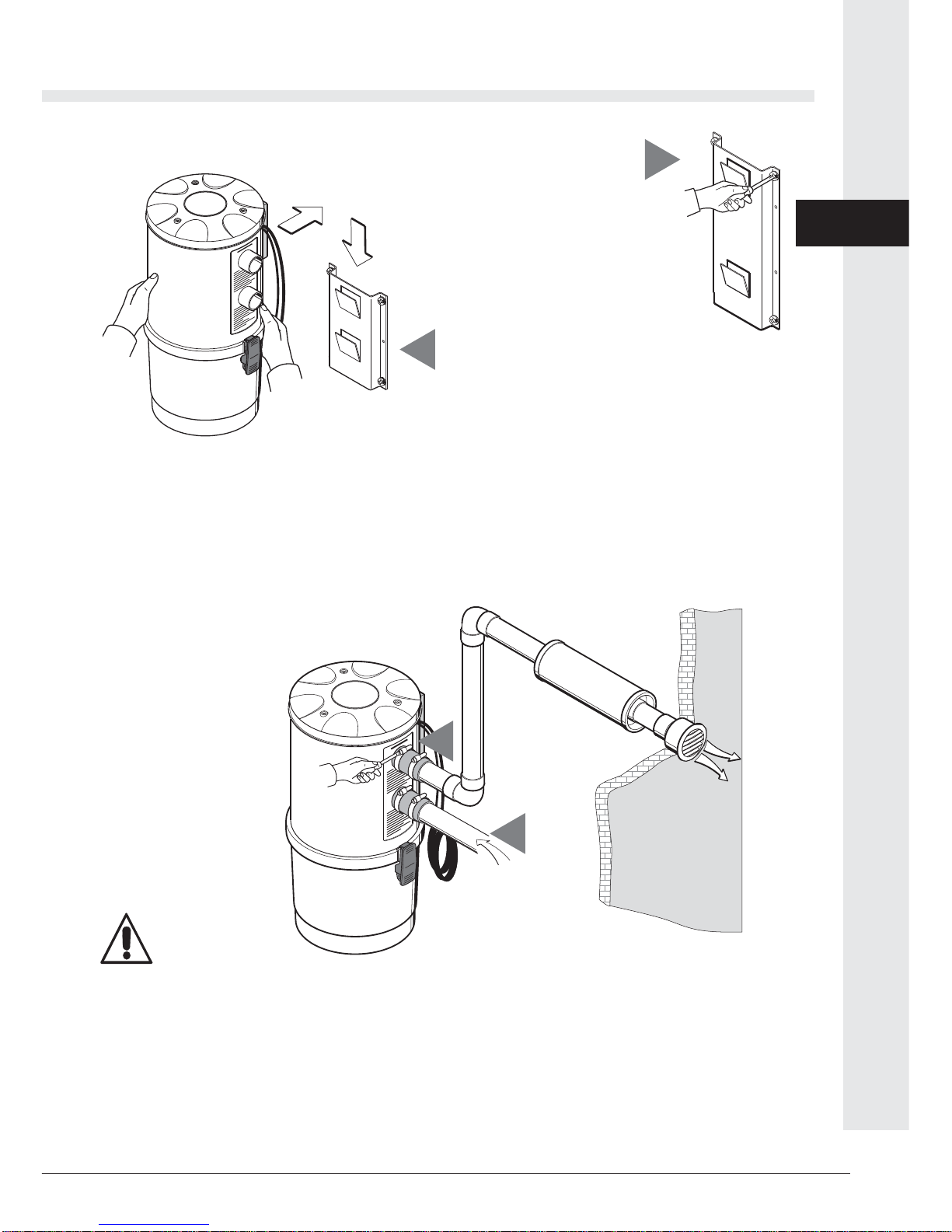

Hook the vacuum cleaner to the an­choring bracket by lifting it, leaning it
against the wall and allowing it to slide
down until it fi ts into the fi xing plate.

4

8.5 Connection to the piping network (see also appendix A)

1. Using the sleeve, connect the dust inlet coupling of the vacuum cleaner , identifi ed with (B) in the

picture, to the suction pipe from the piping network.

2.

Using the sleeve, connect the venting air coupling of the central vacuum cleaner, identifi ed with (C),

3. Place the silencer on the air discharge pipe.

C

B

Do not glue the pipe end of the network pipe to the dust inlet coupling or to the air exhaust coupling,

always use the sleeves provided. In case of air expulsion to the outside, please follow the
instructions below:

Discharge pipe Max length 5 meters

SEE APPENDIX FOR COMPLETE USES OF VACUUM UNITS WITH AUTOMATIC FEED SYSTEM
FOR BOILERS WITH SOLID FUELS AND RELATED WARNINGS.

Instructions manual NOVA 2 vacuum unit

1/04/17 Rev:1.0.0

18

8.6 Instructions for Woodco systems installation

Pipe network
Pipe lengths, allowed between the different components of the vacuum unit, are indicative and pro­visional.
To do Woodco systems it is necessary to use strong and long-lasting installation material, available
in antistatic zync-coated pipes Ø 50 mm, or PVC installation material.
All connections must be watertight, in order to grant the maximum performance .
It is better to realize the pipe network in a straight line, because with many direction changes it is
necessary to realize a shorter pipe network.
Avoid networks with positive or negative traps.
For some connections it is possible to use spiral pipe, in antistatic plastic material, with smooth
internal walls. Radius of curvature for installation made with fl exible hose cannot be under 30 cm.
It is better to reduce to the minimum sections realized in fl exible hose, to optimize installation per-
formances. All pipes must be fi xed to walls or strong supports every 150 cm. Horizontal sections

must be made with spirit level, while vertical sections cannot be over 3,5 meters.

In case of connection between rigid steel pipes and fl exible pipes, the spiral inside the fl exible hose
must be connected to the steel pipe, to grant antistatic properties.
To avoid electrostatic charges, pipe network must be grounded, in accordance with current rules.

Warning
We recommend using only original pipes, connections and accessories as they have been realized
on this purpose.
Before installing and using Woodco system, we recommend to read this manual carefully and, in
case of doubts, please contact qualifi ed person.

Construction and installation of systems must be made according to safety rules related
to the place they are installed in.

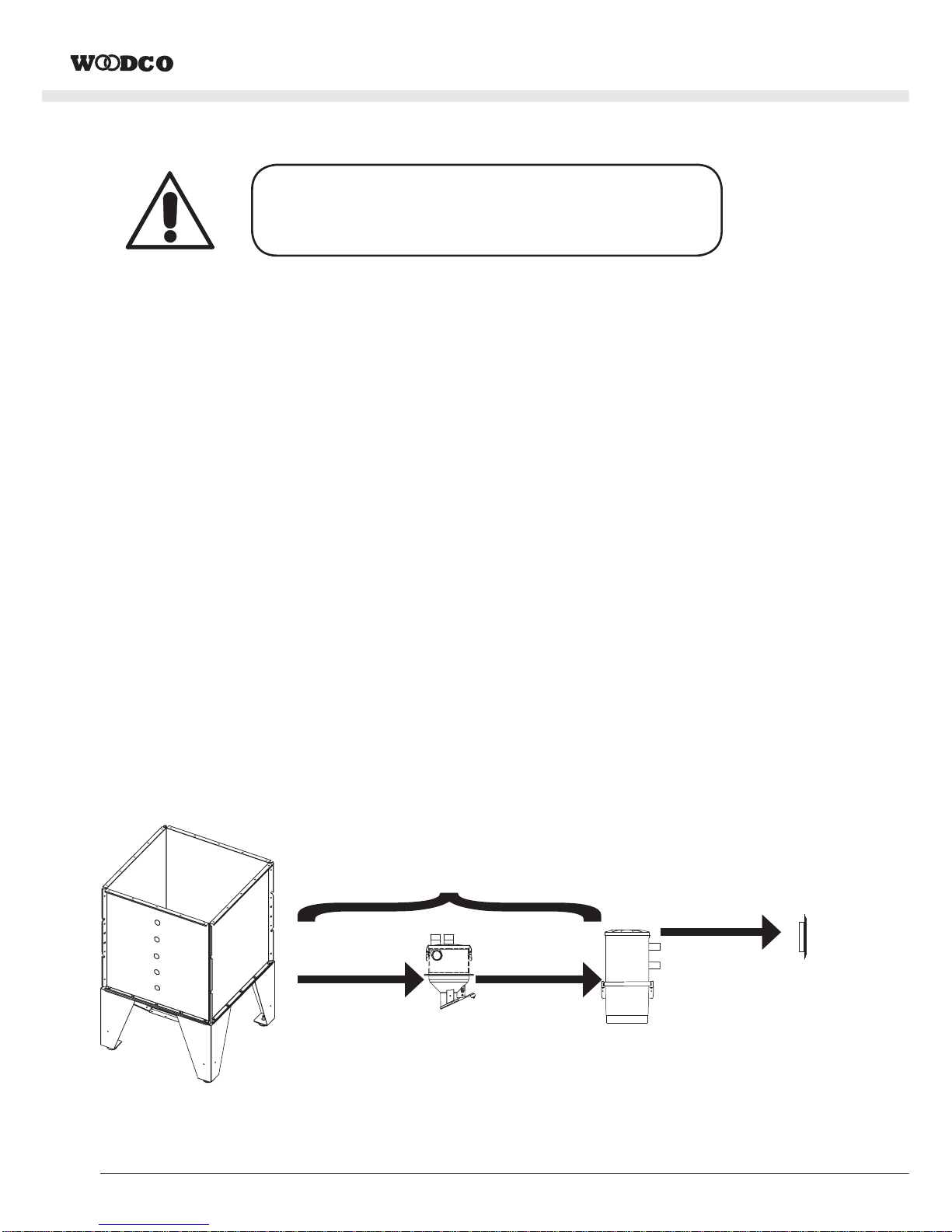

WARNING: the system installation must be

made by qualifi ed personnel only.

Fuel

MAX m 25

MAX m 5
Ø 50 mm

Dusts

Air

Air vent

19

English

1/04/17 Rev:1.0.0

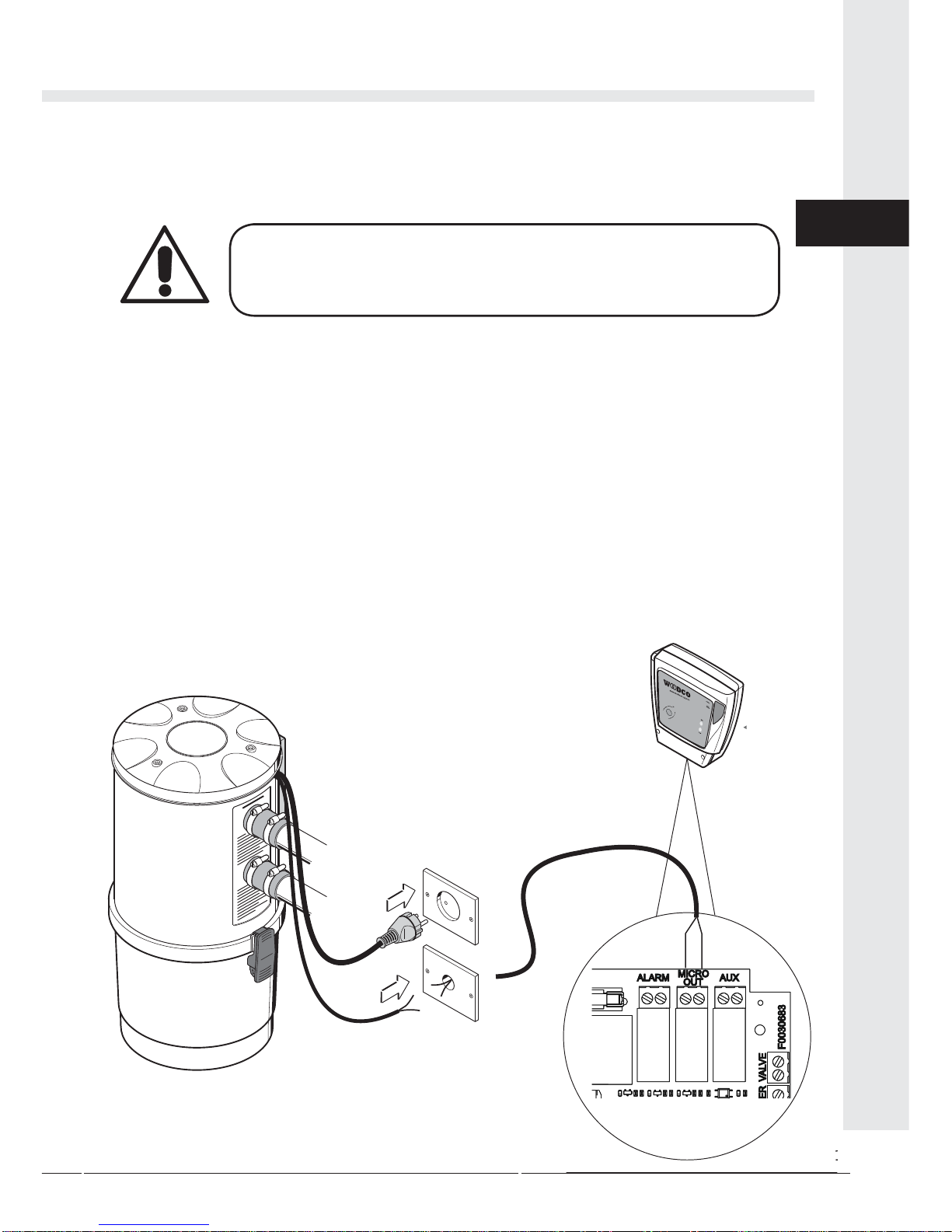

9.1 Electrical connection

Before connecting the system to the electrical power supply check that the supply voltage correspon­ds to the required by the vacuum cleaner (see the identifi cation plate).

The manufacturer declines any responsibility for damages to persons and/or objects due to a con­nection to a non-complying electric wiring.
Follow the instructions (see picture page 22) detailed below to carry out the operation:

• Connect the input signal cable (MICRO LINE) to the Woodco Control Panel Micro Out (see ma-

nual)

• Insert the plug of the power supply cable from the central system in the electric inlet.

• Check that the electrical wiring of the house has been set up in compliance with the electrical

regulations in force.

• Do not power the system with supply voltage from provisional or temporary switchboards (for

example construction sites switchboards) to avoid possible damage to the electronic parts.

WARNING: the electrical connection must be carried

out by qualifi ed personnel ONLY.

9 STARTING THE VACUUM CLEANER

.

1

20 V

12 V

Micro Line

120 V ac

3

1

0

O

FF

OF

F

O

N

F0030683

ALARM

MICRO

OUT

AUX

ER VALV E

O

OU

AU

X

Instructions manual NOVA 2 vacuum unit

1/04/17 Rev:1.0.0

20

10 USE OF THE CENTRAL UNIT

When Nova 2 vacuum unit is connected to the power supply, it can be started every time the
Control Panel asks for it or when a fl exible hose is plugged into any of the vacuum inlets, after the
section valve for manual division has been closed.
This is made by an electric contact inside the electric board of the Control Panel, or inside the
vacuum inlet, that lights up the motor of the vacuum unit.
Routine maintenance involves the dust bin to be emptied and the fi lter cartridge to be regularly
cleaned.

3

1

2

0

O
F

F

OF

F

O

N

3

1

2

0

O
F
F

OF

F

O

N

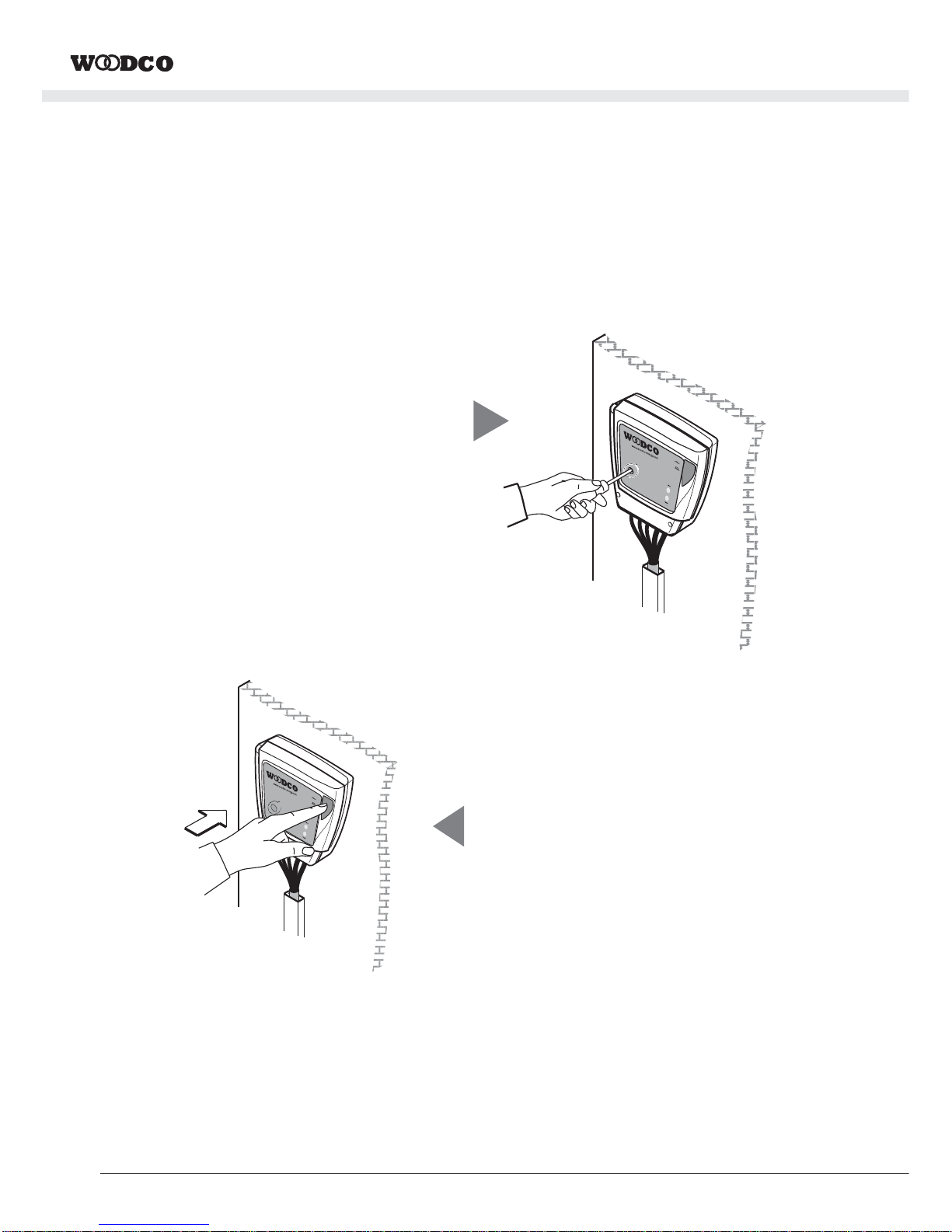

Turn right the regulator to increase the va-

cuuming time to transport the fuel from the

stock tank to the Dispenser (see Control

Panel manual).

1

Press the power button, the
Power led lights up and the
fuel transport system starts.

2

21

English

1/04/17 Rev:1.0.0

11 - MAINTENANCE

11.1 Programmed routine maintenance

Maintenance should be carried out according to the effective running time of the system so to
ensure effi cient performance and avoid serious mechanical damages:

BEFORE CARRYING OUT ANY MAINTENANCE

OPERATION, IT IS MANDATORY TO UNPLUG

THE POWER SUPPLY CABLE FROM THE POWER

SUPPLY INLET. PROTECTIVE MASK AND GLOVES

MUST ABSOLUTELY BE WORN

Maintenance

Executor

Every 15 days* Filter cleaning User

Every year Filter replacement Technical assistance

Every year Air exhaust blockage Technical assistance

Every two years Motor carbons replacement Technical assistance

Instructions manual NOVA 2 vacuum unit

1/04/17 Rev:1.0.0

22

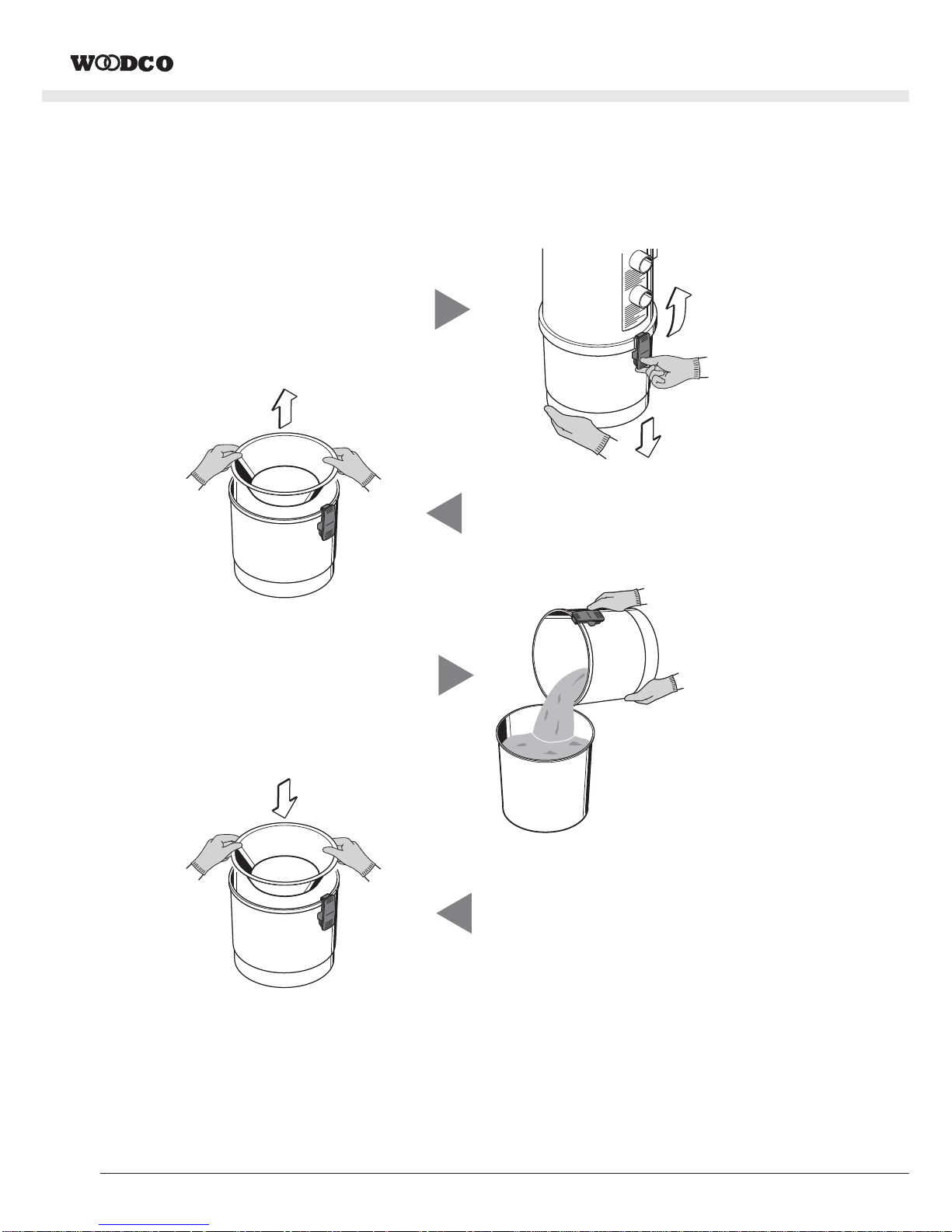

11.2 Emptying the dust bin

Switch the suction system off by pressing the ON/OFF switch.

Remove the conveyor cone

2

Remove the dust bin

1

Empty the dust bin

3

Put the conveyor cone back in position

4

Reassemble the dust bin inside its housing under the vacuum unit lock the closing handles.
Switch the suction system on by pressing the ON/OFF switch.

Remember to take care when emptying the bin: make sure that the seal is still present and it is
placed in the correct position.

23

English

1/04/17 Rev:1.0.0

11.3 Dust collection, transfer and disposal

Where a separated refuse collection policy is in place, once removed from the vacuum cleaner,
the dust collected in dust bins and dust bags must be placed in the green “dry, non-recyclable
waste” bins.

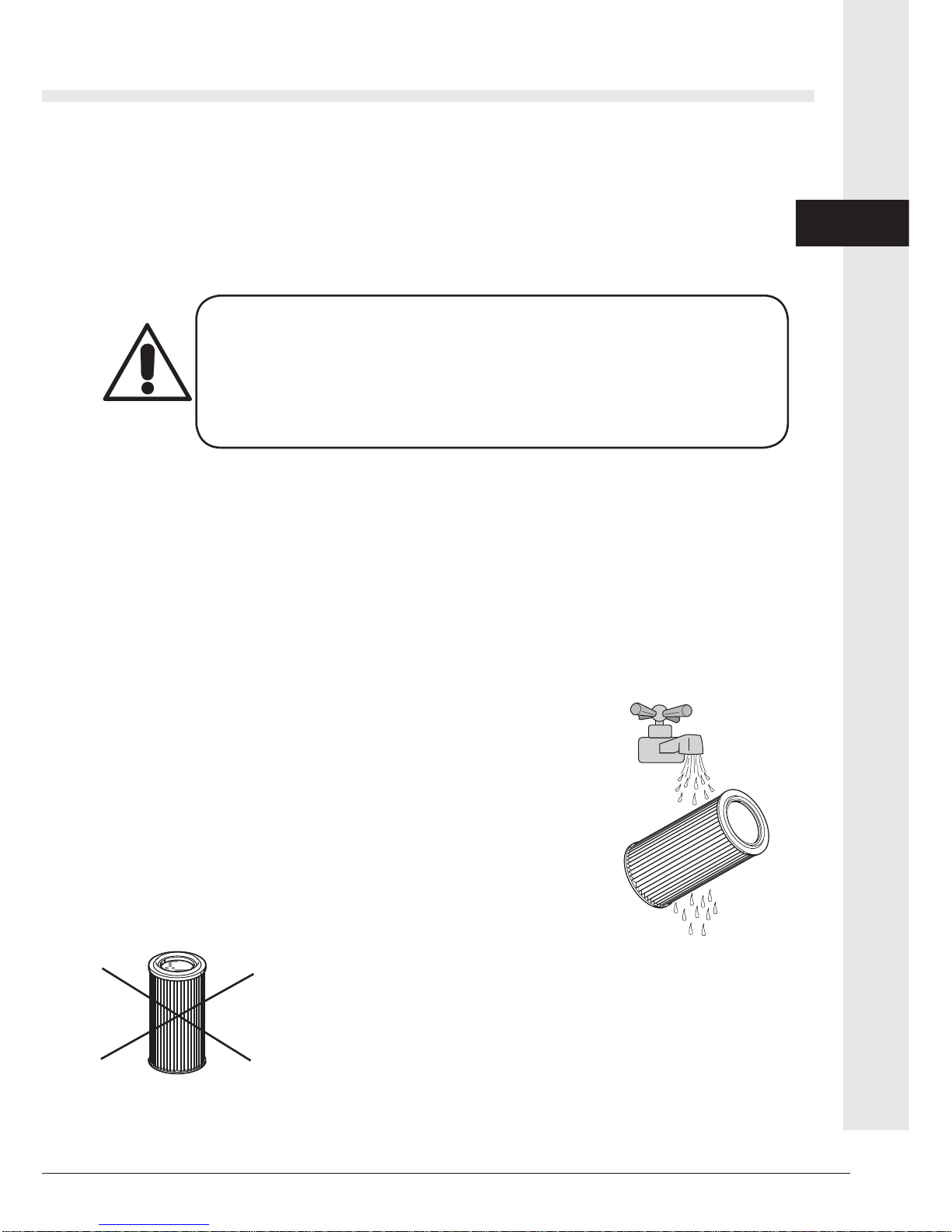

11.4 fi lter cartridge maintenance

The fi lter cartridge can be restored as follows:

1A) blowing its surface with compressed air

1B) vacuuming its dirty surface with the vacuum unit, with a clean fi lter previously installed. In

this case, we recommend to shake the dirty fi lter, before vacuuming, to eliminate most of the
dusts that deposit between the folds.

N.B. Check the fi lter surface is not cut. If
this is the case, the fi lter cartridge should
not be used again and should be defi ni-
tely replaced.

ATTENTION
ALWAYS VERIFY THAT THE FILTER CARTRIDGE HAS BEEN CLOSED
CORRECTLY, A WRONG ASSEMBLY COULD DAMAGE THE PRODUCT.
DO NOT USE THE VACUUM CLEANER WITHOUT THE FILTER CAR­TRIDGE. ENSURE YOU HAVE REPLACED A SPARE FILTER CARTRID­GE BEFORE CARRYING OUT THIS OPERATION.

1C) washing it under fl owing water. Also in this case we recommend

to shake the fi lter before washing it in order to eliminate most of
the dusts that deposit between its folds.

ATTENTION: before replacing the fi lter cartridge back in the

system after washing, ensure it has completely dried. DO
NOT reassemble the fi lter if the surface is still wet or damp.

Instructions manual NOVA 2 vacuum unit

1/04/17 Rev:1.0.0

24

12 - REPAIRS AND SPARE PARTS

12.1 Intervention criteria

Any intervention on the vacuum cleaner for repairs and/or maintenance which is not expressly authori­zed in this manual is absolutely forbidden.
Any repair for breakage or malfunctioning must be carried out by qualifi ed Technical Assistance person-
nel. Any intervention of non-authorized personnel will result in the invalidation of any guarantee of the
product and the manufacturer will not be held responsible for any eventual damage to persons and/or
objects due to such interventions.

12.2 Recommended spare parts

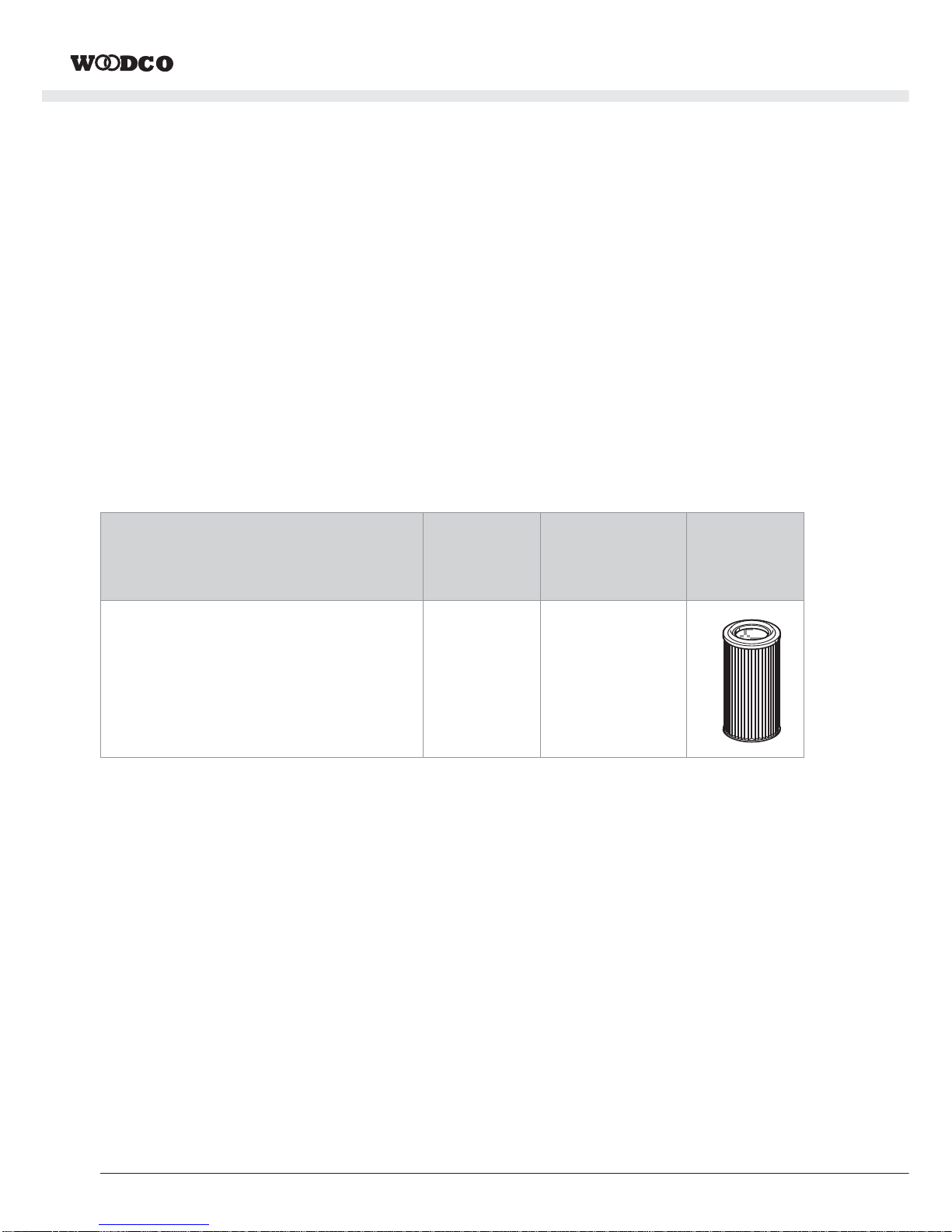

It is advisable to order in time those spare parts which need to be changed more often. In order to gua­rantee the optimal and long working life of the vacuum cleaner it is recommended to use only original
Woodco spare parts, as detailed below.

12.3 Putting the vacuum unit out of service

If you decide to put the vacuum unit out of service, this should be done with the utmost attention to
everyone’s health and environment. The disposal and/or recycling of any part of the system must be
carried out in strict compliance with the regulations in force.

DESCRIPTION

SPARE
PART

UNIT MODEL

Filter Cartridge

770311 NOVA 2

25

English

1/04/17 Rev:1.0.0

13 - SOUND EMISSION

A sound level measurement has been gauged by measuring the acoustic pressure and the sound
level of the vacuum cleaner. The test report is held at the producer headquarters.

14 - IDEAL LOCATION OF THE VACUUM CLEANER TO REDUCE SOUND

EMISSION

The following suggestions and measures will help reducing the sound emissions of the vacuum
cleaner:

• Fix the system to a solid wall (not to a cavity wall), preferably made of solid bricks.

• Avoid fi xing the system to an internal dividing wall, it is better to fi x it to an external perimeter
wall.

• You can also use sound-absorbing materials on the two side walls if these are very close to
each other; this will interrupt the sound wave and avoid resonance phenomena between the
two waves which could refl ect on the two opposite walls.

• You could possibly also soundproof the ceiling.

15 - VIBRATIONS

There is no contact between the hand, arm or body of the operator and the machine when vacuum
cleaning using the fl exible hose; for this reason there is no risk related to vibrations.

Instructions manual NOVA 2 vacuum unit

1/04/17 Rev:1.0.0

26

16 - TROUBLE SHOOTING

PROBLEM CAUSE SOLUTION

Vacuum doesn’t turn on

The switch button of the
vacuum unit is OFF

Press the button

The micro line cable is not
connected

See p. 21,22

Control Panel alert is on See Control Panel manual

Faulty electrical/electronic
parts

Call the Technical Service

There is no air suction from just
one vacuum inlet

The electric contacts are
interrupted or the microswitch
of the suction socket is out
of order

Call the Technical Service

The air suction is weak

More than one vacuum inlet is
being used at the same time

Use only one vacuum inlet at
the same time

The fl exible hose or the
cleaning accessories are
broken

Check that the fl exible hose
and the accessories are not
damaged (change them if
necessary)

The sealing gasket of the dust
bin is damaged

Check sealing gasket integrity

There is a clogging in the
vacuum inlet of the pipe
network

Call the Technical Service

The air exhaust outlet is
blocked

Call the Technical Service

27

English

1/04/17 Rev:1.0.0

17 - WARRANTY

LIMITED WARRANTY CONDITIONS
The Manufacturer guarantees to the original buyer the absence of defects in the product (raw

materials and production) starting from the date of purchase.
This warranty is not transferable and it is limited to the original buyer, except for what forbidden
by law. This Warranty confers on the buyer specifi c legal rights and the buyer can claim the
rights that change according to the local laws.
Read all warnings and instructions before using the product. The Manufacturer’s full responsi­bility and the buyer’s exclusive remedy is at manufacturer’s discretion:
(1) product repair or substitution, or (2) refund of the sums paid, on condition that the product
has been returned to the seller or to an agreed place indicated by the Manufacturer, with copy
of detailed receipt.
Shipping and movement costs can be added, except for what forbidden by current laws.
To repair or replace the product, the Manufacturer can use new, restored or in good used con­dition parts, at its complete discretion.

The replaced product will be guaranteed for the remaining period of the original warranty , or for
any additional period in compliance with the low.
This warranty does not cover damage resulting from:
1 - misuse, accident, negligence, modifi cation, repair, alteration or not authorized disassembly
2 - maintenance operations, use not in accordance with the product instructions or connection
to wrong electrical supply; or
3 - Use spare parts that have not been supplied by the Manufactures or Authorized Dealer.
Requests for call-out are usually managed by the retail store of the product. Please verify this
detail with the seller of the product.
Requests for call-out that cannot be managed by the retail store and all information about the
product can be made directly to the Manufacturer.
All addresses and contact information for customer’s assistance are available on the web site
www.woodco-energy.com

Except for what forbidden by law, any implied warranty of merchantability for a particular use of
this product is limited to the specifi c Limited Warranty period of the product.

Some jurisdictions do not allow the exclusion or limitation of liability for consequential or inci­dental damages, so this limitation or exclusion may not apply in every situation.

This warranty bestows certain legal rights, and you may also have other rights which vary from
state to state or according to jurisdiction.
Consumers benefi t of legal rights ruled from national laws related to sale of products destined
to end-users, these rights are not affected by the guarantee.
No seller, agent or employed of the Manufacturer is authorized to modify, extend or change the
warranty conditions.

Instructions manual NOVA 2 vacuum unit

1/04/17 Rev:1.0.0

28

29

English

1/04/17 Rev:1.0.0

APPENDIX A

EXAMPLE OF INSTALLATION

WITH NOVA

Instructions manual NOVA 2 vacuum unit

1/04/17 Rev:1.0.0

30

INSTALLATION PLAN WITH SINGLE PIPE AND SCREW EXTRACTING CASE

1

2

3

4

5

6

7

8

1

Nova 2 vacuum unit art. 770305

2

Control Panel Drive art. 770308

3

Dispenser art. 770306

4

Boiler with integrated tank

5

Stock tanks

6

Vacu matic art. 770310

7

silencer

8

Air vent

31

English

1/04/17 Rev:1.0.0

INSTALLATION PLAN WITH SINGLE PIPE AND VERTICAL EXTRACTOR

1

2

3

4

5

6

7

8

1

Nova 2 vacuum unit art. 770305

2

Control Panel Drive art.770308

3

Dispenser art. 770306

4

Boiler with integrated tank

5
6

7

silencer

8

Air vent

Stock tanks with fl at bottom

Vertical extractor

Instructions manual NOVA 2 vacuum unit

1/04/17 Rev:1.0.0

32

Example of automatic feed system Woodco

1 Central vacuum unit

2 Control panel

3

fuel dispenser

4 stock tank

5 air vent

OUT

C

C

A-P

A-P

A

C

A

A

C

1

2

3

4

5

1/04/17 Rev:1.0.0

33

English

NOTES

Instructions manual NOVA 2 vacuum unit

1/04/17 Rev:1.0.0

34

NOTES

NOVA 2 VACUUM UNIT

F09200235.03

[email protected] - www.woodco-energy.com
