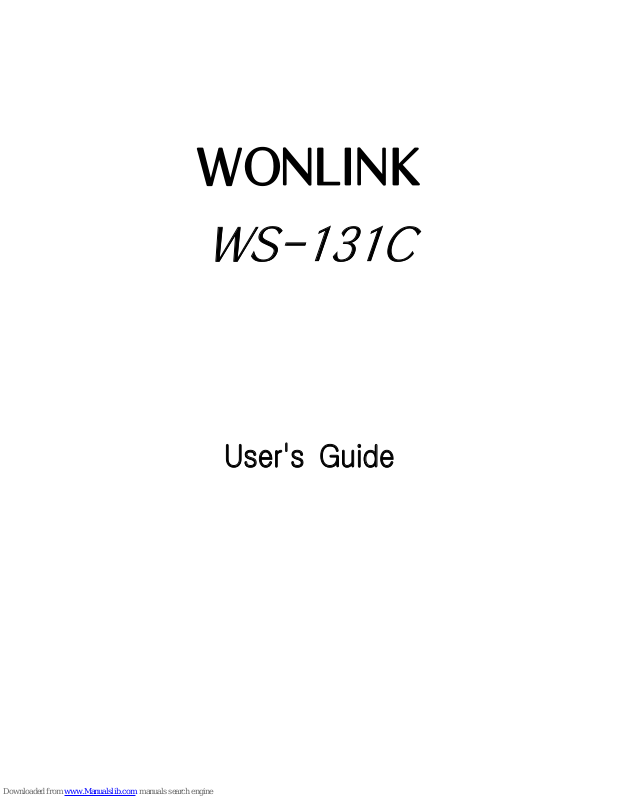

Page 1
WONLINK
WS-131C
User's Guide
Page 2
1. Features of Wonlink WS-131C
1) Transmission Speed up to max.480 Mbps(USB 2.0)/400 Mbps(IEEE1394)
2) Support various OS(Windows 98SE/ME/2000/XP, MAC OS 9.X over)
3) Portable & Compact size
4) Strong to impact(by durable metal case & leather jacket)
5) Power from USB or IEEE1394 bus
6) LED indicator for showing the status of data transferring
2. Specification of Wonlink WS-131C
Model Wonlink WS-131C
Interface IEEE1394/USB 2.0/USB 1.1
System
Requirement
Windows 98 SE/ME/2000/XP, Mac OS 9.X over
Transmission
Speed
Max. 480 Mbps(USB 2.0)
Max. 400 Mbps(IEEE1394)
Dimension 77mm X 15mm X 132mm(W × H × D)
Weight 186 g
Package
includes
Wonlink WS-131C
IEEE1394 Cable(6-6 Pin)
USB 2.0 Cable
PS/2-USB Power Cable
User Manual
Screw Drive
Bolts(Large/Small)
Leather Jacket
Drive CD
※ Notice
1) Don't place the product near magnetic substance. Data of HDD may disappear.
2) In case of input something into the product, it may become wrong or easily make a
fire.
3) Pay attention to drop the product for prevention of breakdown.
3. How to assemble Wonlink WS-131C
For more convenient installation, refer to the deal drawing.
A. Prepare these items from package.(includid in the package).
a. 2.5" HDD(it is not included in package.)
b. Wonlink WS131-C case
c. Large bolts(4 pieces)
d. Small bolts(8 pieces)
e. Screw driver
Page 3
If using a new HDD, you must format it after assembling WS-131C.
If using a used HDD, you'd better reformat after assembling WS-131C.
B. Separate upper and lower cases.
C. Connect the HDD to the PCB board.
D. Turn over the case and screw the PCB board with 4 pieces of large bolts.
E. Screw the upper and lower cases with 8 pieces of small bolts.
4. Part name of Wonlink WS-131C
․ Blue LED indicator : shows the status of transferring data
․ Red LED indicator : shows that status of connecting with Wonlink WS-131C
․ IEEE1394 6 pin connector : connects IEEE1394 6pin cable
․ USB 2.0 connector : connects USB 2.0 cable
․ Slide switch :
a. USB 2.0 : when using USB
b. USB 2.0-DC-Firewire : when using USB/IEEE1394 with extra power
c. Firewire : when using IEEE1394(Firewire)
4-1. How to Install IEEE1394(Firewire)
Place the slide switch on Firewire and connect IEEE1394 6pin cable.
◆ Recognize as IEEE1394 device with red color signal on lamp 1.
◆ When it access to Harddisk, blue color signal appears on lamp 2.
◆ When adequate power is not supplied in using notebook with 4pin or 6pin cable,
place the slide switch on USB2.0-DC-Firewire and connect PS/2-USB Power
Cable to PS/2 or USB port and to power terminal of WS131-C.
(For use of IEEE1394, driver is not needed. Refer to the manual inside of CD
for something related in driver or harddisk(FDISK, FORMAT)).
4-2. How to install USB2.0
Place the slide switch on USB2.0 and connect USB2.0 cable.
◆ Recognize as USB2.0 device with red color signal on lamp 1.
◆ When it access to Harddisk, blue color signal appears on lamp 2.
◆ When adequate power is not supplied in using desktop or notebook, place the
slide switch on USB2.0-DC-Firewire and connect PS/2-USB Power Cable to
PS/2 or USB port and to power terminal of WS131-C.
(For use of USB2.0, driver is needed under Windows 98 SE. Refer to the
manual inside of CD for something related in driver or harddisk(FDISK,
FORMAT).
Page 4
FCC NOTICE
/
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection agains t harmful interf erence in a reside ntial installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accor dance with the ins truct ions, ma y cause harmf ul interfer ence
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipm ent does c ause harmf ul interferen ce to
radio or television reception, which can be determined by turning the equipment of
and on, the user is encour aged to try to cor rect the inter ference by one or more of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipm ent into an outlet on a circuit different from that to wh ich the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
NOTE: The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modifications to this equipment. Such modifications could void the
user’s authority to operate the equipment.
/
