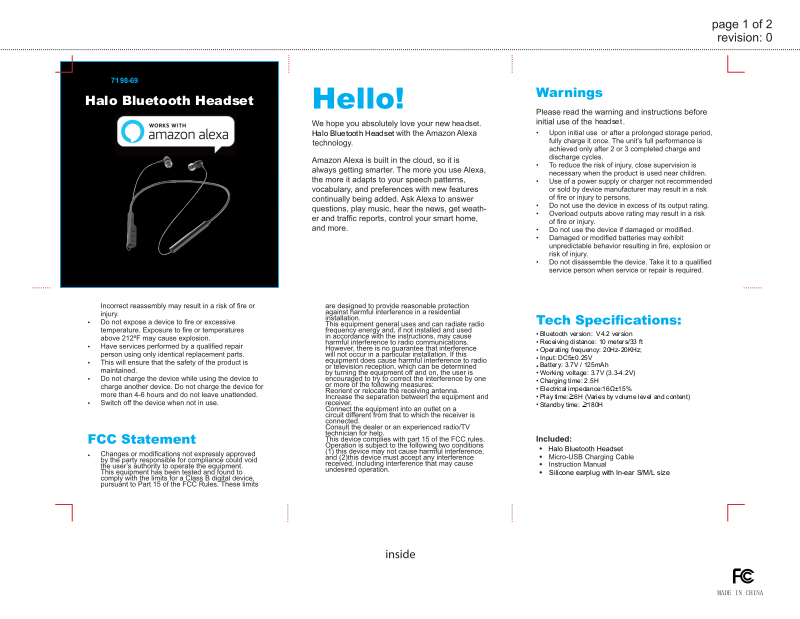

Wonders Technology DSS09 User Manual

7198-69

Halo Bluetooth Headset

Halo Bluetooth Headset

headset

headset

Bluetooth version: V4.2 version
Receiving distance: 10 meters/33 ft
Operating frequency: 20Hz-20KHz;
Input: DC5±0.25V
Battery: 3.7V / 125mAh
Working voltage: 3.7V (3.3-4.2V)
Charging time: 2.5H

Electrical impedance:16Ω±15%

Play time: 6H (Varies by volume level and content)
Standby time: 180H

<

<

Silicone earplug with In-ear S/M/L size

How to use the Headset:

Charge the headset completely before initial use
Using the provided cables, connect the Micro­USB end into the headset and the USB end into a
computer or an AC wall adapter.
The LED (located next to the Micro-USB Port) will
light up RED, when fully charged LED will turn
BLUE.
It takes 2.5 hours to charge the headset fully.

Rapidly Flashing Blue and red light: Pairing mode
Flashing Blue: Paired
Steady red: charging
Steady blue: the LED will turn Blue after the headset
is fully charged.

Button Functions:

Short press Activate Amazon Alexa
Short press Volume+
Long press Next Track
Short press Volume­Long press Previous Track
Short press Play/Pause the music
Long press Power ON/OFF

1. Press to turn headset on, press and hold until
LED indictor flashes RED and BLUE.

2.Turn on the Bluetooth function on mobile device,
Select “CloudFox_H1” pairing name.

3. LED will turn BLUE if successfully paired

4. The headset will automatically pair if the mobile device
has been paired before.

5. Press to turn off the device.

1. Download DOSS Sound+ App by using provided
QR code.

2. Long press the power button of the speaker to
activate pairing mode.

3. Select “CloudFox_H1” from your smart phone’s
list of possible pairs to connect via Bluetooth .

4. Open DOSS Sound+ App from mobile device.

5. Create or Log in with an existing Amazon account.

6. Once logged in, Headset will automatically connect
with Alexa.

7. Short Press to activate Alexa.

8. Please Note the App has to left open to use the
Alexa Voice Services

DOSS Sound+
