WondaLink SC200 User Manual

Confidential

Project Name

SC200

Document No.

Issue Date

10th July 2017

Revision

Issue 1.0

Smart Charger

SC200 User Manual

Created By: Jimmy

Confidential

2

Table of Contents

Revision History .............................................................................................................. 3

Reviewer ......................................................................................................................... 3

1. General Information ................................................................................................. 4

2. BLE Connection Setup ............................................................................................ 7

2.1 BLE Connection with iOS device ....................................................................... 7

2.2 BLE Connection with Android device .............................................................. 10

3. LED Color Status................................................................................................... 12

3.1 LED Color Status while System Boot-up Time ................................................ 12

3.2 Nightlight ........................................................................................................ 12

3.3 Notification LED ............................................................................................. 13

3.4 Battery status LED ........................................................................................... 14

4. Charger App .......................................................................................................... 14

4.1 Home Page ...................................................................................................... 14

4.2 Setting Page ..................................................................................................... 15

4.2.1 Wi-Fi Setting ............................................................................................ 16

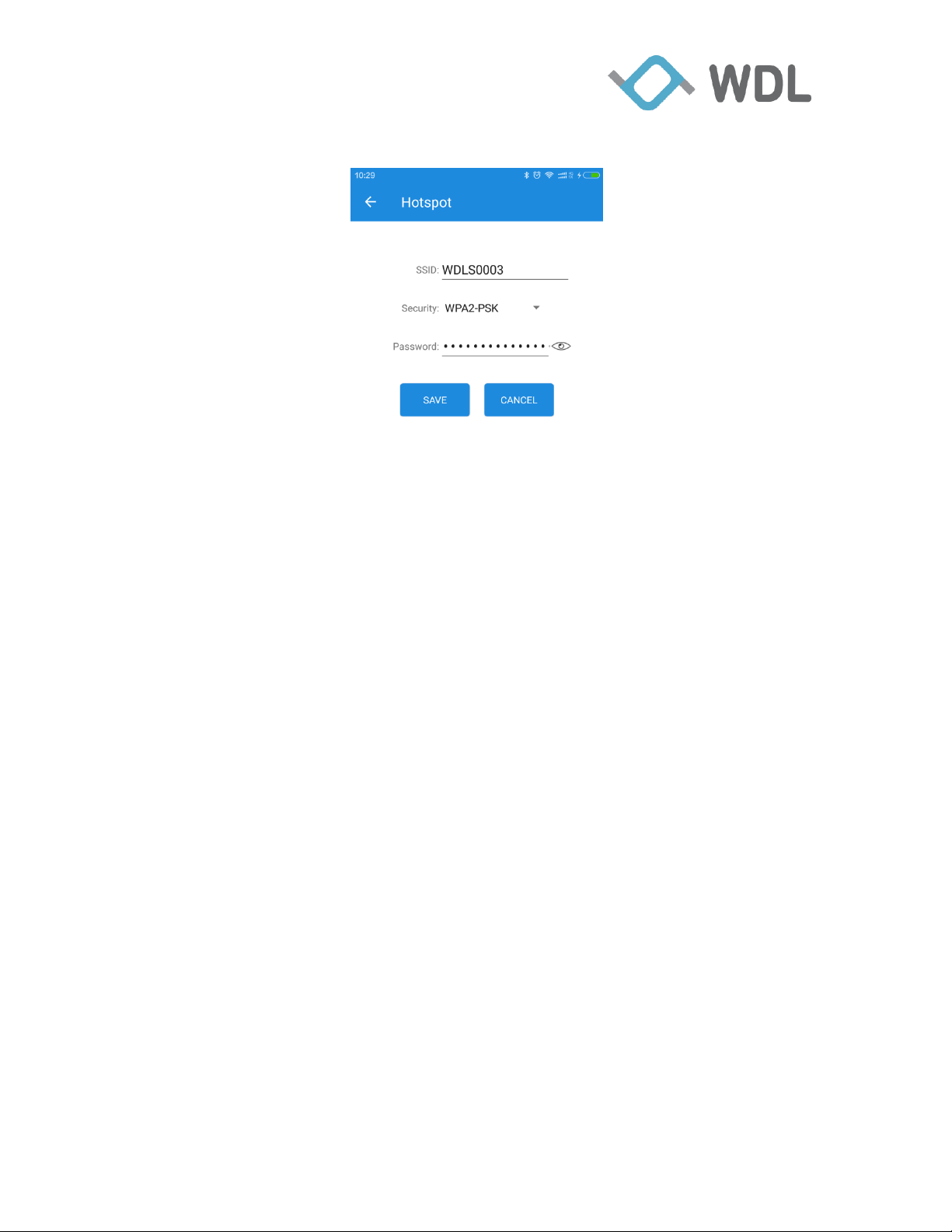

4.2.2 Hotspot setting .......................................................................................... 17

4.2.3 Charger Info ................................ .............................................................. 18

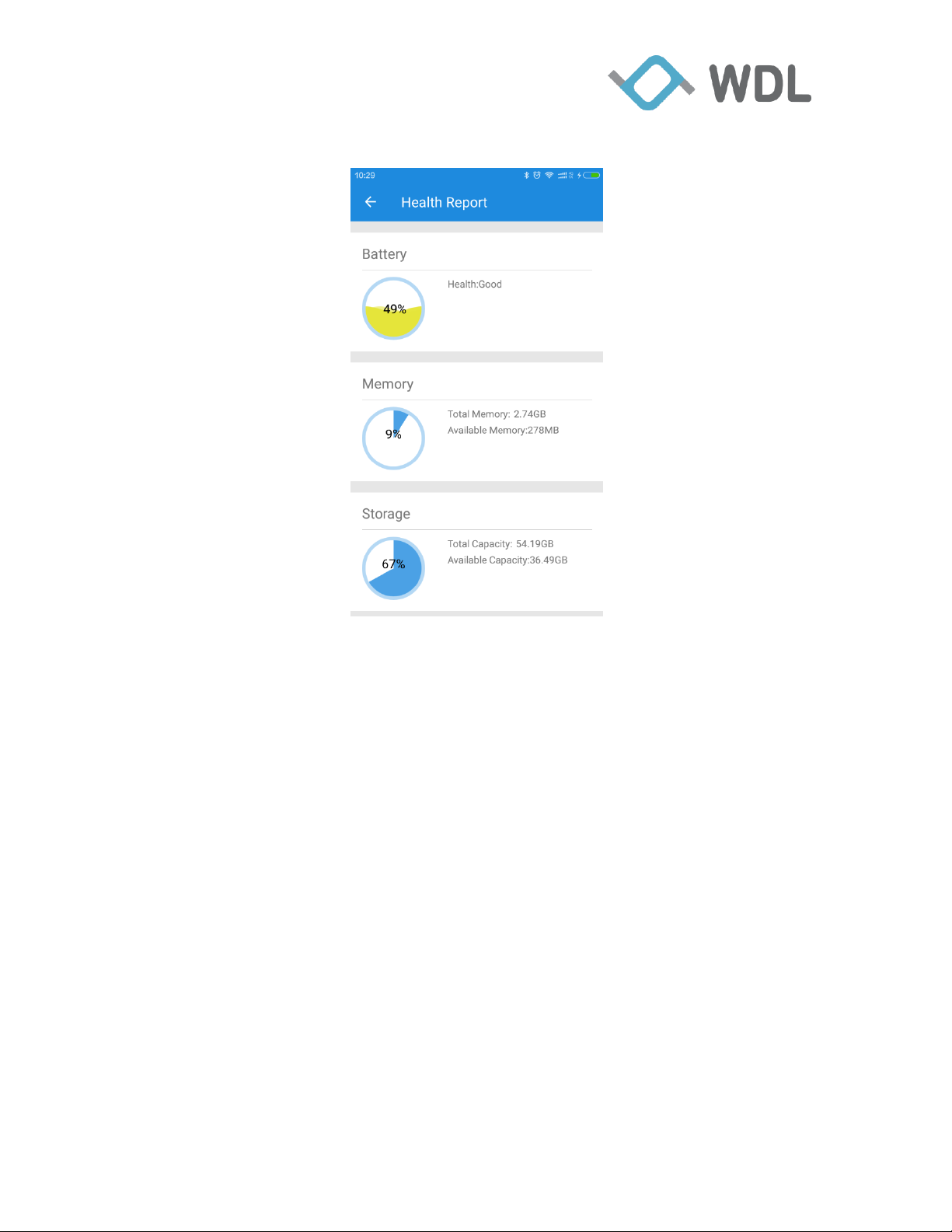

4.2.4 Health Report ............................................................................................ 19

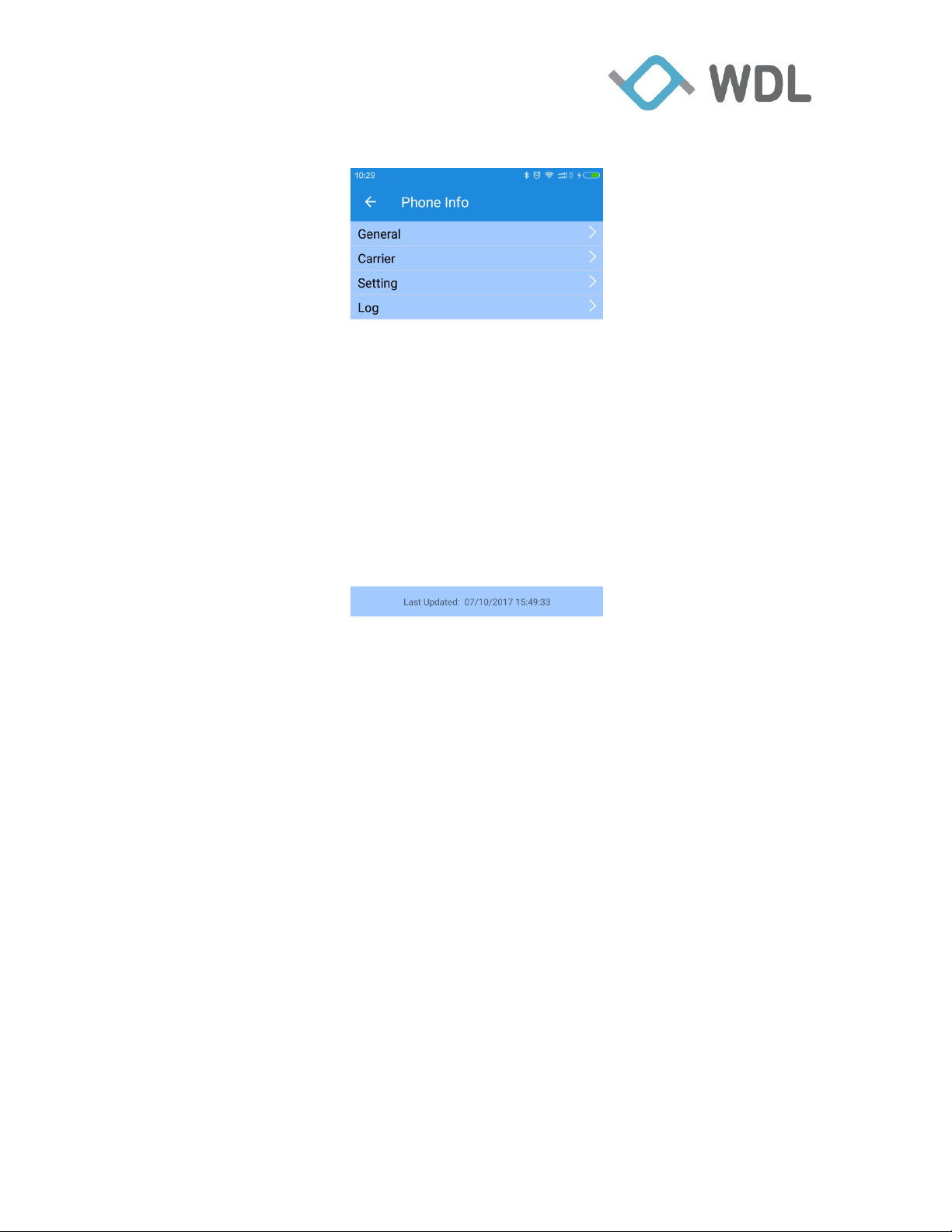

4.2.5 Phone Info................................................................................................. 20

WondaLink Proprietary & Confidential

Confidential

3

Date

Release

Author

Description

07/11/2017

1.0

Jimmy

First draft

Department

Name/Title

Software Department I

Hardware Department I

Mechanical Department I

System Quality Assurance

Revision History

Reviewer

WondaLink Proprietary & Confidential

Confidential

4

Component Type

Version

Comment

Realtek BSP

SDK-v3.4.11B

RTL8197F

WDL SDK SVN

R.755

Subversion Reversion Number

U-Boot

0.4

WDL bootloader version

Realtek WLAN

V1.7

Realtek driver version

TI BLE SoC

Simplelink_2_13_00_06

TI CC2640

Features

Support

Component Type

Open Source (O)

Commercial (C)

Comment

Kernel

Linux Kernel 3.10.90

Y

O

Drivers

UART Driver

Y

O

USB Host Driver

Y

O

Flash Memory

Y

O

SPI Driver

Y

O

I2C Driver

Y

O

Features

Support

Component Type

OpenSource (O) Commercial (C)

Comment

Busybox Y O

V-1.23.2

1. General Information

Following information gives an overview about the main software components of SC200 Board.

Table 1 Components of SC200 BSP

1. Supporting Features This chapter has the complete list of available features for SDK package and

distinguishes features into different tables in the following. The type of components can be either Open Source or Commercial. Open Source type will be shorted as “O” and Commercial type will be shorted as “C” in the tables.

Table 2 Driver features

Table3 lists Proprietary applications supported in current SDK.

Table 3 Applications features

WondaLink Proprietary & Confidential

Confidential

5

Openssl Y O

V-1.0.2g

Libxml2 Y O

V-2.7.8

Libimobiledevice

Y

O

V-1.2.1

Ideviceinstaller

Y

O

V-1.1.1

Libplist Y O

V-1.13

Libusb Y O

V-1.0.20

Libusbmuxd

Y

O

V-1.1.0

Usbmuxd Y O

V-1.1.1

Zlib Y O

V-1.2.3

Libzip Y O

V-1.1.3

Dbus

Y

O

V-1.6.8

Expat

Y

O

V-2.0.1

ADB-Tools

Y

O

V-1.0.32

Web/GUI Y C

WondaLink Proprietary https

Firmware Upgrade

Y

C

Firmware Upgrade for Smart Charger

TR69 Y C

CAPI Library

Y

C

WDL common library

Middleware Applications

SystemController

Y

C

ConfController

Y

C

Lock Controller

Y

C

Common Controller

Y

C

Time Controller

Y

C

TimerController

Y

C

Firmware Controller

Y

C

BLE Controller

Y

C

IOS Controller

Y

C

USBMUX Controller

Y

C

LED Controller

Y

C

ADB Controller

Y

C

Battery Controller

Y

C

Memory Controller

Y

C

Wlan Controller

Y

C

WondaLink Proprietary & Confidential

Confidential

6

Web Controller

Y

C

System Health Controller

Y

C Tr69 Controller

Y

C

XMPP Controller

Y

C

Controller CLI

Y

C

ctrl_lock_file ctrl_debug ctrl_log_print ctrl_notify_service_up ctrl_send_sig ctrl_set_time ctrl_unlock_file ctrl_wait_for_service_up

FeaturES

Support Interface

Smart charger sends the installed Application to iOS APP

USB

Smart charger sends the iDevice information to iOS APP

USB

Smart charger sends the ANCS notification to iOS APP

BLE

iOS APP request ANCS notification attribute to Smart Charger

BLE

Smart charger sends ANCS response attribute data to iOS APP

BLE

iOS APP send Light state setting to Smart charger

BLE

Smart charger receives battery level from iOS Phone

BLE

iOS APP send the “Nightlight setting” values to Smart charger

BLE

Smart charger sends available nearby Root AP list to iOS APP

BLE

iOS APP send the user selected Root AP information to Smart Charger

BLE

Smart Charger send their firmware information to iOS APP

BLE

FeaturES

Support Interface

Smart charger receives battery status & info from Android Phone

ADB-USB

Smart charger receives memory info from Android Phone

ADB-USB

Table 4 Data communication features (iOS Phone)

Table 5 Data communication features (Android Phone)

WondaLink Proprietary & Confidential

Confidential

7

Android APP send Light state setting to Smart charger

BLE

Smart charger receives battery level from Android APP

BLE

Android APP send the “Nightlight setting” values to Smart charger

BLE

Android APP send the user selected Root AP information to Smart Charger

BLE

Smart Charger send their firmware information to Android APP

BLE

system state

LED State

Smart charger boot up time

GREEN

BLE disconnected between Smart charger and iOS Phone

DARK

iOS/Android Phone Battery level less than 30%

ORANGE

iOS/Android Phone Battery level between 30% and 60%

YELLOW

iOS/Android Phone Battery level greater than 60%

GREEN

Smart charger firmware upgrading process time

GREEN with Flashing effort

Smart charger upgrading TI BLE module firmware time

BLUE with Flashing effort

iOS/Android APP received any notification

User set Color with HEARTBEAT effort

Table 6 Light Color state features(Both iOS& Android Phone)

2. BLE Connection Setup

Currently, Smart Charger F/W version is V2.02.14, which support both iOS and Android device. The corresponding iOS/Android Charger App version is v2.02.18. Charger App need setup BLE connection with Charger before it can works. Note that Charger can only support one BLE connection at the same time.

2.1 BLE Connection with iOS device

1. Install iOS App SmartCharger V2.02.18 from iOS App Store.

2. Power on Smart Charger. This system boot-up time will take approximately 30

seconds, during this time LED in GREEN Solid effort.

WondaLink Proprietary & Confidential

Confidential

8

3. Once System boot-up sequence completed, Charger LED will turn off.

4. Get into iOS device Bluetooth “Settings” screen and enable the Bluetooth for iOS

device.

5. Launch installed SmartCharger App, Warning message "No Bluetooth connection"

show on home page.

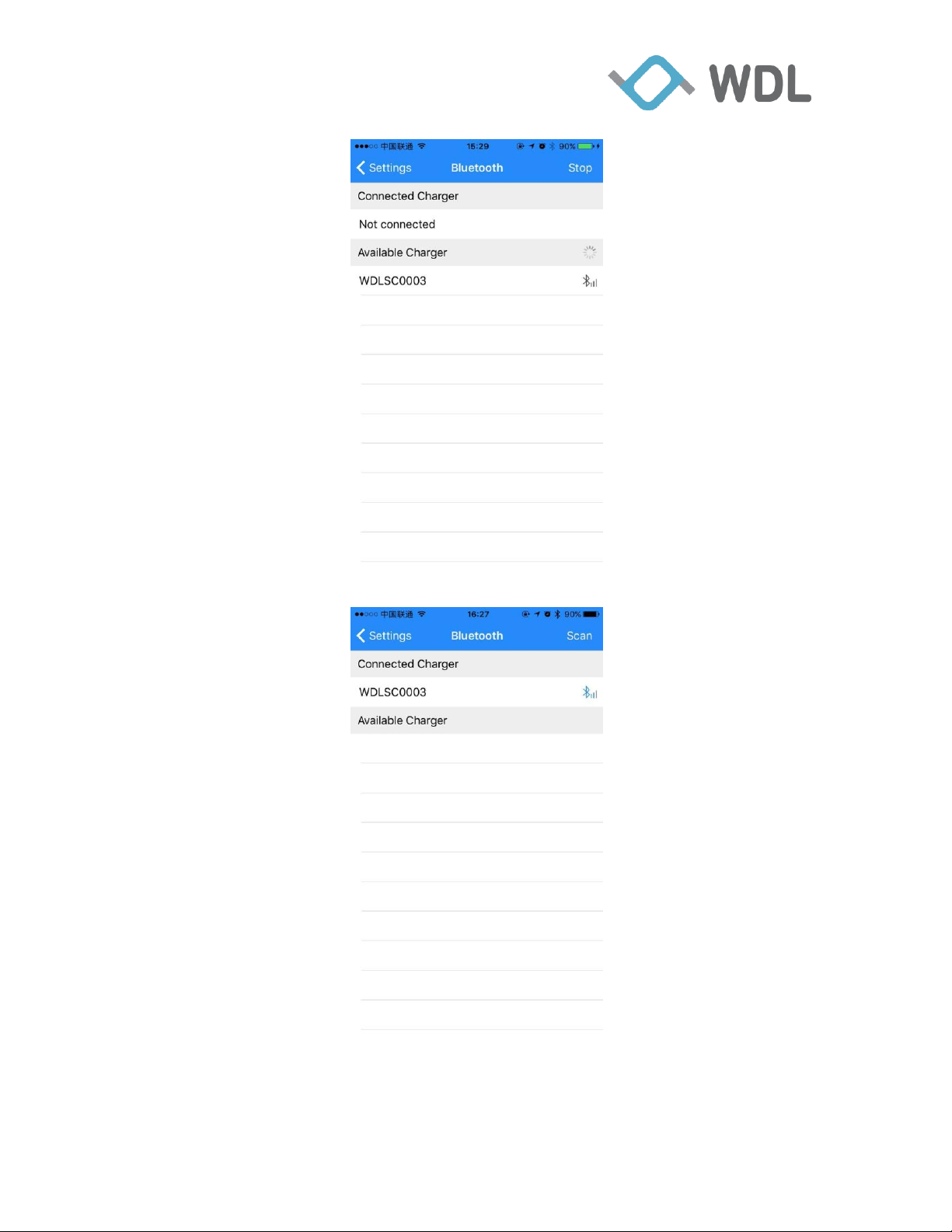

6. Click the warning, jump to Bluetooth setting page. Can see Smart Charger BLE

display name called “WDLSCXXXX” in Available Charger list.

WondaLink Proprietary & Confidential

Confidential

9

7. Click “WDLSCXXXX”, App successful setup BLE connection with Charger.

8. Within few seconds Bluetooth paring screen popup. Please accept the “pair” option from the

pop up window.

WondaLink Proprietary & Confidential

Confidential

10

2.2 BLE Connection with Android device

1. Install Android App SmartCharger V2.02.18 from Google Play.

2. Power on Smart Charger. This system boot-up time will take approximately 30

seconds, during this time LED in GREEN Solid effort.

3. Once System boot-up sequence completed, Charger LED will turn off.

4. Get into Android device Bluetooth “Settings” screen and enable the Bluetooth for

Android device.

5. Launch installed SmartCharger App, Warning message "Bluetooth is disconnected"

show on home page.

WondaLink Proprietary & Confidential

Confidential

11

6. Click the warning, jump to Bluetooth setting page. Can see Smart Charger BLE

display name called “WDLSCXXXX” in Available Charger list.

7. Click “WDLSCXXXX”, App successful setup BLE connection with Charger.

WondaLink Proprietary & Confidential

Confidential

12

3. LED Color Status

Charger support Nightlight, Notification LED and Battery status LED, they share the same hardware LED. The priority is Nightlight > Notification LED > Battery status LED.

3.1 LED Color Status while System Boot-up Time

In system boot-up time, LED keep in Green SOLID Color for about 30 seconds, after system boot-up, the LED will turn off.

3.2 Nightlight

Charger support Nightlight, we can use Charger App to configure color, brightness and schedule.

WondaLink Proprietary & Confidential

Confidential

13

3.3 Notification LED

Charger App can monitor App's notification status in smart phone, user can configure Notification LED for the app which he is interested in. Each app can configure its own LED color, flash mode and brightness.

WondaLink Proprietary & Confidential

Confidential

14

3.4 Battery status LED

If no Nightlight and Notification LED triggered, Charger LED by default will show Battery status as per below condition.

1. LED Color in GREEN, If battery level > 60%

2. LED Color in YELLOW, If battery level 30% - 60%

3. LED Color in RED, If battery level < 30%

4. Charger App

4.1 Home Page

 Battery level and charger status  Shortcut for Nightlight  Shortcut to check current notifications  Entrance for Setting page

WondaLink Proprietary & Confidential

Confidential

15

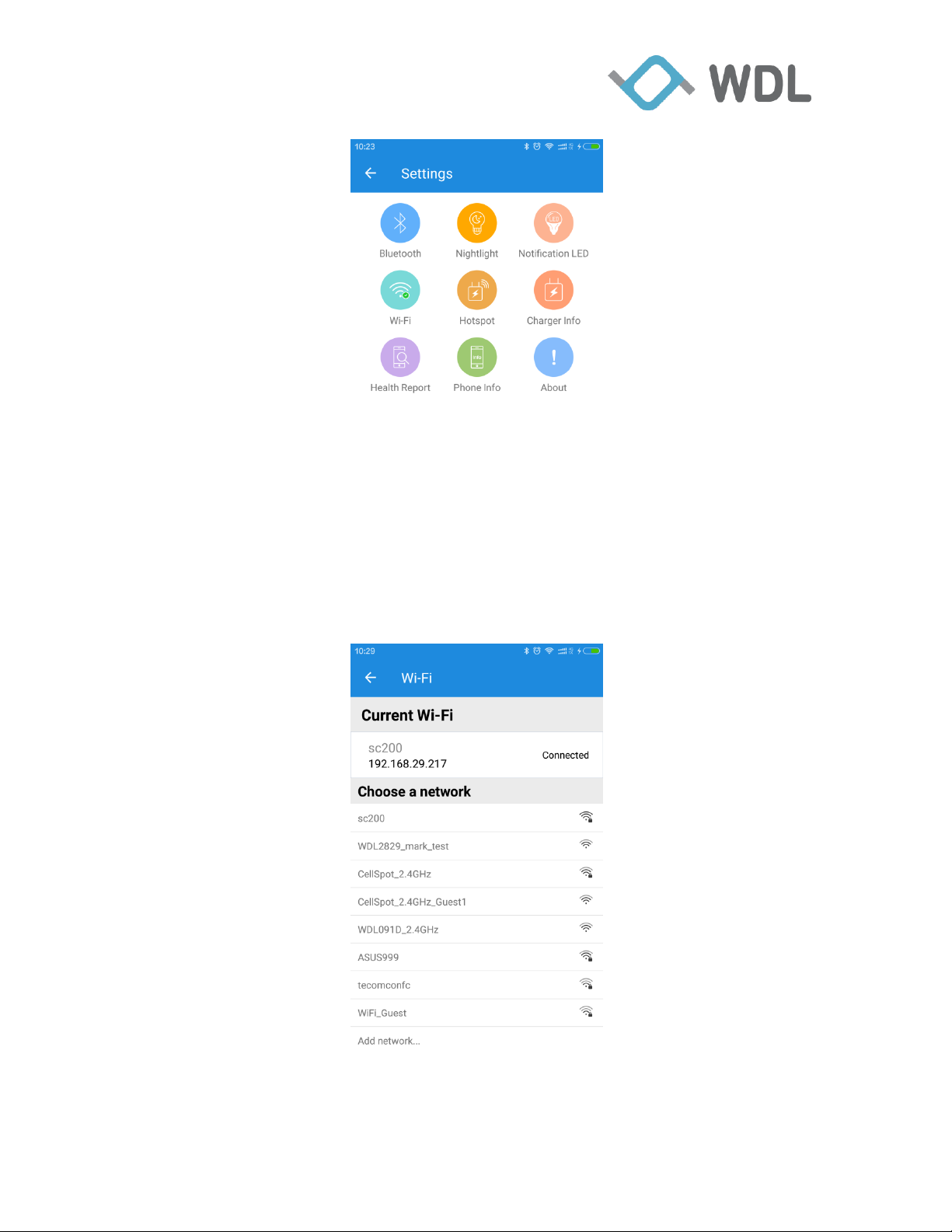

4.2 Setting Page

 Bluetooth setting  Configure Nightlight  Configure Notification LED  Configure Charger Wi-Fi Setting  Configure Charger Hotspot  Get Charger infomation  Get Charger Health Report  Get Phone information
