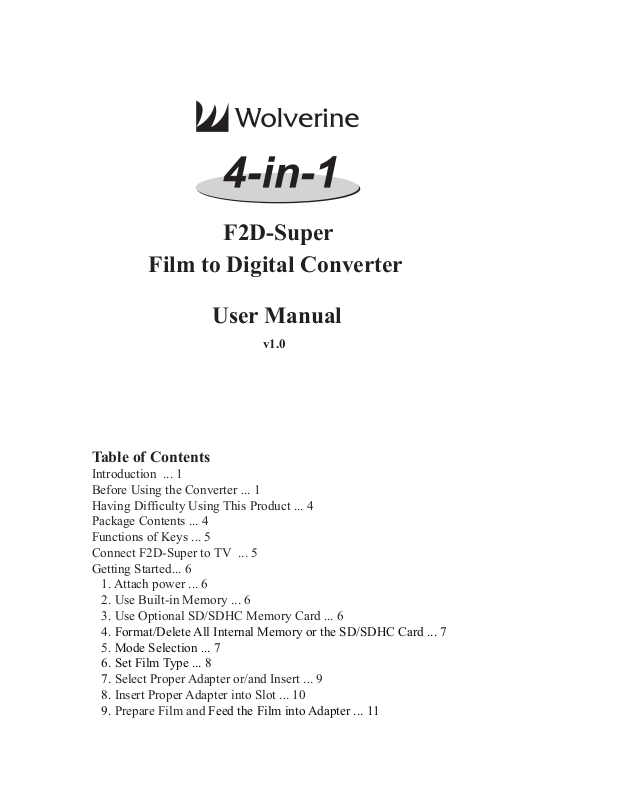

Wolverine Data F2D20SUPER User manual

F2D-Super

Film to Digital Converter

v1.0

User Manual

Table of Contents

Introduction ... 1
Before Using the Converter ... 1
Having Difficulty Using This Product ... 4
Package Contents ... 4
Functions of Keys ... 5
Connect F2D-Super to TV ... 5

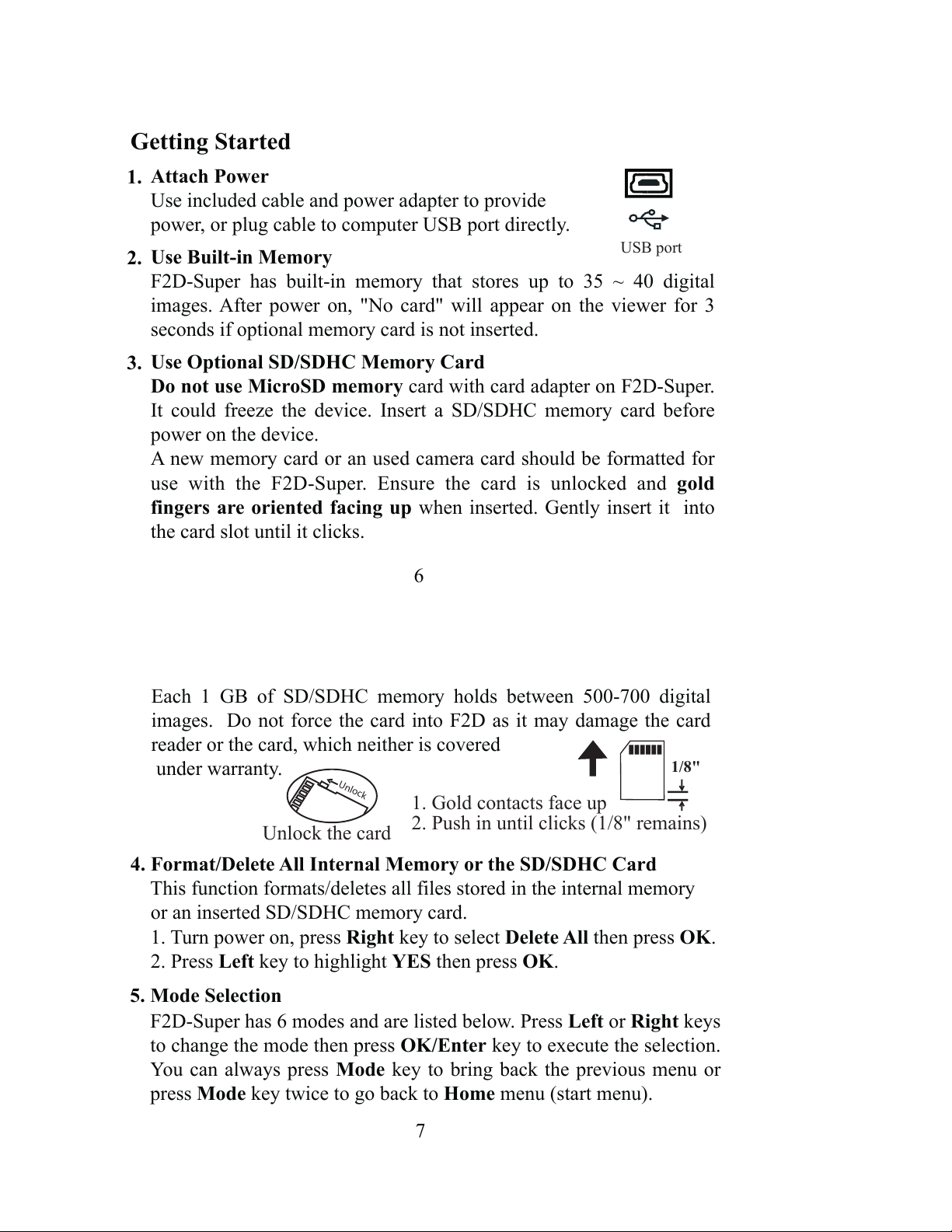

Getting Started... 6

1. Attach power ... 6

2. Use Built-in Memory ... 6

3. Use Optional SD/SDHC Memory Card ... 6

4. Format/Delete All Internal Memory or the SD/SDHC Card ... 7

5. Mode Selection ... 7

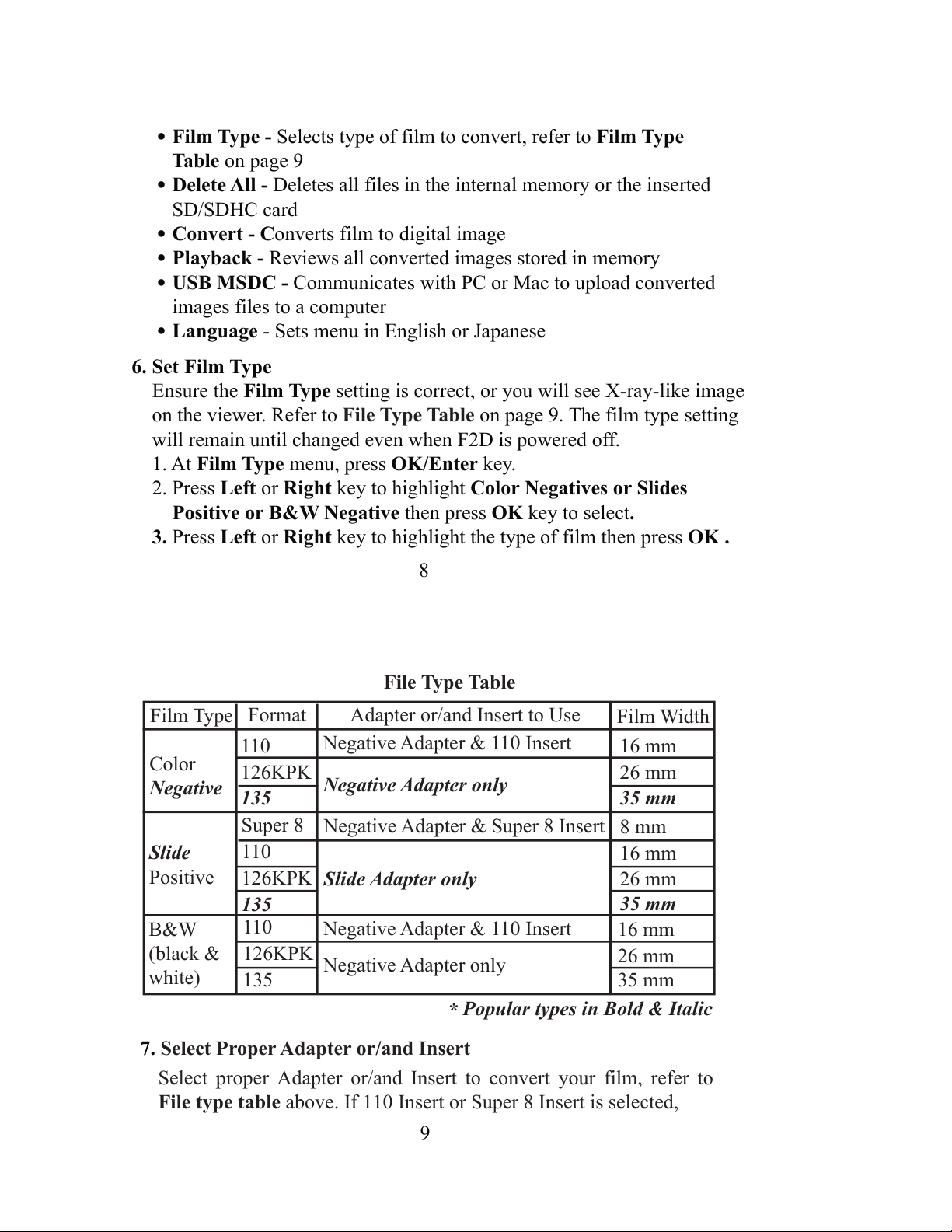

6. Set Film Type ... 8

7. Select Proper Adapter or/and Insert ... 9

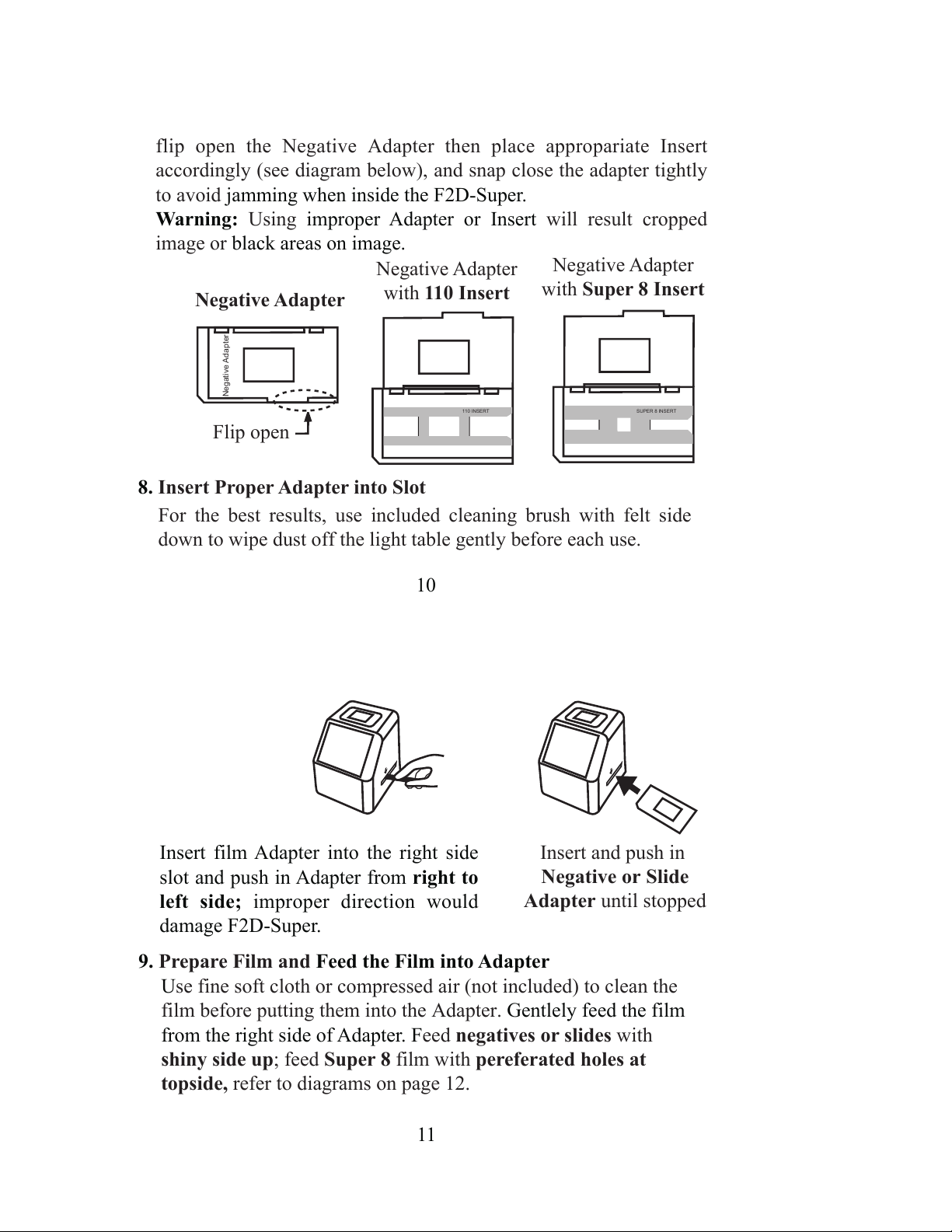

8. Insert Proper Adapter into Slot ... 10

9. Prepare Film and Feed the Film into Adapter ... 11

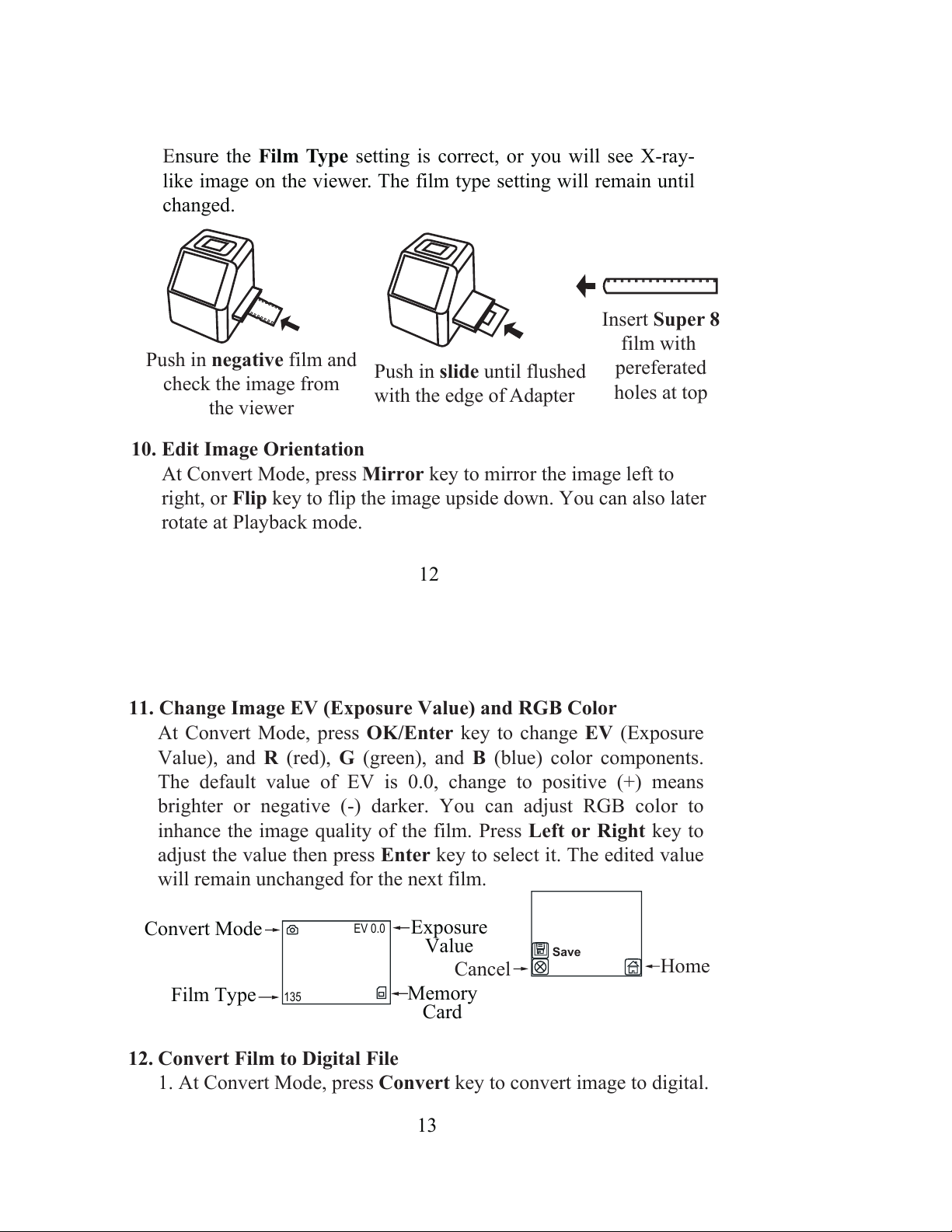

10. Edit Image Orientation ... 12

11. Change Image EV (Exposure Value) and RGB Color ... 13

12. Convert Film to Digital File ... 13

13

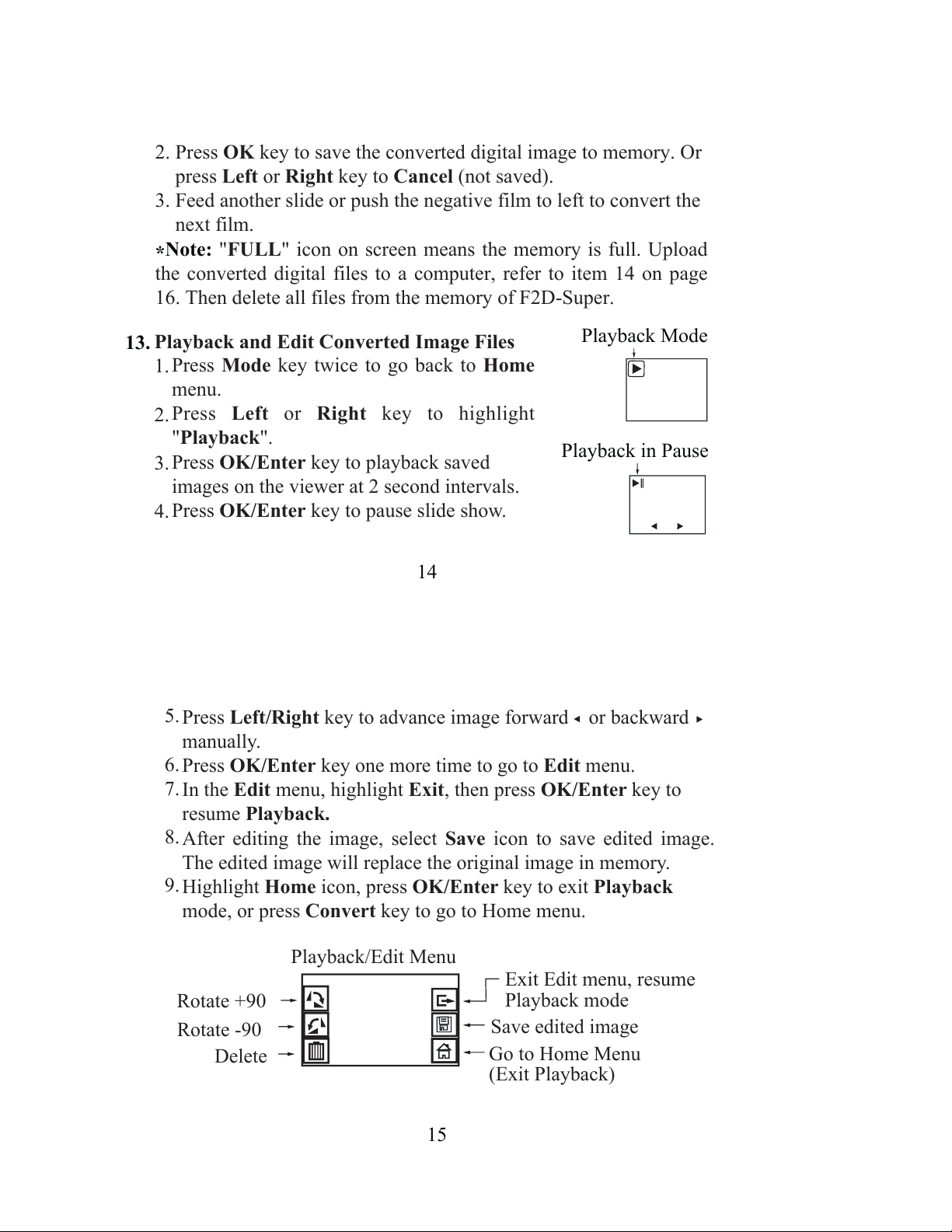

. Playback and Edit Converted Image Files ... 14

14.

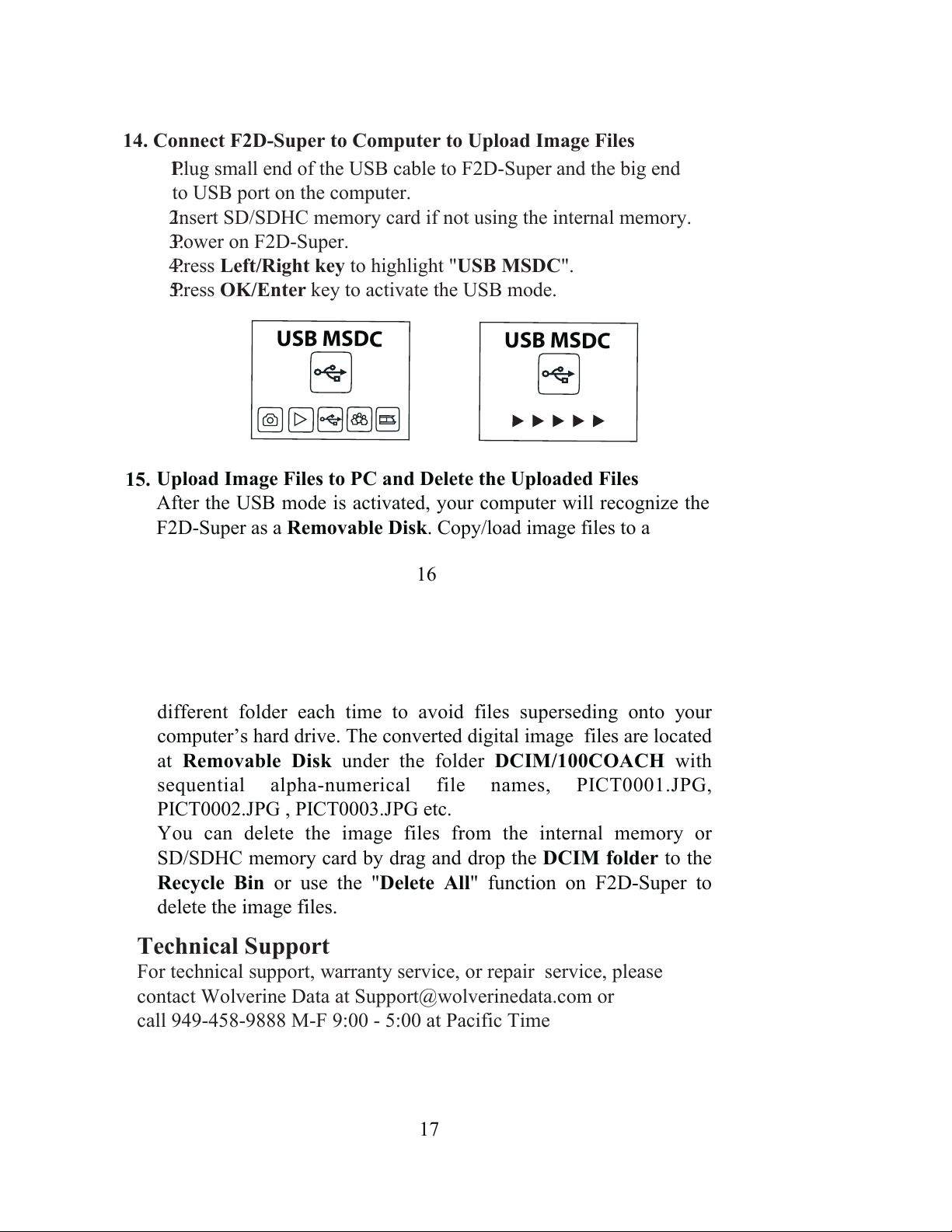

Connect F2D-Super to Computer to Upload Image Files ... 16

15.

Upload Image Files to PC and Delete the Uploaded Files ... 16

Technical Support ... 17

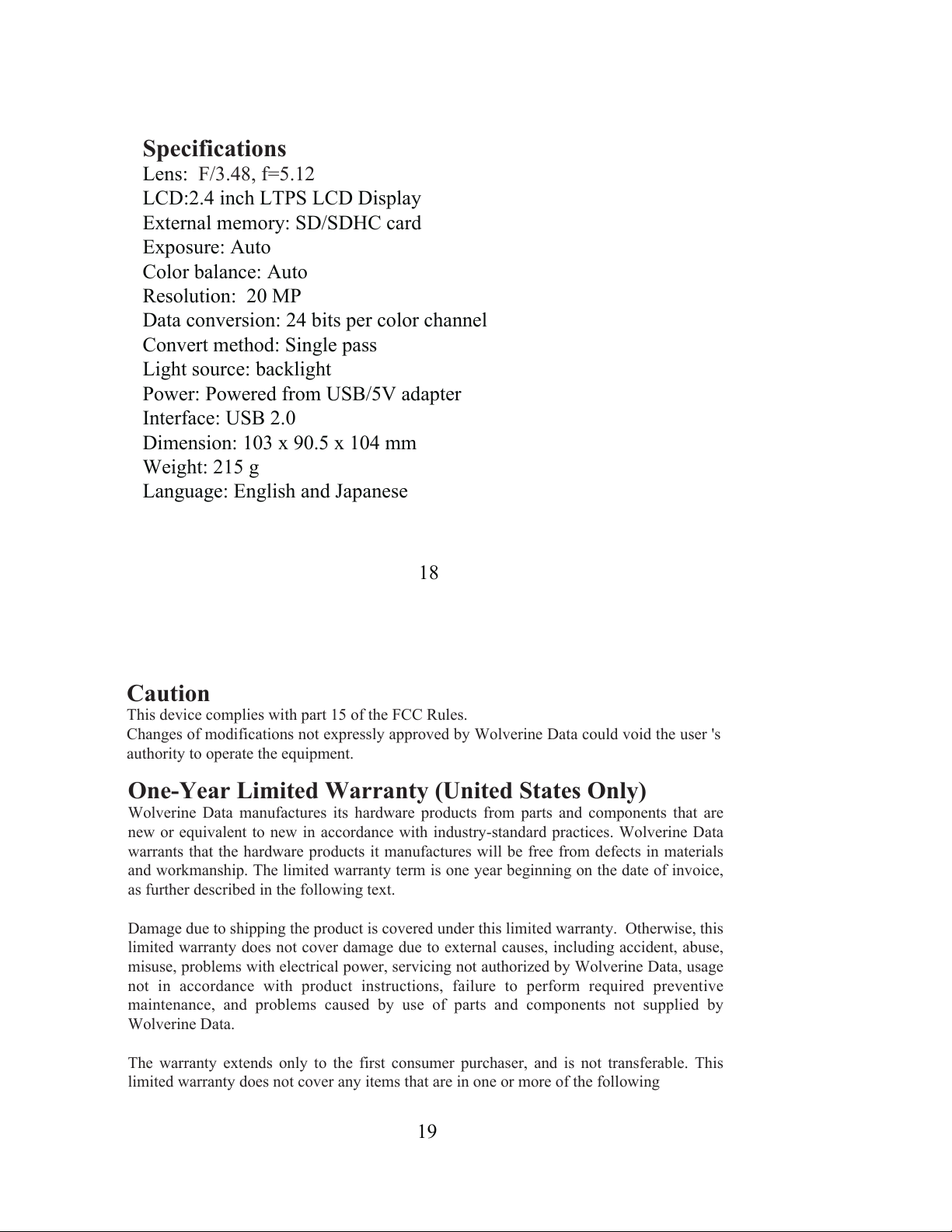

Specifications ... 18
Caution ... 19
One-Year Limited Warranty (United States Only) ... 19

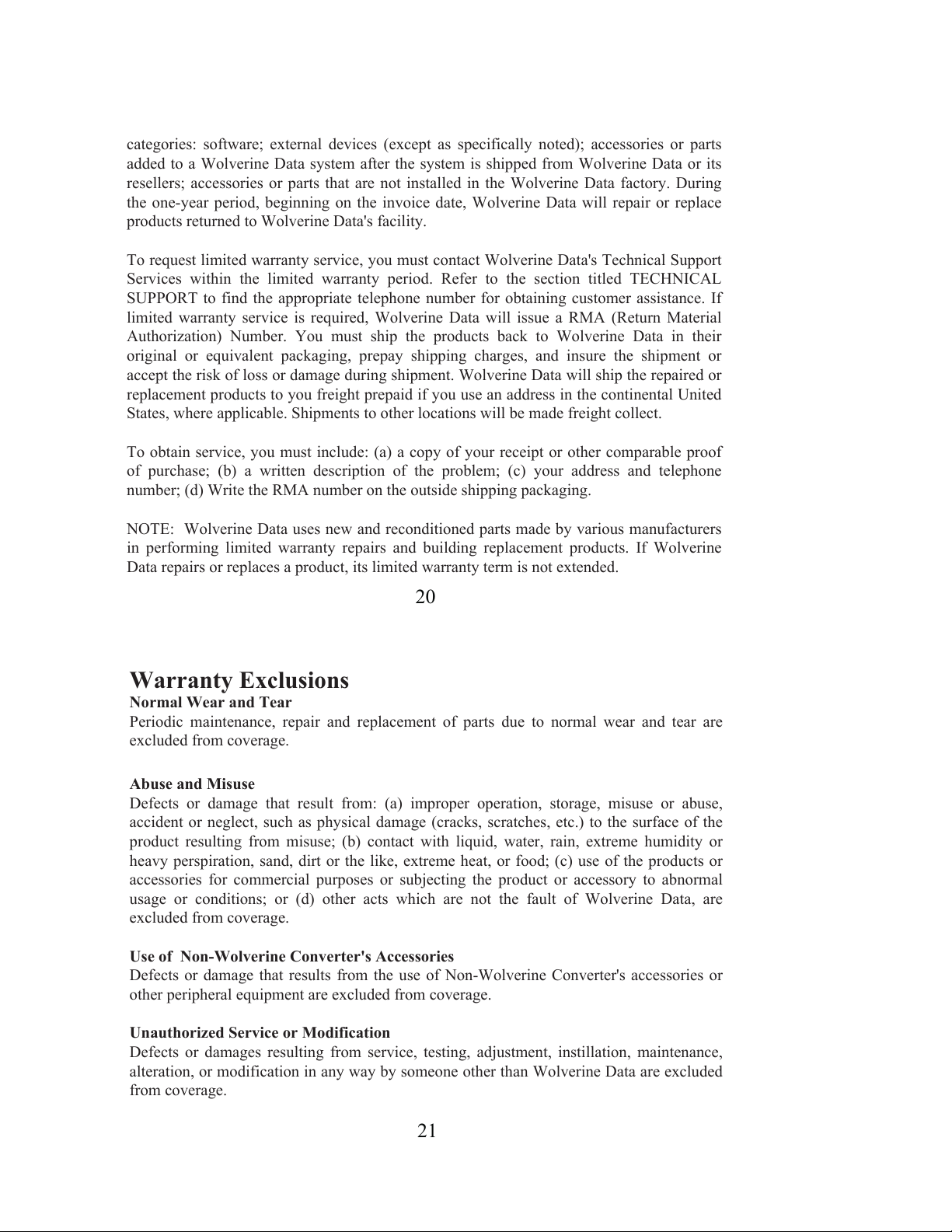

Warranty Exclusions ... 21

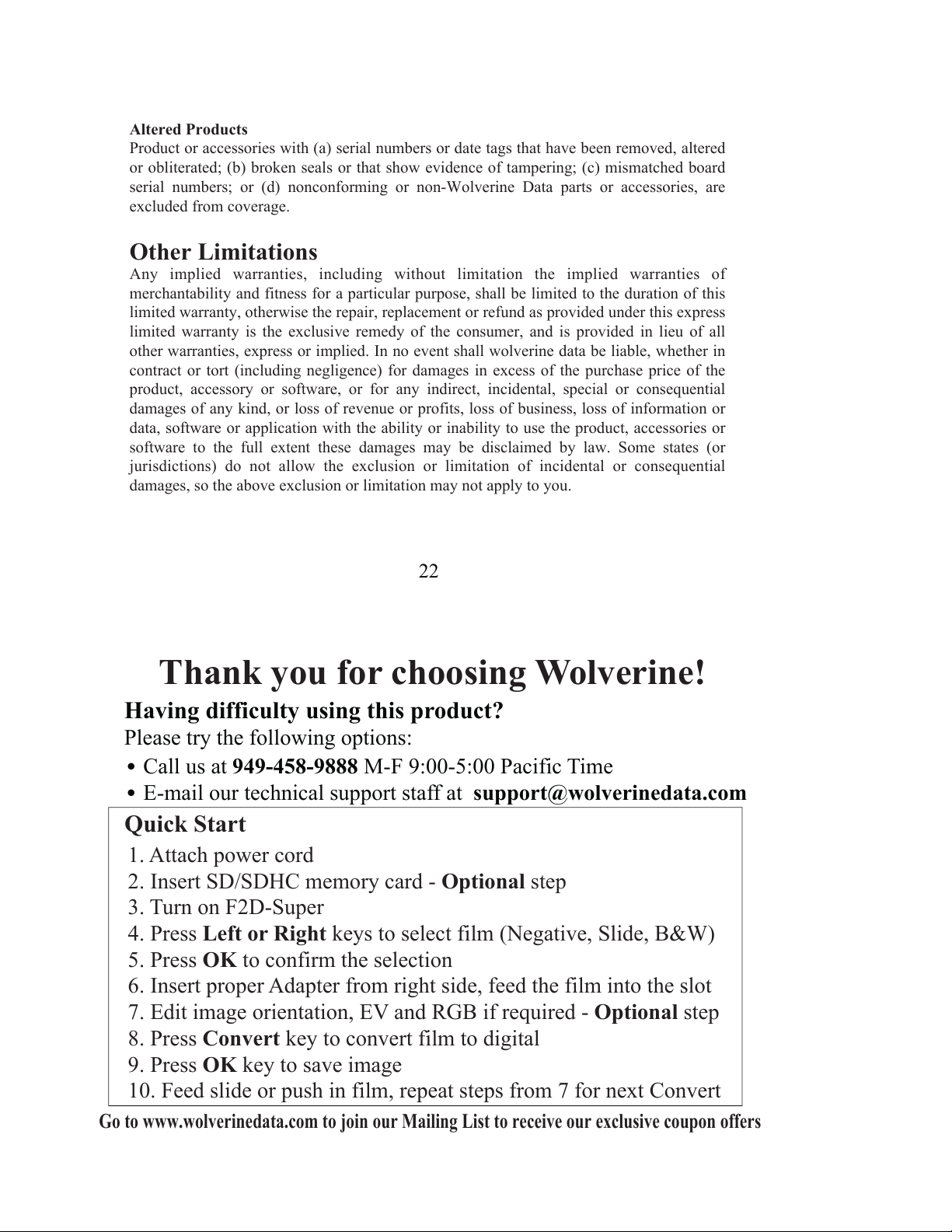

Other Limitations ... 22
Thank You for Choosing Wolverine and Quick Start ... Back Cover

1

Introduction

Thank you for purchasing Wolverine F2D-Super Film to Digital
Converter. You can take stacks of film and convert them into digital

images to preserve them forever. Wolverine has created a simple-to-use
device to convert your film into high mega pixel digital images in
seconds. No computer or software is needed. Plug the F2D-Super into
an outlet or a USB port; all images are saved to memory or optional
SD/SDHC memory card. The F2D-Super can be connected with your
Windows PCs or Mac computer system to upload converted and saved
digital images through USB ports.

Before Using F2D-Super

This section provides important safety information that you should read
before using your F2D-Super.

Do not drop or handle too aggressively as it may cause damage to the
device.
Do not allow the device to come into contact with water or other
liquids. In the event that water or other liquids enter the interior,

.
.

2

immediately turn off the device. Continued use of the device may
result in fire or electric shock.
Do not handle the device with wet hands. Doing so may cause
electric shock and damages to the unit.
Do not place the device close to any equipment generating strong
electromagnetic fields. Exposure to strong magnetic fields may
cause malfunction or data corruption.
Do not expose the device to extreme temperatures, humidity or
vibrations, which may cause damages to the device.
Do not open the outer casing. This unit does not require batteries or
contain user serviceable parts.
Do not move or disconnect the device from the computer while the
device is reading/writing data. This may cause damages to the data
and/or the device.
Under no circumstances should user try to repair the device. Doing
so may cause electric shock and void the warranty.
Warranty will be voided if the device is mishandled. Please take
care in handling the device. Wolverine Data is not responsible for

.
.

.
.
.

.
.

3

consequential damages, including loss of data. Always back up all
data. For full warranty statement see the end of this manual.
Wolverine Data has no obligation to repair, replace or issue refunds
without a Return Merchandise Authorization (RMA) number and
the original purchase receipt of the defective product.
Repairs or replacement service will not be offered to products that
were misused, scratched, repaired without authorization, or any
other reasons beyond the range of intended use.
Replacement product may be either new or refurbished, provided
that its functions are at least equal to that of the product being
replaced.
Wolverine Data is not responsible for any data stored on the
returned product, please backup any data prior to ship back the unit.
All out of warranty repairs are subjected to repair fee. Please
contact your dealer or Wolverine Data for current charges.

.
.
.
.

.

4

Having Difficulty Using This Product?

Please try the following options:

.
.

.

Call us at 949-458-9888 M-F 9:00-5:00 Pacific Time
Visit www.wolverinedata.com/support to find the latest
documentation and other help tips
E-mail or write to our technical support staff at
[e-mail] or our address: 9939 Muirlands Blvd.
Irvine, CA 92618

Package Contents

F2D-Super converter, 35 mm negative adapter, 35 mm slide adapter,
110 negative insert, Super 8 film insert, USB power adapter, USB
cable, cleaning brush, user manual.
Please call us at 949-458-9888 or visit www.wolverinedata.com to
order extra adapters, inserts, or optional accessories, SD memory card,
TV-out cable.
Go to www.wolverinedata.com to join our Mailing List to receive our
exclusive coupon offers.

5

.

Power: Power on/off

.

Left/Mirror and Right/Flip:

1. Highlight the selection to left/up or right/down

2. Mirror or Flip image in "Convert" mode

.

Convert/Mode:

1. Convert film to digital image in "Convert" mode

2. Press key 2 times to go back to Home menu/Mode change

.

OK/Enter key:

Confirm and execute the selection

C

OK/Enter

Power

Convert/Mode

Left/Mirror

Right/Flip

Functions of Keys

Press the corner of the button plate
to activate the functions.

Connect F2D-Super to TV

Plug the 3.5 mm end of the video-out cable (not included) to the back
of F2D-Super and RCA end to TV video-in connecter to view images
on TV screen. The viewer of the F2D-Super will turn dark, menu and
images will appear only on TV screen.
