Page 1
Palette
Stainless Steel Pasta Roller Attachment Set 3pc
Owner’s Manual
IMPORTANT:
Read and follow all warnings and instructions before assembly and use.
Keep this manual for future reference.
WOLSTEAD Palette Stainless Steel Pasta Roller Attachment Set 3pc 667921
Page 2
SAFETY PRECAUTIONS
To ensure safe use of the Wolstead Palette Stainless Steel Pasta Roller Attachment Set follow
these safety precautions:
1. When using the attachment set with the Wolstead Palette Stand Mixer, do not move or touch
the moving parts of the attachment set and do not allow metal utensils or objects to come
into contact with the attachment.
2. To avoid accidental injury, do not leave the attachment set or the stand mixer unattended
when in use.
3. If any parts of the attachment set are damaged, stop using the product to avoid injury.
4. When using the attachment set, do not wear ties, scarves, long necklaces, or loose
accessories or clothing. Long hair should be secured with hairpins to avoid entanglement
and injury.
5. The pasta roller attachment set is only suitable for handling dough. To avoid product
damage, do not process ingredients other than dough.
6. This pasta roller set is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of the set by a person responsible
for their safety.
7. Children should be supervised to ensure that they do not play with the pasta roller set.
8. If the product jams or exhibits other abnormal behavior during use with the stand mixer,
immediately turn off the power, unplug the power plug, and clean the attachment before
continuing use.
9. After using the pasta roller set, wipe down the parts that come into contact with food with
a clean, dry cloth to avoid odour caused by residual substances over time. Never wash the
pasta roller or cutters as wetting the parts will damage them.
Wolstead Palette Stainless Steel Pasta Roller Attachment Set 3pc OWNER’S MANUAL2
Page 3
GET TO KNOW THE WOLSTEAD PALETTE STAINLESS STEEL
PASTA ROLLER ATTACHMENT SET
Note: Due to variations in product appearance, the provided product illustration is for reference
only. Please refer to the actual product in the packaging.
What’s in the box: Parts and features
Flat pasta maker
Pasta maker
1.6mm width
Pasta maker
6.3mm width
Shaft
Pin
Rotating
shaft
Rotating
speed level
Rotating
knob
Wolstead Palette Stainless Steel Pasta Roller Attachment Set 3pc OWNER’S MANUAL 3
Page 4
OPERATING INSTRUCTIONS
Speed settings chart
Attachment Stand mixer
Noodle width Suggested use
speed
Flat pasta roller 3 to 4 Up to 140mm See dough thickness
comparison table for details
Pasta maker 1.6mm
3 to 4 1.6mm Spaghetti
width
Thin fettuccine
Linguine
Pasta maker 6.3mm
3 to 4 6.3mm Fettuccine
width
Egg noodles
Rolling machine pasta thickness chart
Thickness
adjustment knob
Pasta thickness
(approximate)
Suggested use
settings
1st gear ~0.3mm Very thin angel hair pasta/capellini or very fine linguine
2nd gear ~0.4mm Tortellini, thin fettuccine, and linguine
3rd gear ~0.6mm Tortellini, thin fettuccine, and linguine
4th gear ~1.0mm Lasagne noodles, fettuccine, spaghetti, and ravioli
5th gear ~1.3mm Egg noodles
6th gear ~1.5mm Thick kluski type noodles
7th gear ~1.8mm Kneading and thinning dough
8th gear ~2.0mm Kneading and thinning dough
Before first use
Before first use, remove the product packaging and thoroughly clean the product surfaces that
come into contact with food by wiping them with a clean, dry cloth. Never wash the pasta roller or
cutters as wetting the parts will damage them.
Wolstead Palette Stainless Steel Pasta Roller Attachment Set 3pc OWNER’S MANUAL4
Page 5
Note: These attachments are designed to be used with pasta dough only. To avoid damaging your
pasta roller and cutters, do not cut or roll anything other than pasta.
Installation instructions
1. Turn off the stand mixer and unplug it 2. Remove the attachment hub cover
3. Insert the attachment shaft housing into the
attachment hub, making sure the power shaft fits
into the square hub socket, rotate the attachments
back and forth. The pin on the attachment housing
fits into the notch of the hub rim.
4. Tighten the stand mixer attachment hub knob
until the attachment is completely secured to the
stand mixer.

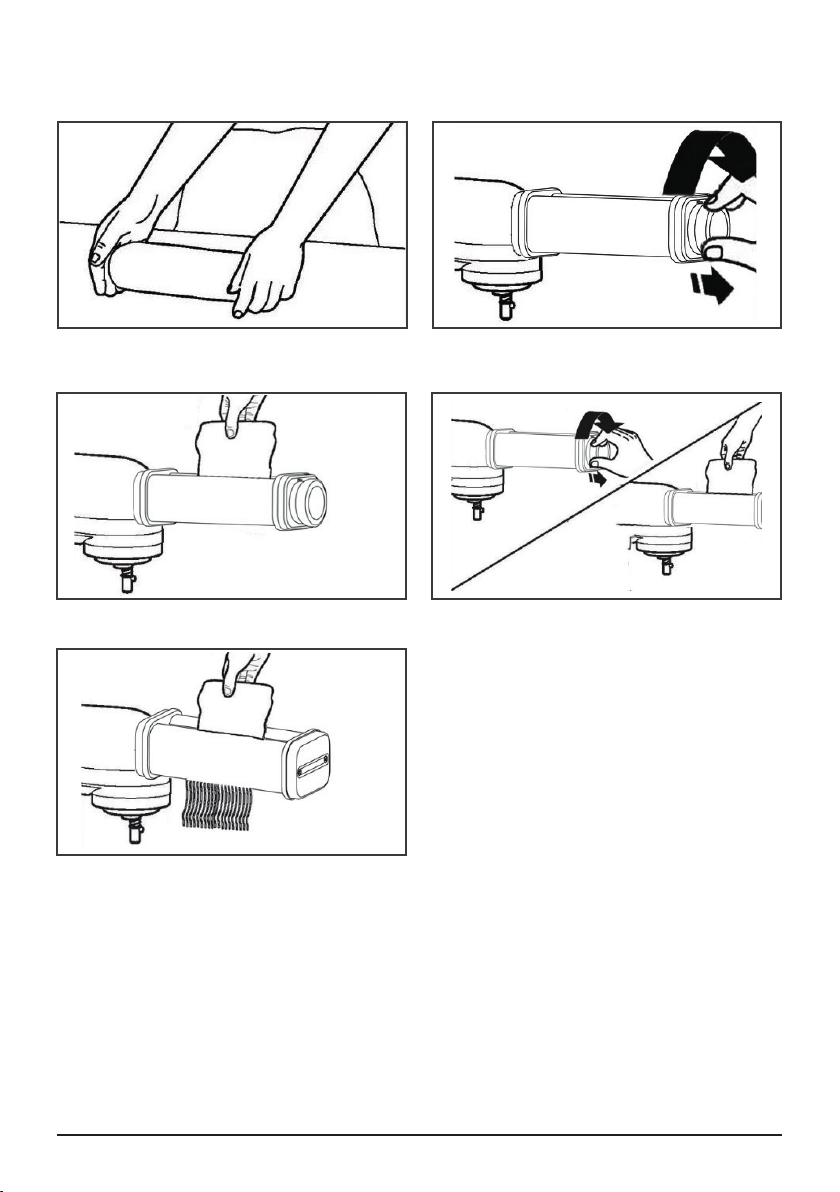

Using the pasta roller and cutters
1. Prepare pasta dough, then cut into sections and flatten with hands or a rolling pin to a width
that is flat enough to feed through the pasta roller.
2. Pull the roller adjustment knob straight out and turn it to setting 1. Release the knob, making
certain the pin on the roller housing engages the opening on the back of the adjustment
knob, allowing the knob to fit flush against the roller housing.
3. Set the stand mixer on speed 2 and then feed the flattened dough into the rollers to knead.
Fold the dough in half and roll again. Repeat until the dough is smooth and pliable and covers
the width of the roller. Lightly dust pasta with flour while rolling and cutting to aid in drying
and separation.
4. Feed the dough through rollers to further flatten the sheet of dough, then change the roller to
setting 3, and repeat the rolling process. Continue to increase the roller setting until desired
thickness is reached. Do not fold the dough during this step.
5. To make noodles, remove the pasta roller attachment and replace with the cutter
attachment. Feed the flattened dough through the cutter. Use the ‘thickness chart’ above to
choose the best setting for different pasta types.
Wolstead Palette Stainless Steel Pasta Roller Attachment Set 3pc OWNER’S MANUAL 5
Page 6
Step 1
Step 2
Step 3
Step 5
Disassembling the pasta roller and cutters
1. Turn off the stand mixer and unplug it from power.
Step 4
2. Remove the pasta cutter or roller from the attachment hub.
3. Replace the attachment hub cover on the stand mixer.
4. Clean any dried dough from the roller and cutter before storing.
Wolstead Palette Stainless Steel Pasta Roller Attachment Set 3pc OWNER’S MANUAL6
Page 7
CLEANING AND MAINTENANCE
• Do not insert anything other than pasta dough into the roller or cutter attachments.
• Do not use metal objects (knives or any other sharp objects) to clean the roller or cutter.
• Do not pass dish cloths or any other cloths through the pasta maker when cleaning.
• Never wash the pasta roller or cutters as wetting the parts will damage them.
• After using the roller or cutter, let it air dry for one hour, then remove any remaining dried
dough using a cleaning brush, toothbrush or toothpick.
• After cleaning off excess dough, polish the roller and cutter with a dry cloth before storing.
• We recommend using a light mineral oil to lubricate the gears every 12 months, or after 50
uses. Add a drop of mineral oil to each of the corners of the pasta roller and cutters.
RECIPES
Basic Pasta Dough
• White flour: 500g
• Eggs: 4
• Salt: 2.5mL
• Oil: 2.5mL
• Water: as needed
Whole Wheat Pasta Dough
• Whole wheat flour: 500g
• Eggs: 4
• Salt: 2.5mL
• Oil: 2.5mL
• Water: as needed
Tomato Pasta Dough
• White flour: 500g
• Eggs: 3
• Tomato sauce: 75g
• Salt: 2.5mL
• Water: as needed
TROUBLESHOOTING
If your stand mixer malfunctions or fails to operate when using the pasta maker and cutter
attachments, please perform the following checks:
1. Is the stand mixer plugged in?
2. Is the fuse in the stand mixer’s circuit working properly? If using a circuit breaker, ensure the
circuit is closed.
3. Turn off the stand mixer for 10 to 15 seconds, then turn it back on. If the stand mixer still does
not start, let it cool for 30 minutes before turning it back on.
4. Ensure you are using the appropriate speed for the stand mixer. Refer to the ‘speed settings
chart’ above.
5. Check that the dough roller and cutter have been properly installed.
Wolstead Palette Stainless Steel Pasta Roller Attachment Set 3pc OWNER’S MANUAL 7
Page 8
WARRANTY
Get in touch with Customer Service
If you experience any issues with your Wolstead Palette Stainless Steel Pasta Roller Attachment
Set, get in touch with our Customer Service team by email at customerservice@kitchenwarehouse.
com.au or by phone on 1800 332 934 between the hours of 9am and 7pm (AEST) Monday to Friday.
Alternatively you can use the Live Chat function on our website by visiting www.kitchenwarehouse.
com.au/contact-us
90 day money back guarantee
We promise you a full refund within 90 days if your Wolstead product does not fulfil your
expectations. This guarantee applies to qualified purchases of all Wolstead branded products from
participating stockists online and in-store from eligible delivery locations. The qualified product
must be returned within 90 days from the date of purchase. We shall issue a full refund when the
customer presents proof of purchase. We shall issue a store credit when proof of purchase is
unavailable. The product packaging is not required to avail of the refund. The amount refunded will
be the price of the products in the currency shown on the proof of purchase.
Warranty
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law.
You are entitled to a replacement or refund for a major failure and for compensation for any other
reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced
if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
The benefits of this warranty are in addition to any rights and remedies imposed by Australian
State and Federal legislation that cannot be excluded. Nothing in this warranty excludes, restricts
or modifies any State or Federal legislation applicable to the supply of goods which cannot be so
excluded, restricted or modified.
Guarantee
We warrant that, subject to the exclusions and limitations below, the Product will be free from
defects in materials and workmanship under normal domestic household use for the 12 month
warranty period. The warranty period commences on the date of sale by the original retailer to the
original purchaser. The warranty applies only while the Product is owned by the original purchaser.
Use of the Product in a commercial capacity will void this warranty. If a defect appears in the Product
before the end of the warranty period and we find the Product to be defective in materials or
workmanship, we will replace the Product with a product comparable in quality and value.
We reserve the right to change or discontinue our product ranges at any time without notice and
without liability.
Wolstead Palette Stainless Steel Pasta Roller Attachment Set 3pc OWNER’S MANUAL8
Page 9
WARRANTY
Exclusions
This warranty does not apply if proper care and/or usage instructions are not followed.
This warranty does not cover scratches, stains, discoloration or damage caused by
misuse.
How to claim
If a fault/defect is identified cease using the Product immediately. To make a claim on this
guarantee, take the Product, proof of purchase and full details of the alleged defect to any
Kitchen Warehouse store.
Limitations
We make no express warranties or representations other than as set out in this guarantee.
The replacement of the Product or the refund of the purchase price is the absolute limit of
our liability under this guarantee.
Wolstead Palette Stainless Steel Pasta Roller Attachment Set 3pc OWNER’S MANUAL 9
Page 10
Distributed by Kitchen Warehouse.
Wolstead is a registered trademark of Kitchen Warehouse Pty
Ltd. The printed material appearing in this document and related
packaging is protected by copyright.
Kitchen Warehouse Pty Ltd
1 Pensioner Guard Road
North Fremantle, WA, 6159
www.kitchenwarehouse.com.au
1800 332 934
