w

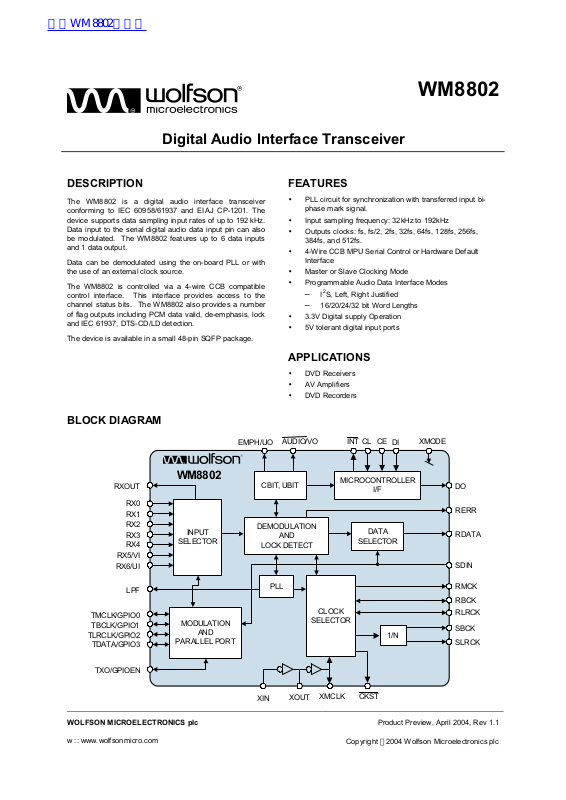

Digital Audio Interface Transceiver
WM8802
DESCRIPTION
The WM8802 is a digital audio interface transceiver
conforming to IEC 60958/61937 and EIAJ CP-1201. The
device supports data sampling input rates of up to 192 kHz.
Data input to the serial digital audio data input pin can also
be modulated. The WM8802 features up to 6 data inputs
and 1 data output.
Data can be demodulated using the on-board PLL or with
the use of an external clock source.
The WM8802 is controlled via a 4-wire CCB compatible
control interface. This interface provides access to the
channel status bits. The WM8802 also provides a number
of flag outputs including PCM data valid, de-emphasis, lock
and IEC 61937, DTS-CD/LD detection.
The device is available in a small 48-pin SQFP package.

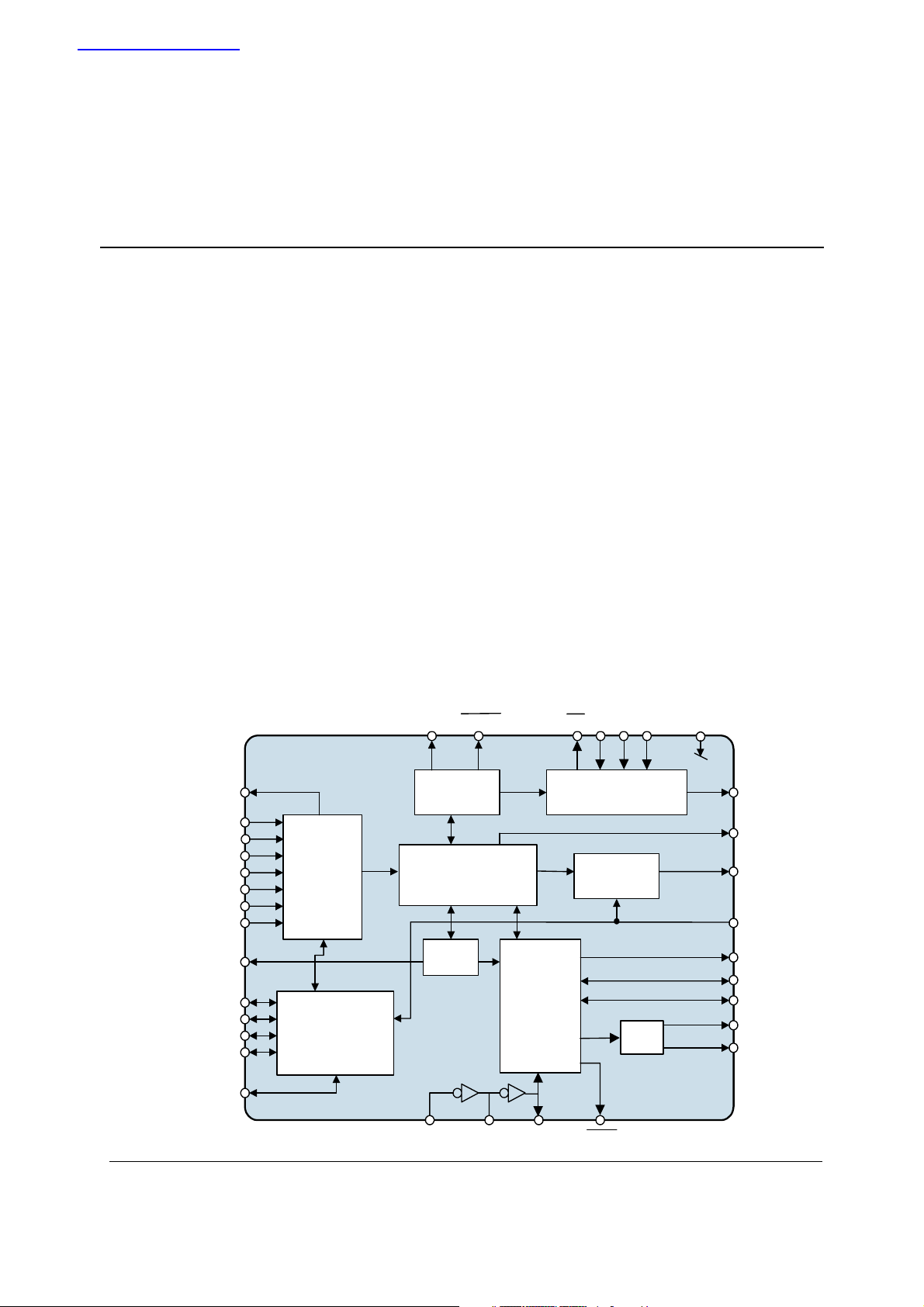

BLOCK DIAGRAM
EMPH/UO
FEATURES
• PLL circuit for synchronization with transferred input bi-
phase mark signal.
• Input sampling frequency: 32kHz to 192kHz
• Outputs clocks: fs, fs/2, 2fs, 32fs, 64fs, 128fs, 256fs,
384fs, and 512fs.
• 4-Wire CCB MPU Serial Control or Hardware Default
Interface
• Master or Slave Clocking Mode
• Programmable Audio Data Interface Modes
• 3.3V Digital supply Operation
• 5V tolerant digital input ports
2
S, Left, Right Justified
− I
− 16/20/24/32 bit Word Lengths
APPLICATIONS
• DVD Receivers
• AV Amplifiers
• DVD Recorders
AUDIO/VO
INT
CL
CE
XMODE
DI
W
WM8802
RXOUT
RX0
RX1
RX2
RX3
RX4
RX5/VI
RX6/UI
LPF
TMCLK/GPIO0
TBCLK/GPIO1
TLRCLK/GPIO2
TDATA/GPIO3
TXO/GPIOEN
WOLFSON MICROELECTRONICS plc
INPUT
SELECTOR
MODULATION
PARALLEL PORT
AND
CBIT, UBIT
DEMODULATION
AND
LOCK DETECT
PLL
XIN
XOUT
MICROCONTROLLER
CLOCK
SELECTOR
XMCLK
I/F
DATA
SELECTOR
1/N
CKST
Product Preview, April 2004, Rev 1.1
DO
RERR
RDATA
SDIN
RMCK
RBCK
RLRCK
SBCK
SLRCK
w :: www.wolfsonmicro.com
Copyright 2004 Wolfson Microelectronics plc
Page 2
WM8802 Product Preview
T
TABLE OF CONTENTS
DESCRIPTION .......................................................................................................1
FEATURES.............................................................................................................1
APPLICATIONS .....................................................................................................1
BLOCK DIAGRAM .................................................................................................1
PIN CONFIGURATION...........................................................................................3
ORDERING INFORMATION ..................................................................................3
PIN DESCRIPTION ................................................................................................4
ABSOLUTE MAXIMUM RATINGS.........................................................................6
RECOMMENDED OPERATING CONDITIONS .....................................................7
ELECTRICAL CHARACTERISTICS ......................................................................7
DC CHARACTERISTICS............................................................................................... 7
AC CHARACTERISTICS............................................................................................... 8
MICROCONTROLLER INTERFACE AC CHARACTERISTICS..................................... 9
DEVICE DESCRIPTION .......................................................................................10
INITIAL SYSTEM SETTINGS...............................................................................10
SYSTEM RESET (XMODE)......................................................................................... 10
CHIP ADDRESS SETTINGS (EMPHA/UO, AUDIO /VO) ............................................ 11
DEMODULATION FUNCTION MASTER/SLAVE SETTINGS (
MODULATION FUNCTION AND GENERAL-PURPOSE I/O PORT SWITCHING (
CKST
) ....................... 12
).....12
INT
DESCRIPTION OF DEMODULATION FUNCTION..............................................13
CLOCKS...................................................................................................................... 13
BI-PHASE SIGNAL INPUT / OUTPUT ........................................................................ 21
SERIAL AUDIO DATA INPUT/OUTPUT...................................................................... 23
ERROR OUTPUT PROCESSING ............................................................................... 27
CHANNEL STATUS OUTPUT..................................................................................... 30
OTHER OUTPUTS...................................................................................................... 31
IEC61937, DTS-CD/LD DETECTION FLAG OUTPUT ................................................ 32
DESCRIPTION OF MODULATION FUNCTION AND GENERAL-PURPOSE I/OS ... 33
MODULATION FUNCTION USAGE METHOD............................................................ 33
GENERAL PURPOSE I/O (GPIO0, GPIO1, GPIO2, GPIO3, GPIOEN)....................... 36
IN
MICRO-CONTROLLER INTERFACE (
DESCRIPTION OF MICRO-CONTROLLER INTERFACE........................................... 37
WRITE DATA .............................................................................................................. 40
READ DATA................................................................................................................ 53
BURST PREAMBLE PC FIELD ................................................................................... 61
, CL, CE, DI, DO)..............................37
RECOMMENDED EXTERNAL COMPONENTS ..................................................62
SAMPLE APPLICATION ............................................................................................. 62
RECOMMENDED EXTERNAL COMPONENTS VALUES ........................................... 63
PACKAGE DRAWING..........................................................................................64
IMPORTANT NOTICE ..........................................................................................65
ADDRESS: .................................................................................................................. 65
w
PP Rev 1.1 April 2004
2
Page 3
Product Preview WM8802

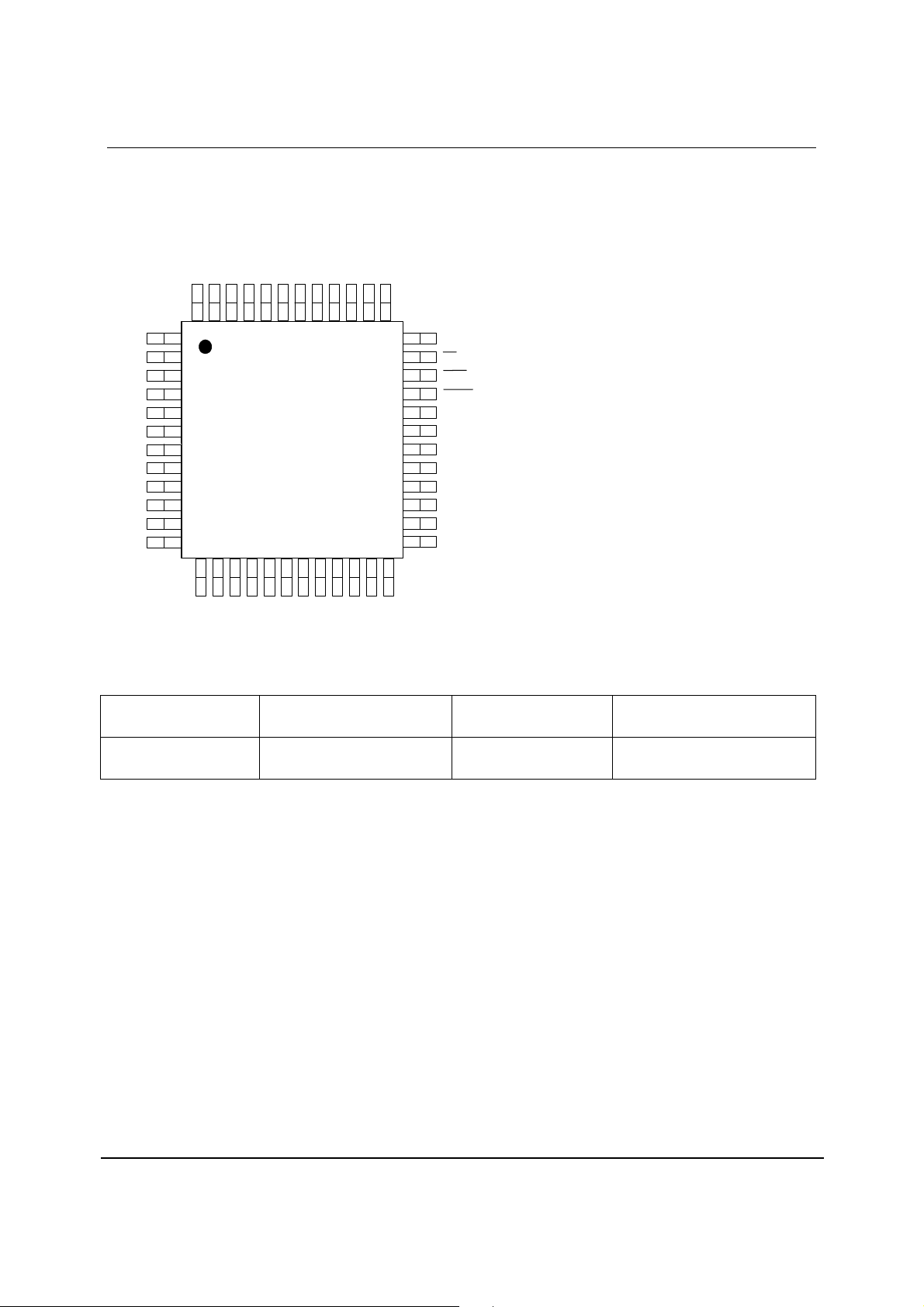

PIN CONFIGURATION
RXOUT
RXO
RX1
RX2
RX3
DGND
DVDD
RX4
RX5/VI
RX6/VI
DVDD
DGND
TXO/GPIOEN
TLRCK/GPIO2
TLRCK/GPIO3
48 47 46 45 44 43
1
2
3
4
5
6
7
8
9
10
11
12
13 14 15 16 17 18 19
LPF
AVDD
AGND
DVDD
TMCK/GPIO0
TMCK/GPIO1
RBCK
RMCK
XMODE
DGND
40 39 38 37
41
42
20 21 22 2 3 24
DVDD
DGND
RLRCK
ORDERING INFORMATION
DEVICE TEMPERATURE RANGE PACKAGE
CL
DO
DI
CE
36
35
34
33
32
31
30
29
28
27
26
25
SDIN
SBCK
SLRCK
RDATA
RERR
INT
CKST
AUDIO/VO
EMPH/UO
DGND
DVDD
XIN
XOUT
XMCK
DVDD
DGND
PEAK SOLDERING
TEMPERATURE
WM8802SCFT/V 0 to +70oC 48-pin SQFP 240°C
w
PP Rev 1.1 April 2004
3
Page 4
WM8802 Product Preview
PIN DESCRIPTION
PIN NAME TYPE DESCRIPTION
1 RXOUT Digital Output
2 RX0 Digital Input1
3 RX1 Digital Input
4 RX2 Digital Input1
5 RX3 Digital Input1
6 DGND Supply
7 DVDD Supply
8 RX4 Digital Input1
9 RX5/VI Digital Input1
10 RX6/UI Digital Input1
11 DVDD Supply
12 DGND Supply
13 LPF Analogue Output
14 AVDD Supply PLL analog power supply
15 AGND Supply
16 RMCK Digital Output
17 RBCK Digital Output/Input
18 DGND Supply
19 DVDD Supply
20 RLRCK Digital Output/Input
21 RDATA Digital Output
22 SBCK Digital Output
23 SLRCK Digital Output
24 SDIN Digital Input1
25 DGND Supply
26 DVDD Supply
27 XMCK Analogue Output
28 XOUT Analogue Output
29 XIN Analogue Input
30 DVDD Supply
31 DGND Supply
32 EMPH/UO Digital Input/Output
/VO
33
34
35
36 RERR Digital Output
37 DO Digital Output
38 DI Digital Input1
39 CE Digital Input1
40 CL Digital Input
41 XMODE Digital Input1
42 DGND Supply
43 DVDD Supply
44 TMCK/GPIO0 Digital Input/Output
AUDIO
CKST
INT
Digital Input/Output
Digital Input/Output
Digital Input/Output
Input bi-phase selection data output pin
TTL-compatible digital data input pin
Coaxial-compatible digital data input pin with built-in amplifier
TTL-compatible digital data input pin
TTL-compatible digital data input pin
Digital GND
Digital power supply
TTL-compatible digital data input pin
TTL-compatible digital data. Validity flag input pin for modulation.
TTL-compatible digital data. User data input pin for modulation.
PLL digital power supply
PLL digital GND
PLL loop filter connection pin
PLL analog GND
R system clock output pin (256fs, 512fs, XIN, VCO)
R bit clock input/output pin (64fs)
Digital GND
Digital power supply
R LR clock input/output pin (fs)
Serial audio data input pin
S bit clock output pin (32fs, 64fs, 128fs)
S LR clock output pin (fs/2, fs, 2fs)
Serial audio data input pin
Digital GND
Digital power supply
Oscillation amplifier output pin
Crystal resonator connection output pin
Crystal resonator connection, external supply clock input pin (24.576 MHz or
12.288 MHz)
Digital power supply
Digital GND
Emphasis information, U data output. Chip address setting pin
Non-PCM output, V flag output. Chip address setting pin
Clock switch transition period signal. Demodulation master or slave
function switch pin
Micro-controller interrupt output. Modulation or general-purpose I/O switch
4
.
pin
PLL clock error, data error flag output
Micro-controller I/F read data output pin (3-state)
Micro-controller I/F write data input pin
Micro-controller I/F chip enable input pin
Micro-controller I/F clock input pin
System reset input pin
Digital GND
Digital power supply
Modulation 256fs system clock input. General-purpose I/O input/output pin.
3
.
2
.
2
.
w
PP Rev 1.1 April 2004
4
Page 5
Product Preview WM8802
PIN NAME TYPE DESCRIPTION
45 TBCK/GPIO1 Digital Input/Output
46 TLRCK/GPIO2 Digital Input/Output
47 TDATA/GPIO3 Digital Input/Output
48 TXO/GPIOEN Digital Output/Input
Notes:
1. Input/output I or O = −0.3 to 3.6V, except annotated pins: −0.3 to +5.5V
2. Pins 32 and 33 are latch address setting input pins when pin 41 = Low.
3. Pin 34 is the demodulation function master or slave setting input pin when pin 41 = Low.
4. Pin 35 is the modulation function or general-purpose I/O function switch setting input pin when pin 41 = Low.
5. Perform ON/OFF for all power supplies with the same timing as a latch-up countermeasure.
Modulation 64fs bit clock input. General-purpose I/O input/output pin.
Modulation fs clock input. General-purpose I/O input/output pin.
Modulation serial audio data input. General-purpose I/O input/output pin.
Modulation data output. General-purpose I/O enable input pin.
w
PP Rev 1.1 April 2004
5
Page 6
WM8802 Product Preview
ABSOLUTE MAXIMUM RATINGS
Absolute Maximum Ratings are stress ratings only. Permanent damage to the device may be caused by continuously operating at
or beyond these limits. Device functional operating limits and guaranteed performance specifications are given under Electrical
Characteristics at the test conditions specified.
ESD Sensitive Device. This device is manufactured on a CMOS process. It is therefore generically susceptible
to damage from excessive static voltages. Proper ESD precautions must be taken during handling and storage
of this device.
Maximum supply voltage
Maximum supply voltage
Input voltage 1
Input voltage 2
Output voltage
Storage ambient temperature
Operating ambient
temperature
Maximum input/output current
Notes:
1. AVDD pin
2. DVDD pin
3. RX1, RBCK, RLRCK, XIN pins
TMCK/GPIO0, TBCK/GPIO1, TLRCK/GPIO2, TDATA/GPIO3, TXO/GPIOEN pins
4. RX0, RX2, RX3, RX4, RX5/VI, RX6/UI pins
SDIN, DI, CE, CL, XMODE pins
5. RXOUT, RMCK, RBCK, RLRCK, SBCK, SLRCK, RDATA pins
XMCK, XOUT, EMPHA/UO,
TMCK/GPIO0, TBCK/GPIO1, TLRCK/GPIO2, TDATA/GPIO3, TXO/GPIOEN pins
6. Per input/output pin
CONDITION SYMBOL CONDITIONS MIN-MAX
AVDD
DVDD
AUDIO
1 −0.3 to 4.6V
max
2 −0.3 to 4.6V
max
V
3 −0.3 to DVDD +0.3V
i1
V
4 −0.3 to 5.8V
i2
V
5 −0.3 to DVDD +0.3V
o
T
−55 to 125
stg
T
−30 to 70
opg
T
6 ±20mA
i, To
/VO,
CKST
,
, RERR, DO pins
INT
o
C
o
C
w
PP Rev 1.1 April 2004
6
Page 7
Product Preview WM8802
RECOMMENDED OPERATING CONDITIONS
PARAMETER SYMBOL TEST CONDITIONS MIN TYP MAX UNIT
Supply voltage
Input voltage range 1
Input voltage range 2
Operating temperature
AVDD, DVDD 3.0 3.3 3.6 V
V
1 0 3.3 3.6 V
IN1
V
2 0 3.3 5.5 V
IN2
V
-30 - 70
opq
o
C
Notes:
1. RX1, RBCK, RLRCK, XIN pins
TMCK/GPIO0, TBCK/GPIO1, TLRCK/GPIO2, TDATA/GPIO3, TXO/GPIOEN pins
2. RX0, RX2, RX3, RX4, RX5/VI, RX6/UI pins
SDIN, DI, CE, CL, XMODE pins
ELECTRICAL CHARACTERISTICS
DC CHARACTERISTICS
Test Conditions
DC Characteristics at T
PARAMETER SYMBOL TEST CONDITIONS MIN TYP MAX UNIT
Input, High
Input, Low
Input, High
Input, Low
Output, High
Output, Low
Output, High
Output, Low
Output, High
Output, Low
Output, High
Output, Low
Input amplitude
Consumption current
Consumption current
Consumption current
Notes:
1. CMOS levels: RX1, RBCK, RLRCK, XIN pins
2. TTL levels: Pins other than those listed above
3. I
4. I
5. I
= −12mA, I
OH
= −8mA, I
OH
= −4mA, I
OH
SLRCK, TMCK/GPIO0, TBCK/GPIO1, TLRCK/GPIO2 pins
TDATA/GPIO3, TXO/GPIOEN pins
6. I
= −2mA, I
OH
7. Before capacitance of RX1 input pin
8. Demodulation function and oscillation amplifier stopped, modulation only, output sampling frequency = 96kHz
9. XIN continuous 24.576MHz oscillation, demodulation only, input sampling frequency = 96kHz
10. XIN continuous 24.576MHz oscillation, modulation, input/output sampling frequency = 96kHz
= 25oC, AVDD = DVDD = 3.3V, AGND = DGND = 0V
a
V
1 0.7VDD − − V
IH
V
− − 0.2VDD V
IL
V
2 2.0 − 5.8 V
IH
V
−0.3 − 0.8 V
IL
V
3 VDD−0.8 − − V
OH
V
− − 0.4 V
OL
V
4 VDD−0.8 − − V
OH
V
− − 0.4 V
OL
V
5 VDD−0.8 − − V
OH
V
− − 0.4 V
OL
V
6 VDD−0.8 − − V
OH
V
− − 0.4 V
OL
V
7 200 − − mV
PP
V
8 − 1.7 3.4 mA
DD1
V
9 − 17 34 mA
DD1
V
10 − 19 38 mA
DD1
= 8mA: RMCK pin
OL
= 8mA: XMCK, XOUT pins
OL
= 4mA: RXOUT, RBCK, RLRCK, RDATA, SBCK pins
OL
= 2mA: Pins other than those listed above
OL
w
PP Rev 1.1 April 2004
7
Page 8
WM8802 Product Preview
AC CHARACTERISTICS
Test Conditions
AC Characteristics at T
PARAMETER SYMBOL TEST CONDITIONS MIN TYP MAX UNIT
RX0 TO RX6 sampling
frequency
XIN clock frequency
XIN clock frequency
RMCK clock frequency
RMCK clock jitter
RMCK, RBCK delay
RBCK, RDATA delay
RMCK, SBC delay
SMCK, RDATA delay
TMCK input pulse width
TBCK input pulse width
TLRCK sampling frequency
TBCK, TDATA setup
TBCK, TDATA hold
TMCK, TBCK delay
TBCK, TDATA delay
Notes:
1. XINSEL = "0" setting, 12.288MHz must be set when calculating input sampling frequency
2. XINSEL = "1" setting, 24.576MHz must be set when calculating input sampling frequency
3. When RMCK and SBCK source clocks are the same
4. When SBCK is the PLL source clock
= 25oC, AVDD = DVDD = 3.3V, AGND = DGND = 0V
a
28 − 195 kHz
f
RFS
f
1 8 12.288 19 MHz
XF1
f
2 20 24.576 30 MHz
XF2
f
4 − 100 MHz
RCK
t
− 200 − ps
j
t
− − 10 ns
MBO
t
− − 10 ns
BDO
t
3 − − 10 ns
MBO
t
4 − − 10 ns
BDO
t
10 − − ns
WMI
t
40 − − ns
WBI
f
28 − 195 kHz
TFS
t
− 20 − ns
DSI
t
− 20 − ns
DHI
t
− − 10 ns
MBI
t
− − 10 ns
BDI
w
RMCK(O)
RBCK(O)
RDATA(O)
RLRCK(O)
TMCK (I)
TBCK(I)
TDATA(I)
TLRCK(I)

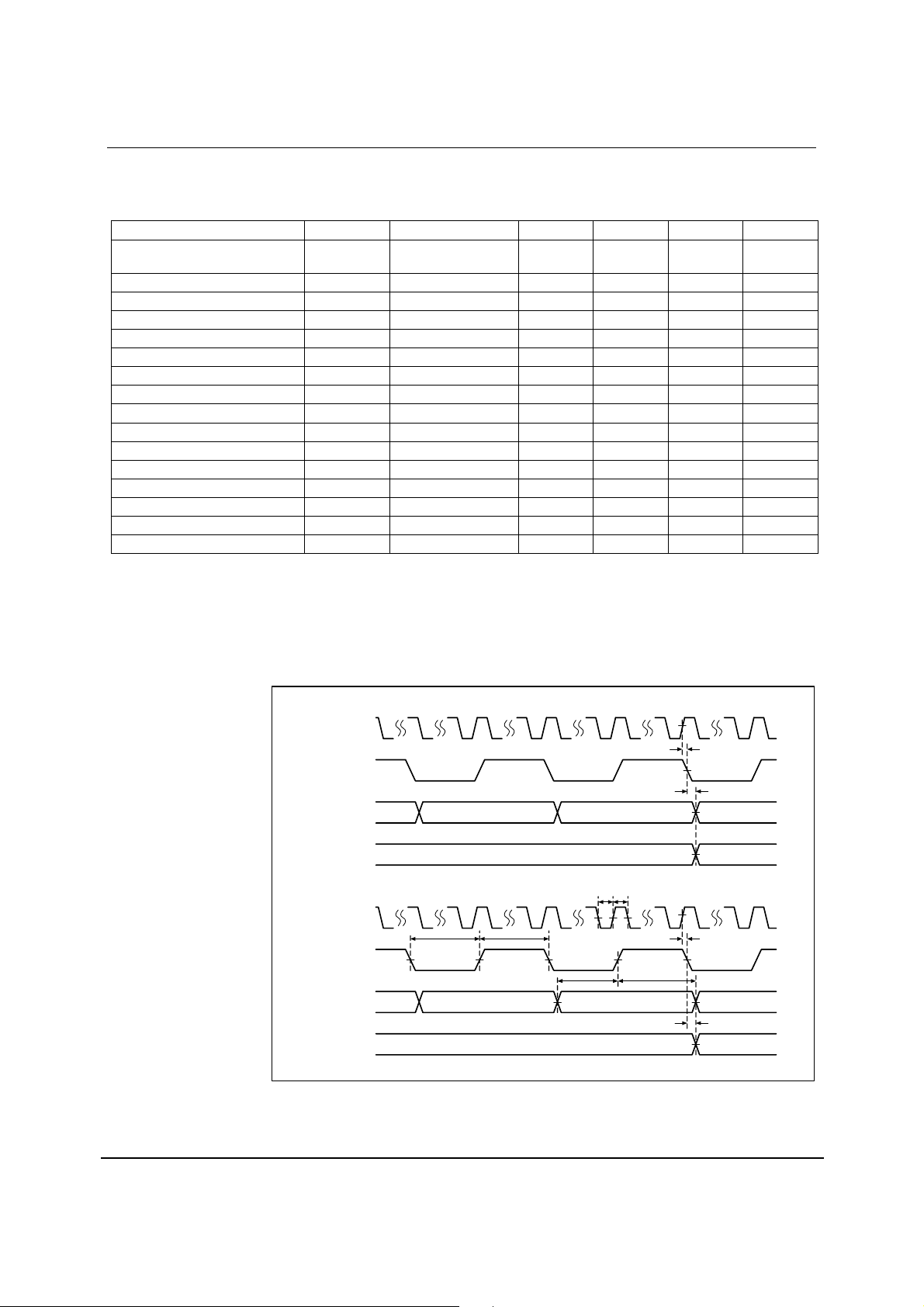

Figure 1 AC Characteristics
t
MBO
t
BDO
t
WMItWMI
t
WBI
t
WBI
t
DSI
t
DHI
t
MBI
t
BDI
PP Rev 1.1 April 2004
8
Page 9
Product Preview WM8802

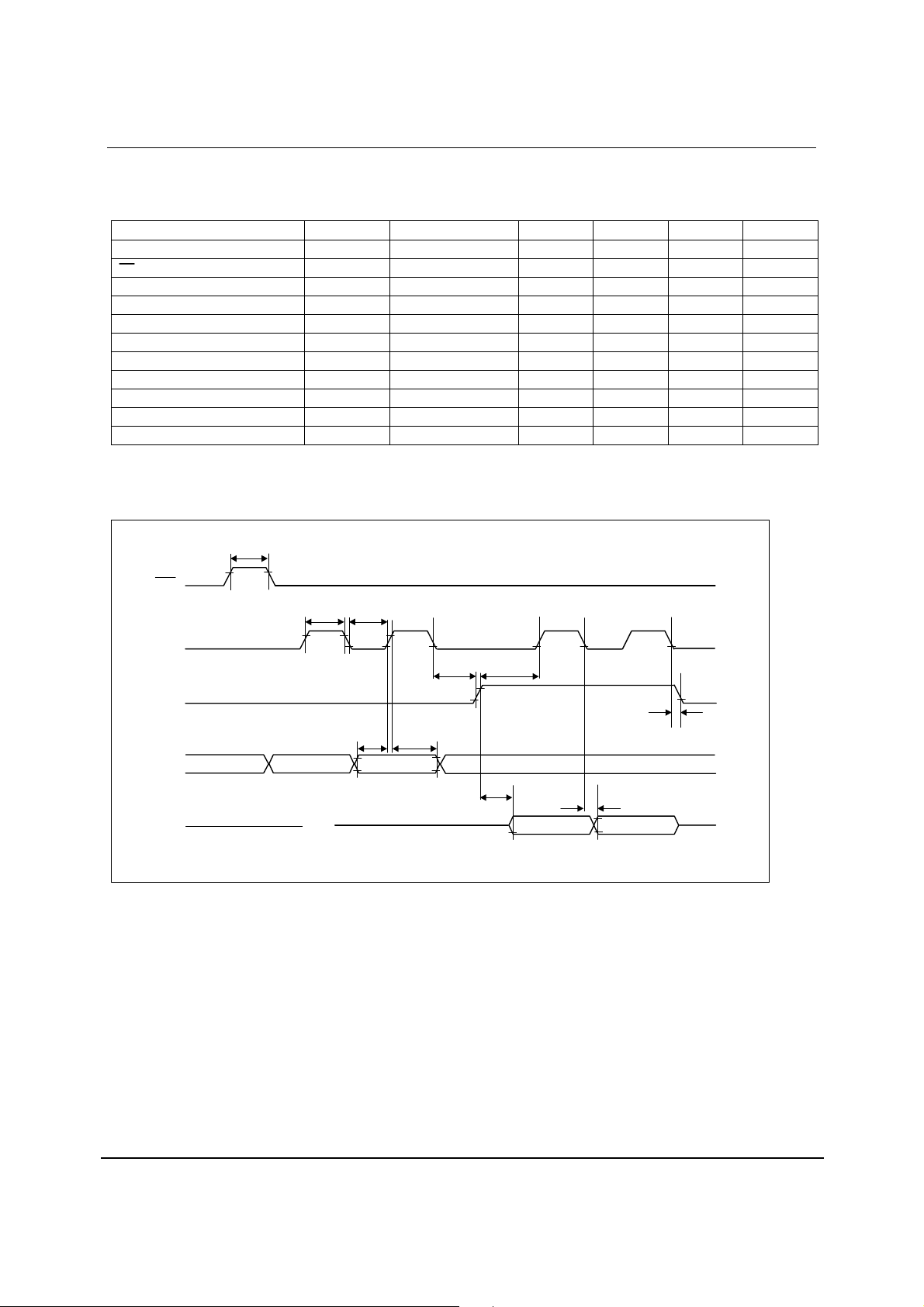

MICROCONTROLLER INTERFACE AC CHARACTERISTICS
Test Conditions
I/F AC Characteristics at T
PARAMETER SYMBOL TEST CONDITIONS MIN TYP MAX UNIT
XMODE pulse width, Low
pulse width, Low
INT
CL pulse width, Low
CL pulse width, High
CL, CE setup time
CL, CE hold time
CL, DI setup time
CL, DE hold time
CL, CE hold time
CL, DO delay time
CE, DO delay time
Notes:
1. When INTOPF is set to "1", fs = input sampling frequency
INT
= 25oC, AVDD = DVDD = 3.3V, AGND = DGND = 0V
a
t
200 − − µs
RST dw
t
1 5 1/fs 36 µs
INT u w
t
100 − − ns
CL dw
t
100 − − ns
CL uw
t
50 − − ns
CL setup
t
50 − − ns
CE hold
t
50 − − ns
DI setup
t
50 − − ns
DI hold
t
50 − − ns
CL hold
t
− − 20 ns
CL to DO
t
− − 20 ns
CE to DO
t
INTuw
t
CLuw
t
CLdw
CL
CE
t
DIsetup
DI
DO
Hi-Z
Figure 2 Micro-controller Interface AC Characteristics
t
CEhold
t
DIhol d
t
CEtoDO
t
CEsetup
t
CLtoDO
t
CLhold
w
PP Rev 1.1 April 2004
9
Page 10
WM8802 Product Preview
DEVICE DESCRIPTION
INITIAL SYSTEM SETTINGS
SYSTEM RESET (XMODE)
The system operates normally when XMODE is set to High after applying a supply voltage of 3.0V or
greater. Following power ON, the system is reset by setting XMODE to Low again.
A 10kΩ pull-down or pull-up resistor can be used to set EMPHA/UO,
for the following:
INT
• chip address
• demodulation function master or slave
• modulation function or general-purpose I/O function settings
If EMPHA/UO,
pull-up or pull-down resistor should always be connected to these pins.
Chip address EMPHA/UO, AUDIO /VO
Demodulation function master or slave CKST
Modulation function or generalpurpose I/O function
Table 1 Pin Names and Settings
/VO,
AUDIO
SETTING PINS
CKST
, and
are not pulled up or down, their state is undefined. A
INT
INT
AUDIO /VO, CKST and
Normal system operation range
Setting completed
3.3V
3.0V
DVDD
w
XMODE
Set pin state

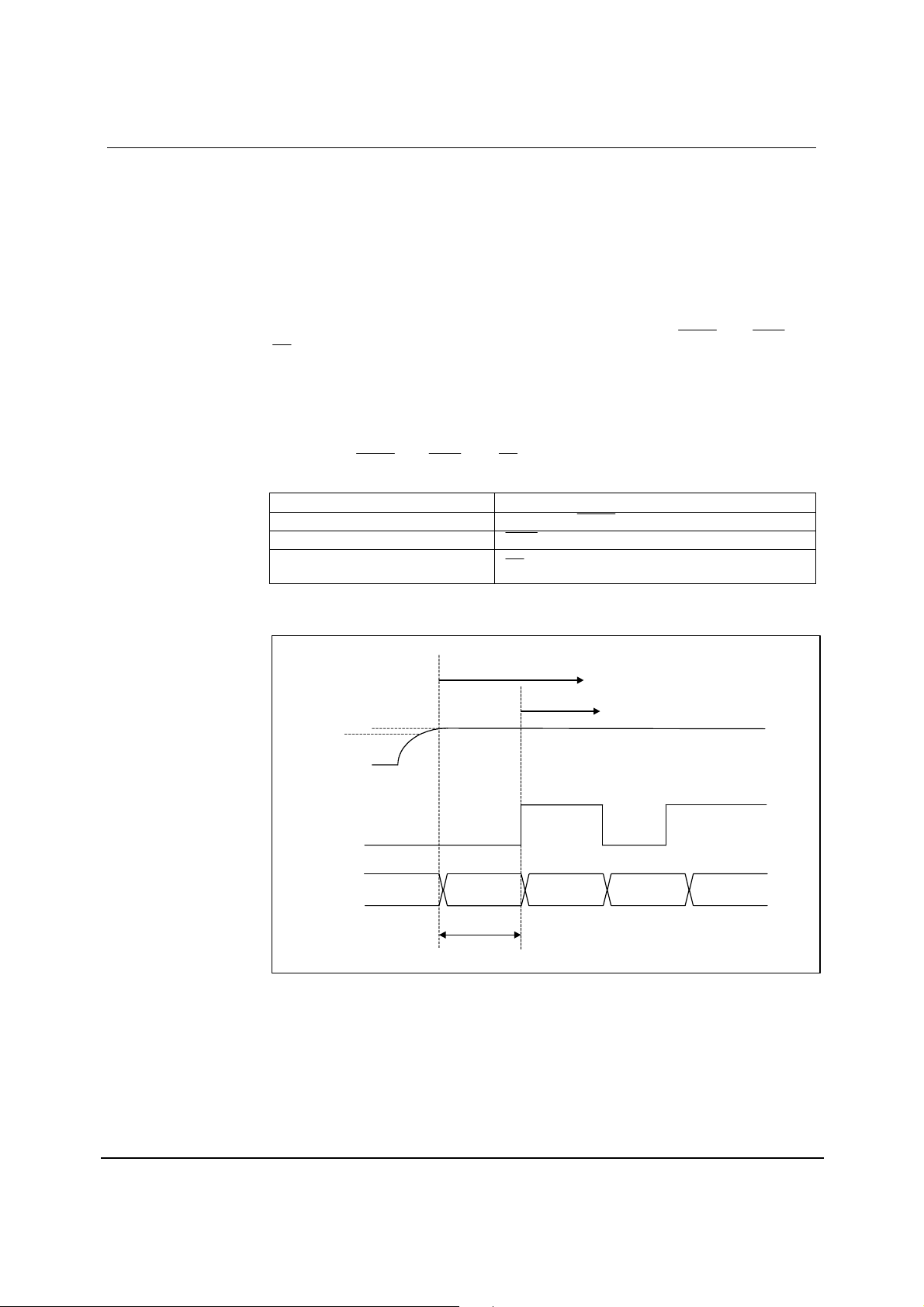

Figure 3 Setting Timing Chart of Function Setting Input Pins
Undefined
Setting input
state
Min 200 µµµµs
Output state
Setting input
state
Output state
PP Rev 1.1 April 2004
10
Page 11
Product Preview WM8802
CHIP ADDRESS SETTINGS (EMPHA/UO, AUDIO /VO)
The WM8802 comes with a function to set a unique chip address to allow the use of several
WM8802 on the same micro-controller bus.
Ω pull-down or pull-up resistor is used to set EMPHA/UO and AUDIO /VO as the chip address
A 10k
settings. This allows up to set 4 chip addresses.
Chip addresses in the micro-controller interface can be set with CAL and CAU provided that they are
first two bits on the LSB side. CAL and CAU corresponds to the lower and higher chip address
respectively.
Address writing to a particular device is enabled by making the chip address setting, using
EMPHA/UO and
The chip address setting must be performed even when using only one WM8802 in the system. The
chip address is undefined and control from the micro-controller cannot be performed if the chip
address setting is not performed. While XMODE is Low and the micro-controller is not used the state
of the chip address setting pin is undefined,. Be sure to connect either A pull-down resistor or a pullup resistor should be connected to EMPHA/UO and
AUDIO /VO EMPHA/UO CAU CAL
Pull-down Pull-down 0 0
Pull-down Pull-up 0 1
Pull-up Pull-down 1 0
Pull-up Pull-up 1 1
Table 2 Chipset Address Settings
AUDIO /VO, the same as the chip addresses sent from the micro-controller.
AUDIO /VO.
WM8802
EMPH/UO
AUDIO/VO
CKST
INT

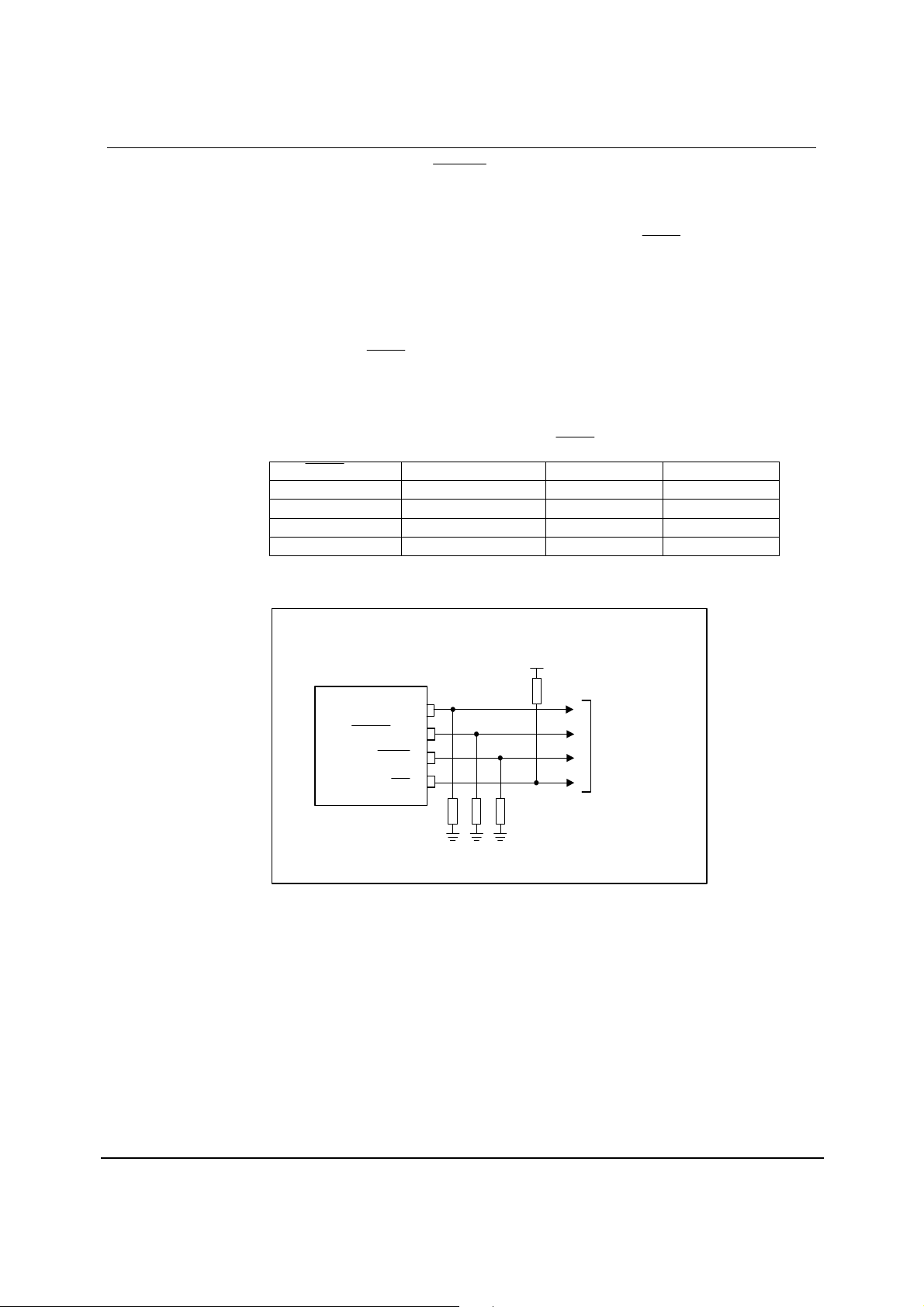

Figure 4 Function Setting Input Pin Setting Example
Notes:
1. Chip address setting => CAL = CAU = 0
2. Demodulation function master or slave setting => Master
3. Modulation function or general purpose I/O port switch => General purpose I/O port
function
Pull-up 10kΩ
External
Circuit
Pull-down 10kΩ
w
PP Rev 1.1 April 2004
11
Page 12
WM8802 Product Preview
DEMODULATION FUNCTION MASTER/SLAVE SETTINGS ( CKST )
A master/slave function allows multi-channel synchronized transfer using multiple WM8802 devices.
Ω pull-down or a pull-up resistor should be connected to CKST to set this function.
A 10k
Set the master mode when using only one WM8802. When using multiple WM8802 devices, set one
to the master mode and the others to slave mode.
In order to perform multi-channel transfer when using multiple WM8802 devices, RBCK and RLRCK
(output) should be connected as the master and RLRCK (input) as the slave. XMCK of the master
device should be connected to XIN of the slave device. The same polarity should be set for RBCK
and RLRCK and the same frequency for XIN and XMCK.
Some of the output data maybe dropped or read twice on the slave side if the input data sampling
frequency or the phase between the master and slave differ. This can also be true if the clock
sources differ even though the sampling frequencies are the same. This phenomenon can be
checked using the
CKST
Pull-down Master mode
Pull-up Slave mode
Table 3 Master/Slave Switching
PIN MASTER MODE SLAVE MODE
RMCK Output Low
RBCK Output Input
RLRCK Output Input
Table 4 Clock Pin State
pin and the micro-controller interface.
INT
MODE
MODULATION FUNCTION AND GENERAL-PURPOSE I/O PORT SWITCHING (
The modulation function and the general-purpose I/O function share the same pin and therefore
cannot be used simultaneously.
Ω pull-down or pull-up resistor can be connected to
A 10k
5.
STATE FUNCTION
INT
pull-down Modulation f unction
Pull-up General-purpose I/O
Table 5 Modulation Function and General-Purpose I/O Switching
to select the function listed in Table
INT
INT
)
w
PP Rev 1.1 April 2004
12
Page 13
Product Preview WM8802
DESCRIPTION OF DEMODULATION FUNCTION
The demodulation function operation settings are performed using RXOPR.
CLOCKS
PLL (LPF)
The VCO (Voltage Controlled Oscillator) can be stopped if PLLOPR is set. Synchronization to
frequencies from 32kHz to 192kHz and RMCK of 4MHz to 25MHz can be selected.
The PLL clock frequency is selected with PLLSEL. For systems with an input data sampling
frequency of 105kHz or lower, the initial setting of 512fs is recommended. Since the system clock
RMCK output initial value is set to 1/2 of PLLSEL, the RMCK output is 256fs when a PLL clock
frequency of 512fs is used.
For systems with an input data sampling frequency higher than 105kHz, the PLL clock frequency
should be set to 256fs. RMCK will be 128fs if PRSEL0 is set to 1 and the same initial output setting
(i.e. 256fs) is used,
LPF is a PLL loop filter pin. Resistances and capacitances should be selected in accordance with
the frequency of the PLLSEL system clock. The PLLSEL setting should be set prior to bi-phase data
input since PLLSEL switching involves a change in LPF loop filter constant.
LPF
R
0
C
0

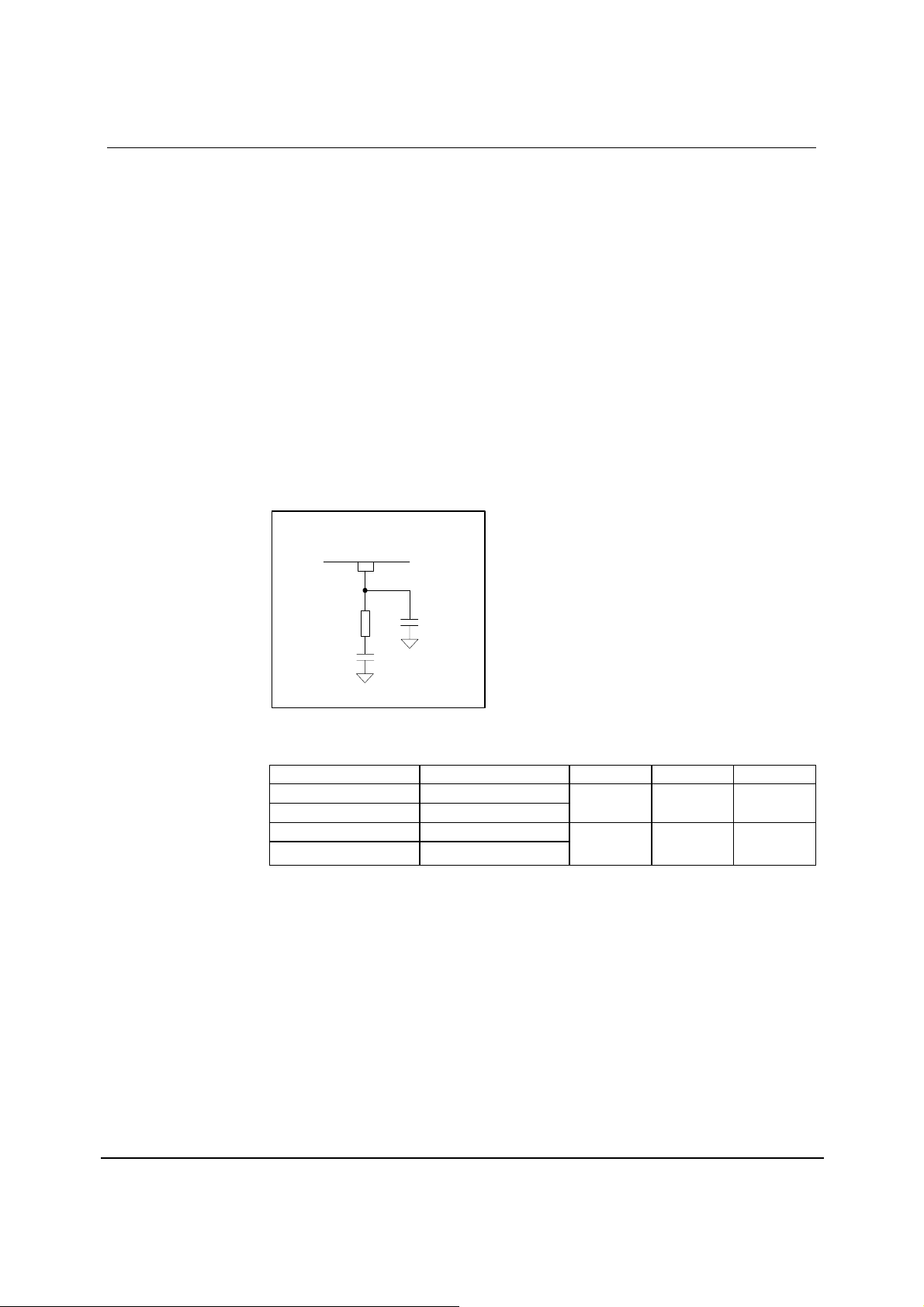

Figure 5 Loop Filter Configuration
PLLCK1 PLLCK0 R0 C0 C1
0 0
0 1
1 0
1 1
Table 6 Loop Filter Component Values
C
1
150
Ω 0.047µF 0.0068µF
220
Ω 0.068µF 0.0047µF
w
PP Rev 1.1 April 2004
13
Page 14
WM8802 Product Preview
DEMODULATION FUNCTION WITHOUT USING PLL (TMCK)
The WM8802 has a function to process input bi-phase data using an external clock (external
synchronization function). In normal demodulation processing, the clock is generated in
synchronization with data by the built-in PLL; the data processing is performed using this clock. It is
possible to perform data processing by supplying a data synchronized clock instead of the clock
generated by the PLL via an independent transmission path.
The demodulation function can be used to set external synchronization function without using the
PLL by EXSYNC. PLLSEL should be set to 256fs and PRSEL0 should be set to 1 (setting frequency
to 1/1). The 256fs clock should then be synchronized with the input data to TMCK. As a result of
these settings, the same operation occurs as PLL demodulation processing with a 256fs clock. LPF
should remain unconnected as no loop filter is required.
The external synchronization function settings should be completed prior to bi-phase data input
(paying attention to the bandwidth of clock transmission path).
A high-precision clock system using an external PLL can also be configured by using the external
synchronization function.
OSCILLATION AMPLIFIERS (XIN, XOUT, MCK)
The WM8802 features a built-in oscillation amplifier. An oscillation circuit can be configured by
connecting a crystal resonator, feedback resistor and load capacitance across XIN and XOUT. When
connecting a crystal resonator, use a fundamental crystal resonator. Note that the load capacitance
depends on the crystal resonator characteristics.
The output of an external clock supply source should be connected to XIN if the built-in oscillation
amplifier is not used as the clock source. In this configuration it is not necessary to connect a
feedback resistor between XIN and XOUT.
A 12.288MHz or 24.576MHz clock can be supplied to XIN by setting XINSEL. If input frequency to
XIN changes it is necessary to set FSERR to 1, so that when the input data sampling frequency
changes, the result is not reflected in the error flag. Since the input frequency is then different to the
recommended frequency operation, the encoding result cannot be used for input fs calculations. In
this case, the input fs can be calculated by performing decimal division of the count value (FSDAT)
with 1/2000th of the XIN input frequency. For details, see Micro-controller Interface section.
Since the XIN clock serves as the reference for internal processing, the XINSEL setting should be
completed prior to bi-phase data input.
A clock should be supplied to XIN at the following times:
(1) Detection of bi-phase data input
(2) Clock source during PLL unlock
(3) Input data sampling frequency calculation
(4) Time definition during input data switching
(5) External supply clock source (AD converter clock, etc.)
The oscillation amplifier automatically stops when the PLL is locked. However, it can also be set for
continuous operation with AMPOPR set to 1. Setting the continuous operation mode enables input
data detection and input sampling frequency calculation even when the PLL is locked; this has an
effect on the sound quality because the oscillation amplifier and PLL clock coexist.
RERR outputs an error (High) once the PLL is locked if the oscillation amplifier is set to continuous
operation by setting AMPOPR to 1. This occurs because, at the same time that the oscillation
amplifier goes into the operating state, the fs calculation value that is held when operation is stopped,
is reset. This error has no influence on the clock output, but RDATA is muted while this error occurs.
Therefore, the AMPOPR[0:1] setting must be completed either prior to bi-phase data input or during
PLL unlock.
w
PP Rev 1.1 April 2004
14
Page 15
Product Preview WM8802
The oscillation amplifier can be stopped if it is unnecessary. When operation is resumed it is
recommended to return to the normal operation after an interval of 10ms or longer to allow the
resonator oscillation to stabilise.
XMCK outputs the XIN clock. The XMCK output settings are performed with XMSEL[0:1]. The XIN
clock can be set to 1/1, 1/2 or muted output.
No clock is needed for XIN when only using the modulation function. In this case, the built-in
oscillation amplifier and frequency divider are used for RMCK, RBCK, and RLRCK clock generation.
Input the crystal resonator frequency across XIN and XOUT (if using only the oscillation amplifier) or
an external clock to XIN. The potential of digital data input pins RX0 to RX6 should be fixed. The DIR
function is stopped using RXOPR and PLLOPR and should not be set at this time. The output clock
may also be muted.
MASTER CLOCK AND CLOCK SOURCE SWITCHING
The RMCK, RBCK, and RLRCK, and the SBCK and SLRCK (see below) clock sources can be
selected from the following three master clocks.
(1) PLL source (256fs or 512fs)
(2) XIN source (12.288MHz or 24.576MHz)
(3) TMCK source (256fs)
Clock source switching can be done in one of two ways, either by setting the R system and the S
system on an interconnected basis or fixing the S system to the XIN source and setting only the R
system. This setting is performed using SELMTD, OCKSEL and RCKSEL.
The clock source is automatically switched between PLL clock and XIN clock by locking/unlocking
the PLL. The continuity of the clock is maintained at this time. However, if switching the clock source
with SELMTD, the continuity of the S system is not maintained.
The clock source can be switched to XIN using OCKSEL and RCKSEL, regardless of the PLL status.
The clock source switch command and clock output of the R and S systems are shown below.
SELMTD R SYSTEM OUTPUT CLOCK S SYSTEM OUTPUT CLOCK
0 According to OCKSEL According to OCKSEL
1 According to RCKSEL Fixed to XIN source
Table 7 Correspondence between Clock Source Switch Commands and Clock Output Pins
R SYSTEM CLOCK
SELMTD OCKSEL RCKSEL
0
1
Table 8 Relationship between Clock Source Switch Commands and
Clock Sources when PLL Locked/Unlocked
The TMCK source is selected using EXSYNC. This setting results in the same operation as when
256fs is set with the PLL source (i.e. PLLSEL set to 256fs).
The various clocks are output with the TMCK source as the master clock and the PLL clock status is
output if data synchronised with TMCK is input. The XIN source is switched with OCKSEL and
RCKSEL. When the TMCK source is not supplied or the input data is not synchronized, the source is
switched to the XIN source; this is similar to the PLL source unlocked status.
0 X PLL XIN PLL XIN
1 X XIN XIN XIN XIN
X 0 PLL XIN XIN XIN
X 1 XIN XIN XIN XIN
SOURCE
Locked Unlocked Locked Unlocked
S SYSTEM CLOCK
SOURCE
w
The PLL status can always be monitored with RERR even after the XIN source is switched. The
processed information can also be read with the micro-controller interface regardless of the PLL
status.
PP Rev 1.1 April 2004
15
Page 16
WM8802 Product Preview
When the PLL changes from locked to unlocked status, the timing for switching the clock from the
PLL source to the XIN source can be changed with XTWT[0:1]. It is recommended to use these
commands if noise occurs during clock switching.
CAUTIONS ON SWITCHING CLOCK SOURCE WHILE PLL IS LOCKED
Clock continuity is maintained when switching the clock to the XIN source with SELMTD, OCKSEL,
and RCKSEL. RERR outputs an error (High) when the oscillation amplifier is stopped while the PLL
is locked (initial setting). The oscillation amplifier goes into the operating state at the same time that
the clock is switched to the XIN source and calculation of the input fs (sampling frequency) resumes.
The previous fs calculation value is then reset. The processing performs as if the fs value had
changed compared to the newly calculated fs value.
The following settings must be performed in order to switch the clock source with SELMTD, OCKSEL
and RCKSEL while PLL is locked and maintaining the RERR status.
(1) Set the oscillation amplifier to the continuous operation mode with AMPOPR[0:1].
(2) Set with FSERR the mode for not reflecting fs changes to the error flag.
By performing one of the above settings, it is possible to control the RERR change status when
switching the clock source with SELMTD, OCKSEL and RCKSEL.
When switching the clock source to XIN (oscillation amplifier stopped and PLL locked), the output
clock is output after the oscillation amplifier starts operating. When switching the clock source from
XIN to PLL the clock continuity is maintained.

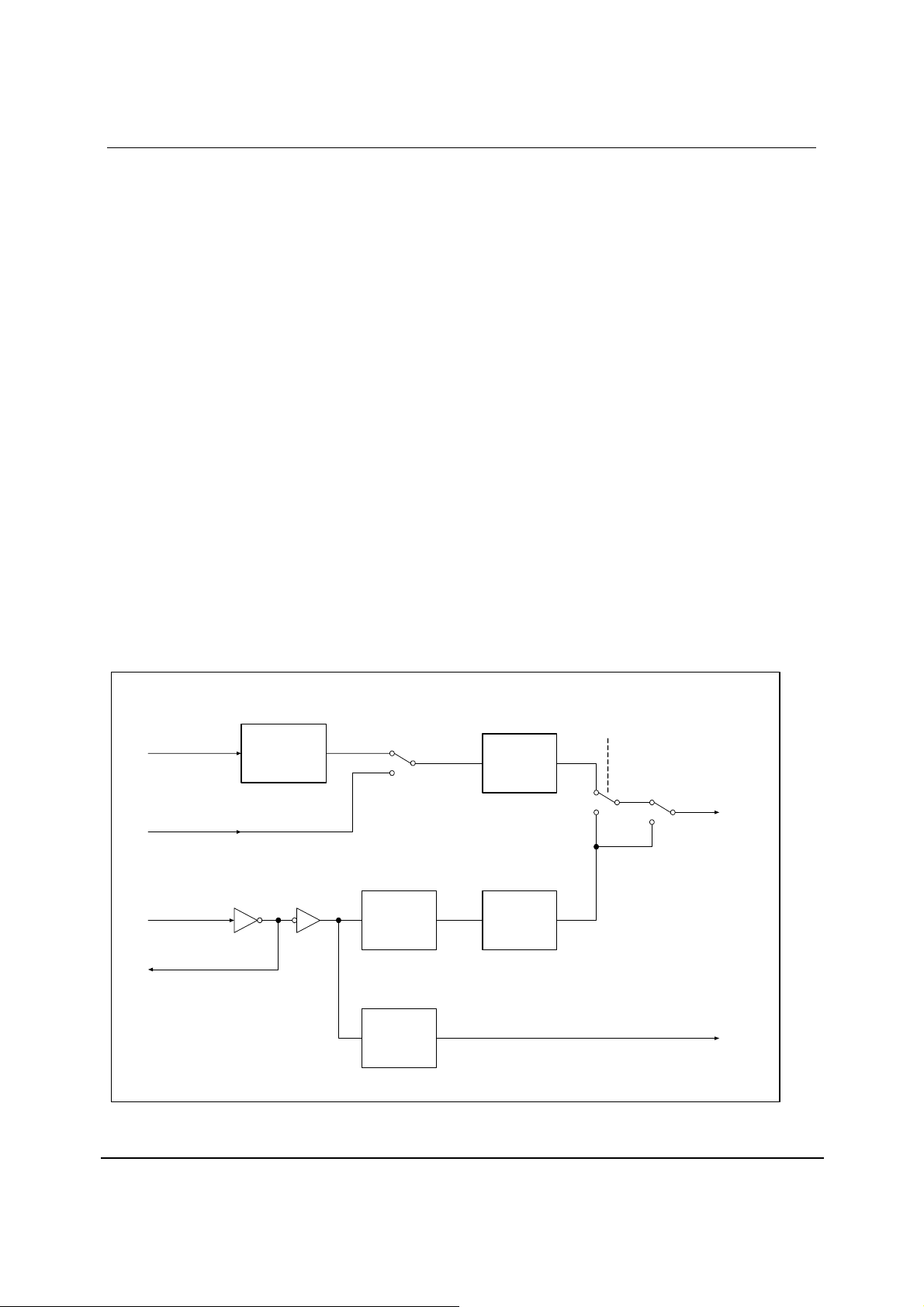

MASTER CLOCK BLOCK DIAGRAM (TMCK, XIN, XOUT, RMCK, XMCK)
The relationships between the three master clocks, switching and the frequency division function are
shown below.
Selected Biphase
TMCK (I) 256fs only
XIN (I)
XOUT (O)
The contents in the square brackets [
∗∗∗] of the switch function blocks correspond to the write
command names.
Lock/Unlock switching is automatically performed through PLL locking/unlocking.
[PLLOPR]
[PLLSEL]
PLL
(256fs or 512fs)
[AMPOPR0]
[AMPOPR1]
[EXSYNC]
1/N
(N=1, 2)
[XMSEL0]
[XMSEL1]
1/N
(N=1, 2)
[PRSEL0]
[PRSEL1]
1/N
(N=1, 2, 4)
[XRSEL0]
[XRSEL1][XINSEL]
1/N
(N=1, 2, 4)
Lock /Unlock
[SELMTD]
[OCKSEL]
[RCKSEL]
RMCK (O)
XMCK (O)
Figure 6 Master Clock Block Diagram
w
PP Rev 1.1 April 2004
16
Page 17
Product Preview WM8802
OUTPUT CLOCKS (RMCK, RBCK, RLRCK, SBCK, SLRCK)
The WM8802 features two clock systems in order to supply the various clocks for the A/D converter,
DSP and other peripheral devices.
The clock output settings for the R and S systems are set using PRSEL[0:1], XRSEL[0:1],
XRBCK[0:1], XRLRCK[0:1], PSBCK[0:1], PSLRCK[0:1], XSBCK[0:1], and XSLRCK[0:1].
(a) Setting range for clock output pins when using the PLL source
(1) RMCK: 1/1, 1/2, and 1/4 of 512fs or 256fs
(2) RBCK: 64fs output
(3) RLRCK: fs output
(4) SBCK: 128fs, 64fs, and 32fs
(5) SLRCK: 2fs, fs, and fs/2
(b) Setting range for clock output pins when using the XIN source
(1) RMCK: 1/1, 1/2, and 1/4 of 12.288MHz or 24.576MHz
(2) RBCK: 12.288MHz, 6.144MHz, and 3.072MHz
(3) SBCK: 12.288MHz, 6.144MHz, and 3.072MHz
(4) RLRCK: 192kHz, 96kHz, and 48kHz
(5) SLRCK: 192kHz, 96kHz, and 48kHz
The polarity of RBCK, RLRCK, SBCK and SLRCK can be reversed with RBCKP, RLRCKP, SBCKP
and SLRCKP.
Clock switching is processed on the rising edge of the RLRCK output after the falling edge of microcontroller interface CE.
OUTPUT PIN NAME
RMCK
RBCK
RLRCK
SBCK
SLRCK
Table 9 Output Clock Frequencies (Bold Items = Initial Settings)
PLL SOURCE
512fs 256fs 256fs 12.288MHz 24.576MHz
512fs 256fs 256fs 12.288MHz 24.576MHz
256fs 128fs 128fs 6.144MHz 12.288MHz
128fs 64fs 64fs 3.072MHz 6.144MHz
12.288MHz
64fs 6.144MHz
3.072MHz
192kHz
fs 96kHz
48kHz
128fs 12.288MHz
64fs 6.144MHz
32fs 3.072MHz
2fs 192kHz
fs 96kHz
fs/2 48kHz
TMCK
SOURCE
XIN SOURCE
w
PP Rev 1.1 April 2004
17
Page 18
WM8802 Product Preview

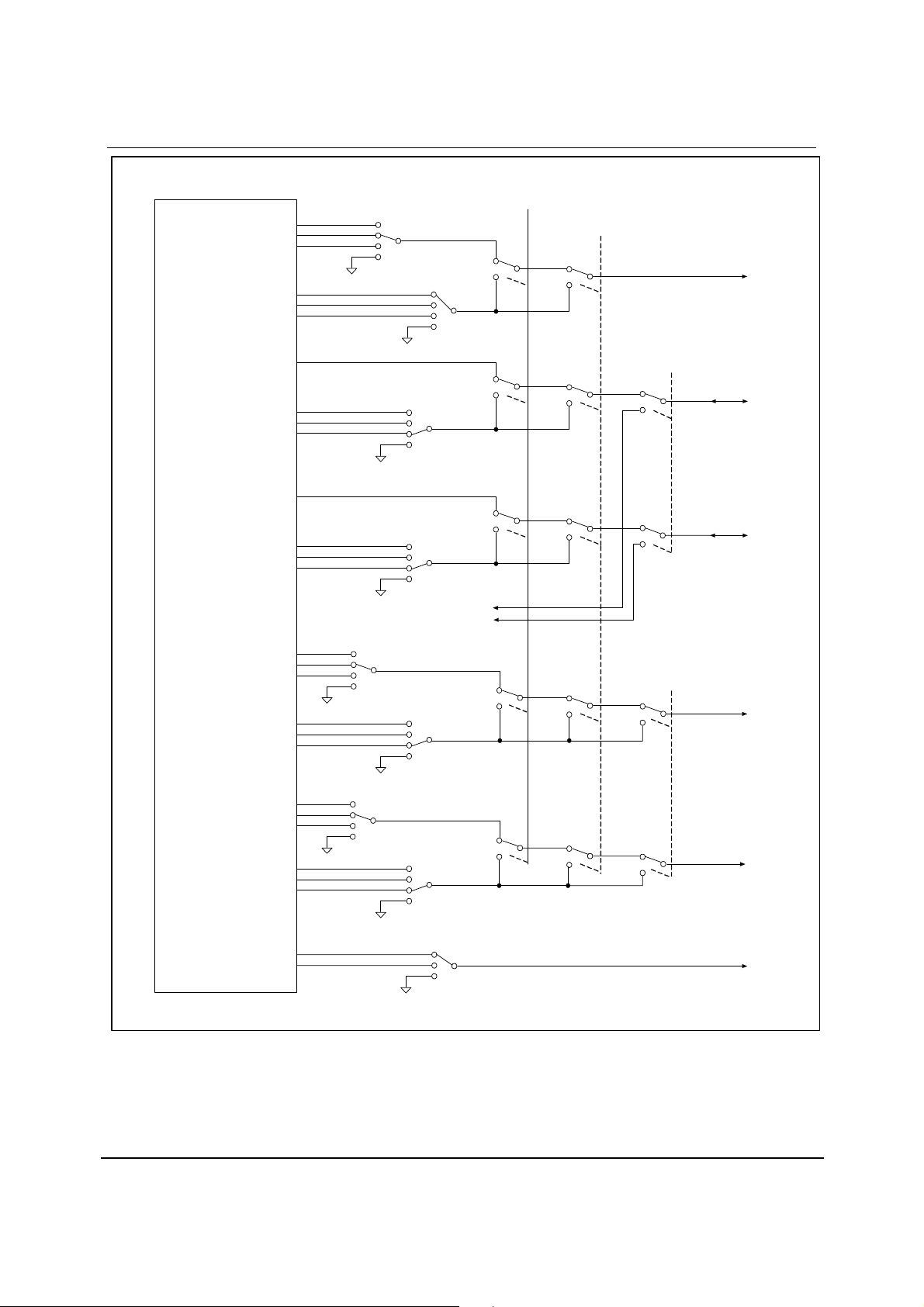

OUTPUT CLOCKS BLOCK DIAGRAM (RMCK, RBCK, RLRCK, SBCK, SLRCK,
XMCK)
The relationships between the output clock and switch function are shown below.
Master Clock Generator in the figure indicates the PLL source, TMCK source or the XIN source.
The contents in the square brackets [
command names.
The broken lines connecting the switches indicate coordinated switching.
Lock/Unlock switching is automatically performed through PLL locking/unlocking.
Master/slave switching is done through demodulation function master/slave function switching.
∗∗∗] of the switch function blocks correspond to the write
w
PP Rev 1.1 April 2004
18
Page 19
Product Preview WM8802
Master Clock
Generator
XTAL Source
12.288MHz or 24.576MHz
PLL Source
256fs or 512fs
TMCK Source
256fs
12.288MHz
6.144MHz
3.072MHz
MUTE
192kHz
96kHz
48kHz
MUTE
[PSBCK]
12.288MHz
6.144MHz
3.072MHz
MUTE
[PRSEL]
MUTE
512fs / 25 6fs
256fs / 128fs
128fs / 64fs
MUTE
12.288MHz / 24.576MHz
6.144MHz / 12.288MHz
3.072MHz / 6.144MHz
128fs
64fs
32fs
MUTE
[XRSEL]
PLL 64fs
[XRBCK]
PLL fs
[XRLRCK]
to internal circuits
[XSBCK]
Lock / Unlock
PLL
XIN
PLL
XIN
PLL
XIN
PLL
XIN
[OCKSEL] ([SELMTD]=0)
[RCKSEL] ([SELMTD]=1)
RMCK (O)
Master / Slav e
RBCK (I/O)
RLRCK (I/O)
[SELMTD]
SBCK (O)
MUTE
12.288MHz / 24.576MHz
Figure 7 Clock Output Block Diagram
w
2fs
fs/2
6.144MHz / 12. 288MHz
[PSLRCK]
fs
192kHz
96kHz
48kHz
MUTE
MUTE
[XSLRCK]
[XMSEL]
PLL
XIN
XIN
SLRCK (O)
XMCK (O)
PP Rev 1.1 April 2004
19
Page 20
WM8802 Product Preview

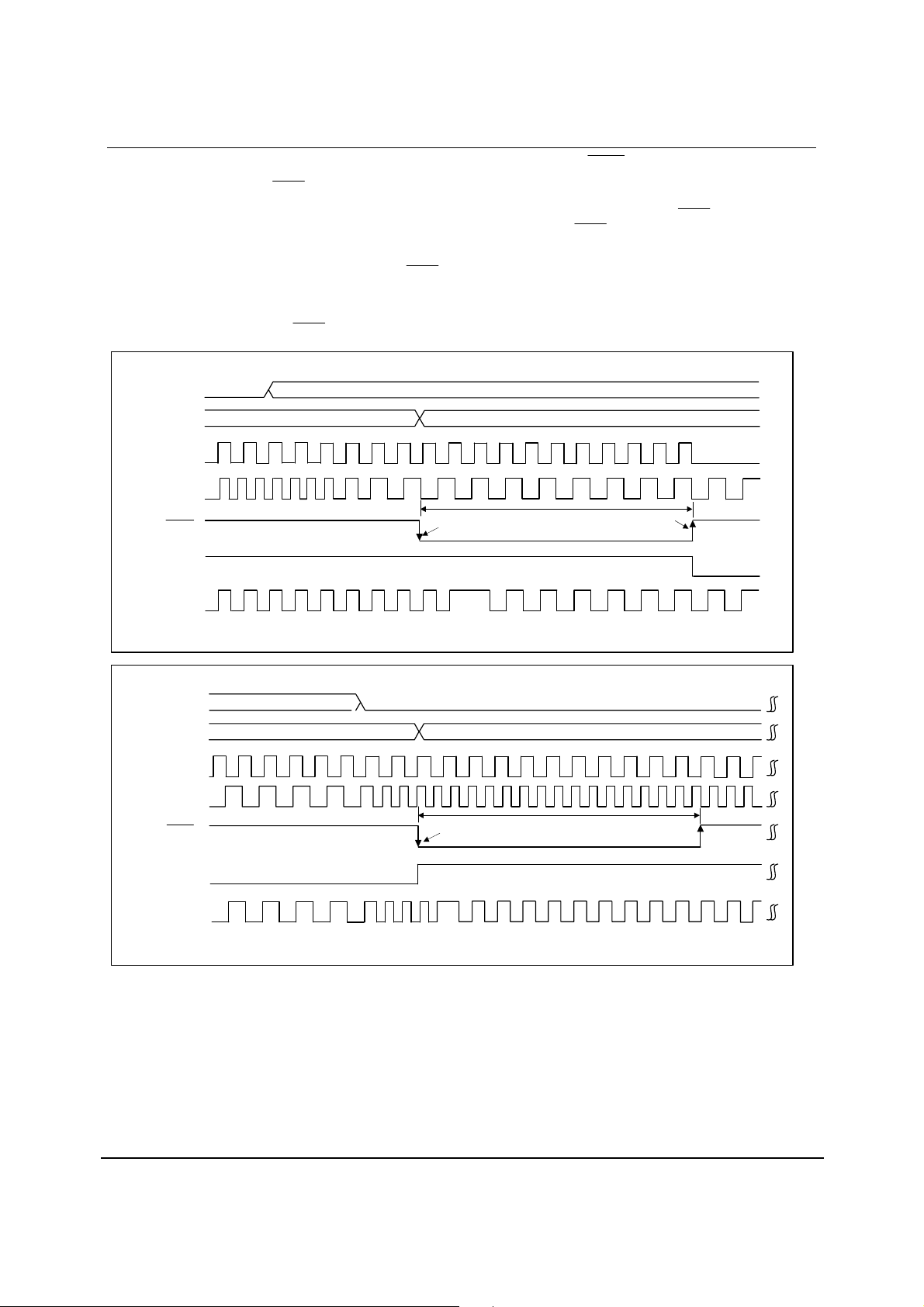

CLOCK SWITCH TRANSITION SIGNAL OUTPUT ( CKST )
outputs Low when the output clock changes during PLL lock/unlock.
CKST
RX0 to RX6
Locked status
XTAL Clock
VCO Clock
CKST
RERR
RMCK
In the lock-in stage (PLL locked following the detection of input data) the
the word clock edge generated from the XIN clock. The
Low pulse rises at the same timing as
CKST
Low pulse falls at
CKST
RERR following the lapse of a given period.
In the unlock stage, the
CKST Low pulse falls at the same timing as the PLL lock detection signal
RERR and rises following a given number of word clocks generated from the XIN clock.
The PLL lock status change and clock change timing is detected by the rising and falling edges of
CKST Low pulse.
the
Digital Data
Unlock
After PLL lock
(a) Lock-in stage
Lock
45 ms to 300 ms
Same timi ng as
RERR
RX0 to RX6
Locked status
XTAL Clock
VCO Clock
CKST
RERR
RMCK
Digital Data

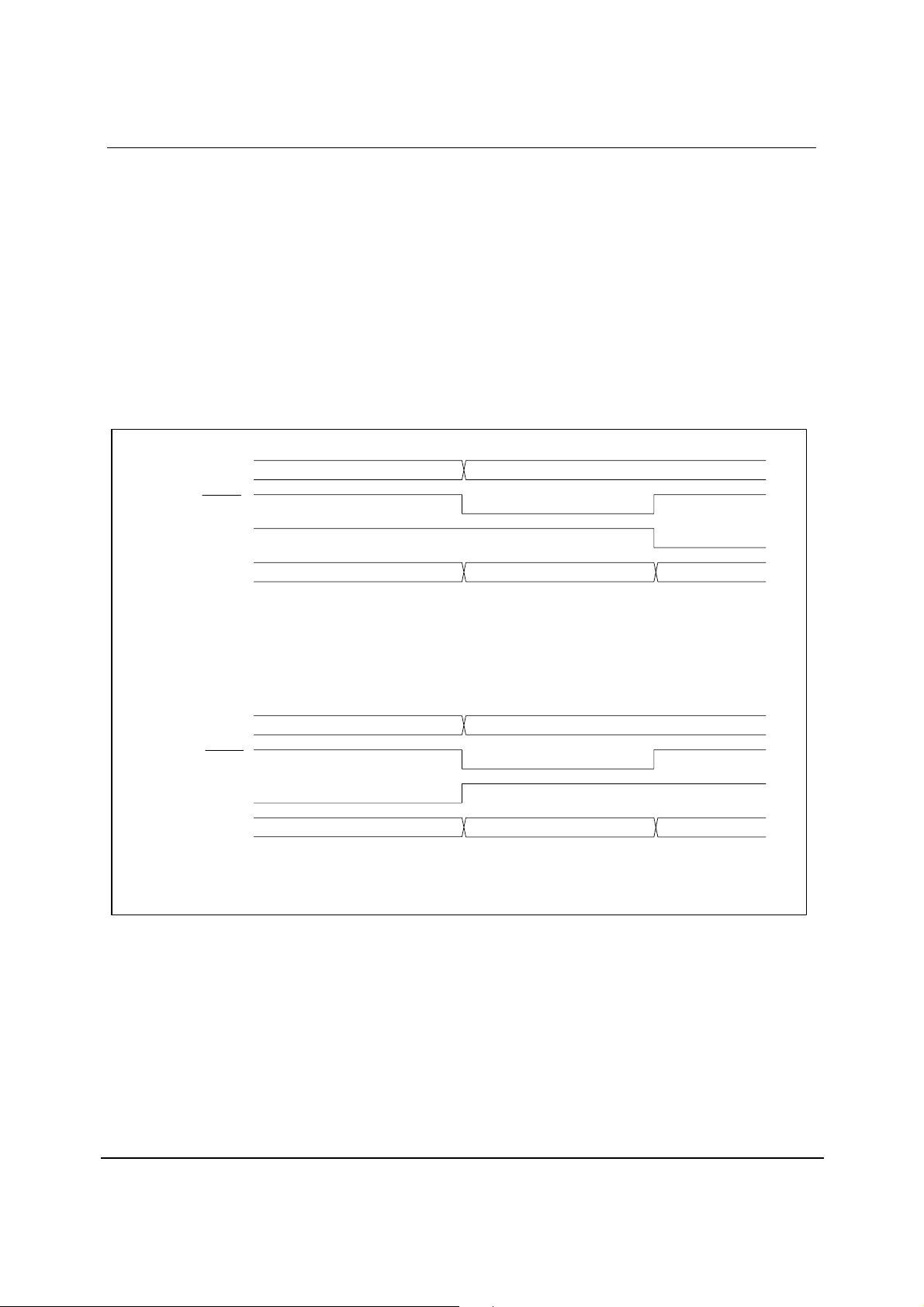

Figure 8 Clock Switch Timing
Lock
(b) Unlock stage
Unlock
Same timi ng as RERR
0.6 ms to 6.4 ms
w
PP Rev 1.1 April 2004
20
Page 21
Product Preview WM8802

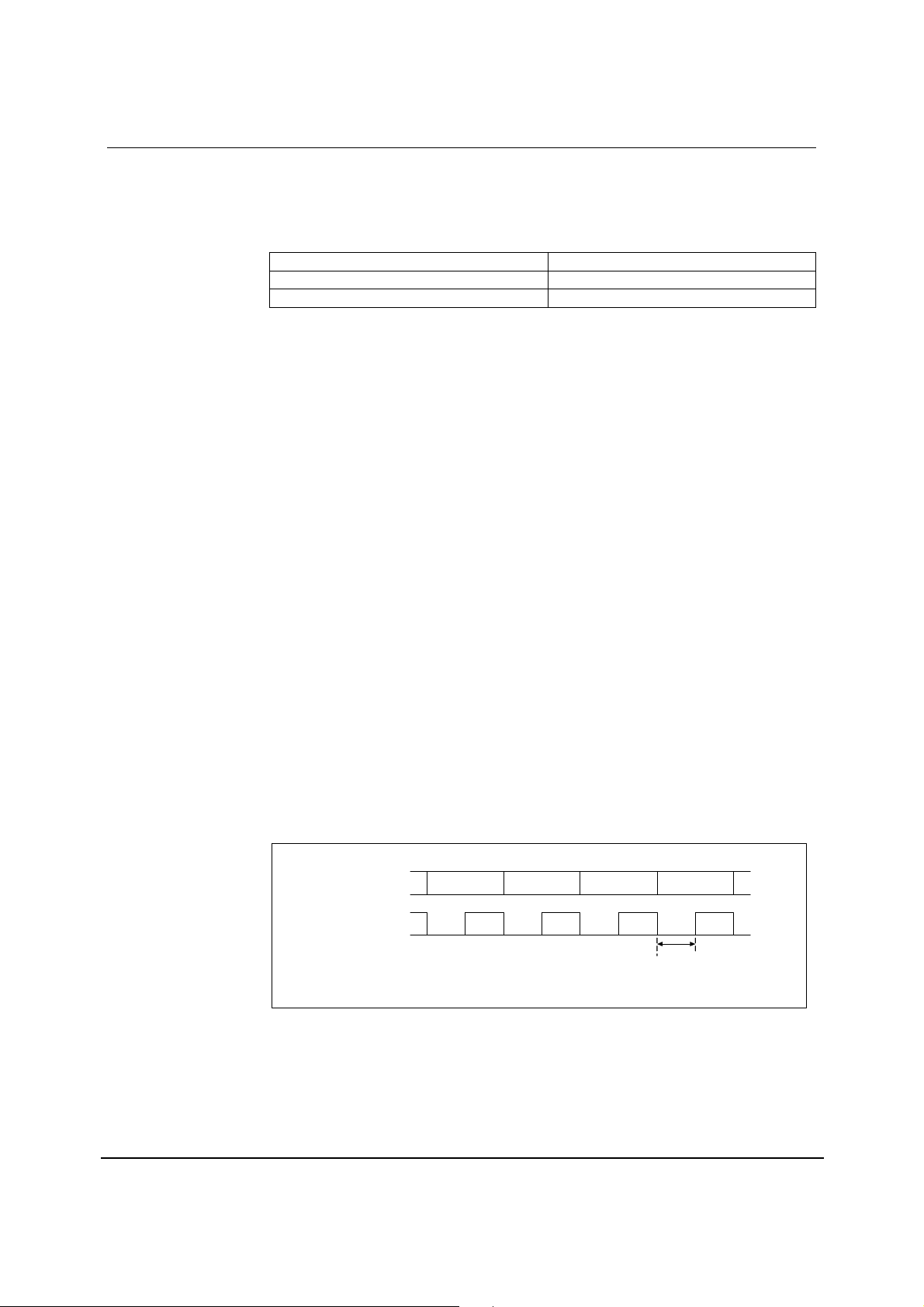

BI-PHASE SIGNAL INPUT / OUTPUT
BI-PHASE SIGNAL INPUT RECEPTION RANGE
The input data reception range depends on the PLL lock frequency setting set by PLLSEL. The
relationship between this setting and the guaranteed reception range is shown below.
PLL OUTPUT CLOCK SETTING INPUT DATA RECEPTION RANGE
512fs (PLLSEL = 0) 28kHz to 105kHz
256fs (PLLSEL = 1) 28kHz to 195kHz
Table 10 Relationship Between PLL Output Clock Setting and Reception Range
(FSLIM[0:1] = 0)
The fs reception range for input data within the above PLL output clock setting range can be
controlled. This setting is performed using FSLIM[0:1]. When this function is used, input data that
exceeds the setting range is considered as an error and the clock source is automatically switched to
the XIN source. The RDATA output data then depends on the RDTSEL setting.
BI-PHASE SIGNAL INPUT/OUTPUT PINS (RX0 TO RX6, RXOUT)
There are 7 digital data input pins. Data modulated with the modulation function can also be
selected, therefore selection from a total of 8 signals is possible. However, the pins that can be
selected are restricted by the following conditions:
1. The six pins RX0 and RX2 to RX6 are TTL level input pins with 5V input level tolerable.
2. RX1 is a coaxial-compatible input pin with built-in amplifier that can receive up to 200mVp-p
data.
The demodulation input and RXOUT output signals can also be selected independently.
1. The demodulation data is selected with RISEL[0:2].
2. The RXOUT output data is selected with ROSEL[0:2].
RXOUT can be muted with RXOFF. Muting is recommended when not using RXOUT in order to
reduce clock jitter.
The data input status can be monitored with the RXMON setting. The status of each data input pin is
stored in CCB address 0xEA and output registers DO0 to DO7. Since this function uses the XIN
clock, the oscillation amplifier must be set to the continuous operation mode when RXMON is set.
Demodulation input pin switching can be performed during PLL unlock using the ULSEL setting. As a
result, data switching can be accurately communicated to peripheral devices.
The interval from pin switching through RISEL[0:2] until data is received is about 250
This function also requires that the oscillation amplifier is set to the continuous operation mode.
Input pin selection
Internal supply signal
RX0 RX2 RX3 RX1
RX0 RX2 RX3 RX1
250µµµµs to 350µµµµs
µs to 350µs.
Figure 9 Input Pin Selection Processing via PLL Unlock
w
PP Rev 1.1 April 2004
21
Page 22
WM8802 Product Preview
BI-PHASE SIGNAL INPUT CIRCUITS (RX0, RX1, RX2)
If RX1, which has a built-in amplifier, is used as a coaxial input signal corruption may occur due to
the influence of the adjacent RX0 and RX2 input pins. RX0 and RX2 should be fixed to Low to
prevent them from influencing RX1.
The input signal to RX1 is temporarily open if RX1 is selected. The RX0 and RX2 potential must be
fixed due to coupling effects. In this case, 5 bi-phase signal input pins can be selected; RX1 and RX3
to RX 6.
If the input signal to RX1 is absolutely fixed to either High or Low then all 7 input pins can be used.
WM8802
RX0
Coaxial

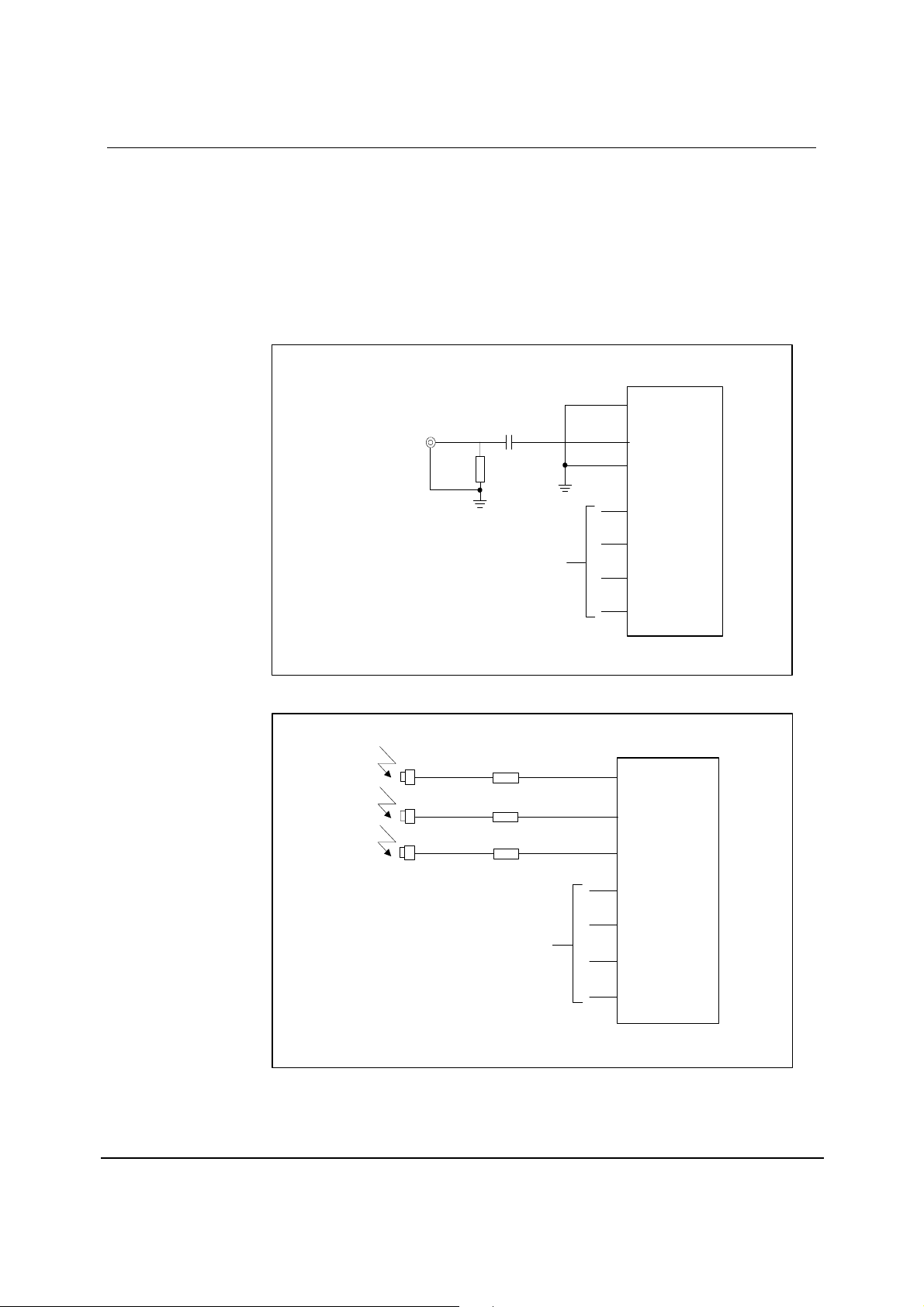

Figure 10 Bi-Phase Signal Input Circuits – Coaxial Input Circuit
0.1µF
75Ω
Other inputs
Optical
100Ω
100Ω
100Ω
RX1
RX2
RX3
RX4
RX5
RX6
WM8802
RX0
RX1
RX2
RX3
w
RX4
Other inputs
RX5
RX6
Figure 11 Bi-Phase Signal Input Circuits – Optical Input Circuit
PP Rev 1.1 April 2004
22
Page 23

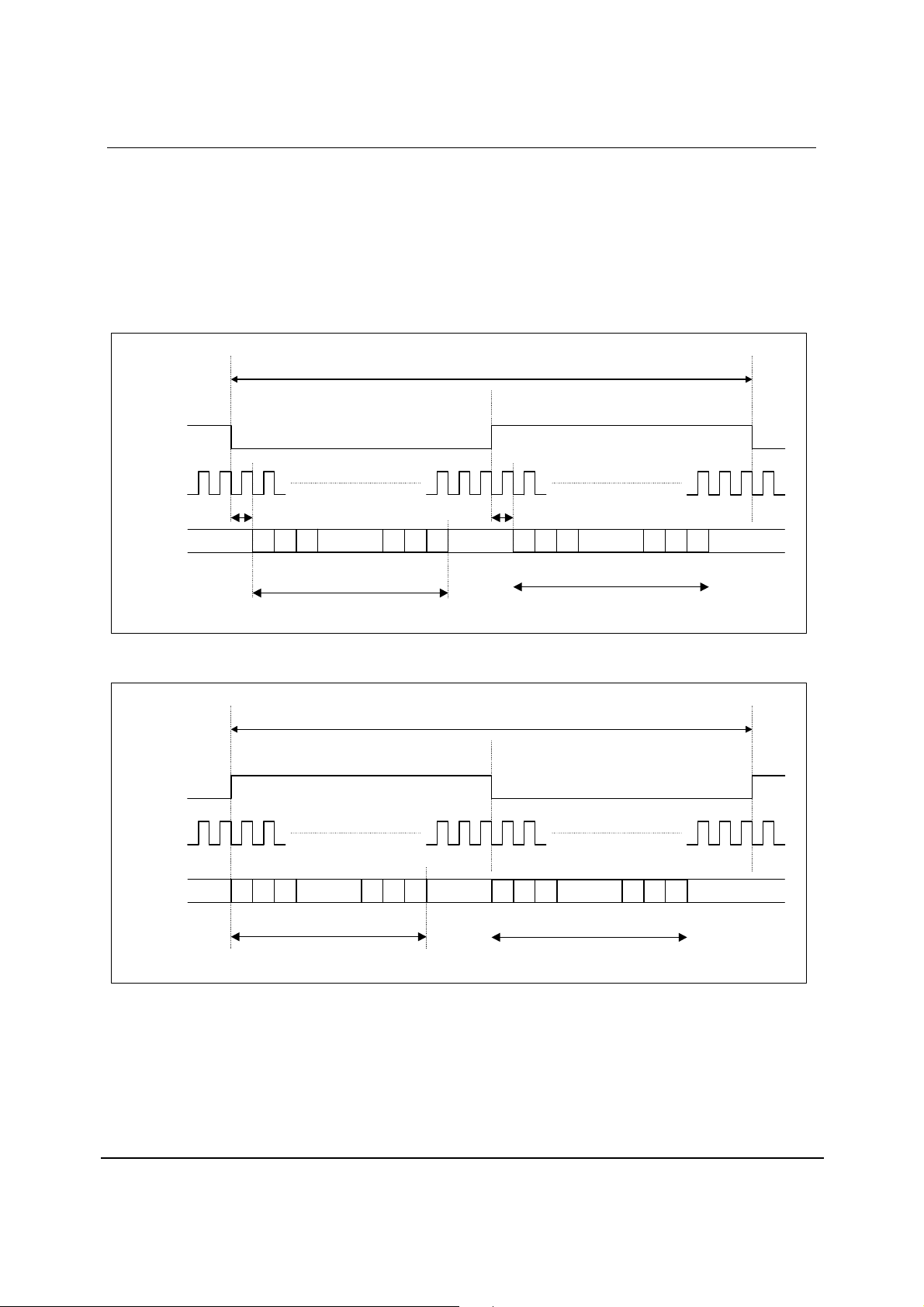

Product Preview WM8802
SERIAL AUDIO DATA INPUT/OUTPUT
OUTPUT DATA FORMAT (RDATA)
The output format is set with OFSEL[0:2].
2
I
S is the initial output format setting.
Right Justified outputs are only valid in master mode.
Output data is output in synchronization with the RLRCK edge immediately after the RERR output
becomes Low.
1/fs
RLRCK (0)
RBCK (0)
1 BCLK
RDATA (0)
MSB

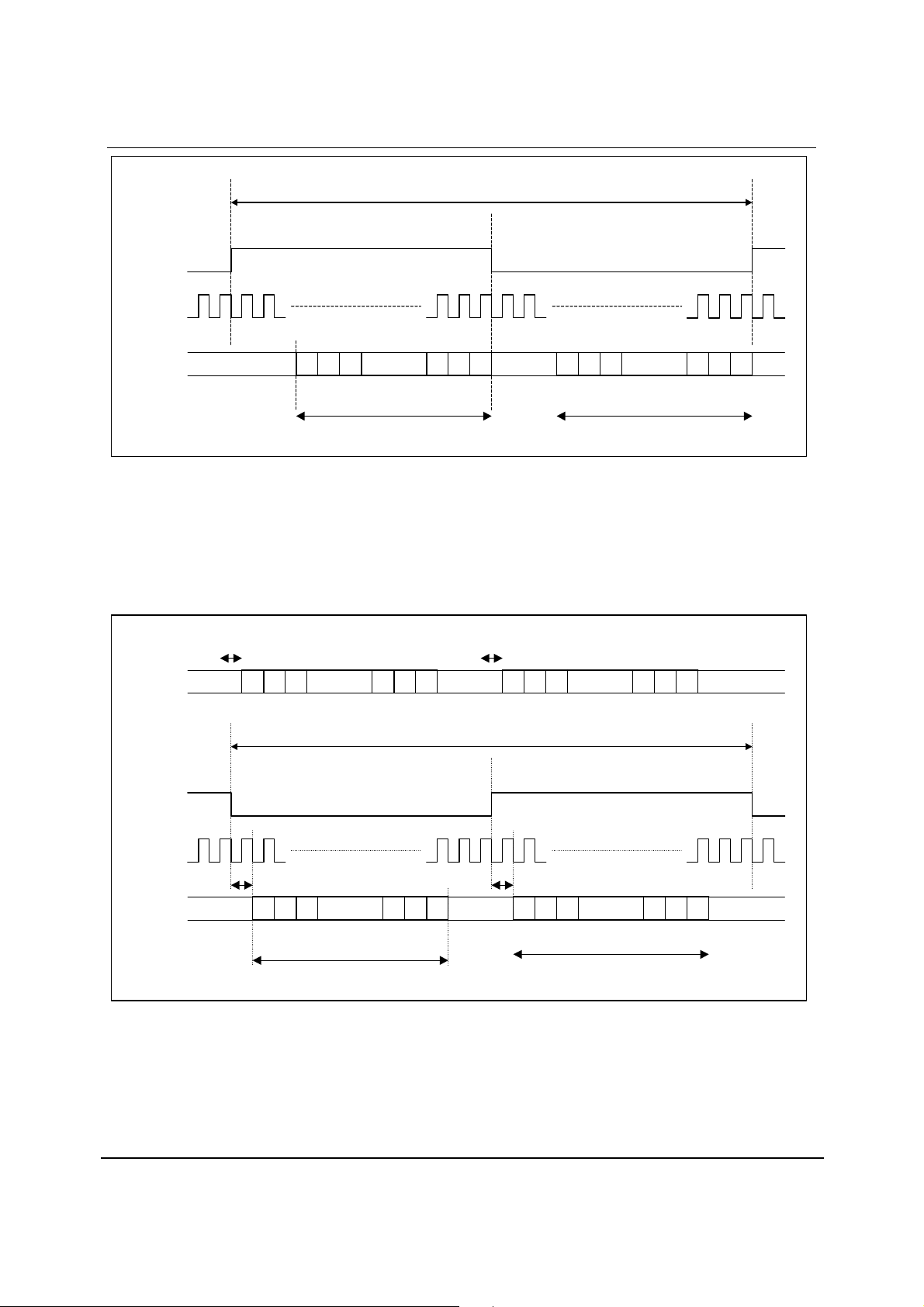

Figure 12 Data Output Timing – I2S
RLRCK (0)
RBCK (0)
LEFT
CHANNEL
16 to 24 bits
LEFT
CHANNEL
n-2 n-1
LSB
RIGHT
CHANNEL
1 BCLK
n321
n-2 n-1
MSB
16 to 24 bits
n321
LSB
1/fs
RIGHT
CHANNEL
RDATA (0)
16 to 24 bits
Figure 13 Data Output Timing – Left Justified
w
n-2 n -1
n321
n-2 n-1
LSBMSB
16 to 24 bits
n321
LSBMSB
PP Rev 1.1 April 2004
23
Page 24
WM8802 Product Preview
1/fs
LEFT
CHANNEL
RLRCK (0)
RBCK (0)
RDATA (0)

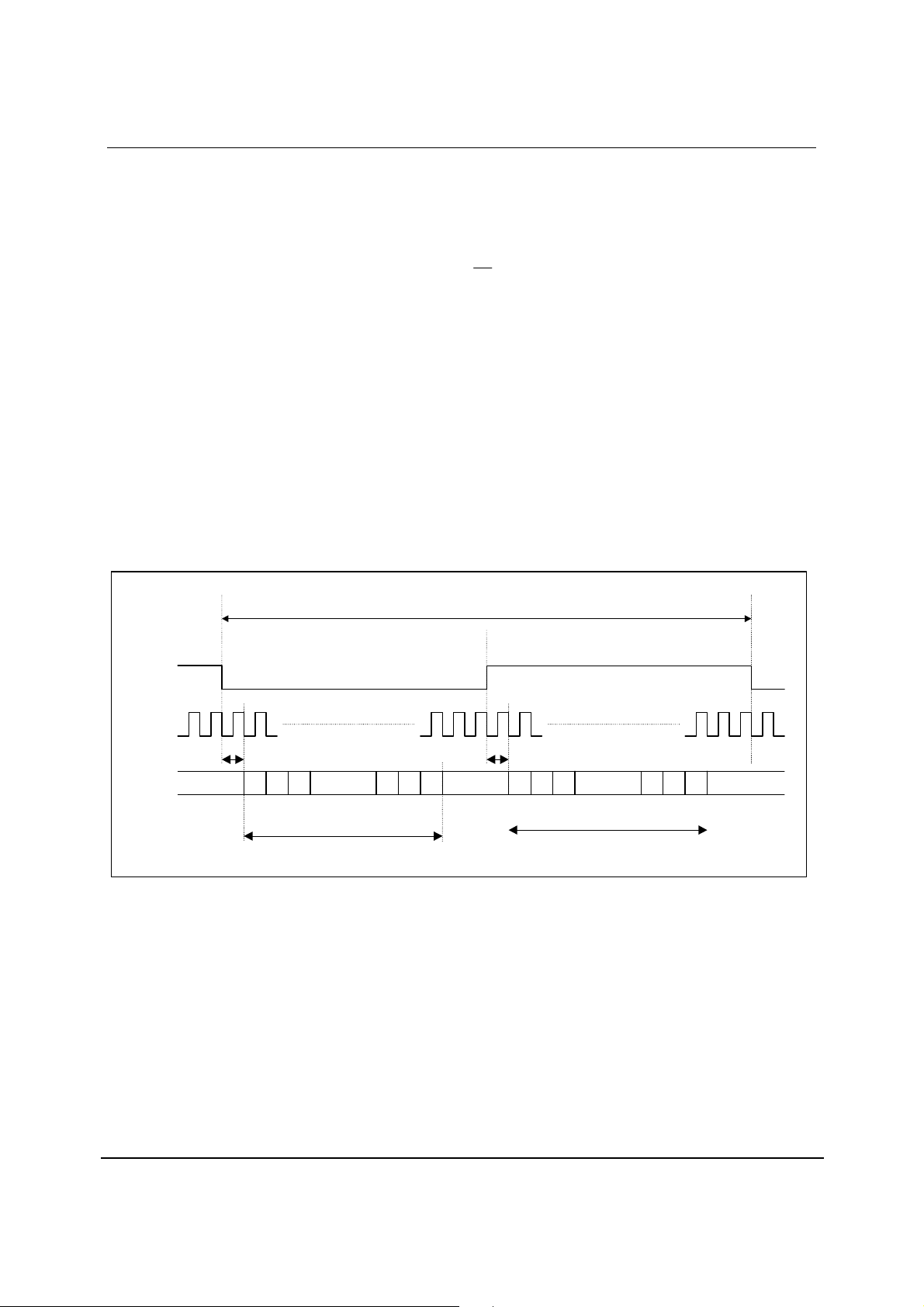

Figure 14 Data Output Timing – Right Justified
SERIAL AUDIO DATA INPUT FORMAT (SDIN)
SDIN is a 24 bit serial digital audio data input pin.
The format of the serial audio data input to SDIN is the same as the demodulation data output
format.
1 BCLK
SDIN (1)
RIGHT
CHANNEL
n-2 n -1
16,20,24 bits 16,20,24 bits
n-2 n-1
n321
LSB
n321
LSBMSB
1 BCLK
MSB
n-2 n -1
MSB
n-2 n-1
n321
LSB
n321
LSB
LEFT
CHANNEL
RLRCK (0)
RBCK (0)
1 BCLK
RDATA (0)
MSB
16 to 24 bits
n-2 n-1
LSB

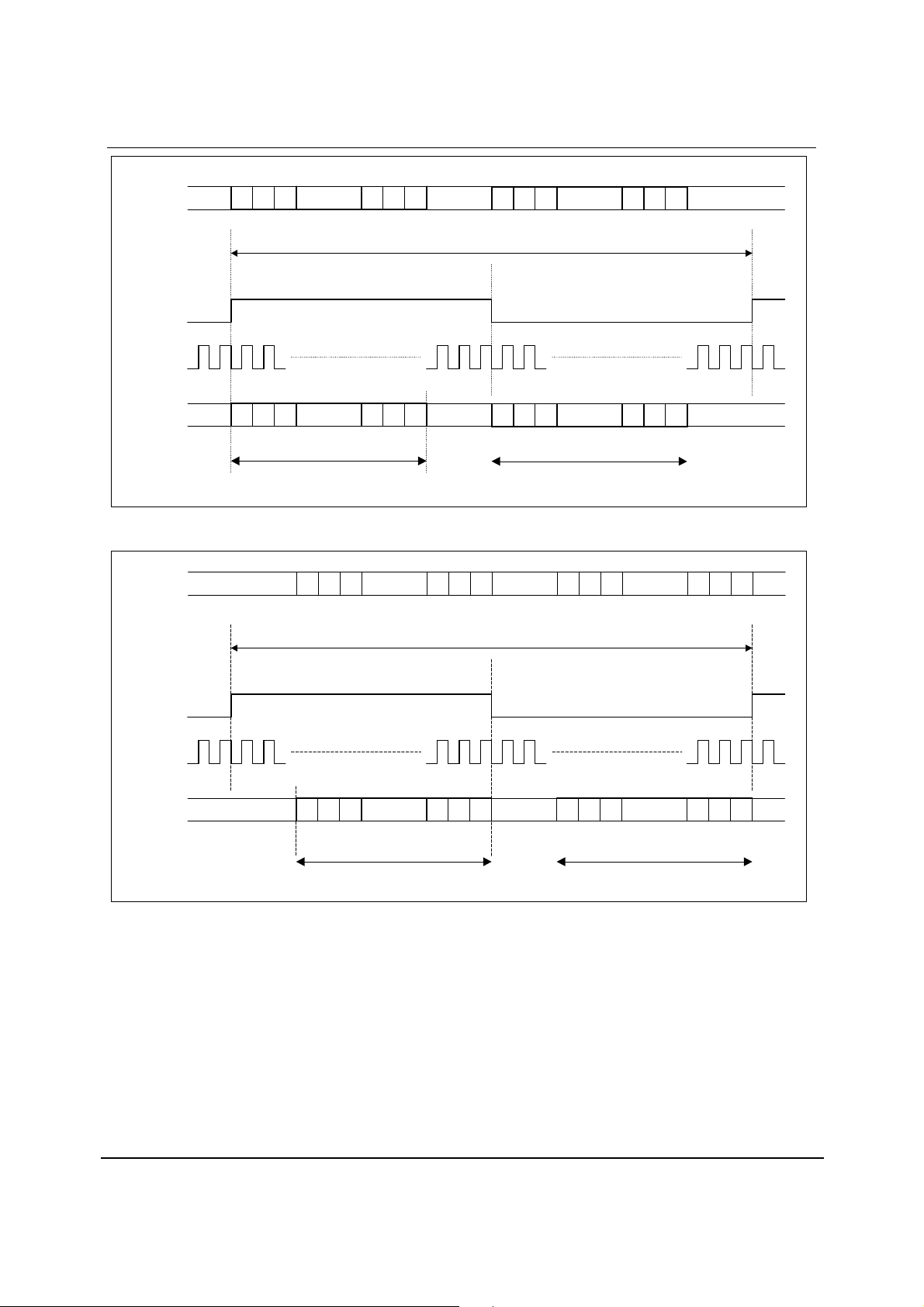

Figure 15 Serial Audio Data Input Timing - I2S Data Input
w
1/fs
RIGHT
CHANNEL
1 BCLK
n321
n-2 n-1
MSB
16 to 24 bits
n321
LSB
PP Rev 1.1 April 2004
24
Page 25
Product Preview WM8802
SDIN (1)
n-2 n -1
n321
LSBMSB
LEFT
CHANNEL
RLRCK (0)
RBCK (0)
RDATA (0)
n-2 n -1
n321
LSBMSB
16 to 24 bits
Figure 16 Serial Audio Data Input Timing – Left Justified
SDIN (1)
n-2 n-1
n321
1/fs
1/fs
RIGHT
CHANNEL
16 to 24 bits
n-2 n-1
n-2 n-1
n321
n321
LSBMSB
n-2 n-1
n321
LEFT
CHANNEL
RLRCK (0)
RBCK (0)
RDATA (0)
16,20,24 bits 16,20,24 bits
n-2 n -1

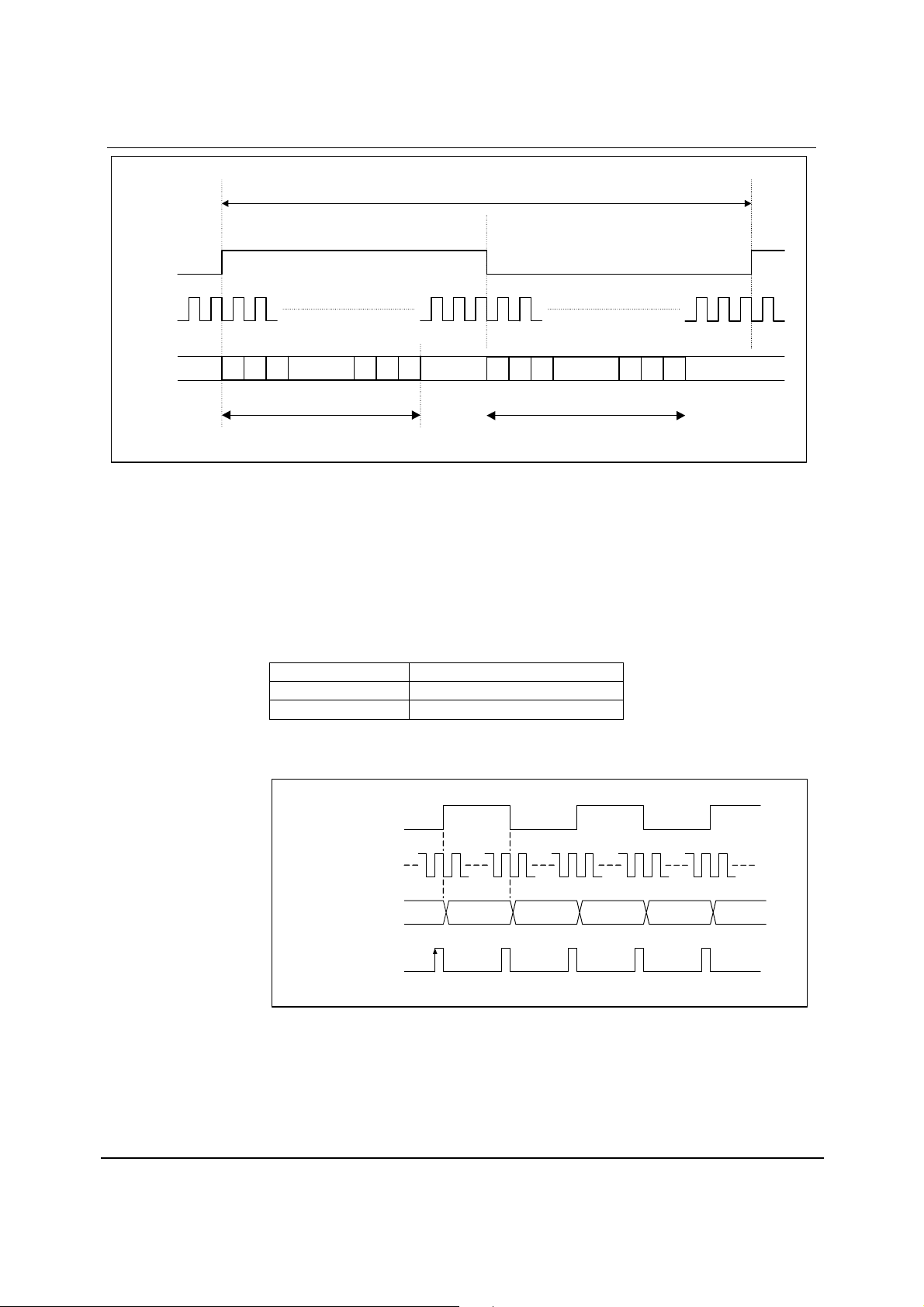

Figure 17 Serial Audio Data Input Timing – Right Justified
n321
LSBMSB LSBMSB
RIGHT
CHANNEL
n-2 n-1
n321
w
PP Rev 1.1 April 2004
25
Page 26
WM8802 Product Preview
OUTPUT DATA SWITCHING (SDIN, RDATA)
RDATA demodulation data is output when the PLL is locked and the SDIN input is selected This
switching is automatically performed according to the locked/unlocked status of the PLL. For details,
see the timing charts below.
Switch to a clock source synchronized to the SDIN data when SDIN input data is selected.
The SDIN input data can be output to RDATA regardless of the locked/unlocked status of the PLL
using RDTSTA setting.
The RDATA output data can be forcibly muted using the RDTMUT setting.
The PLL continues operating when the clock source is set to XIN using OCKSEL and RCKSEL as
long as its operation is not stopped using PLLOPR. The PLL status is continuously output from
RERR as long as error output is not forcibly set with RESTA. The processed information can also be
read with the micro-controller interface regardless of the PLL status.
PLL locked status
CKST
RERR
RDATA
PLL locked status
CKST
RERR
RDATA
Figure 18 RDATA Output Data Switch Timing Chart
Demodulation data
UNLOCK
SDIN data Muted
LOCK
LOCK
(a) Lock-in stage
UNLOCK
(b) Unlock stage
Muted
Demodulation data
SDIN data
w
DATA BLOCK DIAGRAM (RX0 TO RX6, TX0, RXOUT, TDATA, RDATA, SDIN)
The RDATA output data is switched to SDIN input data using RDTSEL.
The SDIN input data can be input to the modulation function using TDTSEL.
The modulation output is an input to the Input Switch Multiplexer and can be output from RXOUT. It
is possible to use a signal that has been digitized with an A/D converter for digital recording output,
etc. using this function.
PP Rev 1.1 April 2004
26
Page 27
Product Preview WM8802
SDIN
RX0
RX1
RX2
RX3
RX4
RX5
RX6

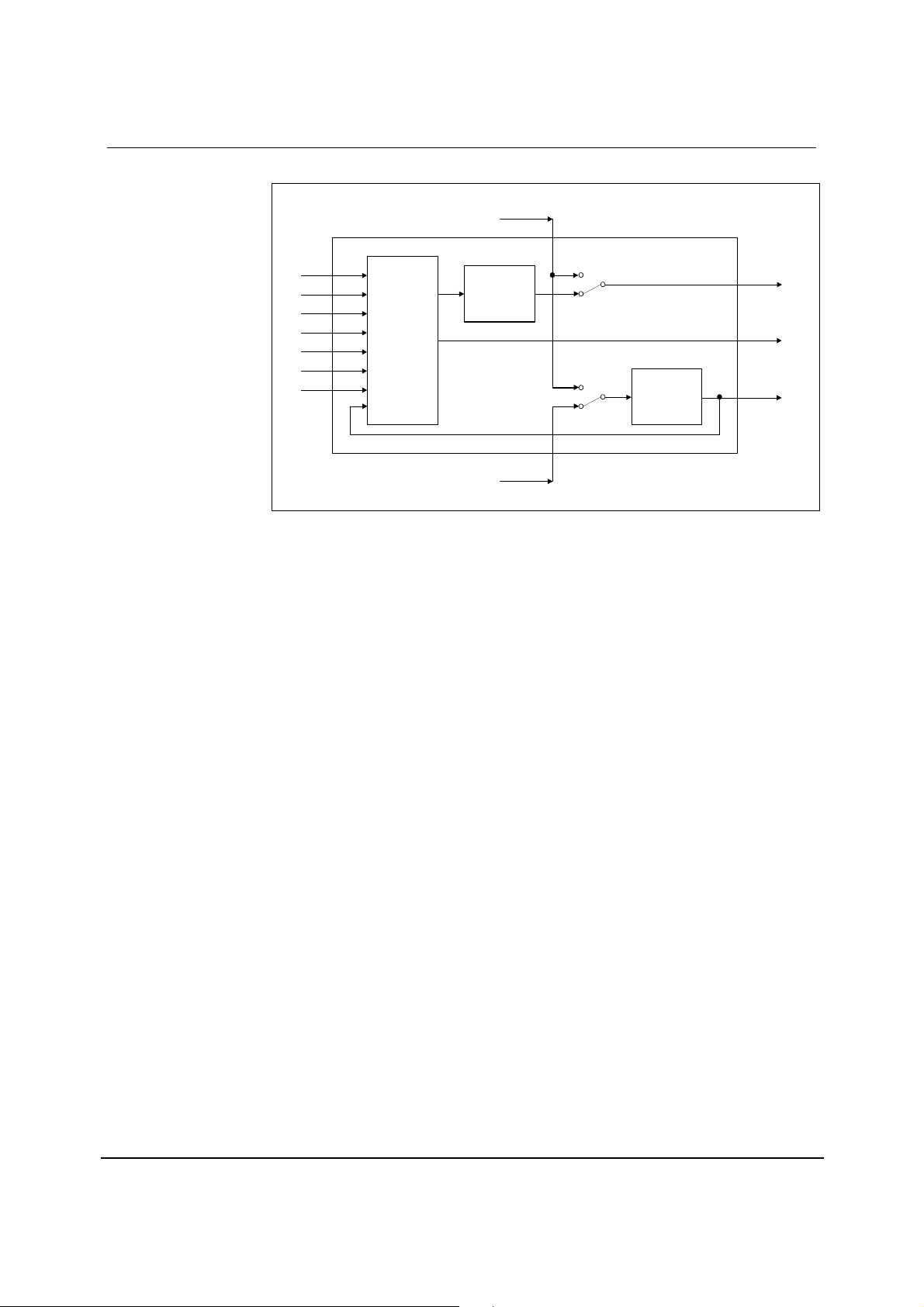

Figure 19 Data Block Diagram
MUX
(8in / 2out)
DIR
TDATA
[RDTSEL]
[TDTSEL]
DIT
RDATA
RXOUT
TXO
CALCULATION OF INPUT DATA SAMPLING FREQUENCY
The input data sampling frequency is calculated using the XIN clock.
When the oscillation amplifier automatically stops during PLL lock, the input data sampling frequency
is calculated during the RERR error period. The calculation is completed at the same time that the
oscillation amplifier stops. The value remains unchanged until the PLL becomes unlocked.
In the mode where the oscillation amplifier operates continuously, calculation processing is
performed continuously The calculation results (which follows the input data) can be read even if
sampling rate is changed within the PLL capture range, but only for a signal where channel status
sampling information does not change,.
The calculation result can be read from CCB address 0xEB and output to registers DO4 to DO7 and
DO8 to DO15. Registers DO4 through DO7 hold the encoded result, while DO8 through DO15 hold
the calculation value. The sampling frequencies that can be calculated are greater than 24kHz as the
calculation count value is output in 8-bit units. For details, see section Micro-controller Interface.
ERROR OUTPUT PROCESSING
LOCK ERROR, DATA ERROR OUTPUT (RERR)
An error flag RERR is output when a PLL lock error or a data error occurs.
Non-PCM data reception can be treated as an error with the RESEL setting.
The RERR output conditions are set using RESTA. Since the PLL status can be output at any time,
the PLL status can be monitored even when the clock source is XIN.
w
PP Rev 1.1 April 2004
27
Page 28
WM8802 Product Preview
PLL LOCK ERROR
The PLL becomes unlocked for input data that has lost bi-phase modulation regularity or input data
where preambles B, M, and W cannot be detected.
RERR goes High during the occurrence of a PLL lock error and returns to Low when data
demodulation returns to normal. High is maintained between 45ms and 300ms.
The rising and falling edges of RERR are synchronized with RLRCK.
INPUT DATA PARITY ERROR
Input parity errors are detected if there are an odd number of parity bits in input data.
RERR goes High indicating that the PLL is locked if an input parity error occurs 9 or more times in
succession, It returns to Low after being High for between 45ms and 300ms.
The error flag output format, for when an input parity error is output 8 times in succession, can be
selected using REDER.
OTHER ERRORS
The channel status bits 24 to 27 (sampling frequency) are always read and the data of the previous
block is compared with the current data, even if RERR goes Low. The input data sampling frequency
is also calculated from the fs clock extracted from the input data and fs calculation value comparison
is performed as described above. RERR is instantly made High if a difference is detected, and the
same processing as for PLL lock errors is performed.
The PLL causes a lock error when the sampling frequency changes as described above. FSERR can
be set to support sources with a variable sampling frequency (for example a CD player with a
variable pitch function). No error flag is output if the sampling frequency variation falls within the PLL
capture range while using FSERR.
For input data within the reception range, FSERR prevents fs calculation results from being reflected
in the error flag that is set using FSLIM[0:1]. RERR goes Low if the PLL status changes to the locked
status.
RERR changes to a High output upon detection of non-PCM data input if RESEL is set. The PLL
locked status and various output clocks continue to be output according to the input data but the
output data is muted.
DATA PROCESSING UPON ERROR OCCURRENCE (LOCK ERROR, PARITY
ERROR)
The data processing after the occurrence of an error is described below. If 8 or fewer input parity
errors occur in succession transfer data is replaced by the data saved to L-ch and R-ch in the
previous frame of PCM audio data. The error data is output as it is if the transfer data is non-PCM
data. Non-PCM data is based on data detected prior to occurrence of an input parity error when bit 1
of the channel status goes High.
Output data is muted upon occurrence of a PLL lock error or when a parity error occurs 9 or more
times in succession.
For the channel status, the data of the previous block is held in 1-bit units when a parity error occurs.
w
PP Rev 1.1 April 2004
28
Page 29

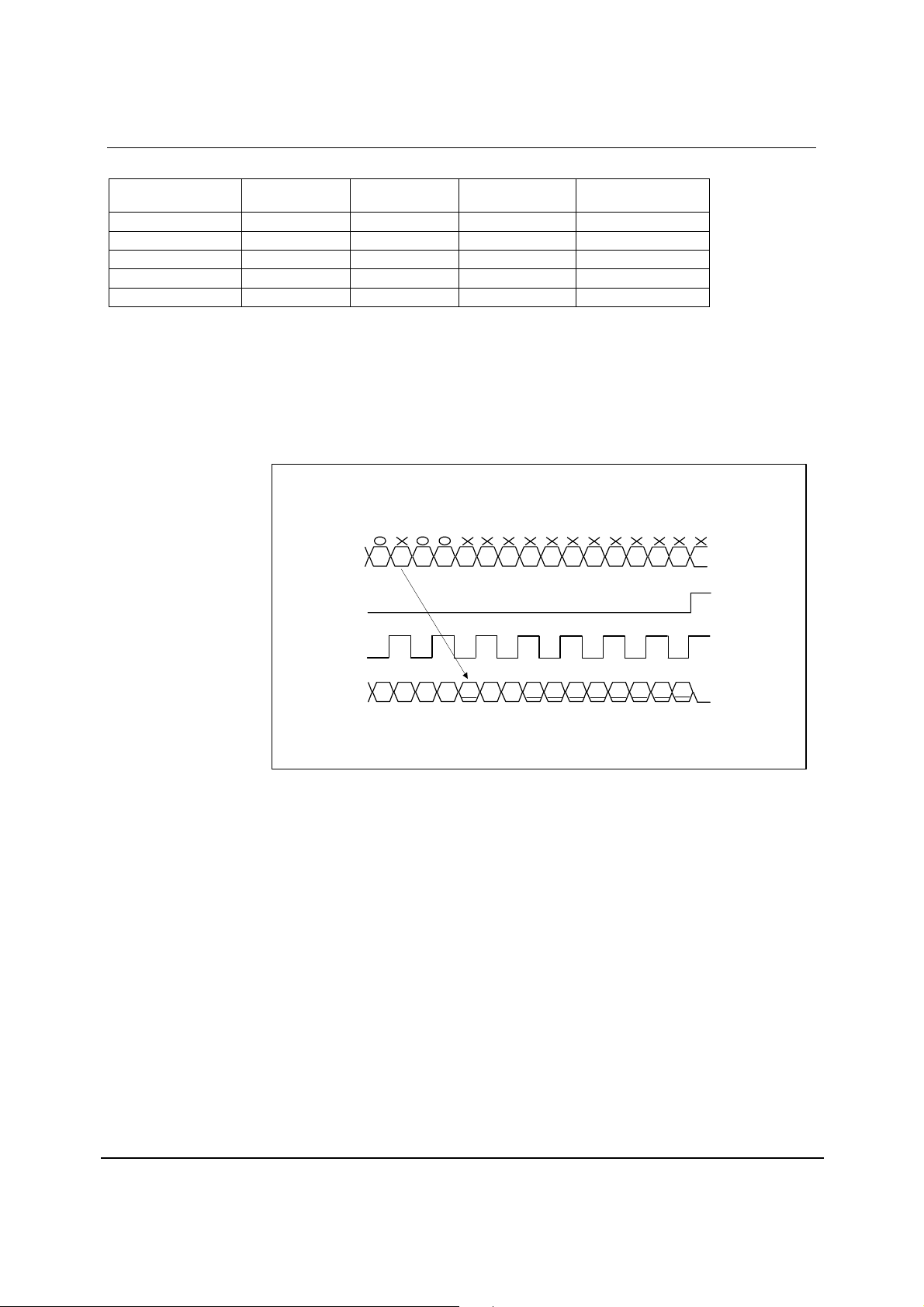

Product Preview WM8802
DATA
RDATA output Low Low Previous value data Output
fs calculation result Low Output Output Output
Channel status Low Low Previous value data Previous value data
Validity flag Low Low Output Output
User data Low Low Output Output
Table 11 Data Processing upon Error Occurrence
Notes:
1. Input parity error (A): Occurs 9 or more times in succession
2. Input parity error (B): Occurs 8 or fewer times in succession, in case of audio data
3. Input parity error (C): Occurs 8 or fewer times in succession, in case of non-PCM burst data
PLL LOCK
ERROR
INPUT PARITY
ERROR (A)
INPUT PARITY
ERROR (B)
INPUT PARITY
ERROR (C)
Figure 20 shows an example of data processing upon occurrence of a parity error.
An error occurs a single time
Input Data
RERR
L-1
L-4R-3L-3R-2L-2R-1 R-4 L-5 R-5 L-6 R-6 L-7 R-7 L-8 R-8
RLRCK
RDATA
R-ch
Previous data value
Figure 20 Data Processing Upon Parity Error Occurrence
R-2L-2R-0L-1R-0L-0 L-2 R-2 L-2 R-2 L-2 R-2 L-2 R- 2
L-ch R-ch ….
Previous data value
Muted after 9 or more
consecutive errors
PROCESSING DURING ERROR RECOVERY
PLL becomes locked and data demodulation begins when preambles B, M and W are detected.
RDATA output data is output from the RLRCK edge after RERR goes Low.
w
PP Rev 1.1 April 2004
29
Page 30

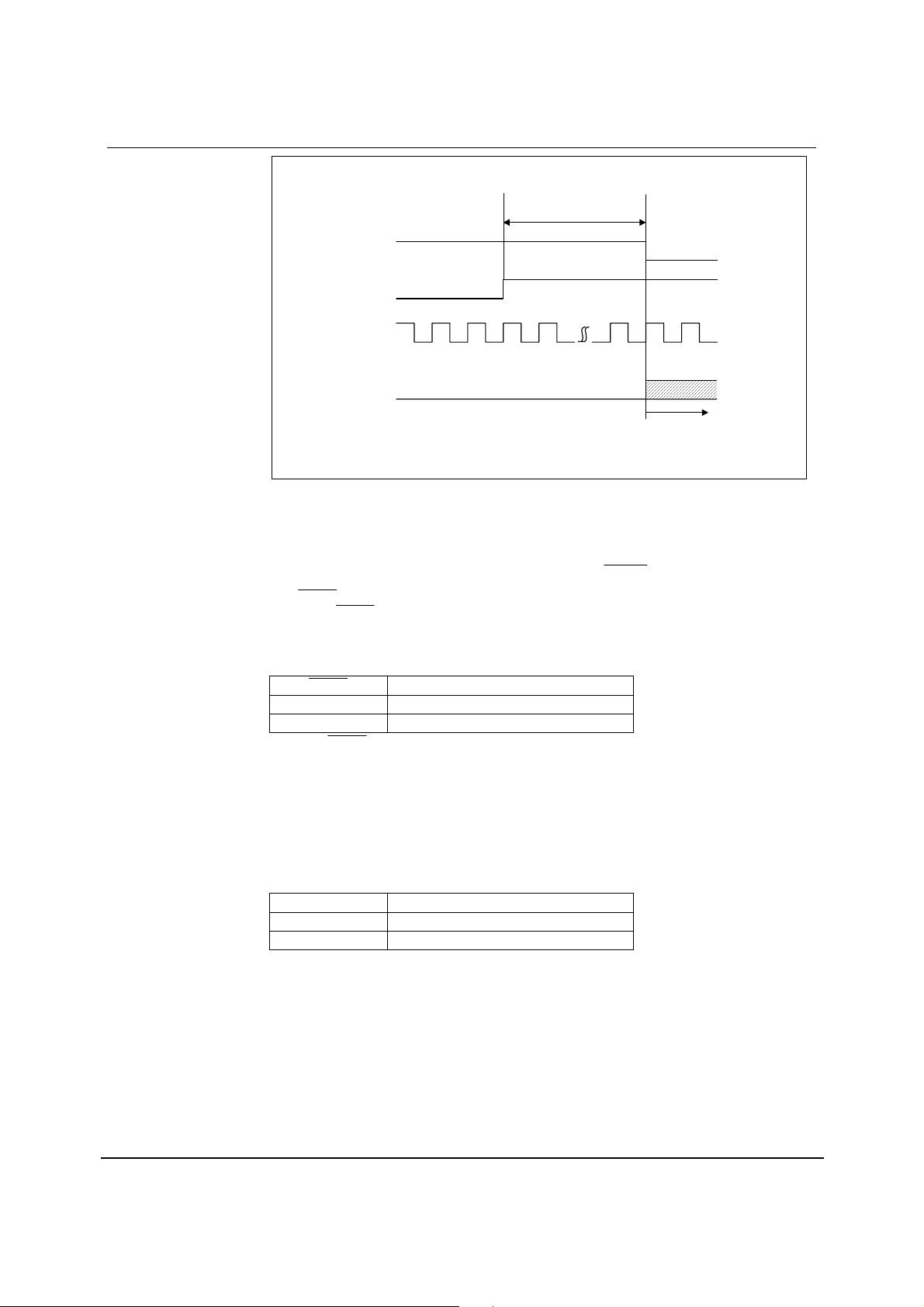

WM8802 Product Preview
45 ms to 300 ms
RERR
OK
Internal clock signal
RLRCK
Figure 21 Internal Lock Signal
CHANNEL STATUS OUTPUT
DATA CATEGORY SPECIFICATION BIT 1 OUTPUT ( AUDIO )
The
AUDIO
audio data.
An output ORed with IEC61937 or the DTS-CD/LD detection flag is also possible with AOSEL.
AUDIO
0 PCM audio data (CS bit 1 = Low)
1 Non-audio data (CS bit 1 = High
Table 12 AUDIO Output
EMPHASIS INFORMATION OUTPUT (EMPHA)
The EMPHA pin output indicates that the signal has the presence or absence of 50/15µs emphasis
for consumer and broadcast studio.
RDATA
Output starts from the RLRCK edge immediately after RERR flag is lowered
pin outputs bit 1 of the channel status indicating that the input bi-phase data is PCM
status is immediately output upon detection of RERR even during High output.
AUDIO
OUTPUT CONDITIONS
Data
w
EMPHA status is immediately output upon detection of RERR even during High output.
EMPHA OUTPUT CONDITIONS
0 No pre-emphasis
1 50/15 µs pre-emphasis
Table 13 EMPHA Output
PP Rev 1.1 April 2004
30
Page 31
Product Preview WM8802

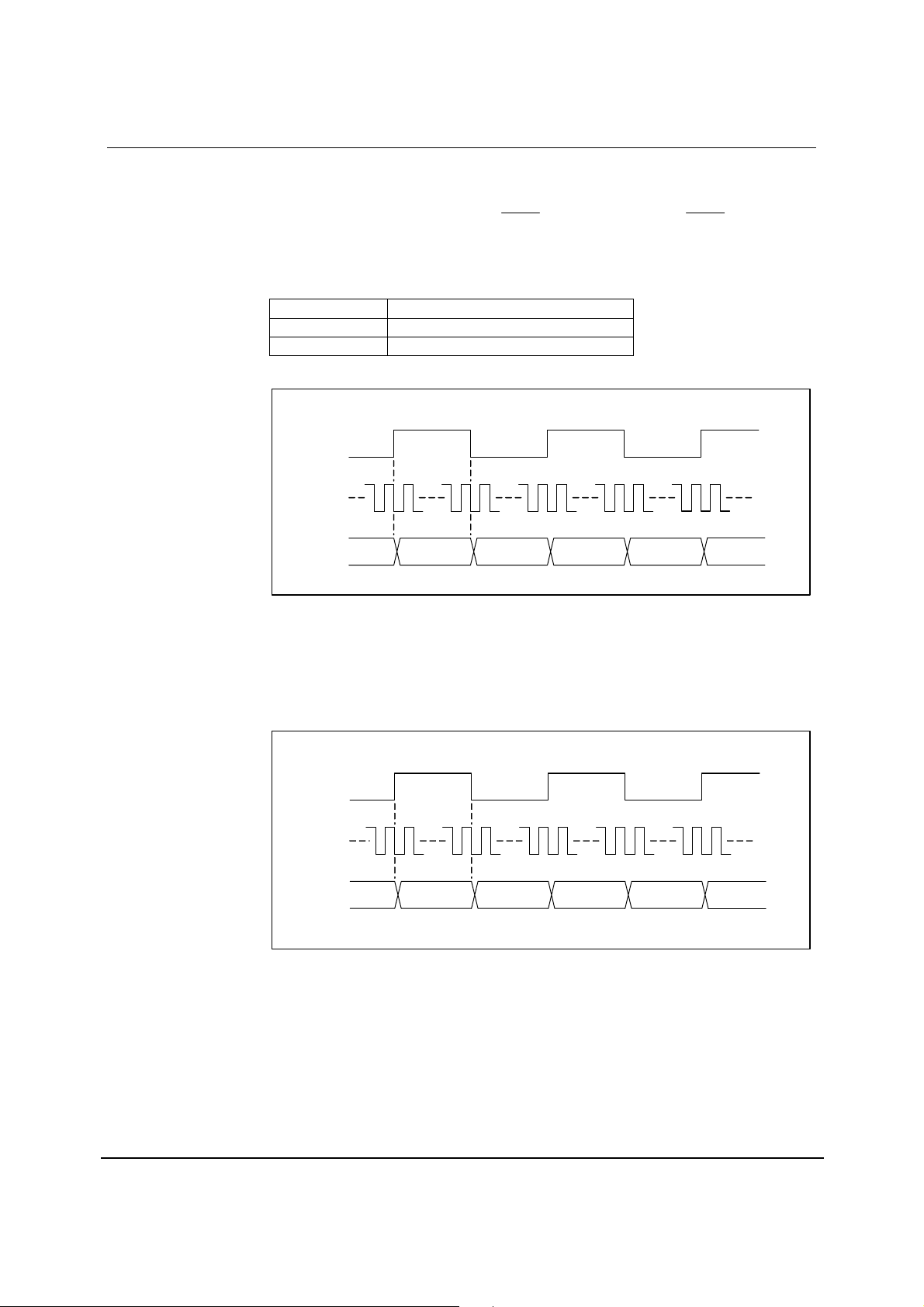

OTHER OUTPUTS
VALIDITY FLAG OUTPUT (VO)
The validity flag can be output from the AUDIO /VO pin by selecting the AUDIO /VO output with
VOSEL.
The validity flags transferred at each sub-frame are output as indicated in the timing diagram below.
VO OUTPUT CONDITIONS
0 No error (not burst data)
1 Error (May be burst data)
Table 14 VO Output
RLRCK
RBCK
UO
Figure 22 Validity Flag Output Timing
L1 L2 L3R2R1
V-L2 V-R2 V-L3V-R1V-L1
USER DATA OUTPUT (UO)
User data can be output from the EMPHA/UO pin by selecting the EMPHA/UO output using UOSEL.
The user data transferred at each sub-frame is output as indicated in the following timing diagram.
RLRCK
RBCK
w
UO
Figure 23 User Data Output Timing
U
U UUU
PP Rev 1.1 April 2004
31
Page 32
WM8802 Product Preview

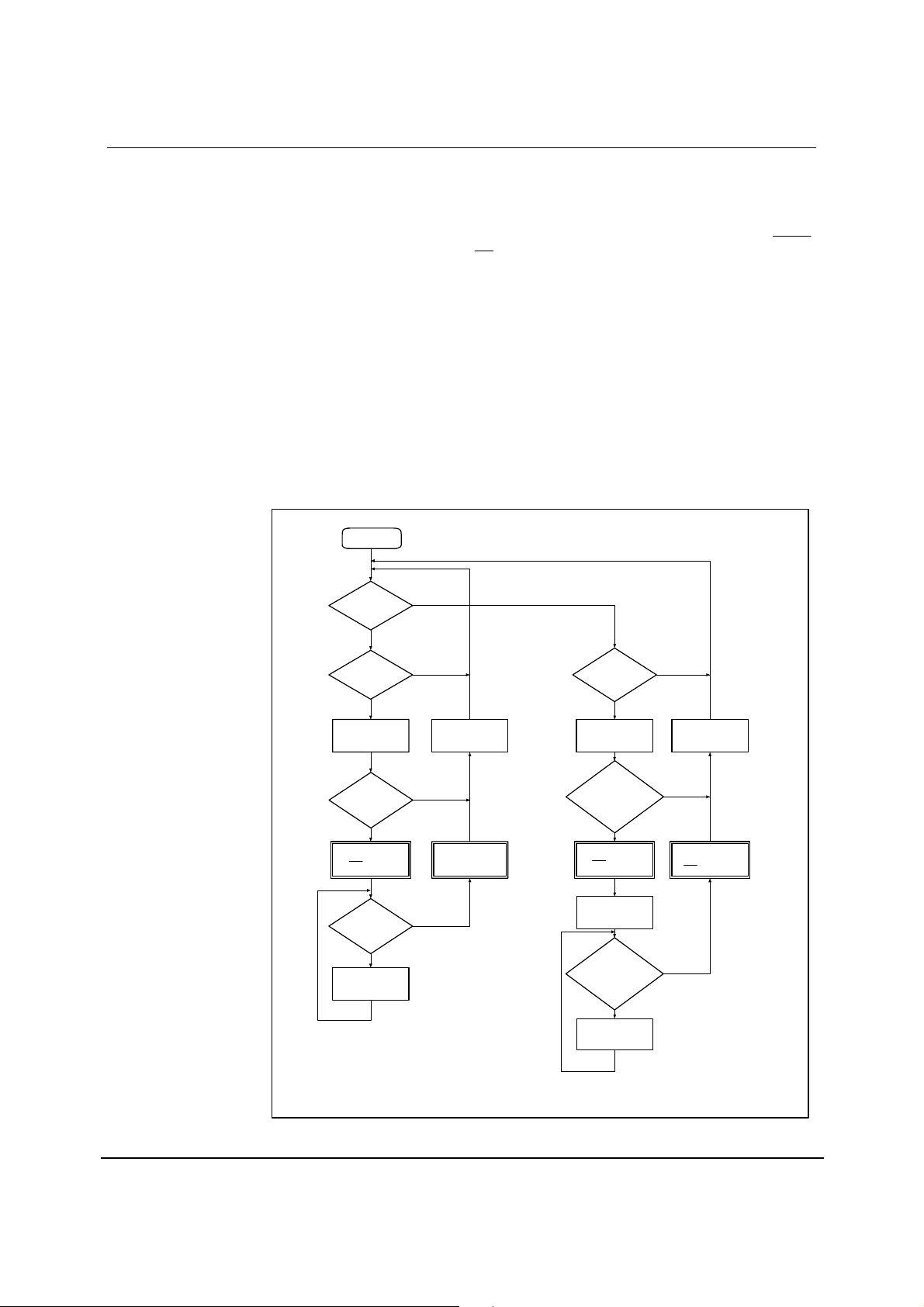

IEC61937, DTS-CD/LD DETECTION FLAG OUTPUT
A function to output IEC61937 and DTS-CD/LD detection flags for non-PCM data is provided.
When the UNPCM non-PCM signal output setting is selected, as well as an indication on the
pin, an interrupt signal is output from
upon detection of an IEC61937 or DTS-CD/LD sync signal.
INT
AUDIO
Non-PCM signal details can be known by reading this information from the output register.
The IEC61937 sync signal is detected and output when channel status bit 1 is non-PCM data ("1").
The IEC61937 sync signal is not output if bit 1 is PCM data (“0”).
DTS-CD/LD sync signal detection is done based on the sync pattern and the base frequency. In the
case of DTS-ES data detection, output is performed when the DTS5.1 channel sync signal is
detected and the DTS-ES sync pattern has been verified.
The IEC61937 and DTS-CD/LD detection flags are cleared when fs has changed or upon occurrence
of a PLL lock error or data error.
Since the DTS sync signal is provided within the audio data, digital data with the same code as the
DTS sync signal may in rare cases exist for regular CD/LD records that are not recorded in the DTS
format. Protection using the sync pattern or base frequency is provided so that such data is not
misinterpreted as DTS-CD/LD detection flags. The detection sequence is shown below.
Input dat a
Bit 1 detecti on
Bit 1 = 1
YES
PaPb
detection
YES
Frame counter
start
NO
NO
Frame counter
reset
DTS-CD/ LD
SYNC
detection
YES
Frame counter
start
NO
Frame counter
reset
w
PaPb
detection
during 4096
frames
YES
IEC61937 flag OK
INT lowered
PaPb
detection
during 4096
frames
YES
IEC61937 data
hold
NO
IEC61937
flag
NO
Depending on the f rame count,
*
the subsequent det ection count
is expanded up to x2.
Periodic f luctuation i s supported.
1st count 2nd count
512 => 512 or 1024
1024 => 1024 or 2048
2048=>2048 or 4096
4096 => 4096
Figure 24 Detection Flag Output Flowchart
Frame count
512, 1024, 2048, 40 96
SYNC detection
YES
DTS-CD/ LD flag OK
INT lowered
*
Frame coun t hold
x2 count detection
expansion
Frame count
512, 1024, 2048, 4096
*
SYNC detection
YES
DTS-CD/ LD
data hold
NO
DTS-CD/ LD flag
not valid
INT lowered
NO
PP Rev 1.1 April 2004
32
Page 33
Product Preview WM8802
DESCRIPTION OF MODULATION FUNCTION AND GENERAL-PURPOSE I/OS
MODULATION FUNCTION USAGE METHOD
INITIAL SETTING
The modulation function and general-purpose I/O port function cannot be used simultaneously
because they share the same pins.
modulation function. For the setting method, see page 10.
In the initial setting, the modulation function is stopped. The modulation function can be set using
TXOPR.
DATA OUTPUT (TMCK, TBCK, TLRCK, TDATA, TXO)
Bi-phase modulated data is output from TXO by inputting a 256fs clock to TMCK, 64fs clock to
TBCK, fs clock to TLRCK and audio data to TDATA.
The polarity of the TLRCK clock is set using TXLRP.
Input data can be modulated in the sampling range of 32kHz to 192kHz, TMCK rate of 4MHz to
25MHz and up to 24 bit data.
The initial value for the input data format is I
For the channel status, the first 48 bits of data can be written with the micro-controller interface.
TXO is fixed to Low by setting TXOPR to Stop.
INT should be pulled down with a 10kΩ resistor to select the
2
S. Switching to Left Justified format is set using TXDFS.
LEFT
CHANNEL
TLRCK (I)
TBCK (I)
1 BCLK
TDATA (I)
MSB
16 to 24 bits
Figure 25 Data Input Timing – I2S Data Input
n-2 n-1
LSB
1/fs
RIGHT
CHANNEL
1 BCLK
n321
n-2 n-1
MSB
16 to 24 bits
n321
LSB
w
PP Rev 1.1 April 2004
33
Page 34
WM8802 Product Preview
1/fs
LEFT
CHANNEL
TLRCK (I)
TBCK (I)
TDATA (I)
n-2 n-1
n321
LSBMSB
16 to 24 bits
Figure 26 Data Input Timing – Left Justified Data Input
VALIDITY FLAG INPUT (VI)
Validity flags can be input from RX5/VI by switching the RX5/VI input contents with VISEL.
The validity flag write timing is shown below. The validity flag can be written with the micro-controller
interface but port settings have priority.
Writing validity flags with the micro-controller interface is done using VMODE.
RX5/VI OUTPUT CONDITIONS
0 No error
1 Error
Table 15 RX5/V1 Input
RIGHT
CHANNEL
n-2 n-1
n321
LSBMSB
16 to 24 bits
w
TLRCK
TBCK
VI
Internal latch signal
Figure 27 Validity Flag Input Timing
L1 L2 L3R2R1
V-L2 V-R2 V-L3V-R1V-L1
PP Rev 1.1 April 2004
34
Page 35
Product Preview WM8802

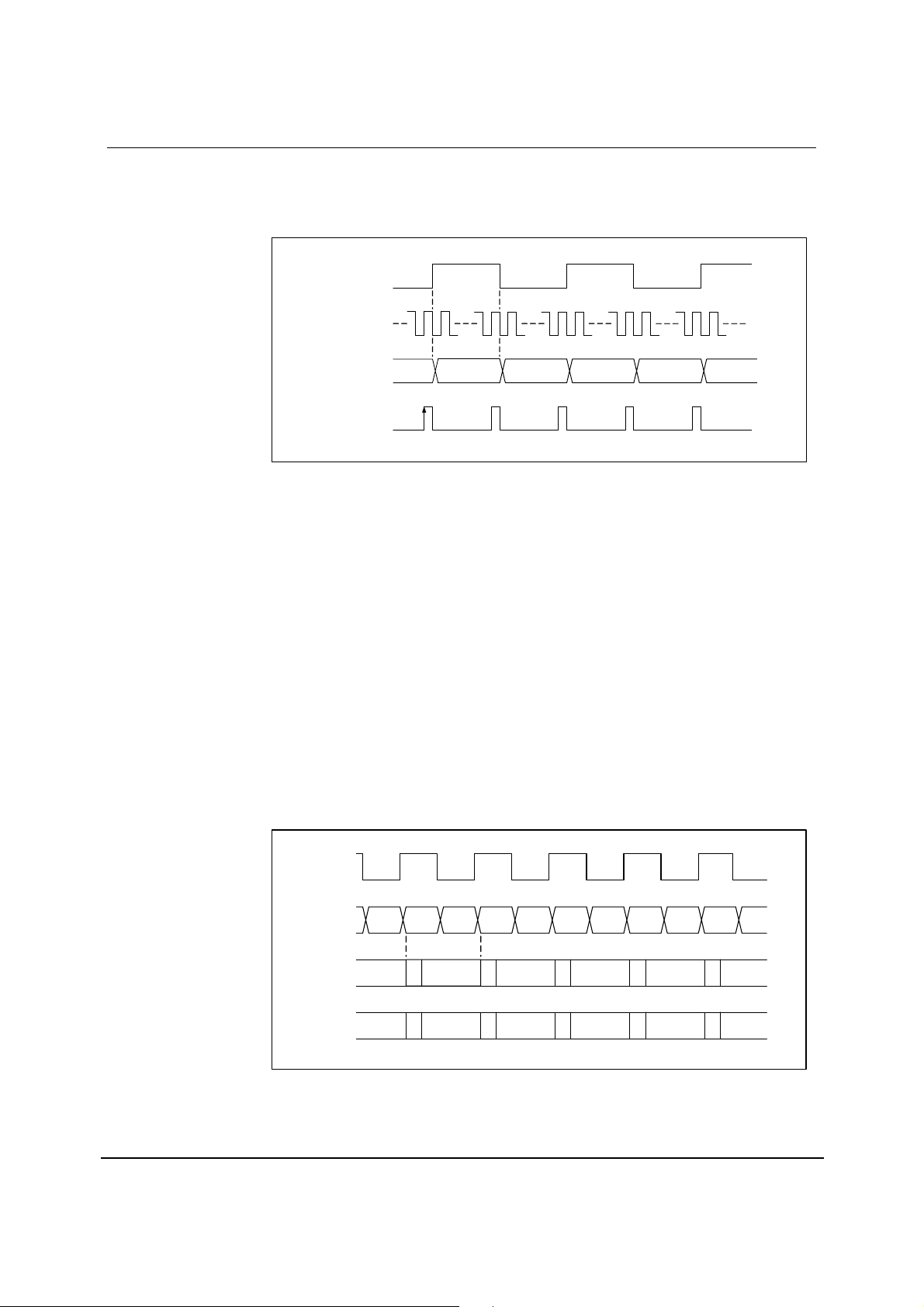

USER DATA INPUT (UI)
User data can be input from RX6/UI by switching the RX6/UI input contents using UISEL.
The user data write timing is shown below.
TLRCK
TBCK
UI
Internal latch signal
Figure 28 User Data Input Timing
U
U UUU
MODULATED OUTPUT OF SDIN INPUT DATA
SDIN input data is modulated and can be output from TXO and RXOUT.
The setting to modulate SDIN input data is set using TDTSEL.
A clock should be input to synchronize SDIN to TMCK, TBCK and TLRCK.
Match the SDIN input data format to the setting used during modulation processing.
MONAURAL OUTPUT
It is possible to output the data of only one input data channel at the input rate of fs/2 with
TXMOD[0:1].
This operation maintains the bi-phase modulation regularity but there is no correlation between the
data and preambles.
Channel status write is synchronized with the output rate.
The validity flag and user data are written in frame units. Input the same data to the L and R
channels.
w
TLRCK
TDATA
TXO [1]
TXO [2]
Figure 29 Modulation of Data of Single Channel
L1 R1 L2 R2 L3 R3 L4
Ln
M W M W
M W M W
Rn
L1L0
R4 L5
L2
R2 R3 R4R1R0
L3
PP Rev 1.1 April 2004
R5R0
M
L4
M
35
Page 36
WM8802 Product Preview
GENERAL PURPOSE I/O (GPIO0, GPIO1, GPIO2, GPIO3, GPIOEN)
INITIAL SETTINGS
The modulation function and general-purpose parallel I/O’s share the same pins and therefore cannot
be used simultaneously.
I/O’s. For the setting method, see page 10.
The general-purpose parallel I/O output function performs parallel conversion of the serial data input
from the micro-controller interface and outputs the resulting data from GPIO0 GPIO1, GPIO2 and
GPIO3. The input function saves the parallel data input to GPIO0, GPIO1, GPIO2, and GPIO3 to
internal registers and reads the contents of these registers with the micro-controller interface.
It is not possible to mix the 4 bit general-purpose I/O’s as inputs and outputs at the same time.
Switching between input and output is done using GPIOEN The general-purpose I/Os all become
input pins when GPIOEN is High and all output pins when GPIOEN is Low.
INPUT/OUTPUT SETTINGS
Data handling for general-purpose I/O is performed using the micro-controller interface and
write/read registers.
should be pulled down with a 10kΩ resistor to use the general-purpose
INT
General-purpose I/O write settings (Micro-controller
1. Set GPIOEN to Low to output data from general-purpose I/O’s.
2. Set the data to be output to CCB address 0xE8, command address 0x10 and input registers
DI12 to DI15.
3. During write operation, make sure "0" is written to modulation function setting registers DI8 to
DI11.
4. The data written to PI0 to PI3 is output from the general-purpose I/O’s.
General-purpose I/O read settings (General-purpose I/O input
1. Set GPIOEN to High to input data to general-purpose I/O’s.
2. The input data is saved to CCB address 0xEB and output registers DO0 to DO3.
3. Data can be sent to the micro-controller by reading GPO0 to GPO3.
→ Write register → General-purpose I/O output)
→ Read register → Micro-controller)
w
PP Rev 1.1 April 2004
36
Page 37
Product Preview WM8802
MICRO-CONTROLLER INTERFACE ( INT, CL, CE, DI, DO)
DESCRIPTION OF MICRO-CONTROLLER INTERFACE
INTERRUPT OUTPUT (
Interrupts are output when a change has occurred in the PLL lock status or output data information.
Interrupt output is determined by the register that selects the interrupt source, the INT pin that
outputs that state transition and the registers that store the interrupt source data.
INT
)
When
High after interrupt Low as dictated by the INTOPF setting.
INTOPF can be set to hold the Low pulse for a certain period and then clear it (to High) or clear it at
the same time that the output register is read.
The interrupt sources can be selected from among the following items in Table 16. Multiple sources
can be selected at the same time with the contents of CCB address 0xE8 and command address
0x08.
INT
is set output High, the occurrence of an interrupt will set
INT
outputs the result of ORing (addition) the selected interrupt sources.
INT
output = (selected source 1) + (selected source 2) + ... + (selected source n)
output Low.
INT
INT
returns
NO. COMMAND NAME DESCRIPTION
1 ERROR
2 INDET
3 FSCHG
4 CSRNW
5 UNPCM Output when AUDIO pin status has changed
6 PCRNW
7 SLIPO
8 EMPF
Table 16 Interrupt Source Setting Contents
The set interrupt source contents are saved to output registers DO8 to DO15 of CCB address 0xEA.
The status of the RERR and
are read. Except for source items 1 and 5, other data is saved to the registers upon occurrence of an
interrupt source.
Output when RERR pin status has changed
Output when input data pin status has changed (Oscillation
amplifier operation condition)
Output when input fs calculation result has changed. (Output
amplifier condition)
Output when channel status data of first 48 bits has changed
Output when burst preamble Pc has been updated
Output when data is read twice during slave setting and missing
data is detected
Output when emphasis information has changed
AUDIO pins is output when the read registers for source items 1 and 5
w
The oscillation amplifier must be set to the continuous operation mode for source items 2 and 3 when
monitoring is performed even while the PLL is locked .
Following the occurrence of an interrupt from
output registers 0xEA is read.
In the interrupt Low pulse output mode the
interrupt pulse.
, the interrupt is cleared at the same time that the
INT
pulse width is between 1/2fs and 3/2fs for one
INT
CCB FORMAT
Function settings as well as information writing and reading are performed by the micro-controller
interface.
The data format of the micro-controller interface conforms to Sanyo's original serial bus format
(CCB). Tri-state instead of open-drain is employed for the data output format.
Data input/output is performed following CCB address input. See the input/output timing chart
PP Rev 1.1 April 2004
37
Page 38
WM8802 Product Preview

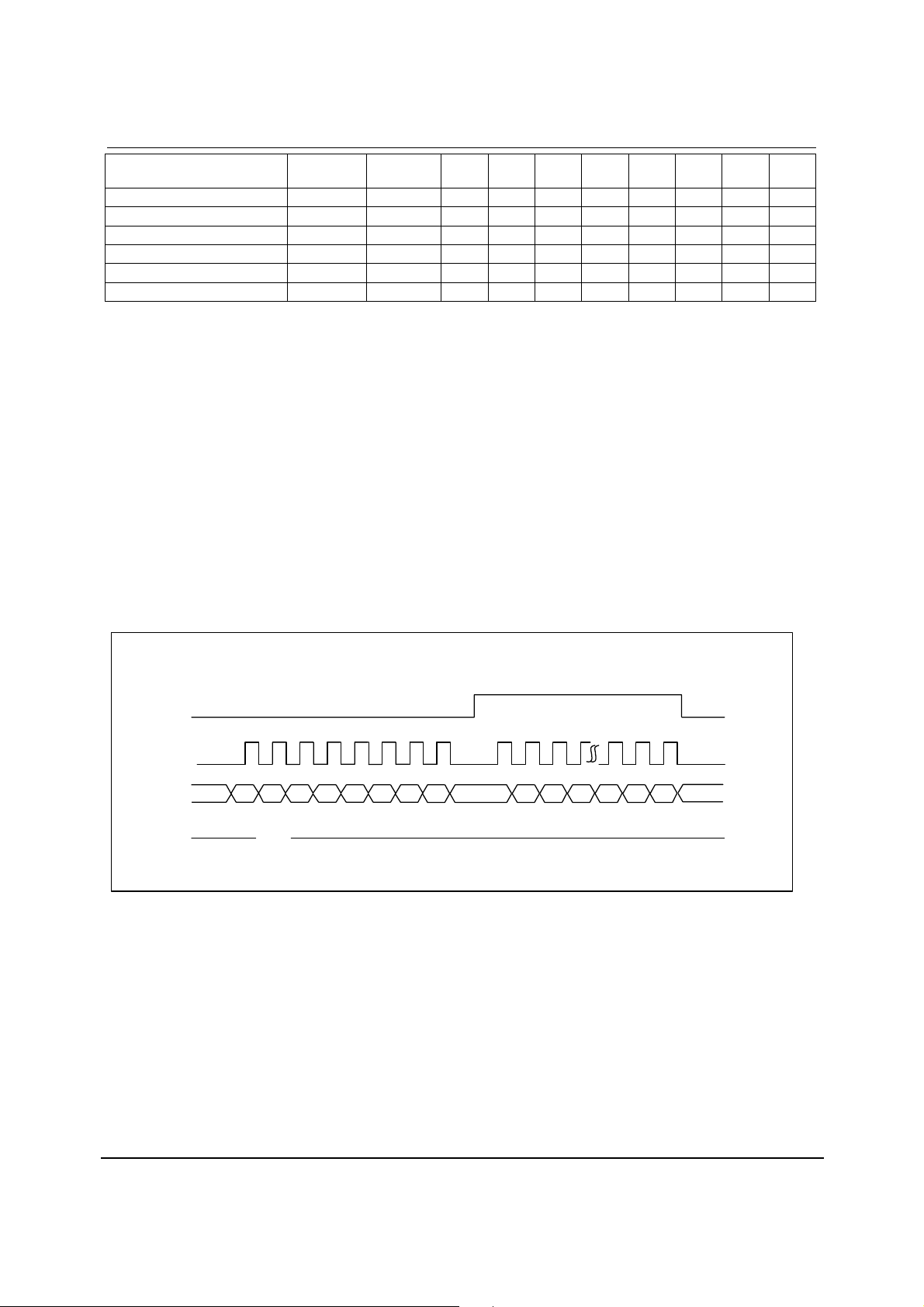

REGISTER INPUT/OUTPUT
CONTENTS
Function setting data input write 0xE8 0 0 0 1 0 1 1 1
CS data input write 0xE9 1 0 0 1 0 1 1 1
Interrupt data output read 0xEA 0 1 0 1 0 1 1 1
fs data output read 0xEB 1 1 0 1 0 1 1 1
CS data output read 0xEC 0 0 1 1 0 1 1 1
Pc data output read 0xED 1 0 1 1 0 1 1 1
Table 17 Relationship between Register Input/Output Contents and CCB Addresses
R/W
CCB
ADDRESS
B0 B1 B2 B3 A0 A1 A2
A3
DATA WRITE METHOD
Input is performed in the following sequence: CCB addresses of A0 to A3 and B0 to B3, chip
addresses of DI0 and DI1, command addresses of DI4 to DI7 and data of DI8 to DI15. DI2 and DI3
are reserved for the system and should always be set to "0".
For the chip addresses, DI0 corresponds to CAL (low-order) and DI1 corresponds to CAU (highorder).
DATA READ METHOD
Read data is output from DO. DO is in the high impedance state when CE is Low and begins
outputting at the rising edge of CE after the register address is recognised. DO then returns to the
high impedance state at the falling edge of CE.
If DO outputs using multiple WM8802 units are to be shared the DO outputs of the WM8802 can be
set to in a high impedance state using DOEN, This will prevent any misreading of registers from an
unselected device.
INPUT/OUTPUT TIMINGS
CE
CL
DI
DO
Figure 30 Input Timing Chart (Normal, Low Clock)
B0 DI0
Hi-Z
A3
A2A1A0B3B2B1
DI1
DI2
DI3
DI4
….
DI15DI5
w
PP Rev 1.1 April 2004
38
Page 39
Product Preview WM8802

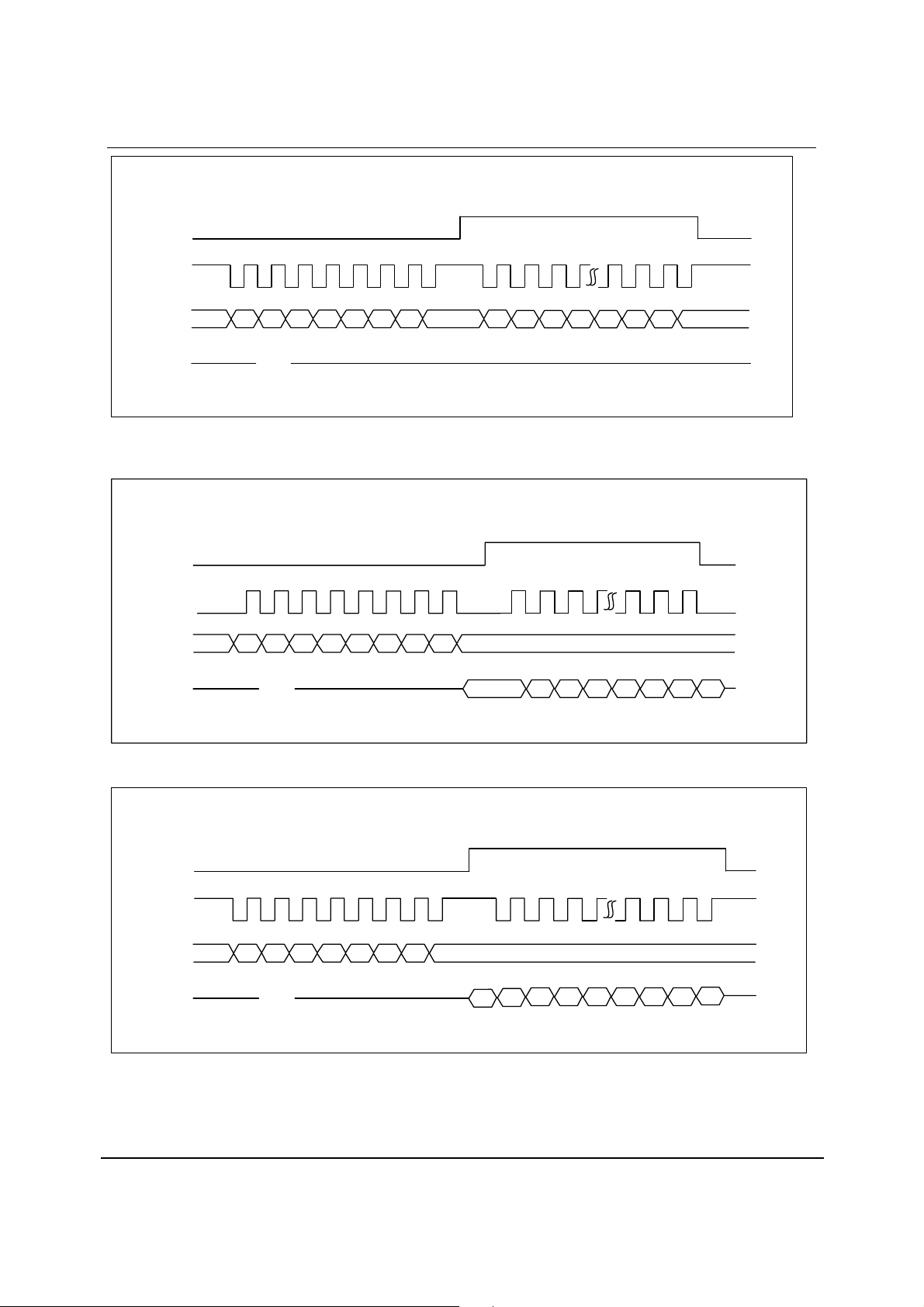

CE
CL
DI
DO
Figure 31 Input Timing Chart (Normal, High Clock)
B0 DI0
Hi-Z
CE
CL
DI
DO
Figure 32 Output Timing Chart (Normal, Low Clock)
B0
Hi-Z
A3A2A1A0B3B2B1 DI15DI5DI4DI3DI2DI1
A3
A2A1A0B3B2B1
….
….
DO4DO3DO2DO1DO0 DOn
….
CE
CL
DI
DO
Figure 33 Output Timing Chart (Normal, High Clock)
B0
Hi-Z
w
A3
A2A1A0B3B2B1
….
DO4
DO3
DO2
DO1DO0
…. ….
DOn
PP Rev 1.1 April 2004
39
Page 40
WM8802 Product Preview
WRITE DATA
WRITE COMMAND LIST
A list of the write commands is shown below.
To write the commands shown in the following table, set the CCB address to 0xE8.
ADD. SETTING ITEMS DI15 DI14 DI13 DI12 DI11 DI10 DI9 DI8
0 All system setting TESTM 0 TXOPR RXOPR INTOPF 0 DOEN SYSRST
1 Demodulation system setting 0 0 FSLIM1 FSLIM0 RXMON AOSEL VOSEL UOSEL
2 Master clock AMPOPR1 AMPOPR0 EXSYNC PLLOPR XMSEL1 XMSEL0 XINSEL PLLSEL
3 R system output clock XRLRCK1 XRLRCK0 XRBCK1 XRBCK0 XRSEL1 XRSEL0 PRSEL1 PRSEL0
4 S system output clock XSLRCK1 XSLRCK0 XSBCK1 XSBCK0 PSLRCK1 PSLRCK0 PSBCK1 PSBCK0
5 Source switch 0 RDTMUT RDTSTA RDTSEL 0 RCKSEL OCKSEL SELMTD
6 Data input/output RXOFF ROSEL2 ROSEL1 ROSEL0 ULSEL RISEL2 RISEL1 RISEL0
7 Output format setting SLRCKP SBCKP RLRCKP RBCKP 0 OFSEL2 OFSEL1 OFSEL0
8 INT
9 RERR condition setting ERWT1 ERWT0 FSERR RESTA XTWT1 XTWT0 REDER RESEL
10 Modulation system setting P13 P12 P11 P10 0 VMODE VISEL UISEL
11 Modulation data setting 0 0 TXMOD1 TXMOD0 TXMUT TDTSEL TWLRP TXDFS
12 TEST 0 0 0 0 0 0 0 0
13 TEST 0 0 0 0 0 0 0 0
14 TEST 0 0 0 0 0 0 0 0
15 TEST 0 0 0 0 0 0 0 0
source selection
EMPF SLIPO PCRNW UNPCM CSRNW FSCHG INDET ERROR
The shaded parts in command area DI8 to DI15 are reserved bits with an input "0".
Command addresses 0x12 to 0x15 are reserved for testing purposes. Writing to these addresses is
prohibited.
w
PP Rev 1.1 April 2004
40
Page 41
Product Preview WM8802
WRITE COMMAND DETAILS
All system settings:
REGISTER ADDRESS DI7 DI6 DI5 DI4 DI3 DI2 DI1 DI0
CCB address: 0xE8;
Command address: 0
0 0 0 0 0 0 CAU CAL
DI15 DI14 DI13 DI12 DI11 DI10 DI9 DI8
TESTM 0 TXOPR RXOPR INTOPF 0 DOEN SYSRST
SYSRST System reset
0: Do not reset (initial value)
1: Reset circuits other than command registers
DOEN DO output setting
0: Output (initial value)
1: Always high impedance state (read disabled)
INTOPF
0: Output Low level during source occurrence (initial value)
1: Output Low pulse during source occurrence
RXOPR Demodulation function operation setting
0: Operate (initial value)
1: Stop
TXOPR Modulation function operation setting
0: Stop (initial value)
1: Operate
TESTM Test mode setting
0: Normal operation (initial value)
1: Enter test mode
pin output setting
INT
RBCK and SBCK output Low and RLRCK and SLRCK output High when reset through SYSRST or
the demodulation function stop setting is performed with RXOPR.
w
PP Rev 1.1 April 2004
41
Page 42
WM8802 Product Preview
DEMODULATION FUNCTION
System setting:
REGISTER
ADDRESS
CCB address: 0xE8;
Command address: 1
DI7 DI6 DI5 DI4 DI3 DI2 DI1 DI0
0 0 0 1 0 0 CAU CAL
DI15 DI14 DI13 DI12 DI11 DI10 DI9 DI8
0 0 FSLIM1 FSLIM0 RXMON AOSEL VOSEL UOSEL
UOSEL
0: EMPHA emphasis output (initial value)
1: UO user data output
VOSEL
0: AUDIO channel status bit 1 output (initial value)
1: VO validity flag output
AOSEL Output contents when AUDIO is set with AUDIO /VO pin
0: Channel status bit 1 read (initial value)
1: Channel status bit 1, IEC61937, DTS-CD/LD detection flag
RXMON Digital data input status monitoring function setting
0: Do not monitor data input status (initial setting)
1: Monitor data input status
FSLIM [1:0] Setting of sampling frequency reception range for RX input signal
00: No limit (initial value)
01: fs ≤ 96kHz
10: fs
11: Reserved
EMPHA/UO pin setting
/VO pin setting
AUDIO
output
≤ 48kHz
w
PP Rev 1.1 April 2004
42
Page 43
Product Preview WM8802
Master clock setting:
REGISTER ADDRESS DI7 DI6 DI5 DI4 DI3 DI2 DI1 DI0
CCB address: 0xE8;
Command address: 2
0 0 1 0 0 0 CAU CAL
DI15 DI14 DI13 DI12 DI11 DI10 DI9 DI8
AMPOPR1 AMPOPR0 EXSYNC PLLOPR XMSEL1 XMSEL0 XINSEL PLLSEL
PLLSEL PLL lock frequency setting
0: 512fs (fs ≤ 96kHz commend) (initial value)
1: 256fs
XINSEL XIN input frequency setting
0: 12.288MHz (initial value)
1: 24.576MHz
XMSEL [1:0] XMCK output frequency setting
00: 1/1 of XIN input frequency (initial value)
01: 1/2 of XIN input frequency
10: Reserved
11: Muted
PLLOPR PLL (VCO) operation setting
0: Operate (initial value)
1: Stop
EXSYNC PLL unused demodulation function (external synchronization function)
0: PLL usage normal operation (initial value)
1: PLL unused external synchronization operation (supply 256fs clock to
AMPOPR [1:0] Oscillation amplifier operation setting
00: Automatic stopping of oscillation amplifier during PLL lock (initial value)
01: Normal continuous operation
10: Reserved
11: Stop
setting
TMCK)
If the PLL is stopped with PLLOPR during PLL lock, the output clocks are all muted.The muted
status continues even if the PLL becomes unlocked.
w
RERR goes to into error status, while the PLL is locked, if the permanent continuous operation
setting is set using AMPOPR[0:1]. However, the RERR status can be maintained if no PLL error is
output and if the sampling frequency changes when FSERR is set.
Sampling frequency calculation is not performed when the oscillation amplifier automatic stop mode
is set using AMPOPR[0:1]; even if the input sampling frequency changes within the capture range of
the PLL and no lock error occurs. The input data sampling frequency and the fs calculation result
may differ. However, if the channel status sampling frequency information is rewritten together with
input data changes, this information is reflected to the error flag and fs calculation of the input data is
performed. Since the oscillation amplifier continuous operation setting allows permanent fs
calculation, sampling frequency changes are always reflected to the error flag.
PP Rev 1.1 April 2004
43
Page 44
WM8802 Product Preview
R system output clock setting:
REGISTER ADDRESS DI7 DI6 DI5 DI4 DI3 DI2 DI1 DI0
CCB address: 0xE8;
Command address: 3
0 0 1 1 0 0 CAU CAL
DI15 DI14 DI13 DI12 DI11 DI10 DI9 DI8
XRLRCK1 XRLRCK0 XRBCK1 XRBCK0 XRSEL1 XRSEL0 PRSEL1 PRSEL0
PRSEL [1:0] RMCK output frequency setting during PLL lock
00: 1/2 of PLLSEL setting frequency (initial value)
01: 1/1 of PLLSEL setting frequency
10: 1/4 of PLLSEL setting frequency
11: Muted
XRSEL [1:0] RMCK output frequency setting during XIN source
00: 1/1 of XINSEL setting frequency (initial value)
01: 1/2 of XINSEL setting frequency
10: 1/4 of XINSEL setting frequency
11: Muted
XRBCK [1:0] RBCK output frequency setting during XIN source
00: 3.072MHz output (initial value)
01: 6.144MHz output
10: 12.288MHz output
11: Muted
XRLRCK [1:0] RLRCK output frequency setting during XIN source
00: 48kHz output (initial value)
01: 96kHz output
10: 192kHz output
11: Muted
3.072MHz is output from RBCK if the RMCK frequency is set lower than RBCK when the XIN source
is used.
w
PP Rev 1.1 April 2004
44
Page 45
Product Preview WM8802
S system output clock setting:
REGISTER ADDRESS DI7 DI6 DI5 DI4 DI3 DI2 DI1 DI0
CCB address: 0xE8;
Command address: 4
0 1 0 0 0 0 CAU CAL
DI15 DI14 DI13 DI12 DI11 DI10 DI9 DI8
XSLRCK1 XSLRCK0 XSBCK1 XSBCK0 PSLRCK1 PSLRCK0 PSBCK1 PSBCK0
PSBCK [1:0] SBCK frequency setting during PLL lock
00: 64fs output (initial value)
01: 128fs output
10: 32fs output
11: Muted
PSLRCK [1:0] SLRCK frequency setting during PLL lock
00: fs output (initial value)
01: 2fs output
10: fs/2 output
11: Muted
XSBCK [1:0] SBCK frequency setting during XIN source
00: 3.072MHz output (initial value)
01: 6.144MHz output
10: 12.288MHz output
11: Muted
XSLRCK [1:0] SLRCK frequency setting during XIN source
00: 48kHz output (initial value)
01: 96kHz output
10: 192kHz output
11: Muted
w
PP Rev 1.1 April 2004
45
Page 46
WM8802 Product Preview
Clock source; RDA TA output setting:
REGISTER ADDRESS DI7 DI6 DI5 DI4 DI3 DI2 DI1 DI0
CCB address: 0xE8;
Command address: 5
0 1 0 1 0 0 CAU CAL
DI15 DI14 DI13 DI12 DI11 DI10 DI9 DI8
0 RDTMUT RDTSTA RDTSEL 0 RCKSEL OCKSEL SELMTD
SELMTD
0: Simultaneously switch R system and S system according to
1: Switch R system according to RCKSEL and fix S system to XIN.
OCKSEL Clock source setting when SELMTD = 0
0: Use XIN clock as source during PLL lock. (initial value)
1: Use XIN clock as source regardless of PLL status.
RCKSEL Clock source setting when SELMTD = 1
0: Use XIN clock as source during PLL lock. (initial value)
1: Use XIN clock as source regardless of PLL status.
RDTSEL RDATA output setting during PLL unlock
0: Output SDIN data during PLL unlock. (initial value)
1. Mute during PLL unlock.
RDTSTA RDATA output setting
0: According to RDTSEL (initial value)
1: Output SDIN input data regardless of PLL status.
RDTMUT RDATA mute setting
0: Output data selected with RDTSEL.
1: Muted
Output clock source switching setting
OCKSEL. (initial value)
When the oscillation amplifier is set to permanent continuous operation using AMPOPR[0:1] or if
changes are set not to be reflected to the error flag using FSERR, OCKSEL and RCKSEL can switch
the clock source while maintaining the RERR status. However, RERR outputs an error during
switching if none of these settings are performed.
w
A clock synchronized to the SDIN input data is selected to input data to SDIN.
The XIN source can be switched while maintaining the PLL locked status. However, since clock and
data output switching can be set individually for each, it is recommended to select mute or SDIN data
for the output data during XIN source switching.
If AMPOPR[0:1] is set to automatically stop the oscillation amplifier during PLL locked, XIN source
switching from the PLL locked status is executed only after the resonator is oscillating stably. Output
data switching is also done at this time according to XIN source switching.
PP Rev 1.1 April 2004
46
Page 47
Product Preview WM8802
Digital data input/output port setting:
REGISTER ADDRESS DI7 DI6 DI5 DI4 DI3 DI2 DI1 DI0
CCB address: 0xE8;
Command address: 6
0 1 1 0 0 0 CAU CAL
DI15 DI14 DI13 DI12 DI11 DI10 DI9 DI8
RXOFF ROSEL2 ROSEL1 ROSEL0 ULSEL RISEL2 RISEL1 RISEL0
RISEL [2:0]
000: RX0 selection (initial value)
001: RX1 selection
010: RX2 selection
011: RX3 selection
100: RX4 selection (However, VI input is performed when VISEL is
101: RX5 selection (However, UI input is performed when UISEL is
110: RX6 selection
111: Modulation function output (TXO output data) selection
ULSEL Input pin setting via PLL unlock
0: Normal setting (initial value)
1: Input data switch setting via PLL unlock
ROSEL [2:0] RXOUT output data setting
000: RX0 input data (initial value)
001: RX1 input data
010: RX2 input data
011: RX3 input data
100: RX4 input data
101: RX5/VI input data
110: RX6/UI input data
111: Modulation function output (TXO output data) selection
RXOFF RXOUT output status setting
0: ROSEL0, ROSEL1, ROSEL2 selection data output (initial value)
1: Low fixed output
Data demodulation input pin setting
set.)
set.)
ULSEL can be set when the oscillation amplifier is set to continuous operation with AMPOPR[0:1]. It
does not operate normally when the oscillation amplifier is stopped.
w
PP Rev 1.1 April 2004
47
Page 48
WM8802 Product Preview
Output data format setting:
REGISTER ADDRESS DI7 DI6 DI5 DI4 DI3 DI2 DI1 DI0
CCB address; 0xE8;
Command address: 7
0 1 1 1 0 0 CAU CAL
DI15 DI14 DI13 DI12 DI11 DI10 DI9 DI8
SLRCKP SBCKP RLRCKP RBCKP 0 OFSEL2 OFSEL1 OFSEL0
OFSEL [2:0] Audio data output format setting
000: I
001: Left Justified data output
010: 24 bit Right Justified data output (master mode only)
011: 20 bit Right Justified data output (master mode only)
100: 16 bit Right Justified data output (master mode only)
101: Reserved
110: Reserved
111: Reserved
RBCKP RBCK output polarity setting
0: Falling RDATA data change (initial value)
1: Rising RDATA data change
RLRCKP RLRCK output polarity setting
0: Low period: L-channel data; High period: R-channel data (initial value)
1: Low period: R-channel data; High period: L-channel data
SBCKP SBCK output polarity setting
0: Falling RDATA data change (initial value)
1: Falling RDATA data change
SLRCKP SLRCK output polarity setting
0: Low period: L-channel data; High period: R-channel data (initial value)
1: Low period: R-channel data; High period: L-channel data
The data output format and RLRCK output polarity can be set independently. The RLRCH polarity is
set according to each data output format.
2
S data output (initial value)
w
PP Rev 1.1 April 2004
48
Page 49
Product Preview WM8802
output contents setting:
INT
REGISTER ADDRESS DI7 DI6 DI5 DI4 DI3 DI2 DI1 DI0
CCB address: 0xE8;
Command address: 8
1 0 0 0 0 0 CAU CAL
DI15 DI14 DI13 DI12 DI11 DI10 DI9 DI8
EMPF SLIPO PCRNW UNPCM CSRNW FSCHG INDET ERROR
ERROR RERR signal output setting
0: Do not output. (initial value)
1: Output RERR pin status change.
INDET Input data detection output setting
0: Do not output. (initial value)
1: Output input data pin status change.
FSCHG PLL lock frequency calculation result update flag output setting
0: Do not output. (initial value)
1: Output PLL lock frequency calculation result update flag.
CSRNW First 48 channel status bits update flag output setting
0: Do not output. (initial value)
1: Output first 48 channel status bits update flag.
UNPCM Non-PCM data detection change flag output setting
0: Do not output. (initial value)
1: Output
PCRNW Burst preamble Pc update flag output setting
0: Do not output. (initial value)
1: Output burst preamble Pc update flag.
SLIPO Slip signal output setting during slave operation
0: Do not output. (initial value)
1: Read data output twice and output data loss detection flag.
EMPF Emphasis detection flag output setting
0: Do not output. (initial value)
1: Output emphasis detection flag.
pin status change.
AUDIO
The channel status update flag compares the first 48 bits of data of the previous block with those of
the current block and a flag is output when they are the same.
w
The burst preamble Pc update flag also compares the 16 bits of data of the previous block with those
of the current data and an update flag is output if they match.
PP Rev 1.1 April 2004
49
Page 50
WM8802 Product Preview
RERR output setting:
REGISTER ADDRESS DI7 DI6 DI5 DI4 DI3 DI2 DI1 DI0
CCB address: 0xE8,
Command address: 9
1 0 0 1 0 0 CAU CAL
DI15 DI14 DI13 DI12 DI11 DI10 DI9 DI8
ERWT1 ERWT0 FSERR RESTA XTWT1 XTWT0 REDER RESEL
RESEL RERR output contents setting
0: PLL lock error or data error (initial value)
1: PLL lock error or data error or non-PCM data
REDER 8 continuous times parity error flag output setting
0: Output during non-PCM data recognition. (initial value)
1: Output only during sub-frame for which error was generated.
XTWT [1:0] Clock switch wait time setting after PLL unlock
00: Clock switching after approx. 200µs following oscillation amplifier
start
(initial value)
01: Clock switching after approx. 100µs following oscillation amplifier
start
10: Clock switching after approx. 50µs following oscillation amplifier
start
11: Clock switching after approx. 400µs following oscillation amplifier
start
RESTA RERR output condition setting
0: Output permanent PLL status (Output PLL status even during XIN
source) (initial status)
1: Forcibly output error (Set High forcibly to RERR)
FSERR Setting of error flag output condition through fs change
0: Reflect fs changes to error flag. (initial value)
1: Do not reflect fs changes to error flag.
ERWT [1:0] RERR wait time setting after PLL lock
00: Error release preamble B after 48 counts. (initial value)
01: Error release preamble B after 24 counts.
10: Error release preamble B after 12 counts.
11: Error release preamble B after 6 counts.
Non-PCM data is reflected as data defined by AOSEL and matches the AUDIO pin output.
w
Output data is muted if an error occurs due to non-PCM data RESEL.
The RESTA setting is not reflected to the data and clock output pins.
When FSERR is set the fs calculation result (when the oscillation amplifier is stopped) is not
reflected. In this case, fs changes reflect only of channel status fs information.
ERWT[0:1] defines the interval after which an RERR error is cancelled (Low) following a PLL lock. Do
not perform this setting if cutting off of the beginning of data is a problem.
PP Rev 1.1 April 2004
50
Page 51
Product Preview WM8802
MODULATION FUNCTION
System setting, general-purpose I/O data input:
REGISTER ADDRESS DI7 DI6 DI5 DI4 DI3 DI2 DI1 DI0
CCB address: 0xE8;
Command address: 10
1 0 1 0 0 0 CAU CAL
DI15 DI14 DI13 DI12 DI11 DI10 DI9 DI8
PI3 PI2 PI1 PI0 0 VMODE VISEL UISEL
UISEL RX6/UI pin setting
0: RX6 demodulation function data input (initial value)
1: UI modulation function user data input
VISEL RX5/VI pin setting
0: RX5 demodulation function data input (initial value)
1: VI modulation function validity flag input
VMODE Modulation function V flag setting
0: Write 0. (initial value)
1: Write 1.
GPI0 Data input during general-purpose I/O GPIO0 output setting
0: Output L. (initial value)
1: Output H.
GPI1 Data input during general-purpose I/O GPIO1 output setting
0: Output L. (initial value)
1: Output H.
GPI2 Data input during general-purpose I/O GPIO2 output setting
0: Output L. (initial value)
1: Output H.
GPI3 Data input during general-purpose I/O GPIO3 output setting
0: Output L. (initial value)
1: Output H.
Set GPIOEN to Low if using general-purpose I/Os GPIO0 to GPIO3 as outputs.
w
PP Rev 1.1 April 2004
51
Page 52
WM8802 Product Preview
Digital audio input/output setting:
REGISTER ADDRESS DI7 DI6 DI5 DI4 DI3 DI2 DI1 DI0
CCB address: 0xE8;
Command address: 11
1 0 1 1 0 0 CAU CAL
DI15 DI14 DI13 DI12 DI11 DI10 DI9 DI8
0 0 TXMOD1 TXMOD0 TXMUT TDTSEL TXLRP TXDFS
TXDFS TDATA input data format setting
0: I
1: MSB-first front-loading data input
TXLRP TLRCK input clock polarity setting
0: Low period: L-channel data; High period: R-channel data (initial
1: Low period: R-channel data; High period: L-channel data
TDTSEL Input data setting
0: TDATA input data (initial value)
1: SDIN input data
TXMUT TXO output setting
0: Conversion data output (initial value)
1: Low fixed output
TXMOD [1:0] Mode setting
00: Normal operation (L-channel, R-channel stereo mode) (initial value)
01: L-channel continuous (time-division mode)
10: R-channel continuous (time-division mode)
11: reserved
2
S data input (initial value)
value)
CHANNEL STATUS DATA WRITE
CCB address is set to 0xE9 for channel status data write in the modulation function.
DI0 to DI7 are not channel status bits. Always input a chip address to DI0 and DI1. Input "0" to DI2,
DI3 and DI7 because they are reserved for the system. Select the channel status data write length
with DI4 to DI6. Up to 48 bits can be set, in 8-bit units.
After CE becomes Low, input data is written from preamble B.
DI6 DI5 DI4
0 0 0 Bit 0 to bit 7 1 0 0 Bit 0 to bit 39
0 0 1 Bit 0 to bit 15 1 0 1 Bit 0 to bit 47
0 1 0 Bit 0 to bit 23 1 1 0 Reserved
0 1 1 Bit 0 to bit 31 1 1 1 Reserved
INPUT TABLE DATA
RANGE
DI6 DI5
DI4
Table 18 Relation between Input Data Length Setting Register and Data Length
w
INPUT TABLE DATA
RANGE
PP Rev 1.1 April 2004
52
Page 53
Product Preview WM8802
REGISTER BIT NO. DESCRIPTION REGISTER BIT NO. DESCRIPTION
DI0 CAL
DI1 CAU
DI2 0
Lower chip address
Higher chip address
Reserved
DI3 0
DI4 0
DI5 0
DI6 0
DI7 0
DI8 Bit 0
DI9 Bit 1
DI10 Bit 2
DI11 Bit 3
DI12 Bit 4
DI13 Bit 5
DI14 Bit 6
DI15 Bit 7
DI16 Bit 8
DI17 Bit 9
DI18 Bit 10
DI19 Bit 11
DI20 Bit 12
DI21 Bit 13
DI22 Bit 14
DI23 Bit 15
DI24 Bit 16
Data length setting
Reserved
Application
Control
Not defined
Category code
Source number
DI25 Bit 17
DI26 Bit 18
DI27 Bit 19
Table 19 Input Setting - Modulation Function Channel Status Data Setting
DI28 Bit 20
DI29 Bit 21
DI30 Bit 22
DI31 Bit 23
DI32 Bit 24
DI33 Bit 25
DI34 Bit 26
DI35 Bit 27
DI36 Bit 28
DI37 Bit 29
DI38 Bit 30
DI39 Bit 31
DI40 Bit 32
DI41 Bit 33
DI42 Bit 34
DI43 Bit 35
DI44 Bit 36
DI45 Bit 37
DI46 Bit 38
DI47 Bit 39
DI48 Bit 40
DI49 Bit 41
DI50 Bit 42
DI51 Bit 43
DI52 Bit 44
DI53 Bit 45
DI54 Bit 46
DI55 Bit 47
Channel number
Sampling frequency
Clock accuracy
Not defined
Word length
Not defined
READ DATA
w
READ COMMAND LIST
• The following items can be read.
- Digital data input status monitor output
- Interrupt data output
- General-purpose I/O input data output
- fs calculation result, fs counter data (8 bit) output
- First 48 channel status bit output
- Burst preamble Pc data output
• CCB address 0XEB and output registers DO16 to DO23 are for testing.
PP Rev 1.1 April 2004
53
Page 54
WM8802 Product Preview
READ REGISTER NAME 0XEA 0XEB 0XEC 0XED
DO0 RXDET0 GPO0 CS bit 0 Pc bit 0
DO1 RXDET1 GPO1 CS bit 1 Pc bit 1
DO2 RXDET2 GPO2 CS bit 2 Pc bit 2
DO3 RXDET3 GPO3 CS bit 3 Pc bit 3
DO4 RXDET4 FSC0 CS bit 4 Pc bit 4
DO5 RXDET5 FSC1 CS bit 5 Pc bit 5
DO6 RXDET6 FSC2 CS bit 6 Pc bit 6
DO7 RXDET7 FSC3 CS bit 7 Pc bit 7
DO8 OERROR FSDAT0 CS bit 8 Pc bit 8
DO9 OINDET FSDAT1 CS bit 9 Pc bit 9
DO10 OFSCHG FSDAT2 CS bit 10 Pc bit 10
DO11 OCSRNW FSDAT3 CS bit 11 Pc bit 11
DO12 OUNPCM FSDAT4 CS bit 12 Pc bit 12
DO13 OPCRNW FSDAT5 CS bit 13 Pc bit 13
DO14 OSLIPO FSDAT6 CS bit 14 Pc bit 14
DO15 OEMPF FSDAT7 CS bit 15 Pc bit 15
DO16 CSBITI TEST0 CS bit 16 −
DO17 IEC1937 TEST1 CS bit 17 −
DO18 DTS51 TEST2 CS bit 18 −
DO19 DTSES TEST3 CS bit 19 −
DO20 F0512 TSET4 CS bit 20 −
DO21 F1024 TEST5 CS bit 21 −
DO22 F2048 TEST6 CS bit 22 −
DO23 F4096 TEST7 CS bit 23 −
DO24 − − CS bit 24 −
…………
DO46 − − CS bit 46 −
DO47 − − CS bit 47 −
− −
Table 20 Read Register 1 (Input detection, interrupt flag, IEC61937 flag, DTS flag)
…………
−
w
PP Rev 1.1 April 2004
54
Page 55
Product Preview WM8802
READ REGISTER OUTPUT CONTENTS
REGISTER
ADDRESS
CCB address: 0XEA RXDET7 RXDET6 RXDET5 RXDET4 RXDET3 RXDET2 RXDET1 RXDET0
DO7 DO6 DO5 DO4 DO3 DO2 DO1 DO0
RXDET0 RX0 input detection
0: No input data to RX0
1: Input data to RX0
RXDET1 RX1 input detection
0: No input data to RX1
1: Input data to RX1
RXDET2 RX2 input detection
0: No input data to RX2
1: Input data to RX2
RXDET3 RX3 input detection
0: No input data to RX3
1: Input data to RX3
RXDET4 RX4 input detection
0: No input data to RX4
1: Input data to RX4
RXDET5 RX5 input detection
0: No input data to RX5
1: Input data to RX5
RXDET6 RX6 input detection
0: No input data to RX6
1: Input data to RX6
RXDET7 Modulation function output TXO data detection
0: No data to modulation function output TXO
1: Data to modulation function output TXO
For RXDET0 to RXDET7 read, RXMON must be set to High first.
w
PP Rev 1.1 April 2004
55
Page 56
WM8802 Product Preview
READ REGISTER OUTPUT CONTENTS
REGISTER
ADDRESS
CCB address; 0xEA DEMPF OSLIPO OPCRNW OUNPCM OCSRNW OFSCHG OINDET OERROR
DO15
OERROR RERR output (Output status during read)
0: No transfer error in PLL locked status
1: Transfer error in PLL unlocked status
OINDET Data input pin status change (Clear following read)
0: No change in data input pin status
1: Change in data input pin status
OFSCHG Input fs calculation update result (clear following read)
0: No input fs calculation update
1: Input fs calculation update
OCSRNW First 48 bit channel status update result (Clear following read)
0: No update
1: Update
OUNPCM
0: Non-PCM signal not detected
1: Non-PCM signal detected
OPCRNW Burst preamble Pc update result (Clear following read)
0: No update
1: Update
OSLIPO Read data twice and detect data loss during slave operation
0: No detection
1: Two reads, lost data detected
OEMPF Channel status emphasis detection (Output status during
0: No pre-emphasis
1: 50/15 µs pre-emphasis
The status of RERR and AUDIO is read according to RESEL and AOSEL settings regardless of the
INT output setting from OERROR and OUNPCM.
DO14 DO13 DO12 DO11 DO10 DO9 DO8
output (Output of status during read)
AUDIO
(Clear following read)
read)
w
PP Rev 1.1 April 2004
56
Page 57
Product Preview WM8802
READ REGISTER OUTPUT CONTENTS
REGISTER
ADDRESS
CCB address: 0xEA F4096 F2048 F1024 F0512 DTSES DTS51 IEC1937 CSBIT1
DO23 DO22 DO21 DO20 DO19 DO18 DO17 DO16
CSBIT1 Channel status bit 1 detection
0: PCM
1: Non-PCM
IEC1937 IEC61937 burst preamble detection
0: Pa, Pb not detected
1: Pa, Pb detected
DTS51 DTS-CD/LD 5.1 channel sync signal detection
0: DTS-CD-LD sync signal not detected
1: DTS-CD-LD sync signal detected
DTSES DTS ES-CD/LD 6.1 channel sync signal detection
0: DTS ES-CD/LD sync signal not detected
1: DTS ES-CD/LD sync signal detected
F0512 DTS-CD/LD IEC60958 frame interval
0: Sync signal not 512 or 1024 frame interval
1: Sync signal is 512 or 1024 frame interval
F1024 DTS-CD/LD IEC60958 frame interval
0: Sync signal not 1024 or 2048 frame interval
1: Sync signal is 1024 or 2048 frame interval
F2048 DTS-CD/LD IEC60958 frame interval
0: Sync signal not 2048 or 4096 frame interval
1: Sync signal is 2048 or 4096 frame interval
F4096 DTS-CD/LD IEC60958 frame interval
0: Sync signal not 4096 frame interval
1: Sync signal is 4096 frame interval
w
PP Rev 1.1 April 2004
57
Page 58
WM8802 Product Preview
READ REGISTER 2 (GENERAL-PURPOSE I/O INPUT CONTENTS, FS
CALCULATION RESULT, FS COUNTER DATA)
READ REGISTER OUTPUT CONTENTS
REGISTER ADDRESS DO7 DO6 DO5 DO4 DO3 DO2 DO1 DO0
CCB address: 0xEB FSC3 FSC2 FSC1 FSC0 GPO3 GPO2 GPO1 GPO0
GPO0 Read data output contents during general-purpose I/O GPO0 input
0: GPIO0 input = Low
1: GPIO0 input = High
GPO1 Read data output contents during general-purpose I/O GPIO1 input
0: GPIO1 input = Low
1: GPIO1 input = High
GPO2 Read data output contents during general-purpose I/O GPIO2 input
0: GPIO2 input = Low
1: GPIO2 input = High
GPO3 Read data output contents during general-purpose I/O GPIO3 input
0: GPIO3 input = Low
1: GPIO3 input = High
FSC [3:0] Input data fs calculation result
"xxxx": See code table.
FSC3 FSC2 FSC1 FSC0 TARGET FREQUENCY
0 0 0 0 Out of range
0 0 0 1 − −
0 0 1 0 − −
0 0 1 1 − −
0 1 0 0 16kHz 15.4k to 16.6kHz
0 1 0 1 22.05kHz 21.2k to 22.9kHz
0 1 1 0 24kHz 23.1k to 24.9kHz
0 1 1 1 32kHz 30.8k to 33.3kHz
1 0 0 0 44.1kHz 42.4k to 45.8kHz
1 0 0 1 48kHz 46.2k to 49.9kHz
1 0 1 0 64kHz 615k to 66.7kHz
1 0 1 1 88.2kHz 85.4k to 91.7kHz
1 1 0 0 96kHz 93.1k to 100.7kHz
1 1 0 1 128kHz 122.9k to 1335kHz
1 1 1 0 176.4kHz 170.7k to 180.7k Hz
1 1 1 1 192kHz 186.2k to 198.1kHz
Table 21 Input fs Calculation Result Code Table (Ta = 25°C, AVDD = DVDD = 3.3 V)
setting
setting
setting
setting
CALCULATION RANGE (DESIGN
VALUE)
−−−−
w
PP Rev 1.1 April 2004
58
Page 59
Product Preview WM8802
READ REGISTER OUTPUT CONTENTS
REGISTER ADDRESS DO15 DO14 DO13 DO12 DO11 DO10 DO9 DO8
CCB address: 0xEB FSDAT7 FSDAT6 FSDAT5 FSDAT4 FSDAT3 FSDAT2 FSDAT1 FSDAT0
FSDAT [7:0] fs counter data output
• FSDAT [7:0] is the fs calculation counter value. The data length is 8 bits, FSDAT0 is LSB and
FSDAT7 is MSB.
• The relation between the count value and fs is expressed by the following equation.
fs
= 6144/FSDAT (kHz)
• fs calculation is performed using a 6.144MHz clock so the calculation accuracy is determined
by this clock.
• The calculation counter value is 8 bit output so the fs that can be calculated is higher than
24kHz.
READ REGISTER 3 (FIRST 48 CHANNEL STATUS BITS)
•
The first 48 channel status bits can be read with the demodulation function.
•
The read channel status data is a LSB output.
•
For read, CCB address is set to 0xEC.
•
The channel status data cannot be updated after the CCB address is set.
•
The relation between the read registers and the channel status data is shown below.
REGISTER BIT NO. CONTENTS REGISTER BIT NO. CONTENTS
DO0 Bit 0
DO1 Bit 1
DO2 Bit 2
DO3 Bit 3
DO4 Bit 4
DO5 Bit 5
DO6 Bit 6
DO7 Bit 7
DO8 Bit 8
DO9 Bit 9
DO10 Bit 10
DO11 Bit 11
DO12 Bit 12
DO13 Bit 13
DO14 Bit 14
DO15 Bit 15
DO16 Bit 16
DO17 Bit 17
DO18 Bit 18
DO19 Bit 19
DO20 Bit 20
DO21 Bit 21
DO22 Bit 22
DO23 Bit 23
Application
Control
Not defined
Category code
Source number
Channel number
DO24 Bit 24
DO25 Bit 25
DO26 Bit 26
DO27 Bit 27
DO28 Bit 28
DO29 Bit 29
DO30 Bit 30
DO31 Bit 31
DO32 Bit 32
DO33 Bit 33
DO34 Bit 34
DO35 Bit 35
DO36 Bit 36
DO37 Bit 37
DO38 Bit 38
DO39 Bit 39
DO40 Bit 40
DO41 Bit 41
DO42 Bit 42
DO43 Bit 43
DO44 Bit 44
DO45 Bit 45
DO46 Bit 46
DO47 Bit 47
Sampling frequency
Clock accuracy
Not defined
Word length
Not defined
w
PP Rev 1.1 April 2004
59
Page 60
WM8802 Product Preview
READ REGISTER 4 (BURST PREAMBLE PC DATA)
The burst preamble Pc data can be read with the demodulation function.
The 16 bits of burst preamble Pc data are output as LSB.
For read, the CCB address is set to OxED.
The relation between the read register and burst preamble Pc data is shown below.
REGISTER BIT NO. CONTENTS
DO0 Bit 0
DO1 Bit 1
DO2 Bit 2
DO3 Bit 3
DO4 Bit 4
DO5 Bit 5
DO6 Bit 6
DO7 Bit 7
DO8 Bit 8
DO9 Bit 9
DO10 Bit 10
DO11 Bit 11
DO12 Bit 12
DO13 Bit 13
DO14 Bit 14
DO15 Bit 15
Data type
Reserved
Error
Data type dependent
information
Bit stream number
w
PP Rev 1.1 April 2004
60
Page 61
Product Preview WM8802
BURST PREAMBLE PC FIELD
The burst preamble Pc field is shown below.
For the latest information, check the standards issued by each licensee.
REGISTER VALUE CONTENTS
DO4 to 0 0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16 to 26
27
28
29 to 31
DO6, 5 0
DO7 0
1
DO12 to 8
DO15 to 13 0
Table 22 Burst Preamble Pc Field
NULL data
Dolby AC-3 data
Reserved
Pause
MPEG-1, layer 1 data
MPEG-1, layer 2, 3 data, or non-extended MPEG-2
Extended MPEG-2 data
Reserved
MPEG-2, layer 1, low sampling rate
MPEG-2, layer 2, 3, low sampling rate
Reserved
DTS type1
DTS type2
DTS type3
ATRAC
ATRACK2/3
Reserved
Reserved (MPEG-4, AAC data)
MPEG-2, AAC data
Reserved
Reserved (fixed to "0")
Error flag indicating effective burst payload
Error flag indicating burst payload error
Data type dependent information
Bit stream No. (fixed to "0")
w
PP Rev 1.1 April 2004
61
Page 62
WM8802 Product Preview

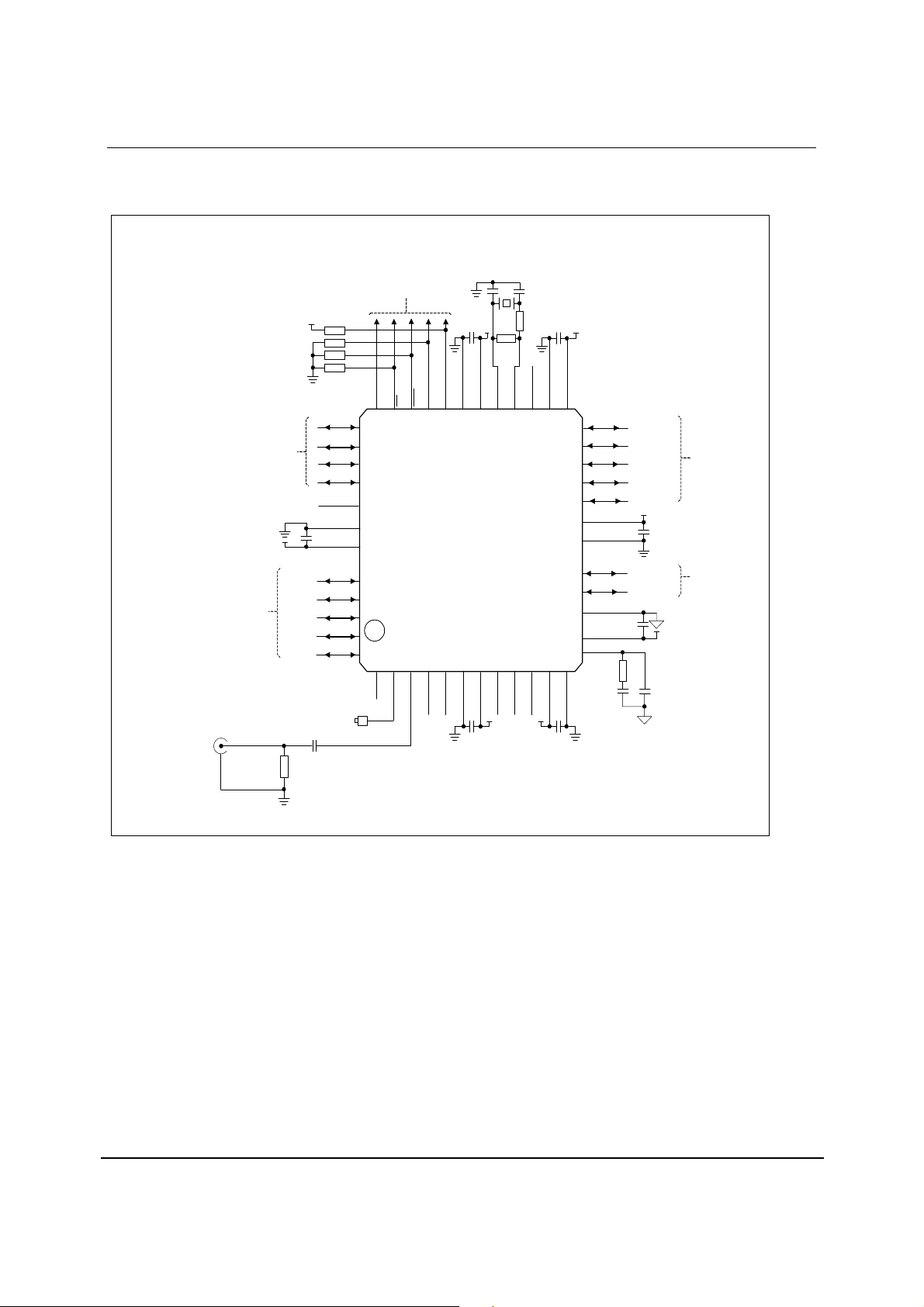

RECOMMENDED EXTERNAL COMPONENTS
Chip address setti ng
Chip address setting
Demodulation funct ion
master/slave setting
Modulation/ge neral-purpose
I/O function selection
Microcontroll er
Analogue to Digi tal
Digital Signal Processing
Coaxial Input
DVDD
R
i
XMODE
DGND
Cc
DVDD
TMCK/GPIO0
TBCK/GPIO1
TLRCK/GPIO2
TDATA/GPIO3
TXO/GPIOEN
C
i
Rp
Rp
Rp
Rp
37
DO
38
DI
CE
39
CL
40
41
42
43
44
45
46
47
48
Optical Input
Microcontroll er
O
O
V
U
/
/
O
R
R
T
E
N
I
R
3536 3334 3132 2930 2 728 2526
H
I
T
P
S
D
K
M
U
E
C
A
C
l
DVDD
Cc
D
N
G
D
T
U
N
I
O
X
X
DVDD
WM8802
I
D
N
G
D
Cc
4
D
X
D
R
V
D
DVDD DVDD
V
/
5
X
R
2
1
0
T
X
U
R
O
X
R
3
X
X
X
R
R
R
C
l
24.576 MHz / 12.288 MHz
Rd
Cc
Rf
D
K
D
N
C
D
G
V
M
D
X
D
24
SDIN
23
SLRCK
22
SBCK
RDATA
21
RLRCK
20
DVDD
19
DGND
18
RBCK
17
RMCK
16
AGND
15
14
AVDD
LPF
13
121110987654321
I
D
D
U
/
N
D
6
V
G
X
D
D
R
Cc
R
0
C
0C1
Analogue to Digital
DVDD
Cc
Digital to Analogue
Cc
AVDD
Figure 34 External Component Diagram
SAMPLE APPLICATION
A de-coupling capacitor (0.1 µF) should be connected as close as possible to the power supply pin.
Use a ceramic capacitor with high-frequency characteristics..
A capacitor with a low temperature coefficient should be used for the PLL loop filter.
w
PP Rev 1.1 April 2004
62
Page 63
Product Preview WM8802
RECOMMENDED EXTERNAL COMPONENTS VALUES
ELEMENT
SYMBOL
Cc 0.1 µF
Rp 10 kΩ
C1 1 pF to 33 pF
Rf 1 MΩ
Rd 220 Ω
Ci 01 µF
Ri 75 Ω
C0 ∗∗ PLL loop filter Value as required for frequency input range
C1 ∗∗
R0 ∗∗
Table 23 Recommended Component Values
RECOMMENDED
CONSTANT
APPLICATION
Power supply de-coupling Ceramic capacitor
Function setting pull-down/pull-up
Crystal resonator load NP0 characteristics ceramic capacitor
Oscillation amplifier feedback
Oscillation amplifier current limit
Coaxial input DC cut Ceramic capacitor
Coaxial input termination
PLL loop filter Value as required for frequency input range
PLL loop filter Value as required for frequency input range
REMARK
w
PP Rev 1.1 April 2004
63
Page 64
WM8802 Product Preview

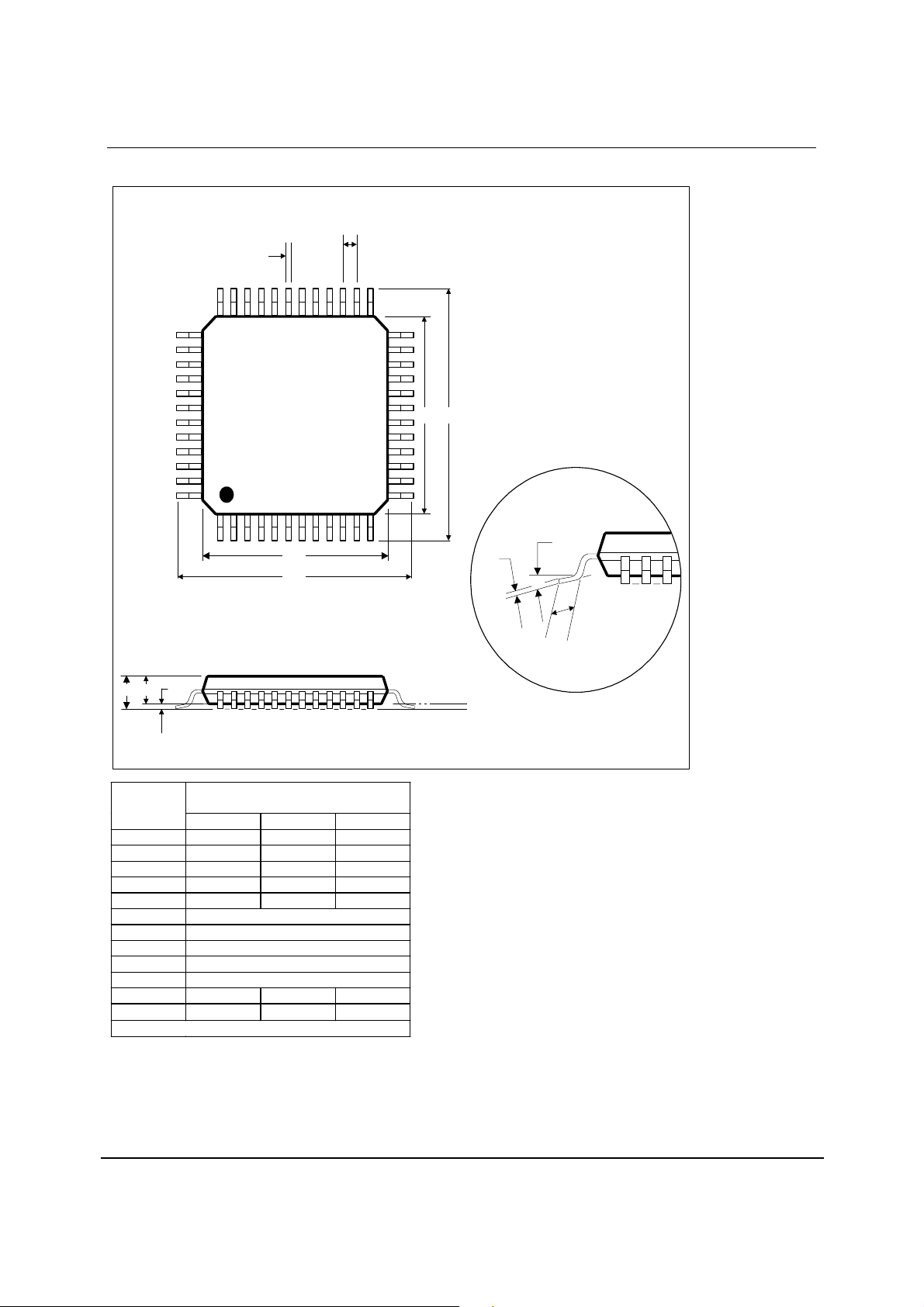

PACKAGE DRAWING
FT: 48 PIN SQFP (7 x 7 x 1.0 mm)
b
48
D1
D
DM032.A
e
2536
2437
E1 E
13
121
c
ΘΘΘΘ
L
A1
A2
A
Dimensions
Symbols
(mm)
MIN NOM MAX
A ----- ----- 1.70
A
1
A
2
b 0.18
c
-----
-----
-----
-----
0.10
1.50
0.15
-----
-----
-----
-----
D 9.00 BSC
D
1
7.00 BSC
E 9.00 BSC
E
1
7.00 BSC
e 0.50 BSC
L 0.50
ΘΘΘΘ
-----
-----
o
0
-----
-----
Tolerances of Form and Position
NOTES:
A. ALL L INEAR DIMENS IONS ARE IN MIL LIMETERS.
B. THI S DRAWING IS SU BJECT TO CHANGE WI THOUT NOTICE.
C. BODY DIMENSIONS DO NOT INCLUDE MOLD F LASH OR PROTRUSI ON, NOT TO EXCE ED 0.25MM.
w
PP Rev 1.1 April 2004
64
Page 65
Product Preview WM8802
IMPORTANT NOTICE
Wolfson Microelectronics plc (W M) reserve the right to make changes to their products or to discontinue any product or
service without notice, and advise customers to obtain the latest version of relevant information to verify, before placing
orders, that information being relied on is current. All products are sold subject to the WM terms and conditions of sale
supplied at the time of order acknowledgement, including those pertaining to warranty, patent infringement, and limitation
of liability.
WM warrants performance of its products to the specifications applicable at the time of sale in accordance with WM’s
standard warranty. Testing and other quality control techniques are utilised to the extent WM deems necessary to support
this warranty. Specific testing of all parameters of each device is not necessarily performed, except those mandated by
government requirements.
In order to minimise risks associated with customer applications, adequate design and operating safeguards must be used
by the customer to minimise inherent or procedural hazards. Wolfson products are not authorised for use as critical
components in life support devices or systems without the express written approval of an officer of the company. Life
support devices or systems are devices or systems that are intended for surgical implant into the body, or support or
sustain life, and whose failure to perform when properly used in accordance with instructions for use provided, can be
reasonably expected to result in a significant injury to the user. A critical component is any component of a life support
device or system whose failure to perform can be reasonably expected to cause the failure of the life support device or
system, or to affect its safety or effectiveness.
WM assumes no liability for applications assistance or customer product design. WM does not warrant or represent that
any license, either express or implied, is granted under any patent right, copyright, mask work right, or other intellectual
property right of WM covering or relating to any combination, machine, or process in which such products or services might
be or are used. WM’s publication of information regarding any third party’s products or services does not constitute WM’s
approval, license, warranty or endorsement thereof.
Reproduction of information from the WM web site or datasheets is permissible only if reproduction is without alteration and
is accompanied by all associated warranties, conditions, limitations and notices. Representation or reproduction of this
information with alteration voids all warranties provided for an associated WM product or service, is an unfair and deceptive
business practice, and WM is not responsible nor liable for any such use.
Resale of WM’s products or services with statements different from or beyond the parameters
product or service voids all express and any implied warranties for the associated WM product or service, is an unfair and
deceptive business practice, and WM is not responsible nor liable for any such use.
stated by WM for that
ADDRESS:
Wolfson Microelectronics plc
26 Westfield Road
Edinburgh
EH11 2QB
United Kingdom
Tel :: +44 (0)131 272 7000
Fax :: +44 (0)131 272 7001
Email :: [email protected]
w
PP Rev 1.1 April 2004
65
Loading...
