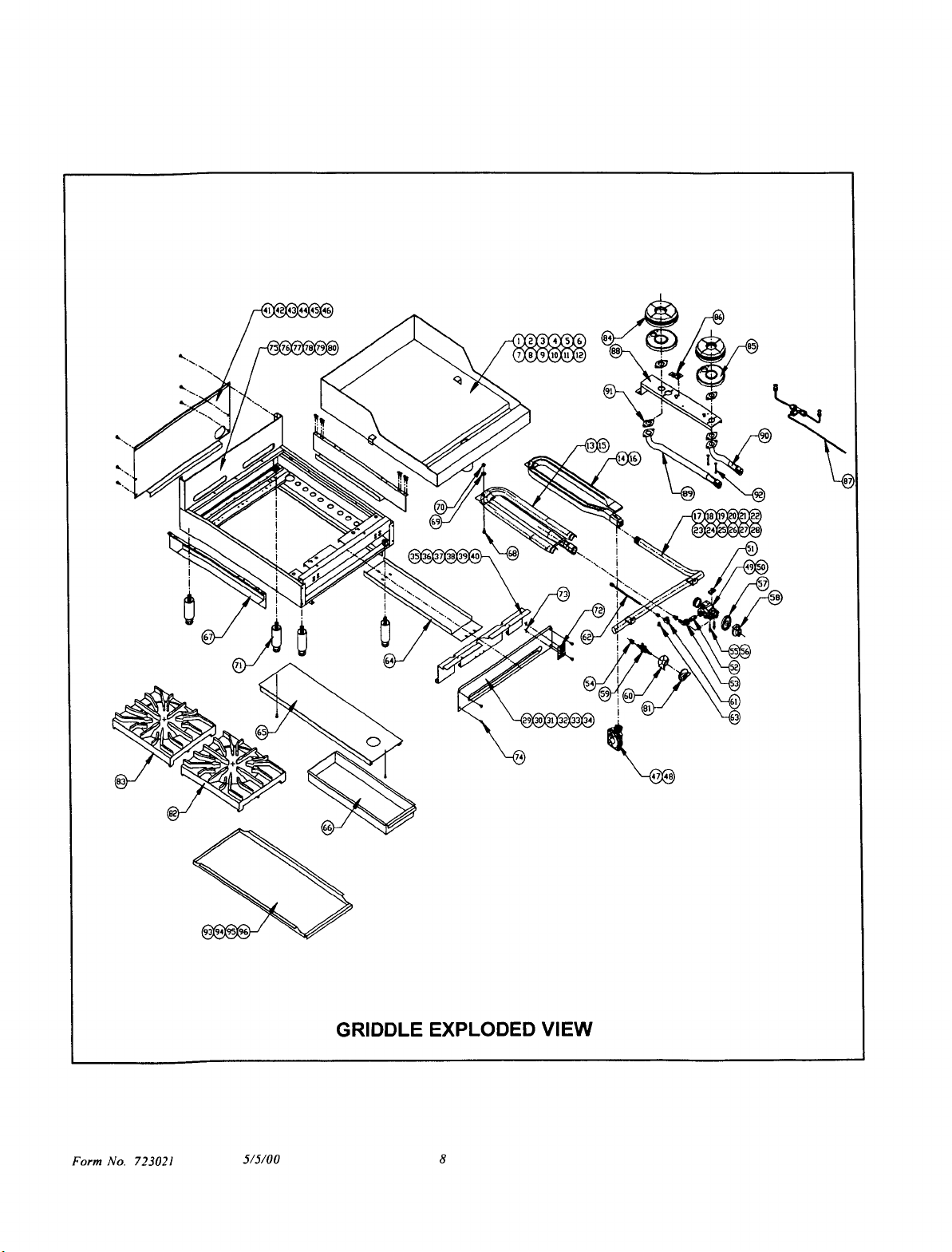

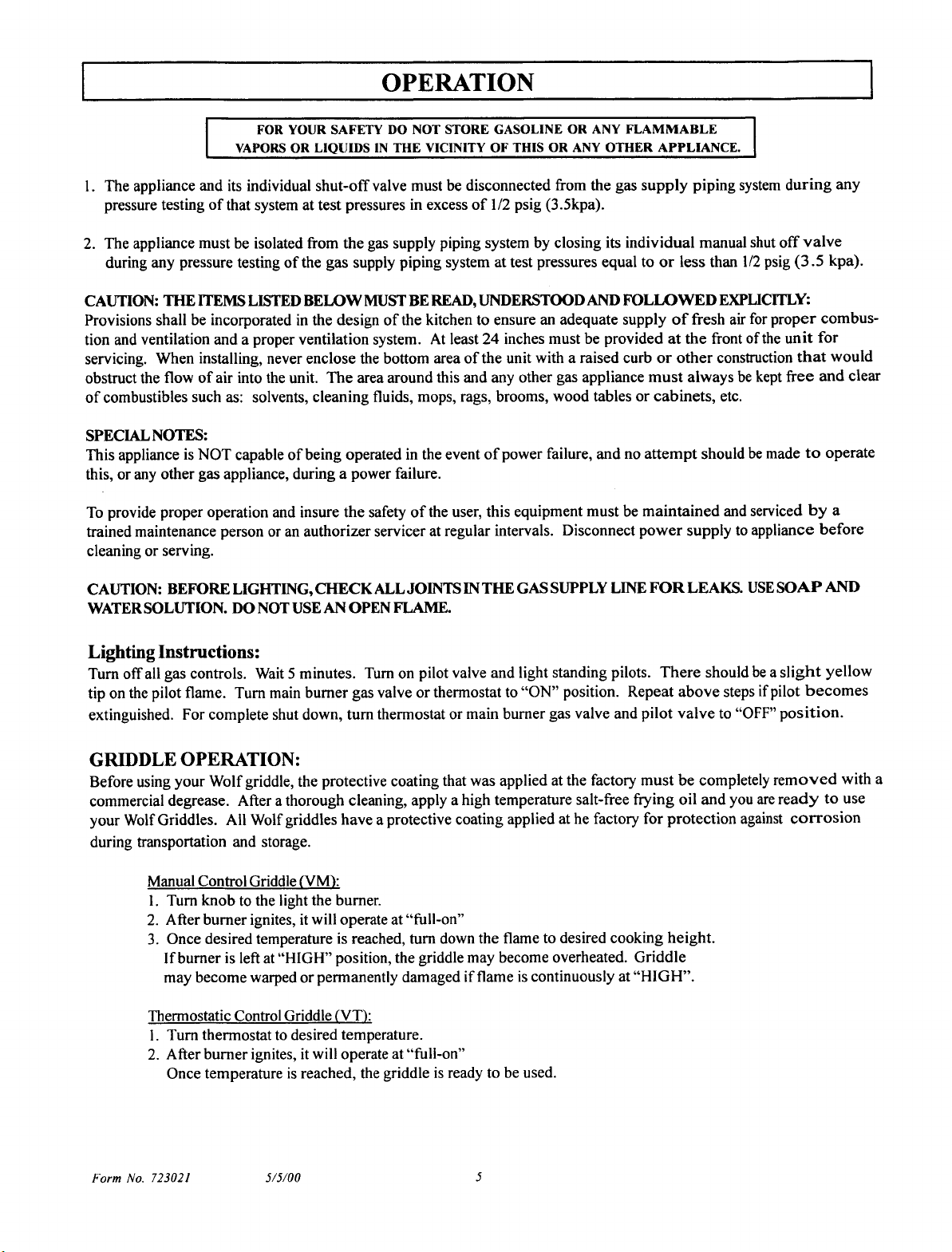

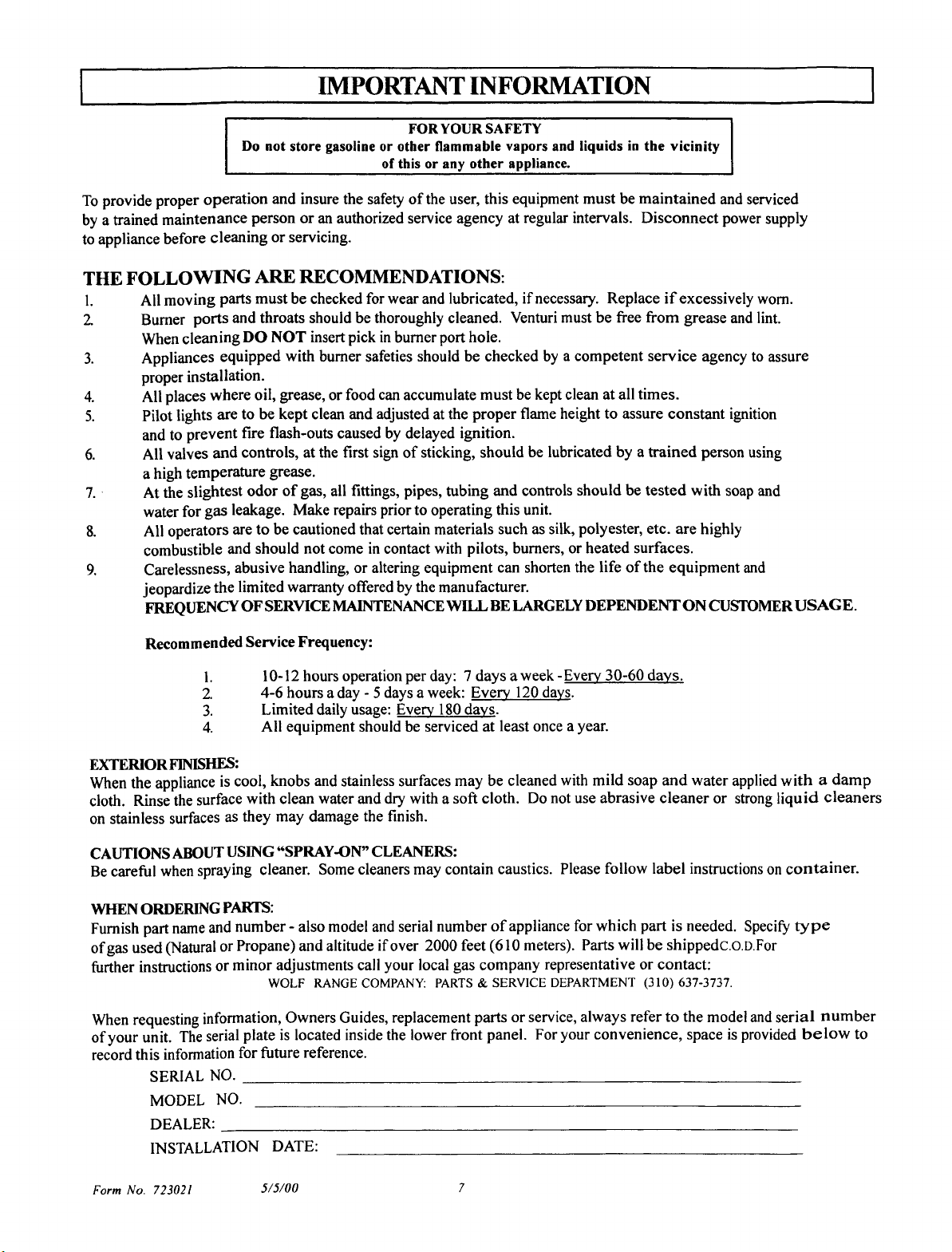

ITEM QTY PART No DESCRIPTION ITEM QTY PART No DESCRIPTION
1 1 787978A TG GRIDDLE PLATE W/A -12" 49 AR 723257 GRIDDLE THERMOSTAT - L/H
2 1 787979A TG GRIDDLE PLATE W/A - 24" 50 AR 723258 GRIDDLE THERMOSTAT - R/H
3 1 787980A TG GRIDDLE PLATE W/A - 36" 51 AR 723256 FLANGE NIPPLE (THERMOSTAT)
4 1 787981A TG GRIDDLE PLATE W/A - 48" 52 AR 723256 1/4 X 1 1/4 BLACK NIPPLE
5 1 787982A TG GRIDDLE PLATE W/A - 60" 53 AR 719212 ORIFICE ELBOW
6 1 787983A TG GRIDDLE PLATE W/A - 72" 54 AR 719951 ORIFICE (REF.)
7 1 787478A VM GRIDDLE PLATE W/A - 12" 55 AR 730048 10-24 X 1 1/8 HEX HD SCREW
8 1 787480A VM GRIDDLE PLATE W/A - 24" 56 AR 730048 WASHER
9 1 787481A VM GRIDDLE PLATE W/A - 36" 57 AR 719358 BEZEL
10 1 787482A VM GRIDDLE PLATE W/A - 48" 58 AR 723259 THERMOSTAT GRIDDLE KNOB
11 1 787483A VM GRIDDLE PLATE W/A - 60" 59 AR 719221 ON/OFF VALVE
12 1 787484A VM GRIDDLE PLATE W/A - 72" 60 AR 722958 CONTROL NOB
13 AR 719737-04 TUBE BURNER 61 AR 719193 PILOT VALVE
14 AR 723141 SQUARE TUBULAR BURNER - VM 62 AR 706670A PILOT ASSEMBLY
15 AR 723064 BURNER, GRIDDLE VOYAGER - TG 63 AR 719370 HEX HEAD PLUG - 1 /8 NPT
16 AR 723141 SQUARE TUBULAR BURNER - TG 64 AR 787451 CENTER AERATION PLATE
17 1 767055A MANIFOLD SUB-ASSY - 12" (VM) 65 AR 766954-1 PAN SUPPORT CHANNEL
18 1 767056A MANIFOLD SUB-ASSY - 24" (VM) 66 AR 753779A GREASE CAN ASSEMBLY
19 1 767057A MANIFOLD SUB-ASSY - 36" (VM) 67 2 787452 DEFLECTOR SIDE
20 1 767058A MANIFOLD SUB-ASSY - 48" (VM) 68 AR 730100 1/4-20 X 1/2 USS HEX HEAD
21 1 787864A MANIFOLD SUB-ASSY - 60" (VM) 69 AR 716071 1/4 FLAT WASHER
22 1 787865A MANIFOLD SUB-ASSY. - 72" (VM) 70 AR 718375 1/4-20 HEX NUT
23 1 787942A MANIFOLD SUB-ASSY -12" (VT) 71 4 711396 4" ADJUSTABLE LEG
24 1 787944A MANIFOLD SUB-ASSY - 24" (VT) 72 1 722481 WOLF LOGO (SMALL)
25 1 787945A MANIFOLD SUB-ASSY - 36" (VT) 73 2 730509 CLIP.TINNERMAN
26 1 787946A MANIFOLD SUB-ASSY - 48" (VT) 74 AR 730228 10-24 X 1/2 PHILLIPS
27 1 787947A MANIFOLD SUB-ASSY - 60" (VT) 75 1 766971A CHASSIS W/A-12"
28 1 787948A MANIFOLD SUB-ASSY - 72" (VT) 76 1 766972A CHASSIS W/A -24"
29 1 767025 MANIFOLD COVER - 12" 77 1 766975A CHASSIS W/A - 36"
30 1 797033 MANIFOLD COVER -24" 78 1 766977A CHASSIS W/A - 60"
31 1 767014 MANIFOLD COVER-36" 79 1 766978A CHASSIS W/A - 60"
32 1 767015 MANIFOLD COVER-48" 80 1 766980A CHASSIS W/A - 72"
33 1 787171 MANIFOLD COVER-60" 81 AR 719255 CONTROL KNOB
34 1 787172 MANIFOLD COVER-72" 82 AR 722555 GRATE, FRONT
35 1 787984 OUTER HEAT SHIELD - 12" 83 AR 722560 GRATE.REAR
36 1 787050 OUTER HEAT SHIELD - 24" 84 AR 715200-2 BURNER HEAD-30K
37 1 787859 OUTER HEAT SHIELD - 36" 85 AR 715201-1 BURNER BASE -30K
38 1 787860 OUTER HEAT SHIELD - 48" 86 AR 767060 PILOT BRACKET
39 1 787861 OUTER HEAT SHIELD - 60" 87 AR 767059A PILOT ASSEMBLY
40 1 787862 OUTER HEAT SHIELD - 72" 88 2 758297 BURNER MOUNTING PLATE
41 1 786349 PANEL, BACK-12" 89 AR 715105 REAR VENTURI
42 1 767017 PANEL, BACK - 24" 90 AR 715104 FRONT VENTURI
43 1 767018 PANEL, BACK - 36" 91 AR 714910 GASKET
44 1 767019 PANEL, BACK - 48" 92 4 730061 SCREW, 10-24 x 1-1/4 LONG
45 1 787181 PANEL, BACK - 60" 93 1 787320 DRIP PAN, 12"
46 1 787182 PANEL, BACK - 72" 94 2 787288 DRIP PAN, 18"
47 1 720024 REGULATOR - NATURAL 95 AR 787289 DRIP PAN, 24"
48 1 720025 REGULATOR - PROPANE 96 1 787321 DRIP PAN, 36"
ITEM QTY PART No DESCRIPTION ITEM QTY PART No DESCRIPTION
1 1 787151A TANK W/A-18" 54 1 787284AW BULL NOSE -18"
2 1 787152A TANKW/A-24" 55 1 768764AW BULL NOSE-24"
3 1 787153A TANK W/A - 25" 56 1 768765AW BULL NOSE-36"
4 1 787154A TANK W/A-30" 57 1 787334AW BULL NOSE-42"
5 1 787155A TANK W/A-36" 58 1 768766AW BULL NOSE-48"
6 1 787332A TANK W/A-42" 59 1 768286AW BULL NOSE-60"
7 1 787156A TANK W/A - 47" 60 1 768286AW BULL NOSE-72"
8 1 787157A TANK W/A-60" 61 AR 700416 HEAT DEFLECTOR
9 1 787158A TANK W/A - 72" 62 AR B-10405 BURNER REST CASTING B.2.E
10 1 787159A TANK W/A - 84" 63 AR 710407 RADIANT-CAST IRON
11 1 787293 REAR HEAT DEFLECTOR -18" 64 AR 710408 TOP GRATE (Slanted Standard)
12 1 787050 REAR HEAT DEFLECTOR - 24" 65 AR 710423 TOP GRATE (Straight Optional)
13 1 787051 REAR HEAT DEFLECTOR - 36" 66 AR 710453-1 BURNER, S/STLCHARBROILER
14 1 787328 REAR HEAT DEFLECTOR - 42" 67 1 787320 DRIP PAN-12"
15 1 787052 REAR HEAT DEFLECTOR - 48" 68 1 787288 DRIP PAN -18"
16 1 787053 REAR HEAT DEFLECTOR - 60" 69 1 787289 DRIP PAN -24"
17 1 787054 REAR HEAT DEFLECTOR - 72" 70 1 787321 DRIP PAN - 36"
18 1 787292 INSULATION INNER LINER - 18" 71 1 787030A CHASSIS WELD ASSY. - 18"
19 1 787033 INSULATION INNER LINER - 24" 72 1 766972A CHASSIS WELD ASSY. -24"
20 1 787034 INSULATION INNER LINER - 36" 73 1 766975A CHASSIS WELD ASSY. -36"
21 1 787035 INSULATION INNER LINER - 48" 74 1 766977A CHASSIS WELD ASSY. -48"
22 1 787036 INSULATION INNER LINER - 60" 75 1 766978A CHASSIS WELD ASSY. - 60"
23 1 787039 INSULATION INNER LINER - 72" 76 1 766980A CHASSIS WELD ASSY. - 72"
24 1 787291 INSULATION OUTER LINER - 18" 77 1 787169 MANIFOLD COVER-18"
25 1 787038 INSULATION OUTER LINER - 24" 78 1 767033 MANIFOLD COVER - 24"
26 1 787039 INSULATION OUTER LINER - 36" 79 1 767014 MANIFOLD COVER - 36"
27 1 787326 INSULATION OUTER LINER - 42" 80 1 787170 MANIFOLD COVER-42"
28 1 787040 INSULATION OUTER LINER - 48" 81 1 767015 MANIFOLD COVER - 48"
29 1 787041 INSULATION OUTER LINER - 60" 82 1 787171 MANIFOLD COVER - 60"
30 1 787042 INSULATION OUTER LINER - 72" 83 1 787172 MANIFOLD COVER - 72"
31 1 787101 SIDE PLANT ON-18" L/H 84 1 787186 PANEL, BACK-18"
32 1 787102 SIDE PLANT ON-18" R/H 85 1 767017 PANEL, BACK-24"
33 1 787103 SIDE PLANT ON - 24" L/H 86 1 767018 PANEL, BACK-36"
34 1 787104 SIDE PLANT ON - 24" R/H 87 1 787294 PANEL, BACK-42"
35 1 787105
36 1 787106
37 2 787113
38 2 787082 SIDE INSUL LINER - 36", 60" & 72" 91 1 720024 REGULATOR - NATURAL
39 2 787083 SIDE INSULATION LINER -48" 92 1 720025 REGULATOR- PROPANE
40 1 787290 FRONT FRAME TRIM-18" 93 AR 719951 ORIFICE (REF)
41 1 787043 FRONT FRAME TRIM - 24" 94 AR 719221-1 ON/OFF/VALVE
42 1 787044 FRONT FRAME TRIM - 36" 95 AR 722958 CONTROL KNOB
43 1 787327 FRONT FRAME TRIM - 42" 96 AR 719193 PILOT VALVE
44 1 787045 FRONT FRAME TRIM - 48" 97 AR 710409 DOUBLE PILOT BRACKET
45 1 787046 FRONT FRAME TRIM - 60" 98 AR 787124A PILOT ASSEMBLY
46 1 787047 FRONT FRAME TRIM - 72" 99 AR 719370 HEX HEAD PLUG -1/8 NPT
47 1 787117A MANIFOLD PIPE ASSEMBLY -18" 100 4 711396 4" ADJUSTABLE LEG
48 1 787118A MANIFOLD PIPE ASSEMBLY - 24" 101 1 722481 WOLF LOGO (SMALL)
49 1 787119A MANIFOLD PIPE ASSEMBLY - 36" 102 2 730509 CLIP.TINNERMAN
50 1 787120A MANIFOLD PIPE ASSEMBLY - 42" 103 AR 730228 10-24 X 1/2 PHILLIPS
51 1 787121A MANIFOLD PIPE ASSEMBLY - 48" 104 AR 730017 1/4-20 SCREW, SLOTTED
52 1 787122A MANIFOLD PIPE ASSEMBLY - 60" 105 1 766954 PAN SUPT CHANNEL (48-60-72).
53 1 787123A MANIFOLD PIPE ASSEMBLY - 72"
SIDE PLANT ON - 36", 60" & 72"
SIDE PLANT ON - 36", 60", & 72"
SIDE INSULATION LINER - 18" &
88 1 767019 PANEL BACK-48"
89 1 787181 PANEL, BACK-60"
90 1 787182 PANEL, BACK-72"
