WOLF MICROWAVE OVENS
Microwave Ovens
As true cooking instruments, Wolf microwave ovens have
features that make fast meals better meals. Wolf offers both
a roomy, powerful standard microwave and a convection
model that can microwave, broil and cook in three convection modes. Stainless steel trim kits are available through an
authorized Wolf dealer to match L and E series ovens.
KEY FEATURES
• Large-capacity interior.
• Built-in or freestanding option for design versatility.
• Sensor cooking to monitor and adjust settings.
• Warming feature for gentle heating.
• Reheat setting is perfect for leftovers.
CONVECTION MICROWAVE
MWC24
L Series Trim
MWC24
E Series Trim
STANDARD MICROWAVE
MW24
L Series Trim
MW24
E Series Trim
RANGES / RANGETOPSVENTILATION COOKTOPS OVENS / WARMING DRAWERSOUTDOOR GRILLS
2 | Wolf Customer Care 800.222.7820
Page 3
WOLF MICROWAVE OVENS
Microwave Ovens
CONVECTION MICROWAVE
243/4" (629)
FREESTANDING
197/8"
(505)
L SERIES
TRIM
L SERIES TRIM E SERIES TRIM
13/8"
(35)
(448)
175/8"
BEHIND TRIM
147/8"
(378)
FREE-
STANDING
*1" (25) for professional and transitional trim and 11/4" (32) for contemporary trim.
STANDARD MICROWAVE
24" (610)
FREESTANDING
181/4"
(464)
L SERIES
TRIM
L SERIES TRIM E SERIES TRIM
13/8"
(35)
175/8" (448)
BEHIND TRIM
133/8"
(340)
FREE-
STANDING
243/4" (629)
FREESTANDING
24" (610)
FREESTANDING
197/8"
(505)
E SERIES
TRIM
181/4"
(464)
E SERIES
TRIM
1" (25) OR
11/4" (32)*
(457)
18"
BEHIND TRIM
1" (25) OR
11/4" (32)*
18" (457)
BEHIND TRIM
147/8"
(378)
FREE-
STANDING
133/8"
(340)
FREE-
STANDING
RANGES / RANGETOPSOVENS / WARMING DRAWERS OUTDOOR GRILLS VENTILATIONCOOKTOPS
TRIM WIDTH
CONVECTION L SERIES E SERIES
27" Trim NA 267/8" (683)
30" Trim 297/8" (759) 297/8" (759)
36" Trim 355/8" (905) NA
STANDARD L SERIES E SERIES
27" Trim NA 267/8" (683)
30" Trim 297/8" (759) 297/8" (759)
*1" (25) for professional and transitional trim and 11/4" (32) for contemporary trim.
SPECIFICATIONS
INTERIOR CAPACITY CU FT (L)
Convection 1.5 (42)
Standard 2.0 (57)
INTERIOR DIMENSIONS W H D
Convection 161/8" (410) 95/8" (244) 161/8" (410)
Standard 173/8" (441) 101/2" (267) 185/8" (473)
wolfappliance.com | 3
Page 4
WOLF MICROWAVE OVENS
Planning Information
Wolf convection and standard microwaves can be used
freestanding or built-in with optional trim kit, available
through an authorized Wolf dealer. For local dealer information, visit the nd a showroom section of our website,
wolfappliance.com. In a freestanding application, allow
(51) of airow space on the top, rear and both sides.
2"
Built-in opening dimensions accommodate air ow space.
In a built-in application, convection and standard microwaves will overlap stiles and rails. Refer to the chart below
for trim overlaps.
TRIM OVERLAP
27" E SERIES TRIM CONVECTION STANDARD
Top
Bottom
Sides
30" L / E SERIES TRIM CONVECTION STANDARD
Top
Bottom
Sides 13/16" (30) 13/16" (30)
36" L SERIES TRIM CONVECTION STANDARD
Top
Bottom
Sides 1
RANGES / RANGETOPSVENTILATION COOKTOPS OVENS / WARMING DRAWERSOUTDOOR GRILLS
1
/4" (6)
3
/4" (19)
13
/16" (21)
1
/4" (6)
3
/4" (19)
3
/16" (5) NA
13
/16" (21) NA
1
/4" (32) NA
9
/16" (14)
11
/16" (17)
13
/16" (21)
9
/16" (14)
11
/16" (17)
ELECTRICAL
Installation must comply with all applicable electrical codes.
The receptacle should be located in the upper left area of
the opening. Refer to the illustration for your specic installation on the following pages. The receptacle may also be
located in an adjacent cabinet within reach of the power
cord. An access hole must be provided through the cabinet
for the power cord.
IMPORTANT NOTE: The microwave oven is equipped with a
power cord with a 3-prong grounding plug. The power cord
must be plugged into a mating 3-prong grounded outlet. If
you only have a 2-prong outlet, have a qualied electrician
install a properly grounded outlet. If you have any questions
about the grounding or electrical instructions, consult a
qualied electrician or service technician.
ELECTRICAL REQUIREMENTS
Electrical Supply grounded, 120 VAC, 60 Hz
Service 15 amp dedicated circuit
Receptacle 3-prong grounding-type
Power Cord 3'
(.9 m)
4 | Wolf Customer Care 800.222.7820
Page 5
SIDE
NOTE: Dashed line represents profile of unit.
WOLF MICROWAVE OVENS

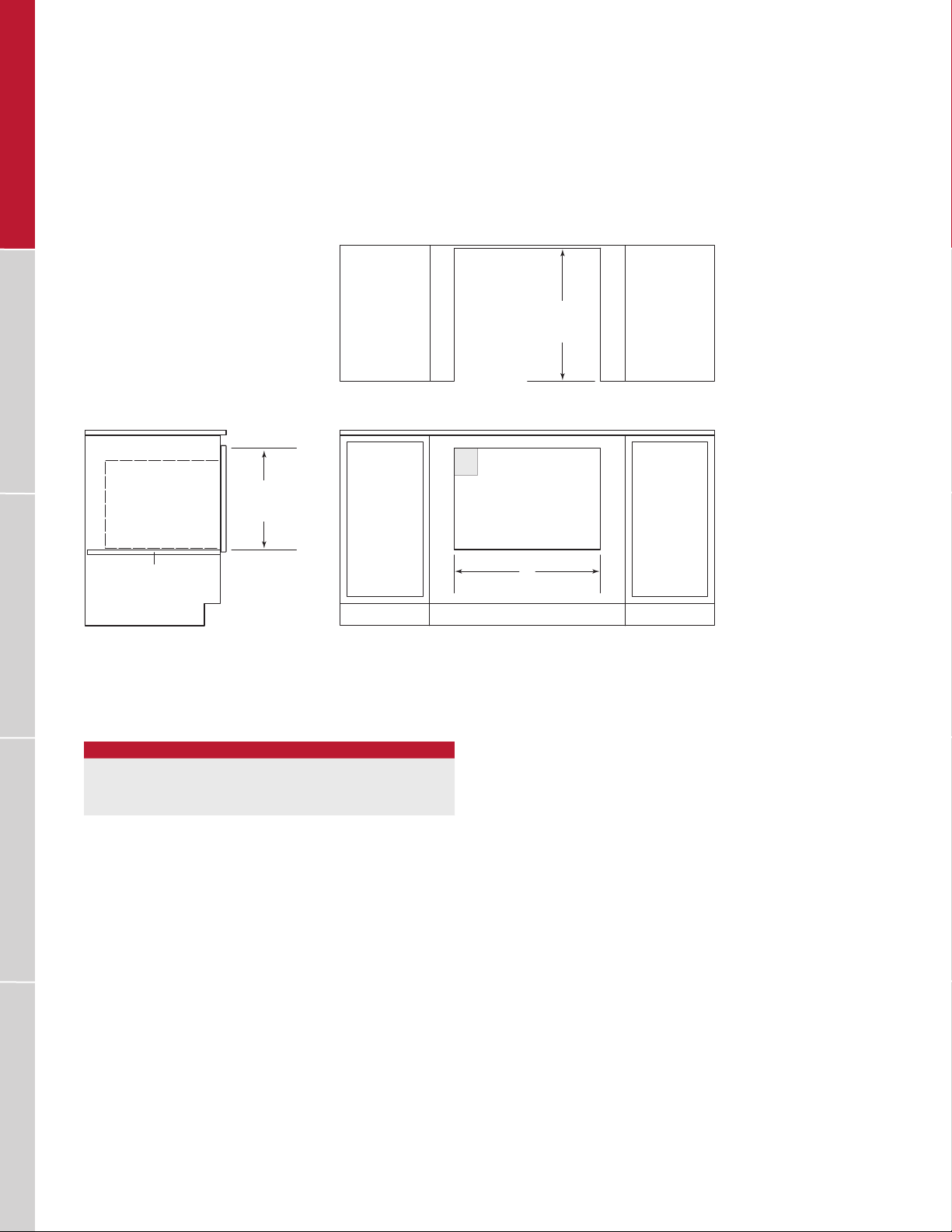

Convection Microwave Oven
INSTALLATION WITH TRIM
187/8" (479)
OPENING
HEIGHT
201/8" (511)
OPENING
DEPTH
TOP VIEW
E
BASE SUPPORT
VIEW
OPENING WIDTH
MODEL W
Microwave with 27" Trim 251/4" (641)
Microwave with 30" Trim 271/2" (699)
Microwave with 36" Trim 333/8" (854)
W
OPENING WIDTH
FRONT VIEW
RANGES / RANGETOPSOVENS / WARMING DRAWERS OUTDOOR GRILLS VENTILATIONCOOKTOPS
wolfappliance.com | 5
Page 6
WOLF MICROWAVE OVENS
SIDE
NOTE: Dashed line represents profile of unit.

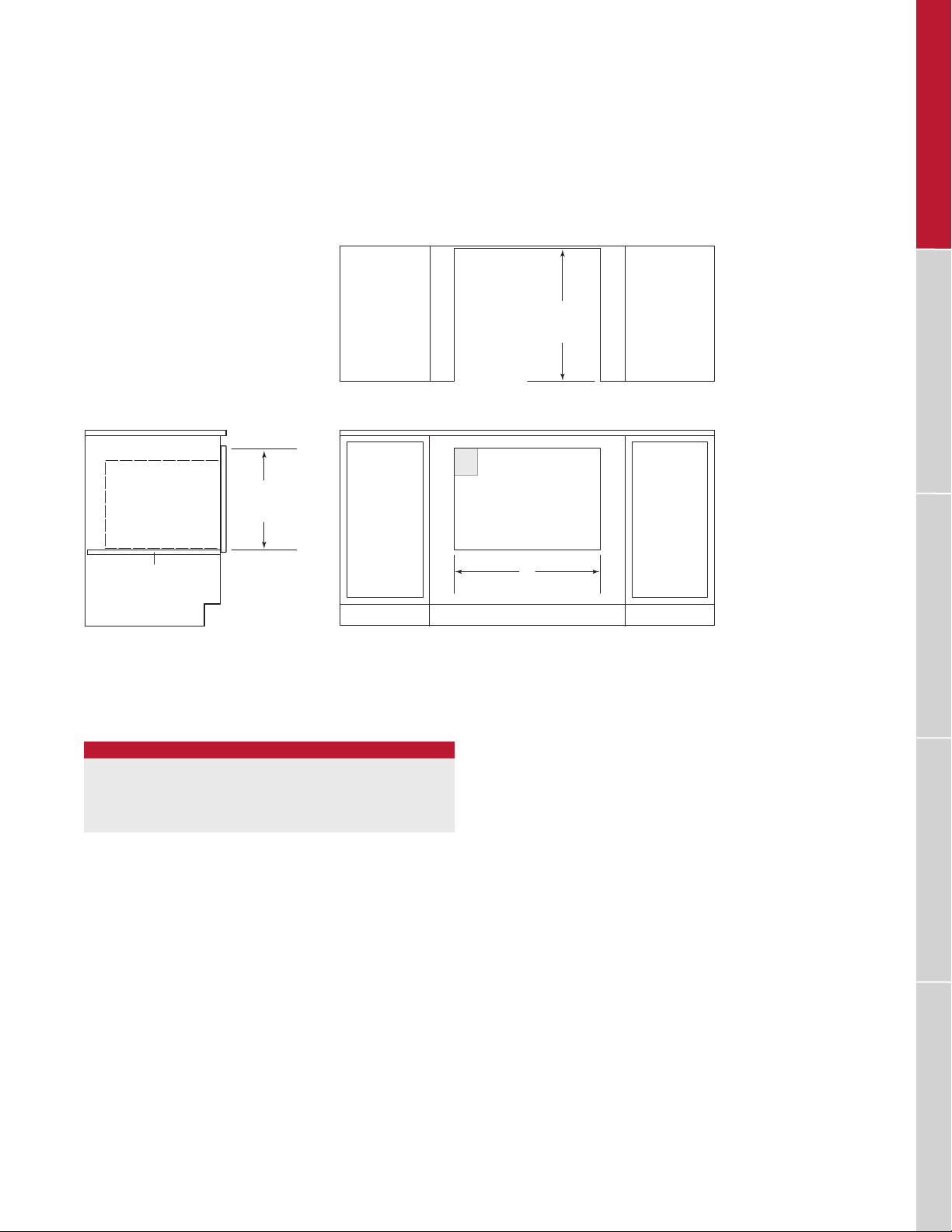

Standard Microwave Oven
INSTALLATION WITH TRIM
17" (432)
OPENING
HEIGHT
20" (508)
OPENING
DEPTH
TOP VIEW
E
BASE SUPPORT
VIEW
RANGES / RANGETOPSVENTILATION COOKTOPS OVENS / WARMING DRAWERSOUTDOOR GRILLS
OPENING WIDTH
MODEL W
Microwave with 27" Trim 251/4" (641)
Microwave with 30" Trim 271/2" (699)
W
OPENING WIDTH
FRONT VIEW
6 | Wolf Customer Care 800.222.7820
Page 7
RANGES / RANGETOPSOVENS / WARMING DRAWERS OUTDOOR GRILLS VENTILATIONCOOKTOPS
Wolf, Wolf & Design, Wolf Gourmet, W & Design and the color red as applied to knobs are registered trademarks and service marks of Wolf Appliance, Inc. Sub-Zero, Sub-Zero &
Design, Dual Refrigeration, Constant Care, The Living Kitchen, Great American Kitchens The Fine Art of Kitchen Design, and Ingredients are registered trademarks and service marks
of Sub-Zero, Inc. (collectively, the “Company Marks.” ) All other trademarks or registered trademarks are property of their respective owners in the United States and other countries.
wolfappliance.com | 7
Page 8
WOLF APPLIANCE, INC. P.O. BOX 44848 MADISON, WI 53744 WOLFAPPLIANCE.COM 800.222.7820
WDGOMW 12 /2013
