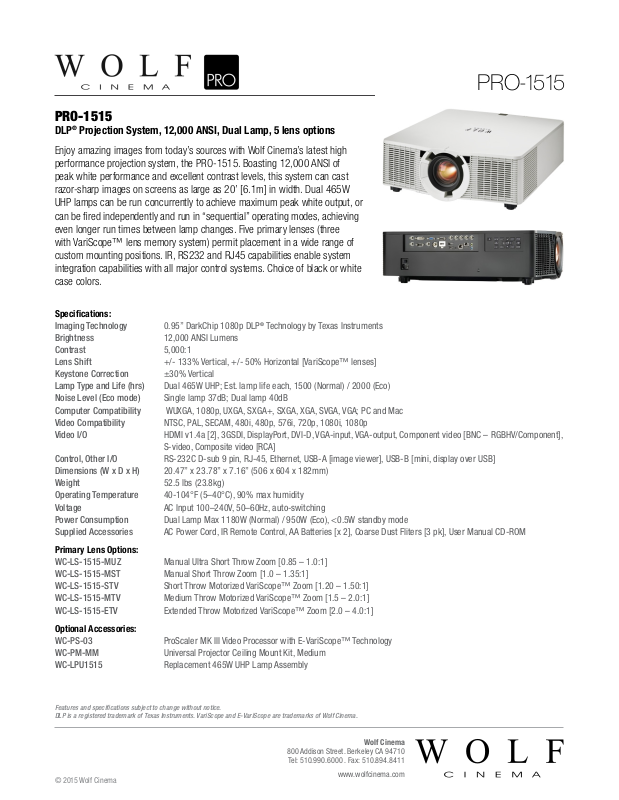

PRO-1515
DLP® Projection System, 12,000 ANSI, Dual Lamp, 5 lens options
Enjoy amazing images from today’s sources with Wolf Cinema’s latest high
performance projection system, the PRO-1515. Boasting 12,000 ANSI of
peak white performance and excellent contrast levels, this system can cast
razor-sharp images on screens as large as 20’ [6.1m] in width. Dual 465W
UHP lamps can be run concurrently to achieve maximum peak white output, or
can be fired independently and run in “sequential” operating modes, achieving
even longer run times between lamp changes. Five primary lenses (three
with VariScope™ lens memory system) permit placement in a wide range of
custom mounting positions. IR, RS232 and RJ45 capabilities enable system
integration capabilities with all major control systems. Choice of black or white
case colors.
PRO-1515
Specifications:
Imaging Technology 0.95” DarkChip 1080p DLP
Brightness 12,000 ANSI Lumens
Contrast 5,000:1
Lens Shift +/- 133% Vertical, +/- 50% Horizontal [VariScope™ lenses]
Keystone Correction ±30% Vertical
Lamp Type and Life (hrs) Dual 465W UHP; Est. lamp life each, 1500 (Normal) / 2000 (Eco)
Noise Level (Eco mode) Single lamp 37dB; Dual lamp 40dB
Computer Compatibility WUXGA, 1080p, UXGA, SXGA+, SXGA, XGA, SVGA, VGA; PC and Mac
Video Compatibility NTSC, PAL, SECAM, 480i, 480p, 576i, 720p, 1080i, 1080p
Video I/O HDMI v1.4a [2], 3GSDI, DisplayPort, DVI-D, VGA-input, VGA-output, Component video [BNC – RGBHV/Component],
S-video, Composite video [RCA]
Control, Other I/O RS-232C D-sub 9 pin, RJ-45, Ethernet, USB-A [image viewer], USB-B [mini, display over USB]
Dimensions (W x D x H) 20.47” x 23.78” x 7.16” (506 x 604 x 182mm)
Weight 52.5 lbs (23.8kg)
Operating Temperature 40-104°F (5–40°C), 90% max humidity
Voltage AC Input 100–240V, 50–60Hz, auto-switching
Power Consumption Dual Lamp Max 1180W (Normal) / 950W (Eco), <0.5W standby mode
Supplied Accessories AC Power Cord, IR Remote Control, AA Batteries [x 2], Coarse Dust Fliters [3 pk], User Manual CD-ROM
Primary Lens Options:
WC-LS-1515-MUZ Manual Ultra Short Throw Zoom [0.85 – 1.0:1]
WC-LS-1515-MST Manual Short Throw Zoom [1.0 – 1.35:1]
WC-LS-1515-STV Short Throw Motorized VariScope™ Zoom [1.20 – 1.50:1]
WC-LS-1515-MTV Medium Throw Motorized VariScope™ Zoom [1.5 – 2.0:1]
WC-LS-1515-ETV Extended Throw Motorized VariScope™ Zoom [2.0 – 4.0:1]
®
Technology by Texas Instruments
Optional Accessories:
WC-PS-03 ProScaler MK III Video Processor with E-VariScope™ Technology
WC-PM-MM Universal Projector Ceiling Mount Kit, Medium
WC-LPU1515 Replacement 465W UHP Lamp Assembly
Features and specifications subject to change without notice.
DLP is a registered trademark of Texas Instruments. VariScope and E-VariScope are trademarks of Wolf Cinema.
