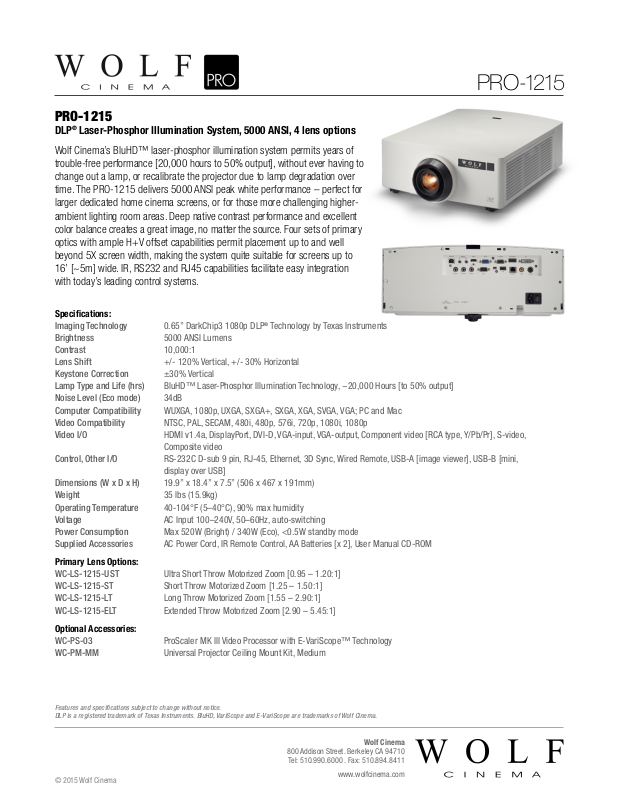

Wolf Cinema PRO-1215 Product Sheet

PRO-1215

DLP® Laser-Phosphor Illumination System, 5000 ANSI, 4 lens options

Wolf Cinema’s BluHD™ laser-phosphor illumination system permits years of
trouble-free performance [20,000 hours to 50% output], without ever having to
change out a lamp, or recalibrate the projector due to lamp degradation over
time. The PRO-1215 delivers 5000 ANSI peak white performance – perfect for
larger dedicated home cinema screens, or for those more challenging higher­ambient lighting room areas. Deep native contrast performance and excellent
color balance creates a great image, no matter the source. Four sets of primary
optics with ample H+V offset capabilities permit placement up to and well
beyond 5X screen width, making the system quite suitable for screens up to
16’ [~5m] wide. IR, RS232 and RJ45 capabilities facilitate easy integration
with today’s leading control systems.

PRO-1215

Specifications:

Imaging Technology 0.65” DarkChip3 1080p DLP
Brightness 5000 ANSI Lumens
Contrast 10,000:1
Lens Shift +/- 120% Vertical, +/- 30% Horizontal
Keystone Correction ±30% Vertical
Lamp Type and Life (hrs) BluHD™ Laser-Phosphor Illumination Technology, ~20,000 Hours [to 50% output]
Noise Level (Eco mode) 34dB
Computer Compatibility WUXGA, 1080p, UXGA, SXGA+, SXGA, XGA, SVGA, VGA; PC and Mac
Video Compatibility NTSC, PAL, SECAM, 480i, 480p, 576i, 720p, 1080i, 1080p
Video I/O HDMI v1.4a, DisplayPort, DVI-D, VGA-input, VGA-output, Component video [RCA type, Y/Pb/Pr], S-video,

Composite video

Control, Other I/O RS-232C D-sub 9 pin, RJ-45, Ethernet, 3D Sync, Wired Remote, USB-A [image viewer], USB-B [mini,

display over USB]

Dimensions (W x D x H) 19.9” x 18.4” x 7.5” (506 x 467 x 191mm)
Weight 35 lbs (15.9kg)
Operating Temperature 40-104°F (5–40°C), 90% max humidity
Voltage AC Input 100–240V, 50–60Hz, auto-switching
Power Consumption Max 520W (Bright) / 340W (Eco), <0.5W standby mode
Supplied Accessories AC Power Cord, IR Remote Control, AA Batteries [x 2], User Manual CD-ROM

Primary Lens Options:

WC-LS-1215-UST Ultra Short Throw Motorized Zoom [0.95 – 1.20:1]
WC-LS-1215-ST Short Throw Motorized Zoom [1.25 – 1.50:1]
WC-LS-1215-LT Long Throw Motorized Zoom [1.55 – 2.90:1]
WC-LS-1215-ELT Extended Throw Motorized Zoom [2.90 – 5.45:1]

®

Technology by Texas Instruments

Optional Accessories:

WC-PS-03 ProScaler MK III Video Processor with E-VariScope™ Technology
WC-PM-MM Universal Projector Ceiling Mount Kit, Medium

Features and specifications subject to change without notice.
DLP is a registered trademark of Texas Instruments. BluHD, VariScope and E-VariScope are trademarks of Wolf Cinema.
